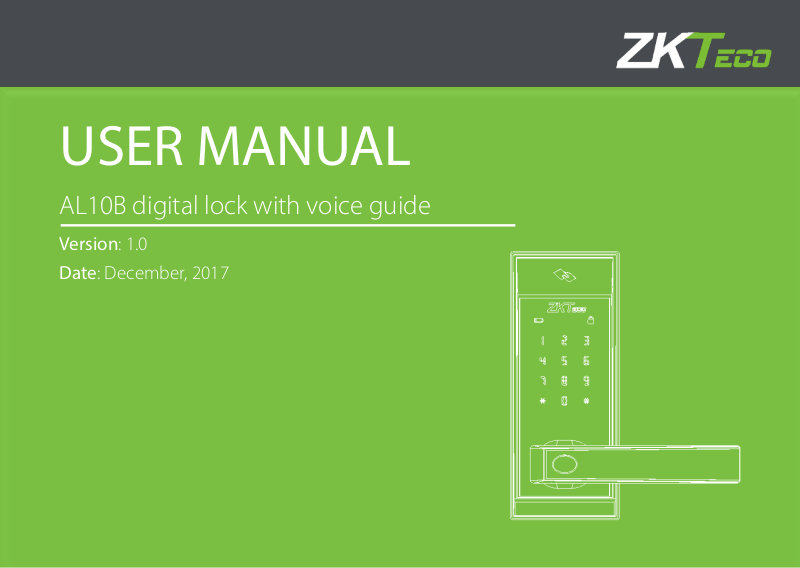

USER MANUAL
AL10B digital lock with voice guide
Version: 1.0
Date: December, 2017
1
Read Before Use ............................................................................................................ 1
Safety Precautions ....................................................................................................................... 1
Structure ............................................................................................................................................. 2
Basic Function ............................................................................................................... 3
User Introduction ......................................................................................................................... 3
Initialization ...................................................................................................................................... 4
Random Password ....................................................................................................................... 4
Voice Guide ...................................................................................................................................... 5
Volume setting ............................................................................................................................... 5
Language setting ......................................................................................................................... 5
Lockout mode ................................................................................................................................ 5
Normal Open .................................................................................................................................. 6
Low Battery Warning ................................................................................................................. 6
9V External Battery ...................................................................................................................... 7
How to change handle direction ...................................................................................... 8
Emergency Mechanical Key ................................................................................................. 9
How to Use .................................................................................................................. 10
Register First Administrator ................................................................................................ 10
Register Other Administrator ............................................................................................ 12
Register Normal User .............................................................................................................. 13
Delete Admin ............................................................................................................................... 14
Delete Normal User ................................................................................................................. 15
Back up enroll .............................................................................................................................. 16
Volume setting ............................................................................................................................ 17
Language setting ...................................................................................................................... 18
Lockout mode ............................................................................................................................. 19
Normal open mode ................................................................................................................. 20

Read Before Use

Safety Precautions

1. The factory setting of all new locks will allow ANY verification to open them.
2. Please register at least one administrator for the newly installed lock. The lock cannot
register any normal users without an administrator.
3. The lock is equipped with mechanical keys for manual unlocking. Please keep the
mechanical keys at a safe place.
4. To power ON the lock, four alkaline AA batteries (not included) are required.
Non-alkaline and rechargeable batteries ARE NOT RECOMMENDED.
5. Do not remove batteries when the lock is in working state.
6. Please replace the battery soon when the lock prompts of low battery.
7. If the lock does not have any activity for seven seconds it will go into sleep mode and
prompts of time expired.
Page | 1

Structure

1
2
3
4
1
2 3
4
5
6
. Card Area
. Keypad & Card Detection Area
. Mechanical Key Hole
. Handle
Page | 2
5. Battery Area
6. Louckout Switch
7. 9V Battery Interface
8. Speaker
7
8

Basic Function

User Introduction

Group Verification Mode Function Capacity
Administrator
Normal User
Note:
1. The maximum card/password capacity is 100 for all groups.
2. The length of password is six digits.
Card
Password Max.100
Card
Password Max.100
Register / Delete User,
Open The Door,
Access in menu
Open the door
Page | 3
Max.100
Max.100

Initialization

Initializing the lock means all data will be delete and restore to factory default setting.
Operation steps: Press the reset button on the back body of the lock, then touch the
keypad to power on the lock holding the reset button for 5 seconds until the lock
prompts the voice of “Restore to default settings, wait a moment”. After around 30
seconds, the lock prompts the voice of “completed”, and then the initialization is finished
completely.

Random Password

Random password = Users may enter any number of random digits before or after the
correct six digit password as long as the maximum number of digits entered is 32 or less.
For example: If the correct password is 123456, the random password can be
89123456807, 1234562363, 389123456, etc.
Page | 4

Voice Guide

After accessing the menu, the lock provides voice prompts before and after each
operation for easy configuration.

Volume Setting

The lock volume can be set, which has three modes, high volume mode, low volume
mode and silent mode.

Language Setting

Supports English / Spanish.or English / Portuguese.

Lockout Mode

When the lock set as lockout mode, only administrator can open the door, and also can
use the Lockout Switch to enable or disable the mode.
Page | 5
