FURNITURE PART LIST
ITEM DESCRIPTION
QTY
A
HEADBOARD 1 PC
B
SUPPORT BOARD 2 PCS
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.

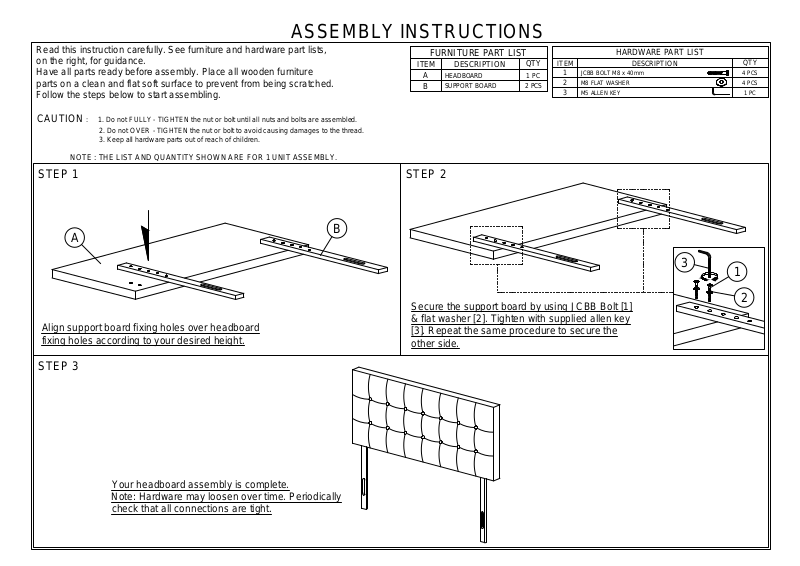

ASSEMBLY INSTRUCTIONS
STEP 2
B
2
STEP 1
A
1
3
HARDWARE PART LIST
ITEM DESCRIPTION
QTY
1
JCBB BOLT M8 x 40mm 4 PCS
2
M8 FLAT WASHER 4 PCS
3
M5 ALLEN KEY 1 PC
STEP 3
Align support board fixing holes over headboard
fixing holes according to your desired height.
Secure the support board by using JCBB Bolt [1]
& flat washer [2]. Tighten with supplied allen key
[3]. Repeat the same procedure to secure the
other side.
Your headboard assembly is complete.
Note: Hardware may loosen over time. Periodically
check that all connections are tight.
Read this instruction carefully. See furniture and hardware part lists,
on the right, for guidance.
Have all parts ready befor
e assembly. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the steps below to start assembling.
CAUTION : 1. Do not FULLY - TIGHTEN the nut or bolt until all nuts and bolt
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
s are assembled.
