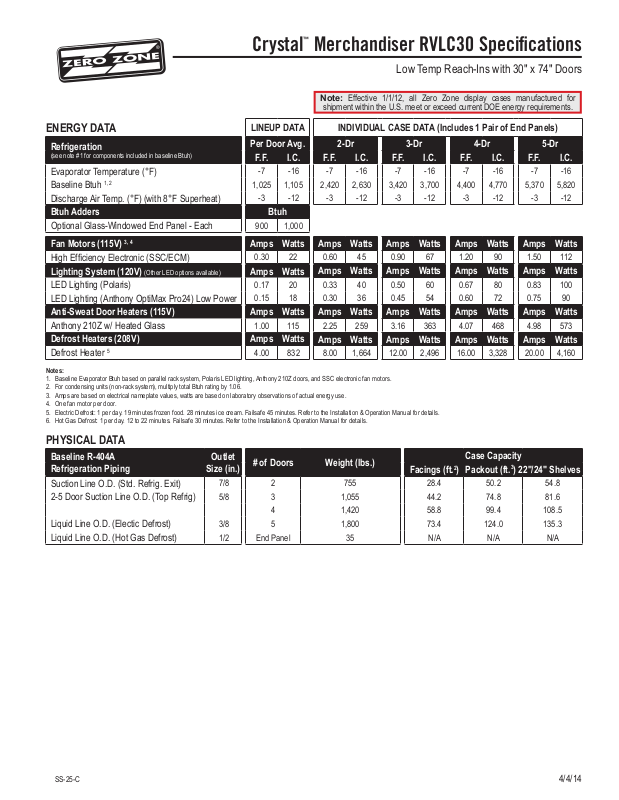

Crystal™ Merchandiser RVLC30 Specications

Low Temp Reach-Ins with 30" x 74" Doors

Note: Effective 1/1/12, all Zero Zone display cases manufactured for

shipment within the U.S. meet or exceed current DOE energy requirements.

ENERGY DATA

Refrigeration

(see note #1 for components included in baseline Btuh)

Evaporator Temperature (°F) Baseline Btuh Discharge Air Temp. (°F) (with 8°F Superheat)

1, 2

LINEUP DATA INDIVIDUAL CASE DATA (Includes 1 Pair of End Panels)

Per Door Avg. 2-Dr 3-Dr 4-Dr 5-Dr

F.F. I.C. F.F. I.C. F.F. I.C. F.F. I.C. F.F. I.C.

-7 -16 -7 -16 -7 -16 -7 -16 -7 -16

1,025 1,105 2,420 2,630 3,420 3,700 4,400 4,770 5,370 5,820

-3 -12 -3 -12 -3 -12 -3 -12 -3 -12

Btuh Adders Btuh

Optional Glass-Windowed End Panel - Each

Fan Motors (115V)

3, 4

High Efciency Electronic (SSC/ECM)

Lighting System (120V) (Other LED options available) Amps Watts

LED Lighting (Polaris)

LED Lighting (Anthony OptiMax Pro24) Low Power

Anti-Sweat Door Heaters (115V) Amps Watts

Anthony 210Z w/ Heated Glass

Defrost Heaters (208V) Amps Watts

Defrost Heater

Notes:

1. Baseline Evaporator Btuh based on parallel rack system, Polaris LED lighting, Anthony 210Z doors, and SSC electronic fan motors.

2. For condensing units (non-rack system), multiply total Btuh rating by 1.06.

3. Amps are based on electrical nameplate values, watts are based on laboratory observations of actual energy use.

4. One fan motor per door.

5. Electric Defrost: 1 per day. 19 minutes frozen food. 28 minutes ice cream. Failsafe 45 minutes. Refer to the Installation & Operation Manual for details.

6. Hot Gas Defrost: 1 per day. 12 to 22 minutes. Failsafe 30 minutes. Refer to the Installation & Operation Manual for details.

900 1,000

Amps Watts Amps Watts Amps Watts Amps Watts Amps Watts

0.30 22 0.60 45 0.90 67 1.20 90 1.50 112

Amps Watts Amps Watts Amps Watts Amps Watts

0.17 20

0.15 18 0.30 36 0.45 54 0.60 72 0.75 90

0.33 40 0.50 60 0.67 80 0.83 100

Amps Watts Amps Watts Amps Watts Amps Watts

1.00 115 2.25 259 3.16 363 4.07 468 4.98 573

Amps Watts Amps Watts Amps Watts Amps Watts

4.00 832 8.00 1,664 12.00 2,496 16.00 3,328 20.00 4,160

PHYSICAL DATA

Baseline R-404A Refrigeration Piping

Suction Line O.D. (Std. Refrig. Exit) 2-5 Door Suction Line O.D. (Top Refrig)

Liquid Line O.D. (Electic Defrost) Liquid Line O.D. (Hot Gas Defrost)

Outlet

Size (in.)

7/8 2 755 28.4 50.2 54.8

5/8 3 1,055 44.2 74.8 81.6

3/8 5 1,800 73.4 124.0 135.3

1/2 End Panel 35 N/A N/A N/A

# of Doors Weight (lbs.)

4 1,420 58.8 99.4 108.5

Facings (ft.2)

Case Capacity Packout (ft.3) 22"/24" Shelves

SS-25-C 4/4/14

Crystal™ Merchandiser RVLC30 Specications

2 3/4" FLOOR

3 1/2" BASE

82 1/4" MIN.CASE HEIGHT (TOP OF RACEWAY)

83 3/8" CASE HEIGHT WITH ELEC. BOX

RELEASED

Low Temp Reach-Ins with 30" x 74" Doors

3 3/4"

OPTIONAL REFRIGERATION

CONNECTION

22" OR 24"

SHELF

DEFROST TERMINATION

THERMOSTAT LOC.

(CENTERED)

DRAIN

ELECTRICAL BOX

OPTIONAL REFRIGERATION EGRESS

ELECTRICAL BOX

24"

21 3/4"

2 1/2" END

PANEL TYP.

# of

Length

Doors

2 62 1/8" 31 1/16"

3 92 1/2" 46 1/4"

4 123" 61 1/2"

5 153 3/8" 76 11/16"

1" PVC DRAIN TRAP (TYP.) (REVERSIBLE)

(OPTION FOR DRAIN TO EITHER SIDE)

Drain

Dim.

14 3/8"

8 7/8" 5 1/2"

63 1/2" BASKET INSTALLED FLAT

65 7/8" BASKET INSTALLED AT ANGLE

15"

OPTIONAL

REFRIGERATION

EGRESS

4/4/14

Specications are subject to change without notice. Case designed to operate in an ambient temperature of 75°F and relative humidity of 55% or lower.

32 1/4" (DRAIN

33 1/2" (BASE)

38 1/8" (BUMPER)

39 5/8" (HANDLE)

 Top refrigeration connections increase case height by up to 4 inches.  End Panels and Insulated Dividers = 2 1/2".  All dimensions are nominal.

Zero Zone, Inc. | 110 N Oakridge Drive | North Prairie, WI 53153-9792

74" NOMINAL DOOR HEIGHT

)

DRAIN

Toll Free: 800-247-4496 | Fax: 262-392-6450

Zero-Zone.com

HEIGHT
