Zero Zone 1RMZC30 User Manual
1RMZC30 Specications

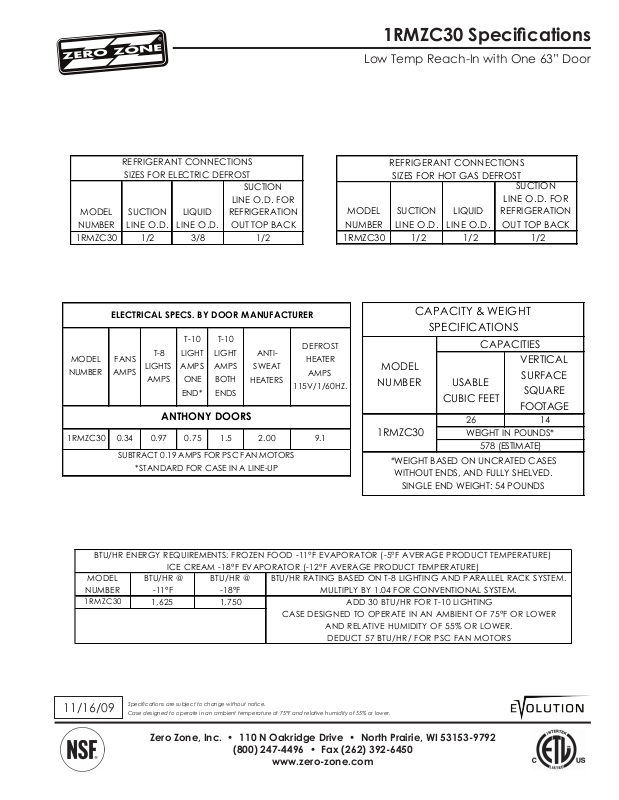

1RMZC30 SPECIFICATION SHEET
SUCTION
BTU/HR ENERGY REQUIREMENTS: FROZEN FOOD -11°F EVAPORATOR (-5°F AVERAGE PRODUCT TEMPERATURE)
BTU/HR @
BTU/HR RATING BASED ON T-8 LIGHTING AND PARALLEL RACK SYSTEM.
Low Temp Reach-In with One 63” Door
REFRIGERANT CONNECTIONS
SIZES FOR ELECTRIC DEFROST
SUCTION
LINE O.D. FOR
MODEL
NUMBER
1RMZC30 1/2 3/8 1/2
SUCTION
LINE O.D.
LIQUID
LINE O.D.
REFRIGERATION
OUT TOP BACK
ELECTRICAL SPECS. BY DOOR MANUFACTURER
T-10
T-8
MODEL
NUMBER
FANS
AMPS
LIGHTS
AMPS
LIGHT
AMPS
ONE
END*
ANTHONY DOORS
1RMZC30 0.34 0.97 0.75 1.5 2.00 9.1
SUBTRACT 0.19 AMPS FOR PSC FAN MOTORS
*STANDARD FOR CASE IN A LINE-UP
T-10
LIGHT
AMPS
BOTH
ENDS
ANTI-
SWEAT
HEATERS
DEFROST
HEATER
AMPS
115V/1/60HZ.
REFRIGERANT CONNECTIONS
SIZES FOR HOT GAS DEFROST
LINE O.D. FOR
MODEL
NUMBER
SUCTION
LINE O.D.
LIQUID
LINE O.D.
REFRIGERATION
OUT TOP BACK
1RMZC30 1/2 1/2 1/2
CAPACITY & WEIGHT
SPECIFICATIONS
CAPACITIES
MODEL
NUMBER
USABLE
CUBIC FEET
26 14
1RMZC30
*WEIGHT BASED ON UNCRATED CASES
WITHOUT ENDS, AND FULLY SHELVED.
SINGLE END WEIGHT: 54 POUNDS
WEIGHT IN POUNDS*
578 (ESTIMATE)
VERTICAL
SURFACE
SQUARE
FOOTAGE
ICE CREAM -18°F EVAPORATOR (-12°F AVERAGE PRODUCT TEMPERATURE)
MODEL
NUMBER
1RMZC30
11/16/09
-11°F
1,625 1,750
Specications are subject to change without notice.
Case designed to operate in an ambient temperature of 75°F and relative humidity of 55% or lower.
BTU/HR @
-18°F
MULTIPLY BY 1.04 FOR CONVENTIONAL SYSTEM.
ADD 30 BTU/HR FOR T-10 LIGHTING
CASE DESIGNED TO OPERATE IN AN AMBIENT OF 75°F OR LOWER
AND RELATIVE HUMIDITY OF 55% OR LOWER.
DEDUCT 57 BTU/HR/ FOR PSC FAN MOTORS
Zero Zone, Inc. • 110 N Oakridge Drive • North Prairie, WI 53153-9792
(800) 247-4496 • Fax (262) 392-6450
www.zero-zone.com
1RMZC30 Specications
1RMZC30 SPECIFICATION SHEET
Low Temp Reach-In with One 63” Door
* NOTE: CASE DIMENSIONS SHOWN REFLECT STANDARD 4-1/2” HIGH BASES
DIMENSIONS SHOWN IN (PARENTHESIS) REFLECT 3-1/2” BASES.
Partial Side View
(Bottom)
Front View
11/16/09
Side View
Specications are subject to change without notice.
Case designed to operate in an ambient temperature of 75°F and relative humidity of 55% or lower.
Zero Zone, Inc. • 110 N Oakridge Drive • North Prairie, WI 53153-9792
(800) 247-4496 • Fax (262) 392-6450
www.zero-zone.com
