Zephyr PRW24C02BG User Manual
1
Use, Care and Installation Guide
www.zephyronline.com
PRW24C02BG
Presrv Dual Zone Wine Cooler
MAY19.0101
2
Table of Contents
Page
Safety Information 3-8
Introduction 9
Specifications 10
Storage 10

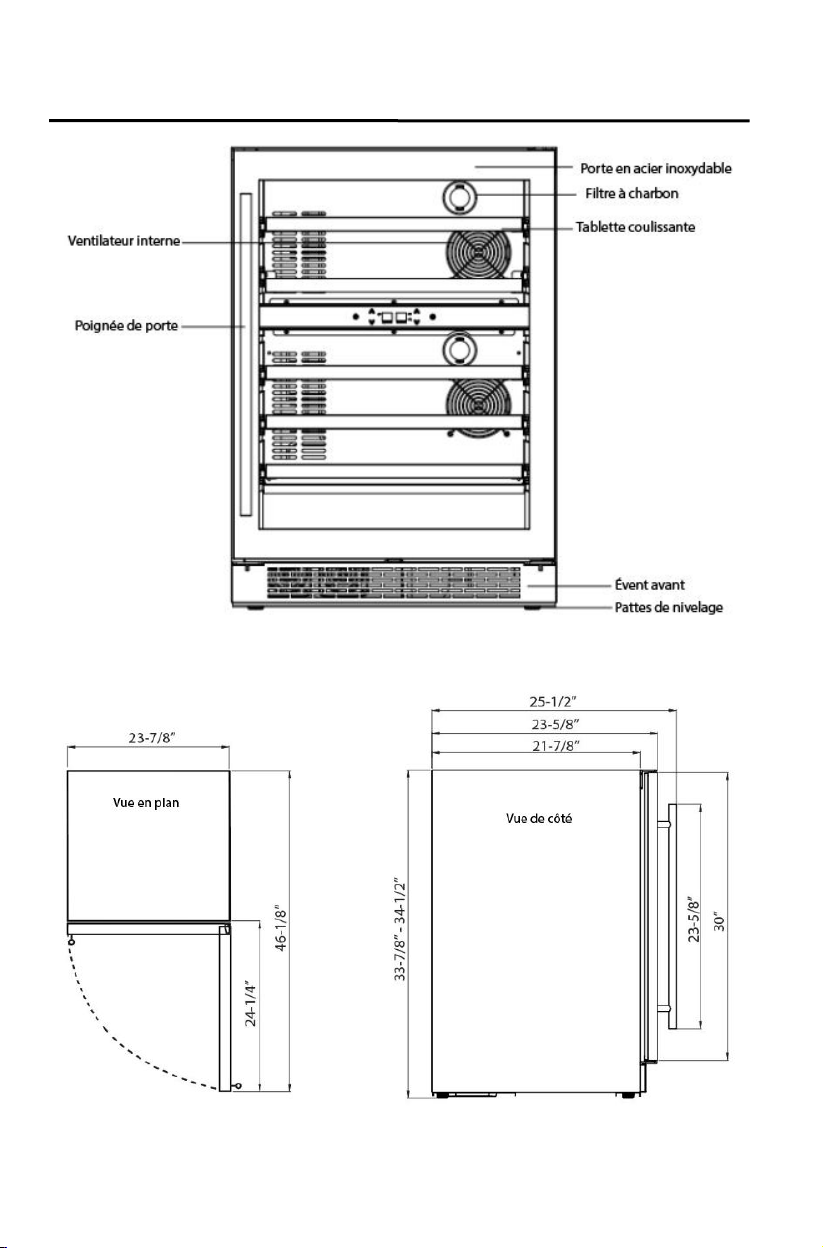

Parts Identification & Dimensions 11
Installation Instructions 12-14
Operating your appliances 15-16
Care and Maintenance 17-18
Troubleshooting 19-20
Product Registration 21
Warranty 22
3
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your
appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can cause severe bodily injury or death. All safety messages will follow the

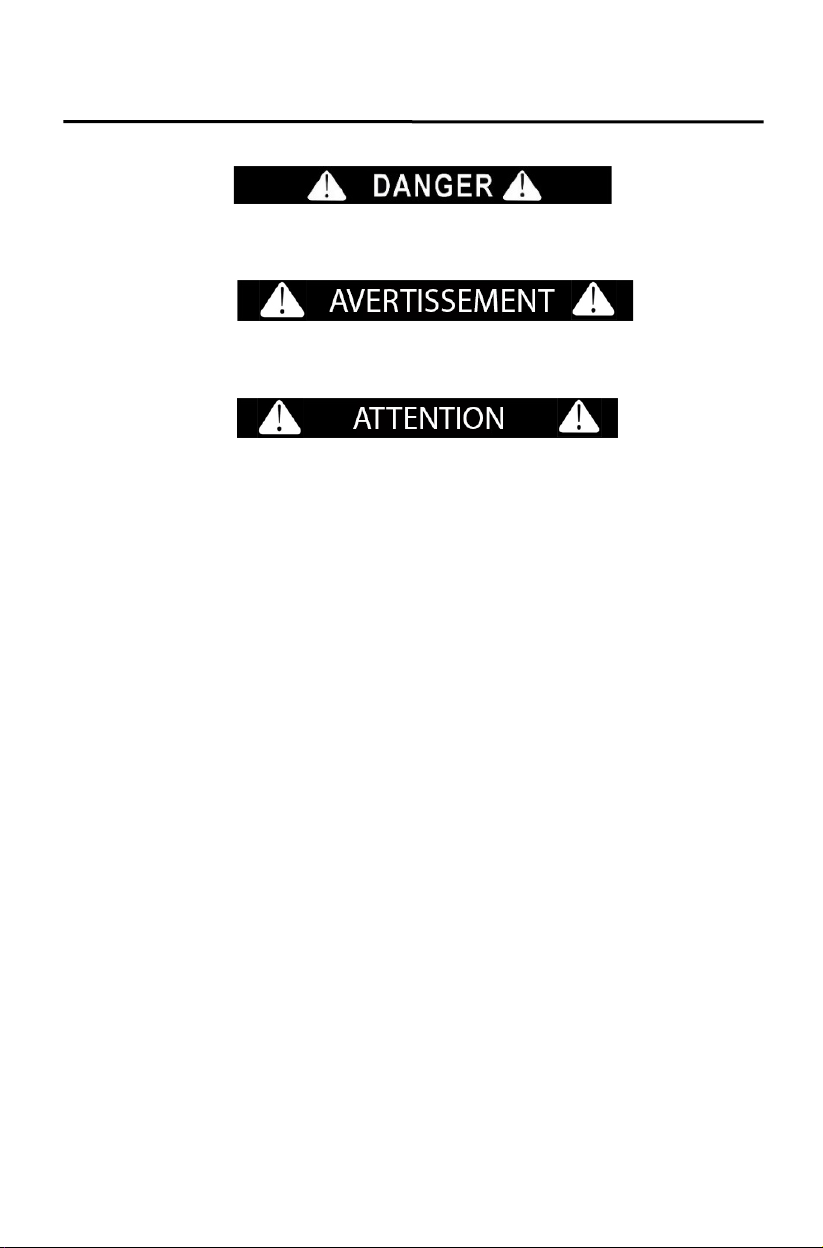

Safety Alert Symbol and either the words “DANGER” “WARNING” or
“CAUTION”
Danger means that failure to heed this safety statement may result in severe
injury or death.
Warning means that failure to heed this safety statement may result in
extensive product damage, serious personal injury, or death.
Caution means that failure to heed this safety statement may result in minor or
moderate personal injury, property or equipment damage.
4
Safety Information
For your safety, read
all instructions carefully before operating the
appliance.
DANGER: When using an electrical appliance, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the appliance from the power supply before
servicing.
CAUTION: Flammable refrigerant used! When handling, moving and use
of the refrigerator, make sure to avoid either damaging the refrigerant
tubing, or increasing the risk of a leak.
Use this appliance only as described in this manual. Other uses not recommended
may cause fire, electric shock or personal injury.
This appliance is not intended for use by young children or infirm persons unless
they have been adequately supervised by a responsible person to ensure that
they can use the appliance safely.
Young children should be supervised to ensure that they never play with the
appliance.
The temperature range for this cooler is optimized for non-perishable beverage
storage only. Do not store perishable food items in your beverage cooler.
To protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or
plug in water or spray any other liquid.
Unplug the appliance from the plug socket when not in use, when moving from
one location to another and before cleaning.
To disconnect the appliance, grip the plug and pull it from the wall outlet. Never
pull by the cord.
Never operate the appliance in the presence of explosive and/or flammable
fumes.
Never place the appliance or any of its parts near an open flame, cooking or other
heating appliance.
Never operate the appliance with a damaged cord or plug, if the product
malfunctions, or if it is dropped or damaged in any manner.
The use of attachments not recommended by the manufacturer may be
hazardous.
Never operate if the housing is removed or damaged.
A loose fit between the AC outlet (receptacle) and plug may cause overheating and
a distortion of the plug. Contact a qualified electrician to replace loose or worn
outlet.
Locate the unit away from direct sunlight and sources of heat (stove, heater,
radiator, etc.).
5
Safety Information
This appliance is CFC and HFC free and contains small quantities of Isobutane
(R600a), an environmentally friendly coolant.
You must ensure that the cooling circuit is undamaged when installing the
appliance. However, if it becomes damaged, avoid proximity to open fires and heat
sources of all kinds. The room in which the appliance is located should be
ventilated properly and according to state and local codes.
Never use an appliance with a damaged circuit.
Ensure that the ventilation openings to and from a built-in appliance are never
blocked or covered.
No liability will be accepted for any damage caused by misuse of the appliance, or
as a result of repairs carried out by unqualified person. In this case neither the
warranty nor any other liability claims will apply
WARNING: Never operate any other electrical appliance inside this appliance.
Never attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified
technician.
Replace all access panels before operating.
Use two or more people to move and install the appliance. Failure to do so can result
in back or other injury.
Never clean appliance parts with flammable liquids. These fumes can create a fire
hazard or explosion. Never store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
.
Never connect or disconnect the electric plug with wet hands.
It is recommended that a separate circuit, serving only your appliance be
provided. Use receptacles that cannot be turned off by a switch or pull chain.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the appliance from the power supply before servicing.
Save These Instructions
If you are experiencing problems, check the Troubleshooting Guide at the back of this
manual. It lists causes of minor operating problems that you can correct yourself.
6
Safety Information
Disposal of Old Appliance
Dispose of your appliance packaging properly.
Refrigeration equipment must be properly disposed of in a way which protects the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life.
WARNING:
disposal by removing the plug, cutting the power cable, and removing or destroying
any snap fastenings or bolts. You will thus prevent children from locking themselves in
the appliance during play (risk of suffocation) or endangering their lives in any other
way.
Disposal instructions:
The appliance must not be disposed with normal household waste collection.
The coolant circuit, particularly the heat exchange at the back/bottom of the unit,
The symbol on the product or its packaging indicates that this product is not to be
Please ensure that old, worn appliances are rendered unusable before
must not be damaged.
handled as normal household waste but is to be taken to a recycling collection point
for electrical and electronic goods. By correctly disposing of this product you are
contributing to the protection of the environment. Improper disposal endangers
health and the environment. Further information about the recycling of the product
may be obtained from your town hall or local waste collection department.
7
Safety Information
Before Using Your Appliance
Remove all exterior and interior packing.
Before connecting the appliance to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the
cooling system caused by handling during transportation.
Clean the interior surface with warm water using a soft cloth.
The door on this appliance can be opened from either the left or the right side.
The unit is delivered with the door opening on the left side. Should you wish to
open the door from the right, follow the instructions, “Reversing the Door Swing of
your Appliance,” listed below.
Installation of Your Appliance
The appliances are designed for either built-in, or free-standing installation.
WARNING: Do not store or install the appliance outdoors.
Place your appliance on a floor that is strong enough to support it when it is fully
loaded. To level your appliance, adjust the 4 legs until level.
Locate the appliance away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may
increase electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly.
Never place the unit in damp areas.
Plug the appliance into an exclusive, easily accessible electrical socket.
Any questions concerning power and/or electrical connection should be directed
towards a qualified electrician or an authorized products service center.
The air vent at the front of the appliance must never be covered or blocked in any
way.
The appliance must be installed to all electrical connections in accordance with
state and local codes.
Use two or more people to move and install the beverage cooler. Failure to do so
can result in back or other injury.
The cooler may experience decreased cooling efficiency if air flow is restricted
due to a fully loaded cabinet.
8
Safety Information
Attention
Never overload the cabinet.
Never open the door unless necessary.
Never cover shelves with aluminum foil or any other shelf material which may
prevent air circulation.
Should the appliance be left empty for long periods, it is suggested that the
appliance be unplugged, and, after careful cleaning, leave the door ajar to allow
air to circulate inside the cabinet in order to avoid possible condensation, mold or
odors from forming.
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
WARNING: Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged, have it replaced by a qualified electrician or an
authorized service center.
This appliance should be properly grounded for your safety. The power cord of this
appliance is equipped with a three-pin plug which mates with standard three-pin wall
outlets to minimize the possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power
cord supplied. For personal safety, this appliance must be properly grounded.
with three pins. Have the wall outlet and circuit checked by a qualified electrician to
make sure the outlet is properly grounded. When a standard two-pin wall outlet is
encountered, it is your responsibility and obligation to have it replaced with a properly
grounded three-pin wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.
The appliance should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating label on the appliance. This provides the
best performance and also prevent overloading wiring circuits that could cause a fire
hazard from overheating. Never unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately all power cords that have become frayed or otherwise damaged. Never
use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Never use your appliance with an extension cord unless this cord has been checked
and tested by a qualified technician or service person. The extension cord must be a
UL/CUL Listed, 3-wire grounding extension cord that has a grounding plug and outlet
and that the electrical rating of the cord is 115 volts and at least 10 amperes.
9
Introduction
Thank you for purchasing your Zephyr wine cooler. Zephyr is dedicated to
developing products that will enhance your lifestyle with superior quality and
distinctive features. Please visit www.zephyronline.com
product and other Zephyr products.
This manual contains important information regarding the proper installation, use,
and maintenance of your beverage cooler. Following this manual will ensure that
your product will work at its peak performance and efficiency.
For Your Records:
Please write down the model number and serial number below for future reference.
Both numbers are located on the rating label on the back of your unit and are needed
to obtain warranty service. You may also want to staple your receipt to this manual
as it is the proof of your purchase and may also be needed for service under
warranty.
Model Number:
Serial Number:
for more information on your
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that
sold you the product.
Read and follow this instruction manual carefully to help you install, use and
maintain your beverage cooler.
Read the troubleshooting section of this manual as it will help you diagnose and
solve common issues.
Visit us on the web at http://www.zephyronline.com to download product guides,
additional troubleshooting resources and up-to-date information.
If you need warranty service, our friendly customer service representatives are
available via email at productsupport@zephyronline.com
or by telephone at 888-
880-8368.
10
DESCRIPTION OF PRODUCT
Dual Zone Wine Cooler
MODEL
PRW24C02BG
VOLITAGE/FREQUENCY
AC 115/60Hz
AMPERAGE
1.0 A
COLOR
Black Cabinet with Stainless
STORAGE CAPACITY
(45) 750ml bottles
REFRIGERANT
R600a,
TEMPERATURE RANGE
40° - 65° F
DIMENSIONS (HxWxD)
33 7/8’’ X 23 7/8’’ X 23 5/8’’
GROSS WEIGHT (lbs)
152.2
OPTIONAL PRO HANDLE
PRHAN-C001
REPLACEMENT CARBON FILTER
Z0F-C004
Specifications
This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet
ACCESSORY
Steel Door
Internal Storage
11
Parts Identification & Dimensions
12
Installation Instructions
Carbon Filter
A built-in carbon filter protects your beverages by acting as a natural barrier against
harmful odors. The carbon filter should be replaced every 3-6 months depending on the
unit’s exposure level to odor. If the unit is placed in a kitchen, regular replacement every
three months is ideal.
Remove the carbon filter by turning counterclockwise to unlock from rear panel.
Carbon Filter Replacement Part #: Z0F-C004

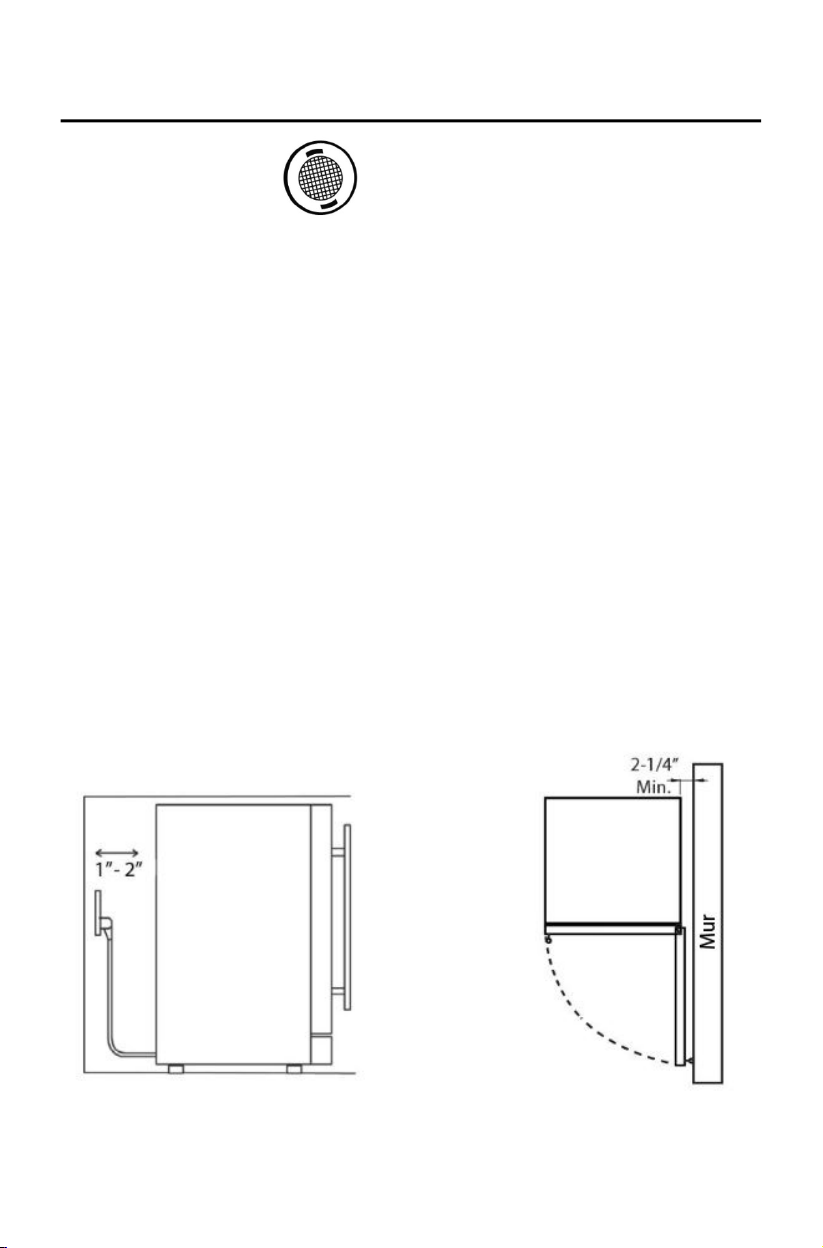

Installation Clearance Requirements
When installing the wine cooler under a counter, follow the recommended spacing dimensions shown.
To ensure proper service access and ventilation, allow between 1 – 2 inches of
clearance at the back as shown in the diagram.
The installation should allow the unit to be pulled forward for servicing, if
necessary.
An installation next to a wall will require a minimum 2-1/4” door clearance to
accommodate the handle.
Once you are ready to install the unit in a cabinet or directly on the floor, you must
adjust the feet to level the wine cooler.
13
Installation Instructions
Installing the Handle
1. Push aside the door gasket on the side you
wish to install the handle. Under the gasket
you will see two designated holes for handle
installation and pre-installed screws.
2. Install the handle tightly as shown with two
screws, lock washers and flat washers preinstalled.
Reversing the door swing of your appliance
Should you desire to reverse the opening direction of the door, please follow the instructions below:
A. Open the glass door to a 90-degree angle, take out the 2 screws from the lower
door axis (2), remove the door (3), axis plate spacers and the axis plate from the
door.
B. Take out the 3 hinge screws from the top right hinge (4) and remove it.
C. Unscrew 2 screws at the bottom of the door and remove the Reed switch (6), then
install the Reed switch at the top of the door frame.
D. Remove the decorative hole covers (8) from the top left of the cabinet and install
the new top hinge (7) at top of the cabinet with 3 screws. Install the decorative hole
covers on the top right of the cabinet.
E. Install the door with spacers and correctly align door.
14
Installation Instructions
To prevent damaging the door or door gasket, make sure the door is open at
least 90-degrees when pulling shelves out of the rail compartment.
REMOVING THE WOODEN SHELVES:
1. Open the door completely.
2. Remove all the contents loaded on the shelf, If applicable.
3. Pull the shelf towards yourself until it is fully extended outward.
4. The shelf has plastic posts on both sides as indicated in the diagram below. While
facing the unit, press the plastic post on the right side down while pulling up on the
left plastic post.
5. Evenly pull out the shelf from the track until it is completely removed from the inner
compartment.
Loading...
