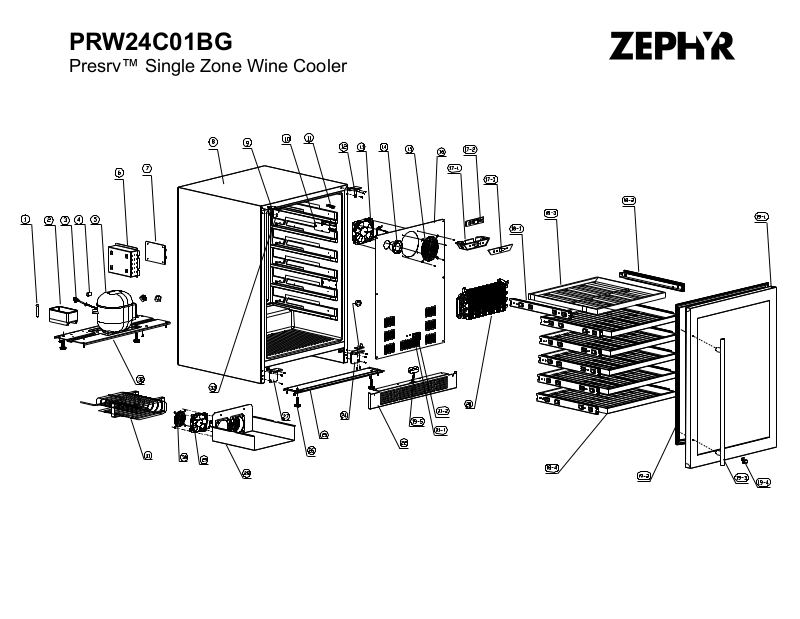

Zephyr PRW24C01BG Exploded View Diagram

PRW24C01BG

Presrv™ Single Zone Wine Cooler

PRW24C01BG

Presrv™

Ref # Part # Description Qty.

1 56030007 Dryer Filter 1

2 56130037 Drip Tray 1

3 11030135 Power Cord 1

4 56220042 Anti-Vibration Gasket 1

5-1 12160005 Compressor 1

5-2 11050016 Compressor Relay 1

5-3 11050017 Compressor Starter 1

6 56200102 Main PCB Box 1

7 11010106 Main Power Control Board 1

9 54180012 Upper Left Hinge (SN10) 1

9 54180040 Upper Left Hinge (SN11+) 1

10 52150013 LED Light Cover 5

11 12010010 Tri Color LED Light 5

12 54180013 Upper Right Hinge (SN10) 1

12 54180041 Upper Right Hinge (SN11+) 1

13 12130036 Fan 1

14 Z0F-C004 Carbon Filter 1

15 54210021 Fan Cover 1

16 50140167 Rear Internal Panel 1

17-1 56200103 Display Box 1

17-2 11010105

17-3 52050018 Display Cover 1

18-1 50320051 Sliding Rail, Left 6

18-2 50320050 Sliding Rail, Right 6

Display Control Board

1

18-3 50150017 Wooden Shelf w/Trim (7 Bottle) 1

18-4 50150018 Wooden Shelf w/Trim (8 Bottle) 5

19-1 50230008 Door (SN10) 1

19-1 50230016 Door (SN11+) 1
