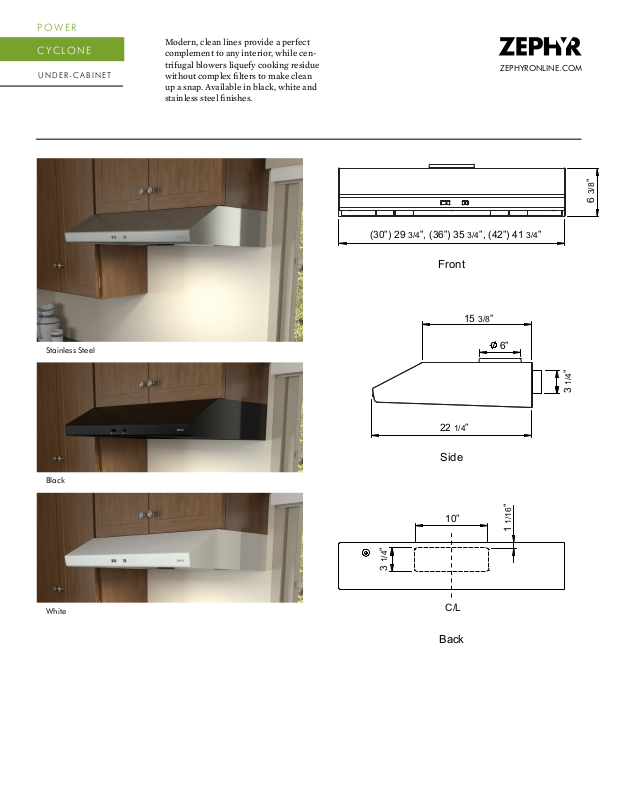

Zephyr AK6536BS, AK6500BS Specsheet
POWER
CYCLONE
UNDER-CABINET
Modern, clean lines provide a perfect
complement to any interior, while centrifugal blowers liquefy cooking residue
without complex filters to make clean
up a snap. Available in black, white and
stainless steel finishes.
ZEPHYRONLINE.COM
(30”) 29 3/4”, (36”) 35 3/4”, (42”) 41 3/4”
Front
3/8”
15
6 3/8”
Stainless Steel
Black
White
”
1/4
3
22
Side
10”
C/L
1/4”
6”
3 1/4”
1/16”
1
Back
POWER
CYCLONE
UNDER-CABINET
MODEL
Black
White
Stainless Steel
Size
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Auto Delay-Off
Lighting
Dual Level Lighting
Removable Safety Grilles
Recirculating Option
Self Cleaning
AK6500BB
AK6500BW
AK6500BS
30” (29-3/4”)
290 - 600
1.5 - 5
Mechanical Slide
3
No
Halogen, 35W x2
Yes
2
No
Yes
AK6536BB
AK6536BW
AK6536BS
36” (35-3/4”)
290 - 600
1.5 - 5
Mechanical Slide
3
No
Halogen, 35W x2
Yes
2
No
Yes
ZEPHYRONLINE.COM
AK6542BS
42” (41-3/4”)
290 - 600
1.5 - 5
Mechanical Slide
3
No
Halogen, 35W x2
Yes
2
No
Yes
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
6” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2.4A
6” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2.4A
OPTIONAL ACCESSORIES
Make-Up Air Kit
MOUNTING HEIGHT RANGE*
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
MUA006A
24” - 32”
10 years parts, 1 year labor
MUA006A
24” - 32”
10 years parts, 1 year labor
6” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2.4A
MUA006A
24” - 32”
10 years parts, 1 year labor
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
OCT15.0301
