Zenoah CHT2310, HT2310 User Manual
HT2310 / CHT2310
848D0593A0 (706)
OWNER’S MANUAL
HEDGE TRIMMER
G
G
B
B
HT2310
CHT2310
GB-1
HT2310 / CHT2310
EXPLANATION OF SYMBOLS AND SAFETY WARNINGS
HT2310
WARNING!!!
RISK OF DAMAGING HEARING
Wear head, eye and ear protection.
CHT2310
WARNING!!!
RISK OF DAMAGING HEARING
Wear head, eye and ear protection.
MODEL SOUND LEVEL VIBRATION LEVEL
prEN774
pAav
a
hv,eq
ISO 8662
2
6.5 m/s
A(8)
HTZ2310 22.5 cm
CHTZ2310 22.5 cm
APPROVAL NUMBER OF CE EXHAUST EMISSION REGULATION
ISO 11094
(guaranteed) L
L
wA
3
108 dB(A) 97 dB(A) 9.8 m/s
3
106 dB(A) 95 dB(A) 12.3 m/s28.1 m/s
e13*97/68SH2G3*2002/88*0104*04
2
2
GB-2
EC DECLARATION OF CONFORMITY
We, ZENOAH CO., LTD.
1-9, Minamidai, Kawagoe, Saitama, Japan
declare in sole responsibility that the following products referred to in this
declaration conform with
DIRECTIVE 89/336/EEC, 98/37/EC
2000/14/EC Internal control production.
The products referred to are:
DESIGNATION : HEDGE TRIMMER
MODELS : HT2310 CHT2310
SERIAL NUMBERS : 70300001 and up
The company named above will keep on file the following technical documentation for any inspection purpose.
• Operation instructions
• Plans and Drawings
• Description of measures designed to ensure conformity
• Other technical documentation : Specification sheet
Inspection standard
HT2310 / CHT2310
G
B
Saitama, Japan
Masahiko GOUDA
General Manager, Quality Assurance Department
SAFETY FIRST
Instructions contained in warnings within this manual marked
with a symbol concern critical points which must be taken
into consideration to prevent possible serious bodily injury, and
for this reason you are requested to read all such instructions
carefully and follow them without fail.
WARNINGS IN THE MANUAL
WARNING
This mark indicates instructions, which must be followed in order to prevent accidents, which could lead to serious bodily injury or death.
IMPORTANT
This mark indicates instructions, which must be followed, or it
leads to mechanical failure, breakdown, or damage.
NOTE
This mark indicates hints or directions useful in the use of the
product.
1st March 2007
Contents
1. Parts location .................................................. 4
2. Specifications ................................................. 4
3. Warning labels on the machine ...................... 5
4. Symbols on the machine ................................ 5
5. For safe operation ........................................... 6
6. Fuel ................................................................. 9
7. Operation ...................................................... 10

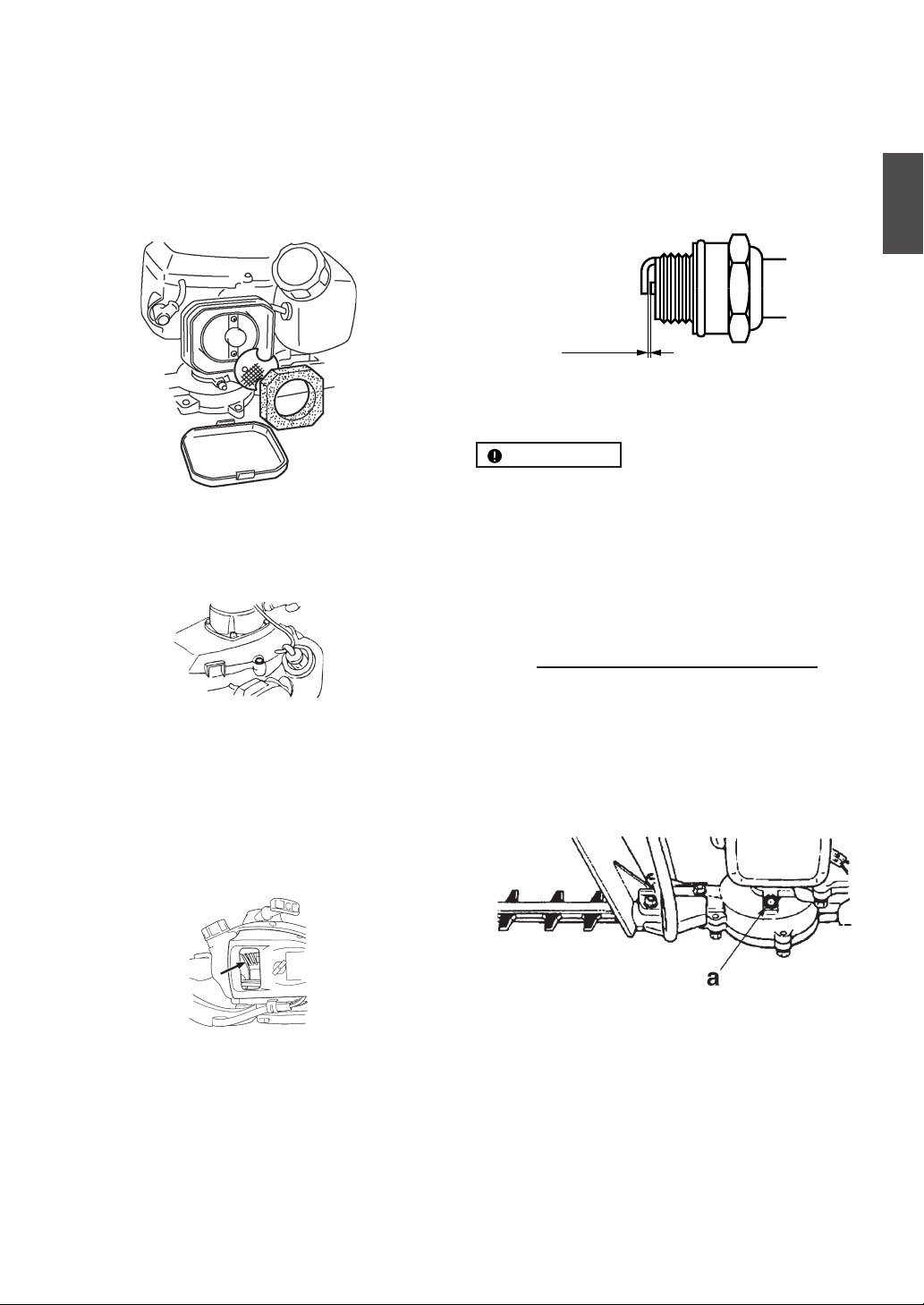

8. Maintenance ................................................. 12
9. Storage ......................................................... 14
10. Disposal ........................................................ 14
11. Troubleshooting guide .................................. 15
GB-3
HT2310 / CHT2310
1. Parts location
1. Right handle
2. Fuel tank
3. Starter
4. Left handle
5. Throttle lever
6. Ignition switch
7. Throttle Cable
8. Muffler
9. Blade
10. Front handle
11. Rear handle
12. Plate receive
2. Specification
Model ............................................................................................. HT2310 / CHT2310
Type ................................................................................................ double-action type
HT2310 / CHT2310 ..................................................... Single blade / Double blade
Blade length (from the tip of Gear Case)
HT2310 / CHT2310 ............................................................................ 750 / 600 mm
Engine
Model ............................................................................................. Zenoah G23LH
Displacement ........................................................................................... 22.5 cm
Carburetor .................................................................................... Diaphragm type
Ignition system ..................................................... I.C.controlled flywheel magneto
Spark plug ...................................................... Champion RCJ6Y or NGK BPMR7A
Fuel ........................................................................... Mixuture (Gasoline 50 : Oil 1)
........................................................................ (when using ZENOAH genuine oil)
Fuel tank capacity ................................................................................................. 0.6 L
Starter ...................................................................................................... Recoil starter
Clutch .................................................................................................. Centrifugal type
Reduction ratio
HT2310 / CHT2310 ................................................................................. 4.14 / 4.14
Dry weight
HT2310 / CHT2310 ................................................................................ 5.3 / 5.3 kg
Specifications are subject to change without notice.
3
GB-4
3. Warning labels on the machine
If warning label peels off or becomes soiled and
Read owner’s manual before operating this machine.
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
HT2310 / CHT2310
G
B
Wear head, eye and ear protection.
Warning / Attention
Keep all children, bystanders and helpers 15
meters away from the machine.
4. Symbols on the machine
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled hedge trimmer or if you don’t observe
the proper usage written in the manual.
For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications,
please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: AIR CLEANER COVER
The direction to open the choke
Position: AIR CLEANER COVER
GB-5
