Zenoah HBZ2602 User Manual

HB2302 / HBZ2602

115 33 78-10 (001)

Original Instruction

OWNER’S MANUAL

BLOWER

G

G
B

B

HB2302
HBZ2602

GB-1

HB2302 / HBZ2602

EC DECLARATION OF CONFORMITY

(Applies to Europe only)

The undersigned manufacturer,

Husqvarna Zenoah Co.,Ltd.,
1-9, Minamidai, Kawagoe, Saitama, Japan,

declares under sole responsibility that the following products referred to in this
declaration conform with the requirement of the following COUNCIL’S DIRECTIVE.

The products referred to are :

DESIGNATION : BLOWER (Hand-held garden blower)
MANUFACTURER : Husqvarna Zenoah Co., Ltd.
MODELS : HB2302

HBZ2602

SERIAL NUMBERS DATING : 2010 and onwards

(The year is clearly stated on the rating plate,
followed by the serial number)

This declaration conform with :

・DIRECTIVE 2006/42/EC of 17 May, 2006
・DIRECTIVE 2004/108/EC of December 15, 2004

(The following standards have been applied: EN 61000-6-1, EN 55012 (CISPR 12))
・DIRECTIVE 2000/14/EC of 8 May, 2000
conformity assessment procedure followed ANNEX V
(The following standards have been applied: ISO 11094)

・DIRECTIVE 97/68/EC of December 16, 1997

2002/88/EC of December 9, 2002

GB-2

Date :

Signature :
Kiyoshi Honda

General Manager, Development Center

Authorised representative :

Person authorised to compile the technical file :

29 December 2009

Husqvarna AB
SE-561 82 Huskvarna, Sweden

Bo R Jonsson
SE-561 82 Huskvarna, Sweden

EXPLANATION OF SYMBOLS AND SAFETY WARNINGS

WARNING!!!

RISK OF DAMAGING HEARING

Wear head, eye and ear protection.

MODEL

DISPLACEMENT

SOUND LEVEL

2000/14/EC

LWA

measured guaranteed
HB2302 22.5 cm
HBZ2602 25.4 cm

* Specifications are subject to change without notice

1) Noise emissions in the environment measured as sound power (L
Reported soundpower level for the machine has been measured with the original attachment.
The difference between guaranteed and measured sound power is that the guaranteed sound power also includes dispersion in
the measurement result and thevariations between different machines of the same model according to Directive 2000/14/EC.
Reported data for equivalent sound pressure level (L
sion (standard deviation) of 1 dB (A), and is calculated as the time-weighted energy total for sound pressure levels under
various working conditions with the following time distribution: 1/7 idling and 6/7 max speed.

2) Reported data for equivalent vibration level (a
of 1 m/s

2

.

APPROVAL NUMBER OF CE EXHAUST EMISSION REGULATION (2002/88/EC)

3

3

104 dB(A) 106 dB(A) 92 dB(A) 10.0 / 9.4 m/s
103 dB(A) 106 dB(A) 90 dB(A) 11.7 / 13.0 m/s

pAeq) at the operator’s ear for the machine has a typical statistical disper-

hv,eq) at the control handle has a typical statistical dispersion (standard deviation)

HB2302 : e13*97/68SH2G3*2002/88*0104*04
HBZ2602 : e13*97/68SH2G3*2002/88*0094*04

1)

ISO 7917

pAeq

L

WA) in conformity with EC directive 2000/14/EC.

VIBRATION LEVEL

ISO 22867 (prEN 15503)

ahv, eq

Left / Right handles

2

2)

2

HB2302 / HBZ2602

SAFETY FIRST

Instructions contained in warnings within this manual marked
with a
into consideration to prevent possible serious bodily injury, and
for this reason you are requested to read all such instructions
carefully and follow them without fail.

WARNINGS IN THE MANUAL

This mark indicates instructions, which must be followed in or­der to prevent accidents, which could lead to serious bodily in­jury or death.

This mark indicates instructions, which must be followed, or it
leads to mechanical failure, breakdown, or damage.

This mark indicates hints or directions useful in the use of the
product.

symbol concern critical points which must be taken

WARNING

IMPORTANT

NOTE

Contents

1. Parts location .................................................. 3

2. Specifications ................................................. 4

3. Warning labels on the machine ...................... 4

4. Symbols on the machine ................................ 4

5. For safe operation ........................................... 5

6. Set up ............................................................. 9

7. Fuel ............................................................... 10

8. Operation ...................................................... 11

9. Maintenance ................................................. 12

10. Storage ......................................................... 14

11. Disposal ........................................................ 14

12. Optional vacuum kit usage ........................... 14

13. Troubleshooting guide .................................. 15

G
B

1. Parts location

1. Engine cover

2. Volute case

3. Air Intake Screen (Air inlet net)

4. Screw

5. Air Cleaner

6. Recoil Starter

7. Fuel Tank

8. Spark Plug Cap

9. Chok Lever

10. Control handle

11. Ignition Switch

12. Throttle Trigger

13. Clamp

14. Straight pipe

15. Pipe end

16. Support handle

17. Owner's manual

18. Plug wrench (Hexagon socket S13/S19)
+ screwdriver (cross head) (HB2302)
Plug wrench (Hexagon socket S16/S19)
+ screwdriver (Torx T-27) (HBZ2602)

11

12

2

16

10

8

9

6

5

18

13

14

1

17

15

4

3

7

GB-3

HB2302 / HBZ2602

2. Specification

Model HB2302 HBZ2602

Dimesion (L x W x H) ** 327 x 225 x 360 327 x 269 x 360
Dry weight* kg 3.9 4.2
Fuel tank capacity liter 0.75 0.65

Engine Type

Displacement cm
Air filter Dry polyurethane foam
Carburetor Diaphragm, rotary valve type
Ignition system T.C.I. C.D.I.
Spark plug Champion RCJ6Y (Noise-proof) NGK CMR7H (Noise-proof)
Muffler Spark arrester equipped
Operating Engine Speed rpm 2300 to 7600 2800 to 7600
Fuel consumption liter/h 0.80 0.58
Air Volume* cu.m/min. 10 10
Max. Air Velocity* m/sec. 55 55

* with standard pipe ** without pipe
Specifications are subject to change without notice.

3

Air cooled Strato-charged air cooled

2-cycle gasoline engine 2-cycle gasoline engine

22.5 25.4

3. Warning labels on the machine

(1) Read owner's manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Handling this machine improperly could result in accidents caus-

ingserious injury or death. Read this manual carefully and prac­tice using the blower until you are fully acquainted with all op­erations and have learned to use it correctly.

(4) Severing of fingers or hand by fan blade

Do not open or remove safety guards or nets while engine is
running.

(5) Thrown or blown object

Stay a safe distance from the machine.

Keep all children, bystanders and help­ers 15meters away from the machine.

If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).

(6) Hot surface

Avoid contact the hot surface during and immediately operation.

4. Symbols on the machine

For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.

Never modify your machine.
We won’t warrant the machine, if you use the
remodeled blower or if you don’t observe
proper usage written in the manual.

the

GB-4

The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP

The direction to close the choke
Position: AIR CLEANER

The direction to open the choke
Position: AIR CLEANER

The direction to the start of ignition switch
Position: IGNITION SWITCH ON THE CON­TROL HANDLE

The direction to stop the engine
Position: IGNITION SWITCH ON THE CON­TROL HANDLE

5. For safe operation

HB2302 / HBZ2602

WARNING

1. Read this manual carefully un­til you completely understand
and follow all safety and oper­ating instructions.

2. Keep this manual handy so that
you may refer to it later when­ever any questions arise. Also
note, if you have any questions
which cannot be answered
herein, contact the dealer from
whom you purchased the prod­uct.

3. Always be sure to include this
manual when selling, lending,
or otherwise transferring the
ownership of this product.

4. Do not lend or rent your ma­chine without the owner's
manual.

5. Be sure that anyone using your
unit understands the infomation
contained in this manual.

6. Never let a child under 13 years
old use the machine.

7. Long-term exposure to noise
can result in permanent hear­ing impairment. So always use
approved hearing protection.

8. Under no circumstances may
the design of the machine be
modified without the permission
of the manufacturer. Always use
genuine accessories. Non-au­thorized modifications and/or
accessories can result in seri­ous personal injury or the death
of the operator or others.

9. A blower is a dangerous tool if
used carelessly or incorrectly
and can cause serious, even
fatal injuries. It is extremely im­portant that you read and un­derstand the contents of this
Operator’s manual.

10. Husqvarna Zenoah has a
policy of continuous product
development and therefore re­serves the right to modify the
design and appearance of
products without prior notice.

11. The machine is only designed
for blowing lawns, pathways,
asphalt roads and the like.

WORKING CONDITION

1. Refrain from operating the blower
if you are tired, ill, or upset, or if
you are under the influence of al­cohol, drugs or medication.

2. To reduce the risk of hearing loss
associated with sound level(s),
hearing protection is required.

3. To reduce the risk of injury asso­ciated with thrown objects, al­ways wear eye protection and
foot protection. Eye protection
should meet the requirements of
ANSI Z87.1.

4. To reduce the risk of injury asso­ciated with the inhalation of dust,
use a face filter mask in dusty
conditions.

5. Wear sturdy rubber-soled shoes
or shoes with some other form of
anti-slip protection to help protect
you against falling.

6. To reduce the risk of injury asso­ciated with objects being drawn
into rotating parts, do not wear
loose clothing, scarves, neck
chains, hair longer than shoulder
length, or other loose material.

7. Prolonged use of a blower, expos­ing the operator to vibrations and
cold may produce whitefinger
disease (Raynaud’s phenom­enon), which symptoms are tin­gling and burning sensations fol­lowed by loss of color and numb­ness in the fingers. All factors
which contribute to whitefinger
disease are not known, but cold
weather, smoking diseases or
physical conditions as well as
long periods of exposure to vibra­tion are mentioned as factors. In
order to reduce the risk of
whitefinger disease, the following
precautions are strongly recom­mended;

a) Keep your body warm. Never use

blower during rains.

b) Wear thick anti-vibration gloves.
c) Take more than 5 minutes of break

in warm place frequently.

d) Maintain a firm grip at all times,

but do not squeeze the handles
with constant, excessive pres­sures.

e) If you feel discomfort, redness

and swelling of your fingers or any
other part of your body, see a
doctor before getting worse.

GB-5

G
B

HB2302 / HBZ2602

5. For safe operation

GB-6

8. The ignition system of your unit
produces an electromagnetic
field of a very low intensity. This
field may interfere with some
pacemakers. To reduce the risk
of serious or fatal injury, persons
with pacemaker should consult
their physician and the pace­maker manufacturer before oper­ating this tool.

WORKING CIRCUMSTANCE

1. To reduce the risk of injury asso­ciated with exhaust fume inhala­tion, do not operate in
unventilated area. The exhaust
gases contain harmful carbon
monoxide.

2. Avoid using the blower where
stable footing and balance are
not assured.

3. Never operate the machine in
high wind, bad weather, poten­tially explosive atmosphere, when
visibility is poor or in very high or
low temperatures. (Our recom­mended use environment is be­low 40 degrees C (104 degrees
F).)

AVOID NOISE PROBLEM

IMPORTANT

Check and follow the local

regulations as to sound level
and hours of operations for
blower.

1. Operate power equipment only at
reasonable hours-not early in the
morning or late at night when
people might be disturbed. Com­ply with times listed in local ordi­nances.

2. To reduce sound levels, limit the
number of pieces of equipment
used at any one time.

3. Operate power blowers at the
lowest possible throttle speed to
do the job.

4. Check your equipment before op­eration, especially the muffler, air
intakes and air filters.

WORKING PLAN

• When planning your work sched­ule, allow plenty of time to rest.

Limit the amount of time over
which the product is to be used
continuously to somewhere
around 30 ~ 40 minutes per ses­sion, and take 10 ~ 20 minutes of
rest between work sessions. Also
try to keep the total amount of
work performed in a single day
under 2 hours or less.

FUEL

WARNING

To reduce the risk of fire and burn
injury:

a) Handle fuel with care. It is highly

flammable.
b) Do not smoke while handing fuel.
c) Do not refuel a hot engine.
d) Do not refuel a running engine.
e) Avoid spilling fuel or oil. Always

wipe unit dry before using.
f ) Move at least 10 ft. (3 meters)

away from the fueling point be-

fore starting engine.
g) Always store gasoline in a con-

tainer approved for flammable liq-

uids.
h) Make sure the unit is properly as-

sembled and in good operating

condition.
i ) Do not use the blower near a fire,

as aiming the blower in the direc-

tion of a flame may cause flam-

mable substances to ignite.

BEFORE STARTING THE
ENGINE

• Each time before starting the en-

gine, inspect the entire unit to see

if every part is in good order and

is securely tightened in place. If

any damage is found in the fuel

line, the exhaust line, or the igni-

tion wiring, do not use the blower

until it has been repaired.

IMPORTANT

• Before starting operation, al-

ways make sure to check if any

obstacles are left inside the

volute case and net. The ob-

stacles may cause damage on

fan and volute case and serious

injury.

5. For safe operation

HB2302 / HBZ2602

WARNING

• Never use the blower without the
screen at the air intake of the
blower. Before each use, check
that, the screw (1) is securely
tightened and is free from any
damage.

• Never remove debris from the in­take screen while the engine is
running. Contact with rotating
blower fan may result in a serious
personal injury.

(1) Screw
(2) Air intake screen (Air inlet net)

WARNING

• To reduce the risk of injury asso­ciated with contacting rotating
parts, stop the engine before in­stalling or removing attachments.

Do not operate without net in
place. Always disconnect the

spark plug before performing
maintenance or accessing mov­able parts.

USING THE PRODUCT

WARNING

While using the product, if abnor­mal noise or vibration occurs, stop
the engine immediately and con­tact the nearest ZENOAH servic­ing dealer for assistance. Check­ing the fan is very important. If the
rotating fan should break up, it
might lead to serious accidents.

1. This blower is a handheld type. It
is operated and controlled with
handle by hand.

2. Check the work area that the
blower will be used in and remove
or cover all valuables that may be
damaged by the air blast or
thrown debris.

3. Make sure you can move and
stand safely. Check the area
around you for possible obstacles
(roots, rocks, branches, ditches,
etc.) in case you have to move
suddenly. Take great care when
working on sloping ground.

4. To reduce the risk of injury asso-

ciated with thrown objects.

a) Watch out for children, pets, open

windows or freshly washed cars,
and blow debris safely away.

b) Use the full blower nozzle exten-

sion so the air stream can work
close to the ground.

c) Do not allow bystanders in work

area.

d) Do not point the blower tube in

the direction of people or pets.

e) Always check to be sure that no

debris has been blown onto
someone else’s property.

f) Pay attention to the direction of

the wind, do not work against the
wind.

g) Never point a blower tube toward

an open flame to avoid the possi­bility of igniting the unit, causing
injury to yourself or damage to
surroundings.

5. To minimize blowing time.
a) Use rakes and brooms to loosen

debris before blowing.

b) In dusty conditions, slightly

dampen surfaces or use mister
attachment when water is avail­able.

c) Conserve water by using power

blowers instead of hoses for many
lawn and garden applications,
including areas such as gutters,
screens, patios, grills, porches
and gardens.

6. The blower must not be used
while on a ladder or scaffolding.

7. Never put the machine down with
the engine running unless you
have it in clear sight.

8. Never to touch the spark plug or
plug cord while the engine is in
operation. Doing so may result in
being subjected to an electrical
shock.

9. Never to touch the muffler, spark
plug, or other metallic parts of the
engine or engine cover while the
engine is in operation or immedi­ately after shutting down the en­gine. These metallic parts and en­gine cover reach high tempera­tures during operation and doing
so could result in serious burns.

GB-7

G
B

HB2302 / HBZ2602

5. For safe operation

GB-8

WARNING

The temperature of the machine
may increase after stopping the
engine. Especially never forget to
cool down the engine before refu­eling the machine.

10. After using blowers and other
equipment, CLEAN UP! Dispose
of debris in trash receptacles.

MAINTENANCE

1. In order to maintain your product

in proper working order, perform
the maintenance and checking
operations described in the
manual at regular intervals.

2. Always be sure to turn off the en-

gine and disconnect the spark
plug before performing any main­tenance or checking procedures.

WARNING

The metallic parts and engine
cover reach high temperatures
immediately after stopping the
engine.

3. Examine the blower at intervals

for loose fasteners and rusted or
damaged parts. Use special

care around the fuel line, the
muffler, and the ignition wiring.

4. All engine service except for

those described in this manual
should be performed by compe­tent service personnel. Improper
service to the blower fan and muf­fler could cause a hazardous fail­ure.

5. When replacing the any other

part, or any lubricant, always be
sure to use only ZENOAH prod­ucts or products which have been
certified by ZENOAH for use with
the ZENOAH product.

6. In the event that any part must be

replaced or any maintenance or
repair work not described in this
manual must be performed,
please contact a representative
from the store nearest ZENOAH
authorized servicing dealer for
assistance.

7. Do not use any accessory or at-

tachment other than those bear­ing the ZENOAH mark and rec-

ommended for the unit.

8. Under no circumstances should
you ever take apart the product
or alter it in any way. Doing so
might result in the product be­coming damaged during opera­tion or the product becoming un­able to operate properly.

TRANSPORTATION

• Drain the fuel from the fuel tank
before transporting or storing the
blower.

• Secure the unit carefully to pre­vent movement when it is trans­ported.

•A unit that receives a strong
shock during transport and un­loading may malfunction.

STORAGE

• When storing the blower, choose
a space indoors free from mois­ture and out of the reach of chil­dren.

DISPOSAL

• When you dispose of the ma­chine, do not disassemble the
machine .

• When disposing your machine,
fuel or oil for the machine, be sure
to allow your local regulations

6. Set up

BLOWER PIPE

•Align groove in blower pipe with projection on blower
housing.

• Slide the pipe onto the blower housing.

• Rotate the pipe clockwise to lock it into place.

HB2302 / HBZ2602

G
B

INSTALLING SUPPORT HANDLE

• This handle is supplied with the blower.

• Fit the holes of volute and handle, tighten the screws.

• Be sure to tighten the screws straightly.

(1) Support Handle
(2) Holes
(3) Screws

• After the pipe is locked up to the housing, clamp the
pipe to the housing securely with the hardware sup­plied with the unit. (Tightening torque : 3.4~4.4 Nm)

(1) Blower housing
(2) Clamp
(3) Straight tube

• Align groove in pipe end with projection on straight
tube and slide the pipe onto the straight pipe. Rotate
the pipe end clockwise to lock it into place.

GB-9

HB2302 / HBZ2602

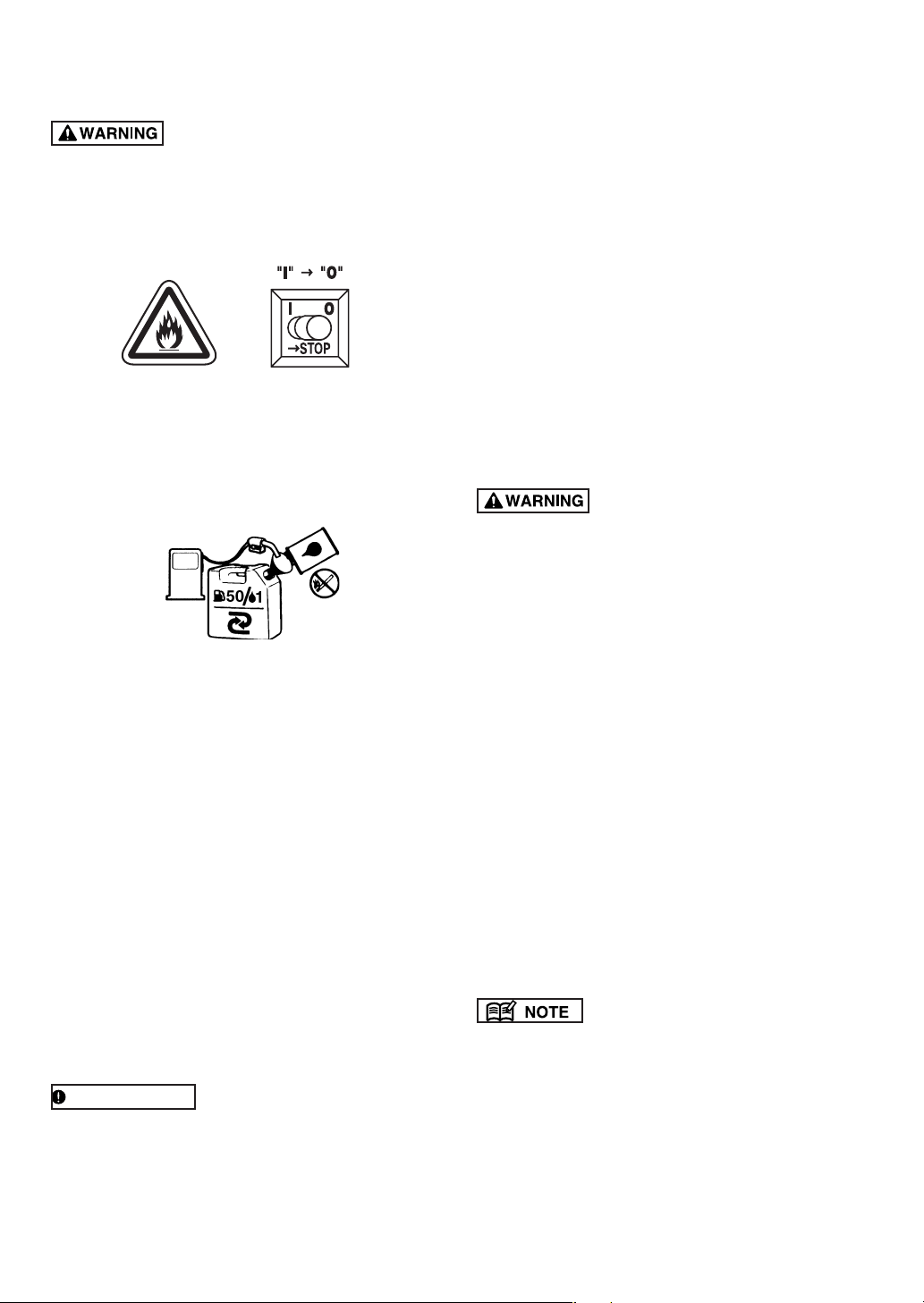

7. Fuel

■ FUEL

• Gasoline is very flammable. Avoid smoking or

bringing any flame or sparks near fuel. Make sure
to stop the engine and allow it cool before refuel­ing the unit. Select outdoor bare ground for fuel­ing and move at least 3 m (10 ft) away from the
fueling point before starting the engine.

• The Zenoah engines are lubricated by oil specially

formulated for air-cooled 2-cycle gasoline engine use.
If Zenoah oil is not available, use an anti-oxidant added
quality oil expressly labeled for air-cooled 2-cycle en­gine use (JASO FC GRADE OIL or ISO EGC GRADE).

• Do not use BIA or TCW (2-stroke water-cooling type)

mixed oil.

1. Measure out the quantities of gasoline and oil to be
mixed.

2. Put some of the gasoline into a clean, approved fuel
container.

3. Pour in all of the oil and agitate well.

4. Pour in the rest of gasoline and agitate again for at
least one minute. As some oils may be difficult to
agitate depending on oil ingredients, sufficient agi­tation is necessary for the engine to last long. Be
careful that, if the agitation is insufficient, there is an
increased danger of early piston seizing due to ab­normally lean mixture.

5. Indicate the contents on outside of container for
easy identification. To avoid mixing up with gasoline
or other containers.

■ FUELING THE UNIT

1. Untwist and remove the fuel cap. Rest the cap on a
dustless place.

2. Put fuel into the fuel tank to 80% of the full capacity.

3. Fasten the fuel cap securely and wipe up any fuel
spillage around the unit.

1. Select bare ground for fueling.

2. Move at least 10 feet (3 meters) away from the
fueling point before starting the engine.

3. Stop the engine before refueling the unit. At that
time, be sure to sufficiently agitate the mixed
gasoline in the container.

4. Do not smoke or place hot object near fuel.

■ RECOMMENDED MIXING RATIO
GASOLINE 50 : OIL 1

<when using ZENOAH genuine oil>

• Exhaust emission are controlled by the funda-

mental engine parameters and components (eq.,
carburation, ignition timing and port timing) with­out addition of any major hardware or the intro­duction of an inert material during combustion.

• These engines are certified to operate on unleaded
gasoline.

• Make sure to use gasoline with a minimum octane
number of 89RON (USA/Canada: 87AL).

• If you use a gasoline of a lower octane value than
prescribed, there is a danger that the engine tem­perature may rise and an engine problem such as
piston seizing may consequently occur.

• Unleaded gasoline is recommended to reduce the
contamination of the air for the sake of your health
and the environment.

• Poor quality gasolines or oils may damage sealing
rings, fuel lines or fuel tank of the engine.

■ HOW TO MIX FUEL

IMPORTANT

• Pay attention to agitation.

■ FOR YOUR ENGINE LIFE, AVOID:

1. FUEL WITH NO OIL (RAW GASOLINE) – It will cause
severe damage to the internal engine parts very
quickly.
GASOHOL – It can cause deterioration of rubber and/

2.
or plastic parts and disruption of engine lubrication.

3. OIL FOR 4-CYCLE ENGINE USE – It can cause
spark plug fouling, exhaust port blocking, or piston
ring sticking.

4. Mixed fuels which have been left unused for a
period of one month or more may clog the carbu­retor and result in the engine failing to operate prop­erly.

5. In the case of storing the product for a long period
of time, clean the fuel tank after rendering it empty.
Next, activate the engine and empty the carburetor
of the composite fuel.

6. In the case of scrapping the used mixed oil con­tainer, scrap it only at an authorized repository site.

• As for details of quality assurance, read the descrip­tion in the section Limited Warranty carefully. More­over, normal wear and change in product with no
functional influence are not covered by the warranty.
Also, be careful that, if the usage in the instruction
manual is not observed as to the mixed gasoline,
etc. described therein, it may not be covered by the
warranty.

GB-10

8. Operation

HB2302 / HBZ2602

STARTING ENGINE

1. Rest the unit on a flat, firm place.

2. Pump the primer until fuel flows out in the clear tube.

(1) Primer

3. Move the choke lever upward to close the choke.

(1) Choke lever
(2) Close
(3) Open

6. When the engine has started, move the choke lever
gradually downward to open the choke.

7. Allow the engine to warm up for a half minute before
starting operation.

RESTARTING ENGINE WHILE ENGINE IS HOT

1. When restarting the engine immediately after stop­ping it, leave the choke open.

2. If the engine won’t start after several attempts, close
the choke and repeat pulling the rope or remove the
spark plug and dry it.

ADJUSTING IDLE SPEED

1. When the engine tends to stop frequently at an idle

mode, turn the adjusting screw clockwise.

(1) Idling adjustment screw
(2) Cable Adjuster

NOTE

G
B

4. Shift the ignition switch to “I (START)” position.

(1) Ignition switch

5. Holding the blower handle, pull the starter rope with
your right hand.
(Throttle trigger in idle or start position.)

IMPORTANT

•Avoid pulling the starter rope out to its full extent and
allowing the starter rope to snap back. This will pre­vent premature damage to the starter.

• Do not let a person stand near the blower or the ex­haust port.

•Warm up the engine before adjusting the idle speed.

STOPPING ENGINE

• Move the throttle lever to the idling position and shift
the ignition switch to “0 (STOP)” position.

(1) Ignition switch

NOTE

• Except for an emergency, avoid stopping the engine
while pulling the throttle trigger.

GB-11

HB2302 / HBZ2602

9. Maintenance

Maintenance, replacement, or repair of the emission control device and systems may be per­formed by any non-road engine repair establishment or individual.

Daily Every Every Every

System / Compronent Procedure or 25 hours 50 hours 100 hours

Before use after after after

Air Filter Prefilter Inspect / Clean ✔
Air Filter Paper Filter Inspect / Replace ✔
Fuel Leaks Inspect / Replace ✔
Fuel Filter Inspect / Replace ✔✔
Fuel Line Inspect / Clean ✔
Spark Plug Inspect / Clean ✔
Muffler Inspect / Clean ✔
Muffler Spark Arrester Inspect / Clean ✔
Cooling Systrem Inspect / Clean ✔
Screws / Nuts / Bolts Tighten ✔
Cylinder Exhaust Port Inspect / Clean ✔

WARNING

Make sure that the engine has stopped and is
cool before performing any service to the
blower. Contact with rotating blower fan or hot
muffler may result in a personal injury.

[HBZ2602]

1. Remove the air cleaner cover.

AIR CLEANER

• Never operate the blower without an air filter or with a
deformed or broken filter element.

• Check the air cleaner before use.
A clogged air filter may increase fuel consumption
while cutting down the engine power. Never operate
the blower without the air filter or with a deformed fil­ter element because unfiltered dusty air will quickly
ruin the engine.

CLEANING AIR FILTER:
[HB2302]

1. Remove the air cleaner cover by pushing and pulling
back the tab on the top.

2. Use neutral detergent and warm water to clean the
filter element. After cleaning, air dry the element com­pletely.

3. Install the filter element into the air cleaner housing
and press the cover against the housing until clicks.
If the element is broken or shrunk, replace with a new
one.

2. Use neutral detergent and warm water to clean the
filter element. After cleaning, air dry the element com­pletely.

3. Reinstall the filter. Never forget to attach the screen. If
the screen is not attached, the cleaner will not seal
properly and the dusts come into the cylinder.

(1) Element
(2) Screen

GB-12

9. Maintenance

HB2302 / HBZ2602

FUEL FILTER

•A clogged fuel filter may cause poor acceleration of
the engine. Check periodically to see if the filter is
clogged with dirt. The filter can be taken out of the
fueling port using a small wire hook. Disconnect the
filter assembly from the fuel pipe and unhook the re­tainer to disassemble it. Clean the components with
gasoline.

SPARK PLUG

• The spark plug may gather carbon deposits on its
firing end with reasonable use. Remove and inspect
the spark plug every 25 hours and clean the elec­trodes as necessary with a wire brush. The spark gap
should be adjusted to .025 in (0.6~0.7mm).

MUFFLER

WARNING

• Inspect periodically, the muffler for loose fasteners,
any damage or corrosion. If any sign of exhaust leak­age is found, do not use the blower and have it re­paired immediately.

• Note that failing to do so may result in the engine
catching on fire.

IMPORTANT

• Before starting operation, always make sure to check
if the muffler is properly held by three bolts to the cyl­inder. (Fastening Torque : 8~12 N·m)

•Even if one bolt out of three bolts is loose, the muffler
may get loose during operation which may result in
engine catching on fire.

PROCEDURES TO BE PERFORMED AFTER EV­ERY 50 HOURS OF USE

1. Remove the muffler, insert a screwdriver into the vent,
and wipe away any carbon buildup. Wipe away any
carbon buildup on the muffler exhaust vent and cylin­der exhaust port at the same time.

2. Tighten all screws, bolts, and fittings.

G
B

•Plug manufacturers recommend replacing the plug
twice a year to avoid unexpected plug failure in a job.

REPLACEMENT PLUG

HB2302 : CHAMPION RCJ6Y (noise proof)
HBZ2602 : NGK CMR7H (noise proof)

IMPORTANT

• Note that using any spark plugs other than those des­ignated may result in the engine failing to operate
properly or in the engine becoming overheated and
damaged.

•To install the spark plug, first turn the plug until it is
finger tight, then tighten it a quarter turn more with a
socket wrench.

SPARK ARRESTER

• The engine is equipped with a spark arresting screen
at the exhaust port. Periodically check and keep it in
good condition. In the state of California it is required
by law (Section 4442 of the California Public Re­sources Code) to equip a spark arrester when a gas
powered tool is used in any forest covered, brush
covered, or grass covered unimproved land.

GB-13

HB2302 / HBZ2602

9. Maintenance 10. Storage

AIR INTAKE SCREEN (AIR INLET NET)

IMPORTANT

• Blowing air is taken in from the air inlet net. When air
flow has dropped down during operation, stop the
engine and inspect the air inlet net for blocking by
obstacles.

• Note that failure to remove any such obstacles may
result in the engine becoming overheated and dam­aged.

(1)Screw
(2)Air intake screen
(Air inlet net)

WARNING

• Never use the blower without the net of the blower.
Before each use, check that the net is attached in
place and is free from any damage.

BEFORE STORING THE BLOWER:

1. Drain a fuel tank and push the primer bulb until it be­comes empty of fuel.

2. Remove the spark plug and drop a spoonful of 2-cycle
oil into the cylider. Crank the engine several times and
install the spark plug.

3. Store unit in a dry, dust free place, out of the reach of
children.

11. Disposal

• When you dispose of the machine, do not disassemble
the machine.

• When disposing your machine, fuel or oil for the ma­chine, be sure to allow your local regulations.

12. Optional vacuum

kit usage

See the operating instructions included with the vacuum
kit.

GB-14

HB2302 / HBZ2602

13. Troubleshooting guide

Case 1. Starting failure

CHECK PROBABLE CAUSES ACTION

fuel tank → incorrect fuel → drain it and use correct fuel
fuel filter → fuel filter is clogged → clean
carburetor adjustment screw → out of normal range → adjust to normal range
sparking (no spark) → spark plug is fouled/wet → clean/dry

→ plug gap is incorrect → correct (GAP: 0.6 ~ 0.7 mm)

spark plug → disconnected → retighten

Case 2. Engine starts but does not keep running/hard re-starting

CHECK PROBABLE CAUSES ACTION

fuel tank → incorrect fuel or staled fuel → drain it and use correct fuel
carburetor adjustment screw → out of normal range → adjust to normal range
muffler, cylinder (exhaust port) → carbon is built-up → wipe away
air cleaner → clogged with dust → wash
cylinder fin, fan cover → clogged with dust → clean

When your unit seems to need further service, please consult with our ZENOAH service shop in your area.

G
B

Limited warranty

Should any failure occur on the product under normal oper­ating conditions within the applicable warranty period, the
failed part will be replaced or repaired free of charge by a
ZENOAH authorized dealer.

WARRANTY PERIOD: 1 year (6 months if used profession­ally, and 30 days if used for rental purpose) from the date of
initial purchase.

THE PURCHASER SHALL BEAR COSTS OF TRANS­PORTING THE UNIT TO AND FROM THE ZENOAH DEALER.

THE PURCHASER SHALL NOT BE CHARGED FOR DIAG­NOSTIC LABOR WHICH LEADS TO THE DETERMINATION
THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAG­NOSTIC WORK IS PERFORMED AT THE ZENOAH DEALER.

THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE
PERFORMANCE OF THE REQUIRED MAINTENANCE AS
DEFINED BY THE MANUFACTURER IN THE OWNER/OP­ERATOR MANUAL.

ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR
REPLACEMENT AS REQUIRED MAINTENANCE, OR
WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION
TO THE EFFECT OF REPAIR OR “REPLACE AS NECES­SARY” SHALL BE WARRANTED FOR THE WARRANTY PE­RIOD. ANY WARRANTED PART WHICH IS SCHEDULED
FOR REPLACEMENT AS REQUIRED MAINTENANCE
SHALL BE WARRANTED FOR THE PERIOD OF TIME UP
TO THE FIRST SCHEDULED REPLACEMENT POINT FOR
THE PART.

NOT REDUCE THE WARRANTY OBLIGATION OF THE
COMPANY.

THE COMPANY IS LIABLE FOR DAMAGES TO OTHER
ENGINE COMPONENTS CAUSED BY THE FAILURE OF A
WARRANTED PART STILL UNDER WARRANTY.

THE WARRANTY DOES NOT APPLY TO THOSE UNITS
WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF IN­STRUCTION LISTED IN THE OWNER/OPERATOR MANUAL
FOR PROPER USE AND MAINTENANCE OF THE UNITS
ACCIDENT MISHANDLING, ALTERATION, ABUSE, IM­PROPER LUBURICATION, USE OF ANY PARTS OR ACCES­SORIES OTHER THAN THOSE SPECIFIED BY THE COM­PANY, OR OTHER CAUSES BEYOND THE COMPANY’S
CONTROL.

THIS WARRANTY DOES NOT COVER THOSE PARTS RE­PLACED BY NORMAL WEAR OR HARMLESS CHANGES
IN THEIR APPEARANCE.

THERE ARE NO OTHER EXPRESS WARRANTIES.

IMPLIED WARRANTIES INCLUDING THOSE OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PUR­POSE ARE LIMITED TO TWO (2) YEARS OF HOME USE
[ONE (1) YEAR FOR ANY OTHER USE] FROM THE ORIGI­NAL DELIVERY DATE.

LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGE UNDER ANY AND ALL WARRANTIES ARE
EXCLUDED.

ANY REPLACEMENT PART THAT IS EQUIVALENT IN PER­FORMANCE AND DULABILITY MAY BE USED IN NON­WARRANTY MAINTENANCE OR REPAIRS, AND SHALL

IF YOU NEED TO OBTAIN MORE INFORMATION, PLEASE
CALL YOUR NEAREST SERVICE CENTER, OR CHECK
PLEASE ZENOAH WEB SITE

http://www.zenoah.net

GB-15
