Zenoah G5000, G5200, G4500 User Manual

Specifications and Main Features

Model: G4500 / G5200
Engine Type: 2-stroke Engine
Engine Displacement: 45 CC and 52 CC
Engine Output: 2.2 KW / 2.4 KW
Fuel Tank Volume: 550 ml
Oil Tank Volume: 260 ml
Weight: 5.8 kg-6.3 kg
Bar Size: 16 inch/ 18 inch
Type of Chain: 21BP
Chain Velocity: 12m/s
Oil Mix Ratio: 50:1 (zinonah genuine oil) , 25:1(where its commercially available)
Type of Chain Oil: SAE 10W-30 for spring and summer, sae 20 for winter, and SAE 30-40 summer oil
Starting system: recoil starter
Ignition System: welcoming transistors
Type of Brakes: Manual chain brake
Anti kickback, throttle interlock, and other kidnapping devices are among the safety mechanisms.
Operating temperature range: -10 degrees Celsius to 40 degrees Celsius.

Frequently Asked Questions

Q: What type of fuel should I use for this chainsaw?

A: Use mixed gasoline for air cooled 2 cycle engines with the ratio of 50:1 for Zenoah genuine 2 cycle oil and 25;1 for commercially available Oil.

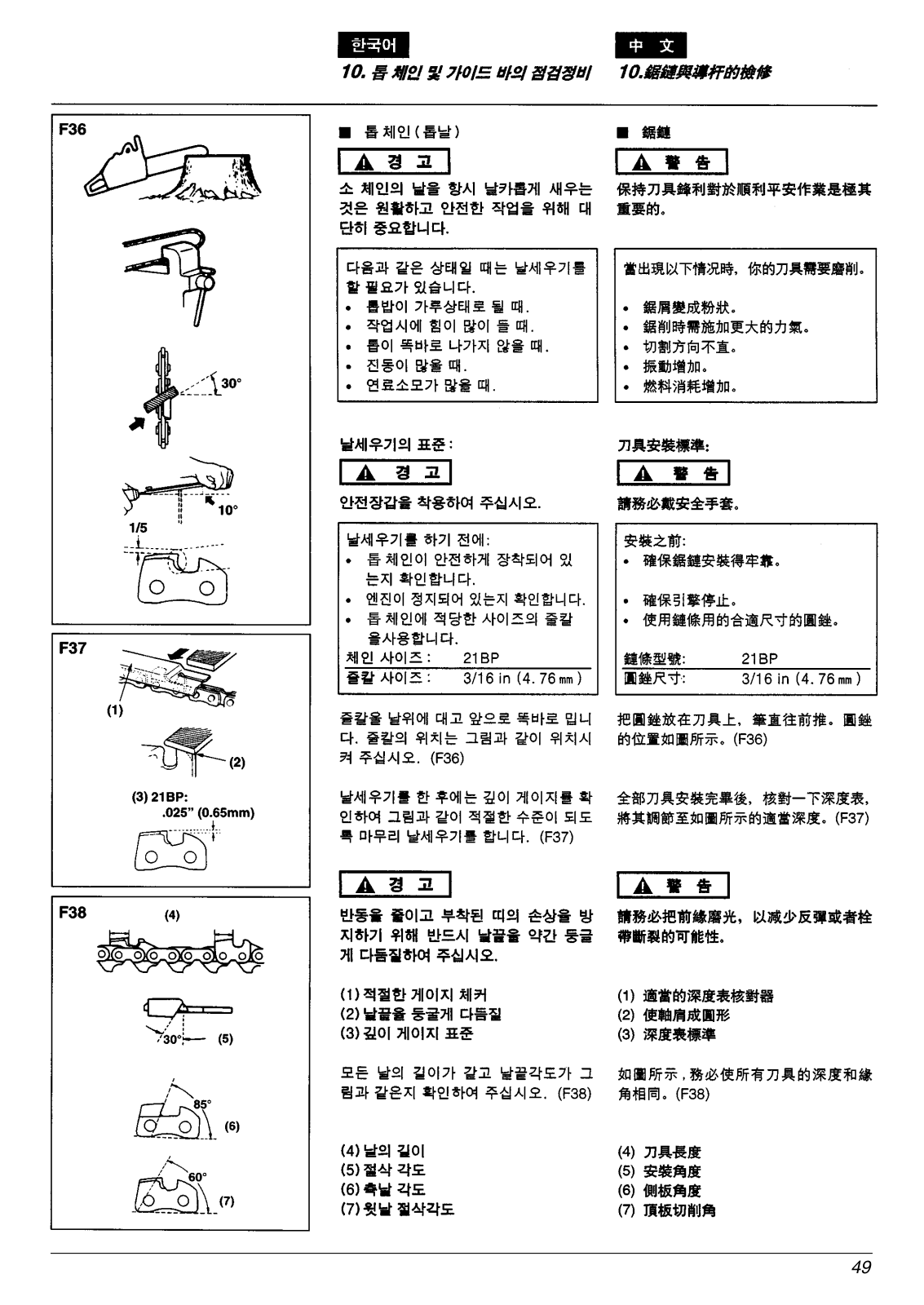

Q: How often should I sharpen the chain?

A: Sharpen it whenever the sawdust turns to dust, cutting demands more force than usual, or if the cut isn’t properly straight.

Q: Can one use a chainsaw while it is raining?

A: No, the chainsaw should not be used during moderate to heavy showers or thunderstorms because it poses a danger to the operator.

Q: After utilizing the chainsaw, what activities should be done?

A: One should clean up the air filter, oiling port, spray nozzles and make sure that the fuel does not leak.

Q: Is it appropriate to use this chainsaw for non-wooden material?

A: No, the chainsaw is specifically made to cut wood only, cutting anything other than wood with the saw is prohibited.

Q: In what way can one assess how much oil is available?

A: The very first thing that should be done is to switch on the engine, after getting the engine started run the chains at moderate speeds and while doing so adjust the oil flow.
