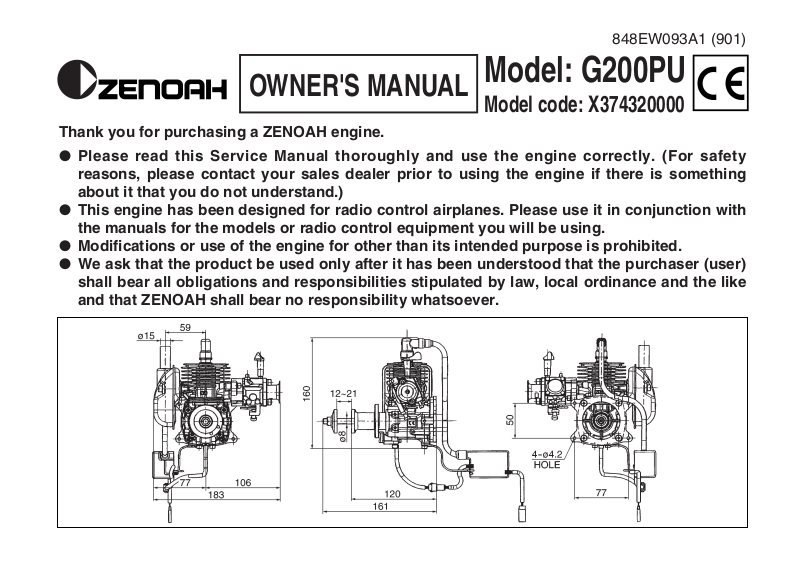

OWNER'S MANUAL
Thank you for purchasing a ZENOAH engine.
● Please read this Service Manual thoroughly and use the engine correctly. (For safety
reasons, please contact your sales dealer prior to using the engine if there is something
about it that you do not understand.)
● This engine has been designed for radio control airplanes. Please use it in conjunction with
the manuals for the models or radio control equipment you will be using.
● Modifications or use of the engine for other than its intended purpose is prohibited.
● We ask that the product be used only after it has been understood that the purchaser (user)
shall bear all obligations and responsibilities stipulated by law, local ordinance and the like
and that ZENOAH shall bear no responsibility whatsoever.
Model: G200PU
Model code: X374320000
848EW093A1 (901)
2
Specifications .......................................................................3
Safety Precautions ...............................................................4
Engine Assembly .................................................................6

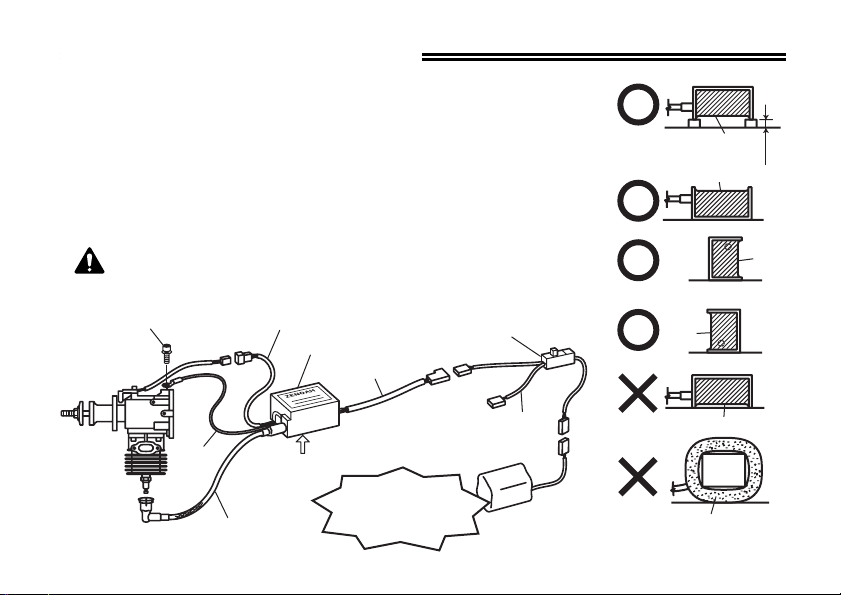

DC Ignition Unit Mounting ....................................................7
Fuel and Piping ....................................................................8
Throttle Linkage and Engine Mounting ................................9
Items to Confirm Before Starting the Engine......................10
Starting the Engine.............................................................11
Adjustments After Engine Startup ......................................12
Brake in ..............................................................................13
Stopping the Engine...........................................................13
Engine Running Time.........................................................13
Maintenance.......................................................................14
Tightening Torque Chart ....................................................15

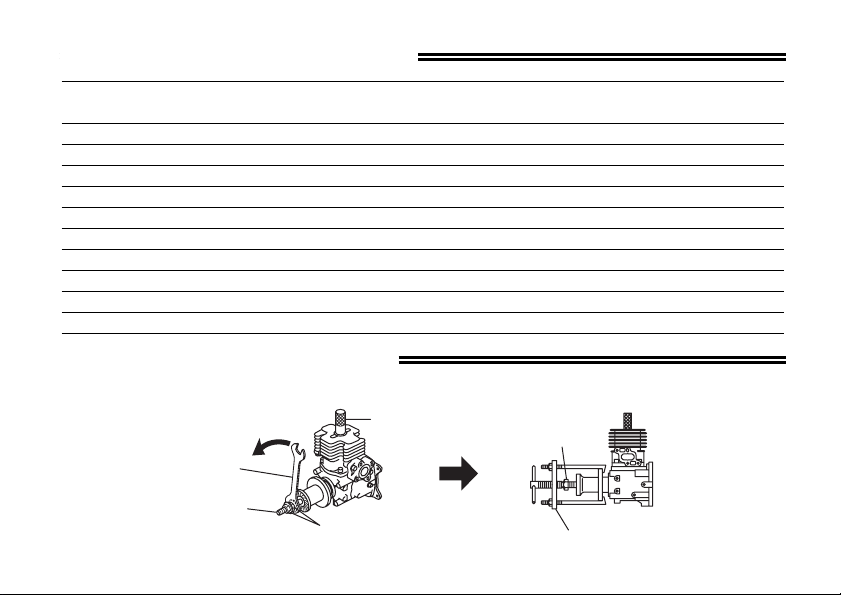

Propeller Hub Removal ......................................................15
Other Information ...............................................................16

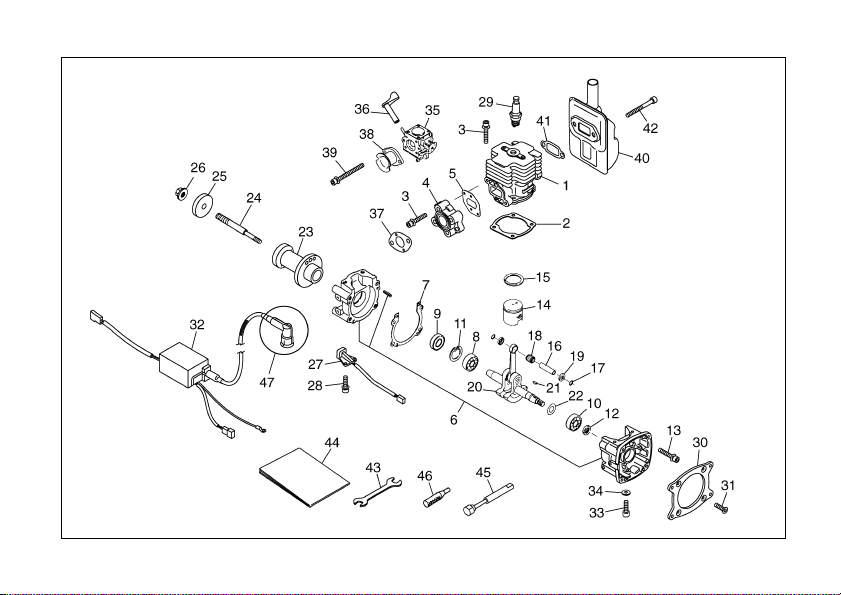

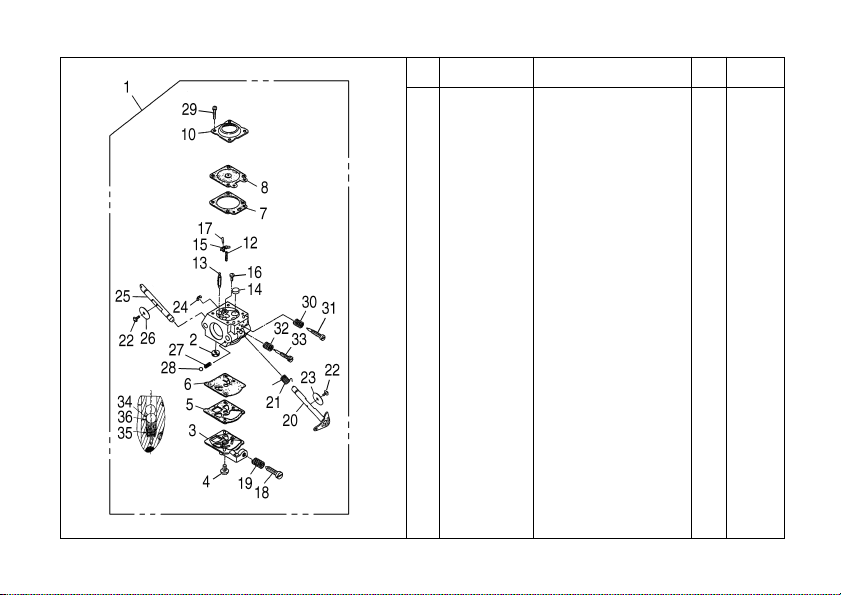

Parts List ............................................................................17
Warranty.............................................................................20
CONTENTS
3
NO. ITEMS SPECIFICATIONS
1. Engine model G200PU
2. Displacement 20.1cm
3
3. Bore x stroke ø32mm x 25mm
4. Weight 990g (not including DC Ignition Unit)
5. Carburetor type WT-811
6. Ignition Battery ignition; digital control
7. Sparkplug Champion Y82
8. Rotating direction Counterclockwise (from PTO side)
9. Starting method External motor
10. Sensor gap 0.8 ~ 1.2mm (1.0mm ± 0.2mm)
11. Fuel consumption 1.0 / 9000rpm (at full throttle)
12. Noise (at 2-meter points) 98dBA (APC 15x10)
13. Battery capacity 4.8V / 1500 ~ 2700mA
SPECIFICATIONS
4
● These safety precautions are to prevent you and those in the vicinity from
incurring harm or damage. Make sure to observe these precautions and to
constantly strive to ensure safety.
● Safe use of the engine is your personal obligation and responsibility.
Constantly take care to act with good judgment as you enjoy your hobbies.
•Make sure never to touch the propeller when it is rotating. Also make sure
that the propeller does not come in contact with the ground or with
anything in its surroundings. Doing so could result in grave injury.
• The fuel is toxic. Do not let it get into your eyes or mouth. Store it in a cool
place, out of the reach of infants and children. Improperly handled, it is a
health hazard.
• Use of open flames around the fuel is prohibited, owing to the danger of
fire occurring.
• To prevent burns, make sure not to touch the engine while it is operating
or immediately after it has stopped.
• Do not run the motor in poorly ventilated places. When running it outside,
do not breathe the exhaust, as it is a health hazard.
SAFETY PRECAUTIONS
5
• Special caution must be taken with all propellers used. Make sure to use
them correctly, in keeping with the manufacturers’ operating manuals, etc.
Failure to do so could result in injury.
• Please wear clothing that facilitates your safety. Remove all scarves, overly
long sleeves, neckties and the like. Failure to do so could result in injury.
• Please check to ensure that the direction in which the engine’s throttle
linkage operates and the amount it operates are correct. Failure to do so
could result in engine damage.
•When starting the engine, make sure to be wearing protective eyewear and
gloves and to use the starter. Failure to do so could result in injury.
•Do not run the motor on sandy soil or where there is a lot of gravel. Doing
so could result in injury.
• When mounting the engine to a model, make sure to follow the model’s
operating manual. If necessary, reinforce the engine mounting unit and the
peripheral parts.
SAFETY PRECAUTIONS
6
The carburetor, muffler, and air funnel
have not been assembled. Please
assemble them correctly, following the
diagram shown below.
ENGINE ASSEMBLY
No. Part Part no. Quantity
1. Bolt 01252-30540 2 8.8
2. Muffler 848EW015A0 1
3. Gasket 1140-13141 1
4. Gasket 848H7014C1 1
5.
Carburetor set
848EW09710 1
6. Air funnel 848ES08300 1
7. Bolt 8488455000 2 3.4
The carburetor can be mounted
anywhere 90 degrees apart on
the top, bottom, left or right.
Mount the carburetor at a place
where it is easy to do the linkage.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Tightening
Torque (N-m)
