Zenith Z62DC1D, Z56DC1D, Z52DC2D User Manual

Installation and Operating Guide | Warranty

Model Numbers | Z52DC2D/Z56DC1D/Z62DC1D | DLP PROJECTION

As an ENERGY STAR Partner LGE U.S.A., Inc. has determined that this product meets the ENERGY STAR guidelines for energy drriciency.

EENNEERRGGYY SSTTAARR iiss aa ss eett ooff ppooww eerr-- ss aavviinn gg gguuiiddee ll iinnee ss iissss uu eedd bbyy tt hh ee UU..SS.. EEnnvv iirroonnmmee nntt aall PPrrootteecctt iioonn AAggeennccyy(( EE PP AA ))..

WARNING/CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this device compliance is:

Zenith Electronics Corporation 1-201-816-2000 Marked and Distributed in the United States by LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 http://www.zenith.com

arning/Caution

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

/CAUTION

Owner’s Manual 3

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Safety Instructions

PORTABLE CART WARNING

4 DLP Projection TV

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION concerning the Power Cord :

Most appliances recommend they be placed upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additional outlets or branch circuits. Check the specification page of

this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions could

result in electric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and the point where the

cord exits the appliance.

16. Outdoor Use Marking :

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.

17. Wet Location Marking :

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

Safety Instructions

is a trademark of SRS Labs,

Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. “Dolby “and the double-D symbol are trademarks of Dolby Laboratories.

TruSurround XT

High-definition television. High-resolution digital television broadcast and playback system composed of roughly a million or more pixels, 16:9 aspect-ratio screens, and AC3 digital audio. A subset of digital television, HDTV formats include 1080i and 720p resolutions.

HDMI

, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing."

Owner’s Manual 5

After reading this manual, keep it handy for future reference.

Warning/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls/Connection Options . . . . . . . . . . . . . .6~9

Remote Control Key Functions . . . . . . . . . 11~12

Installation

External Equipment Connections . . . . . . . . . .13~18

Antenna Connection . . . . . . . . . . . . . . . . . . . . .13

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .14

External A/V Source Setup . . . . . . . . . . . . . . . .15

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . .16

AV Out Setup . . . . . . . . . . . . . . . . . . . . . . . . . .16

Digital Audio Output . . . . . . . . . . . . . . . . . . . . .17

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .18~20

Operation

Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .21

TV Setup

On-screen Menus Language Selection . . . . . . .22

Channel Selection . . . . . . . . . . . . . . . . . . . . . . .22

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . .22

Setup Menu Options

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .23

Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .23

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .24

DTV Signal . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Input Source Selection . . . . . . . . . . . . . . . . . . .25

Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Video Menu Options

Auto Picture Control (EZ Picture) . . . . . . . . . . .26

Adaptive Picture Mode (APM) . . . . . . . . . . . . . .26

Color Temperature Control . . . . . . . . . . . . .27~28

XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Advanced-Cinema 3:2 Mode / Black Level . . . .30

Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Audio Menu Options

Audio Language . . . . . . . . . . . . . . . . . . . . . . . .32

Auto Volume Leveler (EZ SoundRite) . . . . . . . .32

Auto Sound Control (EZ Sound) . . . . . . . . . . . .32

Manual Sound Control (EZ sound-User Option) .33

Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

TV Speakers On/Off Setup . . . . . . . . . . . . . . . .34

Time Menu Options

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .35

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .35

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .36

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Option Menu Features

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .38

Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .39

Caption Option . . . . . . . . . . . . . . . . . . . . . . . .40

Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Lock Menu Options

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .42

Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

EPG (Electronic Program Guide) (In DTV mode) . . .43

Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .45

Programming Codes . . . . . . . . . . . . . . . . . . . . . . .46~48

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . .49~50

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .51

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Contents

6 DLP Projection TV

- This is a representation of the front panel of models Z56DC1D, Z62DC1D series TVs.

- Here shown may be somewhat different from your TV.

Controls

Front Panel Controls

INPUT

VOL CH

ENTER

POWER Button

VOLUME (

FF,GG) Buttons

CHANNEL (EE, DD) Buttons

MENU Button

INPUT Button

ENTER Button

- Lamp indicator, operation indicator, and temperature indicator located below the front panel controls, reveal theoperating status of the DLP projection TV.

Function Status Indicators

Off Power Cord is not connected. Red Power Cord is connected, TV is in standby mode. Green TV turns on. Orange (blinking) Preparing operation in standby mode. Orange Projection lamp is reaching the end of its life and needs to

be replaced with a new lamp. Contact your service center.

Red (blinking) There is a problem with the lamp or around it. Contact an

authorized service center. Green (blinking) The lamp cover is not closed. Orange The projection TV is overheating. Check the blocked vents

of the Projection TV . Red The projection TV shuts down due to overheating.

Red (blinking) The projection TV shuts down, check the cooling fan.

Contact your service center.

Operation Indicator

Lamp Indicator

Temperature Indicator

Operation Indicator/ Lamp Indicator/ Temperature Indicator

Operating Guide 7

Back Connection Panel

Connection Options

- This is the back panel of models Z56DC1D, Z62DC1D series TVs.

AC IN

CABLE IN

ANTENNA

AV IN 1

AV O U T

DIGITAL AUDIO OPTICAL OUT

HDMI/DVI IN

RGB(PC/DTV) VIDEO IN

RGB/DVI AUDIO IN

SERVICE ONLY

COMPONENT IN 1/2

ANTENNA

COMPONENT IN

RGB IN

AV IN 1

AV OUT

VIDEO

RGB

VIDEO

(PC/DTV)

(L)

AUDIO

MONO

(R)

DIGITAL AUDIO

OPTICAL OUTPUT

(L)

S-VIDEO

AUDIO RGBDVI

AUDIO

(R)

HDMI /DVI IN

SERVICE ONLY

AC IN

COMPONENT IN

VIDEO

(L)

AUDIO

(R)

SERVICE ONLY

CABLE

RGB IN

RGB

(PC/DTV)

ANTENNA

AV IN 1

AV OUT

VIDEO

(L)

MONO

AUDIO

(R)

DIGITAL AUDIO

(L)

AUDIO

RGB/DVI

(R)

S-VIDEO

HDMI

/DVI IN

OPTICAL OUT

8 DLP Projection TV

- This is a representation of the front panel of models Z52DC2D series TVs.

- Here shown may be somewhat different from your TV.

Front Panel Controls

POWER Button

VOLUME (

FF,GG) Buttons

CHANNEL (EE, DD) Buttons

MENU Button

INPUT/ENTER Button

- Lamp indicator, operation indicator, and temperature indicator located below the front panel controls, reveal theoperating status of the DLP projection TV.

Function Status Indicators

be replaced with a new lamp. Contact your service center.

Red (blinking) There is a problem with the lamp or around it. Contact an

authorized service center. Green (blinking) The lamp cover is not closed. Orange The projection TV is overheating. Check the blocked vents

of the Projection TV . Red The projection TV shuts down due to overheating.

Red (blinking) The projection TV shuts down, check the cooling fan.

Contact your service center.

Operation Indicator

Lamp Indicator

Temperature Indicator

Operation Indicator/ Lamp Indicator/ Temperature Indicator

Controls

INPUT

MENU VOL CH

Owner’s Manual 9

Back Connection Panel

Connection Options

- This is the back panel of models Z52DC2D series TVs.

AC IN

CABLE IN

ANTENNA

AV IN 1

AV O U T

DIGITAL AUDIO OPTICAL OUT

HDMI/DVI IN

RGB(PC/DTV) VIDEO IN

RGB/DVI AUDIO IN

SERVICE ONLY

COMPONENT IN 1/2

AC IN

COMPONENT IN

VIDEO

(L)

AUDIO

(R)

SERVICE ONLY

CABLE

ANTENNA

RGB IN

RGB

(PC/DTV)

(L)

AUDIO

RGB/DVI

(R)

AV IN 1

MONO

AV OUT

VIDEO

(L)

AUDIO

(R)

S-VIDEO

HDMI

/DVI IN

DIGITAL AUDIO

OPTICAL OUT

10 DLP Projection TV

LEFT/RIGHT AUDIO

Used for stereo sound from various types of equipment.

S-VIDEO

A connection available on some very high-end equipment that provides better picture quality than video input.

VIDEO

Connects the video signals from any piece of equipment.

AV IN 2

AV IN 2 AV IN 2

There are four jacks on the left side on your projection TV that make connecting Audio/Video devices like video games and camcorders very simple.

The jacks are like those found on the back jack connection panel. This means that most equipment that connects to those types of jacks on the rear jackpack, may be connect-ed to the front connection panel.

To use the side jacks as the signal source, select them using Main Input menu as described on page 25. They will be named “AV 2 ” in the Main Input menu.

If you input both AV 2 and SVideo, only the S-Video will work.

If you’re connecting a video game device, make sure to change the picture settings with the EZ Picture option in the Video menu (see page 24).

Mini glossary

A/V CABLESAudio/Video cables. Three cable connector—Right audio (red), Left audio (white), and Video (yellow). A/V cables are

used for stereo playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box, or television).

Front Connection Panel

Z56DC1D, Z62DC1D

Z52DC2D

Owner’s Manual 11

- When using the Remote Control, aim it at the remote control sensor on the TV.

1 2 3 4 5 6 7 8 9

MODE

LIGHT

POWER

INPUT

INFO

HDMI/DVI

VCR

CABLE

DVD

SAT

MUTE

EZ PICSRS APM

EZ SOUND

RATIO

MENU EXIT

CC FREEZE

GUIDE

VOL

FAV

SAP

ADJUST

TIMER

RGB-PC

TV INPUT

FLASHBK

ENTER

Remote Control Key Functions

INDICATOR LIGHTS

Show active remote mode every time any button is pressed.

MODE

Select the remote oper ting mode: TV,

VCR, Cable, DVD and SatelliteSelect other operating modes, for theremote

to control external devices.

LIGHT

Illuminates the Remote Control keys.

INPUT

Selects: Antenna, Cable, AV1, AV2,

Component1-2, RGB and HDMI/DVI

input sources.

FAV

Scrolls the Favorite channels.

INFO

When you watch the TV, information displays on top of the screen.

MUTE

Switches the sound on or off.

(Refer to

p.22)

ADJUST

Adjusts screen position, size, and phase in RGB-DTV/PC or HDMI-PC mode.

VOLUME UP/DOWN

Increases/decreases the sound level.

NUMBER KEYPAD

For direct channel selection and

programming functions.

RATIO

Changes the screen format or aspect

ratio.

GUIDE

Shows program schedule.

ENTER

When in the menu system and other on-screen displays, selects highlighted options.

Brings up the main menu to the

screen.

EXIT

Clears all on-screen displays and returns to TV viewing from any menu.

SKIP

Playing CDs: Selects songs.

Playing DVDs: Selects movie chapters.

12 DLP Projection TV

1 2 3 4 5 6 7 8 9

MODE

LIGHT

POWER

INPUT

INFO

HDMI/DVI

VCR

CABLE

DVD

SAT

MUTE

EZ PICSRS APM

EZ SOUND

RATIO

MENU EXIT

CC FREEZE

GUIDE

VOL

FAV

SAP

ADJUST

TIMER

RGB-PC

TV INPUT

FLASHBK

ENTER

Remote Control Key Functions

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones. Close cover.

Installing Batteries

back of

remote

RGB-PC

Selects the RGB-PC input mode.

In other input sources, change to theRGB-

PC mode.

Selects a closed caption mode for dis-

playing captioning information if avail-

able on program.

POWER

Turns your TV or any other programmed equipment on or off, depending on mode.

TIMER

Lets you select the amount of time-

before your TV turns itself off auto-

matically.

TV INPUT

Rotates the input mode between Antenna and Cable. AV1-2, Component 1-2, RGB-DTV (or RGB-PC) and HDMI/DVI input sources, TV will return to the last TV channel.

SAP

Selects MTS sound: Mono, Stereo, and

SAP in Analog mode. Change the audio

language in DTV mode.

CHANNEL UP/DOWN

Scrolls through available channels in EZ Scan memory.

HDMI/DVI

APM(ADAPTIVE PICTURE MODE)

Concurrently, compare with the Daylight,Normal, Night Time and User1 on the screen.

EZ PIC

Adjusts the factory preset picture depending on the viewing environment.

SRS

Selects the sound appropriate for the

select the desired sound (Off,

3DEchoSound System or SRS

TruSurround XT)in Front Surround

function.

EZ SOUND

Selects the sound appropriate for the

program's character.

FREEZE

Freezes the currently-viewed picture.

THUMBSTICK

Allows you to navigate the on-screen menus and to adjust the system settings and preferences, by moving to an option

with

F G

and selecting the highlighted

option with .

RECORD, PAUSE, REW, FFWD, PLAY, STOP

Control the functions on your VCR.

FLASHBK

Tunes to the last channel viewed.

Owner’s Manual 13

External Equipment Connections

- Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

1. Analog and Digital TV signals provided on antenna

2. Analog and Digital TV signals provided on cable

Multi-family Dwellings/Apartments (Connect to wall antenna socket)

Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna)

Outdoor Antenna

Wall Antenna Socket

VHF Antenna

UHF Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Bronze Wire

Be careful not to bend the bronze wire when connecting the antenna.

Bronze Wire

Cable TV Wall Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

14 DLP Projection TV

Note: The TV will let you know when the TV(analog antenna), DTV(digital antenna), CATV(analog cable) and CADTV(digital

cable) channel scans are complete.

• To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.

• If the antenna needs to be split for two TV’s, install a “2Way Signal Splitter” in the connections.

• If the antenna is not installed properly, contact your dealer for assistance.

ANTENNA

3. Analog and Digital TV signals provided on cable and antenna

Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Cable TV Wall Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

Connection Option 1

Set VCR output switch to channel 3 or 4 and then tune the

TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the VCR's output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). If you connect an S-VIDEO output from VCR to the S-VIDEO input, the picture quality is improved; compared to connecting only the Video input.

2. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)

3. Select the input source with using the INPUT button on the

remote control. Note that this TV finds the connected input sources automatically for AV 1-2 and Component 1-2.

Do not connect to both AV1-2 and S-Video at the same time. In the event that you connect both AV and the S-Video cables, only the S-Video will work.

VCR Setup

S-VIDEO

(R) AUDIO (L)

OUT

VIDEO

OUTPUT SWITCH

ANT OUT

ANT IN

RGB

(PC/DTV)

S-VIDEO

MONO

RGB IN

COMPONENT IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

AUDIO

VIDEO

(L)

(R)

AV IN 1

AV OUT

DIGITAL AUDIO

OPTICAL OUT

SERVICE ONLY

VIDEO

AUDIO

HDMI

/DVI IN

CABLE

AC IN

ANTENNA

VCR Rear

Bronze Wire

Signal

Amplifier

Owner’s Manual 15

• Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports

on the TV

Y PB

Video output ports on DVD player

Y Y Y Y

B-Y

Cb PB

R-Y

How to connect

1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

Note: If your DVD player does not have component video output,

use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the INPUT button on the remote control to select Component 1 or Component 2. (If connected to S-VIDEO, select the AV1 or AV2 external input source.)

3. Refer to the DVD player's manual for operating instructions.

DVD Setup

(R) AUDIO (L)

S-VIDEO

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

XGA/ 480p/ 720p/ 1080i

S-VIDEO

(MONO)

CABLE

RGB IN(PC/DTV)

COMPONENT IN

AUDIO IN(RGB/DVI)

(L)

(R)

AUDIO

(L)

(R)

AUDIO

VIDEO

(L)

(R)

AUDIO

(L)

(R)

AUDIO

AV OUT AV IN 2 AV IN 1

DIGITAL AUDIO

OPTICAL IN 1

(COMPONENT2)

DIGITAL AUDIO

OPTICAL IN 2

(DVI)

IEEE-1394 IN

DIGITAL AUDIO

OPTICAL OUT

ANTENNA

C a b

C A R D

HDMI IN 1

(DVI)

VARIABLE

AUDIO OUT

G-LINK

HDMI IN 2

SERVICE

ONLY

DVD

How to connect

Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the figure. When connecting the TV to external equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

How to use

1. Select the input source by using the INPUT button on the Remote Control. Note that this TV finds the connected input sources automatically for AV 1-2 and Component 1-2. It is presumed that RGB and HDMI/DVI sources are connected.

2. Operate the corresponding external equipment.

External

A/V Source Setup

Camcorder

Video Game

Set

AV IN 1

MONO

AV OUT

(L)

(R)

VIDEO

AUDIO

S-VIDEO

(L)

(R)

DIGITAL AUDIO

OPTICAL OUT

AUDIO VIDEO

/DVI IN

HDMI

16 DLP Projection TV

The TV has a special signal output capability which allows you to hook up a second TV or monitor.

Connect the second TV or monitor to the TV’s AV OUT. See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings.

Note

• Component, RGB-PC/RGB-DTV, HDMI/DVI, DTV input sources cannot be used for AV out.

AAV Out Setup

V Out Setup

How to connect

Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB, HDMI/DVI jack for video connections, depending on your set-top box connector. Then, make the corresponding audio connections.

Note: HDMI(High Definition Multimedia Interface): Input that accepts uncom-

pressed digital signal and multi channel digital audio signal.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)

2. Use INPUT on the Remote Control to select Component 1, Component 2, RGB-DTV or HDMI/DVI source.

HDSTB Setup

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).

Signal 480i 480p 720p 1080i

Component 1/2

Yes Yes Yes Yes

RGB-DTV,HDMI/DVI

No Yes Yes Yes

AV IN 1

AV OUT

VIDEO

(L)

MONO

AUDIO

(R)

S-VIDEO

HDMI

/DVI IN

DIGITAL AUDIO

OPTICAL OUT

S-VIDEO

(R) AUDIO (L) VIDEO

Owner’s Manual 17

Send the TV’s audio to external audio equipment (stereo system) via the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio (Optical) Out port.

2. Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.

3. Set the “ TV Speaker option - Off” in the AUDIO menu. Refer to page 33. See the external audio equipment instruction manual for operation.

Caution: Do not look into the optical output port. Looking

at the laser beam may damage your vision.

Digital

Audio Output

AV IN 1

MONO

AV OUT

AUDIO

S-VIDEO

VIDEO

(L)

(R)

/DVI IN

DIGITAL AUDIO

OPTICAL OUT

HDMI

C A B L E

A R D

DVI

HDMI

18 DLP Projection TV

PC Setup

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic card accordingly.

RGB-PC OUTPUT

AUDIO

RGB

(PC/DTV)

RGB IN

COMPONENT IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

SERVICE ONLY

VIDEO

AUDIO

DVI-PC OUTPUT

AUDIO

RGB

(PC/DTV)

S-VIDEO

RGB IN

(L)

(R)

AUDIO

RGB/DVI

(L)

(R)

AUDIO

VIDEO

AV IN 1

AV OUT

DIGITAL AUDIO

OPTICAL OUT

HDMI

/DVI IN

MONO

When supporting DVI

How to connect

1. Connect the PC to HDMI/DVI port of this TV with an HDMIto-DVI cable(not supplied with this product).

2. If the PC(or the sound card of the PC) has an analog audio

output connector, connect the PC's audio output to AUDIO INPUT port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.

2. Select HDMI/DVI input source in main input option of SETUP menu.

INPUT button is also available for this purpose.

- Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or bright ness in PC mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate, adjust Phase Calibration using the ADJUST button or adjust the brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

How to connect

1. Connect the PC to RGB INPUT port of this TV with a RGB cable.

2. If the PC(or the sound card of the PC) has an analog audio out-put connector, connect the PC's audio output to AUDIO INPUT port located on the right side of RGB INPUT port.

How to use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz.

2. Select RGB-PC input source in main input option of SETUP menu. Once you select RGB-PC in main input option of SETUP menu, INPUT button is also available for this purpose.

When supporting RGB

Owner’s Manual 19

Notes:

- Depending on the graphics card, DOS mode may not work if a HDMI1 to DVI Cable is in use.

- When Source Devices connected with HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position and Size may not fit to Screen. As shown the picture below, press the ADJUST button to adjust the screen Position of TV SET and contact an PC graphics card service center.

- When Source Devices connected with HDMI/DVI Input, output TV SET Resolution(480p, 720p, 1080i) and TV SET Display fit EIA/CEA-861-B Specification to Screen. If not, refer to the Manual of HDMI/DVI Source Devices or contact your service center.

- In case HDMI/DVI Source Devices is not connected Cable or poor cable connection, "No signal" OSD dis-play in HDMI/DVI Input. In case that Video Resolution is not supported TV SET output in HDMI/DVI Source Devices, "Invalid Format" OSD display. Refer to the Manual of HDMI/DVI Source Devices or contact your service center.

Resolution

640x480

800x600

Horizontal

Frequency(KHz)

48.363

56.476

60.023

Vertical

Frequency(Hz)

1024x768

Monitor Display Specifications (RGB-PC or HDMI/DVI Mode)

35.156

37.879

48.077

46.875

56.25

60.31

72.18

75.00

60.00

70.06

75.02

640x350

31.468

31.469

37.861

37.500

70.09

59.94

72.80

75.00

RGB-PC Mode Only

20 DLP Projection TV

POSITION GG

SIZE

PHASE

RESET

Adjust

POSITION

SIZE

PHASE

RESET

Adjust

POSITION

SIZE GG

PHASE

RESET

Adjust

POSITION

SIZE

PHASE

RESET

Adjust

POSITION

SIZE

PHASE

RESET

Adjust

Initialize Settings

Yes No

Control

Move Select

Move

Phase 0

• When RGB connect to PC input and select the RGB-PC in Main Input, this function is used.

• In RGB-PC mode, POSITION, SIZE, PHASE, RESET is available.

• In RGB-DTV mode, SIZE, PHASE is not available.

• In HDMI/DVI mode, POSITION, SIZE, RESET is available (When PC format is inputted) or any function is not

available (When DTV format is inputted).

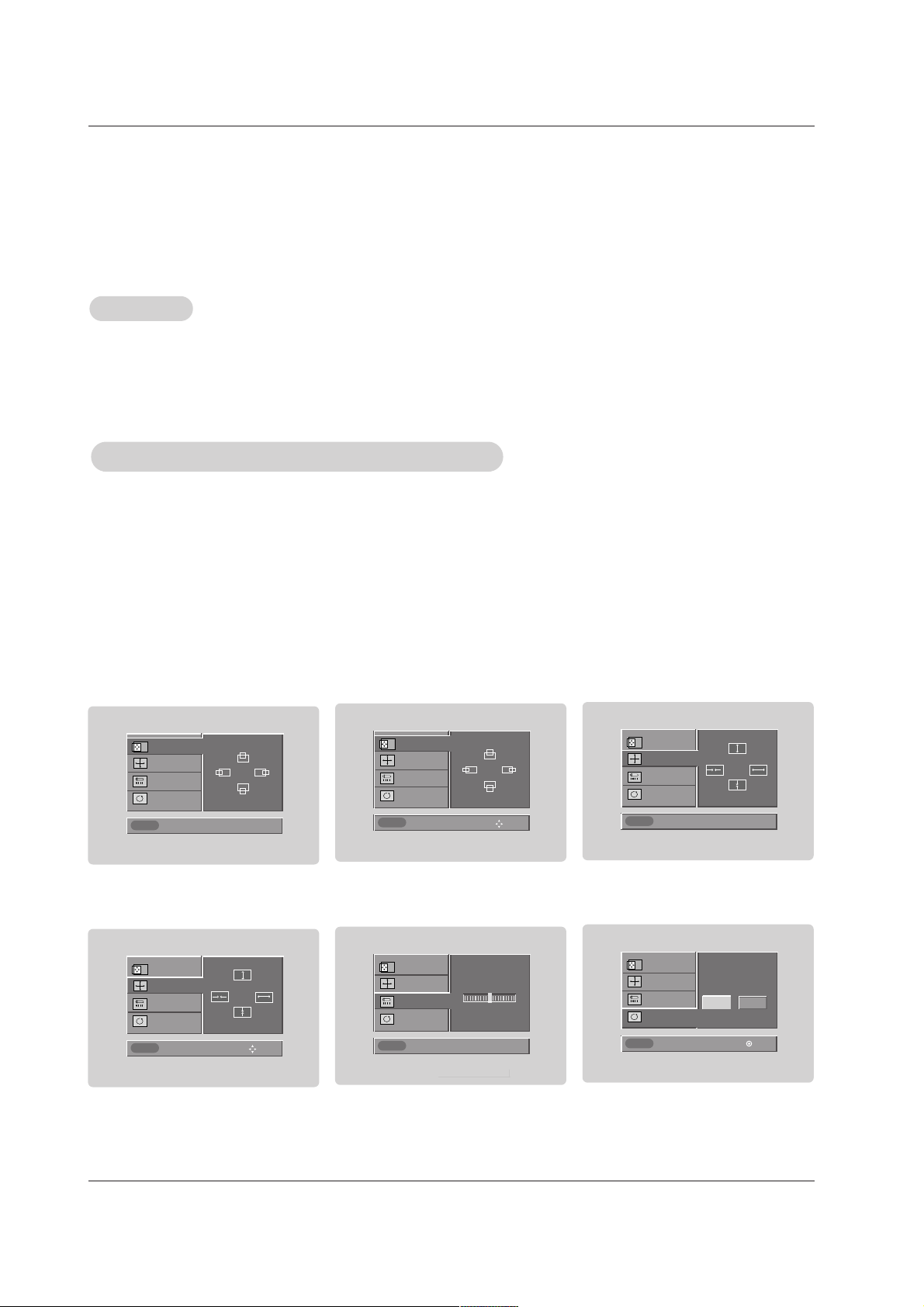

Screen Setup for PC mode

•After connecting RGB-PC or HDMI/DVI to PC input and checking the screen quality.

- Display PC Adjust Menu using ADJUST button.

- Position : Adjust the screen position. After displaying the Adjust, select the screen position.

- Size : Adjust the screen size.

- Phase : Adjust the phase of Pixel clock.

- Reset : Initializating Size, Position, Phase adjustment .

Operation

Adjustment for screen Position, Size, Phase, Reset

POSITION

SIZE

PHASE

RESET

Adjust

Size

Owner’s Manual 21

Operation

TTurning the TV On

urning the TV On

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an

example to help you with the TV operation.

Notes: If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

Turning on the TV just after installation

Turning on the TV (power cord is still connected)

1. Connect power cord correctly. At this moment, the TV is switched to standby mode.

2. Press the POWER or CH (

DD/ EE

) buttons on the TV front panel or press the POWER, INPUT, TV INPUT,

CH (+ / -) or Number (0 ~ 9) buttons on the Remote Control to turn the TV on.

• Check the power cable.

1. If the TV is off without indicators on the TV

2. If the TV was turned off with the remote control and the POWER button on the TV

• Press the POWER button on the TV or press the POWER, INPUT, TV INPUT, CH (+ / -) or Number (0 ~ 9) button on the Remote Control to turn the TV on.

22 DLP Projection TV

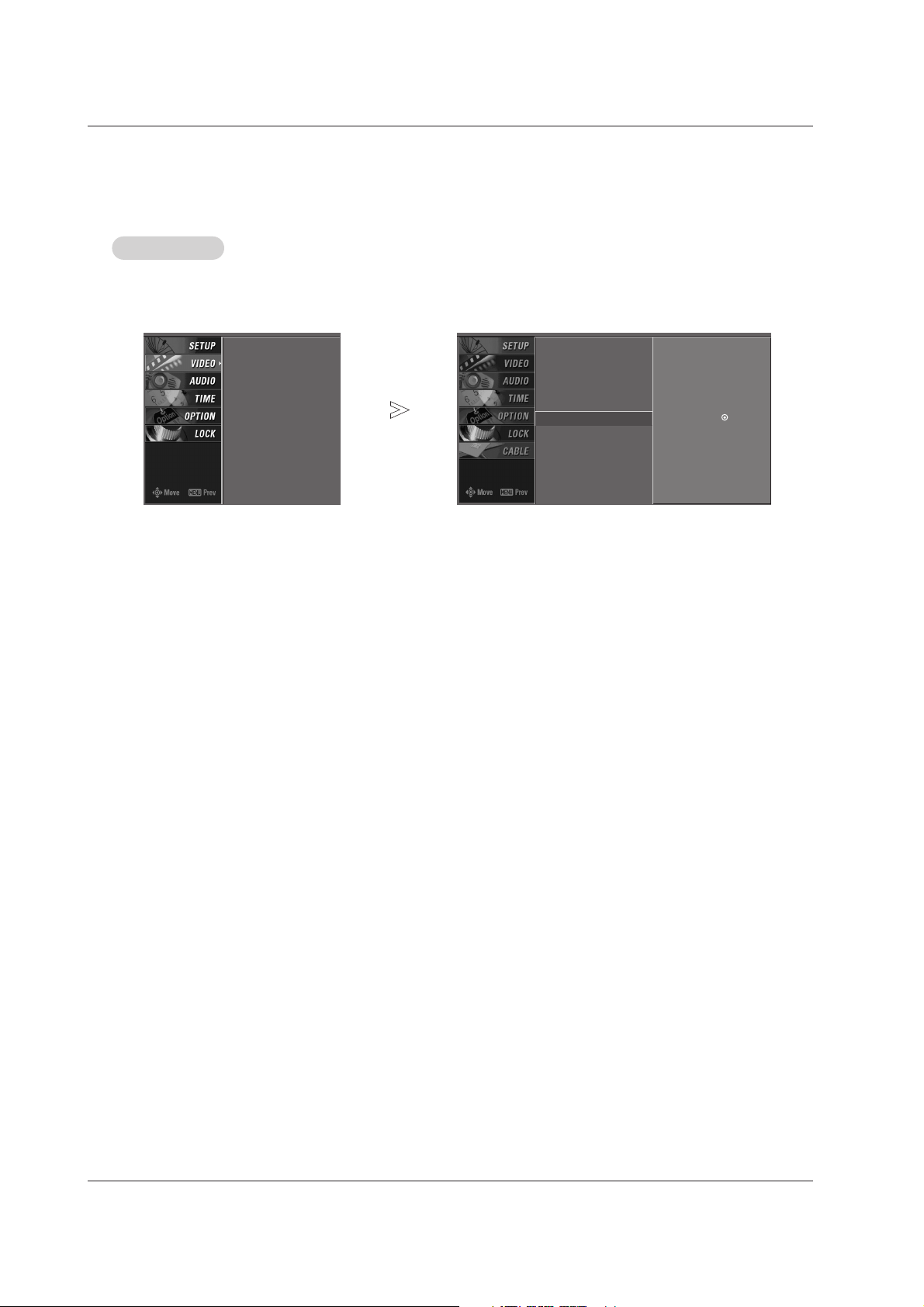

- The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use

DD/ EE

button to select the OPTION menu.

2. Press the GG button and then use

DD/ EE

button to select Language.

3. Press the GG button and then use

DD/ EE

button to select your desired language.

From this point on, the on-screen menus will be shown in the selected language.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

On-screen Menus Language Selection

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

English Español (Spanish) Français (French)

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Press the CH (+ / -) or NUMBER buttons to select a channel number.

Channel Selection

Note: When you selects the Scramble channel and then moves, the channel is automatically deleted.

To watch the Scramble channel, you must buy the separate cable box and apply for the subscription to the cable broadcating station.

VVolume

olume

Adjustment

1. Press the VOL (+ / -) button to adjust the volume.

2. If you want to switch the sound off, press the MUTE button.

3. You can cancel this function by pressing the MUTE or VOL (+ / -) button.

TV Setup

Owner’s Manual 23

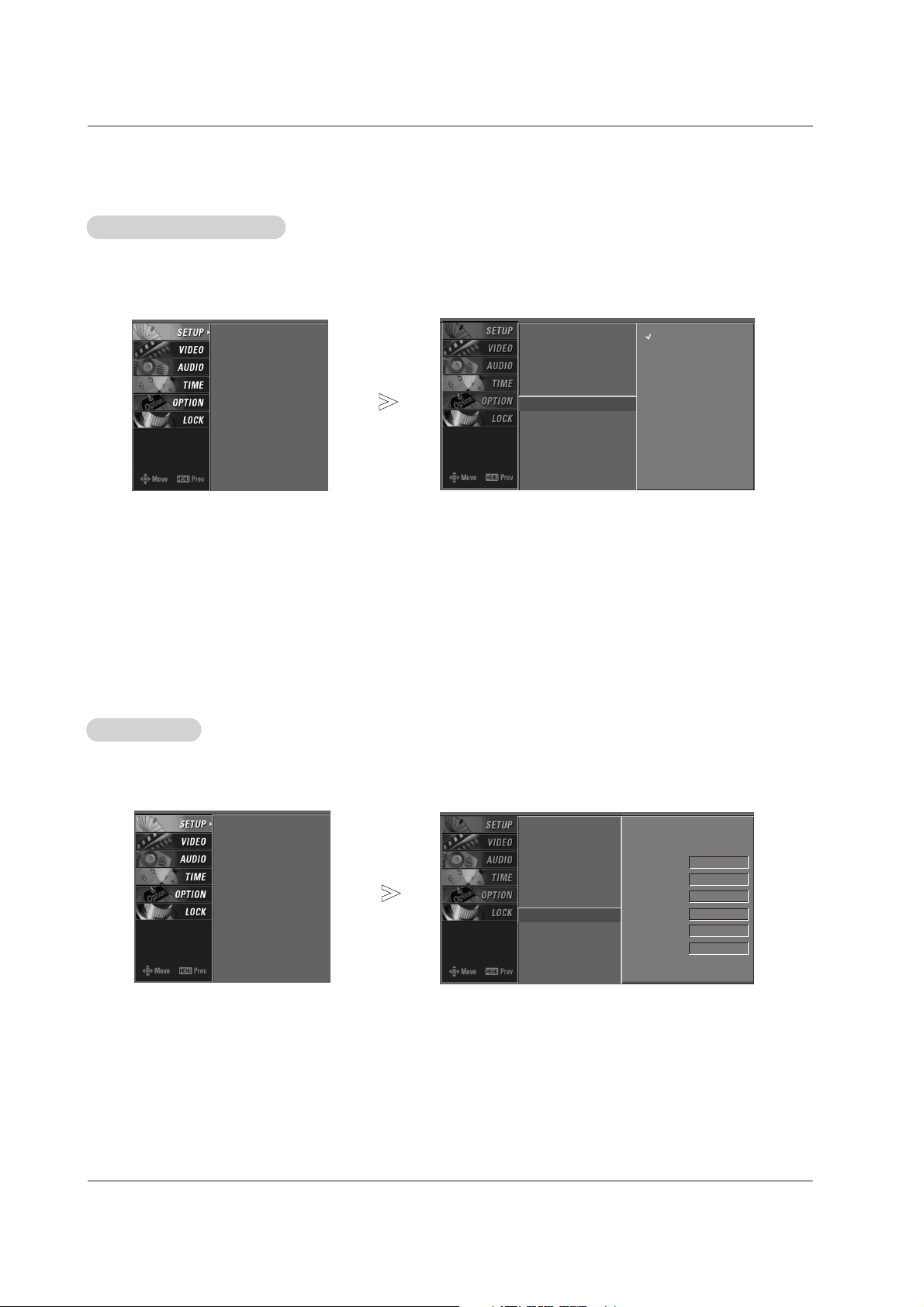

- Automatically finds all available channels through antenna or cable inputs, and stores them in memory on the channel list.

- Run EZ Scan again after any Antenna/Cable connection changes.

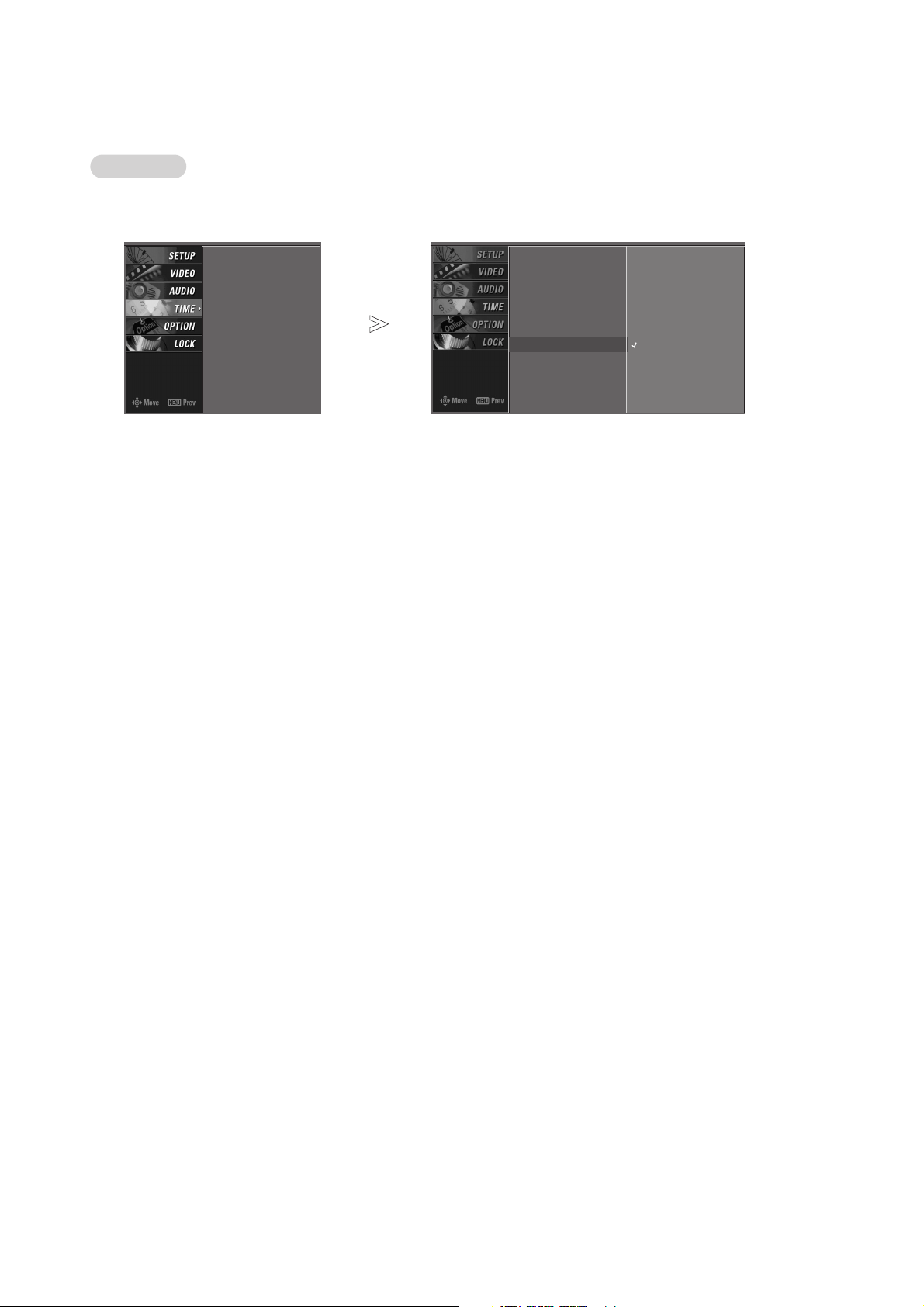

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select EZ Scan.

3. Press the GG button or ENTER button to begin the channel search.

Allow EZ Scan to complete the channel search cycle for TV, DTV, CATV, and CADTV.

EZ Scan (Channel Search)

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select Manual Scan.

3. Press the GG button and then use

DD / EE

button to select TV/CADTV/CATV/DTV.

4. Press the

GG button and then use

DD / EE

button to select channel number you want to add or delete.

5. Press the ENTER button to add or delete for the channel number.

6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Manual Scan

Setup Menu Options

- A password is required to gain access to Manual Scan menu if the Lock System is turned on.

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Selection (Gor ) leads you to the EZ scan screen.

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Processing EZ scan...

ANTENNA Ch.20

0 channel(s) found

Press to stop the current scan and start DIGITAL ANTENNA channel scan.

MENU Previous

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Select channel type and RF-channel number.

Press to delete the channel

TV 2-0

DD EE

24 DLP Projection TV

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select Channel Edit.

3. Press the

GG button. You will now see a screen filled with channel numbers and a preview picture.

4. Use

DD / EE

/ FF / GG button to select a channel and then use the ENTER button to add or delete it. Press FAV button to

add the channel to the Favorite List.

5. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Note: When you selects the Scramble channel and then moves, the channel is automatically deleted.

To watch the Scramble channel, you must buy the separate cable box and apply for the subscription to the cable broadcating station.

Channel Edit

This feature displays the DTV signal levels being received and indicates whether you need to adjust your antenna or digital

cable input. The higher the signal strength, the less likely you are to experience picture degradation.

DTV Signal: This function is only available when the input signal is DTV or CADTV.

DTV Signal

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select DTV Signal.

3. View the on-screen signal strength monitor to see the quality of the signal being received.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Create two different types of channel lists in memory: “Custom List” and “Favorite List” from the default channel list cre-

ated from the EZ Scan channel search.

A Custom List can be created by toggling each channel on or off with ENTER button. The channels in the Custom List are displayed in black color, and the channels deleted from the Custom List are displayed in gray color. Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-left corner of the screen.You can create your own Favorite List. Use the FAV button on the remote control when a channel is highlighted and then you can add or delete the channel to/from the Favorite List.

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Selection ( Gor ) leads you to the channel edit screen.

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Bad Normal Good

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Owner’s Manual 25

Changes the picture source so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the

GG button and then use

DD / EE

button to select Input .

3. Press the GG button and then use

DD / EE

button to select the source: Antenna, Cable, AV1, AV2,

Component1, Component2, RGB-DTV (or RGB-PC) or HDMI/DVI.

5. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Input Source Selection

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

Antenna Cable AV1 AV2 Component1 Component2 RGB-PC HDMI/DVI

Sets a label to each input source which is in use when you press INPUT button.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select Input Label.

3. Press the GG button and then use

DD / EE

button to select the source: AV1, AV2, Component1, Component2, RGB or

HDMI/DVI.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Input Label

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Input

Input Label

AV1 Cable Box

AV2 VCR

Component1 DVD

Component2 Set Top Box

RGB PC

HDMI/DVI Game

26 DLP Projection TV

1. Press the EZ Video button repeatedly to select the picture appearance setup option as shown below:

Daylight, Normal, Night Time, User 1 and User 2(your own settings).

• You can also use the VIDEO menu to adjust EZ Picture.

2. Press the EXIT button to save and return to TV viewing .

Auto Picture Control (EZ Picture)

EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the

program category.

Daylight, Normal, Night Time settings are preset for optimum picture quality at the factory and are not adjustable.

In the User 1, and User 2 modes only, user can directly adjust the contrast, brightness, color, sharpness, tint.

VVideo Menu Options

ideo Menu Options

Allows you to select your preferred picture mode after compairing the four different picture (Daylight , Normal , Night Time , User 1 and User 2) settings.

1. Press the APM button at once.As shown below,the screen is divided to 4-split.

2. Use the

DD / EE

/ FF / GG

button to navigate 4 EZ Pictures.

By pressing the ENTER button,you can select the desired mode.

Audio Language

Daylight Normal

User 1

Night Time

EXIT

Navigate Select Exit

Note: While operating the 4-split, any button except APM, ENTER, EXIT, VOLUME

or EE, MUTE or

DD / EE

/ FF / GG

button on the remote control are not usable.

Owner’s Manual 27

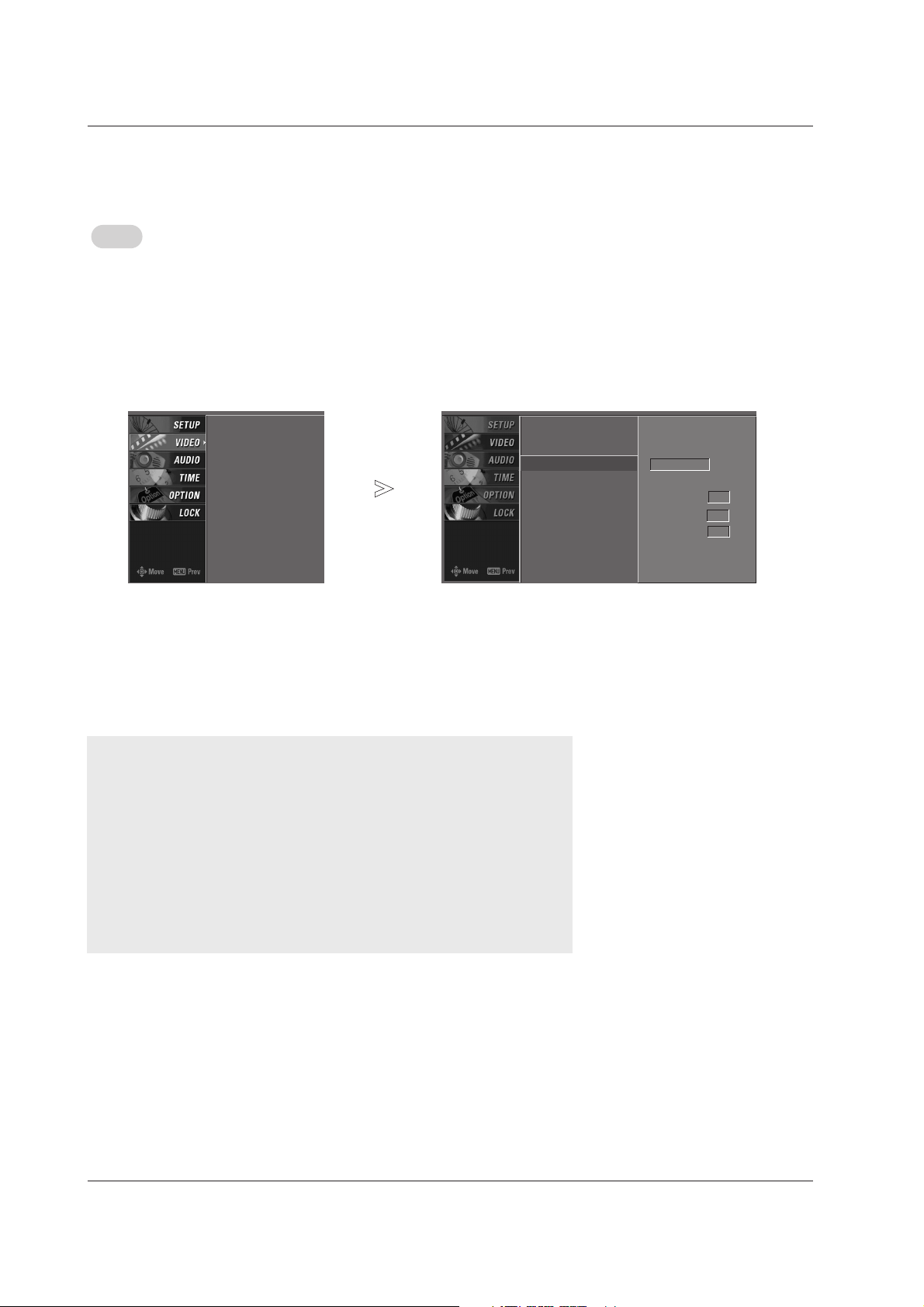

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the

GG button and then use

DD / EE

button to select Color Temperature .

3. Press the GG button and then use

DD / EE

button to select either Cool, Medium, Warm or User .

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Color

Color TT

emperature Control

EZ Picture

Color Temperature

Advanced

Video Reset

EZ Picture

Color Temperature

Advanced

Video Reset

Cool

Medium

Warm

User

28 DLP Projection TV

Audio Menu Options

Manual Color Temperature Control

You can also adjust the detailed settings(Red, Green, Blue) by selecting the User menu.

EZ Picture

Color Temperature

Advanced

Video Reset

Red 0

EZ Picture

Color Temperature

Advanced

Video Reset

Press to confirm.

Selection ( Gor ) leads you to the detailed setting screen.

Cool

Medium

Warm

User

Red 0

Green 0

Blue 0

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the GG button and then use

DD / EE

button to select Color Temperature .

3. Press the GG button and then use

DD / EE

button to select User .

4. Press the GG button and then use

DD / EE

button to select Red, Green or Blue .

5. Press the GG button and then use FF / GG button to make appropriate adjustments.

• The adjustment range of Red, Green or Blue is -20~ +20.

6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Owner’s Manual 29

XD is LG Electronic’s unique picture improving technology to display a real HD source through an advanced dig-ital signal processing algorithm. When selecting EZ Picture options (Daylight, Normal and Night time), XD is automatically change to Auto. When selecting EZ Picture options (User 1 and User 2), you can choose the Auto / Manual and when selecting Manual, you can adjust the XD Contrast, XD color and XD Noise.

EZ Picture

Color Temperature

Advanced

Video Reset

EZ Picture

Color Temperature

Advanced

Video Reset

Manual

XD Contrast On

XD Color On

XD Noise On

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the

GG button and then use

DD / EE

button to select XD.

3. Press the

GG button and then use

DD / EE

button to select Auto or Manual.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

* Selecting the Manual

1. Press the

GG button and then use FF / GG button to select XD

Contrast, XD Color or XD Noise. XD Contrast :Optimizing the contrast automatically according to the

brightness of the reflection.

XD Color :Adjusting the colors of the reflection automatically to repro-

duce as closely as possible to the natural colors. XD Noise :Removing the noise up to the point where it does not damage the original picture.

2. Use the

DD / EE

button to make appropriate adjustments.

30 DLP Projection TV

Advanced-Cinema 3:2 Mode / Black Level

• Cinema 3:2 Mode

- Set up the TV for the best picture appearance for viewing movies.

When you operate Cinema (3:2 Pull-Down Mode or Cinema Correction Mode),the TV will adjust 24 fps video from movies to 30 fps video for display (This function is only available in Analog,AV1,AV2,Component 480i mode.)

• Black level

- Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature operates only in HDMI/DVI or AV1, AV2 mode.

EZ Picture

Color Temperature

Advanced

Video Reset

EZ Picture

Color Temperature

Advanced

Video Reset

Cinema 3:2 Mode Off

Black Level Auto

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the

GG button and then use

DD / EE

button to select Advanced .

3. Press the

GG button and then use

DD / EE

button to select Cinema 3:2 Mode or Black Level.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

* Selecting the Cinema 3:2 Mode

4. Press the GG button and then use

DD / EE

button to select On or Off .

* Selecting the

Black Level

4. Press the GG button and then use

DD / EE

button to select Auto, Low or High.

Auto

Realizing the black level of the screen and

set it to High or Low automatically.

Low

The reflection of the screen gets darker.

High

The reflection of the screen gets brighter.

Owner’s Manual 31

VVideo Reset

ideo Reset

Use to quickly reset all the Video menu options to their original factory preset values.

EZ Picture

Color Temperature

Advanced

Video Reset

EZ Picture

Color Temperature

Advanced

Video Reset

Selection ( Gor ) resets to the factory settings (default).

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the

GG button and then use

DD / EE

button to select Video Reset.

3. Press the

GG button to reset the Video menu options to original values.

32 DLP Projection TV

Audio Language

Audio Menu Options

Other languages may be available if a digital signal is provided by the broadcasting station.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

English Spanish French

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the

GG button and then use

DD / EE

button to select Audio Language.

3. Press the

GG button and then use

DD / EE

button to select: English, Spanish, or French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Auto V

olume Leveler (EZ SoundRite)

Scans for changes in sound level during commercials, then adjusts the sound to match the specified audio level. SoundRite makes sure that the volume level remains consistent whether you are watching a commer-cial or a regular TV program.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

Off On

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the

GG button and then use

DD / EE

button to select EZ SoundRite.

3. Press the

GG button and then use

DD / EE

button to select On or Off .

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Owner’s Manual 33

Auto Sound Control (EZ Sound)

EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the

appropriate sound options based on the program content.

Normal,Stadium,News,Music and Theater are preset for good sound quality at the factory and are not adjustable.

1. Press the EZ Sound button repeatedly to select the appropriate sound setup as shown below :

Normal , Stadum , News , Music , Theater and User (your own settings) .

• You can also adjust

EZ Sound in the AUDIO menu.

2. Press EXIT button to save and return to TV viewing.

Manual Sound Control (

Manual Sound Control ( EZ Sound--User

option )

Adjust the sound to suit your taste and room situations.

Treble 50

Bass 50

Front Surround Off

Press to confirm.

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the

GG button and then use

DD / EE

button to select EZ Sound.

3. Press the

GG button and then use

DD / EE

button to select User.

4. Press the GG button and then use

DD / EE

button to select the desired sound option (Treble, Bass or Front Surround).

5. Press the

GG button and then use FF / GG button to make appropriate adjustments

6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Selection ( Gor ) leads you to the detailed setting screen.

Normal Stadium News Music Theater

User

front Surround 3D EchoSound System

* Selecting the Front Surround

Press the

GG button and then use FF / GG button to select

Off, 3D EchoSound System or SRS(Sound Retrieval System)TruSurround XT .

SRS TruSurround XT

Takes advantage of any multi-channel format without needing to add extra speakers or equipment. Dialog clarity, bass enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from standard stereo material.

3D EchoSound System

Creates a stunning simulated stereo effect from any mono sound and a realistic three-dimensional sound with a very wide and deep sound stage.

34 DLP Projection TV

Balance

Adjust the left/right sound of speaker to suit your taste and room situations.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

L R

Balance 0

Audio Language

EZ SoundRite

EZ Sound

Balance 0

TV Speaker

L R

1. Press the MENU button and then use

DD / EE

button to select

the AUDIO menu.

2. Press the

GG button and then use

DD / EE

button to select

Balance.

3. Press the GG button and then use FF / GG button to make appro- priate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

TV Speaker On/Of

f Setup

Turn TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

Off On

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the

GG button and then use

DD / EE

button to select TV Speaker.

3. Press the GG button and then use

DD / EE

button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Owner’s Manual 35

TTime Menu Options

ime Menu Options

Auto Clock Setup

The time is set automatically from a digital channel signal. The digital channel signal includes information for the current time provided by the broadcasting station. Set the clock manually, if the current time is set incorrectly by the auto clock function through Digital Channel Service problem.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off On

Time Zone Eastern

Auto

Daylight

Saving

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the GG button and then use

DD / EE

button to select Auto Clock .

3. Press the GG button and then use

DD / EE

button to select On.

4. Press the GG button and then use

DD / EE

button to select your viewing area time zone: Eastern , Central ,

Mountain , Pacific , Alaska , or Hawaii .

5. Press the GG button and then use

DD / EE

button to set Daylight Saving Auto , Off or On , depending on

whether or not your viewing area observes Daylight Savings Time.

6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Manual Clock Setup

If current time setting is wrong, reset the clock manually.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Year - - - Date - - / - Time - - : - - - -

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the

GG button and then use

DD / EE

button to select Manual Clock .

3. Press the GG button and then use FF / GG button to select either the year, date, or time option. Once selected, use the

DD / EE

button to set the year, date, and time options.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

36 DLP Projection TV

On/Of

On/Off f TT

imer Setup

Timer function operates only if current time has been set. Off-Timer function overrides On-Timer function if they are both set to the same time. The TV must be in standby mode for the On-Timer to work. If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to standby mode.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off On Time 6 : 30 AM Ch. TV 2-0 Vol 17

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the GG button and then use

DD / EE

button to select Off Timer or On Timer .

3. Press the GG button and then use

DD / EE

button to select On .

•

To cancel

On / Off Timer function, select Off .

4. Press the

GG button and then use

DD / EE

button to set the hour.

5. Press the

GG button and then use

DD / EE

button to set the minutes.

6. For only

On Timer function

Press the GG button and then use

DD / EE

button to select the channel at turn-on.

Press the

GG button and then use

DD / EE

button to set the sound level at turn-on.

7. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Sleep

Sleep TT

imer

The Sleep Timer turns the TV off after a preset amount of time. Note that this setting is cleared when the TV is turned off.

• You can also set up the

Sleep Timer in the TIME menu.

1. Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the TIMER button once.

4. To cancel the Sleep Timer, press the TIMER button repeatedly to select Off .

Owner’s Manual 37

Auto Of

Auto Offf

If set to on and there is no input signal, the TV turns off automatically after 10 minutes.

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the

GG button and then use

DD / EE

button to select Auto Off.

3. Press the

GG button and then use

DD / EE

button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off On

TV will be automatically turned

off, in case of No Signal for

10 minutes.

38 DLP Projection TV

Option Menu Features

Aspect Ratio Control

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV,you need to specify the pic ture is to be displayed. RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.

1. Press the RATIO button repeatedly to select the desired picture format.

• You can also adjust the Aspect Ratio in the OPTION menu.

Set by program

Selects the proper picture proportion to match the source’s image.

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Horizon

The screen size is, more enlarged at both sides, to create a spectacular view.

Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.

Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

■

The adjustment range is 1-16.

Set By Program

4:3

16:9

Horizon

Zoom 1

Zoom 2

Cinema Zoom DD1

Set By Program

(4:3 4:3)

(16:9 16:9)

Owner’s Manual 39

Caption/T

ext

Analog Broadcasting System Captions

Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen usually the program's dialog. Text displays information, usually at the bottom position and is used for a data service, generally not program related. Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to remember the caption/text mode it was last set to, when you turn the power off.

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the GG button and then use

DD / EE

button to select Caption/Text.

3. Press the

GG button and then use

DD / EE

button to select caption: Off, CC1, CC2, CC3, CC4, Text1, Text2, Text3, or Text4.

• CAPTION

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the

hearing impaired.

• TEXT

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the

broadcaster.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

1. Use the CC button repeatedly to select Caption Off, CC1, CC2, CC3, CC4, Text1, Text2, Text3, or Text4.

2. Press EXIT button to save and return to TV viewing.

• You can also use the OPTION menu to select Caption/Text.

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Off CC 1 CC 2 CC 3 CC 4 Text 1 Text 2 Text 3 Text 4

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in. Languages can be chosen for digital sources only if they are included on the program.

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Off English Spanish French

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the

GG button and then use

DD / EE

button to select Caption/Text.

3. Press the GG button and then use

DD / EE

button to select available caption languages: English, Spanish, or French, Text4.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

40 DLP Projection TV

Caption Option

Customize the DTV/CADTV captions that appear on your screen.

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Style Custom Size A Standard Font Font 0 Text Color White Text Opacity

Solid Bg Color Black Bg Opacity Solid Edge Type None Edge Color Black

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the GG button and then use

DD / EE

button to select Caption Option.

3. Press the

GG button and then use

DD / EE

button to select Custom.

4. Use

DD / EE

button to customize the Style, Font, etc., to your preference. A preview icon is provided at the bottom of the screen, use

it to see the caption language.

• Size: Set the size the words will appear in.

• Font: Select a typeface for the words.

• Text Color: Choose a color for the text.

• Text Opacity: Specify the opacity for the text color.

• Bg (Background) Color: Select a background color.

• Bg (Background) Opacity: Select the opacity for the background color.

• Edge Type: Select an edge type.

• Edge Color: Select a color for the edges.

5. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Low Power

Low power reduces the plasma display power consumption.

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the GG button and then use

DD / EE

button to select Low Power.

3. Press the GG button and then use

DD / EE

button to select On or Off.

• When you select On, the screen darkens.

4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Off On

Aspect Ratio

Caption/Text

Caption Option

Language

Low Power

Owner’s Manual 41

Lock Menu Options

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

• Blocking Off (Permits all programs)

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Parents strongly cautioned)

• R (Restricted)

• NC-17 (No one 17 and under admitted)

• X (Adult only)

If you set PG-13 : G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

• TV-G (General audience)

• TV-PG (Parental guidance suggested)

• TV-14 (Parents strongly cautioned)

• TV-MA (Mature audience only)

• TV-Y (All children)

• TV-Y7 (Children 7 years older)

TV Rating-Children:

• Age (applies to TV-Y, TV-Y7)

• Fantasy Violence (applies to TV-Y7)

TV Rating-General:

• Age (applies to TV-G, TV-PG, TV-14, TV-MA)

• Dialogue- sexual dialogue (applies to TV-PG, TV-14)

• Language- adult language (applies to TV-PG, TV-14, TV-MA)

• Sex- sexual situations (applies to TV-PG, TV-14, TV-MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

Input Block

• AV1, 2, (On, Off)

• Component 1, 2 (On, Off)

• RGB or HDMI/DVI (On, Off)

42 DLP Projection TV

Parental Lock Setup

Set up blocking schemes to block specific channels, ratings, and external viewing sources. A password is required to gain access to this menu.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Off On

Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Input Block

1. Press the MENU button and then use

DD / EE

button to select the LOCK menu. Then, press the GG

button.

• Enter the password as requested.

• The TV is set up with the initial password “0-0-0-0”.

2. Use the

DD / EE

button to choose from the following Lock Menu options. Once the option is select

ed, change the settings to your preference.

• Lock System: Activates or disables the blocking scheme you set up previously.

• Set Password: Change the password by inputting a new password twice.

• Block Channel: Select a channel number that you wish to block.

• Movie Rating (MPPA): Blocks movies according to the movie ratings limits specified, so children

cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

• TV Rating-Children: Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

• TV Rating-General: Based on the ratings, blocks certain TV programs that you and your family do not want to view.

• Input block: Enables you to select a source to block from the external source devices you have hooked up.

3. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Note: If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

Owner’s Manual 43

1. Press the FREEZE button in DTV 720p, or 1080i modes.

2. Use the

DD / EE

/ FF / GG buttons to select the screen split zoom section.

3. To return to normal viewing, press the FREEZE button again.

- Enlarges the picture with correct proportions.

- When enlarging the picture, the image may become distorted.

Split Zoom (DTV 720p, or 1080i mode only)

- This system has an Electronic Program Guide (EPG) to help your navigate through all the possible viewing options.

- The EPG supplies information such as program listings, start and end times for all available services.

- This function can be used only when the EPG information is broadcasted by broadcasting companies.

- The EPG displays the program description for next 3 days.

- This function is only supported in DTV mode.

1. Press the GUIDE button to switch on EPG.

2. Press the

DD / EE

/ FF / GG

button to select desired program, then press the ENTER button to display the select-

ed program.

3. Press the GUIDE or EXIT button again to switch off EPG and return to TV viewing.

Remote Control Buttons Function

D / E

F / G Select the desired program

Change to the selected channel

FF/ GG Jump Page

IFF

GGI Change the date

GUIDE/EXIT Switch off EPG

EPG (Electronic Program Guide) (In DTV mode)

44 DLP Projection TV

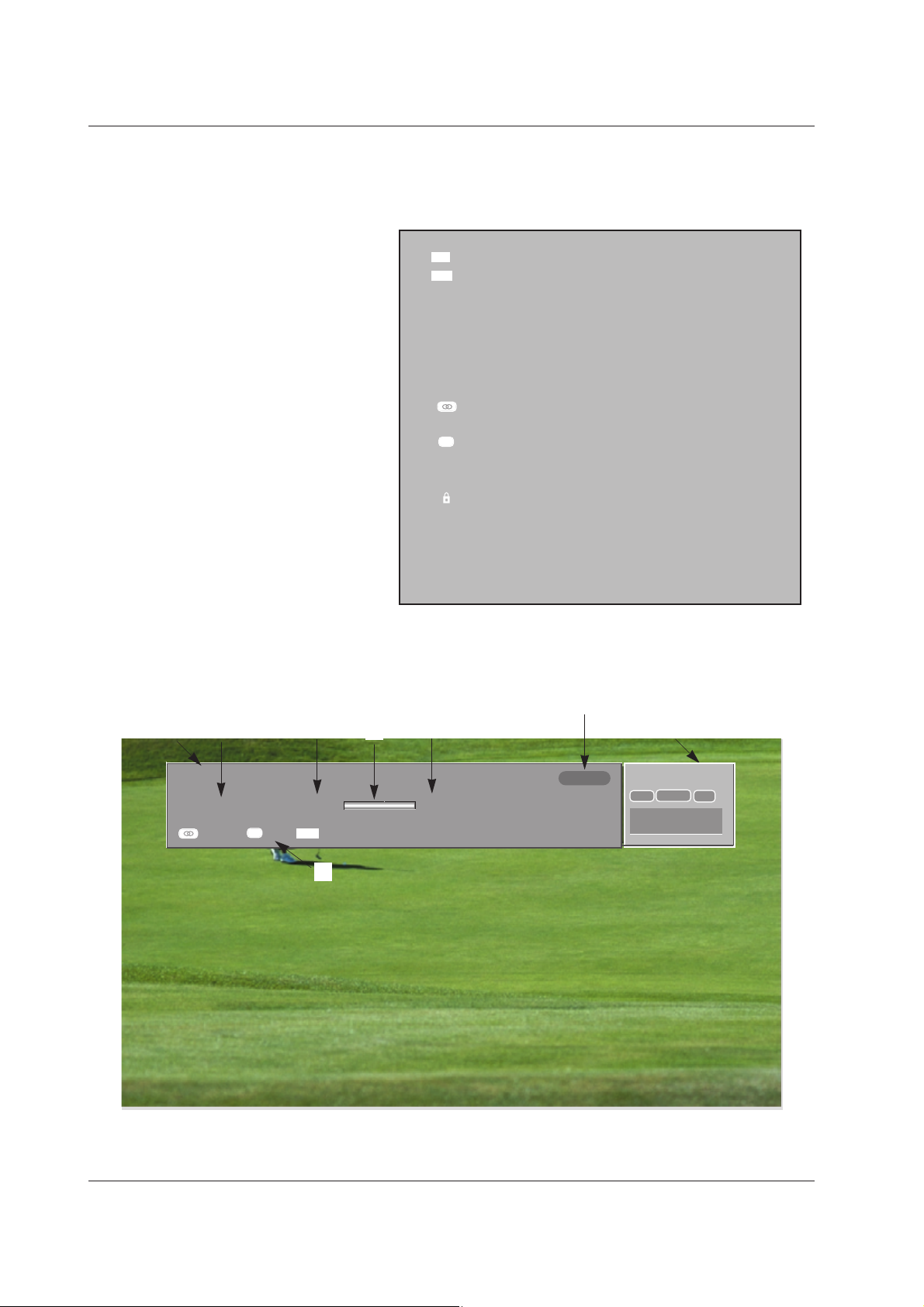

4 : 3

16 : 9

Screen Ratio of Input Signal 4:3 Screen Ratio of Input Signal 16:9

Resolution of Input Signal 720x480i Resolution of Input Signal 720x480p Resolution of Input Signal 1280x720p Resolution of Input Signal 1920x1080i

Multilingual : Input Signal have over two Audio information. Press the SAP button to select wanted Audio. Caption: Input Signal have over one Close service. Press the CC button to select wanted Closed caption.

Input Signal has rating information . Refer to the <Lock Menu>. D (Dialogue), L (Language), S (Sex), V (Violence), FV (Fantasy Violence)

480i 480p 720p

1080i

Function : • Show the present screen information.

• On Watching with the upper Input signal, press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information B: Program title C: Day, Month, Year D: Program start time E: Program finish time F: Show the prosessing rate G: Present time H: Added information. Refer to the icon

explanation.

Brief Info.

Live Eden 1080I

Sat, Dec 20, 2003

7:00PM

9:00PM

Caption

16 : 9

1080i

Multilingual

TV 6-0

CNBC

MONO

STEREO

3:11AM

SAP

Owner’s Manual 45

Programming the Remote

1. Test your Remote Control. To find out whether your remote control can operate the device with out programming, turn on the device such as a the VCR and press the corresponding mode button (VCR) on the remote control while pointing at the device. Test the POWER and CH +/- buttons to see if the device responds properly. If not, the remote requires programming to operate the device.

2. Turn on the device to be programmed. Then press the cor responding mode button on the Remote Control.

3. Press the POWER button and the MUTE button simulta neously. Now the Remote Control is ready to program the code for the corresponding device.

4. There are two ways to find the right code for the device.

A. If you press the CH +/- buttons repeatedly, the codes will

change one at a time. Press the POWER button after each code change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the Remote

Control. The right code numbers for the corresponding component can be found on the following pages.

Again, if the code is correct, the device will turn off.

5. Press the EXIT button to store the program.

6. Test the Remote Control functions to see if the device responds properly. If not, repeat from step 2.

1 2 3 4 5 6 7 8 9

MODE

LIGHT

POWER

INPUT

INFO

HDMI/DVI

VCR

CABLE

DVD

SAT

MUTE

EZ PICSRS APM

EZ SOUND

RATIO

MENU EXIT

CC FREEZE

GUIDE

VOL

FAV

SAP

ADJUST

TIMER

RGB-PC

TV INPUT

FLASHBK

ENTER

The Remote Control for your HD receiver is a multi-brand or universal Remote Control that can be programmed to operate most remote-controllable devices of other manufacturers.

Note: The Remote Control may not be able to control all models of other brands.

46 DLP Projection TV

Programming Codes

TVs

Brand Codes

A MARK 112 143

ADMIRAL 072 081 161

AKAI 006 146

AMPRO 073 167

AMSTRAD 052

ANAM 043 054 056

080 104 108

112 115 118

121 131

AOC 004 006 058

112

BLAUPUNKT 088

CANDLE 002 003 004

006

CAPEHART 058

CETRONIC 043

CITIZEN 002 003 004

006 043 101

103 143

CLASSIC 043

CONCERTO 004

CONTEC 039 043 050

051

CORONADO 143

CRAIG 043 054

CROWN 043 143

CURTIS MATHES 004 006 101

116 143

CXC 043

DAEWOO 004 016 017

043 044 055

071 076 103

107 111 114

117 120 123

125 127 128

136 143

DAYTRON 004 116 143

DYNASTY 043

DYNATECH 062

ELECTROHOME 024 077 143

EMERSON 004 005 006

028 043 047

048 050 051

096 116 143

151 153 154

155

FISHER 007 057

FUNAI 028 043

FUTURETECH 043

GE 004 006 008

009 034 056

073 074 091

116 130 144

155 160 161

165

Brand Codes

GOLDSTAR 004 102 106

110 112 113

116 119 122

127 137 143

HALL MARK 004 116

HITACHI 004 006 009

010 011 012

023 041 075

143 158 163

166

INFINITY 164

INKEL 129

JBL 164

JCPENNY 004 006 008

009 024 030

065 101 143

156 160

JENSEN 013

JVC 034 038 070

083 145

KEC 043

KENWOOD 006 070

KLOSS 002 059

KMC 143

KTV 006 043 143

154

LG 255

LODGENET 072

LOGIK 072

LUXMAN 004

LXI 007 015 052

081 160 164

166

MAGNAVOX 003 004 006

022 059 060

061 063 064

127 143 160

164

MARANTZ 006 077 164

MATSUI 164

MEMOREX 004 007 072

116

METZ 088

MGA 004 006 024

028 042 049

077 116

MINERVA 088

MITSUBISHI004 006 024

028 040 042

109 116 124

146

MTC 004 006 062

101

NAD 015 025

NEC 006 007 016

Brand Codes

019 024 040

056 130 132

134

NIKEI 043

ONKING 043

ONWA 043

OPTONICA 019 081

PANASONIC 034 056 080

092 164

PHILCO 003 004 006

024 043 056

059 060 063

064 127 143

164

PHILIPS 003 004 005

006 038 059

070 093 143

160 164

PIONEER 006 018 023

025 027 116

135 176

PORTLAND 004 143

PROSCAN 144 160 161

165 167

PROTON 004 058 116

131 143 171

173

QUASAR 034 056 092

RADIO SHACK 019 043 047

116 127 143

RCA 004 006 023

024 056 065

074 144 152

156 160 161

165

REALISTIC 007 019 043

047

ROCTEC 186

RUNCO 168 169

SAMPO 004 006 058

116

SAMSUNG 004 050 089

101 105 113

116 127 133

137 143 160

SANYO 007 020 021

033 039 053

057 082 166 SCOTT

004 028 043

048 116 143 SEARS

004 007 015

028 030 057

082 094 101

116 143 160

Brand Codes

Sharp 004 014 019

022 028 029

081 143 170

175

SIEMENS 088

SIGNATURE 072

SONY 041 070 079

085 126 139

147 185

SOUNDESIGN 003 004 028

043 116

SPECTRICON 112

SSS 004 043

SUPRE MACY 002

SYLVANIA 003 004 006

044 059 060

063 064 116

127 140 160

164

TANDY 081

TATUNG 056 062

TECHNICS 034 080 084

TECHWOOD 004

TEKNIKA 002 003 004

006 024 028

031 043 072

077 101 103

143

TELEFUNKEN037 046 086

087

TELERENT 072

TERA 172

TMK 004 116

TOSHIBA 007 015 030

040 051 062

101 138

TOTEVISION 143

UNIVERSAL 008 009

VIDEO CONCEPTS 146

VIDIKRON 174

VIDTECH 004 116

WARDS 004 008 009

019 028 060

061 063 064

072 074 116

143 164

YAMAHA 004 006

YORK 004 116

YUPITERU 043

ZENITH 001 072 073

095 103 157

ZONDA 112

Owner’s Manual 47

Audio

SASAT

Brand Codes

ALPHASTAR DSR 123 AMPLICA 050 BIRDVIEW 051 126 129 BSR 053 CAPETRONICS 053 CHANNEL MASTER 013 014 015

018 036 055

CHAPARRAL 008 009 012

077 CITOH 054 CURTIS MATHES 050 145 DRAKE 005 006 007

010 011 052

112 116 141 DX ANTENNA 024 046 056

076 ECHOSTAR 038 040 057

058 093 094

095 096 097

098 099 100

122 ELECTRO HOME 089 EUROPLUS 114 FUJITSU 017 021 022

027 133 134

Brand Codes

GENERAL INSTRUMENT 003 004 016

029 031 059

101 HITACHI 139 140 HOUSTON TRACKER 033 037 039

051 057 104 HUGHES 068 HYTEK 053 JANIEL 060 147 JERROLD 061 KATHREIN 108 LEGEND 057 LG 255 LUTRON 132 LUXOR 062 144 MACOM 010 059 063

064 065 MEMOREX 057 NEXTWAVE 028 124 125 NORSAT 069 070 PACE SKY SATELLITE 143 PANASONIC 060 142 PANSAT 121

Brand Codes

PERSONAL CABLE 117 PHILIPS 071 PICO 105 PRESIDENT 019 102 PRIMESTAR 030 110 111 PROSAT 072 RCA 066 106 REALISTIC 043 074 SAMSUNG 123 SATELLITE SERVICE CO 028 035 047

057 085 SCIENTIFIC ATLANTA 032 138 SONY 103 STARCAST 041 SUPER GUIDE 020 124 125 TEECOM 023 026 075

087 088 090

107 130 137 TOSHIBA 002 127 UNIDEN 016 025 042

043 044 045

048 049 078

079 080 086

101 135 136

Brand Codes

VIEWSTAR 115 WINEGARD 128 146 ZENITH 001 081 082

083 084 091 120

Brand Codes

APEX DIGITAL 022 DENON 020 014 GE 005 006 GOLDSTAR 010 016 025 HARMAN KARDON 027 JVC 012 LG 001 010 016

Brand Codes

025 MAGNAVOX 013 MARANTZ 024 MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009

Brand Codes

PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006 RCA 005 006 SAMSUNG 011 015 SONY 007

Brand Codes

THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

48 DLP Projection TV

DVD

Brand Codes

APEX DIGITAL 022 DENON 020 014 GE 005 006 GOLDSTAR 010 016 025 HARMAN KARDON 027 JVC 012 LG 001 010 016

Brand Codes

025 MAGNAVOX 013 MARANTZ 024 MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009

Brand Codes

PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006 RCA 005 006 SAMSUNG 011 015 SONY 007

Brand Codes

THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

Owner’s Manual 49

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

; Is the power cord connected to the TV set properly?

• Test the wall power outlet, plug another product’s power cord into the outlet where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Picture menu and press the G button. (Refer to p.26)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)? (Refer to p.12)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.12)

Picture OK &

No sound

• Press the VOLUME (

DD / EE

) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking

• Check for local interference such as an electrical appliance or power tool.

TTroubleshooting Checklist

roubleshooting Checklist

50 DLP Projection TV

Poor TV input

signal

• Check ANTENNA and CABLE connection.

No channel or a few

channel

• Start EZ Scan.

Poor Video

signal

• Check ANTENNA and CABLE connection.

Unsuitable

Aspect Ratio

• You can adjust the RATIO button or Aspect Ratio in the OPTION menu.

No output from one of

the speakers

• Adjust Balance in the AUDIO menu. (Refer to p.34)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in the unit turning off and does not indicate a fault with the TV.

Owner’s Manual 51

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Cabinet

Extended

Absence

Maintenance

Product Specifications

• The specifications shown above may be changed without prior notice for quality improvement.

MODELS

AC120V ~ 60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69

210W

75 ohm External Terminal for VHF/UHF

15Wx2

Remote Control, 2 size AA batteries, D-sub 15 pin Cable, Power Cord

Horizontal Size (inches)

Height (inches)

Depth (inches)

Weight (lbs.)

Power requirement

Television System

Program Coverage

Power Consumption (W)

Antenna

Audio Output (W)

Supplied Accessories

58.1

36.8

17.2

87.1

Z52DC2D

Z56DC1D

Z62DC1D

47.5

33.8

15.6

68.0

63.3

40.1

19.5

98.1

ZENITH ELECTRONICS CORPORATION DLP Projection TV Limited Warranty - USA

Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period ("Warranty Period") listed below, effective from the date ("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESSED WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental

or consequential damages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that may vary from state to state.

WARRANTY PERIOD:

LABOR: One Year from the Date of Purchase.

Parts: One Year from the Date of Purchase.

Halogen Bulb: One Year from the Date of Purchase.

Parts replaced are warranted for the remaining portion of the original warranty period.

HOW SERVICE IS HANDLED

In-Home Service: Please retain dealer’s dated bill of

sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.

Please call 1-877-9Zenith (1-877-993-6484) to locate your nearest Zenith Authorized Service Center.

Replacement parts may be new or factory remanufactured.

LG Customer Interactive Center

201 James Record Road Huntsville, Alabama 35824 http://www.zenithservice.com

1. Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration, maintenance or failure to maintain, or separate system components; and

2. Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident, lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer software, institutional or commercial use, or other causes not arising out of defect in material or workmanship.

3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the con-

sumer.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

For nearest Authorized Service Center, Where to buy, Product Assistance, or Customer Assistance

Call 1-877-9Zenith (1-877-993-6484) (24 hours a day, 365 days per year) and select an appropriate option from the menu.

Or visit our website at http://www.zenithservice.com

P/N: 38289U0570A

Zenith Z62DC1D, Z56DC1D, Z52DC2D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
