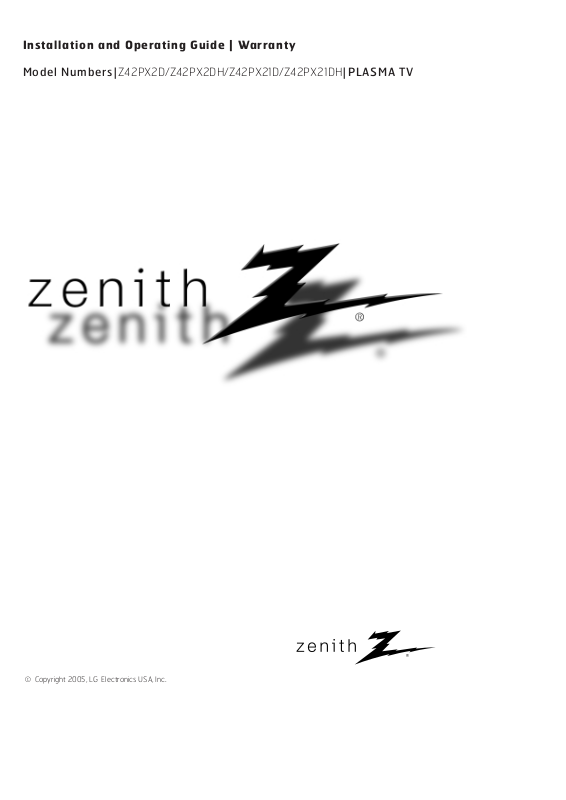

Zenith Z42PX2DH User Manual

© Copyright 2005, LG Electronics USA, Inc.

Installation and Operating Guide | Warranty

Model Numbers|Z42PX2D/Z42PX2DH/Z42PX21D/Z42PX21DH|PLASMA TV

206-4022

2 Plasma TV

Warning/Caution

WARNING/CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.

WARNING/CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

• A Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

• Any changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod­ification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this device compliance is:

Zenith Electronics Corporation
1-201-816-2000
Marked and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
http://www.zenith.com

WARNING

RISK OF ELECTRIC SHOCK
DO NOT OPEN

/CAUTION

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

W

W

arning/Caution

arning/Caution

Owner’s Manual 3

Safety Instructions

206-4022

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or
sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara­tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The
important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be includ­ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding
statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illus­trates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Safety Instructions

Safety Instructions

PORTABLE CART WARNING

4 Plasma TV

Safety Instructions

206-4022

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION concerning the Power Cord :

Most appliances recommend they be placed upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additional outlets or branch circuits. Check the specification page of

this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions could

result in electric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and the point where the

cord exits the appliance.

16. Outdoor Use Marking :

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.

17. Wet Location Marking :

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

Safety Instructions

Safety Instructions

Owner’s Manual 5

Contents

206-4022

After reading this manual, keep it handy for future reference.

Warning/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connection Options . . . . . . . . . . . . . . . . . . . . . .8

Remote Control Key Functions . . . . . . . . . . . 9~10

Installation

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Installation Instructions . . . . . . . . . . . . . . . . . .11~12

Joining the TV assembly to the wall to protect the set

tumbling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

External Equipment Connections . . . . . . . . . .13~18

Antenna or Cable Connection . . . . . . . . . . .13~14

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .14

External A/V Source Setup . . . . . . . . . . . . . . . .15

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

CableCARD

TM

Setup . . . . . . . . . . . . . . . . . . . . .16

HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . .16

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Monitor Out Setup . . . . . . . . . . . . . . . . . . . . . .18

Digital Audio Output . . . . . . . . . . . . . . . . . . . . .18

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19~21

Operation

Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .22

On-screen Menus Language Selection . . . . . . . . .22

Setup Menu Options

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .23

Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .23

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .24

DTV Signal Strength . . . . . . . . . . . . . . . . . . . . .24

Channel Label Setup . . . . . . . . . . . . . . . . . . . .25

Input Source . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Video Menu Options

EZ Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Manual Picture Control (Custom Option) . . . . . .26

Color Temperature Control . . . . . . . . . . . . . . . .26

Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Audio Menu Options

Audio Language . . . . . . . . . . . . . . . . . . . . . . . .27

EZ SoundRite / EZ Sound . . . . . . . . . . . . . . . . .27

Manual Sound Control (Custom Option) . . . . . .27

Front Surround . . . . . . . . . . . . . . . . . . . . . . . . .28

TV Speakers On/Off Setup . . . . . . . . . . . . . . . .28

BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . .29

Time Menu Options

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .30

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .30

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .30

Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .31

Option Menu Features

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .32

Cinema 3:2 Mode Setup . . . . . . . . . . . . . . . . . .32

Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .33

Caption Option . . . . . . . . . . . . . . . . . . . . . . . .34

ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Lock Menu Options

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .37

CableCARDTMFunction

Cable menu options . . . . . . . . . . . . . . . . . . . . .38

Scrambled channel . . . . . . . . . . . . . . . . . . . . . .38

Cable Channel List . . . . . . . . . . . . . . . . . . . . . .39

Emergency Alert Message . . . . . . . . . . . . . . . .39

EPG (Electronic Program Guide) . . . . . . . . . . . . .40

Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

EZ Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Freeze & Magnify . . . . . . . . . . . . . . . . . . . . . . . . .42

Screen Setup for PC mode . . . . . . . . . . . . . . . . . .43

External Control Device Setup . . . . . . . . . . . . . . . .44~49

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50~51

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .52

Programming Codes . . . . . . . . . . . . . . . . . . . . . . .53~54

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .55

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .57

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59~60

Contents

Contents

Setup and Operation Checklist

Setup and Operation Checklist

Setup and Operation Checklist
(See pages 13~21 for available connection and operational setup options.)

1. Unpack TV and all accessories.

2. Connect all external video and audio equipment.
see pages 13~18.

3 Install batteries in remote control.

See page 9.

4. Turn TV on.
See page 22.

5. Turn video source equipment on.

6. Select viewing source for TV.
See pages 25.

7. Fine-tune source image and sound to your personal prefer­ence or as required by source.
See pages 26~ 29.

8. Additional features set up
See Contents above.

6 Plasma TV

Introduction

206-4022

Introduction

Introduction

What is a Plasma Display Panel (PDP)?

A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality
and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also
be viewed as a series of fluorescent lamps.

How does it work?

PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos­phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of these mean that you get perfect images that are easily viewable in a display that is less than 5
inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.

The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel), which is the display device of this product, is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec­tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini­mizes these cell defects during the manufacture and operation of this product.

Owner’s Manual 7

Introduction

206-4022

- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.

Controls

Controls

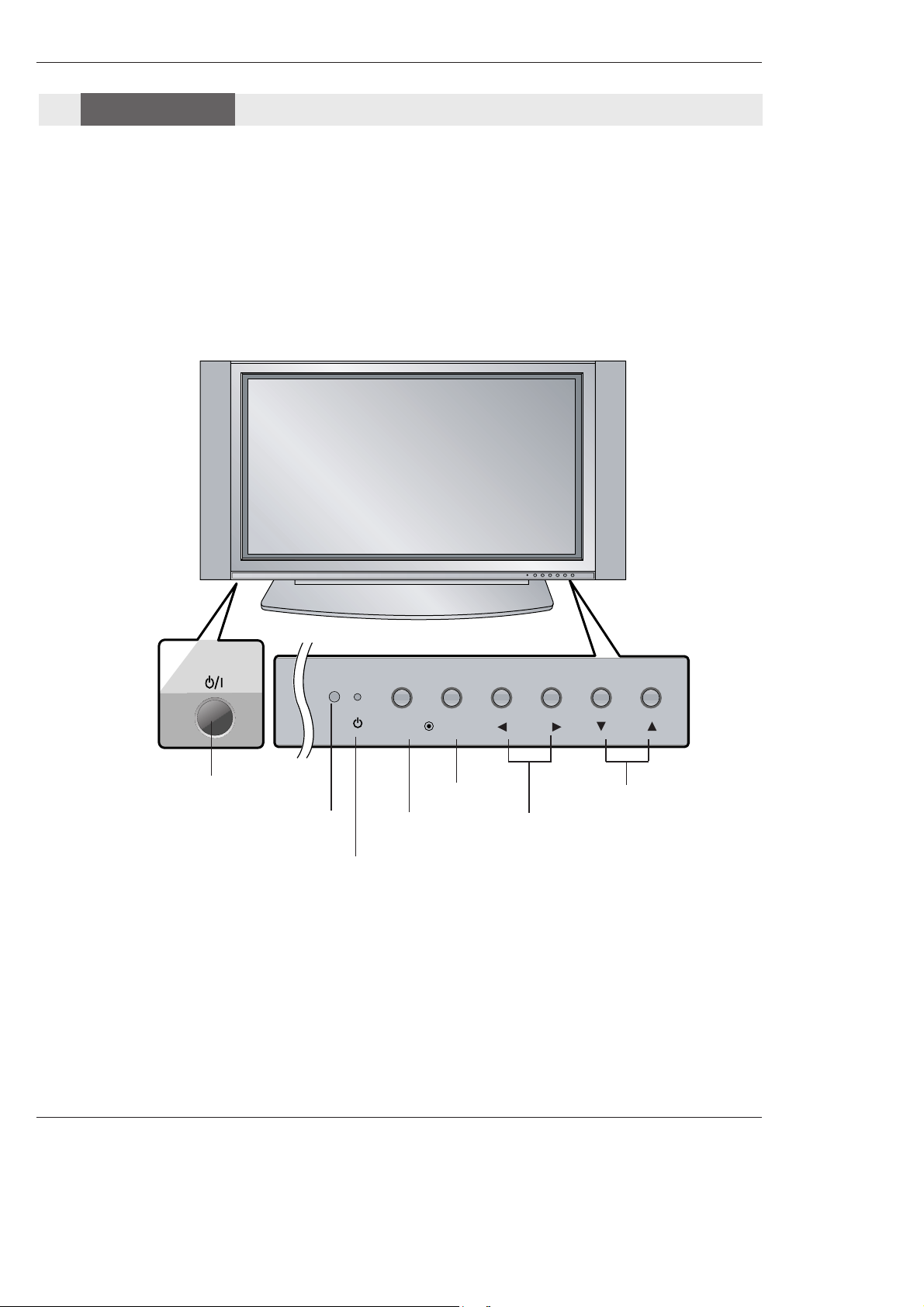

Front Panel Controls

Front Panel Controls

TV/VIDEO

MENU

VOL CH

POWER Button

Remote Control Sensor

VOLUME (

F,G) Buttons

Power Standby Indicator

-Without CableCARD

TM

: Illuminates red in

standby mode, Illuminates green when the

TV is turned on.

-Inserting the CableCARD

TM

: Illuminates

orange in standby mode, Illuminates green

when the TV is turned on.

CHANNEL (E, D) Buttons

MENU Button

TV/VIDEO Button

8 Plasma TV

Introduction

206-4022

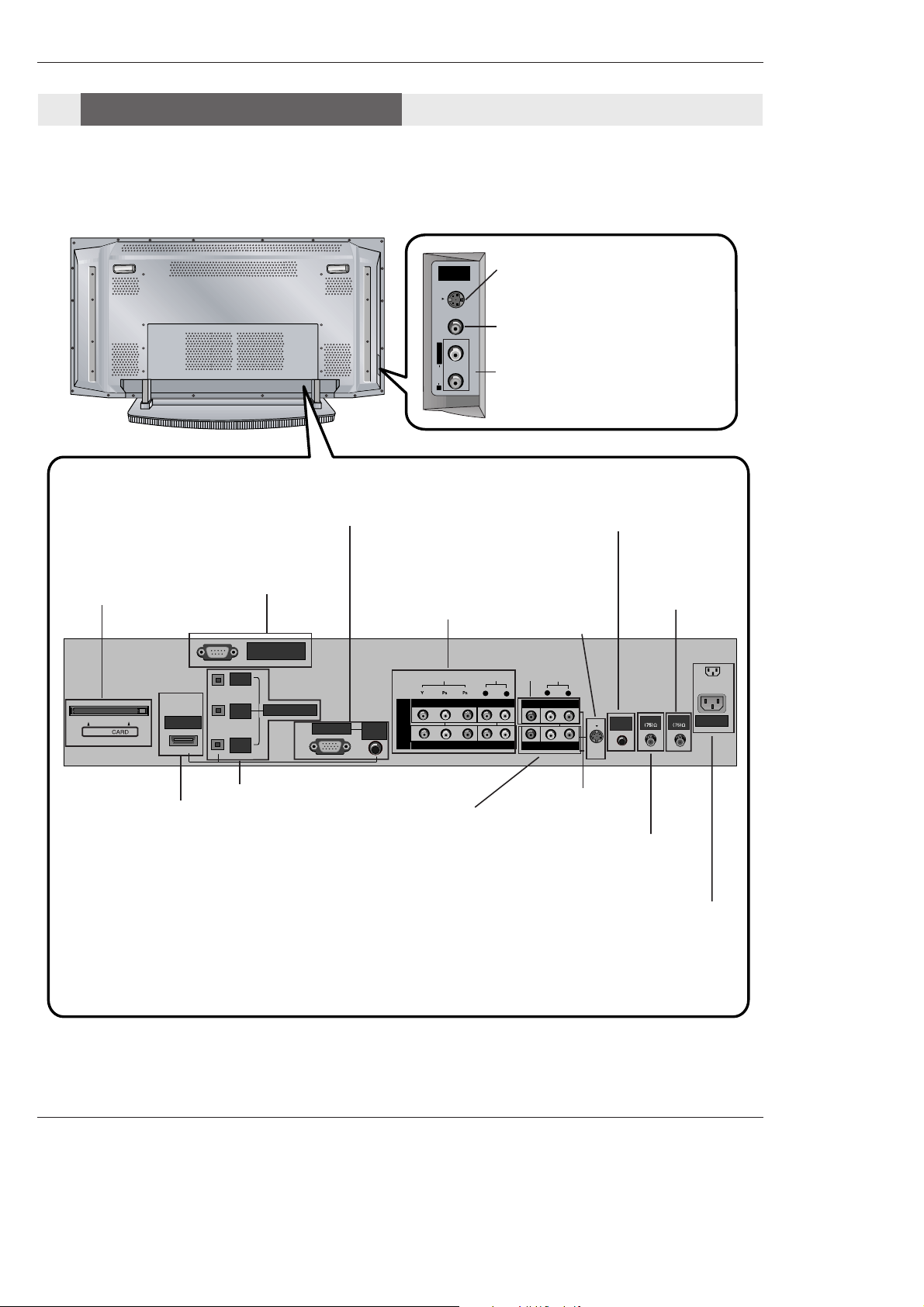

Connection Options

Connection Options

R

S-VIDEO VIDEO

L / MONO

AUDIO

FRONT

A/V INPUT

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

VIDEO

HDMI /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

Cable

S-VIDEO

REMOTE
CONTROL

DIGITAL AUDIO

(OPTICAL)

S-VIDEO Input

A connection available to provide bet­ter picture quality than the video input.

CableCARD™

Used for
CableCARD™
received from
Cable Service
Provider.

VIDEO Input

Connects the video signal from a
video device.

AUDIO Input

Use to connect to hear stereo sound
from an external device.

Antenna Input

Connect over-the­air signals to this
jack.

RGB/AUDIO INPUT

Connect the monitor output connector
from a PC to the appropriate input port.

Digital Audio (DVI:
Digital Visual
Interface/Component2)
Input/
Digital Audio Output

Connect digital audio
from various types of
equipment. Note: In

standby mode,
these ports will not
work.

DVD/DTV Input
(Component 1-2)

Connect a component

video/audio device to

these jacks.

Monitor Output

Connect a second TV
or Monitor.

Remote Control Port

Connect your wired
remote control here.

S-Video Input

Connect S­Video out from
an S-VIDEO
device to the S­VIDEO input.

CABLE Input

Connect cable signals to this

jack, either directly or through

a cable box.

RS-232C INPUT (CON-

TROL/SERVICE) PORT

Connect to the RS-232C
port on a PC.

HDMI/DVI

connect a
DVI(Video)
signal to
HDMI/DVI.

Audio/Video Input

Connect audio/video
output from an
external device to
these jacks.

Power Cord Socket

This TV operates on an AC power. The voltage

is indicated on the Specifications page. Never

attempt to operate the TV on DC power.

Back Connection Panel

Back Connection Panel

Owner’s Manual 9

206-4022

Introduction

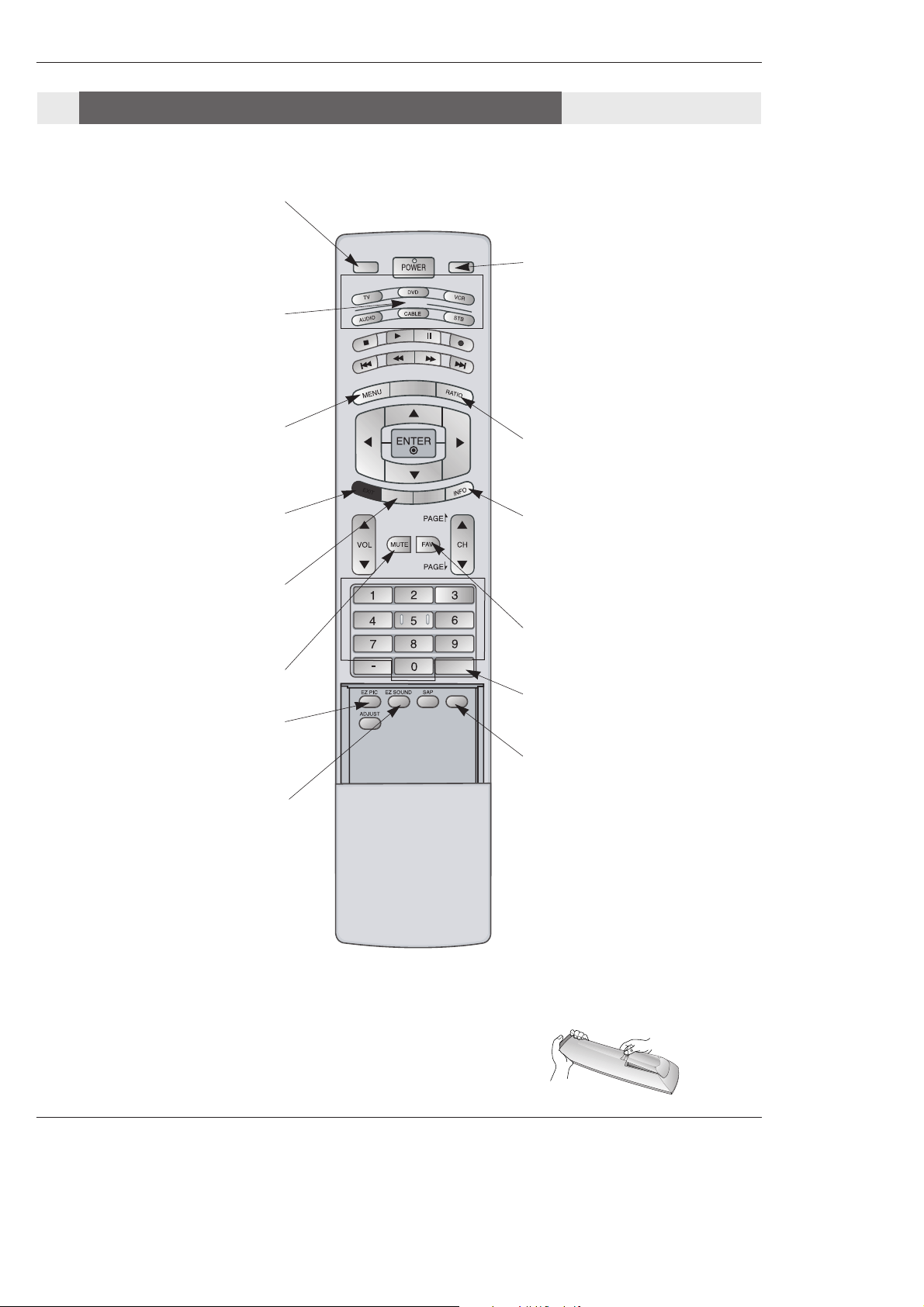

- When using the remote control, aim it at the remote control sensor on the TV.

MODE

DAY -

D

AY

+

FLASHBK

TI

ME

R

FREEZE

TV INPUT

TV/VIDEO

E

X

IT

GUIDE

CC

TV INPUT

• Rotates the input mode between Antenna

and Cable.

• Video, Front Video, Component 1-2, RGB­DTV (or RGB-PC) and HDMI/DVI input

sources, screen returns to the last TV.

MUTE

Switches the sound on or off.

(Refer to p.42)

MODE

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB. Select

a mode other than TV, for the remote to

operate an external device.

FLASHBK

Tunes to the recent channels.

EXIT

Clears all on-screen displays and returns to

TV viewing from any menu.

TIMER

Lets you select the amount of time before

your TV turns itself off automatically.

MENU

Brings up the main menu to the screen.

EZ PIC

Selects a factory preset picture mode

depending on the viewing environment.

FREEZE

Freezes the currently-viewed picture.
Main picture is frozen.

TV/VIDEO

External input modes rotate in regular
sequence: Antenna, Cable, Video, Front
Video, Component 1-2, RGB-DTV (or
RGB-PC) and HDMI/DVI input sources.
(Video, Front Video, Component 1-2 input
sources are linked automatically, only if
these are connected )

RATIO

Changes the aspect ratio.

INFO

When you watch the TV, information dis­plays on top of the screen. Not available
in Component 1-2, RGB and HDMI/DVI
mode. (Refer to p.41)

FAV

Scrolls the Favorite channels.

EZ SOUND

Selects the sound appropriate for the

program's character.

Installing Batteries

• Open the battery compartment cover on the back side and install the batteries

matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones. Close

cover.

Remote Control Key Functions

Remote Control Key Functions

10 Plasma TV

Introduction

206-4022

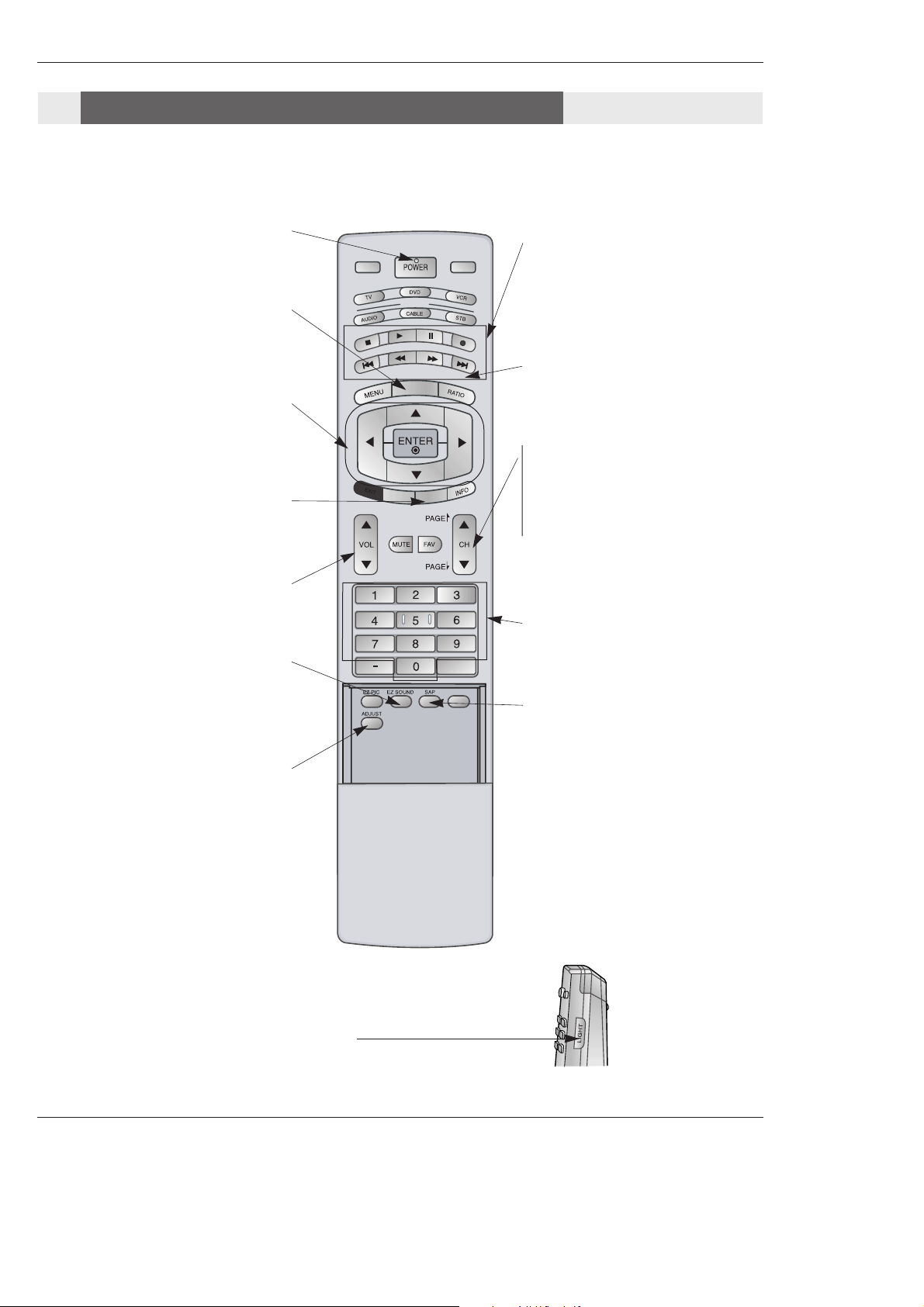

DAY+/DAY-

Moves the Listings Grid forward or back­ward in 24 hour increments.

MODE

DAY -

D

A

Y

+

FLASHBK

TI

ME

R

FREEZE

TV INPUT

TV/VIDEO

E

X

IT

GUIDE

CC

NUMBER buttons

VCR/DVD BUTTONS

• Control some video cassette recorders
or DVD players. ("RECORD" button is not
available for DVD players.)

POWER

Turns your TV or any other programmed

equipment on or off, depending on mode.

CC

Select a closed caption:

Off, CC1~4, Text1~4.

THUMBSTICK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus

and adjust the system settings to your pref-

erence.

CHANNEL UP/DOWN

Selects available channels found with EZ
scan.

PAGE UP/PAGE DOWN

Moves from one full set of screen infor­mation to the next one.

EZ SOUND

Selects the sound appropriate for the pro-

gram's character.

SAP

Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.

LIGHT

Illuminates the remote control

buttons of selected mode.

VOLUME UP/DOWN

Increases/decreases the sound level.

GUIDE

Shows program schedule.

ADJUST

Adjusts screen position, size, and phase in

PC mode.

Remote Control Key Functions

Remote Control Key Functions

Owner’s Manual 11

206-4022

Installation

Owner’s Manual

1.5V

1.5V

Batteries

Power Cord

MODE

DA

Y

-

D
A
Y

+

FLASHBK

T
I
M

E
R

TV INPUT

TV/VIDEO

E
X
IT

GUIDE

C

C

75Ω Round Cable

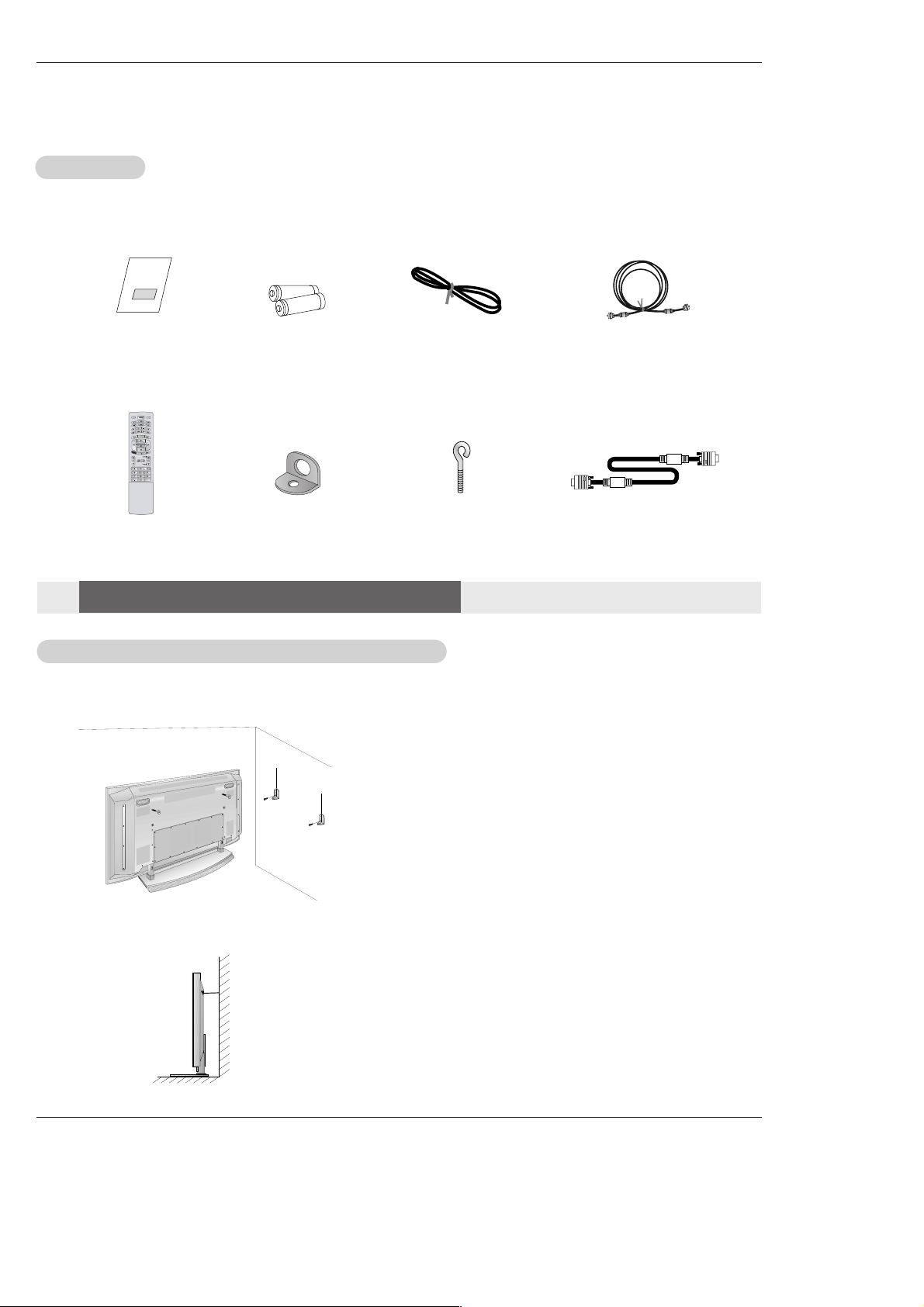

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.

2-Wall brackets

2-eye-bolts

Remote Control

- Secure the TV assembly by joining it to a wall by using the TV/Wall brackets.

Joining the TV assembly to the wall to protect the set tumbling

• If the set will be mounted on a desk top, insert
the 2 eye-bolts and tighten them securely in the upper
holes as shown.
Install the wall brackets on the wall with 2 bolts*, (not
supplied with the product), as shown.
Match the height of the eye-bolts and the wall brack­ets.
Check to be sure the eye-bolts and the brackets are
tightened securely.

• Secure the TV assembly to the wall with strong strings
or wire cables, (not supplied with the product), as
shown.

Installation

Installation

Installation Instructions

Installation Instructions

Accessories

Accessories

D-sub 15 pin Cable

12 Plasma TV

206-4022

Installation

GROUNDING

Ensure that you connect the earth ground wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power

Supply

Short-circuit

Breaker

Desktop Pedestal Installation

Desktop Pedestal Installation

For proper ventilation, allow a clear-

ance of 4” on each side and the top,

2.36” on the bottom, and 2” from the

wall. Detailed installation instructions

are included in the optional Desktop

Stand Installation.

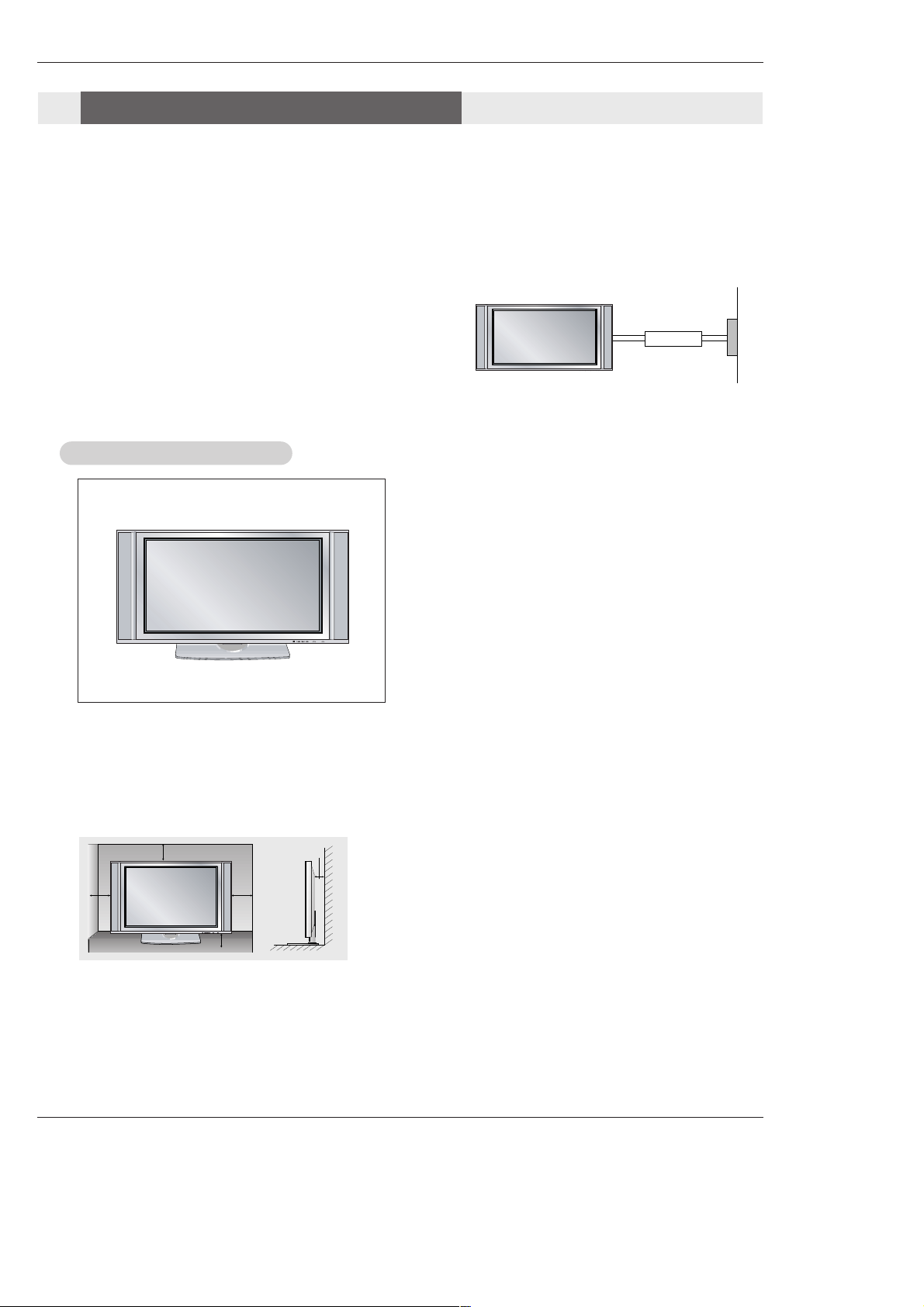

• The TV can be installed in various ways such as on a wall, or on a desktop etc.

• The TV is designed to be mounted horizontally. The speakers shown are optional.

• It is recommended that Z42PX2D, Z42PX21D model only be used at an altitude of less than 3281 feet (1000m) to get the best

quality picture and sound.

• It is recommended that Z42PX2DH, Z42PX21DH model only be used at an altitude of less than 6561 feet (2000m) to get the best

quality picture and sound.

Installation Instructions

Installation Instructions

To Install on a Desktop

Pedestal mount minimum

allowableclearances for adequate ventilation.

4 inches

4 inches

4 inches

2.36 inches

2 inches

Owner’s Manual 13

206-4022

Installation

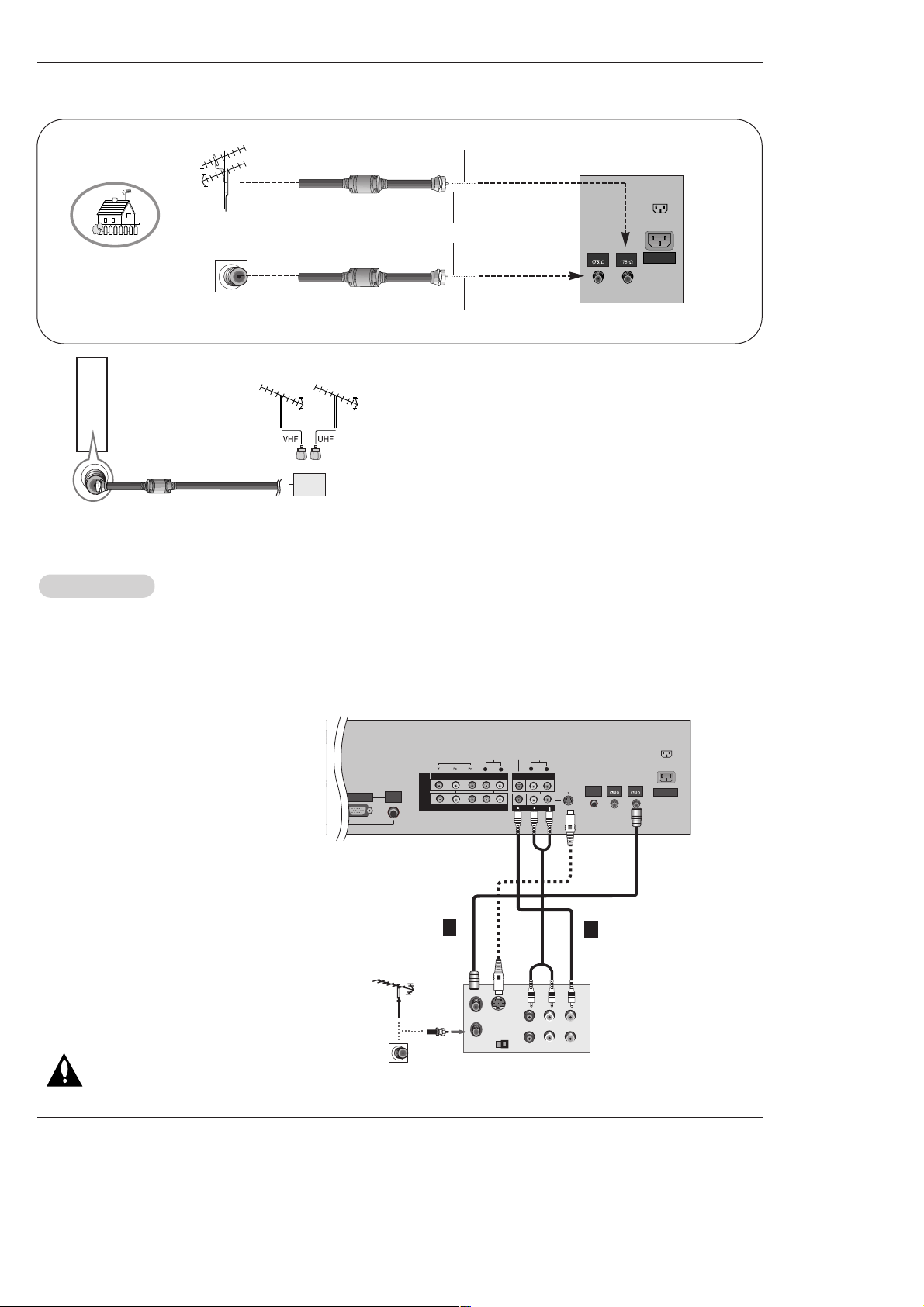

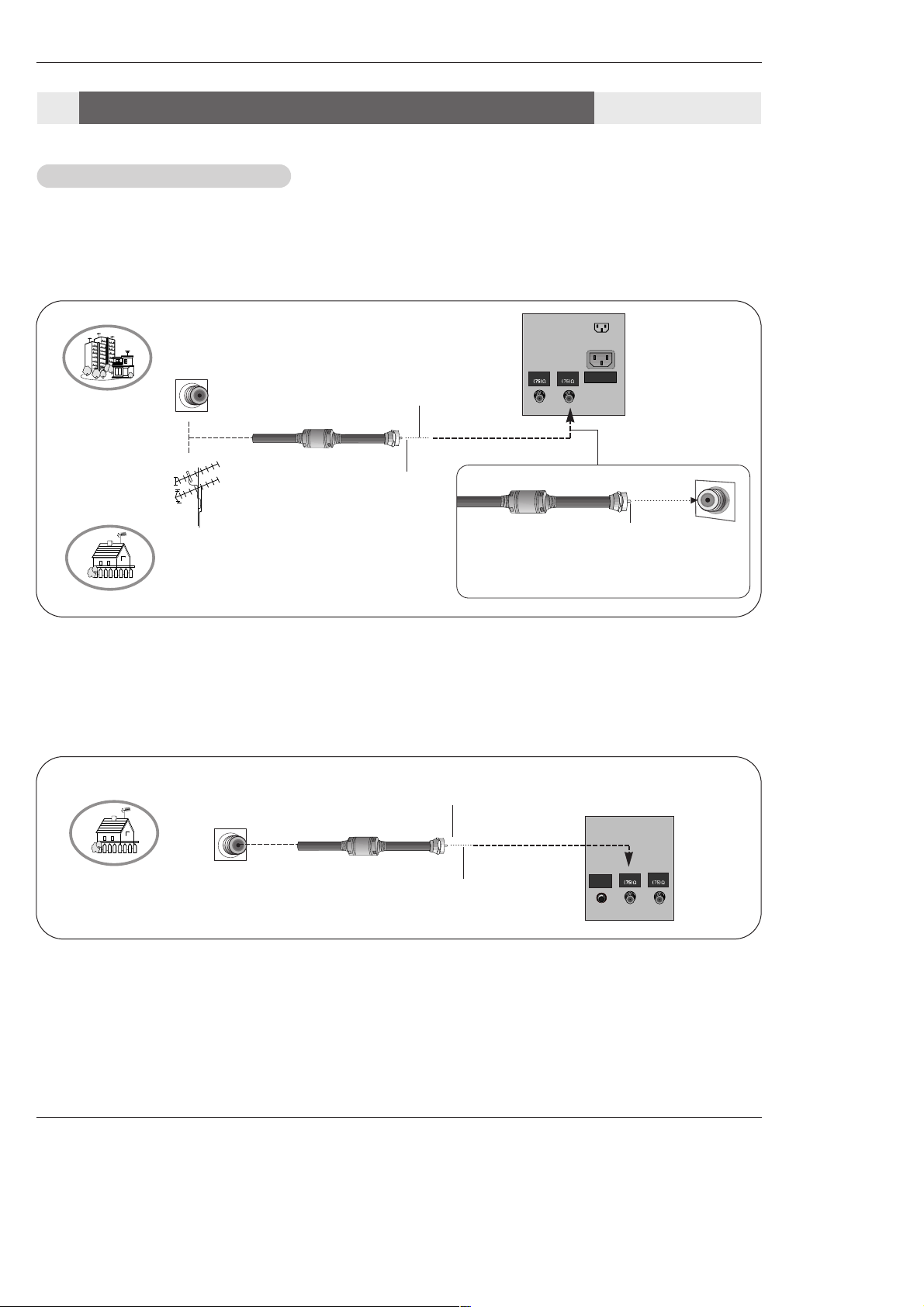

- Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

1. Analog and Digital TV signals provided on antenna

2. Analog and Digital TV signals provided on cable

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)

Outdoor
Antenna

Wall Antenna
Socket

VHF Antenna

UHF Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Bronze Wire

Be careful not to bend the bronze wire when
connecting the antenna.

Bronze Wire

Cable TV Wall
Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

REMOTE
CONTROL

External Equipment Connections

External Equipment Connections

Antenna or Cable Connection

Antenna or Cable Connection

Bronze Wire

CABLE

ANTENNA

AC INPUT

14 Plasma TV

206-4022

Installation

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

Connection Option 1

Set VCR output switch to channel 3 or 4 and

then tune the TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.

2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)

3. Select the input source with using the
TV/VIDEO button on the remote control. Note
that this TV finds the connected input sources
automatically for Video, Front Video and
Component 1-2. It is presumed that RGB and
HDMI/DVI sources are connected.

Do not connect to both Video and
S-Video at the same time.

VCR Setup

VCR Setup

AUDIO

R

L

RGB INPUT

VIDEO

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

S-VIDEO

OUT

IN

(R) AUDIO (L) VIDEO

34

OUTPUT
SWITCH

ANT OUT

ANT IN

AUDIO
INPUT

S-VIDEO

REMOTE
CONTROL

VCR Rear

1

2

• To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.

• If the antenna needs to be split for two TV’s, install a “2­Way Signal Splitter” in the connections.

• If the antenna is not installed properly, contact your deal­er for assistance.

3. Analog and Digital TV signals provided on cable and antenna

Antenna

RF Coaxial Wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Cable TV Wall
Jack

RF Coaxial Wire (75 ohm)

CABLE

ANTENNA

AC INPUT

Bronze Wire

Signal

Amplifier

Owner’s Manual 15

206-4022

Installation

• Component Input ports

To get better picture quality, connect a DVD player to the compo­nent input ports as shown below.

How to connect

Connect the audio and video cables from the external equip­ment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).

How to use

1. Select the input source with using the TV/VIDEO button on

the remote control. Note that this TV finds the connected
input sources automatically for Video, Front Video and
Component 1-2. It is presumed that RGB and HDMI/DVI
sources are connected.

2. Operate the corresponding external equipment.

Component ports

on the TV

Y

P

B

PR

Video output ports
on DVD player

Y
Y
Y
Y

Pb

B-Y

Cb
P

B

Pr

R-Y

Cr

PR

How to connect

1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the DVD
audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs
to the AUDIO INPUT jacks on the TV, as shown in the figure.

Note: If your DVD player does not have component video output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the TV/VIDEO button on the remote control to select Component 1 or Component 2. (If connected to S-VIDEO, select
the Video or Front Video external input source.)

3. Refer to the DVD player's manual for operating instructions.

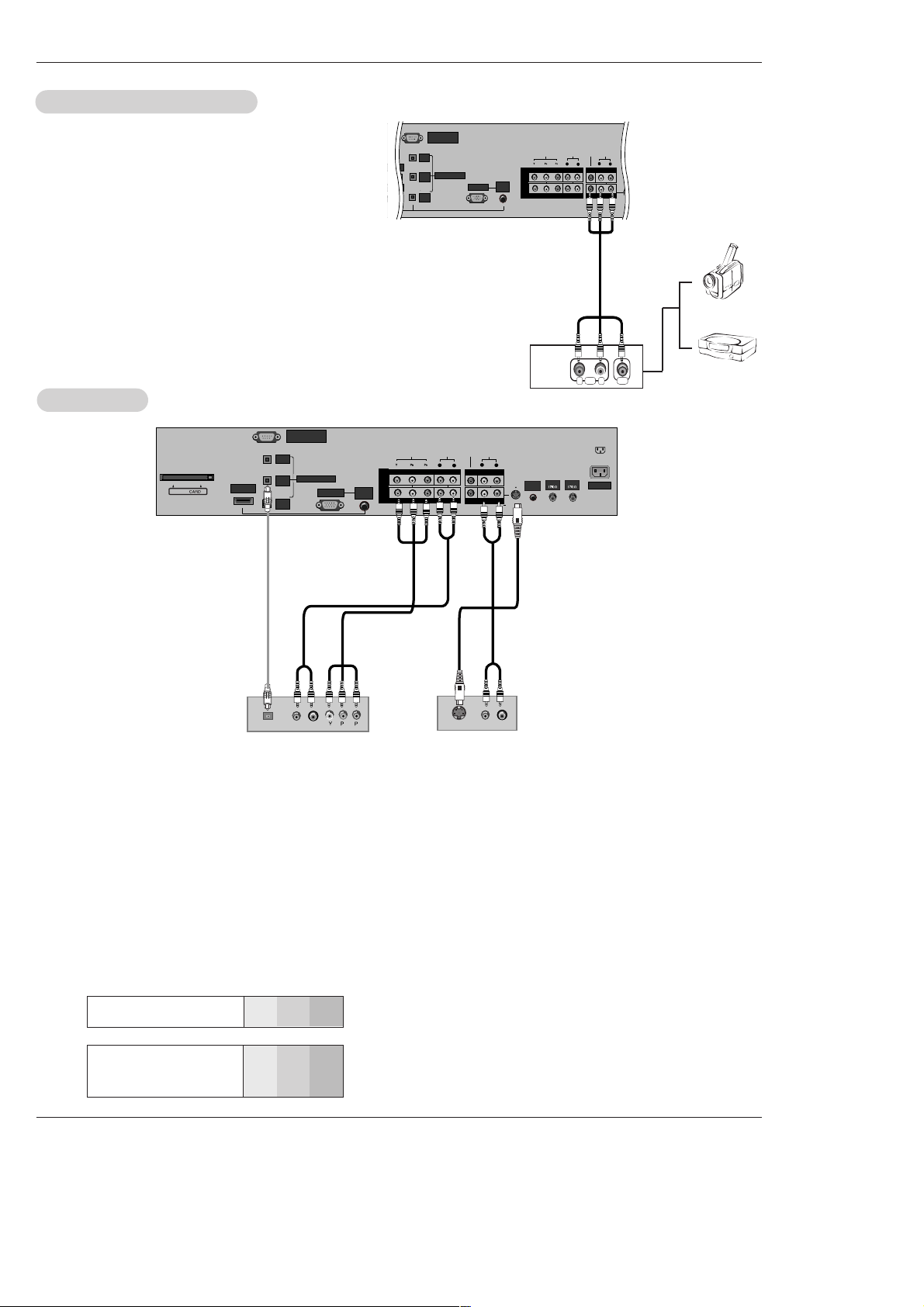

External

External

A/V Source Setup

A/V Source Setup

DVD Setup

DVD Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI
INPUT

COMPONENT2
INPUT

OUTPUT

RGB INPUT

VIDEO

HDMI 2

COMPONENT INPUT 1

R

L

(MONO)

V
I
D
E
O

S

R
E
M
O
T
E

C
O
N
T
R
O
L

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

RL

AUDIO VIDEO

AUDIO
INPUT

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

VIDEO

HDMI /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

Cable

S-VIDEO

REMOTE
CONTROL

B

R

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

(R) AUDIO (L)

S-VIDEO

DVD

or

Camcorder

Video Game

Device

Notes:

• Digital Audio will not work for Component 1 input source.

• Digital Audio operation has priority if Digital Audio and AUDIO L/R
are connected at the same time.

or

16 Plasma TV

206-4022

Installation

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).

How to connect

Use the TV’s COMPONENT (Y, P

B, PR) INPUT, RGB or HDMI/DVI jack

for video connections, depending on your set-top box connector. Then,
make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for the
digital set-top box.)

2. Use TV/VIDEO on the remote control to select Component 1,
Component 2, RGB-DTV, or HDMI/DVI source.

HDSTB Setup

HDSTB Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

VIDEO

HDMI /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

Cable

S-VIDEO

REMOTE
CONTROL

IEEE-1394

Cable

(R) AUDIO (L)

RGB-DTV OUTPUT

B

R

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

(R) AUDIO (L)

DVI-DTV OUTPUT

DIGITAL AUDIO

OPTICAL

HDMI-DTV OUTPUT

Digital Set-top Box

or

Signal
480i
480p
720p
1080i

Component 1/2

Yes
Yes
Yes
Yes

RGB-DTV , HDMI/DVI

No
Yes
Yes
Yes

CableCARD

CableCARD

TM

TM

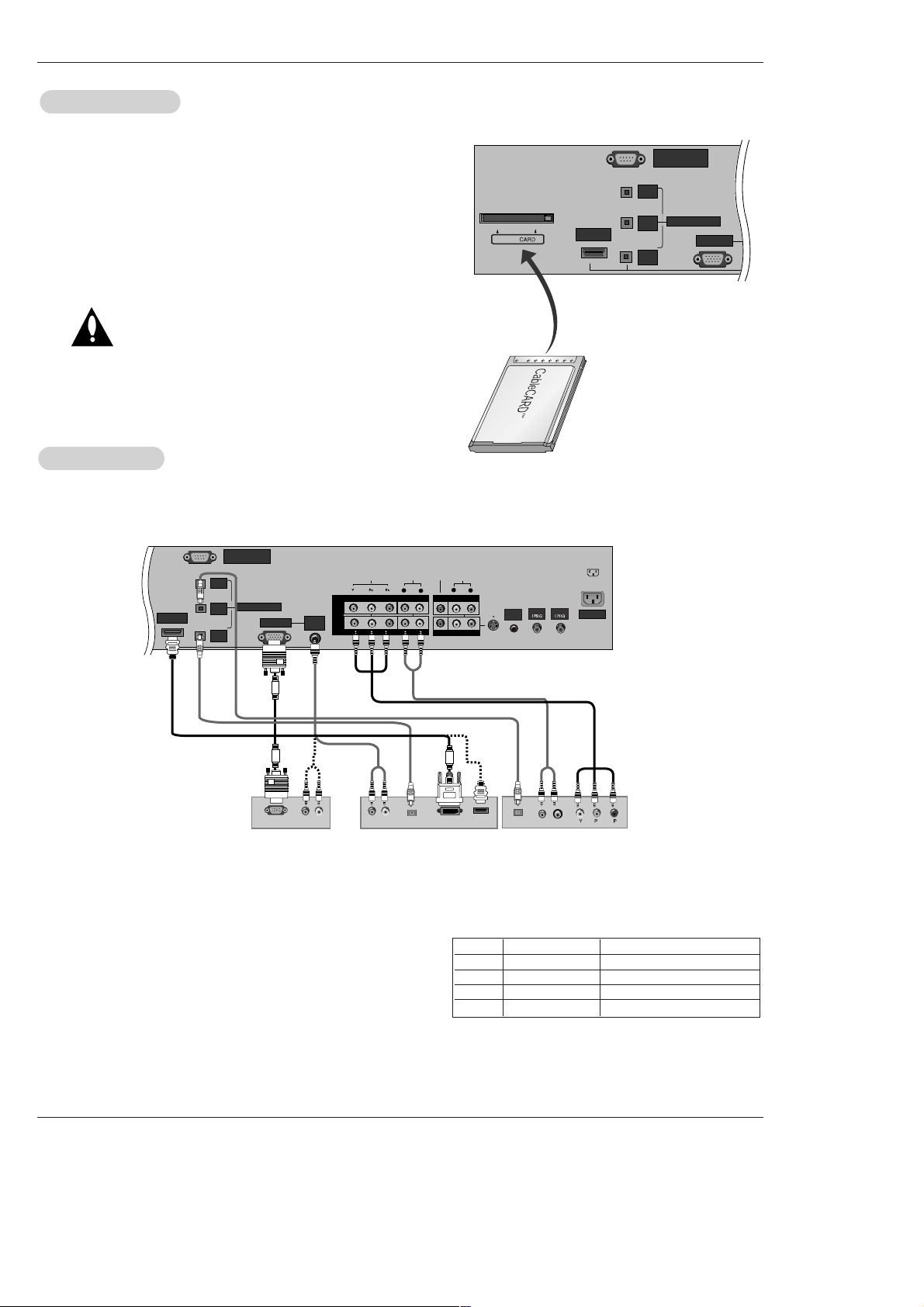

Setup

Setup

RS-232C INPUT

(CONTROL/SERVICE)

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

HDMI /DVI

Cable

How to use

Insert the CableCARD

TM

TM

received from the cable service provider to

the CableCARD

TM

TM

slot of TV back panel.
If the pairing information about this TV and the CableCARD is auto­matically displayed on the screen, contact with the cable service
provider by phone.

Note :

• CableCARD

TM

TM

have the types of Motorola, Scientific Atlanta, SCM etc..

These 3 types of CableCARD

TM

TM

can be used for this PLASMA TV.

Caution: When removing the CableCARD

TM

TM

, do not
drop it as this may cause impact to the
CableCARD

TM

TM

.

or

Owner’s Manual 17

206-4022

<When the PC supports DVI>

How to connect

1. Connect the PC to HDMI/DVI port of this TV with an HDMI-to-DVI cable(not supplied with this product).

2. If the PC(or the sound card of the PC) has a fiber optic digital audio output connector, connect the PC's audio output to DIGI-

TAL AUDIO(OPTICAL) port for DVI INPUT.

3. If the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT

port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.

2. Select HDMI/DVI input source in input source option of SETUP menu.(Refer to P.25)

TV/VIDEO button is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the

brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be

changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

<When the PC supports RGB>

How to connect

1. Connect the PC to RGB INPUT port of this TV with a RGB cable(not supplied with this product).

2. If the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT

port located on the right side of RGB INPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz.

2. Select RGB-PC input source in input source option of SETUP menu.(Refer to P.25)

Once you select RGB-PC in main input option of SETUP menu, TV/VIDEO button is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the

brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be

changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

720x400

Installation

PC Setup

PC Setup

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic
card accordingly.

800x600

70.08

85.03

59.94

72.80

75.00

85.00

35.156

37.879

48.077

46.875

53.674

48.363

56.476

60.023

56.25

60.31

72.18

75.00

85.06

60.00

70.06

75.02

Vertical

Frequency(Hz)

Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

1024x768

Resolution

640x480

Horizontal

Frequency(KHz)

31.469

37.927

31.469

37.861

37.500

43.269

Monitor Display Specifications (RGB-PC )

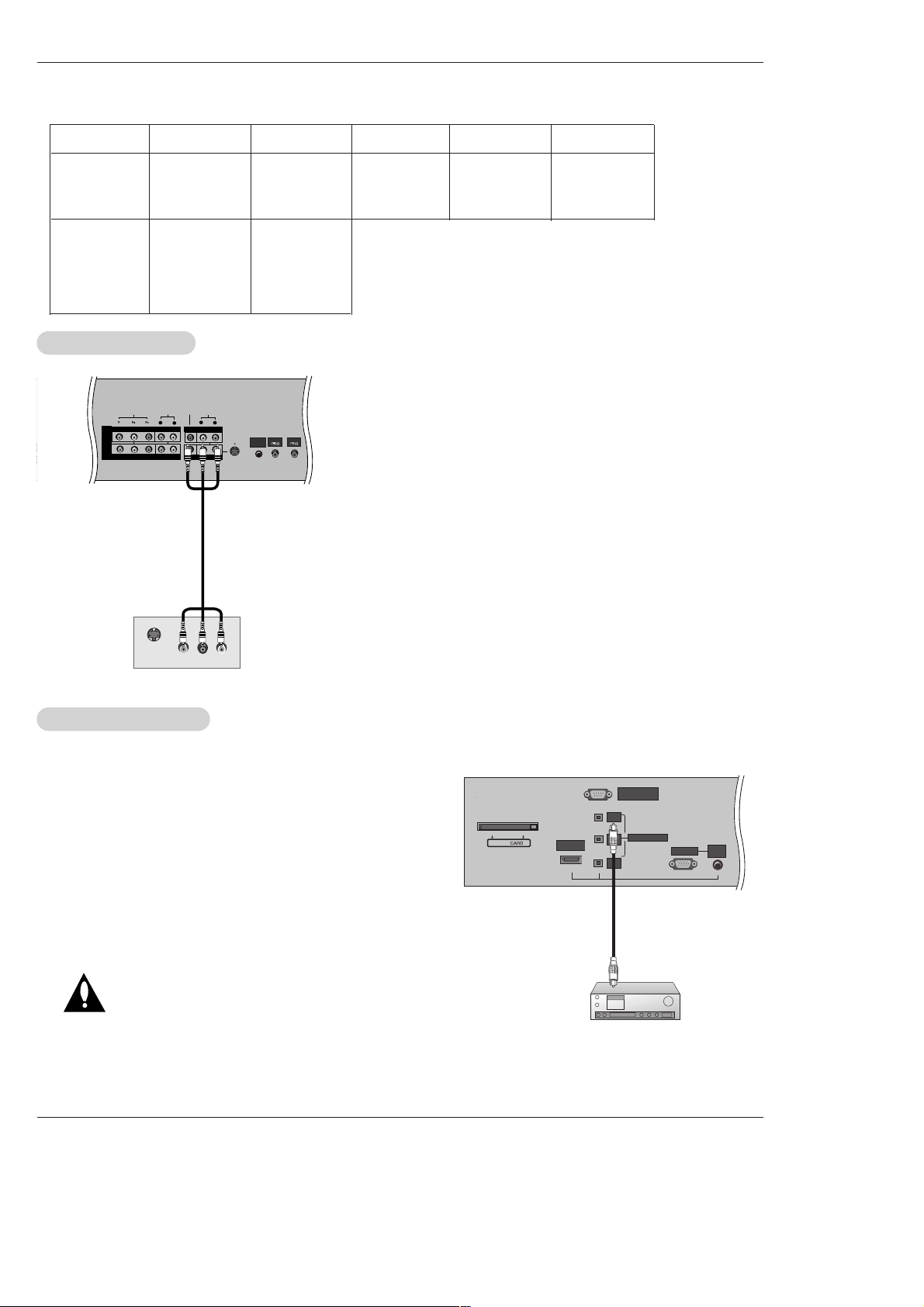

18 Plasma TV

206-4022

Installation

Send the TV’s audio to external audio equipment (stereo system) via
the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.

2. Connect the other end of the optical cable to the digital audio (opti­cal) input on the audio equipment.

See the external audio equipment instruction manual for operation.

Note: When connecting with external audio equipments, such as

amplifers or speakers, please turn the TV speakers off.(Refer to
p.28)

Caution: Do not look into the optical output port.

Looking at the laser beam may damage
your vision.

Digital

Digital

Audio Output

Audio Output

RS-232C INPUT

(CONTROL/SERVICE)

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

RGB INPUT

DVD
/DTV
INPUT

AUDIO
INPUT

HDMI /DVI

Cable

The TV has a special signal output capability which allows you to
hook up a second TV or monitor.

Connect the second TV or monitor to the TV’s MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device’s input settings.

Notes:

• Component, RGB-PC/RGB-DTV, HDMI/DVI, DTV input sources
cannot be used for Monitor out.

• When connecting with external audio equipments, such as amplif-

ers or speakers, please turn the TV speakers off.(Refer to p.28)

• We recommend to use the video and audio output jacks for VCR
recording.

AUDIO

R

L

AUDIO INPUT

VIDEO

COMPONENT INPUT 1

R

L

(MONO)

CABLE

ANTENNA

AC INPUT

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

S-VIDEO

IN

(L) AUDIO (R)

VIDEO

S-VIDEO

REMOTE
CONTROL

Monitor Out Setup

Monitor Out Setup

Resolution

640x480

800x600

Horizontal

Frequency(KHz)

31.469

37.861

37.500

35.156

37.879

48.077

46.875

59.94

72.80

75.00

56.25

60.31

72.18

75.00

48.363

56.476

60.023

60.00

70.06

75.02

Vertical

Frequency(Hz)

Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

1024x768

Monitor Display Specifications (HDMI/DVI Mode)

Owner’s Manual 19

206-4022

Installation

- HDMITM, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing."

- This TV can receive the High-Definition Multimedia Interface(HDMI) or the Digital Visual Interface(DVI).

- This TV supports HDCP(High-bandwidth Digital Contents Protection) Protocol for 720x480p, 1280x720p, and 1920x1080i resolu­tion.

- When you connect this TV with a source device(DVD player, Set Top Box or PC) supporting Auto HDMI/DVI function, the output
resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI/DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the DVD Player or Set Top Box's output resolution to 1280x720p, and the PC graphics card's
output resolution to 1024x768, 60Hz.

- If the source device has an HDMI output, no other audio connection is necessary because HDMI-to-HDMI connection includes
both video and audio.

- If the source device has a DVI output and no HDMI output, a separated audio connection is necessary.

<When the source device(DVD player or Set Top Box) supports HDMI>

How To Connect

1. Connect the source device to HDMI/DVI port of this TV with an HDMI cable(not supplied with this product).

2. No separated audio connection is necessary.

How To Use

- If the source device supports Auto HDMI function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to P.25)

TV/VIDEO button is also available for this purpose.

<When the source device(DVD player or Set Top Box) supports DVI>

How To Connect

1. Connect the source device to HDMI/DVI port of this TV with a HDMI-to-DVI cable(not supplied with this product).

2. A separated audio connection is necessary.

3. If the source device has a fiber optic digital audio output, connect the audio output to DIGITAL AUDIO(OPTICAL) port for DVI
INPUT.

4. If the source device has an analog audio output connector, connect the PC's audio output to AUDIO INPUT port located on the
right side of RGB INPUT port.

How To Use

- If the source device supports Auto DVI function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to P.25)

TV/VIDEO button is also available for this purpose.

HDMI

HDMI

20 Plasma TV

206-4022

Installation

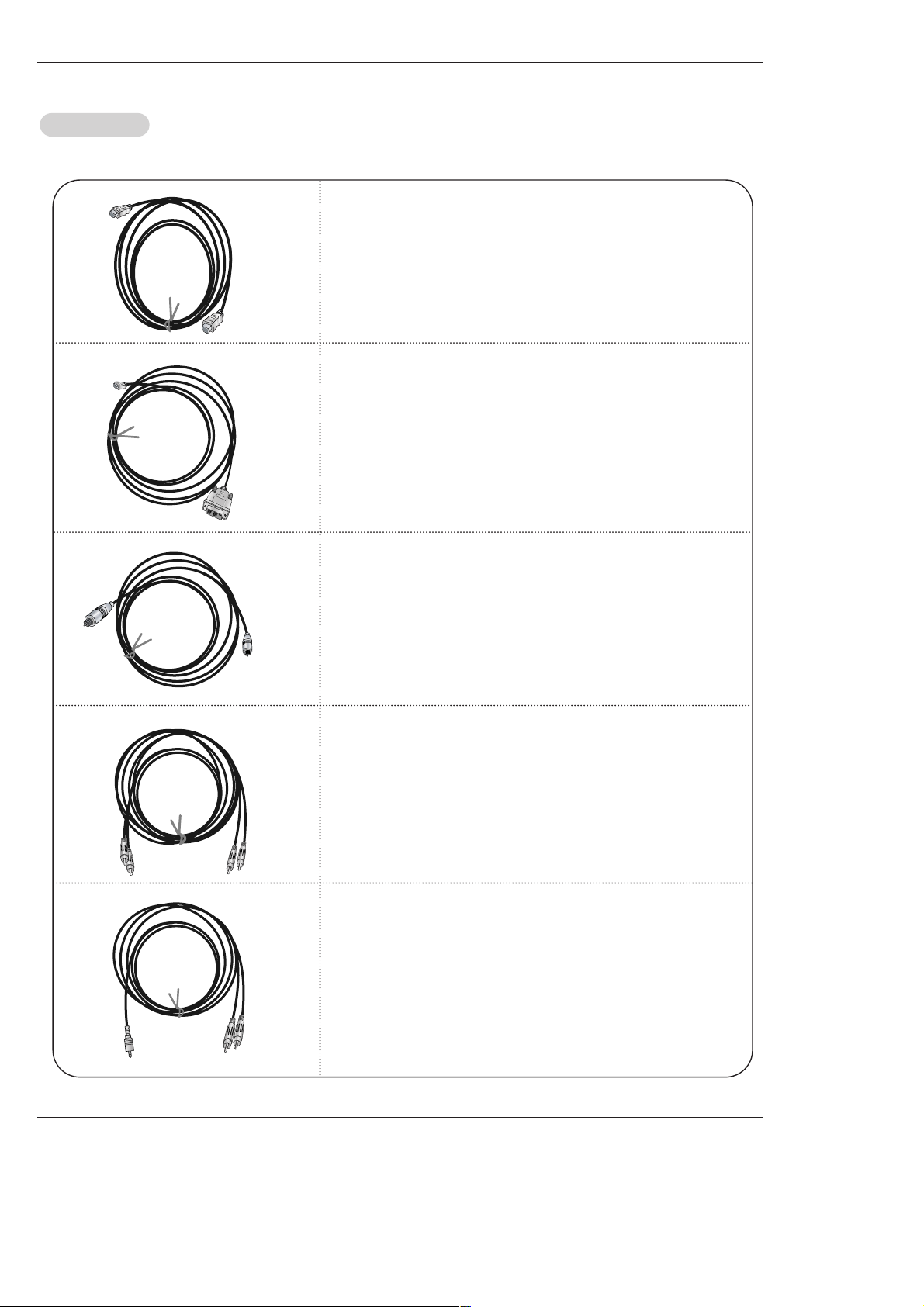

Cable sample

HDMI Cable
(not supplied with the product)

HDMI to DVI Cable
(not supplied with the product)

Fiber Optic Digital Audio Cable
(not supplied with the product)

Analog Audio Cable(RCA type)
(not supplied with the product)

Analog Audio Cable(Stereo to RCA type)
(not supplied with the product)

Reference

Reference

Owner’s Manual 21

206-4022

Installation

How to use

1. Connect the HDMI/DVI Source Devices(DVD Player or Set Top Box or PC) and the TV SET.

2. Turn on the display by pressing the POWER button on the TV SET and HDMI/DVI Source Devices remote control.

3. Select HDMI/DVI Input source in input source option of SETUP menu.(Refer to P.25)

4. Check the image on your TV SET. There may be noise associated with the resolution, vertical pattern, contrast or brightness in
HDMI/DVI Source Devices. If noise is present, change the HDMI/DVI Source Devices to another resolution, change the refresh
rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphics card can
not changed, change the PC graphics card or consult the manufacturer of the PC graphics card.

Notes:

- Depending on the graphics card, DOS mode may not work if you use a HDMI to DVI Cable.

- Avoid keeping a fixed image on the TV SET screen for a long period of time. The fixed image may become permanently imprint­ed on the screen. Use the Orbiter screen saver when possible.

- When Source Devices connected HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position, Size may not fit to
Screen. As shown the lower picture, press the ADJUST button to adjust the screen Position of TV SET and contact an PC
graphics card service center.

- When Source Devices connected HDMI/DVI Input output TV SET Resolution(480p, 720p, 1080i), TV SET Display fit EIA/CEA­861-B Specification to Screen. If not, refer to the Manual of HDMI/DVI Source Devices or contact your service center.

- In case HDMI/DVI Source Devices is not connected Cable or poor cable connection, "NO SIGNAL" OSD display in HDMI/DVI
Input. And In case of, Video Resolution not supported TV SET output in HDMI/DVI Source Devices, "INVALID FORMAT" OSD
display. Refer to the Manual of HDMI/DVI Source Devices or contact your service center.

Close

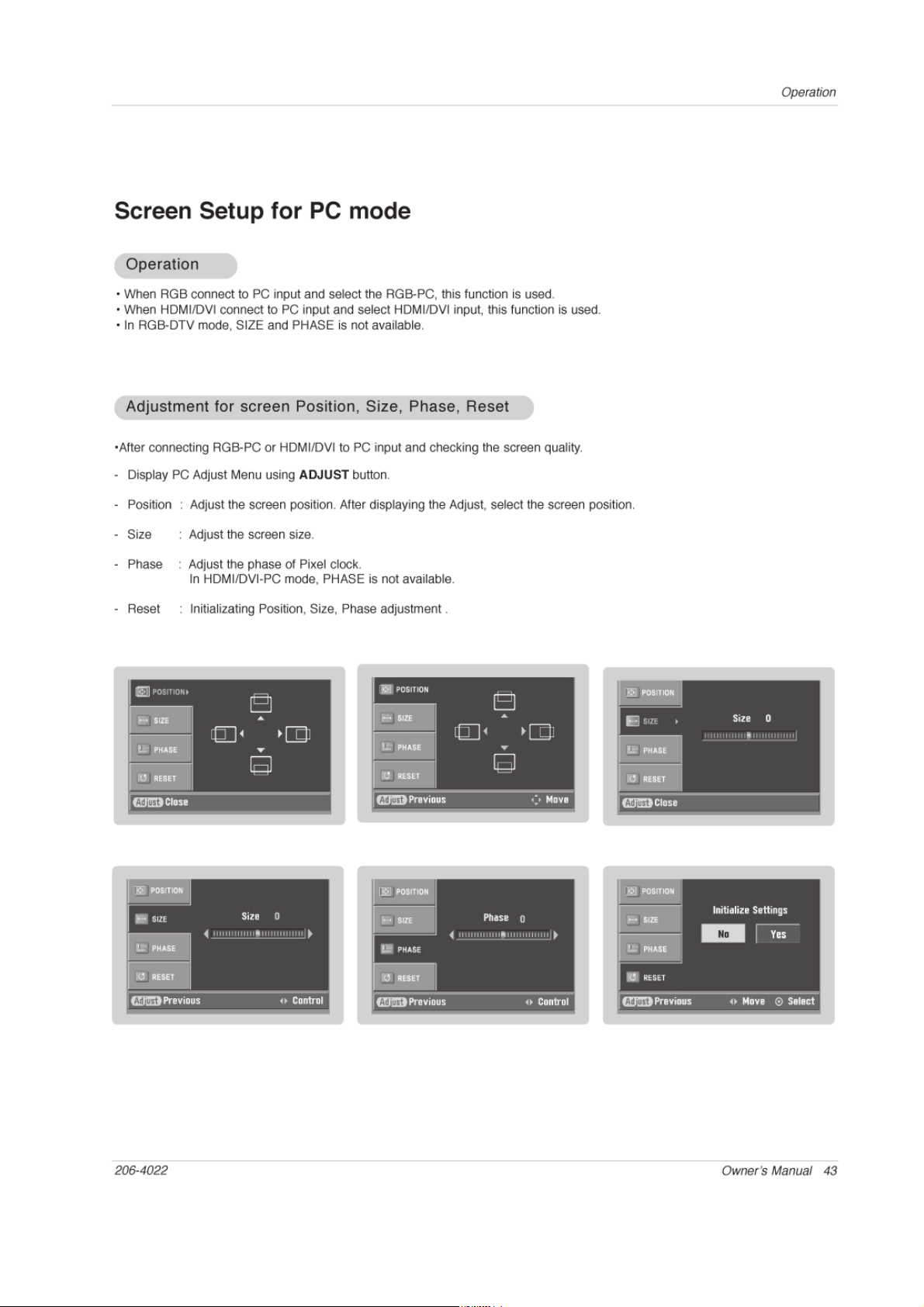

POSITION G

SIZE

PHASE

RESET

Adjust

D

F

G

E

In This Mode, the Supported TV SET Resolution Specification

- 1920 x 1080 I @ 59.94Hz / 60Hz, 16:9

- 1280 x 720 P @ 59.94Hz / 60Hz, 16:9(preferred format)

- 720 x 480 P @ 59.94Hz / 60Hz, 16:9

- 720 x 480 P @ 59.94Hz / 60Hz, 4:3

In This Mode, the Supported PC Resolution Specification

- 640 x 480 @ 60Hz

- 640 x 480 @ 72Hz

- 640 x 480 @ 75Hz

- 800 x 600 @ 56Hz

- 800 x 600 @ 60Hz

- 800 x 600 @ 72Hz

- 800 x 600 @ 75Hz

- 1024 x 768 @ 60Hz(preferred format)

- 1024 x 768 @ 70Hz

- 1024 x 768 @ 75Hz

PC mode

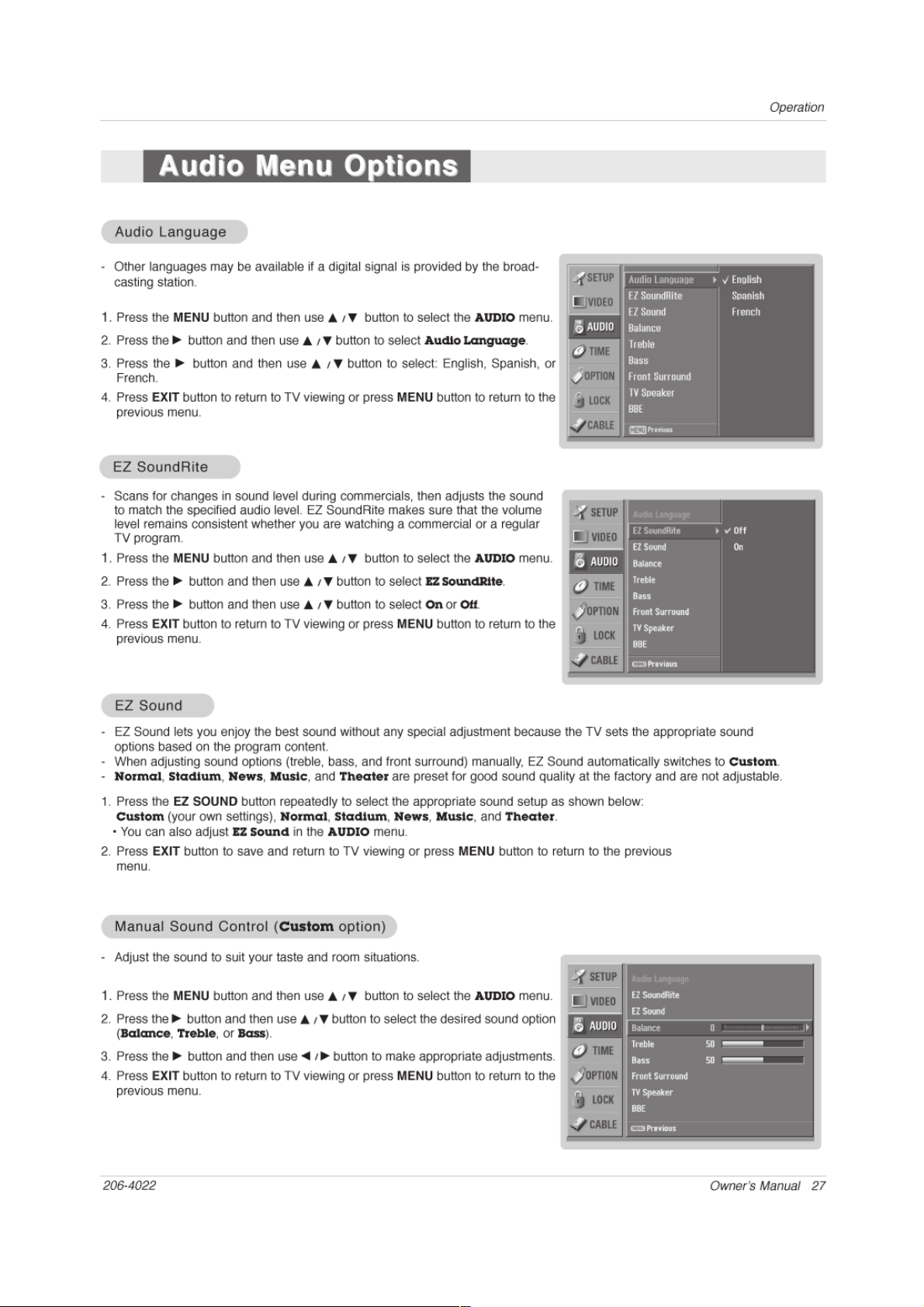

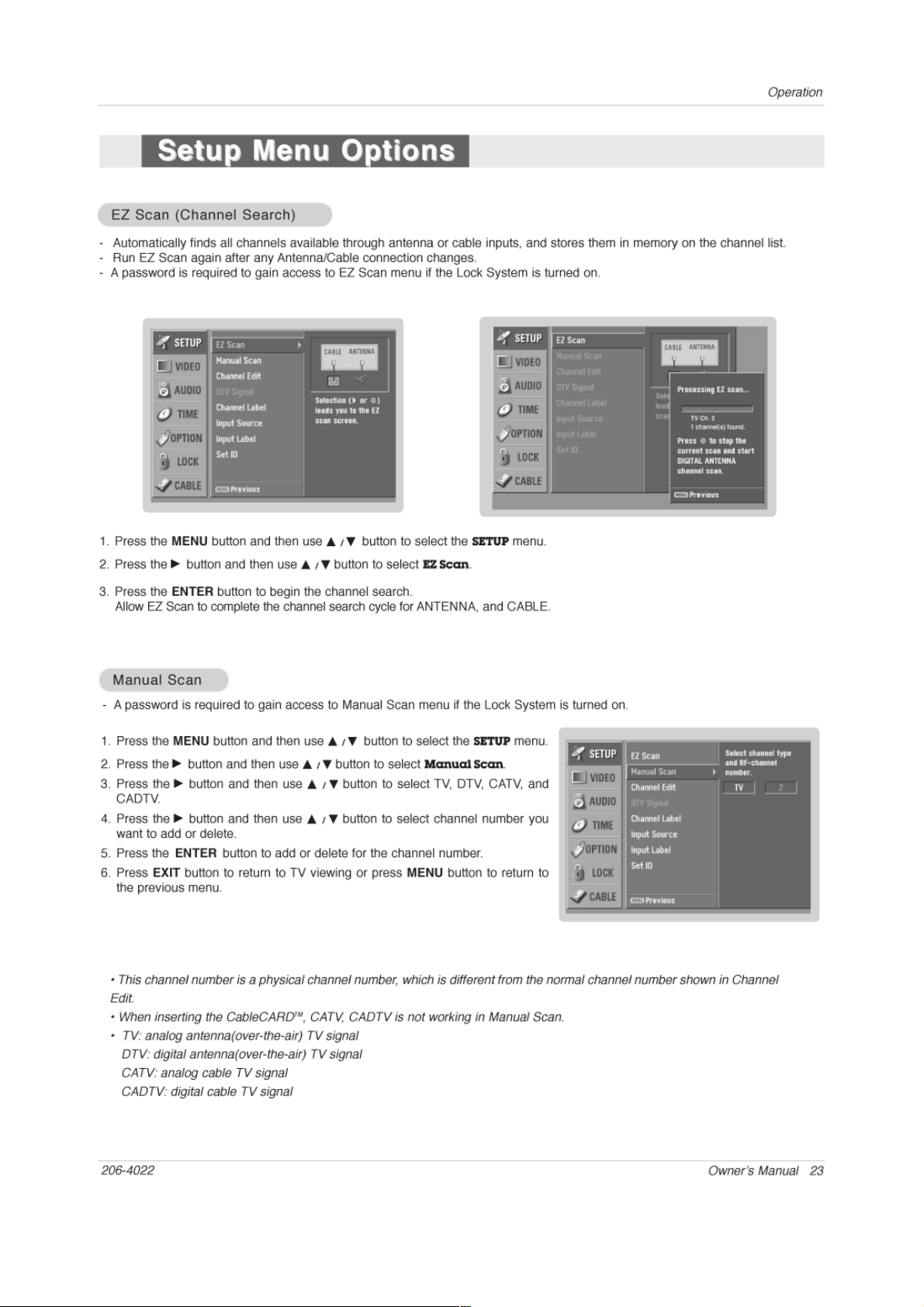

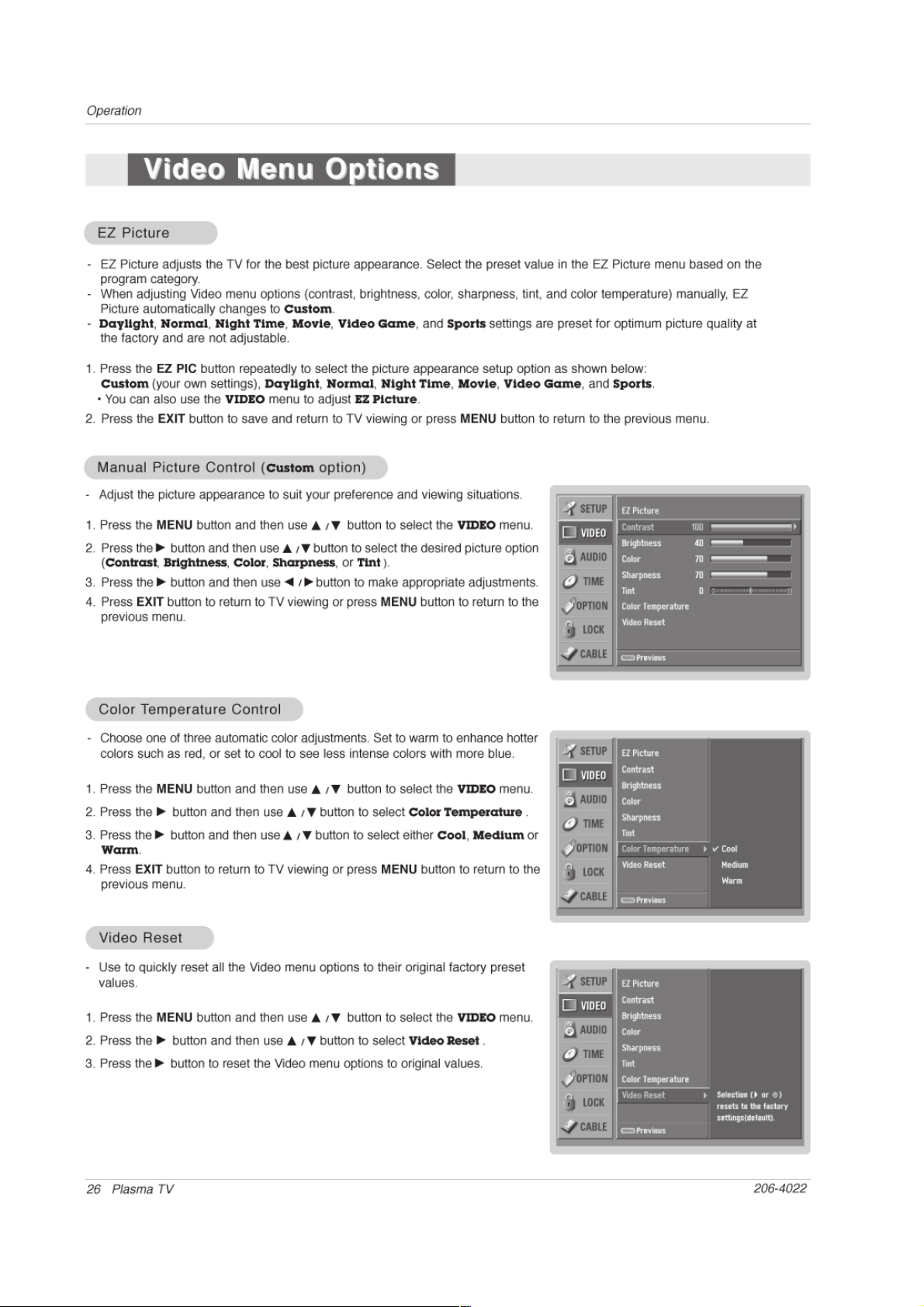

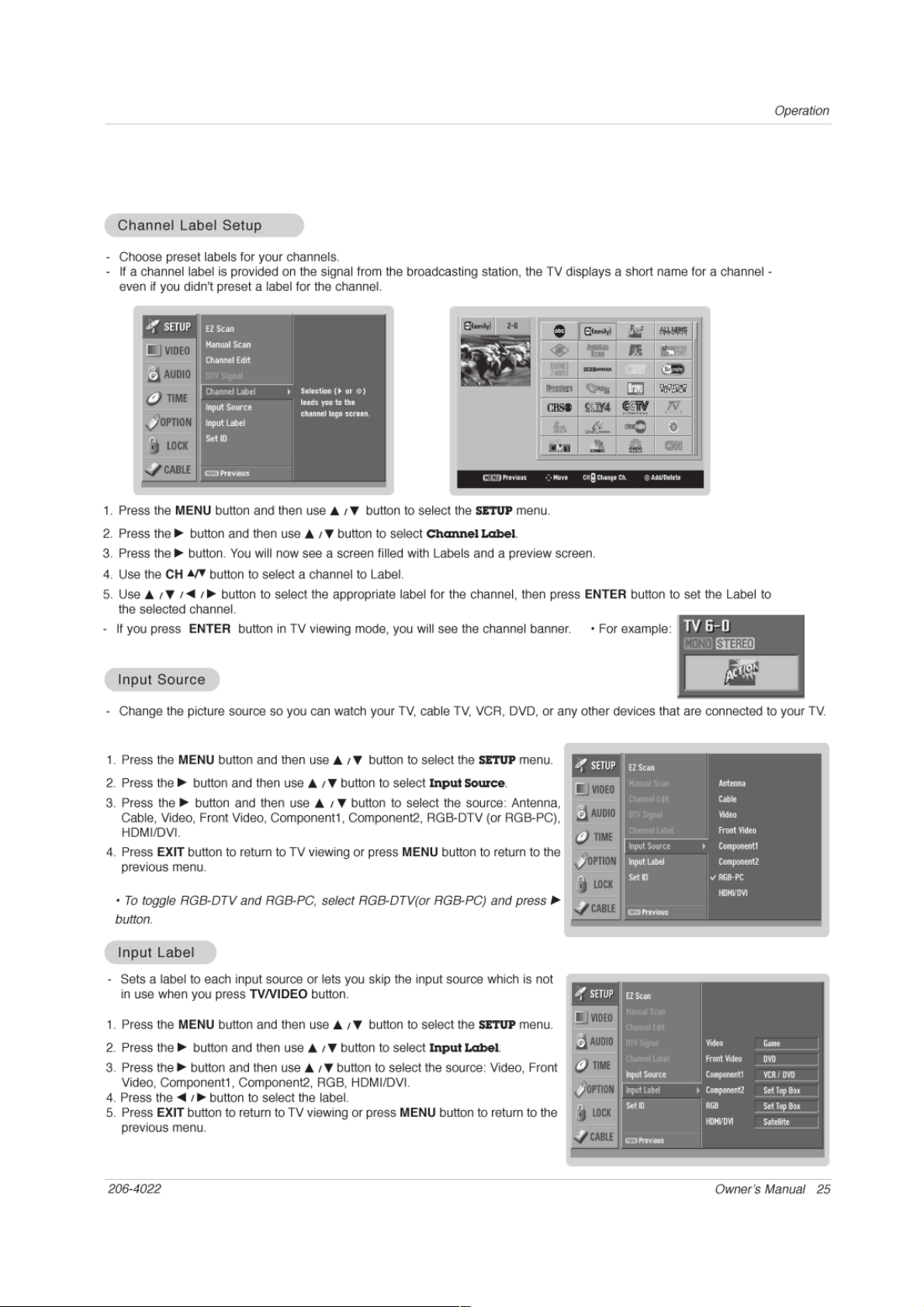

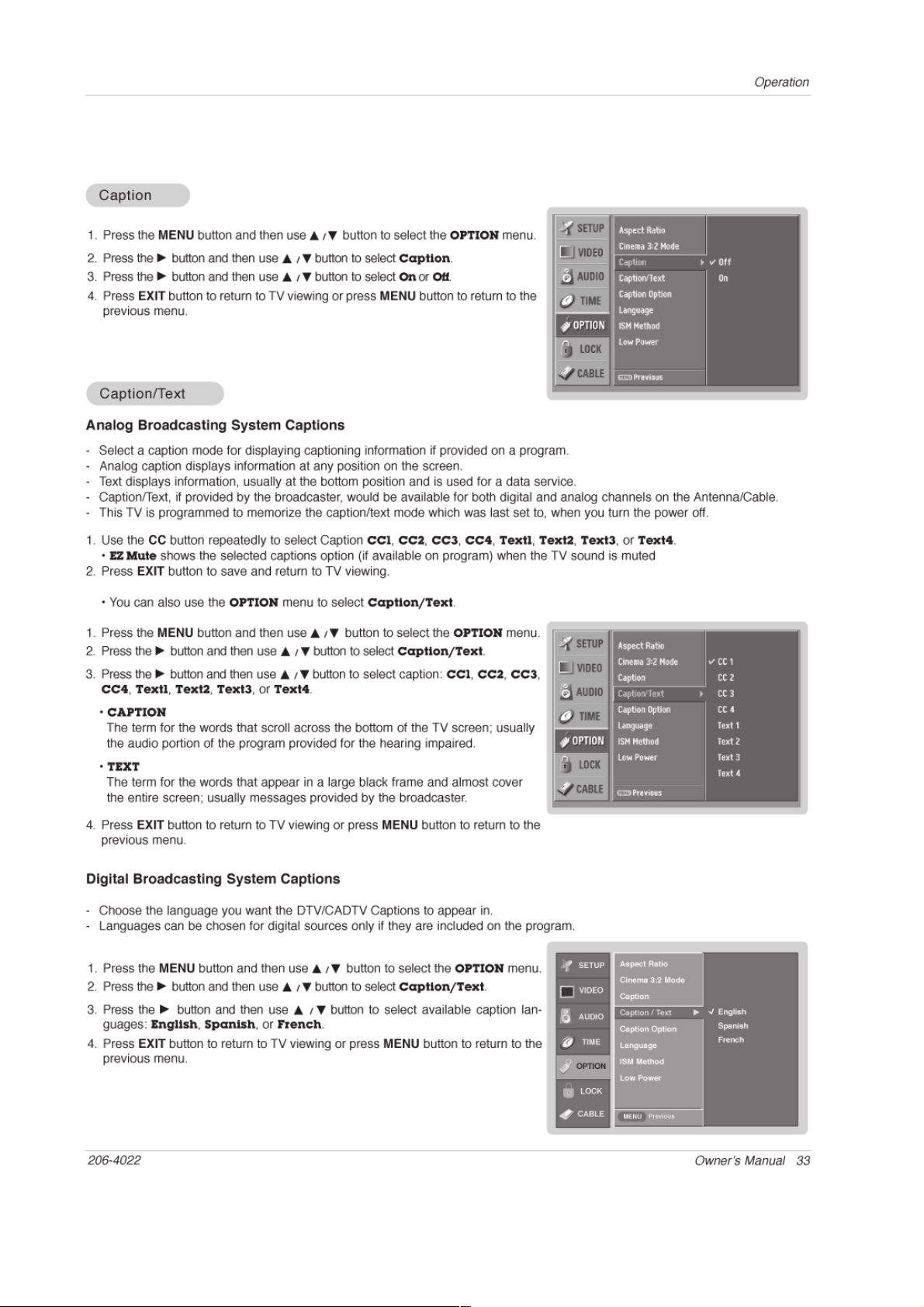

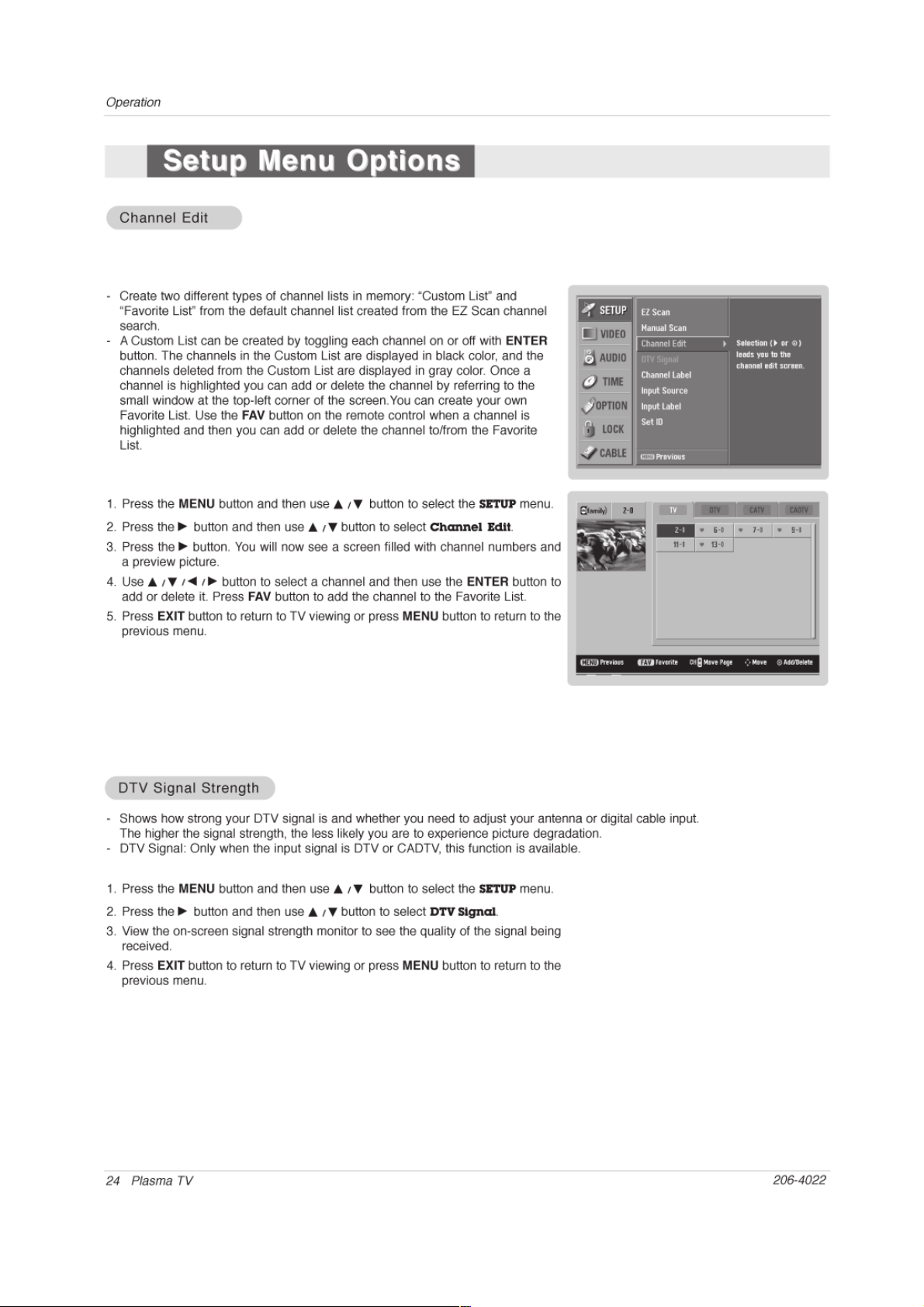

36 Plasma TV

206-4022

Operation

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the cat­egories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

• Blocking Off (Permits all programs)

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Parents strongly cautioned)

• R (Restricted)

• NC-17 (No one 17 and under admitted)

• X (Adult only)

If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

• TV-G (General audience)

• TV-PG (Parental guidance suggested)

• TV-14 (Parents strongly cautioned)

• TV-MA (Mature audience only)

• TV-Y (All children)

• TV-Y7 (Children 7 years older)

TV Rating Children:

• Age (applies to TV-Y, TV-Y7)

• Fantasy Violence (applies to TV-Y7)

TV Rating General:

• Age (applies to TV-G, TV-PG, TV-14, TV-MA)

• Dialogue - sexual dialogue (applies to TV-PG, TV-14)

• Language - adult language (applies to TV-PG, TV-14, TV-MA)

• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

Input Block

• Video, Front Video (On, Off)

• Component 1, 2 (On, Off)

• RGB, HDMI/DVI (On, Off)

Lock Menu Options

Lock Menu Options

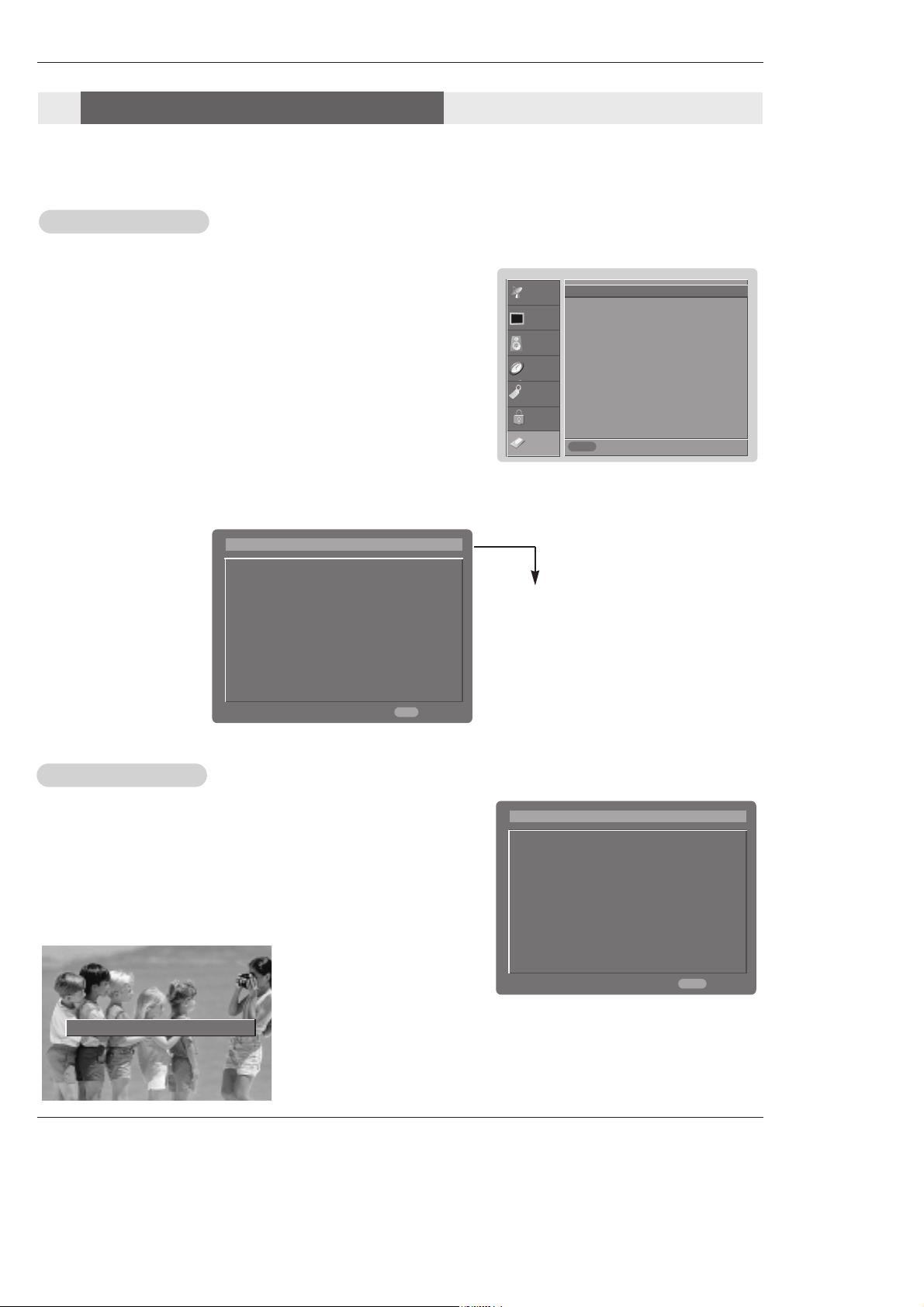

38 Plasma TV

Operation

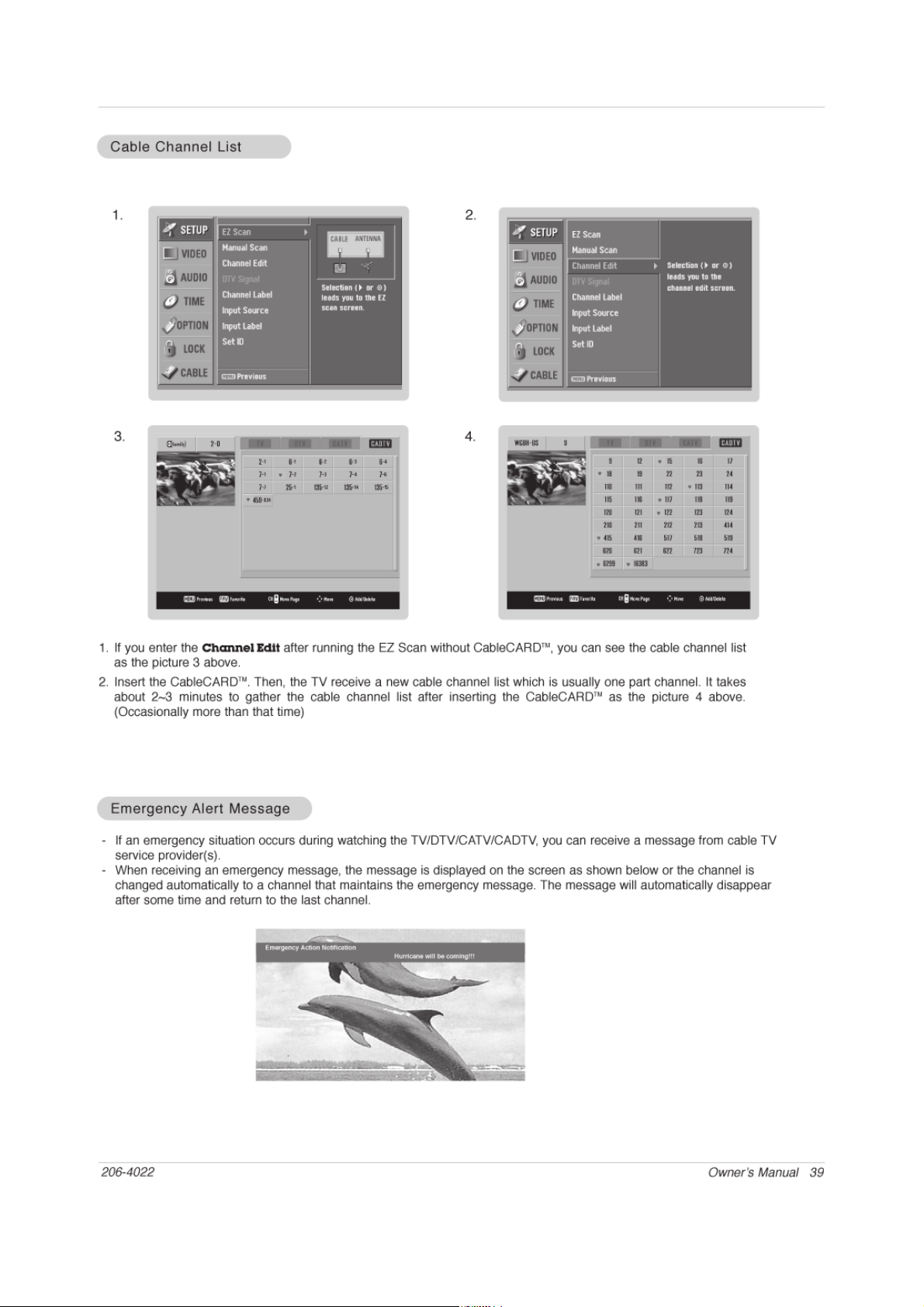

Cable menu options

Cable menu options

- The Cable sub menu displays when inserting the CableCARDTMto the TV.

- The CableCARDTMtype is Motorola, Scientific Atlanta (SA), or SCM etc. The
OSD (On screen display) is different from your TV according to your
CableCARDTMtype.

Scrambled channel

Scrambled channel

- Insert the CableCARDTM. If you do it at first, it takes about 1 minute to
exchange the data between the TV and the CableCARDTM. Then, TV screen
displays as shown right.

- Let your cable TV service provider know CableCARDTMID and Host ID.

- If your cable TV service provider is registered CableCARDTMID and Host ID,
you can watch the premium or high value channel.

- If you ever registered to the cable TV service provider, you can watch the
premium or high value channel without a message.

- If the certificate doesn’t match between the TV and the CableCARD

TM

,

the OSD (On screen display) displays as shown left.

In case of Scientific Atlanta CableCARD™

i.e) CableCARD™/ Host ID Screen

1. Press the MENU button and then use

D / E

button to select the CABLE menu.

2. Press the G button and then use

D / E

button to select your desired item.

3. Press the G button.

4. Press EXIT button to return to TV viewing.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

SA CableCARD™ Diag Screen G

SA CableCARD™/Host ID Screen

MENU

Exit

In order to start service for
this device, please contact
customer service at
Ph#: 1-866-303-0422

CableCARD(tm): 0-010-405-698-001
HOST ID: 0-080-000-000-226

EXIT

CableCARD(tm) Message

Exit

In order to start cable service for this device,
please contact SuperVision Cable at
1-800-555-8888

POD ID: 7-561-034-449-009

Host ID: 0-100-331-784-018

EXIT

CableCARD™ Message

Please call your operator and report an invalid CableCARDTM.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

As shown, the pairing num­ber means your TV and
CableCARDTMID. For fur­ther information regarding
cable TV service, contact
your local cable TV service
provider(s).

206-4022

CableCARD

CableCARD™

Function

Function

42 Plasma TV

Operation

206-4022

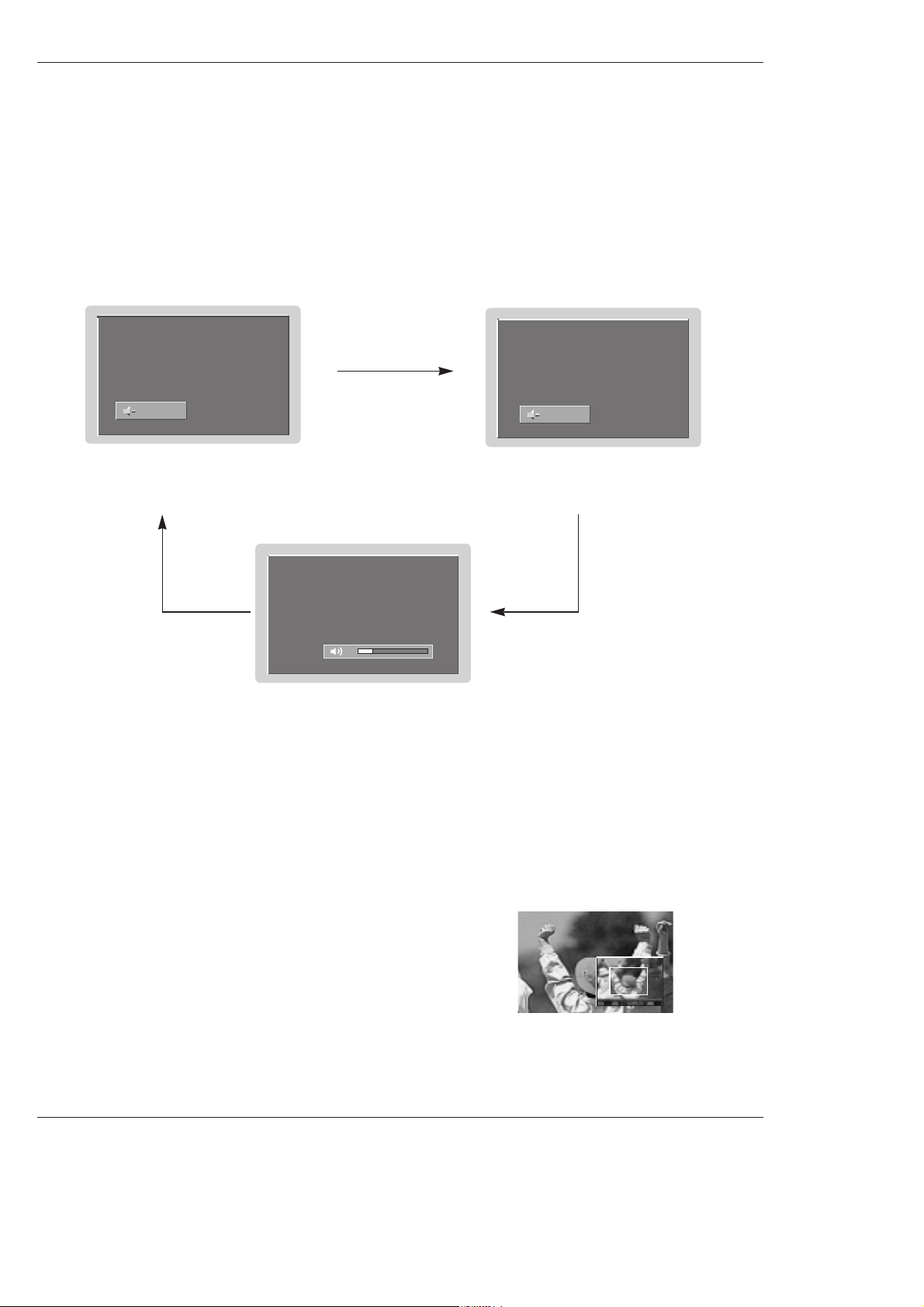

- Nothing to do with Caption on/Off using MUTE button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the MUTE button, the sound mode is changed in turn. (Refer to the picture below)

Note: EZ Mute does not operate in Component/RGB/HDMI/DVI modes.

EZ Mute

Mute : Sound is muted.

EZ Mute : a special mute mode to

activate the closed caption, auto­matically.

Mute Off : Sound is enabled.

1. Press the FREEZE button in 720p or 1080i mode.

2. Use the

D / E

/ F / G buttons to select the screen section to be magnified.

3. To return to normal viewing, press the FREEZE button again.

Note : The Magnify feature is available only in 720p or 1080i mode, but the
FREEZE button works in all video formats.

- Enlarges the picture with correct proportions.

- When enlarging the picture, the image may become distorted.

F

F

F

F

Freeze & Magnify (DTV/CADTV 720p, or 1080i mode only)

Mute

EZ Mute

24

44 Plasma TV

206-4022

External Control Device Setup

No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection

1

5

6

9

2
3
5
4
6
7
8

RXD
TXD
GND
DTR
DSR

RTS

CTS

TXD
RXD

GND

DSR
DTR
CTS
RTS

PC

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

3
2
5
6
4
8
7

PDP

D-Sub 9

2
3
5
4
6
7
8

RXD
TXD
GND
DTR
DSR
RTS
CTS

TXD
RXD

GND

DTR

DSR

RTS
CTS

PC

3-Wire Configurations

(Not standard)

D-Sub 9

3
2
5
4
6
7
8

PDP

D-Sub 9

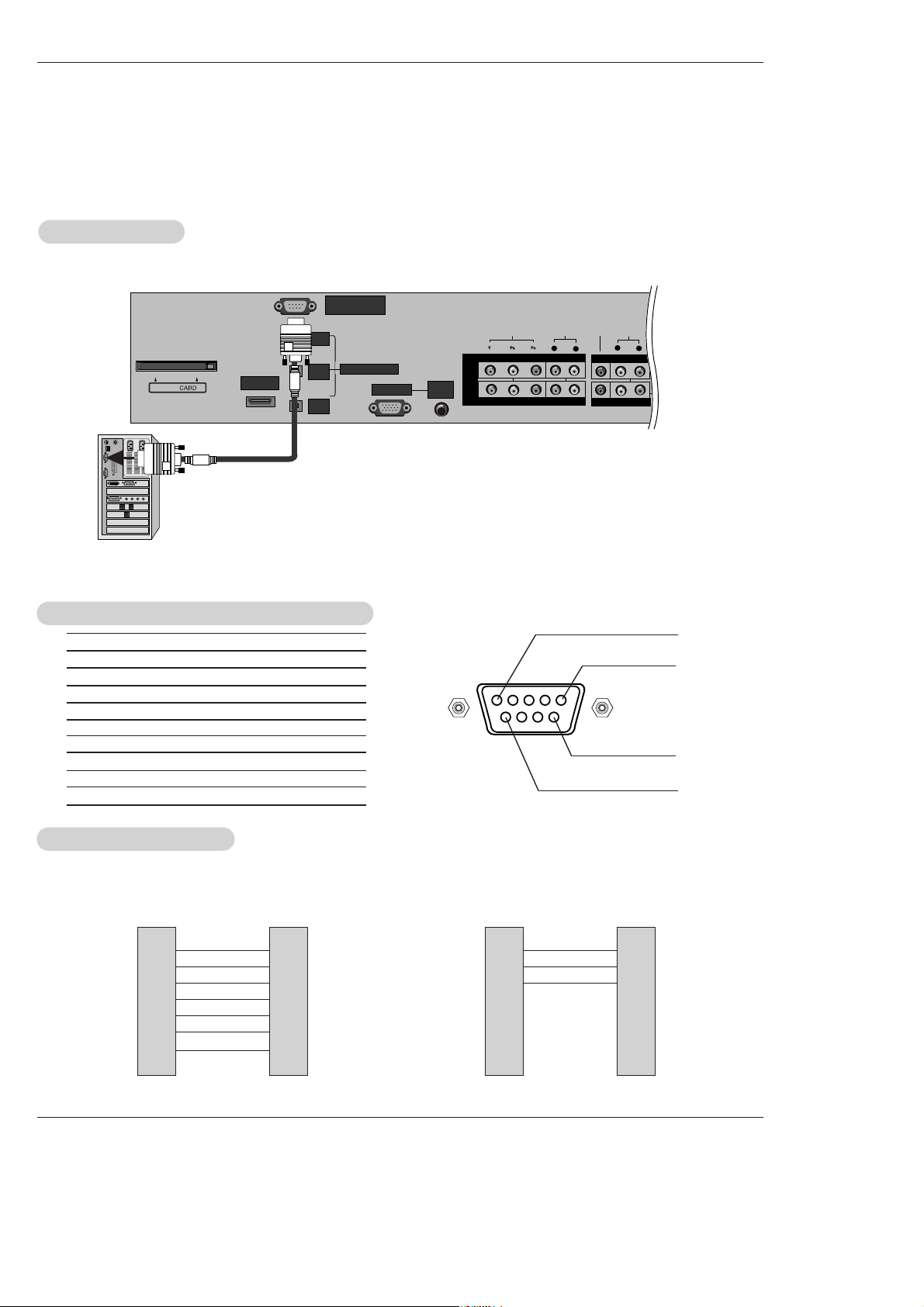

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

TType of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

RS-232C Configurations

RS-232C Configurations

External Control Device Setup

External Control Device Setup

RS-232C Setup

RS-232C Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

R

L

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2
INPUT

OUTPUT

AUDIO
INPUT

RGB INPUT

VIDEO

HDMI /DVI

COMPONENT INPUT 1

R

L

(MONO)

CABL

DVD
/DTV
INPUT

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

Cable

S-VIDEO

REMOTE
CONTROL

PC

46 Plasma TV

206-4022

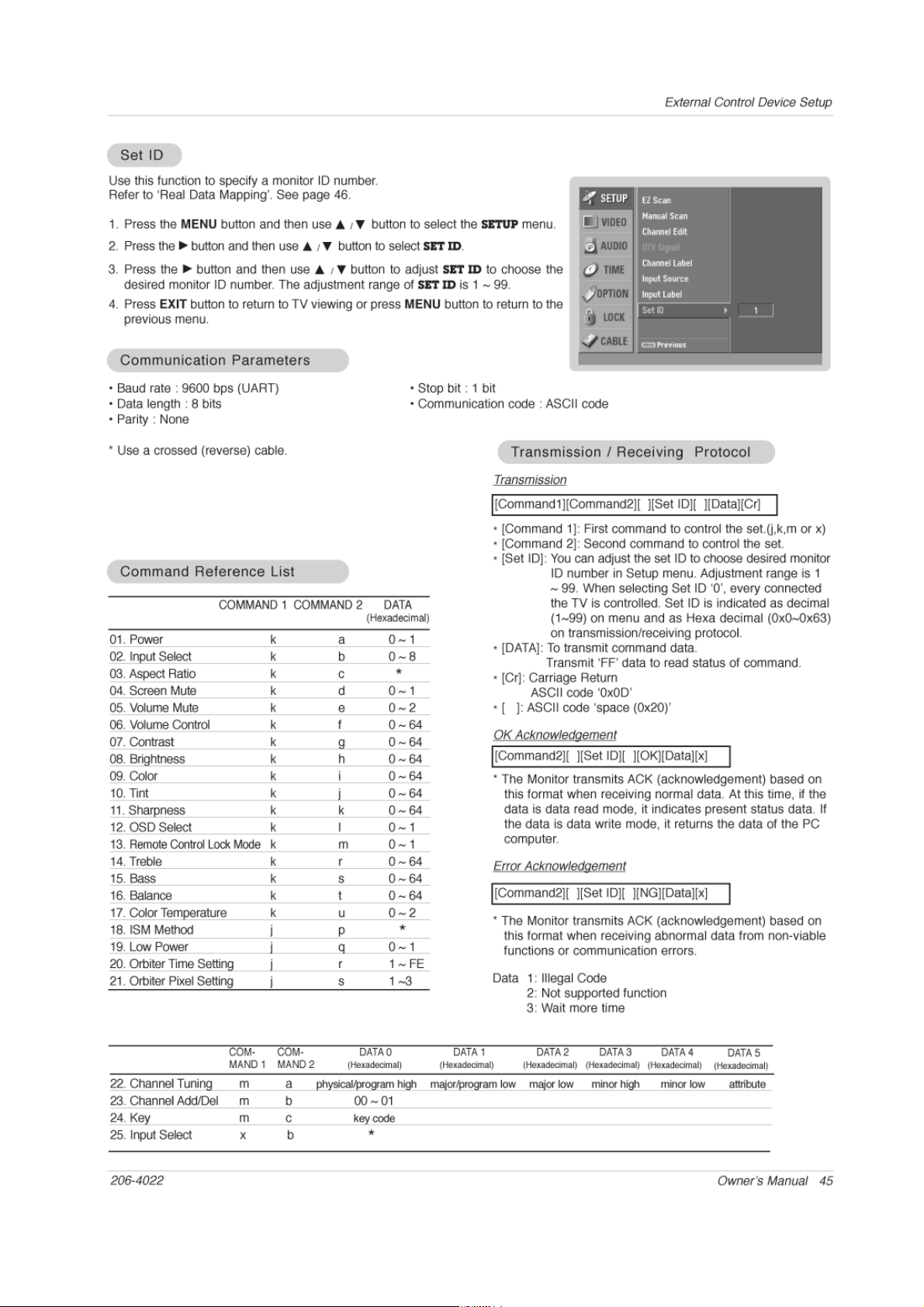

External Control Device Setup

02. Input Select (Command2:b) (Main Picture Input)

G To select input source for the Monitor.

T

ransmission

Data 0: DTV

1: Analog
2: Video
3: Front Video
4: Component 1

5: Component 2
6: RGB-DTV
7: RGB-PC
8: HDMI/DVI

Date 1: 4:3

2: 16:9
3: Horizon
4: Zoom 1
5: Zoom 2

6: Set by program
10: Cinema Zoom (1)

1F: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command2:a)

G To control Power On/Off of the Monitor.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback
presents status about each function.

*

Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)
64 : Step 100

05. Volume Mute (Command2:e)

G To control volume mute on/off.

You can also adjust mute using the MUTE button on
remote control.

T

ransmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)
2 : EZ Mute

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

G To adjust the screen format.

You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.

T

ransmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command2:d)

G To select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

G To adjust volume.

You can also adjust volume with the volume buttons
on remote control.

T

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

G To adjust screen contrast.

You can also adjust contrast in the Video menu.

T

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

G To adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 47

206-4022

External Control Device Setup

09. Color (Command2:i)

G To adjust the screen color.

You can also adjust color in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’. See page 46.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

G To adjust the screen tint.

You can also adjust tint in the Video menu.

T

ransmission

Data Red : 0 ~ Green : 64

• Refer to ‘Real data mapping’. See page 46.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[ j ][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

G To lock the remote control and the front panel controls on

the set.

T

ransmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

G To adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

T

ransmission

11. Sharpness (Command2:k)

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 46.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

G To select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK][Data][x]

14. Treble (Command2:r)

G To adjust treble.

You can also adjust treble in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 46.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

16. Balance (Command2:t)

G To adjust balance.

You can also adjust balance in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 46.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

15. Bass (Command2:s)

G To adjust bass.

You can also adjust bass in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•

Refer to ‘Real data mapping’. See page 46.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

48 Plasma TV

206-4022

External Control Device Setup

17. Color Temperature (Command2:u)

G To adjust color temperature.

You can also adjust color temperature in the Video
menu.

T

ransmission

Data 0: Medium 1: Cool 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

20. Orbiter Time Setting (Command2:r)

G To adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE

[ j ][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

21. Orbiter Pixel Setting (Command2:s)

G To adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: 3

[ j ][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

22. Tune Command (Command: m a)

G To tune channel to following physical/major/minor number

Transmission

Data 0:

Physical Channel Number(Transmit by Hexadecimal code)

NTSC air:02~45

NTSC cable: 01, 0E~7D

ATSC air:01~45

ATSC cable:01~87

Data 1,Data 2:

Major Channel Number (two part)/ Channel Number (One part)

Data1: High byte

Data2: Low byte

Two part channel number: Major number-Minor number

One part channel number: If the channel band is ATSC

digital cable, it can be used. In case of using one part chan

nel number, minor channel does not need.

Data 3, Data 4:

Minor Channel Number(Data 3: High byte)(Data 4: Low byte)

Data 5:

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

18. ISM Method (Command2:p)

G To avoid having a fixed image remain on screen.

Transmission

Data 1: Inversion

2: Orbiter
4: White Wash
8: Normal

[ j ][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

19. Low Power (Command2:q)

G To control the Low Power function on/off.

You can also adjust Low Power in Option menu.

T

ransmission

Data 0: Low Power off

1: Low Power on

[ j ][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

7

Main/Sub

6

Two/One

Part

Channel

Using
Physical
Channel

4

Reserv

ed

3

2

1

0

Step

0

1

Main

Sub

0

1

Two

One

Use

No Use

x

x

x

x

x

x

x

x

x

x

x

x

0

1

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

1

1

0

0

1

0

1

0

1

1

1

0

1

1

0

x

x

0

1

1

0

NTSC Air

ATSC

cable_auto

ATSC

Cable_irc

ATSC

Cable_hrc

ATSC

Cable_std

NTSC Cable

ATSC Air

Reserved

...

Reserved

5

0

1

Owner’s Manual 49

External Control Device Setup

206-4022

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][Data5][x]
[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

25. Input select(Command: x b) (Main Picture Input)

G To select input source for TV.

T

ransmission

[x][b][][Set ID][][Data][Cr]

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

*Using physical channel: 5th bit

If the channel band is NTSC air or NTSC cable, channel tun­ing can be done by only physical channel. In this case, using
physical channel bit must be low(0).
But if the channel band is ATSC air or ATSC cable, there are
two cases that physical channel enable or disable.
If the physical channel sending is meaningful, you should set
this bit low(0). If the physical channel sending is meaningless,
you should set this bit high(1).
Example)

1. Analog channel: NTSC cable, channel number(35), main
picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01):
main picture, two part(it’s not mandatory), using physical chan-
nel, NTSC cable ‘xx’ data: don’t care major and minor channel
number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don’t know phys-
ical channel, major(30), minor(3)), sub picture
Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub pic­ture, two part, not using physical channel, ATSC air ‘xx’ data:
don’t care analog channel number in case digital channel tun­ing.

3. Digital channel: ATSC air, channel
number(physical(20),major(20), minor(3)), sub picture
Command: ma 00 14 00 14 00 03 82 attribute(0x82): sub pic­ture, two part, using physical channel, ATSC air.

23. Channel Add/Del (Command: m b)

G To add and delete the channels

T

ransmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK][Data][x]
[b][ ][Set ID][ ][NG][Data][x]

Acknowledgement

24. Key (Command: m c)

G To send IR remote key code

Transmission

Data Key code: Refer to page 51.

[m][c][ ][Set ID][ ][Data][ ][Cr]

[c][ ][Set ID][ ][OK][Data][x]

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

Acknowledgement

Data Structure

DATA(Hex)

INPUT

00

DTV (Antenna)

01

10

11

20

21

40

41

50

60

90

DTV (Cable)

Analog (Antenna)

Analog (Cable)

Video

Front Video

Component 1

Component 2

RGB DTV

RGB PC

HDMI/DVI

50 Plasma TV

206-4022

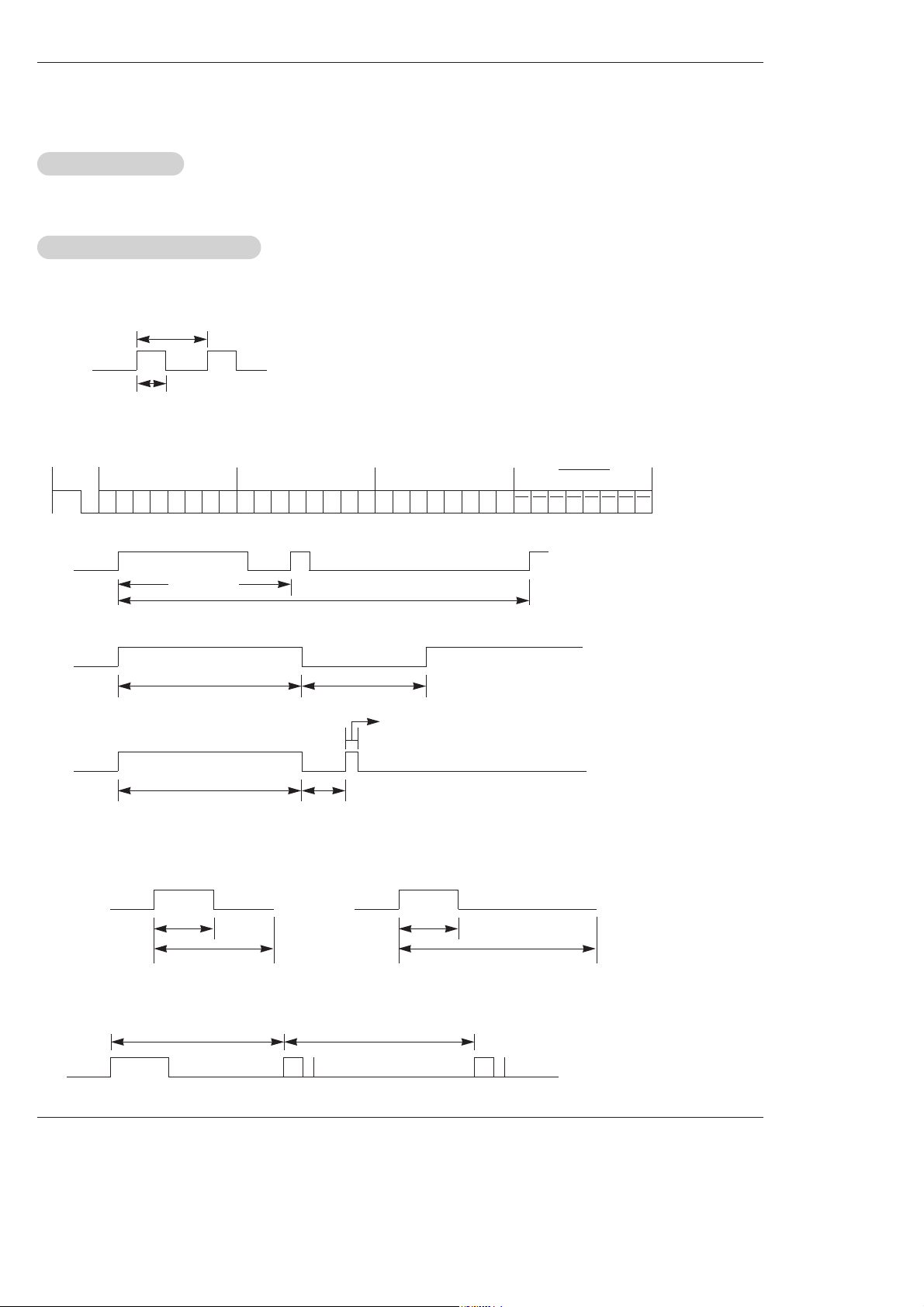

IR Codes

G Connect your wired remote control to the Remote Control port on the TV.

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

• 1st frame

Low
custom code

Lead
code

High
custom code

Data code

Data code

T

C

Tf

T1

C0

Carrier frequency

F

CAR = 1/TC = fOSC/12

Duty ratio = T1/TC = 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

How to Connect

How to Connect

Remote Control IR Codes

Remote Control IR Codes

IR Codes

IR Codes

Owner’s Manual 51

206-4022

IR Codes

0B
0F
08
C4
C5
79
0E
10 ~ 19
4C
1A
09
65
02
03
00
01
1E
AA
39
40
41
07
06
44
43
52
4D
5B
65
0A
CB
D6
5A
D0
BF
D4
D5
D7
C6
76
77
AF

R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (TV Input Selection)
Discrete IR Code (Video Input Selection)
Discrete IR Code (Front Video Input Selection)
Discrete IR Code (Component1 Input Selection)
Discrete IR Code (Component2 Input Selection)
Discrete IR Code (RGB-PC Input Selection)
Discrete IR Code (RGB-DTV Input Selection)
Discrete IR Code (HDMI/DVI Input Selection)
Discrete IR Code (Only 4:3 Mode)
Discrete IR Code (Only 16:9 Mode)
Discrete IR Code (Only Zoom1 Mode)

Code (Hexa) Function Note

TV/VIDEO
TV INPUT
POWER
POWER ON
POWER OFF
RATIO
TIMER
Number Key 0~ 9

- (Dash)
FLASHBK
MUTE
FREEZE
VOL

D

VOL

E

CH

D

CH

E

FAV
INFO
CC

D
E
F
G

ENTER
MENU
EZ SOUND
EZ PIC
EXIT
FREEZE
SAP
ADJUST
TV
VIDEO
Front Video
COMPONENT 1
COMPONENT 2
RGB-PC
RGB-DTV
HDMI/DVI
Ratio 4:3
Ratio 16:9
Ratio Zoom

52 Plasma TV

206-4022

Programming the Remote

G The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-controllable devices of

other manufacturers.
Note that the remote may not control all models of other brands.

Programming a code into a remote mode

Programming a code into a remote mode

Programming the Remote

Programming the Remote

1. To find out whether your remote can operate the device without programming, turn on the device such as a VCR and press the
corresponding mode button on the remote.
After that, press the POWER button. If the device is turned off then it responds properly and the remote need not to be pro­grammed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.

2. Press the MENU and MUTE button continuously at the same time for 2 seconds, the current selected device button will be illu­minated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from
step 2.

3. Enter code numbers using the number button on the remote by refering the code table on the following pages. When pressing
the button, the light blinks at a time. If the device turned off, the programming is successful.

4. Press the MENU button to store the code. After blinking twice, this code is stored.

5. Test the remote functions to see if the device responds properly. If not, repeat from step 2.

Owner’s Manual 53

206-4022

Programming Codes

Programming Codes

Programming Codes

VCRs

VCRs

CACATV

TV

AIWA 034
AKAI 016 043 046 124

125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS

012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064

065 108 110 111

112116117119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072

107 109 144 147
GO VIDEO 132 136
HARMAN KARDON

012 045
HITACHI 004 018 026 034

043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033

040 066 101
JENSEN 043
JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123
LLOYD 034
LXI 003 009 013 014

017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041

067 068
MARANTZ 012 031 033 067

069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046

049 051 059 061

151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043

048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083

133 140 145
PENTAX 013 020 031 033

063
PHILCO 031 034 067
PHILIPS 031 033 034 054

067 071 101
PILOT 101
PIONEER 013 021 048

PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034

040 041 062 063
107 109 140 144
145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125
SANSUI 022 043 048 135
SANYO 003 007 010 014

102 134
SCOTT 017 037 112 129

131
SEARS 003 008 009 010

013 014 017 020

031 042 073 081

101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052

056 057 058 076

077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059

067
SYMPHONIC 034
TANDY 010 034

TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034

101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047

059 082 112 131
TOTEVISION 040 101
UNITECH 040

VECTOR RESEARCH

012
VICTOR 048
VIDEO CONCEPTS

012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024

031 033 034 040

053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074

GOLDEN CHANNEL

030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008

009 010 052 069

074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071

073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016
PRUCER 059
PTS 011 048 071 072

073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030

SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

54 Plasma TV

206-4022

Programming Codes

Audio

Audio

APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025

MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009

PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015

SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025

DVD

DVD

ALPHASTAR DSR

123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER

013 014 015 018

036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010

011 052 112 116

141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029
031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064

065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057
085

SCIENTIFIC ATLANTA

032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087

088 090 107 130

137
TOSHIBA 002 127
UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084

091 120

HDSTB

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230
AKAI 163
ANAM 003 014 017 023

059 106 189 216

217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084

102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089

170 171 197 206

215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025

034 041 081 090

097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047

048 056 057 132

133 140
OPTIMUS 158
PANASONIC 007 033 064 113

142 220 241 251
PENNEY 104

PHILIPS 026 112 143
PIONEER 039 042 043 063

065 091 093 094

115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209
SHERWOOD 005 006 158
SONY 044 045 109 114

118 126 248 249
TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

TEAC 010 085 106 136

185 187 237
TECHNICS 101 113 128 134

147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

Owner’s Manual 55

206-4022

Troubleshooting Checklist

No output from one of

the speakers

• Adjust Balance in the AUDIO menu. (Refer to p.27)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the TV.

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet
where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Video menu and press the G button.
(Refer to p.26)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control
causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.9)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.9)

Picture OK &

No sound

• Press the VOLUME (

D / E

) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please
contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking

• Check for local interference such as an electrical appliance or power tool.

TTroubleshooting Checklist

roubleshooting Checklist

56 Plasma TV

206-4022

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Screen

Cleaning the Cabinet

Cleaning the Cabinet

Extended

Extended

Absence

Absence

Maintenance

Maintenance

Owner’s Manual 57

206-4022

Specification

Product Specifications

Product Specifications

• The specifications shown above may be changed without prior notice for quality improvement.

MODELS

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69

75 Ω

32 ~ 104°F (0 ~ 40°C)

Less than 80%

47.6 / 1210

27.6 / 701

11.6 / 295

79 / 35.9

852 x 480 (Dot)

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Operating Temperature Range

Operating Humidity Range

Z42PX2D/Z42PX2DH/Z42PX21D/Z42PX21DH

58 Plasma TV

206-4022

Notes

Notes

Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workmanship
under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date of original
consumer/end user purchase. This warranty is good only to the original consumer/end user of the product and is
effective only when used in the United States.

ZENITH ELECTRONICS CORPORATION

PLASMA TV Z42PX2D / Z42PX21D LIMITED WARRANTY – USA

CONCERNING PIXEL FUNCTIONALITY: Your Plasma Television contains about one million individual pixels.
Plasma TVs typically contain a small number of pixels that do not function normally. Your display has been inspect­ed and is in compliance with manufacturer’s specifications, indicating that any pixel defects do not affect the oper­ation or use of your display.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

To obtain customer assistance, prod­uct information, or Dealer or Service
locations

Call 1-877-9Zenith (1-877-993-6484) (24 hours a day,

365 days per year) and select appropriate options from the
menu.
Or visit our website at http://www.zenithservice.com

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING, WITHOUT LIMITATION, LOST
PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN
CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from stat
to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The costs of repair or replacement under these excluded circumstances shall be borne by the consumer.

WARRANTY PERIOD:

LABOR: ONE YEAR from the Date of Purchase.

PARTS: ONE YEAR from the Date of Purchase.

Effective Date of Warranty: Your warranty period

Begins on the date of sale to the original
consumer/end user. KEEP THE DEALER’S DATED BILL
OF SALE OR PROOF OF DELIVERY as evidence of the
purchase date. You will be required to submit a legible
copy of your bill of sale or proof of delivery when
requesting warranty service.

Repair Parts and Replacement Units are warranted
for the remaining period of the original warranty.

HOW SERVICE IS HANDLED:

In Home Service. Please Call the Zenith Interactive

Center at 1-877-9ZENITH (1-877-993-6484) to
schedule a service appointment.

Your unit will be repaired or replaced with a new, sub­stitute model or factory reconditioned unit, at Zenith’s
option. If repaired, parts used in the repair may be new
or remanufactured.

Visit our website at http://www.zenithservice.com

● damage caused in shipping or transit

● service required as a result of improper installation,

including incorrect or insufficient AC supply (please
consult the owner’s manual for power supply
requirements)

● installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or
other components in a video system

● set-up or adjustment on consumer controls, or

damage caused by improper adjustments

● damage caused by other system components

● any unit that has been modified or incorporated

into any other product

● replacement of batteries on the remote control.

● damage (including cosmetic damage), failure, loss

or personal injury due to misuse, abuse, negli­gence, improper maintenance or storage, or to acts
of nature or other causes beyond Zenith’s control.
(Causes beyond Zenith’s control include but are not
limited to lightning strike, power surges, power out­ages and water damage.)

● Image burn-in

● repair or replacement of warranted parts by other

than Zenith Authorized Service Centers.

● units purchased or serviced outside of the U.S.A.

● product where the original factory serial numbers

have been removed, defaced or changed in any
way.

● product sold and labeled as “as is, where is” or sim-

ilar disclaimer.

TO CONTACT ZENITH BY MAIL:

LG Customer Interactive Center

201 James Record Road
Huntsville, Alabama 35824
http://www.zenithservice.com

BEFORE CALLING FOR SERVICE:

● Please check your operating guide – you may avoid a service call.

● Please have your product model number, serial number and the date of purchase or the date of original instal-

lation available.

● If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

Zenith against a credit card number as surety for advanced shipment. Your credit card will not be charged if
you return the defective unit within 10 working days.

● If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to Zenith.

● Parts and service in accordance with the Zenith warranty are Zenith’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfac­tory warranty service, write or call the Zenith Customer Interactive Center. Service may be provided by inde­pendently owned and operated service organizations.

● To assure proper credit and avoid unnecessary charges, you must obtain a Return Authorization before return-

ing any product for Zenith Warranty Service. Contact the number below or your authorized Zenith repair facility
for details.

IMPORTANT: Please fill out and mail your Product Registration Card or go to www.zenithservice.com to register
your product online. This information allows Zenith to reach you promptly should we discover a safety or reliabili­ty problem that could affect you.

P/N : 3828VA0528D

e
