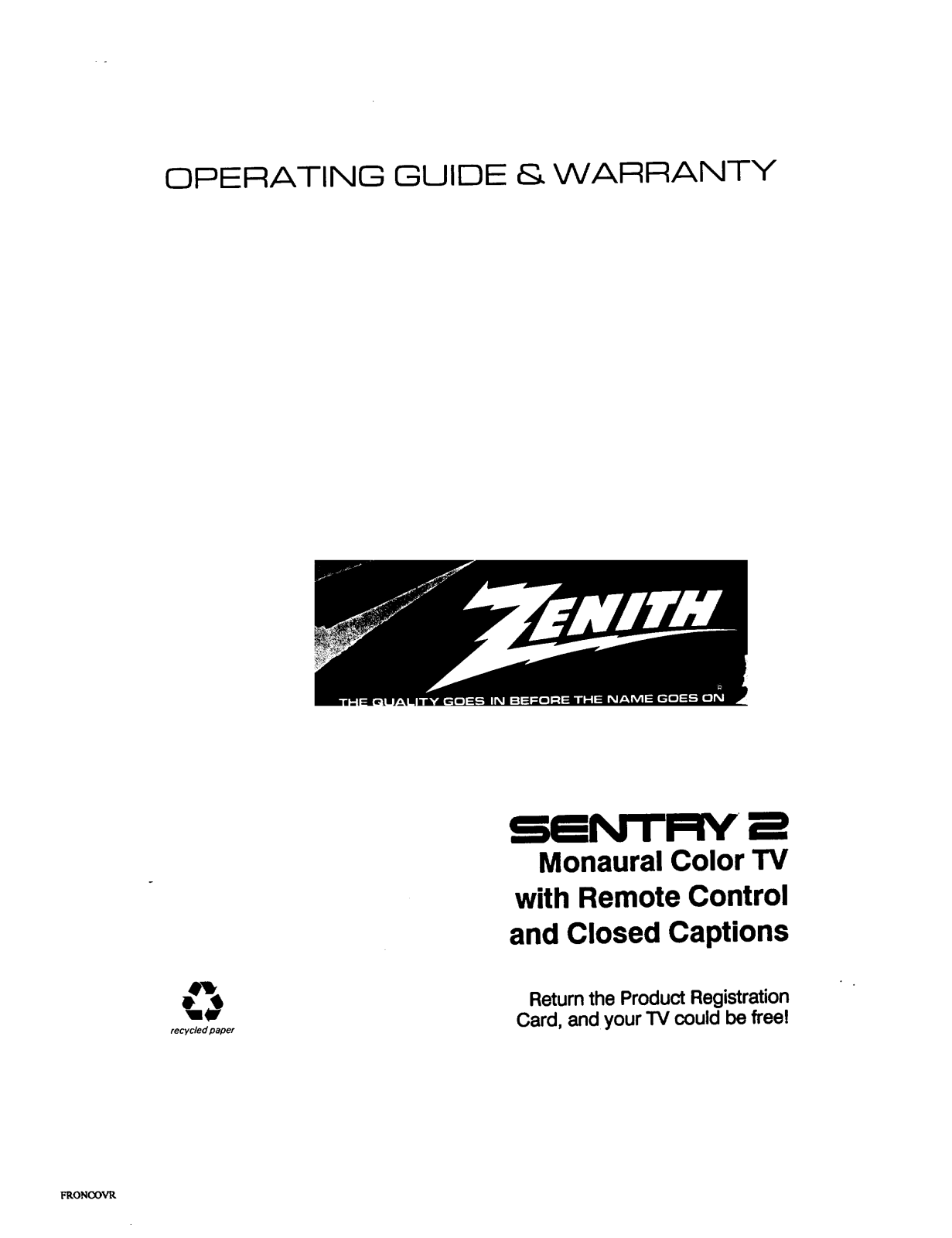

Zenith SAR2035Y7 Owner’s Manual
OPERATING GUIDE & WARRANTY
FRONOOVR
recycled paper
SEIMT_' _
Monaural Color TV
with Remote Control
and Closed Captions
Returnthe Product Registration
Card, and your TV could be free!

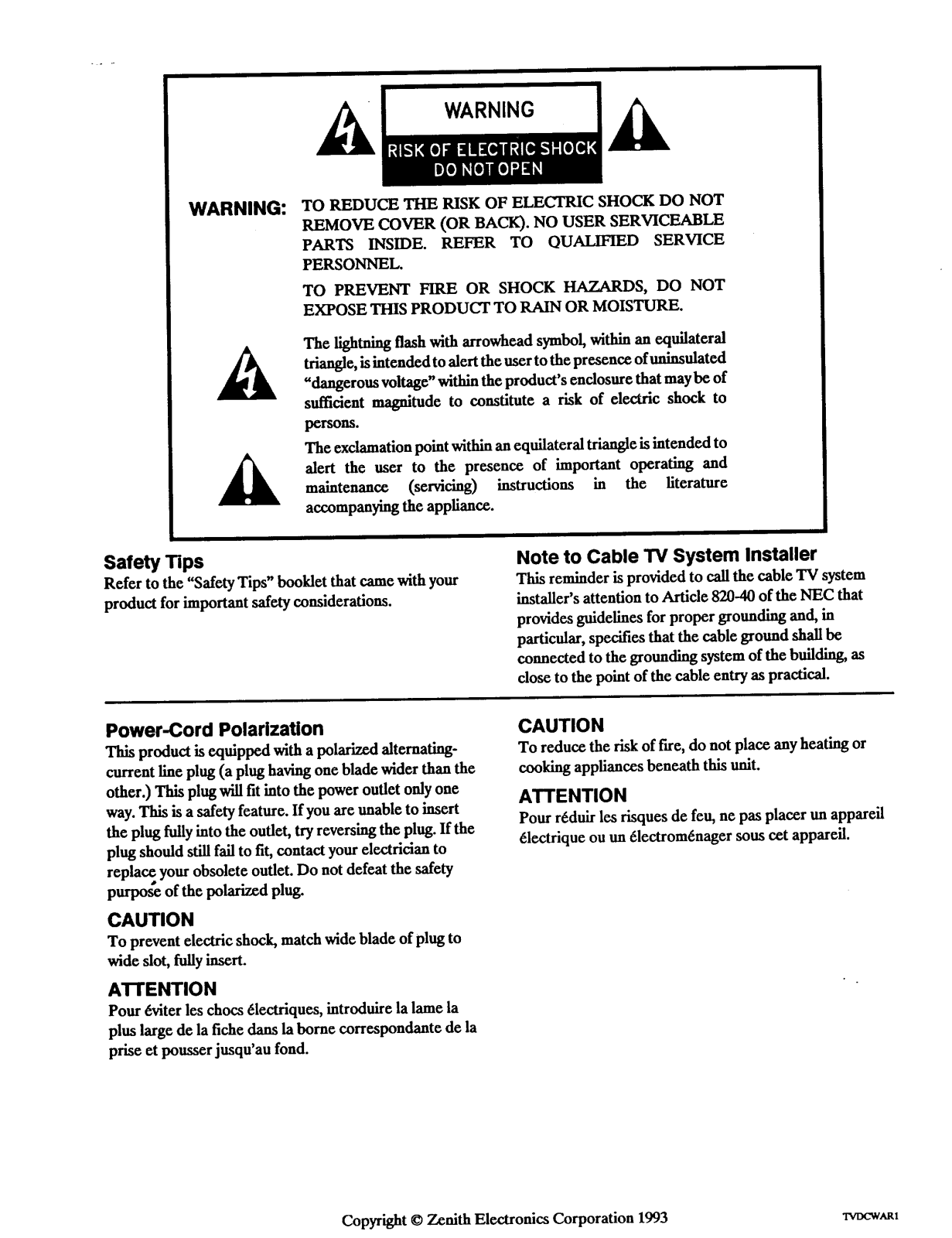

WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
The lightning flashwith arrowhead symbol, within an equilateral
triangle, is intended to alert the user tothepresenceof-nin_ulated
"dangerous voltage"within the product'senclosure that maybe of
sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamationpointwithin an equilateraltriangle isintended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanyingthe appliance.
Safety Tips
Refer to the "Safety Tips" booklet that came with your
product for important safety considerations.
Power-Cord Polarization
Thisproduct is equipped with a polarized alternating-
current line plug (a plug having one blade wider than the
other.) This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, tryreversing the plug. If the
plug should still fail to fit, contact your ele.,.trician to
repla_ your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
CAUTION
To prevent electric shock, match wide blade of plug to
wide slot, fully insert.
ATTENTION
Pour _witer les chocs _lectriques, introduire la lame la
plus large de la fiche dam la borne correspondante de la
prise et ponsser jusqu'au fond.
Note to Cable "IV System Installer
This reminder is provided to call the cable TV system
installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of the cable entry as practical.
CAUTION
To reduce the risk of fire, do not place any heating or
cooking appfiances beneath this unit.
ATTENTION
Pour r_duir les risques de feu, ne pas placer un appareil
_lectrique ou un _lectrom_nager sons cet appareil.
Copyright © Zenith Electronics Corporation 1993 Tvr_wARt

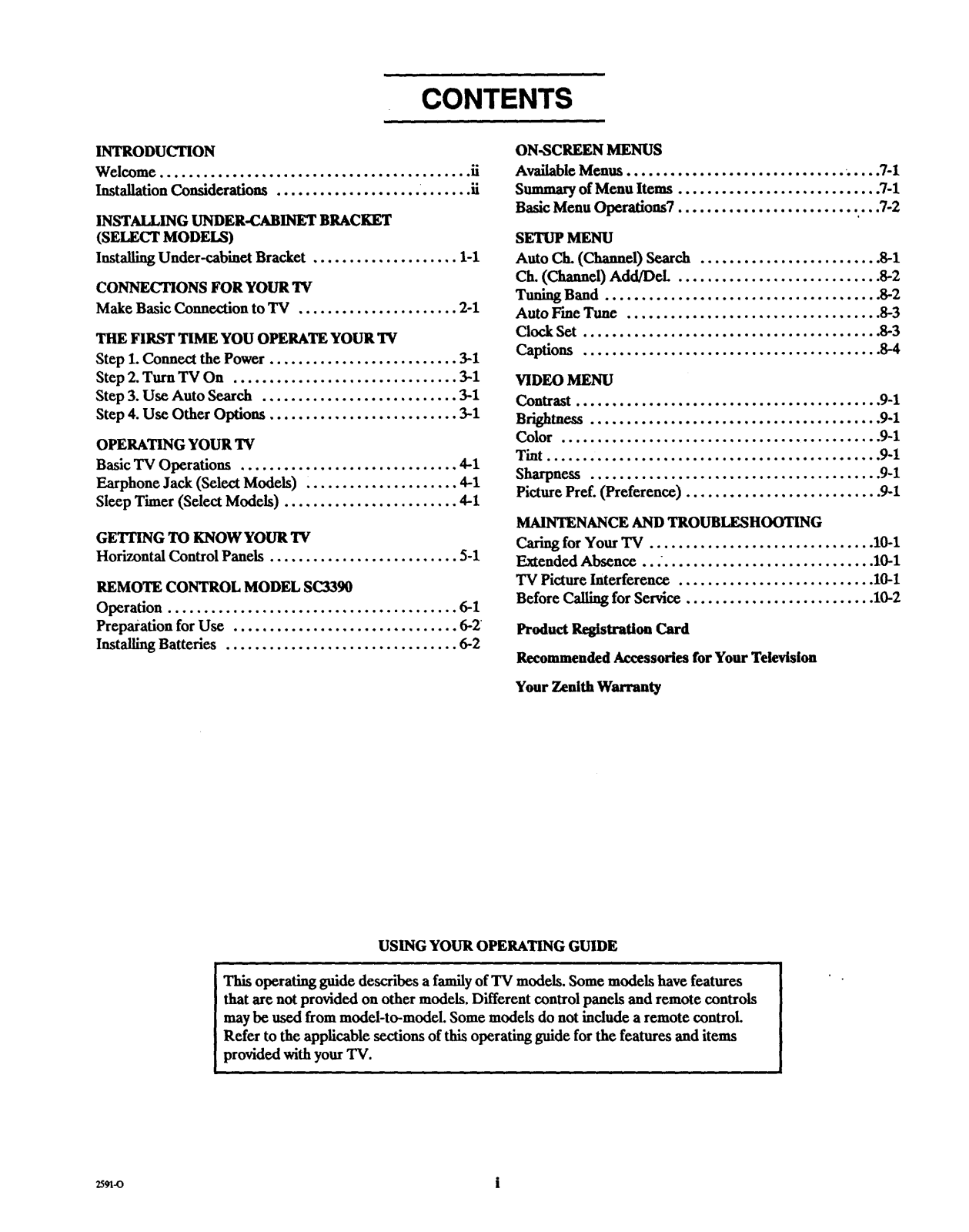

CONTENTS
INTRODUCTION
Welcome ........................................... ii
InstallationConsiderations .. .ii
INSTALLING UNDER-CABINET BRACKET
(SELECT MODELS)
Installing Under-cabinet Bracket .................... 1-1
CONNECTIONS FOR YOUR "IV
Make Basic Connection to TV ...................... 2-1

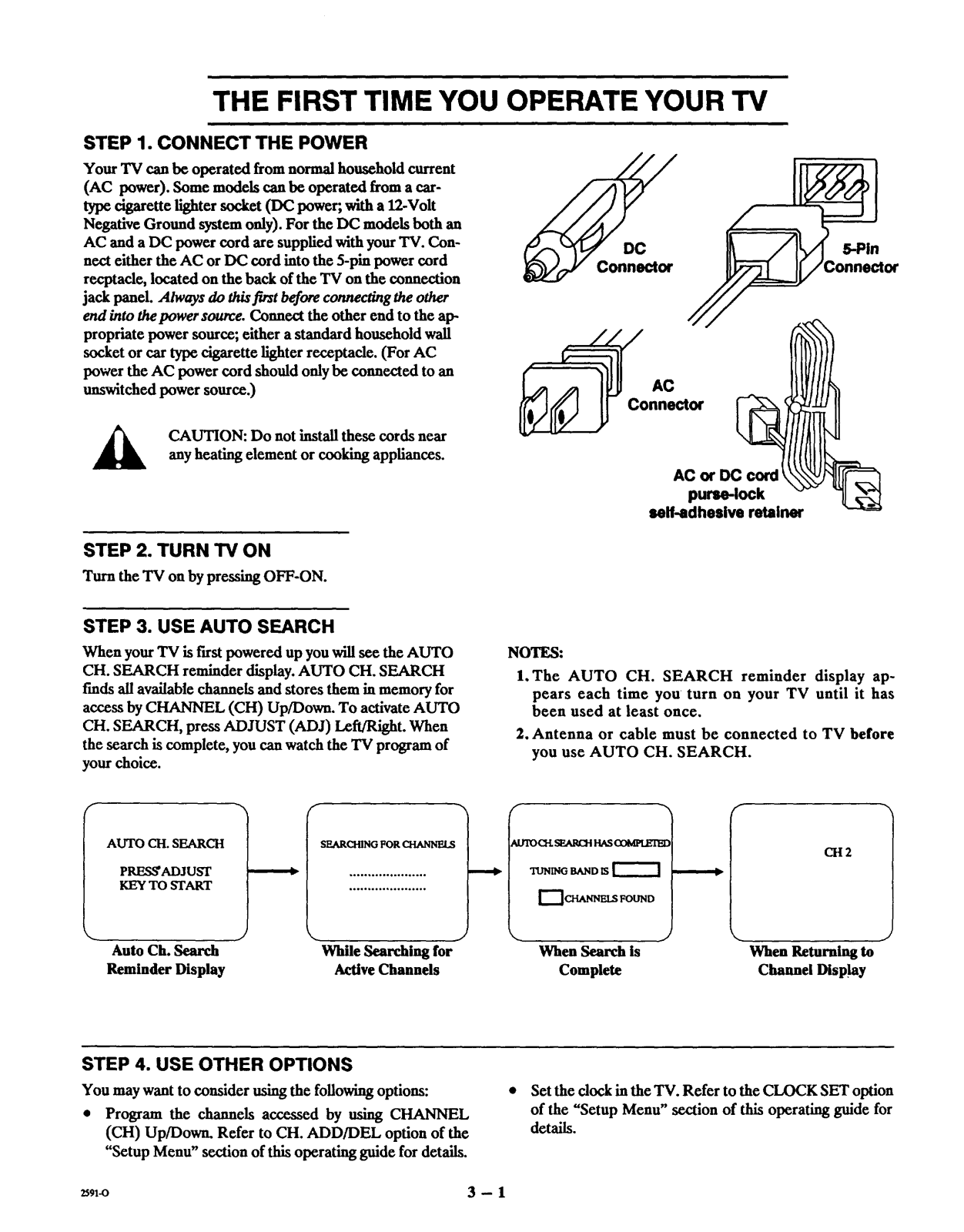

THE FIRST TIME YOU OPERATE YOUR TV
Step 1. Connect the Power .......................... 3-1
Step 2. Turn TV On ............................... 3-1
Step 3. Use Auto Search ........................... 3-1
Step 4. Use Other Options .......................... 3-1

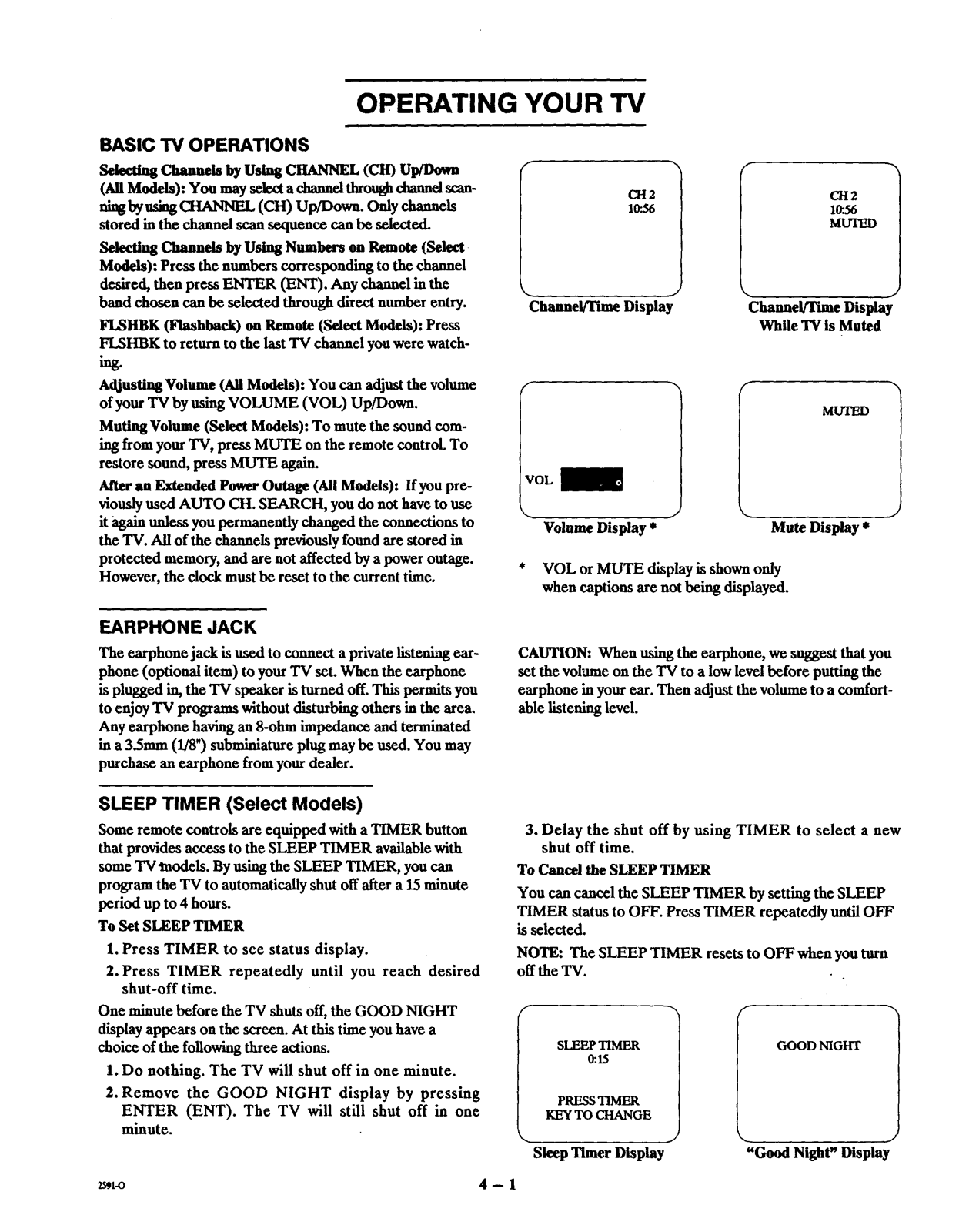

OPERATING YOUR "IN
Basic TV Operations .............................. 4-1
Earphone Jack (Select Models) .4-1
Sleep Timer (Select Models) ........................ 4-1
GETI'ING TO KNOW YOUR'IV

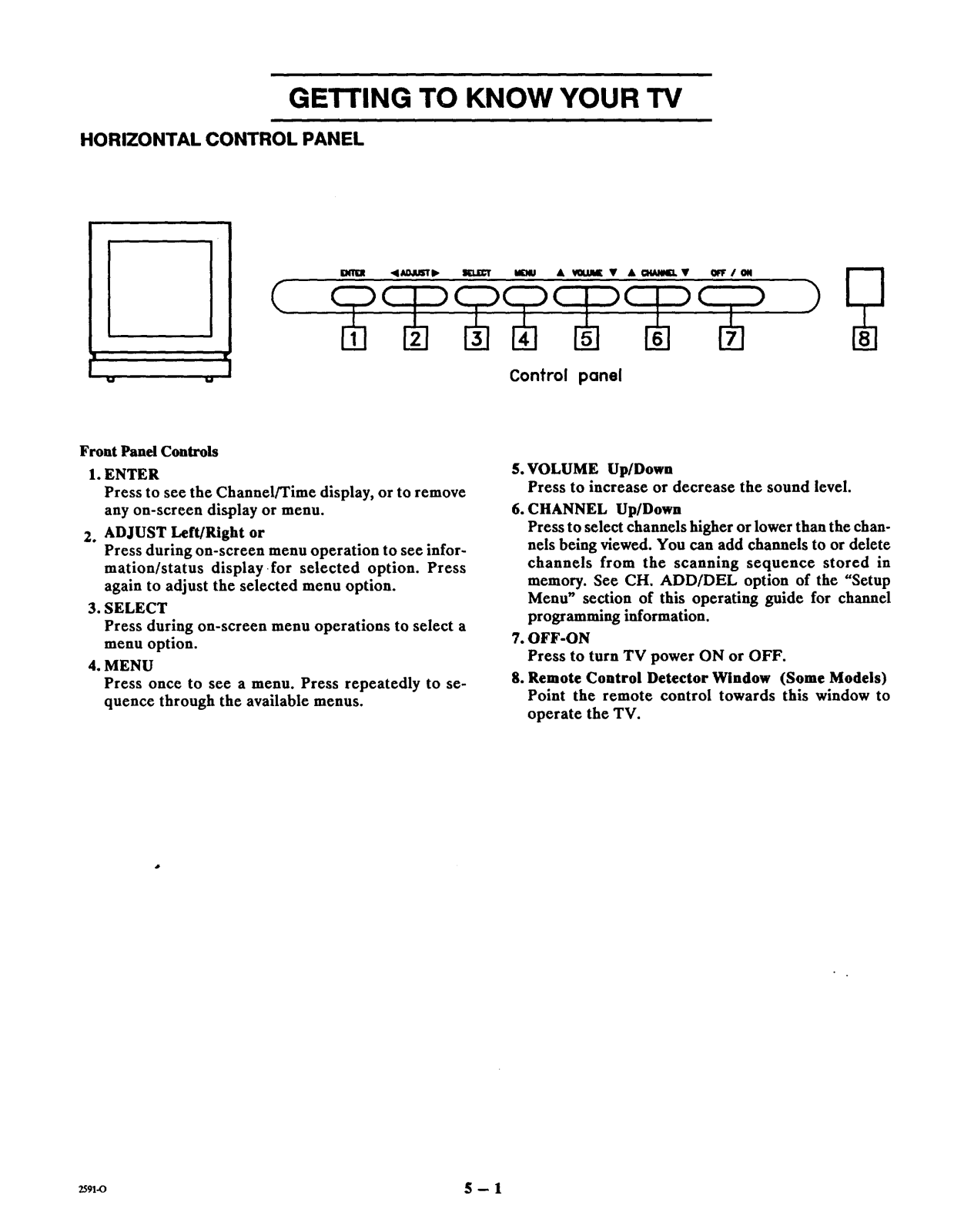

Horizontal Control Panels .......................... 5-1

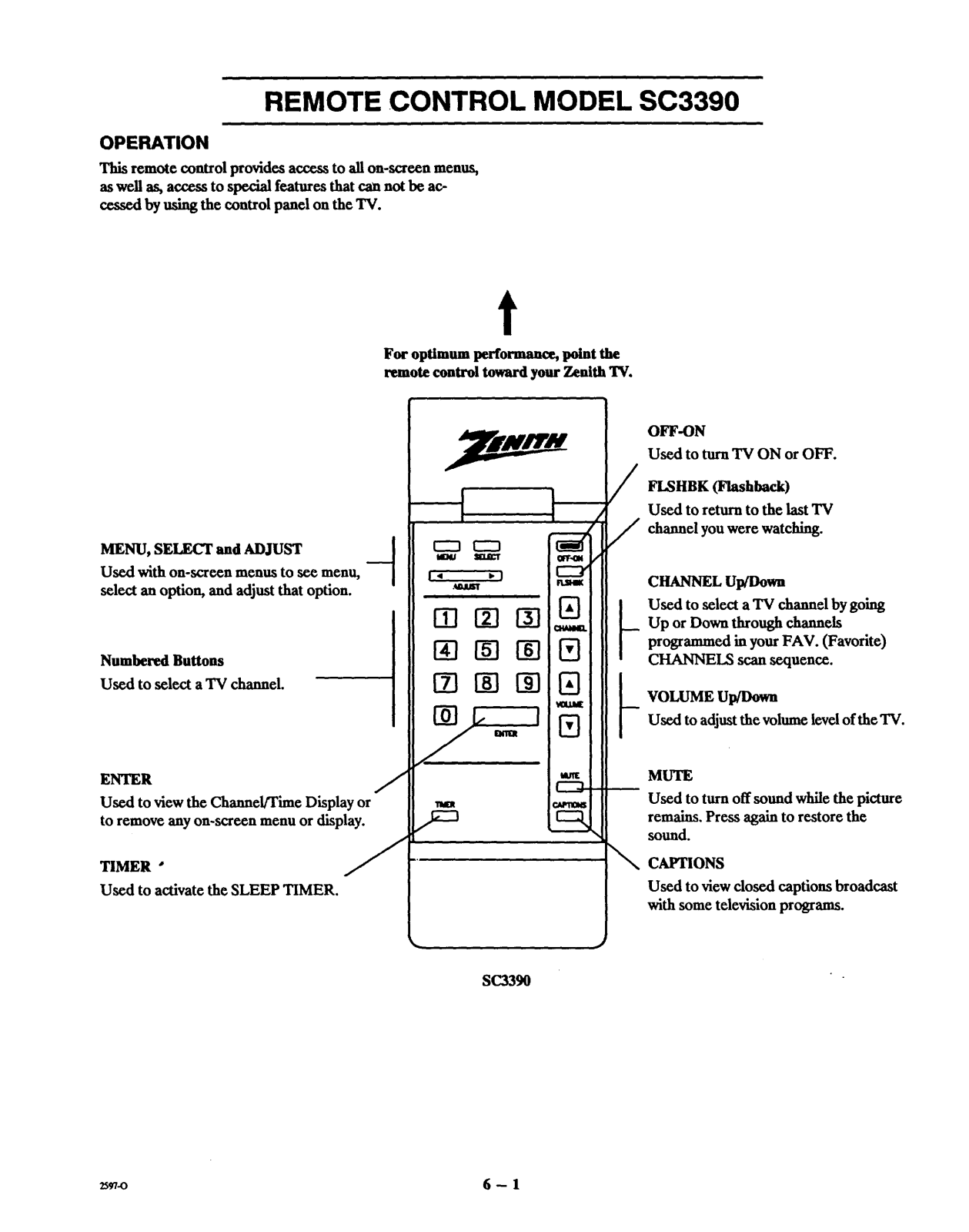

REMOTE CONTROL MODEL SC3390
Operation ........................................ 6-1

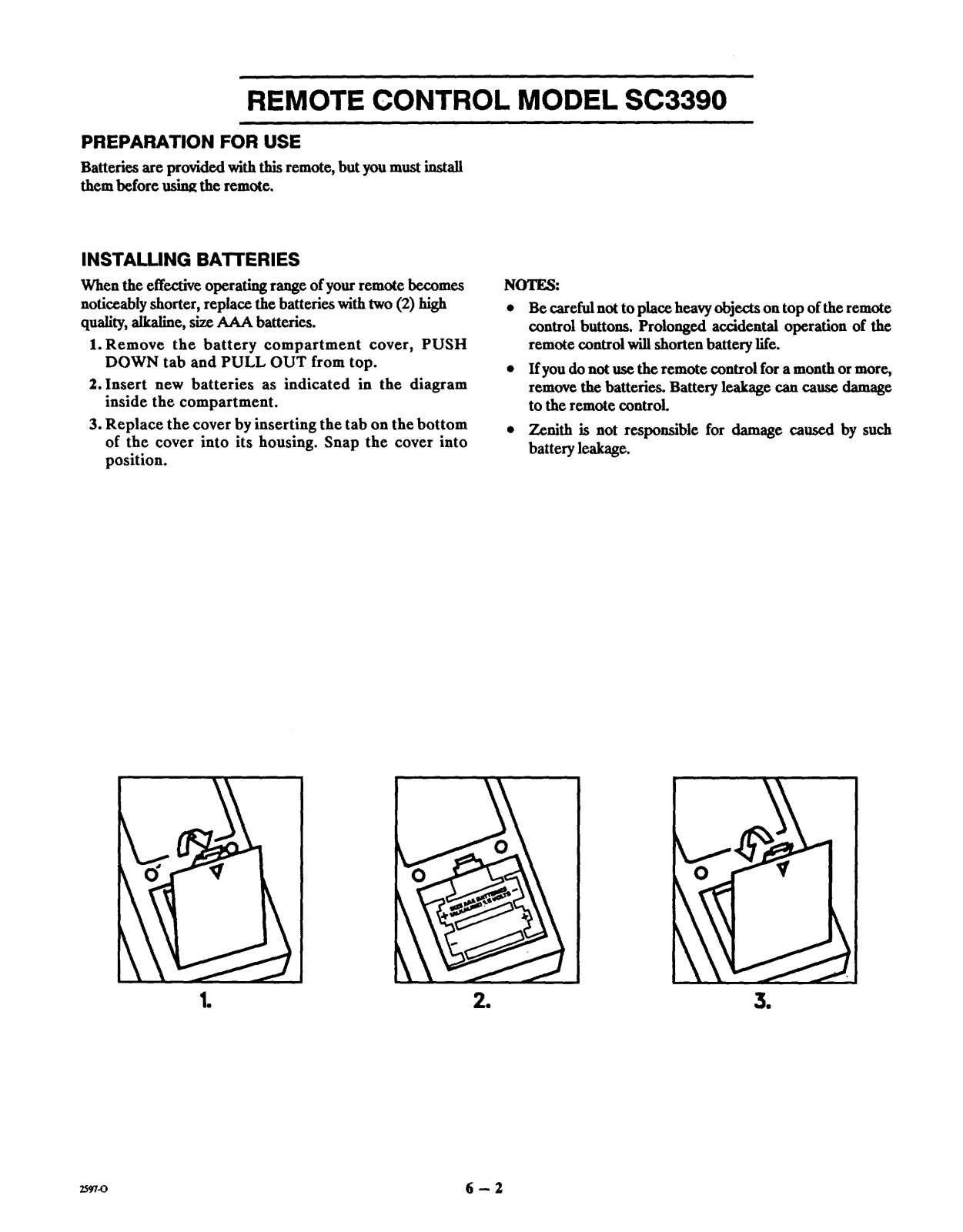

Preparation for Use ............................... 6-2
Installing Batteries ................................ 6-2

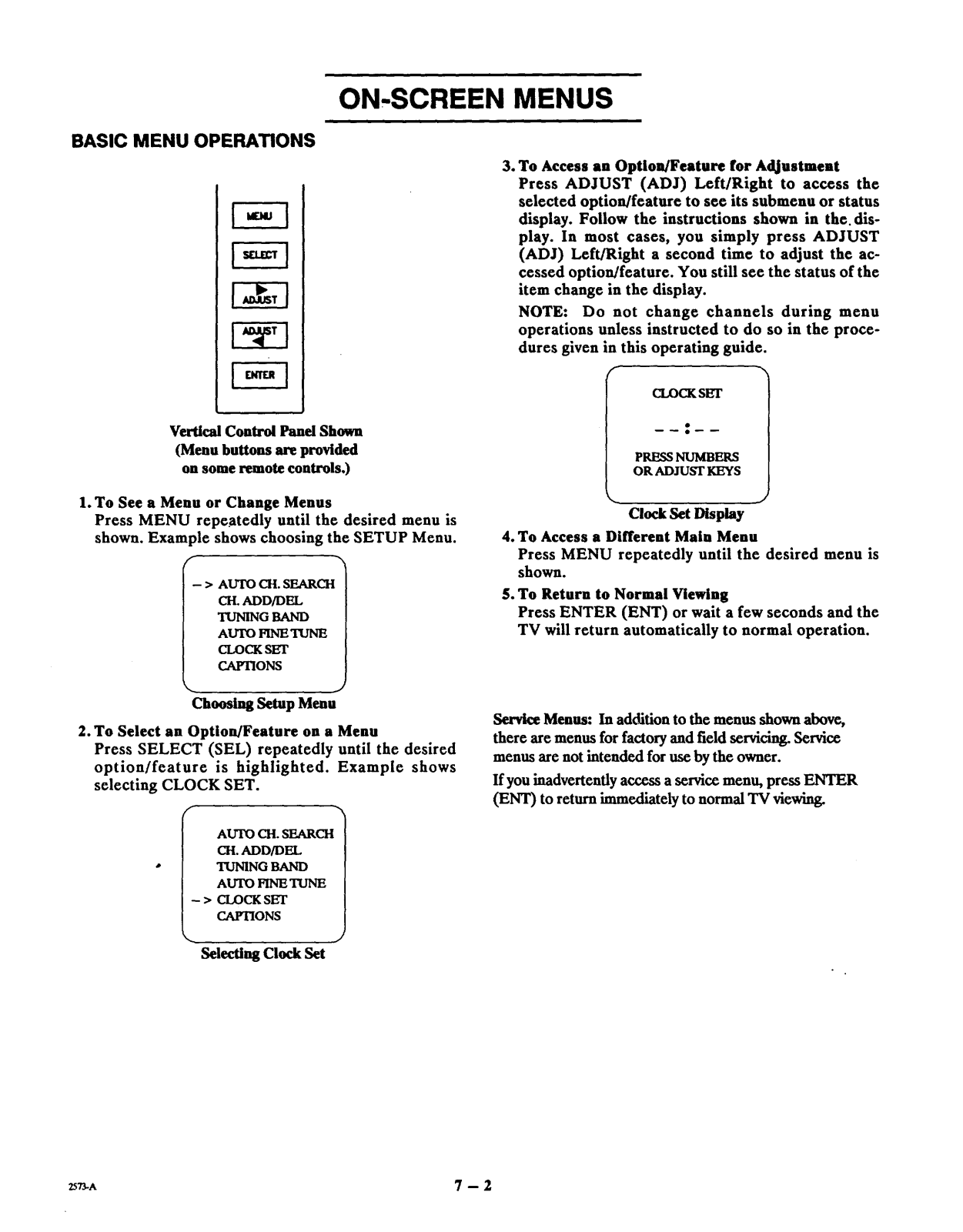

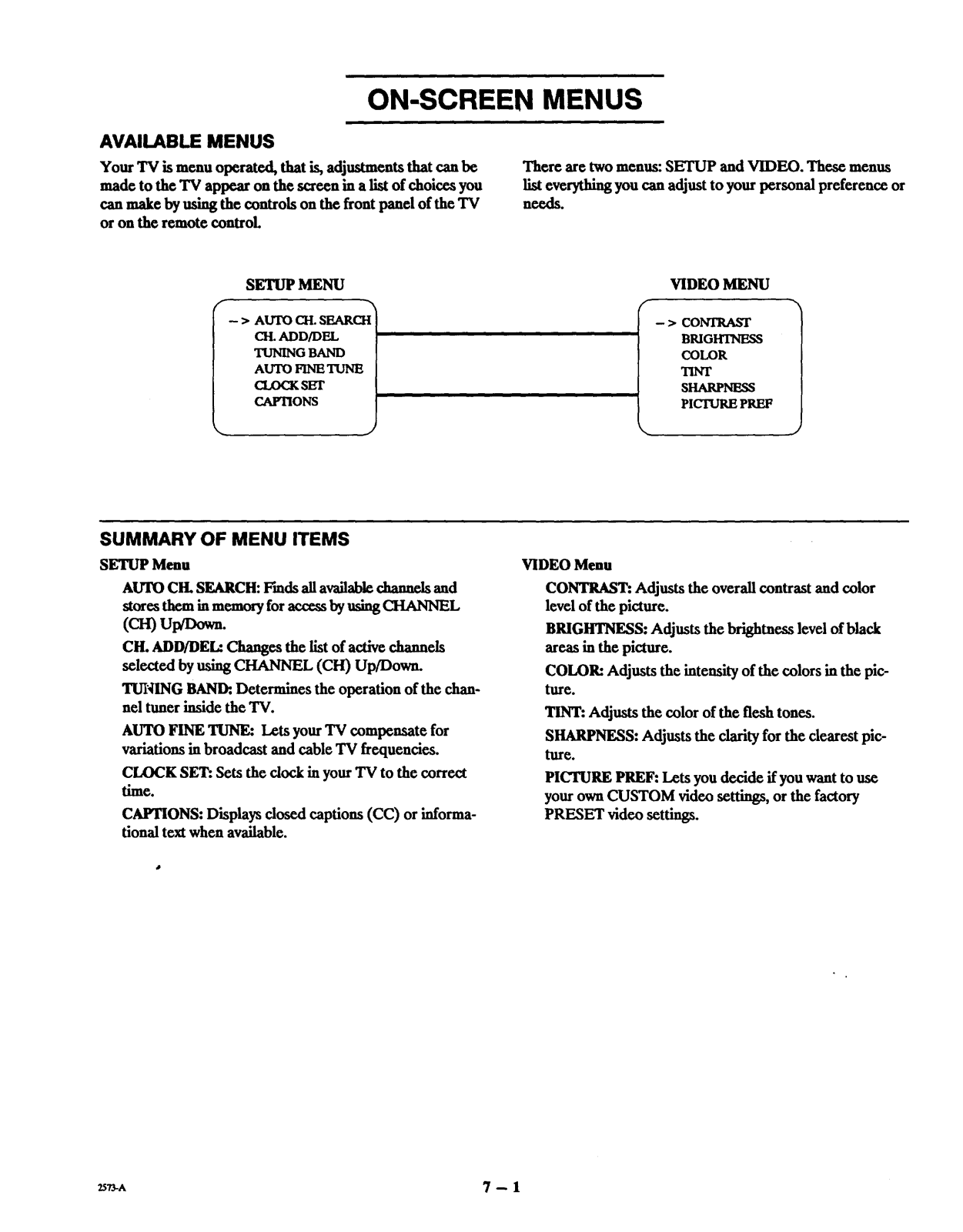

ON-SCREEN MENUS
Avai_ble Menus .............................. ..... 7-I
Summary of Menu Items ........................... .7-1
Basic Menu Operations7 ............................ 7-2

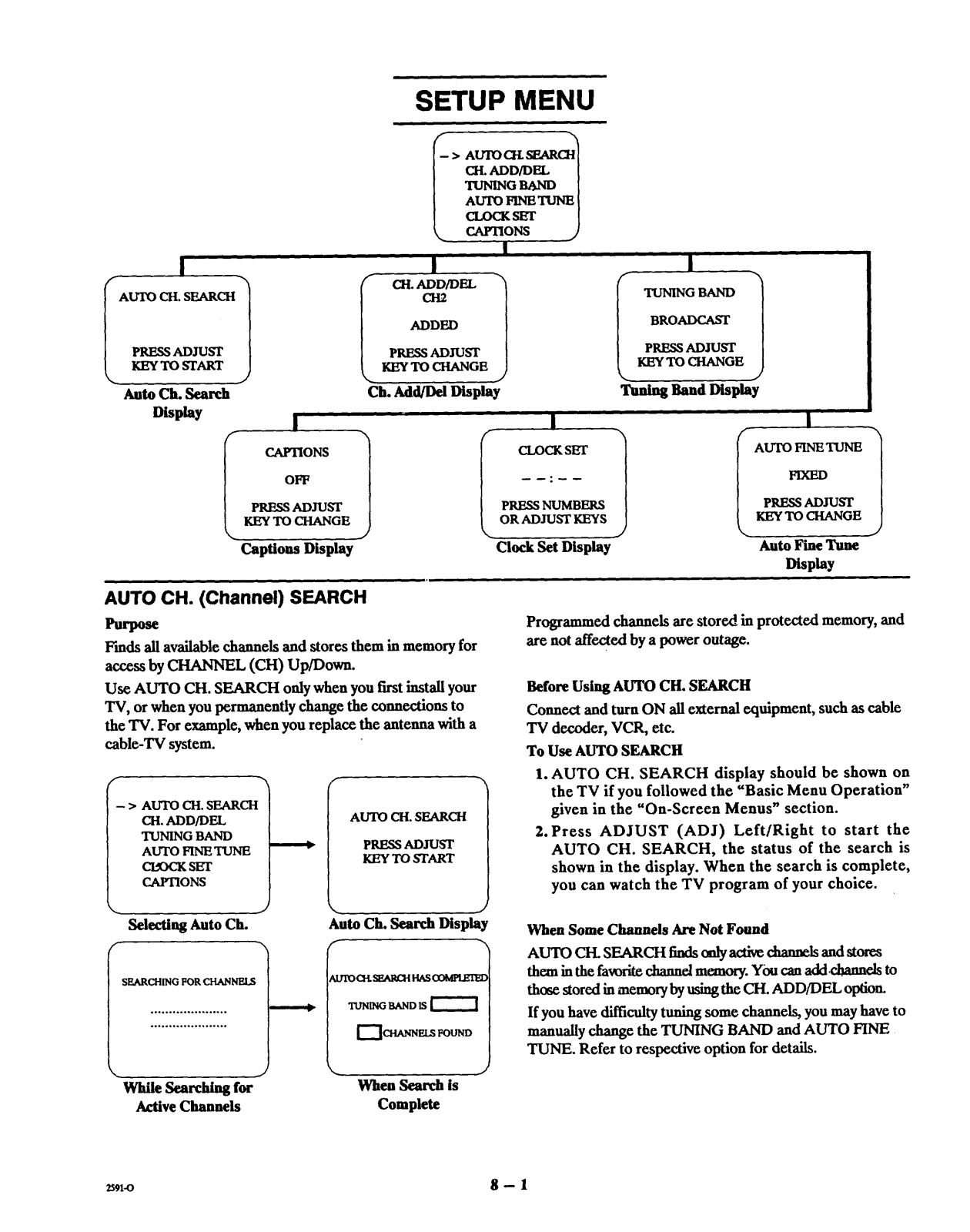

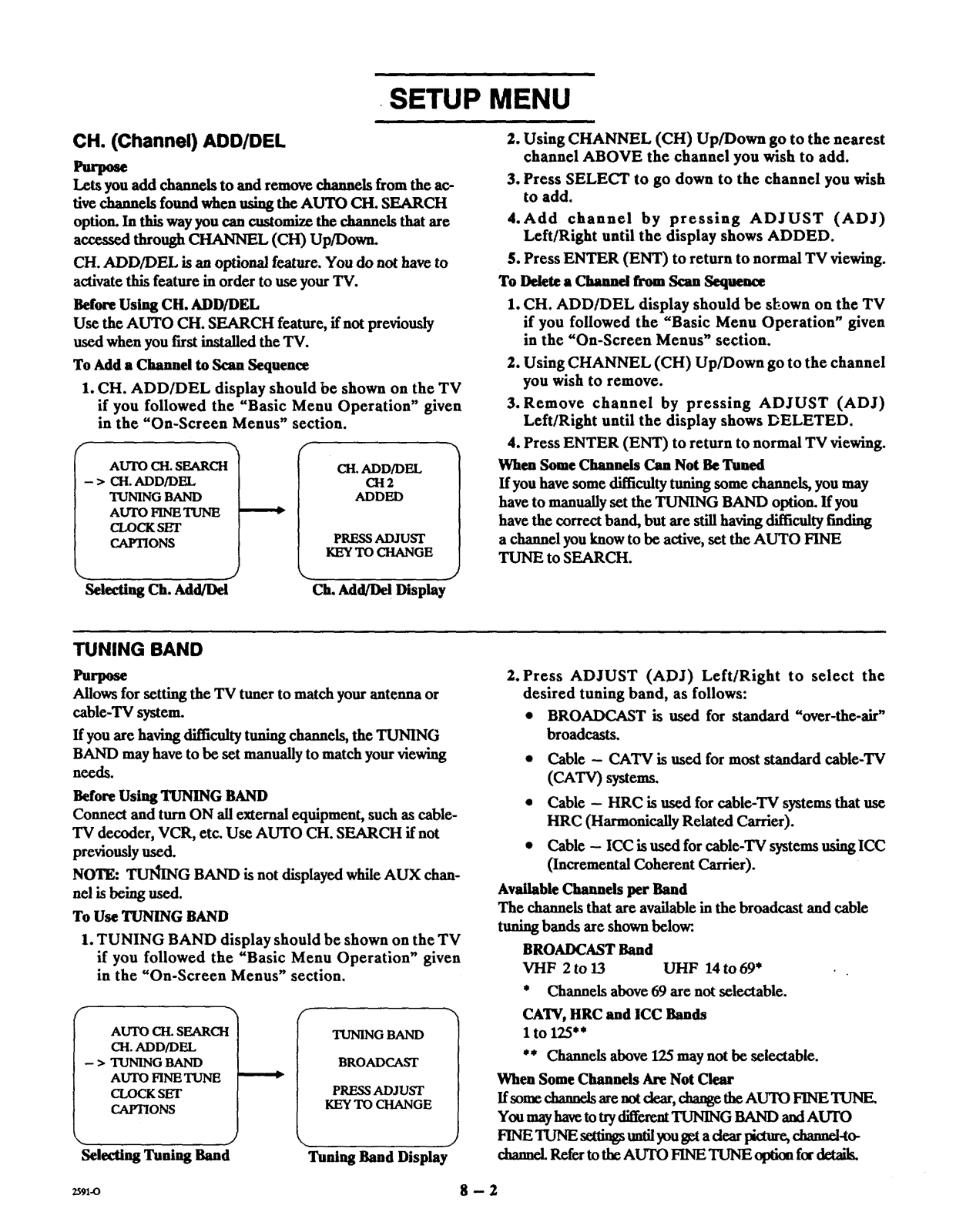

SETUP MENU
Auto Ch. (Channel) Search ......................... 8-1
Ch. (Channel) Add/DeL ............................ 8-2
Tuning Band ...................................... 8-2

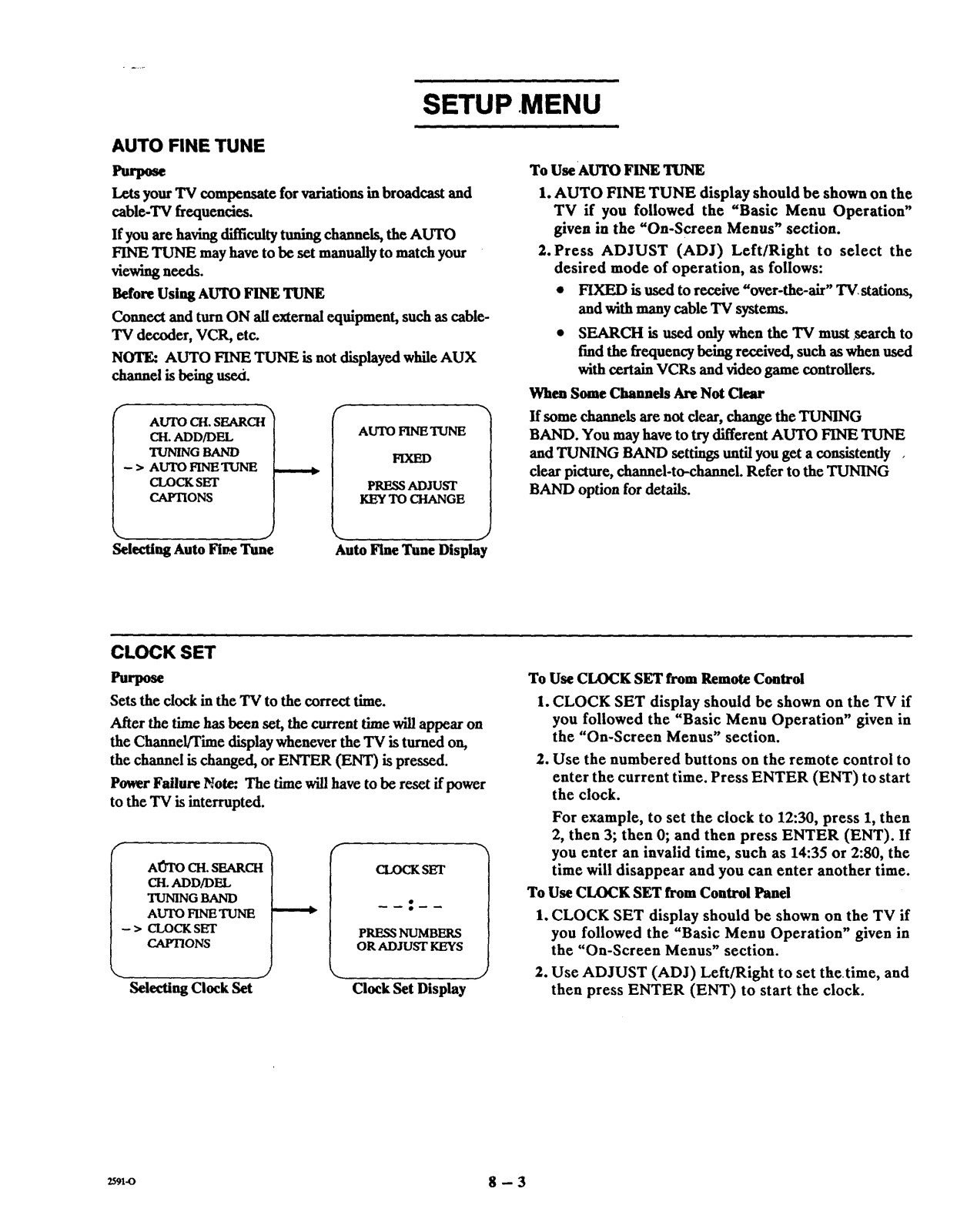

Auto F'me Tune ................................... 8-3
Clock Set ......................................... 8-3

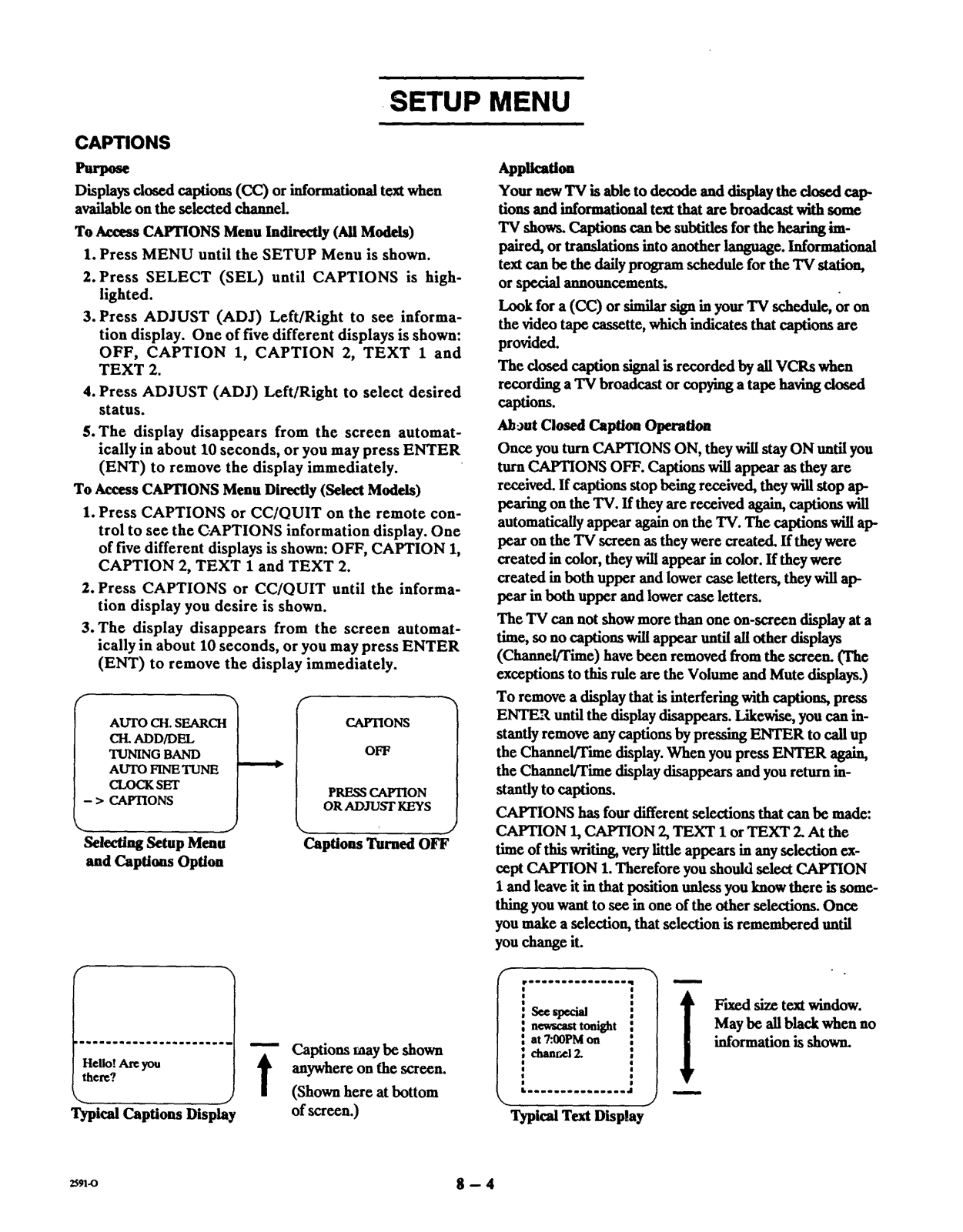

Captions ......................................... 8-4

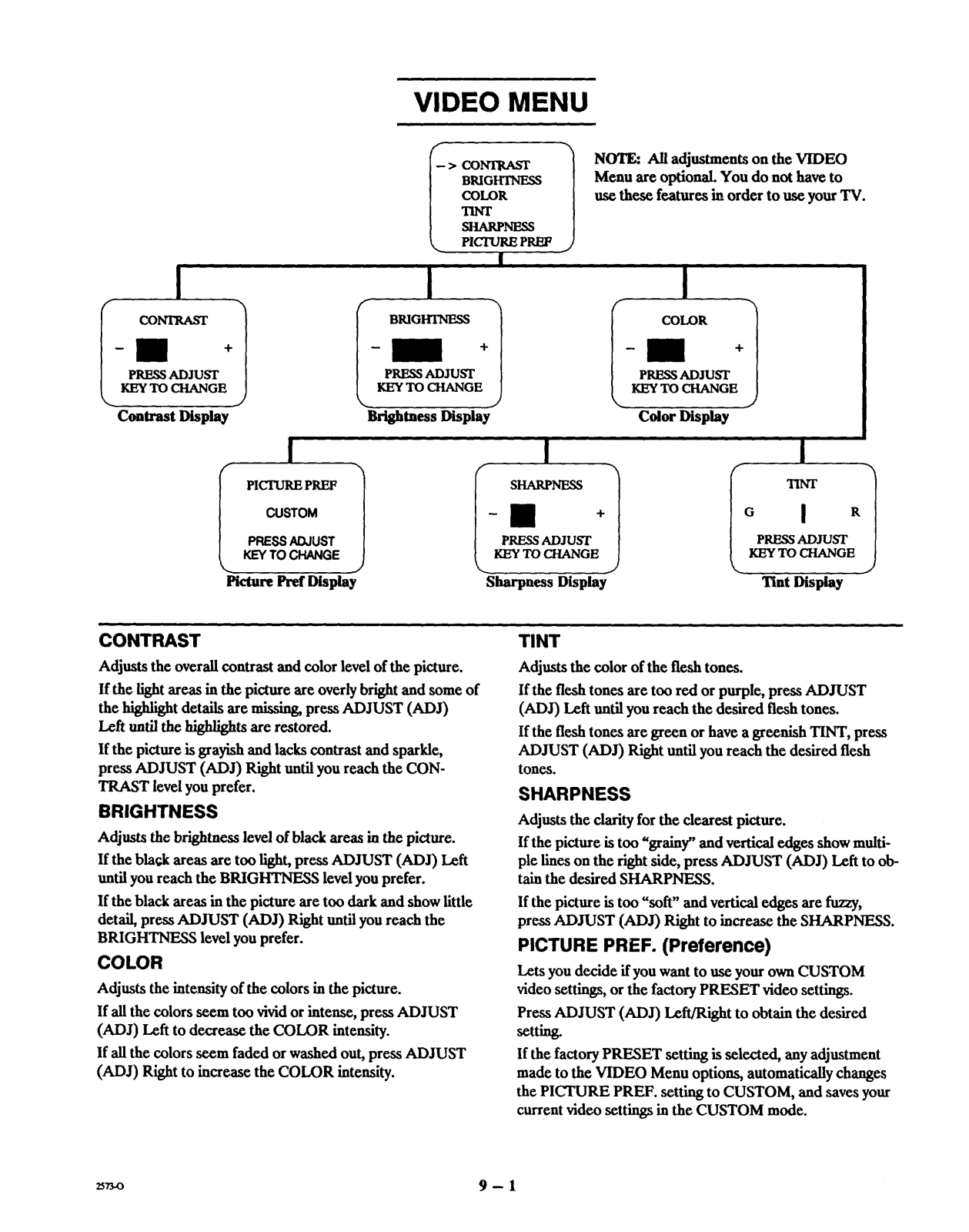

VIDEO MENU
Contrast .......................................... 9-1
Brightness ........................................ 9-1
Color ............................................ 9-1
Tint .............................................. 9-1
Sharpness ........................................ 9-1
Picture Pref. (Preference) ........................... 9-1

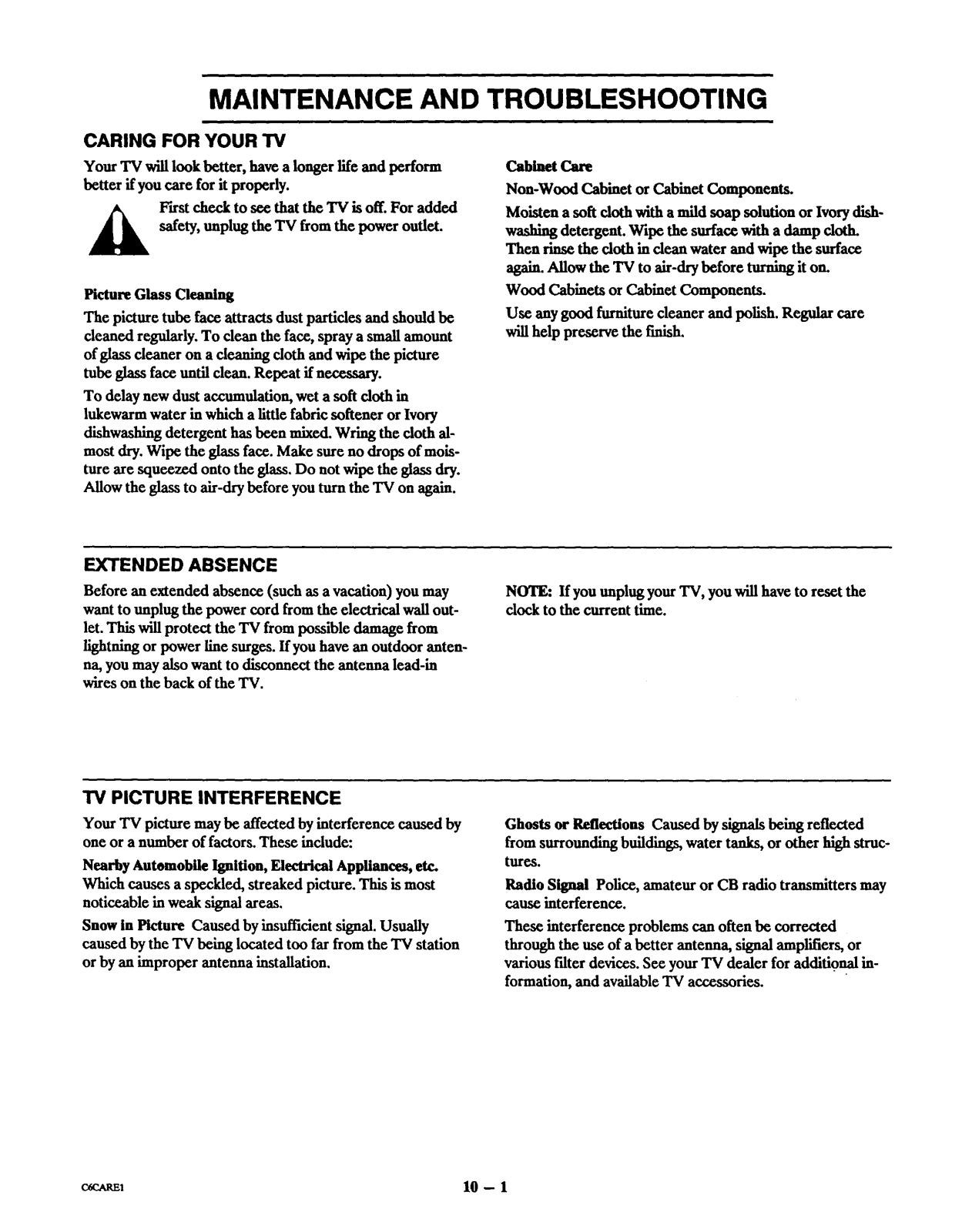

MAINTENANCE AND TROUBLESHOOTING
Caring for Your TV ............................... 10-1
Extended Absence ... ............................. 10-1
"IV Picture Interference ........................... 10-1

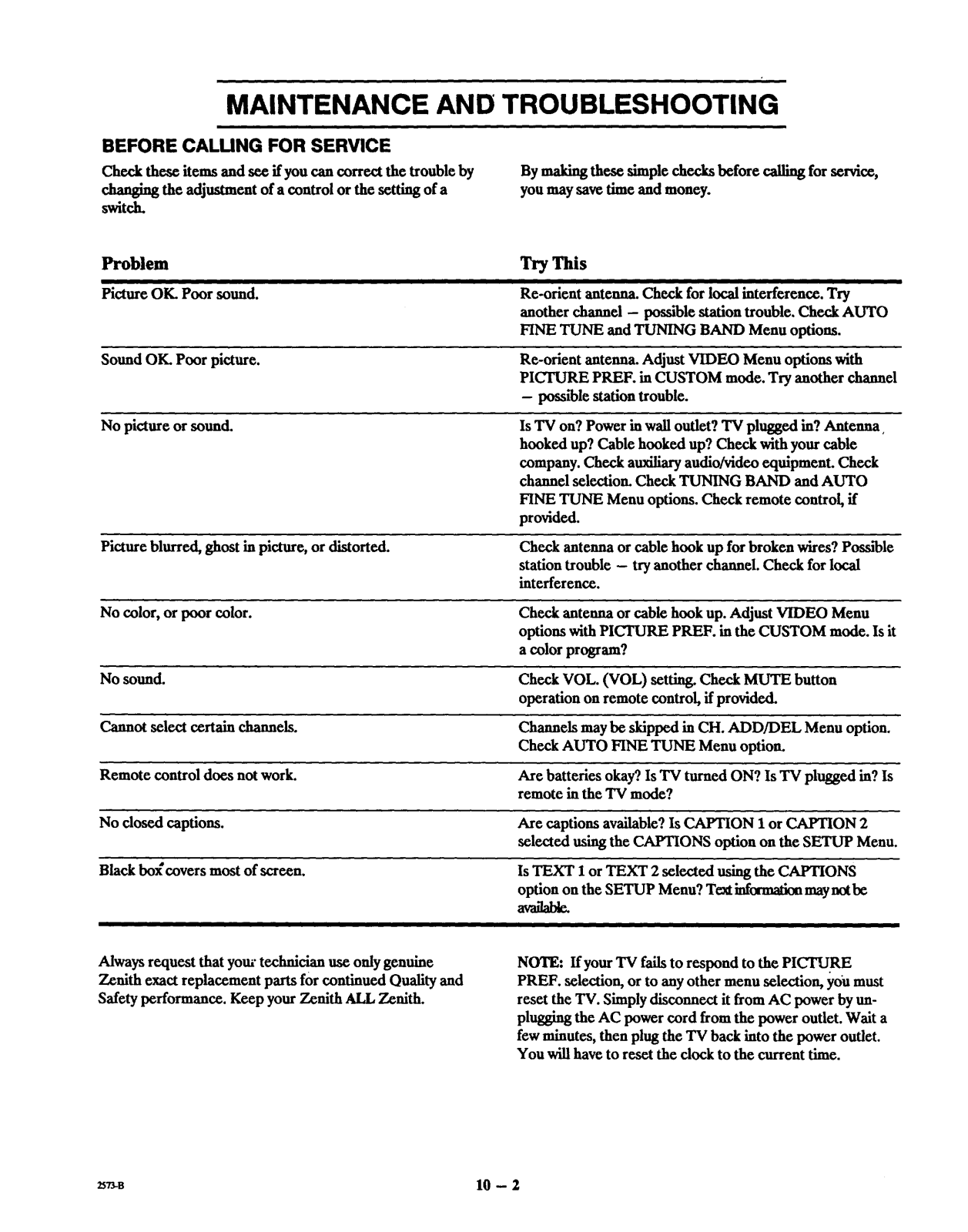

Before Calling for Service .......................... 10-2

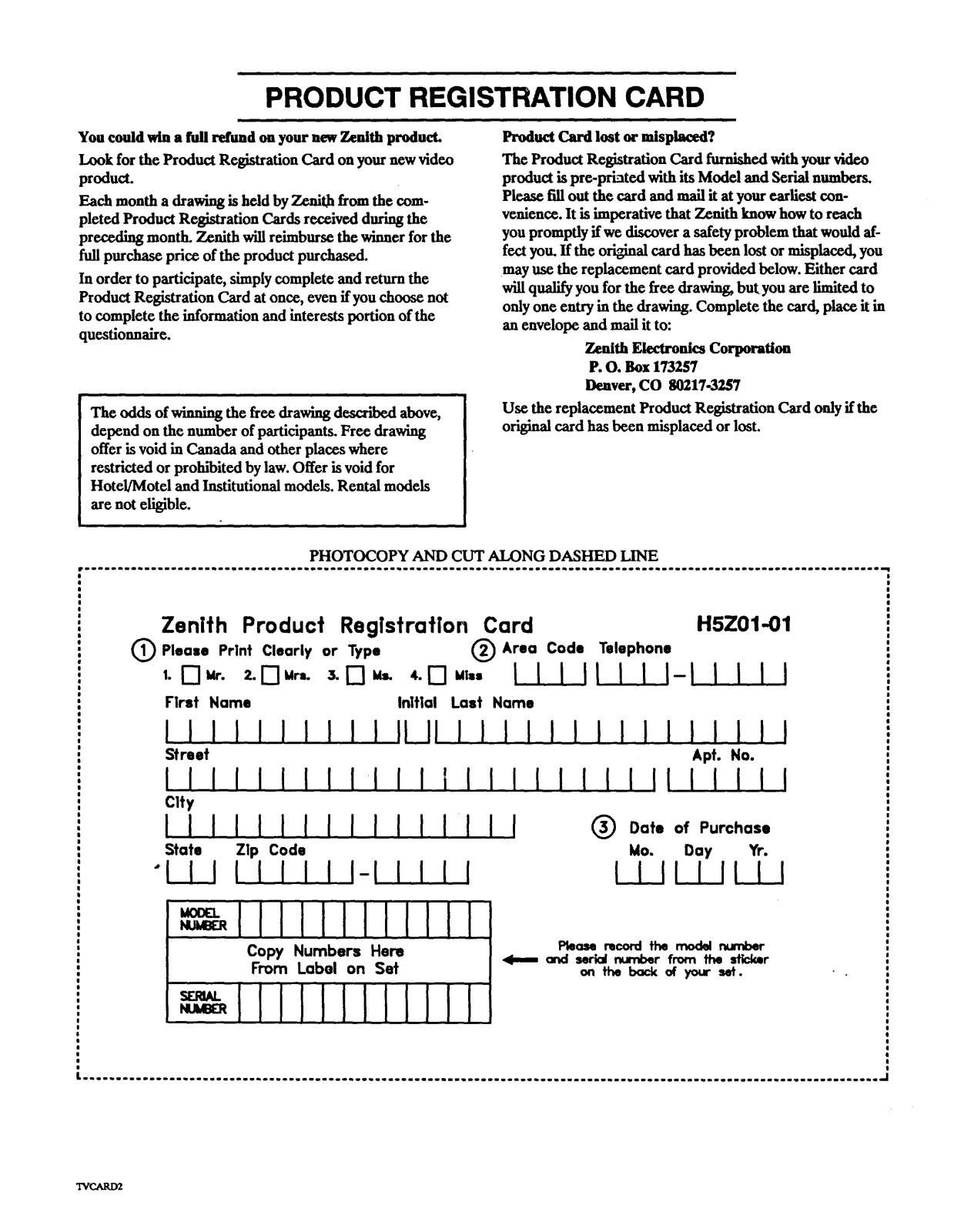

Product Registration Card
Recommended Accessories for Your Television

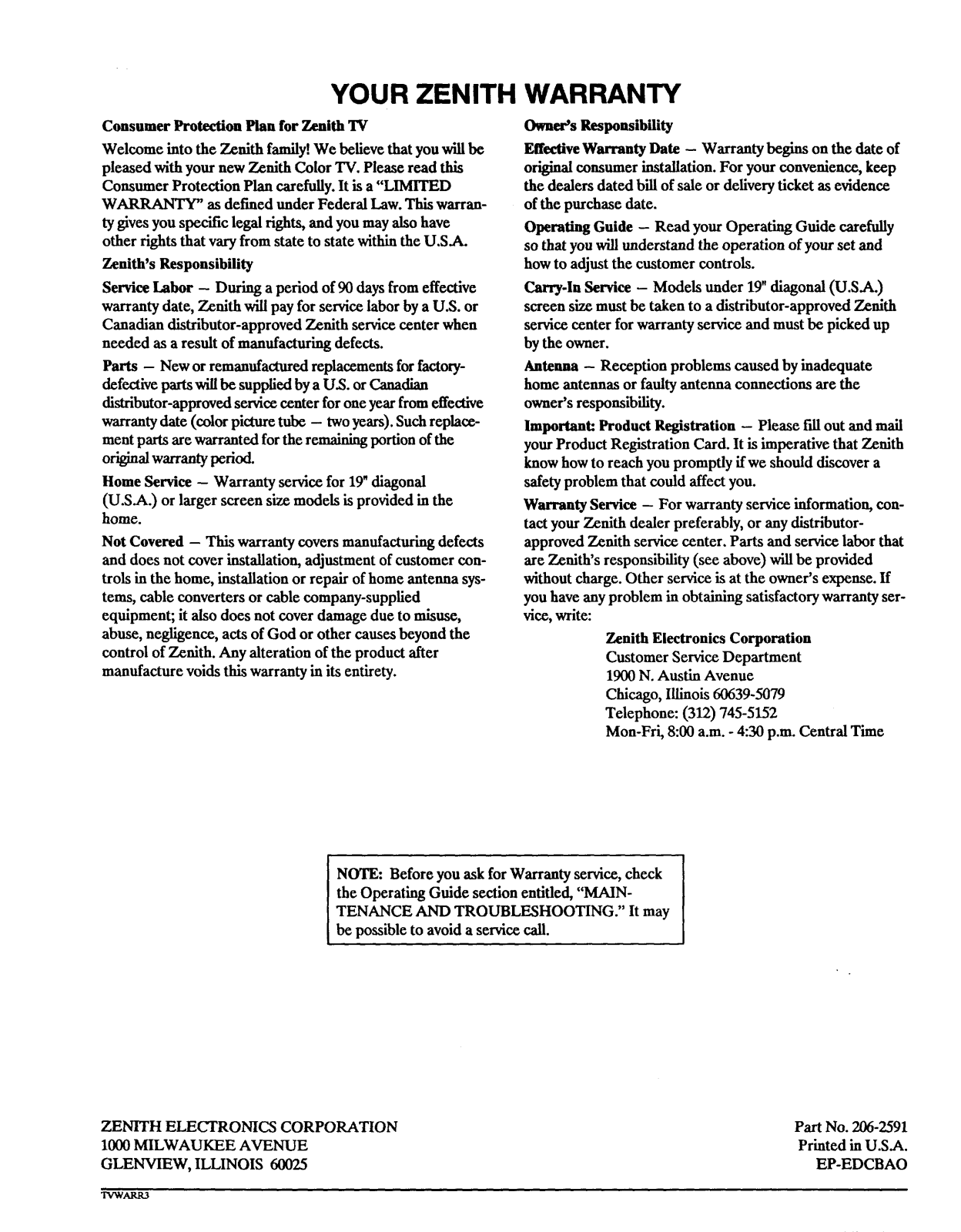

Your Zenith Warranty
USING YOUR OPERATING GUIDE
This operating guide describes a family of TV models. Some models have features
that are not provided on other models. Different control panels and remote controls
may be used from model-to-model. Some models do not include a remote control
Refer to the applicable sections of this operating guide for the features and items
provided with your TV.
_-o i

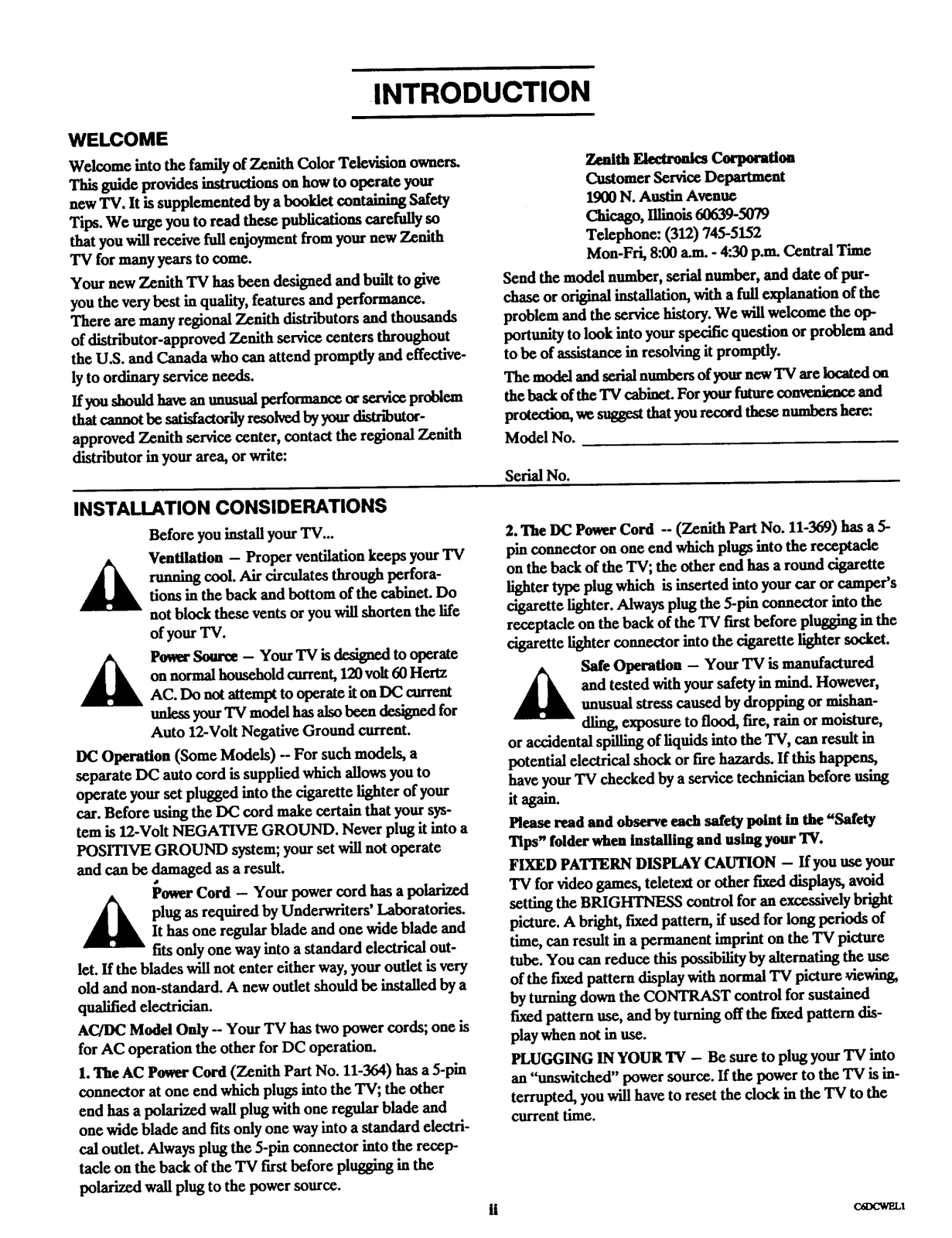

.INTRODUCTION
WELCOME
Welcome into the family of Zenith Color Television owners.
This guide provides instructions on how to operate your
new TV. It is supplemented by a booklet containing Safety
Tips. We urge you to read these publications carefully so
that you will receive full enjoyment from your new Zenith
TV for many years to come.
Your new Zenith "IV has been designed and built to give
you the very best in quality, features and performance.
There are many regional Zenith distributors and thousands
of distributor-approved Zenith service centers throughout
the U.S. and Canada who can attend promptly and effective-
ly to ordinaryservice needs.
If you should have an unusual performance or service problem
thatcannotbe satisfactorilyresolvedbyyour distributor-
approved Zenith service center, contact the regional Zenith
distributor in your area, or write:
INSTALLATION CONSIDERATIONS
Before you install your TV...
A entilation - Proper ventilation keeps your TV
A ower Source - Your TV is designed to operate
DC Operation (Some Models) -- For such models, a
separate DC auto cord is supplied whichallows you to
operateyour set plugged into the cigarettelighter of your
car. Before using the DC cord make certain that your sys-
tem is 12-Volt NEGATIVE GROUND. Never plug it into a
POSITIVE GROUND system; your set will not operate
and can be damaged as a result.
let. If the blades will not enter either way, your outlet is very
old and non-standard. A new outlet should be installed by a
qualified electrician.
AC/DC Model Only-- Your TV has two power cords; one is
for AC operation the other for DC operation.
1. 'I'ne AC Power Cord (Zenith Part No. 11-364) has a 5-p'm
connector at one end which plugs into the TV; the other
end has a polarized wall plug with one regular blade and
one wide blade and fits only one way into a standard electri-
cal outlet. Always plug the 5-pin connector into the recep-
tacle on the back of the TV first before plugging in the
polarized wall plug to the power source.
running cool. Air circulates through perfora-
tions in the back and bottom of the cabinet. Do
not block these vents or you will shorten the life
of your "IV.
on normal household current, 120volt 60 Hertz
AC. Do not attempt to operate it on DC current
unless yourTV model has also been designed for
Auto 12-Volt Negadve Ground current.
Power Cord - Your power cord has a polarized
plug as required by Underwriters' Laboratories.
It has one regular blade and one wide blade and
fits only one way into a standard electrical out-
Zenith Electranks Cerporation
Customer Service Department
1900 N. Austin Avenue
Chicago, IHinois 60639-5079
Telephone: (312) 745-5152
Mnn-Fri, 8.'00 a.m. - 4:30 p.m. Central Time
Send the model number, serial number, and date of pur-
chase or original installation, with a full explanation of the
problem and the service history. We will welcome the op-
portunlty to look into your specific question or problem and
to be of assistance in resolving it promptly.
The model and sorlal numbers of your new TV are located oft
the back of the TV cabinet. For your future convenience and
protection, we suggest that you record these numbers here:
Model No.
Serial No.
2. The De Power Cord -- (Zenith Part No. 11-369) has a 5-
pin connector on one end which plugs into the receptacle
on the back of the TV; the other end has a round cigarette
lighter type plug which is inserted into your car or camper's
cigarette lighter. Always plug the 5-pin connector into the
receptacle on the back of the TV first before plugging in the
cigarette lighter connector into the cigarette lighter socket.
Safe Operation - Your TV is manufactured
A and tested with your safety in mind. However,
or accidental spilling of liquids into the TV, can result in
potential electrical shock or fire hazards. If this happens,
have your TV checked by a service technician before using
it again.
Please read and observe each safety point in the "Safety
Tips" folder when installing and using your TV.
FIXED PATrERN DISPLAY CAUTION - If you use your
TV for video games, teletext or other fixed displays, avoid
setting the BRIG_ control for an excessively bright
picture. A bright, fixed pattern, if used for long periods of
time, can result in a permanent imprint on the TV picture
tube. You can reduce this possibility by alternating the use
of the fixed pattern display with normal TV picture viewing,
by turning down the CONTRAST control for sustained
fixed pattern use, and by turning off the fixed pattern dis-
play when not in use.
PLUGGING IN YOUR TV - Be sure to plug your TV into
an "unswitched" power source. If the power to the "IVis in-
terrupted, you will have to reset the clock in the TV to the
current time.
11 cax-w_t
unusual stress caused by dropping or mishan-
dling, exposure to flood, fire, rain or moisture,

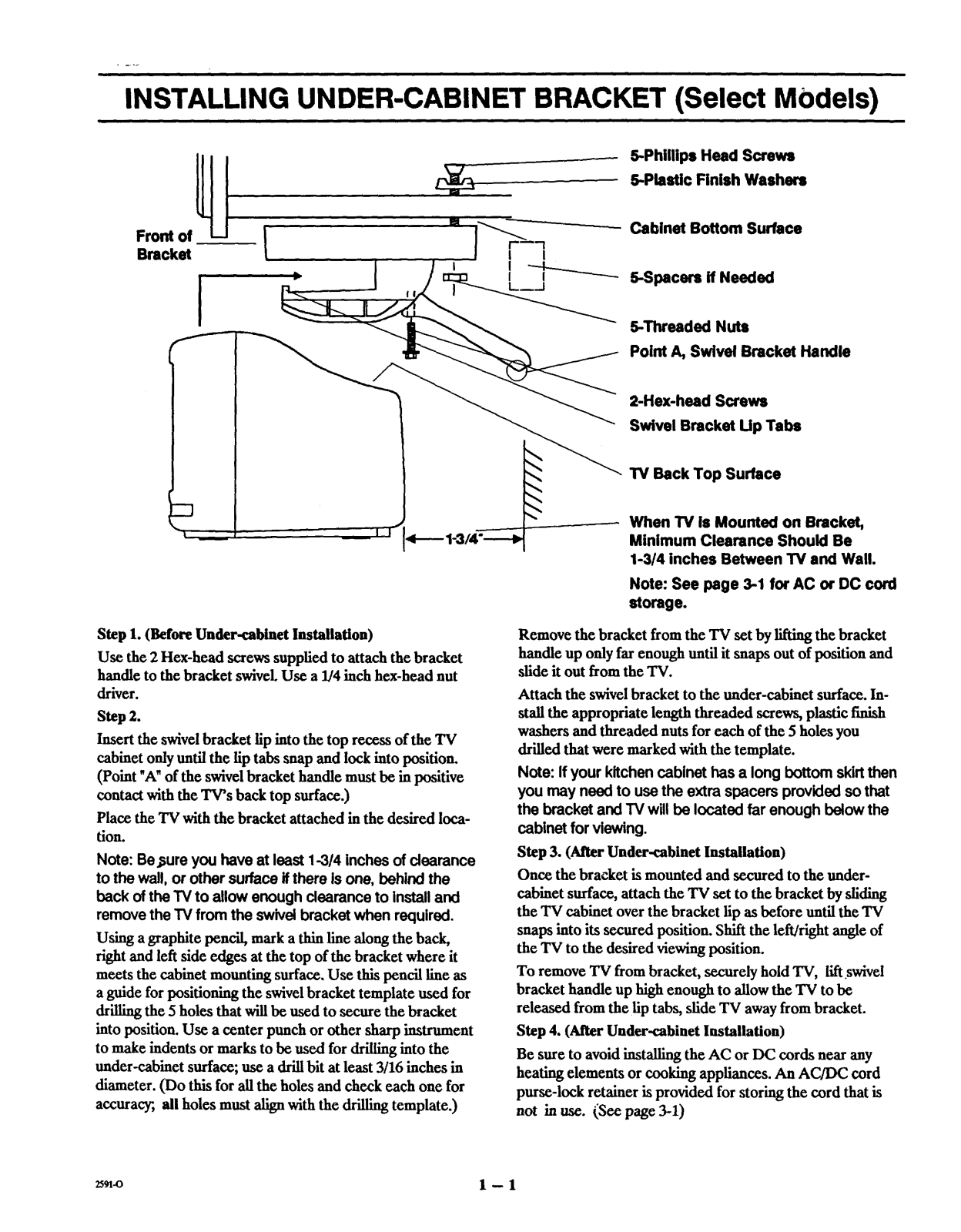

INSTALLING UNDER-CABINET BRACKET (Select MOdels)
5-Phillips Head Screws
5-Plaetlc Finish Washers
Front of
Bracket
I I--m'-I
" ,__--_---- Cabinet Bottom Surface
-7
4_-- 1-3/4"----_
Step 1. (Before Under-cabinet Installation)
Use the2 Hex-head screws supplied to attach the bracket
handle to the bracketswivel.Use a !/4 inch hex-head nut
driver.
Step 2.
Insertthe swivelbracketlip into the top recess of the"IV
cabinetonlyuntilthe lip tabssnap and lock intoposition.
(Point"A"of the swivelbrackethandle mustbe in positive
contactwith the TV's back top surface.)
Place the TV with the bracketattached in the desired loca-
tion.
Note: Be_sureyou have at least 1-3/4 inches of clearance
to the wall, orother surface ifthere isone, behind the
back of the TV to allow enough clearance to Installand
remove the TV from the swivel bracket when required.
Using a graphite pencil, mark a thin line along the back,
right and left side edges at the top of the bracket where it
meets the cabinet mounting surface. Use this pencil line as
a guide for positioning the swivel bracket template used for
drilling the 5 holes that will be used to secure the bracket
into position. Use a center punch or other sharp instrument
to make indents or marks to be used for drilling into the
under-cabinet surface; use a drill bit at least 3/16 inches in
diameter. (Do this for all the holes and check each one for
accuracy, all holes must align with the drilling template.)
I I
5-Spacera if Needed
5.Threaded Nuts
Point A, Swivel Bracket Handle
2-Hex-head Screws
Swivel Bracket Up Tabs
13/Back Top Surface
When 13/Is Mounted on Bracket,
Minimum Clearance Should Be
1-3/4 inches Between "IV and Wall.
Note: See page 3-I for AC or DC cord
storage.
Remove the bracket from the TV set byliftingthe bracket
handle up only far enough until it snaps out of position and
slide it out from the TV.
Attach the swivel bracket to the under-cabinet surface. In-
stall the appropriate length threaded screws, plastic finish
washers and threaded nuts for each of the 5 holes you
drilled that were marked with the template.
Note: If your kitchen cabinet has a long bottom skirtthen
you may need to use the extra spacers provided sothat
the bracket and "IVwillbe located far enough below the
cabinet for viewing.
Step 3. (After Under-cabinet Installation)
Once the bracket is mounted and secured to the under-
cabinet surface, attach the TV set to the bracket by sliding
the "IV cabinet over the bracket lip as before until the TV
snaps into its secured position. Shift the left/right angle of
the 'IV to the desired viewing position.
To remove TV from bracket, securely hold TV, lift.swivel
bracket handle up high enough to allow the TV to be
released from the lip tabs, slide TV away from bracket.
Step 4, (After Under-cabinet Installation)
Be sure to avoid installing the AC or DC cords near any
heating elements or cooking appliances. An AC]DC cord
purse-lock retainer is provided for storing the cord that is
not in use. (See page 3-1)
2_-o 1 -- 1

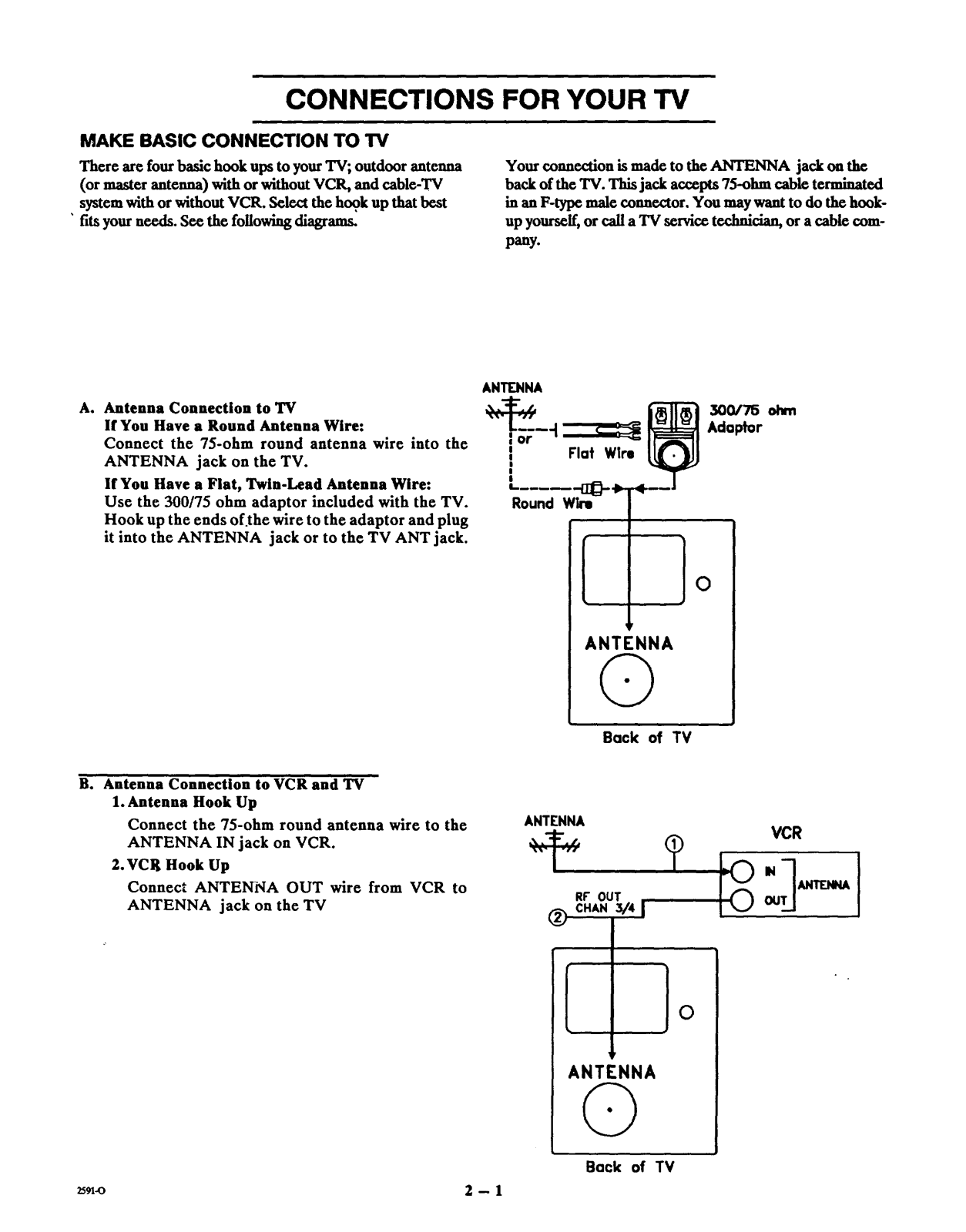

CONNECTIONS FOR YOUR TV
MAKE BASIC CONNECTION TO TV
There are fourbasic hook upsto yourTV; outdoorantenna
(or master antenna)withor withoutVCR,and cable-TV
systemwith orwithoutVCR. Select thehookup thatbest
•fitsyour needs. See the following diagrams.
A.
Antenna Connection to TV
If You Have a Round Antenna Wire:
Connect the 75-ohm round antenna wire into the
ANTENNA jack on the TV.
If You Have a Fiat, Twin-Lead Antenna Wire:
Use the 300/75 ohm adaptor included with the TV.
Hook up the ends of the wire to the adaptor and plug
it into the ANTENNA jack or to the TV ANT jack.
Your connection is made to the ANTENNA jack on the
back of the TV. This jack accepts 75-ohm cable terminated
in an F-type male connector. You may want to do the hook-
up yourseU_or call a TV service technician, or a cable com-
pany.
ANTENNA
500/75 ohm
Adaptor
e Flat Wlro
I
|
I
I
I- .... .-[]_-.Ib-
Round W'irQ
Be Antenna Connection to VCR and TV
1. Antenna Hook Up
Connect the 75-ohm round antenna wire to the
ANTENNA IN jack on VCR.
2.VCR Hook Up
Connect ANTENNA OUT wire from VCR to
ANTENNA jack on the TV
0
ANTENNA
©
Back of TV
ANTENNA
2591<) 2 -- 1
ANTENNA
Back of TV
CONNECTIONS FOR YOUR TV
MAKE BASIC CONNECTION TO "IV (CONTINUED)

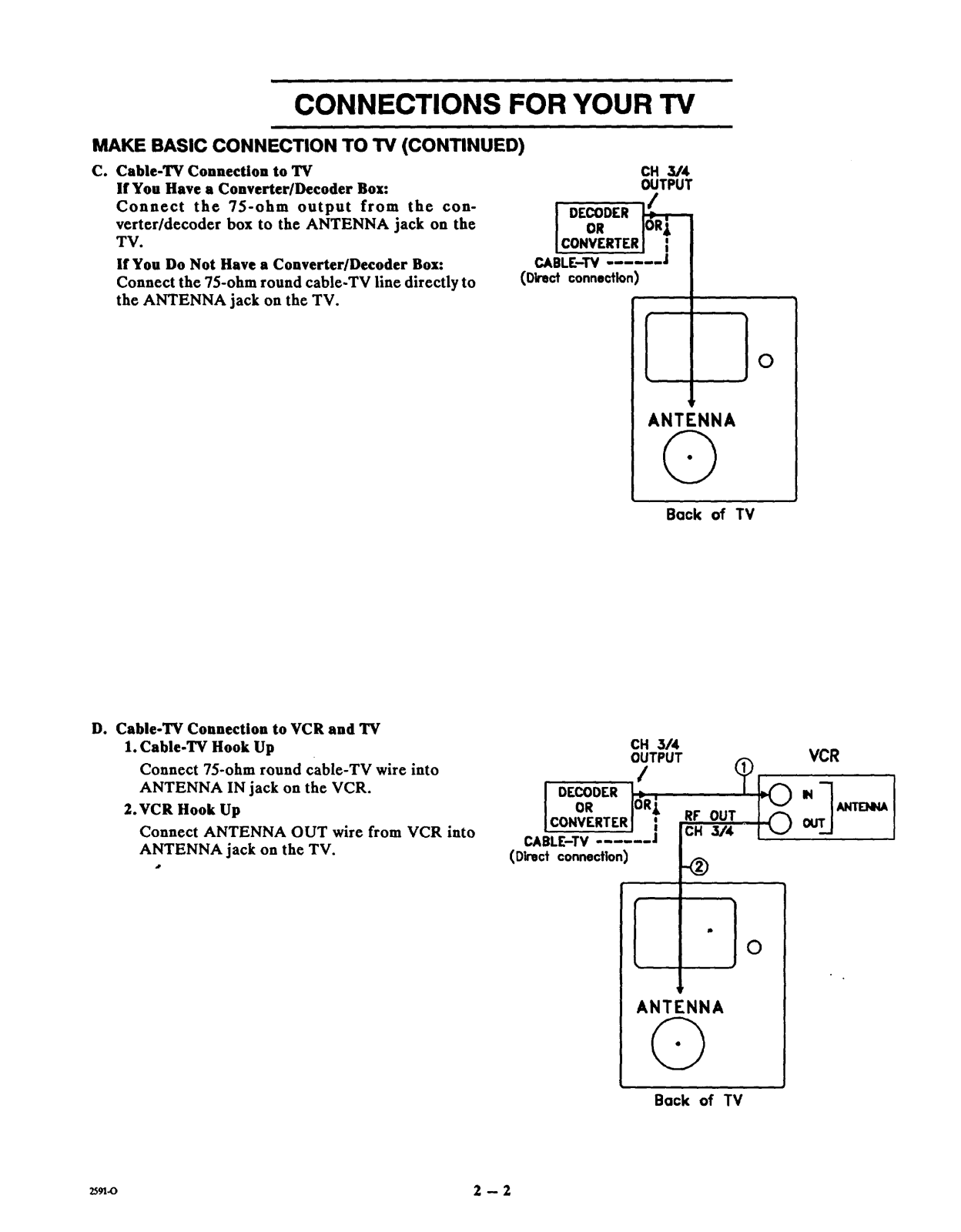

C. Cable-TV Connection to TV
If You Have a Converter/Decoder Box:
Connect the 75-ohm output from the con-
verter/decoder box to the ANTENNA jack on the
TV.
If Yon Do Not Have a Converter/Decoder Box:
Connect the 75-ohm round cable-TV line directly to
the ANTENNA jack on the TV.
CH 3/4
OUTPUT
CONVERTER[;
CABLr-TV ...... J
(Okect connection)
0
ANTENNA
©
Back of TV
D. Cable-TV Connection to VCR and TV
1. Cable-TV Hook Up
Connect 75-ohm round cable-TV wire into
ANTENNA IN jack on the VCR.
2.VCR Hook Up
Connect ANTENNA OUT wire from VCR into
ANTENNA jack on the TV.
CH 3/4
OUTPUT VCR
I DECODER I : ,
I oR Io_t
ICONVERTERIj cHeFOUT3/4
CABLE-TV
(Dlrect connection)
I
%
ANTENNA
©
Back of TV
25m0 2 - 2
THE FIRST TIME YOU OPERATE YOUR TV
STEP 1. CONNECT THE POWER
Your "IV can be operated from normal household current
(AC power). Some models can be operated from a car-
type cigarette lighter socket (DC power, with a 12-Volt
Negative Ground system only). For the DC models both an
AC and a DC power cord are suppfied with your TV. Con-
neat either the AC or DC cord into the 5-p'm power cord
recptacle, located on the back of the TV on the connection
jack panel. Always do this first before connecting the other
end into the power source. Connect the other end to the ap-
propriate power source; either a standard household wall
socket or car type cigarette lighter receptacle. (For AC
power the AC power cord should only be connected to an
unswitched power source.)
nnector
AC
A CAUTION: Do not install these cords near
any heating element or cooking appfances.
STEP 2. TURN TV ON
Turn the TV on by pressing OFF-ON.
STEP 3. USE AUTO SEARCH
When your TV is first powered up you will see the AUTO
CH. SEARCH reminder display. AUTO CH. SEARCH
fmds all available channels and stores them in memory for
access by CHANNEL (CH) Up/Down. To activate AUTO
CH. SEARCH, press ADJUST (ADJ) Left/Right. When
the search is complete, you can watch the TV program of
your choice.
ALrI'O CH. SEARCH
PRESS'ADJUST
KEY TO START
-==-=-=Ip
SP.ARCHING FOR CHANNELS
..... ,o.°,.. .........
NOTES:
2. Antenna or cable must be connected to TV before
gJTOCH.SEARC_HAS_
.----4P
AC or DC
purse-lock
serf-adhesive retainer
1. The AUTO CH. SEARCH reminder display ap-
pears each time you turn on your TV until it has
been used at least once.
you use AUTO CH. SEARCH.
f
CH2
TUNING BAND IS
-"']CHANNELS FOUND
Auto Ch. Search
Reminder Display
While Searching for
Active Channels
STEP 4. USE OTHER OPTIONS
You may want to consider using the following options:
• Program the channels accessed by using CHANNEL
(CH) Up/Down. Refer to CH. ADD/DEL option of the
"Setup Menu" section of this operating guide for details.
2591_ 3 - 1
J
When Search is
Complete
When Returning to
Channel Display
• Set the clock in the TV. Refer to the CLOCK SET option
of the "Setup Menu" section of this operating guide for
details.
Loading...
