Page 1

Installation and Operating Guide | Warranty

Model Numbers | R49W36, R56W36 | Projection TVs

Page 2

PAGE 2

206-03865

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment, trade name Zenith, model number, R49W36/R56W36, has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The responsible party for this device compliance is:

Zenith Electronics Corporation 2000 Millbrook Drive Lincolnshire, IL 60069

Digital TV Hotline: 1-847-941-8000

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Page 3

PAGE 3

206-03865

Important safeguards for you and your new product

Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this manual can help you get many years of enjoyment and safe operation that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.

(Continued on next page)

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Water and Moisture

Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

7. Accessories, Carts, and Stands

Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

8. Transporting Product

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Power-Cord Polarization

This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

PORTABLE CART WARNING

IMPORTANT SAFETY INSTRUCTIONS

Page 4

PAGE 4

206-03865

(Continued from previous page)

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded to provide protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15. Lightning

For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

16. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry

Never push objects of any kind into this product through

openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into

the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f. If the product exhibits a distinct change in performance.

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

24. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Antenna Lead in Wire

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductor (NEC Section 810-21)

Ground Clamps Power Service Grounding

Electrode System (NEC Art 250, Part H)

Ground Clamp

Electric Service

Equipment

Example of Grounding According to National Electrical Code Instructions

Fig. 1

NEC - National Electrical Code

IMPORTANT SAFETY INSTRUCTIONS

Page 5

PAGE 5

206-03865

Table of Contents

Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Important Safety Instructions . . . . . . . . . . . . . . . . .3-4

Step 1. Hook Up TV

Front Controls Panel . . . . . . . . . . . . . . . . . . . . . . . . .6

Rear Connections Panel . . . . . . . . . . . . . . . . . . . . . . .7

Front Connections Panel . . . . . . . . . . . . . . . . . . . . . .8

ANT/CABLE Service Hookup . . . . . . . . . . . . . . . . . . . .9

CABLE BOX Connections . . . . . . . . . . . . . . . . . . . . . .10

VCR Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .11

DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

DBS Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Monitor Out Setup . . . . . . . . . . . . . . . . . . . . . . . . .14

Turning the TV on . . . . . . . . . . . . . . . . . . . . . . . . . .15

On-Screen Displays . . . . . . . . . . . . . . . . . . . . . . . . .15

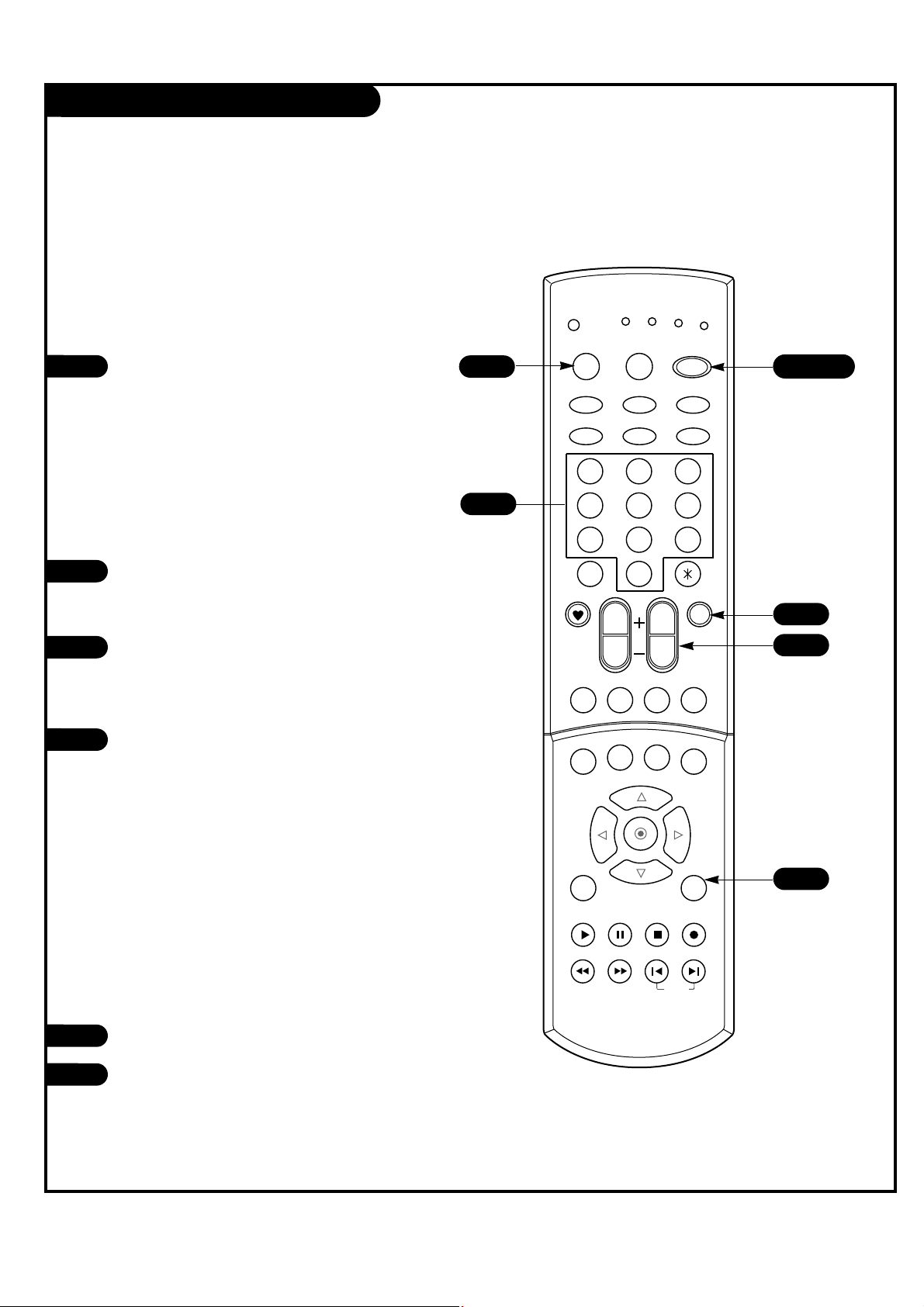

Remote Control Functions In TV Mode . . . . . . . . . . .16-17

Step 2. Customize your TV’s Features

SETUP Menu

EZ Scan (Channel Search) . . . . . . . . . . . . . . . . . . . .18

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Fine Tuning Adjustment . . . . . . . . . . . . . . . . . . . . .20

VIDEO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .21-23

AUDIO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25

TIME Menu

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . .26

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . .27

TV Turn Off Time Setup . . . . . . . . . . . . . . . . . . . . .28

TV Turn On Time Setup . . . . . . . . . . . . . . . . . . . . . .29

Sleep Timer Setup . . . . . . . . . . . . . . . . . . . . . . . . .30

Auto off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

SPECIAL Menu

On-Screen Menus Language . . . . . . . . . . . . . . . . . . .32

Main Picture Source Selection . . . . . . . . . . . . . . . . . 33

PIP (Picture-In-Picture) Options . . . . . . . . . . . . . . .34

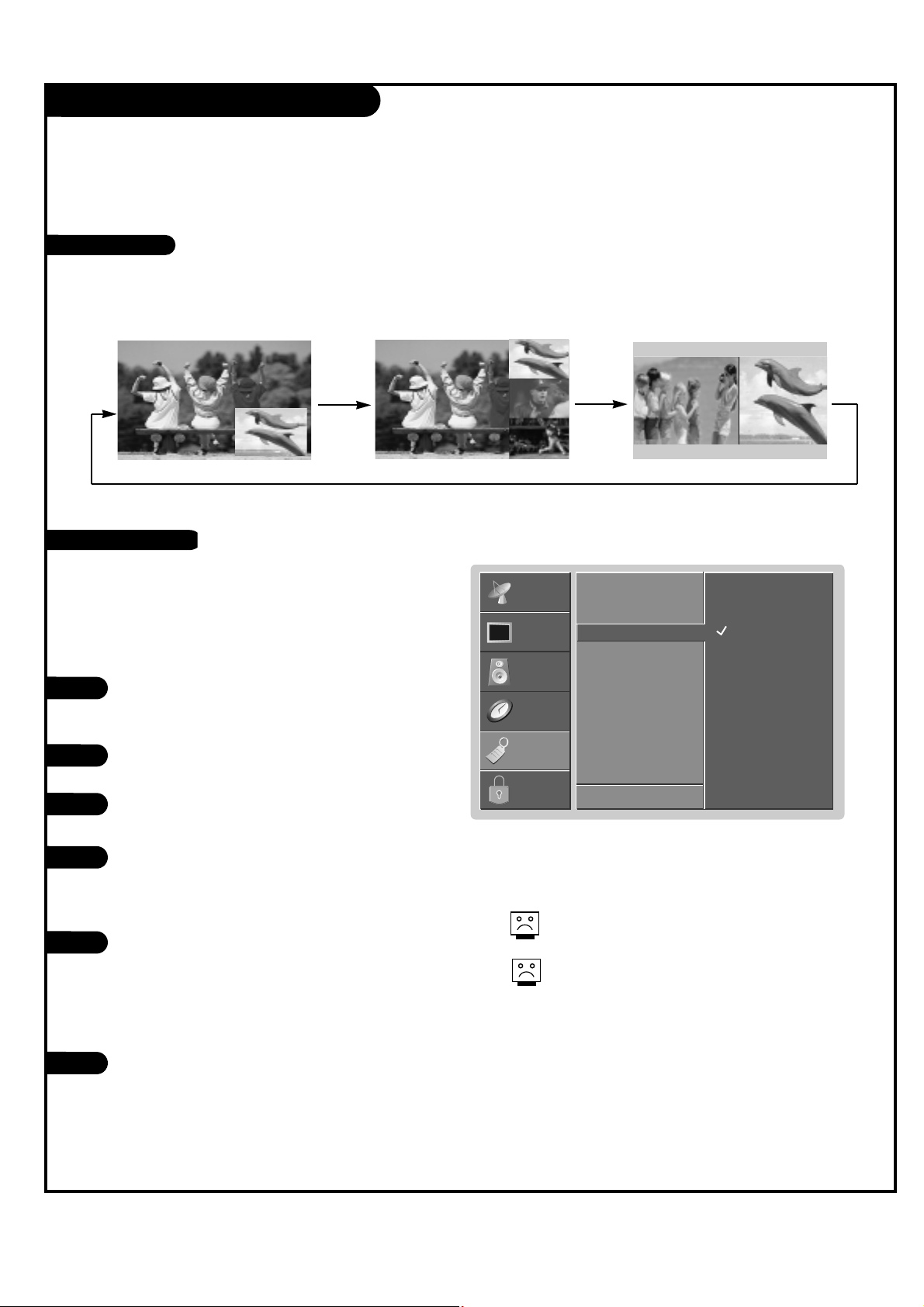

POP (Picture-out-of-Picture) Source . . . . . . . . . . . . .35

Twin Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Captions/Text . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . . . .39

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Auto Convergence . . . . . . . . . . . . . . . . . . . . . . . . .41

Auto Move . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

LOCK Menu

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .43-45

Step 3. Miscellaneous

Programming the Remote . . . . . . . . . . . . . . . . . . . . .46

Programming Codes . . . . . . . . . . . . . . . . . . . . . .47-50

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .51-52

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .53-54

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55-56

Product Specifications . . . . . . . . . . . . . . . . . . . . . .57

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58-59

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .Back cover

Note: Design and specifications are subject to change without prior notice.

Page 6

PAGE 6

206-03865

Front Panel Controls

CATV

VIDEO

CATV

VIDEO

tv/video menu enter vol ch

on/off

On/Off

TV/VIDEO

Enter

Standby indicator (Illuminates brightly when the TV is in standby mode. Dims when the TV is switched on.)

LED (Light Emitting Diodes) Displays Illuminate brightly when the set is switched on. LEDs light when source is selected or feature is present.

VOLUME UP / DOWN Volume(

G) button increases the level of sound and

volume(

F) button decreases the level of sound.

CHANNEL UP / DOWN

1 2 3

These buttons work just as they do on your remote control.

3 5 6 7

Casters (On the bottom) Turn and move the TV easily.

To fix TV’s position, install the 4 stoppers under the roller casters to prevent the TV from being moved.

Stopper

Page 7

PAGE 7

206-03865

Rear Connections Panel

Mini glossary

JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jack and the Audio/Video jacks that are color-

coded.

SIGNAL Picture and sound traveling through cable, or over the air, to your television screen.

S-VIDEO In

A connection available with some high-end equipment that provides even better picture quality for Video 1.

RF Connector: Antenna/Cable 1, Antenna/Cable 2,

and Loop Out

Used to connect analog

cable or antenna signals

to the television, either directly or through your

cable box.

Video 1 and 2 Inputs

Connects the video signals from various types of equipment.

Y, Pb, Pr DVD Component Video and HD Component Video

Some top-of-the-line DVD players use what is called “component video,” for extremely accurate picture reproduction. Refer to

your DVD manual for further information.

Connecting cables to your TV.

Monitor Out

Connects to a second

TV or Monitor

(Monitor out is not available if you set

lock “On” in Lock

menu.)

Left/Right Audio

Used for stereo sound from various types of equipment.

Component Left/Right Audio

Used for stereo sound from various types of equipment.

ANT/CABLE1

INPUT

LOOP OUT

ANT/CABLE2

INPUT

(R)

AUDIO

(MONO)

(L)

S-VIDEO

VIDEO

MNT OUT

IN 2

IN 1

COMPONENT INPUT 1

(480i/480p/720p/1080i)

COMPONENT INPUT 2

(480i/480p/720p/1080i)

DVD/DTV INPUT

AUDIO

(L)

(R)

Page 8

PAGE 8

206-03865

Front Connection Panel (Video 3)

Video3 Panel

VIDEO

S-VIDEO

AUDIO

L/MONO

IN 3

There are four jacks on the right front side behind the screen on your projection TV that make connecting Audio/Video devices like video games and camcorders very simple.

The jacks are like those found on the back jack connection panel. This means that most equipment that connects to those types of jacks on the rear jackpack, may be connected to the front connection panel (Video3).

To use the front jacks as the signal source, select them using Main Source menu as described on page 33. They will be named “Video 3” in the Main Source menu.

Left/Right Audio

Used for stereo sound from various types of equipment.

Video

Connects the video

signals from any

piece of equipment.

S-Video

A connection available on some very high-end equipment that provides better picture quality than video input.

When you select Video3 (Front Video or Front S-Video, the Front audio) inputs are automatically selected as well.

CAUTION: Do not connect to both Video and

S-Video at the same time. Connect either Video or S-Video only.

Mini glossary

A/V CABLES Audio/Video cables. Three cable connector—Right audio (red), Left audio (white), and Video (yellow). A/V cables are used for stereo

playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video (picture) and/or audio (sound) (VCR, DVD, cable box, or television).

Page 9

PAGE 9

206-03865

ANT / Cable Service Hookup

Connect an antenna and/or cable service to your TV as shown.

Turn to page 18 to do a channel search with EZ Scan for ANT / CABLE connection(s).

For best signal reception, it is recommended to have your Antenna professionally adjusted.

If you receive your RF signal through an antenna that is several years old and connects with two small prongs, you will need to purchase a 300 to 75 ohm adapter. It should be available from your local electronics dealer.

Zenith recommends using a 75 ohm cable for your antenna connections in order to prevent interference.

S-VIDEO

ANT/CABLE1

INPUT

ANT/CABLE2

INPUT

LOOP OUT

(R)

(L)

VIDEO

(MONO)

AUDIO

MNT OUT

IN 2

IN 1

Antenna

Cable TV Wall jack

RF coaxial wire (75 ohm)

Page 10

PAGE 10

206-03865

Cable Box Connections

Locate the Antenna/Cable 2 jack on the back of your TV. Connect the cable that runs from the wall directly or antenna to the jack. Now find the Loop Out jack.

Connect the cable from this jack to the Input jack on the back of your cable box.

Locate the Output jack on the back of your cable box. Connect this to the Antenna/Cable 1 jack on the back of your TV.

To view the premium stations, press the TV/VIDEO button on your remote and select the other Cable source (Ant/Cable

1). Then tune the channel number on your cable box for HBO, CINEMAX, SHOWTIME, etc.

To view non-premium channels press the TV/VIDEO button and select Ant/Cable 2. Then run EZ Scan to find all available channels and store them in memory.

This can be combined with any other equipment you may want to hook up, see following pages. Connect cable service wire directly to the TV, loop out from the TV, then to the cable box. From there, the cable box output connects to the next device in the connection series, until the last device, which connects back to the Antenna/Cable 1 jack on the TV.

Some cable services require the use of a cable box to decode premium channels and pay-per-view. Using the Loop Out to Decoder connection option, and programming your remote, you can connect your cable box so that you only need your MBR remote to tune to premium and non-premium channels. By connecting a cable box directly to your TV, as shown to the LOOP OUT, you make the cable box another available channel tuning source using your remote.

S-VIDEO

ANT/CABLE1

INPUT

ANT/CABLE2

INPUT

LOOP OUT

(R)

(L)

VIDEO

(MONO)

AUDIO

MNT OUT

IN 2

IN 1

Out

Cable box

Cable TV Wall jack

Page 11

PAGE 11

206-03865

VCR Connections

Locate the Antenna/Cable 2 jack on the back of your TV. Connect the cable that runs from the wall or antenna to the jack. Now find the Loop Out jack.

Connect the cable from this jack to the Input jack on the back of your cable box.

Locate the Output jack on the back of your cable box. Connect this to the RF or VHF/UHF/CATV In jack on the back of your VCR. If you want to connect VCR to the TV directly, connect the cable from the Loop Out jack to the RF or VHF/UHF/CATV In jack on the back of your VCR.

Find the composite video and audio jacks on the back of your VCR, and connect them following the instructions provided with your equipment.

You may connect either the composite video or the S-Video cables to your TV. (Do not connect BOTH the composite video and the SVideo cables. In the event that you connect both composite video and the S-Video cables, only the S-Video will work.)

To hear stereo sound from cable or your VCR, you will need to connect A/V cables as well as the wire that runs from the VCR to your TV.

If you want to receive your signals on Channel 3 or 4, locate the Out to TV jack on your VCR. Connect a cable from the Out to TV jack to the Antenna/Cable 1 jack on the back of your TV.

After connecting external equipment to the TV, don’t display a still picture for a long time on the screen. Doing so may damage the TV screen.

Out

Audio

Video

3 4

S-Video

S-VIDEO

ANT/CABLE1

INPUT

ANT/CABLE2

INPUT

LOOP OUT

(R)

(L)

VIDEO

(MONO)

AUDIO

MNT OUT

IN 2

IN 1

Antenna

RF coaxial wire

(75 ohm)

Round wire (75 ohm)

A/V cables not included with TV

VCR

Back AV panel

Cable TV Wall jack

Out

Audio

Video

3 4

S-Video

Out

S-VIDEO

ANT/CABLE1

INPUT

ANT/CABLE2

INPUT

LOOP OUT

(R)

(L)

VIDEO

(MONO)

AUDIO

MNT OUT

IN 2

IN 1

Antenna

RF coaxial wire

(75 ohm)

Round wire (75 ohm)

A/V cables not included with TV

Cable box

VCR

Back AV panel

Cable TV Wall jack

Page 12

PAGE 12

206-03865

DVD Player

Mini glossary

COMPONENT VIDEO Some video equipment uses three separate lines (Y, P

B, PR) to more precisely reproduce images. Your manual will explain how

this relates to your equipment.

Component 1 (or 2) Input

Y PB PR

1920X1080i

1280X720p

720X480p

720X480i

Component input jacks

on the Monitor

Video output jacks of DVD player

Y Y Y Y

B-Y

Cb PB

R-Y

Cr P

• Component Input ports

You can get better picture quality if you connect DVD player with component input ports as below.

A/V cables not included with TV

DVD player

Back AV panel

Find the audio and component or S-Video jacks on the back of your DVD Player and connect them following the instructions provided with your equipment.

You may connect either the composite video or the S-Video cables to your TV. Do not connect both the composite and the S-Video.

Some high-end DVD players use a picture reproduction system called “component video.” If your DVD player has component output, use the connector marked “COMPONENT 1/2” on the jack panel. Please refer to your DVD manual for proper installation.

Dolby Digital

Audio

Out

Dolby Digital

Audio

Out

Component Video

S-Video

(MONO)

(R)

(L)

AUDIO

(MONO)

(R)

AUDIO

S-VIDEO

(L)

VIDEO

S-VIDEO

VIDEO

MNT OUT

IN 2

IN 1

MNT OUT

IN 2

IN 1

COMPONENT INPUT 1

(480i/480p/720p/1080i)

COMPONENT INPUT 2

(480i/480p/720p/1080i)

DVD/DTV INPUT

COMPONENT INPUT 1

(480i/480p/720p/1080i)

AUDIO

(L)

AUDIO

COMPONENT INPUT 2

(480i/480p/720p/1080i)

DVD/DTV INPUT

(R)

(L)

(R)

Page 13

PAGE 13

206-03865

DBS Hookup

Find the audio and Y, PB, PR jacks on the back of your DBS receiver and connect them following the instructions provided with your equipment.

Connect these cables to your TV as shown.

The DTV shows the sharpest picture in 720p mode.

To watch DTV, connect a HD-SET TOP box to COMPONENT INPUT1 or 2 of your TV.

Audio L R

Component Out

Y Pb Pr

Dolby Digital

Out

S-VIDEO

COMPONENT INPUT 1

(480i/480p/720p/1080i)

COMPONENT INPUT 2

(480i/480p/720p/1080i)

(R)

(L)

(R)

(L)

VIDEO

AUDIO

(MONO)

AUDIO

DVD/DTV INPUT

MNT OUT

IN 2

IN 1

DBS Receiver

Mini glossary

DBS (Direct Broadcast Satellite), receives TV signals from a satellite.

DTV (Digital TV), receives digital program signals and turns them into picture and sound.

Page 14

PAGE 14

206-03865

Monitor Out Setup

Your TV has a special signal output capability which allows you to hook up a second TV or monitor.

Just connect the second TV or monitor to the MNT OUT Audio/Video jacks located on the back of your TV. See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings.

Audio

Video

S-Video

S-VIDEO

ANT/CABLE1

INPUT

ANT/CABLE2

INPUT

LOOP OUT

COMPONENT INPUT 1

(480i/480p/720p/1080i)

COMPONENT INPUT 2

(480i/480p/720p/1080i)

(R)

(L)

(R)

(L)

VIDEO

AUDIO

(MONO)

AUDIO

DVD/DTV INPUT

MNT OUT

IN 2

IN 1

Component 1 - 2 input sources for main picture cannot be used for Monitor Out.

Monitor Out is not available if you set lock “On” in Lock menu.

A/V cables

not included

with TV

Second TV

Page 15

PAGE 15

206-03865

Turning the TV On

On-Screen Displays

This page describes your on-screen display and information banner options.

First, connect antenna cable and power cord correctly. At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the POWER, CH UP/DOWN, TV/VIDEO, COMP or number buttons on the remote control or ON/OFF, CH UP/DOWN or ENTER on the TV.

Select the viewing source by using TV/VIDEO or COMP on the remote control.

This TV is programmed to remember which mode it was last set to, even if you turn the TV off. Note: See page 18 if you have not auto programmed the TV to receive channels in your local broadcast area.

When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

If you will be away on vacation, disconnect the power plug from the wall power outlet.

Mute

TV 15

MONO

10:00 AM

TV15

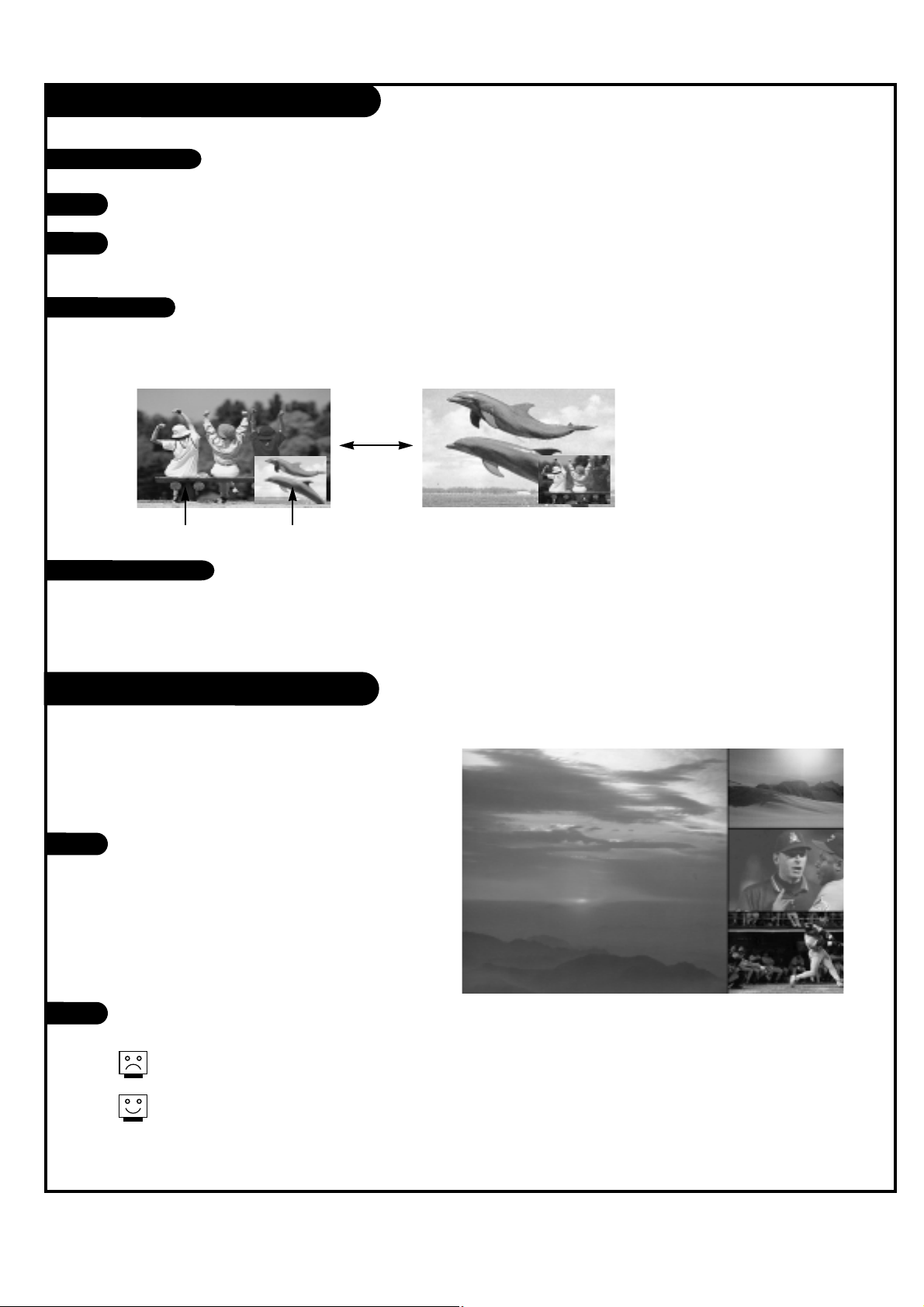

PIP Display

This display appears when PIP is active.

Volume

Volume level is displayed while adjusting the sound.

Mute

Appears when sound is muted.

Time

Appears when pressing the enter button on remote control.

Main Channel Display

Displays current channel number.

Page 16

PAGE 16

206-03865

Remote Control Functions in TV Mode

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

MUTE

Switch the sound on or off

Brings up the main menu

to the screen.

EXIT

Clears all on-screen displays and returns to TV viewing from any menu.

VIDEO

Adjusts the factory preset picture according to the room.

PIPCH+

Changes to next higher PIP channel.

SWAP

Swap the signal from your PIP window to the main screen.

FCR (Favorite Channel)

Scrolls the Favorite channel list.

THUMBSTICK

Allows you to navigate the on-screen

menus and to adjust the system set-

tings and preferences, by moving to

an option with

F G

and selecting the

highlighted option with .

TV/VIDEO

Selects: Video 1, Video 2, Video 3,

Component 1, and Component 2

input sources.

MODE

Selects the remote operating mode:

TV, VCR, Cable, DVD and Satellite. Select other operating modes, for

the remote to control external

devices.

COMPONENT

Selects component signal sources,

such as DVD or HD receiver.

SLEEP

Set the sleep timer.

PIPCH-

Changes to next lower

PIP channel

PIP

Toggles between PIP, POP

(Picture-out-of-Picture) and

Twin picture mode.

LIGHT

Illuminates the remote control keys.

INDICATOR LIGHTS

Show active remote mode every time any button is pressed.

D E

Page 17

PAGE 17

206-03865

Remote Control Functions in TV Mode

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

POWER

Turns your TV or any other programmed equipment on or off, depending on mode.

CHANNEL UP/DOWN

Scrolls through available channels in EZ Scan memory.

NUMBER KEYPAD

For direct channel selection and

programming functions.

ENTER

When in the menu system and other on-screen displays, selects highlighted options.

RECORD, PAUSE, REW, FFWD,

PLAY, STOP

Control the functions on your VCR.

VOLUME UP/DOWN

Increases/decreases the sound level.

POSITION

Changes the sub picture

position.

SKIP

Playing CDs: Selects songs. Playing DVDs: Selects movie chapters.

ARC

(Aspect Ratio Control)

Changes the screen format or

aspect ratio.

CAPTION

Selects the caption mode.

FLASHBK

Tunes to the last channel viewed.

Not functional

PIP INPUT

Selects the input source for

the sub picture.

AUDIO

Selects the sound appropriate to your viewing program character.

AUTO CONVERGENCE

Adjusts the picture color convergence.

Page 18

PAGE 18

206-03865

EZ Scan

Use pages 9-13 to connect external equipment to your TV. If you have not done so, plug in your TV to a standard 120V 60Hz power outlet.

If you have not done so, remove the back of the remote and put in two AA batteries. Make sure batteries are properly installed (check the +/– symbols).

With the remote control in hand, press the POWER button to turn on your TV.

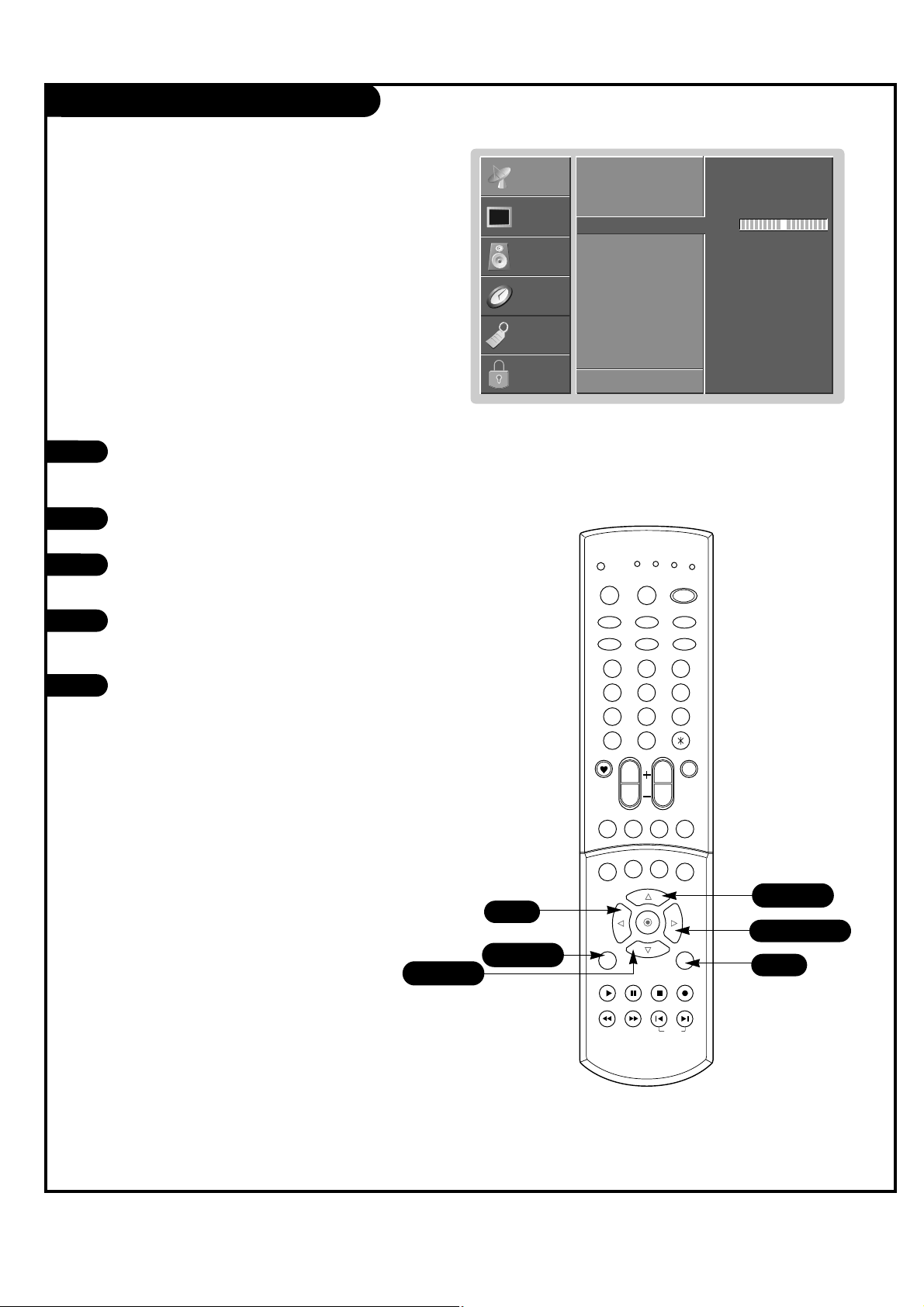

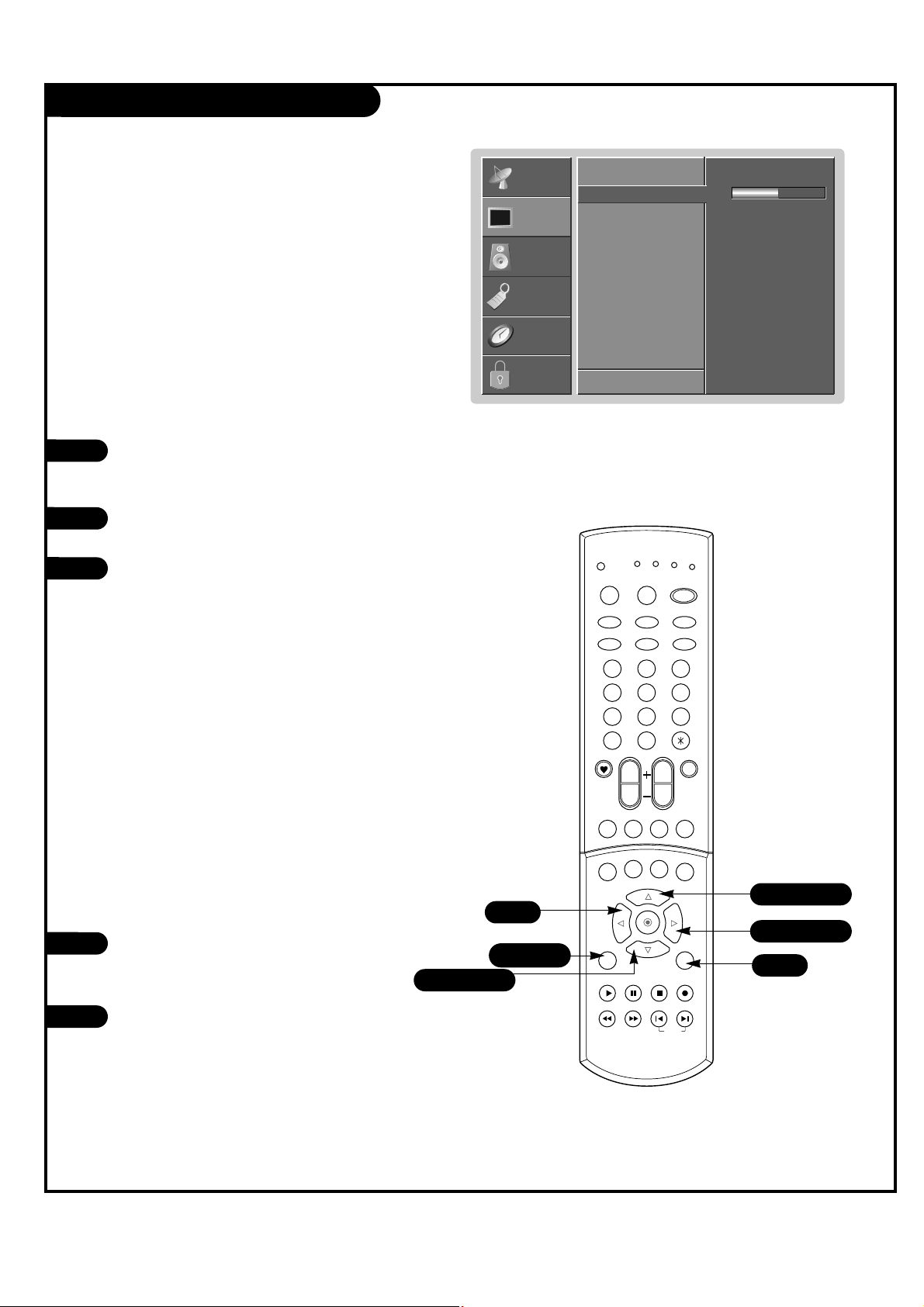

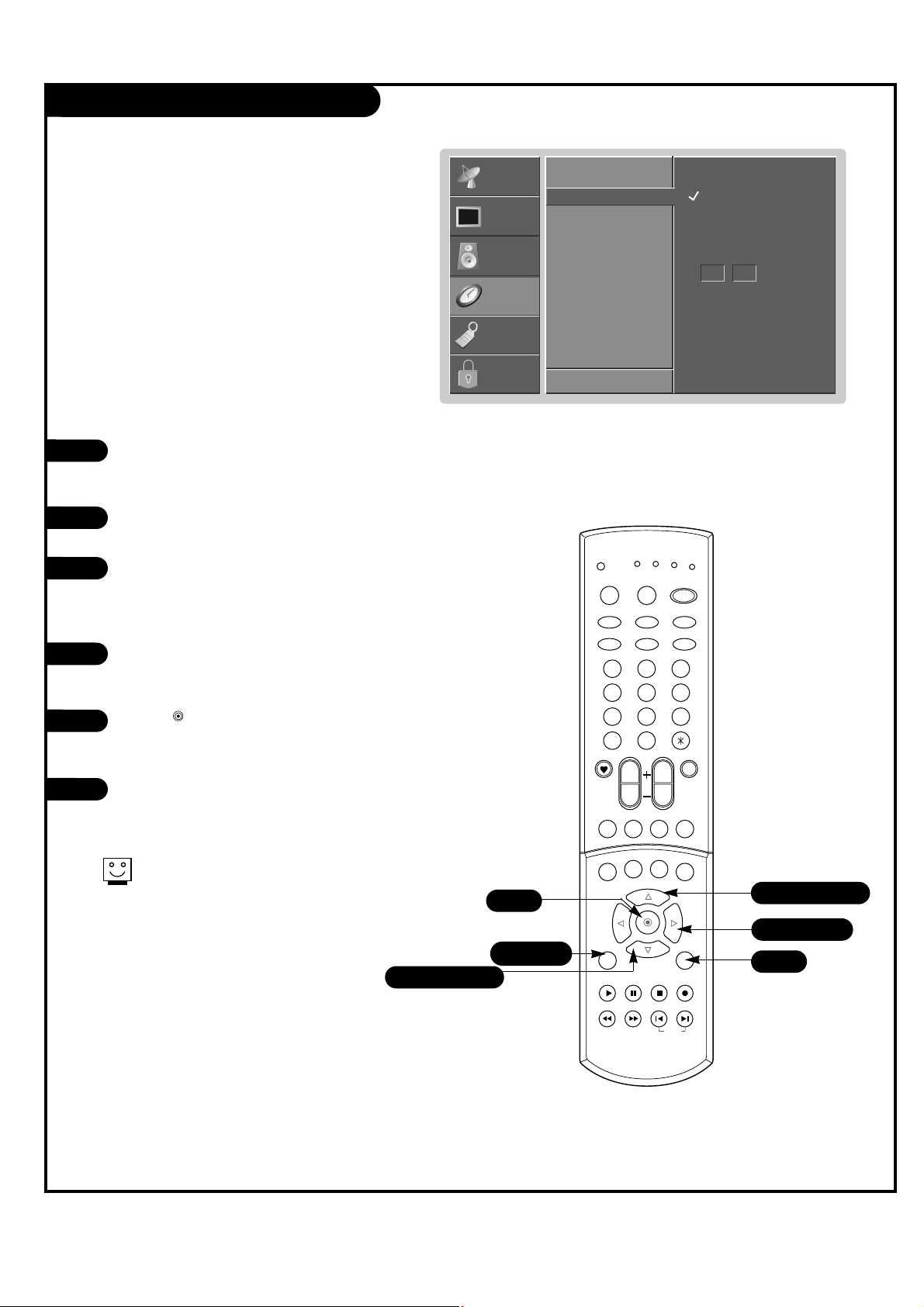

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrow button to select EZ Scan.

Press the RIGHT arrow to start the EZ Scan channel search.

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

back of

remote

EZ Scan

CH. Edit Fine

F Back Next G

To start

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

4/6 5/7

4/6

Page 19

PAGE 19

206-03865

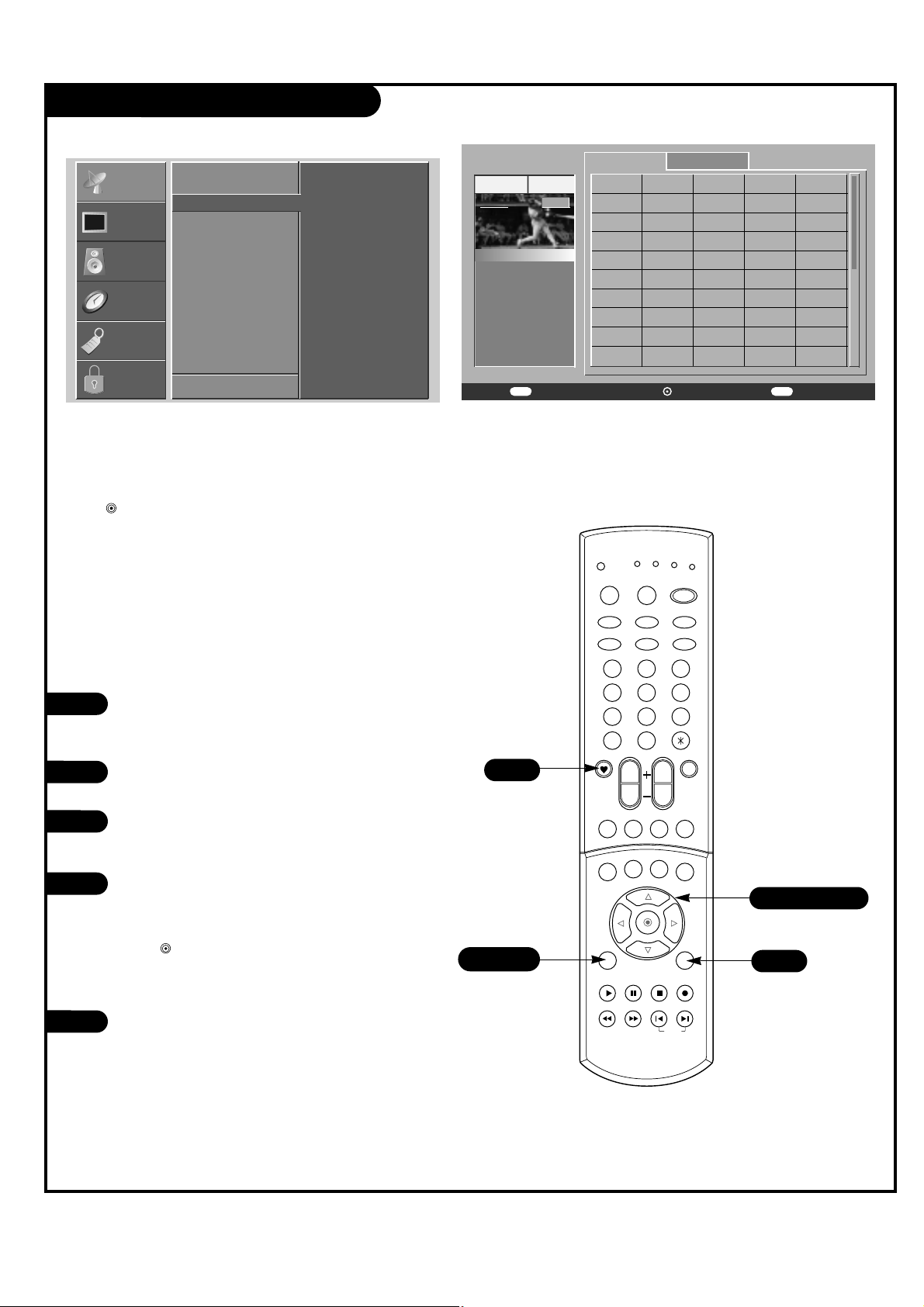

CH. Edit

Create two different types of channel lists in memory: “Custom list” and “Favorite channel list” from the default channel list made in the EZ SCAN menu. A custom list can be created by toggling each channel on or off with (Enter). Once a channel is highlighted, you will be able to see whether the channel is currently added or deleted by referring to the small window at the top-left corner of the screen. You can create your own Favorite channel list with up to 10 channels. It appears at the bottom-left corner of the screen. Use the Fcr button on the remote control when a channel is highlighted, to add or delete the channel in the Favorite channel list.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrow button to select CH.Edit and then press the RIGHT arrow button.

You will now see a screen filled with channel numbers and a preview picture. Use the UP/DOWN and LEFT/RIGHT arrow button to select a channel, then use the button to add or delete it. Press FCR to add the channel to the Favorite channel List.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Back

FCR

Favorite CH.Move Memory/Erase

Favorite Ch.

TV 11

TV 11 TV 20

Memory

2345

678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

)

( (

(

EZ Scan

CH. Edit

Fine

To set

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

F Back Next G

CATV

❤

1/5

1/2/3/4

mode

tv/video

vcr

cable

dvd

sat

light

power

comp

sleep

auto conv

ccarc

1 2 3 4 5 6 7 8 9

flashbk

fcr

vol

pip

pip input video

position

enter

left

menu exit

down

play

pause

rew

skip

swappipch- pipch+

audio

recordstop

mute

right

Page 20

PAGE 20

206-03865

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrow button to select Fine, then press the RIGHT arrow button.

Use the LEFT/RIGHT arrow button to adjust the picture appearance to your preference.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Use Fine to correct poor picture appearance, for example, a horizontal stripe, twisted picture or no color in program.

When a finely tuned channel is memorized, the color of the channel number changes to yellow.

EZ Scan CH. Edit

Fine

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Fine Tunning Adjustment

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

1/3

2/3/4

Page 21

PAGE 21

206-03865

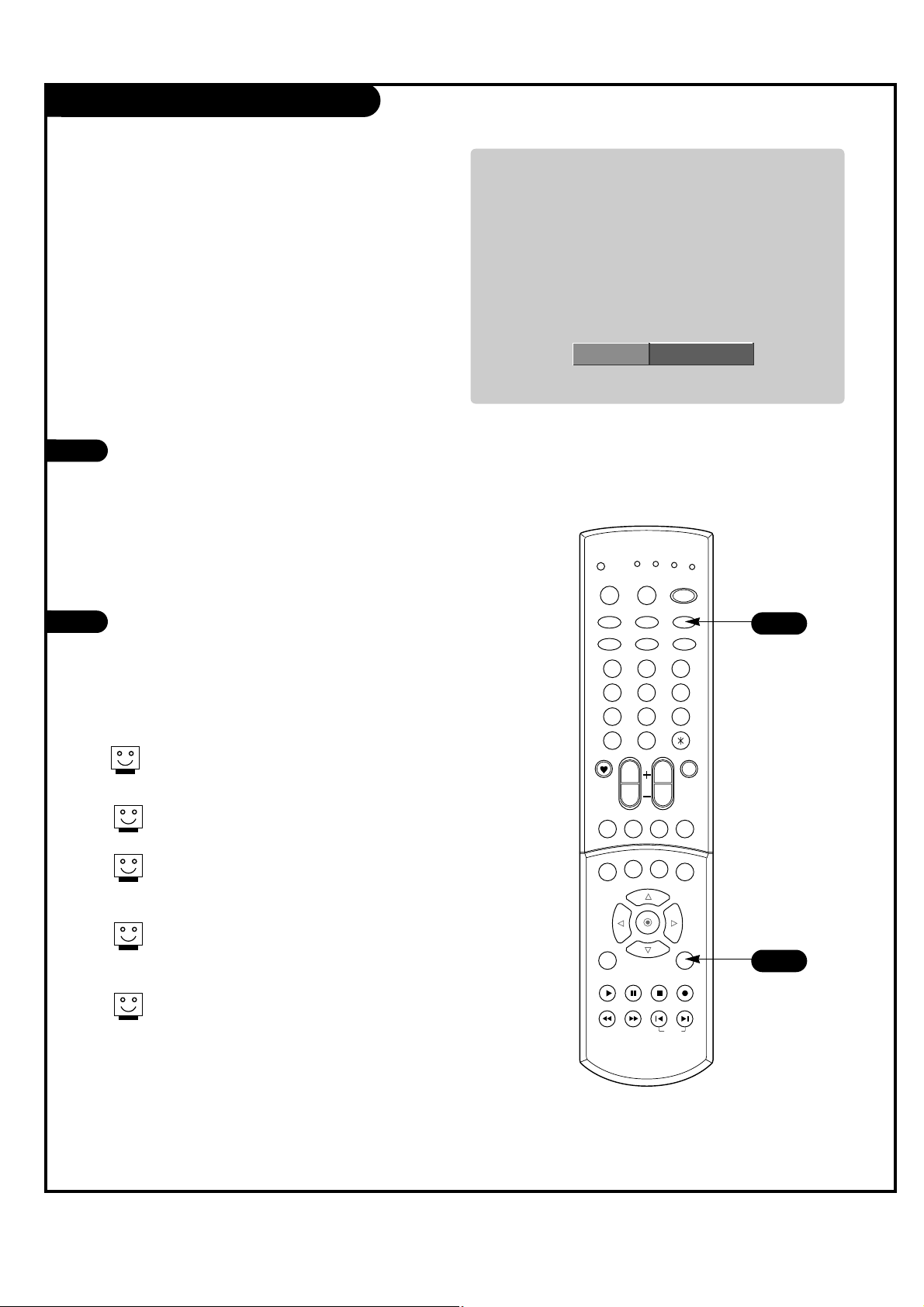

VIDEO Menu

Use the VIDEO button to select EZ video option.

Each press of the VIDEO button change the EZ video option: Clear, Optimum, Soft and Off.

Press EXIT to save and return to TV viewing.

This function adjusts the TV to the best picture appearance. Select the preset value in the EZ Video menu based on the program category. Video options (clear, optimum, and soft) are preset for good picture quality at the factory and cannot be changed. When adjusting video options (Contrast, Brightness, Color, Sharpness, and Tint) manually, EZ Video automatically changes to ‘Off’.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Video menu.

Press the RIGHT arrow button to access the Video menu.

Use the UP/DOWN arrow button to select VM, and then press the RIGHT arrow button.

Use the UP/DOWN arrow button to select Off, Low, Medium, and High.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Use this function to improve the outline distinction of the picture's edges.

If you select VM ‘off’, the TV will automatically return the pictures' edge appearance to factory settings.

EZ Video Contrast Brightness Color Sharpness Tint

Color Temp. Mode

F Back

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Off Low Medium High

EZ Video Off

EZ Video

Velocity Modulation

You can also select EZ Video in the Video menu.

Page 22

PAGE 22

206-03865

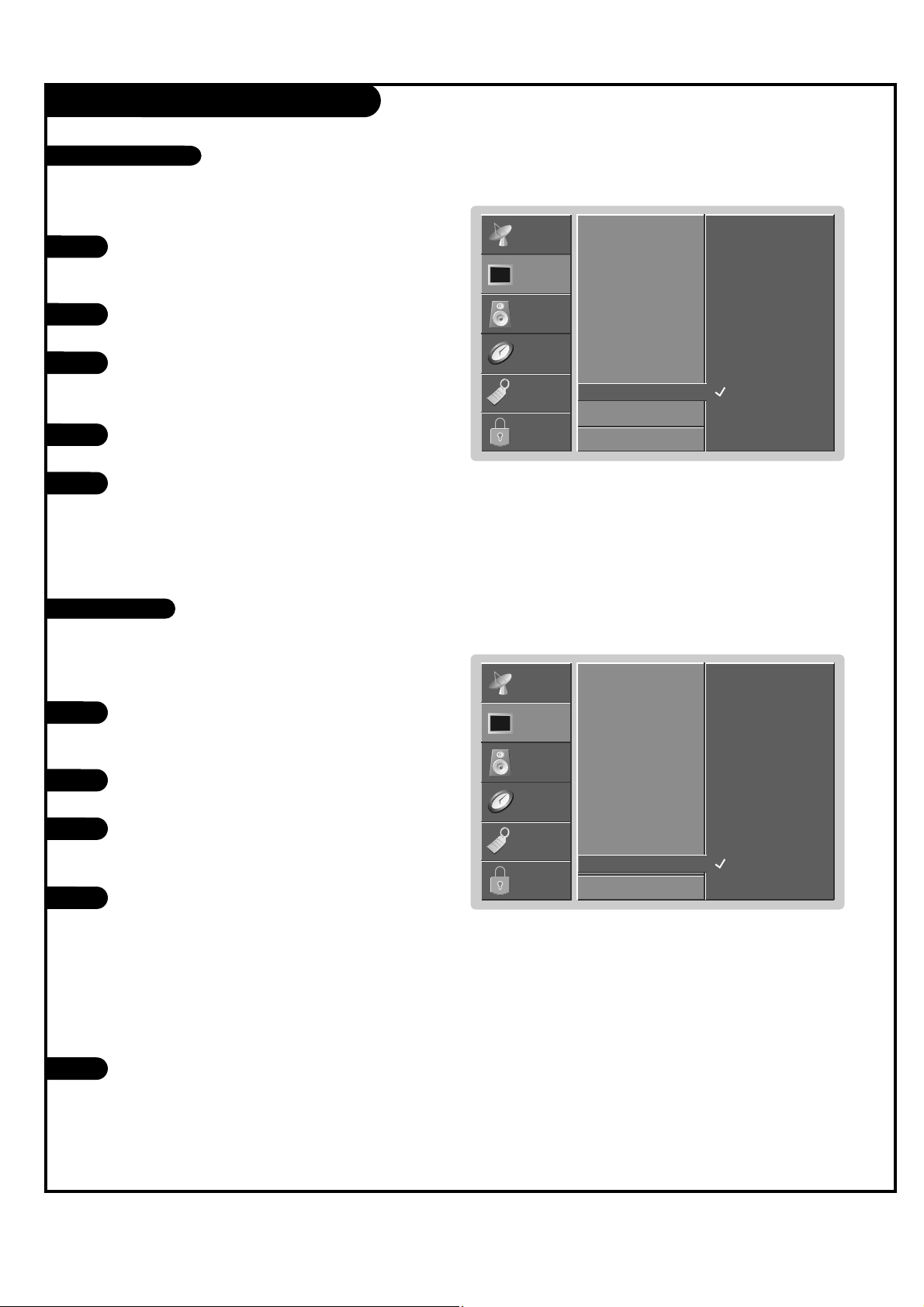

VIDEO Menu

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Video menu.

Press the RIGHT arrow button to access the Video menu.

Use the UP/DOWN arrow button to select one of the following options: Contrast, Brightness, Sharpness, Color, and Tint, then press the RIGHT arrow button.

•

Contrast Adjusts the difference between the light and dark levels of the picture. Press the right arrow button to activate adjusting.

• Brightness Adjusts the white or light level of the overall picture.

• Color Adjusts the intensity of all col- ors.

• Sharpness Adjusts the level of crisp- ness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.

• Tint Adjusts the balance between the red and green levels.

Use the LEFT/RIGHT arrow button to adjust the option to your preference. Use the UP/DOWN arrow button to select another option.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

You can manually adjust the levels of picture quality settings, such as Contrast, Brightness, Sharpness, etc.

Adjust the picture appearance to suit your preference and viewing situations.

EZ Video

Contrast

Brightness Color Sharpness Tint VM Color Temp. Mode

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/3/4

1/3/4

Page 23

PAGE 23

206-03865

VIDEO Menu

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Video menu.

Press the RIGHT arrow button to access the Video menu.

Use the UP/DOWN arrow button to select Color temperature, and then press the RIGHT arrow button.

Use the UP/DOWN arrow button to select Warm, Medium, or Cool.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Specify the picture color status.

Use this function to select output format.

EZ Video Contrast Brightness Color Sharpness Tint VM

Color Temp.

Mode

F Back

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Warm Medium Cool

EZ Video Contrast Brightness Color Sharpness Tint VM Color Temp.

Mode

F Back

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1080i 540p

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Video menu.

Press the RIGHT arrow button to access the Video menu.

Use the UP/DOWN arrow button to select mode, and then press the Right arrow button.

Use the UP/DOWN arrow button to select 1080i or 540p.

• Select 1080i when watching normal TV, movies etc.

• Select 540p when viewing a more stationary image, a video game for example

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Color Temperature

Scan Mode

Page 24

PAGE 24

206-03865

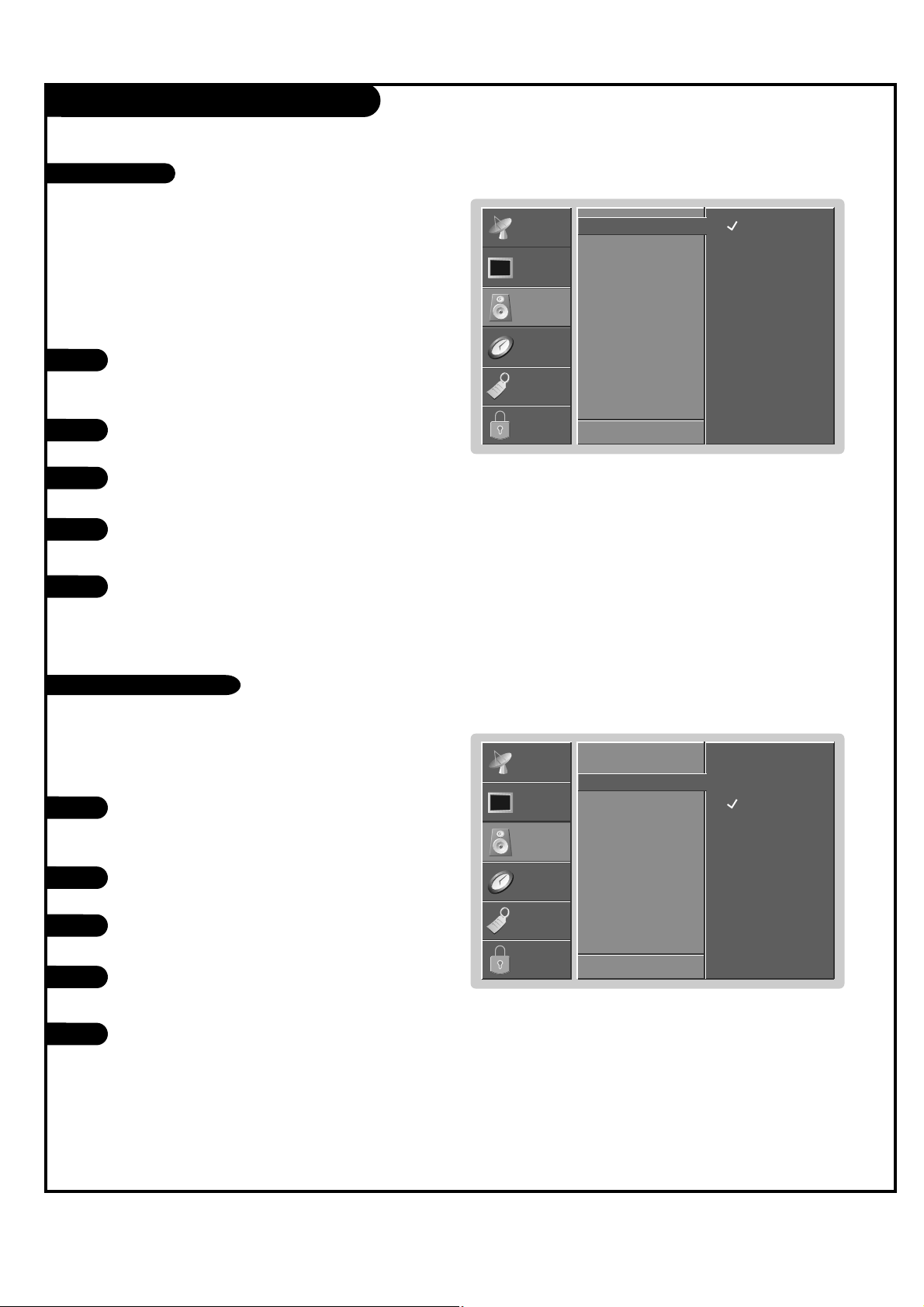

AUDIO Menu

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Audio menu.

Press the RIGHT arrow button to access the Audio menu.

Use the UP/DOWN arrow button to select MTS, then press the RIGHT arrow button.

Use the UP/DOWN arrow button to select Mono, Stereo, or SAP.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Lets you choose the default audio mode for conventional analog programs. When you hear a program broadcast in mono, you will hear only monaural sound, even though Stereo mode is set. When Second Audio Program (SAP) mode is set, the program's second audio program, usually the program's dialog in another language, (if provided), is broadcast in mono.

MTS G

AVL EZ Audio Bass Treble Balance

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Mono Stereo SAP

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Audio menu.

Press the RIGHT arrow button to access the Audio menu.

Use the UP/DOWN arrow button to select AVL, then press the RIGHT arrow button.

Use the UP/DOWN arrow button to select On or Off.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

AVL maintains an equal volume level; even if you change channels.

MTS

AVL

EZ Audio Bass Treble Balance

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

On Off

MTS

AVL (Auto Volume Leveler)

Page 25

PAGE 25

206-03865

AUDIO Menu

This function lets you enjoy the best sound without any special adjustment because the TV automatically selects the appropriate sound option based on the program content. Audio options ( Virtual, flat, music, sports, movie and off) are preset for good sound quality at the factory and cannot be changed. When adjusting audio options (bass, treble and balance) manually, EZ audio automatically changes to ‘Off’.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Audio menu.

Press the RIGHT arrow button to access the Audio menu.

Use the UP/DOWN arrow button to select one of the following options: Bass, Treble and Balance. Then press the Right arrow button.

• Bass: Increases or decreases the lower frequency sounds of the TV speakers.

• Treble: Increases or decreases the higher frequency sounds of the TV speakers. Increases in treble, for example, make voice or string sounds stand out.

• Balance: Lets you adjust the left to right balance of the TV speakers.

Use the LEFT/RIGHT arrow button to adjust the option to your preference. Use the UP/DOWN arrows to select another option.

Press EXIT button to save and return to TV viewing or press MENU button to save and return to the previous menu.

Adjust the sound to suit your taste and room situations.

MTS AVL EZ Audio

Bass

Treble Balance

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Virtual let’s you experience panoramic sound effects.

Use the AUDIO button to select EZ Audio option.

Each press of the AUDIO button changes the EZ audio option; Virtual, Flat, Music, Sports, Movie and Off.

Press EXIT to save and return to TV viewing.

EZ Audio Off

EZ Audio

Manual Sound Control (Off option)

You can also select EZ Audio in the Audio menu.

Page 26

PAGE 26

206-03865

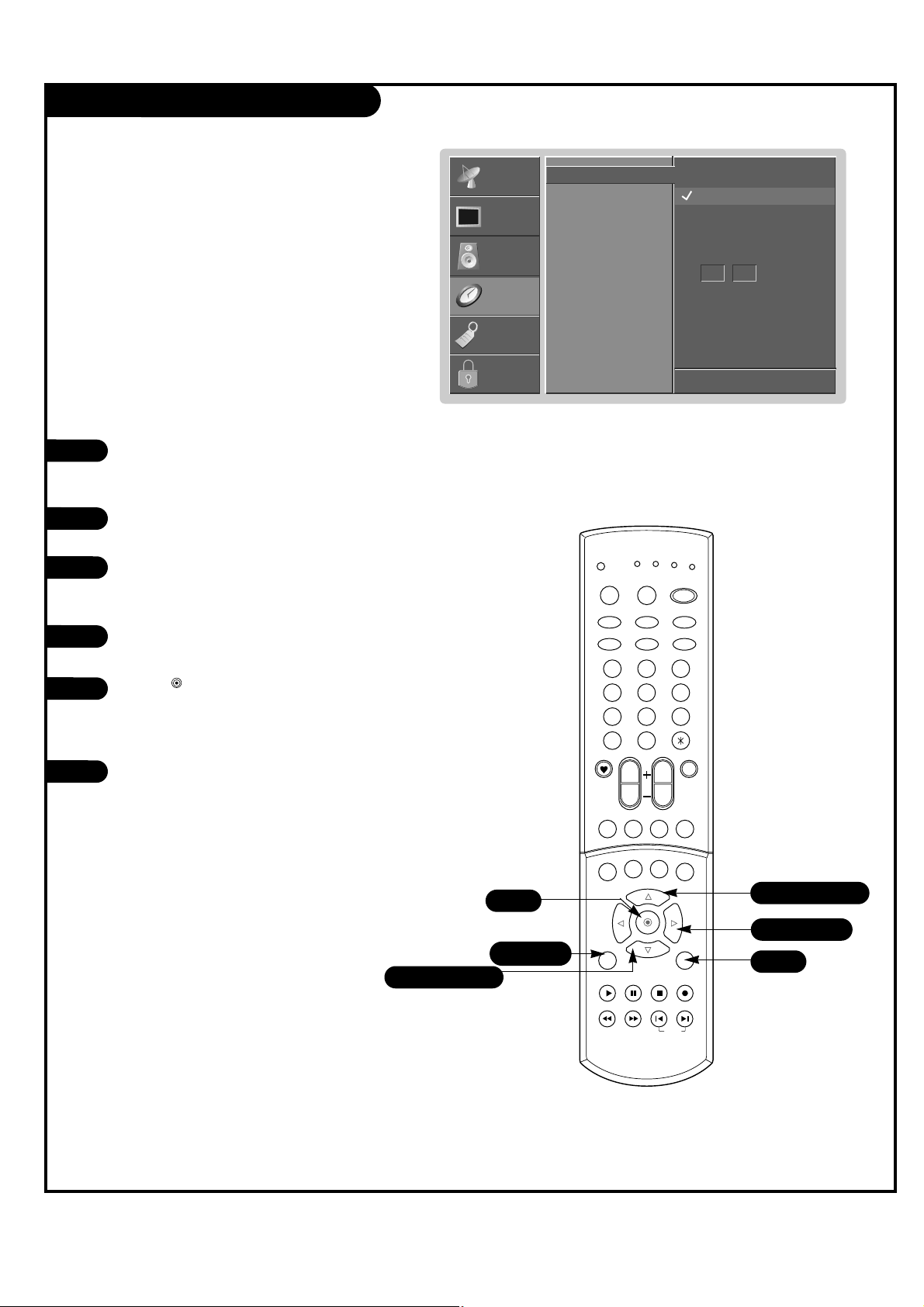

Auto Clock Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press the RIGHT arrow button to go to the Time menu.

Use the UP/DOWN arrow button to choose Clock, then press the RIGHT arrow button to activate the clock option.

Use the UP/DOWN arrow button to select Auto, then press the RIGHT arrow button.

Press the button repeatedly to select Clock Auto submenu options: Time Zone, PBS channel, and D.S.T. (Daylight Savings Time), then use the UP/DOWN arrow button to make an Auto submenu selection.

• Time Zone - Select the time zone for your viewing area. Your options are: Auto, E.S.T. (Eastern Standard Time), C.S.T. (Central Standard Time), M.S.T. (Mountain Standard Time), P.S.T. (Pacific Standard Time), Alaska, Hawaii.

• Use the UP/DOWN arrow button to set the PBS channel.

• D.S.T. (Daylight Savings Time)- Lets you set D.S.T. Auto, On or Off, depending on whether or not your viewing area observes Daylight Savings Time.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

Sets the time automatically through the PBS broadcast signal.

The PBS channel signal includes information for the correct time.

Clock

Off Time On Time Sleep Auto Off

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Auto G

Manual

Time Zone

Auto

PBS Ch.

TV 13

D.S.T.

Auto

F Back

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/6

2/3/4

1/3/4/5

Page 27

PAGE 27

206-03865

Manual Clock Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press the RIGHT arrow button to activate the Time menu.

Use the UP/DOWN arrow button to choose Clock, then press the RIGHT arrow button to activate Clock option.

Use the UP/DOWN arrow button to select manual then press the RIGHT arrow button.

Use the button to select either the hour or minutes option, once selected, use the UP/DOWN arrow button to set the hours or minutes.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

Clock

Off Time On Time Sleep Auto Off

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

If current time setting is erased by a power failure or if TV is unplugged, reset the clock.

F Back

Auto

Manual

10 : 00 AM

1/6

2/3/4

1/3/4/5

vcr

cable

light

comp

ccarc

dvd

auto conv

mode

tv/video

1 2 3 4 5 6 7 8 9

flashbk

fcr

vol

pip

pip input video

position

enter

left

menu exit

down

play

pause

rew

skip

sat

power

sleep

mute

swappipch- pipch+

audio

right

recordstop

Page 28

PAGE 28

206-03865

TV Turn Off Time Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press the RIGHT arrow button to activate the Time menu.

Use the UP/DOWN arrow button to choose Off Time then press the RIGHT arrow button to activate Off Time option.

Use the UP/DOWN arrow button to choose On, then press the RIGHT arrow button.

Use the button to select the hour or minutes options, then use the UP/DOWN arrow button to set the hours or minutes.

Press EXIT button to save and return to TV viewing, or press the MENU button to save and return to the previous menu.

Lets you set an automatic daily turn off time for your TV.

Off Timer function overrides On Time function if they are both set to the same time.

You must set the current time before using on/off time function.

Clock

Off Time

On Time Sleep Auto Off

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

F Back Next G

On Off

10 : 00 AM

To cancel Off time function, use the UP/DOWN arrow button to select Off in step 4.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/6

2/3/4

1/3/4/5

Page 29

PAGE 29

206-03865

TV Turn On Time Setup

Lets you set an automatic daily turn on time for your TV.

Off timer function overrides on timer function if they are both set to the same time.

Unless a button is pressed within two hours after the TV is turned on by the On Time function, the TV will automatically turn off.

TV must be in standby mode for the On Timer to work.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press the RIGHT arrow button to activate the Time menu.

Use the UP/DOWN arrow button to choose On Time then press the RIGHT arrow button to activate On Time option.

Use the UP/DOWN arrows to choose On, then press the RIGHT arrow button.

Use the button to select the On Time menu options. Your options are: Time, channel, and Volume, then use the UP/DOWN arrow button to set either the Time, Channel, and Volume.

Press EXIT button to save and return to TV viewing, or press the MENU button to save and return to the previous menu.

Clock Off Time

On Time

Sleep Auto Off

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

F Back Next G

On Off

Tim

10 : 00 AM

Ch.

TV 14

Vol.

To cancel On time function, : Use the UP/DOWN arrow button to select Off in step 4.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/6

2/3/4

1/3/4/5

Page 30

PAGE 30

206-03865

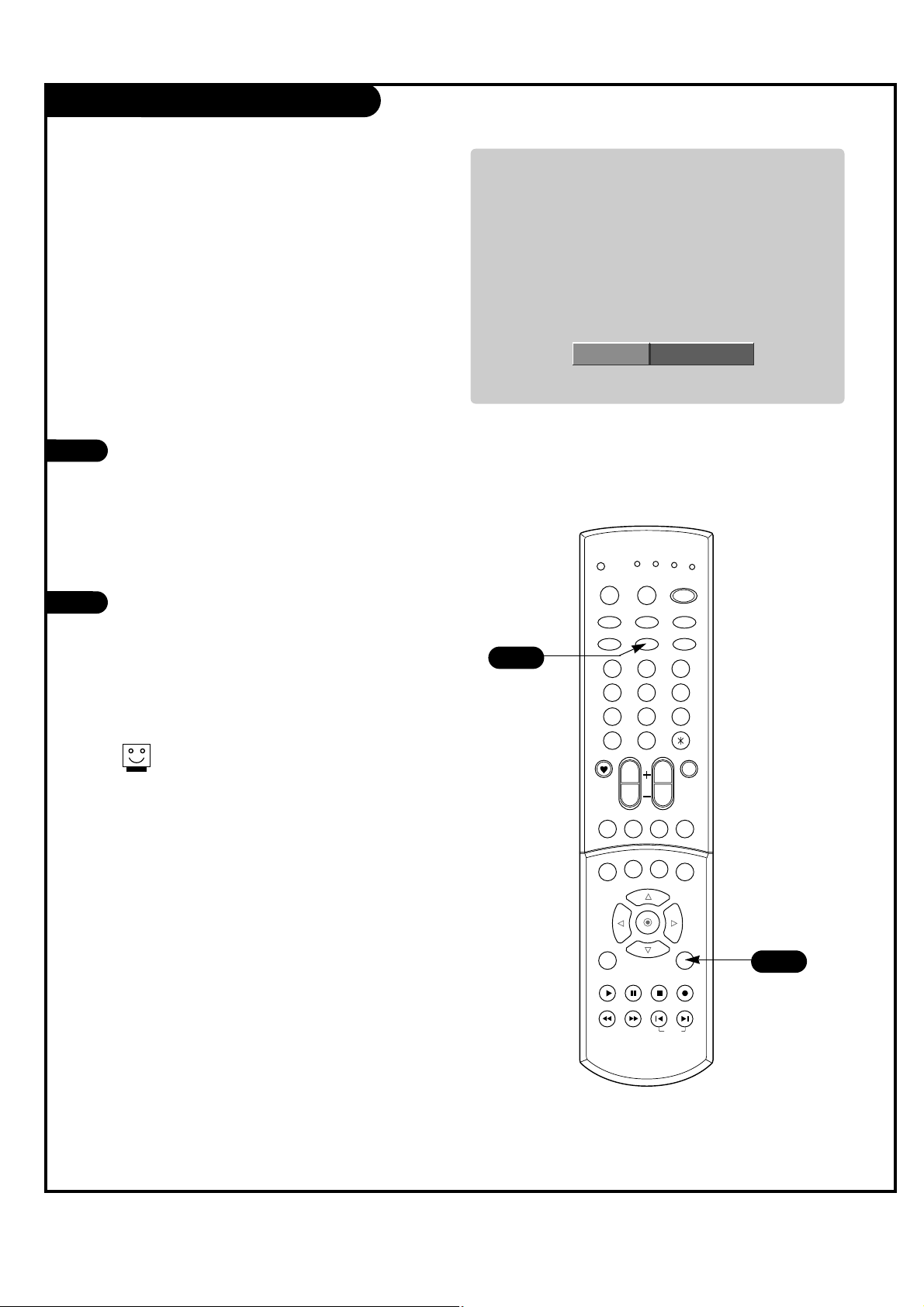

Sleep Timer Setup

Press the SLEEP button on the remote control repeatedly to select the number of minutes.

First the Off option will appear on the screen, followed in sequence 10, 20, 30, 60, 90, 120, 180, and 240. The timer begins to count down from the number of minutes selected.

Press EXIT button to save and return to TV viewing

Lets you select the amount of time before your TV automatically turns itself off.

When the sleep time you want is displayed on the screen, don’t press the sleep button again.

Off

To check the remaining sleep time, press the sleep button once.

To change sleep time setting, press the sleep button repeatedly to select time setting you want.

If you turn the TV off after setting the sleep timer, the setting will be erased.

You can also select Sleep in the Time menu.

Sleep

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

Page 31

PAGE 31

206-03865

Auto Off

If there is no input signal, the TV switches to standby mode automatically after 10 minutes.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press the RIGHT arrow button to activate the Time menu.

Use the UP/DOWN arrow button to choose Auto off then press the RIGHT arrow button to activate Auto off.

Use the UP/DOWN arrows to choose On or Off.

Press EXIT button to save and return to TV viewing, or press the MENU button to save and return to the previous menu.

Clock Off Time On Time Sleep

Auto Off

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

F Back Next G

On Off

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/3

1/3/4

Page 32

PAGE 32

206-03865

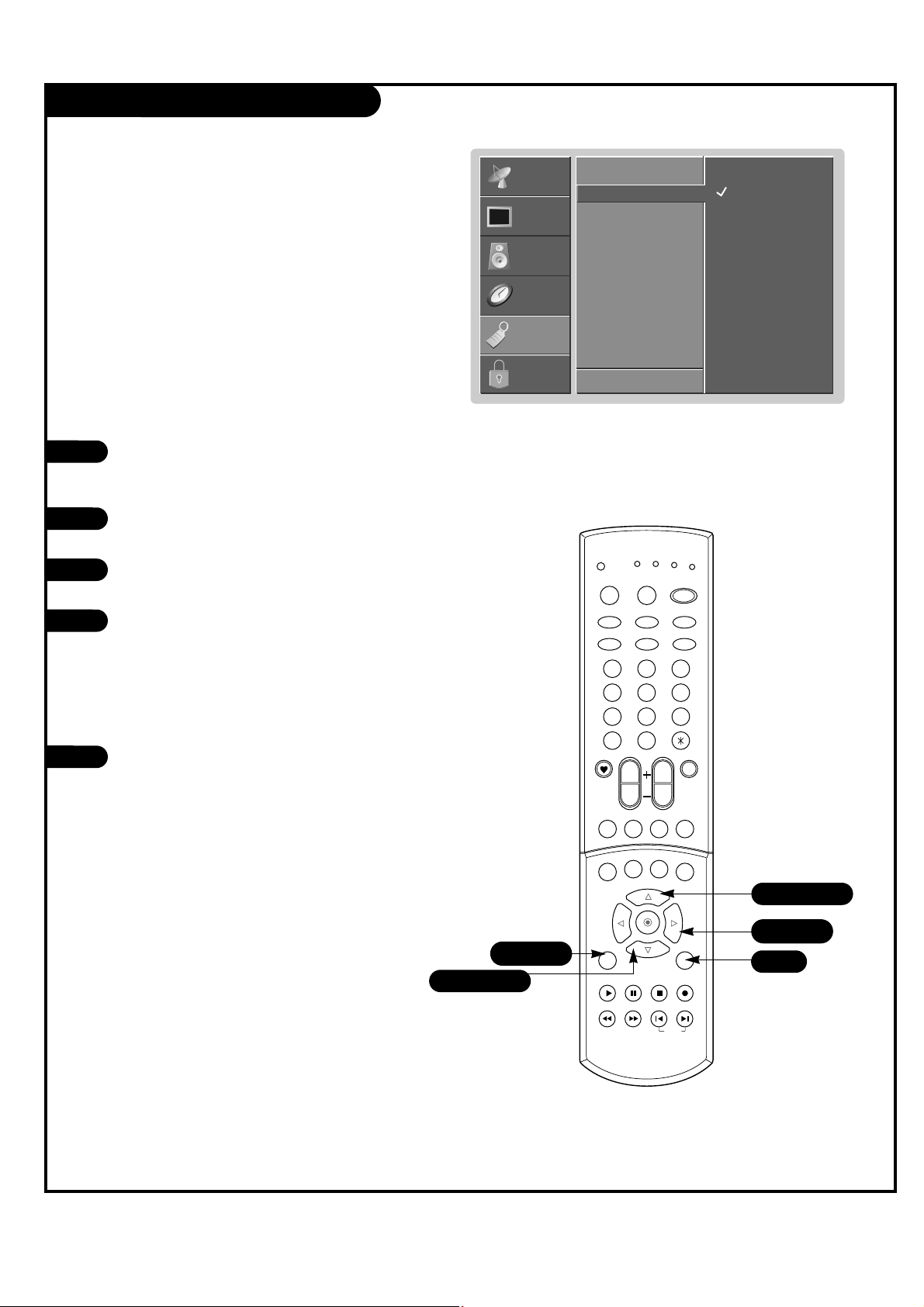

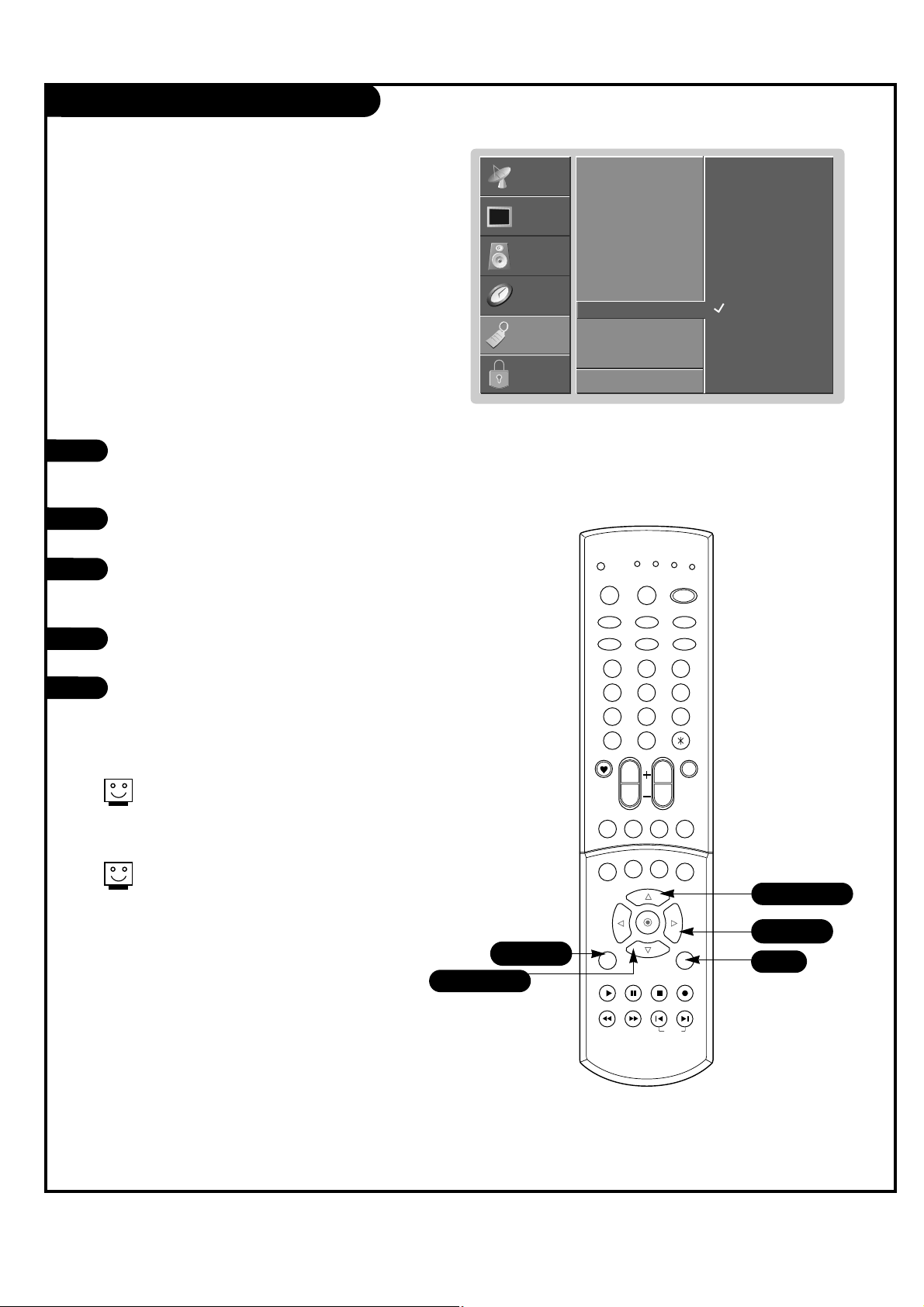

On-Screen Menus Language

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press the RIGHT arrow button to to go to the Special menu.

Use the UP/DOWN arrows to choose the Language option.

Press the RIGHT arrow button to go to the Language selection menu. Use the UP/DOWN arrow button to select the language you wish the onscreen menus to appear in.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

Select your preferred language for the menus: English, Español, or Français.

Language G

Main Source PIP Source Captions Caption/Text ARC Key lock Auto Convergence Auto Move

F Back Next G

English Español Français

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/4

1/3/4

Page 33

PAGE 33

206-03865

Main Picture Source Selection

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press the RIGHT arrow button to access the Special menu.

Use the UP/DOWN arrows to select the Main Source option.

Press the RIGHT arrow to access the Main Source menu, then use the UP/DOWN arrow button to select the source. Your Main picture source options are : Ant/Cable 1 (Ant/Cable 2), Video 1, Video 2, Video 3, Component 1, and Component 2.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous Menu.

Note: This TV is equipped with Picture-in-Picture. Select a viewing source for the main picture on this page and select a viewing source for the PIP picture inset on the following page.

Changes the picture source for the main screen so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

You can also change the Main picture source with the Source buttons on the remote control: TV/Video and Component.

Language

Main Source

PIP Source Captions Caption/Text ARC Key lock Auto Convergence Auto Move

F Back Next G

Ant/Cable 1 Video 1 Video 2 Video 3 Component 1 Component 2

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/4

1/3/4

Page 34

PAGE 34

206-03865

PIP (Picture-In-Picture) Source

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press the RIGHT arrow button to access the Special menu.

Use the UP/DOWN arrows to select the PIP Source option.

Press the RIGHT arrow to access the PIP source menu, then use the UP/DOWN arrow button to select the source. Your choices are: TV (Ant/Cable 1, Ant/Cable 2), Video 1, Video 2, Video 3.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous Menu.

Changes the picture source for the Picture-In-Picture screen so you can watch your off-air TV, cable TV, VCR, or any other devices that are connected to your TV.

Language Main Source

PIP Source

Captions Caption/Text ARC Key lock Auto Convergence Auto Move

F Back Next G

TV Video 1 Video 2 Video 3

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Press the PIP button to show the sub picture. Each press of PIP changes the PIP options as shown below.

PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the other source will show a smaller inset image.

PIP is not available if you set lock “On” in Lock menu.

Use the PIP INPUT button to select the input source for the sub picture. Each time you press PIP INPUT button, you toggle between TV, VIDEO 1, VIDEO 2, and VIDEO 3.

Do not display a fixed image on the screen for long periods of time.

Not all sources are available for PIP.

Using the menu

Using the PIP INPUT button

PIP mode POP mode Twin Picture mode

Watching PIP

PIP Source Selection

Page 35

PAGE 35

206-03865

PIP (Picture-In-Picture) Options

Press PIP on the remote control with the PIP image on the screen to activate POP (Picture -out-of-Picture) mode. The pictures of all the programmed channels are searched with the 3 PIP screen, as shown right.

• By pressing SWAP, you can enlarge the channel being searched on the PIP screen to view it on the Main screen.

Press the EXIT button to exit POP mode.

POP (Picture-Out-of-Picture) Source

This is the function to search one-by-one the pictures of all the programmed channels on the 3 PIP screen display while the main screen remains the current channel.

POP is not available if you set lock “On” in Lock menu.

Press the SWAP button. Each time you press the SWAP button, you switch the Main and PIP pictures.

Press the POSITION button in the PIP mode. Each press of the POSITION button will move the sub picture to a different position on the screen in a clock-wise direction.

Press the PIP button in the PIP mode.

Select the TV option on the PIP Source menu or with the PIP INPUT button. Use the PIPCH-/PIPCH+ button to select a channel for the sub picture. Changing programs for the sub picture is only possible when the 'TV' option is selected as PIP source (NTSC RF signal).

Main Picture Sub Picture

Run EZ Scan channel search before using POP mode.

Caption/Text is not available in POP mode.

Selecting PIP Channels

Swapping Screen

Moving the Sub Picture

Page 36

PAGE 36

206-03865

Twin Picture splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each source is given half the screen.

Twin picture mode is not available if you set lock “On” in Lock menu.

Use the PIP INPUT button to select the input source for the sub picture. Each time you press PIP INPUT, you toggle between TV, VIDEO 1, VIDEO 2, and VIDEO 3.

Press the Swap button. Each time you press SWAP, you switch the PIP and Main screen channels.

Press the PIP button on the remote control in POP mode to activate twin picture mode. Select the TV option on the PIP Source menu or with the PIP INPUT button. Use the PIPCH-/PIPCH+ button to select the desired channel for the sub picture. Changing programs for the sub picture is only possible when the 'TV' option is selected as PIP source (NTSC RF signal).

Press the EXIT button to exit twin picture mode.

Main Picture Sub Picture

Twin Picture

Watching Twin Picture

Swapping Screen

Selecting an Input Signal Source for Sub Picture

Page 37

PAGE 37

206-03865

Captions

Press the CC button to select captions.

Each press of the CC button change the caption option; On, EZ Mute and Off. Captions Setup is complete. EZ Mute shows the selected captions option (if available on program) when the TV sound is muted.

Press EXIT to save and return to TV viewing.

Captions Off

You can also select Captions in the Special menu.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

Page 38

PAGE 38

206-03865

Captions/Text

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press the RIGHT arrow button to activate the Special menu.

Use the UP/DOWN arrow button to choose Caption/Text, then press the Right arrow button.

Use the UP/DOWN arrow button to make your caption selection. Your choices are: CC 1, CC 2, CC 3, CC 4, Text 1, Text 2, Text 3 and Text 4.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

Select a closed caption mode for displaying captioning information when provided on the program.

Closed Caption (CC) displays information at any position on the screen usually the program's dialog.

Text displays information, usually at the bottom position and is used for a data service, generally not program related.

Language Main Source PIP Source Captions

Caption/Text

ARC Key lock Auto Convergence Auto Move

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

CC 1 CC 2 CC 3 CC 4 Text 1 Text 2 Text 3 Text 4

This TV is programmed to remember the caption/text mode it was last set to, when you turn the POWER off.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/3

1/3/4

Page 39

PAGE 39

206-03865

Aspect Ratio Control

Use the ARC button to select the desired picture format.

Each press of the ARC button changes the picture format. Your options are: 4:3, 16:9, Panorama, Zoom1, and Zoom2.

• 4:3 - Choose when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the left and right sides.

• 16:9 (Wide) - Choose when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen. (Useful for viewing 4:3 formatted DVDs.)

• Panorama - Choose when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both sides, to create a spectacular view.

• Zoom1 - Choose when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

• Zoom2 - Choose when you want the picture to be altered, both horizontally extended and vertically cropped. The picture taking a halfway trade off between alteration and screen coverage.

Press EXIT to save and return to TV viewing.

Lets you choose the way that an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed according to your preference.

16 : 9

You can also select ARC (Aspect Ratio Control) in the Special Menu.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

Page 40

PAGE 40

206-03865

Key Lock

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press the RIGHT arrow button to activate the Special menu.

Use the UP/DOWN arrow button to choose Key lock, then press the RIGHT arrow button.

Use the UP/DOWN arrow button to select On or Off.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

The TV can be set up so that it can only be operated with the remote control.

This feature can be used to prevent unauthorized viewing.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Language Main Source PIP Source Captions Caption/Text ARC

Key lock

Auto Convergence Auto Move

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

On Off

With the KEY LOCK ON, the display ‘KEY LOCK’ appears on the screen if any button on the front panel is pressed while viewing the TV.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/3

1/3/4

Page 41

PAGE 41

206-03865

Auto Convergence

Press the AUTO CONV button to start auto convergence.

• The color convergence order will be: blue, green, then red.

• The auto convergence function takes about 30 seconds.

When the TV is first installed or relocated, the picture may be unstable and have three color ghosts (red, green, blue). This problem can be solved with Auto Convergence.

This function can adjust the picture color convergence automatically if the TV is receiving a stable signal.

Wait 20 minutes after turning on the TV before using Auto Convergence.

Darken the room before adjusting color convergence.

You can also select Auto convergence in the Special menu.

Auto Convergence Position Checking DATA: 52

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

Page 42

PAGE 42

206-03865

Auto Move

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press the RIGHT arrow button to activate the Special menu.

Use the UP/DOWN arrow button to choose Auto Move, then press the RIGHT arrow button.

Use the UP/DOWN arrow button to select On or Off.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

Auto move may help prevent a ghost image.

The picture will move to right and left about 5mm every 2 hours in 4:3 aspect ratio. The picture will move to up and down about 5mm every 2 hours in twin picture mode.

Language Main Source PIP Source Captions Caption/Text ARC Key lock Auto Convergence

Auto Move G

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

On Off

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

1/5

2/3

1/3/4

Page 43

PAGE 43

206-03865

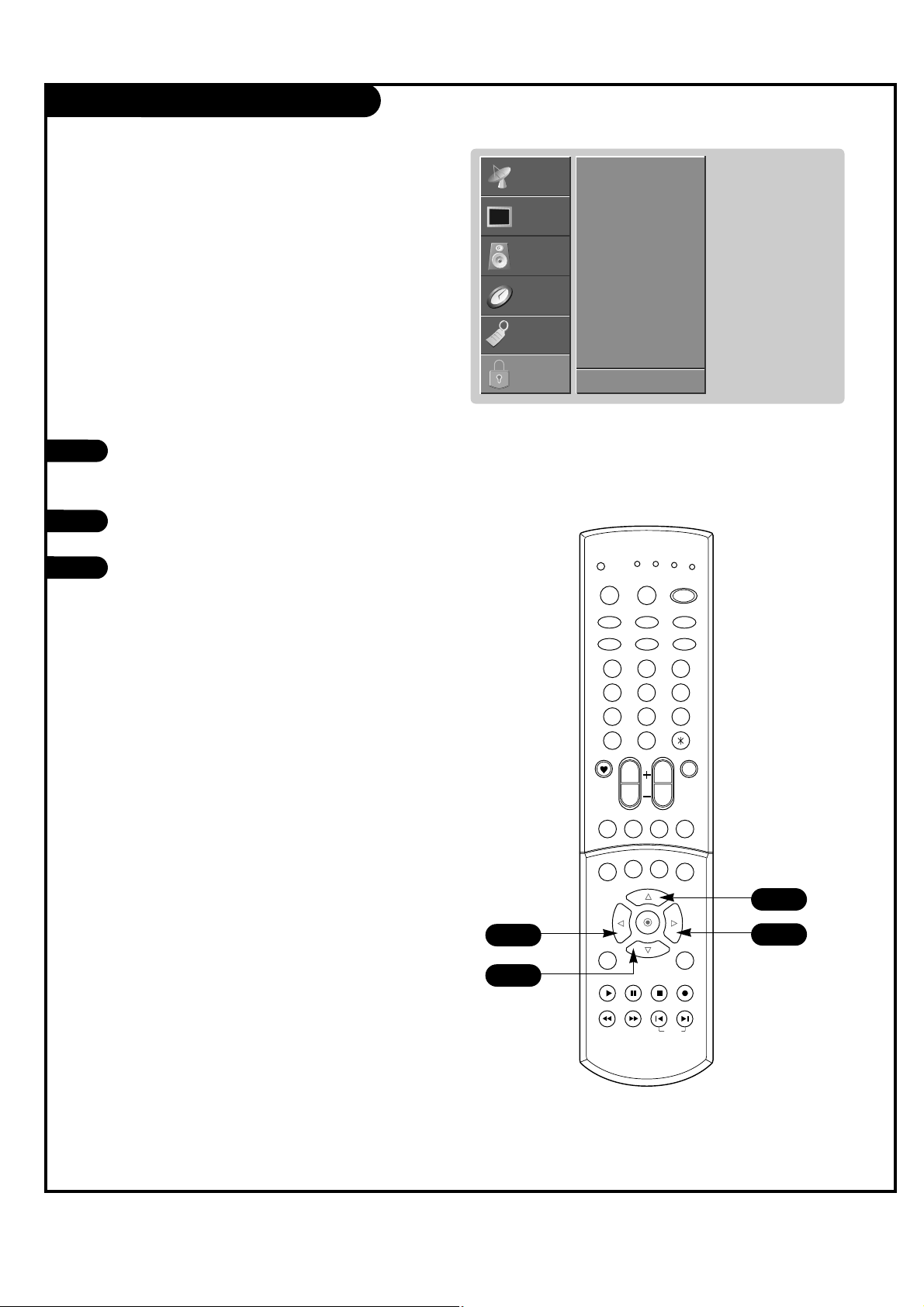

Parental Lock Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Lock Menu.

Press the RIGHT arrow button to activate the Lock Menu.

See the next page for more details on your blocking options.

Lets you set up blocking schemes to block specific channels, ratings and viewing sources.

A password is required to gain access to this menu if the Lock System is activated.

PIP/POP/Twin picture functions are not available if you set Lock “On” in Lock menu.

Lock On/Off Set Password Movie(MPAA) TV-PG(Children) TV-PG(General) Aux. Block Canadian

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

Page 44

PAGE 44

206-03865

Parental Lock Setup Continued

Use the UP/DOWN arrows to choose from the following LOCK Menu options. Once the options are selected, change the settings to your preferences.

•

Lock On/Off: Activates or disables the blocking scheme you set up previously.

• Set Password: Change the password by

inputting a new password twice.

• Movie (MPPA): Blocks movies according

to the movie ratings limit, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movie shown on TV, not TV programs, such as soap operas.

• TV-PG (Children): Keeps children from

watching certain TV programs among only the programs intended for children, according to the ratings limit. This rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - General menu, your children may view those programs.

• TV-PG (General): Blocks certain TV pro-

grams that you and your family do not want to view, based on the ratings.

• Aux. Block: Enables you to select a

source for blocking among the source devices you have hooked up.

• Canadian: Selects Canadian English/French

language rating system.

Press EXIT button to save and return to TV viewing or press the MENU button to save and return to the previous menu.

Lock On/Off Set Password Movie(MPAA) TV-PG(Children) TV-PG(General) Aux. Block Canadian

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

Page 45

PAGE 45

206-03865

Parental Lock Setup Continued

TV-Y7 (Directed to Older Children): Program is designed for children age 7 and above.

TV-G (General audience): Most parents would find this program suitable for all ages.

TV-PG (Parental guidance suggested): Program contains material that parents may find unsuitable for younger children.

TV-14 (Parents strongly cautioned): Program contains some material that many parents would find unsuitable for chil-

dren under 14 years of age.

TV-MA (Mature audience only): Program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17.

G - (General audiences): All ages admitted.

PG - Parental guidance suggested: Some program content may not be suitable for children.

PG-13 - Parents strongly cautioned: Some program content may not be appropriate for children under 13.

R- (Restricted): Children under 17 requires accompanying parent or adult guardian.

NC-17: No one 17 and under admitted.

TV-Y (All Children): Program is determined to be appropriate for all children.

X: Adult admitted only.

NR: Not rated movie.

Canadian Lock Rating:

English C: Children

C8+: 8 years and up G: General programming. Suitable for all audiences. PG: Parental guidance suggested 14+: Viewers 14 years and up 18+: Adult programming

French G: General

8 ans+: 8 years and up 13 ans+: 13 years and up 16 ans+: 16 years and up 18 ans+: Adults only

Parental Lock rating descriptions

Lock On/Off Set Password Movie(MPAA) TV-PG(Children) TV-PG(General) Aux. Block Canadian

F Back Next G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Page 46

PAGE 46

206-03865

Programming the Remote

Test your remote control. To find out whether your remote control can operate the component without programming, turn on the component such as a VCR and press the corresponding mode button (VCR) on the remote control, while pointing at the component. Test the POWER and CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.

Turn on the component to be programmed. Then press the corresponding mode button on the remote control.

Press the POWER button and the MUTE button simultaneously. Then the remote control is ready to program the code for the corresponding component.

There are two ways to find the right code for the component.

A. If you press the CH +/- buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the remote. The right code numbers for the corresponding component can be found on the following pages. Again, if the code is correct, the device will turn off.

Press the EXIT button to store the code.

Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

1 2 3 4 5 6 7 8 9

mode

light

power

tv/video

sleep

auto conv

vcr

cable

dvd

sat

fcr

swappipch- pipch+

pip

position

recordstop

pause

rew

play

menu exit

right

enter

left

down

pip input video

audio

vol

mute

ccarc

comp

skip

flashbk

3 4

The remote control for your HD receiver is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable devices of other manufacturers.

Note that the remote control may not control all models of other brands.

3/4

Page 47

PAGE 47

206-03865

Programming Codes

TVs

Brand Codes

A MARK 112 143 ADMIRAL 072 081 161 AKAI 006 146 AMPRO 073 167 AMSTRAD 052 ANAM 043 054 056

080 104 108 112 115 118 121 131

AOC 004 006 058

112 BLAUPUNKT 088 CANDLE 002 003 004

006 CAPEHART 058 CETRONIC 043 CITIZEN 002 003 004

006 043 101

103 143 CLASSIC 043 CONCERTO 004 CONTEC 039 043 050

051 CORONADO 143 CRAIG 043 054 CROWN 043 143 CURTIS MATHES 004 006 101

116 143 CXC 043 DAEWOO 004 016 017

043 044 055

071 076 103

107 111 114

117 120 123

125 127 128

136 143 DAYTRON 004 116 143 DYNASTY 043 DYNATECH 062 ELECTROHOME 024 077 143 EMERSON 004 005 006

028 043 047

048 050 051

096 116 143

151 153 154

155 FISHER 007 057 FUNAI 028 043 FUTURETECH 043 GE 004 006 008

009 034 056

073 074 091

116 130 144

155 160 161

165

Brand Codes

GOLDSTAR 004 102 106

110 112 113 116 119 122

127 137 143 HALL MARK 004 116 HITACHI 004 006 009

010 011 012

023 041 075

143 158 163

166 INFINITY 164 INKEL 129 JBL 164 JCPENNY 004 006 008

009 024 030

065 101 143

156 160 JENSEN 013 JVC 034 038 070

083 145 KEC 043 KENWOOD 006 070 KLOSS 002 059 KMC 143 KTV 006 043 143

154 LG 255 LODGENET 072 LOGIK 072 LUXMAN 004 LXI 007 015 052

081 160 164

166 MAGNAVOX 003 004 006

022 059 060

061 063 064

127 143 160

164 MARANTZ 006 077 164 MATSUI 164 MEMOREX 004 007 072

116 METZ 088 MGA 004 006 024

028 042 049

077 116 MINERVA 088 MITSUBISHI 004 006 024

028 040 042

109 116 124

146 MTC 004 006 062

101 NAD 015 025 NEC 006 007 016

Brand Codes

019 024 040 056 130 132

134 NIKEI 043 ONKING 043 ONWA 043 OPTONICA 019 081 PANASONIC 034 056 080

092 164 PHILCO 003 004 006

024 043 056

059 060 063

064 127 143

164 PHILIPS 003 004 005

006 038 059

070 093 143

160 164 PIONEER 006 018 023

025 027 116

135 176 PORTLAND 004 143 PROSCAN 144 160 161

165 167 PROTON 004 058 116

131 143 171

173 QUASAR 034 056 092 RADIO SHACK 019 043 047

116 127 143 RCA 004 006 023

024 056 065

074 144 152

156 160 161

165 REALISTIC 007 019 043

047 ROCTEC 186 RUNCO 168 169 SAMPO 004 006 058

116 SAMSUNG 004 050 089

101 105 113

116 127 133

137 143 160 SANYO 007 020 021

033 039 053

057 082 166 SCOTT 004 028 043

048 116 143 SEARS 004 007 015

028 030 057

082 094 101

116 143 160

Brand Codes

Sharp 004 014 019

022 028 029 081 143 170

175 SIEMENS 088 SIGNATURE 072 SONY 041 070 079

085 126 139

147 185 SOUNDESIGN 003 004 028

043 116 SPECTRICON 112 SSS 004 043 SUPRE MACY 002 SYLVANIA 003 004 006

044 059 060

063 064 116

127 140 160

164 TANDY 081 TATUNG 056 062 TECHNICS 034 080 084 TECHWOOD 004 TEKNIKA 002 003 004

006 024 028

031 043 072

077 101 103

143 TELEFUNKEN 037 046 086

087 TELERENT 072 TERA 172 TMK 004 116 TOSHIBA 007 015 030

040 051 062

101 138 TOTEVISION 143 UNIVERSAL 008 009 VIDEO CONCEPTS 146 VIDIKRON 174 VIDTECH 004 116 WARDS 004 008 009

019 028 060

061 063 064

072 074 116

143 164 YAMAHA 004 006 YORK 004 116 YUPITERU 043 ZENITH 001 072 073

095 103 157 ZONDA 112

Page 48

PAGE 48

206-03865

Programming Codes

VCRs

Brand Codes

AIWA 034 AKAI 016 043 046

124 125 146 AMPRO 072 ANAM 031 033 103 AUDIO DYNAMICS 012 023 039

043 BROKSONIC 035 037 129 CANON 028 031 033 CAPEHART 108 CRAIG 003 040 135 CURTIS MATHES 031 033 041 DAEWOO 005 007 010

064 065 108

110 111 112

116 117 119 DAYTRON 108 DBX 012 023 039

043 DYNATECH 034 053 ELECTROHOME 059 EMERSON 006 017 025

027 029 031

034 035 036

037 046 101

129 131 138

153 FISHER 003 008 009

010 FUNAI 034 GE 031 033 063

072 107 109

144 147 GO VIDEO 132 136 GOLDSTAR 012 013 020

101 106 114

123 HARMAN KARDON 012 045 HITACHI 004 018 026

034 043 063

137 150 INSTANTREPLAY 031 033 JCL 031 033 JCPENNY 012 013 015

033 040 066

101 JENSEN 043 JVC 012 031 033

043 048 050

Brand Codes

055 060 130 150 152

KENWOOD 014 034 039

043 047 048 LG 255 LLOYD 034 LXI 003 009 013

014 017 034

101 106 MAGIN 040 MAGNAVOX 031 033 034

041 067 068 MARANTZ 012 031 033

067 069 MARTA 101 MATSUI 027 030 MEI 031 033 MEMOREX 003 010 014

031 033 034

053 072 101

102 134 139 MGA 045 046 059 MINOLTA 013 020 MITSUBISHI 013 020 045

046 049 051

059 061 151 MTC 034 040 MULTITECH 024 034 NEC 012 023 039

043 048 NORDMENDE 043 OPTONICA 053 054 PANASONIC 066 070 074

083 133 140

145 PENTAX 013 020 031

033 063 PHILCO 031 034 067 PHILIPS 031 033 034

054 067 071

101 PILOT 101 PIONEER 013 021 048 PORTLAND 108 PULSAR 072 QUARTZ 011 014 QUASAR 033 066 075

145 RCA 013 020 033

Brand Codes

034 040 041 062 063 107 109 140 144 145 147

REALISTIC 003 008 010

014 031 033 034 040 053

054 101 RICO 058 RUNCO 148 SALORA 014 SAMSUNG 032 040 102

104 105 107

109 112 113

115 120 122

125 SANSUI 022 043 048

135 SANYO 003 007 010

014 102 134 SCOTT 017 037 112

129 131 SEARS 003 008 009

010 013 014

017 020 031

042 073 081

101 SHARP 031 054 149 SHINTOM 024 SONY 003 009 031

052 056 057

058 076 077

078 149 SOUNDESIGN 034 STS 013 SYLVANIA 031 033 034

059 067 SYMPHONIC 034 TANDY 010 034 TATUNG 039 043 TEAC 034 039 043 TECHNICS 031 033 070 TEKNIKA 019 031 033

034 101 THOMAS 034 TMK 006 TOSHIBA 008 013 042

047 059 082

112 131

Brands Codes

TOTEVISION 040 101 UNITECH 040 VECTOR RESEARCH 012 VICTOR 048 VIDEO CONCEPTS 012 034 046 VIDEOSONIC 040 WARDS 003 013 017

024 031 033 034 040 053 054 131

YAMAHA 012 034 039

043

ZENITH 001 034 048

056 058 072 080 101

Page 49

PAGE 49

206-03865

Programming Codes

SAT

DVD

Brand Codes

ALPHASTAR DSR 123 AMPLICA 050 BIRDVIEW 051 126 129 BSR 053 CAPETRONICS 053 CHANNEL MASTER 013 014 015

018 036 055

CHAPARRAL 008 009 012

077 CITOH 054 CURTIS MATHES 050 145 DRAKE 005 006 007

010 011 052

112 116 141 DX ANTENNA 024 046 056

076 ECHOSTAR 038 040 057

058 093 094

095 096 097

098 099 100

122 ELECTRO HOME 089 EUROPLUS 114 FUJITSU 017 021 022

Brand Codes

027 133 134

GENERAL INSTRUMENT 003 004 016

029 031 059

101 HITACHI 139 140 HOUSTON TRACKER 033 037 039

051 057 104 HUGHES 068 HYTEK 053 JANIEL 060 147 JERROLD 061 KATHREIN 108 LEGEND 057 LG 255 LUTRON 132 LUXOR 062 144 MACOM 010 059 063

064 065 MEMOREX 057 NEXTWAVE 028 124 125 NORSAT 069 070 PACE SKY SATELLITE 143 PANASONIC 060 142 PANSAT 121

Brand Codes

PERSONAL CABLE 117 PHILIPS 071 PICO 105 PRESIDENT 019 102 PRIMESTAR 030 110 111 PROSAT 072 RCA 066 106 REALISTIC 043 074 SAMSUNG 123 SATELLITE SERVICE CO 028 035 047

057 085 SCIENTIFIC ATLANTA 032 138 SONY 103 STARCAST 041 SUPER GUIDE 020 124 125 TEECOM 023 026 075

087 088 090

107 130 137 TOSHIBA 002 127 UNIDEN 016 025 042

043 044 045

048 049 078

079 080 086

101 135 136

Brand Codes

VIEWSTAR 115 WINEGARD 128 146 ZENITH 001 081 082

083 084 091 120

Brand Codes

APEX DIGITAL 022 DENON 020 014 GE 005 006 GOLDSTAR 010 016 025 HARMAN KARDON 027 JVC 012 LG 001 010 016

Brand Codes

025 MAGNAVOX 013 MARANTZ 024 MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009

Brand Codes

PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006 RCA 005 006 SAMSUNG 011 015 SONY 007

Brand Codes

THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

Page 50

PAGE 50

206-03865

Programming Codes

CATV

Brand Codes

ABC 003 004 039

042 046 052

053 ANTRONIK 014 ARCHER 005 007 014

024 CABLE STAR 026 CENTURION 092 CENTURY 007 CITIZEN 007 COLOUR VOICE 065 090 COMBANO 080 081 COMTRONICS 019 030 DIAMOND 023 EAGLE 020 030 040 EASTERN 057 062 066 ELECTRICORD 032 GE 072 GEMINI 008 022 025

054 GI 052 074 GOLDEN CHANNEL 030 HAMLIN 049 050 055 HITACHI 052 055 HOSPITALITY 070 077 JERROLD 002 003 004

Brand Codes

008 009 010

052 069 074 LG 255 M-NET 037 MACOM 033 MAGNAVOX 010 012 064

079 MEMOREX 001 MOVIE TIME 028 032 NSC 015 028 038

071 073 OAK 016 031 037

053 PANASONIC 044 047 PARAGON 001 PHILIPS 006 012 013

020 065 085

090 PIONEER 034 051 052

063 076 POST NEWS WEEK 016 PRUCER 059 PTS 011 048 071

072 073 074 PULSAR 001 RCA 047

Brand Codes

REGAL 049 050 REGENCY 057 REMBRANT 025 RK 091 SAMSUNG 030 068 SCIENTIFIC ATLANTA 003 011 041

042 043 045

046 SHERITECH 022 SIGNAL 030 SIGNATURE 052 SL MARX 030 SPRUCER 047 078 STARCOM 002 004 008

009 STARGATE 008 030 SYLVANIA 067 TADIRAN 030 TANDY 017 TEXSCAN 029 067 TOCOM 039 040 056 TOSHIBA 001 UNIKA 007 014 024 UNITED CABLE 004 053 UNIVERSAL 005 007 014

024 026 027

Brand Codes

032 035

VIEWSTAR 012 015 018

086 087 088 089

ZENITH 001 060 093

Page 51

PAGE 51

206-03865

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

1. Use a soft cloth with a mild soap solution to wipe the cabinet.

2. Rinse the cloth and wipe the cabinet again.

3. Let the cabinet air-dry before turning the TV on.

Use a quality wood cleaner and polish. This will protect the TV from dirt and dust, as well as keep the cabinet looking new.

If you leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges. If you use an off-air antenna, you may also want to disconnect it from the back of your TV before leaving.

SCREEN CLEANING

EXTENDED ABSENCE

CABINET CLEANING

WOOD CABINETS

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and pull out the power cord before you begin any cleaning.

Page 52

PAGE 52

206-03865

Maintenance continued

Even though you may be getting cable, the signal may be weak, which means the quality of your picture may suffer due to other factors. If there are problems with the image on your TV, consult the Troubleshooting guide on the following pages. You may also want to contact your cable service provider to determine if the problem is from the cable service.

If you use your TV to play video games or for other uses that have single, fixed images, such as a photo-CD player, you should avoid setting the Brightness level too high. If static images, like network identification patterns, are left on the screen for too long, they can leave a permanent impression on the TV screen. You can reduce the chance of this happening by limiting the amount of time you use the fixed-image display, and by reducing the contrast and brightness levels.

VIDEO GAMES AND OTHER FIXED-PATTERN DISPLAYS

PICTURE INTERFERENCE

If you unplug your TV, you may have to reset the clock using the Time menu described earlier.

Page 53

PAGE 53

206-03865

Troubleshooting

SYMPTOM

Snowy picture and unclear sound.

Multiple images or ‘ghost shadows.’

Interference: Sharp lines across the screen and unclear sound.

Normal picture but no sound.

No picture and unclear sound.

No picture and no sound.

No color, but the sound is O.K.

Picture has a big black box on it, but the sound is O.K.

Picture has two horizontal black bars, one on top and one on bottom.

Missing Secret Lock Code

Some quick and easy tips to fixing problems yourself.

POSSIBLE SOLUTIONS

• Check your antenna connection or location.

• Check your cable input.

• Check to see if the TV/VCR button on your VCR has the TV selected.

• Check your antenna direction and/or location.

• Check your cable input.

• Make sure the cable from your antenna to your TV is

properly connected.

The following may cause image problems or distortion: Electrical appliances, powerful lights, cars, trucks; computers or portable phones; medical equipment

• If possible increase the distance between your TV and the offending appliance, or shut one of them off.

• Check volume levels.

• Make sure the TV is not Muted.

• Try another channel. The problem may be with the broadcast, not your TV.

• Are the Audio cables installed properly?

• Are the wires for external speakers (if you have external speakers)

installed properly?

• Make sure your speakers are turned on in the Audio menu.

• If your audio mode is set to SAP, the program may not have SAP.

• Are you in TV or cable tuning mode, and should be in the other?

• Make sure output channels on all A/V equipment are on the same channel (3 or 4).

• Check that all connections are tight.

• Is the AC power plugged in?

• Check that your AC power outlet works. (Test it by plugging in something

else or try another power outlet.))

• Make sure your brightness and audio controls are set properly.

• Try another channel. The problem may be with the broadcast.

• Check the color control in the Video menu.

• Try another channel. The problem may be with the broadcast.

• The CC (closed caption) option may be in Text mode. Select Caption 1, in the

Captions/Text menu., or OFF in the Captions menu.

• Select correct Aspect Ratio in Special menu or with ARC button.

• If you forgot your password, when the display asks you to enter the secret code,

press ‘7’, ‘7’, '7’, ‘7’ on the remote control.

Page 54

PAGE 54

206-03865

Troubleshooting, cont’d

SYMPTOM

Remote control doesn’t work.

Menu options can’t be changed or selected.

No picture or sound when any non-cable source is selected.

Weak or no Stereo Sound when using a stereo VCR.

The PIP inset is black or lacks contrast.

The PIP inset is “snowy” when the source is TV.

Time is incorrect.

POSSIBLE SOLUTIONS

• Make sure the batteries are fresh and installed properly.

• Try unplugging your TV for a few minutes,

then plug it back in.

• Check to see if the source equipment has been turned on.

• Make sure that the connections are secure on the back of your TV and on the

source equipment.

• Check to see if all the connections are secure.

• Look in the Audio mode menu to see if all the settings are correct.

• You are using channel 3 or 4 to view your VCR. No stereo sound is present

under that decision.

• Check to be sure that the PIP source is turned on.

• Check that all the wires are connected properly.

• Check to see if your input source for PIP is set correctly.

• Look to see if the TV/VCR button on your VCR has the TV selected or change

the PIP to another source.

• Make sure the time was set initially. Probably power was lost.

Page 55

PAGE 55

206-03865

Glossary

A list of definitions for some of the words found in this guide.

75 OHM RF CABLE The round cable that comes from an off-air antenna or cable service

provider. Each end looks like a hex shaped nut with a wire sticking through the middle, and it screws onto the threaded jack on the back of your TV.

A/V CABLES Audio/Video cables. Three cables - Right audio (red), Left audio (white),

and Video (yellow). A/V cables are used for stereo playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box,

or television).

ADD This function lets you add new channels to the channel list in memory

that you’ll scroll through when using your remote.

AMPLIFIER An external device that amplifies sound from a television, CD player, VCR,

DVD or other A/V device.

ANALOG TV Traditional method of representing a television signal as a replica (analog)

of the original picture and sound.

ANTENNA The physical receiver of television signals sent over the air. A large metal

piece of equipment does not always have to be visible for your home to be using an antenna.

ARC The ratio of the horizontal dimension to the vertical dimension of a pic-

ture. Standard television in the U.S. today is generally transmitted and displayed in a 4:3 aspect ratio. High-Definition television will normally be formatted in a wider aspect ratio, assumed to be 16:9.

CAPTIONS A form of subtitling that writes out the dialog for your program on the

screen.

CONVERGENCE This option lets you correct for color separation in your picture.

DELETE This function lets you remove channels that you don’t watch from the

channel list in memory.

DIGITAL TV A new method of representing a television signal as a series of binary

numbers (1s and 0s). This method allows the signal to be manipulated to eliminate redundancy and dramatically increase picture and sound quality.

DOLBY DIGITAL Dolby Digital Cinema Sound is made possible by a new digital coding tech-

nique called Dolby AC-3. Dolby AC-3 produces high-quality, 5.1 channel surround sound which is six discrete separate channels for a full range of sound. Each channel can carry a different signal simultaneously (front center, front left, front right, surround left, surround right and subwoofer).

(Aspect Ratio Control)

Page 56

PAGE 56

206-03865

Glossary continued

A list of definitions for some of the words found in this guide.

FAVORITE CHANNELS This function created a customized list of your favorite chan-

nels. You can access this group of channels with the FCR button on the remote by pressing FCR repeatedly.

INPUT Refers to the jack that receives a signal into the TV, VCR or

other A/V device.

JACK A connection on the back of a TV, VCR, or any other A/V

device. This includes the RF jacks and the Audio/Video jacks that are color-coded.

MODE The mode determines the type of device (TV, VCR, Cable, Aux)

that the remote is controlling; remote operating mode.

MONO SOUND Mono (monaural) sound is one channel of sound. On more

than one speaker, all the speakers play the same audio.

OUTPUT Refers to the jack that sends a signal out of a VCR, DVD, or

other A/V device.

PIP This is the most common way to refer to the Picture-In-Picture

(PIP) option.

SECOND AUDIO Second Audio Programming (SAP) is another, separate, audio

channel available with some programming. Choosing SAP often refers to listening to audio in another language, such as Spanish or French.

SIGNAL Picture and sound traveling through cable, or on the air, to

your television screen.

SOURCE The term for the equipment that provides audio and video

information to your TV. Antenna, VCR, DVD players, and Cable Boxes are examples of sources.

STEREO SOUND Stereo (stereophonic) sound refers to audio that’s divided into

right and left sides.

TEXT Arbitrary text not related to the program.

TUNER Any device that picks up broadcast signals and turns them into

picture and sound.

PROGRAMMING/SAP

Page 57

PAGE 57

206-03865

Product Specifications

Specifications

Power requirements 120V, 60 Hz Number of inputs/outputs

Video (In) 3 1 Vp-p, 75 ohms unbalanced, sync negative Video (Out) 1

S Video (In) 2 Y: 1 Vp-p, 75 ohms unbalanced, sync negative

C: 0.280 Vp-p (burst signal), 75 ohms

Audio (In) 5 500 mVrms (100% modulation), Impedance: 47 kilohms

Audio (Out) 1 More than 408 mVrms at the maximum volume setting (variable)

Impedance (output): 2 kilohms

Component input 2 Y: 1.0 Vp-p, 75 ohms w/sync

2 PB: 0.7 Vp-p, 75 ohms 2 PR: 0.7 Vp-p, 75 ohms

Speaker output (W) 15W x2

Power consumption (W)

In use (max.) 300W

In standby 2W

Weight (lbs) 145.5 (R49W36), 158.7 (R56W36)

Television system American TV Standard, NTSC, ATSC with STB

Channel coverage VHF: 2 - 13

UHF: 14 - 69 CATV: 1 - 125

Antenna 75 ohm external terminal for VHF/UHF

Supplied accessories Remote control, batteries 2 size AA (Alkaline battery)

Screen Aspect Ratio 16 x 9

Design and specifications are subject to change without prior notice.

Page 58

PAGE 58

206-03865

Notes

Page 59

PAGE 59

206-03865

Notes

Page 60

Zenith Part No. 206-3865

P/N : 3828VA0220N (SP02PC)

ZENITH ELECTRONICS CORPORATION Projection TV Limited Warranty - USA

Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period ("Warranty Period") listed below, effective from the date ("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the

exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that may vary from state to state.

1.Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration, maintenance or failure to maintain, or separate system components; and

2. Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident, lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer software, institutional or commercial use, or other causes not arising out of defect in material or workmanship.

3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the consumer.

ZENITH ELECTRONICS CORPORATION 2000 MILLBROOK DRIVE LINCOLNSHIRE, IL 60069

THIS LIMITED WARRANTY DOES NOT APPLY TO:

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

For nearest Authorized Service Center, Where to buy, Product Assistance, or Customer Assistance

Call 1-877-9Zenith (1-877-993-6484) (Monday~ Friday, 7 AM ~ 8 PM CT and Saturday, 8 AM ~ 5 PM CT) and select an appropriate option from the menu.

Or visit our website at http://www.zenithservice.com

WARRANTY PERIOD:

LABOR: One Year from the Date of Purchase.

Parts: One Year from the Date of Purchase.

CRT Picture Tubes: 2 Years from the Date of

Purchase.

Parts replaced are warranted for the remaining portion of the original warranty period.

HOW SERVICE IS HANDLED

In-Home Service: Please retain dealer’s dated bill of sale or

delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.

Please call 1-877-9Zenith (1-877-993-6484) to locate your nearest Zenith Authorized Service Center.

Replacement parts may be new or factory remanufactured.

Zenith R56W36, R49W36 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
