Page 1
Installation and Operating Guide
Model Numbers | P50W26, P50W26B | PLASMA DISPLAY PANEL
© Copyright 2002, Zenith Electronics Corporation.
Page 2
WARNING
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
FCC NOTICE
• P50W26: A Class A digital device
This equipment has been tested and found to comply with the limits for a Class Adigital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
• P50W26B: A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
CAUTION:
COMPLIANCE:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics
Corporation. Unauthorized modification could void the user’s authority to operate this product.
The responsible party for this product’s compliance is:
Zenith Electronics Corporation
2000 Millbrook Drive
Lincolnshire, Il 60069, USA
Phone: 1-847-941-8000
WARNING
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
2
Page 3
PORTABLE CART WARNING
SAFETY INSTRUCTIONS
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical
shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the
following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation that are
built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a wet basement, or
near a swimming pool.
7. Accessories Carts and Stands
Do not place this product on a slippery or tilted surface, or on an
unstable cart, stand, tripod, bracket, or table. The product may
slide or fall, causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the
product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the product and cart combination to overturn.
case or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your product dealer
or local power company. For products intended to operate from
battery power, or other sources, refer to the operating instructions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type plug,
a plug having a third (grounding) pin. This plug will only fit into
the grounding-type power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to
provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.),
ANSI/ NFPA 70 provides information with regard to proper
grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
9. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a book-
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
(Continued on next page)
3
Page 4
SAFETY INSTRUCTIONS
(Continued from previous page)
15. Lightning
For added protection for this product (receiver) during a lightning
storm, or when it is left unattended and unused for long periods
of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due
to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the prod-
uct.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjust-
ment of other controls may result in damage and will often
require extensive work by a qualified technician to restore
the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or
other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask
the service technician to perform safety checks to determine that
the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall,
causing serious injury to a child or adult, and serious damage to
the product.
24. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
The PDP Manufacturing Process: Why colored dots may be present on the PDP screen
The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several colored dots visible on the screen should be acceptable. This also occurs in other PDP manufacturers' products and the dots appearing does not mean that this PDP is defective. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is
designed to minimize cell defects.
Cooling Fan Noise
In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped
with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans
are operating and cooling the PDP.
This noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during
the operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is
not sufficient cause for the PDP to be exchanged or returned.
4
Page 5
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Step 1. Monitor Installation & Setup
Controls and Connection Options . . . . . . . . . . . .6
External Equipment Viewing Setups . . . . . . .7~10
Remote Control Key Functions . . . . . . . . . . . . .11

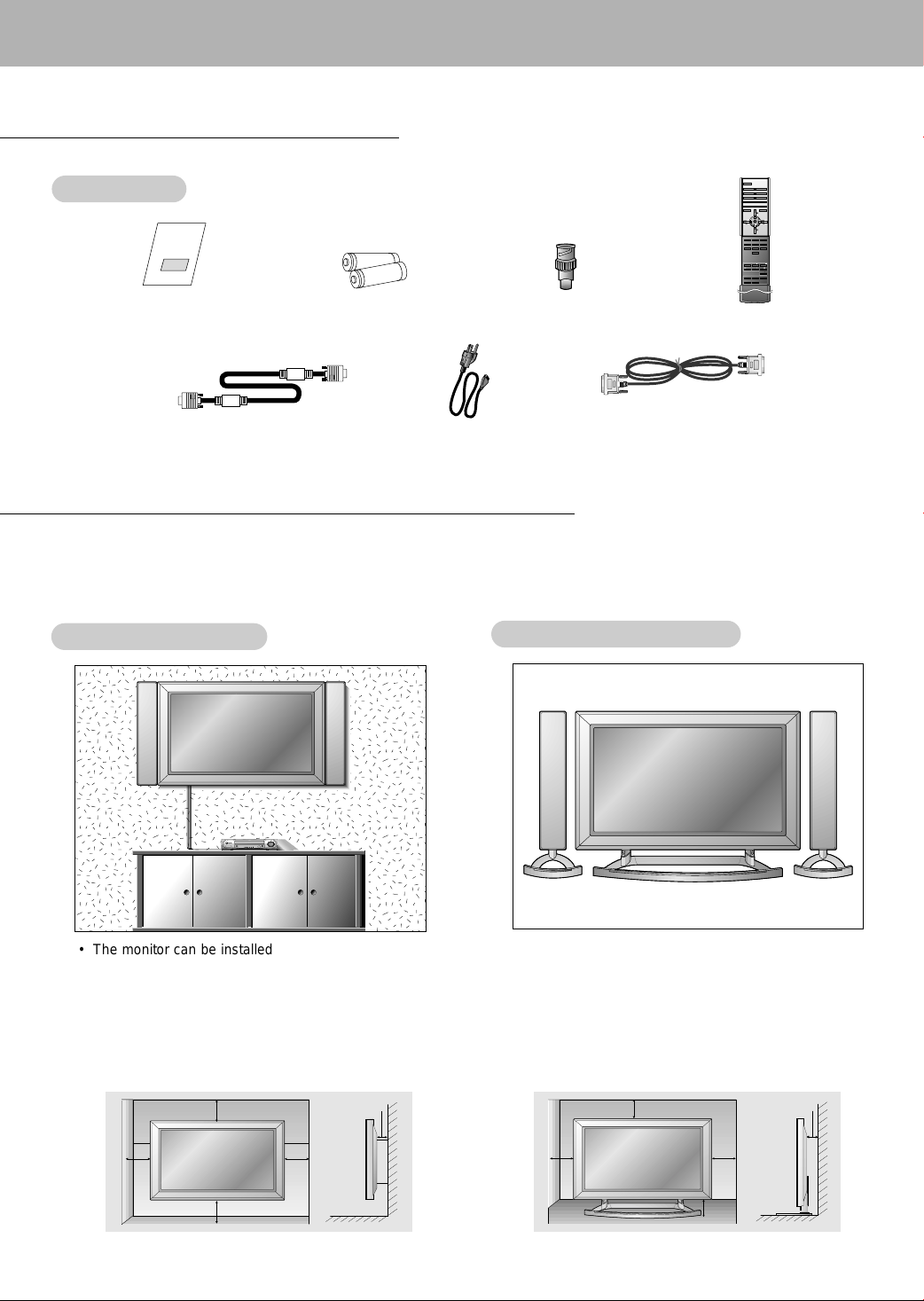

Monitor Accessories . . . . . . . . . . . . . . . . . . . . .12
Monitor Installation/Mounting Options . . . . . . . .12
Step 2. Customize your Monitor’s Features
Basic Features Setup and Operation

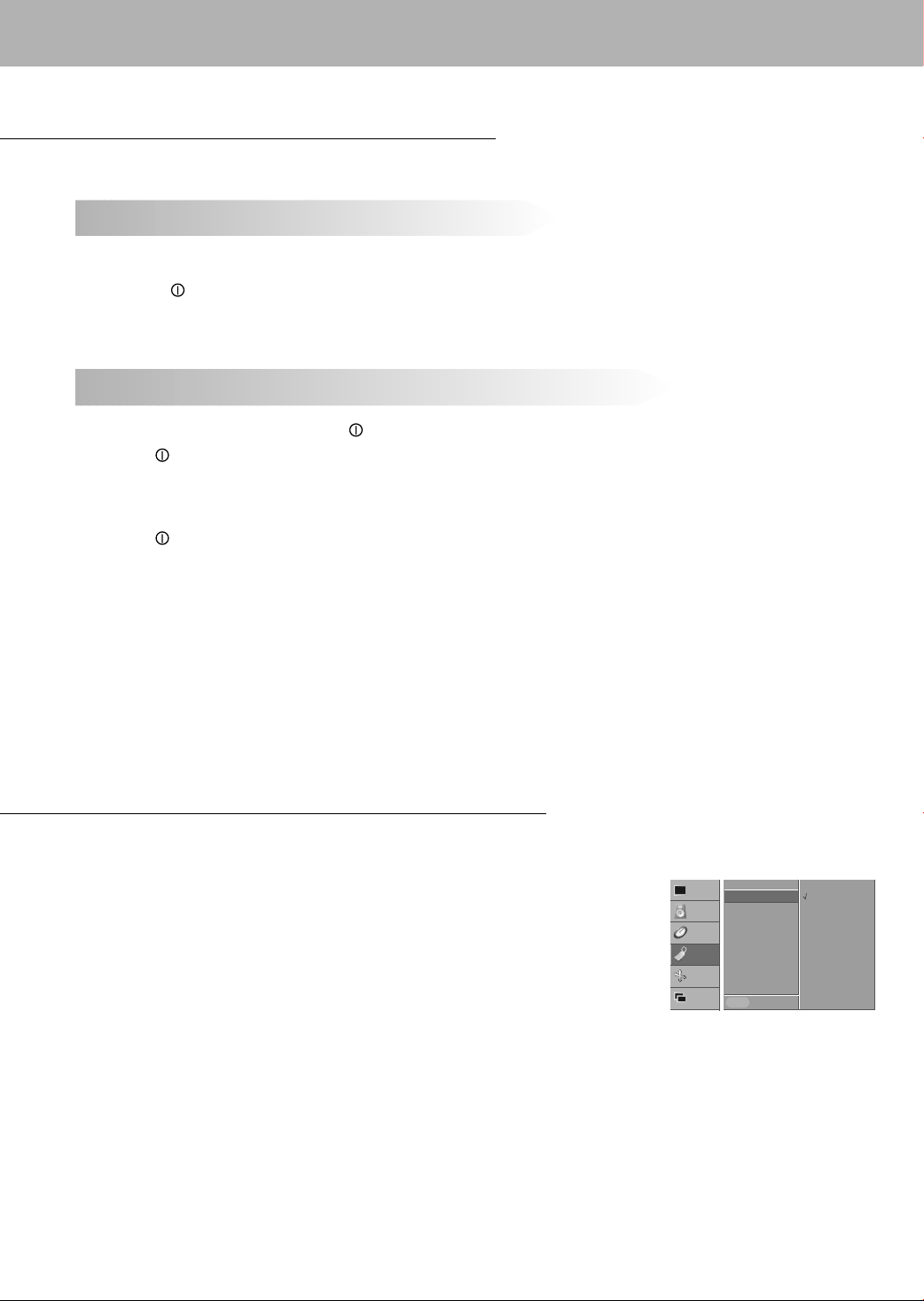

Turning on the Monitor . . . . . . . . . . . . . . . . . . .13
Menu Language Selection . . . . . . . . . . . . . . . .13

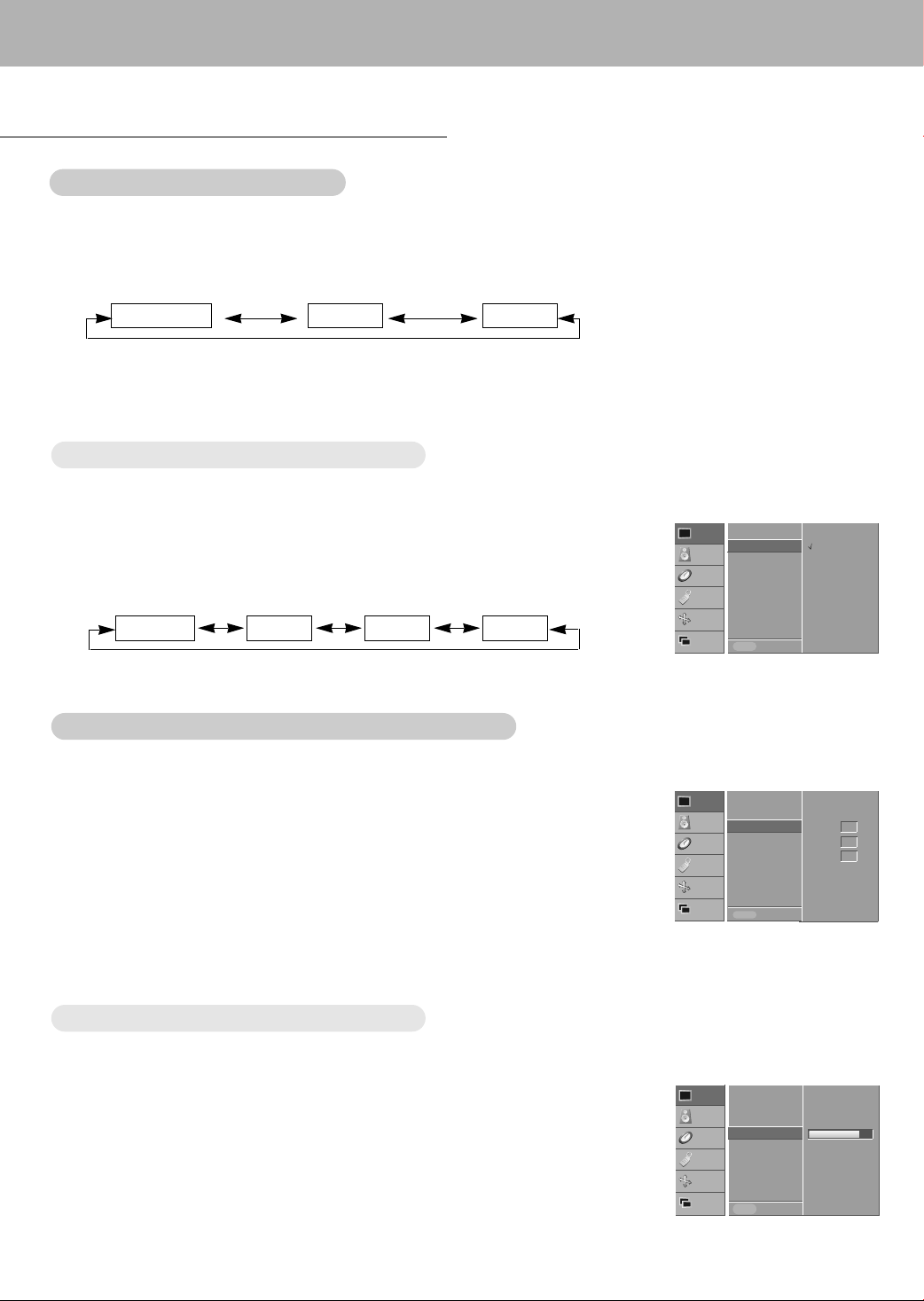

Video Menu Options
APC (Auto Picture Control) . . . . . . . . . . . . . . . .14
Adjusting Auto Color Control . . . . . . . . . . . . . . .14
Manual Color Temperature Control . . . . . . . . . .14
Manual Picture Control . . . . . . . . . . . . . . . . . . .14
Audio Menu Options
DASP (Digital Auto Sound Processing) . . . . . . .15
AVL(Auto Volume Leveler) . . . . . . . . . . . . . . . .15
Adjusting Sound (Manual Settings) . . . . . . . . . .15
Time Menu Options
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the On/Off Timer . . . . . . . . . . . . . . . . .16
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Special Menu Options
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Orbiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
White Wash . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Screen Menu Options
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .18
Setting Picture Format . . . . . . . . . . . . . . . . . . .18
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Screen Position . . . . . . . . . . . . . . . . . . . . . . . . 19
Manual Configure . . . . . . . . . . . . . . . . . . . . . . .19
Screen Adjustments . . . . . . . . . . . . . . . . . . . . .19
Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PIP (Picture In Picture) Feature
Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . .20
PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PIP Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . .20
Swapping PIP . . . . . . . . . . . . . . . . . . . . . . . . . .20
Moving PIP . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Selecting a Input Signal Source for PIP . . . . . . .20
Main Picture Size Adjustment . . . . . . . . . . . . . .20
Main Picture Position Adjustment . . . . . . . . . . .20
Twin Picture Setup Options
Main Picture Size Adjustment . . . . . . . . . . . . . .21
Sub Picture Size Adjustment . . . . . . . . . . . . . . .21
Selecting a Source for the Twin Picture . . . . . . .21
Swapping the Twin Picture . . . . . . . . . . . . . . . .21
Step.3 Miscellaneous
External Control Device Setup . . . . . . . . . . . . .22
IR Code (NEC format) . . . . . . . . . . . . . . . . . . .27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Troubleshooting Checklist . . . . . . . . . . . . . . . . .30
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .31
Setup and Operation Checklist
Setup and Operation Checklist
(See page 7 for available connection and operational setup options.)
1. Unpack Monitor and all accessories.
2. Connect all external video and audio equipment.
see pages 7 ~ 9.
3. Install batteries in remote control.
See page 11.
4. Turn Monitor on.
See page 13.
After reading this manual, keep it handy for future reference.
5. Turn video source equipment on.
6. Select viewing source for Monitor.
See page 11.
7. Fine-tune source image and sound to personal preference or as required by source.
See pages 14, and 15.
8. Additional features Setup
See Table of Contents.
5
Page 6
Monitor Controls
VOL. MENU INPUT SELECT
ON/OFF
YPBP
R
( )
( )
R
(MONO)
R
AUDIO
ON/ OFF
L
R
AUDIO
L
( )
( )
L
AC INPUT
(8Ω)
EXTERNAL SPEAKER
COMPONENT
(DVD/DTV INPUT)
RGB1 OUTPUT
(PC/DTV OUTPUT)
LOCK
REMOTE
CONTROL
CONTROL
RGB1 INPUT
(PC/DTV INPUT)
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
VIDEO
RGB2 INPUT
(DIGITAL RGB INPUT)
RS-232C INPUT
(CONTROL/SERVICE)
S-VIDEO
EXTERNAL SPEAKER
Front Panel Controls
Power Standby Indicator
Illuminates red in standby mode,
Illuminates green when the
Monitor is turned on
D,E Buttons
INPUT SELECT Button
MENU Button
VOLUME (F,G) Buttons
Main Power Button
Remote Control Sensor
Connection Options
Back Connection Panel
1 2 3 4785 6 1
1. EXTERNAL SPEAKER (8 ohm output)
Connect to optional external speaker(s).
*For further information, refer to ‘Speaker & Speaker Stand’
manual.
5. CONTROL LOCK Switch
REMOTE CONTROL
When “CONTROLLOCK” is set “ON”, Monitor is operated by
the external control device.
2. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate
the Monitor on DC power.
3. AUDIO/VIDEO INPUT JACKS
Connect audio/video out from external equipment to these
jacks.
S-VIDEO INPUTS (S-VIDEO)
Connect video out from an S-VIDEO VCR to the S-VIDEO
input.
4. COMPONENT(DVD/DTV INPUT)/AUDIO INPUT JACKS
6
6. RGB1 OUTPUT(PC/DTV OUTPUT) JACKS
Y ou can watch the RGB1 signal on another monitor, connect
RGB1 OUTPUT (PC/DTV OUTPUT) to another monitor’s
PC input port.
7. AUDIO INPUT/RGB1 INPUT(PC/DTV INPUT)/
RGB2 INPUT(DIGITAL RGB INPUT) JACKS
Connect the monitor output socket of the PC to this socket.
8. RS-232C INPUT(CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
Page 7
External Equipment Connections
YPBP
R
( )
( )
R
(MONO)
R
AUDIO
ON/ OFF
L
R
AUDIO
L
( )
( )
L
AC INPUT
(8Ω)
EXTERNAL SPEAKER
COMPONENT
(DVD/DTV INPUT)
RGB1 OUTPUT
(PC/DTV OUTPUT)
LOCK
REMOTE
CONTROL
CONTROL
RGB1 INPUT
(PC/DTV INPUT)
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
VIDEO
RGB2 INPUT
(DIGITAL RGB INPUT)
RS-232C INPUT
(CONTROL/SERVICE)
S-VIDEO
EXTERNAL SPEAKER
Monitor External Equipment Connection Panel
AUDIO INPUT
VIDEO INPUT
S-VIDEO
INPUT
COMPONENT
(DVD/DTV
INPUT)
COMPONENT
AUDIO
INPUT
RGB
AUDIO INPUT
RGB1 INPUT
(PC/DTV
RGB2 INPUT
(DIGITAL
RGB INPUT)
RS-232C INPUT
INPUT)
Connection to AV equipment
Note: All cables shown are not provided with the Monitor, except:
A D-sub 15 pin cable and DVI cable is supplied to connect the Monitor to a PC.
Connection to PC
7
Page 8
External Equipment Viewing Setups
atching VCR Setup
WWatching VCR Setup
- When connecting the Plasma Monitor to external equipment, match the colors of connecting ports (Video - yellow,
Audio (L) - white, Audio (R) -red).
- Connect the VIDEO INPUT socket (yellow) with the BNC-RCA adapter to the VIDEO INPUT on the Monitor.
- If you have a mono VCR, connect the audio cable from the VCR to the AUDIO (L/MONO) input on the Monitor.
- If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.
- Use the orbiter function to Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen
still picture from a VCR.
If a 4:3 picture format is used; the fixed image may remain visible on the screen.
- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor
1. Use the INPUT SELECT button on the remote control to select VIDEO.
(If connected to S-VIDEO, select the
2. Insert a video tape into the VCR and press the PLAY button on the VCR. (See VCR owner ’s manual)
S-VIDEO external input source.)
atching Cable
WWatching Cable
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming. This monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the Monitor.
- For further information regarding cable TV service, contact your local cable TV service provider(s).
1. Use the INPUT SELECT button on the remote control and select
2. Tune to cable service provided channels using the cable box.
atching External
WWatching External
- When connecting the monitor to an external source, match the colors of AUDIO/VIDEO input jacks on the monitor with
the output jacks on the audio/video equipment: Video = yellow, Audio (Left) = white, Audio (Right) = red.
1. Use the INPUT SELECT button on the remote control to select
2. Operate the corresponding external equipment. See external equipment operating guide.
atching DVD Setup
WWatching DVD Setup
How to connect
Connect DVD video inputs to Y, PB, PR of COMPONENT (DVD/DTV
INPUT) and audio inputs to Audio sockets of AUDIO INPUT.
How to use
1. Turn on the DVD player, and insert a DVD.
2. Use INPUT SELECT button on the remote control to select COMPO-
. Refer to the DVD player's manual for operating instructions.
NENT
TV Setup
TV Setup
A/V Source Setup
A/V Source Setup
VIDEO.
VIDEO.
• Component Input ports
You can get better picture quality if you connect DVD player with component input ports
as below.
Component ports of the
Video output ports
of DVD player
Monitor
PB
Pb
B-Y
Cb
PB
PR
Pr
R-Y
Cr
P
Y
Y
Y
Y
Y
R
8
Page 9
atching DTV Setup
WWatching DTV Setup
- To watch digitally broadcast programs, purchase/connect a digital SET-TOP BOX.
How to connect a user-supplied Digital Set-Top Box
• Connect DTV set-top box video output to monitor COMPONENT (DVD/DTV INPUT) or to the monitor RGB1 (PC/DTV
INPUT) connector depending on your Set Top Box connectors.
• Connect DTV set-top box audio outputs to monitor AUDIO INPUT jacks.
How to use
1. Turn on the digital SET-TOP BOX. (Refer to the owner’s ,manual for the digital SET-TOP BOX.)
2. Use INPUT SELECT on the remote control to select COMPONENT or RGB 1.
PC Setup
PC Setup
- To enjoy vivid picture and sound, connect a PC to the Monitor.
- Avoid keeping a fixed image on the monitor’s screen for a long period of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible.
- Connect PC to the RGB1 INPUT(PC/DTV INPUT) or RGB2 INPUT(DIGITALRGB INPUT) port of the Monitor; change the
resolution output of PC accordingly.
- Synchronization input form; Separate
Setup Instructions to Connect a PC to your Monitor
- If the resolution of PC is over UXGA, there will be no picture on the Monitor.
- Connect the signal cable from the monitor output port of the PC to the RGB1 INPUT(PC/DTV INPUT) port of the Monitor
or the signal cable from the DVI output port of the PC to the RGB2 INPUT(DIGITALRGB INPUT) port on the Monitor.
- Connect the audio cable from the PC to the Audio input on the Monitor. (Audio cables are not included with the Monitor).
- If using a sound card, adjust PC sound as required.
- This monitor apply a VESA Plug and Play Solution. The monitor provides EDID data to the PC system with a DDC protocol. The PC adjusts automatically to use this monitor.
- DDC protocol is preset for RGB1 (Analog RGB), RGB2 (DVI, Digital RGB) mode.
- If required, adjust the monitor settings for Plug and Play functionally.
- If graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of both RGB1 INPUT
(PC/DTV INPUT) or RGB2 INPUT (DIGITAL RGB INPUT) to display the PC on the monitor.
If graphic card on the PC does output analog and digital RGB simultaneously, set the monitor to either RGB1 or RGB2;
(the other mode is set to Plug and Play automatically by the monitor.)
- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scanning rate for the graphic card.
PC Setup
1. Turn on the PC and apply power to the Monitor.
2. Turn on the display by pressing the POWER button on the Monitor’s remote control.
3. Use the INPUT SELECT button on the remote control to select the RGB1 or RGB2 input source.
4. Set the resolution output of the PC to SXGA or under (1280 x 1024, 75Hz).
9
Page 10
Monitor Display Specifications
Monitor Display Specifications
RGB1 Mode
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
45.913
53.011
64.062
35.156
37.879
46.875
53.674
56.000
64.016
Vertical
Frequency(Hz)
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
90.03
100.04
120.00
56.25
60.31
75.00
85.06
90.00
100.00
Horizontal
Frequency(KHz)
49.725
48.363
56.476
60.023
68.677
54.348
63.995
67.500
77.487
68.681
75.000
63.981
79.976
o
o
o
o
o
o
o
o
o
o
Resolution
832x624
1024x768
1152x864
1152x870
1280x960
1280x1024
DDC DDC
Vertical
Frequency(Hz)
74.55
60.00
70.06
75.02
84.99
60.05
70.01
75.00
85.05
75.06
75.00
60.02
75.02
o
o
o
o
o
o
o
o
o
o
o
o
o
RGB2 Mode
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
Vertical
Frequency(Hz)
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
56.25
60.31
72.18
75.00
85.06
DDC DDCResolution
832x624
o
o
o
o
o
o
o
o
o
o
o
1024x768
1152x864
1152x870
1280x960
1280x1024
Horizontal
Frequency(KHz)
49.725
48.363
56.476
60.023
68.677
54.348
63.995
67.500
77.487
68.681
60.000
75.000
63.981
Vertical
Frequency(Hz)
Notes:
• DOS mode may not work depending on video card if using a DVI-I cable.
• There might be a noise according to any resolution, contrast, or brightness in PC mode. Then change the PC
mode into other resolution or adjust brightness and contrast on the menu until the picture is clean.
74.55
60.00
70.06
75.02
84.99
60.05
70.01
75.00
85.05
75.06
60.00
75.00
60.02
o
o
o
o
o
o
o
o
o
o
o
o
o
10
Page 11
Remote Control Key Functions
123
456
7809
POWER
SLEEP INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM +
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
- When using the remote control aim it at the remote control sensor of the Monitor.
- There's maybe a defect in consecutive operation of remote control in specified brightness according to this monitor
feature.
Switches the Monitor on from
standby or off to standby.
Sets the sleep timer.
Adjusts the factory preset picture
according to the room.
Displays on screen menus one by one.
Changes the picture format.
Switches the sub picture on or off.
Exchanges main and sub picture
images. (Refer to p.20, 21)
Exits the current menu.
Memorizes menu changes.
NUMBER buttons
POWER
SLEEP
(Refer to p.16)
APC
(Refer to p.14)
ARC
(Refer to p.18)
PIP
(Refer to p.20)
SWAP
MENU
INPUT SELECT
Selects:
VIDEO, S-VIDEO, RGB1/2
or COMPONENT mode.
DASP
To select the sound appropriate to
your viewing program character:
FLAT, SPORTS, CINEMA, MUSIC,
or USER (Refer to p.15)
PIP ARC
Changes the PIP picture format.
(Refer to p.20)
TWIN PICTURE
(Refer to p.21)
SUB INPUT
Selects the input mode for the sub
picture.
MUTE
Switches the sound on or off.
OK
D / E
Selects a menu option.
Adjusts the sub picture size.
WIN.POSITION
Moves the sub picture.
Enlarge the screen with regular
Installing Batteries
Installing Batteries
ZOOM-/ZOOM+
Enlarges or reduces
the main picture size.
F / G (Volume button)
Increases/decreases sound level.
Adjusts menu settings.
WIN. SIZE
VCR BUTTONS
Controls some video cassette
recorder.
SPLIT ZOOM
ration.
• Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
• Install two 1.5V alkaline batteries of AAAtype. Don’t mix used
batteries with new batteries.
11
Page 12
Monitor Overview
1.5V
1.5V
123
456
7809
POWER
SLEEP INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM +
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
Accessories
Owner’s Manual
D-sub 15 pin cable
Alkaline batteries
Power Cord
BNC-RCA adapter
Remote Control
DVI Cable
Monitor Installation Options
• The Monitor can be installed in various ways such such as on a wall, or on a desktop etc.
• Install this monitor only in a location where adequate ventilation is available.
• It is recommended that this product only be used at an altitude of less than 6561 feet (2000m) to get the best quality
picture and sound.
Wall Mount Installation
Desktop Pedestal Installation
• The monitor can be installed on the wall as shown
above. (For further information, refer to the optional
‘Wall Mounting Bracket Installation and Setup Guide’.)
• Speakers and speaker stands shown are optional,
and shown for example only.
To Mount on a Wall
Wall mount minimum allowable clearances for
adequate ventilation.
4 inches
4 inches4 inches
12
4 inches
2 inches
• The Monitor can be mounted on a desk as shown
above. (For further information, refer to the optional
Desktop Stand Installation and Setup Guide.)
• Speakers and speaker stands shown are optional, and
shown for example only.
To Install on a Desktop
Pedestal mount minimum allowable clearances for
adequate ventilation.
2 inches
4 inches
4 inches
4 inches
2.36 inches
Page 13
Turning on the Monitor
한국어
- When using the remote control, aim it at its sensor on the Monitor.
Tu rning on the Monitor just after installation
1. Connect power cord correctly.
2. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to
standby mode. Press the INPUT SELECT button on the Monitor or press the POWER,
INPUT SELECT button on the remote control and then the Monitor will switch on.
Turning on the Monitor (power cord is still connected)
1. If the Monitor was turned off with the ON/OFF button on the Monitor
• Press the ON/OFF button on the Monitor to turn the Monitor on.
2. If the Monitor was turned off with the remote control or the ON/OFF button on the Monitor
• Press the ON/OFF button on the Monitor and then press the INPUT SELECT button on the
Monitor or press the POWER, INPUT SELECT button on the remote control to turn the Monitor on.
Menu Language Selection
- The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
D/ E
D/ E
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the MENU button.
button to select the SPECIAL menu.
D/ E
button to select LANGUAGE.
button to select your desired language.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
LANGUAGE G
KEY LOCK
ORBITER
WHITE WASH
SET ID
MENU
PREV.
ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
13
Page 14
Video Menu Options
0
0
0
APC (Auto Picture Control)
APC (Auto Picture Control)
- This function adjusts the Monitor to the best picture appearance.
1. Press the APC button to select the picture appearance setup option.
• Each press of the APC button changes the screen display as shown below.
CLEAR SOFT USER
• You can also select CLEAR, SOFT or USER in the VIDEO menu.
• Picture options CLEAR and SOFT are preset and programmed for good picture quality at the factory
and cannot be changed.
Adjusting
Adjusting
Auto Color Control
Auto Color Control
- To initialize values (reset to default settings), select the NORMAL option.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the
• Each press of
NORMAL COOL WARM USER
Manual Color TT
Manual Color
button to select the desired color temperature.
D / E
button changes the screen display as shown.
D / E
emperature Control (User option)
emperature Control (User option)
D / E
button to select the VIDEO menu.
D / E
button to select ACC .
- You can adjust red, green, or blue to any color temperature you prefer.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
4. Use the
F / G button to make appropriate adjustments.
D / E
D / E
button to select the VIDEO menu.
D / E
button to select the COLOR TEMP. option.
button to select a color.
5. Press the MENU button.
• The adjustment range of
RED, GREEN and BLUE is -10~+10.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
APC
ACC G
COLOR TEMP.
CONTRAST 85
BRIGHTNESS 60
COLOR 50
SHARPNESS 50
TINT 0
MENU
PREV.
APC
ACC
COLOR TEMP. G
CONTRAST 85
BRIGHTNESS 60
COLOR 50
SHARPNESS 50
TINT 0
MENU
PREV.
NORMAL
COOL
WARM
USER
RED
GREEN
BLUE
Manual Picture Control (User option)
Manual Picture Control (User option)
- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.
- PIP settings are not adjustable.
1. Press the MENU button and then use
2. Press theGbutton and then use
D / E
button to select the VIDEO menu.
D / E
button to select the desired picture option.
3. Press the G button and then use F / G button to make appropriate adjustments.
4. Press the MENU button.
14
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
APC
ACC
COLOR TEMP.
CONTRAST 85 G
BRIGHTNESS 60
COLOR 50
SHARPNESS 50
TINT 0
MENU
PREV.
Page 15
Audio Menu Options
DASP
(Digital
DASP
(Digital
- This function lets you enjoy the best sound without any special adjustment because the Monitor automatically
selects the appropriate sound option based on the program content.
1.Press the DASP button to select the picture appearance setup.
• You can also select FLAT, SPORTS, CINEMA, MUSIC, or USER in the AUDIO menu.
Auto Sound Processing)
Auto Sound Processing)
FLAT SPORTS CINEMA MUSIC USER
(Auto V
AAVLVL(Auto V
olume Leveler)
olume Leveler)
- This feature maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
D / E
D / E
button to select the AUDIO menu.
D / E
button to select AV L .
button to select ON or OFF.
4. Press the MENU button.
Adjusting Sound (Manual Setting)
Adjusting Sound (Manual Setting)
Press the MENU button and then use
1.
2. Press the G button and then use
3. Press the
G button and then use F / G button to make appropriate adjustments.
D / E
button to select the AUDIO menu.
D / E
button to select the desired sound item.
4. Press the MENU button.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
DASP
AVL G
TREBLE 50
BASS 50
BALANCE 0
MENU
PREV.
DASP
AVL
TREBLE 50 G
BASS 50
BALANCE 0
MENU
PREV.
ON
OFF
15
Page 16
Time Menu Options
12 00
30
:
zzz
z
-- --:
Setting the Clock
Setting the Clock
- If current time setting is erased by a power failure, if TV is unplugged or if the monitor is turned off with
the ON/OFF button on the monitor, reset the clock.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
4. Press the
G button and then use
D / E
D / E
D / E
button to select the TIME menu.
D / E
button to select CLOCK.
button to set the hour.
button to set the minutes.
5. Press the MENU button.
Setting the On/Off f TT
Setting the On/Of
imer
imer
- Timer function operates only if current time has been already set.
- Off-Timer function overrides On-Timer function if they are set to the same time.
- The monitor must be in standby mode for the On Timer to work.
1. Press the MENU button and then use
2. Press the
3. Press the G button and then use
4. Press the G button and then use
5. Press the
G button and then use
G button and then use
D / E
D / E
D / E
D / E
6. For only ON TIMER function; Press the G button and then use
button to select the TIME menu.
D / E
button to select OFF TIMER/ON TIMER.
button to select ON.
button to set the hour.
button to set the minutes.
button to set
D / E
volume level.
7. Press the MENU button.
- To cancel ON/OFF TIMER function
Press the
button to select OFF in step 3.
D / E
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
CLOCK G
OFF TIMER
ON TIMER
AUTO OFF
MENU
PREV.
CLOCK
OFF TIMER
ON TIMER G
AUTO OFF
MENU
PREV.
OFF
ON
VOL
Auto Offf
Auto Of
- If there is no input signal, the Monitor turns off automatically after 10 minutes.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the
G button and then use
D / E
D / E
4. Press the MENU button.
Sleep TT
Sleep
imer
imer
button to select the TIME menu.
D / E
button to select AUTO OFF.
button to select ON or OFF.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
- Sleep timer turns the Monitor off at the preset time.
- Press the SLEEP button to select the number of minutes. The display --- MIN will appear on the screen, fol-
lowed by
10, 20, 30, 60, 90, 120, 180 and 240. The timer begins to count down from the number of minutes selected.
- When the sleep time you want is displayed on the screen, press the OK button.
a. To check the remaining sleep time, press the SLEEP or OK button once.
b. To cancel the sleep time, repeatedly press the SLEEP button until the display --- MIN appears.
c. If you turn the monitor off after setting the sleep timer, the setting will be erased.
16
CLOCK
OFF TIMER
ON TIMER
AUTO OFF
MENU
PREV.
G OFF
ON
Page 17
Special Menu Options
W
Key Lock
Key Lock
- The monitor can be set up so that it can only be used with the remote control.
- This feature can be used to prevent unauthorized viewing.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
D / E
D / E
4. Press the MENU button.
With the lock on, the display KEY LOCK appears on the screen if any button on the front
panel is pressed while viewing the monitor.
button to select the SPECIAL menu.
D / E
button to select KEY LOCK.
button to select ON or OFF.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
LANGUAGE
KEY LOCK G
ORBITER
WHITE WASH
SET ID
MENU
PREV.
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
- In KEY LOCK ‘ON’, if the monitor is turned off with the remote control, press the INPUT SELECT button on
the monitor or POWER, INPUT SELECT on the remote control.
- With the KEY LOCK ON, the display ‘ KEY LOCK’ appears on the screen if any button on the front panel
is pressed.
Orbiter
Orbiter
- Avoid allowing a fixed image to remain on the Monitor's screen for a long period of time. Afrozen still picture from
a PC/video game displayed on the screen for prolonged periods will result in an ghost image remaining even when
you change the image.
- To avoid a permanent image on the screen, the screen will move every 2 minutes:
Right → Right → Downside → Downside → Left → Left → Upside → Upside
- The Orbiter feature may help prevent ghost images. However, it is best not to allow any fixed image to remain on
the screen.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
D / E
D / E
4. Press the MENU button.
button to select the SPECIAL menu.
D / E
button to select ORBITER.
button to select ON or OFF.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
LANGUAGE
KEY LOCK
ORBITER G
WHITE WASH
SET ID
MENU
PREV.
ON
OFF
ON
OFF
White W
White W
ash
ash
- White Wash removes permanent images from the screen.
- Set White Wash ‘ON’ until fixed image disappears.
- A excessive permanent image is impossible to clear with using this function perfectly.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
D / E
D / E
button to select the SPECIAL menu.
D / E
button to select WHITE WASH.
button to select ON or OFF.
• When you select ON, the screen changes to white.
4. Press the MENU button.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH G
SET ID
MENU
PREV.
ON
OFF
17
Page 18
Screen Menu Options
1
4
▲
▼
◀▶
▲
▼
◀▶
12
54
▲
▼
◀▶
12
3
4
5
6
7
89
▲
▼
◀▶
12
3
4
5
6
7
89
Auto
Adjustment
Auto
Adjustment
- RGB1 (PC) mode only; This function doesn’t work in RGB1-Digital broadcast.
- Automatically adjusts picture position and minimizes image shaking.
1. Press the MENU button and then use
2. Press the G button and then use
D / E
3. Press the G button to run Auto configure.
• When AUTO CONFIG.
has finished,
• If the position of the image is still not correct, try Auto adjustment again.
4. If picture needs to be adjusted more after Auto adjustment in RGB1(PC), you can
adjust the MANUAL CONFIG.
button to select the SCREEN menu.
D / E
button to select AUTO CONFIG..
OK will be shown on screen.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
AUTO CONFIG. G
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.
SCREEN ADJ.
RESET
MENU
PREV.
TO SET
-Although the image is still not correct, your Monitor is functioning properly but needs further adjustment.
-The AUTO CONFIG.
Setting Picture Format
Setting Picture Format
and the
MANUAL CONFIG can be adjust automatically for RGB 2 mode.
- You are available to 4:3 and 16:9 in RGB1,RGB2 and COMPONENT(DTV).
- You are available to 16:9, 4:3 and ZOOM in VIDEO and S-VIDEO.
- If 4:3 is on the screen for a long time, that fixed image may remain visible.
1. Press the ARC button to select a desired picture format.
• Each press of ARC button changes the screen display as shown below.
• You can also select
Split Zoom
Split Zoom
4:3, 16:9 or ZOOM in the SCREEN menu.
4 : 3
16 : 9
ZOOM
- This is the function to enlarge the screen with regular ration.
-It’s available to use this function in every input source.
- with 2-SPLIT ZOOM, you can only move the screen into upside or downside.
- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.
1. Press the SPLIT ZOOM button.
•Each press of SPLIT ZOOM button changes the screen display as shown below.
2-SPLIT ZOOM
4-SPLIT ZOOM
In case of 9-SPLIT ZOOM:
Press the number button to select the section you enlarge.
If you choose No.5, the 5 section is enlarged and also can move the enlarged screen with using the
button.
In case of choosing the No.5
18
9-SPLIT ZOOM
9-SPLIT ZOOM
/ F / G
D / E
The 5 section is changed to
a full screen.
Page 19
0
0
◀▶
▲
▼
Screen Position
Screen Position
- This function works in the following mode:
RGB1-PC, RGB1-DTV 480p,720p,1080i, COMPONENT 480p,720p,1080i.
1. Press the MENU button and then use
2. Press the
3. Press the
G button and then use
G button and then use
D / E
D / E
button to select the SCREEN menu.
D / E
button to select POSITION.
/ F / G button to adjust the position.
4. Press the MENU button.
Manual Configure (RGB1 [PC] mode only)
Manual Configure (RGB1 [PC] mode only)
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION G
MANUAL CONFIG.
SCREEN ADJ.
RESET
MENU
PREV.
- If the picture isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture phase
manually.
- To correct the screen size, adjust CLOCK.
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
4. Use the
F / G button to make appropriate adjustments.
D / E
D / E
• The adjustment range of PHASE is 0 ~ 31.
• The adjustment range of CLOCK is -50 ~ +50.
button to select the SCREEN menu.
D / E
button to select MANUAL CONFIG..
button to t o select PHASE or CLOCK.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.G
SCREEN ADJ.
RESET
MENU
PREV.
5. Press the MENU button.
Screen
Screen
Adjustments (VIDEO, S-VIDEO and COMPONENT
Adjustments (VIDEO, S-VIDEO and COMPONENT
480i mode only)
480i mode only)
- Use this function to correct jittering or picture instability while viewing a video tape.
PHASE
CLOCK
1. Press the MENU button and then use
2. Press the G button and then use
3. Press the G button and then use
D / E
D / E
button to select the SCREEN menu.
D / E
button to select SCREEN ADJ..
button to t o select TV or VC R.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment.(Except VCR)
4. Press the MENU button.
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
- This function operates in every mode.
- To initialize the adjusted value
1. Press the MENU button and then use
2. Press the G button and then use
D / E
button to select the SCREEN menu.
D / E
button to select RESET.
3. Press the G button.
•You can initialize ZOOM IN/OUT, POSITION, SPLIT ZOOM, PIP size, PIP position and
sub picture size for twin picture.
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.
SCREEN ADJ. G
RESET
MENU
PREV.
AUTO CONFIG.
ARC
ZOOM IN/OUT
POSITION
MANUAL CONFIG.
SCREEN ADJ.
RESET G
MENU
PREV.
TV
VCR
TO SET
19
Page 20
PIP (Picture-in-Picture) Feature
◀▶
▲
▼
100
%
- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.
- When you select PC or DTV for main picture in PIP, you can watch VIDEO, S-VIDEO or COMPONENT 480i for sub picture.
atching PIP
WWatching PIP
Press the PIP button to show the sub picture.
• Press the PIP button again to turn PIP off.
COMPONENT
VIDEO
10 : 30
PIP
Aspect Ratio
PIP
Aspect Ratio
Press the PIP ARC button.
• The sub picture appears as below.
4 : 3
Moving the PIP
Moving the PIP
Press the WIN.POSITION button.
Press the
/ F / G button repeatedly until desired
D / E
position is achieved. The sub picture moves
up/down/left/right.
PIP
Size
PIP
Size
Press the WIN.SIZE button and then use F / G button to
change the sub picture size.
WIN.SIZE
◀▶
Swapping the PIP
Swapping the PIP
Press the SWAP button to exchange the main and sub
pictures.
COMPONENT
VIDEO
10 : 30 10 : 30
16 : 9
VIDEO
COMPONENT
Main Picture Sub Picture
Selecting a Input Signal Source for the PIP
Selecting a Input Signal Source for the PIP
Press the SUB INPUT button to select the input source
for the sub picture.
COMPONENT
VIDEO
10 : 30
WIN.POSITION
▲
◀▶
▼
Main Picture Size
Main Picture Size
Adjustment
Adjustment
Press the ZOOM+/ZOOM- button to enlarge or reduce
the main picture size when viewing the PIP.
ZOOM
100
%
▲
◀▶
▼
20
• In RGB1 and RGB2 for main picture, you can select
COMPONENT 480i, VIDEO and S-VIDEO for sub picture.
• In VIDEO and S-VIDEO for main picture, you can
select COMPONENT 480p/720p/1080i, RGB1 and
RGB2 for sub picture.
• In COMPONENT 480p/720p/1080i for main picture,
you can select VIDEO and S-VIDEO for sub picture.
• In COMPONENT 480i for main picture, you can select
RGB1 and RGB2 for sub picture.
Main Picture Position
Main Picture Position
Adjust the main picture position with the
Adjustment
Adjustment
D / E
/ F / G
buttons in enlarged main picture mode.
ZOOM
Page 21
Twin Picture
DW 1
DW 2
10 : 30
10 : 30
10 : 30
◀▶
Main Picture Size
Main Picture Size
Adjustment
Adjustment
Use the TWIN PICTURE button.
• Each press of the TWIN PICTURE button cycles through the screen displays shown below.
Sub Picture Size
Sub Picture Size
Adjustment
Adjustment
Use the WIN.SIZE button.
• Use the F / G button to adjust the sub picture size.
• Using WIN.SIZE function in Twin Picture mode, main
and sub picture are adjusted simultaneously.
Using WIN.SIZEfunction in PIPmode, sub picture is adjust-
ed.
• WIN.POSITION is not functional in twin picture mode.
WIN.SIZE
Swapping the TT
Swapping the
win Picture
win Picture
Use the SWAPbutton to switch the main and sub pictures
in twin picture mode.
COMPONENT
VIDEO
VIDEO
COMPONENT
Off
Selecting a Source for the TT
Selecting a Source for the
win Picture
win Picture
Use the SUB INPUT button to select the input source for
the sub picture.
COMPONENT
VIDEO
• Using sources RGB1 or RGB2 for main picture, you
can select COMPONENT 480i, VIDEO, or S-VIDEO for
sub picture.
• Using sources VIDEO or S-VIDEO for main picture,
you can select COMPONENT 480p/720p/1080i,
RGB1, or RGB2 for sub picture.
• Using sources COMPONENT 480p/720p/1080i for
main picture, you can select VIDEO, or S-VIDEO for
sub picture.
• Using sources COMPONENT 480i for main picture,
you can select RGB1, or RGB2 for sub picture.
21
Page 22
1
External Control Device Setup
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
ype of connector; D-Sub 9-pin male
TType of connector; D-Sub 9-pin male
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
RS-232C configurations
RS-232C configurations
1
5
9
6
7-wire configuration
(Standard RS-232C cable)
PC
RXD
TXD
GND
DTR
DSR
RTS
CTS
Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 24.
1. Press the MENU button and then use
2. Press the
3. Press the G button and then use F / G button to adjust SET ID to choose the desired
monitor ID number.
• The adjustment range of SET ID is 1 ~ 99.
2
3
5
4
6
7
8
D-Sub 9
Control line
G button and then use
PDP
TXD
3
RXD
2
GND
5
DSR
6
DTR
4
CTS
8
RTS
7
D-Sub 9
button to select the SPECIAL menu.
D / E
button to select SET ID.
D / E
RXD
TXD
GND
DTR
DSR
RTS
CTS
PC
2
3
5
4
6
7
8
D-Sub 9
3-wire configuration
(Not standard)
VIDEO
AUDIO
TIME
SPECIAL
SCREEN
TWIN
PDP
3
2
5
4
6
7
8
D-Sub 9
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH
SET ID G
MENU
TXD
RXD
GND
DTR
DSR
RTS
CTS
PREV.
Communication Parameters
Communication Parameters
• Baud rate : 115200 bps (UART)
• Data length : 8 bits
• Parity : None
22
• Stop bit : 1 bit
• Communication code : ASCII code
Page 23
Command Reference List
Command Reference List
COMMAND 1 COMMAND 2 DATA
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 4
03. Aspect Ratio k c 0 ~ 2
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD select k l 0 ~ 1
13.
Remote control lock mode
14. PIP/Twin k n 0 ~ 3
15. PIP size k o 0 ~ 1
16. PIP position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color temperature k u 0 ~ 3
21. Red adjustment k v 0 ~ 64
22. Green adjustment k w 0 ~ 64
23. Blue adjustment k $ 0 ~ 64
24. PIP input source k y 0 ~ 4
25. Orbiter j p 0 ~ 1
26. White Wash j q 0 ~ 1
27. Orbiter Time Setting j r 1 ~ FE
28. Orbiter Pixel Setting j s 0 ~9
* When setting the 25 ~ 28, a menu doesn’t display on
screen.
k m 0 ~ 1
(Hexadecimal)
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][x]
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
non-viable functions or communication errors.
01. Power (Command:a)
G To control Power On/Off of the Monitor.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off 1 : Power On
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
Data 0 : Power Off 1 : Power On
G To show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Data 0 : Power Off 1 : Power On
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
Data 0 : Power Off 1 : Power On
* In like manner, if other functions transmit ‘FF’ data based
on this format, Acknowledgement data feed back presents
status about each function.
ransmission / Receiving Protocol
TTransmission / Receiving Protocol
ransmission
T
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : k
*
[Command 2] : To control PDP set.
*
[Set ID] : You can adjust the set ID to choose
*
[DATA] : To transmit command data.
*
[Cr] : Carriage Return
*
[ ] : ASCII code ‘space (0x20)’
*
desired monitor ID number in special
menu. See previous page.
Adjustment range is 1 ~ 99.
When selecting Set ID ‘0’, every
connected PDP set is controlled.
Transmit ‘FF’ data to read status of
command.
ASCII code ‘0x0D’
02. Input Select (Command:b) (Main Picture Input)
G To select input source for the Monitor.
You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.
ransmission
T
[k][b][ ][Set ID][ ][Data][Cr]
Data 0 : RGB 1
1 : COMPONENT
2 : VIDEO
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
Data 0 : RGB 1
1 : COMPONENT
2 : VIDEO
3 : S-VIDEO
4 : RGB 2
3 : S-VIDEO
4 : RGB 2
23
Page 24
03. Aspect Ratio (Command:c) (Main picture format)
G To adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Special menu.
ransmission
T
[k][c][ ][Set ID][ ][Data][Cr]
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
* Using the PC input, you select either 16:9 or 4:3 screen
aspect ratio.
04. Screen Mute (Command:d)
G To select screen mute on/off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
05. Volume Mute (Command:e)
G To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
ransmission
T
[k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
06. Volume Control (Command:f)
G To adjust volume.
You can also adjust volume with the volume buttons
on remote control.
T
ransmission
[k][f][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown right.
*
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
24
07. Contrast (Command:g)
G To adjust screen contrast.
You can also adjust contrast in the Video menu.
ransmission
T
[k][g][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
*
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
08. Brightness (Command:h)
G To adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
*
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
09. Color (Command:i)
G To adjust the screen color.
You can also adjust color in the Video menu.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
*
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
10. Tint (Command:j)
G To adjust the screen tint.
You can also adjust tint in the Video menu.
ransmission
T
[k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0 ~ Green : 64
Refer to ‘Real data mapping1’ as shown below.
*
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
Data Red : 0 ~ Green : 64
Real data mapping 1
*
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
Real data mapping 2
*
0 : -10
5: -9
A: -8
2D: -1
32: 0
37: +1
5F: +9
64: +10
Page 25
11. Sharpness (Command:k)
G To adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
ransmission
T
[k][k][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’. See page 24.
*
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
12. OSD Select (Command:l)
G To select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 0 : OSD off 1 : OSD on
Acknowledgement
[l][ ][Set ID][ ][OK][Data][x]
Data 0 : OSD off 1 : OSD on
13. Remote Control Lock Mode (Command:m)
G To lock the front panel controls on the monitor and remote
control.
ransmission
T
[k][m][ ][Set ID][ ][Data][Cr]
Data 0 : Lock off 1 : Lock on
Acknowledgement
[m][ ][Set ID][ ][OK][Data][x]
Data 0 : Lock off 1 : Lock on
* If you’re not using the remote control, use this mode.
When main power is on/off, remote control lock is released.
14. PIP / Twin (Command:n)
G To control the PIP(Picture In picture).
You can also control the PIP/TWIN using the PIP or Twin
picture button on the remote control or in the Special menu.
ransmission
T
[k][n][ ][Set ID][ ][Data][Cr]
Data 0 : PIP/DW off
1 : PIP
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
Data 0 : PIP/DW off
1 : PIP
2 : DW1
3 : DW2
2 : DW1
3 : DW2
15. PIP Size (Command:o)
G To select the PIP picture format.
You can also select the PIP picture format using WIN.SIZE
on the remote control.
Transmission
[k][o][ ][Set ID][ ][Data][Cr]
Data 0 : 4:3 1 : 16:9
Acknowledgement
[o][ ][Set ID][ ][OK][Data][x]
Data 0 : 4:3 1 : 16:9
16. PIP Position (Command:q)
G To select sub picture position for PIP.
You can also adjust the sub picture position using
WIN.POSITION on the remote control or in the Special menu.
Transmission
[k][q][ ][Set ID][ ][Data][Cr]
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
17. Treble (Command:r)
G To adjust treble.
You can also adjust treble in the Audio menu.
T
ransmission
[k][r][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’. See page 24.
*
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
18. Bass (Command:s)
G To adjust bass.
You can also adjust bass in the Audio menu.
T
ransmission
[k][s][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’. See page 24.
*
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
19. Balance (Command:t)
G To adjust balance.
You can also adjust balance in the Audio menu.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’. See page 24.
*
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
25
Page 26
20. Color Temperature (Command:u)
G To adjust color temperature.
You can also adjust ACC in the Video menu.
T
ransmission
[k][u][ ][Set ID][ ][Data][Cr]
Data 0: Normal 1: Cool 2: Warm 3: User
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
Data 0: Normal 1: Cool 2: Warm 3: User
21. Red Adjustment (Command:v)
G To adjust red in color temperature.
Transmission
[k][v][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping 2’. See page 24.
*
Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
22. Green Adjustment (Command:w)
G To adjust green in color temperature.
ransmission
T
[k][w][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping 2’. See page 24.
*
Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
23. Blue Adjustment (Command:$)
G To adjust blue in color temperature.
Transmission
[k][$][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping 2’. See page 24.
*
Acknowledgement
[$][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 64
24. PIP Input Select (Command:y)
G To select input source for sub picture in PIP mode.
Transmission
[k][y][ ][Set ID][ ][Data][Cr]
Data 0 : RGB1 1 : COMPONENT
2 : VIDEO 3 : S-VIDEO 4 : RGB2
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
Data 0 : RGB1 1 : COMPONENT
2 : VIDEO 3 : S-VIDEO 4 : RGB2
25. Orbiter (Command:p)
G To control the orbiter function on/off.
ransmission
T
[j][p][ ][Set ID][ ][Data][Cr]
Data 0 : Orbiter off
1 : Orbiter on
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
Data 0 : Orbiter off
1 : Orbiter on
26. White Wash (Command:q)
G To control the white wash function on/off.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 0 : White Wash off
1 : White Wash on
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
Data 0 : White Wash off
1 : White Wash on
27. Orbiter Time Setting (Command:r)
G To adjust orbiter operation time term.
Transmission
[j][r][ ][Set ID][ ][Data][Cr]
Data Min : 1 ~ Max : FE
Refer to ‘Real data mapping1’. See page 24.
*
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
Data Min : 1 ~ Max : FE
28. Orbiter Pixel Setting (Command:s)
G To adjust pixel number in orbiter function.
Transmission
[j][s][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 9
Refer to ‘Real data mapping1’. See page 24.
*
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
Data Min : 0 ~ Max : 9
26
Page 27
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
•
1st frame
Low
custom code
Lead
code
High
custom code
Data code
Data code
TC
T
f
T1
C0
Carrier frequency
FCAR
= 1/TC = fOSC/12
Duty ratio = T1/T
C = 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
IR Code (NEC Format)
How to connect
How to connect
G Connect your wired remote control to the Remote port on the Monitor.
Set the CONTROL LOCK to ‘ON’ on the Monitor back panel to operate Monitor with wired remote control.
Remote Control IR Code (NEC Format)
Remote Control IR Code (NEC Format)
27
Page 28
Code (Hexa) Function Note
00H
01H
02H
03H
08H
C4H
C5H
09H
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH
98H
C6H
5AH
51H
BFH
0EH
44H
43H
52H
4DH
60H
61H
63H
64H
6BH
40H
41H
69H
6AH
7BH
79H
76H
77H
AFH
UP (D)
DOWN (
)
E
VOL+ (G)
F)
VOL- (
POWER On/Off
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
AII INPUT SELECT
RGB 1
RGB 2 (DVI input)
VIDEO
S-VIDEO
COMPONENT
SLEEP
OK (
Á)
MENU
DASP
APC
PIP
PIP INPUT
SWAP
PIP ARC
TWIN PICTURE
ZOOM +
ZOOM Window Size
Window Position
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(RGB1/RGB2/Comp/VIDEO/S-VIDEO)
Discrete IR Code (Input RGB1 Selection)
Discrete (Input RGB2 Selection)
Discrete (Input VIDEO Selection)
Discrete (Input S-VIDEO Selection)
Discrete (Input COMPONENT Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (PIP/TWIN Exchange)
R/C Button (4:3/16:9)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete (Only 4:3 mode)
Discrete (Only 16:9 mode)
Discrete (Only ZOOM mode)
28
Page 29
Maintenance
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.
Cleaning the Cabinet
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
Extended
Extended
Absence
Absence
If you leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to unplug the
power cord to protect against possible damage from lightning or power surges.
29
Page 30
Troubleshooting Checklist
• Check whether the Monitor is turned on.
No picture &
No sound
Picture OK &
No sound
The remote control
doesn’t work
No or Poor color
or Poor picture
• Power cord inserted into wall outlet?
• Plug another product’s power cord into the wall outlet where the Monitor’s
power cord was plugged in.
• Press the VOLUME (G) button.
• Sound muted? Press MUTE button.
• Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
• Check to see if the batteries are installed with the correct polarities.
(Refer to p.11)
• Install new batteries. (Refer to p.11)
• Select COLOR in the VIDEO menu and press the VOLUME (G) button.
(Refer to p.14)
• Keep a certain distance between the Monitor and the VCR.
• Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
No output from one of the
speakers
Strange sound from the
Monitor
30
• Adjust BALANCE in the AUDIO menu. (Refer to p.15)
• Typical sound due to normal Monitor operation, Monitor is not faulty.
Page 31
Product Specifications
MODEL
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Color
Operating Temperature Range
Operating Humidity Range
• The specifications shown above may be changed without notice for quality improvement.
16,770,000 (256 steps of each R, G and B)
P50W26, P50W26B
48.2 / 1223
28.9 / 734
4.1 / 105
99.2 / 45
AC120V, 60Hz
1366 x 768 (Dot)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
31
Page 32
P/N : 3828VA0352E
a
