Zenith INTEQ SRX3293, INTEQ IQ2793, INTEQ INTEQ IQ3553, INTEQ IQ3293, INTEQ SRX3593 Operating Manual & Warranty

...

Download

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MO][STURE.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsula_:ed

"dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV system installer's attention to Article 82,3-40 of the NEC that

provides guidelines fi_r proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other.) This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug tully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

CAUTION

To prevent electric shock, malch wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour _viter les chocs _lectriques.r introduire la lame la plus large de la fiche darts la borne correspondante de la prise et pous ser jusqu' au fond.

INTQWRN

INTEQ is a trademark of Zenith Electronics Corporation.

CONTENTS

Part 1. Connections and Basic

Operations

INTRODUCTION

Welcome ............................................ ii

Installation Considerations .............................. ii

Methods of Operation ................................. iii

ModeVFeatures Chart ................................. iii

STANDARD CONNECTIONS FOR YOUR TV Connection Center, Auxiliary A/V Jacks, TV Only, TV and Cable Box, IV and VCR, TV with VCR and Cable Box, Accessory Jacks, Surround

Speakers and Audio Amplifier ......................... 1-1

FIRST TIME YOU OPERATE YOUR TV Control Panel, Battery Installation,Power, Source,

Auto Program,Clock, andOther Options ................ 2-1

PIP OPERATION Introduction,Selecting Main Picture and PIP Inset Source, PIP Functions, Operation With Various

Configurations ...................................... 3-1

Part 2. Universal Remote Control

and Menus

UNIVERSAL REMOTE CONTROL Battery Installation, Operating Mode, TV Operations,

StarSight Operations, Operational Modes, Programming,

Special Features, Auto Find, and Brand Codes ............ 4-1

QUICK REFERENCE TO MENUS

Available Menus. and Basic Operation .................. 5-1

SOURCE MENU Menu Operation, Source Selection.

and Source Identification ............................. 6-1

SETUP MENU Auto Program, Ch. Add/Del, Ch. Labels, Source ID, Clock: Set, Timer Setup, Parental Ctl, Caption/

Text, Background, and StarSight ....................... 7-1

AUDIO MENU Bass, Treble, Balance, Audio, SEQ,

Surround and Null .................................. 8-1

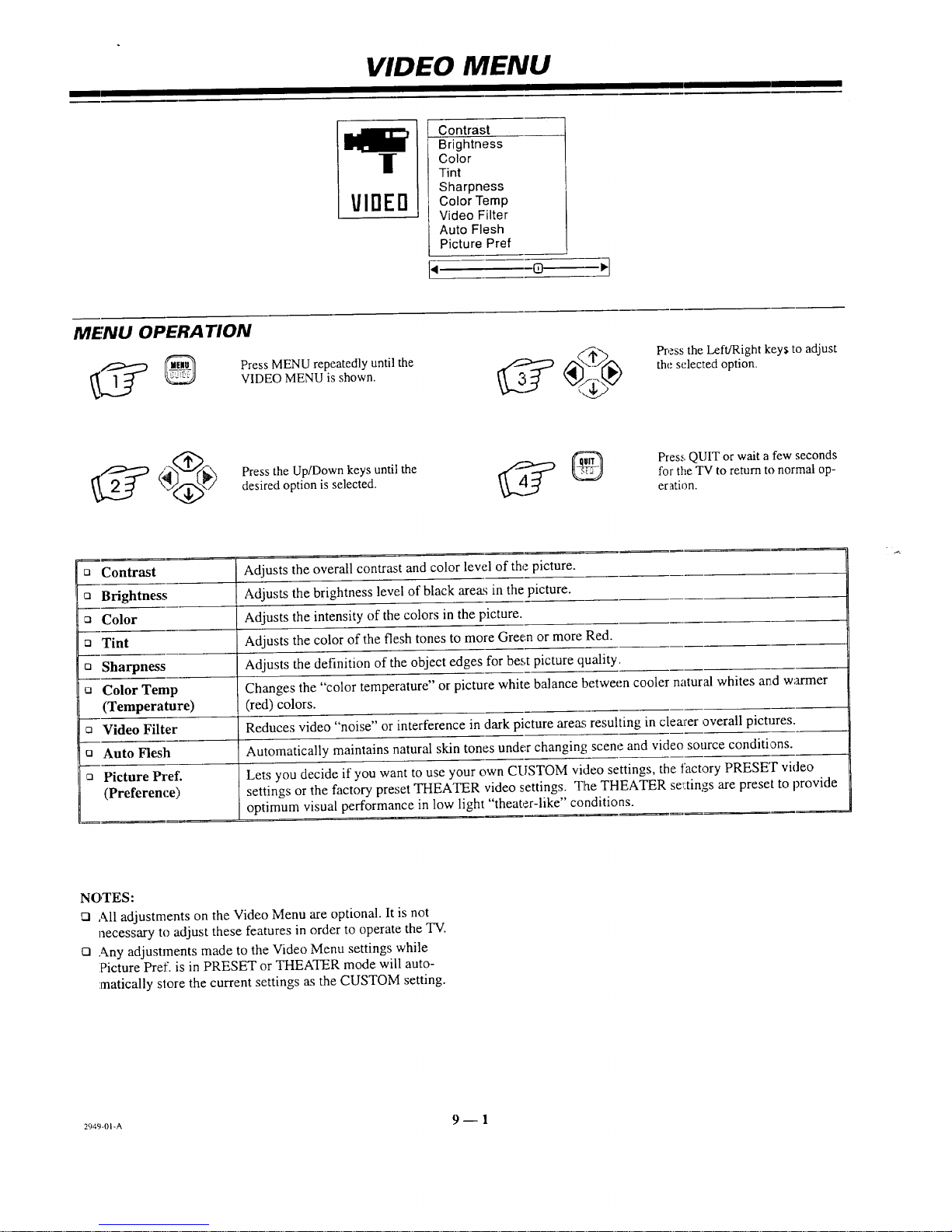

VIDEO MENU Contrast, Brightness, Color, Tint, Sharpness, Color

Temp, Video Filter, Auto Flesh, and Picture Pref .......... 9-1

PIP MENU Ch. Guide, Ch. Review, PIP Color, PIP Tint,

and PIP Size ...................................... 10-1

Part 3. Z-Trak Remote Control

and Menus

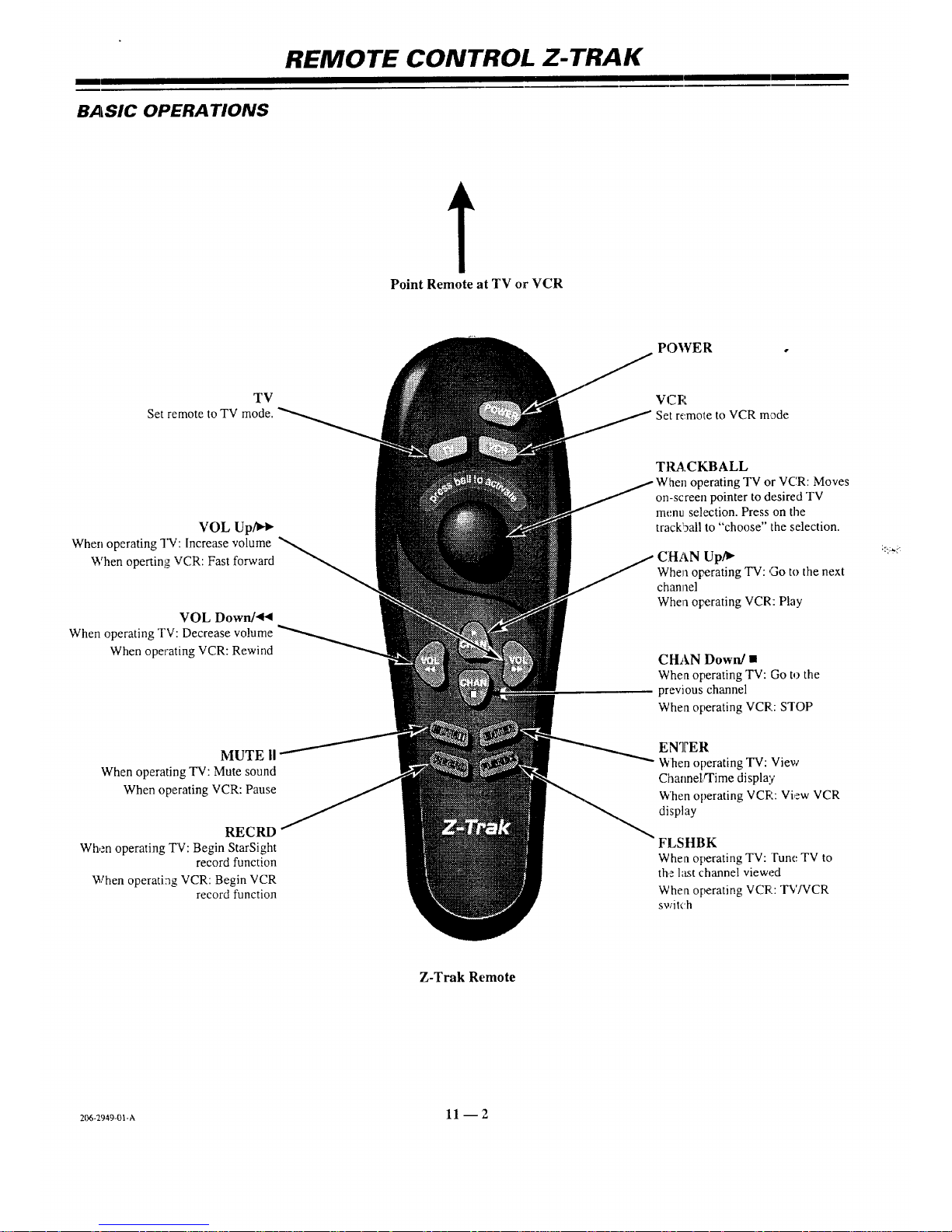

Z-TRAK REMOTE CONTROL Battery Installation, Operating Mode,

Basic Operations and Auto Find ........................ 11-1

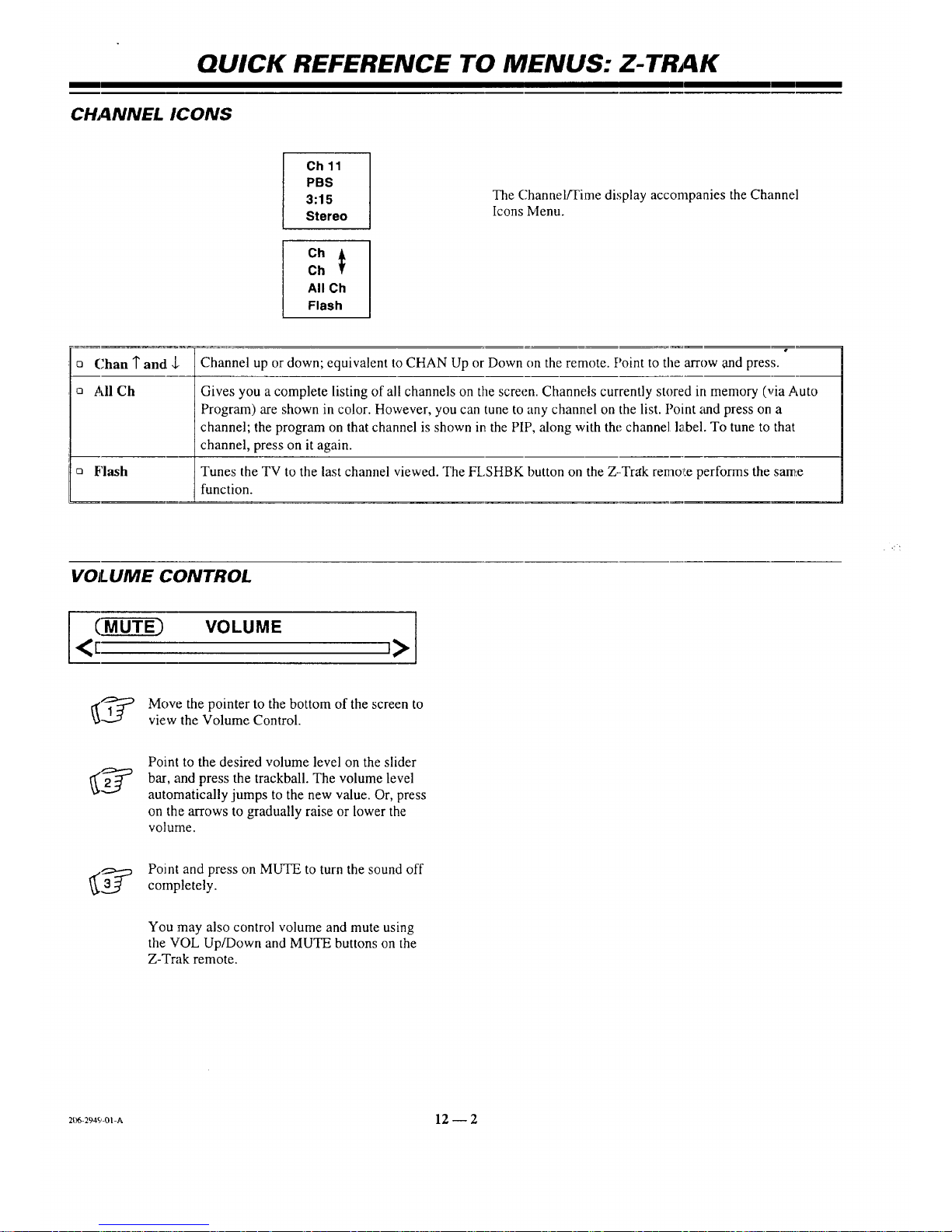

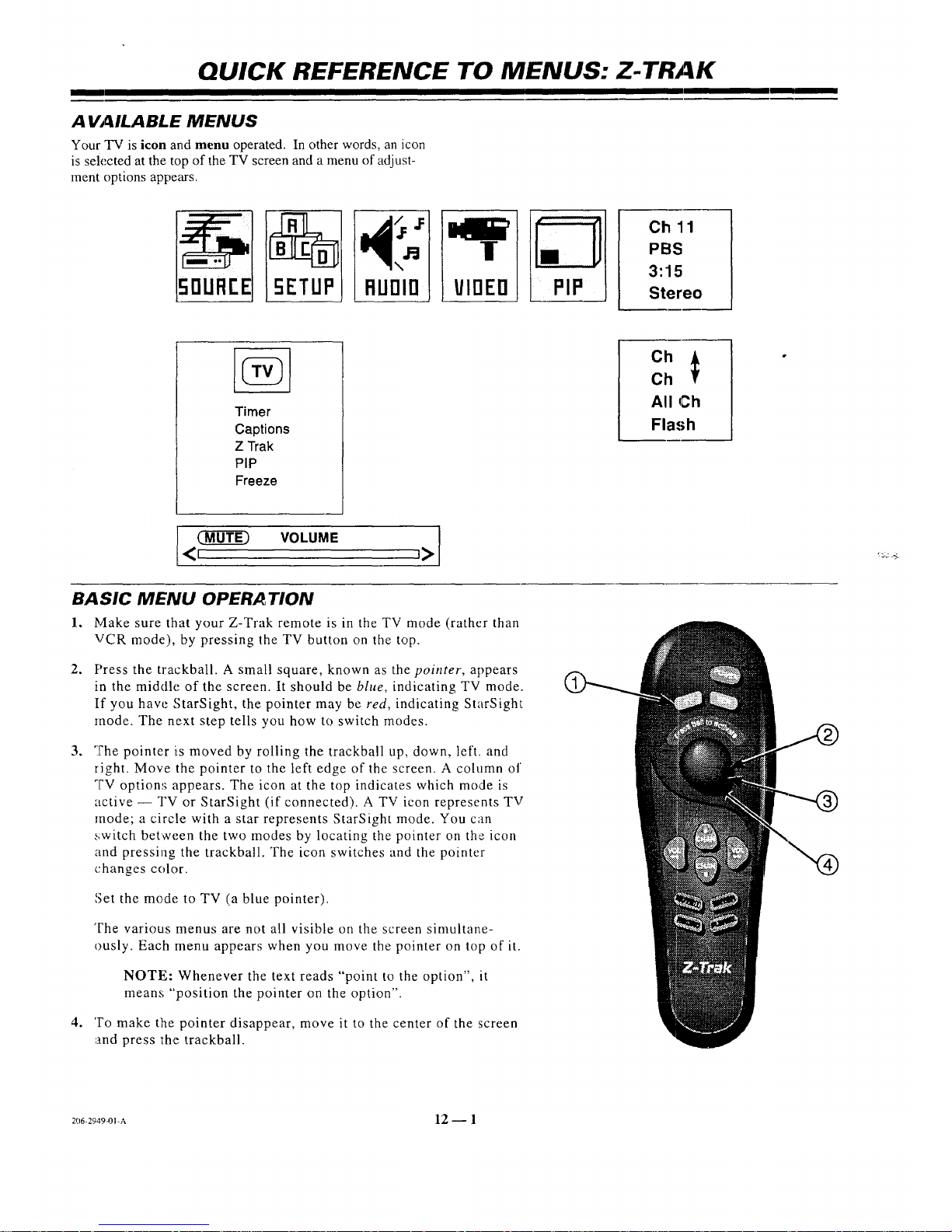

QUICK REFERENCE TO MENUS Available Menus, Accessing the Menu,

Channel Icons and Volume Control ..................... 12-1

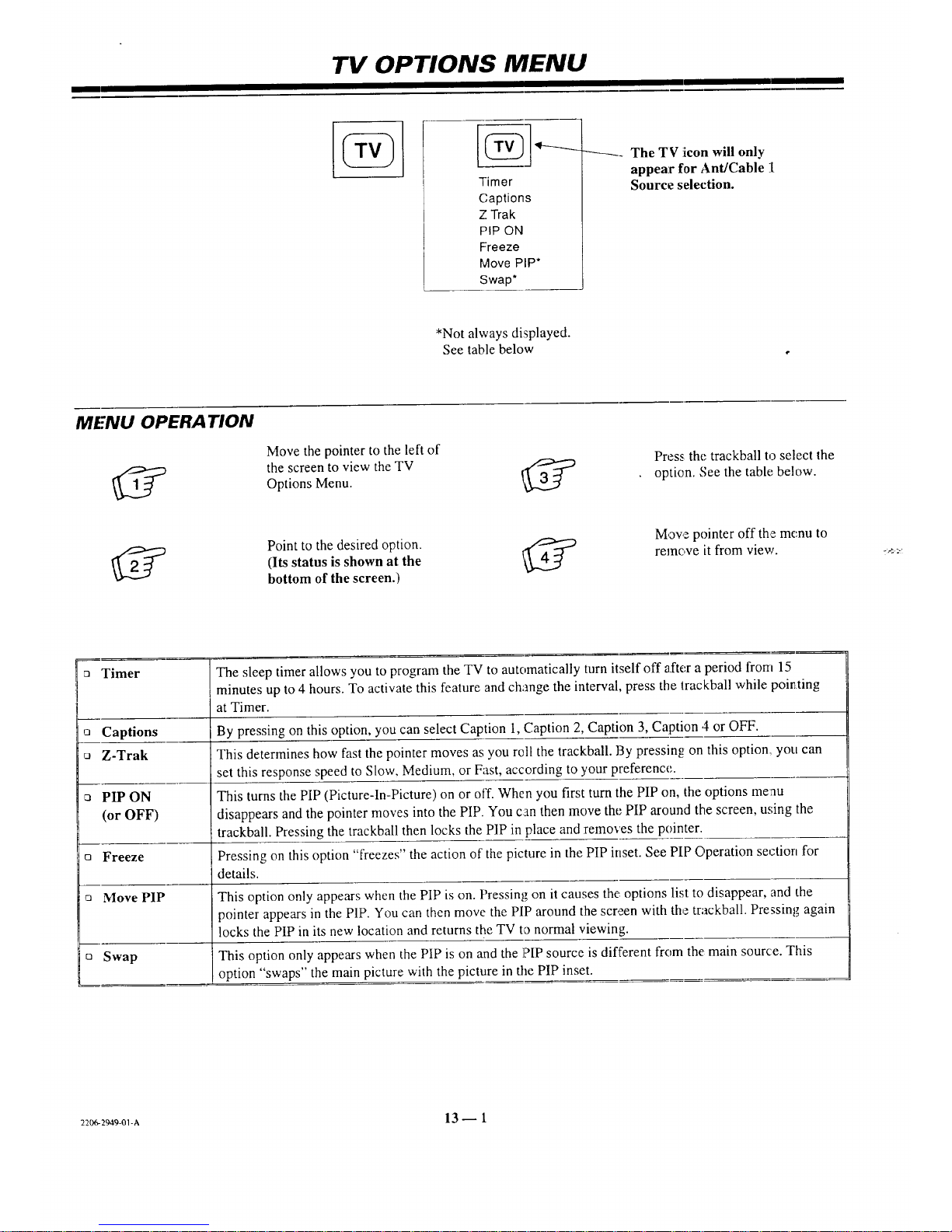

TV OPTIONS MENU Timer, Captions, Z-Trak, PIP, Free;,e

and Mow_ PIP ...................................... 13-1

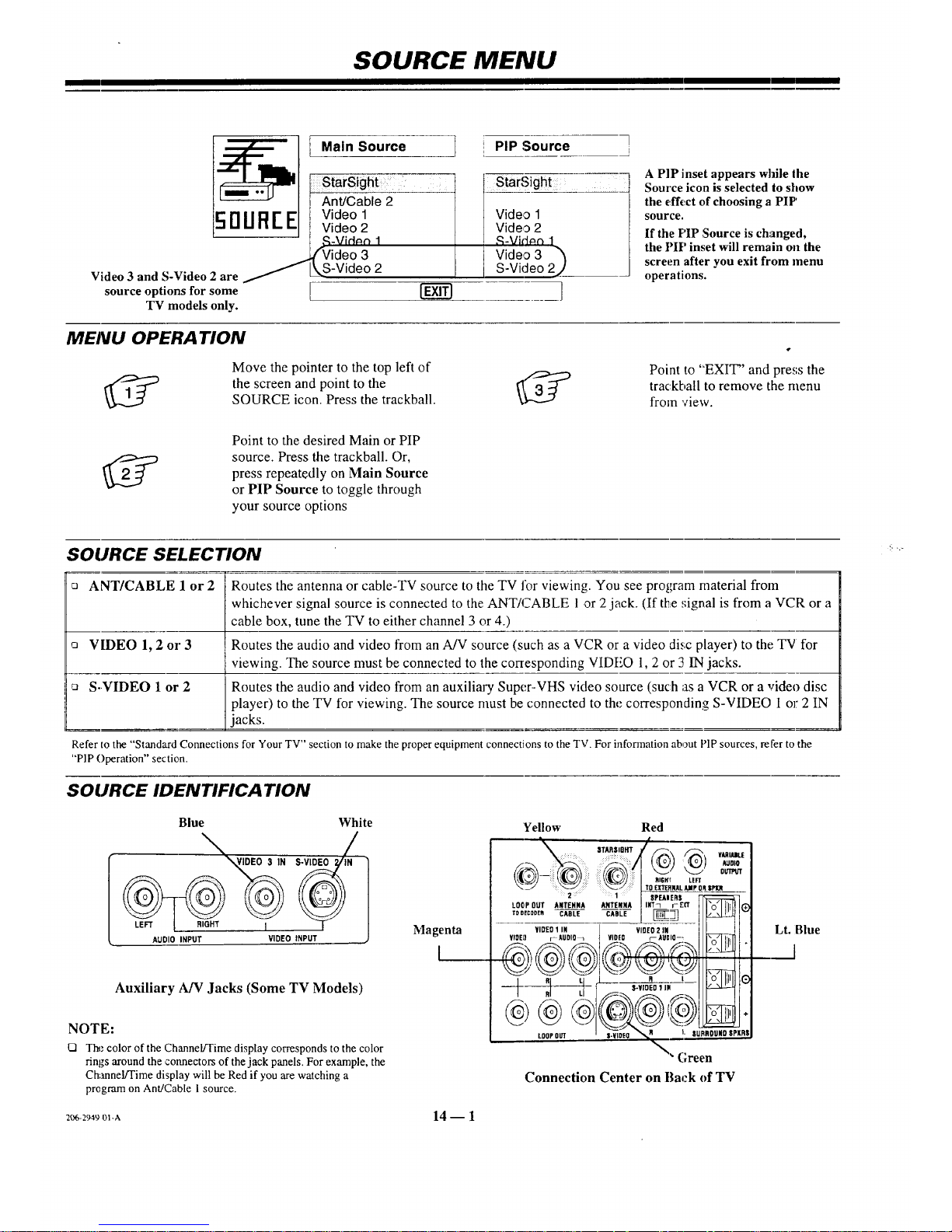

SOURCE MENU Menu Operation, Source Selection,

and Source Identification ............................. 14-1

SETUP MENU o Auto Program, Ch. Add/Del, Ch. Labels, Source ID, Clock Set, Timer Setup, Parental Cfl, Caption/

Text, Background, and StarSight ....................... 15-1

AUDIO MENU Bass, Treble, Balance, Audio, SEQ,

Surround, and Null .................................... 16-1

VIDEO MENU Contrast, Brightness;, Color, Tint, Sharpness, Color

Temp, Video Filter, Auto Flesh, and Picture Pref .......... 17-1

PIP MENU

Ch. Guide, Ch. Review, PIP Color, PIP Tint,

and PIP Size ....................................... 18-1

Part 4. Maintenance, Accessories,,

and Warranty

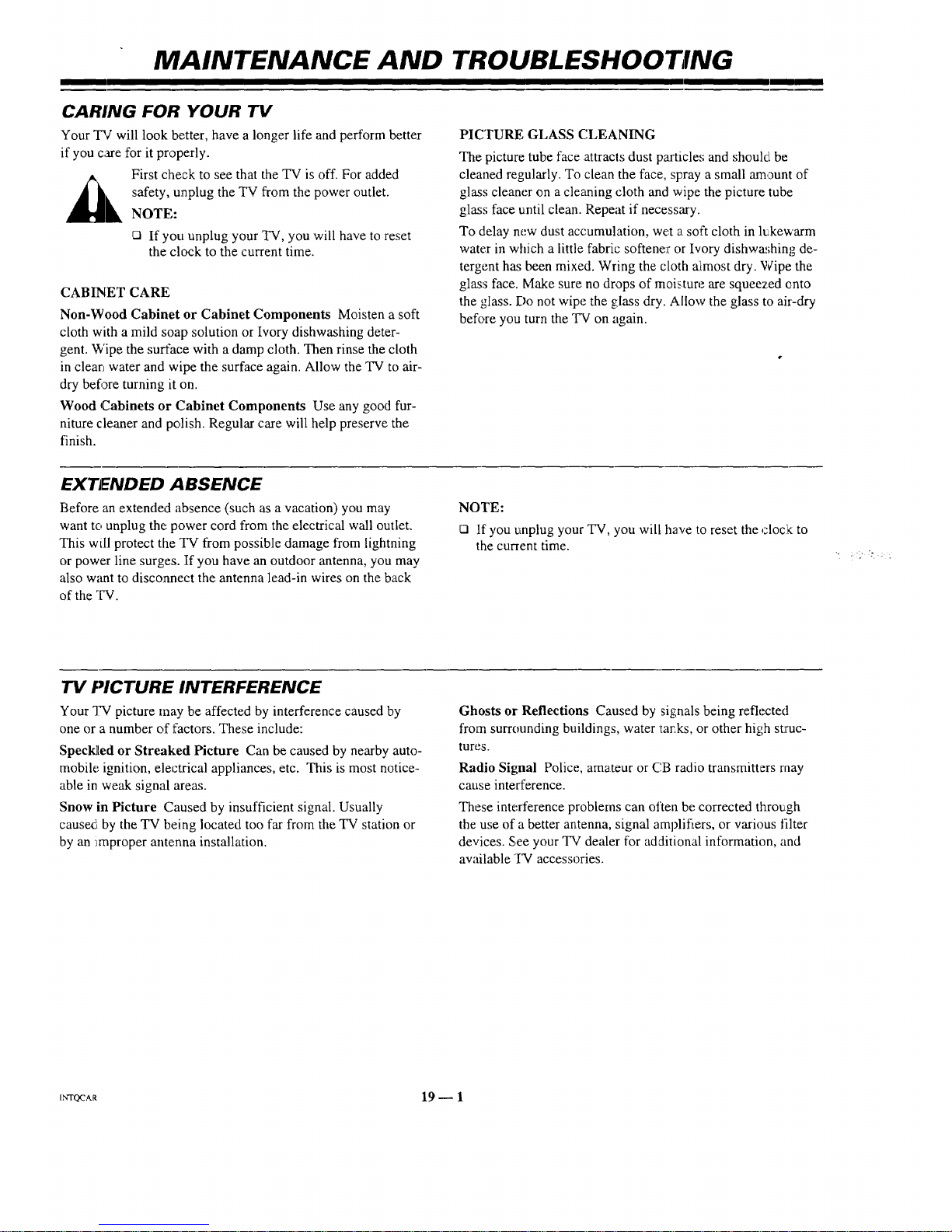

MAINTENANCE AND TROUBLESHOOTING Caring, Extended Absence, Interference,

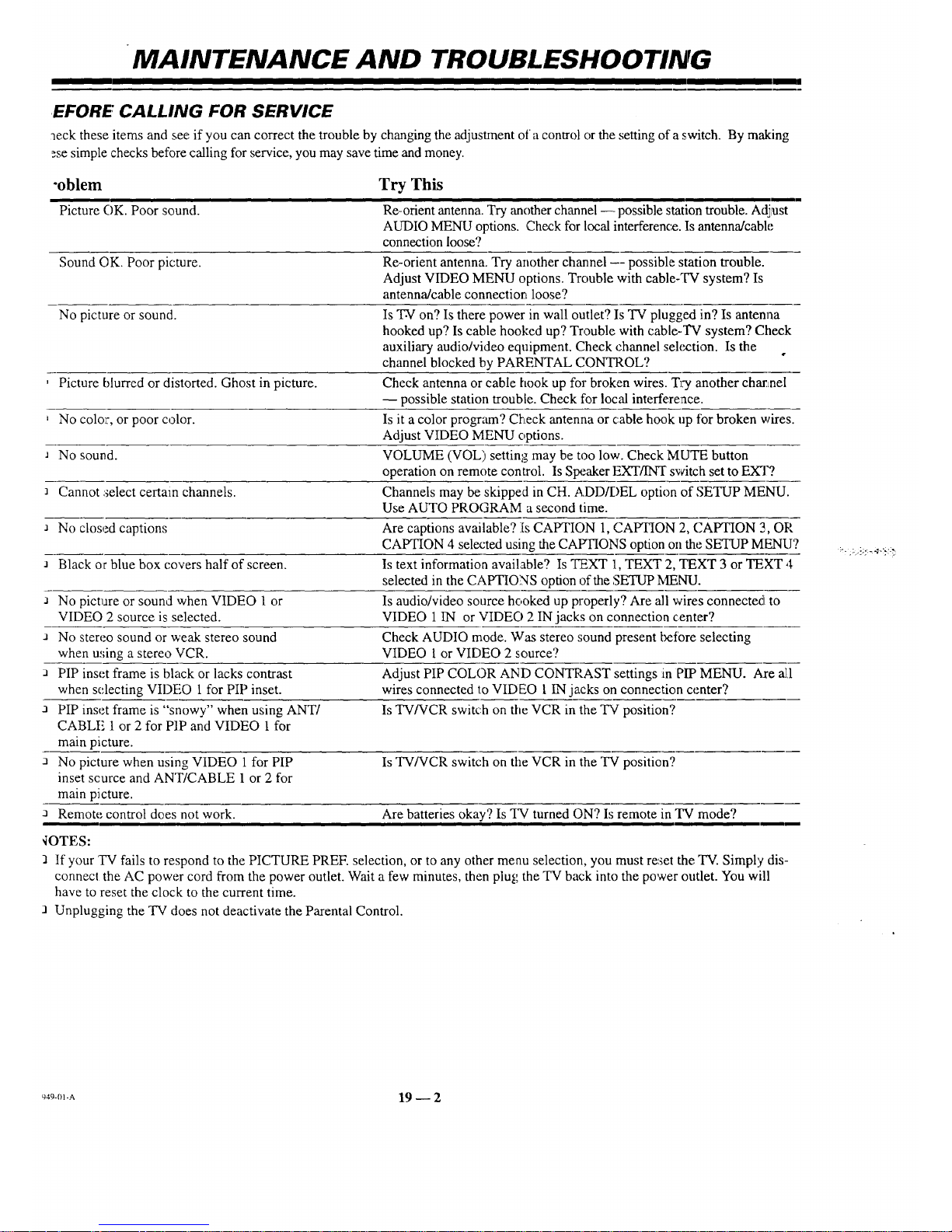

Before Calling for Service ............................ 19-1

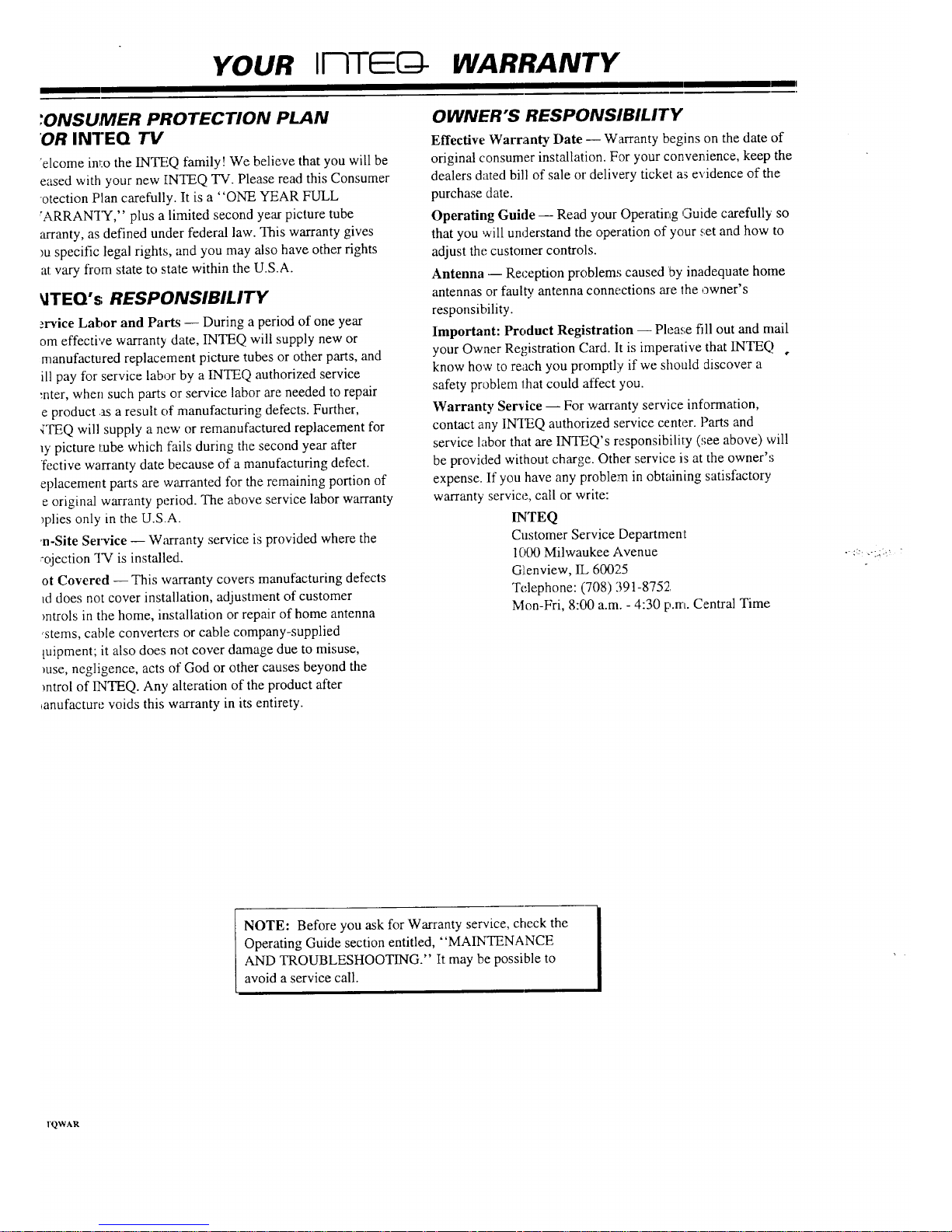

Replacement Product Registration Card Your Inteq Warranty

How to use this operating guide

Standard TV installation and operation is given in this portion of the operating guide. Follow the procedures given if you will not be using StarSight®.

_k Refer to the StarSight® portion of this operating guide for StarSight® activation and operation.

2949-1)!-A i

INTRODUCTION

WEL COME

Welcome into the family of 11-7TEO- Color Television owners. This guide provides instructions on how to operate

your new TV. It is supplemented by a booklet containing Safety Tips. We urge you to read these publications carefully so that you will receive full enjoyment from your new

II-lTl:::z:l_)'- "IN for many years to come.

Your new TV has been designed and built to give you the very besl in quality, features and performance. There are thousands of I[-"ITEIS_- authorized service centers throughout the U.S., Canada and Mexico who can attend promptly and effec- tively to ordinary service needs.

If you should have an unusual performance or service problem that cannot be satisfactorily resolved by your I/'-]TEI_- dealer or IN-[-E[_- authorized service center, contact us at:

IF'qTEC_-

Customer Service Department

1000 Milwaukee Avenue Glenview, IL 60025-2493 Telephone: (708) 391-8752 Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, serial number, and date of purchase or original installation, with a full explanation of the problem and the service history. We will welcome the opportunity to took in,to your specific question or problem and to be of assis- tance in resolving it promptly.

The mcdel and serial numbers of },oar new TV are located on the back of the TV cabinet. For your future convenience and protec- tion, we suggest that you record these numbers here:

Model No.

Serial No.

rID iDOmYSURROUNDI

PRO • LOGIC

Manufactured under license from Dolb3, l_;tboratories Licensi ag Corporation. Additionally licensed under Canadian patent number 1,037,877. "l)olby", "Pro Logic" and the double-I) symbol are trademarks of DoWy Laboratories Licensing Corporation.

INSTALLATION CONSIDERATIONS

Before you install your TV...

Ventilation -- Proper ventilation keeps yourTV

running cool. Air circulates through perforations in the back and bottom of the cabinet. Do not

block these vents or you will shorten the life of

your TV.

Power Source -- Your TV is designed to operate

on normal household current, 120 volt 60 Hertz AC. Do not attempt to operate it on I)(2 current.

Power Cord -- Your power cord has a polarized plug as required by Underwriters' Laboratories. It

has one regular blade and one wide blade and fits only one way into a standard electrical outlet. If the blades will not enter either way, your outlet is very old and non-standard. A new outlet should be installed by a qualified electrician.

Safe Operation -- Your TV is manufactured and tested with your safety in mind. However, unusual stress caused by dropping or mishandling, expo-

sure to flood, fire, rain or moisture, or accidental spilling of liquids into the TV, can result in poten-

tial electrical shock or fire hazards. If this hap- pens, have your TV checked by a service technician before using it again.

PLEASE READ AND OBSERVE EACH SAFETY

POINT IN THE "SAFETY TIPS" FOLDER 'WHEN IN- STALLING AND USING YOUR TV.

VIDEO GAMES AND OTHER FIXED PATTERN DISPLAY CAUTION -- If you use your TV for

video games, teletext or other fixe:l displays, avoid setting the BRIGHTNESS control for an excessively bright picture. A

bright, fixed pattern, if used for long periods of time, can result in a permanent imprint on the TV picture tube. You can reduce this possibility by alternating the use of the fixed

pattern display with normal TV picture viewing, by turning down the CONTRAST control for sustained fixed pwLtern use, and by turning off the fixed pattern display when not in use.

PLUGGING IN YOUR TV --- Be sure to plug your TV into an "unswitched" AC power source. The "switched" AC out- lets fo_and on some video equipment will not continue supply- ing power to the TV once the equipment is turnecl off. If the power to the TV is interrupted, you will have to reset the clock

in the IN to the current time.

Jr,_r,_wEL ii

INTRODUCTION

METHODS OF OPERATION

Your new II---TT__[--_-TV is a very sophisticated appliance. Optional features, video picture adjustments and audio sound adjust- ments are performed through on-screen menus and displays. Self explanatory ICONS are used throughout. Most features can be se- lected and adjusted from the comfort of your favorite chair by using either of the infrared remote controls.

Either of two remote controls can be used to operate the TV. Use the multi-brand programmable remote if you have different brands and types of equipment in your video system which you need to control remotely. Use the Z-Trak progr;unmable remote if you feel

comfertable using track-ball access similar to that provided by the familiar computer mouse device. Many features can be selected and adjusted by using the control panel provided on the TV.

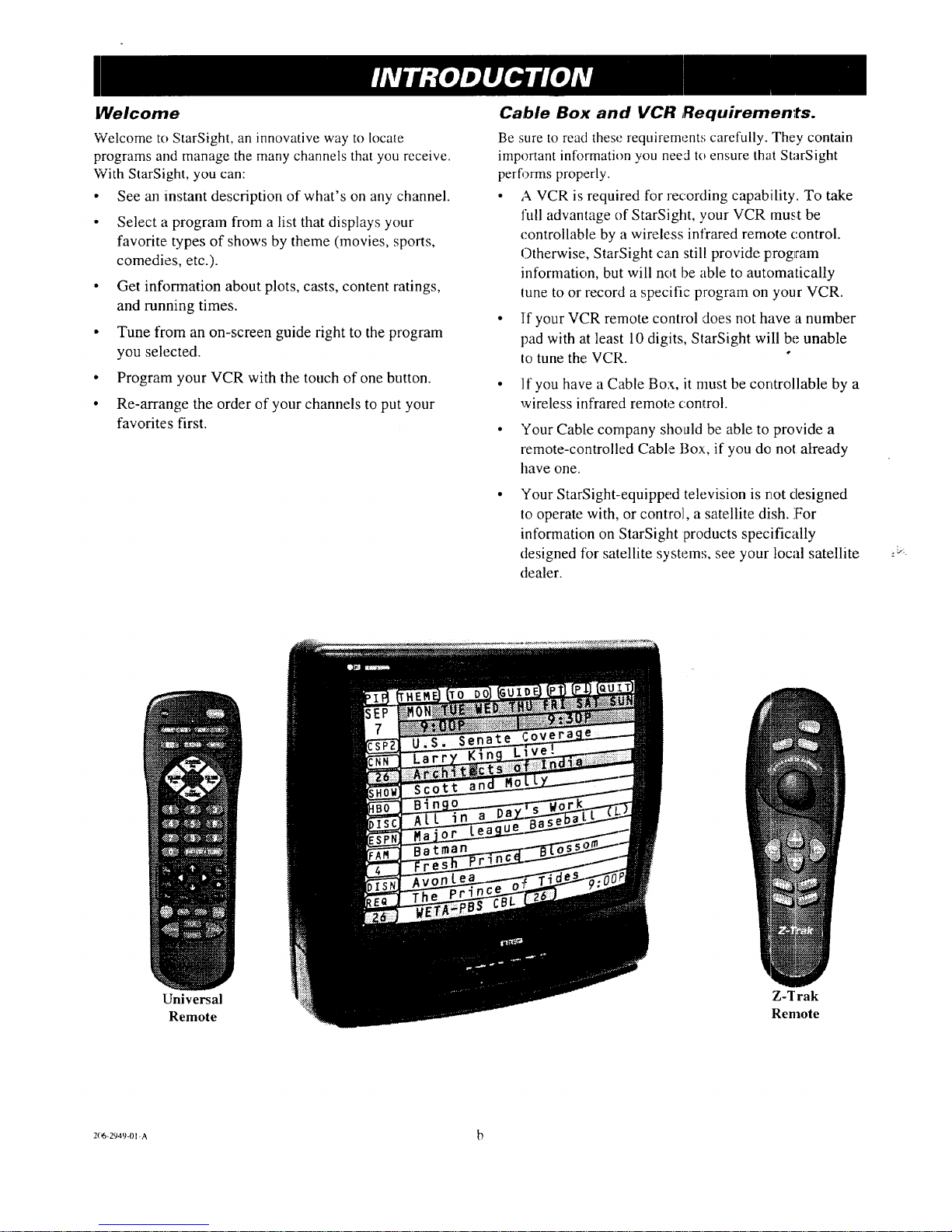

StarSight provides ',anelectronic programming guide which is updated with new scheduling information automatically on a periodic basis. StarSight allows you to rapidly scan through the programming guide to find a program for viewing or recording. Programs can be searched and selected by category if desired.

Method of Operation Standard TV StarSight °

Control Panel on TV. YES NO

Universal Remote Control YES YES

[] 7-Trak Remote Control YES YES

FEATURES PROVIDED WITH YOUR TV

This operating guide describes a "family" of TV models. Not all models have all of the features described in this guide. In addition,

different control panels may be used from model to model. Most models include the following features:

--------_ MODEL FEATURE

StarSight Electronic Program Guide Q StarSight Demonstration n On-Screen Menus Accessed By Remote

o: TV Contro's n Universal Programmable Remote Control ca Z-TrakProgrammable Remote Control

c_ Picture-In-Picture [] 1_1ChannelTuning [] Automatic Channel Programming

ca Favorite Channel Add/Delete ca Channel Labels (ABC, TNT, etc.) for Easy

Channel Identification n Multiple Input Sources a Source Identification (VCR, Cable, etc.)

c) Antenna/Cable and Loop Out Jacks ca Audio/Video (A/V) Jacks [] Super-VHS A/V Input Jacks

ca Front Mounted ?UV Jacks

Surround Sound System

t_ MTS Stereo with SEQ (Spatial Equalization)

Surround Sound Speaker Terminals

u Variable Audio Output Jacks

Surround Sound Speakers Sleep Timer and On/Off Timer

[] Closed Caption and Text Modes ca Parental Control

SRX2793, IQ2793

Y Y Y

Y Y

Y Y Y Y Y

SRX3293, SRX359, i SRX3253, SRX3553

IQ3293, IQ3593 IQ3253, IQ3553

Y Y Y Y Y Y

Y Y Y Y

Y Y Y Y Y

SRX3593 only

Dolby Pro Logic

No SEQ

Y Y

Optional

Y Y Y

Y Y Y Y Y N

Dolby

Y Y

Optional

Y Y Y

Y Y Y Y Y Y

Dolby Pro Logic, Premium

No SEQ

Y Y

Optional

Y Y Y

2949-01-A iii

STANDARD CONNECTIONS FOR YOUR TV

CONNECTION CENTER

Locate the Connection Center on the back of the TV.

Use these to send the incoming

attdio and video (from Video 1In)

to another component, such as a

second VCR.

TURN OFF POWER OR UNPLUG TV BEFORE MAKING ANY

CONNECTIONS.

"vARIABLE AUDIO OUTPUT

Star,dard phono jack connectors for output to an optional stereo ampli- fier or to external speakers.

For Dolby Pro Logic TVs, do not

connect speakers directly to these

jacks. SPEAKER EXT/INT

Select EXT (external) to remove sound from the TV's s_akers.

Select INT (internal) to hear sound ffor,_the TV's speakers.

Note that this switch doe:+not ap- pear on TVs having the Dolby Pro I_,o_icaudio system.

SURROUND SPEAKER TERMINALS Connections for output to optional sunound sound spe_&ers. S-VIDEO 1 IN Jacks for audio and video input from a Super-VHS VCR

ADDITIONAL A/V JACKS (Some Models)

If your TV model is equipped with the additional A/V input jacks, they are located behind a small door below the control panel on the front of the TV.

S-VIDEO 2 IN Jacks for audio and video input from a second Super-VHS VCR.

VIDEO 3 IN Jacks for audio and video input from a third stereo VCR or other

A/V component.

294_÷01-A 1 -- 1

STANDARD CONNECTIONS FOR YOUR TV

SETUP 1: TV ONLY

If you receive your television signal by antenna or basic cable- TV (no cable box), connect your television as shown here.

_k TURN OFF POWER OR UNPLUG TV BE-

FORE MAKING ANY CONNECTIONS TO

YOUR TV.

1. Attach the cable coming out of the wall jack O to the "ANT/CABLE 1" jack on the back of your

TV.

2. Plug your TV into a power outlet that is not

controlled by a light switch.

3. If you want to activate StarSight, proceed to

"Step 2. Activate StarSight" in the StarSight

section of the operating guide.

CABLE A

Q r_s_.rr

m_mr_x matxt

"iV E_ACK

Antenna or Basic Cable-TV Connection

SETUP 2: 71/AND CABLE BOX

If you receive your television signal from a cable box, connect your television as shown in the illustration.

_k O NOT UNPLUG YOUR CABLE BOX

AT ANY TIME: DO NOT PLUG YOUR TV INTO THE

BACK OF YOUR CABLE BOX!

1. Turn off, but do not unplug, your Cable Box.

2. Attach the cable coming out of the wall O to the Cable Box's "Input" or "Cable In" jack.

3. Attach an RF cable O between your Cable Box's "Output" or "TV Set" jack, and the "ANT/CABLE

1" jack on the back of your TV.

4. Take the Remote Emitter cable _ and plug the jack into the "StarSight Control Port" on the back of the

TV. Route the Remote Emitter cable under the ('-able Box and place either one of the plastic bulbs

about two inches in front of the Cable Box's front panel, as shown in the

illustration. Make sure that the plastic C,_t_A bulb is facing the front panel O. Do not

adhere the Remote Emitter until after you have completed activating StarSight

and you have confirmed the correct code that operates your Cable Box. Once the code is confirmed, peel off the backing of the .,:ticker on the Remote Emitter and adhere it in

place.

TO FRONT OF _ ,_L_

[ /_ ,N --_&"-.. ""_REMDTE _ ._

NOTE:

The Remote Emitter is only necessary if you are planning to activate StarSight and want StarSight to control the channel tuning of your cable box.

Cable Box Connection

5. Plug your TV into a power outlet that is rtot

controlled by a light switch.

6. If you want to activate StarSight, proceed to "Step

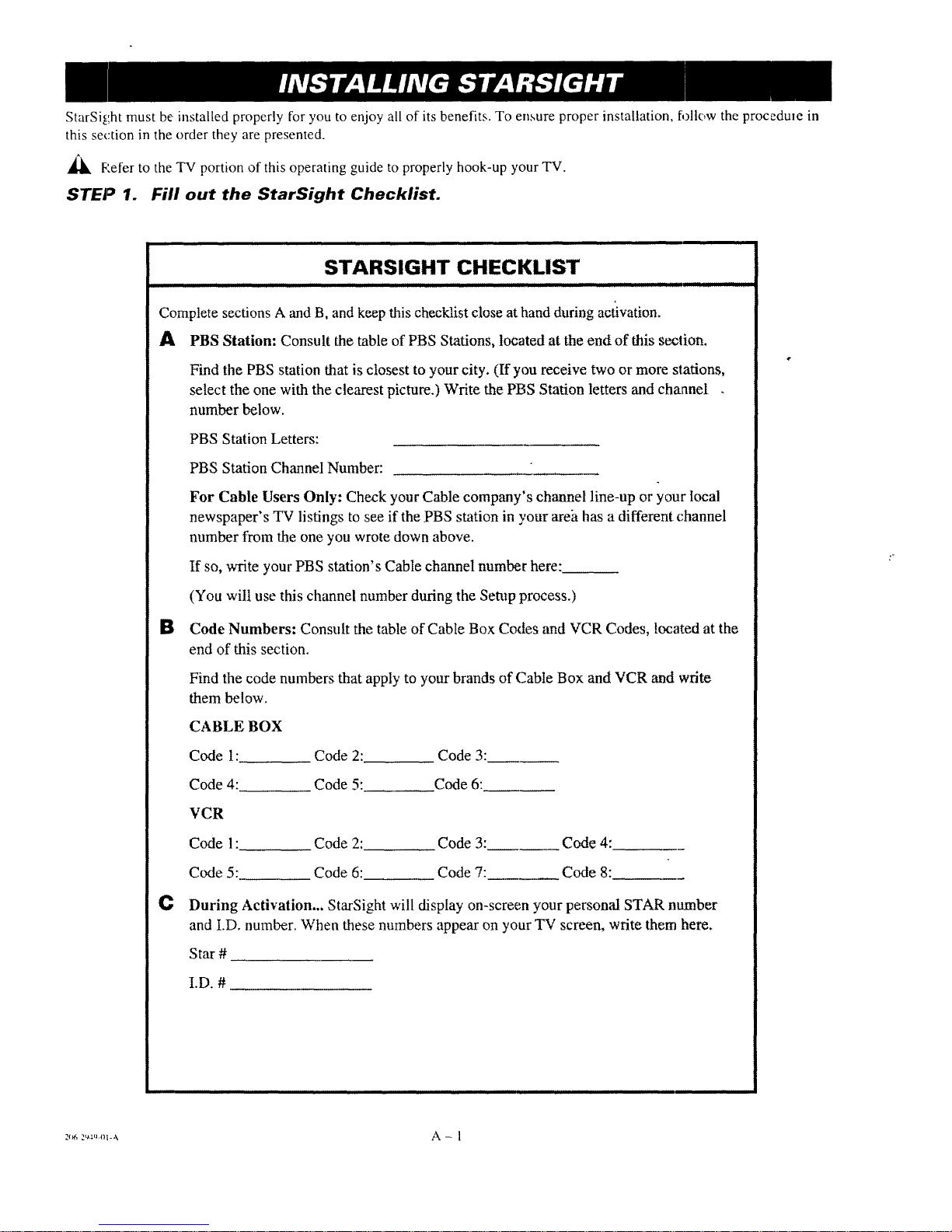

1. Fill out the StarSight Checklist" in the StarSight

section of the operating gaide.

2949-01-A 1 -- 2

STANDARD CONNECTIONS FOR YOUR TV

SETUP 3: "IV AND VCR

If you receive your television signal through your VCR, connect your television as shown here.

1. Attach the cable coming out of the wall O to the "VHF In" (From Antenna) jack of your VCR.

2. Attach an RF cable O between your VCR's "VHF

Out" (To TV) jack, and the "ANT/CABLE 1" jack on the back of your TV.

3. Take the Remote Emitter cable I_ and plug the jack into the "StarSight Control Port" on the back of the TV. Route the Remote Emitter cable under the VCR

and place either one of the plastic bulbs about two inches in front of the VCR's front panel, as shown in the illustration. Make sure that the plastic bulb is

facing the front panelO. Do not adhere the Remote Emitter until after you have completed activating StarSight and you have confirmed the correct code that operates your VCR. Once the code is confirmed, peel off the backing of the sticker on the Remote Emitter and adhere it in

place.

...... ; +

Standard VHS VCR Connection

iuNOTE:

The Remote Emitter is only necessary if you are planning to

activate StarSight and want StarSight to control the record

nctions of your VCR.

4. Locate the area of the TV's jack panel that is labeled "Video 1 In" (or "S-Video 1 In"). Attach the three Audio/Video (A/V) cables O to the "Video," "Audio R" and "Audio L" jacks and attach the other ends of the cables to the corresponding "Video Out," "Audio R Out" and "Audio L Out"

jacks on the back of your VCR. Connecting these

A/V cables is necessary if ... [] You have a VCR without a front panel channel indica-

tor that uses an on-screen display.

[] You have a stereo VCR and would like to take advan-

tage of the stereo feature.

[] You would like to take advantage of the TV's PIP

feature.

5. Plug your TV into a power outlet that is not controlled by a light switch.

6. If you want to activate StarSight, proceed to "Step

1. Fill out the StarSight Checklist" in the StarSight

section of the operating guide.

' TO FRONT OF VCR

Super-VHS VCR Connection

294.9-01-A 1 -- 3

STANDARD CONNECTIONS FOR YOUR TV

SET'UP 4: "IV WITH VCR AND CABLE BOX

If yo,areceive your television signal through your VCR, connect your television as shown here.

_k DO NOT UNPLUG YOUR CABLE

BOX AT ANY TIME! DO NOT PLUG YOUR TV INTO THE

BACK OF YOUR CABLE BOX!

TO FRONT OF VCR srh'_l.n-

oom'_t.

AND CABLE BOX

1. l'urn off, but do not unplug, your Cable Box.

2. Attach the cable coming out of the wall O to the "ANT/CABLE 2" jack on the back of your TV.

3. Attach an RF cable Obetween your TV's "LOOP OUT TO DECODER" jack, and the Cable Box's "Input" or "Cable In" jack.

4. Attach an RF cable t_ between your Cable Box's "Output" or "TV Set" jack, and the VCR's "VHF In" (From Antenna) jack of your VCR.

5. Attach an RF cable O between your VCR's "VHF Out" (To TV) jack, and the "ANT/ CABLE 1" .jack on the back of your TV.

6. Take the Remote Emitter cable O and plug the jack into the "StarSight Control Port" on the back of the TV. Route one Remote Emitter wire under the VCR and place its plastic bulb about two inches in front of the VCR's front panel !_, as shown in the illustration. Make sure that the plastic bulb is facing the front panel. Do the same for the

Cable Box _. Do not adhere the Remote Emitters until after you have completed activating StarSight and you have confirmed the correct

codes that operate your equipment. Once the codes are confirmed, peel off the backing of the sticker on tlhe Emitters and adhere it in place.

NOTE:

The Remote Emitter is only necessary if you are planning to activate StarSight and want StarSight to control the record functions of your VCR and the channel tuning of your cable bo_.

TV BAC, K

CABLE BOX

.qONT

Cable Box and VCR Connection

7. Locate the area of the TV's jack panel that is labeled "VidLeo 1 In." Attach the three Audio/Video (AIV) cables tl) to the "Video," "Audio P" and "Audio L" jacks and attach the other ends of the cables to the corresponding "Video Out," "Audio R Out" and "Audio L Out" jacks on the back of your VCR. Connecting these A/V cables is necessary if ...

Cl You have a VCR without a front panel ch;mnel indica-

tor that uses an on-screen display.

Cl You have a stereo VCR and would like to take:advan-

tage of the',stereo feature.

O You would like to take advantage of the q-V's PIP

feature.

8. Pl_ag your TV into a power outlet that is not controlled by a light switch.

9. If you want to activate StarSight, proceed to "Step

1. Fill out the StarSight Checklist" in the StarSight

section of the operating :guide.

_949ol-a 1 -- 4

STANDARD CONNECTIONS FOR YOUR TV

AUDIO/VIDEO (AN) CONNECTIONS FOR OPTIONAL VIDEO EQUIPMENT

Connections to VIDEO 3 IN or S-VIDEO 2 IN jacks.

(Some TV models only.)

Stereo Camcorder [__

I \ \

:" ; _i EO S-VIDEO 2 IN "

i:!i!i...... VioEO

[

OPTIONAL AUDIO AMPLIFIER/SURROUND SOUND CONNECTIONS TO TV °

If you wish to listen to the TV audio through an external amplifier or stereo system, or listen to surround sound audio, make the connec- tions to the "IN" shown in the illustration below.

__ TURN OFF POWER OR UNPLUG TV BEFORE MAKING ANY CONNECTIONS TO YOUR TV.

731 BACK

To Speakers

,''""" .... _ AUX INPUT

' ,,," _ _ R SPKR OUTPL_RIT-_

, [,._,

Back of Customer's

Stereo Amplifier

8 ohm

Surround

Speakers

"/'vBACK

_ SILVER

8 ohm

Surround

Speaker

Amplifier and Dual Surround Speaker Connections Single Surround Speaker Connection

DIFFERENT WAYS TO LISTEN TO YOUR TV

Surround Sound

[2 O rn

c_I

TV Speakers On

(Some Models Only)

SPEAKER EXT/INT switch in the INT

(internal) position -- TV speakers are ON. Sound is heard from both the TV's speakers and the external amplifier's speakers. Use TV's volume control to raise and

lower the level of sound being heard from both sets of speakers.

TV Speakers Off

(Some Models Only)

SPEAKER EXT/INT switch in the EXT

(external) position -- TV speakers are OFF. Sound is only heard from the speakers connected to the external

amplifier. Use TV's volume control to raise and lower the level of sound being heard from the amplifier's speakers.

Connect surround sound speakers as

shown. The level of surround sound will vary, depending on the program being

viewed. Note that not all programs have

surround sound audio.

The SURROUND SPKR terminals are

always active. The SPEAKERS EXT/INT switch does not affect the operation of

surround sound speakers. If you want to connect only one sarround

speaker to your "IV, connect the speaker wires to the :erminals adjacent to the

positive (+):and negative (-) symbols that

are circled.

294)-01-A 1 -- 5

THE FIRST TIME YOU OPERA TE YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one shown but its operation is the same.

ENTER (ENT) SELECT (SEL)

Press to see the Channel/Time dis- Press during on-screen menu op- play, or to remove any on-screen dis- erations to select a menu option, sound level. play or menu.

ENTER/4/ADJUST• SELE •VOLUME••CHANNE OFF/ON

ADJUST (ADJ) Left/Right Press during on-screen menu opera-

tion to see information/status display

for selected option. Press again to ad-

just the selected menu option.

Press once to see a menu. Press re- peatedly to sequence through the

available menus.

VOLUME (VOL) Up/Down Press to increase or decrease t:he

OFF-ON Press tc, turn TV

power ON or OFF.

CHANNEL (CH) Up/I)own Press to select channels higher o_: lower than the current channet. To add or delete ,channels stored :inthe scanning sequence, see CH. ADD/DEL option.

Remote Window Point the remote con- trol towards this

window to operate the

TV.

STEP 1. INSTALL THE BATTERIES INTO THE REMOTE CONTROL

Batteries are provided but they must be installed before using the remote controls. When a remote no longer functions nor-

mally, or when it loses memory, replace the batteries with high-quality, alkaline batteries. Match plus with plus (+ with +), rainus with :minus (- with -), as shown in the battery com- partment.

Unless your equipment responds to the factory preset codes, you will need to reprogram the remote controls with the codes of your particular equipment each time you replace batteries.

Universal Remote (Uses 2 !;izeAAA

batteries.)

NOTES:

[] Do not to place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote short- ens battery life.

[] Remove the batteries if the remote control will not be used

for a month or more. THE MANUFACTURER IS NOT RESPON- SIBLE FOR DAMAGE CAUSED BY BATrERY LEAKAGE.

Z-Trak Remote

(Uses 2 size AA batteries.)

STEP 2. CONNECT THE POWER

1. Plug your TV into an unswitched AC power source.

2. Turn the TV on by pressing OFF-ON.

Do not plug TV into ,,;witched outlet

on a VCR or cable-TV decoder

2949-01-A 2 -- 1

THE FIRST TIME YOU OPERATE YOUR TV

STEP 3. SELECT YOUR MAIN SOURCE & PIP SOURCE

A TV source refers to the equipment connected to the TV that supplies the picture and sound to your TV. You select the viewing source by using the Source Menu.

O El

Main Source

Press SOURCE on your remote to view the Source

Menu. Press SOURCE repeatedly

to select the source which corresponds to the jack on

the TV connection panel that is receiving the input signal.

Press QUIT to remove the

menu.

PIP Source

Press SOURCE on your remote to view the Source

Menu. Press the Left or Right key

to select PIP Source column.

Q Press SOURCE repeatedly

to select the source which corresponds to the jack that is receiving the PIP input signal.

o Press QUITto remove the

menu.

Main _urce Ant/Cable 1 _

Ant/Cable 2 Video 1 Video 2

S-Video 1 Video 3

S-Video 2

<1_Main/PIP

PIP Source

Ant/Cable 1

_ -

S-Video 1 Video 3 S-V deo 2

'1'4,To Select Source ]

Source Menu with Main Source set to Ant/Cable 1 .'and PIP Source set to Video 1. Connections must made to the

corresponding jacks on the connection panel.

STEP 4. USE AUTO PROGRAM

Auto Program finds all available channels on the currently se- lected source and stores them in the memory of the TV. To start the Auto Program procedure, press the Left or Right arrow key. Follow the instructions on the TV.

Auto Proqram Ch. Add/Del Ch. Labels Source ID Clock Set

-timer Setup Parental Ctl

CaptionFFext Background

StarSight

Press <, To Program ]

Setup Menu with Auto Program Highlighted

STEP 5. SET THE CLOCK

Set The Clock

El Press MENU: on your remote until the SETUP icon is selected

and the Setup Menu is displayed.

,7 Press the Up or Down arrow key to select Clock Set. ca Use the numbered buttons on the universal remote control to

enter the correct time or press the Left or Right arrow keys to advance the clock.

r7 Press TIMER to select AM or PM. cl Press QUIT to remove the menu.

1. Press 1",[,to select either OFF AIR ANTENNA or CABLE TV.

2. Press <-----4 to begin channel searzh.

3. Wait a few seconds for the TV screen to clear.

PRESS $ TOCHANGE SELECTION

)FFAIRANTENNA

SS '41.TOBEGINPROGRAMMING

_EARCHINGCABLE"IVINPt,rlTYPE

SEARCHING CABLE FV

CHANNEL --- IS(NOT)FOUND

/*"-AUTO PROGRAIM HAS COMPLETED

---'--_ l ___ CHA,_NELSF0UNO /

_,_ESS STAR FOR A DE WONSTRATION OF STAR S_,_

* Message appears only ifTV has not been authorized for Star-

Sight.

STEP 6. USE OTHER OPTIONS

You may want to,consider using the following options: Q Delete undesirable channels or add additional channel:s: Refer

to the Ch. (C 'hannd) Add/Dd oplion for details.

[] Apply "labels" to your available channels: Refer to the Ch.

(Channel) Labels option for details.

Cl Label the input sources with descriptive names, such as "VCR."

Refer to the Source ID option for details.

[] Adjust options in the Audio and Video Menus.

Z94_-Ol-A 2 -- 2

PIP OPERA TION

INTRODUCTION

Your TV must be connected to two separate sources in order to view a different picture in the PIP window from that which is showing in the main picture area of the TV. One source (such as an antenna) must be connected to the ANT/CABLE 1or 2jack. The other source (such as a VCR) must be connected to one set of the Video or Super Video jacks. If you ihave not already selected the input sources for your main TV picture andthe PIPwindow, refer to the instructions below. Make sure you select those sources thatcorrespond to the jacks on the TV connection panel that arereceiving the input signals.

I Main Source

Ant/Cable 1 Ant/Cable 2 Video 1 Video 2 S-Video 1 Video 3 S-Video 2

_, Main/PIP

PIP Source Ant/Cable 1 Video 1

Video 2 S-Video 1 Video 3 S-Video 2

'1'4,-1-oSelect Source ]

PIP

Window

Source of main picture shows here.

Source of PIP picture shows here.

SELECTING MAIN PICTURE AND PIP WINDOW SOURCES

SELECT MAIN SOURCE " •

Z-Trak Remote

n Make sure remoteis in TV mode•

Universal Remote

Make sure remote is in TV mode.

Press SOURCF; on your re- mote to view the Source Menu.

[] Press SOURCE repeatedly

to select the source which corresponds r.othe jack on the TV connection panel that is receiving the input signal.

n Press QUIT to remove the

menu.

o Point and press on the SOURCE

icon (at the top of the screen).

Point andpress on the Main Source which corresponds to the

jack on the TV connection panel

that is receiving the input signal.

Move the pointer off the menu and press the Trackball to remove

the menu.

SELECT PIP S

Universal Remote

Make sure remote is in TV ca mode.

Press SOURCE on )'our ta

remote to view the Source Menu.

Press the Left or Right key to ta select PIP Source column.

Press SOURCE repeatedly to select the source which

corresponds to the jack that is receiving the PIP input signal.

Press QUIT to remove the ca menu.

Z-Trak Remote

Make sure remote !isin 'IV m_xte.

Point and press on the SOURCE icon (at 'Ihetop of the screen).

Point and press on the PIP Source which corresponds to the jack on the TV connection panel that is receiving the input signal.

Move the pointer off the menu and press the Trackball to

remove the menu.

* A PIP window appears while the Source icon is selected to show the effect of choosing a PIP source.

PICTURE-IN-PICTURE FUNCTIONS

While using the various PIP functions, refer to the illustration below and the instructions on the following pages. Note that the op- eration of these functions differ, depending on which remote control you are using.

Arrow

Keys

SWAP

PIP

(OrJOff)

FREEZE

SOURCE

tl .. I

PIP Functions, Universal Remote Control

_._49-m-A 3- 1

! [

Select these options

with the Z-Trak re-

mote to perform the 1

PIP functions

described on the

following page.

'Th'r_r

(_:_ptions Z-"fi'_kk

PIPOn Freeze

[Vk:r,_PIP

PIP Functions, Z-Trak Remote Control

continued on next page

PIP OPERA TION

PIP Functions using Universal Remote

ca PIP On/Off: Press the PIP key to display the PIP window.

Press it again to remove the PIPwindow.

n SWAP: Press the SWAP key to swap the main picture with the

PIP window. Press SWAP again to return to the original display.

ca FREEZE: Press FREEZ to freeze motion of the picture shown

in the PIP window. Press FREEZ again to return to a live PIP window.

n PIPSize: Select PIP Size in the PIPMenu to choose between

seeing a small or large PIP window.

ca Moving the PIP window: Use the Left/Right and Up/Down

arrow keys to move the PIP window to the desired location of the TV screen.

PIP Functions using Z-Trak Remote

ca PIP On/Off: Move pointer to left of'IN screen and press on ]PIP On

to display the PIP window. Move the PIP window to the desired location on the screen and press the trackball to set it in place. Press on PIP Off to remove the PIP window.

o SWAP: Move pointer to left of TV screen and press on Swap to swap

the main picture with the PIP window. Press on Swap again to return to the original display.

ca FREEZE: Move pointer to left of TV screen and press on Freeze to

freeze motion of the picture shown in the PIP window. Press on Freeze

again to return to a live PIP window.

ca PIP Size: Select PIP Size in the PIPMenu to choose beLween seeing

a smal! or large PIP window, o

ca Moving the PIP Window: Move pointer to left of TV screen, press

on Move PIP and move the PIP window to desired location on the screen. Press the trackball to set the window in place.

OPERATION WITH ANTENNA OR DIRECT CABLE

Thls illustration shows the basic connection of your TV to a

VCR. With your equipment setup in this manner, your televi- sion has the following PIP capabilities:

Cl Simultaneously view a video tape playing in the VCR and a

channel selected by the TV's tuner.

O Simultaneously view two different channels; one selected

by the TV's tuner and another using the VCR's tuner.

cq Swap the main picture and the PIP window.

PIP VIEWING OPTIONS

Vie,wing Two Different

Channels

ca Set VCR's TV/VCR _ switch

to TV.

ca Select Ant/Cable [ as the

Main Source in the Source Menu.

ca Select Video 1as the PIP

Source in the Source Menu.

ca Select a channel with the

TV's channel selector.

ca Tam on PIP. ca Select a PIP channel using

the VCR's channel selector.

* May be labeled TV/Video.

Viewing a Video Tape

and a TV Chmmel

Set VCR's TV/VCR* switch to TV.

Select Ant/Ca'ale 1 as the blain Source in the Source

blenu,

ca Select Video 1 as tlae PIP

Source in the Source Menu.

ca Select a channel with the

TV's channel selector. c_ Turn on PIP. ca Play a tape in the VCR and

view it in the PIP window.

Main Picture Source Connected to the Antenna]Cable l jack.

PIP Window Source Connected to the Video [ In jacks.

FRONT

Option 1: Antenna or Direct Cable Connection To VCR.

(Cables are not supplied with television.)

2949-01-A 3-- 2

PIP OPERA TION

OPERA TION WITH CABLE DECODER

With your equipment setup in this manner, your television has the following PIP capabilities:

21 Simultaneously view a video tape playing in the VCR and a

basic cable channel selected by the TV's tuner.

O Simultaneously view two different cable channels; one

cable channel selected by the TV's tuner and another cable channel selected by the cable box.

o Swap the main picture and the PIP window.

NOTE: o The cable channels you can view depends on the service

you have purchased from your cable company.

PIP VIEWING OPTIONS

Viewing Two Different

Cable Channels

Select Ant/Cable 2 as the o

Main Source in the Source

Mem_

Select Video 1 as the PIP o Source in the Source Menu.

Select a channel with the o

TV's channel selector. Turn ,onPIPwindow, o

Select a PIP charmel using o the tuner in the Cable Box.

Viewing a Video Tape

and a Cable Channel

Select Ant/Cable 12as the Main Source in the Som'ce

Menu.

Select Video 1 as the PIP Source in the Source Menu.

Select a channel with the "I_'s channel selector.

Turn on PIP window. Play a tape in the VCR and

view it in the PIP window.

TO FRONT OF VCR _,.n"

com_oL

ANO CABLE BOX

Main Picture Source C.onnected to the Antenna/Cable 2 jack.

PIP Window Source Connected to the Video 1In jacks.

BOX

.::IONT

FRONT

Option 2: Cable-TV Decoder Connection via Loop Out To VCR.

(Cables are not supplied with television.)

29_ _w, 3 -- 3

UNIVERSAL REMOTE CONTROL

INTRODUCTION

This universal remote control operates the common features of most, but not all, model,; and brands of IR (infrared) controlled TVs, VCRs, cable boxes, video disc players, and audio equipment. The remote may provide functions that are not available on your equip-

ment, e.g., menu operations. Some functions of optional equipment may not be controlled by this remote. In such cases, use the original remote control for your equipment.

BATTERY INSTALLATION

Batteries are provided, but must be installed before using the remote control. When it no longer functions normally, or when it loses memory, replace the batteries with two high-quality, alkaline, size AAA batteries. Match plus with plus (+ with +), minus with minus (- with -) in the battery compartment.

Unless your equipment responds to the factory preset codes, i.e.. 101 for "IN', 201 for VCR, 353 for CABLE, and 401 for

AUX., you will need to reprogram the remote with the codes of your particular equipment after you replace batteries.

NOTES: Ca Do not place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote short-

ens battery life.

Cl Remove the batteries if the remote will not be used for a

month or more.

THE MANUFACTURER IS NOT RESPONSIBLE FOR

DAMAGE CAUSED BY BATTERY LEAKAGE.

CHOOSING OPERATING MODE

To control your TV, VCR, cable box, or auxiliary equipment with this remote, you must first choose the mode of operalion. Press the desired mode key for TV, VCR, CABLE or AUX. Pressing the "_r (Star) key will put the remote into StarSight mode. Press TV to return to TV mode. Some keys on the remote will always operate a particular product function. For example, VOLUME controls the TV sound level, and PLAY controls the VCR play function.

INDICATOR LIGHT

Illuminates whenever

remote sends signal.

OPERATING MODE KEYS

Selects equipment to be controlled.

NUMBER KEY PAD

Initiates menu/equipment

programming, direct channel

selection and other functions.

LOWER ARROW KEY PAD

Keys perform different functions

depending on the operating mode

currently selected. See the following pages for

more details of the

various operating modes.

POWER KEY

Switches power ON or OFF to selected equip-

ment.

UPPER ARROW KEY PAD

Keys perform different functions depending on the operating mode currently selected. See the following pages fi_r details of each operating

mode.

SPECIAL FUNCTION KEYS

Activates special features on some TVs and

VCRs.

StarSight® is a trademark of StarSight Telecast Inc., Fremont, CA 94538.

:ga._-ol-a 4- 1

UNIVERSAL REMOTE CONTROL

TV OPERA"lIONS

These descriptions apply to functions and operations of your TV. First, press the TV button on the remote control to select the TV mode of operation.

PRG (Program)

Used for programming your remote to oper-

ate other equipment. See "Programming

Your P,emote" later in this chapter for more

details.

FLASHBK (Flashback)

Press to return to the previous TV

channel selected for viewing.

CC (Closed Captioning)

Press to display :he closed caption menu.

Press repeatedly to select your choice.

Press ENTER/TUNE to

exit the menu.

CHANNEL/DAY

(Up or Down Arrows)

Tunes to the next t-dgher (or lower) channel

programmed into the TV

memory. Press and hold to repeat.

NUMBER KEY PAD

Enter number for direct

channel tuning.

MENU/GUIDE

Displays on-screen menus for TV mode of

operation. Press repeatedly

to view other on-screen menus.

LEFI'/RIGHT ARROW KEYS

Used. to respond when an on-screen menu

needs an ADJUST response. Press to move

the highlight bar within the menu. Also

used :o move the PIP inset to new location

on the screen.

PIP, SWAF, and FREEZ KEYS

See "PIP Operation"

section for more details.

TIMER

Displays the SLEEP TIMER menu. Press

repeatedly to set desired TV shut-off time.

Also used to specify AM or PM when set-

ting the TV's clock or programming a timer

feature. See "Getting to Know Your TV."

section for more details.

Point Remote at TV

POWER

Turns TV ON or OFF. TV

Press to select "IV mode of operation.

MUTE

sound

Press to turn otf while the picture re-

m_dns. Press again to restore the sound.

VOLUME/PAGE (Left Arrow)

Decreases tl-teTV's sound level. Pre'ss and hold to repeat. VOLUME/PAGE (Right Arrow)

Increases the TV's sound level. Press and

hold to repeat.

ENTER/TUNE

Press to see the ChanneP"I'ime display or

enter channe,l numbers.

QUIT/SEQ

Exits from the current on-screen display or

pop-up and returns to the current channel.

If no display is on, this is the normal spa-

tial equalization ON/OFF.

UP/DOWN AILROW KEYS

Used to respond when an on-screen menu

needs a SELEC'I" response. Press to move

the highligh: bar within the menu. Also

used to move the PIP inset to new location

on the screen.

_r (Star)

Press the -_ (S:ar) key to exit the TV

m_e and enter the StarSight raode. See

the StarSight section of this guide for

more details.

TV/VCR SOURCE

Displays the menu of TV sources. Press re-

peatedly to _';tepthrough the source ,,;elec-

tions.

TV Operations

NOTE:

21 Keys dedicated to VCR functions may be used to operate your VCR while the

reraote is in TV mode.

29494}1-A 4 -- 2

UNIVERSAL REMOTE CONTROL,

OPERA TIONAL MODES FOR FACTORY PRESET CODES

Push-button

orKey Label

POWER

CABLE VCR

AUX

TV CC FI.ASHBK MUTE CHANNEL/DAY

UP CHANNEL/DAY

DN VOLUME/PAGF.

3 4 5 6 7 8 9 C, ENTERffUNE MENU/GUIDE

THEME

UP ARROW DOWN ARROW LEFT ARROW RIGHT ARROW QUIT/SEQ

-_ (Star)

?IP SWAP

FREEZ

TO DO

TIMER

TV/VCR/S( CE RECORD PAUSE REWIND PLAY

STOP

FFWD

NOTE:

TV Mode

Code 101 TV Power On/Off Selects Cable Mode Selects VCR Mode Selects AUX Mode Selects TV Mode TV Closed Captions

TV F/ashback TV Mute

TV Channel Up

TV Channel Dn

TV Volume Up

TV Volume Dn

TV Digit 1 TV Digit 2 TV Digit 3 TV Digit 4 TV Digit 5

TV Digit 6

TV Digit 7 TV Digit 8

TV Digit 9 TV Digit 0

TV Enter TV Menu

(No Function) TV Select Up TV Select Dn TV Adjust Left TV Adjust Right TV SEQ Sound!Quit

Enters StarSight Mode

TV PIP On/Off TV PIP Swap TV PIP Freeze (No Function)

TV Timer TV Source

VCR Record VCR Pause VCR Rewind

VCR Play

VCR Stop

VCR Fast Forward

StarSight Mode

accessed with "dr

Star Power On/Off Selects Cable Mode Selects VCR Mode Selects AUX Mode Selects TV Mode TV Closed Captions

StarSight Flashback StarSight Mute StarSight CH/Day Up

StarSight CH/Day Dn

StarSight Vol/Page Up

StarSight Vol/Page Dn

StarSight Digit 1 StarSight Digit 2 StarSight Digit 3 StarSight Digit 4 StarSight Digit 5 StarSight Digit 6 StarSight Digit 7 StarSight Digit 8

StarSigbt Digit 9 StarSight Digit 0 StarSight Enter/Tune

StarSight Guides StarSight Theme StarSight Select Up StarSight Select Dn StarSight Adjust Left StarSight Adjust Right StarSight Quit Enters StarSight Mode StarSight PIP On/Off TV PIP Swap

TV PIP Freeze StarSight To Do

TV Timer TV Source StarSight VCR Record

VCR Pause

VCR Rewind

VCR Play

VCR Stop

VCR Fast Forward

VCR Mode

Code 201

vCR Poweron/off

Selects Cable Mode Selects VCR Mode Selects AUX Mode Selects TV Mode VCR AM/PM VCR Flashback TV Mute VCR Channel Up

VCR Channel Dn

TV Volume Up

TV Volume Dn

VCR Digit 1 VC'.R Digit 2 VCR Digit 3 VCR Digit 4 VCR Digit 5 VCR Digit 6 VCR Digil 7 VCR Digil 8 VCR Digit 9

VC R Digit 0 VCR Enter VCR Menu

(No Function) VCR Select Up VCR Selezt Dn VCR Adjust Left VCR Adjust Right VCR Quil Enters St_a-Sight Mode VCR VCR+ VCR Channel Map

VCR Semch VCR Memory

VCR Timer VCR TV;VCR Tuner

VCR Rec ord VCR.Pause

VCR Rewind VCR Play

VCR Stop

VCR Fast Forward '

Cable M_

Code 3f

Cable Power Or Selects Cable Selects VCR Mode Selects AUX Mode Selects TV Moc CABLE FC (Favorite Ch.) CABLE Flashb; TV Mute (See Note l)

CABLE Chann: 1.Jp

CABLE Chann_ Dn

TV Volume Up (See Note 1)

'1%'Volume Dn ('_e Note 1)

CABLE Digit [ CABLE Digit 2

CABLE Digit 13 CABLE Digit 4 CABLE Digit .5 CABLE Digit ,5 CABLE Digit 7 CABLE Digit 8 CABLE Digit 9 CABLE Digit 0 CABLE Enter CABLE Menu (No Function) CABLE Up Arr, CABLE Down Arrow CABLE Left Ar CABLE Right A_ow CABLE Quit Enters S!arSight Mode CABLE Day !5 CABLE Day Dc CABLE Pg Up/

, CABLE Pg .Dni_

CA BLE Timer CABLE Info CABLE Buy CABLE Guide VCR Rev,,ind VCR Play VCR Stop

VCR Fast Ferw_

Can be overwritten with Cable Vol/Mute when 399 is entered.

AUX Mode

Code 401 AUX TV/Disc Selects ('able Mode Selects VCR Mode

Selects AUX Mode Selects TV Mode AUX Audio AUX Frame[Time TV Mute AUX Skip >>

AUX Strip'<<

TV Volame Up

TV Volume Dn

AUX Digit 1 AUX Digit 7: AUX Digit 3 AUX Digit 4

AUX Digit 5 AUX Digit 6 AUX Digit 7 AUX Digit 8 AUX Digit 9 AUX Digit 0

AUX Display AUX l:_ogram (No Function) AUX ['art AUX Random AUX x3 FAST < AUX x3 FAST > AUX Clear Enters StarSight Mode AUX Repeat-Side AUX AUX AUX AUX AUX AUX AUX AUX AUX AUX AUX

Reference:

Repeat-A-B Repeat-Chap

Memory Still ><

TV/Disc

Edit Pause Scan << Play Stop/Eject

Scan, >>

124-.205-05 and

p.P 221-879-03

;949-01-A 4 _ 3

UNIVERSAL REMOTE CONTROL

PROGRAMMING YOUR REMOTE

If you are using Inteq products, the remote is programmed for the most commonly used codes. For other brands -- or if your remote fails to control your Inteq products -- you will have to pro_am the remote.

Follow these steps for each product you are using:

1. Look up the three-digit code for your brand (such as Zenith) amt type of equipment (such as VCR) in the code table oil the following page.

2. Press and hold PRG with a small blunt object until the indicator lights (about three seconds).

3. Press TV, VCR, CABLE, or AUX to select the product you want your remote to control. (Use

('.ABLE or AUX, to program your remote for a second TV or VCR or to program your remote for a video disc player or audio equipment.)

4. Key in the three-digit code fc,r your equipment, then pres_,; ENTER/TUNE. The indicator light should

flash, then turn off to indicate that the code was accepted. If the indicator stays on, repeat steps 2, and 4

or try using a different code

5. Write the codes that operate your equipment on the label inside the battery compartment for fu_ture

reference.

To erase al! code programming and return to the factory preset codes, key in code 9-1-1 when programming the remote.

NOTES:

O The remote cannot be programmed while in the StarSight

mode: Choose TV, VCR, CABI,E or AUX mode before pressing PRG.

rq If no key on your remote is pressed within 60 seconds, the

programming process will stop, and you will have to start

again.

O You may cancel programming at any time by pressing PRG.

SPF.CIAL FEATURES

AUX+I, AUX+2, AUX+3 Capability Your remote can control upto seven electronic components. If

you have programmed the remote for four components using the TV, VCR, CABLE and AUX keys, you may also program it

for up to threeadditionalcomponents (AUX+I, AUX+2, AUX+3) byholding the AUX key andpressing the 1, 2 or 3 key during programming. Once programmed, hold down the AUX key and press 1, 2 or 3, to access the additionalAUX +1, 2 or 3

mode.

Cable Box Volume You ]nay use your remote to control cable box volume and mut-

ing if available on your equipment. First program your remote with ,:he brand ccde for your cable device using the CABLE or AUX key. Then repeat the programming steps, again using the

CABLE or AUX key, but key in code 3-9-9 instead of a brand

code.

To restore TV volume/mute control to the CABLE or AUX

mode, reprogram your cable code into that mode.

Amplifier Volume Override You may use your remote to override your TV, VCR or video

disk player's volume functions with your _unplifier's volurne and muting.

1. Program your amplifier code into the CABLE mode

or one of the AUX modes.

2. Selezt the mode on your remote (TV, VCR, etc.) where you want the amplifier volume control function to appear. In other words, if you want to operate the volume and mute of your amplifier while the remote is in TV mode, press TV for this step.

3. Begin the programming steps as described in "Programming Your Remol:e" and enter code 4.-9-9, followed by ENTER.

The amplifier volume and mute features are nov/ avaiiable in the current mode.

To restore normal volume and muting control to your TV, VCR, cable or laser disc player, reprogram the remote for these

units into each mode (TV, VCR, etc.) to be restored. NOTE:

O CD and tape devices will automatically select amplifier vol-

ume and mute.

2949-01-A 4--4

UNIVERSAL REMOTE CONTROL

I I

AUTO FIND OPTION

If you have tried all the codes listed for your brand and type of product in the code table, and none of those codes operate your equipment, you c_m use Auto Find to search for the code you need.

Folilow these steps for each product you are using:

1. Turn the product ON and aim the remote toward it.

2. Press and hold PRG with a small blunt object until

the indicator lights (about three seconds).

3. Press the mode key on the remote for the product you want to control: TV, VCR, CABLE, or AUX.

4. Key in code 0-0-0, then press ENTER within two seconds. When the indicator light flashes three times and remains lit, Auto Find is active.

5. Press and hold POWER, then release it, repeating this action about once a second until the product

turns OFF.

Press ENTER immediately to save the code. If your remote fails to operate the functions you use most

often, you can re-enter Auto Find and search for a

better code.

NOTES: o The indicator light should fla,;h OFF when you press

POWER and back ON when you release it. If 1:heindicator lighl stays on when you press POWER, Auto Find has tried all available codes. If you finish Auto Find and the product you want to control has not turned off, your remote cannot control that product.

ra Pressing PRG at any time during the use of Auto Find will

cancel Auto Find, and you will have to start agai_

POWER _1_

OFF

Equipment to be

controlled

Typical Remote

Control

2949-01-A 4 _ 5

UNIVERSAL REMOTE CONTROL

OPERATING CODES BY BRAND NAME

TYS

Admmd Adventlwa TVfv'CR Akai Amark AOC Bell & Howell Brok._nic Candle

enturon

Citizen

ontec

Coron; do Crown

urtls Vlathes

Daewoo

Daewoo TV/VCR Daytron Elektra Emerson

Emerslm TVNCR Fisher Funal "_WVCR Gener;I

Electti: Goldstar Goldstar TV/VCR Hitachi

1.C Penney

JVC KMC KTV

116. 121. 130. 133 154 104

103. 146 104 121

131. 136 139

121. 139 141 103 1113

16.119. 121

149. 159 148 119

121

103.104.123.124.

131. 136. 145 158

1139.118 154

106. 107. 114. 116.

117. 161

103. 104. 119. 147 153

102. 103. 129. 163 10t. 1111. 114. 117.

119

125. 132. 164 103

103.10.1. 138

Sampo

Samsung

:Sa_yo

Sco_ Sears

Sharp

Signatum 2000

Sony Soundesign Sylvania

SmTVNCR

Tatung Teknika

Telerent

Toshiba XRI000 Yorx Zenith Zenith TV/VCR

Admiral

Adventura

Aiwa Akai Audio

Dynamics

Bell & Howell

119

103,119,134.141

108,109, 118 119,124 103, 108, 109,110,

111,118, 134 103,105,122,133,

137,156,169

103. 104,105, 113, 114,119,121.130, 133

115,143,151,170 139 112,113,117,119.

127,128, 139 154 106 103,112,121,124,

139

103,121

110.111,134,171 121 119 101,149 153,154.172

VCRS

2118.261 231

231

223. 238. 241

2112.218

2O6,247

Memorex Mitsubishi

Montgomery Ward

Multi Tech NEC Orion

Panasonic Pentax Philco

Philips Pioneer Portland Pro Scan

Quasar RCA

Reahsdc

Samsung

Sansui

Sanyo Scott

;ears

Sharp

;hintom

Signature 2000

Sony

Sylvania

Symphonic

21_.212.214.231

204. 222. 252

208.214.216.

219.231.249 239

202.218 250

214.251.259 215

207.214

207.214.227

210.215 246

216.260

214.259

215.216.220.227.

240. 242. 260 206,208,212,

214.231 220,230 239

206, 212.247

20.4.205.233.243 206,209,211,

212,215 208,261

239

208,214,216, 219,231,249

21%232,237 207,214,227

231

Paragon Philips

Pioneer RCA DSS

Regency

Samsung Scientific

Atlanta

Sprucer Standard Camp Texscan

Tocom Unika United Satt:llite Universal

Vid Tech Video Way Viewst.'_r Zenith Zenith Satellite

347.350. 352.

354.355

315.343 373 329

335 3t6. 323. 336.364

313 335

339. 356. 371

317.318.346

348. 362 344

358.362 34O 349

354. 355.372

301. 353

312.328.330. 351

VIDEO DISK

PLAYERS

P_oneer 4112. 403

i Sanyo 401

oo,

Zenith

AUDIO CD PLAYERS

Technics 432.45!)

Toshiba 447 Yamaha 448 Zenith 460.46t. 498.501.

5O2

AUDIO TAPE DECKS

Denon 455 I']amman/ 456

Kardon JVC 457 Kenwood 450

Onkyo 458 Phillps D_ 454 r t_oneer 451. 478

Sony 452 Technics 454.49 "p Yamaha 453

AUDIO ']tUNERS

AND AMPLIFIERS

Denon 462.463

IZtsher 464 (3oldstar 460 Harman/ 4(;5

Kardon

D,'C 466 Kenwood 468. 469 Marantz 4,'2. 503

Ortkyo 4"3

Kuraz:d

Lodge yet Logik LXI

Magn_vox

121 121

121

1133.

103.

119. 165

13"7

112.113.117. 12'7.128.139.

Broksonic

Canon

Citizen

Cmg Curtis Mathes

Daewoo

221. 226. 250. 255 214 209

212

214. 259

244. 246.248. 254

Tashiko 209 Mcai 409. 424

iTatung 202 Crown 410 iTeac 202. 231 Denon 411

Teknika !234 Fisher 412. 438 Toshiba 205, 215 Goldstar 460

KR 1000 239 qaxman/Kardon 413

Philips 475,476

Pioneer 477,478,479 Radio Shack 4ll7, 488 Realistic 4110

Sanyo 481 Scott 4112

Sharp 4113 :Sherwood 4:17,488

:_ony 41_9, 490, 49 l, 492 Soundesign 461,498. 501,502 reac 4!vl. 495

"l'echnics 497 Yamaha 496 Zenith 4,50. 461. 498. 501.

5,32

Magna mx TV/VCR Majestic Marantz Megatron Memorex MGM

Mitsubishi

Montgomery Ward

NEC Panaslmic

Philco

Philip.; Pioneer Ponlaad

ProScan

,ua_sar

RCA

173

I21

104. 120. 155

146

121

104 119, 120. 130. 140 155

103104,105,113.

114.119,121,130. 133

!04,119

106,107. 160, 166

174

103,104. 112. 113, 139

112,113

135

103

116,157.162,167

106. 107

104.116.126,

157.161,162,167,16_

Realistic 105. 123. 124

Daytron

)BX

Emerson

Fisher Funai

General

Electric

Goldstar

Go Video Hitachi

Instant Replay J.C. Penney JVC Kenwood

Logik LXI

Magnavox Maramz Maria

:236,246

202,218 203,221,223,

226.233,235, 243,250

211,212,213,247 231

214,216,220

209

256. 262. 263

215. 257

214. 227

214. 215. 218. 227

202. 225. 258 202 239

209. 231

207.214.231

207. 218 209

VecmrResearch 204.218 Yamaha 202.218 Zenith 201,224, 225,

229.237

CABLE/SATELLITE

Allegro Allegro A/B Switch

iemini

General Electric General Instrument Hamlin

Jerrold

Kale Vision

dacom

Magnavox NSC

Oak Panasonic

358.362

361

305.331.338 367

305,3O6

302.3113.345, 365,366

304.307.308.3OL 310, 318. 360,3'53

335

314.321 334 335,339.368.

369.370

311.332.342 313,320

JVC Kenwood

Magnaw_x Mitsubishi NAD Nakamichi NEC

Onkyo Panasonic

Philips Pioneer

Quasar Radio Sh_ak

RCA

Sanyo

;cott

Sharp Sony Soundesign

Teac

415

412.416.417.441

421.422.433.434

423.424

425.426.447

427.428

429

430

431.432

421.433.434

431.435

432

431.436.439.._0. 441

437

Z38.439

_40

a41,442

a43. 444,445

461. 498,501. _02

446 ---

Ref: 12z;-205-05 and

p.]? 221-879-03

2949-III-A 4 -- 6

QUICK REFERENCE TO MENUS: UNIVERSAL REMOTE

AVAILABLE MENUS

Your "IV is icon and menu operated. In other words, an icon is selected at the top of the TV screen and a menu of adjustment op- tions appears.

:ju

ISETUP:] ..........

,uo,o

Highlighted Icon

ThelectedmenUiconfOrtheappearsSe-[ Main Sourbe J below the icons.

StarSight : : Ant/Cable 2 Video 1 Video 2 S-Video 1 Video 3 S-Video 2

<p, Main/PIP

[ PIP Source

StarSight Video 1

Video 2 S-Video 1 Video 3 S-Video 2

q'4,To Select Source I

BASIC MENU OPERATION

_ ]_ Press MENU repeat-

edly to choose be-

tween available

menus.

Press the Up or Down

arrows repeatedly

until the desired

option is highlighted.

Press the Left or Right arrows to adjust C_-._-x,_ or ch;mge a selected

_57/

option.

Press QUIT to remove menus or wak

a few seconds and the TV will return auto- C-'"_ matically to normal operation.

Typical Remote Control

2949-01-A 5- I

SOURCE MENU

Sg UREEI

Video 3 and S-Video 2 are

source options for some TV

models only.

Main Source [ [i PIP Source ]

StarSight = Ant/Cable 2 Video 1 Video 2

S-Video 1

"-Video 3

K.S-Video 2

Video 1

Video 2

S-Video 1

Video 3

S-Vicleo 2.,./

'I'4, To Select Source I

• Main/PIP

A PIP window appears while the

Source icon is selected to show the effect of choosing a PIP source. If the PIP Source is changed, the

PIP window will rem,'dn on the screen after you exit from menu op-

erations.

MENU OPERATION

Press SOURCE for direct entry to the Source Menu, or press MENU _

or repeatedly until the Source Menu is

_[]_ _ selected.

Press the Left/Right keys to select either Main Source column or PIP

Source column.

Press SOURCE repeatedly'until the desired Source is selected.

Press QUIT or wait a few seconds for the TV to return to normal opera-

tion.

SOURCE SELECTION

a ANT/CABLE 1 or 2 Routes the antenna or cable-TV source to the TV for viewing. You see program material from

whichever signal source is connected to the AN_ITCABLE 1 or 2.jack. (If the signal is from a VCR or a cable box, tune the TV to either channel 3 or 4.)

n 'VIDEO 1, 2 or 3 Routes the audio and video from an A/V source (such as a VCR or a video disc player) to the TV for

viewing. The source must be connected to the corresponding VIDEO 1, 2 or 3 IN jacks.

S-VIDEO 1 or 2 Routes the audio and video from an auxiliary Super-VHS video source (such as a VCR or a video disc

player) to the TV for viewing. The source must be connected to the corresponding S-VIDEO 1 or 2 IN

jacks.

Refer to the "Standard Connections for Your TV" section to make the proper equipment connections to the TV. For information about PIP sources, refer to the "PIP Operation" section.

SOURCE IDENTIFICATION

Blue White

_woEo 3_NS.WOEO2/

Auxiliary A!V Jacks (Some TV Models)

NOTE:

Q The color of the Channel/Time display corresponds to

the color rings around the connectors of the jack panels. For example, the Channel/Time display will be Red if you are watching a program on Ant/Cable 1 source.

Yellow (_ OT*.=onr RedCONTROL PORT

: i

Magenta _:i Lt. Blue

Green

Connection Center on Back of TV

2949-01-A 6 -- 1

SETUP MENU

Ch. Add/Del Ch. Labels Source ID

Clock Set

Timer Setup

Parental Ctl

Caption/Text

Background

StarSight

Press 411_To Program ]

Clock Set 1 Timer Setup I

Parental Cll Caption/Text Background

[ Press ,ql_l'o :abel Sources]

While Video or Super-Video Source is C,hosen

MENU OPERATION

Press MENU repeatedly until the SETUP MENU is shown.

Press the Left/Right keys to ad-

just the selected option.

Press the Up/Down keys until the desired option is selected.

Press QUIT or wait a few sec-

onds for the TV to retc_rnto

normal operation.

m Auto Program

ca Ch. (Channel)

Add/Del

ca Ch. (Channel)

Labels

ca Source It-)

ca Clock Set

m Timer Setup

Finds all active channels and stores them in the TV's memory for use by CI-[ANNEL up/down. See "THE FIRST TIME YOU OPERATE YOUR TV" for more details.

Edits the channels found by Auto Program to create your own personal list of favorite channels. See the information following this chart for more details.

Assigns a network/station label, name or call letILersto specified channels. For example, if ,you choose the label "ABC" for channel 9, then "ABC" will appear in the ChannelFFime display whenever channel 9 is selected. See the information following this chart for more details.

Assigns a descriptive "name" to the input sources. For example, the Video 1 source may be named VCR. "VCR" will now appear in the Source Menu as a reminder that yoar VCR is connected to the Video 1 input jacks.

Sets the clock in the TV to the correct time. Press the Left/Right arrow keys to advance the: 24-hour clock, or use numbered buttons on the remote to enter time:. Press ENTER to start the clock.

Sets the TV's Sleep Timer and On/Off Timer features. See the: informaticn following this chart for more details.

ca Parental Ctl. Use this feature to block viewing of any undesirable channels or an entire input video source. See the

(Control) information following this chart for more detail';.

c_ Caption/Text Displays closed captioning or informational texl: when available on the selected channel. Options are:

OFF, CAPTION 1, CAPTION 2, CAPTION 3, CAPTION 4, TEXT 1, TEXT 2, TEXT 3, or TEXT 4. See the information following this chart for more details.

Q Background Adds or removes a solid-color background behind the on-screen menus. :a StarSight Begins the StarSight setup procedure. Refer to the StarSight section of this guide for details.

2949-0I-A 7 -- 1

continued onnext page

SETUP MENU

USING CH. (CHANNEL) ADD/DEL

Add Channels to Scan

Press the Up/Down keys to select Ch. Add/Delete.

Press Left/Right keys to view the add/delete screen.

_, Usethe Left/Right and Up/

I3.own keys to move selector to the channel being added.

Add the channel by pressing SOURCE until the display shows Added.

Delete Channels from Scan

Press the Up/Down keys to select Ch. Add/Delete.

Q Press Left/Right keys to

view the add/delete screen. Use the Left/Right and Up/

Down keys to move selector to the channel being deleted.

[] Delete the channel by

pressing SOURCE until the display shows Deleted.

NOTES:

121Ch. Add/Del can only be used with ANT/CABLE I or 2

Source.

Cl The audio of deleted channels is muted.

Selector Highlight

,,,I/

F--2"-I_ 4 s

s I

_ 10 11 12

7 8

13 14 15 16 17 18

19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54

55 56 57 58 59 60

61 62 63 64 65 66

67 68 69 70 71 72 73 74 75 76 77 78

k, [More Channels &J.-'_

Available Channels

[ Added '"_

Press

Source /

ToChangeJ

Available channels are: Broadcast Band -- VHF 2 to 13, UHF 14 to 83

Cable-TV Band-- 1 to 139

Live view of sele_ztedchannel.

Channel

---- Statas

Inst_nactions

I Use Down key to

move selector to addition_d num-

bers if plesent.

USING CHANNEL LABELS

Assign Labels

a Press the Up/Down keys to

select Ch. Labels.

a Press Left/Right keys to

view the Channel Label screen.

rn Select a channel by pressing

the CHANNEL Up/Down

keys.

m Lrse the Left/Right and Up/

Down keys to move selector to the desired label.

Remove/Prevent Labels

[] Press the Up/Down keys to

select Ch. Labels.

ta Press Left/Right keys to

view the Channel Label screen.

ca Select a channel by pressing

the CHANNEL Up/Down keys.

ca Use the Left/Right and Up/

Down keys to move selector to the four dashes or NONE.

NOTES:

_3 Ch. Labels can only be used with ANT/CABLE 1 or 2 Source.

13 Selecting the four dashes (.... ) specifies that no channel

label is assigned. Or, in addition to not assigning a label, NONE blocks the station or network labelsthat are transmitted

by some television stations.

Selector Highlight Available Labels

ADC AMC BCC BET BRAV

CA CBC CBN CBS CMTV "-_ CNBC CNN COM CSPN CSP2 ____b\_ CTN CTV DIS DISC E! Ch 9 "'"-""

ENC ESPN ESPN2 ET EWTN FAM FNN FOX F&V FX [ ABC "'---_

GALA HBO HN HSE HSN IC INSP JCN LIFE MAX ME/U MMT MTV NBC NICK NOS PBS PLAY PTL QVC RDS REQ SC SCFI SHOW SIN TBS TBN TELE TLC

[ More Labels 4, t

Live view of selected channel.

Current Channel

Selecled Label

Press Down arrow for more labels.

USING SOURCE ID

Assign Names To Your Sources

Ia the Setup Menu, press the Up/Down keys to select Source ID.

Press the Left/Right keys to view the Source ID screen. Press the Up/Down keys to choose a Source.

[] Press the Left/Right keys to Label the chosen Source.

Optional names for ANT/CABLE 1 or 2 Sources are: .... , Disabled, Antenna,

Cable, Cable Box, Satellite, VCR, StarSight (Ant/Cable 1 only).

Optional names for VIDEO Sources are: .... , Disabled, VCR, VCR2, Camcorder,

Video Game, Laser Disc, Audio Only, Satellite (some models only).

NOTE: c3 Disabling a Source prevents it from appearing in the Source Menu.

Live v_ew of

selected Source.

Source ] Ant/Cable 1

Ant/Cable 2 Video 1

Video 2 S-Vicleo 1

Label ] Star',Sight ]

Antenna ]

vcn /

VCR 2 | Video Game]

29_9-_vA 7 -- 2

SETUP MENU

TIMER SETUP: Sleep Timer

The Sleep Timer programs the TV to automatically turn itself off after a period from 15 minutes up to 4 hours.

From Setup Menu

cJ Make sure the 'lW's clock is set. o Press the Up/Down keys to select Timer

Setup and view the Timer Menu.

o Press the Up/Down keys to select Sleep

Timer.

c_ Use the Left/Right keys to set the period of

time the TV will remain on.

Direct Access

With no menus showing on the TV,

press TIMER on your remote to directly access the Sleep TimeL

n Press TIMER repeatedly to set the

period of time the "IV will remain on.

One minute before the TV turns off, the GOOD NIGHT display appears on the screen. At this time you have a choice of the following two actions.

D Do nothing. The GOOD NIGHT display remains on the screen. The TV will turn offin

one minute.

n Delay the turn-off by resetting the timer with a new time period.

NOTES: D q[bcancel the Sleep Timer, turn off the TV or press TIMER repeatedly until OFF is

showing.

[] As the Good Night display counts down the final 60 seconds, the audio and video

of the TV also "dim" for a soft, discreet turn-off.

Timer Menu ]

_i_ _-Timer

rirne--- rime

ff Timer

l 0:15

Sleep Timer Set to Turn TV

OFF in 15 MinTates

Sleep Timer

Good Night 0:58

"Good Night" Display Appears 60

Seconds Before Shut-Off

TIMER SETUP: On/Off Timer

The On/Off Timer programs the TV to automatically turn itself on at a specific time then turn itself off at another time.

Set On/Off Timer

t3 Make sure the TV's clock is set. o Press the Up/Down keys to select Timer Setup ca Press Up/Down keys to select On Time and use the numbered buttons on your remote to

enter a time for the TV to turn itself ON. Press TIMER on the remote to select AM or PM. (You can also use the Left/Right keys to advance the time.)

n Press Up/Down keys to select Off Time and use the numbered buttons on your remote to

enter a time R)r the TV to turn itself OFF. Press TIMER on the remote to select AM or PM. (You can also use the Left/Right keys to advance the time.)

ca Press Up/Down keys to select On/Off Timer and use ADJUST on remote to turn timer ON

(or OFF).

NOTE:

rn A time must be set for either On Time or Off Time in order to turn the timer ON.

[ Timer Menu ]

.,ep Timer

Time i.

On/C, ff Timer

[< 11:00 AMI

On/Off Timer Set to Turn

TV ON at II:00 am

2949-01-A 7 -- 3

SETUP MENU

USING PARENTAL CONTROL (PC)

Period of time PC will

be active.. L[ Parental Control Menu ]

entire _ ---- _

Blocks

source. _ BlOck Hours

Blocks individual ]- Block Source

channels forAnd -_ Block Channels

Cable 1 or 2 sources. [

(Does not appear if

the entire Ant/Cable O F F

source is b!ocked by

Block Source.)

1 2 3 4 5 6

8 _] lo 11 12

13 14 15 16 17 18 19 20 21 22 23 7.'.4 25 26 27 28 29 30 31 32 33 34 35 2;6 37 38 39 40 41 4.2 43 44 45 46 47 4.8 49 50 51 52 53 5,4 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 7'8

d--q--_.___

Press ] Source _ ToChange]

Live view of selected channel.

Channel

Status

Instructions

Block Entire Source Re-enter PC While it is Activated

O [] O

Press the Up/Down keys to select Parental Ctl and press the Left/Right keys to view the PC Menu.

Select Block Hours and use Left/Right keys to set the length of time PC will be active: OFF, 12, 24, 48 or 72 hours.

Select Block Source and use Left/Right keys to"Block" the input source.

a qb block other sources, press the

SOURCE key and set them to "Block."

o Press ENTER to exit and enter any 4-digit

"Parental Access Code" when prompted to do so. (You will be prompted to verify

the number by entering it a second time.)

Block Individual Channels

(Ant/Cable I or 2 Sources Only)

Press the Up/Down keys to select Parental Ctl andpress the Left/Right keys to view

the PC Menu.

o Select Block Hours and use Left/Right

keys to set the length of time PC will be active: OFF, 12, 24, 48 or 72 hours.

[] DO NOTHING WITH BLOCK

SOURCE.

o Select Block Channels. o Use Left/Right and Up/Down keys to

select a channel and press the SOURCE key to set it to "Block." Repeat this for each channel you want blocked.

o Press ENTER to exit and enter any 4-digit

"Parental Access Code" when prompted to do so. (You will be prompted to verify the number by entering it a second time.)

[]

Press the Up/Down keys to select Parental Cd and pre,;s the Left/Right keys to view

the PC Menu. Enter your access code. Make your ch_mges (block more channels,

reset the time lYeriod, etc.). Press ENTER to exit.

You will be prompted to change your access code. FJther enter a new 4-digit code or do nothing to retain the cun'ent

cc_le.

REMEMBER YOUR CODEX TO RE-ACCESS PARENTAL CONTROL WHILE IT IS ACTIVATED, YOU IdUST ENTER THIS NUMBER. Otherwise, simply allow the specified period of time to elapse.

NOTE:

O Do not unplug the TV in an attempt to deactivate the Parental Control, This only resets Parental Control.

USING CAPTIONS

Activating Captions

(With CC Button)

Press CC button on

remote.

Press CC repeatedly to

toggle through the five

choices: Off, Caption I, Caption 2, Caption 3 And Caption 4.

Activating Captions/Text

(From Setup Menu)

Press the Up/Down keys to

select Caption/Text. Press Left/Right keys to

toggle through the nine choices: Off, Caption 1, Caption 2, Caption 3, Caption 4, Text 1, Text 2, Text 3, or Text 4.

NOTE:

O At present, very few TV programs or video tapes offer text

captioning for any option other than CAPTION 1. There- fore, CAPTION 1 is the only recommended choice, unless

you know that aspecific program is providing captioning us-

ing one of the other selections.

-I ;o;3 T

lout there? t j

Typical Captions Display Captions may be shown anywhere

on the screen.

See special newscast tcnight at 7:00PM on channel 2.

Typical Text Display Fixed size text window fills lower half of screen.

2949-01-A 7 -- 4

AUDIO MENU

RLIDID

Bass

YT_e

Balance

Audio SEQ Surround Null _J

- Enhancement ____

For televisions having the Dolby P_l_

audio system, the Enhancement op-

t'/" tion appears in place of the SEQ, Surround,

and Null options.

M£WU OPERATION

_]_ _ Press MENU repeatedly until the

AUDIO MENU is shown.

Press the Left/Right keys to adjust

the sel,zcted option.

Press the Up/Down keys until the de- sired option is either highlighted or se- lected.

Press QUIT or wait a fi-_wseconds for

the TV to return to normal operation.

o Bass ta Treble ca Balance

Audio

(SAP is not aJ1op- tion for the Video or

S-Video sources. Audio signals intoa

video source are assumedto be monaural or stereo. )

Adjusts the BASS (low-frequency) level. Adjusts the TREBLE (high-frequency) level.

Adjusts the balance of sound between the two speakers. Allows you to se]ect STEREO, MONO or 2ND AUDIO/SAP operation.

STEREO: Directs the sound to the Left and Right speakers as supplied by the pro_am. Stereo is the

recommend choice: The TV switches automatically between the STEREO and MONO modes depending on the type of signal being received.

MONO: Directs the same sound to both Left and Right speakers, even if the program being

received is in stereo.

2ND AUDIO/ SAP:

Directs the sound for the Second Audio Program (.second language,) to tx)th the Left and Right speakers. SAP sound is always monatnal. If SAP is selected, you he_ the SAP (usually a second language). When the SAP broadcast ends, the TV switches automatically (defaults) to the type of signal being received, STEREO or MONO. The "IY switches back to 2ND AUDIO/SAP when the SAP broadcast resumes.

ta SEQ (Spatial Produces a spacious and more tonal sound. SEQ is only available while a stereo signal is being received and

Equalization) processed by the TV. Surround Adjusts the level of Surround Sound provided to the optional surround sound speakers. Surround Sound is

only available if a surround encoded stereo signal is being received and STEREO is either selected using the AUDIO option or selected by default.

ca Null Used to Minimize front channel sound from coming through the surround speakers. To adjust the Null,

while watching a Dolby Surround-encoded video tape, select Null and use the Left/Right keys to remove any dialogue that may be heard from the surround speakers.

a Enhancement Provides options for enhancing the TV's audio. The options shown depend on what is selected for the

(Dolby Pro Logic AUDIO option above. See the information following this chart for more details. audio systems only)

lVlono or SAP Your audio Enhancement options are Off and Pseudo Stereo. Off specifies that no Enhancement is Selected: activated. Pseudo Stereo enhances monaural audio to emulate stereo-like sound.

Stereo Your audio Enhancement options are Off, Concert ttall, Theater, Night Club, Stadium, Dolby Pro Selected: Logic-Normal and Dolby Pro Logic-Phantom. Off specifies that no Enhancement is activated. For the

other options, see "Stereo Operation," and "Dolby Pro Logic Operation."

NOTE: ci All adjustments on the Audio Menu are optional. You do not have to adjust these features in order to use your "IV.

294s,.(,-A 8 _ 1

AUDIO MENU

SPEAKER BALANCE

Stereo Operation

c_ Select Stereo as the Audio option.

o Select a desired Enhancement: Concert Hall, Theater, Night

Club or Stadium, or set Enhancement to Off. n Adjust Bass and Treble for the most pleasing sound. ca Select Balance and press the Left/Right arrow key to view the

speaker balance screen. o Press the Up/Down keys to choose the speakers you want to

adiust; either the front speakers (those in the TV) or the optional

surround sound speakers. n Press the Left/Right keys to adjust the selected speakers.

Dolby Pro Logic-Normal

[] SelectDolby ProLogic-

Normal as the

Enhancement

n Turn on the external

amplifier and set its volume

to approximately the same

volume as the T¥i ca Bass and Treble can not be

adjusted for Pro Logic

Normal. ca Select Balance and press the

Left/Right arrow key to view

the Pro Logic balance screen. a Press the Up/Down keys to

select a speaker (Left, Right

or Surround) to adjust. ca A highlight box and an

audible "hissing" sound will

"bounce" between the

selected speaker and the

Center Reference.

[] Press the Left/Right keys to

set the volume of the

"hissing" (for the selected

speaker) to approximately

the:same level as the

"hissing" of the (,'enter

Reference. Do this for each

speaker.

Dolby Pro Logic-Phantom

ca Select Dolby Pro Logic

Phantom as the Enhancement.

ca Adjust Bass and Treble for

the most pleasing sound.

rn Select Balance and press the

Left/Right arrow key to view

the Pro Logic balance screen.

ca Press the Up/Down keys to

select a speaker (Left, Right

or Surround) to adjust.

ca A highlight box and an

audible "hissing" sound will "bounce" between the

selected speaker and the

Center Reference.

n Press the Left/Right keys to

set the volume of the "hissing" (for the selected

speaker) to approximately the same level as the

"hissing" of the Center Reference. Do this for each

speaker.

NOTES:

[] To fally appreciate the quality of sound provided by the Dolby

Pro Logic audio system, make sure the speakers are balanced as described above.

[] An external amplifier must be connected to use Dolby Pro

Logic- Normal audio enhancement.

[] Optional Surround speakers must be connected to hear Sur-

round Sound.

[] While Pro Logic-Normal is selected, Bass and Treble adjust-

ments on the TV are not possible. These must be adjusted using the external amplifier.

Press 4, '1" To Change Speaker Press • t_ re Change Level

I_ Front Speakers Rgt ]

I I tlitill_lrlllllt ll*J

Mil..__h Surround Speakers /;]

I I I I I I I I I@1 I I I I I I I

Surround Speakers Required

Message appears when adjust- ing Surround Sound

STEREO SOUND BALANCE Cl Up/Down arrow keys select 1:hespeakers.

[] I.,eft/Right arrow keys balance sound to left and right

speakers in television and increase/decrease surround sound.

Highlight box "bounces"

between selected speaker and

Center Reference.

Press 4,_' To Change Speaker Press • I_ ToChange Level

,...._,,1,: CenterRefemnC_Speake_ ]

(

k,,. ]

'x._;i [ [;iii:151;ii: ii IiiP,]

Right Speaker ]

[• Surro,Jnd Speakers ]

I I I I I I I I III I(i)l I I I I I I I_"

_. [ External Amplifier Required ]

Message appears only for Pro Logic Normal selection.

PRO LOGIC BALANCE

[] Up/Down arrow keys select 1:he speakers. [] Left/Right arrow keys adjusts the level of sound.

_-m-A 8 -- 2

VIDEO MENU

YlrlErl

Contrast Brightness

Color Tint

Sharpness Color Temp Video Filter Auto Flesh Picture Pref

MENU OPERA ]'ION

_ ]_ _ Press MENU repeatedly until the

VIDEO MENU is shown.

Press the Left/Right keys to adjust the selected option.

Press the Up/Down keys until the desired option is selected.

Press,QUIT or wait a few seconds

for the TV to return to Normal op- eration.

o Contrast o Brightness

o Color o Tint

o Sharpness o Color Temp

(Temperature)

o Video Filter o Auto Flesh o Picture Pref.

(Preference)

Adjusts the overall contrast and color level of the picture.

Adjusts the brightness level of black areas in the picture, Adjusts the intensity of the colors in the picture. Adjusts the color of the flesh tones to more Green or more Red. Adjusts the definition of the object edges for best picture quality. Changes the "color temperature" or picture white balance between cooler natural whites and warmer

(red) colors, Reduces video "noise" or interference in dark picture areas resulting in clearer overall pictures, Automatically maintains natural skin tones under changing scene and video source conditions. Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video

settings or the factory preset THEATER video settings. The THEATER se_-tings are preset to provide optimum visual performance in low light "theater-like" conditions.

NOTES:

Cl All adjustments on the Video Menu are optional. It is not

necessary to adjust these features in order to operate the TV.

Cl Any adjustments made to the Video Menu settings while

Picture Pref. is in PRESET or THEATER mode will auto- matically store the current settings as the CUSTOM setting.

2949-01-A 9 -- 1

PIP MENU

Ch. Guide Ch. Review

PIP Color PIP Tint PIP Size

Press <1_ ToView }

Selecting the PIP Menu does not "activate" PIP. However, a PIP

window will appear during menu operation to show the effect of any setting changes.

MENU OPERA TION

_]_ [[_-JJ Press MENU repeatedly until the PIP

MENU is shown.

Press the Left/Right keys toadjust the selected option.

.@_ Press the Up/Down keys until the de-

_.'2_ ¢x_f_-'_J siredoptioniseitherhighlightedorse-lected. _P

Press QUIT or wait a few seconds for the "1-¥ to return to nerrnal opera- tion.

a Ch. Guide Provides a visual review of all channels in the channel scan memory for the currently selected

ANT/CABLE source. (See below.)

u Ch. Review Provides a visual review of the last three (3) channels tuned on the 'IV. (See below.) n PIP Color Adjusts the intensity of the colors in the PIP inset. u PIP Tint Adjusts the color of the flesh tones in the PIP inset to more Green or more Red. n PIP Size Adjusts the size of the PIP inset. Choose between _mall or large.

CH2

CH 3

CH5

CH6

CH 7

CH9

Ch. Guide Screen

Shows 3-second live displays of all channels

saved in the channel scan sequence.

CH 2

CH 3

CH 5

Ch. Review Screen

Shows 3-second live displays of the

last 3 ,channels viewed on the TV.

2949-0bA 10- 1

REMOTE CONTROL Z-TRAK

INTRODUCTION

This multi-brand remote control operates the common features of most, but not all, models and brands of IR (infrared) controlled VCRs. Some functions of your particular equipment may not be controlled by this remote. In such cases, use the original remote control for

your equipment.

BATTERY INSTALLATION

Batteries are provided, but must be installed before using the remote control. When it no longer functions normally, or if it loses memory, replace the batteries with two high-quality, alkal:ine, size AA batteries. Match plus with plus (+ with +), minus with minus (- with -) in the battery compartment.

Unless your equipment responds to the factory preset code, you will need to reprogram the remote after you replace the

batteries.

NOTES:

_1 Do not place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote short- ens battery life.

o Remove the batteries if the remote control will not be used

fcr a month or more. THE MANUFACTURERIS NOT RESPONSIBLE FOR DAMAGE CAUSED BY BATTERY LEAKAGE.

CHOOSING OPERA TING MODE

To control your TV or VCR with this remote, you must first choose the mode of operation. Press the de,;ired mode key for TV or VCR. Press TV to return to TV mode.

!-:

Set remote to TV mode

POWER

VCR

:remote to VCR mode

Z.Trak Remote

206-2949_91.A 11 -- 1

REMOTE CONTROL Z-TRAK

BASIC OPERA TIONS

Point Remote at TV or VCR

Set remote to TV mode.

VOL Up/l_

When operating TV: Increase volume

When operting VCR: Fast forward

VOL Down/'q_

When operating TV: Decrease volume

When operating VCR: Rewind

MUTE II

When operating TV: Mute sound

When operating VCR: Pause

RECRD

When operating TV: Begin StarSight

record function

When operating VCR: Begin VCR

record function

POWER

VCR

Set remote to VCR mode

TRACKBALL

operating "IN or VCR: Moves

on-screen pointer to desired TV menu selection. Press on the track!gall to "choose" the selection.

CHAN Up/_

Whenoperating"IV: Go to the next channel

Whenoperating VCR: Play

CHAN Down/•

When operating TV: Go to the previous channel

When operating VCR: STOP

ENTER

When operating TV: View Channel,q'ime display When operating VCR: View VCR display

FLSHBK

When operating "IV: Tune TV to

the htst channel viewed When operating VCR: TV/VCR

switch

;::]'_5

Z-Trak Remote

206-2949-01-A 11 -- 2

REMOTE CONTROL Z-TRAK

PROGRAMMING YOUR Z-TRAK REMOTE

Your Z-Trak remote is already programmed to work with most Zenith VCR's. If you have a non-Zenith VCR, or if your Zenith VCR does not respond to your Z-Trak remote, you will need to program your remote as follows:

1. Refer to the table of VCR Codes, in this section of the guide. Locate the 3-digit number which corre- sponds to your brand of VCR.

2. ]Vlake sure your TV is turned on.

3. While pointing the Z-Trak remote towards your Zenith TV, simultaneously hold the MUTE and ]ENTER keys until the TV displays a VCR "Setup" screen (about three seconds). The VCR key will also light upon entering the Programming mode.

4. Notice that the current VCR brand code (initially "201") is displayed on the TV screen. Roll the track-

ball up or down (or use CHAN Up/Down) to choose the 3-digit number of your VCR.

5. When the correct 3-digit number is displayed on the

TV screem use the POWER key to make sure that your VCR turns on and off properly. If it does not respond, refer to the VCR Codes table to select a different 3-digit number.

6. If your VCR turns on and off successfully, press the

trackball (or ENTER) to save the current VCR brand code. The setup screen will disappear from theTV. Also, the VCR key will flash 3 times upon exiting

the Programming mode. The remote will be in the VCR mode.

7. Now try other controls on your VCR, such as Play, Rewind, etc., to make sure that the correc! VCR brand code number wasse]ected. (If not, repeat steps 3 to 7.)

8. The MUTE key can be pressed at any time: to cancel Programming mode. The original VCR brand code will remain unchanged.

NOTE" Only the VCR mode can be programmed.

9. The Z-Trak remote will exit Programming mode automatically after 60 seconds if no key press or trackball movement is detected.

AUTO FIND OPTION

If you have tried all 3-digit codes listed for your VCR manufac- turer, and none of them operate your VCR, you will need to try "AutoFind" to see if a different code will operate yc,ur VCR:

1. Make sure your VCR is tuined on.

2. Simultaneously hold the MUTE and ENTER keys until the VCR key lights up (about three seconds).

"IV displays

VCR code

Equipment to be

controlled

Z-Trak Remote

Control

_C_-2_-O1-A 11 _ 3

REMOTE CONTROL Z-TRAK

3. Point the Z-Trak remote towards your VCR. Press CHAN UP followed by POWER. If yourVCRdid not turn off, keep repeating CHAN UP followed by POWER until the VCR responds.

4. If your VCR turned off, press ENTER to save the c_de. The VCR button will flash three times after

ENTER is pressed.

5. Now try other controls on your VCR, such as Play, Rewind, etc., to make sure that the correct VCR brand code number was selected. (If not, repeat

steps 2 to 4.)

6. The MUTE key can be pressed at any time to cancel

AutoFindmode. The original VCR brand code will remain unchanged.

7. The remote will exit AutoFind mode automatically

after 60 seconds if no key press or trackball move- merit is detected.

NOTE: o To view the code that was programmed, perform

Steps 2 and 3 of "Programming Your Z-Trak Remote."

VCR CODES BY BRAND NAME

VCRS

Admiral 208. Adventura 231 Aiwa 231 Akai 223, Audio 202, Dyrmmics Bell & Howell 206. 2._.7

Brok_onic 221. 226, 250. 255 Car'on 214 Citizen 209 Craig 212 Curtis Mathes 214,259 Dacwoo 244, 246. 248, 254 Da_tron 236, 2,16 DBX 202, 218 Emq=rson 203, 22I. 223. 226,

233, 235,243,250 Fisher 211, 2 I2, 213,247 Funai 231 Gereral 214. 216. 220

Ele_:tfic Goldstar 209 Go Video 256, 262. 263 Hitachi 215. 257 Instant Replay 214. 227 J.C Penney 214.215,218.227 JV(.: 202, 225. 258

Kenwood 202

Loglk 239 LXI 209. 231

MaL navox 207, 214,231 M a**antz 207, 218 Marta ]209 Memorex i 206. 212, 214, 23l Mik_,ubishi i 204 2 "19 252. 264

251

238,241 218

! Mont[:omery Ward 208,

231, Multi Tech 239 NEC 202,

: Orion 250

Panasonic 214. P(nta_; 215 Philco 207. 214 Philip:; 207, 214,227 Pioneer 2I0, 215 Portla:',d 246 Pro Scan 216. 260 Q aasar 2t4, 259 RCA 215.216,_220. 227, 240,

242, 260 Realistic 206. 208, 212, 2I4, 231 Szsns_ng 220, 230 S_.nsu: 239

S_nyo 206. 212,247 Scott 204, 205,223, 243 Sears 206, 209,21I, 212, 215 Siiarp 208, 261 Shint_m 239 Signalure 2000 208, 214. 216. 219,

231, 249 S_:)ny 217, 232. 227 S)Ivania 207, 214, 277 S_ mphonic 231 T_shi_,o 209 T_tung 202 Teac 202, 231 Teknil:a 234 Toshiba 205, 215 Vector Research 204.218 Yamaha 202, 218 Zenith 201. 224,225,229, 237 XR1000 239

214.216.219. 249

218

25 l, 2';9

CLEANING THE TRACKBALL

To keep the Z-Trak remote functioning properly, it is necessary to occasionally clean the TRACKBALL device. To do this:

1. Use a solution of mild dish washing detergent and water.

2. Moisten a clean soft cloth with the solution and lay the cloth flat on a table.

3. Turn the Z-Trak remote upside down and gently roll the TRACKBALL on the cloth.

4. Allow the remote to air-dry before using it again.

CAUTION:

• DO NOT USE ALCOHOL OR OTHER CLEANING FLUIDS TO C,LEAN THE TRACKBALL AS THESE MAY DAMAGE THE REMOTE.

206-294901-A 11 --4

QUICK REFERENCE TO MENUS: Z-TRAK

AVAILABLE MENUS

Your TV is icon and menu operated. In other words, an icon is selected at the top of the TV screen and a menu of adjust- ment options appears.

Ch 11 PBS 3:15 Stereo

Timer

Captions Z Trak PIP Freeze

All Oh Flash

l <1(_]_ VOLUME ]_>1

BA SIC MENU OPERA TION

l. Make sure that your Z-Trak remote is in the TV mode (rather than

VCR mode), by pressing the TV button on the top.

Press the trackball. A small square, known as the pointer, appears in the middle of the screen. It should be blue, indicating TV mode. If you have StarSight, the pointer may be red, indicating StarSight mode. The next step tells you how to switch modes.

The pointer iis moved by rolling the trackball up, down, left. and right. Move the pointer to the left edge of the screen. A column of

TV options appears. The icon at the top indicates which mode is active-- TV or StarSight (if connected). A TV icon represents TV mode; a circle with a star represents StarSight mode. You can switch between the two modes by locating the pointer on the icon and pressing the trackball. The icon switches and the pointer changes color.

Set the mode. to TV (a blue pointer).

The various menus are not all visible on the screen simultane- ously. Each menu appears when you move the pointer on top of it.

NOTE: Whenever the text reads "point to the option", it

means '"position the pointer on the option".

To make the pointer disappear, move it to the center of the screen

',and press the trackball.

'::L:.-:

206-29494)1-A 12 -- 1

QUICK REFERENCE TO MENUS: Z-TRAK

C_NNELICONS

Ch 11

PBS 3:15 Stereo

All Ch Flash

The Channel/Time display accompanies the Channel Icons Menu.

o Chan 1"and a All Ch

Flash

Channel up or down; equivalent to CHAN Up or Down on the remote. Point to tile arrow and press.

Gives you a complete listing of all channels on the screen. Channels currently stored in memory (via Auto

Program) are shown in color. However, you can tune to any channel on the list. Point and press on a channel; the program on that channel is shown in the PIP, along with the channel label. To tune to that channel, press on it again.

Tunes the TV to the last channel viewed. The FLSHBK button on the Z--Trak remo_!eperforms the same function.

VOLUME CONTROL

(MUTE) VOLUME

<r I>

_ ove the pointer to the bottom of the screen to

view the Volume Control.

Point to the desired volume level on the slider bar, and press the trackball. The volume level

automatically jumps to the new value. Or, press on the arrows to gradually raise or lower the volume.

Point and press on MUTE to turn the sound off completely.

You may also control volume and mute using the VOL Up/Down and MUTE buttons on the

Z-Trak remote.

2t_-294S,-OI-A 12 -- 2

TV OPTIONS MENU

Timer Captions

Z Trak

PIP ON Freeze Move PIP*

Swap*

The TV !icon will only appear for Ant/Cable 1 Source selection.

*Not always displayed.

See table below

MENU OPERATION

Move the pointer to the left of

_[_ the screen to view the TV

Options Menu. f

Press the trackball to select the option. See the tabh,' below.

Point to the desired option.

(Its status is shown at the bottom of the screen.)

Move pointer off the menu to remove it from view.

7,_" 2-"

a Timer The sleep timer allows you to program the TV to automatically turn itself off after a period from 15

minutes up to 4 hours. To activate this feature and change the interval, press the trackball while pointing at Timer.

o Captions By pressing on this option, you can select Caption 1, Caption 2, Caption 3, Caption 4 or OFF. o Z-Trak This determines how fast the pointer moves as you roll the trackball. By pressing on this option,, you can

set this response speed to Slow, Medium, or Fast, according to your preference,.

o PIP ON This turns the PIP (Picture-ln-Picture) on or off. When you first turn the PIP on, the options menu

(or OFF) disappears and the pointer moves into the PIP. You can then move the PIP around the screen, using the

trackball. Pressing the trackball then locks the PIP in place and removes the pointer.

o Freeze Pressing on this option "freezes" the action of the picture in the PIP inset. See PIP Operation section for

details.

c_ Move PIP This option only appears when the PIP is on. Pressing on it causes the options list to disappear, and the

pointer appears in the PiP. You can then move the PIP around the screen with the trackball. Pressing again locks the PIP in its new location and returns theTV to normal viewing.

o Swap This option only appears when the PIP is on and the PIP source is different from the main source. This

option "swaps" the main picture with the picture in the PIP inset.

=_2_9-01-A 13 _ 1

SOURCE MENU

_U_R_E I Maln_S_ource

StarSight " Ant/Cable 2

Video 1 Video 2

,.t_-VidAo 1

(Video 3 k_S-Video

Video 3 and S-Video 2 are

source options for some

TV models only.

PIP Source ]

StarSight ....

Video 1

Video 2

/ £-vid#n 1

Video 3 "_ S-Video 2/

A PIP inset appears while the Source icon is selected to show

the effect of choosing a PIP'

source.

If the PIP Source is changed, the PIP inset will remain oll the

screen after you exit from menu operations.

MENU OPERATION

Move the pointer to the top left of the screen and point to the SOURCE icon. Press the trackball.

Point to "EXIT" and press the trackball to remove the menu

from view.

Point to the desired Main or PIP source. Press the trackball. Or, press repeatedly on Main Source or PIP Source to toggle through your source options

SOURCE SELECTION

[] ANT/CABLE 1 or 2 Routes the antenna or cable-TV source to the TV tbr viewing. You see program material from

whichever signal source is connected to the ANT/CABLE 1 ,or 2 jack. (If thee ,;ignal is from a VCR or a

cable box, tune the TV to either channel 3 or 4.)

o VIDEO 1, 2 or 3 Routes the audio and video from an A/V source (such as a VCR or a video dis_c player) to the TV for

viewing. The source must be connected to the corresponding VIDEO I, 2 or 3 IN jacks.

[] S-VIDEO 1 or 2 Routes the audio and video from an auxiliary Super-VHS video source (such as a VCR or a video disc

player) to the TV for viewing. The source must be connected to the corresponding S-VIDEO 1 or 2 IN jacks.

Refer to the "'Standard Connections for Your TV" section to make the proper equipment connections to the TV. For information about PIP sources, refer to the "PIP Operation" section.

SOURCE IDENTIFICATION

Blue White

AUDIO INPuRTIGHT [VIDEO INPUT

Auxiliary A/V Jacks (Some TV Models)

NOTE:

12 The color of the Channel]Time display corresponds to the color

rings around the cmmectors of the jack panels. For example, the Channel/Time display will be Red if you are watching a program on Ant/Cable 1 source.

Magenta

Yellow Red

: \_-_wJ]i I .mN-_ un

TOEXTEM!IALAMPO_SPlm

.....+.............+ , +._._-__--_ -

LOt_POUI A#TEN#A I_NTENIOt [ INTn r-£ff l'n'II]lll

¥1DED 1 IN VlOEO 2 IN I

¥10E[) r AUDIO_

---3-

LOOPOUT

8+¥10E01 I_

_" Green

Connection Center on Back of TV

Lt. Blue

++6-_9_9m-a 14 -- 1

SETUP MENU

Auto Proqram

Ch. Add/Del Ch. Labels Source ID Clock Set

Timer Setup

Parental Ctl Caption/Text

Background StarSight

Press To Program I

MENU OPERATION

Source ID Clock Set Timer Setup Parental Ctl Caption/Text Background

[_Press To Label Sources !

While Video or Super-Video Source is Chosen

Move the pointer to the top left of the screen and point to the

SETUP icon. Press the trackball.

Press on the option again to

access it.

Point and press on the desired option to highlight it.

Po int and press oll EXIT or

move the pointer off the menu and press the trackball to

cernove the menu from view.

a Auto Program Finds all active channels and stores them in the TV's memory for use by CHANNEL up/down. Follow

the on-screen directions. Auto Program runs on the currently selected Ant/Cable source.

a Ch. (Channel) Edits the channels found by Auto Program to create your own personal list of favorite channels See

._dd/Del the information following this chart for more details.

o Ch. (Channel) Assigns a network/station label, name or call letters to specified channels. For example, if you choose

Labels the label "ABC" for channel 9, then "ABC" will appear in 1LheChannel/Time display whenever

channel 9 is selected. See the information following this chart for more de.tails.

a Source ID Assigns a descriptive "name" to the input sources. For example, the Video 1 source may be named

VCR. "VCR" will now appear in the Source Menu as a reminder that your VCR is connected to the Video 1 input jacks.

u Clock Set Sets the clock in the TV to the correct time. Point and press on the option to highlight it. In the status

bar at the bottom, point and press on either the hours or minutes to adjust them. Point and press on AM or PM to toggle them. Move pointer away from menu to remove it fi'orn view.

o Timer Setup Sets the TV's SLEEP TIMER and ON/OFF TIIVIER features. See the information following this chart

for more details.

a Parental Ctl. Use this feature to block viewing of any undesirable channels or an entire input video source. See the

(Control) information following this chart for more details.

a Captionfl'ext Displays closed captioning or informational texl when available on the selected channel. Options are:

OFF, CAPTION 1, CAPTION 2, CAPTION 13,CAPTI()N 4, TEXT 1, "TEXT 2, TEXT 3, or TEXT 4. See the information following this chart for more details.

Background Adds or removes a solid-color background behind the on-screen menus. Highlight and press on the

option, and then press to toggle the background on and off'.

StarSight Begins the StarSight setup procedure. Refer to the StarSight section of this guide for details. (Ant/Cable 1 Source

selection only)

continuedi on next page

206-2949-01-A 15 _ 1

SETUP MENU

USING CHANNEL ADD/DEL

Add Channels to Scan Delete Channels from Scan o Select Ch. Add/Del. _ Select Ch. Add/Delete. o Point to the desired channel, c_ Point to the desired channel. o Press trackball until channel :_ Press trackball until channel

slatus shows Added. status shows Deleted.

Press on EXIT to tune to the channel pointed to by the highlight.

NOTE: o Ch. Add/Del can only be used with ANT/CABLE I or 2 Source

selection.

Q Tile Audio of deleted channels is muted.

Selector ltighlight

112 4 s €_

r 8 _3 lO 11 12

13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 .'-16 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 7! 72

Available Channels

Ch 9.z,_"- i

E Added ""T"'

I I

,.. Edo_dh&6e6 _

Available channels are: Broadcast Band -- VHF 2 to 13, UHF 14.to 83

Live view of

""" selected channel.

Press here to

laccess additional

numbers if present.

Cable-TV Band-- 1to 1139

USING CHANNEL LABELS

Assign Labels o Remove/Prevent Labels

o Select Ch. Labels. Select Ch. Labels. t_ Select a channel by pointing ]_ Select a channel by pointing

and pressing Ch 1"or ,L. and pressing Ch 1"or _.

a Foint and press on the de- o Point and press on the four

sired label, i dashes or NONE.

Press on EXIT to return to o Press on EXIT to return to

normal viewing. ] normal viewing.

NOTE:

o Ch. Labels can ordy be used with ANT/CABLE 1 or 2 Source

selection.

:_ Selecting the four dashes ( .... ) specifies no channel label. Or,

selecting NONE blocks the station or network labels that are transmitted by some television stations.

Selector Highlight

-- NONEAaE -_e3

ADC AMC BCC BET BRAV CA CBC CBN CBS CMTV CNBC CNN COM CSPN CSP2 CTN CW DIS DISC El ENC ESPN ESPN2 ET EWTN FAM FNN FOX F&V FX GALA HBO HN HSE HSN IC INSP JCN LIFE MAX MF-JU MMT MTV NBC NICK NOS PBS PLAY PTL QVC

RDS REQ SC SCFI SHOW

Available Labels

I ABc ---'i--

[Oh*--1-Oh

SIN TBS TBN TELE TLC _/

Live view of

- selected channel.

Current C,hannel

- Selected Label

- Charmel ,';elector

- PoinL and press on this box for more labels.

USING SOURCE ID

l! Assign Names To Your Sources

Select Source ID. Point to the desired "Source/Label" line and press to highlight it.

Press repeatedy to scroll through the available labels. Press on EXIT to return to normal viewing.

VIDEO GAMES AND OTHER FIXED PATTERN DISPLAY CAUTION

If yoij use your TV for video games or other fixed displays, avoid settir g the BRIGHTNESS control for an excessively bright picture. A bright, fixed pattern, if used for long periods of time, can result in a permanent impt-int on the TV picture tube. You can reduce this possibility by alternating the use of the fixed pattern display with normal TV picture viewing, by turning down the CONTRAST control for sustained fixed pattern use, and by turning off the fixed pattern display when not in use.

Live view of selected Source.

Source

Ant/Cable ! AnUCab!e 2 Video 1

I Video 2

LS-Video 1

Label

StarSight Antenna VCR VCR 2 Video Garae

Optional names for ANT/CABLE 1 or 2

Sources are:

--, Disabled, An- tenna, Cable, Cable Box, Satellite, VCR, StarSight (Ant/Cable

1 only)

Optional names for VIDE(} Sources are:

--, Disabled, VCR, Camcorder, Video Game, Laser Disc, Audio Only. VCR2, Satellite. (Some models only.)

NOTE:

c_ Disabling a Source prevents it from appearing in the Source Menu.

206-29.tg-01-A 15 -- 2

SETUP MENU

TIMER SETUP: Sleep Timer

The Sleep Timer programs the TV to automatically turn itself off after a period from 15 minutes up to 4-hours.

From Setup Menu

o Make sure the TV's clock is

sell.

Select Timer Setup to view

the Timer Menu.

Press on Sleep Timer repeat- edly to set the period of time the TV will remain on.

Direct Access

o Move pointer to left of screen

to view the TV Option Menu.

ca Point and press on Timer

repeatedly to set the period of

time the TV will remain on.

a Move pointer away from

menu to remove it from view.

One minute before the TV turns off, the GOOD NIGHT display appears on the screen, At this time you have a choice of the fol- lowing two actions.

Do nothing. The GOOD NIGHT display remains on the screen. The TV will turn off in one minute.

Delay the turn-off by resetting the timer with a new time period.

NOTE:

o Tc cancel the Sleep Timer, turn off the TV or return to the Timer

feature and set it to OFF.

As the Good Night display counts down the finaF60 seconds, the audio and video of the TV also "dim" for a soft, discreet turn-off.

Timer Menu

Sleep Timer On Time

Off Time On/Off Timer

0:15 I

Timer Set to Turn TV OFF in 15 Minulles

Sleep Timer

Good Night 0:58

"Good Night" Display Appears 60 Seconds Befl)re

ON/OFF TIMER

The On/Off Timer programs the TV to automatically turn itself on at a specific time, then turn itself off at another time.

Set On/Off Timer

Make sure clock is set to Timer Setup. Select On Time. Inthe Status bar at the bottom, point andpress

on the hours and minutes to adjust them to the time you want the "IV to turn itself ON. Point and press on AM (or PM) to toggle

Ihem. Select On Time. In the Status bar at the bottom, point and press

on the hours and minutes to adjust them to the time you want the

'FV to turn itself OFF. Point and press on AM (or PM) to toggle

them. Or, press on the arrows to move the time forward or backward.

Select ON/OFF Timer and press on it to turn the timer ON (or OFF).

NOTE: n A time must be set for either On Time or Off Time in order to

turn the timer ON.

Timer Menu ]

[__S_ Timer ] Point and press on

On Time--- I_1 these to adjust

- /

On/Off Timer

Lo .... F

On/Off Timer Set to Turn TV ON at 11:00 am

2_6-r,_9-oi-A 15 -- 3

SETUP MENU

USING PARENTAL CONTROL (PC)

Enter Parental Access Code: .... I

<0><1><2><3><4><5><6><7><8><9> !

_ Point and press

Parental Control Menu ] on these digits to

enter code.

Block Hours

B_- So_--" Q _ Period of time PC

Block Channels ._[ _ will be active.

T"'__ Blocks entire source.

Blocks individua!

[4 OFF I_] channels for Ant!

Cable 1or 2 sources.

1 2 3 4

7 8 [] 10

13 14 15 16

19 20 21 22 25 26 27 28 31 32 33 34 37 38 39 40

43 44 45 46

49 50 51 52 55 56 57 58 61 62 63 64 67 68 69 70 73 74 75 78

17 23 29 35; 41 4"7 53 59 65 71 77

6 12 18

30 38 42 48 54 60 66 72 78

Unblocked --_-

lave view of

selecled channel.

I Channel

Status

Block Entire Source

o Select Parental Ctl.

Select Block Hours and press on the arrow

to set the length of time PC will be active: OFF, 12, 24, 48, or 72 hours.

:3 Set Block Source. Move the pointer to

the status bar at the bottom and press on %nblocked" to change it to "blocked."

t3 To block other sources, move the pointer to

the left side of the status bar and press to select another source. Move the pointer back to the right side and press to show

"blocked." Point and press on Exit and enter any

4-number access code by pressing on the

individual numbers. You will be asked to verify the code by entering it again.

Block Individual Channds

Select Parental Ctl.

D Select Block Hours and press on lhe arrow

to set the length of time PC will be active: OFF, 12, 24, 48, or72 hours.

DO NOTHING WITH BLOCK SOURCE.

!21

Select Block Channels. For each channel to be blocked, move the

pointer to the number and press the trackball twice.

Point and press on Exit twice and enter a

4-number access code by pressing on the

individual numbers.

[.21

{-1

Re-enter PC While it is Activated

Select Parental Ctl. Enter your access code when prompted to

do _,o.

Make your changes (block more channels, reset the time period, etc.)

_ Point and press on Exit.

_3 You will be prompted to "change code if

desired." Either enter a new 4-number code or do nothing to retain the current code.

REMEMBER YOUR ACCESS CODE! TO RE-ACCESS PARENTAL CONTROL WHILE IT IS ACTIVATED, YOU MUST

ENrER THIS NUMBER. Otherwise, simply allow the specified period of time to e,lapse.

NOTE:

o Do not unplug the TV in an attempt to deactivate the Parental Control. This only resets Parental Control.

USING CAPTIONS

I: :: Activating Captions:

-'H:ig_ and press Caption/Text.

Press the trackball repeatedly to toggle through the nine choices: O[f, Caption 1, Caption 2, Caption 3, Caption 4, Text 1, Text 2, Text 3, or Text 4.

NOTE:

At present, very.few TV programs or video tapes offer text

captioning for any option otherthan CAPTION 1. Therefore,

CAPTION 1 is the only recommended choice, unless you know that a specific progrm-nis providing captioning usingone of theother

selections.

Typical Captions Display Captions may be shown

anywhere on the screen.

3ee special now_st

I tonight at7:00PM on I I

,anne,

Typical Text Display Fixed size text window

fills lower half of screen.

206-2949-01-A 15 -- 4

AUDIO MENU

I _ I Bass:

Balance

,m,_ ,_ Audio

SEQ

FlUrllrl Surround

Null /I

(EnhancemenO _j

[,,

For televisions having the Dolby

audio system, the En-.

J!J hancement option replaces the

SEQ, Surround, and Null options.

O-_

MENU OPERATION

Move the pointer to the top left of the screen and point to the AUDIO icon. Press the trackball.

Press on the option or on ,[he slider barto adjust the option.

Point and press on the desired option to highlight it.

Move the pointer off the menu and press the trackball to remove the menu from view.

o Bass

Treble Balance

[] Audio

(SAP is not an option

Adjusts the BASS (low-frequency) level. Adjusts the TREBLE (high-frequency) level. Adjusts the balance of sound between the two speakers. Allows you to select STEREO, MONO or 2ND AUDIO/SAP operation. After highlighting _:he option,

press to toggle through the choices: STEREO: Directs the sound to the Left and Right speakers as supplied by the program.

Stereo is the recommended choice: The TV switches automatically between the STEREO and MONO modes clepending on the type of signal being received.

MONO: Directs the same sound to both Left and Right speakers, even if the program !being

received is in stereo.

2ND AUDIO/ Directs the sound for the Second Audio Program (second language) to both the Left SAP: and Right speakers. SAP souncl is always; monaural. If SAP is selected, you hear

the SAP (usually a second language). When the SAP broadcast ends, the TV switches automatically (defaults) to the type of signal being received, STEREO or MONO. The "IV switches back to 2ND AUDIO/SAP when the SAP broadcast resumes.

Produces a spacious and more tonal sound. SEQ is only available while a :stereo signal is being received and processed by the TV.

Adjusts the level of Surround Sound provided to the optional sunound sound speakers. Surround Sound is only available if a surround-encoded stereo signal is being received and STEREO is either selected using the AUDIO option or selected by default.

Used to Minimize front channel sound frem coming through the surround speakers. To adjust the Null, while watching a Dolby Surround-encoded video tape, select Null and use the Left/Right keys to remove any dialogue that may be heard from the surround _;peakers.

Provides a list of options for enhancing the TV's audio. Thc options shown depend on what is selected for the AUDIO option above. See the information following this chart for more details.

for the video sources.

Audio signals received trom a video source are assumed to be monaural

or stereo.)

[] SEQ

_Spacial Equalization)

[] Surround

[] Null

Your audio Enhancement options are Off and Pseudo Stereo. Off specifies tha_. no Enhancement is activated. Pseudo Stereo enhances monaural audio to emulate stereo-like so,and.

[] Your audio Enhancement options are Off, Concert Hall, Theater, Night Club, Stadium, Dolby Pro

Logic-Normal and Dolby Pro Logic-Phantom, Off specifies that no Enhancement is activated. For the other options, see "Stereo Operation," and "l_)o[by Pro Logic Operation."

Enhancement (Dolby Pro Logic

audio systems only)

Mono or 2nd Audio/SAP Selected:

Stereo Selected:

NOTE:

All adjustments on the AUDIO MENU are optional. You do not have to use these features in order to use your TV.

2_6-2949-0_-a 16 -- l

AUDIO MENU

Stereo Operation

[] Select Stereo as the Audio option. [] Select a desired Enhancement: Concert Hall, Theater, Night

Club or Stadium, or set Enhancement to Off.

o Adjust Bass and Treble for the most pleasing sound. [] Select Balance to view the speaker balance screen. o Point and press on the speakers you want to adjust; either the

front speakers (those in the TV) or the optional surround sound

speakers.

o Press on the arrows or on a specific point on the slider bar to

adjust the selected speakers.

SPEAKER BALANCE

Dolby Pro Logic-Normal

o Select Dolby Pro Logic-

Nolmal as the F,nhancement.

o Turn on the external amplifier

and set is volume to approxi- mately the same volume as the TV

o Bass and Treble can not be

adjusted for Pro Logic-Normal.

o Select Balance to view the

Pro Logic balance screen.

o Point and press on the speaker

(Left, Right or Surround) you want to adjust.

A tighlight box and an audible "hissing" sound will "be unce" between the

selected speaker and the Center Reference.

o Press on the arrows or on a

specific point on the slider bar to set the volume of the

"hissing" (for the selected speaker) to approximately the same level as the "hissing" of the Center Reference. Do

this. for each speaker.

Dolby Pro Logic-Phantom

o Select Dolby Pro Logic

Phantom as the Enhancement.

o Adjust the Bass and Treble

for the most pleasing sound.

a Select Balance to view the

Pro Logic balance screen.

o Point and press on the speaker

(Left, Right or Surround) you

want to adjust.

o A highlight box and an

audible "hissing" sound will "bounce" between the

selected speaker and the Center Reference.

o Point and press on the arrows

or on a specific point on the slider bar to set the volume of

the "hissing" (for the selected speaker) to approximately the same level a.sthe "hissing" of the Center Reference. Do this for each speaker.

NOTES: [] To fully appreciate the quality of sound provided by the Dolby Pro

Logic audio system, make sure the speakers are balanced as

described above

[] An external amplifier must be connected to use Dolby Pro Logic-

Normal audio enhancment.

[] Optional Surround speakers must be connected to hear Surround

Sound.

o While Pro Logic-Normal is selected, Bass and Treble adjustments

on the TV are not possible. These must be adjusted using the exter- nal amplifier.

[_ Fronl Speakers Rgt]

lit illlt tl_llllltlt It!l_l

_n Surround Speakers Max]

iiilllt t LL(DIIllt t t t It!__J

I Surround Speakers Required ]

Message appears whefl" adjust- ing Surround Sound.

STEREO SOUND BALANCE Point and press on slider bar to adjust balance.

Highlight box "bounces"

between selected

speaker and

Center Reference.

...-.f_ center Reference speaker _]

__.... Left Speaker

...... IJiill(DIt II:i

I F',ight Speaker ]

I I I I [ I I I I_11 I I I I I I I I|b.

I Surround Speakers ]

I I I I I I [ I III011 I I I I I I_

ExternalAr]plifier Required ]

Message appears only for Pro Logic Normal selection.

PRO LOGIC BALANCE Point and press on slider bar to adjust balance.

206-294901-A 16 -- 2

VIDEO MENU

I/IOEO

Contrast Brightness

Color

Tint

Sharpness Color Temp

Video Filter Auto Flesh

i Picture Pref

[4 0

MENU OPERA "lION

Move the pointer to the top left of the

screen and point to the VIDEO icon.Press the trackball.

Press ort the option or onthe slider bar to adjust the option.

Point and press on the desired option _4_ to highlight it.

Mow', tile pointer off tile menu and pre:_sthe trackball to remove the merLufrom view.

o Contrast Adjusts the overall contrast and color level of the picture. o Brightness Adjusts the brightness level of black areas in the picture. o Color Adjusts the intensity of the colors in the picture. o Tint Adjusts the color of the flesh tones to more Green or more Red. o Sharpness Adjusts the clarity of the edges around objects for the clearest picture quali,:y. o Color Temp Changes the "color temperature" or picture whi!:ebalance between cooler natural whites and warmer

(Temperature) (red) colors. o Video Filter Reduces video "noise" or interference in dark picture areas resulting in clearer overall picmre,_. o Auto Flesh Automatically maintains natural skin tones under changing scene and video source conditions. o Picture Pref. Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video

(Preference) settings or the factory preset THEATER video :;ettings. The THEATER settings are preset to provide

! optimum visual performance in low light "theaier-like" conditions NOTES: rn All adjustments on the Video Menu are optional. It is

not necessary to adjust these features in order to operate the TV.

O Any adjustments made to the Video Menu settings while

Picture Pref. is in PRESET or THEATER mode will auto-

matically store the current settings as the CUSTOM setting.

2062949-01-A 17 -- 1

PIP MENU

PIP

Ch_ Guide Ch. Review

PIP Color PIP Tint PIP Size

Press To View ]

Selecting the PIP Menu does nolt "activate" PIP. However, a PIP

inset will appear during menu

operation to show the effect of any setting changes.

MENU OPERATION

Move the pointer to the top left of the screen and point to the __

PIP icon. Press the trackball.

Press on the option or on the slider bar to adjust the optior[

Point and press the desired op-

,tion to highlight it.

Move the pointer off the menu and press tile trackball to remove the menu fi'om view.

ca Ch. Guide Provides a visual review of all channels in the channel scan memory for the currently selected

ANT/CABLE source. Press on a PIP inset to tune to the channel shown in the inset.

Ch. Review Provides a visual review of the last three (3) channeh; tuned on the TV. Press on a PIP inset to tune to

the channel shown in the inset.

PIP Color Adjusts the intensity of the colors in the PIP inset. Point and press on the arrows or slider bar.

ca PIP Tint Adjusts the color of the flesh tones in the PIP inset to more Green or more Red. Point and press on the

arrows or slider bar.

ca PIP Size Adjusts the size of the PIP inset. Choose between small or large.

CH 2

CH6

CH 3

CH5

CH 7

CH 9

Ch. Guide Screen

Shows 3-second live displays of all channels

saved in the channel scan sequence.

CH 2

CH3

]

CH5

Ch. Review Screen

Shows 3-second live displays of the

last 3 channels viewed on the TV.

206-29.19_1.AO 18- 1

MAINTENANCE AND TROUBLESHOO fNG

CARING FOR YOUR TV

Your "PCwill look better, have a longer life and perform better

if you care for it properly.

First check to see that the TV is off. For added

safety, unplug the TV from the power outlet.

NOTE:

cl If you unplug your TV, you will have to reset

the clock to the current time.

CABINET CARE

Non-Wood Cabinet or Cabinet Components Moisten a soft cloth with a mild soap solution or Ivory dishwashing deter- gent. Wipe the surface with a damp cloth. Then rinse the cloth in clean water and wipe the surface again. Allow the TV to air- dry before turning it on.

Wood Cabinets or Cabinet Components Use any good fur- niturecleaner and polish. Regular care will help preserve the

finish.

PICTURE GLASS (::LEANING

The picture tube face attracts dust particles and should be

cleaned regularly. To clean the face, spray a small amount of glass cleaner on a cleaning cloth and wipe the picture tube glass face until clean. Repeat if necessary.

To delay new dust accumulation, wet a soft cloth in lukewarm

water in which a little fabric softener or Ivory dishwashing de- tergent has been mixed. Wring the cloth almost dry. Wipe the glass face. Make sure no drops of moisture are squeezed onto

the glass. Do not wipe the glass dry. Allow the glass to air-dry

before you turn the TV on again.

EXTENDED ABSENCE

Before an extended absence (such as a vacation) you may want to unplug the power cord from the electrical wall outlet.

This will protect the TV from possible damage from lightning

or power line surges. If you have an outdoor antenna, you may also w_mtto disconnect the antenna lead-in wires on the back

of the TV.

NOTE:

[] If you unplug your TV, you will have to reset the clock to

the current time.

"IV PICTURE INTERFERENCE

Your TV picture may be affected by interference caused by one or a number of factors. These include:

SpecMed or Streaked Picture Can be caused by nearby auto- mobile ignition, electrical appliances, etc. This is most notice- able in weak signal areas.

Snow in Picture Caused by insufficient signal. Usually caused by the TV being located too far from the TV station or by an !improper antenna installation.

Ghosts or' Reflections Caused by signals being reflected from surrounding buildings, water tar&s, or other high struc- tures.

Radio Signal Police, amateur or CB radio transmitters may cause interference.

These interference problems can often be corrected through the use of a better antenna, signal amplifiers, or various filter devices. See your TV dealer for additional information, and

awfilable TV accessories.

I_QCAa 19 _ 1

MAINTENANCE AND TROUBLESHOOTING

EFORE CALLING FOR SERVICE

neck these items and see'.if you can correct the trouble by changing the adjustment of a control or the setting of a switch. By making _se simple checks before calling for service, you may save time and money.

-oblem Try This

Re-orient antenna. Try another channel -- possible station trouble. Adjlust AUDIO MENU options. 'Check for local interference. Is antenna/cable

connection loose?

Sound OK. Poor picture. Re-orient antenna. Try another charmel -- possible station trouble.

Adjust VIDEO MENU options. Trouble with cable-TV system? Is antenna/cable connection loose?

No picture or sound. Is TV on? Is there power in wall outlet? Is TV plugged in? Is antenna

hooked up? Is cable hooked up? Trouble with cable-TV system? Check auxiliary audio/video equipment. Check channel selection. Is the

channel blocked by PARENTAL CONTROL?

, Picture blurred or distorted. Ghost in picture. Check antenna or cable hook up for broken wires. Try another charLnel

-- possible station trouble. Check for local interference.

, No color, or poor color. Is it a color program? Check antenna or cable hook up for broken wires.

Adjust VIDEO MENU options.

J No sound. VOLUME (VOL) setting may be too low. Check MUTE button

operation on remote control. Is Stx_akerEXT/IN3" switch set to EXT?

Cannot select certain channels. Channels may be skipped in CH. ADD/I)EL option of SETUP MENU.

Use AUTO PROGRAM a second time.

a No closed captions Are captions available? Is CAPTION 1, CAP'I1ON 2, CAPTION 2,,OP,

CAPTION 4 selected using the CAIYI'IONS option on the SETUP MENU?

J Black o:rblue box covers half of screen. Is text information available? Is TEXT 1,TEXT 2, TEXT 3 or TEXT 4

selected in the CAPTIONS option of the SETUP MENU.

a No picture or sound when VIDEO 1 or Is audio/video source hooked up properly? Are all wires connected to

VIDEO 2 source is selected. VIDEO 1 IN or VIDEO 2 IN jacks on connection center?

a No stereo sound or weak stereo sound Check AUDIO mode. Was stereo sound present beiore selecting

when u,;ing a stereo VCR. VIDEO 1 or VIDEO 2 source? PIP inset frame is black or lacks contrast Adjust PIP COLOR AND CONTRAST settings :in PIP MENU. Are all

when selecting VIDEO 1for PIP inset, wires connected to VIDEO 1 IN jacks on connection center?

a PIP inset frame is "snowy" when using ANTI Is TV/VCR switch on the VCR in the TV position?

CABLE 1 or 2 for PIP and VIDEO 1 for main picture. No picture when using VIDEO 1 for PIP Is TV/VCR switch on the VCR in the TV position?

inset scurce and ANT/CABLE 1or 2 for main picture.

Remote control does not work. Are batteries okay? Is "IN"turned ON? Is remote in TV mode?

Picture OK. Poor sound.

_OTES:

If your TV fails to respond to the PICTURE PREF. selection, or to any other menu selection, you must re:_et the TV. Simply dis- connect the AC power cord from the power outlet. Wait a few minutes, then plug the TV back into the power outlet. You will

have to reset the clock to the current time.

J Unplugging the TV does not deactivate the Parental Control.

t149-0)-A 19 _ 2

REPLACEMENT PRODUCT REGISTRATION CARD

You could win a full refund 9n your new IiIITEG} -

prod act.

Look for the Product Registration Card on your new video product. Each month a drawing is held by IF']TEEC_- from the com-

pleted Product Registration Cards received during the preced- ing raonth. IFITE[_ will reimburse the winner for the full purclaase price of the product purchased.

In order to participate, simply complete and return the Product Registration Card at once, even if you choose not to complete

the information and interests portion of the questionnaire.

The odds of winning the free drawing described above, de- pend on the number of participants. Free drawing offer is

void in Canada and other places where restricted or prohib- ited by law. Offer is void for Hotel/Motel and Institutional models. Rental models are not eligible.

Producl Card lost or misplaced? The Product Registration Card furnished with your video prod-

uct is pre-printed with it,'; Model and Serial numbez_s. Please fill out the card and mail it at your earliest convenience,,. It is imperative that IF'ITE(-_- know how to reach you promptly if we discover a safety problem that would affect you. If the original card has been lost or misplaced, you may use the re- placement card provided below. Either card will qualify you for the free drawing, but you are limited to only orLe entry in the drawing. Complete the card, place it in an envelope and mail it to:

IB]-E(_

P. O., Box 173257 Denver, CO 80217-3257 ,

Use the replacement Product Registration Card only if the

original card has been misplaced or lost.

PHOTOCOPY AND CUT ALONG DASHED LINE ;._;_k_: i_....

IF-]TEG- Product Registration Card H5Z01-01

Please Print Clearly or Type

1. _[Mr. 2. r-]Mrs.

First Name

Area Code Telephone

3. E]Ms. 4,0Miss L!IIIII I-LI

Initial Last Name

I IIIllllll II I

I!111111111

II I

II!! IIIJ

IILIIII

Apt. No.

J LL/I ! I

LIIIIII

Street

LIIII!I

c_ty

LIIIIII

State Zip Code

L_LJI I I I I I-IIII I

Date of Purchase

Mo. Day Yr.

LII L2_I III

MODEL

NUMBER

SERIAL NUMBER

Copy Numbers Here From Label on Set

I IIII

'4[----

Pleaserecord the model number and serial number from the sticker on the back of your set.

INTQREG

YOUR Ir-'ITEID- WARRANTY

;ONSUMER PROTECTION PLAN OR INTEQ "/'V

_elcome inT:othe INTEQ family! We believe that you will be

eased with your new INTEQ TV. Please read this Consumer

-otection Plan carefully. It is a "ONE YEAR FULL 'ARRANTY," plus a limited second year picture tube arranty, as defined under federal law. This warranty gives _u specific legal rights, and you may also have other rights

at vary from state to state within the U.S.A.

_ITEQ's RESPONSIBILITY

zrvice Labor and Parts -- During a period of one year om effective warranty date, INTEQ will supply new or manufactured replacement picture tubes or other parts, and

ill pay for service labor by a INTEQ authorized service

'_nter, when such parts or service labor are needed to repair

e product .as a result of manufacturing defects. Further, ,!TEQ will supply a new or remanufactured replacement for _y picture robe which fails during the second year after fective warranty date because of a manufacturing defect. eplacement parts are wa_anted for the remaining portion of

e original warranty period. The above service labor warranty _plies only in the U.S.A.

'n-Site Service -- Warranty service is provided where the

._ojection TV is installed.

ot Covered -- This warranty covers manufacturing defects _d does not cover installation, adjustment of customer mtrols in the home, installation or repair of home antenna ,stems, cable converters or cable company-supplied tuipment; it also does not cover damage due to misuse, rose, negligence, acts of God or other causes beyond the mtrol of 1NTEQ. Any alteration of the product after

,anufacture voids this warranty in its entirety.

OWNER'S RESPONSIBILITY

Effective Warranty Date -- Warranty begins on the date of original consumer installation. For your convenience, keep the dealers dated bill of sale or delivery ticket as evidence of the purchase date.

Operating Guide -- Read your Operating Guide carefully so that you will understand the operation of your set and how to adjust the customer controls.

Antenna -- Reception problems caused by inadequate home antennas or faulty antenna connections are the owner's responsibility.

Important: Product Registration -- Please fill out and mail your Owner Registration Card. It is imperative that INTEQ ,

know how to reach you promptly if we should discover a safety problem that could affect you.

Warranty Service -- For warranty service information, contact any IN_II2Q authorized service center. Parts and service labor that are INTEQ's responsibility (see above) will be provided without charge. Other service is at the owner's expense. If you have any problem in obtaining satisfactory warranty service, call or write:

INTEQ Customer Service Department

1000 Milwaukee Avenue G]lenview, IL 60025 Telephone: (708) 391-8752 Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

NOTE: Before you ask for Warranty service, check the Operating Guide section entitled, "MAINTENANCE AND TROUBLESHOOTING." It may be possible to

avoid a service call.

rQWAR

S I G H T _'_

i_ STAR StarSightTelecast, lnc.

39650 Liberty Street

s I G H "r_,Fremont, CA 94538

Part No. 206--2918-01

Printed in U.S.A.

EP-EDCBA

WAT C H U S.

TO BE LICENSED TO USE THE STARSIGHT _ SYSTEM AND STARSIGHT FEATURES OF THIS EQUIPMENT, YOU MUST BE REGISTERED WITH

STARSIGHT OR AN AUTHORIZED REPRESENTATIVE. LICENSED UNDER U.S. PATENT NUMBERS 4,706,121 AND 5,151/789. USE RIGHTS RESERVED.

STARSIGHT IS NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE

PROGRAM SCHEDULE INFORMATION PROVIDED BY THE STARSIGHT

SYSTEM. IN NO EVENT SHALL STARSIGHT BE LIABLE FOR A!_Y AMOUNTS REPRESENTING LOSS OF PROFITS, OR INDIRECT, SPECIAL,, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICE RELATING TO THE STARSIGHT SYSTEM.

StarSight is a trademark of StarSight Telecast. StarSight is a subscription service. This Operating Guide may not be duplicated,

copied or transferred in any way without prior written permission of StarSight Telecast, Inc.

Patent Statement

The StarSight Guide system and its use are pro- tected by one or more of the following U.S. pat- ents: U.S. Patent No. 4,706,121, U.S. Patent No. 5,151,789; use rights reserved. For licensing and subscription infomlation, call (800) 643-STAR.

Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two ccnditions: (1) this device may not cause harm- ful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trademark Statement StarSight is a registered trademark of StarSight

Telecast Inc.

INTRODUCTION....................................... b

Welcome ............................................... b

Cable Box and VCR Requirements ........................... b

INSTALLING STARSIGHT ............................ A-1

STEP 1. Fill out the StarSight Checklist ..................... A-l

STEP 2. Activate StarSight ............................... A-2

STEP 3. Checking Your StarSight Setup .................... A-3

PBS Stations .......................................... A-4

Cable Box Codes ........................................ A-6

VCR Codes ........................................... A-6

USING STARSIGHT WITH THE UNIVERSAL REMOTE . B-1

Basic Operation ........................................ B-l

Finding out more about what you're watching: the STAR button. B-2

What's on when you change channels: Grazing ............... B-3

What's on without changing channels: Browsing .............. B-4

Finding out what's on all channels: Grid Guide ............... B-5

Vieweing what's on a single channel: Channel Guide .......... B-6

Choosing programs by category: Theme Guide ............... B-7

Recording what you're watching: Current Recording .......... B-8

Scheduling a recording from StarSight guides: Future Recording. B-9 Reviewing your schedule of individual recordings:

Recordings List ................................... B-10

Reviewing daily or weekly series recordings:

Series Recordings List .............................. B-11

How to watch one channel while recording another:

Watch and record .................................. B- 12

Selecting and de-selecting channels ....................... B- 13

Changing the channel order ............................... B-14

USING STARSIGHT 'WITH THE Z-TRAK REMOTE ...... C-1

Quick Reference Guide .................................. C-1

Getting started with the Z-Trak remote ...................... C-2

Finding out more about what you're wa_:ching:

Channel Pop-Ups ................................... C-4

What's on when you change channels: Grazing ............... C-5

What's on without changing channels: Browsing ............. C-5

Finding out what's on all channels: Grid Guide ............... C-6

Choosing a program: Tuning from a Guide ................... C-7

Viewing what's on a specific channel: Channel Guide .......... C-8

Choosing programs by category: Theme Guide ............ ,,.. C-9

Recording what you're watching: Current Recording ......... C-10

Reviewing your schedule of individual :recordings:

Recordings List ................................... C-11

Reviewing daily or weekly series recordings:

Series Recordings List .............................. C-12

How to watch one channel while recording another: Watch and

Recor_ .......................................... C-12

CHANGING YOUR EQUIPMENT SETUP ............... D-1

What you shou/d do when you get a new VCR ............... D-1

What you should do when you change your cable box or

service or when you move ............................ D-2

TROUBLF, SHOOTING ................................ E-1

How' to use this operating guide

StarSight installation and operation is given in this portion of the operating guide. Follow the procedures given if you are going to use StarSight.

_, Pefer to the TV portion of this operating guide for TV installation and operation without StarSight.

_k, Refer to the TV portion of this operating guide to properly hook-up your TV.

206-2949-01-A a

14lelcome

Welcome to StarSight, an innovative way to locate programs and manage the many channels that you receive. With StarSight, you can:

• See an instant description of what's on any channel.

• Select a program from a list that displays your favorite types of shows by theme (movies, sports,

comedies, etc.).

• Get information about plots, casts, content ratings, and running times.

• Tune from an on-screen guide right to the program you selected.

• Program your VCR with the touch of one button.

• Re-arrange the order of your channels to put your favorites :first,

Universal

Remote

Cable Box and VCR Requirements.

Be sure to read these requirements carefully. They contain

important information you need to ensure that StarSight

performs properly.

• A VCR is required for recording capability. To take full advantage of StarSight, your VCR must be controllable by a wireless infrared remote control. Otherwise, StarSight can still provide program information, but will not be able to automatically tune to or record a specific program on your VCR.

• If your VCR remote control does not have a number

pad with at least 10 digits, SlarSight will be unable to tune the',VCR.

• If you have a Cable Box, it must be controllable by a

wireless infrared remote control.

• "four Cable company should be able to provide a

remote-controlled Cable Box, if you do not already have one.

"four StarSight-equipped television is not designed to operate with, or control, a satellite dish. For

information on StarSight products specifically designed for satellite systems, see your local satellite dealer.

ZZ[rak

Remote

2_5-2949-01 -A b

StarSight must be installed properly for you to enjoy all of its benefits. To ensure proper installation, follow the procedu]e in this section in the order they are presented.

_k F'.efer to the TV portion of this operating guide to properly hook-up your TV.

STEP 1. Fill out the StarSight Checklist.

STARSIGHT CHECKLIST

[ I I iiiiiiii IIIIIIIII iiiiii I I II i i i ::i i 77]_ .

Complete sections A and B, and keep this checklist close at hand during activation. A PBS Station: Consult the table of PBS Stations, located at the end of this section.

Find the PBS station that is closest to your city. (ff you receive two or more stations, select the one with the clearest picture.) Write the PBS Station letters and channel

number below.

PBS Station Letters:

PBS Station Channel Number:

For Cable Users Only: Check your Cable company's channel line-up or your local newspaper's TV listings to see if the PBS station in your area has a different channel number from the one you wrote down above.

If so, write your PBS station's Cable channel number here:

(You will use this channel number during the Setup process.)

S Code Numbers: Consult the table of Cable Box Codes and VCR Codes, located at the

end of this section,

Find the code numbers that apply to your brands of Cable Box and VCR and write them below.

CABLE BOX

Code 1: Code 2: Code 3:

Code 4: Code 5: Code 6:

VCR

Code 1: Code 2: Code 3: Code 4:

Code 5: Code 6: Code 7: Code 8:

C During Activation... StarSight will display on-screen your person,'d STAR number

and I.D. number. When these numbers appear on your TV screen, write them here. Star #

I.D.#

2_m 2u4,J-ol-a, A - 1

JSTEP 2. Activate StarSight

To bring StarSight information into your home, you must

activate StarSight. You start the process directly through

3,our TV, in a series of easy steps that take only minutes.

How to Activate StarSight:

First, you must be sure that you:

• have completed the StarSight Checklist.

• have followed the step-by-step installation instructions on the preceding pages that apply to your video equipment.

• have your Universal remote control handy.

• have a videotape ready that you can use for a 30-second recording test (if you have a VCR). 4.

• have a telephone nearby to call StarSight's toll-free activation number: 1-800-643-STAR.

If you have a (Sable Box, make sure that it is tuned to the PBS ,channel listed on the StarSight Checklist.

If you do not have a Cable Box, be sure that your TV is tuned to the correct PBS channel. StarSight will search for schedule infonnation on this channel.

Press STAR on your remote control to get into StarSight mode.

The StarSight Menu will be displayed with "Activate StarSight" highlighted.

3. Press ENTER/TUNE to begin activation. Then follow

the on-screen instructions:, o

StarSight will ask you about your equipment, search for schedule information on your PBS station and display your STAR # and ID #. (Enter these numbers in paragraph "C" of your StarSight Checklist.) You will also be asked to call StarSight.

The StarSight representative will ask you for some

subscriber information,, and will activate StarSight.

When you have been authorized, you'll see a screen that says: Congratulations!

7. Proceed to "Step 3. Checldng Your StarSight Setup."

YOU SHOULD ALSO KNOW...

• If no schedule data is found, you may be tuned to the wrong PBS station. Check the PB,'3station written on your StarSight Checklist and try again. Or, try tuning to a different PI3S station that is listed fo_"your area at the end of

this section. (If no station is listed for your area, call 1-800-628-STAR for further information.)

2')6-294%01-A A --2

Step 3. Checking Your StarSight Setup

If you do not have a VCR or Cable Box, proceed to number 4.

Now that you've activated StarSight, the final step is to test your equipment setup. Here's how:

Press ENTER/TUNE on your remote control when you see the "Congratulations !" message.

StarSight will now guide you through a series of on-screen displays. Please follow the instructions carefully. All you have to do is respond to the on-screen prompts. If you're using a VCR, you'll be prompted to insert a videotape that can be used for a 30-second recording test.

Find the Cable Box and VCR codes on your StarSight Checklist.

If you've listed more than one code for a given brand of Cable Box and VCR, don't worry: StarSight lets you test each code until the correct

one has been found.

Be sure the Remote Emitters you placed previously are positioned according to the instructions earlier in

this section.

Follow the on-screen instructions until you see a screen that says,: Congratulations!

If you have any difficulty finding the correct code or getting your VCR or Cable Box to respond, call the StarSight Help Desk at (800I 628-STAR.

Your StarSight System is now all set up and ready to collect program information. You'll begin to receive StarSight program information whenever your TV is turued off or turned to your PBS station. Initially, it will take between 4 and 12 hours to collect program information, so we recommend that you simply wait overnight. While your TV is off, it will gather the information that it needs. FolJowing this initial process, your system will automa.tically be updated with the latest program information any time your TV is turned off.

;:7 "

YOU SHOULD ALSO KNOW...

It is important that you:

• Always be sure your TV set is plugged in.

• Always leave your Cable Box ON, otherwise you risk losing your StarSight program information.

• Be sure you leave your VCR OFF when it's not being used. If you forget to turn off your VC;R, a scheduled recording cannot occur.

• It will normally take from 3 to 5 seconds for Cable Box channels to change. This is the time it takes for the Remote

Emitter's inlrared signal to communicate with your Cable Box.

:o6:949-o]-a A-3

P'BS Stations

City

Station Channel

City Station Channel City

Stati,un Channel

Alabama

Anniston WCIQ Birmingham WBIQ Dothan WGIQ Decatur WHIQ Huntsville WHIQ Mobile WEIQ Montgomery WAIQ

Alaska

Anchorage KAKM Fairbanks KUAC

Arizona

Phoenix KAET Tucson KUAT

10 43 25 25 42 26

7 9

8 6

California

Eureka KEET 13 Fresno KVPT 18 Los Angeles KCET 28 Monterey KTEH 54 Sacramento KVIE 6 Salines KTEH 54 San Diego KPBS 15 Santa Barbara KCET 28 San Francisco KQED 9 San Jose KQED 9 Stockton KVIE 6

Redding KIXE 9 Visalia KVPT 18

Colorado

Colorado Springs KTSC

Denver KRMA Pueblo KTSC

8 6 8

Con necticut

Bridgeport WEDW 49 Hartford WEDH 24

New Haven WEDY 65

Norwich WEDN 53

Delaware

Seaford WDPB Wilmington WHYY

Dist. of Columbia

Washington, D.C. WETA

Florida

Daytona Beach WMFE ',=t.Lauderdale WPBT l=t. Myers WSFP Gainesville WUFT Jacksonville WJCT Miami WPBT Naples WSFP Orlando WMFE

Panama City WFSG Pensacola WSRE

Tampa WEDU St. Petersburg WEDU Tallahassee WFSU Thomasville WFSU ',Vest Palm Beach WXEL

5 7

2 30 24 56 23

11 11

Georgia

Albany WABW 14 Atlanta WGTV 8

Augusta WCES 20 Chatsworth WCLP 18 Columbus WJSP 28 Dawson WACS 25 Macon WDCO 15 Savannah WVAN 9

Waycross WXGA 8

Hawaii

Honolulu KHET 11

Waikiki KMEB 10

Idaho

Boise KAID 4 Idaho Falls KISU 10 Twin Falls KIT]' 13

Illinois

Carbondale WSIU 8 Champaign WILL 12 Chicago WTTW 11 Moline WQPT 24

Peoria WTVP 47 Quincy WQEC 27

Rock Island WQPT 24 Springfield WILL 12

Indiana

Elkhart WNIT 34 Evansville WNIN 9 Fort Wayne WFWA 39 Lafayette WFY I 20 Indianapolis WFYI 20 South Bend WNIT 34 Vincennes WVUT 22

Iowa

Ames KDIN 11

Cedar Rapids KI IN 12 Council Bluffs KBIN 32

Davenport KQCT 36

Des Moines KDIN 11

Fort Dodge KTIN 21

Iowa City KIlN 12 Mason City KYIN 24 Red Oak KFJIN 36 Sioux City KSIN 27 Waterloo KRIN 32

Kansas

Hutchinson Lakin Topeka

KOOD 9 KSWK 3 KTWU II

Kentucky

Bowling Green WKYU 24 Cape Girardeau WSIU 8 Lexington WKLE 46 Louisville WKPC 15 Paducah WSIU 8 Td-Cities WSBN 47

Louisiana

Alexandri a

Baton Rouge

El Dorado Lafayette

Lake (:hades Monroe New Orleans

Shreve port

Maine

Bangor Calais Lewiston

Presque Me

Maryland

Annapolis Baltimore Frederick

Hagerstown

• Oakland Salisbury

Massachusetts

Boston

Springfield Holyoke

Michigan

Alpen_: WCML 6 Bad Axe WUCX 35

Bay City WUCM 19 Detroit WTVS 56

Flint WFUM 28 Grand Rapids WGVU 35

Kalamazoo WGVU 35

WGVK 52

Lansing WKAR 23 Marquette WNMU 13 Mount Pleasant WCMU 14 Saginaw WFUM 28 Traverse City WCMW 21

Minnesota

Austin KYIN 24 Duluth WDSE 8 La Crescent WHLA 31 Mason Cily KYIN 24 Minneapolis-

St. Paul KTCI 17

Superior WDSE 8

Mississippi

Biloxi WMA H 19 Bude WMAU 17 Columbus WMA B 2 Gulfport WMAH 19

Greenville WMAO 23 Greenwood WMAO 23 Jackson WMPN 29 Meridian WMAW 14 Oxford WMAV 18

KLPA 25

WLPB 27

KLTM 13 KLPB 27 KLTL 18

KLTM 13 WYES 12 KLTS 24

WMEB 12 WMF, D 13 WCBB " 10 WMEM 10

WMF'T 22 WMF'B 67 WFPT 62 WWPB 31 WGPT 36 WCPB 28

WGBH 2 WGBY 57 WGBY 57

(Continued on next page)

206 2949-01-A AM

'BS Stations

City Station

Channel City Station

lissouri

Hannibal WQEC 27

Joplin KOZI 26

Kansas City KCPT 19 Springfield KOZK 21 St. Louis KETC 9

ontana

Bozeman KUSM Butte KUSM

9 9

ebraska

Bassett KMNE 7 Hastings KUON 12

KHNE 29

Lexington KLNE 3

Lincoln KUON 12 Merriman KRNE 12 Norfolk KXNE 19 North Platte KPNE 9 Omaha KYNE 26 Scottsbluff KTNE 13

4evada

Las Vegas KLVX Reno KNPI3

Yew Hampshire

Durham "¢,rENH

WNET Keene WEKW Littleton WLED

,_iewJersey

N. New Jersey WNET S. New Jersey WHYY

,_lew Mexico

Albuquerque KNME Santa Fe KNME

13 52 49

5 5

New York

Albany-

Schenectady WMHT 17

Binghampton WSKG 46 Buffalo WNED 17

New York WNET 13 Norwood WNPI 18 Plattsburgh WCFE 57

Rocheste: WXXI 21

Syracuse WCNY 24 Watertown WNPE 16

North Carolina

Ashevilk_ WUNF Charlotte WU NG Columbia WUND Greenvil e WUNK Greensboro WUNL Jacksonville WUNM Linville WUNE

Raleigh- Durham WUNC

Roanoke Rapids WUNP

Wilmington WUNJ

33 58

19 17

4 36 39

North Dakota

Bismarck: KBME 3

Drakinson KDSE 9 Ellendale KJRE 19 Fargo KFME 13

Grand Forks KGFE 2

Channel

Minot KBME __

KSRE 6

Williston KWSE z.

Ohio

Akron WVIZ 25

WEAU 49 Cleveland WVIZ 25 Cincinnati WCET 48 Columbus WOSU 34 Dayton WPTD 16 Lima WBGU 2'1 Portsmouth WPBO 42 Steubenville WOUC 44 Toledo WGTE 30 Youngstown WNEO 45

Oklahoma

Cheyenne KWET 12 Eufaula KOET 3

Oklahoma City KETA 13 Tulsa KOED 11

Oregon

Bend KOAB 3 Eugene KEPB 28

Klamath Falls KFTS 22 Medford KSYS 8 Portland KOPB 10

Pennsyvania

Altoona WPSX 3 Erie WQLN 54 Harrisburg WITF 33

Johnstown WPSX 3 Lancaster WITF 33 Philadelphia WHYY 12 Pittsburgh WQED [3 Scranton WVIA ,M. Wilkes-Barre WVIA 44

Rhode Island

New Bedford WSBE Providence WSBE

36 36

South Carolina

Allendale WEBA 14 Beaufort WJWJ 16 Charleston WITV 7 Columbia WRLK 35 Conway WHMC 23 Florence WJPM 33 Greenville WNTV 29 Greenwood WNEH 38 Huntington WPBY 33 Rock Hill WNSC 30 Spartanburg WRET a9 Sumter WRJA 27

South Dakota

Aberdeen KDSD 16

13rookings KESD 8 Eagle Butte KPSD 13 Lowry KQSD I 1 Martin KZSD 8

Pierre KTSD I0

Rapid City KBHE 9

Vermillion KUSD 2

Tennessee

Chattanooga

WTC1 45

City

Jackson Knoxville

Memphis

Nashville

Texas

Amarillo

Austin

Corpus Christi D'allas

E1Paso Ft. Worth

Harlingen Houston

Lubbock Odessa Midland San Antonio Temple Waco

Utah

Salt Lake City

Vermont

Burlington

Virginia

Arlington Charlottesville

Harrisonburg Lynchburg Norfolk Norton Petersburg Portsmouth Richmond Roanoke

Washington

Seattle Spokane

Tacoma Yakima

West Virginia

Beckley Bluefield Charleston

Clarkburg Huntington Parkersburg Weston Wheeling

Wisconsin

Appleton Eau Clair

Green Bay La Crosse

Madison Menomonie

Mihvaukee Park Falls

Rhinelander Wassau

Wyoming

Cheyenne Evanston

Station

WLJT WKOP

WKNO WDCN

KACV KLRU KEDT KERA KCOS KERA KMBH KUHT KTXT KOCV KJ_,RN KNCT KNCT

KUED

WCFE

WETA WHTJ WVPT WI3RA WHRO WSBN WCVE WHRO WCVE WBRA

KCTS KSPS KCTS KYVE

WSWP WSWP WPBY WNPB WPBY WOUB WNPB WOUC

WPNE WHLA WPNE WHLA WHA WHWC WMVS WLEF WHRM WHRM

KTNE KUED

Channel

11 15

2 18 16 13 13 12,

6(I

46 46

26 41 51

15 15

47 23

,17

33 24

33 20

24 44

38 31 38

10 36

2o6-:9_90,-,, A-5

Cable Box Codes

(.'able Box Brand Code Allegro

GE Gemini General Instrument

Harnlin Jerrold

Kale Vision Macom Magnavox

62 67 05,31,38 04,05,06,07,

08,09,10,18,60

02,45,65,66 04,07,08,09,

10,18,60 35 21 34

Cable Box Brand Northcoast

NSC Oak Panasonic Philips Pioneer Regency Samsung Scientific Atlanta Signal

Sprucer

Code

35,39,68,69,70

II,32,42 13,20

47,50,52,54,55

15,43 29 35

16,23,36,64 76 13

Cable Box Brand

Standard Components Texscan Tocom Unika Universal

Video Way Vid Tech Viewstar

Zenith

Zenith HT-2000

Code 35

39,56,71

17,18,46 48, 62 58, 62 49 4O 54,55,72 01

!VCR Codes

VCR Brand Admiral

Adventura Aiwa

Akai

Audio Dynamics Bell & Howell Broksonic Canon Citizen

Craig Curtis Mathes

l) aewoo

Daytron

E,BX

Emerson

Fisher Funai General Electric Go Video Goldstar Hitachi

Irtstant Replay JC Penney

Code 08,61

31 31 23,38,41 02,18 06,47

21,26,50,55

14,59 46,48,54 46 02,18 03,21,23,26,33,

35,43,50

11,12,13,47 31

14,16,20 56,62,63

01,09

15,57 14,27 14,15,18,27

VCR Brand

Jerrold

JVC

Kenwood

Logik

LXI Magnavox

Marantz Marta Memorex Mitsubishi Montgomery Ward Multi Tech NEC Orion Panasonic Pentax Philco

Philips Pioneer Portland

Proscan Quasar

RCA Realistic

Code

18 02,25,58 O2 39

09,31 07,14.31 07,18 O9 06,12,14,31 04,22 08,14,16,31,4!)

02.18 5O

14,51,59 15

07,14

07,14,27

10,15

16,60 14,59 15,16,20,27,60

06.08,12,14,31

VCR Brand

Samsung

Sansui

Sanyo

Scott Sears Sharp Shintom

Signature 2000

Sony Video8 Sony VHS Sony Sony Beta Sylvania Symphonic

Tashiko

Tatung Teac Teknika Toshiba Vector Research Yamaha

Zenith

Zenith VHS Zenith Beta

Code

20 39 06, 12,47 04, 05, 33, 43 06, 09, 11, !2, 15 08, ,51 39

08, 14, 16,31,49

17 32 32, 37 37

07, 14,27 31 O9 O2 02, 31 09, 34 05, 15 04, 18 O2, 18 00 01, 24, 25 37

206-2949-01-A A-6

Basic Operation

This section of the guide discusses the use of StarSight with the Universal Re:mote. The following illustration shows tile Universal Remote and its controls.

Press VCR button, then

POWER button to turn

VCR on and off

Return to the previously

tuned channel

Move ahead 24 hours from the

screen time currently displayed

in StarSight Program Guides

(hold to repeat)

PAGE LEFT

Display the previous page

ill StarSight Program

Guides (hold to repeat)

DAY DOWN

Move back 124hours from the

screen time currently displayed

in StarSight Program Guides

(hold to repeat)

NUMBER PAD

Enter number for direct

channel tuning; enter

number selections in

StarSight Setup

MENU/GUIDE

Display the Grid Guide or

Channel Guide; access TV

on-screen menus

Display the Theme

Guide's program categories

Displays the Picture-in-the Guide for some

Move left one time slot or

column (hold to repeat)

RECORD

Schedule a program for

recording; confirm or

cancel recordings

DOWN ARROW

Move down one row or

selection; while viewing

TV, display information

for programs on other

channels (hold to repeat)

RIGHT ARROW

Move fight one time slot or

column (hold to repeat)

CHANNEl. UP

Go to the next channel

PAGE FLIGHT

Display the next page in StarSight Program Guides (hold to repeat)

CHANNEL DOWN

Goto the previous channel

ENTER/TUNE

the highlighted

channel; enler selections in

StarSigh,: Setup

UP ARROW

Move up one row or selection; while viewing TV, display information for programs on other channels (hold to repeat)

QUIT/SEQ

Exit the cunent screen or Pop-up, or return to the

currentl3, tuned channel

STAR

Press to ase StarSight; display StafSight Information Pop-ups: make ;rod confirm

selectiorts

TO DO

Display list of single recordings, series recordings, and StarSight Setup Menu

TV/VCR SOURCE

Select different equipment connected to your TV (eg. VCR)

206-2949 01-A B- 1

I-inding out more about what you're watching: the STAR button

]. Press the STAR button. You'll see the program title

and time remaining "Pop up" for five seconds.

, •

•

Press STAR again. The Pop-up changes to provide more detailed information. (It goes away in 30 seconds.) Or...

Press STAR again to resume watching TV.

SEQ

Robert Forbes Perkins paddles

along the canals and rivers of

England and Scotland.

Stereo (CC)

KQED-PBS

CBL _..__,__---_8:08P!

YOU SHOULD ALSO KNOW...

• If at any time you find you cannot activate the StarSight functions, just press the STAR button.

:(_.2_.-m-A B-2

What's on when you change channels: Grazing

1. Press CHANNEL/Day Up or Down to change channels.The Pop-up for the new program au_:omatically displays and then disappears in five

seconds.

CBL

2o Press STAR while the Pop-up is displayed to get even

more information on the program.

3. Press STAR again to resume watching TV.

T r av e s THU 8:00P 1 hour

I Stereo (CC)

_K.9._I ...i_;;i_::_i;;_i_;_i_ii...C B k_ 13:08 F

Robert Forbes Perkins paddles along the canals and rivers of England and Scotland.

%..°

YOU SHOULD ALSO KNOW...

• If you press STAR twice and then change channels, you will get full program descriptions while you are channel surfing. (Does not apply to Cable Box Setups.)

2o6:9_-o_A B-3

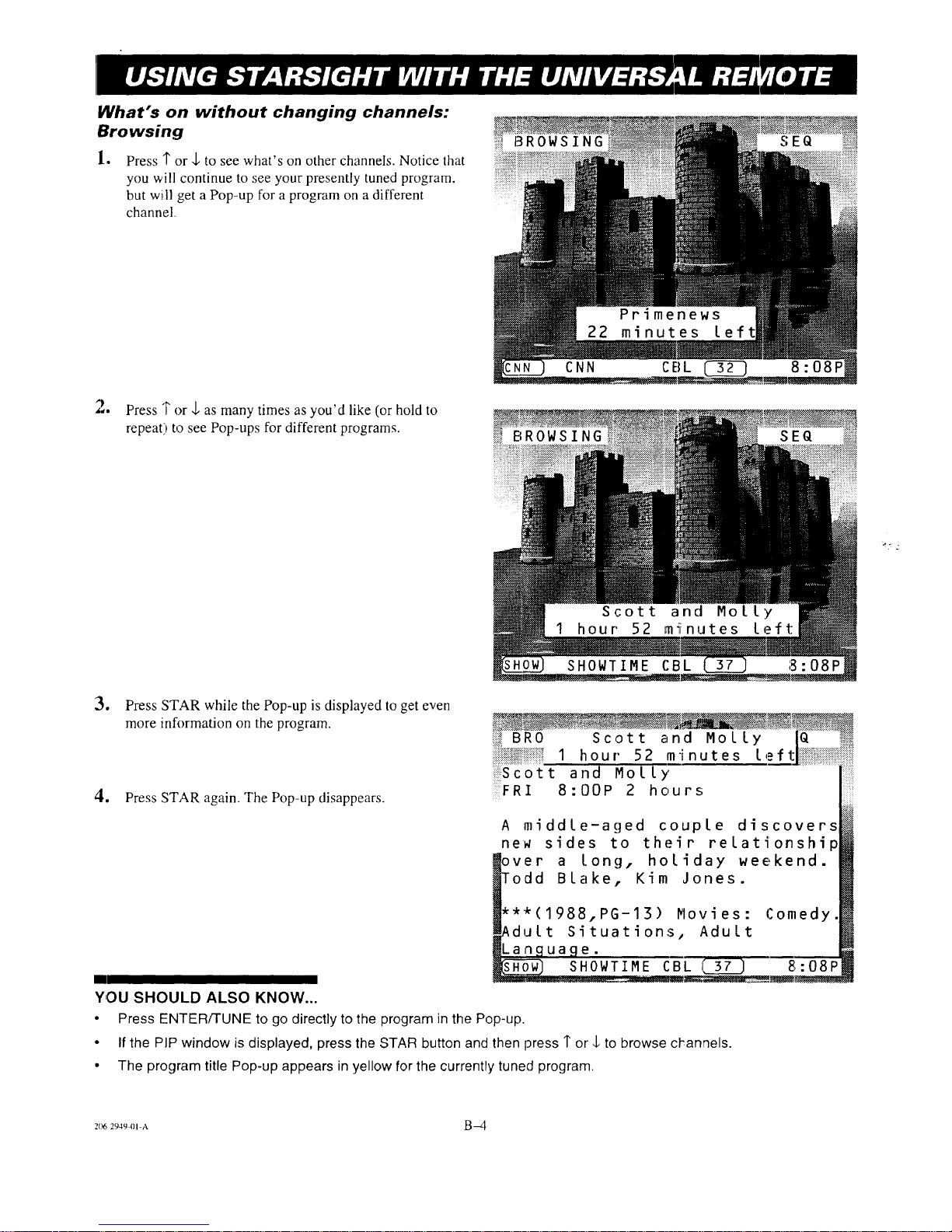

What's on without changing channels: Browsing

1. Press 1"or $ to seewhat's on other channels,Notice that

you will continue to see your presently tuned program. but will get a Pop-up for a program on a different

channel.•

iiiiiiiil

• _ iii

CNN CEIL 8:08P

Press 1"or ,1,as many times as you'd like (or hold to repeat) to see Pop-ups for different programs.

iiiiii_B R 0 W S IN G

ii!i!ii< i

_._ 2

3. Press STAR while the Pop-up is displayed to get even more information on the program.

4. Press STAR again. The Pop-up disappears.

_ BRO Scott and Molly i{i{ii!@i!iiii_i!!!ii_I h o u r 52 m i n u t e s Ie f iii_i_Scottand Molly FRI 8:00P 2 hours

A middle-aged couple discovers ne_ sides to their relationship

ver a long, holiday weekend.

odd Blake, Kim Jones.

**(1988,PG-13) Movies: Comedy

_dult Situations, Adult

SHOWTIME CBL 8:08P

YOU SHOULD ALSO KNOW...

• Press ENTER/TUNE to go directly to the program in the Pop-up.

• If the PIP window is displayed, press the STAR button and then press 1"or ,1.to browse ct-annels.

• The program title Pop-up appears in yellow for the currently tuned program.

2[)6 2949-(11-A B _4

Finding out what's on all channels:

Grid Guide

Using the StarSight Grid Guide to see:

• what's on right now

• what's on for the next seven days

• what the programs are about

lo Press MENU/GUIDE to see a full listing of all

programs. (Remember: If the Grid Guide doesn't appear, you may not be in StarSight mode. Just press STAR.)

2. F'ress 4, I_, 1",or ,J,to move the highlight bar around

tlae Grid G_ ide.

3. r'ress STAR any time to get information about the

highlighted show.

4. Press PIP to view tile currently highlighted show.

5. Press ENTER/TUNE to tune to any currently

highlighted show.

6. Press QUIT/SEQ to resume watching TV.

S T A R S I G H T

U.S. Senate Coverage

Larry King Li_;e[ Math .., Who Needs It'? J

C2Z)

Scott: and Molly Bingo T Home Alone ALL In A Day'.'; Work Major' League Baseball (L)

Batman

In the Best o-7:Times Casablanca

The Prince of Tides

WETA-PBS CBL C_ 9:0OP

SEP

Mat MON

S T A R S I G H T

- 'M 0 N tFUE WEll IIi'!.U. ."FR[i;;I_Ai;_:,_:__

U.S. Senate Coverage Larry King Live! Math ... Who Needs It'? l Scott and Molly

h ... Who Needs It?

9:00P I hour

A large number of people with exciting jobs use math every day in their work,,

Education. (CC)

WETA-PBS CBL C_ 9::oop

YOU SHOULD ALSO KNOW...

• Press numbers followed by • or I_ to move to a specific time in the guide.

• Press RECORD to record any highlighted show.

• Press VOLUME/Page Left or Right to see additional channel listings.

• Press CHANNEL/Day Up or Down to see different days for the same time.

• If you have a cable box, the PIP window will only show your presently tuned channel.

:_1_-:_4'_nl-_, B-5

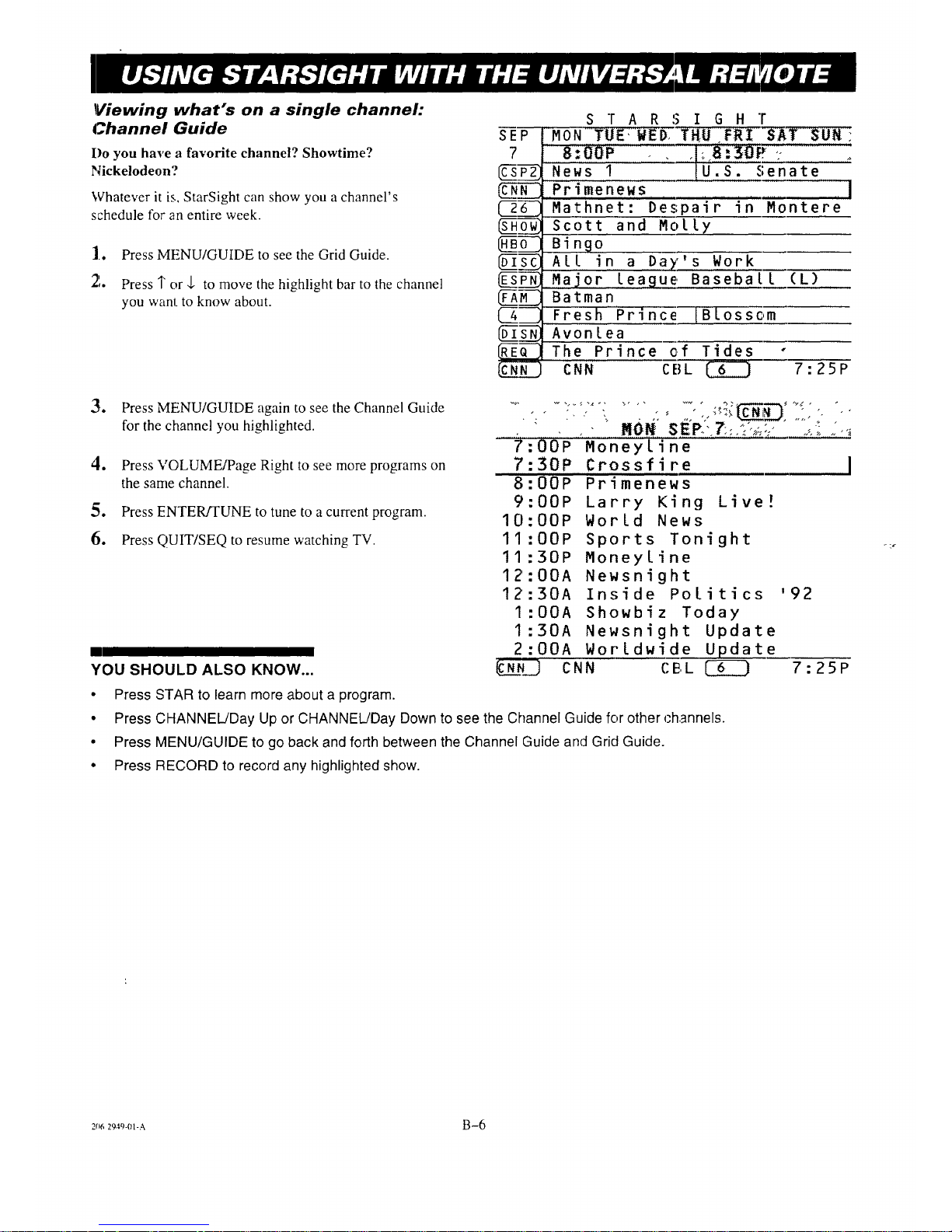

Viewing what's on a single channel:

Channel Guide

I)o you have a favorite channel? Showtime? Nickelodeon?

Whatever it is, StarSight can show you a channel's schedule for an entire week.

]., Press MENU/GUIDE to see the Grid Guide.

2,, Press T or .l, to move the highlight bar to the channel

you want to know about.

SEP

S T A R S I G H r

MON TUE:W__ THO IFRI SAT$UN !

News t IU.S. Senate

,Primenews .... I

Mathnet: Despa'ir in Montere scott and Molly Bingo All. in a Day's Work

_Major league, Baseball (L)

_-_Batman _ Fresh'Prince _Blossom _s__ Avonlea

R_ The Prince o,f Tides -

CNN CBL _ 7:25P

Press MENU/GUIDE again to see the Channel Guide for the channel you highlighted.

4. Press VOLU!vIE/Page Right to see more programs on the same channel.

Press ENTER/TUNE to tune to a current program. Press QUIT/SEQ to resume watching TV.

YOU SHOULD ALSO KNOW...

........_i00"P "Money[ine

9: 10: 11: 11:30 1Z:00 12:30

1:00

1:30

2:00

V_ J

3OP Crossfire 1

00P Primenews OOP Larry King Live!

OOP World News 00P Sports Tonight

P Moneyline

A Newsnight A Inside Politics '92

A Showbiz Today A Newsnight Update A Worldwide Update

CNN CEL _ 7:25P

• Press STAR to learn more about a program.

• Press CHANNEL/Day Up or CHANNEL/Day Down to see the Channel Guide for other rhannels.

• Press MENU/GUIDE to go back and forth between the Channel Guide and Grid Guide.

• Press RECORD to record any highlighted show.

2()6 2949-01-A B-6

Choosing programs by category: Theme Guide

What's your favorite kind of program?

Sport.';? Movies? Comedies? StarSight gives you a selectLon of categories to help you pick your favorite shows

for the coming week.

1. Press THEME to see the StarSight Themes menu.

2. Press 1"or .1.to highlight a Theme.

3, Press STAR to see the categories for that Theme.

4. Press 1"or .1.to highlight a category.

:"" "STARSIGHT THEMES,'.:,,:,.,-:'o.:,.::,_

M i

OV e s

SpecialslMini Series Sports

Children's Programming Health/Science/Education

News/Talk/Magazine

Entertainment/Variety

Comedy

Action/Mystery/Horror Drama/Romance

Miscellaneous

CSPAN2 CB[. _ 7;41P

: Movies ' ......... -:-...... r.---,......;

ALL Movies

Act ion/Adventure

....C$).me.dy .....................

Drama Fantasy/Science Fiction

Western

Horror

Musical/Dance

Hi stori ca I/Bi og raphi ca l

Miscellaneous

Closed Captioned

_i CSPAN2 CBL L_g.L] 7 :41P

5. Press STAR to see the shows tor that category. Press

VOLUME/Page Right to see additional show listings.

6. Press ENTER/TUNE to tune to a current program.

7. Press QUIT/SEQ repeatedly to resume watching TV.

YOU SHOULD ALSO KNOW...

• Press STAR to learn more about a program.

• Press MENU/GUIDE to go directly to the Grid Guide from any Theme Guide.

• Press RECORD to record any highlighted show.

MON

MON MON MON

(______jTUE

_I TUE

LI[[I-/-_.ITUE

SH_,I TU

6:00P 8:00P 8:00P 8:00P

10:00P

12:30A

9:30P

I0:00A

E 12:00P

E 2:00P E 2:30P E 6:00P SPAN2

The Secret 2:00 City Slicke 2:OR

Who's That 2:00 Rally 'Roun 2:00 The Search 2:00 The Inspect 2:00 Stop! Or My 2:00

National La 1:30 Driving Me '1:30

The Addam 2:00 Vice Versa 1:45 And You Tho 1:35

CBL L_ 7:42P

2(,629-:1-(11-A B-7

Recording what you're watching:

Current Recording

iMPORTANT." Your VCR must be turned off when you're

not using it.

Also, be sure you have inserted a blank videotape in the VCR.

Press RECORD to see a Recording Pop-up. Notice that the yellow highlight bar is on "ONCE."

If you're recording an event that might run over (for example, a baseball game), press _ on the Record- ing Pop-up to extend the end time of the recording in

5 minute increments.

2. Press RECORD again to confirm your recording. StarSight will turn on your VCR and begin recording

in a few seconds.

3. To cancel a recording in progress, press RECORD again and then press STAR to confirm.

YOU SHOULD ALSO KNOW...

• To turn your VCR on and off with the remote control,

press the VCR button, followed by the POWER button. (See "Programming Your Remote" in the TV section of this guide.)

• Do not press VCR buttons while a StarSight

recording is in progress.

• "ONCE" records the current program only, "DAILY"

records the same program every day (M-F), and "WEEKLY" records it once a week.

2_:94u _I-A B-8

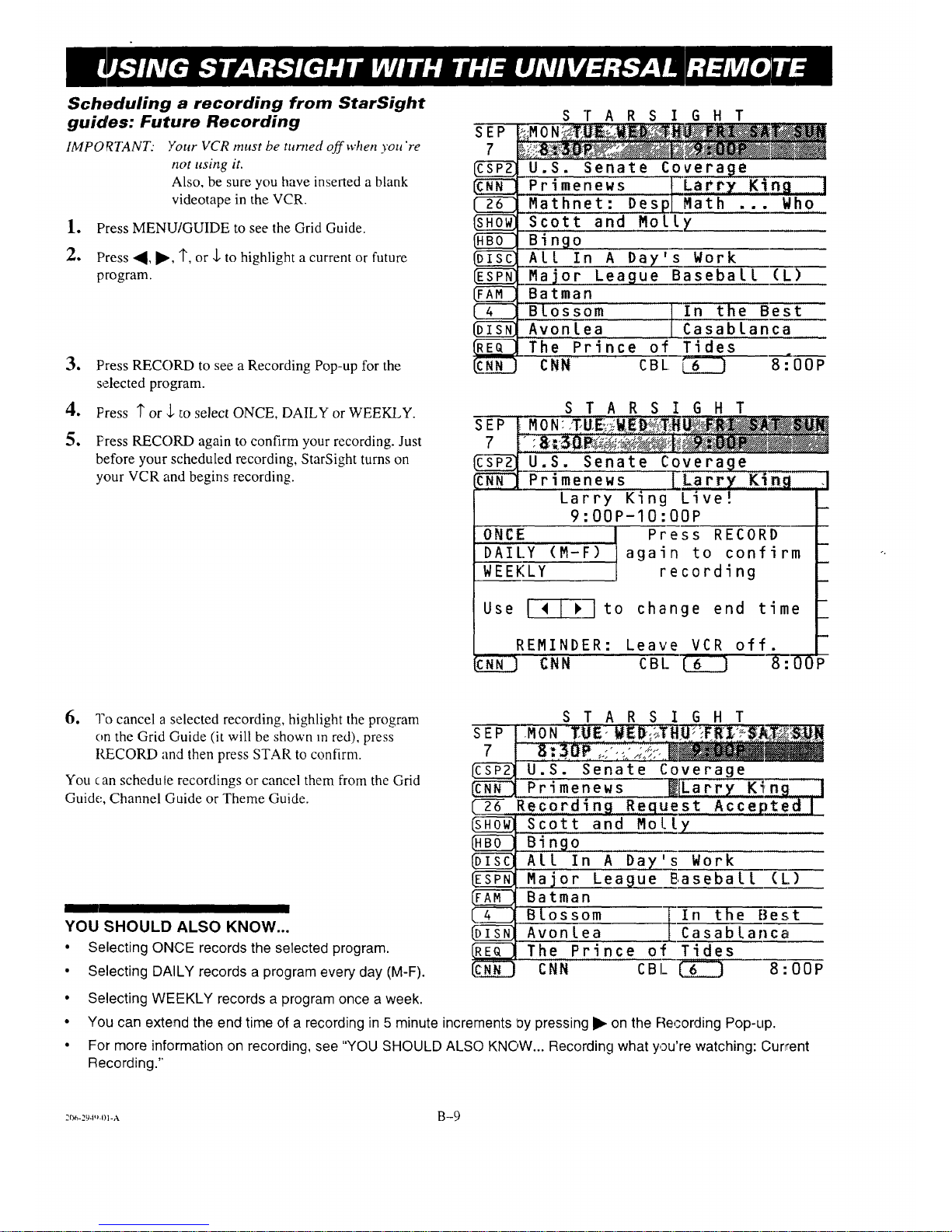

Scheduling a recording from StarSight guides: Future Recording

IMPOFCTANT: Your VCR must be turned off when you're

not using it.

Also, be sure you have inserted a blank videotape in the VCR.

1. Press MENU/GUIDE to see the Grid Guide.

2. Press ,,_, lIP',1",or .l. to highlight a current or future program.

Press RECORD to see a Recording Pop-up for the selected program.

Press T or ._ to select ONCE, DAILY or WEEKLY.

Press RECORD again to confirm your recording. Just before your scheduled recording, StarSight turns on your VCR and begins recording.

s-r A R S I G H T

U.S. Senate Coverage

Primenews [iiLa_Y King ] M'athnet: DespL'"Math ... Who Scott and Molly

_Bingo .,,ALL In A Day's Work .Major League Baseball (L}-----

Batman

F}n the Best

""BLossom Casablanca

Avonlea The Prince of Tides

CNN CBL, _ 8:00P

SEP

Larry King Live!

9:00P-10:00P

ONCE l Press RECORD

DAILY (M-F) I again to confirm

WEEKLY recording

Use F__ to change end time

REMINDER: Leave VCR off.

CNN

S T A R S I G H T

U.S_ Senate Coverage

P r im e n e w s ]_La rr YllK]i_igiiiiiiiillI

CBI. _ 8: OOP

6. To cancel a selected recording, highlight the program on the Grid Guide (it will be shown m red), press RECORD and then press STAR to confirm.

You can schedu[e recordings or cancel them from the Grid

Guide, Channel Guide or Theme Guide.

YOU SHOULD ALSO KNOW...

• Selecting ONCE records the selected program.

• Selecting DAILY records a program every day (M-F).

S T A R S I G H T

7 l.......

_ U.S. Senate Coverage

b--_-__-enew s _JLarry King ........I

Recording Request Accept.ed[

Scott and Molly Bin9o ALL In A Day's Work Major League Baseball (L)

Batman Blossom _In the Best

Avonlea [ Casablanca The Prince of Tides

CNN CBI_ C][_ 8:00P

• Selecting WEEKLY records a program once a week.

• You can extend the end time of a recording in 5 minute increments Dy pressing I_ on the Recording Pop-up.

• For more information on recording, see "YOU SHOULD ALSO KNOW... Recording what you're watching: Current

Recording."

2(}6-294 t_ 01-A B-9

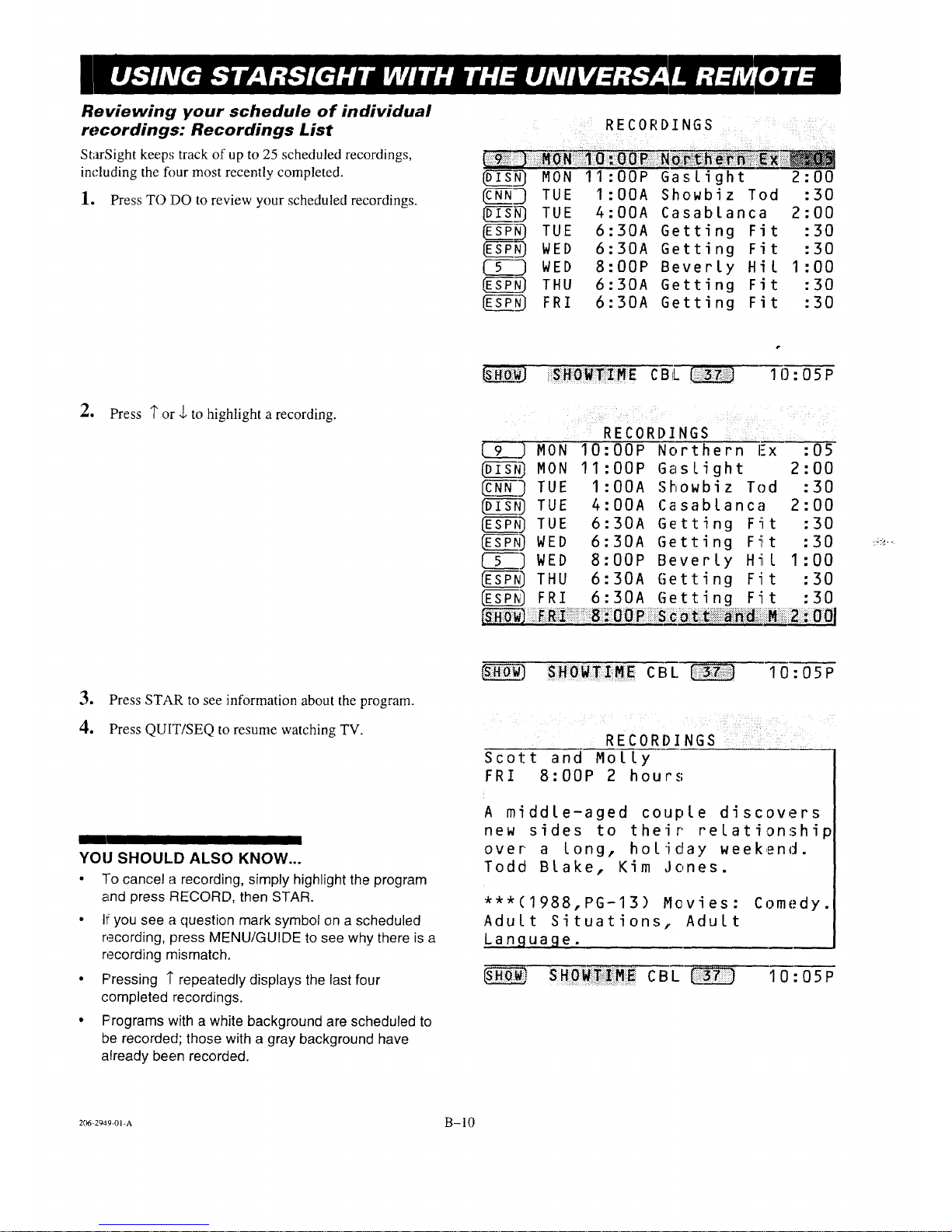

Reviewing your schedule of individual rocordings: Recordings List

StarSight keeps track of up to 25 scheduled recordings,

including the four most recently completed.

1. Press TO DO to review your scheduled recordings.

_N_ MON c(UffQ] TUE D(STgN_ TUE _N_ TUE _N_ WED (--5--] WED

ES(E-SP-N_THU ES(E-gTN_FRI

11:00P

I:00A 4:00A 6:30A 6:30A 8:00P 6:30A 6:30A

Gaslight

Showbiz Tod Casablanca

Getting Fit

Getting Fit Beverly Hil Getting Fit

Getting Fit

30 30

2. Press 1"or J. to highlight a recording.

C B iL

10:05P

{90 MON I 0 DI_ MON 11

CN[_-fi_-]TUE I DI['6-i-gF_TUE 4

ES_) TUE 6 ES_3 WED 6 5_3 WED 8 ES_] THU 6

ES_] FRI 6

....RECORDINGS I_

:OOP :OOP :ODA

:OOA :30A :30A

:OOP

:30A :30A

Northern l--x

Gaslight Showbiz Tod

Casablanca

Getting Fit Getting Fit Beverly Hill Getting Fit Getting Fit

:05

2:00

:30

2:00

:30 :30

1:00

:30 :30

r::::' i"_ :ii!i)!ii!i::i:::::.::::!i::_ :- :ii" :: :: :_::ii::iiiiiii:i{!!_;_:::_iU*{:?::::.{i:ii:.::iii! _ ':"

3. Press STAR to see information about the program.

4. Press QUIT/SEQ to resume watching TV.

I I

YOU SHOULD ALSO KNOW...

• To cancel a recording, simply highlight the program and press RECORD, then STAR.

• I1:you see a question mark symbol on a scheduled recording, press MENU/GUIDE to see why there is a recording mismatch.

• Pressing _ repeatedly displays the last four completed recordings.

• Frograms with a white background are scheduled to be recorded; those with a gray background have already been recorded.

SBOWTZBE CBL 10:05P

RECORDINGS :: :: :

Scott and Molly

FRI 8:00P 2 hours

A middle-aged couple discovers new sides to their relationship over a long, holiday weekend. Todd Blake, Kim Jones.

***(1988,PG-13) Movies: Comedy.

Adult Situations,. Adult

Languaoe.

_! C B L I 0 : 0 5P

206-2949-01-A B- 10

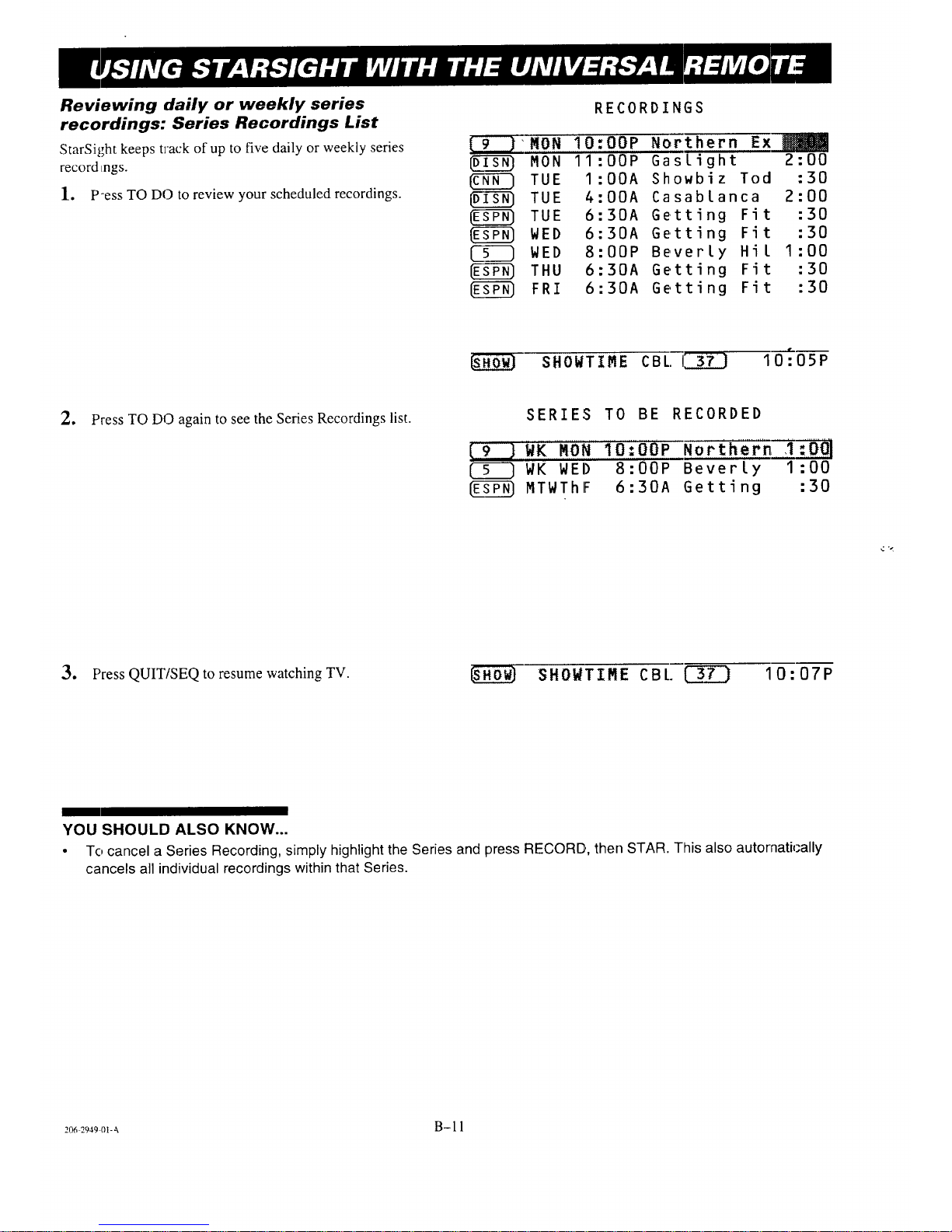

Reviewing daily or weekly series recordings: Series Recordings List

StarSight keeps t]ack of up to five daily or weekly series record Lngs.

1. P-ess TO DO to review your scheduled recordings.

MON TUE TUE TUE

{_ WED

WED THU

FRI

RECORDINGS

IO:OOP

11:00P

I:00A 4:00A 6:30A 6:30A 8:00P 6:30A 6:30A

Norther

GasLigh Showbiz Casabla

Getting Getting Beverly Getting Getting

n Ex_ t 2:00

Tod :30

nca 2:00

Fit :30 Fit :30

Hil 1:00

Fit :30 Fit :30

$HOWTIME CBL.]_ 10_05P

2. Press TO DO again to see the Series Recordings list.

SERIES TO BE RECORDED

19 '),,,',W'KMON IO:OOP Northern ,I:DQ]

WK WED 8:00P Beverly 1:00

MTWThF 6:30A Getting :30

3. Press QUIT/SEQ to resume watching TV.

SHOWTIME CBL _ I0:07P

YOU SHOULD ALSO KNOW...

• Tc, cancel a Series Recording, simply highlight the Series and press RECORD,, then STAR. This also autornatically cancels all individual recordings within that Series.

206 2949 01-_% B-11

How to watch one channel while recording another: Watch and Record

If you have a Cable Box:

1. After recording begins, press TV/VCR SOURCE. You will see the TV SOURCE menu highlighted.

Ant/Cable I

Ant/Cable 1

Press J. to highlight "Ant/Cable 2," then press QUIT/SEQ. You can now watch any unscrambled

channel.

Use CHANNEL/Day Up or Down to watch other channels. (Note: you will not be able to use StarSight functions while on the ANT/CABLE 2 source.)

To resume normal viewing once recording has been completed (and to resume using StarSight) press TV/VCR SOURCE to see the source menu. Then

press 1"to highlight "Ant/Cable i." Press QUIT/SEQ.

Ant/Cable 2

Ant/Cable 1

If you DO NOT have a Cable Box:

1. While you're recording a program, simply press

CHANNEL/Day Up or Down to watch a different program.

2. For more information about the SOURCE menu, refer to the TV portion of this guide.

206-2949-_)1 A B-12

Sele(-ting and deselecting channels

StarSight allows you to remove channels that you rarely or

never watch. When a channel is removed, it will no longer appear in StarSight Guides, nor will it appear when you flip through channels. To increase the amount of information

for individual programs that you watch, you should deselect channels that you seldom or never watch.

1. Press TO DO until you see the StarSight Setup menu.

"Select Guide Channels" will be highlighted.

Press STAR to display your channel lineup.

P"ess 4, I_, 1",or $ to highlight the channel you

want to remove, and press STAR. The background

color will change, indicating that the channel is

&-selected.

The PIP window shows a view of the highlighted channel.

4. IF you change your mind, just highlight the channel

again and press STAR. The background will return to green, and the channel will once again be selected.

NOTE:

If you later add back a channel, you must wait

4-12 hours to collect program information for that channel. That channel now displays at the top of your channel list in the guides.

5. Press QUIT/SEQ twice to resume watching TV.

Se,tect Guide,C,hannets .................... ]

Change Channel Order

Change CabLe Box/Service

Change VCR

Re.-Activate/Change Address

StarSight Demonstration

Use ** then STAR to choose

To exit, press QUIT

CNN CBL _6_ 5:02P

SELECT GUIDE CHANNELS

Press STAR to

selectldeselect channels:

(293

NSZ)

[ MORE

:I_-:9a'_m_ B- 13

(:hanging the channel order

You can list your channels on the Grid Guide in any order you want. Your channels will also be in this order as you switch from channel to channel.

1, Press TO DO until you see the StarSighl Setup menu.

2., Press .[- to highlight"Change Channel Order," and press STAR to display ,,'our list of channels.

3. Press 4, _, q'- or -].to highlight the channel you want

to move, and press STAR. The channel will move slightly to the left.

Press ,_. I_. T, or ,!, to move the highlighted channel to the new location and press STAR to insert the channel in its new position.

Press QUIT/SEQ twice to resume watching TV.

YOU SHOULD ALSO KNOW...

• To reset your channels to the original order, press 1" "o highlight the RESET box at the top of the Change

Ohannel Order screen and press STAR.

• !-o maximize show descriptions, you should place !/our most frequently-watched channels at the beginning of your list.

Select Guide Channels Change Channel, Order

Change Cable Box/Service Change VCR Re-Activate/Ch, ange Address StarSight Demonstration

Use ** then STAR to choose

To exit, press QUIT o

CNN CBL _ 5:02P

CHANGE CHANNEL ORDER

Press STAR to place Channel

C_RESET . A_[

NEE) _ _ CEZ] _

C2Z] QXg] CZZ] _

CZZ]

CHANGE CHANNEL ORDER

Press STAR to move Channel

_RESET

_ KEK]

{.s_ GED _i_

20'6-2949 OI-A B- ] 4

Quick Reference Guide

This section of the guide discusses the use of StarSight with the Z-Trak trackbaU remote. Operation with the Z-Trak is different than with conventional remote controls. There are far fewer buttons, because the trackbaL[ is used to move an

on-screen pointer through various menus. The following illustration shows the Z-Trak and its controls.

Set remote to operate TV

VOL U p/l_l_

When operating TV: Increase volume

When operating VCR: Fast forward

VOL Down/<<

When operating TV: Decrease volume

When operating VCR: Rewind

MUTE II

When operating TV: TV mute

When operating VCR: Pause

RECRD

When operating TV: Schedule a

program for recording; confirm or

cancel recordings

When operating VCR: Sets VCR to record

POWER

TV power OrdOff

When opexati:ag VCR: VCR power On/Off

Set remote to operate VCR

Press ball to activate

CHAN Up/I_

When operating TV: Go to the next channel When operating VCR: Play

CHAN Down/•

When operating TV: Go to the previous channel When operating VCR: Stop

ENTER

When operating TV: Tune TV to a program

highlighted on the StarSight scR;en; when watching "IN displays the program title

"FLSHB K

When operating TV: Tune TV to the last channel viewed

When operating VCR: TV/VCR Switch

_.3..

In the following sections, you will be exploring the various screen menus available in StarSight. As you do so, keep in mind the following guidelines (quite literally, "rules of thumb") for Z-Trak operation:

• To display the pointer, press the trackball.

• To highlight an option or make a selection, point to the desired option and press the trackball.

• To close a StarSight screen, point to the QUIT icon and press the trackball.

To tune a channel, point to a channel icon and press the trackball. You can also simply highlight a program and press the ENTER button to tune that program.

Many StarSight program guides have more ILhanone screen full (one "page") of information. You can point to the "PT" or "P,L" icons and press the trackball to flip through the pages. You can also move more slowly by moving the pointer to the top, bottom, or side edges of the screen and continuing to

roll the ball in that direction.

Be sure that the pointer is red, indicating that you are in

StarSight mode. If the pointer i,; blue, move the pointer

to the left side of the TV screen, point to the TV icon and press the trackball.

206-2949-01-A C-- I

Getting started with the Z-Trak remote

l, Press the TV button on the top of the remote. This

sets the remote's buttons for TV control, rather than

VCR control.

Press the trackball. The pointer, a small square, appears in the middle of the screen.

You can move the pointer by rolling the trackball up, down, left, and right. Point to the left edge of

the screen, a column of TV options appears. The icon at tile top indicates which mode is active -- StarSight or TV. A circle with a star, the StarSight logo, represents StarSight mode; a TV icon represents TV mode. You can switch between the two modes by locating the pointer on the StarSight or TV icon and pressing the trackball. The icon switches, and the pointer changes color. A red pointer indicates that you are in StarSight mode. A blue pointer indicates TV mode.

Set the mode to StarSight.

As you move the pointer around the screen, you will discover various menus. These menus are not

visible on the screen simultaneously. Each Menu appears when you move the pointer on top of it.

There are :2different sets of menus--one for the StarSight mode and one for the TV mode. This

section discusses the StarSight options. For information on the TV menus, see the TV portion of this guide.

Move the pointer to the top of the screen. At the top you'll see your StarSight icons:

SO UR CE."

T6' DO:

THEME:

GUIDE:

When you press on this option, a selection screen appears which allows you to specify the video/audio source for your TV and the

PIP. Simply point to the desired source and

press. To return to normal TV viewing, point and press on "EXIT". For more information see the TV portion of the guide.

When you press on this option, a list of

scheduled recordings and series recordings appears.

When you press on this option, a list of theme

categories appears.

When you press on this option, the Grid Guide and Channel Guide appear.

Continued on next page

206-2949-01-A C-2

6. Movethepointertothefightofthescreen.The channeliconsappear:

All Char.t: Gives you a complete listing of all channels.

Point to a channel icon and press the trackball to tune. Or, point to the number pad and press the trackball to tune by channel number.

Tune:

When browsing (see below), you can tune immediately to the show being described in the Pop-up, by pointing to "Tune" and pressing the

trackball.

Browse _ and ,L: Allows you to get information about

shows on different channels without actually changing to those channels.

Place the pointer on or near an arrow and press the trackball.

Chart _ and $: Allows you to change channels up or

down. Place the pointer on or near an arrow and press the trackball.

lnfo: Displays additional program information. Move

the pointer to "Info" and press the trackball.

Move the pointer to the bottom of the screen. The volume control appears. To adjust the volume, point to the desired volume level on the slider bar and press the trackball. Point to "MUTE" and press the trackball to turn the sound off completely.

8, Move the pointer toward the middle of the screen to

make the menu disappear.

9. Press the trackball to make the pointer disappear.

206-2949-0 I-A C-3

Finding out more about what you're watching: Channel Pop-Ups

1. Move the pointer to the right edge of the screen. You'll see the program title and time remaining

"Pop-up".

Point to the "Info" box and press the trackball. The Pop-up changes to provide more detailed

informati on.

Move the pointer toward the middle of the screen. The Pop-up disappears.

Travels THU 8:00P 1 hour

Robert Forbes Perkins paddles along the canals and rivers of England and Scotland.

Stereo (CC)

CBL 8:08P

2_2949m-a C-4

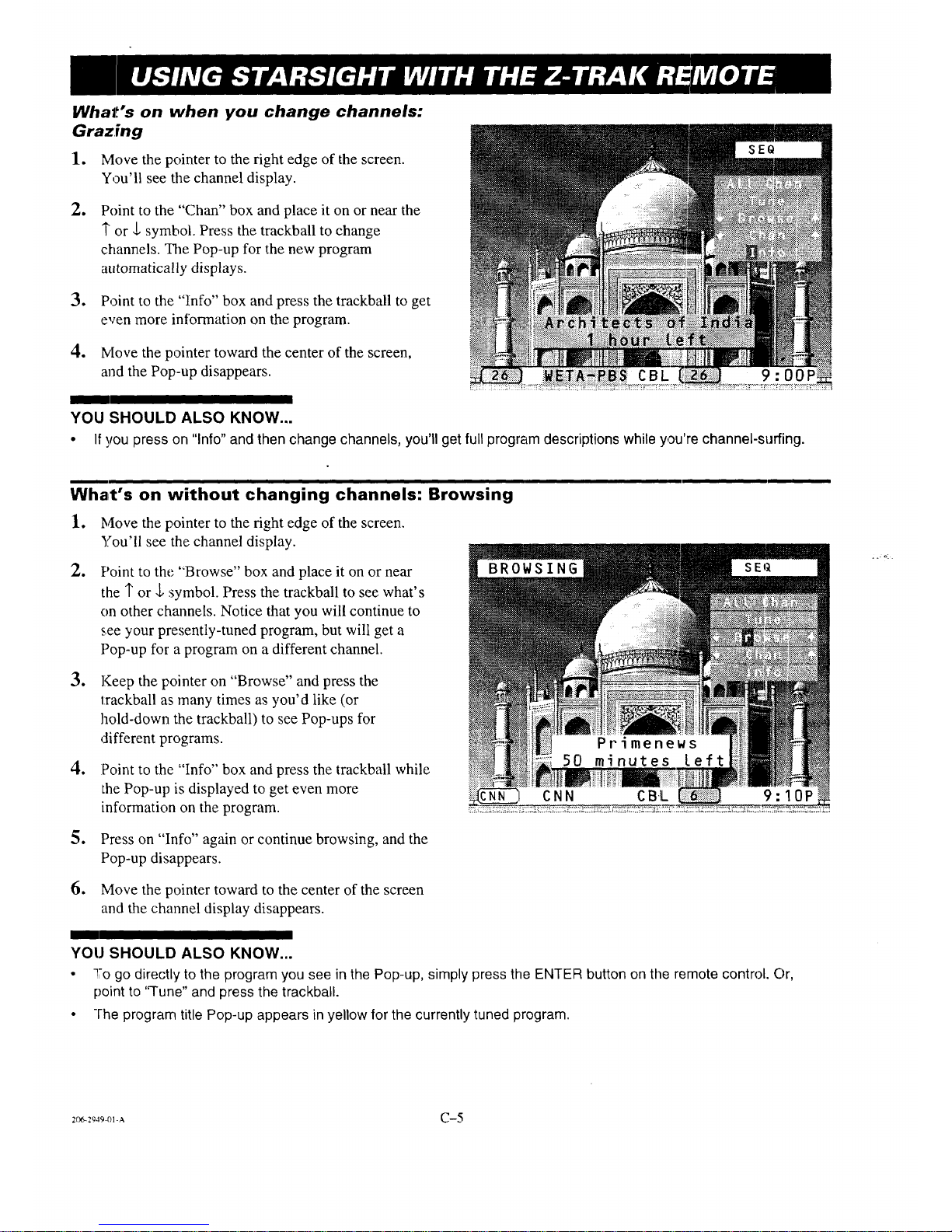

What.'s on when you change channels: Grazing

1. Move the pointer to the right edge of the screen. You'll see the channel display.

Point to the "Chart" box and place it on or near the 1" or _, symbol. Press the trackball to change channels. The Pop-up for the new program automatically displays.

3. Point to the "info" box and press the trackball to get even more information on the program.

4. Ivlove the pointer toward the center of the screen, and the Pop-up disappears.

CBL

YOU SHOULD ALSO KNOW...

• If you press on "lnfo" and then change channels, you'll get full program descriptions while you're channel-surfing.

Wha_t's on without changing channels: Browsing

1. Move the pointer to the fight edge of the screen. You'll see the channel display.

Point to the "Browse" box and place it on or near the 1' or ,1,symbol. Press the trackball to see what's on other channels. Notice that you will continue to see your presently-tuned program, but will get a Pop-up for a program on a different channel.

Keep the pointer on "Browse" and press the trackball as many times as you'd like (or hold-down the trackball) to see Pop-ups for different programs.

Point to the "Info" box and press the trackball while

the Pop-up is displayed to get even more information on the program.

5. Press on "Info" again or continue browsing, and the Pop-up disappears.

6. Move the pointer toward to the center of the screen and the channel display disappears.

YOU SHOULD ALSO KNOW...

• 7,0 go directly to the program you see in the Pop-up, simply press the ENTER button on the remote control. Or,

point to 'q-une" and press the trackball.

• -I-heprogram title Pop-up appears in yellow for the currently tuned program.

2r_:g49-ol-A C-5

Finding out what's on all channels: Grid Guide

Yo_t can use StarSight to see what's on right now, the rest of today and the next six days, and what the programs are about.

1. Move the pointer to the top of the screen and point

to "GUIDE". Press the trackball to see a full listing of all programs, known as the "Grid Guide."

2. To highlight a specific show, point to that show and

press the trackball.

Once a show is highlighted, point to the highlighted show and press the trackball to get information

about it. Press the trackball on the information

Pop-up to make the Pop-up disappear.

4. Point to "PIP" and press the trackball to view the

currently highlighted show.

To view more "pages" of the grid, that is, to see listings for additional channels, point to "PI"" or "P,[," and press. You can also move the listings up and down more slowly by moving the pointer to the top or bottom edge and continuing to roll the ball in

that direction.

SEP

HB 2g-d--

[42

U.S. Senate Coverage

Larry King Live!

Scott and Mclly Bi n9o All _n a Da_'s Work

Major league BasebaLl (L)

Batman

Fresh Prince ....Blossom

Avonlea

The Prince of Tides

W E!_A-PBS C B L 9 :0 0 P

YOU SHOULD ALSO KNOW...

• If you have a cable box, the PIP window will only show your presently tuned channel.

• Press RECORD to record any highlighted show.

Continued on ne.xt page

206 2949-01-A C-6

To view listings for a different time slot, point to

one of the time slots shown directly below the day of the week line. Press the trackball. You will get a

list of the next eleven time slots. Point to one and

press the trackball; the Grid Guide will shift to that time slot.

NOTE: You can only moye forward in time with thiLsfeature,

You can also move forward or back more slowly by moving the pointer to the right or left edge and

continue to roll the trackball in that direction.

To learn about shows on any of the next six days point to the desired day ("MON", "TUE", etc.) and press the trackbaI1.

To exit the Grid Guide, point to "QUIT" at the top of

• ,e screen and press the trackball.

SEP

U.S. Senate C_ 10

a r ry' 11

Scott and M0ii 1

:OOP

3 4

__Bingo

All in a Day_

Major leagueJ

Batman

_Fresh Princel--

Avonlea

:OOA : 0 0 A

:00A : 00 A (L) : 00 A : 00 A

OOA ..........

Choosing a program: Tuning from a Guide

1. Point to "GUIDE" and press the trackball to see the Grid Guide.

F'oint to the desired channel icon (left edge of the (3rid Guide) and press the trackball. StarSight will

tane directly to that channel.

Remember, you can make other channels visible in the Grid Guide by either using PI" or P_,, or by moving the pointer to the top or bottom edge of the Guide and rolling the trackball.

SEP

C3553

U.S. Senate Coverage

Larry King L_=ve! ......

Scott and Mol. ly ....:

ALL _n a Day's Wor:k Major League Baseball (iL)::

Batman ....

Fresh Princ_ Blossom

Avonlea The Prince of Tides

WE'FA_,PBS_ CBL 9 :,OOP

YOU SHOULD ALSO KNOW...

• You can also tune directly to a program by highlighting that program and pressing the ENTER button.

2(_zg._u-ovA C-7

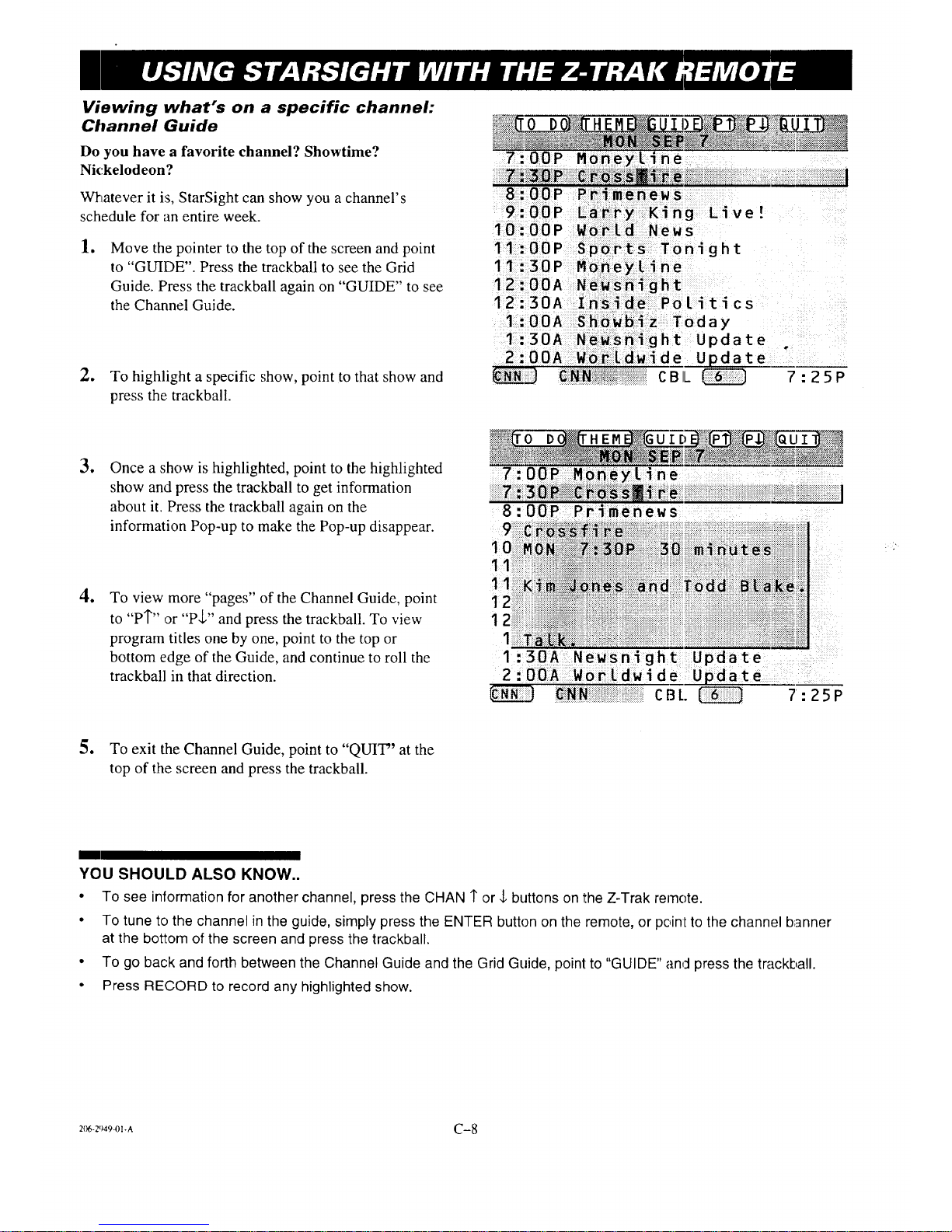

Viewing what's on a specific channel:

Channel Guide

Do you have a favorite channel? Showtime? Nickelodeon?

Whatever it is, StarSight can show you a channel's schedule for an entire week.

Move the pointer to the top of the screen and point to "GUIDE". Press the trackball to see the Grid

Guide. Press the trackball again on "GUIDE" to see the Channel Guide.

2. To highlight a specific show, point to that show and

press the trackball.

7:00P Moneyline

_:::_::::_::_::::_:::_::::::_C::::_Q::::_sM_::._,_,::::::::::::::::::::::::::::::::::_:_:_:::_::::::::::::::::::::::::::::::i;,:::!_!ill

8:00P P_:imenews

Live?

11:00P Sports Tonight 11:30P M oney_ine

12:00A N e:::_s:night 12:30A _Inside Politics

I ........ : :..-:;.....:

:OOA S_iowb_z Today

1:30A New.sri:ight Update

0 " :"

2.0 A W o;_::[dw_de Update

_ C_:::::_:iN!iii!iiiiiiii_i_i_ii!i_,_ii_?_i_C B L 7 :25 P

Once a show is highlighted, point to the highlighted show and press the trackball to get information about it. Press the trackball again on the information Pop-up to make the Pop-up disappear.

To view more "pages" of the Channel Guide, point to "PI"" or "P,[," and press the trackball. To view program titles one by one, point to the top or

bottom edge of the Guide, and continue to roll the trackbatl in that direction.

_)_:_ " :" --) f:.._T .?_}_ _ .N_

1_ii!i!!iiiii!i

ii!Bi!iNi!i!i!iiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiCBt.

7:25P

-i'

5° To exit the Channel Guide, point to "QUIT" at the

top of the screen and press the trackball.

YOU SHOULD ALSO KNOW..

• To see information for another channel, press the CHAN 1"or $ buttons on the Z-Trak rernote.

• To tune to the channel in the guide, simply press the ENTER button on the remote, or point to the channel banner at the bottom of the screen and press the trackball.

• To go back and forth between the Channel Guide and the Grid Guide, point to "GUIDE" and press the trackball.

• Press RECORD to record any highlighted show.

206-2[)494)I-A C-8

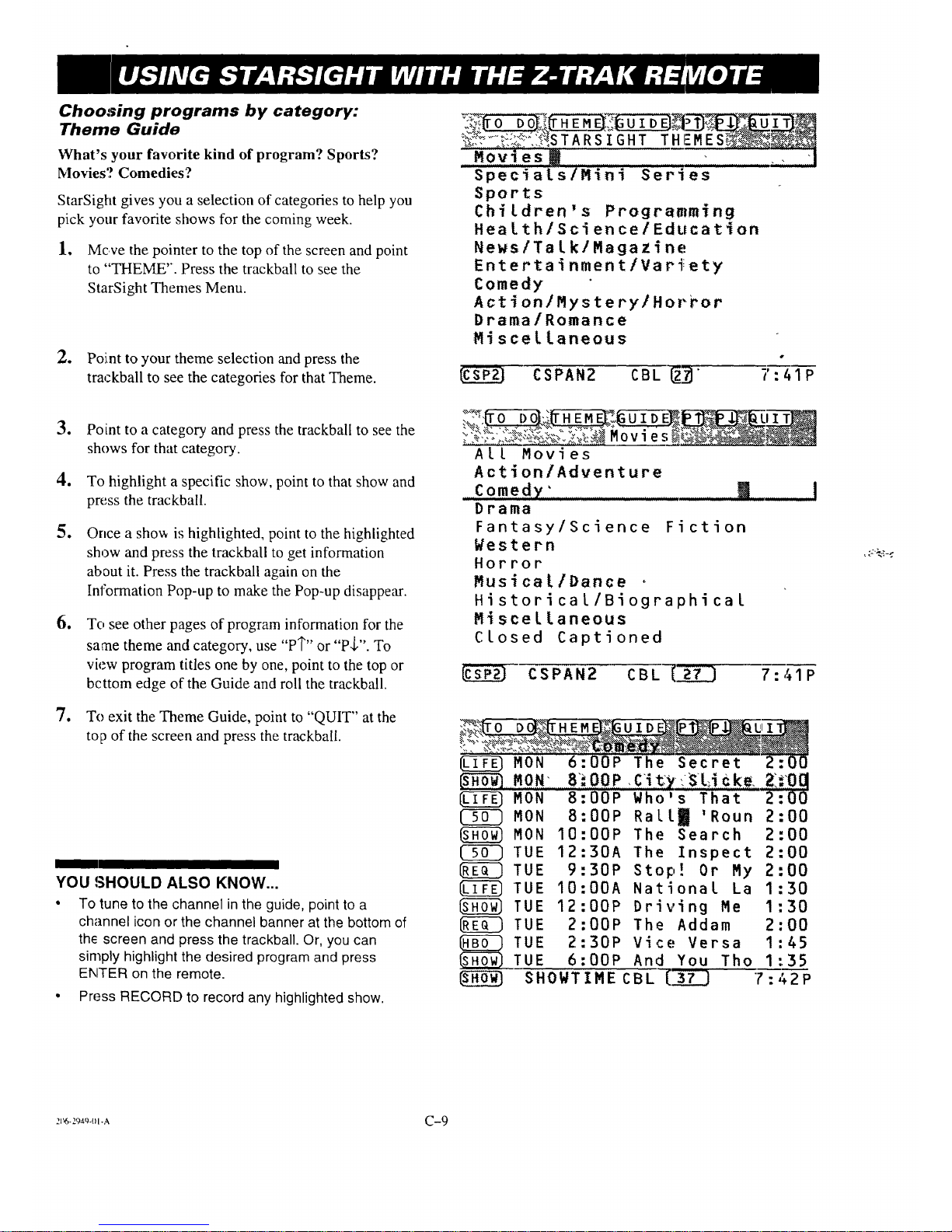

Choosing programs by category:

Theme Guide

What's your favorite kind of program? Sports? Movies? Comedies?

StarSight gives you a selection of categories to help you pick your favorite shows for the coming week.

1. Mc.ve the pointer to the top of the screen and point to "THEME". Press the trackball to see the

StarSight Themes Menu.

2. Poim to your theme selection and press the

trackball to see the categories for that Theme.

Point to a category and press the trackball to see the shows for that category.

To highlight a specific show, point to that show and press the trackbal[.

Once a show is highlighted, point to the highlighted show and press the trackball to get information about it. Press the trackball again on the Information Pop-up to make the Pop-up disappear.

To see other pages of program information for the same theme and category, use "PI"" or "P_,". To view program titles one by one, point to the top or bcttom edge of the Guide and roll the trackball.

To exit the Theme Guide, point to "QUIT" at the top of the screen and press the trackball.

YOU SHOULD ALSO KNOW...

• To tune to the channel in the guide, point to a

channel icon or the channel banner at the bottom of the screen and press the trackball. Or, you can

simply highlight the desired program and press ENTER on the remote.

• Press RECORD to record any highlighted show.

M0v!esN ...... - ......!...............:

Specials/Mini Series Sports Children's Programming

Hea It h/Sci en ce / Educa tion News/Ta Ik/Magazine Entertai nmentiVari;ety

Comedy

Action/MysterylHorror

Drama/Romance

Miscellaneous

CSPAN2 CBL _ 7:41P

All Movies

.....Co

Mu Hi Mi Cl

tion/Adventure

medy" ........................................... m ............ I

area ntasy/Science Fiction

stern

rror

sica!/Dance

storical/Biographical

scellaneous

osed Captioned

CSPAN2 CBL _ 7:41P

MON 6:00P The Secret 2:00

_....M(}.t_.:.........BI_..OO.P_Ci.t:Y,.iSt,,.i€k_,.Z_i.O,,q

MON 8:00P Who's That 2:00 MON Rall_ 'Roun MON The Search

C_ "[UE The Inspect

TUE Stop! Or My TUE National La

TUE Driving Me TUE The Addam TUE Vice Versa

TUE And You Tho

8:00P 2:00

10:00P 2:00 12:30A 2:00

9:30P 2:00 10:00A 1:30 12:00P 1:30

2:00P 2:00

2:30P 1:45

6:00P 1:35

SHOWTIME CBL _ 7:42P

21_-294Q-OI-A C-9

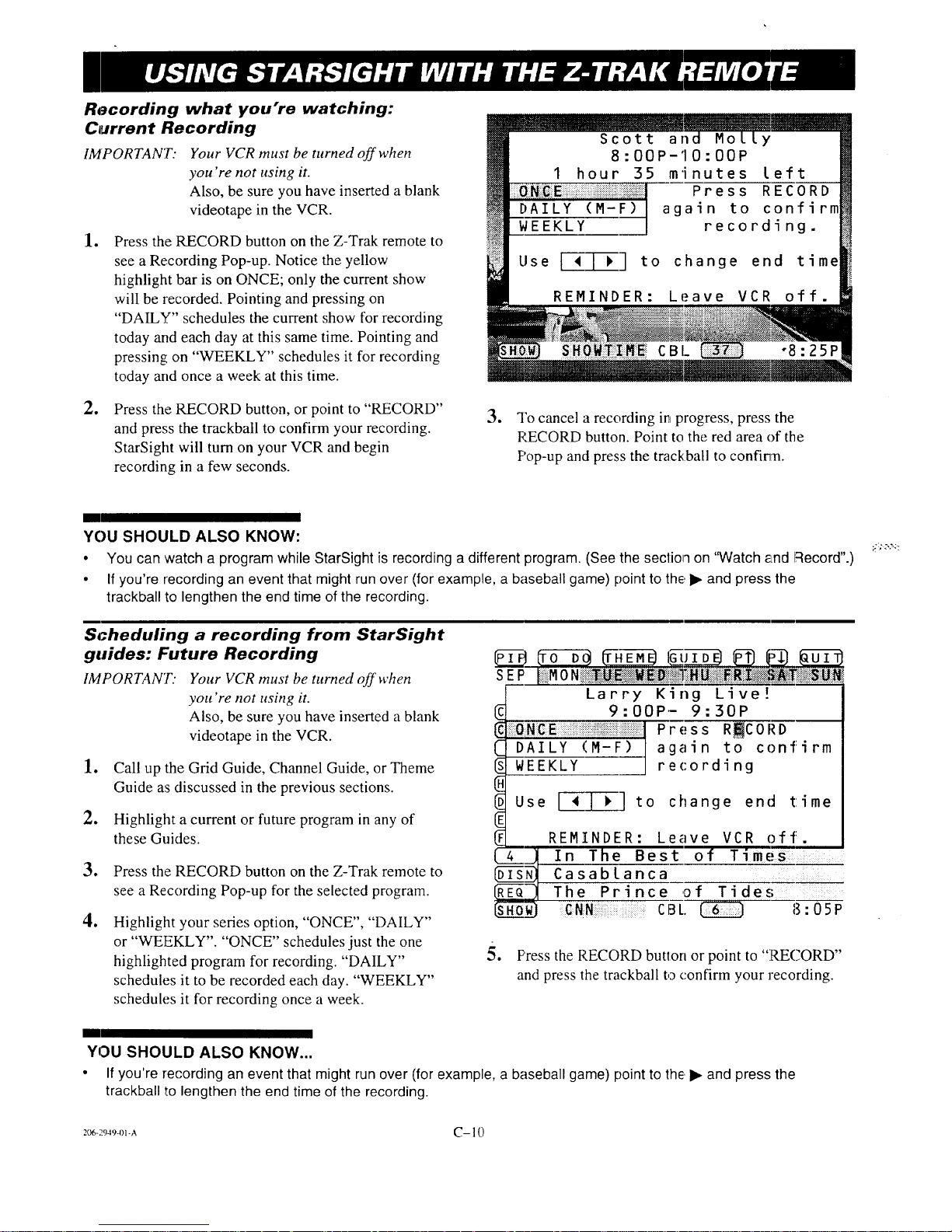

Recording what you're watching: Cd_rrent Recording

IMPORTANT: Your VCR must be turned off when

you're not using it.

Also, be sure you have inserted a blank videotape in the VCR.

le Press the RECORD button on the Z-Trak remote to

see a Recording Pop-up. Notice the yellow

highlight bar is on ONCE; only the current show

will be recorded. Pointing and pressing on "DAILY" schedules the current show for recording today and each day at this same time. Pointing and pressing on "WEEKLY" schedules it for recording today and once a week at this time.

Press the RECORD button, or point to "RECORD"

and press the trackball to confirm your recording. StarSight will turn on your VCR and begin recording in a few seconds.

To cancel arecording in progress, press the

PECORD button. Point to the red area of the Pop-up and press the trackball to confirm.

YOU SHOULD ALSO KNOW:

• You can watch a program while StarSight is recording a different program. (See the section on "Watch eLndRecord".)

• If you're recording an event that might run over (for example, a baseball game) point to the,• and press the trackball to lengthen the end time of the recording.

Schedufing a recording from StarSight guides: Future Recording

IMPORTANT." Your VCR must be turned off when

you're not using it.

Also, be sure you have inserted a blank videotape in the VCR.

Call up the Grid Guide, Channel Guide, or Theme Guide as discussed in the previous sections.

Highlight a current or future program in any of these Guides.

Press the RECORD button on the Z-Trak remote to

see a Recording Pop-up for the selected program.

Highlight your series option, "ONCE", "DAILY" or "WEEKLY". "ONCE" schedules just the one highlighted program for recording. "DAILY" schedules it to be recorded each day. "WEEKLY" schedules it for recording once a week.

SE__PP_iiM0 N,ii_'_i_ii_i_i_i!i_!]_H_#iiiiiiiE_;_i_i_ii_ii_iUi_

Larry King Live?

9:00P- 9:30P

_DAILY_ (M-F) / again to confirm

WEEKLY ] recording

REMINDER: Leave VCR off.

{_41 In The Best of Times

_ Casablanca ----_

The Prince of Tides

CNN CBL. _ 8:05P

Use I 4 ] P ] to change end time

5. Press the Iq'ECORD button or point to "RECORD" and press the trackball to confirm your recording.

YOU SHOULD ALSO KNOW...

• If you're recording an event that might run over (for example, a baseball game) point to the.• and press the trackball to lengthen the end time of the recording.

206-2949q)l-A C- 10

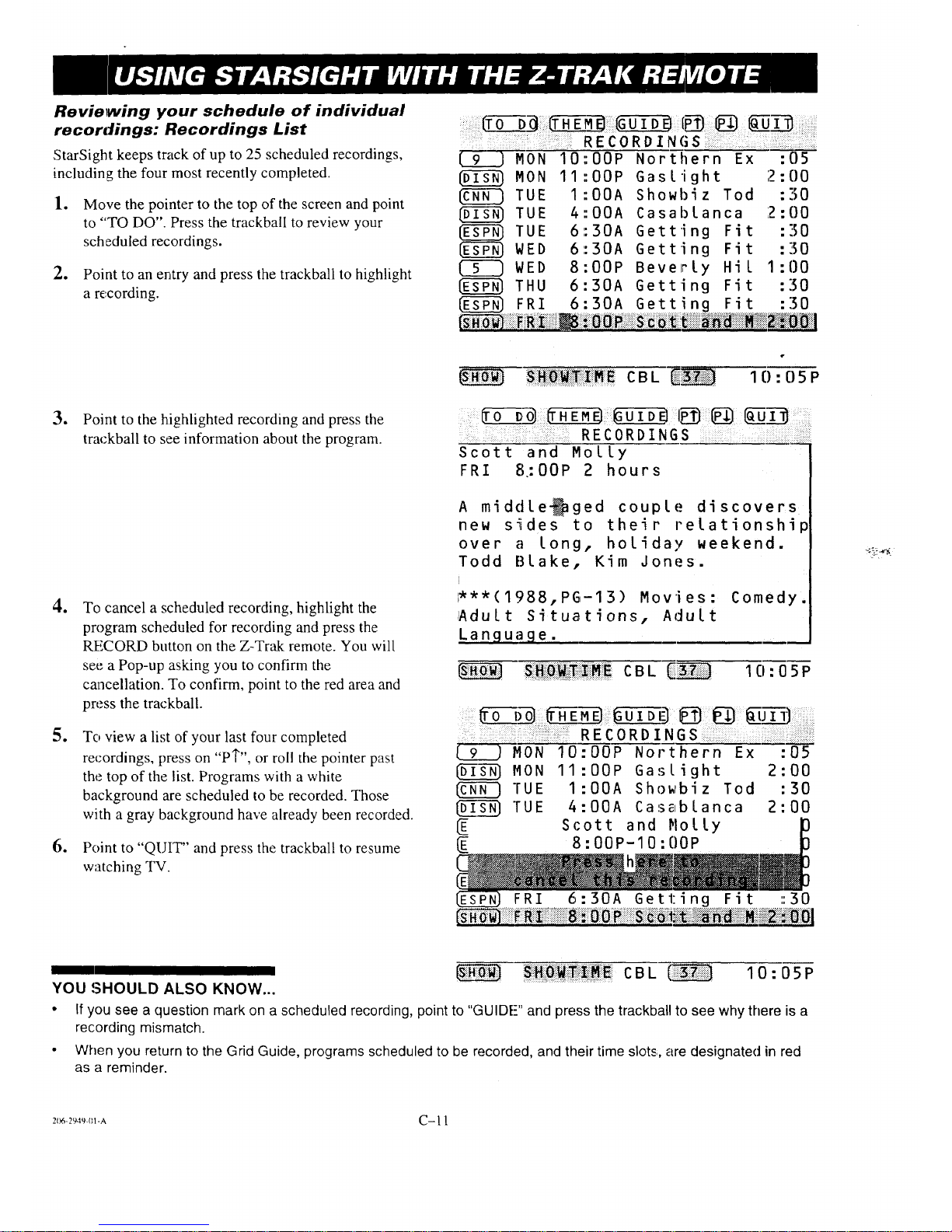

Reviewing your schedule of individual recordings: Recordings List

StarSight keeps track of up to 25 scheduled recordings,

including the four most recently completed.

1. Move the pointer to the top of the screen and point

to "TO DO". Press the trackball to review your scheduled recordings.

2. Point to an entry and press the trackball to highlight

a re,cording.

RECORDINGS

MON IO::OOP Northern Ex :05 MON 11::00P Gaslight

TUE I:00A Showbiz Tod

[_ TUE 4:00A Casablanca

TUE 6:30A Getting Fit

WED 6::30A Getting Fit

(_ WED 8:00P Beverly Hil

THU 6:30A Getting Fit

2 :00

:30 :00 :!50 :!50

I :00

:30

F RI 6:30A Gett!ng Fit _!3o0

Point to the highlighted recording and press the trackball to see information about the program.

To cancel a scheduled recording, highlight the program scheduled for recording and press the RECORD button on the Z-Trak remote. You will see a Pop-up asking you to confirm the cancellation. To confirm, point to the red area and press the trackball.

RECORDINGS

Scott and MolLy

FRI 8.:OOP 2 hours

A middle,aged couple discovers new s_ides to their relationship over a long, holiday weekend. Todd BLake, Kim Jones.

I***(1988,PG-13) Movies: Comedy. _Adult Situations, Adult

Language.

To view a list of your last four completed recordings, press on "PI"", or roll the pointer past _ M0 N the top of the list. Programs with a white _ M0 N background are scheduled to be recorded. Those _ "[U E with a gray background have already been recorded. _ "FUE

Point to "QUIT" and press the trackball to resume watching TV.

I0:00P Northern Ex :05 11:00P Gaslight 2:00

I:00A Showbiz Tod :30

4:00A Casablanca 2:00

Scott and Nolly

8 :OOP-IO :OOP

_!_:!Hii_i!_i_i!_i_;;_!EiC B L _ 1 0:0 5 P

YOU SHOULD ALSO KNOW...

• If you see a question mark on a scheduled recording, point to "GUIDE--" and press the trackbafl to see why there is a

recording mismatch.

• When you return to the Grid Guide, programs scheduled to be recorded, and their time slots, are designated in red as a reminder.

21)6-294%(11-A C- 11

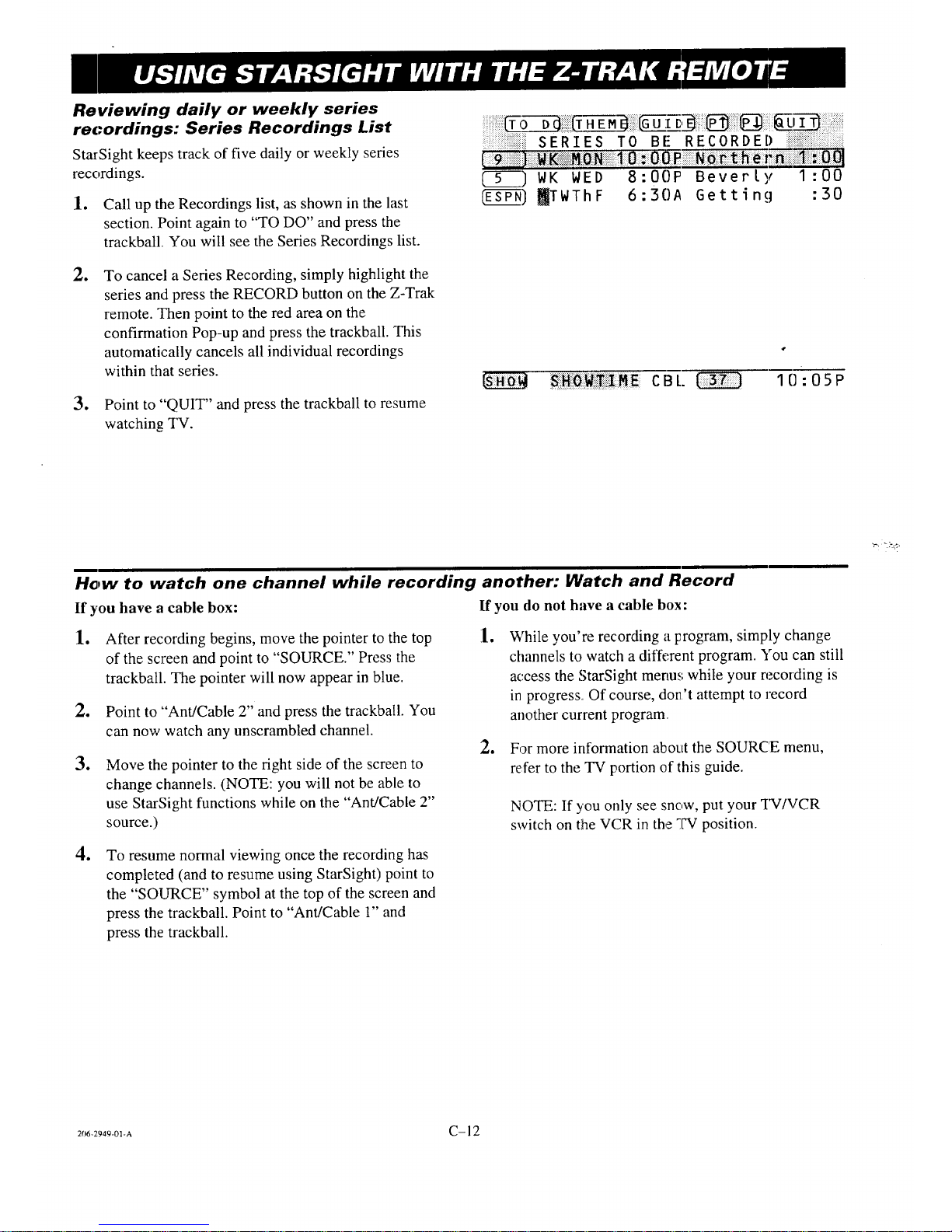

Reviewing daily or weekly series recordings: Series Recordings List

StarSight keeps track of five daily or weekly series

recordings.

Call up the Recordings list, as shown in the last section. Point again to "TO DO" and press the trackball. You will see the Series Recordings list.

To cancel a Series Recording, simply highlight the series and press the RECORD button on the Z-Trak remote. Then point to the red area on the

confirmation Pop-up and press the trackball. This automatically cancels all individual recordings

within that series.

3. Point to "QUIT" and press the trackball to resume watching TV.

SERIES TO.BE RECORDED

5_) WK WED 8:00P Beverly I :00 ES_-S-PN)_TWThF 6:30A Getting :30

How to watch one channel while recording another: Watch and Record

If you have a cable box: If you do not have a cable box:

1. After recording begins, move the pointer to the top 1.

of the screen and point to "SOURCE." Press the trackball. The pointer will now appear in blue.

Point to "Ant/Cable 2" and press the trackball. You can now watch any unscrambled channel.

Move the pointer to the fight side of the screen to change channels. (NOTE: you will not be able to use StarSight functions while on the "Ant/Cable 2" source.)

To resume normal viewing once the recording has

completed (and to resume using StarSight) point to the "SOURCE" symbol at the top of the screen and press the trackball. Point to "Ant/Cable 1" and press the trackball.

While you're recording a program, simply change channels to watch a different program. You can still access the StarSight menu,,; while your recording is in progress. Of course, don't attempt to record another current program

For more information about the SOURCE menu, refer to the TV portion of this guide.

NOTE: If you only see snow, put your TV/VCR

switch on the VCR in the "T_ position.

2(_-2949-01-A C-12

What you should do when you get a

new 1/CR

NOTE: THIS PROCEDURE REQUIRES THE USE

OF THE UNIVERSAL REMOTE.

Make sure your Remote Emitter is positioned 2-3 inches in front of your new VCR. Find the code(s) for your brand of new VCR on the "VCR Code" chart and write the code(s) here.

l, Press TO DO until you see the StarSight Setup menu.

2, Press the ,l, to highlight "Change VCR."

SeLect 6uideoChannels J

Change Channel Order

Change Cable Box/Service

Change VCR Re-Activate/Change Address

StarSight Demonstration

Use ** then STAR to choose

To exit, press. QUIT

_]_ CNN CBL _ 5:02P

3. Press STAR and follow the on-screen instructions. I

YOU SHOULD ALSO KNOW...

• It is important that your equipment works properly during each test. For example, make sure your VCR turns on. If the equipment does not respond, you need to try another VCR code and test your VCR acain.

• Remember to reprogram your remote so it can operate your new VCR. See the section on "Universal Remote Control" in the TV portion of this guide.

• If you have tried all the codes and need assistance, call the StarSight Help Desk at (800) 628-STAR.

Select Guide Channels Change Channel Order

Change Cable Box/Service

Change VCR

Re-Activate/Change A'ddres's StarSight Demonstration

Use ** then STAR to choose

To exit, press QUIT

CNN CBL [_ 5:02P

What changes are you making to your VCR?

1. Add VCR

2. RepLace VCR

2. Remove VCR

Enter your selection here:

To continue, press ENTER.

To exit, press QUIT.

21x_.2'_4,_-o_-A D-- l

What you should do when you change your cable box or service or when you

move

NOTE: THIS PROCEDURE REQUIRES THE USE

OF 'FILE UNIVERSAL REMOTE.

If ycu are changing your cable box, find the code(s) for your brand of new Cable Box on the "Cable Box Code" charL and write the code(s) here.

1. Press TO DO until you see the StarSight Setup menu.

STAR_S_IGHTI SETUPJ° '' ,.:- ;

Select Guide Channels

Change Channel Order Change Cable Box/Service Change VCR Re-Activate/Change Address StarSight Demonstration

Use ** then STAR to choose

To exit, press QUIT

CNN CBL _ 5:02P

Press the .Lto highlight "Change Cable Box/Service."

Press the .[_to highlight "Re-Activate/Change Address."

3. Press STAR.

STARS_GHT SETUP............ -v-,

Select Guide Channels Change Channel Order

Change Cabte Box/S, ePy!ce Change VCR Re-Activate/Change Address

StarSight Demonstration

Use t, then STAR to choose

To exit, press QUIT

_I CNN CBL _ 5:02P

4. Follow the on-screen instructions.

Before you proceed...

I. Please complete the

StarSight Checklist in your

Installation Guide.

Make sure you connect your TV to any other equipment according to the diagrams in your StarSight Installation Guide.

To continue, press ENTER.

To exit, press QUIT.

2r,6-e_9-01-a D-2

Before calling for service...

1. LEAVE YOUR CABLE BOX ON AT ALL TIMES.

2. LEAVE YOUR VCR OFF WHENEVER YOU ARE NOT WATCHING A VIDEOTAPE.

3. DO NOT PLLIG YOUR TV INTO THE POWER PLUG ON THE BACK OF YOUR CABLE BOX.

Installation Problems

Problem StarSight is not controlling my cable box and

VCR.

My VCR turns off and on, but won't change channels.

No Picture - "snow."

I do not get any channels above 13.

My 2W turned off during Cable Box testing.

I can't make StarSight appear using the Universal remote control.

1can't make StarSight appear using the Z-Trak remote control.

Try this Make sure the Remote Emitter is plugged into the Starsight Control Port on the back

of your TV. Check the placement o1 your Remote Emitter(s)--the bulbs should be facirtg and a

few inches in front of the front panel of your VCR and CablLeBox. o Make sure you have completed the equipment test with the proper code for your

brand of equipment. See "Cable Box Codes" and "VCR Codes" charts. If you have a Cable Box, your VCR does not need to change channels. (The Cable

Box will change channels.)

Try additional VCR codes until you pass the VCR tuning test. See "VCR Codes" chart. To test the code see "Changing Your Equipment Setup".

Your VCR must be capable of direct tuning, i.e. your VCR's original remc,te control must have a 10 digit number pad.

Check the connections between your TV, VCR and/or Cable Box. Run "Auto Program" for your TV's "AnlJCable 1" source. If your Setup is #4, then

you should also Auto Program your "Ant/Cable 2" source. (See the TV portiOrL of the guide.)

If you have a Cable Box, tune your TV to channel 3, or to the cable box outpu! channel.

Run "Auto Program" for your TV's "Ant/Cable 1" source. If your Setup is #4, then you should also Auto Program your "Ant/Cable 2" source, (See the TV portion of the guide.)

Make sure your TV is not plugged into the back of the Cable Box or into apower outlet that is controlled by a light switch.

NOTE: LEAVE YOUR CABLE BOX ON AT ALL TIMES.

Press STAR to get your remote control to operate StarSight. Press TV/VCR Source and select "Ant/Cable l" or StarSight if named.

If you press a button on the remote control and its red l!tgl'Ltdoes not appear, then you need to change your remote control's batteries.

Make sure you have activated StarSight! (See Installation Step 3, "Activate StarSight".)

Check that the on-screen pointer is red, indicating StarSight mode.

If the pointer is blue, move it to the TV options menu on the left side of _:hescreen.

Point and press on the TV icon. The pointer will turn red and the StarSiglat logo will appear indicating StarSight mode.

Refer to the next page for Operation Problems.

206-2949-01-A E-1

Operation Problems

Problem I've registered for StarSight but don't have any

program data yet.

The background color for the date and time are red.

There are some blank spots in StarSight's guides.

StarSight's list of channels does not match those that appear on my TV.

The entire show did not record.

I have a Cable Box, and want to watch one program while recording another.

I canceled the recordings of all episodes of a series, but new episodes for that same series are still being recorded.

A red question mark appears on a program title in the Recordings list.

I can't control my VCR with my remote control.

I can't see the videotape when playing back on

the VCR.

The program wasn't recorded.

My picture turns to "snow" when recording begins.

StarSight keeps playing a demonstration, and I want to stop it.

Try this

1. Make sure your TV is turned off or tuned to PBS in order to receive information. It may take anywhere from 4-12 hours to initially get the fifll 7 days of information. For best resu!tts wait overnight. Check the PBS channel for good picture.

2. If you have a cable box, nlake sure the cable box automatically tunes to the PBS channel when TV is turned off.

Your TV lost power momentarily. StarSight will correct the time and date when your TV is turned off for a few minutes.

StarSight may not have received all the program information. Your TV ,,_ill collect

program information whenever the TV is turned off. Call the StarSight Help Desk at 1-800-628-STAR, or fax corrections directl3; 1:o

I (800) 229-9640.

Make sure you have enough tape to record the whole program. StarSight records programs based upon the scheduled start and stop times. If a program may run overtime, you should extend the end time of your recording. (See the section "Current Recording" or "Future Recording".)

While a recording is in progress, change your source to "ANT/CABLE 2" to watch a different non-scrambled program

You must cancel the whole series from :the Series to be Recorded list. See the section "Series Recordings List".

The program information in :theRecordings list does not match the program information in the Grid Guide. Position the highlight bar on the question mark and

_ress MENU/GUIDE to see _Iheprogram that will be recorded. If you don't want to

record this program, press record to cancel the recording. You need to program your remote control for your particular brand of VCR. (See

the sections on Remote Controls in the TV portion of this guide.)

1. Check the connections between your TV ard VCR.

2. Make sure your TV is on channel 3 or 4.

3. If you still do not have a picture, try a different videotaae that you know has a good picture.

1. YOUR VCR MUST BE LEFT OFF WHENEVER YOU ARE NOT WATCHING A VIDEOTAPE. Otherwise, a recording will not take place, lvIake

sure you have a videotape with tape remaining.

2. Check the placement of your Remote Emitter. Has it fallen out of place?

3. Make sure you are confirnfing the recordings when you schedule a program for recording.

4. Check your Recordings List to see if you actually did schedule a recording for that specific program.

5. For a current recording, make sure you don't press any buttons until the recording has begun.

6. If you have changed your VCR, you will probably need to change the VCR code.

To watch TV while recording, wait until recording has begun, then set the

"TV/VCR" switch on your VCR to "TV." Or, on your Universal remote control, press the "VCR" button and then the "TV/VCR Source' button. (So the VCR is in "TV" mode.)

If you are running a Quick SlarSight Demo, press any key. If you are running a Continuous Retail Demo (recommended for retailers only), wait for the message "To cancel this demonsllration, press any button now," and press any button on the remote.

Refer to the previous page for Installation Problems.

206 2949 OI-A E-2

Zenith INTEQ SRX3293, INTEQ IQ2793, INTEQ INTEQ IQ3553, INTEQ IQ3293, INTEQ SRX3593 Operating Manual & Warranty

Specifications and Main Features

Frequently Asked Questions

User Manual
