Zenith HDV420 Service Manual

4

CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY, NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFACTURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANY RESULTING PROPERTY DAMAGE OR USER INJURY.

SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE, INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE USER.

WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTECTION FROM A.C. LINE SHOCK.

SAFETY CHECKS

AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRCTED. A CHECK SHOULD BE MADE OF THE FOLLOWING.

SUBJECT : FIRE & SHOCK HAZARD

1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS. THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE TRANSPORTED TO AND FROM THE REPAIR SHOP.

2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.

3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.

4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION TO PARTS AND COMPONENTS. FOR FRAYED LEADS, DAMAGED INSULATION (INCLUDING A.C. CORD). AND REPLACE IF NECESSARY FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.

5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND PROTRUNING METAL SURFACES MUST BE AVOIDED.

6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT MODIFICATIONS.

7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C. LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HANDLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLTMETER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESISTOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME. MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500 OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75 VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.

SUBJECT: GRAPHIC SYMBOLS

THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAG- NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE LITERATURE.

SUBJECT : X-RADIATION

1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTENTIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PICTURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERATION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PICTURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIRCUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIRABLE LEVELS.

2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE USED. DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN COLOR SETS, ALWAYS RE-INSTALL THEM.

3. IT IS ESSNTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA TION OF THE METER SHOULD BE CHECKED PERIODICALLY AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE AT YOUR DISTRIBUTOR.

4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING CORRECTLY, WE SUGGEST THAT YOU AND YOUR SERVICE ORGANIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGULATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCEDURE. AND THAT THE HIGH VOLTAGE READING BE RECORDER ON EACH CUSTOMER’S INVOICE.

5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE, AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT LONGER THAN IS NECESSARY TO LOCATE THE CAUSE OF EXCES SIVE VOLTAGE.

6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS (WHERE USED).

SUBJECT: IMPLOSION

1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.

2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.

SUBJECT : TIPS ON PROPER INSTALLATION

1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER OR CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.

2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIATORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.

3. AVOID PALCEMENT WHERE DRAPERIES MAY OBSTRUCT REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DECORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT OBSTRUCT VENTILATION.

4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMERCIAL MOUNTING KIT. MUST FOLLOW THE FACTORY APPROVED MOUNTING INSTRUCTIONS A PRODUCT MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW ACROSS THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.

5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS PROPERLY SECURED.

6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS THRESHOLDS OR DEEP PILE CARPETS.

7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF THE SAME OR LARGER SCREEN SIZE.

8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SINGLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO HOME AND FAMILY.

2. PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS

A.C. VOLTMETER

GOOD EARTH GROUND SUCH AS THE WATER PIPE. CONDUIT. ETC

PLACE THIS PROBE ON EACH EXPOSED METAL PART

5

3. SERVICING PRECAUTIONS

CAUTION : Before servicing the High Definition Television Receiver covered by this service data and its supplements and addends, read and follow the

SAFETY PRECAUTIONS.

NOTE

: if unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions in this publications, always follow the safety precautions.

Remembers Safety First:

General Servicing Precautions

1. Always unplug the High Definition Television Receiver AC

power cord from the AC power source before: (1) Removing or reinstalling any component, circuit board,

module, or any other assembly.

(2) Disconnection or reconnecting any internal electrical

plug or other electrical connection.

(3) Connecting a test substitute in parallel with an elec-

trolytic capacitor. Caution : A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Do not spray chemicals on or near this High Definition

Television Receiver or any of its assemblies.

3. Unless specified otherwise in this service data, clean

electrical contacts by applying an appropriate contact cleaning solution to the contacts with a pipe cleaner, cotton-tipped swab, or comparable soft applicator. Unless specified otherwise in this service data, lubrication of contacts is not required.

4. Do not defeat any plug/socket B+ voltage interlocks with

whitch instruments covered by this service manual might be equipped.

5. Do not apply AC power to this High Definition Television

Receiver and/or any of its electrical assemblies unless all solid-state device heat sinks are cerrectly installed.

6. Always connect test instrument ground lead to the

appropriate ground before connection the test instrument positive lead. Always remove the test instrument ground lead last.

Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn the power on. Connect an insulation resistance meter(500V) to the blades of the attachment plug. The insulation resistance between each blade of the attachment plug and accessible conductive parts (Note 1) should be more than 1Mohm. Note 1 : Accessible Conductive Parts including Metal panels, Input terminals, Earphone jacks, etc.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grouned-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified a “anti-static” can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charge sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protec tive package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Normally harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

10

1. Cabinet and Main Frame Section

463

280

260

A42

A49

A46

A44

250

320

463

457

465

466

452

A43

452

463

300

A

5

4

3

2

1

BCD

12

2. Packing Accessory Section

808

806

804

803

811

812

801

900

802

803

BATTERY

REMOCON

BOX CARTON

PACKING

OWNER'S MANUAL

PACKING SHEET

PACKING

PLUG ASS'Y 2WAY

820

PLUG ASS'Y 3WAY

PLUG ASS'Y 1WAY

RF CABLE

• Packing Accessory Section Part List

Sales Model Loc No. P/Part No C/Part No Price(USD) Description

LST-2101Z 250 LST-2101Z.AA 3110R-P014D 2.15 CASE

LST-2101Z 260 LST-2101Z.AA 3141R-0062E 3.24 CHASSIS ASSEMBLY

LST-2101Z 280 3501R-4030E 3721R-F276E 6.56 PANEL ASSEMBLY,FRONT

LST-2101Z 300 LST-2101Z.AA 6410RAHK02D 0.97 POWER CORD

LST-2101Z 320 3141R-0062E 3720R-D071A 0.87 PANEL,VIDEO

LST-2101Z 452 3501R-4030E 353-051A 0.1 SCREW,DRAWING

LST-2101Z 457 3141R-0062E 353-046N 0.1 SCREW,DRAWING

LST-2101Z 463 LST-2101Z.AA 353-051G 0.1 SCREW,DRAWING

LST-2101Z 465 LST-2101Z.AA 353-046K 0.1 SCREW,DRAWING

LST-2101Z 466 LST-2101Z.AA 1BK-0512391 0.1 BOLT,HEXAGON SOCKET

LST-2101Z 801 LST-2101Z.AA 3835RS0035J 0.87 INSTRUCTION ASSEMBLY

LST-2101Z 802 3921R-0124Z 3890R-C049L 1.59 BOX,MASTER

LST-2101Z 803 3921R-0124Z 3920R-E059A 0.46 PACKING,CASING

LST-2101Z 806 LST-2101Z.AA 6850R-CAA22 0.45 CABLE,COAXIAL

LST-2101Z 808 LST-2101Z.AA 6910R-AB02A 0.29 BATTERY,ALKALINE

LST-2101Z 812 LST-2101Z.AA 6611R2G003A 0.74 PLUG ASSEMBLY

LST-2101Z 820 LST-2101Z.AA 6611R3G001A 1.32 PLUG ASSEMBLY

LST-2101Z 900 LST-2101Z.AA 6711R1N094B 5.8 REMOTE CONTROLLER AS

LST-2101Z A42 3501R-4030E 6871R-3379A 0.1 PWB(PCB) ASSEMBLY,TO

LST-2101Z A43 LST-2101Z.AA 3501R-4030E 8.22 BOARD ASSEMBLY

LST-2101Z A44 LST-2101Z.AA 3501R-2249G 9.78 BOARD ASSEMBLY

LST-2101Z A46 LST-2101Z.AA 6871R-9240A 208.38 PWB(PCB) ASSEMBLY,TO

LST-2101Z A49 3501R-4030E 6871R-3378C 2.54 PWB(PCB) ASSEMBLY,TO

LST-2101Z AR100 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR101 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR102 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR103 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR104 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR105 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR106 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR108 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR110 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR111 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR112 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR113 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR114 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR115 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR116 6882RN9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR117 6882RN9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR118 6882RN9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR119 6882RN9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR120 6882RN9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR121 6882RN9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR122 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR123 6882RN9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR200 6882RT9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR201 6882RT9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR203 6882RT9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR204 6882RT9240A 0RRZVTA001J 0.1 RESISTOR,DRAWING

LST-2101Z AR321 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR322 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR323 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR324 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR325 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR326 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR327 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR328 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR329 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR330 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR331 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR332 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR333 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR334 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR335 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR336 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR337 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR338 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR339 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR340 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR341 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR342 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR343 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR344 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR345 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR346 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z AR347 6882RB9240A 0RRZVTA001L 0.1 RESISTOR,DRAWING

LST-2101Z B235 6882RT9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B236 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B239 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B240 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B245 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B246 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B249 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B250 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B251 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B252 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B253 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B254 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B255 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B256 6882RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B257 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B258 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B259 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B260 6883RT9240A 6200HJC106A 0.1 FILTER(CIRC),EMI

LST-2101Z B310 6882RB9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B400 6882RA9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B401 6882RA9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B402 6882RA9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B403 6882RA9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B404 6882RA9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B406 6882RA9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z B603 6882RF9240A 0LCCE00005D 0.1 INDUCTOR,CHIP

LST-2101Z BC101 6875R-2249G 636-004C 0.1 CORE (CIRC),BEAD

LST-2101Z BC102 6875R-2249G 636-004C 0.1 CORE (CIRC),BEAD

LST-2101Z BD101 6874R-2249G 0DD160000DA 0.19 DIODE,RECTIFIERS

LST-2101Z C100 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C101 6874R-2249G 624-088F 0.1 CAPACITOR,DRAWING

LST-2101Z C101 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C102 6874R-2249G 624-088F 0.1 CAPACITOR,DRAWING

LST-2101Z C102 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C103 6874R-2249G 0CE157CR610 0.59 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C103 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C104 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C105 6875R-2249G 0CQ1031Y519 0.1 CAPACITOR,FIXED FILM

LST-2101Z C105 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C106 6875R-2249G 624-087B 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C106 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C107 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C108 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C109 6875R-2249G 624-085D 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C111 6875R-2249G 0CN223AK948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C111 6882RN9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C112 6874R-2249G 0CG3320U631 0.1 CAPACITOR,FIXED CERA

LST-2101Z C112 6882RN9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C113 6874R-2249G 0CG1010U510 0.1 CAPACITOR,SEMI CERAMIC

LST-2101Z C113 6882RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C114 6875R-2249G 0CE1054K638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C114 6882RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C115 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C116 6874R-2249G 0CE108EF630 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C116 6882RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C117 6875R-2249G 0CE3376D638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C117 6882RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C118 6874R-2249G 0CE228BF630 0.17 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C118 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C119 6875R-2249G 624-082H 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C119 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C120 6874R-2249G 0CE477BH638 0.14 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C120 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C121 6875R-2249G 0CE227CH618 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C121 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C122 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C123 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C128 6875R-2249G 0CN223AK948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C129 6883RN9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C130 6883RN9240A 0CH4180K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C1300 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C1301 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C1302 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C151 6875R-2249G 0CE1074F638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C152 6875R-2249G 0CE1064F638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C153 6875R-2249G 0CE1074F638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C154 6875R-2249G 0CE1074F638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C200 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C201 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C202 6883RT9240A 0CH4120K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C203 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C204 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C205 6882RT9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C206 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C207 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C208 6883RT9240A 0CH1100K516 0.1 CAPACITOR,FIXED CERA

LST-2101Z C210 6883RT9240A 0CH1100K516 0.1 CAPACITOR,FIXED CERA

LST-2101Z C211 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C213 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C214 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C215 6882RT9240A 0CE227VF6DC 0.32 CAPACITOR,FIXED ELEC

LST-2101Z C216 6882RT9240A 0CE227VF6DC 0.32 CAPACITOR,FIXED ELEC

LST-2101Z C217 6882RT9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C218 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C219 6882RT9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C221 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C222 6882RT9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C223 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C224 6882RT9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C225 6882RT9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C226 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C227 6883RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C228 6882RT9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C229 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C230 6883RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C231 6883RT9240A 0CK333DF56A 0.1 CAPACITOR,FIXED CERA

LST-2101Z C232 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C233 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C235 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C236 6882RT9240A 0CE227VF6DC 0.32 CAPACITOR,FIXED ELEC

LST-2101Z C237 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C238 6882RT9240A 0CC030DKE1A 0.1 CAPACITOR,FIXED CERA

LST-2101Z C239 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C240 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C241 6882RT9240A 0CH4150K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C243 6882RT9240A 0CH4150K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C244 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C245 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C246 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C247 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C248 6882RT9240A 0CH4102K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C249 6882RT9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C250 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C251 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C252 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C258 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C259 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C260 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C261 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C262 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C263 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C264 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C265 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C266 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C267 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C268 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C269 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C270 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C271 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C272 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C273 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C274 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C275 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C276 6882RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C277 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C278 6882RT9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C279 6882RT9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C280 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C281 6883RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C282 6882RT9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C283 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C288 6883RT9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C289 6882RT9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C300 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C301 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C302 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C303 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C304 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C305 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C306 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C307 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C308 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C309 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C310 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C311 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C312 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C313 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C314 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C315 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C316 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C317 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C318 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C319 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C320 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C321 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C322 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C323 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C324 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C325 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C326 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C327 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C328 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C329 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C330 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C331 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C332 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C333 6882RB9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C334 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C335 6882RB9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C336 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C337 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C338 6882RB9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C339 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C340 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C341 6882RB9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C342 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C344 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C345 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C346 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C347 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C348 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C349 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C350 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C351 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C352 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C353 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C354 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C355 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C356 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C357 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C358 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C359 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C360 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C361 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C362 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C363 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C364 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C365 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C366 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C367 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C368 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C369 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C370 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C371 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C372 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C373 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C374 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C375 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C376 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C378 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C380 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C381 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C382 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C383 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C384 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C386 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C388 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C389 6882RB9240A 0CH4330K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C394 6882RB9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C395 6882RB9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C396 6882RB9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C397 6882RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C399 6883RB9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C400 6883RA9240A 0CH1100K516 0.1 CAPACITOR,FIXED CERA

LST-2101Z C401 6882RA9240A 0CH4471K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C402 6882RA9240A 0CH4471K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C403 6882RA9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C404 6882RA9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C405 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C406 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C407 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C408 6882RA9240A 0CH4102K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C409 6882RA9240A 0CH4102K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C410 6882RA9240A 0CH4151K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C411 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C412 6883RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C413 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C414 6883RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C415 6883RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C416 6883RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C417 6882RA9240A 0CH1103K416 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C418 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C419 6882RA9240A 0CH4100K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C420 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C421 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C422 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C423 6883RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C424 6882RA9240A 0CH4100K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C425 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C426 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C427 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C428 6882RA9240A 0CH4151K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C429 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C430 6883RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C431 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C432 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C433 6882RA9240A 0CH4102K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C434 6882RA9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C435 6882RA9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C436 6882RA9240A 0CH1225F946 0.1 CAPACITOR,FIXED CERA

LST-2101Z C437 6882RA9240A 0CH1225F946 0.1 CAPACITOR,FIXED CERA

LST-2101Z C438 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C439 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C440 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C441 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C442 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C443 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C444 6882RA9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C445 6882RA9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C446 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C447 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C448 6882RA9240A 0CH1562K566 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C449 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C450 6882RA9240A 0CH1562K566 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C451 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C452 6882RA9240A 0CE475VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C453 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C454 6882RA9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C455 6882RA9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C456 6882RA9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C457 6882RA9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C458 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C459 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C460 6882RA9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C461 6882RA9240A 0CH4471K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C462 6882RA9240A 0CH4220K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C463 6882RA9240A 0CH4220K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C464 6882RA9240A 0CH4220K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C465 6882RA9240A 0CH4331K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C466 6882RA9240A 0CH4331K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C467 6882RA9240A 0CH4331K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C468 6882RA9240A 0CH4560K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C469 6882RA9240A 0CH4560K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C470 6882RA9240A 0CH4560K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C500 6882RJ9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C501 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C502 6882RJ9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C503 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C504 6882RJ9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C505 6882RJ9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C506 6882RJ9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C507 6882RJ9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C508 6882RJ9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C509 6882RJ9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C510 6882RJ9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C511 6882RJ9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C512 6882RJ9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C513 6882RJ9240A 0CH8105K611 0.12 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C514 6882RJ9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C515 6882RJ9240A 0CH8107F611 0.1 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C516 6882RJ9240A 0CE226SF6DC 0.1 CAPACITOR,AL.ELECTRO

LST-2101Z C517 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C518 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C519 6883RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C520 6883RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C522 6883RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C523 6883RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C526 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C527 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C528 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C529 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C530 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C531 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C532 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C533 6882RJ9240A 0CE474VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C534 6882RJ9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C535 6882RJ9240A 0CH4470K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C536 6882RJ9240A 0CH4470K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C537 6883RJ9240A 0CC221DK41A 0.1 CAPACITOR,FIXED CERA

LST-2101Z C538 6883RJ9240A 0CC221DK41A 0.1 CAPACITOR,FIXED CERA

LST-2101Z C539 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C540 6882RJ9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C541 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C545 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C547 6882RJ9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C548 6882RJ9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C550 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C551 6883RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C552 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C553 6882RJ9240A 0CH4300K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C554 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C555 6882RJ9240A 0CE225VK6DC 0.1 CAPACITOR,FIXED ELEC

LST-2101Z C556 6882RJ9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C600 6882RF9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C601 6882RF9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C602 6883RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C603 6883RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C604 6882RF9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C605 6883RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C606 6883RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C607 6882RF9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C608 6882RF9240A 0CH4200K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C609 6882RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C610 6882RF9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C611 6882RF9240A 0CH8477F611 0.29 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C612 6882RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C613 6882RF9240A 0CH4200K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C614 6882RF9240A 0CH4200K416 0.1 CAPACITOR,FIXED CERAMIC(High dielectric)

LST-2101Z C615 6882RF9240A 0CH7107F661 0.66 CAPACITOR,FIXED TANTALUM

LST-2101Z C616 6882RF9240A 0CH7107F661 0.66 CAPACITOR,FIXED TANTALUM

LST-2101Z C617 6882RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C618 6882RF9240A 0CH8106F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C619 6882RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C620 6882RF9240A 0CH8476F611 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z C621 6882RF9240A 0CH8107F611 0.1 CAPACITOR,CHIP[AL. ELECTROLYTIC]

LST-2101Z C622 6882RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C623 6883RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C624 6883RF9240A 0CH1104H516 0.1 CAPACITOR,FIXED CERAMIC(Temp.compensate)

LST-2101Z C801 6875R-3378C 0CN1040K948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C802 6875R-3378C 0CN1040K948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C803 6875R-3378C 0CN1040K948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C804 6875R-3378C 0CN1040K948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C806 6875R-3378C 0CN1010K418 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C807 6875R-3378C 0CN1010K418 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C811 6875R-3378C 0CN1040K948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C812 6875R-3378C 0CN1010K418 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C813 6875R-3378C 0CN1040K948 0.1 CAPACITOR,FIXED TUBULAR(High dielectric)

LST-2101Z C823 6875R-3378C 0CE4763F638 0.1 CAPACITOR,FIXED ELECTROLYTIC

LST-2101Z D102 6875R-2249G 0DD010009CA 0.13 DIODE,RECTIFIERS

LST-2101Z D102 6875R-2249G 0DD221009AA 0.1 DIODE,RECTIFIERS

LST-2101Z D103 6875R-2249G 0DD010009AC 0.1 DIODE,RECTIFIERS

LST-2101Z D105 3501R-2249G 4811R-0043A 0.62 BRACKET ASSEMBLY

LST-2101Z D106 6874R-2249G 0DR104510AA 0.57 DIODE,RECTIFIERS

LST-2101Z D109 6874R-2249G 0DD400000AD 0.32 DIODE,RECTIFIERS

LST-2101Z D109 6874R-2249G 0DR302000AB 0.14 DIODE,RECTIFIERS

LST-2101Z D525 6882RJ9240A 0DD184009AC 0.1 DIODE,SWITCHING

LST-2101Z D526 6882RJ9240A 0DD184009AC 0.1 DIODE,SWITCHING

LST-2101Z D800 6875R-3378C 0DLLT0179AA 0.1 LED

LST-2101Z D801 6875R-3378C 0DLKO0039AA 0.22 LED

LST-2101Z D802 6875R-3378C 0DLLT0179AA 0.1 LED

LST-2101Z D803 6875R-3378C 0DLLT0179AA 0.1 LED

LST-2101Z D804 6875R-3378C 0DLLT0179AA 0.1 LED

LST-2101Z DL200 6882RT9240A 0DLAU0108AB 0.1 LED

LST-2101Z DL201 6882RT9240A 0DLAU0108AA 0.1 LED

LST-2101Z F101 6874R-2249G 585-027B 0.1 FUSE,SLOW BLOW

LST-2101Z F500 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F501 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F502 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F503 6882RJ9240A 6200C000017 0.95 FILTER(CIRC),BAND PA

LST-2101Z F504 6882RJ9240A 6200C000017 0.95 FILTER(CIRC),BAND PA

LST-2101Z F505 6882RJ9240A 6200C000017 0.95 FILTER(CIRC),BAND PA

LST-2101Z F506 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F507 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F508 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F509 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F510 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F511 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F512 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F513 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F514 6882RJ9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F515 6882RJ9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F516 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F517 6882RJ9240A 6200VJT001A 0.23 FILTER(CIRC),EMI

LST-2101Z F601 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F602 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F603 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F604 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F605 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F606 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F607 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F608 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F609 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z F610 6882RF9240A 6200JB8009L 0.23 FILTER(CIRC),EMC

LST-2101Z IC100 6882RN9240A 0IMCRSS014A 5.82 IC,MICRO CONTROLLER

LST-2101Z IC101 3501R-2249G 4811R-0013M 1.15 BRACKET ASSY

LST-2101Z IC101 4811R-0013M 0ISK615300A 1.48 IC,SANKEN

LST-2101Z IC102 6874R-2249G 657-063A 0.16 SENSOR

LST-2101Z IC102 6882RN9240A 0IMMRFU002A 3.69 IC,MEMORIES

LST-2101Z IC103 6875R-2249G 0IKE431000A 0.17 IC,KEC

LST-2101Z IC103 6875R-2249G 0ISS431000A 0.17 IC,SAMSUNG ELECTRONICS

LST-2101Z IC103 6882RN9240A 0IKE702700D 0.23 IC,KEC

LST-2101Z IC104 6882RN9240A 0IPH741400E 0.1 IC,PHILIPS

LST-2101Z IC105 6882RN9240A 0IPH740700A 0.53 IC,PHILIPS

LST-2101Z IC106 6882RN9240A 0IMMRSS041A 4.13 IC,MEMORIES

LST-2101Z IC107 6882RN9240A 0IMP242560A 2.34 IC,MICRO CHIP TECHNOLOGY

LST-2101Z IC109 6882RN9240A 0IMMRHY031B 2.72 IC,MEMORIES

LST-2101Z IC152 6874R-2249G 0IPMGFA032A 0.36 IC,POWER MANAGEMENT

LST-2101Z IC152 6874R-2249G 0IPMGKE018A 0.36 IC,POWER MANAGEMENT

LST-2101Z IC153 3501R-2249G 4811R-0043B 0.97 BRACKET ASSEMBLY

LST-2101Z IC154 6874R-2249G 0IPMGFA034A 0.46 IC,POWER MANAGEMENT

LST-2101Z IC200 6874RT9240A 6200QL3001G 1.59 FILTER(CIRC),SAW

LST-2101Z IC202 6882RT9240A 0IIC501000A 1.56 IC,INTEGRATED CIRCUIT SYSTEMS

LST-2101Z IC203 6882RT9240A 0IIC501000A 1.56 IC,INTEGRATED CIRCUIT SYSTEMS

LST-2101Z IC204 6874RT9240A 6200QL3001F 1.79 FILTER(CIRC),SAW

LST-2101Z IC205 6882RT9240A 0IPRPNE005A 1.59 IC,PERIPHERALS

LST-2101Z IC206 6882RT9240A 0IPRPIC005A 1.9 IC,PERIPHERALS

LST-2101Z IC207 6874RT9240A 6634D00003A 1.92 ADAPTER,RF

LST-2101Z IC210 6882RT9240A 0ICTMLG005A 13.82 IC,CUSTOMIZED

LST-2101Z IC214 6874RT9240A 4811R-0042D 0.41 BRACKET ASSEMBLY

LST-2101Z IC217 6874RT9240A 4811R-0042A 2.54 BRACKET ASSEMBLY

LST-2101Z IC230 6882RT9240A 0ISTLFA053A 0.42 IC,STANDARD LOGIC

LST-2101Z IC233 6882RT9240A 0ISTLFA054A 0.31 IC,STANDARD LOGIC

LST-2101Z IC300 6882RB9240A 0ICTMLG006B 17.83 IC,CUSTOMIZED

LST-2101Z IC301 6882RB9240A 0ISS464323B 4.7 IC,SAMSUNG ELECTRONI

LST-2101Z IC302 6882RB9240A 0ISS464323B 4.7 IC,SAMSUNG ELECTRONI

LST-2101Z IC304 6882RB9240A 0IPRPTI010A 9.02 IC,PERIPHERALS

LST-2101Z IC306 6874RB9240A 6612R-L001A 1.34 JACK,FIBER OPTIC

LST-2101Z IC307 6882RB9240A 0INA892100A 1.05 IC,NATIONAL

LST-2101Z IC308 6882RB9240A 0IPMGSJ014A 1.97 IC,POWER MANAGEMENT

LST-2101Z IC310 6882RB9240A 6170RA0002A 2.22 TRANSFORMER,PULSE

LST-2101Z IC312 6882RB9240A 0IPRPHA001A 0.48 IC,PERIPHERALS

LST-2101Z IC422 6882RA9240A 0ISTLLA001A 1.93 IC,STANDARD LOGIC

LST-2101Z IC426 6882RA9240A 0IMO330780B 0.7 IC,MOTOROLA

LST-2101Z IC427 6882RA9240A 0IMO330780B 0.7 IC,MOTOROLA

LST-2101Z IC428 6882RA9240A 0ILNRAD005A 4.03 IC,LINEAR

LST-2101Z IC456 6882RA9240A 0ICB434000A 1.54 IC,CRYSTAL SEMICONDU

LST-2101Z IC460 6882RA9240A 0ISG744000A 1.47 IC,SGS-THOMSON

LST-2101Z IC473 6882RA9240A 0IMO330780B 0.7 IC,MOTOROLA

LST-2101Z IC500 6882RJ9240A 0INA562300A 3.23 IC,NATIONAL

LST-2101Z IC526 6882RJ9240A 0IMX232162A 4.13 IC,MAXIM

LST-2101Z IC526 6882RJ9240A 0IPRPTI015A 1.22 IC,PERIPHERALS

LST-2101Z IC530 6882RJ9240A 0INA562300A 3.23 IC,NATIONAL

LST-2101Z IC531 6882RJ9240A 0INA562300A 3.23 IC,NATIONAL

LST-2101Z IC613 6874RF9240A 6200VJB001A 2.3 FILTER(CIRC),EMI

LST-2101Z IC614 6874RF9240A 6200VJB001A 2.3 FILTER(CIRC),EMI

LST-2101Z IC624 6874RF9240A 4811R-0042D 0.41 BRACKET ASSEMBLY

LST-2101Z IC625 6874RF9240A 0IMCRMI029C 1.86 IC,MICRO CONTROLLER

LST-2101Z IC627 6882RF9240A 0IKE704200J 0.31 IC,KEC

LST-2101Z IR801 6874R-3378C 6712R0838GA 0.51 REMOTE CONTROLLER RECEIVER

LST-2101Z J501 6874RJ9240A 6612JH003DA 0.97 JACK,RCA

LST-2101Z J502 6874RJ9240A 6612BBBHN5A 0.34 JACK,DIN

LST-2101Z L100 6883RN9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L101 6874R-2249G 6200RLB007A 0.72 FILTER(CIRC),EMI

LST-2101Z L102 6874R-2249G 616-145H 0.41 FILTER(CIRC)

LST-2101Z L103 6874R-2249G 633-088D 0.13 COIL,CHOKE

LST-2101Z L104 6874R-2249G 633-088D 0.13 COIL,CHOKE

LST-2101Z L105 6875R-2249G 633-088G 0.1 COIL,CHOKE

LST-2101Z L200 6882RT9240A 0LCCE00004F 0.1 INDUCTOR,CHIP

LST-2101Z L201 6882RT9240A 0LCCE00004F 0.1 INDUCTOR,CHIP

LST-2101Z L202 6882RT9240A 0LCCE00004F 0.1 INDUCTOR,CHIP

LST-2101Z L203 6883RT9240A 0LCCE00004Q 0.1 INDUCTOR,CHIP

LST-2101Z L204 6882RT9240A 0LCCE00004L 0.1 INDUCTOR,CHIP

LST-2101Z L205 6882RT9240A 0LCCE00004H 0.1 INDUCTOR,CHIP

LST-2101Z L206 6883RT9240A 0LCCE00004F 0.1 INDUCTOR,CHIP

LST-2101Z L207 6882RT9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L208 6882RT9240A 0LCCE00004E 0.1 INDUCTOR,CHIP

LST-2101Z L209 6882RT9240A 0LCCE00004E 0.1 INDUCTOR,CHIP

LST-2101Z L210 6883RT9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L211 6883RT9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L214 6883RT9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L309 6882RB9240A 635-009N 0.1 INDUCTOR,DRAWING

LST-2101Z L310 6882RB9240A 635-009N 0.1 INDUCTOR,DRAWING

LST-2101Z L311 6882RB9240A 635-009N 0.1 INDUCTOR,DRAWING

LST-2101Z L400 6882RA9240A 0LCCE00004H 0.1 INDUCTOR,CHIP

LST-2101Z L401 6882RA9240A 0LCCE00004L 0.1 INDUCTOR,CHIP

LST-2101Z L402 6882RA9240A 0LCCE00004L 0.1 INDUCTOR,CHIP

LST-2101Z L403 6882RA9240A 0LCCE00004L 0.1 INDUCTOR,CHIP

LST-2101Z L404 6882RA9240A 0LCCE00004C 0.1 INDUCTOR,CHIP

LST-2101Z L405 6882RA9240A 0LCCE00004C 0.1 INDUCTOR,CHIP

LST-2101Z L406 6882RA9240A 0LCCE00004C 0.1 INDUCTOR,CHIP

LST-2101Z L407 6882RA9240A 0LCCE00004M 0.1 INDUCTOR,CHIP

LST-2101Z L408 6882RA9240A 0LCCE00004M 0.1 INDUCTOR,CHIP

LST-2101Z L409 6882RA9240A 0LCCE00004M 0.1 INDUCTOR,CHIP

LST-2101Z L500 6882RJ9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L501 6882RJ9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L502 6882RJ9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L503 6882RJ9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L504 6882RJ9240A 0LCCE00004D 0.1 INDUCTOR,CHIP

LST-2101Z L505 6882RJ9240A 0LCCE00004P 0.1 INDUCTOR,CHIP

LST-2101Z L801 6875R-3378C 0LA0102K018 0.1 INDUCTOR,AXIAL LEAD

LST-2101Z P101 6874R-2249G 561-715J 0.1 CONNECTOR (CIRC),WAFER

LST-2101Z PW101 6874R-2249G 561-292B 0.1 CONNECTOR (CIRC)

LST-2101Z Q100 6883RN9240A 0TR102009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q101 6883RN9240A 0TR102009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q102 6882RN9240A 0TR830009BA 0.69 TRANSISTOR,BIPOLARS

LST-2101Z Q103 6882RN9240A 0TR830009BA 0.69 TRANSISTOR,BIPOLARS

LST-2101Z Q106 6882RN9240A 0TR830009BA 0.69 TRANSISTOR,BIPOLARS

LST-2101Z Q107 6882RN9240A 0TR830009BA 0.69 TRANSISTOR,BIPOLARS

LST-2101Z Q151 6874R-2249G 0TR115100AA 0.36 TRANSISTOR,BIPOLARS

LST-2101Z Q152 6875R-2249G 0TR319809AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q152 6875R-2249G 0TR319909AF 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q152 6875R-2249G 0TR534309BA 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q200 6882RT9240A 0TR387509AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q201 6883RT9240A 0TRFN80001A 0.15 TRANSISTOR,BIPOLARS

LST-2101Z Q202 6883RT9240A 0TRFN80001A 0.15 TRANSISTOR,BIPOLARS

LST-2101Z Q300 6882RB9240A 0TR102009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q301 6882RB9240A 0TR387509AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q400 6882RA9240A 0TR101009AD 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q401 6882RA9240A 0TR101009AD 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q402 6882RA9240A 0TR387509AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q403 6882RA9240A 0TR387509AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q500 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q501 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q502 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q503 6883RJ9240A 0TR101009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q504 6883RJ9240A 0TR101009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q505 6883RJ9240A 0TR101009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q506 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q507 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q508 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q511 6882RJ9240A 0TR101009AD 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q512 6883RJ9240A 0TR387509AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q514 6882RJ9240A 0TR150409AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q516 6883RJ9240A 0TR101009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q517 6883RJ9240A 0TR101009AC 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q802 6875R-3378C 0TR102009AE 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q803 6875R-3378C 0TR102009AE 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q804 6875R-3378C 0TR102009AE 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q805 6875R-3378C 0TR102009AE 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q806 6875R-3378C 0TR102009AE 0.1 TRANSISTOR,BIPOLARS

LST-2101Z Q810 6875R-3378C 0TR102009AE 0.1 TRANSISTOR,BIPOLARS

LST-2101Z R100 6883RN9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R101 6874R-2249G 614-007A 0.1 RESISTOR,FIXED CEMENT

LST-2101Z R102 6875R-2249G 0RS1003K619 0.1 RESISTOR,FIXED METAL OXIDE FILM

LST-2101Z R103 6875R-2249G 0RD0102F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R103 6883RN9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R104 6875R-2249G 0RS5602K619 0.1 RESISTOR,FIXED METAL OXIDE FILM

LST-2101Z R104 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R105 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R106 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R107 6882RN9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R108 6883RN9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R109 6875R-2249G 0RS0350K619 0.1 RESISTOR,FIXED METAL OXIDE FILM

LST-2101Z R109 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R110 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R111 6883RN9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R113 6882RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R114 6882RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R115 6882RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R116 6875R-2249G 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R116 6882RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R117 6875R-2249G 0RD2201F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R117 6883RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R118 6875R-2249G 0RD1001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R118 6883RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R119 6875R-2249G 0RN3301F408 0.1 RESISTOR,FIXED METAL FILM

LST-2101Z R119 6883RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R120 6875R-2249G 0RN2701F408 0.1 RESISTOR,FIXED METAL FILM

LST-2101Z R120 6883RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R121 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R122 6883RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R123 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R124 6883RN9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R127 6875R-2249G 0RS1200J619 0.1 RESISTOR,FIXED METAL OXIDE FILM

LST-2101Z R127 6883RN9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R128 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R129 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1300 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1301 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1306 6883RB9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1307 6883RB9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R136 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R137 6882RN9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R140 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R141 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R142 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R143 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R144 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R147 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R148 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R149 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1505 6882RJ9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1506 6882RJ9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1507 6882RJ9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1508 6883RJ9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1509 6883RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R151 6875R-2249G 0RD1501F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R1510 6883RJ9240A 0RH1301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1511 6883RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1512 6883RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1513 6883RJ9240A 0RH1301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1514 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1515 6883RJ9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1517 6883RJ9240A 0RH4700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1518 6882RJ9240A 0RH4700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1519 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R152 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1520 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1521 6882RJ9240A 0RH4700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1522 6883RJ9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1523 6883RJ9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1524 6883RJ9240A 0RH9100D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1525 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1526 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1527 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1528 6883RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R153 6875R-2249G 0RD4701F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R153 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1530 6883RJ9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1531 6883RJ9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1535 6883RJ9240A 0RH2701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R1537 6883RJ9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R154 6875R-2249G 0RD4701F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R154 6882RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R155 6875R-2249G 0RD4702F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R156 6875R-2249G 0RD4701F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R157 6875R-2249G 0RD3300F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R158 6875R-2249G 0RD3300F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R158 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R159 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R163 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R164 6882RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R166 6882RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R168 6882RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R170 6882RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R172 6882RN9240A 0RH2701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R173 6882RN9240A 0RH2701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R174 6883RN9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R178 6883RN9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R201 6883RT9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R202 6883RT9240A 0RH1003D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R203 6883RT9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R206 6883RT9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R207 6883RT9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R208 6883RT9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R211 6882RT9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R213 6882RT9240A 0RJ0912D672 0.1 RESISTOR,METAL GLAZE

LST-2101Z R214 6882RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R217 6883RT9240A 0RH8201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R218 6883RT9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R219 6883RT9240A 0RH2700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R220 6883RT9240A 0RH4700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R221 6883RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R222 6883RT9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R223 6883RT9240A 0RH2201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R224 6883RT9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R225 6883RT9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R227 6883RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R230 6883RT9240A 0RH5101D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R232 6882RT9240A 0RH4700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R233 6882RT9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R234 6882RT9240A 0RH0512D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R235 6882RT9240A 0RH4700D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R236 6882RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R237 6882RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R238 6882RT9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R241 6882RT9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R281 6883RT9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R282 6883RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R283 6882RT9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R284 6883RT9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R285 6882RT9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R286 6883RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R287 6883RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R288 6883RT9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R291 6883RT9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R292 6883RT9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R294 6883RT9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R301 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R302 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R303 6882RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R304 6882RB9240A 0RH3900D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R305 6882RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R307 6882RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R308 6882RB9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R309 6882RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R310 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R312 6883RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R313 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R314 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R315 6883RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R316 6883RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R317 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R318 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R319 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R320 6883RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R321 6883RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R322 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R323 6882RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R324 6882RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R325 6882RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R326 6883RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R327 6883RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R330 6883RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R331 6883RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R332 6883RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R333 6883RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R334 6883RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R335 6883RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R336 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R337 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R338 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R339 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R340 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R341 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R342 6883RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R344 6882RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R345 6882RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R354 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R355 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R356 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R364 6882RB9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R365 6882RB9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R366 6882RB9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R367 6882RB9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R368 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R369 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R370 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R371 6882RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R372 6882RB9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R373 6882RB9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R374 6882RB9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R384 6882RB9240A 0RH2001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R386 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R388 6883RB9240A 0RH0222D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R390 6883RB9240A 0RH1200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R391 6882RB9240A 0RH1200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R392 6883RB9240A 0RH1200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R393 6883RB9240A 0RH1200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R394 6883RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R395 6883RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R396 6882RB9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R397 6883RB9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R398 6883RB9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R399 6882RB9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R400 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R401 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R402 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R403 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R408 6882RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R409 6882RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R410 6882RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R411 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R412 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R413 6882RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R415 6882RA9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R416 6882RA9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R417 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R418 6882RA9240A 0RH6200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R419 6882RA9240A 0RH1502D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R420 6882RA9240A 0RH3301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R421 6882RA9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R422 6882RA9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R423 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R424 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R425 6882RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R426 6882RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R427 6882RA9240A 0RH1003D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R428 6882RA9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R429 6882RA9240A 0RH1003D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R430 6882RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R431 6882RA9240A 0RH1500D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R432 6882RA9240A 0RH3901D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R433 6882RA9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R434 6882RA9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R435 6882RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R436 6882RA9240A 0RH3301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R437 6883RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R438 6882RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R439 6882RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R440 6883RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R441 6883RA9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R442 6882RA9240A 0RH6200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R443 6882RA9240A 0RH1502D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R444 6883RA9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R445 6883RA9240A 0RH0752D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R446 6882RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R447 6882RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R449 6882RA9240A 0RH5601D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R450 6882RA9240A 0RH5601D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R451 6882RA9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R452 6882RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R453 6882RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R454 6882RA9240A 0RH2001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R455 6882RA9240A 0RH2001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R456 6882RA9240A 0RH2001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R458 6883RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R461 6883RA9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R464 6883RA9240A 0RH0000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R500 6882RJ9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R501 6882RJ9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R502 6882RJ9240A 0RH0332D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R503 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R504 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R505 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R506 6883RJ9240A 0RH2701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R507 6882RJ9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R508 6882RJ9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R509 6882RJ9240A 0RH3300D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R510 6882RJ9240A 0RH6200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R511 6882RJ9240A 0RH6200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R512 6882RJ9240A 0RH6200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R513 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R514 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R515 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R516 6882RJ9240A 0RH3601D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R517 6882RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R518 6882RJ9240A 0RH3601D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R519 6882RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R520 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R521 6882RJ9240A 0RH3601D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R522 6882RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R523 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R524 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R525 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R526 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R527 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R528 6883RJ9240A 0RH1301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R529 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R530 6883RJ9240A 0RH1301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R531 6882RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R535 6882RJ9240A 0RH9100D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R536 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R537 6882RJ9240A 0RH1301D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R538 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R539 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R540 6882RJ9240A 0RH8200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R541 6882RJ9240A 0RH1501D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R542 6882RJ9240A 0RH1101D422 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R543 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R544 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R545 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R546 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R547 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R548 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R549 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R550 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R551 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R552 6883RJ9240A 0RH2400D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R553 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R554 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R555 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R556 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R557 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R558 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R559 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R560 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R561 6882RJ9240A 0RH4703D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R562 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R563 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R564 6882RJ9240A 0RH0682D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R565 6883RJ9240A 0RH2400D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R566 6883RJ9240A 0RH2400D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R567 6883RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R568 6883RJ9240A 0RH1000D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R569 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R570 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R571 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R572 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R573 6882RJ9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R589 6883RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R591 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R592 6882RJ9240A 0RH1201D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R594 6882RJ9240A 0RH4701D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R595 6882RJ9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R605 6882RF9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R606 6882RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R607 6882RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R608 6882RF9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R609 6882RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R610 6882RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R612 6882RF9240A 0RH1004D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R613 6883RF9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R614 6883RF9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R615 6883RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R616 6883RF9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R617 6883RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R618 6883RF9240A 0RH2200D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R620 6883RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R621 6882RF9240A 0RH3001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R623 6883RF9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R624 6883RF9240A 0RH1002D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R625 6882RF9240A 0RH1001D622 0.1 RESISTOR,METAL GLAZED(CHIP)

LST-2101Z R800 6875R-3378C 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R802 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R804 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R805 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R806 6875R-3378C 0RD2002F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R807 6875R-3378C 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R808 6875R-3378C 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R809 6875R-3378C 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R811 6875R-3378C 0RD2002F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R814 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R815 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R818 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R819 6875R-3378C 0RD0102F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R820 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R825 6875R-3378C 0RD1001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R826 6875R-3378C 0RD1001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R838 6875R-3378C 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R839 6875R-3378C 0RD2200F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R846 6875R-3378C 0RD1001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R847 6875R-3378C 0RD2002F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R848 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R849 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R850 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R851 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z R852 6875R-3378C 0RD2001F608 0.1 RESISTOR,FIXED CARBON FILM

LST-2101Z SW401 6874RA9240A 6600Q000012 0.11 SWITCH,SLIDE

LST-2101Z SW800 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW801 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW802 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW803 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW804 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW805 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW806 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW807 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW808 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW809 6875R-3378C 556-219B 0.1 SWITCH,TACT

LST-2101Z SW810 6875R-3379A 556-219B 0.1 SWITCH,TACT

LST-2101Z T101 6874R-2249G 6170RNGW15B 0.97 TRANSFORMER,SMPS[COI

LST-2101Z T600 6882RF9240A 6200VJT006A 0.34 FILTER(CIRC),EMI

LST-2101Z TU200 6874RT9240A 6700NFNS05B 20.73 TUNER

LST-2101Z V101 6874R-2249G 656-004C 0.16 VARISTOR

LST-2101Z X100 6874RN9240A 6204A40008D 1.43 OSCILLATOR

LST-2101Z X200 6882RT9240A 6212AB2380C 0.31 RESONATOR,CRYSTAL

LST-2101Z X201 6874RT9240A 6204A42500C 1.13 OSCILLATOR

LST-2101Z X202 6874RT9240A 6204A40010D 2.39 OSCILLATOR

LST-2101Z X600 6882RF9240A 6212AB2800C 0.29 RESONATOR,CRYSTAL

25

3. ELECTRICAL TROUBLESHOOTING GUIDE

1) START

Is the front PowerLED red?

Make sure that the power cord is connected.

Check the front resolution and the rear output selection switch. Make sure that the cable is correctly connected to the monitor.

Make sure that the external input of TV or monitor is properly selected.

Make sure that the antenna cable is connected to the rear antenna input.

Make sure that the battery is properly inserted into the remote controller.

Make sure that the rear sound output cable is correctly connected. If the variable sound is used, volume it up by the remote controller.

Power

LED turns on red.

Yes

No

Turn on the main power switch or the remote controller power switch.

The channel

number is displayed on

the screen.

The normal

screen is displayed.

The normal

sound is heard.

DTV part is

normally operating.

The

volume of the

channel change is

controlled by the

remote controller.

Power

LED turns on

green and off repeatedly

for a certain

period.

26

NO

YES

NO

YES

(1) No 5.0VA

Check or Replace the D106.

NO

Check PWR CTL “H” signal of µ-COM.

NO

YES

(2) No 5.5V

NO 5.0VA.

Is the F101 normal?

Is the R101 normal?

Is the BD101 normal?

Is Vcc (13~18v) approved to IC101 PIN5?

Are the D106 normal?

Does about 2.5V appear to IC103 PIN1?

Is the D109

normal?

Is the D105 normal?

Replace the F101.

(Use the same Fuse)

Replace the BD101.

Replace the R101.

Is the D102 normal?

Check or Replace the D102.

Replace the D121.

Replace the D106.

Replace the D125/D126.

Replace the D405.

Is Vcc (5.6v) approved to Q151 Emitter?

Is Q152 Collector is GND potential?

Check or Replace the Q151.

Main PCB power short.

NO 5.5V.

2) POWER(SMPS) PART

27

NO

YES

(3) No 3.3V

NO 30VA.

Is there about 3.5V at the IC153 Pin1?

Is there about 4.5~5V at the IC153 Pin1?

Check or Replace the Q153.

Check or Replace the D129/D130.

NO

Check the µ-com pin PWR CTL signal

NO

YES

(4) No 9V

NO 9V.

Is there about 11V at the IC154 Pin1?

Is there about 4.5~5V at the IC154 Pin4?

Check or Replace the Q154.

Check or Replace the D109.

NO

Check the µ-com pin PWR CTL signal

28

3) SYSTEM PART

If the screen is not displayed after normally turning the power on

Check by the terminal after connecting the test cable to the port for service.

Check the terminal message.

Check whether 3.3V is supplied at 6, 7pin of Power connector or not.

Check the soldering condition of X100.

Check whether Jumper Cap is off or not.

Make sure that IC103 (Reset IC) 3-pin is Low.

Check IC102, IC422(CPLD) program.

Check 3.3V

power input at 5-Pin of

CPU power IC100.

Make sure that

40MHz clock is generated

at 3-Pin of X100 (Oscillator).

Check

J100(Jumper) Setting.

Make sure

that 117-Pin of IC100(CPU)

is High.

It normally

operates at the

terminal.

Test each part at Debug mode.

29

4) VIDEO PART

[When selecting YpbPr output]

Component

signal missing

No signal of

Component screen.

RGB normal output

yes

no

yes

RGB port normal.

No Pr signal : Check whether the signal is flowing or not. Check R369->R507->F503->C504->IC531.7->R562->F511

->J501.18 frozen soldering. Check +9V at both of L501 terminals. Check R368->R509->F505->C506->IC531.8->R564->F513

->J501.19 frozen soldering.

Check +9V at both of L501 terminals. Check the frozen soldering condition of components at the signal flow chart. No Pr signal : Check Q500.Base and IC531.7 signal. No Pb signal : Check Q502.Base and IC531.8 signal. Check the direction of IC531. Check 9V of IC531.4 and GND of IC531.11. Check the frozen soldering of R530,R527,R541,R542,R539,R540.

Check +9V at both of L501 terminals. Check the frozen soldering at the signal flow chart. Y signal check : Check Q501.Base and IC500.14 signal. Pr signal check : Check Q500.Base and IC531. 5 signal. Pb signal check : Check Q502.Base and IC531. 10 signal. Check the direction of IC531. Check 9V of IC531.4 and GND of IC531.11.

No Y signal : Check whether the signal is flowing or not. R370->R508->F504->C505->R1530->R1537->R1535

->R563->F512 frozen soldering. Check the direction of IC531. Check 9V of IC500.4 and GND of IC500.11.

30

RGB signal missing

yes

no

yes

no

Normal

component port output?

Check the direction of IC530. Check 9V of IC530.4 and GND of IC530.11. Check Pin 7, 8 and 12 signal of IC530 from VGA connector. Red : J500.1 -> F507 -> R557 -> C530 Green : J500.2 -> F508 -> R558 -> C531 Blue : Check J500.3 -> F509 -> R559 -> C532 Check the frozen soldering of R528, R529, R537, R538, R535, R536.

Check +9V at both of L501 terminals. Check the frozen soldering at the signal flow chart. Green signal check : Check Q501.Base and IC530.12 signal. Red signal check : Check Q500.Base and IC530.5 signal. Blue signal check : Check Q502.Base and IC530.10 signal. Check the direction of IC500, IC531. Check 9V of IC500.4, IC531.4 and GND of IC500.11, IC531.11.

Check the direction of IC304. Check 3.3V of IC304.12, 5V of IC304.44 and 5V of IC304.50. Check GND of IC304.11 and GND of IC304.42. Hsync check : Check J500.13 -> F506 -> R543 -> R342 signal. Vsync check : Check J500.14 -> F510 -> R544 -> R356 signal. Check the direction of IC530. Check 9V of IC530.4 and GND of IC530.11.

Check +9V at both of L501 terminals. Check Hsync and Vsync (see the above block diagram) Check the frozen soldering of R528, R529, R537, R538, R535, R536. Green signal check : Check Q501.Base and IC530.12 signal. Red signal check : Check Q500.Base and IC530.5 signal. Blue signal check : Check Q502.Base and IC530.10 signal. Check the direction of IC530. Check 9V of IC530.4 and GND of IC530.11.

No RGB screen

signal

Normal YPbPr port output

[When selecting RGB output]

31

No Monitor output

video screen signal

No Monitor

output image signal

no

yes

Normal operation

No S-video port signal

Check J501.12 -> F500 -> R520 -> C534 -> R1507

-> Q506 -> R525->L407->L404->L401->R439 signal. Make sure that Q404.base is Low(0V) (Mute Off) Check +9V at both of L502 terminals.

Y : Check J501.6->F514->R523->C526->R1505->Q507->R526->L408->L405->L402

->R435 Signal C : Check J501.2->F515->R524->C533->R1506->Q508->R531->L409->L406->L403

->R436 Signal Make sure that Q405.base is Low(0V) (Mute Off) Check +9V at both of L504 terminals.

[When selecting Video output]

32

5) AUDIO PART

If no sound is heard after normally turning the power on

Video

is normally displayed

Make

sure that the volume

is properly selected

Make

sure that data and

clock are supplied at Audio DAC

IC456 2, 3, 4, 5-Pin.

Make

sure that +9V is

supplied at OP AMP

IC426.427 8-Pin.

Make

sure that TR Q400.

Base is Low (0V).

No variable

sound output

Make sure that IC450 power input is connected to 12C Bus.

Make sure that the rear audio output is properly connected to TV or AMP. Make sure that the input is properly selected.

Control the volume

properly.

Check the frozen soldering of R390, R391, R392, R393.

Check the frozen soldering and +9V output of B401 and B402. Check +9V output at 4-pin of J601.

Check

High (5V) output of

10-pin of IC105.

Audio Mute On. Check whether IC473 power is supplied or not.

Check whether the volume of TV or AMP is properly selected.

Check +9V input of 8-pin at IC473.

No

No No

Yes

33

6) VSB PART

When the screen is not displayed or broken

Is the channel

on air selected?

Did you check the clock used at IC210 and IC205?

Did you

check the power used

at each component according

to the circuit

diagram?

See ‘Video’ section of 3.3 Troubleshooting guidance

Select the channel on air.

Check the clock by referring to ‘VSB’ section of 3.4 Circuit diagram and Waveform.

Check the power supply.

DL200 : Blinking DL201 : On

Check whether the antenna cable is properly connected or not, or change the direction of the antenna.

DL200 : On DL201 : Off

DL200 : Off DL201 : On

56 57

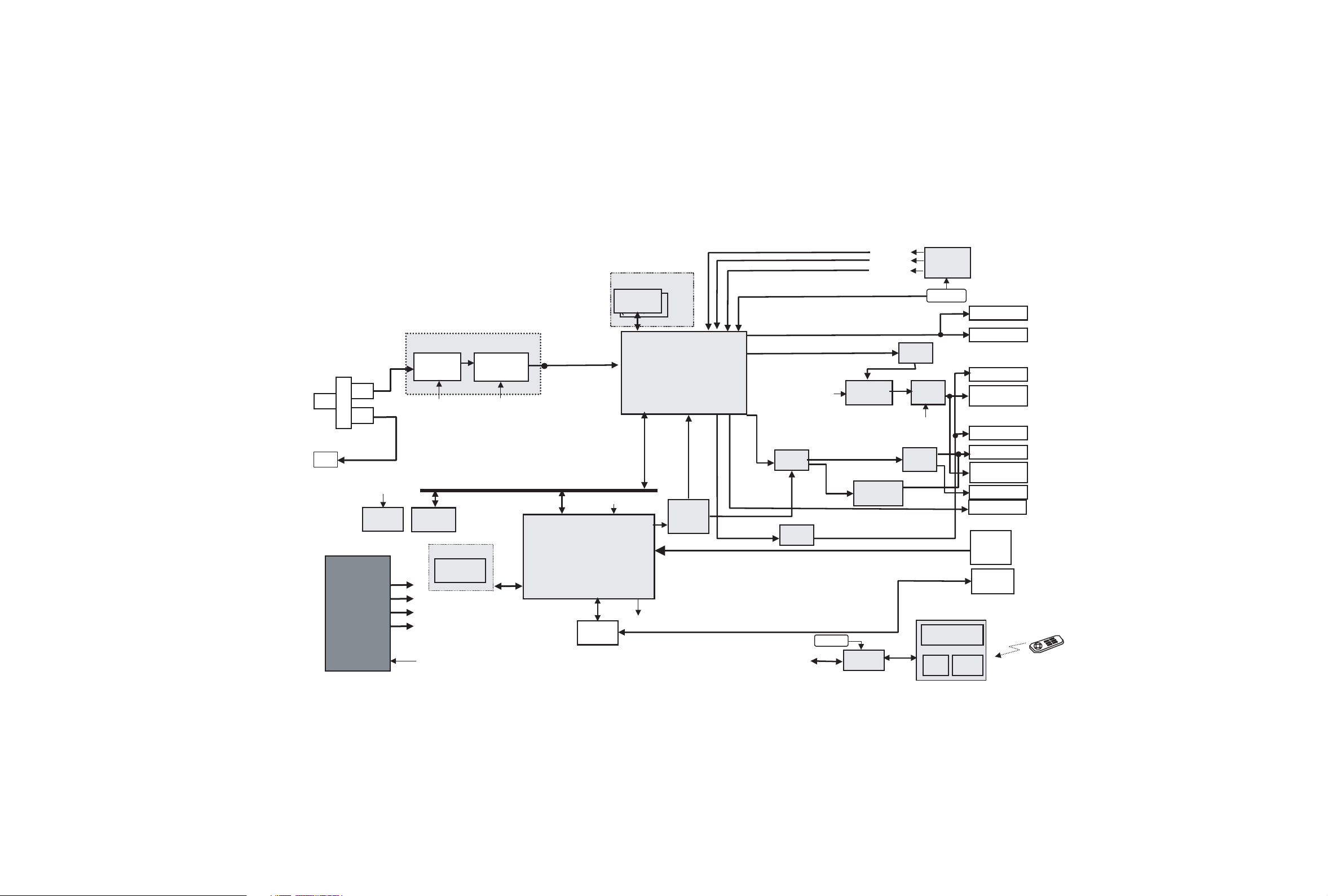

6. BLOCK DIAGRAMS

1) OVERALL BLOCK DIAGRAM

D-Sub

9-Pin

CPU [Samsung s3c3410x]

-SDRAM Controller

-Peripheral Controller

-Local BUS I/F

-GPIO, I2C

Variable

Audio R/L

SPDIF out

Y, Pb , Pr

Audio

DAC

Power

+3.3V

+5.5V

+9V

Live +5V

HDALL

-TP De-Mux

-MPEG Decoding : MP@HL

-Format Converter

-Host I/F, Memory I/F

-Digital I/F

VSB

Decoder

Tuner

(ATSC)

SB

R,G,B

S-Video

Video

AMP

Peripheral Bus

Clock Generator

I2C

EEPROM

(32KB)

I2C_2

CPLD

Volume

Controller

RS-232C

Driver

Digital Audio SPDIF

YCbCr or RGB Digital Data

Flash

2MB

MiCOM

IR In

Video Mode

S/W

Spliter

RCA

Conn.

64-Bit I/F

16MByte

SDRAM

(2Mx32Bit)

SDRAM

(2Mx32Bit)

VSB TP

I2C_4

Front Panel

135MHz

165MHz

40MHz-1

I2C_A

Power_On/Off

I2C_1

RCA

Conn.

F

Conn.

F

Conn.

SDRAM

(8Mx16Bit)

Power_On/Off

SDRAM 8MB

Key In

LED

RF Loop Out

SPDIF out

Composite

27MHz

8MHz

Video

DAC

PbPr or RGB Analog Data

Audio

AMP

On/Off control

Peaking

Circuit

Y

Variable

Audio R/L

HS,VS

NTSC

ENC.

74MHz

V

58 59

2) POWER BLOCK DIAGRAM

9V REG & S/W

BLOCK

From Main

TO MAIN

5VA

9V

3.3V

5.5V

PWR ON/OFF

2

4

7

8

10

11

12

(D129, D120, L105, C121)

(D105, C118, L104, C119)

(IC154, R154, C154)

3.3V REG &

S/W BLOCK

(IC153, R153, C153)

5VA REG

BLOCK

(IC152, C152)

(D106, C116, L103, C117)

(R116, R117, R118, R119, R120, C114)

POWER CTL

BLOCK

(Q152, R155,

R156)

5.5V S/W BLOCK

(Q151, R151, R157,

R158, C151)

HOT CIRCUIT

60 61

3) SYSTEM BLOCK DIAGRAM

IC106(8Mbyte)

8Mbyte System Memory( IC106 )

8M x 16

(4 bank)

Address (0:11)

Data (0:16)

BA0 BA1

DQM (0:1)

VCC

GND

Data (0-15)

CS /WE /CAS /RAS CLK

/SCS7

/WE /SCAS /SRAS

SCLK

/WBE(0:1)

8M x 16

(4 bank)

Address (0:11)

Data (0:16)

BA0 BA1

DQM (0:1)

VCC

GND

Data (0-15)

ADDR (0-19)

ADDR[12] ADDR[13]

CS /WE /CAS /RAS CLK

/SCS6

/WE /SCAS /SRAS

SCLK

/WBE(0:1)

Address

(0-11)

2Mbyte Flash Memory & 2Mbyte Font Rom

D0~D15

1M x 16

29LV160BE

D0~D15

A0~A19

/CE

/RESET /OE /WE

WP/ACC

/BYTE

VCC

A0~A19

/WBE0

/RESET

/OE

1M x 16

EM23V160

D0~D15

A0~A19

/CE

/RESET /OE /WE

WP/ACC

/BYTE

VCC

/RCS1

A0~A19

/WBE0

/RESET

/OE

Video

RS-232C

Driver

MAX232A

Clock Generator

Mk2716 ICS501 X 2

27MHz

74MHz

162MHz

135MHz

DATA (0-15)

/RCS0

I2C

UART

IC101(8Mbyte)

ADDR[12]

ADDR[13]

IC102(Flash Mem.)

IC109(Font Rom)

40MHz

Write Buffer

ARM7TDMI

CPU Core

Cache

4 Kbyte

DMA0, 1

Serial I/O 0, 11

UART1

System Clock

Circuit

Crystal/ Ceramic

Oscillator

GPIO

controller

Basic Timer

&

WDT

A/D

Converter

Interrupt

Controller

SYSTEM BUS

CPU Unit

Real Time Clock

Generator

IIC BUS

BUS ARBITRATIONSYSTEM BUS CONTROLLER

BUS

INTERFACE

ROm/

FLASH/SRAM

CONTROLLER

FP/DRAM/

SDRAM

CONTROLLER

General Purpose I/O Ports

Timer 0, 1, 2, 3, 4

62 63

4) VIDEO & AUDIO BLOCK DIAGRAM

2M x 32

(4 bank )

Address (0:10)

Data (0:31)

BA0 BA1

DQM (0:3)

VCC

GND

CS /WE /CAS /RAS CLK

/CS

/WE /CAS /RAS

CLK

Address

(0:10)

Address(11)

A_Data (0:31)

A_Data(0:63)

A_Data (32:63)

CPU

Peripheral

Bus I/F

TP Input

VSB Chip

2M x 32 (4 bank)

Address (0:10)

Data (0:31)

BA0 BA1

DQM (0:3)

VCC

GND

CS /WE /CAS /RAS CLK

MDQML(0:3) MDQMU(0:3)

+3.3V

RGB

CLC5623

OP AMP

CLC5623

OP AMP

Video

Mute

BP Filter

15-D-Sub

RGB

/H/V

RCA Jack

Y Pb Pr

EMI

Filter

EMI

Filter

NTSC

Mute

A1504

TR Drive

A1504

TR Drive

A1504

TR Drive

H/V Sync

YPbPr

Composit

Y

C

RCA Jack

1

EMI

Filter

Mini DIN

Jack

S-Video

THS8133B

Video DAC

ADV7170

NTSC ENC.

EMI

Filter

EMI

Filter

CS4340

Audio

DAC

TDA7440D

Volume

Controller

MC33078

OP AMP

Variable Audio L/R Out

I2C Bus

Audio

Mute

SPDIF Out RCA Jack

DS8921

422 Driver

35101

Trans

SPDIF Out

Jack

Burst mode data

transfer Intf.

x5

x6

General purpose

DMA interface

Analog TV

A/V interface

VIP 2.0 Host intf.

I C bus cont.

G.P.Host Intf.

TP Buffer

Interface Unit

PLL

SDRAM

Controller

Audio Decoder

Audio DSP

Display Proc.

Output

Controller

De-Interfacer

Image Scaler

Sub-Picture

OSD

Video DecoderMovie Proc.

VLD

AGU

X-PIPE

Y-PIPE

MUL

DQ

MC

FADD

IDCT

2

64 65

5) TUNER/VSB & MICOM BLOCK DIAGRAM

9V

OSC

25MH

z

SAW Filter

X6965D

IF Amplifier

BF799

IF Amplifier

BF799

SAW Filter

X6931D

IF In

Down

Converter

UPC2798

VSB

Decoder

LGDT3102

TP out

I2C

VSB_Reset

Lock_LED

+2.5V

+3.3V

+5V

X-Tal

38MH

z

VSB TP out

Error_LED

DTV Tuner

TDPC-H901P

I2C

5V

L_5V

RF Spliter

USP-NT-012

MiCOM

M37272

8MHz

I2C

Front I/F

Conn.

Regulator

78R05

5V

5.5V

Reset IC KIA7042

L_5V

Reset

Front I/F

Conn.

Power

Switch

Front

Switch

LED

Driver TR

66 67

7. CIRCUID DIAGRAMS

1) POWER CIRCUIT DIAGRAM

NOTES) Symbol denotes AC ground.

NOTES) Symbol denotes DC chassis ground.

NOTES) Warning

NOTES) Parts that are shaded are critical NOTES) With respect to risk of fire or NOTES) electricial shock.

'02. 6. 20 R14154C

Zenith

HOT CIRCUIT

BK WH

150

250

No power. BD101, R101 are defective.

Switching Error. IC101 is defective.

5.0VA, 5.5V no power. D106 is defective.

No Power. F101 is defective.

9V no power. D109 is defective.

3.3V no power. D105 is defective.

No power. D12 is defective.

68 69

2) CPU MEMORY CIRCUIT DIAGRAM

HD ATA

2002. 8. 30

HADDR

ADDR

DATA

CPU CLOCK

70 71

3) TUNER, VSB, CLOCK CIRCUIT DIAGRAM

72 73

4) HDALL, SDRAM CIRCUIT DIAGRAM

74 75

5) AUDIO, VIDEO CIRCUIT DIAGRAM

76 77

6) AUDIO/VIDEO OUTPUT CIRCUIT DIAGRAM

78 79

7) POWER, FRONT, IF CIRCUIT DIAGRAM

2002. 8. 30

80 81

8) FRONT CIRCUIT DIAGRAM

84 85

2) DIGITAL MAIN PRINTED CIRCUIT DIAGRAMS(BOTTOM)

86 87

3) KEY(LEFT) PRINTED CIRCUIT DIAGRAM

4) KEY(RIGHT) PRINTED CIRCUIT DIAGRAM

LOCATION GUIDDE

88 89

5) POWER PRINTED CIRCUIT DIAGRAM

LOCATION GUIDE

Zenith HDV420 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
