Zenith H20F50DT OPERATING GUIDE

© Copyright 2003, Zenith Electronics Corporation
Installation and Operating Guide | Warranty
Model Number | H20F50DT | HealthView
TM
TV
table of contents
page
5
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
This product is equipped with a 3-wire grounding-type alternating current line plug. This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the three-wire ground type plug.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is: Zenith Electronics Corporation, 2000 Millbrook Drive, Lincolnshire, IL 60069, USA. Phone: 1-847-941-8000.
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
3-WIRE COMM-WARN B-2/02
HealthViewTMis a trademark of Zenith Electronics Corporation
© Copyright 2003 Zenith Electronics Corporation
RECORD THE MODEL NUMBER
The serial number of this HealthViewTMTV is located on the back of the cabinet. For future reference, we suggest that you record the serial number here:
MODEL NO. H20F50DT
SERIAL NO.____________________________________
For Customer Support/Service please call:
1-888-865-3026
www.zenith.com
PAGE 3
206-3489-O
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for future reference.
4. Heed Warnings
All warnings on the product and in the operating instruc­tions should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Water and Moisture
Do not use this product near water for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
7. Accessories, Carts, and Stands
Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
8. Transporting Product
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventila­tion and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruc­tions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Power Cord Polarization
This product is equipped with a three-wire grounding type alternating-current power plug. This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the three-wire ground-type plug.
13. Power Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
Important safeguards for you and your new product
This product has been manufactured and tested with safety in mind. However, improper use can result in potential electri­cal shock or fire hazards. To avoid defeating the safeguards that have been built into the new product, please read and observe the following safety points when installing and using the new product, and save them for future reference.
Observing the simple precautions discussed in this installation and operating guide can help get many years of enjoyment and safe operation that are built into the new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
(Continued on next page)
IMPORTANT SAFETY INSTRUCTIONS
PORTABLE CART WARNING
(Continued from previous page)
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna dis­charge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
15. Lightning
For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the man­ufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to deter­mine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.
24. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
PAGE 4
Antenna Lead in Wire
Antenna Discharge Unit (NEC Section 810-20)
Grounding Conductor (NEC Section 810-21)
Ground Clamps Power Service Grounding
Electrode System (NEC Art 250, Part H)
Ground Clamp
Electric Service
Equipment
Example of Grounding According to National Electrical Code Instructions
NEC - National Electrical Code
206-3491-O
IMPORTANT SAFETY INSTRUCTIONS
PAGE 5
Table of Contents
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . 3 - 4
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 1. Hook Up the HealthView TV
TV and other Equipment Hookups
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cable Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Antenna with VCR . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cable service with VCR . . . . . . . . . . . . . . . . . . . . . . . 9
External Speaker Connection (8-ohm output) . . . . . . . . 9
Pillow Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 2. Channel Search and Reception Setup
Auto Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
(Select Antenna, or cable service then do channel search)
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . 12
Optional Installer’s Remote Key Functions . . . . . . . . . . 13
On-Screen Menus Overview . . . . . . . . . . . . . . . . . . . 14
Step 3. Customize the TV’s Features
Setup Menu (Start with page 11, Auto Program)
Add/Del/Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Channel Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
On/Off Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Captions (Caption/Text) . . . . . . . . . . . . . . . . . . . . . 19
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
FM Radio Menus . . . . . . . . . . . . . . . . . . . . . . 22 - 23
Installer Parental Control Menu . . . . . . . . . . . . 24 - 25
Other Menus and On-Screen Displays . . . . . . . . . . . . 26
Managing the Channel Banks . . . . . . . . . . . . 27 - 28 - 29
Installer Menus . . . . . . . 30 - 31 - 32 - 33 - 34 - 35 - 36
LT2000 Quickset II Clone Programmer . . . . . . 37 - 38 - 39
Patient Operation Section (Copy for patient usage)

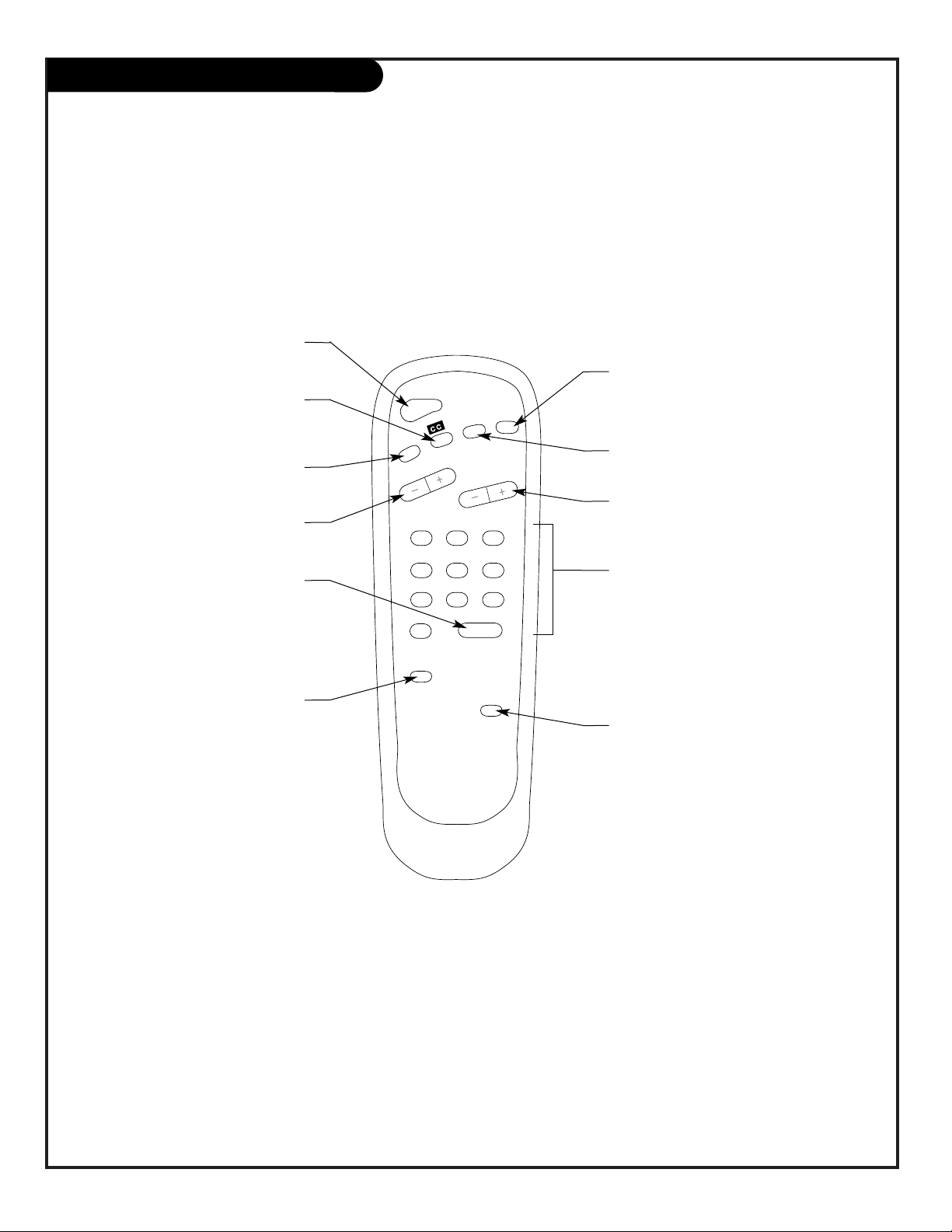

Optional Patient Remote Key Functions . . . . . . . . . . . 40
Optional Patient Remote Key Functions - FM Radio . . . . 41
Patient Parental Control Menu . . . . . . . . . . . . . . 42 - 43
Patient Menus and On-Screen Displays . . . . . . . . . . . . 44
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Warranty for HealthView Series TVs . . . . . . . . . Back Cover
Purchase the Optional Installer’s Remote and Clone Programmer
To perform a normal installation set up, you need an installer’s remote such as the HP602, and the LT2000 Quickset II Clone Programmer—both are shown and described in later sections. The installer remote allows access to the Installer menus, User menus, and Source/Channel Bank keys. The installer remote has Menu, Select, and Adjust, and Channel Bank Keys. The LT2000 Quickset II Clone Programmer is used to duplicate a TV’s setup and install it on another identical TV. See your Zenith Dealer.
Design and specifications subject to change without prior notice.
Installer/Hospital Note:
Pages 40, 41, 42, 43, and 44 contain information and menus which the patient can use to operate the TV. It is recommended that these four pages be copied and included with the literature packet that the hospital provides to the patient.
206-3853
Optional Installer and Patient Remote Controls:
Shown herein are optional remote controls that can be used by the installer and the patient. Be advise that these remote controls are NOT included with this TV. However, these remotes can be pur­chased separately, see your Zenith dealer.
Use the steps outlined below as a setup guide and to determine the TV features that will require adjustment for the needs of the end user
PAGE 6
206-3491-O
Mini glossary
75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire
sticking through the middle, and it screws onto the threaded jack on the back of the TV.
A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two screws on one end and a round opening with a wire sticking out on the other end.

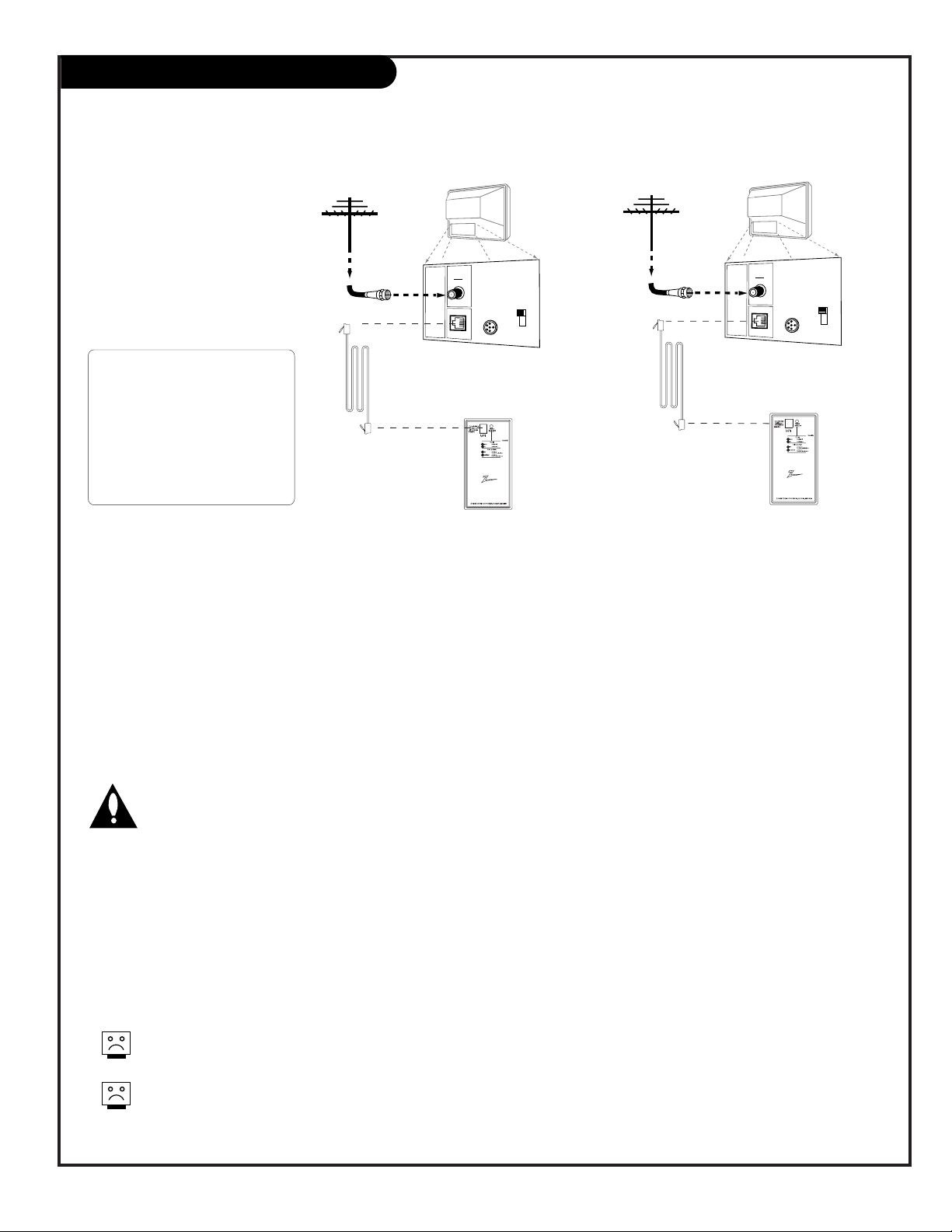

Antenna Hook Up
Connect an off-air antenna to the HealthView TV
If you have a 75 ohm RF cable, then you don’t need any adapters.
A 300 to 75 ohm adapter is not included with the Zenith HealthView TV.
300 TO 75 OHM ADAPTER
ANTENNA
CABLE
M.P.I.
TV Back
Flat wire
(300 ohm)
Antenna
300/75 ohm
Adapter
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
ANTENNA
CABLE
M.P.I.
TV Back
Antenna
TV Back Panel
(Expanded View)
RF Coaxial Wire
(75ohm)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
Locate the Antenna/Cable jack on the back of the HealthView TV.
Connect the antenna wire that runs from the wall to this jack, according to one of the dia­grams shown to the right.
Remove the back of the optional remote and put in two AA batteries.
Plug in the TV. The HealthView TV is designed to operate on standard current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
Go to page 11 to Auto Program the TV.
Back of Remote
1
2
3
4
5
PAGE 7
206-3491-O
Cable Service (CATV) Hook Up
If you’re using a cable box, leave the TV on channel 3 or 4 and use the cable box to change channels.
If you’re using a cable box, Auto Program might only find the channel the cable service is on (usual­ly channel 3 or 4).
Cable TV Wall Jack
RF Coaxial Wire
(75ohm)
ANTENNA
CABLE
M.P.I.
TV Back
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
Cable TV Wall Jack
Cable Box
In
Out
RF Coaxial Wire
(75ohm)
3 4
output
switch
ANTENNA
CABLE
M.P.I.
TV Back
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
Locate the Antenna/Cable jack on the back of the HealthView TV.
Connect the cable service wire that runs from the wall, according to one of the dia­grams to the right.
Remove the back of the optional remote and put in two AA batteries.
Plug in the TV. The HealthView TV is designed to operate on standard current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
Go to page 11 to Auto Program the TV.
Back of Remote
1
2
3
4
5
Connect cable service to the HealthView TV
PAGE 8
206-3491-O
Antenna with VCR Hook Up
Connect an off-air antenna and VCR to the HealthView TV
Locate the Antenna/Cable in jack on the back of the VCR.
Connect the antenna wire according to one of the diagrams to the right.
Remove the back of the optional remote and put in two AA batteries.
Plug in the TV. The HealthView TV is designed to operate on standard current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
Go to page 11 to Auto Program the TV.
Back of Remote
1
2
3
4
5
In
Out
Audio
Video
3 4
VCR Back
VCR Back AV Panel
output
switch
Round
Or
Flat wire
(300 ohm)
300/75 ohm
Adapter
TV Back
ANTENNA
CABLE
M.P.I.
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
Antenna
206-3684-A
Cable Service (CATV) with VCR Hook Up
Connect Cable service and a VCR to the HealthView TV
Leave the VCR and the television tuned to channel three or four and use the cable box to change channels.
Locate the Antenna/Cable in jack on the back of the VCR.
Connect the wire that runs from the cable service wall jack, according to one of the diagrams to the right.
Remove the back of the optional remote and put in two AA batteries.
Plug in the TV. The HealthView TV is designed to operate on standard cur­rent, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
Go to page 11 to Auto Program the TV.
Back of Remote
1
2
3
4
5
PAGE 9
In
Out
Audio
Video
3 4
VCR Back
VCR Back AV Panel
output
switch
TV Back
ANTENNA
CABLE
M.P.I.
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
Cable TV Wall Jack
Cable Box
In
Out
3 4
output
switch
Cable TV Wall Jack
External Speaker Connection (8-ohm)
TV Back
ANTENNA
CABLE
M.P.I.
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
A/V cables
not included
with TV
8-ohm Speaker In
Speaker Back
Connect Speaker out to an 8-ohm speaker as shown.
PAGE 10
206-3491-O
Pillow Speaker Hook Up
Locate the Pillow Speaker Output jack on the back of the HealthView TV.
Connect an accessory pillow speaker or wired remote control unit to this 6-pin jack.
Select PILLOW SPKR on the rear panel of the HealthView TV.
Use a pillow speaker by Curbell, Model A-16455-02 or other UL recognized pendant control bearing the warning:
“Risk of fire if used in oxygen enriched atmosphere. Keep pendant control away from oxygen equipment.”
TV
TV Back
ANTENNA
CABLE
M.P.I.
TV Back Panel
(Expanded View)
PILLOW SPEAKER
TV
SPKR
PILLOW
SPKR
VideoInSpeaker
Out
Audio
In
1
2
Connect a pillow speaker to the HealthView TV
3
TV ON/OFF
CHAN DOWN
CHAN UP
(MALE PLUG)
VOLUME CONTROL
SPKR.
5
1
4
6
2
1
2
3
4
5
6
3
1
5
2
4
6
TV ON/OFF
OPEN
CHAN UP/DATA IN
COMMON
AUDIO OUT
CHAN DOWN
Controlling the TV with mechanical switches
Pin 4 (common) is momentarily connected to pin 1, 3, or 6 via push-action switches to control On/Off and Channel Up/Down. These pins are at +13 volts DC (when measured from pin 4) with the switches open. Current draw is 8 mA when a switch is closed. (This operation is identical to previous Zenith models using the 5-Wire Interface except that only +7 volts DC was supplied and current draw was only 2.5 mA.)
Pillow Speaker Interface
This connector furnishes three control lines and an audio output. A patient-pendant remote control, or entertainment audio and nurse call system may be connected here. All lines are isolated from the AC power line and earth ground. (Opto-isolators isolate the control lines, and a transformer isolates the audio. There are no relays or inductive components in the control lines.)
Pin no. Purpose
1 External TV On/Off switch 2 (not used) 3 External Channel Up switch or Data in 4 Common connection for control, data,
and audio output. Impedance to earth ground is a 10-meg resistor in parallel with a 1100 pf capacitor.
5 Isolated audio output. Nominal 14-ohm source
impedance with short circuit protection. Intended for a pillow speaker with a low-impedance pad-type volume control.
6 External Channel Down switch
Pillow speaker not included with HealthView TV.
3
Controlling the TV with Serial Data
The TV is capable of being controlled by a single-wire, serial data signal. This is a Zenith patented technology and is being implemented by certain brands of “smart” pillow speakers, such as Curbell’s “GEN-II” models.
PAGE 11
206-3747

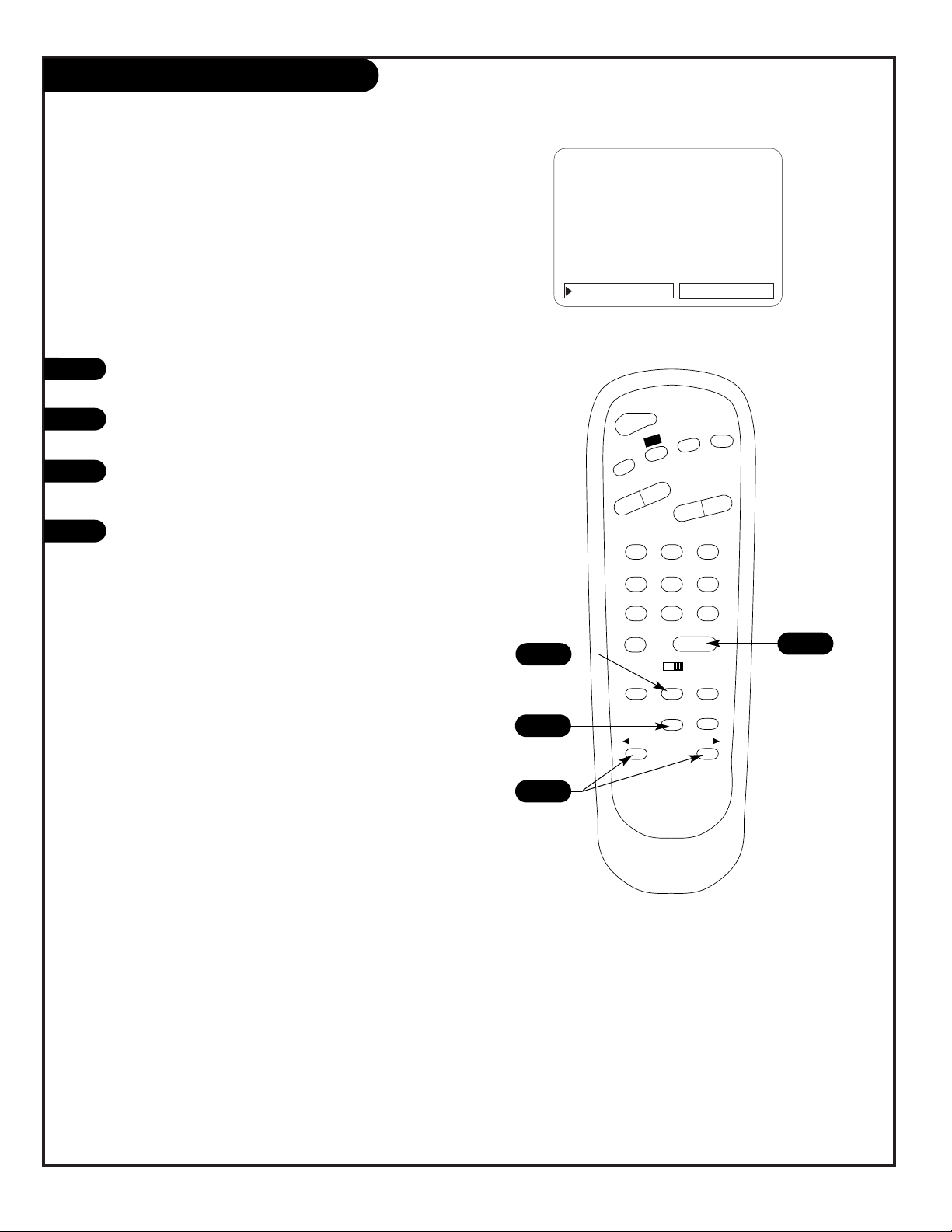

Auto Program (Channel Search)
Use Auto Program to specify Cable TV or Off Air Antenna incoming signal source and automatically store in the mem­ory of the TV, all of the channels that are found by the channel search
With the optional Installer remote control in hand, press the POWER key to turn on the HealthView TV.
Press the MENU key to show the Setup menu.
Using SELECT on the remote control, highlight Auto Program on the screen.
Press the Right or Left ADJ (Adjust) arrow to go to the Auto Program menu.
Using SELECT, choose either Cable TV or Off Air Antenna on the screen.
Press the Right or Left ADJ arrow to begin the Channel Search.
Press ENTER when the channel search is complete.
1
2
3
4
5
6
7
123
456
7
0
8
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
3/5
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
Mini glossary
OFF AIR ANTENNA If the patient can only view over-the-air broadcasts, select Antenna.
CABLE If you provide cable service to the patients, select Cable.
Auto Program finds channels being received by the TV tuner.
Cable will not work unless the hospital provides a cable service.
4/6
1
7 2
Optional Installer and Patient Remote Controls:
Shown herein are optional remote controls that can be used by the installer and the patient. Be advise that these remote controls are NOT included with this TV. However, these remotes can be purchased separately, see your Zenith dealer.
PAGE 12
206-3491-O
Front Panel Controls
power
channel
volume
captions
4
Press the POWER button to turn on the HealthView TV.
Use the CHANNEL button to cycle through avail­able channels.
Use the VOLUME button to adjust the sound level of the HealthView TV.
Press CAPTIONS repeatedly to turn selected closed captions option On or Off. (See Captions page.)
Using the front control panel to operate the television
1
2
3
2
3
1
4
PAGE 13
206-3853
Installer Remote Key Functions
123
456
7
0
8
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
FLASHBK (FLASHBACK)
Return to the last channel viewed.
POWER
Turns TV On or Off
.
CHANNEL (UP/DOWN)
Tunes to next available channel.
MUTE
Turns sound Off and On, while the picture remains.
ENTER
Press to view the Channel/Time display or to remove any on-screen display or menu.
NUMBER KEYPAD
Selects channels directly and enters numeric values for some options
.
remote control part number
HP602
124-213-06
TIMER
Press repeatedly to adjust TV turn-off time
up to 4-hours.
Use to pick AM/PM in Clock menu.
VOLUME LEFT/RIGHT
Adjusts the sound levels.
CC (CLOSED CAPTIONING)
Press to access closed captions.
Press ENTER to exit.
A quick list of the keys on the optional HP602 installer’s remote and what they do
BANK
Press and repeat to select a Channel Memory Bank - - 1, 2, 3, or 4 (standby).
MENU/SELECT/ADJ (ADJUST)
Press MENU repeatedly to scroll through
either the Installer, or User menus. Use
SELECT to choose an option and ADJ
(adjust) to change the selected option.
CHANNEL PREVIEW
Gives installer access to the patient’s menus. Displays the available TV channels and patient’s Parental Control menu.
TV/FM
Selects TV or Radio on TVs equipped with
FM radio.
BED 1/BED 2 (*See Note Below)
Determines the code set transmitted, Bed 1 or Bed 2. Switch setting must corre­spond to item 27, HOSPITAL MODE setting in the TV’s Installer Menu.
*Note: Bed 1 - Bed 2 switch on installer/patient remote. The position of the Bed 1 ­Bed 2 switch must correspond to the setting in the Installer’s menu. The switch above can be set by sliding it to the Bed 1 or Bed 2 position. On the patients’ remote, the Bed 1 or Bed 2 position can be selected by using a paper clip or a ball-point pen to slide the switch to the correct position. Left position = Bed 1. Right Position = Bed 2.
PAGE 14
206-3491-O
On-Screen Menus Overview
ON-SCREEN MENUS
Setup Menu Adjusts the basic characteristics of the TV
Auto Program 11 Automatically finds and stores active channels to scroll through using Channel Up/Down.
Add/Del/Blnk 15 Manually choose which active channels will appear when using Channel Up/Down.
Channel Labels 16 Labels the channels with their network names (ABC, CBS, HBO, etc.) or create custom names.
Clock Set 17 Sets the time.
On/Off Timers 18 Set the timers to automatically turn the TV On/Off each day at the preset time(s).
Captions 19 Chooses the captioning or text option.
Language 20 Chooses the language the on-screen menus will appear in.
Video Menu 21 Adjusts the picture appearance. The options are: Contrast, Brightness, Color, Tint, Sharpness,
Picture Pref.
FM Radio Menu 22 Adjusts the FM Radio options.
Parental Control 24 Allows installer to restrict viewable programming for up to 99 hours, with the use
of a password.
26 OTHER MENUS AND ON-SCREEN DISPLAYS
Channel/Time Shows the current time, selected channel and XDS* data if available.
Sleep Timer Sets the time the TV will turn off.
Volume Shows current sound level.
Captions Sets Caption/Text options.
Ch Preview Displays the available channels list.
Channel Bank Shows currently selected channel bank.
Inactive TV Prompts the patient to arrange for TV service.
INSTALLER MENUS 30 Sets up the TV’s operating features.
*XDS (Extended Data Service) Additional program information provided at the discretion of the broadcaster. May include: title of broadcast, length of broadcast, and time remaining until end of broadcast.
Descriptions of the menus on the TV
Using the Menu button on the optional installer’s remote, the installer can access all the menus below.
Menu Name Page Description
PAGE 15
NOAUX3684
Fine-tune the patient’s channel selection list

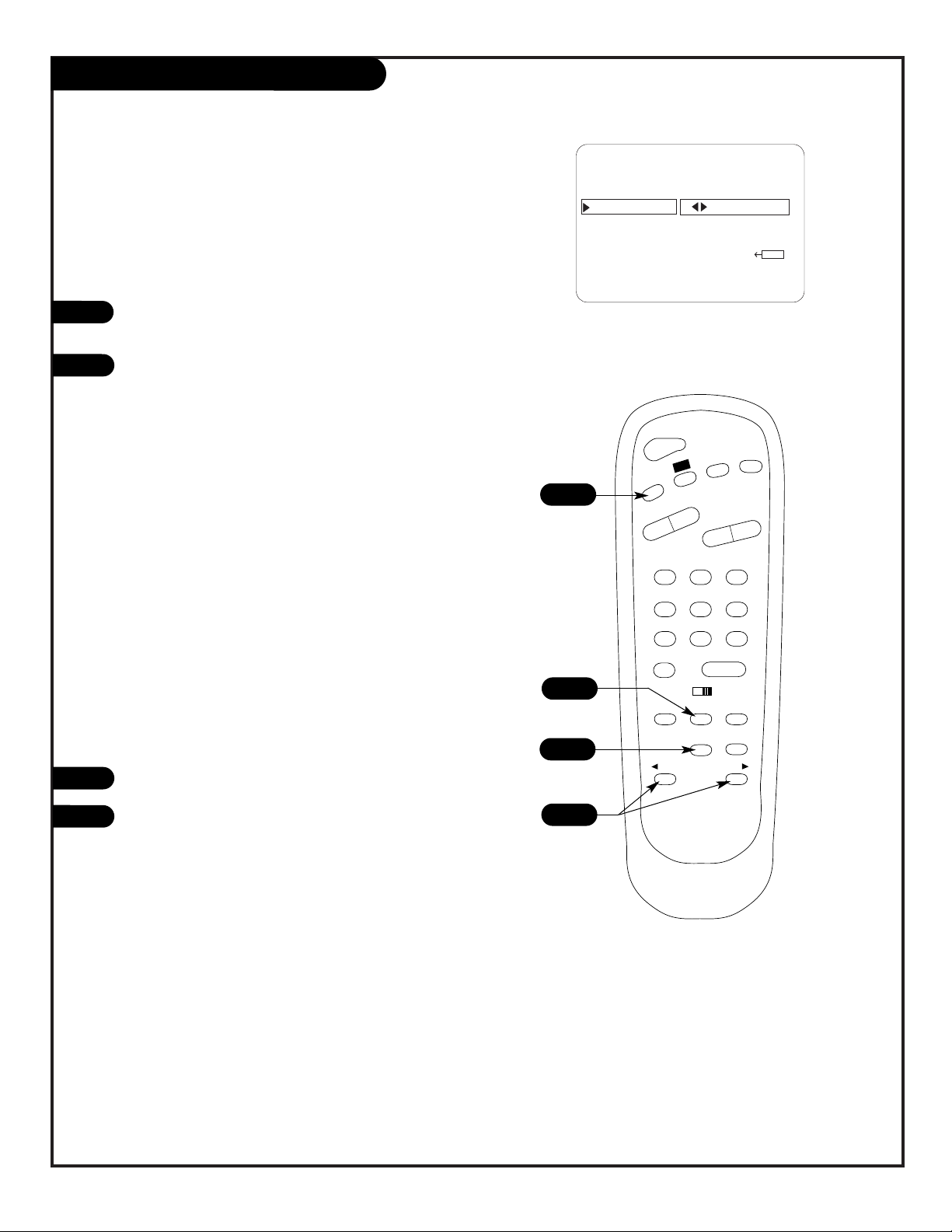

Setting Add/Delete/Blank
Press the MENU key on the optional Installer’s remote to show the Setup menu on the screen.
Press SELECT repeatedly to highlight the Add/Del/Blnk option.
Using either the NUMBER keypad and ENTER or the Channel Up/Down arrows on the remote, select a channel. (If adding a deleted channel, you will need to use the number keypad and ENTER.)
Using the Right/Left ADJ arrow, choose whether the chan­nel is Added, Deleted, or Blank.
To continue, select another channel and repeat Step 3. When you are finished, press ENTER to remove menu.
Adding VCR 3, VCR 4, or FM to the Channel Preview List
Go to the Setup menu, select the Add/Del/Blnk option. Use Channel Up/Down to select the option and choose Added. Note: If the option was turned off in the Service menu, you will have to reinstate it before it can appear as an option in the Channel Preview list.
Note: You can elect to Add, Delete or Blank: VCR 3 and VCR 4. FM can be Added or Deleted, but not Blanked.
1
2
3
4
5
123
456
708
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
2
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
CH 44 ADDED
SETUP MENU
Mini glossary
ADD Adds new channels to the list that the patient can scroll through when using the remote.
DELETE Removes channels for one reason or another from the list that the patient can scroll through.
BLANK Removes the video signal from a channel so the patient will only receive the audio signal.
4
3/5
1
If you delete a channel, it isn’t gone for good. Just select it using the NUMBER keypad on the remote, or add it later.
3
3
PAGE 16
206-3491-O

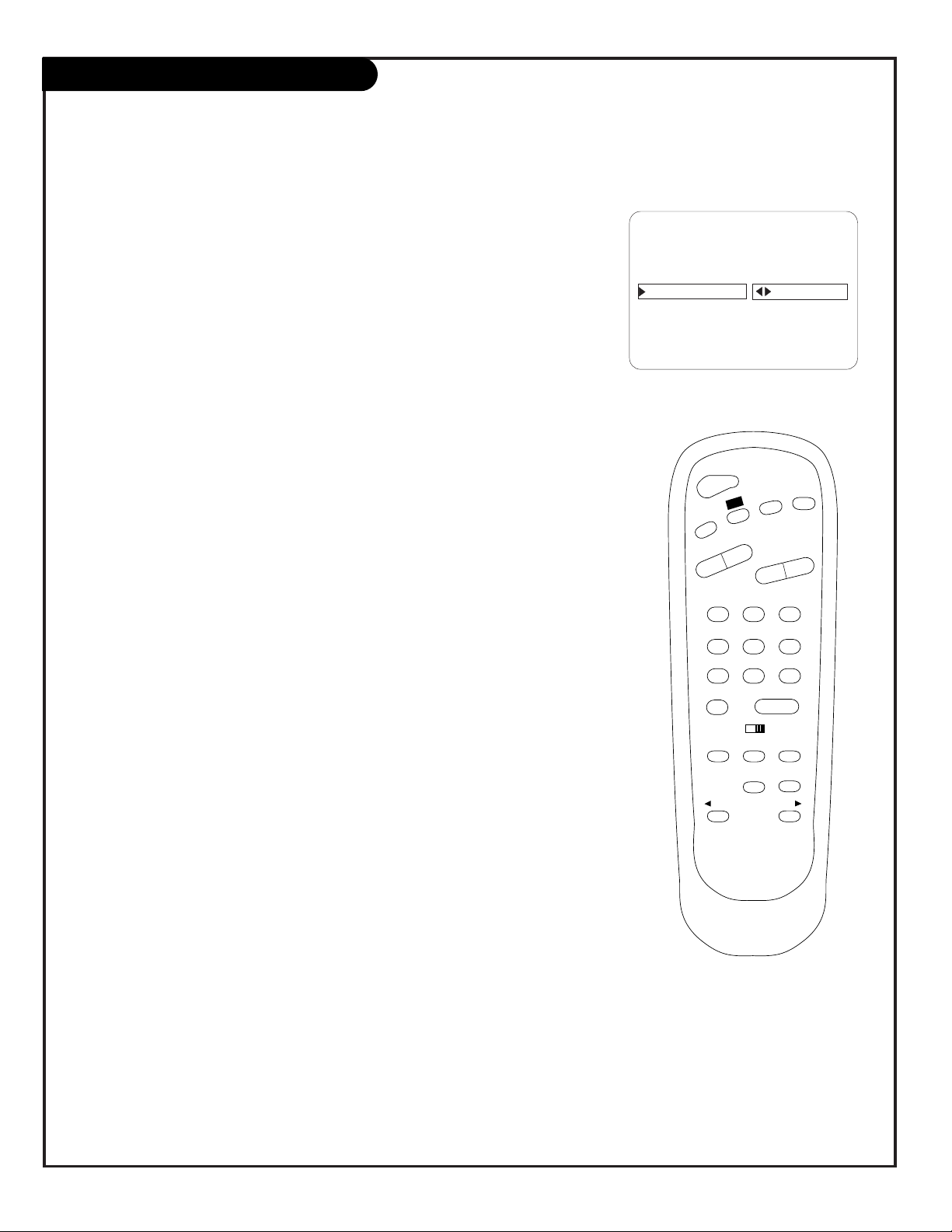

Setting Up Channel Labels
123
456
7
0
8
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
CH 32 ABC
SETUP MENU
Overview
Channel Labels help the user identify the channel or network being viewed. In the Setup menu with the CH LABELS option highlighted, use the Adjust
Left/Right arrows to scroll through the available channel labels, such as, A & E, AMC, ESPN, HBO, etc. These are a series of alphabetically organized preset labels from which you can choose the more common networks. Use any of these or create custom labels.
- - - - , The 4 dashes will allow a channel label to appear; if one is provided by XDS. (Extended Data Service)
NONE, prevents any channel label from appearing. LAB 1, thru LAB 20, are the 20 programmable labels.
The 20 programmable labels can be customized for your needs. Each programmable label has 5 characters spaces available.
To Program a Channel Label
First select a channel using the NUMBER keypad and ENTER or the Channel Up/Down arrows, on the optional Installer’s remote control.
(To select a deleted channel, use the NUMBER keypad and ENTER.) To program a channel label, go to the Setup menu and select CH LABELS. Press the Right/Left adjust arrow to scroll the available preset labels. Scroll past -
- - -, scroll past NONE, to go to the first programmable label slot, LAB 1. Notice that the label appears with the title LAB 1, and is also on a dark background; which will distinguish it from the preset labels.
Operating the Menu
Use Volume Up/Down to select the first letter. Press MUTE to clear the label if necessary. Use Channel Up/Down to change the character to one of the 255 characters avail-
able. (A blank letter space is available if required, after the “!” symbol.)
Adjust Left/Right Switches to the next label.
- - moves to the next or previous label.
Volume Up/Down Selects character spaces
- - moves to the next or previous character space.
Channel Up/Down Scrolls through the available
characters.
ENTER Accept the channel label and
removes the menu.
MUTE Removes current label,
- - if first character space is selected.
Mini glossary
TIME A four-digit figure broken down into hours and minutes, used to enter the current time when setting the clock or wake-up alarm.
HOURS First two digits that are entered when setting the clock or the wake-up alarm.
MINUTES The last two digits that are entered when setting the clock, or the wake-up alarm.
TIMER Chooses AM or PM when setting the clock.
PAGE 17
206-3747
The clock can also be set using 24 hour “military time.” For p.m. settings add 1200. For example, to set 6:30 p.m., add 1200 to 630, = enter 1830.
For Auto Clock Set to work, TV must be tuned to a channel that has XDS data available. Auto Clock Set, sets the time only once while the TV is on. To set the clock with XDS data, turn TV off, then back on again, or set the clock time manually.
Clock Set
123
456
708
ENTER
9
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
3
5
3
4
AUTO EASTERN CENTRAL
MOUNTAIN
PACIFIC
CLOCK MENU
CLOCK SET TIME ZONE DAY. SAVING
AUTO
AUTO
OFF ON
10:43 AM
CLOCK MENU
CLOCK SET TIME SET
MANUAL
TIMER
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
SETUP MENU
TO SET CLOCK
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
SETUP MENU
TO SET CLOCK
USE SELECT TO CHOOSE USE ADJ TO CHANGE
USE SELECT TO CHOOSE USE ADJ TO CHANGE
Clock Auto/Manual Operating Modes Setup
Use MENU, SELECT, and ADJ Left/Right to choose the Clock menu and to set up the clock menu options, with the optional Installer’s remote.
Clock Mode Auto: TV automatically sets the time.
Time Zone: User can choose the time zone or have the TV set it automatically. Day. Savings: User can choose to have daylight savings adjust the clock time one hour, or have the TV adjust it automatically.
Manual: User sets the time on the clock.
Use ENTER repeatedly to remove menus.
2
1
PAGE 18
206-3747
123
456
708
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
Set up On/Off Timers Note: On/Off Timers operate independently of each other.
On the optional HP602 Installer’s remote, press MENU repeatedly until the Setup menu appears.
Press SELECT repeatedly to highlight the Timer option, press the Right arrow.
Use SELECT to choose an option. Use the number keypad and/or the Left/Right ADJ arrows to enter the times. To set PM, add 12 to the hours. For example, to set 6:00 p.m. Use the number keypad to set 1-8-0-0. (6 for the hours and the extra 12 for PM.) Do not use the TIMER key to set AM/PM.
Press ENTER to remove menu and return to TV viewing.
Your options are:
On Time Sets a time that the TV will turn itself On each day.
Off Time Sets a time that the TV will turn itself Off each day.
On/Off Timer Enables or disables the On/Off Timer functions. (The On/Off Timer can be disabled but the settings will be retained.)
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
TO SET TIMER
SETUP MENU
The clock must be set before the Timers will function.
The Off Timer can be used to turn the TV off at the preset time. Note: No On Timer setting is required to use the Off Timer feature.
Mini glossary
TIME A four-digit figure broken down into hours and minutes, used to enter the time when setting the clock or programming timers.
HOURS First two digits that are entered when setting the clock or programming timers. (Add 12 for PM settings.)
MINUTES The last two digits that are entered when setting the clock, or programming timers.
ON TIME 9:00 AM
OFF TIME 7:00 PM
ON/OFF TIMER
ON
TIMER
Setting On/Off Timers
2
1
4
1
2
3
4
2/3
3
3
PAGE 19
206-3747
Standard closed captioning is available using the Caption 1 option.
Captions (Captions/Text)
CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4
TEXT 1 TEXT 2 TEXT 3 TEXT 4
OFF
CAPTIONS SETUP
OPER. MODE SEL. TYPE CAPTION LOCK
CC
CC
PRESS SELECT TO CHOOSE PRESS ADJ TO CHANGE
STANDARD
ON, OFF
CC
CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4
TEXT 1 TEXT 2 TEXT 3 TEXT 4
TO SET CAPTIONS
CAPTIONS SETUP
OPER. MODE SEL. TYPE CAPTION ON MUTE CAPTION LOCK
CC
PRESS SELECT TO CHOOSE PRESS ADJ TO CHANGE
QUICK/MUTE
ON, OFF
ON, OFF
ON, OFF
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
SETUP MENU
TO SET CAPTIONS
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
SETUP MENU
123
456
708
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
1
2
Mini glossary
CAPTIONS The term for the words that scroll across the bottom of your TV screen; usually the audio portion of the program
provided for the hearing impaired.
TEXT The term for the words that appear in a large black frame and almost cover the entire screen; usually messages
provided by the broadcaste
r.
Set up Closed Caption/Text options for the user
Closed Captions/Text Operating Modes Setup
Use MENU, SELECT, and ADJ Left/Right to choose the Closed Captions/Text mode and to set up the other menu options for the user with the optional Installer’s remote.
Quick/Mute When CC is pressed: User can only turn Captions on/off.
(If CC on Mute is on, shows captions option on mute.) (If locked, type is retained with Power on/off.)
Standard When CC is pressed: User can choose a captions type.
(If locked, type is retained with Power on/off.)
Press ENTER repeatedly to remove menus.
Caption/Text are features which allow the Concierge TV to receive the closed caption and/or text options if made available by the broadcaster. Availability and functionality of Caption/Text options are determined only by each broadcaster and may not be available in your area.
PAGE 20
206-3491-O
Language
AUTO PROGRAM ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE
ENGLISH
SETUP MENU
123
456
708
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
2
1
4
Choose the language for the on-screen menus
Press the MENU key on the optional Installer’s remote control so the Setup menu appears.
Use the SELECT key on the remote control, to highlight Language on the screen.
Press the Right/Left ADJ arrow to choose one of the following options: English, Spanish or French.
Press ENTER to return to TV viewing.
1
2
3
4
3
PAGE 21
206-3491-O
Video Menu
Press the MENU key repeatedly until the Video menu appears, on the optional Installer remote. Your options are:
• Contrast: Adjusts the level of difference between white and black in the TV picture. The more contrast, the brighter the picture appears.
• Brightness: Increases or decreases amount of white in the TV picture.
• Color: Adjusts levels of all colors in the TV picture.
• Tint: Balances between amounts of red and green in the
TV picture.
• Sharpness: Raises or lowers the definition of the TV pic­ture. The lower the level, the softer the images will appear.
• Picture Preference: Choose either Custom or Preset. Custom allows you to set the picture the way you want. Preset moves all the above options back to their original, factory-set levels.
Using SELECT on the installer’s remote control, choose Contrast on the screen.
Using the Right/Left ADJ arrow, change the contrast level to your preference.
Press ENTER, or MENU one more time to return to TV view­ing, or repeat from step two to set the other menu options.
Picture Preference
Use SELECT to choose Picture Preference on the screen.
Use the Right/Left ADJ arrow, to choose either the original settings with Preset, or your own settings with Custom.
1
2
3
4
A
Choose the Preset option in Picture Preference to quickly reset the levels to their original values.
Use the Video menu to customize the picture appearance
123
456
708
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
2/A
1
4
3/B
B
PAGE 22
NOAUX-3684
FM Radio Menu
Press TV/FM and choose the FM Radio operating mode, on the optional Installer’s remote.
Press the MENU key repeatedly until the FM Setup Menu appears. Your options are:
• Auto Program: In FM Mode, finds the available FM sta­tions and puts them on the MUSIC ID list. You can select a station from this list with CHANNEL Up/Down.
• FM ADD/DEL: ADD or DEL (delete) a station in the MUSIC ID list. Stations on this list can be selected with CHAN­NEL Up/Down. Press ADJ (adjust) Left/Right to select ADD or DEL. Select the applicable station with CHANNEL Up/Down or Numbers, then press ENTER if you used Numbers. ADD Adds station to the MUSIC ID List. DEL deletes station from the MUSIC ID list
• FM Labels: Lets you label the stations on the MUSIC ID list. Labels include: Classical, Country, Jazz, News, Oldies, Religious, Rock, Sports, Talk, and Other.
• Clock Set: Set the clock in this menu the same way as described on page 17. For manual clock set, use the num­ber keypad. Use TIMER to change AM/PM, followed by ENTER to clear the screen.
Use SELECT to choose which option you wish to set up.
Use ADJ Left/Right to set those options.
1
123
456
7
0
8
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
3
2
4
SETUP MENU
AUTO PROGRAM FM ADD/DEL FM. LABELS CLOCK SET
TO PROGRAM
88.1 ADDED
88.1 JAZZ 3:42 PM
TIMER
Use the FM Menu to customize FM Radio options
3
4
1
2
PAGE 23
206-3747
FM Radio Menu Options
FM SETUP MENU OPTIONS
FM Setup Menu Adjusts the basic features of the FM radio
Auto Program Automatically finds and stores all active FM radio stations within the range of 87.7 - 107.9. The user
can then choose any FM radio station stored in memory using Channel Up/Down, in FM radio mode.
FM Add / Del Use to edit the list of active FM stations found with auto program. All stations found are automati-
cally included into memory, however, for one reason or another, you may want to delete or add some FM stations. Note: To add a deleted channel, run FM auto program again.
FM Labels Assign a label for the type of radio station. Highlight FM Labels. Use CH Up/Down to choose a sta-
tion, then use the Left/Right arrow to select a classification like ROCK. For example, if the label ROCK is assigned to FM station 88.1, then “ROCK” will appear in the active stations list next to 88.1, whenever the Music ID display is shown. Other labels available (besides Blank - - - -) include:
CLASSICAL OTHER COUNTRY RELIGIOUS JAZZ ROCK NEWS SPORTS OLDIES TALK
Clock Set Sets the FM radio’s clock memory to the correct time. Set the clock in this menu the same way as
described on page 17. To manually set the clock, highlight the Clock Set option, then use the num­bers on the remote to enter the current time directly. Press TIMER to choose AM or PM, then press ENTER to remove the menu. Note: You can also enter the time directly using the 24-hour time system. For example, to set 2:30 p.m., key in 1430 then press ENTER and AM/PM will be set for you. Use this method if you use the LT2000 remote which does not have a TIMER key.
STATION/TIME Shows currently selected FM radio station, current time (if set), and incoming audio signal.
MUSIC ID Shows available FM radio stations in memory. Press ENTER to show ID.
Descriptions of the FM Radio Installer’s menus
In FM mode using the Menu button on the optional Installer’s remote, the installer can access the menus shown above. Press ENTER to show the FM Radio Station/Time/Audio Signal on-screen display.
Menu Name Description
88.1 MONO 3:42
- - - -
88.1 CLASSICAL
90.1 COUNTRY
90.4 JAZZ
94.1 NEWS
94.3 OLDIES
95.5 OTHER
97.4 RELIGIOUS
101.2 ROCK
104.2 SPORTS
106.5 TALK
(Station/Time/Audio Display)
SETUP MENU
AUTO PROGRAM FM ADD / DEL FM LABELS CLOCK SET
TO PROGRAM
107.9 ADDED
88.1 ROCK
11:44 PM
PM
MUSIC ID
CH TO SELECT, ENTER TO QUIT
PAGE 24
AUX3747
Installer Parental Control Menu
Overview
To insure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selec­tions below AND choose ratings from the TV Parental Guidelines Rating System on the next page, using the Age Block option for General Audiences, and for Children. In addition to those, you may wish to add additional restrictions from the Content Block menu. See the Parental Control menu, and submenus example on the next page.
Things To Consider Before Setting Up Parental Control
Determine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, all more restrictive rat­ings will be automatically blocked; the viewer will not be able to see: TV-PG, TV-14, or TV-MA rated programming.)
Block program “Content” based on individual parameters such as: Strong Dialog, Mature Language, Sex Scenes, Violence Scenes, or Fantasy Violence Scenes; in the Content Blk option.
How many hours do you want Parental Control to be active? You can set the Hours option for up to 12 hours.
Select a secret password; in the Set Password option. Use the number keys on the remote. Don’t forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off.
Do you want Parental Control to be active all the time? If not, you can turn it on or off; with the Lock On/Off option.
If used, this optional feature can “block” undesirable programming from appearing on the TV
You can set different Parental Control viewing restric­tions for general audiences and for children - - both can be active at the same time
.
Simply specifying one content block such as Sex Scenes, will not automatically block another content in the pro­grams from appearing.
You cannot disable Parental Control by disconnecting the TV from power. Block hours remaining will be retained if power is lost or power cord is disconnected.
The AUX input source can also be blocked.
Parental Control offers the user a wide variety of options and settings that restrict or “block” the programming that can appear on the TV. Parental control allows the user the capability of defining which program rating they consider acceptable, to the younger or more sensitive viewer. The AUX input can also be blocked. It can be preset and turned either on or off by the user who specifies a secret 4-number code, the password. The number of hours blocked are specified. General audience and children viewer blocks can both be programmed into the TV’s memory. Viewer ratings are specified for both TV and the motion picture industry; both rating systems can be used. The ratings are based mainly on the ages of children.
Note
Reset Parental Control Block Hours to Zero and Cancel Password
This provides the institution staff and the installer a means to reset the TV to normal operation, if a guest has either forgotten the password or has left Parental Control Block active after checking out.
On the installer’s remote control, press and hold down MENU until the menu disappears (about 6 sec­onds). Immediately press 9, 8, 7, 6 and then CC. This will reset the Block Hours to Zero and cancel the current 4-number password.
PAGE 25
206-3853
Installer Parental Control Menu
After you have read the preceding page, follow instructions below to set up and activate Parental Control
SETUP MENU
DIALOG LANGUAGE SEX SCENES VIOLENCE F VIOLENCE NO RATING
TO BLOCK
GENERAL CHILDREN
AGE BLOCK
UNBLOCKED
CONTENT BLOCK
TO BLOCK
AUX SOURCES MPAA RATING AGE BLOCK CONTENT BLK SET HOURS SET PASSWORD LOCK ON OFF
PARENTAL CONTROL
VIDEO MENU
PRESS CC TO RETURN
PRESS CC TO RETURN
7
0
8
ENTER
9
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
2
3
1
1
2
3
4
Note: Use the installer’s remote control to specify Parental Control settings.
Press MENU repeatedly until the Parental Control Menu appears using the optional Installer’s remote.
With the Parental Control menu on-screen, use the SELECT but­ton to access the MPAA Rating menu and customize the level of restriction.
Use the Left/Right ADJ arrow to adjust or set the rating for an option, for example, use the “PG” setting. (See the Mini Glossary, Ratings Charts on pages 38 and 39 for rating descrip­tions.)
After you have selected and adjusted the parental control menu options to your preferences:
- Set the number of hours Parental Control will be on.
- Set a 4-number password.
- Set the Lock On/Off option to either on or off. Note: Some broadcasts do not include rating information.
Make Parental Control restrictions permanent, with no preset or fixed hours time limit
In the Installer’s Menu, Item 84: PERMANENT BLK, 0 or 1. 0 Blocking restrictions always active, no time limit.
1 Restrictions limited to specified hours, 12 - 99.
Reset the Maximum Number of Parental Control Default Block Hours
You can change the Block hours from the 12-hour default setting to up to 99 hours. In the Installer’s Menu, item: 22-I MAX BLK HRS 12,
use the ADJ Left/Right adjust arrow to set a different default number of hours.
To Turn the Parental Control Feature Off/On
In the Installer’s Menu, Items: 21-I V-CHIP, 0 or 1, 51-I DIS. VCHIP M., 0 or 1
Options Setups for V-Chip Menu and Block Functions
21-I V-CHIP 51-I DIS. VCHIP M. 0 0 No menu, no blocking. 0 1 No menu, no blocking. 1 0 Shows menu, Block functions. 1 1 No menu, Block functions.
PAGE 26
206-3491-O
Other Menus & On-Screen Displays
Ch 25 - PBS
7:15
OLD TIME MOVIES
LENGTH 01:00 TIME LEFT 00:36
PM
Channel/Time/XDS Display
Press ENTER. Shows currently selected channel, current time if the clock has been set, and XDS data, if being broadcast; title of program, length of program, and time remaining.
Sleep Timer Menu
Press TIMER. Selects a preset TV turn-off time, and shows remaining time before the TV turns off.
Volume Display
Press VOLUME. Shows currently selected sound setting.
Ch Preview Menu
Press CH PREV. Displays list of the available TV Channels, AUX source, and patient Parental Control menu.
Closed Captions Menu
Press CC. Turns selected option on or off. See Caption/Text page to select options.
VOLUME•
Use the keys indicated below to access these menus and displays, on the optional remote
Channel Banks Menu
Press BANK. Gives access to the Channel Banks menus: Bank 1, Bank 2, Bank 3, Bank 4.
CHANNEL BANK
BANK 3
CAPTION 1 IS ON
CC
CHANNEL PREVIEW• 5 - - - ­ 9 - - - ­ 20 - - - ­ 32 - - - ­ 44 - - - ­ AUX - - - ­ FM
CC FOR PARENTAL CONTROL
CH TO SELECT, ENTER TO QUIT
INACTIVE TV
PLEASE . . .
CALL ATTENDANT
Inactive TV Display
Prompts patient to arrange for TV service to room.
PAGE 27
206-3491-O
PLANNING THE CHANNEL BANKS
Generally, TV channels are grouped into “program pack­ages” with terms that are proposed to the end user. The user then opts for a package. Below is an example of how TV channels may be grouped.
You may plan your package by using a chart like the one after the following page.
Remember, you can “blank” a channel for accommodating audio-only, such as an FM radio station or in-house com­munication.
Sometimes, only one or two channel banks may be need­ed. You may leave any unused bank with the channels entered during Auto Program; or, you may delete the chan­nels. However, you may want to leave at least one channel in any unused bank. Then, if someone selects an “unused” bank, that channel will assure them that the TV is func­tional.
Note: Some channels from factory testing may be in the channel banks if you have not yet run Auto Program.
ADDING / DELETING CHANNELS
A previously prepared programming chart is helpful.
1. Run Auto Program (in the Setup menu). All channels found on your cable/antenna will be entered in Channel Banks 1, 2, 3, and 4. Note: Be advised that running Auto Program overwrites any custom channel setups; removes Blanked, Deleted.
2. Select a channel bank with an installer remote - -press SOURCE/BANK (and repeat). CHANNEL BANK and BANK number will be displayed.
3. Use the ADD/DEL/BLNK item (also in the Setup menu) to customize your program package. You may delete chan­nels or add some that have not been entered. You can also “Blank” a channel for accommodating an audio-only pro­gram source or in-house communication. The “ADD/DEL/BLNK” item on page 15 has more details. Note: The Blank Channel feature is global. A channel will be blanked in all channel banks.
4. Repeat steps 2, and 3 to program another channel bank.
Managing the Channel Banks
Using the optional Installer’s remote control, the TV has four channel banks, where the administrator or installer can store groups of TV channels
Channel Bank Program package
1 Basic cable channels 2 Extended cable channels 3 Extended with premium channels 4 Other cable installer options
(Grouping is provided as an example only.)
The BLNK (blank) channel function is “global” -- the same channel number is blanked in channel banks 1, 2, 3, and 4.
Channel bank number display
Inactive TV Display (Channel Bank 4)
The TV can be set up to be inactive; which would require an attendant using an installer remote to change to a “billable” active channel bank selection: Bank 1, 2, or 3. Note: For institution control of patient-accessible pro­gramming, channels in Bank 4 need to be removed.
INACTIVE TV
PLEASE . . .
CALL ATTENDANT
CHANNEL BANK
BANK 1
PAGE 28
206-3684-0
B Purpose Channel Number
A 12345678910111213141516171819202122232425
N K
1 A A A A AAAAAAA AAAA 2 A A A A AAAAAAA AAAA 3 A A A A AAAAAAA AAAA 4 A A A A AAAAAAA AAAA
B Purpose Channel Number A 12345678910111213141516171819202122232425 N K
1 Basic BC A AAAADDDDDDDD DDDD 2 Extend BC A AAAAADAADAAADDDD 3 All CTV BC A AAAAADAADAAAADAA 4 Other BC A AAAAAAAAAAAA AAAA
ADDING / DELETING CHANNELS
It is best to do ADD / DEL customizing before doing “BLNK.”
AUTO PROGRAM enters the same channels in Banks 1, 2, 3, and 4.
AUTO PROGRAM removes any channels previously customized with ADD / DEL / BLNK. The channels available on your antenna / cable will be entered, and any channels previously entered but not currently available will be deleted.
ADD and DEL (not BLNK) can be used independently for chan­nel banks 1, 2, 3, and 4.
A channel blanked, is blanked in all channel banks.
Channel allocations in tuning bands:
BROADCAST: 2 – 69 CABLE – CATV, HRC or ICC: 1 – 125
A = Active - - Channel was found during AUTO PROGRAM
A = Active Channel was found during AUTO PROGRAM D = Deleted Channel was deleted using Add/ Del option. BC = Blanked Channel Channel was blanked using BLANK channel option (ADD/DEL/BLNK).
Managing the Channel Banks
Examples of typical channel banks charts
Figure 1. Typical channel banks after running Auto Program
Figure 2. Typical channel banks after running Auto Program, and customizing with Add/Del/Blnk
PAGE 29
206-3491-O
PLAN YOUR CHANNEL BANKS BY FILLING IN THESE CHARTS (or use photocopies)
B Purpose Channel Number A 12345678910111213141516171819202122232425 N K
1 2 3 4
B Purpose Channel Number A 26272829303132333435363738394041424344454647484950 N K
1 2 3 4
B Purpose Channel Number A 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 FM N K
1 2 3 4
B Purpose Channel Number A 51525354555657585960616263646566676869707172737475 N K
1 2 3 4
B Purpose Channel Number A 767778798081828384858687888990919293949596979899100 N K
1 2 3 4
Managing the Channel Banks
PAGE 30
206-3853
Installer Menus
Use the Installer’s Menus to make TV operation adjustments
Accessing the Installer’s Menu
Installer’s menus can be accessed by using the optional installer’s remote control. Just press and hold MENU (about 8 seconds) until the display changes, then press 9, 8, 7, 6, then ENTER. To exit the Installer’s Menu, press ENTER again. Changes you make will be stored in nonvolatile memory.
The Installer’s Menu opens with item 00-I, INST. SEQ. Use the SELECT key to sequence through the available menu items. Or, access an item directly by entering the line number, then pressing MENU. For example, to access the Start Channel option which is on line 11, press 11, then MENU. To change a current setting use the Left/Right ADJ keys.
Using the Installer’s Menu
Items 0-86 are immediately accessible only upon entering the Installer’s Menu. Their numbers, descriptions, ranges, factory default settings, and a place for listing any changes made on-site are given below. A second sec­tion of the Installer’s Menu that is intended for qualified service techni­cians only is not shown (XX-F Items). Normally these items do not require adjustment.
Items in the Installer’s Menu: 0-I to 25-I
Menu Item Function Value Range Default Value Brief Description of Function and Comments
0-I. INSTALLER. SEQ 0 - 3 0 Leave default set 0. 1-I. POWER MANAGE 0 - 7 0 Sets number of hours of no activity before auto shutoff. 2-I. AC ON 0 / 1 0 Set to 1 to enable auto turn on at power up. 3-I. BAND/AFC 0 - 7 0 Tuning band, see detailed descriptions. 4-I. STRT CHANNEL 0 - 255 255 Channel at turn-on (255 last Ch). 5-I. CHAN LOCK 0 / 1 0 When set to 1, cannot tune from current channel. 6-I. GHOST CH 0 / 1 0 Set to 1 to enable Ghost Channel display. 7-I. START VOLUME 0 - 63, 255 255 Volume level at TV turn-on (Set 255 to retain last volume level). 8-I. MIN VOLUME 0 - 63 0 Minimum volume setting.
9-I. MAX VOLUME 0 - 63 63 Maximum volume setting. 10-I. MUTE DISABLE 0 / 1 0 Set to 1 to disable mute function. 11-I. KEY DEFEAT 0 / 1 1 Set to 1 to disable Menu, Select, and Adj keys on front panel. 12-I. IR BANKS EN. 0 / 1 0 Set to 1: enables TV to respond to IR codes to change Channel Bank directly. 13-I. SCAN MODE 0 - 3 1 Typically used for Hospitals: puts On-Off and FM in Ch Up/Down sequence. 14-I. STRT CH IN SM 0 / 1 0 Set to 1 to put TV on/off below start channel number. 15-I. SLEEP TIMER 0 / 1 1 Set to 1 to enable Sleep Timer. 16-I. EN. TIMER 0 / 1 1 Set to 1 to enable Timer. 17-I. ALARM 0 / 1 1 Set to 1 to enable Alarm. 18-I. RADIO 0 / 1 1 Set to 1 for TVs with Radio. 19-I. NOT USED 20-I. FEATURE LEVEL 0 / 1 1 Zen 1 Leave default set 1 (1 Zen 1) 21-I. V-CHIP 0 / 1 1 Set to 1 to enable V-Chip 22-I. MAX BLK HRS 0 - 99 12 Select number of Parental Control blocking hours. 23-I. CAPTION LOCK 0 / 1 0 Set to 1 to retain caption setting at turn off. 24-I. TEXT MODE 0 / 1 1 Set to 1 to add Text option to closed caption menu. 25-I. FUNCTION PRE. 0 - 3 0 Controls channel preview in Pay-Per-View function menu.
OIMCRMIO42A 01.34 01
00-I. INST. SEQ. 0
SN:XXXX-XXXXXXXX UPN:XXX-XXX-XXX-XXX
XX/XX/XX TE = 10110000
XX-F Menu Items (Not shown here) are service-type adjustments and only qualified technicians having special­ized test equipment should access them.
PAGE 31
206-3853
Installer Menus
Installer Menu Items 26-I through 63-I
Menu Item Function Value Range Default Value Brief Description of Function and Comments
26-I. 6 KEY SYS 0 / 1 0 Leave default set to 0. 27-I. HOSPITAL MODE 0 / 1 2 Leave default set to 2. 28-I. CH. OVER RIDE 0 / 1 1 When set to 0, limits direct access to favorite channels. 29-I. OLD OCV 0 / 1 0 OCV should set to 1. 30-I. ACK MASK 0 / 1 0 M.P.I. communication parameter. 31-I. POLL RATE 20 - 169 94 M.P.I. communication parameter. 32-I. TIMING PULSE 186 - 227 207 M.P.I. communication parameter. 33-I. NOT USED 34-I. NOT USED 35-I. NOT USED 36-I. NOT USED 37-I. NOT USED 38-I. NOT USED 39-I. REAR VIDEO EN 0 / 1 1 Set to 1 to enable rear AUX video input. 40-I. NOT USED 41-I. NOT USED 42-I. NOT USED 43-I. NOT USED 44-I. NOT USED 45-I. NOT USED 46-I. NOT USED 47-I. NOT USED 48-I. DIS. SETUP M. 0 / 1 0 Set to 1 to disable Setup menu. 49-I. NOT USED 50-I. DIS. VIDEO M. 0 / 1 0 Set to 1 to disable Video menu. 51-I. DIS. VCHIP M. 0 / 1 0 Set to 1 to disable V-Chip (Parental Control) menu. 52-I. NOT USED 53-I. DIS. CH-TIME M. 0 / 1 0 Set to 1 to disable Channel-Time display. 54-I. EN. SET. COL. 0 / 1 0 Set to 1 to enable custom color for Setup menu. 55-I. FOR. SETUP M. 0 - 7 6 Custom foreground color for the Setup menu. 56-I. BCK. SETUP M. 0 - 7 4 Custom background color for the Setup menu. 57-I. NOT USED 58-I. NOT USED 59-I. NOT USED 60-I. EN. VIDEO COL. 0 / 1 0 Set to 1 to enable custom color for the Video menu. 61-I. FOR. VIDEO M. 0 - 7 4 Custom foreground color for the Video menu. 62-I. BCK VIDEO M. 0 - 7 7 Custom background color for the Video menu. 63-I. EN. PTL. COL. 0 / 1 0 Set to 1 to enable custom color for the V-Chip (Parental Control) menu.
PAGE 32
206-3853
Installer Menus
Installer Menu Items 64-I through 86-I
Detailed Descriptions of Installer Menu Items
0-I. INSTALLER SEQUENCE
Gives access to Installer Menu depending on the code selected.
0 = 9876 1 = 4321 2 = 1478 3 = 3698
1-I. POWER MANAGE (Power Management)
Determines hours of no activity before automatic shutoff. The POWER MANAGE function is for saving energy. When set to 0, Power Manage is OFF. Settings range from 0 - 7, with 1 - 7 repre­senting the hours that the TV will remain on, unless there has been activity from either the control panel or remote control.
2-I. AC ON (AC Power Switchable)
Allows the TV to turn ON just by applying AC power. Pressing the ON button is not necessary. This is desirable when the TV is plugged into a cable box or a power outlet controlled by a wall
switch. Use ADJUST to select 0 or 1, where 0 is the default is OFF, and 1 is ON. NOTE: When set to 1 (ON), the TV does not respond to ON/OFF commands from either the remote or the control panel, and the SLEEP TIMER is also nonfunctional.
3-I. BAND/AFC (Band/Automatic Frequency Control)
There are 8 possible settings for this option:
0 = Broadcast Fixed 4 = Broadcast AFC 5 = CATV Fixed 1 = CATV AFC 6 = HRC Fixed 2 = HRC AFC 7 = ICC Fixed 3 = ICC AFC
Channels are accessed faster when fixed modes are used. The AFC (search modes) should only be used when some channels are not on nominal frequencies. NOTE: BAND is automatically set by AUTO PROGRAM.
Menu Item Function Value Range Default Value Brief Description of Function and Comments
64-I. FOR. PTL. M. 0 - 7 6 Custom foreground color for the V-Chip (Parental Control) menu. 65-I. BCK. PTL. M. 0 - 7 4 Custom background color for the V-Chip (Parental Control) menu. 66-I. NOT USED 67-I. NOT USED 68-I. NOT USED 69-I. EN. CH-T COL. 0 / 1 1 Set to 1 to enable custom color for the Channel-Time display. 70-I. FOR. CH-T COL 0 - 7 1 Custom foreground color for the Channel-Time display. 71-I. BCK. CH-T COL 0 - 7 1 Custom background color for the Channel-Time display. 72-I. NOT USED 73-I. CH NOT AVBLE 0 / 1 0 When set to 1 and channel override is 0, “NOT AVAILABLE” message is displayed
when direct accessing a channel not in the favorite channel list.
74-I. CH-TIME SIZE 0 / 1 0 When set to 1 and transparent background is selected for Channel-Time display,
(foreground color = background color and custom color enabled) a large channel
number is displayed instead of the normal Channel-Time display. 75-I. NOT USED 76-I. DEFEAT XDS 0 / 1 0 When set to 1, XDS display program information will not appear. 77-I. QUICK SHUTOFF 0 - 17 0 Allows TV timed power off press and hold setup with pillow speaker channel button. 78-I. UPN MSB 0 - 255 255 User programmable number, most significant byte. 79-I. UPN MSB-1 0 - 255 255 User programmable number, most significant byte - 1. 80-I. UPN MSB-2 0 - 255 255 User programmable number, most significant byte - 2. 81-I. UPN LSB 0 - 255 255 User programmable number, least significant byte. 82-I. CHKSM ERROR 0 / 1 0 Enforces rigid M.P.I. checksum 83-I. HANDSHK TIME 0 - 5 0 Relaxes M.P.I. timing to be compatible with PC based Windows controlled systems. 84-I. PERMANENT BLK 0 / 1 0 Remove block hours setting for Parental Control and make blocks permanent. 85-I. NOT USED 86-I. NOT USED
PAGE 33
206-3853
Installer Menus
If some channels were not found by AUTO PROGRAM, select the appropriate AFC setting here and add the channels using the ADD/DEL option in the Setup Menu.
4-I. STRT CHANNEL (Start Channel)
When active, this function allows you to determine the initial channel number when the TV is turned ON. This feature is useful for an in-house information channel, since the TV would always select that channel when it is turned on. Setting this to 255 causes the last channel viewed when TV was turned off to be the tuned to channel when the TV is turned on again.
The range of values is 0 - 255. Use (adjust) keys to choose num­bers that determine the start channel.
5-I. CHAN LOCK (Channel Lock)
CHAN LOCK is ideal if a cable box (or similar) is the sole source for programming—and the TV must always be on the same chan­nel. Changing channels with Channel Up/Down or keypad numbers is impossible. Channel Lock is inactive when set to 0 (default).
Generally, this feature is used in conjunction with START CHANNEL (line 4-I.) where the start channel may, for example, be set to 3 or 4. If the start channel is 3 then the TV will remain on channel
3. NOTE: When CHANNEL LOCK is active and CHANNEL OVERIDE is disabled, AUTO PROGRAM is not active.
6-I. GHOST CH (Ghost Channel)
When set to 1, the current channel number is displayed in the upper right corner of the CRT. The number moves slightly to pre­vent damage to the screen. The default is “0” or OFF. NOTE: When captions are on, the “ghost channel” is not displayed.
7-I. START VOLUME
This function allows the Installer to determine the initial volume level setting when the TV is turned ON. This feature is useful for an in-house information channel, since the TV would always select that volume level when it is turned on. The range of values are 0
- 63, 255. If 255 is selected, the current volume level will be retained in memory when the TV is turned off; at TV turn on, vol­ume level is automatically set to the previous or last level.
8-I. MIN VOLUME (Minimum Volume)
This function determines the minimum volume level allowable with the VOLUME (VOL) Up/Down control. In this way, for exam­ple, someone cannot set the volume too low to hear. The range is from 0 to 63—change values with ADJUST. The factory default is 0, which provides full range of volume control. It may be best to
set the same value on every TV. NOTE: The minimum volume level cannot have a value setting higher than in the MAX VOLUME level (described below).
9-I. MAX VOLUME (Maximum Volume)
This function determines the maximum volume level allowable with the VOLUME VOL Up/Down control. In this way, for example, someone cannot set the volume level high enough to disturb oth­ers. The range is 0 to 63, with 63 as the default which gives the user the full range of volume control. Change values with ADJUST keys. It may be best to set the same value on every TV. NOTE: The maximum volume level cannot have a value setting lower than the MIN VOLUME level (described previously).
10-I. MUTE DISABLE
Enables or disables sound mute function. When set to 1, sound cannot be muted. When set to 0, sound can be muted.
11 KEY DEFEAT (Keyboard Defeat)
When set to 1, it prevents the end user from accessing screen menus on the front panel—MENU, SELECT, and ADJUST do not function. When set to 0, those keys are functional. The menus can always be accessed with MENU on the remote.
12-I. IR BANKS EN.
For direct access to a particular Channel Bank. When enabled, installer can access a channel bank by inputting the IR code for the bank.
13-I. SCAN MODE
Allows variation in setting the On/Off with Channel UP/DOWN. You may opt for TV channels only; TV channels + Off/ON; TV chan­nels + FM radio; TV channels + FM radio + Off/On with these set­tings for Scan Mode:
Scan mode Characteristics
0 Channel up/down keys change channels only.
1 Channel down below the lowest channel (or
channel up higher than the highest) and TV turns off.
2 Channel down below the lowest channel (or up
higher than the highest) and TV goes to FM radio. Channel down below lowest FM station (or Channel up higher than the highest) and TV channels return.
3 Channel down below the lowest channel (or up
Installer Menu Items 4-I through 13-I: Detailed Descriptions
PAGE 34
206-3853
Installer Menus
higher than the highest) and TV goes to FM radio. Press channel down below lowest FM station (or Channel up higher than the high­est) and TV turns off.
14-I. STRT CH IN SM
When set to 1, installs TV on/off event below the start channel at TV turn on.
15-I. SLEEP TIMER
When set to 1, the SLEEP TIMER feature may be used (but no message is displayed prior to turn-off). When set to 0, the sleep timer is not available.
16-I. EN. TIMER
Set to 1, timer function is available to user. Set to 0 to disable timer functions. (Clock must be set in order to use Timers.)
17-I. ALARM
Gives you the option of making the alarm function available to the user. Set to 1, alarm function is available to user. Set to 0 to disable the Alarm function. Note: Clock must be set in order to set the Alarm.
18-I. RADIO
Set to 1, for TVs with a Radio. Set to 0 to disable the Radio function, for TVs without a Radio.
19-I. NOT USED
20-I. FEATURE LEVEL
Default set to ZEN 1 for Zenith IR remote control operation. Set O, P LBL for Zenith Private Label IR remote control operation. Warning: Do not set to “0” or remote will not control TV.
21-I. V-CHIP
Set to 1 to activate V-Chip (Parental Control); have it available to user to filter, control, or restrict programming content. Set to 0 to turn V-Chip feature off, not available to user; no programming restrictions can be set.
22-I. MAX BLK HRS
Set to 0 to 99 for the maximum V-Chip (Parental Control) block hours. Default is 12 blocking hours.
23-I. CAPTION LOCK
Set to 1 to restore previous caption On/Off state after TV turns off. When set to 0, captions are always off, when TV is initially turned on.
24-I. TEXT MODE
Determines whether TEXT 1, TEXT 2, TEXT 3, or TEXT 4 decoding is enabled when TEXT is turned on (either from the Setup Menu or directly with CC on the remote). TIP: Set Text Mode to 1 only if text is offered in your video system.
25-I. FUNCTION PRE.
Set to 0 to suppress CHANNEL PREVIEW from the FUNCTION menu with some Pay-Per-View systems.
26-I. 6 KEY SYS
Set to 1 for 6-key front control panels. Set to 0 for 10-key front control panels. Leave default set to 1.
27-I. HOSPITAL MODE
The default is 2 (which favors most hospitals). With this setting two things are affected: Channel Banks 1, 2, and 3 are accessible, while Bank 4 is inactive.
28-I. CH. OVERRIDE (Channel Override)
When set to 1, the user can select channels with either Channel Up/Down or by direct keypad entry. When set to 0, only those channels that are entered for scanning may be selected by direct keypad entry. Note: If set to 0, Auto Program is locked; (as shown on Setup menu) channel search is not possible.
29-I. OLD OCV (On Command Video
TM
)
Set to 1 for operation with systems from On Command Corporation.
30-I. ACK MASK
M.P.I. Communication Parameter. Leave at default setting unless changed by Pay-Per-View provider.
31-I. POLL RATE
M.P.I. Communication Parameter. Leave at default setting unless changed by Pay-Per-View provider.
32-I. TIMING PULSE
M.P.I. Communication Parameter. Leave at default setting unless changed by Pay-Per-View provider.
33-I. NOT USED
Installer should leave item 20 FEATURE LEVEL set to 1 (default).
Installer Menu Items 14-I through 33-I: Detailed Descriptions
PAGE 35
206-3853
Installer Menus
34-I. NOT USED
35-I. NOT USED
36-I. NOT USED
37-I. NOT USED
38-I. NOT USED
39-I. REAR VIDEO EN.
Set to 1 to enable rear AUX (Video) input. Set to 0 to disable rear AUX input.
40-I. NOT USED
41-I. NOT USED
42-I. NOT USED
43-I. NOT USED
44-I. NOT USED
45-I. NOT USED
46-I. NOT USED
47-I. NOT USED
48-I. DIS. SETUP M.
Set to 1 to disable the Setup menu. Setup menu will not appear. Set to 0 to enable the Setup menu.
49-I. NOT USED
50-I. DIS. VIDEO M.
Set to 1 to disable the Video menu. Video menu will not appear. Set to 0 to enable the Video menu.
51-I. DIS. VCHIP M.
Set to 1 to disable the Parental Control menu. Parental Control menu will not appear. Set to 0 to enable the Parental Control menu.
52-I. NOT USED
53-I. DIS. CH-TIME.
Set to 1 to disable the Channel-Time display. Channel-Time dis­play will not appear.
Set to 0 to enable the Channel-Time display.
54-I. EN. SET. COL.
Set to 1 to enable custom color settings for the Setup menu. Set to 0 to disable custom color settings for the Setup menu.
55-I. FOR. SETUP M. (Setup Menu Foreground Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet
56-I. BCK. SETUP M. (Setup Menu Background Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet
57-I. NOT USED
58-I. NOT USED
59-I. NOT USED
60-I. EN. VIDEO. COL.
Set to 1 to enable custom color settings for the Video menu. Set to 0 to disable custom color settings for the Video menu.
61-I. FOR. VIDEO M. (Video Menu Foreground Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet
62-I. BCK. VIDEO. COL. (Video Menu Background Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet
63-I. EN. PTL. COL.
Set to 1 to enable custom color settings for the V-Chip menu. Set to 0 to disable custom color settings for the V-Chip menu.
64-I. FOR. PTL. M. (V-Chip Menu Foreground Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet
Installer Menu Items 34-I through 66-I: Detailed Descriptions
PAGE 36
206-3853
Installer Menus
65-I. BCK. PTL. M. (V-Chip Menu Background Color)
Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet
66-I. NOT USED
67-I. NOT USED
68-I. NOT USED
69-I. EN. CH-T COL.
Set to 1 to enable custom color for the Channel-Time display. Set to 0 to disable custom color for the Channel-Time display.
70-I. FOR. CH-T COL. (Channel-Time Display Foreground Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet Note: If foreground and background color are the same, menu background is transparent.
71-I. BCK. CH-T COL. (Channel-Time Display Background Color) Set according to Color Chart. 0 = Black 3 = Yellow 6 = Cyan 1 = Red 4 = Blue 7 = White 2 = Green 5 = Violet Note: If foreground and background color are the same, menu background is transparent.
72-I. NOT USED
73-I. CH NOT AVBLE
When set to 1 and channel override is set to 0, “NOT AVAILABLE” message is displayed when direct accessing a channel not in the favorite channel list.
74-I. CH-TIME SIZE
When set to 1 and transparent background is selected for Channel-Time display, (foreground color = background color and custom color enabled) a large channel number is displayed instead of the normal Channel-Time display
.
75-I. NOT USED
76-I. DEFEAT XDS
Set to 1 to disable XDS display. Set to 0 to enable XDS display.
77-I. QUICK SHUTOFF
Allows TV power off to be controlled by the pillow speaker chan­nel selection button. User would press and hold button down for time required to have TV turn off. Value Range 0 - 17, each num­ber represents 1/2 second. For example, if set to 4, TV would turn off if user held speaker channel button down for 2 seconds.
78-I. UPN MSB
User programmable number, most significant byte readable by M.P.I. command.
79-I. UPN MSB-1
User programmable number, most significant byte-1 readable by M.P.I. command.
80-I. UPN MSB-2
User programmable number, most significant byte-2 readable by M.P.I. command.
81-I. UPN LSB
User programmable number, least significant byte readable by M.P.I. command.
82-I. CHKSM ERROR
Enforces rigid M.P.I checksum validation. Set to 1 for validation. Set to 0 to turn off.
83-I. HANDSHK TIME
Adds an additional delay to the handshake time which is 64 msec, thus relaxing M.P.I. timing requirements to be compatible with PC based Windows controlled systems, range is 0 - 5. Set to 0 to retain standard 64 msec delay. Set to 1 - 5 to increase @ 16 msec additional, the delay up to 144 msec.
84-I. PERMANENT BLK
Allows Parental Control blocking schemes to be permanent by removing the blocking hours function. Set to 1 to install Parental Control blocking restrictions perma­nently. Set to 0 for user-specified hours control of blocking schemes.
85-I. NOT USED
86-I. NOT USED
Installer Menu Items 65-I through 86-I: Detailed Descriptions
PAGE 37
NOAUX-3684
LT2000 QuickSet Programmer
A slow flashing green light indicates there is a problem with the communications between the TV and the programmer. In this case, check for a damaged cable, poor contacts, or other connection troubles.
If the status indicator is red, the programmer batteries are low and should be replaced. Use 4 good-quality alkaline AA batteries.
Use the Zenith LT2000 QuickSet II “Clone” Programmer to copy the setup from a “master” TV then quickly transfer the setup to duplicate TVs ­must be the same model number as the master TV
The optional QuickSet II Clone Programmer (LT2000) allows custom setup and programming information to be quickly copied from a mas­ter TV into multiple identical television sets. Once learned from the master, setup data is retained in the LT2000 for future use.
When using the LT2000, cloning operations will go easier if the TV set is connected to a good quality signal and operating with a stable picture displayed. To operate the LT2000, use the indicated keys on an HP602, LP702, or MBR3447 remote, or the front panel keys on the TV receiver.
Before you begin:
• The “master TV” should be connected to a good, stable signal from an over-the-air antenna or cable service and turned on.
• Teaching and Learning is only possible between identical model Zenith TVs. (However, the Clone programmer can store 4 different master TV setups.)
WARNING: Copying a blank or incorrect memory into a TV will cause the TV to operate erratically or become inoper­able.
• Use a Zenith MBR Remote like the MBR3447 or the TV front panel controls to operate Learning and Teaching menus.
• Make sure that the batteries in the Clone programmer are fresh.
• If the batteries are removed, the Clone Clock time will be lost.
• Decide if you want to set the time from the Clone programmer or copy the time to the Clone programmer; from a TV which has the clock set to the current time.
• Follow the connection diagrams above to connect the Clone to a master TV and, after learning is complete, to another TV to “teach” it the setup.
• Setting the time and transferring it to the Clone or another TV is a separate procedure.
• Once a TV’s setup is copied to another TV, that TV needs to be disconnected from power for about 5 seconds to activate the newly copied setup.
• See Troubleshooting to solve problems.
A. Set Up a Master TV
Using a Zenith Multi-Brand remote like the MBR3447, set up a “Master” TV with custom settings and features as described in the master TV’s operating guide. The master TV’s Setup is what you will copy to the Clone Programmer and transfer to TVs of the same model so they will operate identically.
B. Connect Clone to Master TV
If there is a good connection, the “Clone has Control of TV” mes­sage will appear. (See menu above.)
Learn Master TV
Typical MPI Connections
Teach Other TV
Typical MPI Connections
Antenna
TV Back
Antenna
TV Back
THE CLONE HAS CONTROL OF THE TV THE CLONE IS VERSION XX
THE TV IS VERSION XX THE SW IS REVISION XX
CLONE CLOCK = XX:XX TV CLOCK = XX:XX
-PRESS ANY KEY TO CONTINUE.
-DISCONNECT CLONE WHEN DONE.
RF Coaxial Wire
(75ohm)
ANTENNA
CABLE
M.P.I.
TV Back Panel
(Expanded View)
PILLOW SPEAKER
®
QuickSet II Programmer
LT2000
TV
SPKR
PILLOW
SPKR
Clone
RF Coaxial Wire
(75ohm)
ANTENNA
CABLE
M.P.I.
TV Back Panel
(Expanded View)
Clone
PILLOW SPEAKER
®
QuickSet II Programmer
LT2000
SPKR
PILLOW
SPKR
TV
PAGE 38
AUX3747
Clone Selection Menu Choices
Typical Edit Channel Labels on-screen menus
Editing Channel Label Number
C. Learn Setup from Master TV
Press 1 to select the “Learn From TV” option, then press ON/OFF, POWER, or ENTER to go to the Memory Bank Selection Menu. Pick the Memory ”Bank” (1, 2, 3, or 4) you want to store this Master TV’s Setup in by pressing either Channel key repeatedly to pick Memory 1, 2, 3, or 4. (If you choose a Memory “Bank” that already has a master TV’s setup already in it, it will be overwritten by this Master TV’s setup.) Once the Clone memory bank is select­ed, press ON/OFF, POWER, or ENTER. The Clone memory bank you have selected will be shown. Press ON/OFF or POWER to begin copying the master TV’s setup.
Ca. Set the Clock (Optional)
Set the time on the Master TV’s Clock. (If the time has already been copied from another TV into the Clone programmer, you can set the Master TV’s clock by copying the time from the Clone pro­grammer.) The Clone Programmer can copy the current time to both a master TV and to the Clone’s internal clock; accurate to within one minute. (Another reason that the Clone programmer should be equipped with fresh, high-quality alkaline batteries is for it to keep the time as accurately as possible.) Since the Clone Programmer’s time cannot be set directly, the time needs to be copied from a Zenith TV equipped with M.P.I. input capability.
Once the time is copied to the Clone programmer, the current time can then be transferred to another TV. (This can be a Master TV, or another TV which has had the features already set up.)
D. Teach Master TV’s Setup to Other TV
Once Learning is complete, remove the M.P.I. cable from the mas­ter TV and connect it to the TV that you want to copy the master TV’s setup to. With the “TV is Controlled by Clone” message dis­played, press 2 or use either Channel key to go to the “Teach to TV” option, press ON/OFF, POWER, or ENTER. Follow on-screen instructions to transfer the Setup and other information to the “Learning” TV. After the “Teach to TV is Complete” message is dis­played, press any key to return to the Clone menus option, then press ON/OFF, POWER, or ENTER. If finished, remove M.P.I. cable from the TV.
E. Disconnect TV Power for 5 Seconds
Remove the TV power cord of the newly “Cloned TV” from the power outlet for about 5 seconds to activate the newly copied setup.
THE CLONE HAS CONTROL OF THE TV
THE CLONE IS VERSION XX THE TV IS VERSION XX THE SW IS REVISION XX
CLONE CLOCK= XX:XX TV CLOCK= XX:XX
-PRESS ANY KEY TO CONTINUE.
-DISCONNECT CLONE WHEN DONE.
EDIT CHANNEL LABELS FOR MEMORY 1
LABEL 1: LAB 1 FOR CHANNEL - - ­*EDITING LABEL NUMBER*
-VOL TO SELECT ITEM TO EDIT
-CH UP/DOWN CHANGE ITEM VALUE
-MUTE TO CLEAR THIS PROG. LABEL
-CC TO CLEAR ALL PROG. LABELS
-PRESS ENTER TO STORE THIS LABEL
-PRESS POWER OR ON/OFF WHEN DONE
CLONE SELECTION MENU
(1) LEARN FROM TV (2) TEACH TO TV (3) SET CLONE CLOCK FROM TV (4) SET TV CLOCK FROM CLONE (5) DISPLAY TV SETUP (6) DISPLAY CLONE SETUP
-TO CHANGE MENU ITEMS, PRESS CHANNEL KEYS OR DIGITS.
-TO EXECUTE ITEM, PRESS ON/OFF, POWER, OR ENTER
CLONE SELECTION MENU
(1) LEARN FROM TV (2) TEACH TO TV (3) SET CLONE CLOCK FROM TV (4) SET TV CLOCK FROM CLONE (5) DISPLAY TV SETUP (6) DISPLAY CLONE SETUP
-TO CHANGE MENU ITEMS, PRESS CHANNEL KEYS OR DIGITS.
-TO EXECUTE ITEM, PRESS ON/OFF, POWER, OR ENTER
SELECT CLONE MEMORY CONTAINING THE LABELS TO BE EDITED.
(1) CHANNEL LABELS FOR MEMORY 1 (2) CHANNEL LABELS FOR MEMORY 2 (3) CHANNEL LABELS FOR MEMORY 3 (4) CHANNEL LABELS FOR MEMORY 4 (5) RETURN TO CLONE MENU
-TO CHANGE MENU ITEMS, PRESS CHANNEL KEYS OR DIGITS.
-TO EXECUTE ITEM, PRESS ON/OFF, POWER, OR ENTER.
SEND SELECTED CHANNEL LABEL MEMORY TO TV
(1) CHANNEL LABELS FOR MEMORY 1 (2) CHANNEL LABELS FOR MEMORY 2 (3) CHANNEL LABELS FOR MEMORY 3 (4) CHANNEL LABELS FOR MEMORY 4 (5) RETURN TO CLONE MENU
-TO CHANGE MENU ITEMS, PRESS CHANNEL KEYS OR DIGITS.
-TO EXECUTE ITEM, PRESS ON/OFF, POWER, OR ENTER.
PAGE 39
206-3747
Clone Selection Menu Choices
Operation Notes
Disconnect the Clone from the TV when you are finished; auto­matically switching it off. The real-time clock continues to run when the main circuits are switched off.
Reset Clone After Static Shock
After replacing exhausted batteries, or if the programmer behaves strangely after a static shock, use a paper clip or similar instrument inserted through the small hole marked ”RESET” to activate the internal reset switch and restore normal operation. After a reset, check the real-time clock setting. It may be neces­sary to reset the Clone Programmer clock from a TV containing the correct time.
The LT2000 programmer is designed to be used with TVs contain­ing the 221-01006 and later processors. Use with earlier TV sets may give unpredictable results. The specific microprocessor used in any TV set may be determined by activating the Installer Menu. The microprocessor part number appears at the top of the screen when the Installer Menu is activated. Processors before the 221-01006-04 have a limited screen display capability. They can not display entire screens as shown in the quick setup instructions accompanying the LT2000 clone programmer. Use the printed menu illustrations on the quick setup sheet supplied with the Clone as an aid to making your programming choices. (Although the menus are not all displayed, the clone functions all operate normally.)
When cloning operations are complete, just unplug the LT2000 from the TV.
If the TV does not display a picture (blank screen) after a few seconds, just change channels.
Troubleshooting
Problem Possible Cause(s) Possible Solution(s)
Clone Programmer
LED does not blink. • M.P.I. cord not connected. -Connect M.P.I. cord.
• TV not turned on. -TV must be on for clone to work.
• Weak batteries. -Install 4 fresh AA high-quality alkaline batteries.
Clone menu hard • Weak signal. -Connect TV to a reliable signal source. to read.
No time set. • No time on Master TV. -Set time on master TV, copy time to Clone Programmer.
Menu items 7-8 not • Not necessary. -Channel Labels already cloned; if they were on Master TV. on clone selection menu.
Master and Other TVs
Cloning did not work. • Procedure interrupted. -Wait until procedure complete message is displayed.
• Different TV models. -Cloning is only possible with identical model TVs.
Clone time disappeared. • Batteries were removed. -Batteries must remain installed to retain time settings.
Channel Labels not • Saved to other memory. -Must save channel labels to same memory bank as present on cloned TV. master TV setup.
New Setup not present. • TV not reset. -Disconnect newly cloned TV from power for 5 seconds.
PAGE 40
206-3491-O
Patient Remote Key Functions
123
456
7
0
8
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
TIMER
CH PREVIEW
FLASHBK (FLASHBACK)
Return to the last channel viewed.
POWER
Turns TV On or Off
.
CHANNEL (UP/DOWN)
Selects available channels.
MUTE
Turns sound Off and On, while the picture remains.
ENTER
Press to view the
Channel/Time/Audio display or to
remove any on-screen
display or menu.
NUMBER KEYPAD
Select channels directly: enter channel num­bers and press ENTER to go to new channel
.
remote control part number
SC637
124-213-05
TIMER
Press and repeat to use Sleep Timer.
VOLUME LEFT/RIGHT
Adjusts the sound levels.
CHANNEL PREVIEW
Displays the available TV channels and gives hospital patient access to the Parental Control menu.
CC (CLOSED CAPTIONING)
Press to access closed captions.
Press ENTER to exit.
A quick list of the keys on the optional patient remote and what they do in TV mode
TV/FM
Selects TV or FM radio.
PAGE 41
206-3584-O
Patient Remote Key Functions-FM Radio
123
456
7
0
8
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
TIMER
CH PREVIEW
FLASHBK (FLASHBACK)
Returns to radio station previously selected.
POWER
Turns TV On or Off
.
CHANNEL (UP/DOWN)
Selects next available channel.
MUTE
Turns sound Off and On.
remote control part number
SC637
124-213-05
VOLUME (UP/DOWN)
Adjusts the sound levels.
A quick list of the keys on the optional patient remote and what they do in FM Radio mode
TIMER
Press and repeat to set the time
the TV will turn itself off.
TV/FM
Selects TV or FM radio mode.
ENTER
Press for MUSIC ID, list of available FM stations. (Press ENTER again or wait a few seconds for Station/Time display.)
PAGE 42
206-3491-O
Parental Control Menu
Mini glossary
MOTION PICTURE ASSOCIATION OF AMERICA (MPAA) RATING SYSTEM
G General Audiences Content not offensive to most viewers. PG Parental Guidance Content is such that parents may not want their children to view the program.
Suggested
PG-13 Parental Guidance Program is inappropriate for preteens, with a greater degree of offensive material
Suggested than a PG rated program. R Restricted viewing Not for children under age 17. Strong elements of sex and/or violence. NC-17 Restricted Viewing Not for children under age 17 under any circumstances. Strong sexual content. X Hard Core Films Same as NC-17 rating.
Note: Zenith Electronics Corporation is not liable for any program content that appears when using this rating system; as always, user discretion is advised.
This optional feature can be used to “block” undesirable programming from appearing on the TV
Overview
To insure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selec­tions below AND choose ratings from the TV Parental Guidelines Rating System on the next page, using the Age Block option for General Audiences, and for Children. In addition to those, you may wish to add additional restrictions from the Content Block menu. See the Parental Control menu, and submenus example on the next page.
Things To Consider Before Setting Up Parental Control
Determine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, all more restrictive rat­ings will be automatically blocked; the viewer will not be able to see: TV-PG, TV-14, or TV-MA rated programming.)
Block program “Content” based on individual parameters such as: Strong Dialog, Mature Language, Sex Scenes, Violence Scenes, or Fantasy Violence Scenes; in the Content Blk option.
How many hours do you want Parental Control to be active? You can set the Hours option for up to 12 hours.
Select a secret password; in the Set Password option. Use the number keys on the remote. Don’t forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off.
Do you want Parental Control to be active all the time? If not, you can turn it on or off; with the Lock On/Off option.
You can set different Parental Control viewing restric­tions for general audiences and for children - - both can be active at the same time
.
Simply specifying one content block such as Sex Scenes, will not automatically block another content in the pro­grams from appearing.
You cannot disable Parental Control by disconnecting the TV from power. Block hours will automatically reset to the origi­nal block time setting specified if power is disconnected.
The AUX input source can also be blocked.
Parental Control offers the user a wide variety of options and settings that restrict or “block” the programming that can appear on the TV. Parental control allows the user the capability of defining which program rating they consider accept­able, to the younger or more sensitive viewer. The AUX input can also be blocked. It can be preset and turned either on or off by the user who specifies a secret 4-number code, the password. The number of hours blocked are specified. General audience and children viewer blocks can both be programmed into the TV’s memory. Viewer ratings are specified for both TV and the motion picture industry; both rating systems can be used. The ratings are based mainly on the ages of children.
PAGE 43
206-3584-0
Parental Control Menu
Mini glossary
TV PARENTAL GUIDELINE RATING SYSTEM
TV-G General Audience Considered suitable for all audiences; children may watch unattended.
TV-PG Parental Guidance Suggested Unsuitable for younger children, may contain: Suggestive Dialog, Mature Language, Sex, and Violence Scenes.
TV-14 Parents Strongly Cautioned Unsuitable for children under 14, may contain: Strong Dialog, Mature Language, Sex, and Violence Scenes.
TV-MA Mature Audience Only Adults only, may contain: Strong Dialog, Mature Language, Sex, and Violence Scenes.
CHILDREN’S CLASSIFICATIONS
TV-Y Children Considered suitable for all children under 7 years old.
TV-Y7 Children 7 and over Considered suitable for children over 7, may contain Fantasy Violence Scenes.
Press CH PREVIEW on the optional remote control.
Press CC to access the PARENTAL CONTROL menu.
Use SELECT to highlight an option like CONTENT BLOCK.
Press ADJ Right arrow to go to the CONTENT BLOCK menu.
Use SELECT to highlight an option like SEX SCENES.
Press ADJ Right arrow to choose: Unblocked, TV-PG AND ABOVE, TV-14 AND ABOVE, or TV-MA. (AND ABOVE means more restrictive headings are automatically included when you choose a low restriction setting like TV-PG.) See the Mini Glossary, Ratings Charts on this and the previous page for rating meanings.
After you have selected and adjusted the parental control menu options to your preferences:
- Set the number of hours Parental Control will be on.
- Set a 4-number password using the NUMBER keypad.
- Set the Lock On/Off option to either on or off.
Note: some broadcasts do not contain rating information.
After you have read the preceding page, follow instructions below to set up and activate Parental Control
TO BLOCK
CONTENT BLOCK
DIALOG LANGUAGE SEX SCENES VIOLENCE F VIOLENCE NO CONTENT
TV-MA
CHANNEL PREVIEW• 5 - - - ­ 9 - - - ­ 20 - - - ­ 32 - - - ­ 44 - - - ­ 66 - - - -
CC FOR PARENTAL CONTROL
CH TO SELECT, ENTER TO QUIT
PRESS TO RETURN
CC
AUX SOURCE MPAA RATING
123
456
708
ENTER
9
POWER
TV/FM
FLSHBK
MUTE
VOLUME
CHANNEL
MENU
ADJ ADJ
SELECT
TIMER
BANK
CH PREVIEW
BED 1
BED 2
CC
-
+
-
+
3/5
4/6
1
1
2
3 4
2
5
6
7
PAGE 44
206-3491-O
Menus & On-Screen Displays
Sleep Timer Menu
Press TIMER. Sets TV shut-off time and shows remaining time before TV shut-off.
Volume Display
Press VOLUME. Shows currently selected sound setting.
Ch Preview Menu
Press CH PREV. Displays list of the available TV Channels, AUX source, and patient Parental Control menu.
Closed Captions Menu
Press CC. Turns selected closed captions/text option on or off.
CHANNEL PREVIEW• 5 - - - ­ 9 - - - ­ 20 - - - ­ 32 - - - ­ 44 - - - ­ AUX - - - ­ FM
CC FOR PARENTAL CONTROL
CH TO SELECT, ENTER TO QUIT
VOLUME•
CAPTION 1 IS ON
CC
Using the optional remote, press the keys indicated below to access these menus and displays
Inactive TV Display
Notify nurse/attendant if you wish to use TV.
INACTIVE TV
PLEASE . . .
CALL ATTENDANT
Ch 25 - PBS
7:15
OLD TIME MOVIES
LENGTH 01:00 TIME LEFT 00:36
PM
Channel/Time/XDS Display
Press ENTER. Shows currently selected channel, current time if the clock has been set, and XDS data, if being broadcast; title of program, length of program, and time remaining.
PAGE 45
206-3491-O
Routine TV cabinet and screen cleaning
Maintenance
1. Here’s a great way to keep the dust off the screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before turning it on.
1. Use a soft cloth with a mild soap solution to wipe the cabinet. (Avoid using any harsh, industrial strength vari­ety of cleaner.)
2. Rinse the cloth and wipe the cabinet again.
3. Let the cabinet air-dry before turning the HealthView
TM
TV on.
Use a quality wood cleaner and polish. This will protect the TV from dirt and dust, as well as keep the cabinet looking new.
If the TV is to be left dormant for a long time, it’s a good idea to unplug the power cord to protect against possi­ble damage from lightning or power surges. If you use an off-air antenna, you may also want to disconnect it from the back of the TV.
Screen Cleaning
Extended Absence
Cabinet Cleaning
Wood Cabinet
Careful and regular cleaning can extend the the useful service life of the TV. Be sure to turn the power off and pull out the power cord before you begin any cleaning.
PAGE 46
206-3491-O
SYMPTOM
Snowy picture and unclear sound.
Multiple images or ‘ghost shadows.’
Interference: Sharp lines across the screen and lousy sound.
Normal picture but no sound.
No picture and unclear sound.
No picture and no sound.
No color, but the sound is O.K.
Picture has a big black box on it, but the sound is O.K.
Remote control doesn’t work.
Menu options can’t be changed or selected.
No XDS Information.
Troubleshooting
Some quick and easy tips to resolving problems
POSSIBLE SOLUTIONS
• Check the antenna connection or location.
• Check the cable input.
• Check to see if the TV/ VCR button on the VCR has the TV selected.
• Check the antenna direction and/or location.
• Check the cable input.
• Make sure the wire from the antenna to the TV is properly connected.
The following may cause image problems or distortion: Electrical appliances, powerful lights, cars, trucks; computers or portable phones; medical equipment.
• If possible increase the distance between the TV and the offending appliance. Or shut one of them off.
• Check volume levels.
• Make sure the TV sound is not Muted.
• Try another channel. The problem may be the broadcast, not the TV.
• Is TV SPKR selected on TV back connections panel?
• Is PILLOW SPKR selected on TV back connections panel but no pillow speaker connected?
• Is the wire for the pillow speaker properly installed?
• Make sure output channels on all A/V equipment are on the same channel (3 or 4).
• Check that all connections are tight.
• Is the AC power cord plugged in?
• Check that the AC power outlet works. (Test it by plugging in another device or try another power outlet.)
• Make sure the brightness and sound controls are set properly.
• Try another channel. The problem may be with the broadcast.
• Is the program’s picture in black and white?
• Check the color control in the Video menu.
• Try another channel. The problem may be with the broadcast.
• The CC (closed caption) option may be in Text mode. Select Caption 1, or OFF in the Captions/Text menu.
• Make sure the batteries are fresh and installed properly.
• Try unplugging the TV power cord for a few minutes, then plugging it back in.
• XDS data m
ay be provided by the broadcasting station. Not all
programs will have this information.
PAGE 47
206-3491-O
Glossary
A list of definitions for some of the words found in this guide
75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. The end looks like a hex-shaped nut with a
wire sticking through the middle. It screws onto the threaded jack on the back of the TV.
300 TO 75 OHM A small device that connects a two-wire
300 ohm antenna to a 75 ohm RF jack.
ADAPTER They are usually about an inch long with two screws on one end and a round opening with a wire sticking out on
the other end.
A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box, or television).
ADD Adds new channels to list that the patient will scroll through when using the patient remote.
AMPLIFIER An electronic device that amplifies sound from a television, CD player, VCR, DVD or other A/V device.
ANTENNA The physical receiver of television signals sent over the air. A large metal piece of equipment does not always have
to be visible for the institution to be using an antenna.
AUTO PROGRAM Auto Program has the HealthView TV automatically find all the channels available.
DELETE Lets you remove channels from the list the patient will scroll through using the patient remote.
INPUT Refers to the jack that receives a signal from a TV, VCR, or other A/V device.
JACK A connection on the back of a TV, VCR, or any other A/V device.
MONO SOUND Mono (monaural) sound is one channel of sound. On more than one speaker, all the speakers play the same audio.
M.P.I. Multiple Protocol Interface: Zenith protocol for external control of TV through RJ11 (M.P.I.) input
jack on TV connections panel. (M.P.I. jack is used for cloning TV’s features.)
OUTPUT Refers to the jack that sends a signal out of a VCR, DVD, or other A/V device.
SIGNAL Picture and sound traveling through a cable, or over the air, to the television screen.
TUNER Device that picks up the audio/video signal and turns it into picture and sound.
XDS Extended Data Service: Additional program information if provided by the broadcaster.
D-HEALTHVIEW 10/00
3828VAOA30B
206-3853
Issue *
Copyright 2003 Zenith Electronics Corporation
For Customer Support/Service Please call:
1-888-865-3026
www.zenith.com
Direct-View Color TV Welcome to the Zenith family! We believe that you will be pleased with your new TV. Please read this warranty carefully, it is a
“LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state within the U.S.A.
ZENITH’S RESPONSIBILITY
Service Labor During a period of one year from effective warranty date, Zenith will provide service labor by a Zenith authorized service center when needed, as
determined by the Zenith service center, as a result of manufacturing defects.
Parts New or remanufactured replacements for factory-defective parts will be supplied by a Zenith authorized service center for one year from effective
warranty date (color picture tube — two years). Such replacement parts are warranted for the remaining portion of the original warranty period.
Warranty Service Warranty service is provided in the institution in most cases. (Some repairs may require the unit to be taken by the servicer to the repair facility and
returned, at no additional charge.) Call 1-888-865-3026 for further information.
Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of customer controls, installation or repair of antenna systems,
cable converters or cable company-supplied equipment; it also does not cover damage due to misuse, abuse, negligence, acts of God or other causes beyond the control of Zenith. Any alteration of the product after manufacture voids this warranty in its entirety.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ZENITH SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN CONNECTION WITH THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
OWNER’S RESPONSIBILITY
Effective Warranty Date Warranty begins on the date of installation of the Commercial Products Direct View Television Receiver.
For your convenience, keep the dealer’s dated bill of sale or delivery ticket as evidence of the purchase date.
Operating Guide Read your Operating Guide carefully so that you will understand the operation of the TV and how to adjust the controls.
Antenna Reception problems caused by inadequate antenna or faulty antenna connections are the owner’s responsibility.
Important Product Registration—Please fill out and mail the Product Registration Card. It is imperative that Zenith know how to reach you promptly if we should
discover a safety problem that could affect you.
Warranty Service For warranty service information, call 1-888-865-3026. Parts and service labor that are Zenith’s responsibility (see above) will be provided without
charge. Other service is at the owner’s expense. If you have any problem in obtaining satisfactory warranty service, call 1-888-865-3026. You must provide the model number, serial number and date of purchase or date of original installation. Before you ask for warranty service, read “Maintenance and Troubleshooting” in the operating guide. You might avoid a service call.
Your Zenith TV Warranty
Loading...
