Zenith DVD5591 OPERATING GUIDE

Download

machine number | DVD5591

ENJOY THE VIEW

operating guide / warranty

PAGE 2 INTRODUCTION

Safety Precautions

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION:

POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOUD.

CAUTION: This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

FCC NOTICE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connect

ed.

- Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING:

Changes or modifications not expressly approved by Zenith Electronics Corporation could void the user’s authority to operate the equipment.

INDUSTRY CANADA REQUIREMENT:

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numéruque de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Zenith is a trademark of ZEC © Copyright Zenith Electronics Corporation 2001

RECORD YOUR MODEL NUMBER (Now, while you can see it) The model and serial number of your new DVD

player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here:

MODEL NO.____________________________________ SERIAL NO.____________________________________

WARNING

WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

INTRODUCTION PAGE 3

Table of Contents

Introduction

❏ Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . 2

❏ Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . 3

❏ IMPORTANT SAFETY INSTRUCTIONS . . . . . . 4-5

❏ Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

❏ Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 7

❏ Identification of Controls . . . . . . . . . . . . . . . . . 8-11

Front Panel/Display Window . . . . . . . . . . . . . . . . . . . . 8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Controlling the VCRs, CATVs (DBS) and TVs . . . . . . 11

Remote Control Setup. . . . . . . . . . . . . . . . . . . . . . . . 12

Remote Control Operation. . . . . . . . . . . . . . . . . . . . . 12

Connection

❏ Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . 13

❏ Connecting to a TV equipped with component

video inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

❏ Connecting to an Audio System . . . . . . . . . . . . . 15

❏ Connecting to Optional Audio System . . . . . . 16-18

Enjoying Dolby Digital Sound. . . . . . . . . . . . . . . . . . . 16

Enjoying Dolby Digital (5.1CH) Sound . . . . . . . . . . . . 17

Enjoying Dolby Pro Logic Surround Sound . . . . . . . . 18

Enjoying 2 Channel Digital Stereo Sound. . . . . . . . . . 19

Enjoying DTS Sound. . . . . . . . . . . . . . . . . . . . . . . . . 19

Basic Operations

❏ Basic Playback . . . . . . . . . . . . . . . . . . . . . . . 20-23

Stopping Play

. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Resume Play

. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Last Scene Memory

. . . . . . . . . . . . . . . . . . . . . 22

Screen Saver

. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Exchanging Discs during Playback

. . . . . . . . . . 23

Skipping Discs

. . . . . . . . . . . . . . . . . . . . . . . . . 23

Exchanging the Disc and Starting Playback

. . . . 23

❏ Special Playback. . . . . . . . . . . . . . . . . . . . . . 24-25

Still Picture

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Frame Advance

. . . . . . . . . . . . . . . . . . . . . . . . 24

Skipping Chapters and Tracks Forward or Back

. 24

HDCD Playback

. . . . . . . . . . . . . . . . . . . . . . . . 24

To Scan at Fast Forward or Fast Reverse Playback

. 25

❏

Various Speed Playback with Shuttle Ring

. . . . . . 26

Operation Using GUI Menu Icons

❏ General Information about GUI Menu Icons . . . . 27

❏ Detailed Description of each GUI Menu Icon . . . 28

Advanced Operation

❏ Using a Title Menu. . . . . . . . . . . . . . . . . . . . . . . 29

❏ Using a DVD Menu . . . . . . . . . . . . . . . . . . . . . . 29

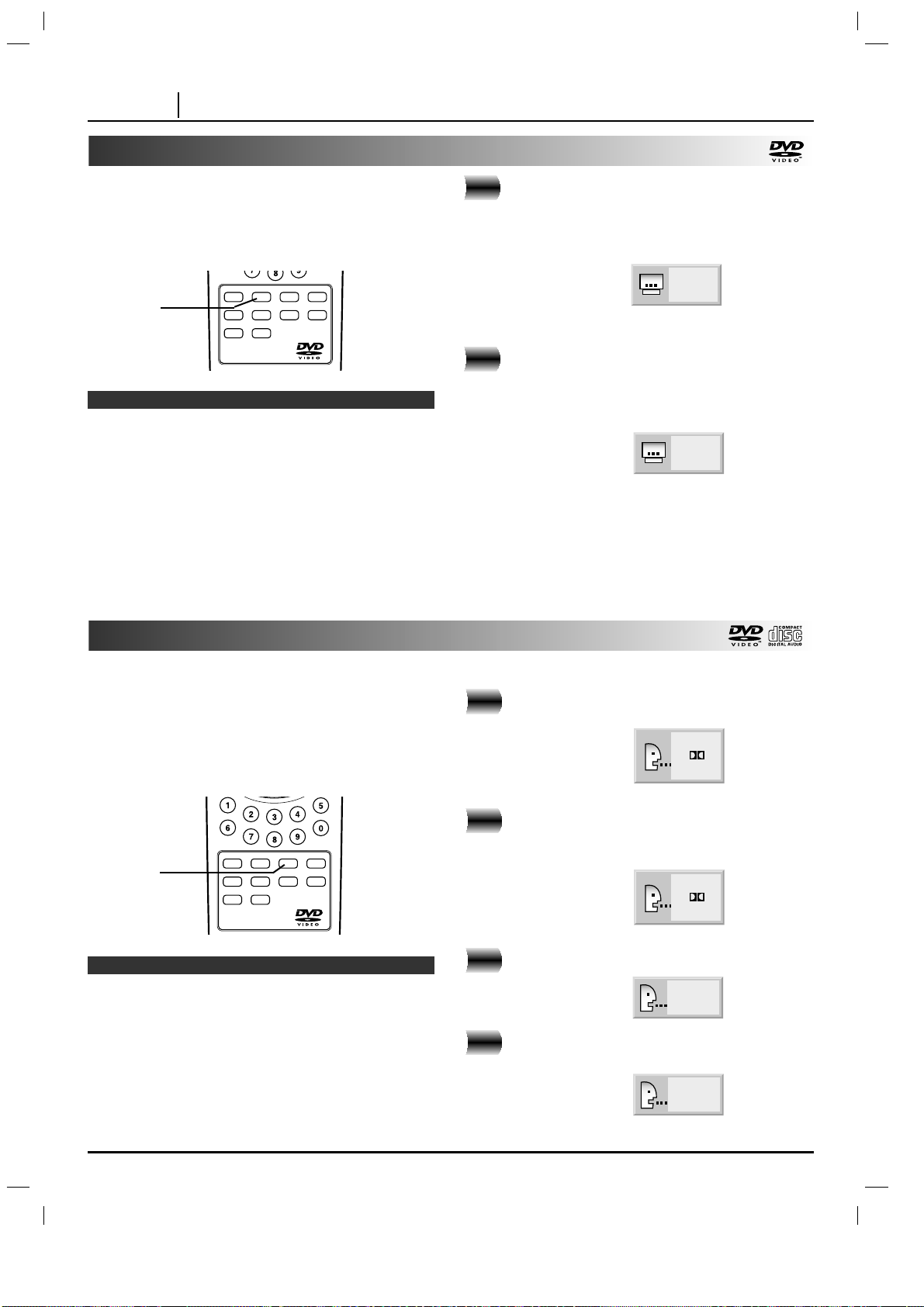

❏ Changing Subtitle Language . . . . . . . . . . . . . . . 30

❏ Changing Audio Soundtrack Language. . . . . . . . 30

❏ Viewing from another Angle . . . . . . . . . . . . . . . . 31

❏ Producing a 3D Surround Effect. . . . . . . . . . . . . 31

❏ Repeat Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

❏ Storing Markers in Memory to be Viewed

(Listened to) again. . . . . . . . . . . . . . . . . . . . . . . 33

❏ Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . 34

❏ Random Play. . . . . . . . . . . . . . . . . . . . . . . . . . . 34

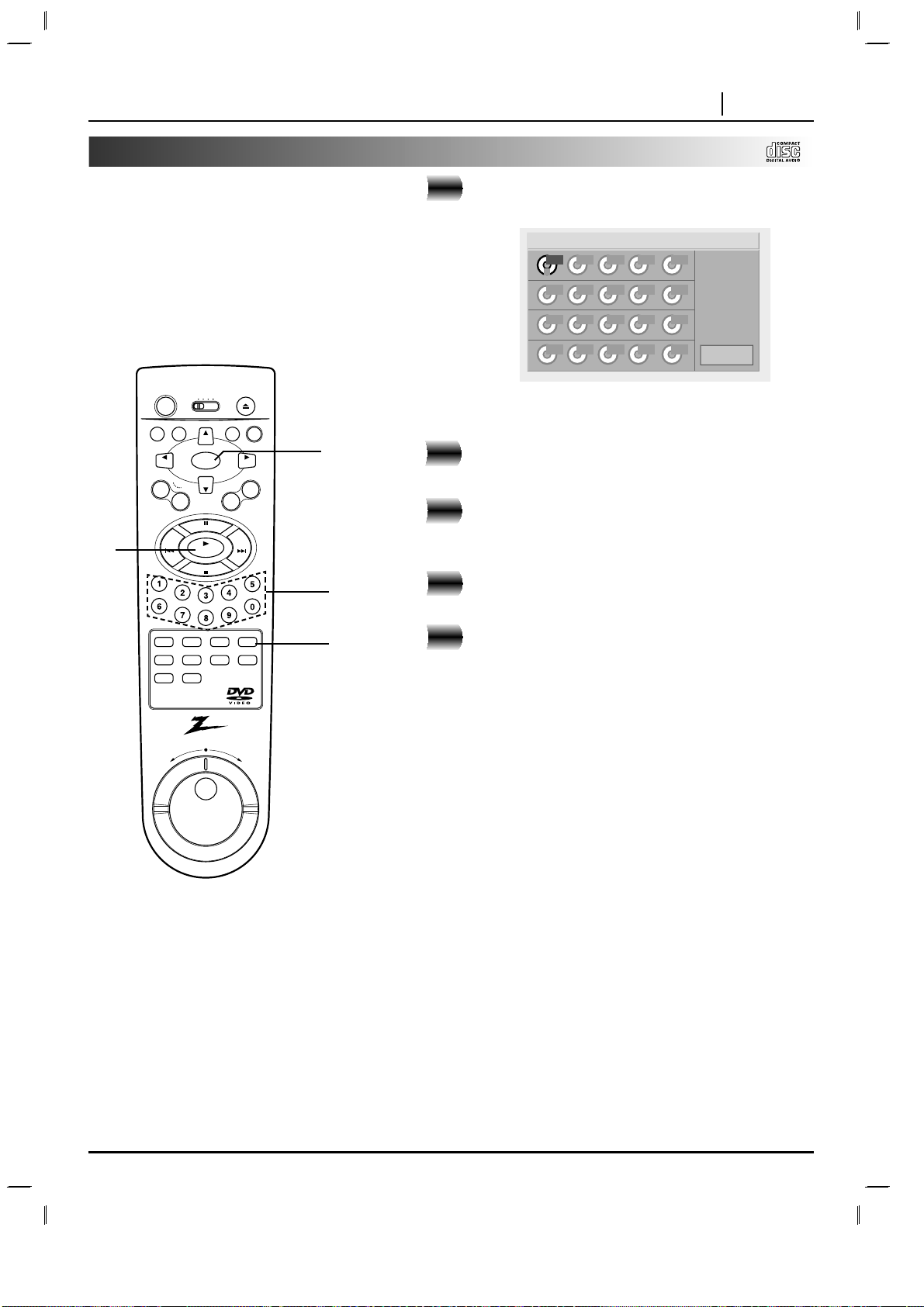

❏ Program Play. . . . . . . . . . . . . . . . . . . . . . . . . . . 35

❏

Playback with MP3

. . . . . . . . . . . . . . . . . . . . 36-37

Initial Settings

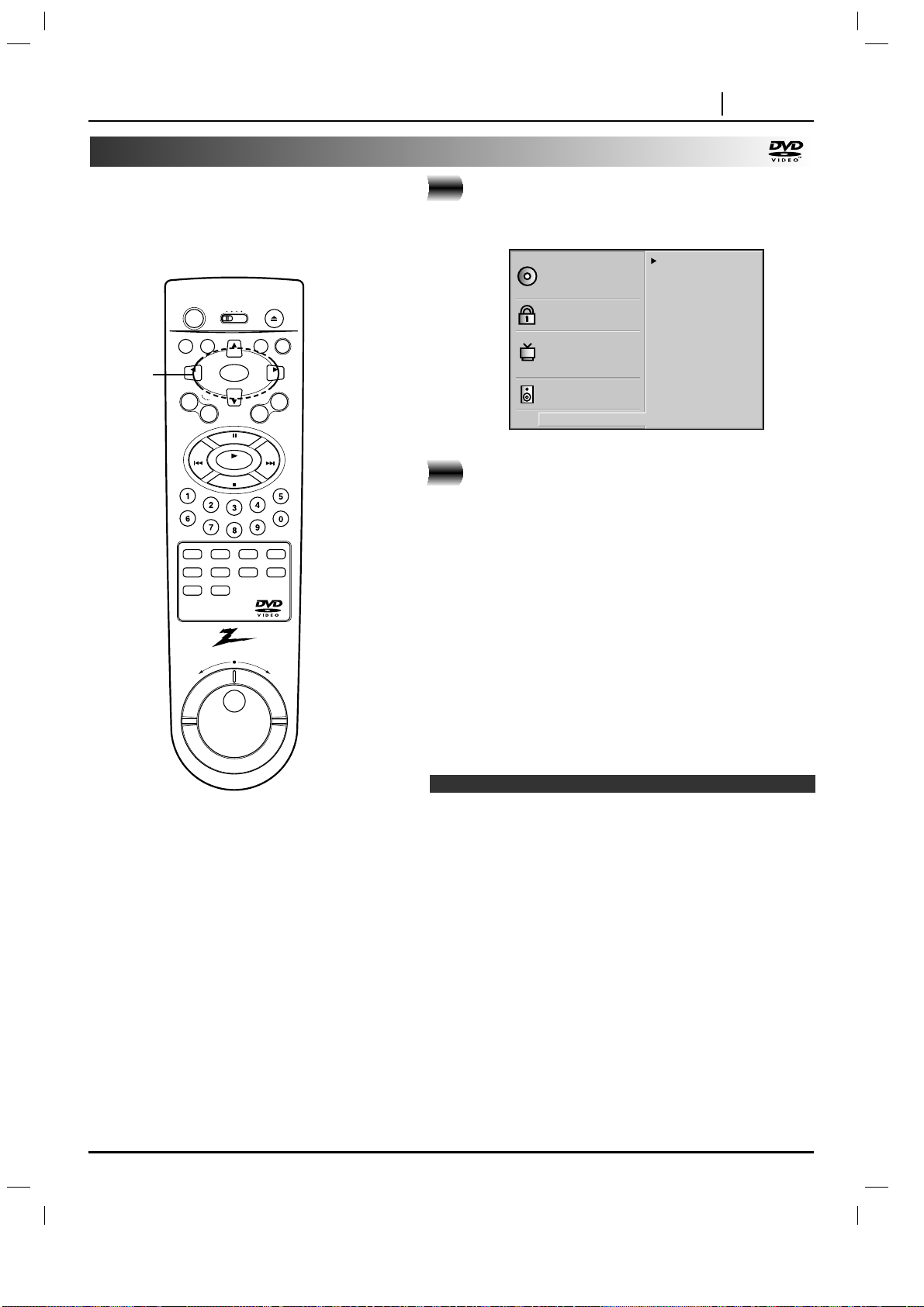

❏ Selection of Initial Settings . . . . . . . . . . . . . . . . . 38

❏ Selecting Disc Languages . . . . . . . . . . . . . . . . . 39

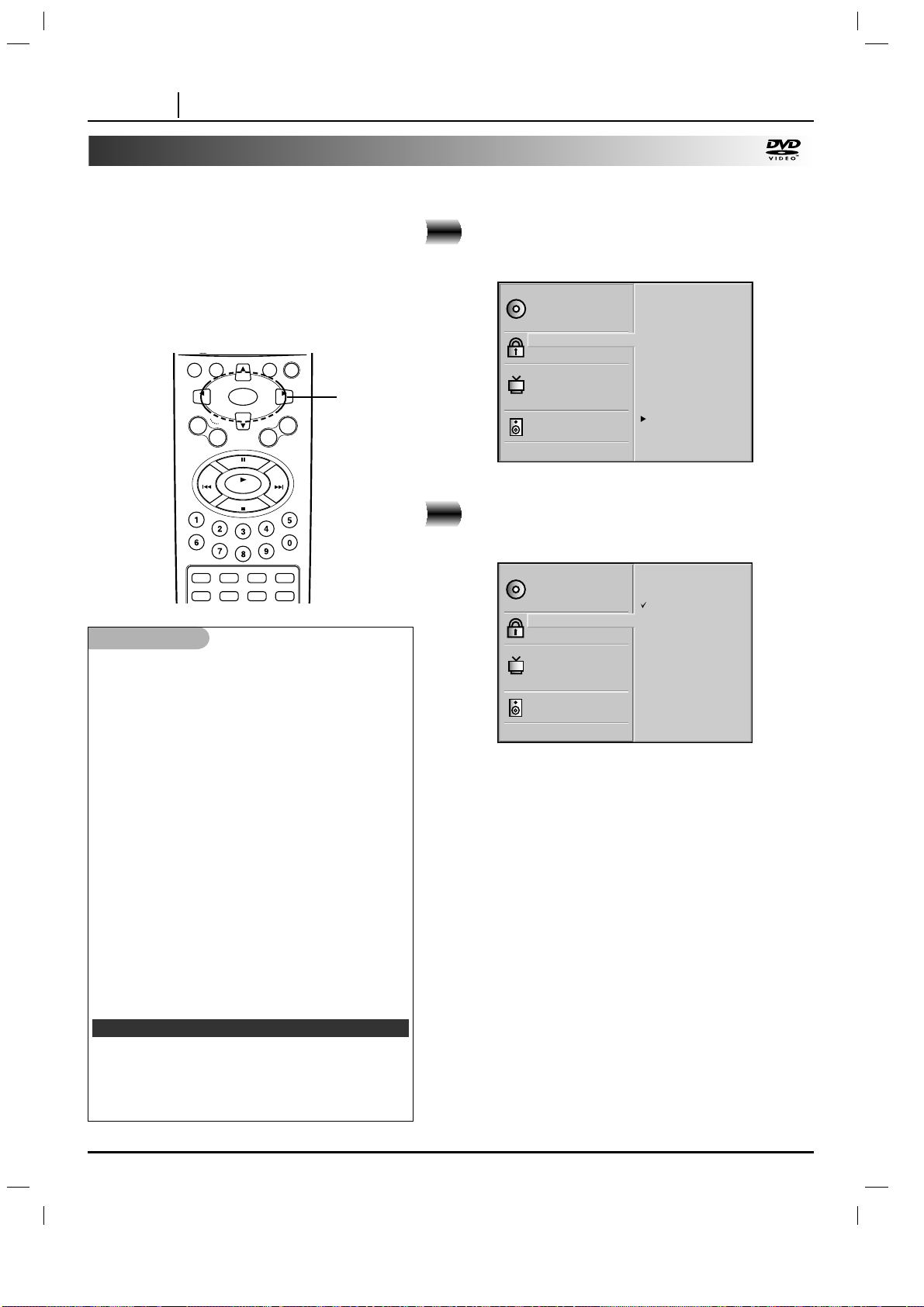

❏ Selecting Parental Control Rating Level and

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-41

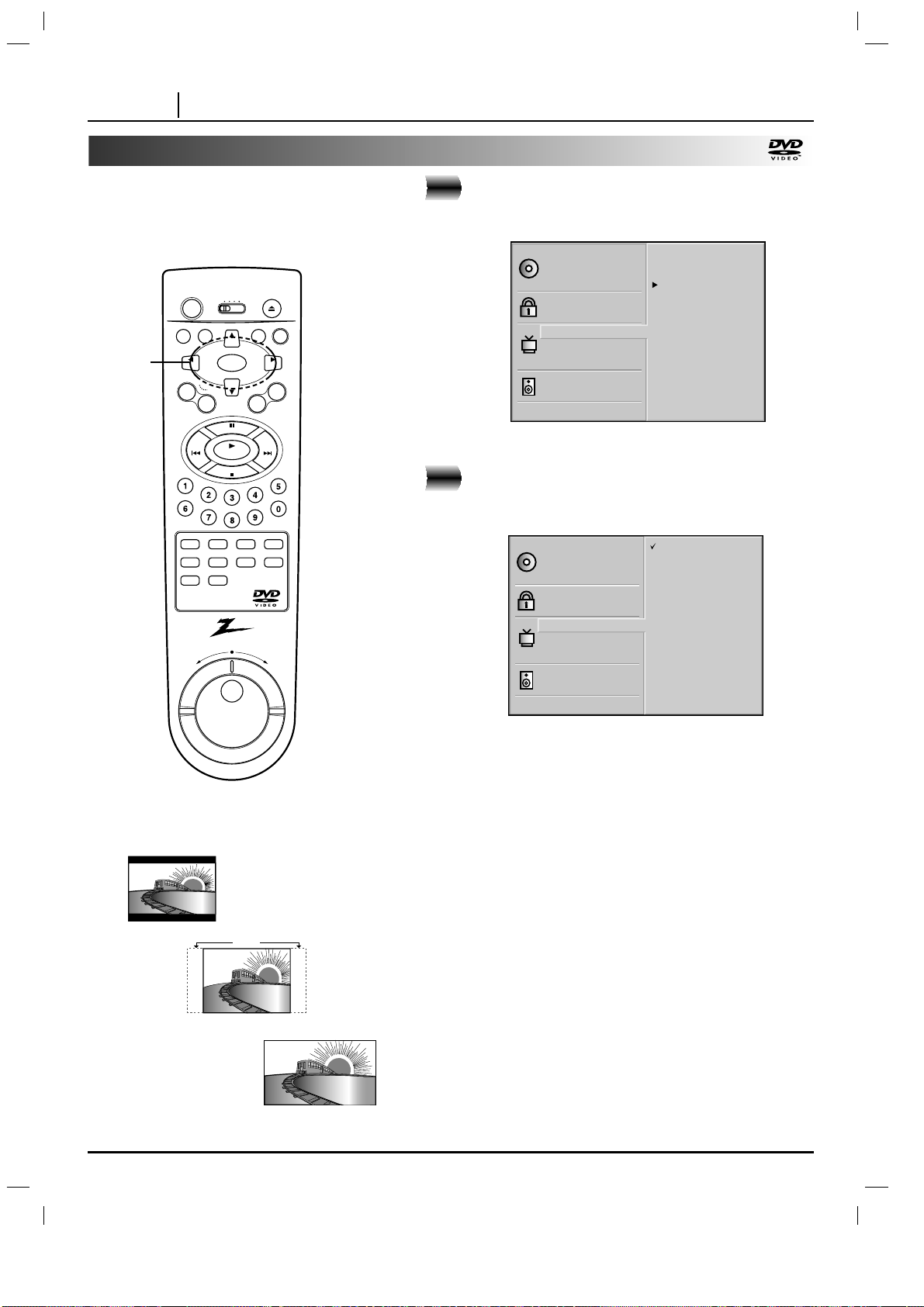

❏ Selecting TV Aspect . . . . . . . . . . . . . . . . . . . . . . 42

❏ Selecting Menu Language . . . . . . . . . . . . . . . . . 43

❏ Selecting Progressive Scan . . . . . . . . . . . . . . . . 44

❏ Selecting Digital Audio Output . . . . . . . . . . . . . . 45

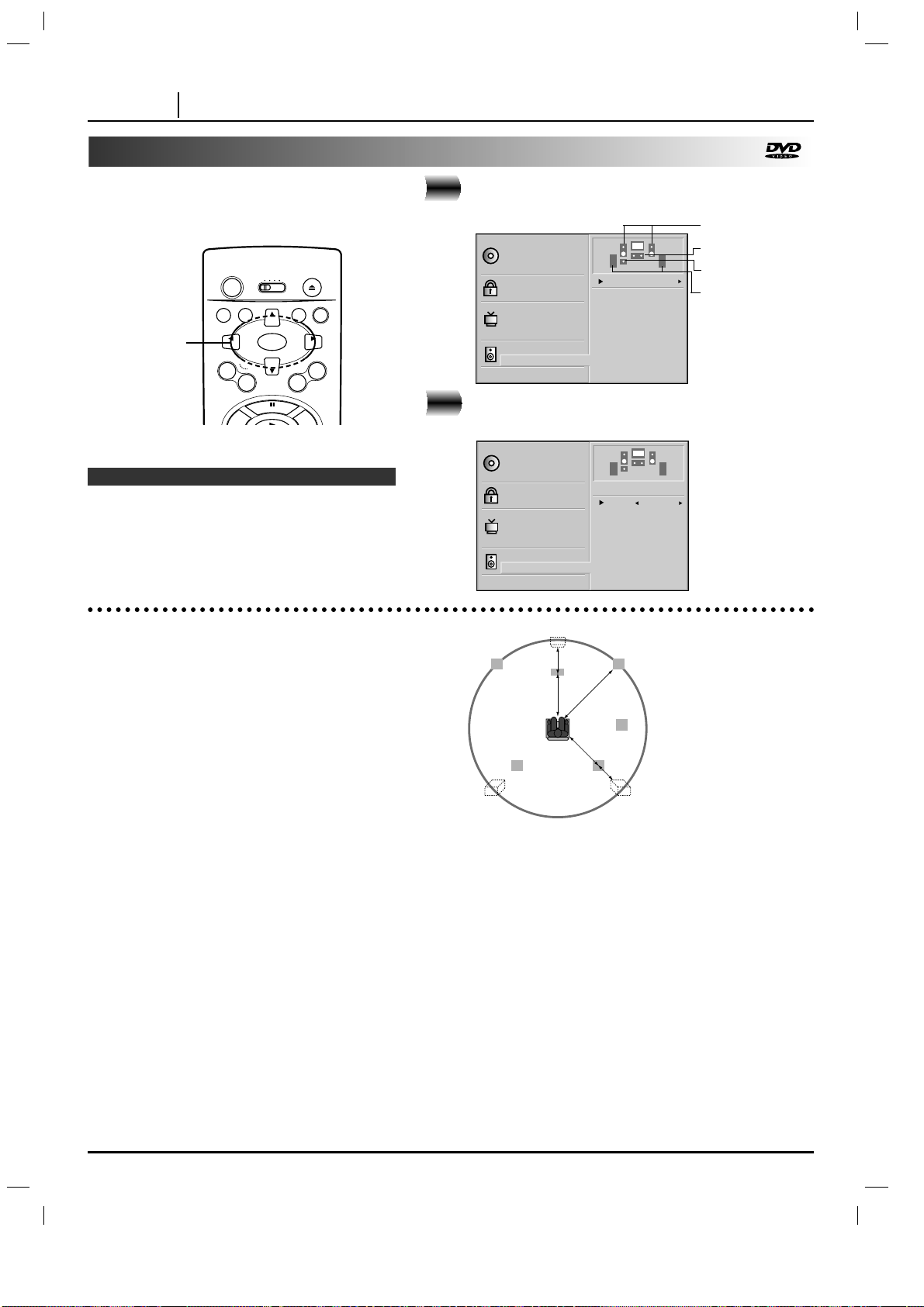

❏ Setting the Speaker Setup . . . . . . . . . . . . . . . . . 46

❏ Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

❏ Table of Languages and Their Abbreviations . . . 48

Reference

❏ Disc Requirements/Copyright Information. . . . . . 49

❏ Before Calling Service Personnel . . . . . . . . . . . . 50

❏ Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 51

❏ Recommended Accessories. . . . . . . . . . . . . . . . 52

❏ Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53-55

❏ Warranty . . . . . . . . . . . . . . . . . . . . . . . Back Cover

PAGE 4 INTRODUCTION

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL

AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read owner’s manual

After unpacking this product, read the owner’s manual carefully, and follow all the operating and other instructions.

2. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

3. Grounding or Polarization

This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

4. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

6. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink. or laundry tub; in a wet basement; or near a swimming pool and the like.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

8. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, playing particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

9. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

10.Lightning

For added protection of this product during storms, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

11.Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12.Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

IMPORTANT SAFETY INSTRUCTIONS

INTRODUCTION PAGE 5

13.Accessories, Carts, and Stands

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

14.Disc Tray

Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.

15.Burden

Do not place a heavy object on or step on the product. The object may fall, causing serious personal injury and serious damage to the product.

16.Connecting

When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner’s manual of the other equipment carefully and follow the instructions when making any connections.

17.Sound Volume

Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume sound may cause hearing or speaker damage.

18.Sound Distortion

Do not allow the product to output distorted sound for a longtime. It may cause speaker overheating and fire.

19.Headphones

When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

20.Laser Beam

Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the laser beam. It may cause sight damage.

21.Disc

Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

22.Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is

damaged.

b) If liquid has been spilled, or objects have fallen

into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation. e) If the product has been dropped or damaged in

any way. f) When the product exhibits a distinct change in

performance-this indicates a need for service.

23.Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

24.Replacement parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

25.Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

IMPORTANT SAFETY INSTRUCTIONS (Cont’d)

PAGE 6 INTRODUCTION

Precautions

❏

When shipping the DVD player, always use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory.

❏

Do not use volatile liquids, such as insect spray, near the DVD player. Do not leave rubber or plastic products in contact with the DVD player for a long time. They will leave marks on the finish.

❏

The top and rear panels of the DVD player may become warm after a long period of use. This is normal and not a malfunction.

❏

When the DVD player is not in use, be sure to remove the disc and turn off the power.

❏

If you do not use the DVD player for a long period, the unit may not function properly in the future. Turn on and use the DVD player occasionally.

❏

When you place this DVD player near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, move the DVD player away from the TV, radio, or VCR.

Use a soft, dry cloth for cleaning.

❏

For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD player.

❏

If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

Warning: Cleaning and adjustment of lenses and/or other components of playback mechanism should be performed by a qualified service technician.

The DVD player is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

Moisture condensation damages the DVD player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD player.

Moisture condensation occurs during the following cases.

❏

When you bring the DVD player directly from a cold place to a warm place.

❏

When you use the DVD player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.

❏

In summer, when you use the DVD player in a hot and humid place just after you move the unit from an air conditioned room.

❏

When you use the DVD player in a humid place.

❏

Do not use the DVD player when moisture condensation may occur.

If you use the DVD player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD player to the wall outlet, turn on the DVD player and leave it “ON” for two or three hours. After two or three hours, the DVD player will have warmed up and evaporated any moisture. Keep the DVD player connected to the wall outlet and moisture condensation will seldom occur.

Notes on handling

Notes on Locating

Notes on Cleaning

To Obtain a Clear Picture

Notes on Moisture Condensation

Optical

pick-up lens

It’s too

warm!

Wait!

INTRODUCTION PAGE 7

Notes on Discs

This section shows you how to handle, clean, and store discs.

On Handling Discs

❍

Do not touch the playback side of the disc.

❍

Do not attach paper or tape to discs.

On Storing Discs

❍

Do not store discs in a place subject to direct sunlight or near heat sources.

❍

Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

❍

Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

On Cleaning Discs

❍

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outward with a soft cloth. Always keep the disc clean.

❍

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

❍

Do not use any type of solvents such as thinner, benzine, commercially available cleaners or anti-static spray for vinyl LPs. They may damage the disc.

About This Owner’s Manual

❍

This owner’s manual explains the basic instructions of this DVD player.

❍

Some DVD video discs have functions that may not be explained in this owner’s manual. Therefore, some instructions may differ from this owner’s manual, and there may be extra instructions. In this case, follow the instructions displayed on the TV screen or package.

❍

“ ” may appear on the TV screen during operation. This icon means the function explained in this owner’s manual is not available on that specific DVD video disc.

PAGE 8 INTRODUCTION

Identification of Controls

Front Panel

Display Window

TITLE

PROG.

RANDOM ALL

CHP/TRK

MP3 HD CD DVD

DVD indicator

CD indicator

HDCD indicator

RANDOM indicator

PROGRAM indicator

Repeat playback mode indicators

Operating

status

indicator

Chapter/Track number indicator

Title number indicator

Angle icon indicator

Disc 1-5 indicator

Total playing time/elapsed time indicators

MP3 indicator

open close

disc select

skip

stop

pause

step

disc skip

disc exchange

power

scan

play

OPEN/CLOSE button

POWER indicator

DISC EXCHANGE button

PLAY button

SKIP/SCAN buttons

Disc tray

POWER

button

STOP button

PAUSE/STEP button

DISC SELECT (1 – 5) buttons

Display window

DISC SKIP button

Remote sensor

INTRODUCTION PAGE 9

Identification of Controls (Cont’d)

Rear Panel

S-VIDEO OUT jack

VIDEO OUTPUT SELECT switch

AUDIO OUT (L/R) jacks

5.1CH AUDIO OUT jacks

VIDEO OUT jack

COMPONENT VIDEO OUT/ PROGRESSIVE SCAN jacks

POWER CORD

Connect to an AC 120V, 60Hz outlet only.

COAXIAL DIGITAL AUDIO OUT jack

OPTICAL DIGITALAUDIO OUT jack

Remove the dust protection cap from the connector and connect the optical digital cable (not supplied) securely so that the configurations of both the cable and the connector match. Keep the dust protection cap and always reattach the cap when not using the connector to protect against dust intrusion.

Dust protection cap

Identification of Controls (Cont’d)

Remote Control

You will find instructions for each of the remote control functions in the appropriate sections of this instruction manual.

PAGE 10 INTRODUCTION

POWER button

*TITLE button

DISPLAY button

SELECT/ENTER button

***ARROW (Volume/Channel)

buttons

MARKER button

SEARCH button

SKIP (

❈

SEARCH) button

NUMBER buttons

SETUP button

SUBTITLE button

REPEAT button

CLEAR button

A-B button

DVD/VCR/CATV/TV Selector Switch

OPEN/CLOSE button

RETURN (TV INPUT) button

**MENU button

SOUND (MUTE) button

ZOOM button

PAUSE/STEP button

SKIP (

❈

SEARCH) button

PLAY button

STOP button

PROGRAM button

ANGLE button

AUDIO button

RANDOM button

DISC SKIP button

SLOW/SCAN Shuttle Ring

***Directional arrow buttons

(up, down, left, right) for use in highlighting a selection on a GUI menu screen, TITLE and MENU screen.

❈

Press and hold button for about two seconds for search function.

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

*TITLE button

Use the TITLE button to display the title screen included on DVD video discs. To operate a menu screen, follow the instructions in “Using a Title Menu” (page 29).

**MENU button

Use the MENU button to display the menu screen included on DVD video discs. To operate a menu screen, follow the instructions in “Using a DVD Menu” (page 29).

INTRODUCTION PAGE 11

Controlling the VCRs, CATVs (DBS) and TVs

Set the DVD/VCR/CATV/TV selector to VCR, CATV or TV.

While holding PROGRAM button, press the number buttons to set the code number referring to the table below.

Some manufactures have more than one code number. If the remote control does not operate with the VCR, CATV or TV after setting the code number, try another number.

To control the VCR

POWER, Number (0~9), SELECT (ENTER), PLAY, SKIP (F FWD), SKIP (REW), STOP, OPEN/CLOSE (EJECT) and PAUSE/STEP buttons on the remote control are activated.

To control the CATV (DBS)

POWER, Number (0~9), SELECT (ENTER), RETURN (Input select) and CH

E/D buttons on the remote control are activated.

To control the TV

POWER, Number (0~9), SELECT (ENTER), RETURN (Input select), CH (Channel)

E/D and VOL (Volume) E/D buttons on

the remote control are activated.

Your remote control operates the common features of most, but not all, models and brands of IR (infrared) controlled VCRs, cable converters (DBS) and TVs.

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

dvd

vcrcatv

vol vol

select /

enter

skip

❍ Due to the variety of codes used by manufactures, our company cannot guarantee that the MBR remote control will operate with

every model of the brands listed.

Note

TV Codes by Brand

Brand Name Codes

ADMIRAL 110, 113, 144, 151, 152 AKAI 115 AMARK 131 AOC 115 BELL & HOWELL 113 BROKSONIC 140, 143 CANDLE 158 CENTURION 130 CITIZEN 156, 157, 158, 159, 160, 161, 162 CORONADO 131 CROWN 131 CURTIS MATHES 113, 115, 118, 130, 144, 151 DAEWOO 145, 146, 147, 148, 149, 150 DAYTRON 115, 130 EMERSON 110, 111, 115, 131, 140, 143 FISHER 116, 125 FUNAI 153, 154 GENERAL ELECTRIC 102, 118, 127, 128, 133, 144, 151 HITACHI 119, 131, 132 JC PENNEY 102, 115, 124, 130, 133 JVC 109, 141 KMC 131 KTV 115, 130, 131, 138 LG (GOLDSTAR) 115, 122, 130, 131, 133, 146 LODGENET 113 LOGIK 113 LXI 104, 116, 123, 124, 125, 131, 139 MAGNAVOX 100, 106, 107, 109, 114, 115, 121

122, 130, 131, 133, 158 MAJESTIC 113 MARANTZ 103, 115 MEMOREX 113 MGA/MITSUBISHI 103, 114, 115, 130 MONTGOMERY WARD 103, 113, 114, 115, 121, 129,

130, 131, 139 NEC 115, 130 PANASONIC 104, 122, 127, 128, 133, 163 PHILCO 115, 121, 122, 130, 131, 150 PHILIPS 121, 122 PIONEER 134 PORTLAND 131

TV Codes by Brand

Brand Name Codes

PROSCAN 118, 144, 151 QUASAR 127, 128 RADIO SHACK 110, 111, 129 RCA 115, 118, 144, 151 REALISTIC 110, 111, 129 SAMPO 130 SAMSUNG 104, 115, 130, 131 SANYO 116, 125 SCOTT 115, 130 SEARS 104, 116, 123, 124, 125, 131 SHARP 112, 129, 131, 139 SIGNATURE 2000 102, 113, 114, 115, 121, 129,

130, 131, 139 SONY 105 SOUNDESIGN 158 SYLVANIA 106, 107, 115, 121, 122, 130,

133, 158 SYMPHONIC 153, 154 TATUNG 128 TEKNIKA 110, 113, 122, 131, 158 TELERENT 113, 131 YORX 130 TOSHIBA 104, 123, 124 WARDS 102, 113, 114, 115, 121, 130, 131 XR1000 155 ZENITH 100, 101

Cable Converter Codes by Brand

Brand Name Codes

ALLEGRO 351 ARCHER 336 CABLEVIEW 336 CITIZEN 336 CURTIS MATHES 317 EAGLE 306, 307, 310 GEMINI 302, 327, 328, 333 GENERAL ELECTRIC 353 GENERAL INSTRUMENT

324, 326, 327, 328 GOBRAND 336 HAMLIN 314, 330, 331 JERROLD 323, 324, 325, 326, 327, 329

Cable Converter Codes by Brand

Brand Name Codes

KALE VISION 334 MACOM 311, 312, 342 MAGNAVOX 306, 307, 310, 334, 337, 338 NSC 332 OAK 301, 321, 322 PANASONIC 313, 318, 320 PARAGON 300 PHILIPS 306, 307, 308, 309, 310 PIONEER 318, 319 PLUSER 336 RCA 318 REGAL 310 REGENCY 304 SAMSUNG 318, 327, 334 SCIENTIFIC ATLANTA 317, 335, 347, 354 SLMARX 318, 327 SPRUCER 318, 320, 327 STANDARD COMPONENTS 334 STARGATE 318, 327, 328 TELEVIEW 318, 327, 336 TEXSCAN 303 TOCOM 315, 316 UNIDEN 348 UNIKA 336 UNIVERSAL 351, 352 VID TECH 339 VIDEO WAY 300, 349 VIEWSTAR 306, 307, 310 ZENITH 300, 305, 311 ZENITH HT-2000 300

DBS Codes by Brand

Brand Name Codes

RCA 355 SONY 356

VCR Codes by Brand

Brand Name Codes

ZENITH 200 LG 201

PAGE 12 INTRODUCTION

Identification of Controls (Cont’d)

Install the batteries into the remote control so you can use it to operate the DVD player.

Open the battery cover.

Insert batteries (AAA size).

● Make sure to match the + and - on the batteries to the marks inside the battery compartment.

Close the cover.

❍

Improper use of batteries may cause battery leakage and corrosion.

❍

To operate the remote control correctly, follow the instructions.

❍

Do not insert the batteries into the remote control in the wrong direction.

❍

Do not charge, heat, open, or short-circuit the batteries. Do not throw the batteries into fire.

❍

Do not leave dead or exhausted batteries in the remote control.

❍

Do not use different types of batteries together, or mix old and new batteries.

❍

If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

❍

If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

❍

If battery leakage occurs, wipe the battery liquid from the battery compartment, then install new batteries.

❍

The batteries should last about one year with normal use.

This section shows you how to use the remote control.

Point the remote control at the remote sensor and press the buttons.

Distance: About 23 ft (7 m) from the front of the remote

sensor

Angle: About 30°in each direction of the front of the

remote sensor

* Do not expose the remote sensor of the DVD

player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD player with the remote control.

❍

Point the remote control at the remote sensor on the DVD player.

❍

Do not drop or give the remote control a shock.

❍

Do not leave the remote control near an extremely hot or humid place.

❍

Do not spill water or put anything wet on the remote control.

❍

Do not disassemble the remote control.

Remote Control Setup Remote Control Operation

open close

disc select

skip

stop

pause

step

disc skip

disc exchange

power

scan

play

30° 30°

Within about 23 ft (about 7 m)

Notes on batteries

Notes on the remote control

power

display

open / close

play

title

return

tv input

dvd

vcrcatv

vol vol

select /

enter

skip

CONNECTIONS PAGE 13

Connecting to a TV

Connect the DVD player to your TV.

S-video cable (supplied)

To S-VIDEO OUT

To AUDIO OUT (L/R)/ VIDEO OUT

Audio/Video cable (supplied)

To video input

To audio inputs

To S-video input

TV or monitor with audio/video inputs

VIDEO OUTPUT SELECT switch

❍

Refer to the owner’s manual of your TV for TV operating instructions.

❍

Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

❍

Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs are copy protected.

Warning

Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output” on page 45).

Notes

If the TV has an S-video input, connect the DVD player with the S-video cable.

When using S-VIDEO OUT jack, set the VIDEO OUTPUT SELECT switch to S-VIDEO.

Connecting to a TV equipped with component video inputs

PROGRESSIVE SCAN: Some TVs or monitors are equipped with component video inputs that are capable of

reproducing a progressively scanned video signal. Connecting to these inputs allows you to view the highest quality pictures with less flicker.

COMPONENT VIDEO OUT: Some TVs or monitors are equipped with component video inputs. Connecting to these

inputs allows you to enjoy higher quality picture playback.

■

To switch the output signal (Progressive/Component)

Set the Progressive to “On” on the SETUP menu for Progressive signal, or set the Progressive to “Off” on the SETUP menu for Component video signal.

To component video input or progressive scan video input

To COMPONENT VIDEO OUT/ PROGRESSIVE SCAN (Pb, Pr, Y)

To AUDIO OUT (L/R)

Audio/Video cable (supplied)

To audio inputs

Video cable (Y, Pb, Pr) (not supplied)

TV or monitor with component

video or progressive scan inputs

VIDEO OUTPUT SELECT switch

❍

Refer to the owner’s manual of your TV for TV operating instructions.

❍

Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

❍

Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, -Y, B-Y or Y, Cb, Cr)

❍

In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

Notes

When using COMPONENT VIDEO OUT/PROGRESSIVE SCAN jack, set the VIDEO OUTPUT SELECT switch to COMPONENT/PROGRESSIVE SCAN.

PAGE 14 CONNECTIONS

CONNECTIONS PAGE 15

Connecting to an Audio System

You can listen to the sound of audio CDs and DVD video discs in stereo.

To audio inputs

Audio system

To VIDEO OUT To AUDIO OUT (L/R)

S-video cable (supplied)

To S-VIDEO OUT

To video input

To S-video input

TV or monitor with audio/video inputs

Audio cable (supplied)

Video cable (supplied)

❍

Refer to the owner’s manual of your audio system for operating instructions.

❍

Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

❍

If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the tuner and radio.

❍

The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

❍

Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

Warning

Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUTjack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output” on page 45).

Notes

If the TV has an S-video input, connect the DVD player with the S-video cable.

Connecting to Optional Audio System

You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic, and 2 Channel Digital Stereo.

Enjoying Dolby Digital Sound

To DIGITAL OUT

(COAXIAL or OPTICAL)

75 ohm coaxial cable

or Optical cable

To S-VIDEO OUT or VIDEO OUT

Connection example

Front speaker (left)

Rear speaker (left surround)

Rear speaker (right surround)

Front speaker (right)

Sub woofer

To S-video Input or Video Input

Center speaker

To digital audio input

Receiver equipped with a Dolby Digital decoder

or Video cable

S-Video cable

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD player to a 6 channel receiver equipped with a Dolby Digital decoder or Dolby Digital processor.

❍

Refer to the owner’s manual of your audio system for operating instructions.

❍

Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

❍

Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

Notes

To enjoy Dolby Digital sound from this DVD player you need the following:

●

DVD recorded in Dolby Digital

●

6 channel receiver equipped with a Dolby Digital decoder, or Dolby Digital processor and power receiver

●

5 speakers and 1 sub woofer

To enjoy Dolby Digital sound

You need to select “Dolby Digital”

on the SETUP menu.

* Manufactured under license from Dolby Laboratories.

PAGE 16 CONNECTIONS

INSTALLATION PAGE 17

Connecting to Optional Audio System

Enjoying Dolby Digital (5.1 CH) Sound

To S-Video Out or Video Out

S-Video cable or Video cable

AV Receiver

with 5.1CH input

Connection example

Front speaker (left)

Rear speaker (left surround)

Rear speaker (right surround)

Front speaker (right)

Sub woofer

To S-video Input or Video Input

Center speaker

Front LWoofer CenterFront RRear R Rear L

To 5.1CH input

Dolby Digital Surround (5.1 CH)

Dolby Digital is a six-channel digital surround sound technology developed by Dolby Laboratories for theater-like surround

sound reproduction. DVDs supporting Dolby Digital technology feature the logo. You can enjoy

realistic, theater-like surround sound from DVD movie or music disc featuring this logo. Two front, one center and two rear

speakers plus a subwoofer make up the “5.1-channel” audio system that Dolby Digital uses.

Hookups

Connect a receiver with 5.1 channel inputs to the player and to the speakers. See the figure below.

Connecting to Optional Audio System (Cont’d)

Enjoying Dolby Pro Logic Surround Sound

To AUDIO OUTTo VIDEO OUT

Video cable

Connection example

Receiver equipped with Dolby Pro Logic Surround

Front

speaker

(left)

Front speaker (right)

To video input

Rear speaker

(left)

Rear speaker (right)

Center speaker

To audio input

Audio cable

Warning

Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUTjack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output” on page 45).

Dolby Pro Logic Surround

You can still enjoy the excitement of Surround Sound even if your A/V receiver does not offer Dolby Digital decoding.

If your A/V receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.

Connect one or two rear speakers. The output sound from the rear speakers will be monaural even if you connect two rear speakers.

●

With a receiver equipped with Dolby Digital

Connect the equipment the same way as described in “Enjoying Dolby Digital Sound” on the previous page. Refer to that receiver’s owner’s manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.

PAGE 18 CONNECTIONS

CONNECTIONS PAGE 19

Connecting to Optional Audio System (Cont’d)

Enjoying 2 Channel Digital Stereo Sound

Enjoying DTS Sound

To DIGITAL OUT

(COAXIAL or

OPTICAL)

To S-VIDEO OUT

or VIDEO OUT

Connection example

Front speaker

(left)

Front speaker (right)

Receiver equipped with a

digital audio input

75 ohm coaxial cable or optical cable

To digital audio input

To S-video Input

or Video Input

S-Video cable or Video cable

To DIGITAL OUT

(COAXIAL or

OPTICAL)

Front speaker (left)

Rear speaker

(left surround)

Rear speaker (right surround)

Front speaker (right)

Sub woofer

Center speaker

75 ohm coaxial cable or Optical Cable

Connection example

To digital audio input

Receiver equipped

with a DTS decoder

To S-VIDEO OUT

or VIDEO OUT

To S-video Input

or Video Input

S-Video cable or Video cable

2 Channel Digital Stereo

You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a

digital audio input and speaker system (right and left front speakers).

Introducing DTS Digital Surround

...the finest technology ever invented to transform existing "home theater" systems into six

discrete channels of exceptionally clear, better-than-compact disc, digital audio performance. And DTS Digital Surround is the only 5.1 surround sound format that can deliver this revolutionary 3-dimensional experience through new music recordings on compact discs, original 5.1 soundtracks on motion picture laserdiscs, and soon, a wide variety of products on DVD.

❍

Refer to the owner’s manual of your audio system for operating instructions.

❍

Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

❍

Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

Notes

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

PAGE 20 BASIC OPERATION

Basic Playback

This section shows you the basics on how to play back a DVD video disc.

2, 4

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

Preparations

●

When you want to play back DVD video discs, turn on the TV and select the video input source connected to the DVD player.

●

When you want to enjoy the sound of DVD video discs or audio CDs from the audio system, turn on the audio system and select the input source connected to the DVD player.

●

For connection details, see pages 13 through 19.

●

Set the playback picture size according to the aspect ratio of the connected TV via the SETUP menu (TV Aspect).

●

If you do not have the necessary equipment to enjoy Dolby Digital sound, set the Digital Audio Output (via the SETUP menu) to “PCM”.

Press POWER.

The DVD player turns on and the power indicator lights.

Press OPEN/CLOSE.

The disc tray opens.

●

You can open the disc tray by pressing this button even if the DVD player is in standby mode.

Place a disc on the disc tray with the playback side down.

●

There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD player to malfunction.

●

Do not place anything except 3” discs or 5” discs on the disc tray.

● Discs can be loaded one at a time by pressing DISC SKIP or DISC SELECT (1 - 5) to rotate the carousel.

Press OPEN/CLOSE or PLAY to close the loading drawer.

The disc on the tray 1 is ready to be played back. Playback may begin automatically depending on the disc. If no disc is loaded on disc tray 1, select another disc by following step 5.

●

Do not close the loading drawer by hand.

●

If the disc is placed in upside down (and it is a single-sided disc), “NO DISC” or “DISC ERROR” appears on the TV screen.

●

If you insert an audio CD, the CD indicator lights up on the display. The title number does not appear.

●

After playing back all of the chapters in the title, the DVD player automatically stops and returns to the menu screen.

Operating status indicator

TITLE

PROG.

RANDOM ALL

CHP/TRK

2345

MP3 HD CD DVD

Caution: Do not touch the loading drawer and carousel

while they are in motion, and do not attempt to rotate the carousel by hand; doing so could result in incorrect operation of the player and/or damage to the discs.

disc select

power

disc skip

disc exchange

stop

skip

pause

step

play

scan

open close

BASIC OPERATION PAGE 21

Basic Playback (Cont’d)

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

If you want to select another disc, press DISC SKIP on the remote control once or more, or press DISC SELECT (1 - 5) on the front panel.

Also you can select a disc in the DVD player directly by using the remote control, press DISC SKIP and then press a number button (1-5) on the remote control within one second.

Press PLAY to begin playback.

Playback begins. You can skip this step if the disc is already playing automatically.

The menu screen appears on the TV screen.

In the case of interactive DVDs with playback, a menu screen appears on the TV screen. Perform the following steps:

PressDD/EE/FF/

and press SELECT/ENTER, or press the numeric button(s), to select the desired item.

Playback of the selected item begins.

●

For further information, refer to the disc jacket of the disc you are playing.

After operation

When the unit is not in use, remove the disc and press POWER to turn off the DVD player.

❍

Do not move the DVD player during playback. Doing so may damage the disc and the DVD player.

❍

Use the OPEN/CLOSE button on the remote control or DVD player to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction.

❍

Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

❍

Keep your fingers well clear of the disc tray as it is closing. Be especially careful with children’s fingers around the closing disc tray as there is a risk of personal injury.

❍

When “” appears on the TV screen while a button is pressed, it means that this function is not available on the disc you are playing.

❍

Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing.

Notes

1 2 3 4

Example of interactive DVD On-Screen Menu

PAGE 22 BASIC OPERATION

Basic Playback (Cont’d)

Press STOP during playback.

● When play is stopped, the unit records the point where STOP was pressed (RESUME function). Press PLAY and play will resume from this point.

❍

This operation works only with discs for which the elapsed playing time appears in the DVD display window during stop.

❍

Resume function will be cleared when the STOP is pressed in the STOP mode.

❍

The Resume function may not be available on some DVD discs.

This player memorizes last scene for the last disc you have watched. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, Latest Stop Position is automatically recalled.

❍

Settings are stored in memory for use any time.

❍

Switching of the audio mode, etc., is automatic on some discs.

❍

This player does not memorize if you switch off the player when a DVD or title menu appears on the TV screen.

❍

The last scene memory function will be cleared when the STOP is pressed in the STOP mode.

The screen saver is useful to prevent your display from becoming damaged. The screen saver picture appears when you leave the DVD player in stop mode for about 5 minutes.

Automatic power off function

After the Screen Saver has been engaged for about 5 minutes, the DVD player will automatically turn itself off.

Stopping Play

Resume Play

Last Scene Memory

Screen Saver

Notes

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

STOP

PLAY

Screen Saver

BASIC OPERATION PAGE 23

Basic Playback (Cont’d)

Press DISC EXCHANGE during playback to open the loading drawer.

Press DISC SKIP to rotate the disc tray to the desired position.

The carousel will advance clockwise by one disc tray.

Note: The disc tray which was in the play position can

not be exchanged.

Exchange the discs and press DISC EXCHANGE or OPEN/CLOSE to close the loading drawer.

Press DISC SKIP during playback or in the stop mode.

● Each time the button is pressed, the next disc tray is selected.

❍

When the DISC SKIP is pressed during playback or in the stop mode, the disc tray advances to the next disc.

❍

If there is no disc on the selected disc tray, the disc tray of the next number will be selected.

Press OPEN/CLOSE during playback or in the stop mode.

Play is stopped (if pressed during playback), the loading drawer opens and the disc tray which was in the play position comes to the center position.

Exchange the disc in the center position.

Press OPEN/CLOSE or PLAY again.

The loading drawer closes, the disc tray returns to the play position and playback begins from the new disc.

Exchanging Discs during Playback

Skipping Discs

Exchanging the Disc and Starting Playback

Notes

TITLE

CHP/TRK

DVD

Center position

open close

disc select

skip

stop

pause

step

disc skip

disc exchange

power

scan

play

DISC SKIP

DISC EXCHANGE

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

PLAY

OPEN/ CLOSE

DISC SKIP

PAGE 24 BASIC OPERATION

Press PAUSE/STEP during playback.

●

DVD The player will be placed in the still picture mode.

●

CD The player will be placed in the pause mode.

Press PAUSE/STEP during still playback.

(Each time you press PAUSE/STEP, the picture advances one frame)

To resume normal playback, press PLAY.

Skipping forward Press SKIP

during playback.

A chapter (DVD) or a track (CD) is skipped each time the button is pressed.

Skipping back Press SKIP

during playback.

●

When the button is pressed once midway through a chapter/track, the player returns to the start of that chapter/track. When it is pressed again, a chapter/track is skipped each time the button is pressed.

HDCD is a process that increases the fidelity of both specially encoded HDCD discs and standard CD audio discs. When an HDCD-encoded disc is playing, the special decoder is automatically activated and the HDCD Indicator lights. No user intervention is required. To enjoy the benefits of HDCD, your DVD Player must be connected to your A/V receiver via the Analog Audio Outputs. However, if your A/V receiver or surround processor is equipped with built-in HDCD decoding, you may also use a Coaxial or Optical digital audio connection so that the HDCD processing is done there.

Still Picture (Pause)

Frame Advance (DVD only)

Skipping chapters and tracks

forward or back

HDCD Playback

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

STOP

PAUSE/ STEP

SKIP PLAY

SKIP

Special Playback

BASIC OPERATION PAGE 25

Special Playback (Cont’d)

You can play back discs at various speeds.

Press and hold SKIP or button for about two seconds during playback.

[TV screen]

●

The speed of advance (reverse) is relatively slow at first. When the button is pressed again, the speed becomes faster. (Each time the button is pressed, the speed increases up to 4 steps (DVD) or 3 step (CD).)

●

The speed will be retained even after the button is released.

To return to normal playback, press PLAY.

❍

The DVD player does not play back sound during the high speed reverse and forward playback of DVD video discs. However, the DVD player plays back sound during fast forward or fast reverse playback of audio CDs.

To Scan at fast forward or fast

reverse playback.

Note

GGGG

FFFF

SKIP PLAY

SKIP

power

display

vol vol

skip

setup subtitle audio program repeat a - b random angle

clear

rev

title

dvd

disc skip

slow/scan

vcrcatv

select /

enter

play

open / close

return

tv input

skip

fwd

PAGE 26 BASIC OPERATION

Various speed playback with Shuttle Ring

You can play back discs at various speeds, and resume normal playback.

During still picture mode, rotating and holding the SHUTTLE ring to the positions indicated gives those slow modes.

●

The variable-speed slow picture will appear on the TV screen.

Release the SHUTTLE ring to resume the still picture mode.

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

SLOW/SCAN

Shuttle ring

To play in slow-motion

To scan at fast forward or fast reverse.

❍ The DVD player does not play back sound during

slow-motion playback, the high speed reverse and forward playback of DVD video discs. However, the DVD player plays back sound during fast forward or fast reverse playback of audio CDs.

❍ Subtitles do not appear on the screen during scan

playback.

❍ The DVD player provides four (4) scan speeds (DVD)

and three (3) scan speeds (CD).

❍ The DVD player can not play back audio CDs in slow

motion.

Notes

PLAY

PAUSE/ STEP

During playback mode, rotating and holding the SHUTTLE ring to the positions indicated gives those fast search modes.

●

The variable-speed search picture will appear on the TV screen.

Release the SHUTTLE ring to resume normal playback.

REVERSE DIRECTION

1/4

1/2

1/16

1/8

1/16

1/8

1/4

1/2

FORWARD DIRECTION

FF X16 GG X16

FF X100 GG X100

REVERSE DIRECTION

FF X2 GG X2

FF X4 GG X4

FORWARD DIRECTION

OPERATION USING GUI MENU ICONS PAGE 27

General Information about GUI menu icons

This unit features GUI Menu Icons showing disc information (title/chapter/track number, elapsed playing time, audio/subtitle language, angle, and sound) and player information (repeat play, play mode, marker, etc.). Some icons only show the indicated information. Other icons allow the settings to be changed.

Common procedures

Press DISPLAY during playback.

●

Title function can be accessed from the stop mode.

Press DD/

to select the desired item.

●

The current selected item is indicated by a yellow frame on its GUI menu icons.

Press FF/

to select the desired setting.

●

When numbers are displayed (e.g. title number), the numeric buttons can also be used for setting instead of

FF/GG

●

For some functions, the setting will be registered immediately; for others, SELECT/ENTER must be pressed.

To clear the GUI Menu Icons, press DISPLAY again.

0:16:57

1 ENG

6 CH

OFF

NORM.

0:16:57

STER.

NORM.

Examples of GUI Menu Icons.

(The screens may differ depending on the disc contents.)

(DVD GUI) (CD GUI)

(DVD and CD GUI)

CHAPT

OFF

A B

1/9

2, 3

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

dvd

vcrcatv

vol vol

select /

enter

skip

PAGE 28 OPERATION USING GUI MENU ICONS

Detailed description of each GUI menu icon

You can view information about a disc and its operational status on the TV screen.

To show the current title number

and to jump to the desired title number

To show the current chapter number

and to jump to the desired chapter number

To show the elapsed time

and directly select scenes by the desired time.

To show the current audio soundtrack language, encoding method, channel number

and to change the settings.

To show the current subtitles language

and to change the setting.

To show the current angle number

and to change the angle.

To show the current sound (NORMAL or 3D SURROUND)

and to change the setting.

To show the current track number

and to jump to the desired track number

To show the elapsed time.

(Display only)

To show the current audio (STEREO, LEFT, RIGHT)

and to select to the desired audio channel.

To show the current sound (NORMAL or 3D SURROUND)

and to change the setting.

0:16:57

1 ENG

6 CH

OFF

NORM.

0:16:57

STER.

NORM.

FUNCTION

(Press DD/EEto select desired item)

FF/GG

, or

Numeric

SELECT/ENTER

FF/GG

, or Numeric

SELECT/ENTER

SKIP

Numeric

SELECT/ENTER

FF/GG

AUDIO

FF/GG

SUBTITLE

FF/GG

ANGLE

FF/GG

SOUND

FF/GG

, or Numeric

SELECT/ENTER

SKIP

FF/GG

AUDIO

FF/GG

SOUND

Press DISPLAY during

playback.

[TV screen] DVD GUI

SELECTION

METHOD

Press DISPLAY during

playback.

[TV screen] CD GUI

FUNCTION

(Press DD/EEto select desired item)

SELECTION

METHOD

Note

❍

Some DVD discs may not provide all of the above GUI menu icons.

ADVANCED OPERATION PAGE 29

Using a title menu

Press TITLE.

A list of the titles on the disc is displayed.

Pressing TITLE again to resume play from the scene when TITLE was first pressed.

• Resume play may not be possible on certain discs.

Press DD/EE/FF/GGand press SELECT/ENTER or PLAY, or press the numeric button(s), to select desired title.

The selected title now starts playing.

Press MENU during play.

The DVD menu available on the disc is now displayed.

Pressing MENU again resumes play from the scene when MENU was first pressed.

• Resume play may not be possible on certain discs.

Press DD/EE/FF/GGand press SELECT/ENTER, or press the numeric button(s), to select desired item.

The selected item is now executed.

Using a DVD menu

Some movie discs may contain two or more titles. If the disc has a title menu recorded on it, the TITLE button can be used to select the movie title. (The details of operation differ depending on the disc used.)

● Selecting a title may not be possible on

certain DVD discs.

Some DVDs have unique menu structures called DVD menus. For example, DVDs programmed with complex contents provide guide menus, and those recorded with various languages provide menus for audio and subtitle language. Although the DVD menu’s contents and operation differ from disc to disc, the following explains the basic operation when this feature is used.

3 4

power

display

open / close

play

title

return

tv input

setup subtitle audio program

dvd

vcrcatv

vol vol

select /

enter

skip

power

display

open / close

play

title

return

tv input

setup subtitle audio program

dvd

vcrcatv

vol vol

select /

enter

skip

PAGE 30 ADVANCED OPERATION

It is possible to change the subtitle language to a different language from the one selected at the initial settings. (See page 39 for further info.) This operation works only with discs on which multiple subtitle languages are recorded.

Press SUBTITLE during playback.

When no subtitles are recorded, “OFF” will be displayed instead of the language number.

Press SUBTITLE repeatedly until the desired language is selected.

Number of the subtitle language being played back is shown.

To eliminate the On Screen Subtitles.

Press SUBTITLE repeatedly to select OFF at step 2.

❍

In some cases, the subtitle language is not changed to the selected one immediately.

❍

When a disc supporting the closed caption is played, the subtitle and the closed caption may overlap each other on the TV screen. In this case, turn the subtitle off.

❍

When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc.

❍

When the power is turned on or the disc is removed, subtitles appears in the language selected at the initial settings. If this language is not recorded on the disc, the disc’s priority language appears.

Notes

Changing subtitle language

OFF

1 ENG

Changing audio soundtrack language

It is possible to change the audio soundtrack language (or encoding method, channel number) to a different language from the one selected at the initial settings in case of DVD disc. (See page 39 for further info.) This operation works only with discs on which multiple audio soundtrack languages are recorded. And it is possible to change the audio channel in case of audio CD.

• DVD Press AUDIO during play.

Number of the audio soundtrack language being played back.

Press AUDIO repeatedly until the desired language (or encoding method, channel number) is selected.

• CD Press AUDIO during play.

Press AUDIO repeatedly until the desired sound is selected.

Notes

1 ENG

6 CH

2 FRE

6 CH

STER.

LEFT

❍

When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc.

❍

When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard.

❍

Some discs may not respond to Audio feature.

1, 2

setup subtitle audio program

repeat a - b random angle

clear disc skip

1, 2

setup subtitle audio program

repeat a - b random angle

clear

disc skip

ADVANCED OPERATION PAGE 31

Viewing from another angle

❍

This function only works for discs having scenes recorded at different angles.

Note

This unit can produce a 3D Surround effect, using 3D Surround Sound technology, which simulates multi-channel audio playback from two conventional stereo speakers instead of the five or more speakers normally required to listen to multi-channel audio from a home theater. This feature works with DVD discs encoded with Dolby Pro Logic and Dolby Digital audio tracks.

Press SOUND during playback.

Each time this button is pressed, the TV screen display changes.

Press SOUND repeatedly until the desired sound is selected.

❍

This 3D Surround effect may not be available on some DVD discs or audio CD, such as those recorded with a mono audio soundtrack.

❍

Turn off the TV surround sound and other surround effects when using this 3D surround effect.

❍ For best 3D Surround effect using only two speakers it is

recommended that the two speakers be positioned approximately 8’ to 10’ apart, and the listening position should be 8’ to 10’ away from the speakers.

Notes

NORM.

1 2 3

3D SUR

Producing a 3D SURROUND effect

Some DVDs may contain scenes which have been shot simultaneously from a number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.)

Press ANGLE during playback.

Number of angle being played back.

Press ANGLE repeatedly until the desired angle is selected.

For your reference

•

The ANGLE indicator will blink in the DVD display window at scenes recorded at different angles to indicate that angle switching is possible.

•

The angle number can be programmed beforehand; the angle will be switched to the selected number when the ANGLE indicator blinks.

1, 2

setup subtitle audio program

repeat a - b random angle

clear

disc skip

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

PAGE 32 ADVANCED OPERATION

Repeat Play

Repeating viewing (listening)

Press REPEAT during playback.

Each time this button is pressed, the TV screen changes as shown below and the disc will repeat a chapter or title (DVD) or a track (CD).

• DVD

Repeat of chapter being played

Repeat of title being played

Cancel repeat mode (normal play)

• CD

Repeat of track being played

Repeat of entire current disc contents

Repeat of entire all disc contents

Cancels repeat mode (normal play)

To enjoy program repeat play (CD)

If REPEAT is pressed during program play, repeat play is operated as below.

Repeat of the current programmed track

Repeat of all programs

Cancel repeat mode (Program play)

To return to normal play

Press REPEAT several times until “OFF” is displayed.

Repeating sections between two specific points (A-B repeat)

Press A-B during play at the point where repeat play is to start (A).

• You can select “OFF” at this step by pressing

CLEAR.

Press A-B during play at the point where repeat play is to be concluded (B).

Repeat play of the selection between points A and B starts.

To return to normal play

Press A-B once “OFF” is displayed.

Notes

A *

A B

❍ Repeat play works only with discs for which the elapsed

playing time appears in the DVD display window during playback.

❍ Repeat play may not work correctly with some DVDs. ❍ A-B repeat play works only within a title DVD or a track

CD.

❍ Some subtitles recorded around point A or B may fail to

appear (DVD).

OFF

TITLE

CHAPT

OFF

ALL

TRACK

OFF

DISC

ALL

TRACK

ADVANCED OPERATION PAGE 33

Storing markers in memory to be viewed (listened to) again

Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to quickly return to any point on the disc.

Storing a marker in the memory

Press MARKER during play at the starting point to be viewed (listened to) again.

Indicates “1/9” is stored in the memory. Up to 9 marks can be stored in the memory.

Recalling/Clearing a marker

Press SEARCH during playback.

The MARKER SEARCH menu will appear on the TV screen.

Press FF/GGto select the marker to be recalled/cleared.

Press SELECT/ENTER to recall a marker. Or press CLEAR to clear a marker.

Play resumes from the point corresponding to the selected marker, or the selected marker is cleared.

❍ These operations work only with discs for which the elapsed

playing time appears in the DVD display window during playback or stop.

❍ Some subtitles recorded around the marker may fail to appear

(DVD).

❍ All the markers are cleared when the power is turned off or the

disc is removed.

❍ The marker is not stored when the DVD or title menu is

displayed on the TV screen.

Notes

1/9

MARKER SEARCH

123456789

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

3, 4

PAGE 34 ADVANCED OPERATION

Zoom Feature

Random Play

Press ZOOM during playback or still playback to activate the Zoom function.

If you further press ZOOM repeatedly, the magnification level increases (6 steps).

Press DD/EE/FF/GGbuttons to move through the zoomed picture.

Press CLEAR to resume normal playback.

❍

Some discs may not respond to the Zoom feature.

❍

Zoom does not work on subtitles or menus included on DVD video discs.

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

Notes

1, 2

setup subtitle audio program

repeat a - b random angle

clear

disc skip

display

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

vol vol

select /

enter

skip

Note: This function only works with karaoke DVD and

Audio CD. Random does not work with DVD movie disc.

You can playback titles or tracks in random order. (Random playback) The DVD player automatically selects the titles on a DVD video karaoke disc only and plays them back randomly.

Random play (Karaoke DVD or CD)

Press RANDOM repeatedly until desired random mode is selected during playback or stop mode.

The unit automatically begins Random Playback and RANDOM (1-3) appears on the TV screen.

• RANDOM1: Plays all the tracks on a single disc in random order and then stops.

• RANDOM2: Plays all the tracks on current disc in random order and then plays all the tracks on each succeeding disc in random order and then stops.

• RANDOM3: Plays 2 tracks randomly from a disc and then plays 2 tracks randomly from a different disc until all tracks on all discs have been played.

To return to normal playback, press RANDOM repeatedly until NORMAL appears on the TV screen.

The RANDOM indicator in the DVD display window disappears.

❍

Random playback may not be possible on certain discs.

❍

If you press the SKIP or button during random playback, the DVD player goes to another track randomly and starts playback.

Notes

ADVANCED OPERATION PAGE 35

Program play

The player plays the tracks on the disc in the order you specify.

Note: Program play function is possible only with audio CDs. It does not work with DVD movie discs.

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

2, 3

Press PROGRAM in the stop mode.

The program playback screen appears on the TV screen.

• To exit the screen, press PROGRAM or RETURN.

Enter the disc number using the numerical keys (1-5) and then press SELECT/ENTER.

Enter the track number using the numerical keys (0-9) and then press SELECT/ENTER.

The next area is selected.

Repeat steps 2 to 3.

Up to 20 tracks can be programmed.

Press PLAY to exit the screen.

The selected tracks are stored in the player memory and playback begins with the first programmed sequence.

After playback of all tracks programmed

Play is stopped.

Clearing the program

● To clear the programmed tracks one by one

Press D/E/F/G to select the unwanted number and then press CLEAR.

● To clear all the programmed tracks

Press D/E/F/G to select “Clear All” and then press SELECT/ENTER. Press PROGRAM or RETURN to exit the screen. (The programs are also cleared when the power is turned off or the disc is removed.)

Step 1

Program

Clear All

2, 3

PAGE 36 ADVANCED OPERATION

Playback with MP3

To play an MP3 file

Load an MP3 disc.

The MP3 menu is displayed.

Press DD/EEbutton to select the desired MP3 file and then press PLAY to start playback of the file.

For your reference

•

Press SKIP or SKIP to play the next file or previous file during playback.

•

Press DISPLAY to move to the next page.

•

Press PAUSE/STEP to enter the pause mode, press PLAY or PAUSE/STEP again to return to normal playback.

•

Press STOP to stop the playback.

Program

MP3-1

MP3

Clear All

TRACK 1.mp3 TRACK 2.mp3 TRACK 3.mp3 TRACK 4.mp3

TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 TRACK 9.mp3

TRACK 5.mp3

Program

MP3-1

MP3

Clear All

TRACK 1.mp3 TRACK 2.mp3 TRACK 3.mp3 TRACK 4.mp3

TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 TRACK 9.mp3

TRACK 5.mp3

To play an MP3 file repeatedly

●

If you press REPEAT once during play, the current MP3 file will play repeatedly.

●

If you press REPEAT twice during play, all MP3 files on the disc will play repeatedly.

●

If you press REPEAT three times, repeat play will be cancelled.

REPEAT symbol

❍The file name is only displayed in English. ❍If there is an impossible code to display, it will be

displayed underlined (_) instead of English.

❍This unit can play up to 200 files per disc. A disc

recorded with more than 200 files cannot be played.

❍Disc format is compatible with ISO9660 only. ❍

If you record MP3 files using the software which cannot create a FILE SYSTEM, for example “Direct-CD” etc., it is impossible to playback MP3 files. We therefore recommend that you use “Easy-CD Creator”, which creates an ISO9660 file system.

❍A single session disc requires MP3 files in the first

track. If there is no MP3 file in the 1st track, it cannot playback MP3 files. If you wish to playback MP3 files, format all the data in the disc or use a new one.

❍If there are already data files which are not MP3 files

on the CD-R disc, please, do not use that disc; use a new one instead. However, if the disc is a CD-RW disc, this does not apply.

Notes

Prog

MP3-1

MP3

TRACK 1.mp3 TRACK 2.mp3 TRACK 3.mp3 TRACK 4.mp3

TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 TRACK 9.mp3

TRACK 5.mp3

Progr

MP3-1

MP3

TRACK 1.mp3 TRACK 2.mp3 TRACK 3.mp3 TRACK 4.mp3

TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 TRACK 9.mp3

TRACK 5.mp3

display

play

title

return

tv input

vol vol

select /

enter

skip

2 2

ADVANCED OPERATION PAGE 37

Playback with MP3 (Cont’d)

To program play an MP3 file

Load an MP3 disc.

The MP3 menu is displayed.

Press STOP to stop playback

Press PROGRAM to enter the Program Edition mode in the stop mode.

The mark appears on the right of the word Program on the right side of MP3 menu. Press RETURN to exit the Program Edition mode, the

mark will disappear.

Press DD/EEto select the desired MP3 file and then press SELECT/ENTER to add the MP3 file to the program list.

• Repeat step 4 to select another track.

• Up to 60 files can be programmed.

Press PLAY to play.

The playback now begins in the programmed sequence.

If you want to enter the main menu, press

button.

After playback of all tracks programmed

Play is stopped.

Program

MP3-1

MP3

Clear All

TRACK 1.mp3 TRACK 2.mp3

TRACK 2.mp3

TRACK 3.mp3 TRACK 4.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 8.mp3 TRACK 9.mp3

TRACK 9.mp3

TRACK 5.mp3

Program

MP3-1

MP3

Clear All

TRACK 2.mp3

TRACK 3.mp3 TRACK 4.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 8.mp3 TRACK 9.mp3

TRACK 9.mp3

TRACK 5.mp3

TRACK 1.mp3

Clearing the program

● To clear the program one by one

In the Program Edition mode, press D/E/F/G to select the unwanted MP3 file on the program list and then press CLEAR.

● To clear all the programs

In the Program Edition mode, press D/E/F/G to select the “Clear All” and press SELECT/ENTER.

To play an MP3 file repeatedly

●

If you press REPEAT button once during play, the current MP3 file will play repeatedly.

●

If you press REPEAT button twice during play, all MP3 files on the program list will play repeatedly.

●

If you press REPEAT button three times, repeat play will be cancelled.

REPEAT symbol

Program

Clear All

TRACK 2.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 9.mp3

Program

Clear All

TRACK 2.mp3

TRACK 6.mp3

TRACK 7.mp3

TRACK 9.mp3

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

dvd

vcrcatv

vol vol

select /

enter

skip

PAGE 38 INITIAL SETTINGS

Selection of initial settings

Press SETUP in the stop or playback mode.

The SETUP menu is displayed.

Press DD/EEto select the desired item.

The screen will show the current setting for the selected item, and the alternate setting(s).

• Disc Audio (see page 39.)

• Disc Subtitle (see page 39.)

• Disc Menu (see page 39.)

• Rating (see page 40.)

• Password (see page 41.)

• TV Aspect (see page 42.)

• Menu Language (see page 43.)

• Progressive Scan (see page 44.)

• Digital Audio Output (see page 45.)

• 5.1 Speaker Setup (see page 46.)

• Others (see page 47.)

Press GGand then DD/

to select the desired

setting and press SELECT/ENTER.

•

Some items require additional steps. (See the

respective page.)

When the alternate setting is selected the screen returns to the Initial Settings display.

To exit SETUP menu

Press SETUP, RETURN or PLAY.

Once the initial settings have been completed, the player can always be operated under the same conditions (especially with DVD discs). The settings will be retained in the memory until they are changed, even if the power is switched off.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

Original

Spanish

English

Chinese Polish Hungarian Russian

French German

Italian

Other — — — —

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

2, 3

INITIAL SETTINGS PAGE 39

Selecting disc languages

At the setup screen, press DD/EEto select “Disc Audio” and press

Press

DD/EE

to select the desired language and

then press SELECT/ENTER.

Original : The original language of each disc will be selected. English : The English will be Selected. Other : Another language can be selected. You can input

4-number language code. (Refer to the language codes on page 48. Press CLEAR if an incorrect language code is entered.)

The “Disc Subtitle” and “Disc Menu” are selected by the same method.

❍

If the language selected is not available on the disc, the original language designated by each disc will be selected.

This is to select the audio soundtrack language, subtitle language and the language used in title menus or DVD menus which will always be used for every disc to be played back.

When you play back a DVD video disc, the DVD player automatically displays the pre-selected subtitle language if it is included on the disc.

Note

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

Original

Spanish

English

Chinese Polish Hungarian Russian

French German

Italian

Other — — — —

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

Original

Spanish

English

Chinese Polish Hungarian Russian

French German

Italian

Other — — — —

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

PAGE 40 INITIAL SETTINGS

Selecting Parental Control Rating Levels and Password

Selecting rating level (DVD only)

At the SETUP screen, press DD/EEto select “Rating” and press

Press

DD/EE

to select the desired level and

press SELECT/ENTER.

You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function. For example, when you select level 7, discs rated higher than level 7 are blocked and cannot be played.

The parent lock level is equivalent to the following USA movie ratings.

Level 7: NC-17 Level 6: R Level 4: PG 13 Level 3: PG Level 1: G

• Some titles do not match with the rating level described as above.

If you change the level and enter a password, playback of all DVDs with ratings higher than your selection will be blocked, unless the correct password is entered again. For example: if you change the level to “5”, the DVD player will not play discs with ratings of “6”, “7” or “8” unless the correct password is entered on the remote control.

This is to prohibit the playing of specified DVDs which are unsuitable for children.

● Some DVD discs contain a restriction level

which enables parents to remove scenes or prevent playback of discs by children. DVD players are equipped with a password designed to prevent children from changing the level.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

8 7 6 5 4 3 2 1 Unlock

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

8 Blocked 7 Blocked 6 5 4 3 2 1 Unlock

display

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

vol vol

select /

enter

skip

1, 2

Mini glossary

MOTION PICTURE ASSOCIATION OF

AMERICA (MPAA) RATING SYSTEM

G (General Audiences) : Content not offensive

to most viewers.

PG (Parental Guidance Suggested) : Content is

such that parents may not want their children to view the program.

PG-13 (Parental Guidance Suggested) :

Program is inappropriate for preteens, with a greater degree of offensive material than a PG rated program.

R (Restricted viewing) : Not for children under

age 17. Strong elements of sex and/or violence.

NC-17 (Restricted Viewing) : Not for children

under age 17 under any circumstances. Strong sexual content.

X (Hard Core Films) : Same as NC-17 rating.

Zenith Electronics Corporation is not liable for any program content that appears when using this rating system; as always, user discretion is advised.

Note

INITIAL SETTINGS PAGE 41

Selecting Parental Control Rating Levels and Password (Cont’d)

Setting your password (DVD only)

If you change the rating level to “7” or lower, you must enter a 4-number “password” to prevent playback of discs with higher ratings.

At the SETUP screen, press EEto select “Password” and press

Input a 4-number password and press SELECT/ENTER.

Example : 1234 Do not forget your password.

Input the 4-number password again and press SELECT/ENTER to verify.

Setting is complete.

●The rating is locked. Any disc whose rating is higher than the setting, cannot be played back unless the correct password is entered.

To change/clear memorized password

At the SETUP screen, press EEto select “Password” and press

Input your password and press SELECT/ENTER.

To change or clear your password, press

DD/EE

to select the “Change” or “Clear” and press SELECT/ENTER.

To change the rating level/password, follow the steps on page 40-41 again.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

New

— — — — Disc Subtitle Disc Menu

Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

Change Clear

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

2, 3

To clear your 4-number password

If you forget your password, to clear the current password, follow the procedure below.

1 Press SETUP.

The SETUP menu is displayed.

2 Enter 6-digit number “210499” by

pressing number buttons.

The 4-number password is cleared. “P CLr” appears on the display.

3 Enter a new password.

Refer to “Setting your password” section on the right.

PAGE 42 INITIAL SETTINGS

Selecting TV Aspect

Select the appropriate screen type according to your TV set; conventional size screen (4:3) or wide-screen (16:9).

16:9 Wide

4:3 Panscan

Cut Off

4:3 Letterbox

At the SETUP screen, press DD/EEto select “TV Aspect” and press

Press

DD/EE

to select the desired Aspect and

press SELECT/ENTER.

4:3 Letterbox : The video material not formatted in the Pan

& Scan style is played back in the letterbox style (black bands appear at top and bottom of screen).

4:3 Panscan : Select when a conventional TV set is connected. The video material formatted in the Pan & Scan style is played back in that style (the left and right edges are cut off).

16:9 Wide : Select when a wide-screen TV set is connected. Played in “FULL” size. (Setting the wide-screen TV to “FULL” mode is also necessary.)

* Each screen shows an example when the video material

for a wide-screen is played. (This setting does not affect the video material for conventional size.)

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

4:3 Letterbox 4:3 Panscan 16:9 Wide

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

4:3 Letterbox 4:3 Panscan 16:9 Wide

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

INITIAL SETTINGS PAGE 43

Selecting Menu Language

At the SETUP screen, press DD/EEto select “Menu Language” and press

Press

DD/EE

to select the desired Language and

press SELECT/ENTER.

Selects language for SETUP menus and displays on the TV.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

English Spanish French

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

English Spanish French

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

PAGE 44 INITIAL SETTINGS

Selecting Progressive Scan

If your television is high-definition or “digital ready” television, you may take advantage of the DVD Player’s progressive scan output for the highest video resolution possible. Make the component video connections as shown on page 14 or you may connect the component video jacks directly to the component video or HD component inputs on your TV or monitor. Once the connection is made, the progressive scan circuitry must be activated by changing the SETUP menu.

Note: The progressive scan capability is not operational with standard analog component video connections.

At the SETUP screen, press DD/EEto select “Progressive Scan” and press

Press

DD/EE

to select the desired Progressive

mode (On or Off) and press SELECT/ENTER.

Off: If you are using the COMPONENT VIDEO OUT jacks,

but are connecting the DVD player to a standard (analog) television, set the Progressive mode to “Off”.

On: If you are using the COMPONENT VIDEO OUT jacks

for connection to a TV that is compatible with a progressive scan signal, set the Progressive mode to “On”.

❍

The Progressive function only works when VIDEO OUTPUT SELECT switch on the rear panel is set to COMPONENT/ PROGRESSIVE SCAN.

Warning

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible video display. If you change the setting to “On” in error, you must reset the unit by first pressing the STOP to stop any disc that is playing. Next, press the STOP again and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog display.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

On Off

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

On Off

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

Notes

Each DVD disc has a variety of audio output options. Set the player’s Digital Audio Output according to the type of audio system you use.

At the SETUP screen, press DD/EEto select Digital Audio Output and press

Press

DD/EE

to select the desired output and

press SELECT/ENTER.

You can select Digital Audio Output or Sampling Frequency item by pressing SELECT/ENTER.

■

Digital Audio Output

DOLBY DIGITAL/PCM:

Select “DOLBY DIGITAL/PCM” if an active digital output is supplied to a Dolby Digital decoder, (or an amplifier or other equipment with Dolby Digital decoder).

Stream/PCM: Select “Stream/PCM” if an active

digital output is supplied to an amplifier or other equipment with DTS decoder, Dolby Digital decoder and MPEG decoder.

PCM: Select “PCM” if an active digital output is

supplied to an amplifier or other equipment with linear PCM only (or MD recorder or DAT deck).

■

Sampling Frequency

To change the Sample Frequency setting, first select the desired digital audio output type as indicated above. If your A/V receiver or surround processor is NOT capable of handling 96kHz signals, select the 48kHz option. When this choice is made, this unit will automatically convert any 96kHz signals to a 48kHz output so that your system is capable of decoding them. If your A/V receiver or surround processor is capable of handling 96kHz signals, select the 96kHz option. When this choice is made, this unit will pass each type of signal through without any further processing.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

DOLBY DIGITAL

/PCM Stream/PCM PCM

Sample Freq.

48 KHz 96KHz

Notes

❍

If an active digital audio output signal is supplied to a receiver or other equipment without a corresponding digital decoding capability, a very loud noise may be produced which could permanently damage the speakers.

❍

The DTS DVD disc sound is played back only when the DVD player is connected to a receiver with a DTS decoder.

Selecting Digital Audio Output

power

display

open / close

play

title

return

tv input

setup subtitle audio program

repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

INITIAL SETTINGS PAGE 45

Playback

Disc

96 kHz Linear PCM DVD

DTS DVD Dolby Digital

DVD MPEG DVD Audio CD DTS Audio CD

Stream/PCM

PCM

DTS bit Stream Dolby Digital

bit Stream MPEG bit Stream PCM DTS bit Stream

OUTPUT

Dolby Digital/ PCM

PCM

DTS bit Stream Dolby Digital

bit Stream PCM PCM DTS bit Stream

PCM only

PCM

DTS bit Stream PCM

PCM PCM DTS bit Stream

Selecting Speaker

At the SETUP screen, press DD/EEto select “5.1 Speaker Setup” and press

Press

FF/GG

to select the desired speaker and

press

DD/EE/FF/GG

to adjust options.

Volume: Press F/G to adjust the output level of

selected speaker. (-10dB ~ 0dB)

Size: Press F/G to set a mode. (Large, Small, None)

• If you have connected the system to a speaker with low frequency of 100Hz or below, select

“Large”

• If you have connected the system to a speaker

without low frequency of 100Hz or below, select “Small” But if you haven’t connected to sub woofer, always select “Large” of Front Speaker (L/R).

• When you don’t connect to speaker, select “None”.

• Front L/R speaker’s size can be selected to Large” or “Small”.

• If Front L/R speaker’s size is selected to “Small”, Rear and Center speaker’s size can be selected to “Small” or “None”, and Sub woofer speaker’s size can be selected only to “Large”.

Delay: Press

F/G to customize the sound to conform

to the acoustics of your room by adding a delay effect to the sound of the Center Speaker and Surround Speaker.

• When 5.1CH Surround is played, you can enjoy the best sound if the distance between you and each speaker is the same. You can set delay time in the Center/Surround Speaker to customize the sound to the acoustics of your room.

•

Setting Center Speaker

If the distance of DC is equal to or longer than the D

F in the left figure,

set the mode as 0ms. Otherwise, change the setting according to the table below. (A) = D

F - DC

Distance of (A)(inch) Setting(ms)

13.39 1

26.77 2

40.16 3

53.54 4

66.93 5

• Setting Rear Surround Speaker

If the distance of D

is equal to the distance of DS in the above, set the mode as 0ms. Otherwise, change the setting according to the table below.

(B) = DF - DS

Distance of (B)(inch) Setting(ms)

66.93 5

133.86 10

200.79 15

Test : Press SELECT/ENTER to test signals of each

speaker. Adjust Volume to match to the volume of test signals memorized in the system.

•

Front (L) → Front (R) → Center → Rear (L) → Rear (R)

Return: Press SELECT/ENTER to return to the

previous menu screen.

❍

Do not place the center or rear speakers farther away from the listening position than the front speakers.

❍

The test tone does not output from the subwoofer.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

Front L Volume: 0 dB Size : Small Delay : ms Test Return

R R

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

Rear L Volume: 0 dB Size : Small Delay : 2 ms Test Return

R R

Select the speaker to adjust the audio output mode of the speaker.

Note

Front Speaker (L/R) Center Speaker Sub Woofer Rear Surround

Speaker (L/R)

power

display

open / close

title

return

tv input

dvd

vcrcatv

vol vol

select /

enter

1, 2

PAGE 46 INITIAL SETTINGS

SL SR

(A)

(B)

Others

At the SETUP screen, press DD/EEto select “Others” and press

Press

DD/EE

to select the desired items and

press SELECT/ENTER.

The setting of the selected item are changed between On and Off.

■

DRC (Dynamic Range Compression) On/Off

On: Select this option to turn on the Dynamic Range

Compression circuitry so that the dialogue remains clear even at low volume levels.

Off: Select this option to turn off the Dynamic Range

Compression and have the soundtrack presented exactly as it was created.

■

Vocal On/Off

Set to On only when a multi-channel karaoke DVD is being played. The karaoke channels on the disc will then be mixed into a normal stereo sound.

❍

The DRC function works only during playback of Dolby Digital recorded discs.

❍

The level of Dynamic Range Compression may differ depending on the DVD disc.

❍

When playing karaoke, connect appropriate audio equipment (such as an amplifier) to the DVD video player.

The DRC and Vocal settings can be changed.

Disc Subtitle Disc Menu Rating Password TV Aspect Menu Language Progressive Scan Digital Audio Output

5.1 Speaker Setup Others

Disc Audio

DRC Off Vocal On

Notes

power

display

open / close

play

title

return

tv input

setup subtitle audio program repeat a - b random angle

clear

disc skip

rev

slow/scan

fwd

dvd

vcrcatv

vol vol

select /

enter

skip

1, 2

About DRC (Dynamic Range Compression)

With the DVD format you have the opportunity to hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to the use of digital audio technology. However, in certain instances you may wish to slightly compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones) so that you may listen to a movie at a lower volume without losing dialogue intelligibility.

INITIAL SETTINGS PAGE 47

PAGE 48 INITIAL SETTINGS

Table of Languages and Their Abbreviations

Code Language

6565 Afar 6566 Abkhazian 6570 Afrikaans 6577 Ameharic 6582 Arabic 6583 Assamese 6588 Aymara 6590 Azerbaijani 6665 Bashkir 6669 Byelorussian 6671 Bulgarian 6672 Bihari 6678 Bengali; Bangla 6679 Tibetan 6682 Breton 6765 Catalan 6779 Corsican 6783 Czech 6789 Welsh 6865 Danish 6869 German 6890 Bhutani 6976 Greek 6978 English 6979 Esperanto 6983 Spanish 6984 Estonian 6985 Basque 7065 Persian 7073 Finnish 7074 Fiji

Code Language

7079 Faroese 7082 French 7089 Frisian 7165 Irish 7168 Scots Gaelic 7176 Galician 7178 Guarani 7185 Gujarati 7265 Hausa 7273 Hindi 7282 Croatian 7285 Hungarian 7289 Armenian 7365 Interlingua 7378 Indonesian 7383 Icelandic 7384 Italian 7387 Hebrew 7465 Japanese 7473 Yiddish 7487 Javanese 7565 Georgian 7575 Kazakh 7576 Greenlandic 7577 Cambodian 7578 Kannada 7579 Korean 7583 Kashmiri 7585 Kurdish 7589 Kirghiz 7665 Latin

Code Language

7678 Lingala 7679 Laothian 7684 Lithuanian 7686 Latvian, Lettish 7771 Malagasy 7773 Maori 7775 Macedonian 7776 Malayalam 7778 Mongolian 7779 Moldavian 7782 Marathi 7783 Malay 7784 Maltese 7789 Burmese 7865 Nauru 7869 Nepali 7876 Dutch 7879 Norwegian 7982 Oriya 8065 Panjabi 8076 Polish 8083 Pashto, Pushto 8084 Portuguese 8185 Quechua 8277 Rhaeto-Romance 8279 Rumanian 8285 Russian 8365 Sanskrit 8368 Sindhi 8372 Serbo-Croatian 8373 Singhalese

Code Language

8375 Slovak 8376 Slovenian 8377 Samoan 8378 Shona 8379 Somali 8381 Albanian 8382 Serbian 8385 Sundanese 8386 Swedish 8387 Swahili 8465 Tamil 8469 Telugu 8471 Tajik 8472 Thai 8473 Tigrinya 8475 Turkmen 8476 Tagalog 8479 Tonga 8482 Turkish 8484 Tatar 8487 Twi 8575 Ukrainian 8582 Urdu 8590 Uzbek 8673 Vietnamese 8679 Volapük 8779 Wolof 8872 Xhosa 8979 Yoruba 9072 Chinese 9085 Zulu

Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (See page 39).

REFERENCE PAGE 49

Disc Requirements/Copyright Information

Playable Discs

This DVD player can play back the following discs.

In addition, this unit can play back a CD-R or CD-RW that contains audio titles or MP3 files. And this unit can play back a HDCD also.

You cannot playback discs other than those listed above. (Video CD, CD-ROM, CD-Extra, CD-G, photo CD, and CD-i discs can not be played on this DVD player.)

Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc.

The Region number of this DVD player is 1.

You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business purposes. When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen.

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission. DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Notes on Unauthorized Discs

Region Management Information

Notes on Copyright

Disc mark Contents

Audio+Video

(moving pictures)

Audio

Disc size

12 cm

8 cm

12 cm

8 cm

Maximum playback time

Approx. 4 hours (single sided disc) Approx. 8 hours (double sided disc) Approx. 80 minutes (single sided disc) Approx. 160 minutes (double sided disc) 74 minutes 20 minutes

DVD video discs

Audio CDs

, HDCD®, High Definition Compatible Digital®and Pacific Microsonics™ are either registered trademarks or trademarks of Pacific Microsonics, Inc., in the United States and/or other countries. HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following: In the USA: 5,479,168; 5,638,074; 5,640,161; 5,808,574; 5,838,274; 5,854,600; 5,864,311; 5,872,531; and in Australia: 669114. Other patents pending.

PAGE 50 REFERENCE

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and Correction

Symptom

No power.

The power is on, but the DVD player does not work.

No picture.

No sound.

The playback picture is poor. The DVD player does

not start playback.

The remote control does not work properly.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal

output.

• The video cable is not connected securely.

• The connected TV power is turned off.

• The equipment connected with the

audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• The Digital Audio Output is set to the wrong position.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The Rating level is set.

• The remote control is not pointed at the

remote sensor of the DVD player.

• The remote control is too far from the DVD player.

• There is an obstacle in the path of the remote control and the DVD player.

• The batteries in the remote control are exhausted.

Correction

• Plug the power cord into the wall outlet securely.

• Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)

• Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen.

• Connect the video cable into the jacks securely.

• Turn on the TV.

• Select the correct input mode of the

audio receiver so you can listen to the sound from the DVD player.

• Connect the audio cable into the jacks securely.

• Turn on the equipment connected with the audio cable.

• Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing the POWER button.

• Clean the disc.

• Insert a disc. (Check that the DVD, or

audio CD indicator in the DVD display is lit.)

• Insert a playable disc. (Check the disc type, color system and Regional code.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Press the SETUP button to turn off the

menu screen.

• Cancel the Rating function or change the rating level.

• Point the remote control at the remote sensor of the DVD player.

• Operate the remote control within about 23 ft (7 m).

• Remove the obstacle.

• Replace the batteries with new ones.

REFERENCE PAGE 51

Specifications

DVD player/Outputs/Supplied Accessories

[DVD player]

[Outputs]

[Supplied

Accessories]

Power supply AC 120V, 60 Hz Power consumption 16 W Weight 12.6 lbs (5.7 kg) External dimensions (W X H X D) 17” X 4.7” X 15.1” (430 x 118 x 381 mm) Signal system NTSC Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD) Frequency range (audio) 4 Hz to 20 kHz Signal-to-noise ratio (audio) More than 100 dB (EIAJ) Dynamic range (audio) More than 90 dB (EIAJ) Harmonic distortion (audio) 0.008 % Wow and flutter

Below measurable level (less than + 0.001 % (W.PEAK)) (EIAJ) Operating conditions Temperature: 41°F to 95°F, Operation status: Horizontal Video output

1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1

S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1 Audio output (optical audio) Optical connector x 1 Audio output (analog audio) 2.0 Vrms(1 KHz, 0 dB), 330 Ω, RCA jack (L, R) x 1

●

S-Video cable.............................................................................................1

●

Video cable................................................................................................1

●

Audio cable................................................................................................1

●

Remote control...........................................................................................1

●

Batteries.....................................................................................................2

❋ Designs and specifications are subject to change without notice.

NOTES PAGE 53

NOTES

PAGE 54 NOTES

NOTES

NOTES PAGE 55

Your Zenith Limited Warranty

DVD PLAYER

Welcome into the Zenith family! We believe that you will be pleased with your new Zenith Entertainment Machine. Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state within the U.S.A.

ZENITH’S RESPONSIBILITY

Service Labor During a period of 90 days from effective warranty date, Zenith will provide service labor by a Zenith authorized service

center when needed as determined by Zenith, as a result of manufacturing defects.

Parts New or remanufactured replacements for factory-defective parts will be supplied by a Zenith authorized service center for

one year from effective warranty date. Such replacement parts are warranted for the remaining portion of the original warranty period.

Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of customer controls in the home,

installation or repair of home antenna systems, cable converters or cable company-supplied equipment; it also does not cover damage due to misuse, abuse, negligence, acts of God or other causes beyond the control of Zenith. Any alteration of the product after manufacture voids this warranty in its entirety.

OWNER’S RESPONSIBILITY

Effective Warranty Date Warranty begins on the date of original consumer purchase. For your convenience, keep the dealer’s dated bill of sale or a

delivery ticket as evidence of the purchase date.

Operating Guide Read your Operating Guide carefully so that you will understand the operation of your DVD Player and how to adjust the

customer controls.

Carry-In Service The video product must be taken to a U.S. or Canadian Zenith authorized service center for warranty service and must be

picked up by the owner.

TV Set Performance It is the owner’s responsibility to maintain the TV receiver with which the video product is used, and the associated

antenna system, in proper operating condition.

Important Product Registration—Please fill out and mail your Product Registration Card. It is imperative that Zenith know how to

reach you promptly if we should discover a safety problem that could affect you.

Warranty Service For warranty service information, contact any Zenith authorized service center. Parts and service labor that are Zenith’s

responsibility (see above) will be provided without charge. Other service is at the owner’s expense. If you have any problem in obtaining satisfactory warranty service, call or write the Zenith Response Center. You must provide the model number, serial number and date of purchase or date of original installation. Before you ask for warranty service, read “Before calling service personnel” in your operating guide. You might avoid a service call.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ZENITH SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN CONNECTION WITH THE PRODUCT.

ZENITH ELECTRONICS CORPORATION Zenith Part No. 206-3716 2000 MILLBROOK DRIVE GS# 3835RS0020Z LINCOLNSHIRE, IL 60069 Printed in Korea

Issue O

Customer Service

Zenith National Response Center

201 James Record Road, Building #3

Huntsville, AL 35824

Phone: (256) 772-1515

Fax: (256) 774-4070

email: customer.service@zenith.com

Zenith DVD5591 OPERATING GUIDE
