Installation and Operating Guide | Warranty
Model Number | DVB412 | DVD Player
© Copyright 2004, LG Electronics U.S.A., Inc.
2
Warning: To reduce the risk of electric
shock, do not remove the cover or back
of this product. There are no userserviceable parts inside. Refer servicing
to qualified service personnel.
Warning:
To reduce the risk of fire or
electric shock, do not expose this
product to dripping or splashing water,
rain, or moisture. Do not place objects
filled with water such as vases, on the
product.
Warning:
This digital video disc player
employs a laser system. Use of controls,
adjustments, or the performance of
procedures other than those specified
herein may result in hazardous radiation
exposure.
Warning: To prevent direct exposure to
laser beam, do not open the enclosure.
Visible laser radiation when open.
Warning: Never stare directly into the
laser beam.
Caution: Do not install this product in a
confined space such as a book case or
similar unit.
FCC WARNING: This equipment may generate or use
radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the product is operated in a residential installation. This
product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
product does cause harmful interference to radio or
television reception, which can be determined by turning
the product off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
FCC COMPLIANCE: The responsible party for this
product’s compliance is:
Marketed and Distributed by LG Electronics U.S.A., Inc.,
1000 Sylvan Avenue, Englewood Cliffs, NJ
Phone: 1-201-816-2000.
SERIAL NUMBER:
You can find the serial number on the back of the unit. This
number is unique to this unit and not available to others. You
should record requested information here and retain this
guide as a permanent record of your purchase.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase_________________________
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . .4
Symbol used in this Manual . . . . . . . . . . . . . .4
About the Symbol Display . . . . . . . . . . . .4
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .4
Handling Discs . . . . . . . . . . . . . . . . . . . . . .4
Storing Discs . . . . . . . . . . . . . . . . . . . . . . . .4
Cleaning Discs . . . . . . . . . . . . . . . . . . . . . .4
Types of Playable Discs . . . . . . . . . . . . . . . . .5
Regional code . . . . . . . . . . . . . . . . . . . . . . . .5
Disc-related terms . . . . . . . . . . . . . . . . . . . . .6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Display Window . . . . . . . . . . . . . . . . . . . . . . . .7
Remote Control . . . . . . . . . . . . . . . . . . . . . . . .8
Remote Control Operation . . . . . . . . . . . . . .8
Remote Control Battery Installation . . . . . . .8
Installation and Setup . . . . . . . . . . . . . .9
Setting up the Player . . . . . . . . . . . . . . . . . . .9
DVD Player Connections . . . . . . . . . . . . . . . .9

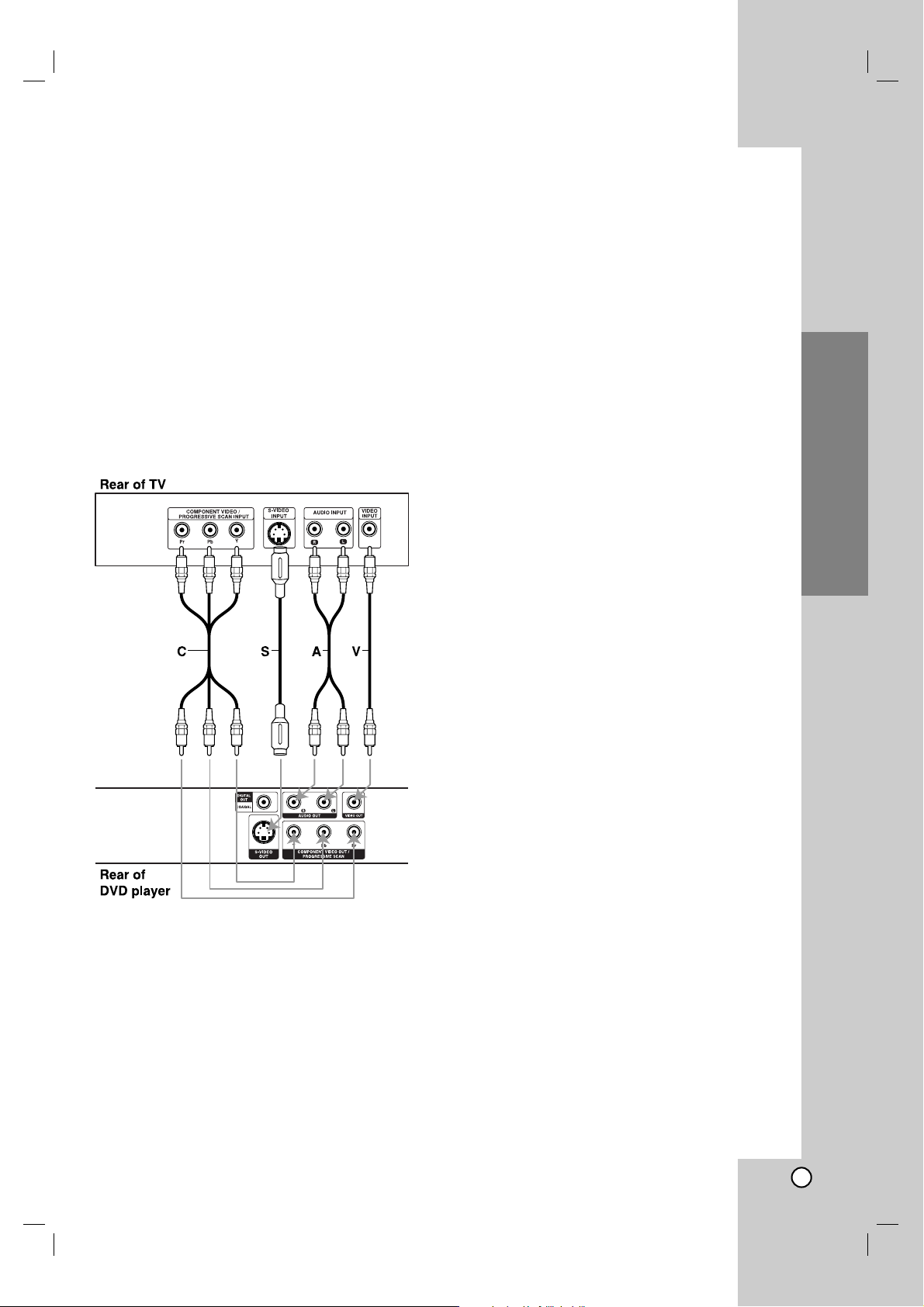

Video and Audio Connections to Your TV . . .9
Audio Connection to Your TV . . . . . . . . . . . .9
Audio Connection to Optional Equipment . .10
On-Screen Display . . . . . . . . . . . . . . . . . . . .11
Playback Status/Restrictions . . . . . . . . . . .11
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . .12
General Operation . . . . . . . . . . . . . . . . . . .12
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . .12
• Menu Language . . . . . . . . . . . . . . . . . . .12
• Disc Audio / Subtitle / Menu . . . . . . . . . .12
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . .13
• TV Aspect . . . . . . . . . . . . . . . . . . . . . . .13
• Display Mode . . . . . . . . . . . . . . . . . . . . .13
• Progressive Scan . . . . . . . . . . . . . . . . . .13
AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . .14
• Dolby Digital / DTS / MPEG . . . . . . . . . . .14
• Sample Freq. (Frequency) . . . . . . . . . . . .14
• Dynamic Range Control (DRC) . . . . . . .14
• Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . .14
OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . .14
• Auto Play . . . . . . . . . . . . . . . . . . . . . . . .14
• B.L.E. . . . . . . . . . . . . . . . . . . . . . . . . . . .14
LOCK (Parental Control) . . . . . . . . . . . . . .15
• Rating . . . . . . . . . . . . . . . . . . . . . . . . . .15
• Password (Security Code) . . . . . . . . . . . .15
• Country Code . . . . . . . . . . . . . . . . . . . . .15
Operation . . . . . . . . . . . . . . . . . . . . . . .16
Playing a DVD . . . . . . . . . . . . . . . . . . . . . . . .16
Playback Setup . . . . . . . . . . . . . . . . . . . . .16
Last Scene Memory . . . . . . . . . . . . . . . . . .16
Screen Saver . . . . . . . . . . . . . . . . . . . . . . .16
General Features . . . . . . . . . . . . . . . . . . . . .16
Moving to another TITLE . . . . . . . . . . . . . .16
Moving to another CHAPTER . . . . . . . . . .16
Search . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Still Picture and Frame-by-Frame Playback
. . .17
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . .17
Random . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . .17
Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3D Surround . . . . . . . . . . . . . . . . . . . . . . .17
Time Search . . . . . . . . . . . . . . . . . . . . . . . .17
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Marker Search . . . . . . . . . . . . . . . . . . .18
Special DVD Features . . . . . . . . . . . . . . . . .18
Checking the contents of DVD discs: Menus
.18
Title Menu . . . . . . . . . . . . . . . . . . . . . . . .18
Disc Menu . . . . . . . . . . . . . . . . . . . . . . . .18
Camera Angle . . . . . . . . . . . . . . . . . . . . .18
Changing the Audio Language . . . . . . . . . .18
Subtitles . . . . . . . . . . . . . . . . . . . . . . . . .18
Playing an Audio CD or MP3/WMA Disc . . .19
Audio CD and MP3 / WMA Disc Features . .20
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Moving to another Track . . . . . . . . . . . . .20
Repeat Track/All/Off . . . . . . . . . . . . . . . .20
Search . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Random . . . . . . . . . . . . . . . . . . . . . . . . . .20
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . .20
3D Surround . . . . . . . . . . . . . . . . . . . . . . .20
Programmed Playback . . . . . . . . . . . . . . . .21
Repeat Programmed Tracks . . . . . . . . . . .21
Erasing a Track from Program List . . . . . .21
Erasing the Complete Program List . . . . . .21
Viewing a JPEG Disc . . . . . . . . . . . . . . . . . .22
Slide Show . . . . . . . . . . . . . . . . . . . . . . . .22
Still Picture . . . . . . . . . . . . . . . . . . . . . . . . .22
Moving to another File . . . . . . . . . . . . . . . .22
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
To rotate picture . . . . . . . . . . . . . . . . . . . . .22
To listen to music watching picture . . . . . . .22
Playing a DVD VR format Disc . . . . . . . . . . .23
Maintenance and Service . . . . . . . . . . . . . . .23
Reference . . . . . . . . . . . . . . . . . . . . . . .24
Language Codes . . . . . . . . . . . . . . . . . . . . . . .24
Country Codes . . . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . .25
4
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future
reference.
This manual provides information on the operation
and maintenance of your DVD player. Should the unit
require service, contact an authorized service location.
Symbol Used in this Manual
The lightning flash symbol alerts you to the
presence of dangerous voltage within the
product enclosure that may constitute a risk of
electric shock.
The exclamation point alerts you to the
presence of important operating and
maintenance / servicing instructions.
Indicates hazards likely to cause harm to the
unit itself or other material damage.
Note:
Indicates special notes and operating features.
Tip:
Indicates tips and hints for making the task easier.
A section whose title has one of the following symbols
is applicable only to the disc represented by the
symbol.
DVD and finalized DVD±R/RW
Audio CDs
MP3 Discs
WMA Discs
JPEG Discs
About the Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function explained in
this owner’s manual is not available on that specific
DVD video disc.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on
the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not expose
the disc to direct sunlight or sources of heat and never
leave it in a parked car exposed to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
JPEG
WMA
MP3
CD
DVD
Introduction
5
Introduction
Types of Playable Discs
DVD
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit plays DVD -R, DVD +R, DVD RW, DVD +RW, Kodak Picture CDs, and CD-R /
CD-RW that contains audio titles, MP3, WMA, and/or
JPEG files.
This indicates a product feature that is
capable of playing DVD-RW discs
recorded with Video Recording format.
Notes:
• Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD -R, DVD +R,
DVD -RW, DVD +RW) disc itself, some CD-R/RW
(or DVD -R, DVD +R, DVD -RW, DVD +RW) discs
cannot be played on the unit.
• Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heartshaped or octagonal) since they may result in
malfunctions.
Notes on DVDs
Some playback operations of DVDs may be
intentionally programmed by software manufacturers.
This unit plays DVDs according to disc content
designed by the software manufacturer, therefore
some playback features may not be available or other
functions may be added.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and the
double-D symbol are trademarks of Dolby
Laboratories.
DTS and DTS Digital Out are trademarks of
Digital Theater Systems, Inc.
Regional code
This DVD player is designed and
manufactured for playback of region “1”
encoded DVD software. This unit can
play only DVD discs labeled “1” or “ALL”.
Notes on Regional Codes
• Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your DVD player’s regional
code or the disc cannot play.
• If you try to play a DVD with a different region code
from your player, the message “Check Regional
Code” appears on the TV screen.
Notes on Copyrights:
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent copyrighted
material without permission. This product features the
copy protection function developed by Macrovision.
Copy protection signals are recorded on some discs.
When recording and playing the pictures of these
discs picture noise will appear. This product
incorporates copyright protection technology that is
protected by method claims of certain U.S. patents
and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
1
6
Disc-related terms
DVD ±R / DVD ±RW
DVD -R and DVD +R are two different standards for
recordable DVD drives and discs. This format allows
information to be recorded onto the DVD disc only
once. DVD +RW and DVD -RW are two standards for
re-writable media, meaning the DVD content can be
erased and re-recorded. Single-sided discs can hold
4.38 Gigabytes and double-sided discs hold twice as
much. There are no dual layer single sided recordable
discs.
MPEG
MPEG is an international standard for video and audio
compression. Provides for multichannel surround
sound coding such as PCM, Dolby Digital, DTS and
MPEG audio.
MP3
MP3 is a popular compression format used for digital
audio files that yields very high near-CD quality.
WMA
Windows media audio file. A type of coding / decoding
developed by Microsoft Corp.
JPEG
Joint Pictures Expert Group. JPEG is a compressed
file format that allows you to save images with no limit
on the number of colors.
Title (DVD only)
A title is generally a distinct section of a DVD disc. For
example the main feature could be title 1, a
documentary describing how the film was made could
be title 2, and cast interviews could be title 3. Each
title is assigned a reference number enabling you to
locate it easily.
Chapter (DVD only)
A chapter is a segment of a title such as a scene in a
film or one interview in a series. Each chapter is
assigned a chapter number, enabling you to locate the
chapter you want. Depending on the disc, chapters
may not be recorded.
Track
Adistinct element of audio/visual information, such as
sound track for a specific language (DVD), or a
musical piece audio CD. Each track is assigned a
track number, enabling you to locate the track you
want. DVD discs allow one track of video (with
multiple angles) and several tracks of audio.
7
Introduction
Indicates current player
function (Play, Pause)
DVD inserted
CD Audio CD inserted
CHP/TRK Indicates
current chapter or
track number
Indicates total playing
time/elapsed time
Indicates encoding
DTS and Dolby digital
of the current disc.
Display Window
Front Panel
Indicates repeat mode
Forward Skip/Scan ( > / M )
Go to the next chapter / track.
Press and hold for two seconds for
fast forward search.
Reverse Scan/Skip ( m / . )
Go to previous chapter / track or to the beginning.
Press and hold for two seconds for fast reverse search.
STOP ( x ) Stops playback.
PAUSE ( X )
Pauses playback. Press repeatedly for
frame-by-frame playback.
PLAY ( N )
Starts playback.
OPEN / CLOSE ( Z )
Opens or closes the disc tray.
Disc Tray
Insert a disc here.
POWER
Switches the player ON and OFF.
Remote Sensor
Point the DVD Player remote control
here.
Display window
Shows the current status of the
player.
DVD
DVD CHP
CD TRK
A
ALL
D
B
TV Control Buttons
TV POWER:
Turns the TV on or off.
TV PR/CH +/–:
Selects TV’s channel.
TV VOL +/–:
Adjusts TV’s volume.
AV:
Selects the TV’s source.
SKIP (. / >)
Go to next chapter or track.
Returns to beginning of current
chapter or track or go to
previous chapter or track.
STOP ( x )
Stops playback.
TITLE
Displays title menu, if available.
RETURN
Removes the setup menu.
• MARKER
Marks any point during
playback.
• SEARCH
Displays MARKER SEARCH
menu.
• PROGRAM
Places a track on the program
list.
• ZOOM
Enlarges video image.
• REPEAT
Repeat chapter, track, title all.
• A-B
Repeat sequence.
• RANDOM
Plays tracks in random order.
• * This button is not available.
8
Remote Control
Remote Control Operation
Point the remote control at the remote sensor and
press the buttons.
Do not mix old and new batteries and never
mix different types of batteries such as
standard, alkaline, etc.
Remote Control Battery installation
Detach the battery cover on the rear of the
remote control, and insert two batteries
(size AAA) with and aligned correctly.
OPEN / CLOSE
Opens and closes the disc tray.
POWER
Switches DVD Player ON and OFF.
0-9 number buttons
Selects numbered items in a menu.
CLEAR
Removes a track number on the
program list or a mark on the
MARKER SEARCH menu.
SCAN ( m / M )
Search backward or forward.
PAUSE / STEP ( X )
Pauses playback temporarily/ press
repeatedly for frame-by-frame
playback.
PLAY ( N )
Starts playback.
DVD MENU
Accesses menu on a DVD disc.
bBvV(left/right/up/down) •
Selects an item in the menu.
ENTER •
Confirms menu selection.
DISPLAY
Accesses On-Screen display.
AUDIO •
Selects an audio language (DVD).
SUBTITLE •
Selects a subtitle language.
ANGLE •
Selects a DVD camera angle if
available
SETUP •
Accesses or removes setup menu.
AAA
AAA
9
Installation and Setup
Setting up the Player
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. If this occurs,
position the player away from the TV, VCR, or radio,
or turn off the unit after removing the disc.
DVD Player Connections
Depending on your TV and other equipment there are
various ways you can connect the player. Please refer
to the manuals of your TV, stereo system or other
devices as necessary for additional connection
information.
Video and Audio Connections to Your TV
Make sure the DVD player is connected directly to the
TV and not to a VCR, otherwise the DVD image could
be distorted by the copy protection system.
Video: Connect the VIDEO OUT jack on the DVD
player to the video in jack on the TV using the
video cable (V).
S-Video: Connect the S-VIDEO OUT jack on the
DVD Player to the S-Video in jack on the TV using
the S-Video cable (S).
Component Video (Color Stream®): Connect the
COMPONENT VIDEO OUT/PROGRESSIVE
SCAN jacks on the DVD Player to the
corresponding in jacks on the TV using an Y Pb Pr
cable (C).
Progressive Scan (ColorStream
®
pro):
• If your television is a high-definition or
“digital ready” television, you may take
advantage of the DVD Player’s progressive
scan output for the highest video resolution
possible.
• If your TV does not accept the Progressive
Scan format, the picture will appear
scrambled if you try Progressive Scan on
the DVD Player.
Notes:
• Set the Progressive to “On” on the setup menu for
progressive signal, see page 13.
•
Set the progressive to “Off” by removeing any disc
from the unit and close the disc tray. see that “no
disc” is displayed on the display window. Then press
STOP and hold it for five seconds before releasing
it.
•Progressive scan does not work with the analog
video connections (yellow VIDEO OUT jack).
Audio Connection to Your TV:
Connect the left and right AUDIO OUT jacks of the
DVD Player to the audio left and right IN jacks on the
TV (A) using the audio cables. Do not connect the
DVD Player’s AUDIO OUT jack to the phono in jack
(record deck) of your audio system.
Installation and Setup
10
Audio Connection to Optional Equipment
Connect the DVD player to your optional equipment
for audio output.
Amplifier equipped with 2-channel analog stereo
or Dolby Pro Logic ll / Pro Logic: Connect the left
and right AUDIO OUT jacks on the DVD player to the
audio left and right IN jacks on your amplifier, receiver,
or stereo system, using the audio cables (A).
Amplifier equipped with 2-channel digital stereo
(PCM) or audio / video receiver equipped with a
multi-channel decoder (Dolby Digital™, MPEG 2,
or DTS): Connect one of the DVD Player’s DIGITAL
AUDIO OUT jacks (COAXIAL X) to the corresponding
in jack on your amplifier. Use an optional digital
(coaxial X) audio cable.
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel audio
/ video receiver that supports one or more of the audio
formats supported by your DVD player such as MPEG
2, Dolby Digital and DTS. Check the receiver manual
and the logos on the front of the receiver.
Notes:
• If the audio format of the digital output does not
match the capabilities of your receiver, the receiver
produce a strong, distorted sound or no sound at
all.
• Six Channel Digital Surround Sound via a digital
connection can only be obtained if your receiver is
equipped with a Digital Multi-channel decoder.
•To see the audio format of the current DVD in the
on-screen display, press AUDIO.
Amplifier (Receiver)
Rear of DVD player
AX
R
L
AUDIO INPUTDIGITAL INPUT
COAXIAL
Installation and Setup
11
On-Screen Display
You can display the general playback status on the TV
screen. Some items can be changed using the menu.
To use the on-screen display:
1. Press DISPLAY during playback.
2. Press v / V to select an item.
The selected item is highlighted.
3. Press b / B to change the setting. You can also
use the number buttons if appropriate (e.g.
inputting the title number). For some functions,
press ENTER to execute the setting.
Notes:
• Some discs may not provide all of the features
shown below.
• If no button is pressed for 10 seconds, the
on-screen display disappears.
Playback Status/Restrictions
Repeat title
Repeat sequence
Enter a Marker
Marker Search menu
Resume play from this point
Action prohibited or not available
Items
Title Number
Chapter Number
Time search
Audio language
and Digital Audio
Output mode
Subtitle language
Angle
Sound
Selection Method
b/ B
, Numbers
ENTER
b/ B
, Numbers
ENTER
Numbers, ENTER
b/ B
or
AUDIO
b/ B
or
SUBTITLE
b/ B
or
ANGLE
b/ B
1 / 3
1 / 12
0:20:09
ABC
1 ENG
1 / 3
3D SUR
Example: On-Screen Display during
playing DVD Video
Title
A - B
#1 : 1 / 9
123456789
12
Initial Settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound. You
can also set a language for the subtitles and the
Setup menu, among other things. For details on each
Setup menu item, see pages 12 to 15.
To display and exit the Menu:
Press SETUP to display the menu. A second press of
SETUP will take you back to initial screen.
To go to the next level:
Press B on the remote control.
To go back to the previous level:
Press b on the remote control.
General Operation
1. Press SETUP. The Setup menu appears.
2. Use v / V to select the desired option then press
B to move to the second level. The screen shows
the current setting for the selected item, as well as
alternate setting(s).
3. Use v / V to select the second desired option then
press B to move to the third level.
4.
Use v / V to select the desired setting then press
ENTER to confirm your selection. Some items
require additional steps.
5. Press SETUP, RETURN, or PLAY to exit the Setup
menu.
LANGUAGE
Menu Language
Select a language for the Setup menu and on-screen
display.
Disc Audio / Subtitle / Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
Original: Refers to the original language in which the
disc was recorded.
Other: To select another language, press number
buttons then ENTER to enter the corresponding 4digit number according to the language code list in the
reference chapter. If you enter the wrong language
code, press CLEAR.
DVD
Menu Language
Original
English
Off
Original
Disc Audio
Disc Subtitle
Disc Menu
Move
Select
LANGUAGE
13
DISPLAY
TV Aspect
4:3:
Select when a standard 4:3 TV is connected.
16:9: Select when a 16:9 wide TV is connected.
Display Mode
Display Mode setting works only when the TV Aspect
mode is set to “4:3”.
Letterbox: Displays a wide picture with bands on the
upper and lower portions of the screen.
Panscan:
Automatically displays the wide picture on the
entire screen and cuts off the portions that do not fit.
Progressive Scan
Progressive Scan Video provides the highest quality
pictures with less flickering.
If you are using the Component Video jacks for
connection to a TV or monitor that is compatible with
a progressive scan signal, set Progressive Scan to
On.
To Turn ON progressive scan:
Connect component out of the DVD to the input of
your monitor/television, set your television or monitor
to Component Input.
1. Select “Progressive Scan” on the DISPLAY menu
then press B.
2. Select “On” using the v / V buttons.
3. Press ENTER to confirm your selection.
The confirm menu will appear.
Notes:
At this point the only video displaying is Component
video. If your screen goes to a black screen, your
television/display may not be compatible to
progressive scan.
In this case the player will time out after 10-12
seconds if no other keys are pressed. After the unit
times out, the player will automatically return to
standard format, and your picture will return.
4. When the confirm menu appears on your screen
Cancel is highlighted as default. Use the b / B
buttons to highlight Enter.
5. Pressing ENTER will set the player to Progressive
scan mode.
Caution:
Once the setting for progressive scan output is
entered, an image will only be visible on a progressive
scan compatible TV or monitor. If you set Progressive
Scan to On in error, you must reset the unit. First,
remove the disc in the DVD Player. Next, press STOP
( x ) again and hold it for five seconds before
releasing it. The video output will be restored to the
standard setting, and a picture will once again be
visible on a conventional analog TV or monitor.
DVD
DVD
DVD
DISPLAY
TV Aspect
Widescreen
16 : 9
Display Mode
OffProgressive Scan
Move
Select
Installation and Setup
DISPLAY
TV Aspect
Display Mode
OnProgressive Scan
Off
Move
EnterPrev.
14
AUDIO
Each DVD disc has a variety of audio output options.
Set the player’s AUDIO options according to the type
of audio system you use.
Dolby Digital / DTS / MPEG
Bitstream: Select “Bitstream” if you connect the
DVD Player’s DIGITAL OUT jack to an amplifier or
other equipment with a Dolby Digital, DTS or
MPEG decoder.
PCM (for Dolby Digital / MPEG): Select when
connected to a two-channel digital stereo amplifier.
DVDs encoded in Dolby Digital or MPEG will be
automatically downmixed to two-channel PCM
audio.
Off (for DTS): If you select “Off”, the DTS signal is
not output through the DIGITAL OUT jack.
Sample Freq. (Frequency)
If your receiver or amplifier is NOT capable of
handling 96 kHz signals, select 48 kHz. When this
choice is made, this unit automatically converts any
96 kHz signals to 48 kHz so your system can decode
them.
If your receiver or amplifier is capable of handling 96
kHz signals, select 96 kHz. When this choice is made,
this unit passes each type of signal through without
any further processing.
Check the documentation for your amplifier to verify
its capabilities.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program’s
soundtrack in the most accurate and realistic
presentation possible, thanks to digital audio
technology. However, you may wish to compress the
dynamic range of the audio output (the difference
between the loudest sounds and the quietest ones).
This allows you to listen to a movie at a lower volume
without losing clarity of sound. Set DRC to On for this
effect.
Vocal
Set to On only when a multi-channel karaoke DVD is
playing. The karaoke channels on the disc mix into
normal stereo sound.
OTHERS
The Auto Play and B.L.E. settings can be changed.
Auto Play
You can set up the DVD Player so a DVD disc
automatically starts playing whenever the DVD is
inserted.
If Auto Play mode is set to On, this DVD player will
search for title that has the longest playback time and
then play back the title automatically.
On: Auto Play function is active.
Off: Auto Play function is not active.
Note:
The Auto Play function may not work for some DVDs.
B.L.E. (Black Level Expansion)
To select the black level of playback pictures. Set your
preference and monitor’s ability.
On: Expanded grey scale. (0 IRE cut off)
Off: Standard grey scale. (7.5 IRE cut off)
DVD
DVD
DVD
DVD
DVD
DVD
Off
Move
Auto Play
OTHERS
Select
OnB.L.E.
Dolby Digital
Bitstream
PCM
48 kHz
On
Bitstream
DTS
MPEG
Sample Freq.
DRC
OnVocal
Move
Select
AUDIO
15
Installation and Setup
LOCK (Parental Control)
Rating
Some movies contain scenes that may not be suitable
for children to view. Many of these discs contain
parental control information that applies to the
complete disc or to certain scenes on the disc. Movies
and scenes are rated from 1 to 8, depending on the
country. Some discs offer more suitable scenes as an
alternative.
The parental control feature allows you to block
access to scenes below the rating you input, thereby
preventing your children from being able to view
material you believe is unsuitable.
1. Select “Rating” on the LOCK menu then
press B.
2. To access the Rating, Password and Country Code
features, you must input the 4-digit security code
you created. If you have not yet entered a security
code you are prompted to do so.
Input a 4-digit code and press ENTER. Enter it
again and press ENTER to verify. If you make a
mistake before pressing ENTER, press CLEAR.
3. Select a rating from 1 to 8 using the v / V buttons.
Rating 1-8: Rating one (1) has the most
restrictions and rating eight (8) is the least
restrictive.
Unlock
If you select unlock, parental control is not active
and the disc plays in full.
Notes:
If you set a rating for the player, all disc scenes with
the same rating or lower are played. Higher rated
scenes are not played unless an alternate scene is
available on the disc. The alternative must have the
same rating or a lower one. If no suitable alternative is
found, playback stops. You must enter the 4-digit
password or change the rating level in order to play the
disc.
4. Press ENTER to confirm your rating selection, then
press SETUP to exit the menu.
Password (Security Code)
You can enter or change password.
1. Select Password on the LOCK menu then press B.
2. Follow step 2 as shown left (Rating). “Change” or
“New” is highlighted.
3. Enter the new 4-digit code, then press ENTER.
Input it again to verify.
4. Press SETUP to exit the menu.
If you forget your Security Code
If you forget your security code you can clear it using
the following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and the security
code is cleared.
3.
Enter a new code as described above.
Country Code
Enter the code of the country/area whose standards
were used to rate the DVD video disc, based on the
list in the reference chapter.
1. Select “Country Code” on the LOCK menu then
press B.
2. Follow step 2 as shown left (Rating).
3. Select the first character using v / V buttons.
4. Shift the cursor using B button and select the
second character using v / V buttons.
5. Press ENTER to confirm your country code
selection.
DVD
DVD
LOCK
Rating
New
SE
Unlock
Password
Country Code
Move
Select
U S
16
Playing a DVD
Playback Setup
1. Turn on the TV and select the video input source
connected to the DVD player.
2. Turn on the audio system (if applicable) and select
the input source connected to the DVD player.
3. Press OPEN/CLOSE to open the disc tray and
load your chosen disc in the tray, with the
playback side down.
4. Press OPEN/CLOSE to close the tray. Playback
starts automatically. If playback does not start,
press PLAY.
In some cases, the disc menu might appear
instead:
Use the bB v Vbuttons to select the title/chapter
you want to view, then press ENTER to start.
Press TITLE or DVD MENU to return to the menu
screen.
Notes:
• If parental control is set and the disc is not within
the rating settings you must input the password.
(See “Lock Menu” on page 15.)
• DVDs may have a region code. Your player does
not play discs that have a region code different from
your player. The region code for this player is 1
(one).
Last Scene Memory
This player memorizes last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the player or switch
off the player. If you load a disc that has the scene
memorized, the scene is automatically recalled.
Note:
This player does not memorize the scene of a disc if
you switch off the player before commencing to play
the disc.
Screen Saver
The screen saver appears when you leave the DVD
player in Stop mode for about five minutes. If the
Screen Saver is displayed for five minutes, the DVD
Player automatically turns itself off.
General Features
Note:
Unless stated otherwise, all operations described use
the remote control. Some features may also be
available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move to
another title. Press DISPLAY while playback is
stopped then the appropriate number (0-9) or use b /
B to move to another title.
You can play any title by inputting its number while
playback is stopped.
Moving to another CHAPTER
When a title on a disc has more than one chapter you
can move to another chapter as follows:
• Press SKIP . or > briefly during playback to
select the next chapter or to return to the
beginning of the current chapter.
• Press SKIP . twice briefly to step back to the
previous chapter.
•To go directly to any chapter during DVD playback,
press DISPLAY and press v / V to select the
chapter icon. Then, input the chapter number or
use b / B.
Search
1. Press SCAN (
m or M) during playback.
2. Press SCAN (
m or M)repeatedly to select the
required speed.
DVD; X2, X4, X16 or X100
3. To exit SEARCH mode, press PLAY.
DVD
DVD
DVD
CD
DVD
DVD
Operation
17
Operation
Still Picture and Frame-by-Frame Playback
1. Press PAUSE/STEP on the remote control during
playback. Advance the picture frame-by-frame by
pressing PAUSE/STEP repeatedly.
2. To exit still motion mode, press PLAY.
Slow Motion
1. Press PAUSE/STEP (X) during playback.
The DVD player will now go into PAUSE mode.
2. Use the SCAN (m or M) to select the required
speed: t 1/16, t 1/8, t 1/4, or t 1/2
(backward), or T 1/16, T 1/8, T 1/4, or T 1/2
(forward).
3. To exit Slow Motion mode, press PLAY (N).
Random
1. Press RANDOM during playback. The unit
automatically begins random playback and
RANDOM appears on the menu screen.
2. Press RANDOM again to normal.
Tip:
By pressing SKIP > during random playback, the
unit selects another title (track) and resumes random
playback.
Repeat A-B
To repeat a sequence.
1. Press A-B at your chosen starting point.
“ A - ”
appears briefly on the TV screen.
2. Press A-B again at your chosen end point.
“A - B” appears briefly on the TV screen and the
repeat sequence begins.
3. Press A-B again to cancel.
Repeat
You can play a title/chapter/all/track on a disc.
Press REPEAT during playback to select a desired
repeat mode.
DVD Video Discs - Repeat Chapter/Title/Off
• Chapter: repeats the current chapter.
• Title: repeats the current title.
• Off : does not play repeatedly.
Notes:
If you press SKIP (>) once during Repeat Chapter
(Track) playback, the repeat playback cancels.
3D Surround
To produce a 3D surround effect that simulates multichannel audio from two stereo speakers (instead of
the five+ speakers normally required for multi-channel
audio from a home theater system).
1. Press DISPLAY during playback.
2. Use v or V to select the sound option.
The sound option will be highlighted.
3. Use b or B to to select “3D SUR”.
To turn off the 3D Surround effect, select “Normal”.
Time Search
To start playing at any chosen time on the disc:
1. Press DISPLAY during playback. The time search
box shows the elapsed playing time.
2. Press v / V to select the time clock icon and “-:--:-
-” appears.
3. Input the required start time in hours, minutes, and
seconds from left to right. If you enter the wrong
numbers, press CLEAR to remove the numbers
you entered. Then input the correct numbers.
4. Press ENTER to confirm. Playback starts from the
selected time.
DVD
DVD
DVD
DVD
Karaoke DVD
DVD
DVD
18
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback or still playback to
activate the Zoom function. The square frame
appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV
screen in the sequence: 400% size → 1600% size
→ normal size
3. Use the bBvVbuttons to move through the
zoomed picture.
4. To resume normal playback, press ZOOM or
CLEAR button repeatedly.
Note:
Zoom may not work on some DVDs.
Marker Search
To enter a Marker
You can start playback from up to nine memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears on
the TV screen briefly. Repeat to enter up to nine
markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH. The marker
search menu appears on the screen.
2. Within 10 seconds, press b / B to select a marker
number that you want to recall or clear.
3. Press ENTER and playback starts from the
marked scene. Or, Press CLEAR and the marker
number is erased from the list.
4. You can play any marker by inputting its number
on the marker search menu.
Special DVD Features
Checking the contents of DVD discs: Menus
DVDs may offer menus that allow you to access
special features. To use the disc menu, press DVD
MENU. Input the corresponding number or use the b
B v V buttons to highlight your selection. Then press
ENTER.
Title Menu
1. Press TITLE. If the current title has a menu, the
menu appears on the screen. Otherwise, the disc
menu may appear.
2. The menu offers features such as camera angles,
spoken language and subtitle options, and
chapters for the title.
3. Press TITLE to exit.
Disc Menu
Press DVD MENU and the disc menu is displayed.
Press DVD MENU again to exit.
Camera Angle
If the disc contains scenes recorded at different
camera angles, you can change to a different camera
angle during playback. Press ANGLE repeatedly
during playback to select a desired angle. Note that
the number of the current angle appears on the
display.
Tip:
The angle indicator will blink on the display window
during scenes recorded at different angles as an
indication that angle switching is possible.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a
different audio language or audio track.
With DVD-RW discs recorded in VR mode that have
both a main and a Bilingual audio channel, you can
switch between Main (L), Bilingual (R), or a mix of
both (Main + Bilingual) by pressing AUDIO.
Subtitles
Press SUBTITLE repeatedly during playback to see
the different subtitle languages.
DVD
DVD
DVD
DVD
DVD
DVD
DVD
19
Operation
Playing an Audio CD or MP3/WMA Disc
The DVD player can play MP3/WMA formatted
recordings on CD-ROM, CD-R, or CD-RW discs.
Audio CD
Once you insert an audio CD a menu appears on the
TV screen. Press v / V to select a track then press
PLAY or ENTER and playback starts.
MP3 / WMA
1. Press v / V to select a folder, and press ENTER
to see the folder contents.
2. Press v / V to select a track then press PLAY or
ENTER. Playback starts.
Note:
Displays path of track from the disc on the TV screen.
Tip:
•
If you are in a file list on the MP3/WMA menu and
want to return to the Folder list, use the v/V to
highlight and press ENTER.
• Press and hold V / v to go to the next / previous
page.
•
On a CD with MP3/WMA and JPEG you can switch
MP3/WMA and JPEG. Press TITLE and MP3/WMA
or JPEG word on top of the menu is highlighted.
MP3 / WMA disc compatibility with this player is
limited as follows:
• Sampling frequency: within 8 - 48 kHz (MP3),
within 22 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3),
40 - 192kbps (WMA)
• The player cannot read an MP3/WMA file that has
a file extension other than “.mp3” / “.wma”.
• CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software that
cannot create a file system (eg. Direct-CD) it is
impossible to playback MP3 / WMA files. We
recommend that you use Easy-CD Creator, which
creates an ISO 9660 file system.
• File names should have a maximum of 8 letters
and must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as /
? * : “ < > l etc.
• The total number of files on the disc should be
less than 999.
This DVD player requires that discs and recordings
meet certain technical standards in order to achieve
optimal playback quality. Pre-recorded DVDs are
automatically set to these standards. There are
many different types of recordable disc formats
(including CD-R containing MP3 or WMA files) That
meet these standards.
Customers should note that permission is
required in order to download MP3 / WMA files
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
AUDIO CD
0:00:00
List
Track1
Track2
Track3
Track4
Track5
Track6
Track7
Track8
MUSIC
0:00:00
List
List
1-Music1
1-Music1
2-Music2
2-Music2
3-Music3
3-Music3
4-Music4
4-Music4
5-Music5
5-Music5
6-Music6
6-Music6
7-Music7
7-Music7
1 / 12
1 / 104
Program
Program
20
Audio CD and MP3 / WMA Disc
Features
Pause
1. Press PAUSE/STEP during playback.
2. To return to playback, press PLAY, ENTER or
press PAUSE/STEP again.
Moving to another Track
1. Press SKIP (. or >) briefly during playback
to go to the next track or to return to the beginning
of the current track.
2. Press SKIP . twice briefly to go back to the
previous track.
3. You can play any track by inputting its number.
Repeat Track/All/Off
You can play a track/all on a disc.
1. Press REPEAT when playing a disc. The repeat
icon appears.
2. Press REPEAT to select a desired repeat mode.
• Track: repeats the current track
• All: repeats all the tracks on a disc.
• Off(No display): does not play repeatedly.
Note:
If you press SKIP (>) once during Repeat Track
playback, the repeat playback cancels.
Search
1. Press SCAN (
m or M) during playback.
2. Press SCAN (m or M)repeatedly to select the
required speed: X2, X4, X8 backward or forward.
3. To exit SEARCH mode, press PLAY.
Random
1. Press RANDOM during playback. Random
Playback begins immediately and RANDOM
appears on the menu screen.
2. To return to normal playback, press RANDOM
repeatedly until RANDOM disappears from the
menu screen.
Tip:
By pressing SKIP > during random playback, the
unit selects another track and resumes random
playback.
Repeat A-B
1. To repeat a sequence during disc playback press
A-B at your chosen starting point. The Repeat icon
and “A” appear on the menu screen.
2. Press A-B again at your chosen end point. The
Repeat icon and “A-B” appear on the menu
screen, and the sequence begins to play
repeatedly.
3. To exit the sequence and return to normal play,
press A-B again. The Repeat icon disappears from
the menu screen.
3D Surround
To produce a 3D surround effect that simulates multichannel audio from two stereo speakers (instead of
the five+ speakers normally required for multi-channel
audio from a home theater system).
1. Press AUDIO during playback.
“3D SUR” appears on the menu screen.
2. To return to normal playback, press AUDIO
repeatedly until “3D SUR” disappears from the
menu screen.
CD
CD
CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
21
Operation

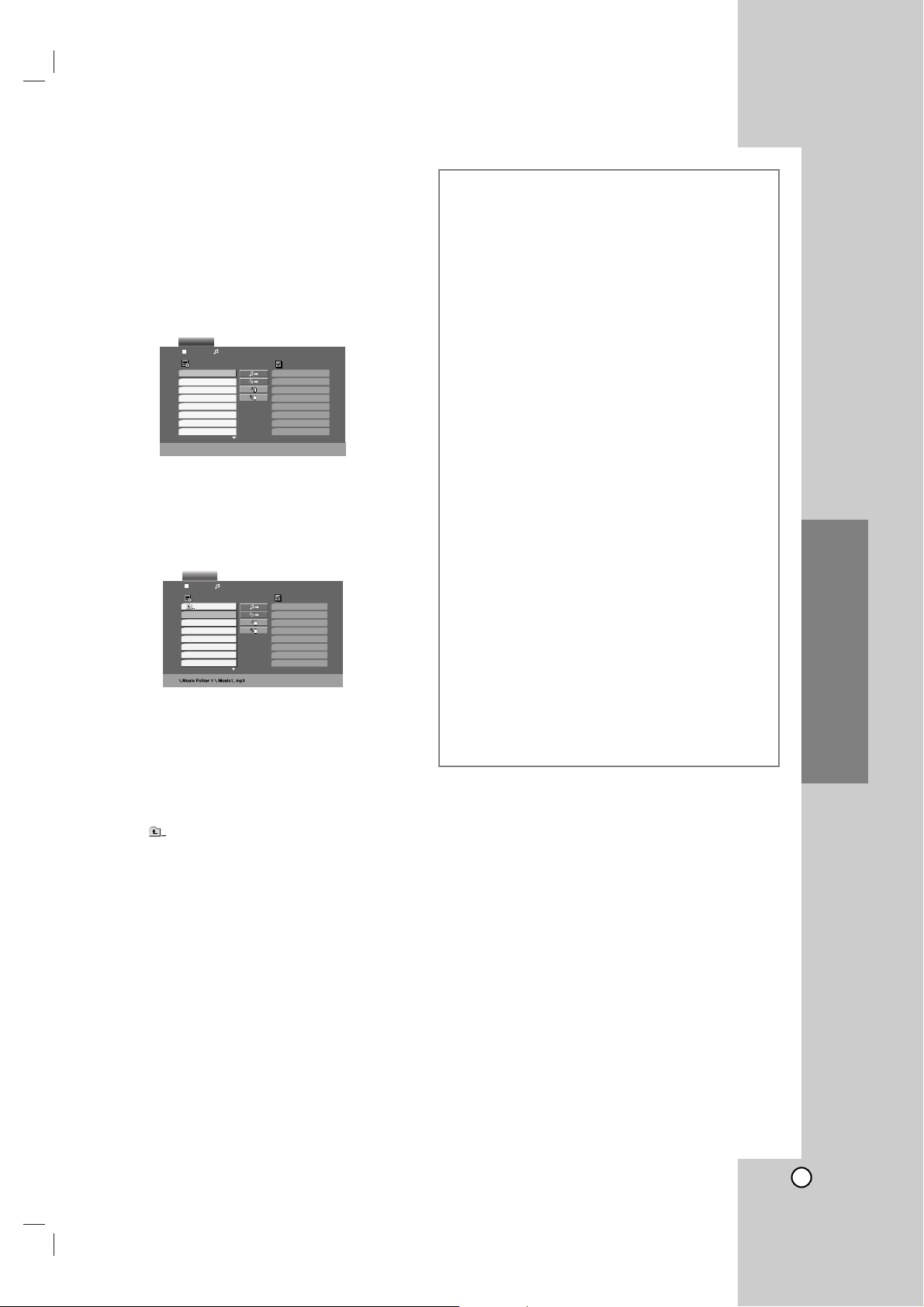

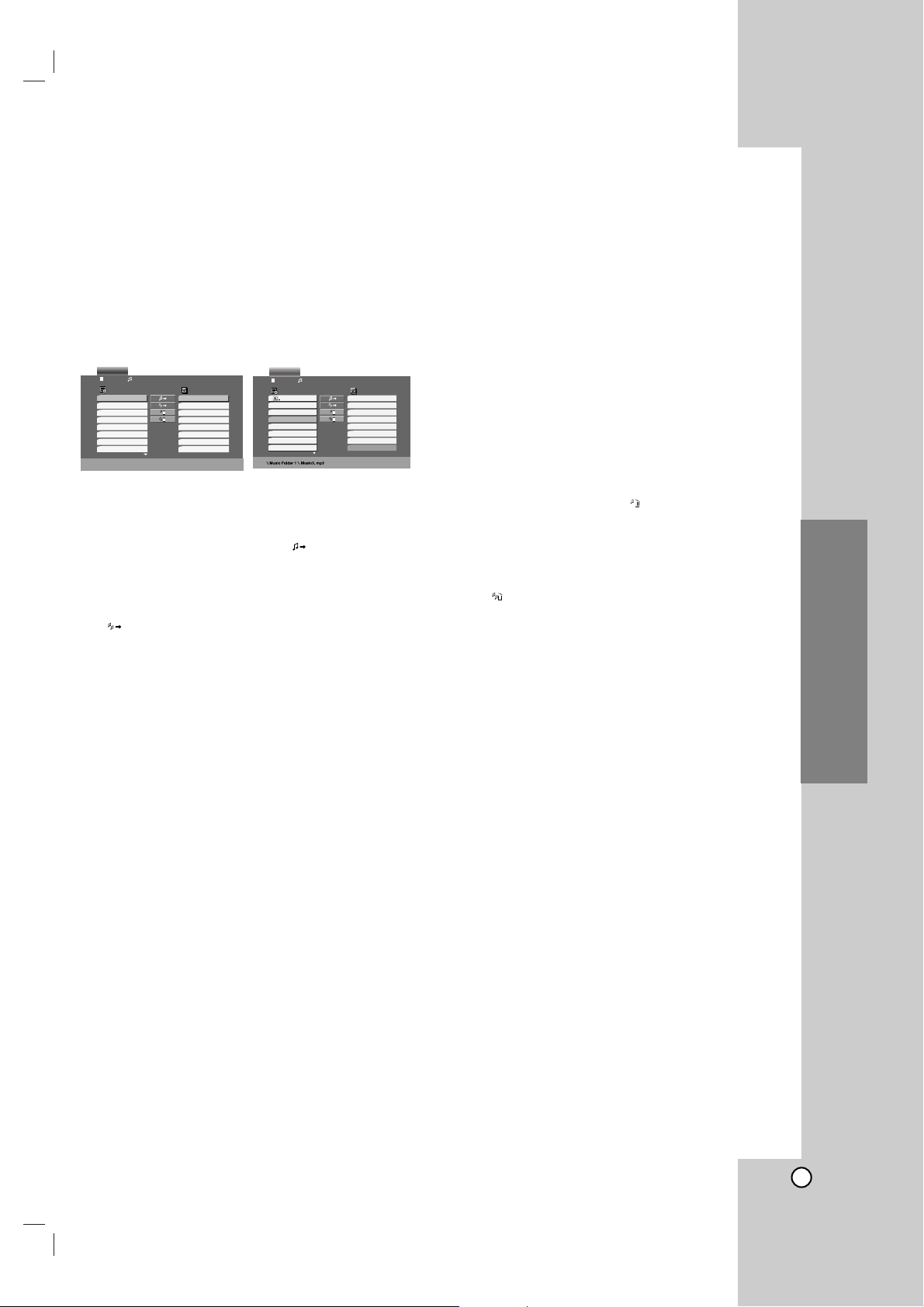

Programmed Playback
The program function enables you to store your
favorite tracks from any disc in the player memory. A
program can contain 99 tracks (Audio CD) or 999
tracks (MP3/WMA).
1. Insert a disc.
Audio CD and MP3/WMA Discs:
Audio CD or MP3/WMA menu appears as below.
Audio CD Menu MP3/WMA Menu
2. Select a track on the List.
3. Press PROGRAM. Or, select “ ” icon then
ENTER to place the selected track on the Program
list. Repeat to place additional tracks on the list.
You can add all tracks in the disc. Select
“” icon then press ENTER.
4. Select the track you want to start playing on the
Program list. Press and hold v / V to move to the
next / previous page.
5. Press PLAY or ENTER to start. Playback begins in
the order in which you programmed the tracks and
“PROG.” appears on the display window. Playback
stops after all of the tracks on the Program list
have played once.
Repeat Programmed Tracks
You can play a title/chapter/all/track on a disc.
1. Press REPEAT when playing a disc. The repeat
icon appears.
2. Press REPEAT to select a desired repeat mode.
• Track: repeats the current track
• All:
repeats all the tracks on programmed list.
• Off(No display): does not play repeatedly.
Note:
If you press SKIP (>) once during Repeat Track
playback, the repeat playback cancels.
Erasing a Track from Program List
1. Use vVbBto select the track that you wish to
erase from the Program list.
2. Press CLEAR. Or, select “ ” icon then Press
ENTER to place the selected track on the Program
list. Repeat to erase additional tracks on the list.
Erasing the Complete Program List
Select “ ”, then press ENTER. The complete
Program for the disc is erased.
Note:
The programs are also cleared when the disc is
removed.
AUDIO CD
0:00:00
1 / 12
List
Track1
Track2
Track3
Track4
Track5
Track6
Track7
Track8
Track8
Track3
Track12
Track7
Track6
Track9
Track10
Track1
Program
1-Music1
1-Music1
2-Music2
2-Music2
3-Music3
3-Music3
4-Music4
4-Music4
5-Music5
5-Music5
6-Music6
6-Music6
7-Music7
7-Music7
MUSIC
0:00:00
List
List
1 / 104
Music8
Music16
Music5
Music9
Music1
Music7
Music6
Music3
Program
22

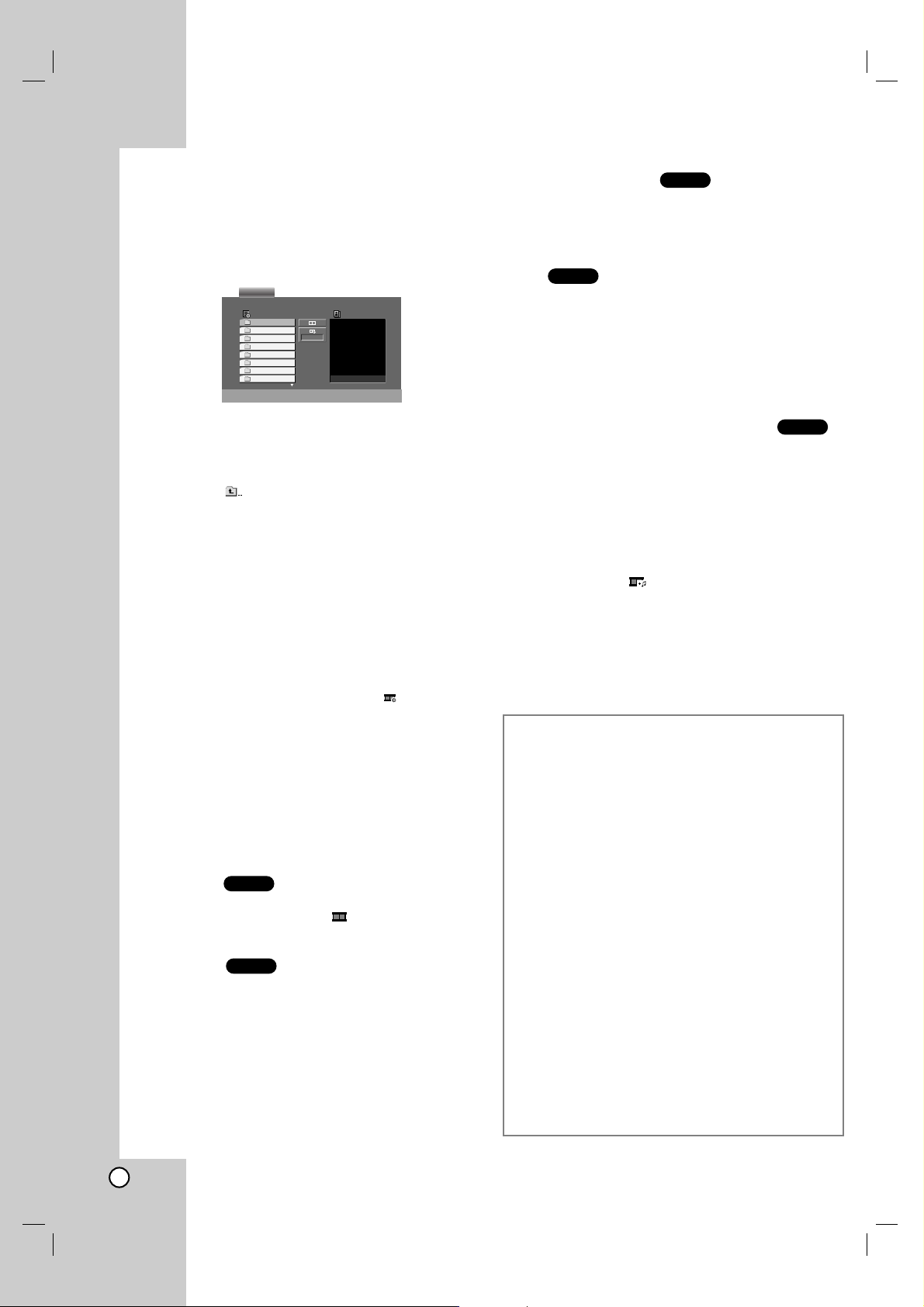

Viewing a JPEG Disc
Using this DVD Player you can view Kodak PICTURE
CDs and discs with JPEG files.
1. Insert a disc and close the tray. The PHOTO menu
appears on the TV screen.
2. Press v / V to select a folder, and press ENTER.
A list of files in the folder appears. If you are in a
file list and want to return to the previous Folder
list, use the v / V buttons on the remote to
highlight and press ENTER.
3. If you want to view a particular file, press
v / V to highlight a file and press ENTER or PLAY.
Slide Show starts from the selected file if Speed
option is not Off.
While viewing a file, you can press STOP to move
to the previous menu (PHOTO menu).
Tip:
• Press and hold V / v to go to the next / previous
page.
• There are four Slide Speed options : >>> (Fast),
>> (Normal), > (Slow) and II (Off).
Use vVbBto highlight the Speed. Then, use b /
B to select the option you want to use then press
ENTER.
•
On a disc with MP3/WMA and JPEG you can switch
MP3/WMA and JPEG. Press TITLE and MP3/WMA
or JPEG word on top of the menu is highlighted.
• Press RETURN, information of file is hidden.
Slide Show
Use vVbBto highlight the (Slide Show) then
press ENTER.
Still Picture
1. Press PAUSE/STEP during slide show.
The player will now go into PAUSE mode.
2. To return to the slide show, press PLAY or press
PAUSE/STEP again.
Moving to another File
Press SKIP (. or >) or cursor (
v or V)once
while viewing a picture to advance to the next or
previous file.
Zoom
Use zoom to enlarge the photo image.
(see 18 page)
To rotate picture
Press b / B during showing a picture to rotate the
picture clockwise or counter clockwise.
To listen to MP3 music watching picture
You can display files while listering to MP3 music files
recorded on the same disc.
1. Insert the disc containing the two types of file in
the player.
2. Press TITLE to display PHOTO menu.
3. Press v / V to select a photo file.
4. Use B to select icon then press ENTER.
Playback starts. The playback will continue until
STOP is pressed.
Tip:
When MP3 and picture are included in the same disc,
you can listen only MP3 music during watching
picture.
JPEG
JPEG
JPEG
JPEG
JPEG
JPEG disc compatibility with this player is
limited as follows:
• Depending upon the size and number of JPEG
files, it could take a long time for the DVD player
to read the disc’s contents. If you don’t see an onscreen display after several minutes, some of the
files may be too large — reduce the resolution of
the JPEG files to less than 5M pixels as 2760 x
2048 pixels and burn another disc.
• The total number of files and folders on the disc
should be less than 999.
• Some discs may be incompatible due to a
different recording format or the condition of disc.
• Ensure that all the selected files have the “.jpg”
extensions when copying into the CD layout.
• If the files have “.jpe” or “.jpeg” extensions, please
rename them as “.jpg” file.
• File names without “.jpg” extension will not be
able to be read by this DVD player. Even though
the files are shown as JPEG image files in
Windows Explorer.
List
JPEG Folder 1
JPEG Folder 2
JPEG Folder 3
JPEG Folder 4
JPEG Folder 5
JPEG Folder 6
JPEG Folder 7
JPEG Folder 8
Preview
II
23
Operation

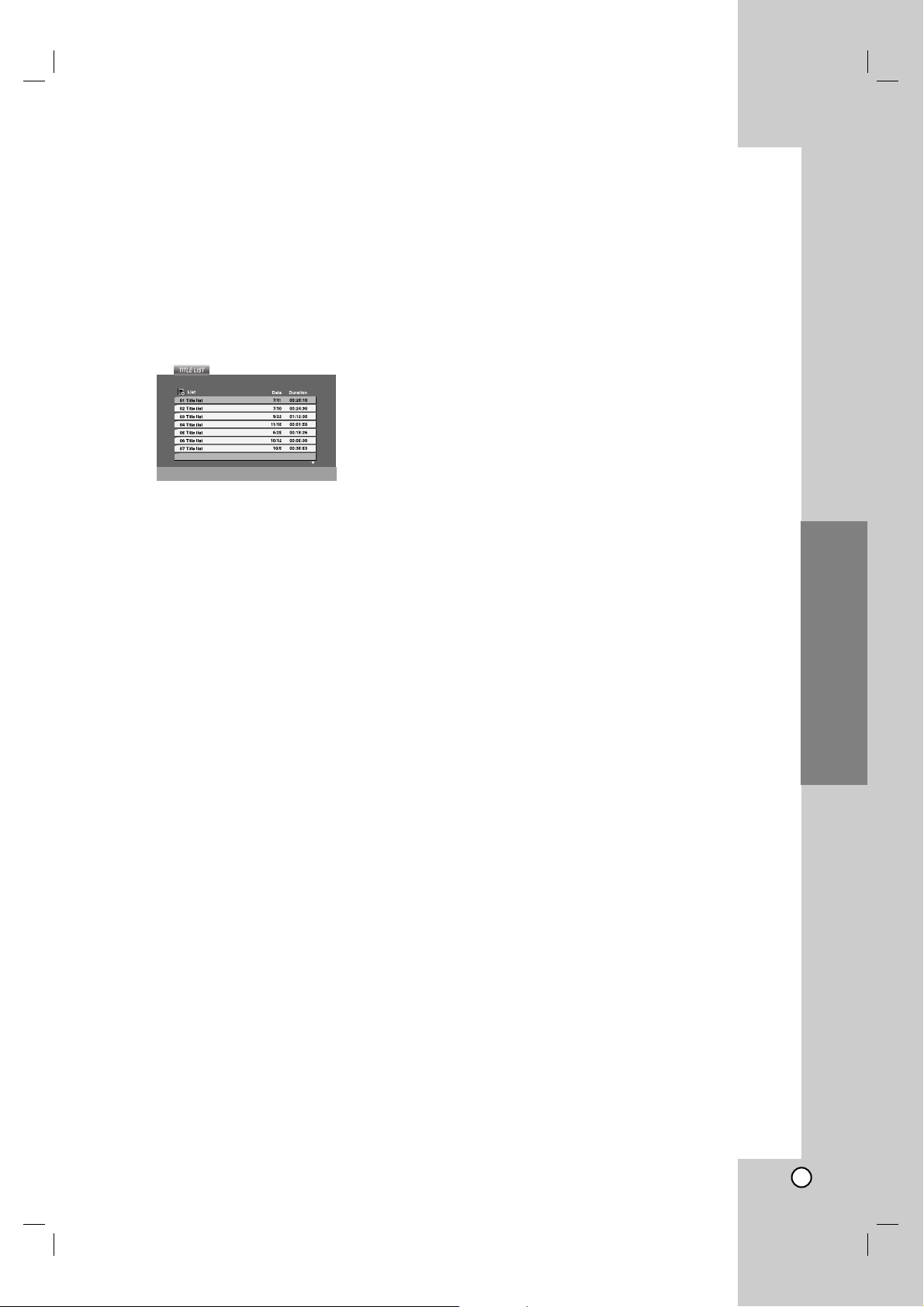

Playing a DVD VR format Disc
This unit will play DVD-R/RW discs recorded using
the DVD-Video format that have been finalized using
a DVD-recorder.
• This unit will play DVD-RW discs recorded using
the Video Recording (VR) format.
1. Insert a disc and close the tray. The TITLE LIST
menu appears on the TV screen.
2. Press v / V to select a track then press PLAY or
ENTER and playback starts.
Note:
• Unfinalized DVD-R/RW discs cannot be played in
this player.
• Some DVD-VR disc are made with CPRM data by
DVD RECORDER. Player does not support these
kinds of discs and display the “CHECK DISC”.
What is ‘CPRM’?
CPRM is a copy protection system (with scramble
system) only allowing the recording of ‘copy once’
broadcast programs. CPRM stands for Content
Protection for Recordable Media.
This player is CPRM compatible, which means that
you can record copy-once broadcast programs, but
you cannot then make a copy of those recordings.
CPRM recordings can only be made on DVD-RW
discs formatted in VR mode, and CPRM recordings
can only be played on players that are specifically
compatible with CPRM.
Maintenance and Service
Refer to the information in this chapter before
contacting a service technician.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.
Keeping the exterior surfaces clean
• Do not use volatile liquids such as insecticide
spray near the unit.
• Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine,
or thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The DVD player is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty or
worn, the picture quality could be diminished.
Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.
For details, please contact your nearest authorized
service center.
24
Country Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Country Code
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Islands HM
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Country Code
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Country Code
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
Country Codes
Choose a country code from this list.
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Language Code
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Language Code
Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Language Codes
Use this list to input your desired language for the following initial settings:
Disc Audio, Disc Subtitle, Disc Menu.
Reference
title
25
Reference
Specifications
General
Power requirements: AC 120 V , 60 Hz
Power consumption: 12W
Dimensions (Approx.):
430 x 39 x 242 mm (W x H x D) without foot
Weight (Approx.): 2.2 kg
Operating temperature:
5 °C to 35 °C (41 °F to 95 °F)
Operating humidity: 5 % to 90 %
Outputs
VIDEO OUT:
1 Vp-p 75 Ω, sync negative, RCA jack x 1
S-VIDEO OUT:
(Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.3 V (p-p) 75 Ω
COMPONENT VIDEO OUT:
(Y) 1.0 V (p-p), 75 Ω,negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
AUDIO OUT:
2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
DIGITAL OUT (COAXIAL):
0.5 V (p-p), 75 Ω, RCA jack x 1
System
Laser:
Semiconductor laser, wavelength 650 nm
Signal system: NTSC
Frequency response:
DVD (PCM 96 kHz): 8 Hz to 44 kHz
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio:
More than 100 dB (ANALOG OUT connectors only)
Harmonic distortion: Less than 0.008%
Dynamic range:
More than 90 dB (DVD/CD)
Accessories
S-Video cable (1), Video cable (1), Audio cable (1),
Remote control (1), Batteries (2)
Note:
Design and specifications are subject to change prior notice
.
Symptom
No power.
The power is on, but
the DVD player does
not work.
No picture.
No sound.
The DVD player does
not start playback.
The remote control
does not work properly.
Possible Cause
• The power cord is disconnected.
• No disc is inserted.
• The TV is not set to receive DVD
signal output.
•The video cable is not connected
securely.
• The equipment connected with the
audio cable is not set to receive DVD
signal output.
•
The power of the equipment connected
with the audio cable is turned off.
• The AUDIO options are set to the
wrong position.
• An unplayable disc is inserted.
• The rating level is set.
• The remote control is not pointed at
the remote sensor on the DVD player.
• The remote control is too far from the
DVD player.
Correction
• Plug the power cord into the wall outlet
securely.
• Insert a disc. (Check that the DVD or
audio CD indicator in the display
window is lit.)
• Select the appropriate video input
mode on the TV.
• Connect the video cable securely.
• Select the correct input mode of the
audio receiver so you can listen to the
sound from the DVD player.
•Turn on the equipment connected with
the audio cable.
• Set the Digital Audio Output to the
correct position, then turn on the DVD
player again by pressing POWER.
• Insert a playable disc. (Check the disc
type, color system, and regional code.)
• Cancel the rating function or change
the rating level.
•Point the remote control at the remote
sensor of the DVD player.
• Operate the remote control closer to
the DVD player.
Troubleshooting
LG will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under normal use,
during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer
purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the
United States, excluding U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO
THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE
EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT,
OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION
WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
1. Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration, maintenance
or failure to maintain, or separate system components; and
2. Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside environmental
specifications or contrary to the requirements or precautions in the Operating Guide, accident, lightning strikes or other
natural causes, unauthorized modification or alteration, incorrect electrical current or voltage, software errors that do not
disable functionality, operating software protocols adopted after the date of manufacture or for outside the U.S.,
institutional or commercial use, or other causes not arising out of defect in material or workmanship.
3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the consumer.
CUSTOMER INTER-ACTIVE CENTER NUMBERS:
FOR WARRANTY SERVICE:
You must call 1-800-984-9349 (24 hours a day, 365 days per year) and select appropriate option from the menu to confirm the
product is defective and to obtain Return Authorization (RA). During the Warranty Period, LG will send you a return-shipping
