DV7832NXS_Zenith
Installation and Operating Guide | Warranty
Model Number | DVB318 | DVD Player
© Copyright 2003, Zenith Electronics Corporation
2
Warning: To reduce the risk of
electric shock, do not remove the
cover or back of this product. There
are no user-serviceable parts inside.
Refer servicing to qualified service
personnel.
Warning:
To reduce the risk of fire
or electric shock, do not expose this
product to dripping or splashing
water, rain, or moisture. Do not place
objects filled with water such as
vases, on the product.
WARNING
This digital video disc player employs
a laser system. Use of controls,
adjustments, or the performance of
procedures other than those
specified herein, may result in
hazardous radiation exposure.
WARNING
To prevent direct exposure to laser
beam, do not open the enclosure.
Visible laser radiation may be
present if open.
Warning: Never stare directly into
the laser beam.
WARNING:
Do not install this
product in a confined space such as
a bookcase or similar unit.
Caution: To prevent electric shock,
match wide blade of plug to wide
slot, fully insert.
Attention: Pour éviter les choc
électriques, introduire la lame la plus
large de la fiche dans la borne
correspondante de la prise et
pousser jusqu’au fond.
FCC WARNING: This equipment may generate
or use radio frequency energy. Changes or
modifications to this equipment may cause
harmful interference unless the modifications
are expressly approved in the instruction
manual. The user could lose the authority to
operate this equipment if an unauthorized
change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the product is operated in
a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this product does cause
harmful interference to radio or TV reception, which
can be determined by turning the product off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and
receiver.
• Connect the product into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC COMPLIANCE: The responsible party for this
product’s compliance is: Zenith Electronics
Corporation, 2000 Millbrook Drive, Lincolnshire, IL
60069, USA. Phone: 1-847-941-8000
SERIAL NUMBER:
Locate the serial number on the back of the unit.
This number is only used on this unit. You should
write in requested information below and retain this
guide as a permanent record of your purchase.
Model No. ___DVB318____________________
Serial No. ______________________________
Date of Purchase_________________________
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
Contents
Introduction . . . . . . . . . . . . . . . . . . .4
Symbols used in this Manual . . . . . . . . . . . . .4
About the Symbol Display . . . . . . . . . . . . .4
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .4
Handling Discs . . . . . . . . . . . . . . . . . . . . . . .4
Storing Discs . . . . . . . . . . . . . . . . . . . . . . . .4
Cleaning Discs . . . . . . . . . . . . . . . . . . . . . . .4
Types of Playable Discs . . . . . . . . . . . . . . . . .5
Regional Code . . . . . . . . . . . . . . . . . . . . . . . . .5
Glossary of Disc-related Terms . . . . . . . . . . . .6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Display Window . . . . . . . . . . . . . . . . . . . . . . . .7
Remote Control . . . . . . . . . . . . . . . . . . . . . . . .8
Connections Panel . . . . . . . . . . . . . . . . . . . . .9
Remote Control Operation . . . . . . . . . . . . . .9
Remote Control Battery Installation . . . . . . .9
Installation and Setup . . . . . . . . . .10
Player Setup . . . . . . . . . . . . . . . . . . . . . . . . .10
DVD Player Connections . . . . . . . . . . . . . . . .10
Video and Audio Connections to Your TV . .10
Audio Connection to Optional Equipment . .11
On-Screen Displays . . . . . . . . . . . . . . . . . . . .12
Playback Status/Restrictions . . . . . . . . . . .12
Pre-operation Setup . . . . . . . . . . . . . . . . . . .13
General Operation . . . . . . . . . . . . . . . . . . .13
Language Menu . . . . . . . . . . . . . . . . . . . . .13
• Menu Language . . . . . . . . . . . . . . . . . . . .13
• Disc Audio / Subtitle / Menu . . . . . . . . . . .13
Display Menu . . . . . . . . . . . . . . . . . . . . . . .13
• Picture Aspect Ratio . . . . . . . . . . . . . . . . .13
• Picture Display Mode . . . . . . . . . . . . . . . .13
Audio Menu . . . . . . . . . . . . . . . . . . . . . . . .14
• Dolby Digital / DTS / MPEG . . . . . . . . . . .14
• Sample Freq. (Frequency) . . . . . . . . . . . .14
• Dynamic Range Control (DRC) . . . . . . . .14
• Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Others Menu . . . . . . . . . . . . . . . . . . . . . . .14
• PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
• Auto Play . . . . . . . . . . . . . . . . . . . . . . . . .14
Lock (Parental Control) Menu . . . . . . . . . . .15
• Rating . . . . . . . . . . . . . . . . . . . . . . . . . . .15
• Password (Security Code) . . . . . . . . . . . .15
• Country Code . . . . . . . . . . . . . . . . . . . . .15
Operation . . . . . . . . . . . . . . . . . . . .16
DVD or Video CD Playback . . . . . . . . . . . . . .16
Playback Setup . . . . . . . . . . . . . . . . . . . . .16
General Features . . . . . . . . . . . . . . . . . . . . . .16
Changing TITLEs . . . . . . . . . . . . . . . . . . . .16
Changing CHAPTERs/TRACKs . . . . . . . . .16
Search . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Still Picture and Frame-by-Frame Playback
.17
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . .17
Random . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . .17
3D Surround . . . . . . . . . . . . . . . . . . . . . .17
Time Search . . . . . . . . . . . . . . . . . . . . . . . .17
Changing the Audio Channel . . . . . . . . . .18
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Marker Search . . . . . . . . . . . . . . . . . . .18
Special DVD Features . . . . . . . . . . . . . . . . .18
Checking the contents of DVD discs: Menus
.18
Title Menu . . . . . . . . . . . . . . . . . . . . . . . .18
Disc Menu . . . . . . . . . . . . . . . . . . . . . . . .18
Camera Angle(s) . . . . . . . . . . . . . . . . . . . .18
Changing the Audio Language . . . . . . . .18
Subtitles . . . . . . . . . . . . . . . . . . . . . . . . .18
Playing Audio CDs or MP3/WMA Discs . . . .19
Audio CD and MP3 / WMA Disc Features . .20
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Changing Tracks . . . . . . . . . . . . . . . . . . .20
Repeat Track/All/Off . . . . . . . . . . . . . . . . .20
Search . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Random . . . . . . . . . . . . . . . . . . . . . . . . . .20
3D Surround . . . . . . . . . . . . . . . . . . . . . .20
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . .20
Viewing JPEG Files on a Disc . . . . . . . . . . . .21
Slide Show . . . . . . . . . . . . . . . . . . . . . . . .21
Changing Files . . . . . . . . . . . . . . . . . . . . . .21
Still Picture . . . . . . . . . . . . . . . . . . . . . . . . .21
Programmed Playback . . . . . . . . . . . . . . . .22
Repeat Programmed Track/All/Off . . . . . .22
Erasing a Track from Program List . . . . . .22
Erasing the Complete Program List . . . . . .22
Additional Features . . . . . . . . . . . . . . . . . . .23
Last Scene Memory . . . . . . . . . . . . . . . . . .23
Screen Saver . . . . . . . . . . . . . . . . . . . . . . .23
Video Mode Setting . . . . . . . . . . . . . . . . . .23
Maintenance and Service . . . . . . . .24
Handling the Unit . . . . . . . . . . . . . . . . . . .24
• When shipping the unit . . . . . . . . . . . . . .24
• Keeping the exterior surfaces clean . . . . .24
Cleaning the unit . . . . . . . . . . . . . . . . . . . .24
Maintaining the Unit . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . . . . . .25
Reference . . . . . . . . . . . . . . . . . . . .26
Controlling VCRs, Cable Boxes (DBS) and TVs
. .26
Language Codes . . . . . . . . . . . . . . . . . . . . . . .27
Country Codes . . . . . . . . . . . . . . . . . . . . . . . .28
Specifications . . . . . . . . . . . . . . . . . . . . . . . . .29
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Warranty . . . . . . . . . . . . . . . . . . . . . .Back Cover
4
To ensure proper use of this product, please
read this owner’s manual carefully and retain for
future reference.
This manual provides information on the
operation and maintenance of your DVD player.
Should the unit require service, contact an
authorized service center, see warranty.
Symbols used in this Manual
The lightning flash symbol alerts you to
the presence of dangerous voltage within
the product enclosure that may constitute
a risk of electric shock.
The exclamation point alerts you to the
presence of important operating and
maintenance / servicing instructions.
Indicates hazards likely to cause harm to
the user, the unit itself, or other material
damage.
Note: Indicates special notes and
operating features.
Tip: Indicates tips and hints for making
the task easier.
A manual section whose title has one of the
following symbols is only applicable to the disc
represented by the symbol.
DVD-Video Discs
Video CDs
Audio CDs
MP3 Discs
WMA Discs
JPEG Files
About the Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not available
on that specific DVD video disc.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints do not
get on the surface. Never stick paper or tape on
the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of
heat and never leave it in a parked car exposed
to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before
playing, clean the disc with a clean cloth. Wipe
the disc from the center out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available
cleaners, or anti-static spray intended for older
vinyl records.
JPEG
WMA
MP3
CD
VCD
DVD
Introduction
Yes No
5
Introduction
Types of Playable Discs
DVD
(8 cm / 12 cm disc)
Video CD (VCD)
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit plays DVD -R / DVD ±RW,
Kodak Picture CDs, and CD-R / CD-RWs that
contain audio titles, MP3, WMA, and/or JPEG
files.
Notes
• Depending on the conditions of the
recording equipment or the CD-R/RW
(or DVD -R/ ±RW) disc itself, some
CD-R/RW (or DVD -R/ ±RW) discs
cannot be played on the unit.
• Do not attach any seal or label to
either side (the labeled side or the
recorded side) of a disc.
• Do not use irregularly shaped CDs
(e.g., heart-shaped or octagonal).
The unit may malfunction.
Notes on DVDs and Video CDs
• Some playback operations of DVDs
and Video CDs may be intentionally
programmed by software
manufacturers. This unit plays DVDs
and Video CDs according to disc
content designed by the software
manufacturer, therefore some
playback features may not be
available or other functions may be
added.
• Refer to the instructions supplied with
each DVD and Video CD.
• Some DVDs made for business
purposes may not be played on the
unit.
Regional code
This DVD player is designed and
manufactured for playback of region
“1” encoded DVD software. This unit
can play only DVD discs labeled “1”
or “ALL”.
Notes on Regional Codes
• Each region of the world is assigned
a DVD region code.
• Most DVD discs have a globe with
one or more numbers in it clearly
visible on the cover. This number
must match your DVD player’s
regional code or the disc cannot be
played.
• If you try to play a DVD with a
different region code from your
player, the message “Check Regional
Code” appears on the TV screen.
• Some DVD discs may not have a
region code label even though their
playback is prohibited by area limits.
Notes on Copyrights:
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection
signals are recorded on some discs. When
recording and playing the pictures of these discs
picture noise will appear. This product
incorporates copyright protection technology that
is protected by certain U.S. patents and other
intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
1
6
Glossary of Disc-related Terms
DVD -R / DVD ±RW
DVD -R are two different standards for
recordable DVD drives and discs. This format
allows information to be recorded onto the DVD
disc only once. DVD +RW and DVD -RW are
two standards for re-writable media, meaning the
DVD content can be erased and re-recorded.
Single-sided discs can hold 4.38 Gigabytes and
double-sided discs hold twice as much. There
are no dual-layer, single-sided recordable discs.
VCD (Video CD)
A VCD holds up to 74 minutes (650 MB disc) or
80 minutes (700 MB disc) of MPEG-1 full-motion
video along with quality stereo sound.
MPEG
MPEG is an international standard for video and
audio compression. MPEG-1 is used in encoding
video for VCD and provides for multichannel
surround sound coding such as PCM, Dolby
Digital, DTS, and MPEG audio.
MP3
MP3 is a popular compression format used for
digital audio files that yields very high near-CD
quality.
WMA
Windows media audio file. A type of coding /
decoding developed by Microsoft Corp.
JPEG (Files)
Joint Pictures Expert Group. JPEG is a
compressed file format that allows you to save
images with no limit on the number of colors.
PBC: Playback Control (Video CD only)
Playback control is available for Video CD (VCD)
version 2.0 disc formats. PBC allows you to
interact with the system via menus, search
functions, or other typical computer-like
operations. Moreover, still pictures of high
resolution can be played if they are included in
the disc. Video CDs not equipped with PBC
(Version 1.1) operate in the same way as audio
CDs.
Title (DVDs only)
A title is generally a distinct section of a DVD
disc. For example the main feature could be title
1, a documentary describing how the film was
made could be title 2, and cast interviews could
be title 3. Each title is assigned a reference
number enabling you to locate it easily.
Chapter (DVDs only)
A chapter is a segment of a title such as a scene
in a film or one interview in a series. Each
chapter is assigned a chapter number, enabling
you to locate the chapter you want. Depending
on the disc, chapters may not be recorded.
Scene (VCD)
On a video CD with PBC (playback control)
functions, moving pictures and still pictures are
divided into sections called “scenes”. Each
scene is displayed in the menu screen and
assigned a scene number, enabling you to
locate the scene you want. A scene is composed
of one or several tracks.
Track
A distinct element of audiovisual information,
such as the picture or sound track for a specific
language (DVD), or a musical piece on a video
or audio CD. Each track is assigned a track
number, enabling you to locate the track you
want. DVD discs allow one track of video (some
with multiple angles) and perhaps several tracks
of audio.
7
Introduction
Indicates current player
function:
Playback, Pause, etc.
ANGLE active
DVD inserted
CD Audio CD inserted
VCD Video CD inserted
MP3 MP3 disc inserted
TITLE Indicates current title number
CHP/TRK Indicates current chapter or track number
Indicates total playing time/elapsed time
PROG. Programmed playback active
RANDOM Random
playback active
Indicates repeat
mode
Display Window
Front Panel
Forward Skip/Scan ( > / M )
Go to the next chapter / track.
Press and hold for two seconds for fast
forward search.
Reverse Skip/Scan ( m / . )
Go to previous chapter / track or to the beginning.
Press and hold for two seconds for fast reverse
search.
STOP ( x )
Stops playback.
UPCONVERSION
Changes the resolution (480p, 720p, 1080i) for the
component/ DVI-D video output.
PLAY ( N )
Starts playback.
Power Indicator
Lights green when the
DVD player is turned on.
Remote Sensor
Point the DVD Player remote control here.
Disc Tray
Insert a disc here.
POWER
Switches the player
ON and OFF.
Display window
Shows the current status of the player.
OPEN / CLOSE ( Z )
Opens or closes the disc tray.
DVD
DVD
TITLEMP3 VCD CD
CHP/TRK
PROG.
RANDOM ALL
AB
8
Remote Control
POWER
Switches DVD Player ON and OFF.
MENU
Accesses menu on a DVD disc.
DISPLAY
Accesses On-Screen display.
bBvV(left/right/up/down)
- Selects menu options.
- Selects TV channels and controls
TV volume.
SELECT / ENTER
Acknowledges menu selection.
MARKER
Marks any point during playback.
SEARCH
Displays MARKER SEARCH menu.
PLAY ( N ) •
Starts playback.
STOP ( x ) •
Stops playback.
PAUSE / STEP ( X ) •
Pauses playback temporarily/ press
repeatedly for frame-by-frame
playback.
Forward SKIP/SCAN ( > ) •
Search forward* / go to next
chapter or track.
Reverse SKIP/SCAN ( . ) •
Search backward* / go to beginning
of current chapter or track or go to
previous chapter or track.
* Press and hold button for about
two seconds.
DVD, VCR, CATV, TV
Selects operational mode of remote
control.
SHUTTLE ring
For variable-speed playback.
OPEN / CLOSE
Opens and closes the disc tray.
TITLE
Displays disc’s Title menu, if
available.
RETURN / TV INPUT
Removes the Setup menu,
displays the video CD menu
(with PBC), and selects AUX
A/V TV input channel.
SOUND / MUTE
- Selects 3D SURROUND
during disc playback.
- Turns off TV sound.
ZOOM
Enlarges video image.
0-9 number buttons
Select numbered options in a
menu.
• SETUP
Accesses or removes Setup
menu.
• SUBTITLE
Selects a subtitle language.
• AUDIO
Selects an audio language
(DVD) or an audio channel
(CD).
• PROGRAM
Places a track on the program
list.
• REPEAT
Repeat chapter, track, title, all.
• A-B
Repeat sequence.
• RANDOM
Plays tracks in random order.
• ANGLE
Selects a DVD camera angle if
available
• CLEAR
Removes a track number from
the program list or a mark on
the MARKER SEARCH menu.
power
display
menu
vol vol
a
m
r
k
e
r
s
e
a
skip/
scan
setup subtitle audio program
repeat a - b random angle
clear
dvd vcr catv tv
rev
ch
select /
enter
ch
r
c
h
e
/
s
u
a
p
play
s
t
p
o
slow/scan
s
t
e
title
m
o
o
z
p
open / close
skip/
scan
fwd
return
tv input
n
u
o
s
d
/
m
u
t
e
9
Introduction
Do not touch the inner pins of the jacks on the
rear panel. Electrostatic discharge may cause
permanent damage to the unit.
COAXIAL (Digital audio out jack)
Connect to digital (coaxial) audio equipment.
OPTICAL (Digital audio out jack)
Connect to digital (optical) audio equipment.
AUDIO OUT (Left / Right)
Connect to an amplifier, receiver, or
stereo system.
VIDEO OUT
Connect to a TV with video inputs.
AC Power Cord
Plug into the power source.
S-VIDEO OUT
Connect to a TV with S-Video inputs.
Connections Panel
Remote Control Operation
Point the remote control at the remote sensor
and press the buttons.
Remote Control Battery Installation
Detach the battery cover on the
rear of the remote control, and
insert two size AAA batteries with
and aligned correctly.
Caution:
• Do not mix old and new batteries.
Never install different types of
batteries such as standard, alkaline,
etc.
• Before using the remote control,
press the DVD, VCR, CATV or TV
button to select the device to be
operated.
COMPONENT VIDEO OUT (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
DVI-D DIGITAL OUT
Connect to a TV with DVI connector.
10
Player Setup
The picture and sound of a nearby TV, VCR, or
radio may be distorted during playback. If this
occurs, position the player away from the TV,
VCR, or radio, or turn off the unit after removing
the disc.
DVD Player Connections
Depending on your TV and other equipment
there are various ways you can connect the
player. Please refer to the manuals of your TV,
stereo system or other devices as necessary for
additional connection information.
Video and Audio Connections to Your TV
Make sure the DVD player is connected directly
to the TV and not to a VCR, otherwise the DVD
image could be distorted by the copy protection
system.
Video: Connect the VIDEO OUT jack from
the DVD player to the video in jack on the TV
using the video cable (V).
S-Video: Connect the S-VIDEO OUT jack
from the DVD player to the S-Video in jack on
the TV using the S-Video cable (S).
Component Video: Connect the
COMPONENT VIDEO OUT jacks from the
DVD Player to the corresponding in jacks on
the TV using the Y Pb Pr cable (C).
DVI-D Digital Video: Connect the DVI-D
DIGITAL OUT jacks from the DVD Player to
the corresponding in jacks on the TV using
the DVI-type cable (D).
Tip: You can change the resolution
(480p, 720p, 1080i) for the component/
DVI-D video output by pressing
UPCONVERSION on the front panel.
480i is not available.
Audio Connection to Your TV:
Connect the left and right AUDIO OUT jacks
from the DVD Player to the audio left and right
IN jacks on the TV (A) using the audio cables.
Do not connect the DVD Player’s AUDIO OUT
jack to the phono in jack (record deck) of your
audio system.
R
L
AUDIO INPUT
VIDEO
INPUT
S-VIDEO
INPUT
DVI-D INPUT
Y
Pb
Pr
COMPONENT VIDEO /
PROGRESSIVE SCAN INPUT
Rear of TV
Rear of
DVD player
S A V DC
Installation and Setup
Notes for DVI and Component video output
• If your TV is a high-definition or “digital ready” TV, you may
take advantage of the DVD Player’s component/DVI-D
output for the high-resolution video possible.
• Component/DVI-D video output are useable only when your
TV is a high-definition or “digital ready” TV. If your TV does
not accept the high-resolution video format, the picture will
appear scrambled if you try to use the Component/DVI-D
video connections.
• The component video output is not available when the DVD
player is connected with TV using DVI-D and COMPONENT
simultaneously.
• The selected resolution and ouput resolution may be
different during palying back a DVD which copy protection
signals are recorded.
e.g., The ouput resolution is changed to 480p automatically
even though the selected resolution is 1080i.
• A DVI input is one that is compliant with HDCP
specifications. Check your TV or monitor’s user manual to
find out if the TV or monitor’s DVI input is compliant with
these specifications.
• Some HD Monitors designed for PC applications using
DVI-D may not work with this connection.
Installation and Setup
11
Audio Connection to Optional
Equipment
Connect the DVD player to your optional
equipment for audio output.
Amplifier equipped with 2-channel analog
stereo or Dolby Pro Logic ll / Pro Logic:
Connect the left and right AUDIO OUT jacks
from the DVD player to the audio left and right
IN jacks on your amplifier, receiver, or stereo
system, using the audio cables (A).
Amplifier equipped with 2-channel digital
stereo (PCM) or audio / video receiver
equipped with a multi-channel decoder
(Dolby Digital™, MPEG 2, or DTS): Connect
one of the DVD Player’s DIGITAL AUDIO OUT
jacks (OPTICAL O or COAXIAL X) to the
corresponding in jack on your amplifier. Use an
optional digital (optical O or coaxial X) audio
cable.
Digital Multi-channel sound
A digital multi-channel connection provides the
best sound quality. For this you need a multichannel audio / video receiver that supports one
or more of the audio formats supported by your
DVD player such as MPEG 2, Dolby Digital and
DTS. Check the receiver manual and the logos
on the front of the receiver.
Notes
• If the audio format of the digital
output does not match the
capabilities of your receiver, the
receiver produces a strong, distorted
sound or no sound at all.
• Six Channel Digital Surround Sound
via a digital connection can only be
obtained if your receiver is equipped
with a Digital Multi-channel decoder.
• To see the audio format of the
current DVD in the on-screen display,
press AUDIO.
Amplifier (Receiver)
Rear of DVD player
AXO
R
L
AUDIO INPUTDIGITAL INPUT
OPTICAL COAXIAL
12
On-Screen Display
You can display the general playback status on
the TV screen. Some options can be changed
using the menu. To use the on-screen display:
1. Press DISPLAY during playback.
2. Use v / V to select a menu option.
The selected option is highlighted.
3. Use b / B to change the setting of a menu
option. The number buttons can be also be
used for setting numbers (e.g., title number).
For some functions, press SELECT/ENTER
to execute the setting.
Notes
• Some discs may not provide all of
the features shown below.
• If no button is pressed for 10
seconds, the on-screen display
disappears.
Playback Status/Restrictions
Repeat title
Repeat sequence
Enter a Marker
Marker Search menu
Resume play from this point
Action prohibited or not available
Function / Action (Use v / V to select options)
Shows the current title number and total number of titles /
skips to the desired title number.
Shows the current chapter number and total number of
chapters / skips to the desired chapter number.
Shows the elapsed playing time / searches by elapsed
time.
Shows the current audio soundtrack language,
encoding method, and channel number / changes the
setting.
Shows the current subtitle language / changes the
setting.
Shows the current angle number and total number of
angles / changes the angle.
Shows the current sound mode / changes the setting.
Menu Options
Title Number
Chapter Number
Time search
Audio language
and Digital Audio
Output mode
Subtitle language
Angle
Sound
Selection Method
b/ B
, Numbers, or
SELECT/ENTER
b/ B
, Numbers, or
SELECT/ENTER
Numbers, SELECT/ENTER
b/ B
or
AUDIO
b/ B
or
SUBTITLE
b/ B
or
ANGLE
b/ B
or
SOUND
1 / 3
1 / 12
0:20:09
ABC
1 ENG
1 / 3
3D SUR
1 ENG
D
5.1 CH
Menu Options
Track Number
Time
Audio Channel
Sound
Function / Action (Use v / V to select options)
Shows the current track number, total number of tracks and
PBC On mode / skips to the desired track number.
Shows the elapsed playing time (display only).
Shows the audio channel / changes the audio channel.
Shows the current sound mode / changes the setting.
Selection Method
b/ B
, Numbers, or
SELECT/ENTER
–
b/ B
or
AUDIO
b/ B
or
SOUND
0:20:09
3D SUR
Stereo
1 / 3
Example: On-Screen Display during DVD playback
Example: On-Screen Display during playing VCD
Title
A - B
#1 : 1 / 9
123456789
13
Installation and Setup
Pre-operation Setup
By using the Setup menu, you can make various
adjustments to menu options for picture and
sound. You can also select a language for the
subtitles and the Setup menu, among other
things. For details on Setup menu options, see
pages 13 to 15.
To display and exit the Menu:
Press SETUP to display the menu. A second
press of SETUP will take you back to initial
screen.
To go to the next level:
Press B on the remote control.
To go back to the previous level:
Press b on the remote control.
General Operation
1. Press SETUP. The Setup menu appears.
2. Use v / V to select the desired menu option
then press B to move to the second level.
The screen shows the current setting for the
selected menu option, as well as alternate
setting(s).
3. Use v / V to select the second desired option
then press B to move to the third level.
4.
Use v / V to select the desired setting then
press SELECT/ENTER to confirm your
selection. Some menu options, require
additional steps.
5. Press SETUP, RETURN, or PLAY to remove
the Setup menu.
Language Menu
Menu Language
Select a language for the Setup menu and onscreen display.
Disc Audio / Subtitle / Menu
Select the language you prefer for the audio
track (disc audio), subtitles, and the disc menu.
Original: Refers to the original language in
which the disc was recorded.
Other: To select another language, use the
number buttons then press SELECT/ENTER to
enter the corresponding 4-digit number
according to the language code list in the
reference chapter. If you enter the wrong
language code, press CLEAR.
Display Menu
Picture Aspect Ratio
4:3:
Select when a standard 4:3 TV is connected.
16:9: Select when a 16:9 wide TV is connected.
Picture Display Mode
Display Mode setting works only when the TV
Aspect ratio is set to “4:3”.
Letterbox: Displays a wide picture with bands
on the upper and lower portions of the screen.
Panscan: Automatically displays the wide
picture on the entire screen and cuts off the
portions that do not fit.
DVD
DVD
DVD
Menu Language
Original
English
Off
Original
Disc Audio
Disc Subtitle
Disc Menu
Move
Select
LANGUAGE
DISPLAY
TV Aspect
Widescreen
16 : 9
Display Mode
OffProgressive Scan
Move
Select
14

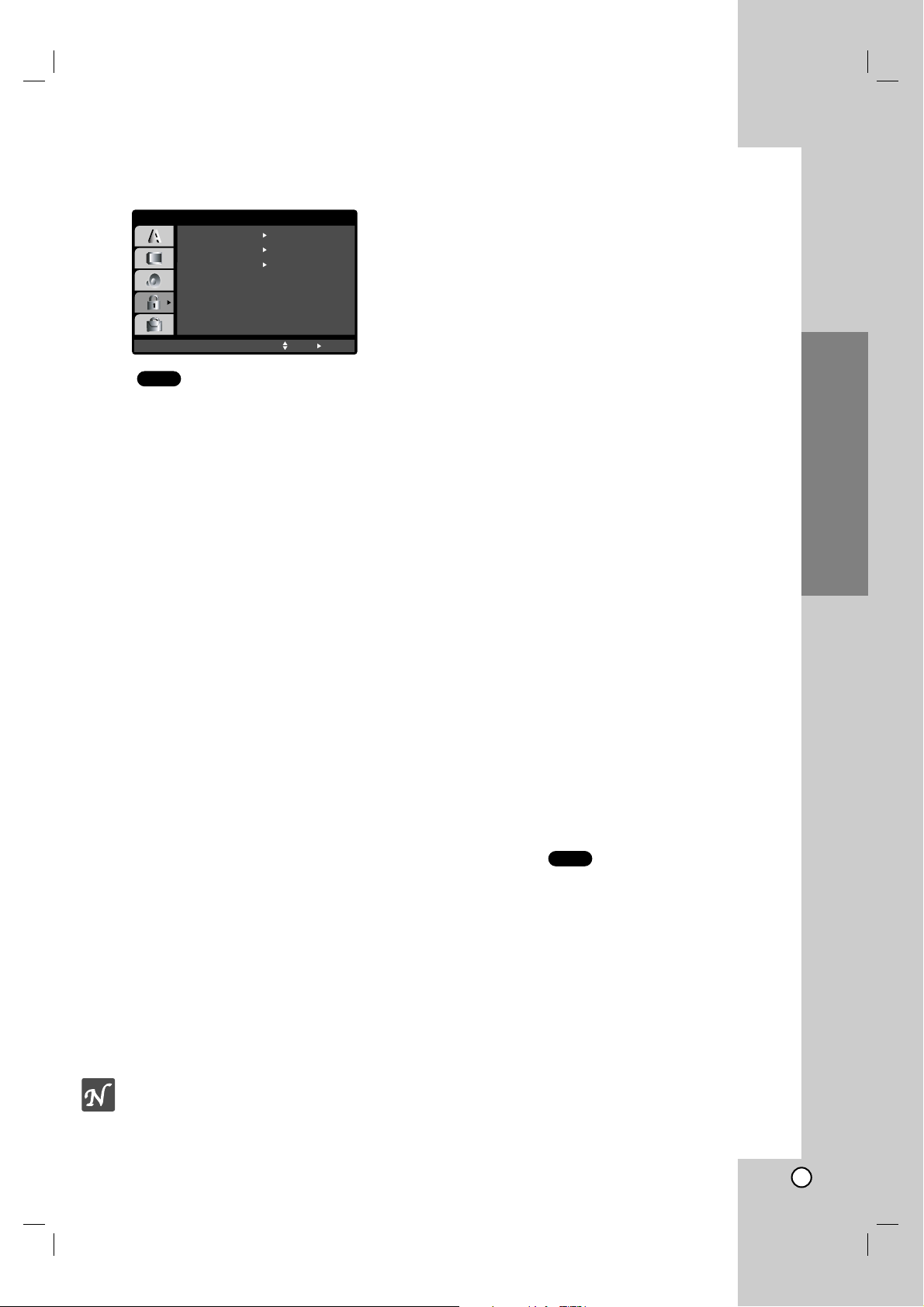

Audio Menu
Each DVD disc has a variety of audio output
options. Set the player’s AUDIO options
according to the type of audio system you use.
Dolby Digital / DTS / MPEG
Bitstream: Select “Bitstream” if you connect
the DVD Player’s DIGITAL OUT jack to an
amplifier or other equipment with a Dolby
Digital, DTS, or MPEG decoder.
PCM (for Dolby Digital / MPEG): Select
when connected to a two-channel digital
stereo amplifier. DVDs encoded in Dolby
Digital or MPEG will be automatically
downmixed to two-channel PCM audio.
Off (for DTS): If you select “Off”, the DTS
signal is not output through the DIGITAL OUT
jack.
Sample Freq. (Frequency)
If your receiver or amplifier is NOT capable of
handling 96 kHz signals, select 48 kHz. When
this choice is made, this unit automatically
converts any 96 kHz signals to 48 kHz so your
system can decode them.
If your receiver or amplifier is capable of
handling 96 kHz signals, select 96 kHz. When
this choice is made, this unit passes each type
of signal through without any further processing.
Check the documentation for your amplifier to
verify its capabilities.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program’s
soundtrack in the most accurate and realistic
presentation possible, thanks to digital audio
technology. However, you may wish to compress
the dynamic range of the audio output (the
difference between the loudest sounds and the
quietest ones). This allows you to listen to a
movie at a lower volume without losing clarity of
sound. Set DRC to On for this effect.
Vocal
Set to On only when a multi-channel karaoke
DVD is playing. The karaoke channels on the
disc mix into normal stereo sound.
Others Menu
The PBC and Auto Play settings can be
changed.
PBC
Set Playback Control (PBC) to On or Off.
On: Video CDs with PBC are played
according to the PBC.
Off: Video CDs with PBC are played the
same way as Audio CDs.
Auto Play
You can set up the DVD Player so a DVD disc
automatically starts playing whenever the DVD is
inserted.
If Auto Play mode is set to On, this DVD player
will search for title that has the longest playback
time and then play back the title automatically.
On: Auto Play function is active.
Off: Auto Play function is not active.
Note: The Auto Play function may not
work for some DVDs.
DVD
VCD
DVD
DVD
DVD
DVD
AUDIO
Dolby Digital
Bitstream
PCM
48 kHz
On
On
Bitstream
DTS
MPEG
Sample Freq.
DRC
Vocal
Move
Select
PBC
Off
Move
Select
Auto Play
OTHERS
On
15
Installation and Setup
Lock (Parental Control) Menu
Rating
Some movies contain scenes that may not be
suitable for children to view. Many of these discs
contain parental control information that applies
to the complete disc or to certain scenes on the
disc. Movies and scenes are rated from 1 to 8,
depending on the country. Some discs offer
more suitable scenes as an alternative.
The parental control feature allows you to block
access to scenes below the rating you specify,
thereby preventing your children from being able
to view material you believe is unsuitable.
1. Select “Rating” on the LOCK menu then
press B.
2. To access the Rating, Password, and Country
Code features, you must key-in the 4-digit
security code you created. If you have not yet
entered a security code you are prompted to
do so.
Key-in a 4-digit code and press
SELECT/ENTER. Key it in again and press
SELECT/ENTER to verify. If you make a
mistake before pressing SELECT/ENTER,
press CLEAR.
3. Select a rating from 1 to 8 using the v / V
buttons.
Rating 1-8: Rating one (1) has the most
restrictions and rating eight (8) is the least
restrictive.
Unlock
If you select unlock, parental control is not
active and the disc plays in full.
Note: If you set a rating for the player,
all disc scenes with the same rating or
lower are played. Higher rated scenes
are not played unless an alternate scene
is available on the disc. The alternate
must have the same rating or a lower
one. If no suitable alternate is found,
playback stops. You must enter the 4digit password or change the rating level
in order to play the disc.
4. Press SELECT/ENTER to confirm your rating
selection, then press SETUP to remove the
menu.
Password (Security Code)
You can either enter the current password or
change it.
1. Select Password on the LOCK menu then
press B.
2. Follow step 2 as shown left (Rating).
Highlight “Change” or “New”.
3. Enter the new 4-digit code, then press
SELECT/ENTER. Key it in again for
verification.
4. Press SETUP to remove the menu.
If you forget your Security Code
If you forgot your security code you can clear it
using the following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and the
security code is cleared.
3.
Enter a new code as described above.
Country Code
Enter the code of the country/area whose
standards were used to rate the DVD video disc,
based on the list in the reference chapter.
1. Select “Country Code” on the LOCK menu
then press B.
2. Follow step 2 as shown left (Rating).
3. Select the first character using v / V buttons.
4. Shift the cursor using B button and select the
second character using v / V buttons.
5. Press SELECT/ENTER to confirm your
DVD
DVD
LOCK
Rating
New
US
Unlock
Password
Country Code
Move
Select
16
DVD or Video CD Playback
Playback Setup
1. Turn on the TV and select the video input
source connected to the DVD player.
2. Turn on the audio system (if applicable) and
select the input source connected to the DVD
player.
3. Press OPEN/CLOSE to open the disc tray
and load your chosen disc in the tray, with
the playback side down.
4. Press OPEN/CLOSE to close the tray.
Playback starts automatically. If playback
does not start, press PLAY.
In some cases, the disc menu might appear
instead:
Use the b B v V buttons to select the
title/chapter you want to view, then press
SELECT/ENTER to start. Press TITLE or
MENU to return to the menu display.
Use the number buttons to select the track
you want to view and press RETURN to
return to the menu display. Menu settings and
operating procedures may differ. Follow the
instructions shown for each menu screen.
You also may set PBC to Off (See “PBC” on
page 14).
Notes
• If parental control is active and the
disc is not within the rating settings,
you must input the password. (See
“Lock Menu” on page 15.)
• DVDs may have a region code. Your
player does not play discs that have
a region code different from your
player. The region code for this
player is 1 (one).
General Features
Note: Unless stated otherwise, all
operations described use the remote
control. Some features may also be
available on the Setup menu.
Changing TITLEs
When a disc has more than one title, you can
move to another title. In Stop mode, press
DISPLAY then the appropriate number (0-9) or
use b / B to select to another title.
You can play any title by inputting its number
while in Stop mode.
Changing CHAPTERs/TRACKs
If a title on a disc has more than one chapter or
a disc has more than one track, you can select
to another chapter/track as follows:
• Press SKIP/SCAN . or > during
playback to select the next chapter/track or to
return to the beginning of the current
chapter/track.
• Press SKIP/SCAN . twice briefly to go
back to the previous chapter/track.
• To go directly to any chapter during DVD
playback, press DISPLAY and use v / V to
select the chapter/track icon. Then, key in the
chapter/track number or use b / B.
Search
1. Press and hold SKIP/SCAN . or > for
about two seconds during playback .
2. Press and hold SKIP/SCAN . or >
repeatedly to select the required speed.
DVD; X2, X4, X16 or X100
Video CD; X2, X4 or X8
3. To exit SEARCH mode, press PLAY.
Tip: You can also select the search
speed by rotating and holding the
SHUTTLE ring during playback. The
search speed is changed when you
rotate and hold SHUTTLE ring at a new
position.
VCDDVD
VCDDVD
DVD
VCD
DVD
Operation
17
Operation
Still Picture and Frame-by-Frame Playback
1. Press PAUSE/STEP on the remote control
during playback.
2. Advance the picture frame-by-frame by
pressing PAUSE/STEP repeatedly.
3. To exit still motion mode, press PLAY.
Slow Motion
1. Rotate and hold SHUTTLE ring during still
picture mode.
2. Rotate and hold SHUTTLE ring forward or
reverse to select the required speed:
1/16, 1/8, 1/4 or 1/2 backward or forward.
3. Release SHUTTLE ring to resume the still
picture mode.
Note: VCDs do not have no reverse
slow motion playback.
Random
1. Press RANDOM during playback. The unit
automatically begins random playback and
RANDOM appears on the display window.
2. Press RANDOM again to exit.
Tip: By pressing SKIP/SCAN >
during random playback, the unit selects
another title (track) and resumes
random playback.
Note: You must set PBC to Off on the
Setup menu to use the repeat function
(See “PBC” on page 14).
Repeat
You can play a title/chapter/all/track on a disc.
Press REPEAT during playback to select a
desired repeat mode.
DVD Video Discs - Repeat Chapter/Title/Off
• Chapter: repeats the current chapter.
• Title: repeats the current title.
• Off : does not play repeatedly.
Video CDs - Repeat Track/All/Off
• Track : repeats the current track
• All : repeats all the tracks on a disc.
• Off : does not play repeatedly.
Notes:
• On a Video CD with PBC, you must
set PBC to Off on the Setup menu to
use the repeat function (See “PBC”
on page 14).
• If you press SKIP/SCAN (>) once
during Repeat Chapter (Track)
playback, the repeat playback stops.
Repeat A-B
To repeat a sequence.
1. Press A-B at your chosen starting point. “A-”
appears briefly on the TV screen.
2. Press A-B again at your chosen end point.
“A- B” appears briefly on the TV screen and
the repeat sequence begins.
3. Press A-B again to cancel.
3D Surround
Produces a 3D surround effect that simulates
multi-channel audio from two stereo speakers
(instead of the five+ speakers normally required
for multi-channel audio from a home theater
system).
1. Press SOUND and select “3D SUR” during
playback.
2. To turn off the 3D surround effect, press
SOUND and select “Normal”.
Time Search
To start playing at any chosen time on the disc:
1. Press DISPLAY during playback. The onscreen display appears. The time search box
shows the elapsed playing time.
2. Within 10 seconds, use v / V to select the
time clock icon and “-:--:--” appears.
3. Input the required start time in hours,
minutes, and seconds from left to right. If you
enter the wrong numbers, press CLEAR to
remove the numbers you entered. Then input
the correct numbers.
4. Press SELECT/ENTER to confirm. Playback
starts from the selected time. If you enter an
invalid time, playback continues from the
current point.
VCDDVD
VCDDVD
VCDDVD
VCDDVD
VCD
VCDDVD
VCDDVD
18
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear
a different audio channel (Stereo, Left, or Right).
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback or still playback
to activate the Zoom function. The square
frame appears briefly in the right bottom of
the picture.
2. Each press of the ZOOM button changes the
TV screen in the sequence: 400% size →
1600% size → multi zoom mode →
normal size
3. Use the bBvVbuttons to move through
the zoomed picture (400% or 1600%), or to
enlarge or reduce the picture size through the
multi zoom mode.
4. To resume normal playback, press CLEAR to
return to the normal picture.
Note: Zoom may not work on some
DVDs.
Marker Search
To enter a Marker
You can start playback from up to nine
memorized points. To enter a marker, press
MARKER at the desired point on the disc. The
Marker icon appears on the TV screen briefly.
Repeat to enter up to nine markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH. The
marker search menu appears on the screen.
2. Within 10 seconds, use b / B to select a
marker number that you want to recall or
clear.
3. Press SELECT/ENTER and playback starts
from the marked scene. Or, press CLEAR
and the marker number is erased from the
list.
4. You can play any marker by keying in its
number on the marker search menu.
Special DVD Features
Checking the contents of DVD discs: Menus
DVDs may offer menus that allow you to access
special features. To use the disc menu, press
MENU. Input the corresponding number or use
the bB v Vbuttons to highlight your selection.
Then press SELECT/ENTER.
Title Menu
1. Press TITLE. If the current title has a menu,
the menu appears on the screen. Otherwise,
the disc menu may appear.
2. The menu may offer features such as camera
angles, spoken language and subtitle
options, and chapters for the title.
3. Press TITLE to exit.
Disc Menu
Press MENU and the disc menu is displayed.
Press MENU again to exit.
Camera Angle(s)
If the disc contains scenes recorded at different
camera angles, you can change to a different
camera angle during playback. Press ANGLE
repeatedly during playback to select a desired
angle. Note that the number of the current angle
appears on the display.
Tip: The angle indicator will blink on the
display window during scenes recorded at
different angles as an indication that angle
switching is possible.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear
a different audio language or audio track.
Subtitles
Press SUBTITLE repeatedly during playback to
see the different subtitle languages.
Note: If appears, the feature is not
available on the disc.
DVD
DVD
DVD
DVD
DVD
VCDDVD
VCDDVD
VCD
19
Operation
Playing Audio CDs or MP3/WMA Discs
The DVD player can play MP3/WMA formatted
recordings on CD-ROM, CD-R, or CD-RW discs.
Audio CD
Once you load an audio CD a menu appears on
the TV screen. Use v / V to select a track then
press PLAY or SELECT/ENTER and playback
starts.
MP3 / WMA
1. Use v / V to select a folder, and press
SELECT/ENTER to see the folder contents.
2. Use v / V to select a track then press PLAY
or SELECT/ENTER. Playback starts.
Tips:
•
If you are in a file list on the
MP3/WMA menu and want to return to
the Folder list, use the v
/
V to
highlight and press
SELECT/ENTER.
• Press and hold V / v to go to the
next / previous page.
• On CDs with MP3/WMA and JPEG
files, you can switch between the
MP3/WMA and JPEG menus. Press
TITLE, either MP3/WMA or the word
JPEG on top of the menu is
highlighted. Then, use b / B to select
MP3/WMA or JPEG and press
SELECT/ENTER.
MP3 / WMA disc compatibility with this
player is limited as follows:
• Sampling frequency: within 8 - 48kHz (MP3),
within 22 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3),
40 - 192kbps (WMA)
• The player cannot read an MP3/WMA file
that has a file extension other than “.mp3” /
“.wma”.
• CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software
that cannot create a file system (eg. DirectCD) it is impossible to playback MP3 / WMA
files. We recommend that you use Easy-CD
Creator, which creates an ISO 9660 file
system.
• File names should have a maximum of 8
letters and must incorporate an .mp3 or
.wma extension.
• They should not contain special letters such
as / ? * : “ < > l etc.
• The total number of files on the disc should
be less than 999.
This DVD player requires discs and recordings
to meet certain technical standards in order to
achieve optimal playback quality. Pre-recorded
DVDs are automatically set to these standards.
There are many different types of recordable
disc formats (including CD-R containing MP3
or WMA files) and these require certain preexisting conditions (see above) to ensure
compatible playback.
Customers should note that permission is
required in order to download MP3 / WMA files
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
1:10:00
1 / 12
Audio CD
List
TRACK1
TRACK2
TRACK3
TRACK4
TRACK5
TRACK6
TRACK7
TRACK8
AddAll
Delete
Program
Add
AllDelete
0:00:00
1 / 104
MP3 / WMA
List
Music Folder 1
Music Folder 2
Music Folder 3
Music Folder 4
Music Folder 5
Music Folder 6
Music Folder 7
Music Folder 8
AddAll
Delete
Program
Add
AllDelete
20
Audio CDs or MP3 / WMA Discs
Features
Pause
1. Press PAUSE/STEP during playback.
2. To return to playback, press PLAY or press
PAUSE/STEP again.
Changing Tracks
1. Press SKIP/SCAN (. or >) briefly
during playback to go to the next track or to
return to the beginning of the current track.
2. Press SKIP/SCAN . twice briefly to go
back to the previous track.
3. You can play any track by inputting its
number.
Repeat Track/All/Off
You can play a title/chapter/all/track on a disc.
1. Press REPEAT when playing a disc. The
repeat icon appears.
2. Press REPEAT to select a desired repeat
mode.
• Track: repeats the current track
• All: repeats all the tracks on a disc.
• Off (no display): does not play repeatedly.
Note: If you press SKIP/SCAN (>)
once during Repeat Track playback,
repeat playback is canceled.
Search
1. Press and hold SKIP/SCAN (. or >) for
about two seconds during playback.
2. Press SKIP/SCAN (. or >) repeatedly
to select the required speed: X2, X4, X8
backward or forward.
3. To exit SEARCH mode, press PLAY.
Tip: You can also select the search
speed by rotating and holding SHUTTLE
ring during playback. The search speed
is changed by positions you rotate and
hold SHUTTLE ring.
Random
1. Press RANDOM during playback. Random
Playback begins immediately and RANDOM
appears on the display window and menu
screen.
2. To return to normal playback, press
RANDOM repeatedly until RANDOM
disappears from the display window.
Tip: By pressing SKIP/SCAN >
during random playback, the unit selects
another track and resumes random
playback.
3D Surround
This unit can produce a 3D Surround effect, that
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five
or more speakers normally required to listen to
multi-channel audio from a home theater system.
1. Press SOUND and select “3D SUR” during
playback.
2. To turn off the 3D Surround effect, press
SOUND again.
Repeat A-B
1. To repeat a sequence during disc playback,
press A-B at your chosen starting point. The
Repeat icon and “A” appear on the menu
screen.
2. Press A-B again at your chosen end point.
The Repeat icon and “A-B” appear on the
menu screen, and the sequence begins to
play repeatedly.
3. To exit the sequence and return to normal
play, press A-B again. The Repeat icon
disappears from the menu screen.
CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
21
Operation
Viewing JPEG Files on a Disc
Using this DVD Player you can view Kodak
PICTURE CDs and discs with JPEG files.
1. Insert a disc and close the tray. The JPEG
menu appears on the TV screen.
2. Use v / V to select a folder, and press
SELECT/ENTER. A list of files in the folder
appears. If you are in a file list and want to
return to the Folder list, use the v / V buttons
on the remote to highlight and press
SELECT/ENTER.
3. If you want to view a particular file, use v / V
to highlight the file and press
SELECT/ENTER or PLAY. Slide Show starts
from the selected file if Speed option is
turned on.
While viewing a file, you can press RETURN
to return to the previous menu (JPEG menu).
Tips:
• Press and hold V / v to go to the
next / previous page.
• There are four Slide Speed options:
>>> (Fast), >> (Normal), > (Slow)
and X (Off).
Use vVbBto highlight the Speed.
Then, use b / B to select the option
you want to use and press
SELECT/ENTER.
• If you set Speed option to X (Off),
Slide Show is not available.
Slide Show
Use vVbBto highlight the Slide Show then
press SELECT/ENTER.
Changing Files
Press SKIP/SCAN (. or >) once while
viewing a picture to advance to the next or
previous file.
Still Picture
1. Press PAUSE/STEP during slide show. The
player will now go into PAUSE mode.
2. To return to the slide show, press PLAY or
press PAUSE/STEP again.
JPEG
JPEG
JPEG
JPEG disc compatibility with this player is
limited as follows:
• Depending upon the size and number of
JPEG files, it may take a long time for the
DVD player to read the disc’s contents. If
you don’t see an on-screen display after
several minutes, some of the files may be
too large — reduce the resolution of the
JPEG files to less than 3760 x 3840 pixels
and burn another disc.
• The total number of files and folders on the
disc should be less than 999.
• Some discs may be incompatible due to a
different recording format or the condition of
disc.
• Ensure that all the selected files have the
“.jpg” extensions when copying into the CD
layout.
• If the files have “.jpe” or “.jpeg” extensions,
please rename them as “.jpg” file.
• File names without “.jpg” extension will not
be able to be read by this DVD player; even
though the files are shown as JPEG image
files in Windows Explorer.
JPEG
List
JPEG Folder 1
JPEG Folder 2
JPEG Folder 3
JPEG Folder 4
JPEG Folder 5
JPEG Folder 6
JPEG Folder 7
JPEG Folder 8
Slide Show
Speed
Preview
22
Programmed Playback
The program function enables you to store your
favorite tracks from any disc in the player’s
memory. A program can contain 99 tracks (Audio
CD) or 300 tracks (MP3/WMA).
1. Insert a disc.
Audio CD and MP3/WMA Discs:
Audio CD or MP3/WMA menu appears as
shown below.
Audio CD Menu MP3/WMA Menu
Video CD: Stop playback, then press
PROGRAM while in Stop mode. The program
menu appears. Press RETURN to exit the
menu.
Note: On a Video CD with PBC, you
must set PBC to Off on the Setup menu
to use the programmed playback (See
“PBC” on page 14).
Video CD Menu
2. Select a track from the List.
3. Press PROGRAM. Or, select “Add” icon then
SELECT/ENTER to place the selected track
on the Program list. Repeat to place
additional tracks on the list.
You can add all tracks in the disc. Select
“Add All” icon then press SELECT/ENTER.
4. Select the track you want to start playing on
the Program list. Press and hold v / V to
move to the next / previous page.
5. Press PLAY or SELECT/ENTER to start.
Playback begins in the order in which you
programmed the tracks and “PROG.” appears
on the display window. Playback stops after
all of the tracks on the Program list have
played once.
Repeat Programmed Track/All/Off
You can play a programmed track/all on a disc.
1. Press REPEAT when programmed playing
back. The repeat icon appears.
2. Press REPEAT to select a desired repeat
mode.
• Track: repeats the current track.
• All: repeats all the tracks on the program
list.
• Off (no display): does not repeat play.
Note: If you press SKIP/SCAN (>)
once during Repeat Track playback,
repeat playback is cancelled.
Erasing a Track from Program List
1. Use vVbBto select the track that you
wish to erase from the Program list.
2. Press CLEAR. Or, select “Delete” icon then
press SELECT/ENTER to place the selected
track on the Program list. Repeat to erase
additional tracks on the list.
Erasing the Complete Program List
Select “Delete All”, then press SELECT/ENTER.
The complete Program for the disc is erased.
Note: The programs are also cleared
when the disc is removed.
To resume normal playback from programmed
playback
Select a track on the List then press
SELECT/ENTER.
“PROG.” disappears from the display window.
Program
List
TRACK1
TRACK2
TRACK3
TRACK4
TRACK5
TRACK6
TRACK7
TRACK8
1:10:00
1 / 12
AddAll
Delete
AllDelete
Add
Audio CD
Program
List
TRACK1
TRACK2
TRACK3
TRACK4
AddAll
Delete
AllDelete
Add
Video CD
Program
List
0:00:00
1 / 104
MP3 / WMA
AddAll
Delete
AllDelete
Add
2-Music2
1-Music1
3-Music3
4-Music4
5-Music5
6-Music6
7-Music7
title
23
Operation
Additional Features
Last Scene Memory
This player memorizes last scene from the last
disc that is viewed. The last scene remains in
memory even if you remove the disc from the
player or switch off the player. If you load a disc
that has the scene memorized, the scene is
automatically recalled.
Note: This player does not memorize
the scene of a disc if you switch off the
player before commencing to play the
disc.
Screen Saver
The screen saver appears when you leave the
DVD player in Stop mode for about five minutes.
After the Screen Saver is displayed for five
minutes, the DVD Player automatically turns
itself off.
Video Mode Setting
With certain discs, the playback picture may be
flickering or Dot Crawl is shown on straight lines.
That means Vertical interpolation or De-interlace
is not perfectly matched with the disc. In this
case, the picture quality may be improved by
changing the video mode.
To change the video mode, press and hold
DISPLAY about 3 seconds during disc playback.
The new video mode indicator appears on the
TV screen. Check whether the video quality has
improved. If not, repeat the above procedure
until picture quality is improved.
Video mode sequence: Auto
→ Film → Video
If you turn off the power, the video mode will
return to initial default state (Auto).
Auto: The source material of the DVD video
(film material or video material) is determined
from disc information.
Film: Suitable for playing film based content or
video based material recorded by the
progressive scan method.
Video: Suitable for playing video based
content with comparatively little motion.
VCDDVD
VCDCDDVD
24
Refer to the information on this and the following
pages before contacting a service technician.
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. For maximum protection if
you need to ship the unit, re-pack the unit as it
was originally packed at the factory.
Keeping the exterior surfaces clean
• Do not use volatile liquids such as insecticide
spray near the unit.
• Since they would leave marks on the cabinet
surface, do not leave rubber or plastic
products in contact with the unit for long
periods of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth
lightly moistened with a mild detergent solution.
Do not use strong solvents such as alcohol,
benzene, or thinner, as these might damage the
surface of the unit.
Maintaining the Unit
The DVD player is a high-tech, precision device.
If the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality could be
adversely affected.
Depending on the operating environment,
regular inspection and maintenance are
recommended after every 1,000 hours of use.
For details, please contact the nearest
authorized service center.
Maintenance and Service
25
Symptom
No power.
The power is on, but
the DVD player does
not work.
No picture.
No sound.
The playback picture is
poor.
The DVD player does
not start playback.
The remote control
does not work properly.
Possible Cause
• The power cord is disconnected.
• No disc is inserted.
• The TV is not set to receive DVD
signal output.
• The video cable is not connected
securely.
• The connected TV power is turned off.
• The equipment connected with the
audio cable is not set to receive DVD
signal output.
• The audio cables are not connected
securely.
•
The power of the equipment connected
with the audio cable is turned off.
• The AUDIO options are set to the
wrong position.
• The disc is dirty.
• No disc is inserted.
• An unplayable disc is inserted.
• The disc is placed upside down.
• The disc is not placed within the guide.
• The disc is dirty.
• The rating level is set.
• The remote control is not pointed at
the remote sensor on the DVD player.
• The remote control is too far from the
DVD player.
•
There is an obstacle in the IR path between
the remote control and the DVD player.
• The batteries in the remote control are
exhausted.
Correction
• Plug the power cord into the wall
power outlet securely.
• Insert a disc. (Check that the DVD or
audio CD indicator in the display
window is lit.)
• Select the appropriate video input
mode on the TV.
• Connect the video cable securely.
• Turn on the TV.
• Select the correct input mode on the
audio receiver so you can listen to the
sound from the DVD player.
• Connect the audio cable securely.
• Turn on the equipment connected with
the audio cable.
• Set the Digital Audio Output to the
correct position, then turn on the DVD
player again by pressing POWER.
• Clean the disc.
• Insert a disc. (Check that the DVD or
audio CD indicator in the DVD display
is lit.)
• Insert a playable disc. (Check the disc
type, color system, and regional code.)
• Place the disc with the playback side
down.
• Place the disc on the disc tray
correctly inside the guide.
• Clean the disc.
• Cancel the rating function or change
the rating level.
• Point the remote control at the remote
sensor on the DVD player.
• Operate the remote control closer to
the DVD player.
• Remove the obstacle.
• Replace the batteries with new ones.
Troubleshooting
Maintenance and Service
26
Reference
This chapter includes important reference
information to help you set up your DVD player.
Controlling VCRs, Cable Boxes (DBS),
and TVs
Your remote control operates the basic features
of most, but not all, models and brands of IR
(infrared) controlled VCRs, cable converters
(DBS), and TVs.
1. In the chart, find the code corresponding to
your brand of IR controllable device.
2. While holding down the TV, VCR, or CATV
button, enter the 3 number code with the
(0 - 9) buttons.
Some manufacturers have more than one code
number. If the remote control does not operate
the VCR, Cable box (DBS), or TV after setting a
code number, try a different code.
VCR Functional Buttons
POWER, Number (0 - 9), CH (Channel) v/V,
SELECT/ENTER, PLAY, SKIP/SCAN > (Fast
Forward), SKIP/SCAN . (Rewind), STOP,
OPEN/CLOSE (EJECT) and PAUSE/STEP
buttons on the remote control are active.
CATV (DBS) Functional Buttons
POWER, Number (0 - 9), RETURN (TV INPUT),
and CH (Channel) v / V, and VOL (Volume)
b / B buttons on the remote control are active.
TV Functional Buttons
POWER, Number (0 - 9), RETURN (TV INPUT),
CH (Channel) v / V, VOL (Volume) b / B and
SOUND (MUTE) buttons on the remote control
are active.
Note:
Due to the variety of codes used by
manufacturers, our company cannot
guarantee this remote control will operate
with every model of the brands listed.
TV Codes by Brand
Brand Name Codes
ADMIRAL 110, 113, 144, 151,
152
AKAI 115
AMARK 131
AOC 115
BELL & HOWELL 113
BROKSONIC 140, 143
CANDLE 158
CENTURION 130
CITIZEN 156, 157, 158, 159,
160, 161, 162
CORONADO 131
CROWN 131
CURTIS MATHES 113, 115, 118, 130,
144, 151
DAEWOO 145, 146, 147, 148,
149, 150
DAYTRON 115, 130
EMERSON 110, 111, 115, 131,
140, 143
FISHER 116, 125
FUNAI 153, 154
GENERAL ELECTRIC 102, 118, 127, 128,
133, 144, 151
HITACHI 119, 131, 132
JC PENNEY 102, 115, 124, 130,
133
JVC 109, 141
KMC 131
KTV 115, 130, 131, 138
LG (GOLDSTAR) 115, 122, 130, 131,
133, 146
LODGENET 113
LOGIK 113
TV Codes by Brand
Brand Name Codes
LXI 104, 116, 123, 124,
125, 131, 139
MAGNAVOX 100, 106, 107, 109,
114, 115, 121, 122,
130, 131, 133, 158
MAJESTIC 113
MARANTZ 103, 115
MEMOREX 113
MGA/MITSUBISHI 103, 114, 115, 130
MONTGOMERY 103, 113, 114, 115,
WARD 121, 129, 130, 131,
139
NEC 115, 130
PANASONIC 104, 122, 127, 128,
133, 163
PHILCO 115, 121, 122, 130,
131, 150
PHILIPS 121, 122
PIONEER 134
PORTLAND 131
PROSCAN 118, 144, 151
QUASAR 127, 128
RADIO SHACK 110, 111, 129
RCA 115, 118, 144, 151
REALISTIC 110, 111, 129
SAMPO 130
SAMSUNG 104, 115, 130, 131
SANYO 116, 125
SCOTT 115, 130
SEARS 104, 116, 123, 124,
125, 131
SHARP 112, 129, 131, 139
SIGNATURE 2000 102, 113, 114, 115,
121, 129, 130, 131,
139
TV Codes by Brand
Brand Name Codes
SONY 105
SOUNDESIGN 158
SYLVANIA 106, 107, 115, 121,
122, 130, 133, 158
SYMPHONIC 153, 154
TATUNG 128
TEKNIKA 110, 113, 122, 131,
158
TELERENT 113, 131
YORX 130
TOSHIBA 104, 123, 124
WARDS 102, 113, 114, 115,
121, 130, 131
XR1000 155
ZENITH 100, 101
CATV, Cable Converter Codes by Brand
Brand Name Codes
ALLEGRO 351
Archer 336
Cableview 336
Citizen 336
Curtis Mathes 317
Eagle 306, 307, 310
Gemini 302, 327, 328, 333
GENERAL ELECTRIC 353
General Instrument 324, 326, 327, 328
Gobrand 336
Hamlin 314, 330, 331
Jerrold 323, 324, 325, 326,
327, 329
Kale Vision 334
Macom 311, 312, 342
Magnavox 306, 307, 310, 334,
337, 338
NSC 332
CATV, Cable Converter Codes by Brand
Brand Name Codes
OAK 301, 321, 322
Panasonic 313, 318, 320
Paragon 300
Philips 306, 307, 308, 309,
310
Pioneer 318, 319
Pluser 336
RCA 318
Regal 310
Regency 304
Samsung 318, 327, 334
Scientific Atlanta 317, 335, 347, 354
SLmarx 318, 327
Sprucer 318, 320, 327
Standard Components 334
Stargate 318, 327, 328
Teleview 318, 327, 336
Texscan 303
Tocom 315, 316
Uniden 348
Unika 336
Universal 351, 352
Vid Tech 339
Video Way 300, 349
Viewstar 306, 307, 310
Zenith 300, 305, 311
Zenith HT-2000 300
DBS Codes by Brand
Brand Name Codes
RCA 355
Sony 356
VCR Codes by Brand
Brand Name Codes
ZENITH 200
LG 201
27
Reference
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Language Code
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Language Code
Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Language Codes
Use this list to specify a language for the following pre-operation settings: Disc Audio, Disc Subtitle,
Disc Menu
28
Country Code
Afghanistan AF
Albania AL
Algeria DZ
American Samoa AS
Andorra AD
Angola AO
Anguilla AI
Antarctica AQ
Antigua and Barbuda AG
Argentina AR
Armenia AM
Aruba AW
Australia AU
Austria AT
Azerbaidjan AZ
Bahamas BS
Bahrain BH
Bangladesh BD
Barbados BB
Belarus BY
Belgium BE
Belize BZ
Benin BJ
Bermuda BM
Bhutan BT
Bolivia BO
Bosnia-Herzegovina BA
Botswana BW
Bouvet Island BV
Brazil BR
British Indian Ocean IO
Territory
Brunei Darussalam BN
Bulgaria BG
Burkina Faso BF
Burundi BI
Cambodia6 KH
Cameroon CM
Canada CA
Cape Verde CV
Cayman Islands KY
Central African
Republic CF
Chad TD
Chile CL
China CN
Christmas Island CX
Cocos (Keeling) Islands CC
Colombia CO
Comoros KM
Congo CG
Cook Islands CK
Costa Rica CR
Croatia HR
Cuba CU
Cyprus CY
Czech Republic CZ
Denmark DK
Djibouti DJ
Dominica DM
Dominican Republic DO
East Timor TP
Ecuador EC
Egypt EG
El Salvador SV
Country Code
Equatorial Guinea GQ
Eritrea ER
Estonia EE
Ethiopia ET
Falkland Islands FK
Faroe Islands FO
Fiji FJ
Finland FI
Former Czechoslovakia CS
Former USSR SU
France FR
France
(European Territory) FX
French Guyana GF
French Southern
Territories TF
Gabon GA
Gambia GM
Georgia GE
Germany DE
Ghana GH
Gibraltar GI
Great Britain GB
Greece GR
Greenland GL
Grenada GD
Guadeloupe (French) GP
Guam (USA) GU
Guatemala GT
Guinea GN
Guinea Bissau GW
Guyana GY
Haiti HT
Heard and McDonald
Islands HM
Honduras HN
Hong Kong HK
Hungary HU
Iceland IS
India IN
Indonesia ID
Iran IR
Iraq IQ
Ireland IE
Israel IL
Italy IT
Ivory Coast CI
Jamaica JM
Japan JP
Jordan JO
Kazakhstan KZ
Kenya KE
Kiribati KI
Kuwait KW
Kyrgyzstan KG
Laos LA
Latvia LV
Lebanon LB
Lesotho LS
Liberia LR
Libya LY
Liechtenstein LI
Lithuania LT
Luxembourg LU
Macau MO
Country Code
Macedonia MK
Madagascar MG
Malawi MW
Malaysia MY
Maldives MV
Mali ML
Malta MT
Marshall Islands MH
Martinique (French) MQ
Mauritania MR
Mauritius MU
Mayotte YT
Mexico MX
Micronesia FM
Moldavia MD
Monaco MC
Mongolia MN
Montserrat MS
Morocco MA
Mozambique MZ
Myanmar MM
Namibia NA
Nauru NR
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Caledonia (French) NC
New Zealand NZ
Nicaragua NI
Niger NE
Nigeria NG
Niue NU
Norfolk Island NF
North Korea KP
Northern Mariana
Islands MP
Norway NO
Oman OM
Pakistan PK
Palau PW
Panama PA
Papua New Guinea PG
Paraguay PY
Peru PE
Philippines PH
Pitcairn Island PN
Poland PL
Polynesia (French) PF
Portugal PT
Puerto Rico PR
Qatar QA
Reunion (French) RE
Romania RO
Russian Federation RU
Rwanda RW
S. Georgia & GS
S. Sandwich Isls.
Saint Helena SH
Saint Kitts &
Nevis Anguilla KN
Saint Lucia LC
Saint Pierre and
Miquelon PM
Saint Tome and
Principe ST
Country Code
Saint Vincent &
Grenadines VC
Samoa WS
San Marino SM
Saudi Arabia SA
Senegal SN
Seychelles SC
Sierra Leone SL
Singapore SG
Slovak Republic SK
Slovenia SI
Solomon Islands SB
Somalia SO
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sudan SD
Suriname SR
Svalbard and
Jan Mayen Islands SJ
Swaziland SZ
Sweden SE
Switzerland CH
Syria SY
Tadjikistan TJ
Taiwan TW
Tanzania TZ
Thailand TH
Togo TG
Tokelau TK
Tonga TO
Trinidad and Tobago TT
Tunisia TN
Turkey TR
Turkmenistan TM
Turks and Caicos TC
Islands
Tuvalu TV
Uganda UG
Ukraine UA
United Arab Emirates AE
United Kingdom UK
United States US
Uruguay UY
USA Minor Outlying
Islands UM
Uzbekistan UZ
Vanuatu VU
Vatican City State VA
Venezuela VE
Vietnam VN
Virgin Islands (British) VG
Virgin Islands (USA) VI
Wallis and Futuna IslandsWF
Western Sahara EH
Yemen YE
Yugoslavia YU
Zaire ZR
Zambia ZM
Zimbabwe ZW
Country Codes
Choose a country code from this list.
29
Reference
Specifications
General
Power requirements AC 120 V , 60 Hz
Power consumption 14W
Dimensions (Approx.) 430 x 48 x 242 mm (16.9 x 1.9 x 9.5 inches) (W x H x D)
Weight (Approx.) 2.34 kg (5.2 lbs)
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %
System
Laser Semiconductor laser
Signal system
NTSC
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 100 dB (ANALOG OUT connectors only)
Harmonic distortion Less than 0.008%
Dynamic range More than 90 dB (DVD/CD)
Outputs
VIDEO OUT 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.3 V (p-p) 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2 (480p, 720p, 1080i)
DVI-D DIGITAL OUT DVI-D Single Link connector x 1 (480p, 720p, 1080i)
Digital Audio output (Coaxial) 0.5 V (p-p), 75 Ω, RCA jack x 1
Digital Audio output (Optical) 3.0 V (p-p), 75 Ω, Optical connector x 1
Analog Audio output 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
Accessories
Component video cable 1
DVI-type cable 1
S-Video cable 1
Video cable 1
Audio cable 1
Remote control 1
Batteries 2
Note: Design and specifications for quality improvement are subject to change without prior
notice.
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol
are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
30
A
accessories 29
amplifier 11
angle 8, 18
audio 8
audio channel 18
audio CD 20
auto play 14
B
batteries 9, 29
C
cable 29
camera angle 18
cleaning 4, 24
clear 8
coaxial 9
connection 10, 11
country codes 15, 28
D
digital audio output 9, 14
dimensions 29
disc audio 13
disc menu 18
disc tray 7
discs 4, 5
display 7, 8, 12
Dolby 11, 14
DRC 14
DTS 14
DVD 16
DVD -R 6
DVD ±RW 6
dynamic range control 14
E
Erasing 22
F
Forward 7, 8
Frame-by-Frame 17
Frequency 14, 29
Front Panel 7
H
Handling discs 4
humidity 29
I
indicator 7
installation 10
J
JPEG 6, 21
L
language 13, 18
last scene memory 23
language codes 27
laser 29
letterbox 13
lock 15
M
Maintenance 24
markers 18
menu 8, 13
MP3 6, 20
MPEG 6, 11, 14
multi-channel 11
mute 8
O
on-screen display 12
operation 16
optical 9
others 14
outputs 29
P
panscan 13
parental control 15
password 15
pause 7, 8, 20
PBC 6, 14
PCM 11, 14
play 7, 8
playback 16, 20
power 7, 8, 29
program 7, 8, 22
R
random 7, 8, 17, 20
range 29
rating 15
region code 5
remote control 8, 23, 29
repeat 8, 17, 20
repeat A-B 8, 17, 20
reverse 7, 8
S
scene 6
screen saver 23
search 8, 16, 20
select 8
Service 24
setup 8, 10, 13
slide speed 21
slow 8
slow motion 17
still 17
stop 7, 8
stream 14
Subtitles 8, 13, 18
surround sound 17, 20
S-Video 9, 10
symbols 4
T
temperature 29
time search 17
title 6, 7, 8
title menu 18
track 6, 7
troubleshooting 25
U
Unlock 15
V
VCD 6
video 10
video CD 6
video out 9
vocal 14
W
wide 13
WMA 6, 20
Z
ZOOM 8, 18
Index
31
Reference
Notes
ZENITH ELECTRONICS CORPORATION Zenith Part No. 206-3893
2000 MILLBROOK DRIVE GS# 3835RS0062J
LINCOLNSHIRE, IL 60069 Printed in Korea
Issue O
Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workmanship under normal
use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Installation”) of original
installation of the product. This warranty is good only to the original purchaser of the product and effective only when used in the
United States, excluding U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED
WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. ZENITH
WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING
LOST REVENUES OR PROFITS, IN CONNECTION WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON
HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
• Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration, maintenance or
failure to maintain, or separate system components; and
• Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside environmental
specifications or contrary to the requirements or precautions in the Operating Guide, accident, lightning strikes or other natural
causes, unauthorized modification or alteration, incorrect electrical current or voltage, signal reception or input, software not
licensed directly by Zenith, software errors that do not disable functionality, operating and software protocols adopted after the
date of manufacture or for outside the US, institutional or commercial use, or other causes not arising out of defect in material
or workmanship.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTER-ACTIVE CENTER NUMBERS:
FOR WARRANTY SERVICE:
You must call 1-877-993-6484 (Monday - Friday, 7 AM -8 PM CT; and Saturday, 8 AM – 5 PM CT) and select appropriate
options from the menu to confirm the product is defective and to obtain a Return Authorization (RA). If the defect has occurred
during the first 90 days of the Warranty Period, Zenith will send you a return-shipping label. After you obtain an RA for return,
please box your unit with a legible copy of the sales receipt and enough packing material to ensure undamaged delivery of your
product. When you receive the label, place it on the box and call the 800# in the instructions for pick-up. When your unit is
received, Zenith will replace your unit in accordance with this Limited Warranty.
ADVANCE SHIPMENT. If a replacement unit is available and you want second day delivery, our service representative will ask
for your credit card number. Zenith requires a reserved deposit by credit card as surety for such advance shipment. Your credit
card will not be charged if you return the defective unit in 10 business days. For advance shipment, the return label will come
with the replacement unit sent to you. Please follow boxing and shipping instructions above.
WARRANTY PERIOD:
LABOR: 90 DAYS from the Date of Purchase.
PARTS: ONE YEAR from the Date of Purchase.
Repaired or Replacement Unit is warranted for the remaining
period of the original warranty.
HOW
SERVICE IS HANDLED:
This is an Exchange Product. Call 1-877-993-6484 for
instructions on getting the defective unit replaced.
Please retain dated sales receipt and your box to return the
unit to Zenith for replacement.
Shipping charges both ways will be paid by Zenith during the
first 90 days of the Warranty Period. During the remainder of the
Warranty Period (91-365 days), you pay in-bound shipping
charges and Zenith pays return shipping charges.
Visit our website at http://www.zenithservice.com
For Where to buy, Product Assistance, or
Customer Assistance
Call 1-877-9Zenith (1-877-993-6484) (Monday - Friday, 7 AM - 8 PM CT; and
Saturday, 8 AM – 5 PM CT) and select appropriate options from the menu.
Or visit our website at http://www.zenithservice.com
ZENITH ELECTRONICS CORPORATION
DVD PLAYER DVB31 LIMITED WARRANTY – USA
