Zenith DVB312, DVB317 Schematic

SECTION 1

SUMMARY

CONTENTS

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS

........................... 1-3

SERVICING PRECAUTIONS .................................................................................................. 1-4

• General Servicing Precautions

• Insulation Checking Prodedure

• Electrostatically Sensitive Devices

SPECIFICATIONS ...................................................................................................................... 1-5

1-3

CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY, NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFACTURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANY RESULTING PROPERTY DAMAGE OR USER INJURY.

SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE, INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE USER.

WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTECTION FROM A.C. LINE SHOCK.

SAFETY CHECKS

AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRCTED. A CHECK SHOULD BE MADE OF THE FOLLOWING.

SUBJECT : FIRE & SHOCK HAZARD

1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS. THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE TRANSPORTED TO AND FROM THE REPAIR SHOP.

2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.

3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.

4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION TO PARTS AND COMPONENTS. FOR FRAYED LEADS, DAMAGED INSULATION (INCLUDING A.C. CORD). AND REPLACE IF NECESSARY FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.

5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND PROTRUNING METAL SURFACES MUST BE AVOIDED.

6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT MODIFICATIONS.

7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C. LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HANDLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLTMETER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESISTOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME. MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500 OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75 VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.

SUBJECT: GRAPHIC SYMBOLS

THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAG- NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE LITERATURE.

SUBJECT : X-RADIATION

1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTENTIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PICTURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERATION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PICTURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIRCUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIRABLE LEVELS.

2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE USED. DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN COLOR SETS, ALWAYS RE-INSTALL THEM.

3. IT IS ESSNTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA TION OF THE METER SHOULD BE CHECKED PERIODICALLY AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE AT YOUR DISTRIBUTOR.

4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING CORRECTLY, WE SUGGEST THAT YOU AND YOUR SERVICE ORGANIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGULATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCEDURE. AND THAT THE HIGH VOLTAGE READING BE RECORDER ON EACH CUSTOMER’S INVOICE.

5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE, AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT LONGER THAN IS NECESSARY TO LOCATE THE CAUSE OF EXCES SIVE VOLTAGE.

6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS (WHERE USED).

SUBJECT: IMPLOSION

1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.

2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.

SUBJECT : TIPS ON PROPER INSTALLATION

1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER OR CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.

2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIATORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.

3. AVOID PALCEMENT WHERE DRAPERIES MAY OBSTRUCT REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DECORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT OBSTRUCT VENTILATION.

4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMERCIAL MOUNTING KIT. MUST FOLLOW THE FACTORY APPROVED MOUNTING INSTRUCTIONS A PRODUCT MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW ACROSS THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.

5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS PROPERLY SECURED.

6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS THRESHOLDS OR DEEP PILE CARPETS.

7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF THE SAME OR LARGER SCREEN SIZE.

8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SINGLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO HOME AND FAMILY.

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS

A.C. VOLTMETER

GOOD EARTH GROUND SUCH AS THE WATER PIPE. CONDUIT. ETC

PLACE THIS PROBE ON EACH EXPOSED METAL PART

1-4

SERVICING PRECAUTIONS

CAUTION : Before servicing the DVD covered by this service data and its supplements and addends, read and follow the SAFETY PRECAUTIONS. NOTE : if unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions in this publications, always follow the safety precautions.

Remembers Safety First:

General Servicing Precautions

1. Always unplug the DVD AC power cord from the AC power source before: (1) Removing or reinstalling any component, circuit board,

module, or any other assembly.

(2) Disconnection or reconnecting any internal electrical

plug or other electrical connection.

(3) Connecting a test substitute in parallel with an elec-

trolytic capacitor. Caution : A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Do not spray chemicals on or near this DVD or any of its assemblies.

3. Unless specified otherwise in this service data, clean electrical contacts by applying an appropriate contact cleaning solution to the contacts with a pipe cleaner, cotton-tipped swab, or comparable soft applicator. Unless specified otherwise in this service data, lubrication of contacts is not required.

4. Do not defeat any plug/socket B+ voltage interlocks with whitch instruments covered by this service manual might be equipped.

5. Do not apply AC power to this DVD and/or any of its electrical assemblies unless all solid-state device heat sinks are cerrectly installed.

6. Always connect test instrument ground lead to the appropriate ground before connection the test instrument positive lead. Always remove the test instrument ground lead last.

Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn the power on. Connect an insulation resistance meter(500V) to the blades of the attachment plug. The insulation resistance between each blade of the attachment plug and accessible conductive parts (Note 1) should be more than 1Mohm. Note 1 : Accessible Conductive Parts including Metal panels, Input terminals, Earphone jacks, etc.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grouned-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified a “anti-static” can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charge sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protec tive package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Normally harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

2-1

SECTION 2

CABINET & MAIN CHASSIS

CONTENTS

1. EXPLODED VIEWS ................................................................................................................2-2

1. Cabinet and Main Frame Section ...........................................................................................2-2

2. Deck Mechanism Section........................................................................................................2-4

3. Packing Accessory Section....................................................................................................2-5

2-2

EXPLODED VIEWS

1. Cabinet and Main Frame Section

463

250

A00

463

300

283

279

280

A42

A49

A47

A48

A44

A43

A46

260

261

463

320

463

467

463

465

452

A41

SCART&5.1CH MODEL ONLY

OPTIONAL PART

KARAOKE MODEL ONLY

BCD

2-4

2. Deck Mechanism Section

001

003

004

431

026

021

023

025

436

022

024A

024B

024A

435

022A

032

024

027

028

031

030

434

A02

A03

A01

A00

020

011A

010

015

015A

015B

015C

017

013

014

018

011

029

012

430

431

012

430

433

002

BCD

3. Packing Accessory Section

BATTERY

808

PACKING SHEET

804

PACKING

OPTIONAL PARTS

803

806

820

OWNER'S MANUAL

RF CABLE

810

CABLE SET ASS'Y

801

REMOCON

900

BOX CARTON

802

PACKING

803

811

812

PLUG ASS'Y 1WAY(YELLOW)

PLUG ASS'Y 1WAY(BLACK)

PLUG ASS'Y 2WAY

3-1

SECTION 3

ELECTRICAL

CONTENTS

ELECTRICAL TROUBLESHOOTING GUIDE......................................................................3-2

1. Power check flow.....................................................................................................................3-2

2. System operation flow ............................................................................................................3-3

3. Test & debug flow ....................................................................................................................3-4

4. Karaoke flow ..........................................................................................................................3-10

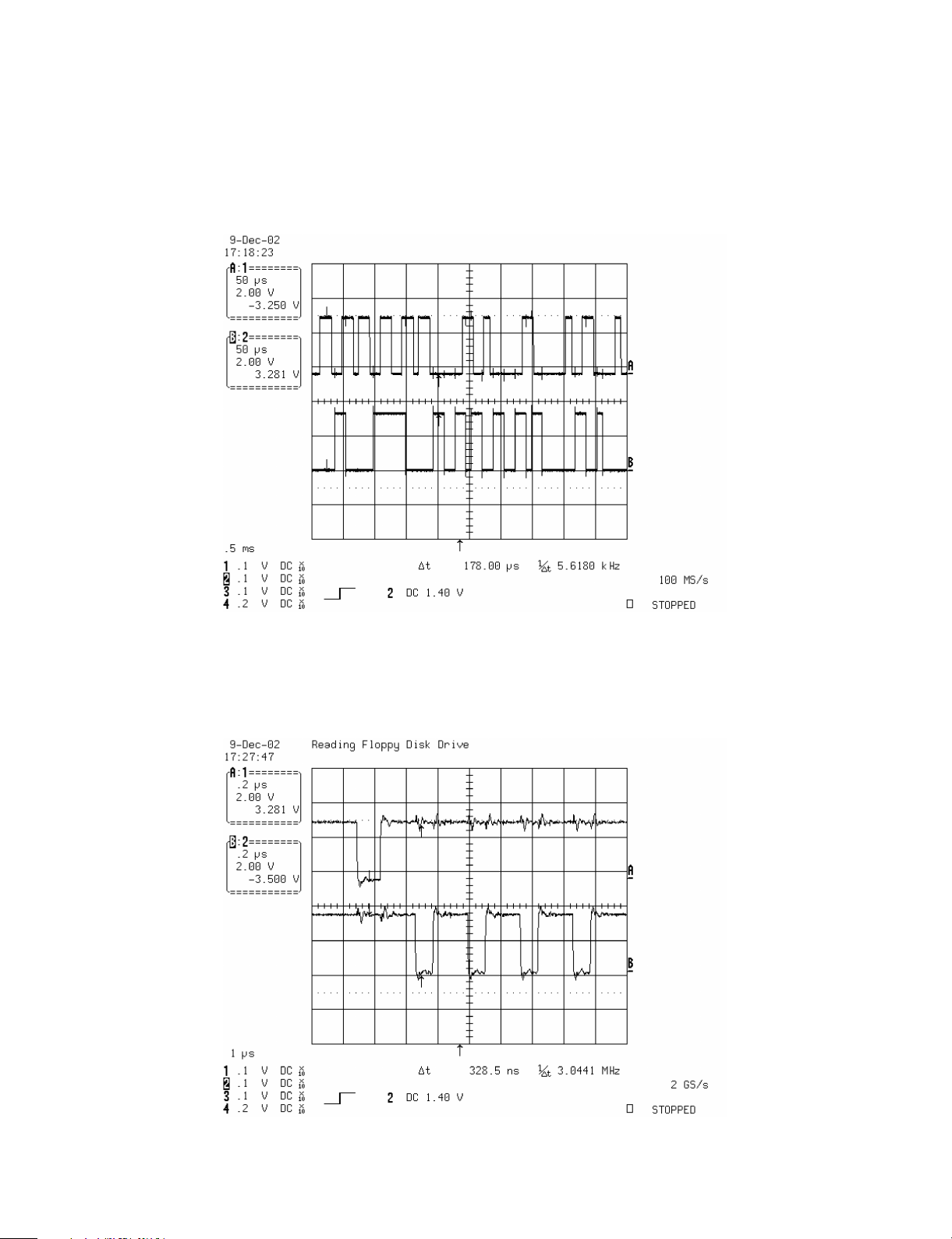

DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING ....................3-11

1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL........................................................3-11

2. SDRAM CLOCK......................................................................................................................3-13

3. TRAY OPEN/CLOSE SIGNAL ................................................................................................3-13

4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION) ............................................3-15

5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION) .............................................3-15

6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION) ............................3-16

7. DISC TYPE JUDGEMENT WAVEFORM ................................................................................3-16

8. FOCUS ON WAVEFORM........................................................................................................3-18

9. SPINDLE CONTROL WAVEFORM (NO DISC CONDITION).................................................3-19

10. TRACKING CONTROL RELATED SIGNAL(System checking).........................................3-20

11. RF WAVEFORM ....................................................................................................................3-21

12. MT1379 AUDIO OPTICAL AND COAXIAL OUTPUT (ASPDIF)..........................................3-21

13. MT1379 VIDEO OUTPUT WAVEFORM................................................................................3-22

14. AUDIO OUTPUT FROM AUDIO DAC ..................................................................................3-23

BLOCK DIAGRAMS ..................................................................................................................3-25

1. Overall Block Diagram ..........................................................................................................3-25

2. Power(SMPS) Block Diagram ...............................................................................................3-26

3. SERVO Block Diagram ..........................................................................................................3-27

4. MPEG & MEMORY Block Diagram .......................................................................................3-28

5. VIDEO & AUDIO Block Diagram ...........................................................................................3-29

6. Karaoke Block Diagram ........................................................................................................3-30

CIRCUIT DIAGRAMS................................................................................................................3-31

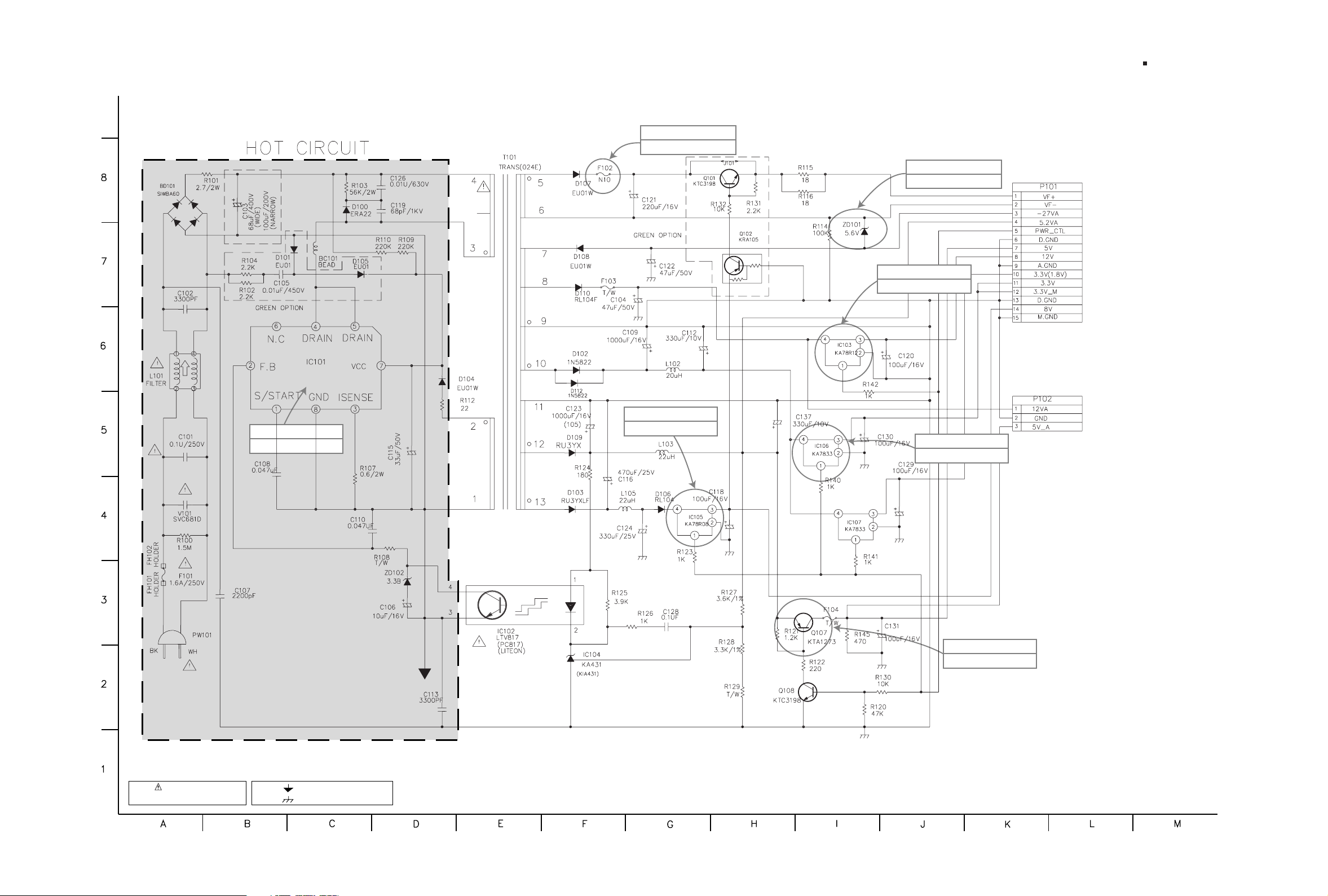

1. Power(SMPS) Circuit DIAGRAM...........................................................................................3-31

2. SYSTEM Circuit DIAGRAM ...................................................................................................3-33

3. RF & SERVO Circuit DIAGRAM ............................................................................................3-35

4. TIMER, 5.1CH, SCART, KARAOKE Circuit DIAGRAM ........................................................3-37

5. AV/JACK Circuit DIAGRAM...................................................................................................3-39

• CIRCUIT VOLTAGE CHART ....................................................................................................3-41

PRINTED CIRCUIT DIAGRAMS ............................................................................................3-45

1. MAIN P.C.BOARD ...................................................................................................................3-45

2. KEY P.C.BOARD.....................................................................................................................3-47

3. TIMER P.C.BOARD .................................................................................................................3-47

4. SCART & 5.1CH P.C.BOARD(OPTIONAL PART) .................................................................3-49

5. POWER P.C.BOARD...............................................................................................................3-49

6 KARAOKE P.C.BOARD (KARAOKE MODEL ONLY) ............................................................3-50

3-2

ELECTRICAL TROUBLESHOOTING GUIDE

No 5V_A .

No 5.2VA.

Is 5.2VA section working?

Is 5.2V present at emitter of Q107?

Replace Q107.

Is there a DC voltage At (+) terminal of BD101?

Is there a DC voltage at R101?

Replace IC101.

Check F101

1. Power check flow

No VF+

Is 5.2VA section working?

Replace D109.

Check F102

YES

Replace R101.

YES

Replace BD101.

YES

A. B.

3-3

2. System operation flow

Power On

Yes

Show LOGO

Tray Closed?

Tray Close to Closed position

SLED Moves to Inner Position

Recieve

OPEN/ CLOSE

Key?

Receive

CLOSE Key?

1. Stop Playback & Open Tray

2. Display tray open message & LOGO

1. Execute Pressed Key & IR Key

2. Systemoperati on Routi ne Loop

1. Judge whether have disc and disc type

2. Jump to related disc reading procedure

SLED at Inner

Side?

1. 8032 initializes SERVO, DSP & RISC registers

2. Write RISC code to SDRAM

3. Reset RISC

3-4

3. Test & debug flow

TEST

Check the POWER PART

Yes

Check the POWER PART

Check the regulators or diode( D670).

Check the cable connection Front Panel & Communication Signal

1. Check 27MHz system clock.

2. Check systemreset circuit.

3. Check FLASH R/Wenable signal PRD, RWR.

4. Check RS232 SIGNALS.

5. Check FLASH Memory related circui t.

Check the

AC Vol tage

Power PCBA (110V

or 220V)

Switch on the Power PCBA

the DC Vol tage

outputs OK?

(5V, 3.3V, 8V, 12V)

Is 3.3V and 2.5V DC

outputs normal on main

PCBA?

Update

FLASH(IC5A1)

successfully?

Replace FLASH( IC5A1)

Communication between IC901 & MT1379 is normally?

Connect to PC RS232 Cable and update the FLASH memory code.

Make sure the main PCBA don’t

3-5

RESET or Power On.

Show LOGO?

Flash

Memory operates

properly?

Check connecti on lines between FLASH & MT1379 and the FLASH access time whether is sui table or not.

SDRAM

works properl y?

MT1379

VIDEO outputs

properly?

Have

TV signal output?

Check AV cable connection to TV set .

Check the load OPEN & CLOSE switch

Check the Tray control IO pins on MT1376 & MT1379.

Check the Tray control amplifying circuit on Motor driver.(IC202)

Does

Tray move inside

when it is not at

closed position?

Normal

TROUT & TRIN

signals?

Normal

TRCLOSE &

TROPEN signal?

Normal

LOAD+ & LOAD-

signal ?

Check the cable connection between main PCBA and loader. (MECHA)

Check connection lines between SDRAM(IC502,IC503) & MT1379 and the SDRAM is damaged.

Check the rel ated ci rcui t of MT1379. (IC501 PIN 161,166, 168 check)

Check the fi l teri ng and amp ci rcui t of TV si gnal .(IC604)

3-6

YesYes

Yes

Does

the SLED move

to inner side when it is at

outter positi on?

Motor Driver STBY

Pin is High?

Motor Driver STBY

Pin is High?

SL+ and SL- output

properl y?

Optical

Lens has movements

for searching

Focus?

Proper F+

& F- outputs?

Check cable connect on with pick-up head.

Proper FOSO outputs

to motor driver?

Check FOSO connection on MT1379 and motor dirver.

Check the amp circuit on motor dirver.

Check the cable connection with MECHA.

Do not put in disc and tray close.

Check the connection line of STBY signal .

Check the rel ated circuit of FMSO.

Check the amp circuit on motor driver.

3-7

Yes

Laser turns on when

reading disc?

LD01 or LD02 output

properly?

Check the laser power circuit on MT1336 and connecting to power transistor. (Q204, Q205)

Check therel ated ci rcuit on laser power transi stor

Check the related circuit on MT1336 RFL signal .

Collector voltage of power transistor is OK?

( Q204, Q205)

Check cable connection between transistor couput and pick-up head.

Laser off

Proper RFL signal

on MT1336?

Proper

DMSO signal on

MT1379

Check DMSO related circuit on MT1379.

Check the spindle control amp circuit of motor driver.

SP+ & SP- output

properly?

Check the cable connection between spindle and main PCBA.

Check the RFL connection between MT1336 and MT1379.

Put disc in?

Disc ID is correct?

Does spindle rotate?

3-8

Yes

No No

Yes

Focus ON OK?

Track On OK?

Disc is play?

Proper

signals on A, B, C,

D of MT1336

Check connections between MT1336 and pick-up head.

Proper FEO signal

on MT1336?

Proper FEO signal

on MT1336?

Check the related circuit on MT1336 FEO sugnal .

Check the related circuit on MT1336

Properly TRSO signal

on MT1379?

T+ & T- output

properly?

Check the TRSO connection on MT1379 and motor dirver.

Check the tracking control amp circuit on motor driver.

Check cable connection on pick-up head.

Check RF signal waveform.

Check FEO connection between MT1336 and MT1379

+ 32 hidden pages
