Zenith DA3630 OPERATING GUIDE

Download

DA-3630(ENG)-D022J

Installation and Operating Guide

Machine Number | DA3630 (Main Unit : DA-3630A, Speakers : FE-3620TE, FE-3620WE) |

DVD HOME CINEMA SYSTEM

Safety Precautions

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

This Digital Video Disc Receiver employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service locationsee service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

REGULATORY INFORMATION: FCC Part 15

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the product and receiver.

• Connect the product into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Notes on copyrights:

It is f

orbidden by law to cop

y, broadcast, show, broadcast

via cab

le, play in public

, or rent copyright mater

ial without permission. This product is equipped with copy protection measures developed by Macrovision. Copy protection signals are recorded on some discs. When recording these discs on a VCR, picture noise will appear during playback. This product incorporates copyright protection technology that is protected by certain U.S. patent claims and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No. ___________________________________

Serial No. ___________________________________

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1

LASER PRODUKT

LUOKAN 1 LASER LAITE KLASS 1

LASER APPARAT

CLASSE 1

PRODUIT LASER

CD-R/RW

INTRODUCTION

1. Read these instructions. - All these safety and

operating instructions should be read before the product is operated.

2. Keep these instructions. - The safety, operating

and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product

and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this apparatus near water. – For

example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and like.

6. Clean only with dry cloth. – Unplug this product

from the wall outlet before cleaning. Do not use liquid cleaners.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over- heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANU-

AL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use, and servicing. This unit does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

IMPORTANT SAFETY INSTRUCTIONS

Table of Contents

Introduction

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important safety instructions . . . . . . . . . . . . . . . . . 3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 6

About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front Panel and Display Window . . . . . . . . . . . . . . 7

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparation

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . 10

Connecting to Optional Equipment . . . . . . . . . . . 11

Antenna Connections. . . . . . . . . . . . . . . . . . . . . 11

Speaker System Connection . . . . . . . . . . . . . . . 12

Speaker Positioning . . . . . . . . . . . . . . . . . . . . . . 12

Before Operation . . . . . . . . . . . . . . . . . . . . . . . 13-17

Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sound Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Test Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Delay Time Setting. . . . . . . . . . . . . . . . . . . . . . . 14

Setting the delay time in the Dolby Digital

and Dolby Pro Logic mode . . . . . . . . . . . . . . . . . 14

General Explanation. . . . . . . . . . . . . . . . . . . . . . 15

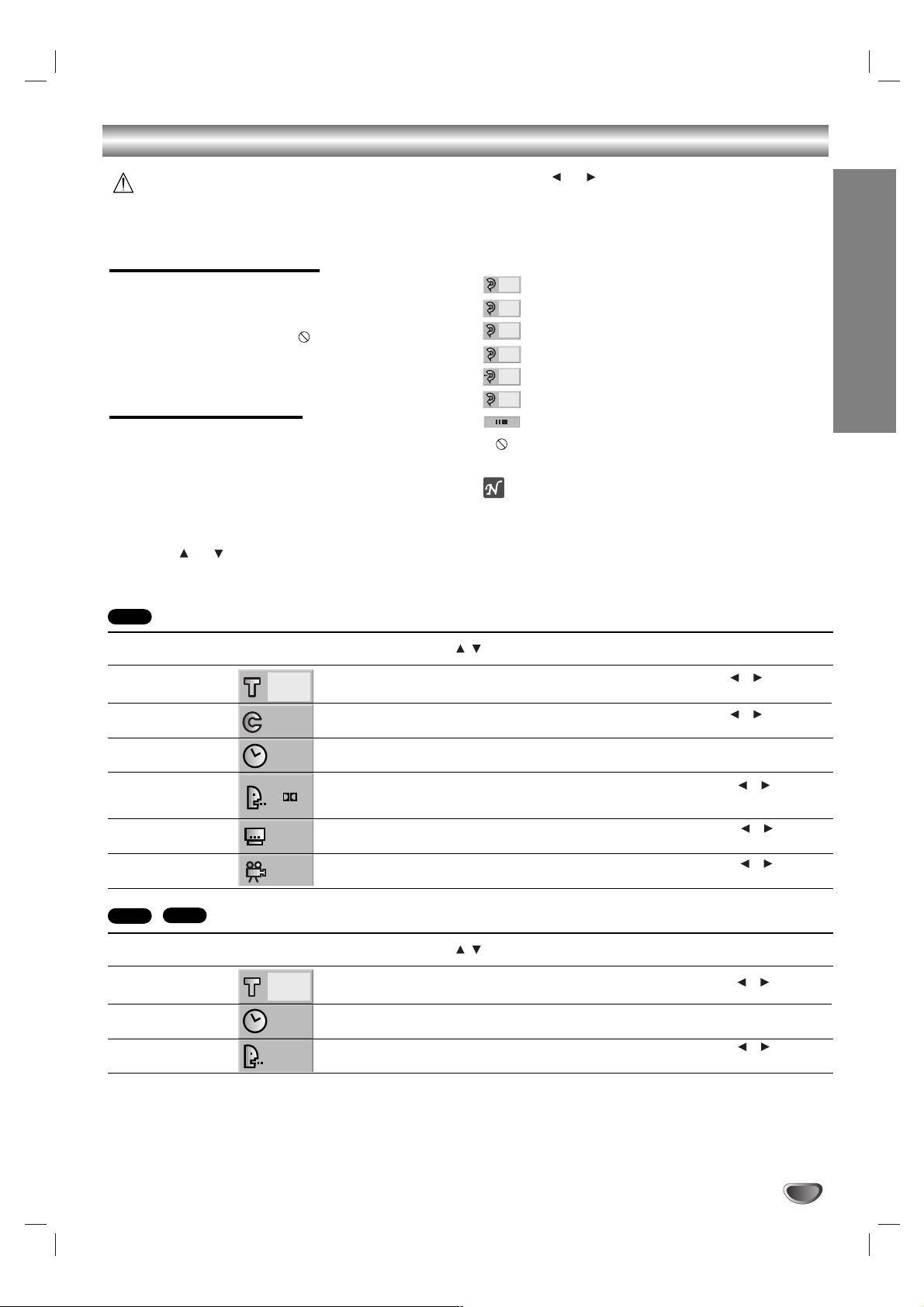

On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 15

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 16-17

 Initial Settings General Operation. . . . . . . . . 16

 Language . . . . . . . . . . . . . . . . . . . . . . . . . . 16

 Picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

 PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

 Parental Control. . . . . . . . . . . . . . . . . . . . . . 17

Operation

Operation with Radio . . . . . . . . . . . . . . . . . . . . 18-19

Presetting the radio stations . . . . . . . . . . . . . . . . 18

Listening to the radio . . . . . . . . . . . . . . . . . . . . . 18

Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . 19

Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using Headphone Jack . . . . . . . . . . . . . . . . . . . 19

Selecting input source . . . . . . . . . . . . . . . . . . . . 19

Operation with DVD and Video CD . . . . . . . . . 20-22

Playing a DVD and Video CD . . . . . . . . . . . . . . 20

General Features . . . . . . . . . . . . . . . . . . . . . . . . 20

 Moving to another TITLE . . . . . . . . . . . . . . . 20

 Moving to another CHAPTER/TRACK . . . . . 20

 Slow Motion. . . . . . . . . . . . . . . . . . . . . . . . . 20

 Still Picture and Frame-by-Frame Playback . 21

 Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

 Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

 Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 21

 Time Search . . . . . . . . . . . . . . . . . . . . . . . . 21

 Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

 Marker Search. . . . . . . . . . . . . . . . . . . . . . . 22

Special DVD Features . . . . . . . . . . . . . . . . . . . . . . . 22

 Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 22

 Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 22

 Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 22

 Changing the Audio Language. . . . . . . . . . . 22

 Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Operation with Audio CD and MP3 Disc. . . . . . . . 23

Playing an Audio CD and MP3 Disc . . . . . . . . . . 23

 Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

 Moving to another Track . . . . . . . . . . . . . . . . 23

 Repeat Track/All/Off . . . . . . . . . . . . . . . . . . . 23

 Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

 Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 23

 Changing the Audio Channel . . . . . . . . . . . . 23

Programmed Playback . . . . . . . . . . . . . . . . . . . . . 24

Programmed Playback with Audio CD

and MP3 Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Programmed Playback with Video CD . . . . . . . . 24

Additional Information. . . . . . . . . . . . . . . . . . . . . . 25

Last Condition Memory . . . . . . . . . . . . . . . . . . . 25

Screen Saver. . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Video Mode Setting . . . . . . . . . . . . . . . . . . . . . . 25

Notes on MP3 Discs . . . . . . . . . . . . . . . . . . . . . 25

Reference

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 26-27

Language Code List . . . . . . . . . . . . . . . . . . . . . . . 28

Country Code List . . . . . . . . . . . . . . . . . . . . . . . . . 29

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

About the symbols for instructions

Indicates hazards likely to cause harm to the unit itself or other material damage.

Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other worldwide patents issued and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All rights reserved.

INTRODUCTION

Before Use

Playable Discs

DVD (8 cm / 12 cm disc)

Video CD (VCD) (8 cm / 12 cm disc)

Audio CD (8 cm / 12 cm disc)

In addition, this unit can play a CD-R or CD-RW that contains audio titles or MP3 files.

Notes

– Depending on the conditions of the recording equip-

ment or the CD-R/RW disc itself, some CD-R/RW discs cannot be played on the unit.

– The unit cannot play the CD-R/RW discs that contain

no data, or contain different kinds of formatted data other than MP3 and CD-DA data.

– Do not attach any seal or label to either side (the

labeled side or the recorded side) of a disc.

– Do not use irregular shaped CDs (e.g., heart-shaped

or octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available, or other functions may be added. Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.

Regional code of the DVD receiver and DVDs

This DVD receiver is designed and manufactured for playback of region “1” encoded DVD software. The region code on the labels of some DVD discs indicates which type of receiver can play those discs. This unit can play only DVD discs labeled “1 ” or “ALL”. If you try to play any other discs, the message “Check Regional Code” will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Note on DTS-encoded CDs

When playing DTS-encoded CD’s, an excessive audio level may be heard from the analog stereo output. To avoid possible damage to the audio system, turn down the volume before playing back such discs, adjust the volume gradually, and keep the volume level low. To enjoy DTS Digital Surround

playback, an external 5.1

channel DTS Digital Surround

decoder system must

be connected to the digital output of the unit.

Disc-related terms

Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enable you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

Track (Video CD and audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called “Scenes”. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

Before Use (Cont’d)

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.

When setting the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber of plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Installing



Do not install the unit in a confined space, such as a bookcase or built-in cabinet.



Allow adequate air circulation to prevent internal heat buildup.



Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.



Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.



Do not place heavy objects on the unit.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents, such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVD receiver is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the symbol display

“ ” may appear on the TV screen during operation. This icon means the function explained in this owner’s manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD Video CDs with the PBC (playback control)

function Video CDs without the PBC (playback control)

function Audio CDs MP3 disc

MP3

VCD1.1

VCD2.0

DVD

YES NO

INTRODUCTION

Front Panel and Display Window

STOP (MEMORY/CLEAR) button

FM/AM button

MONO/STEREO button

ENTER button

OPEN/CLOSE button

FUNCTION button

SKIP/SEARCH(TUNING/SKIP) buttons

PLAY/PAUSE button

Remote sensor

PHONES connector

VOLUME controller

POWER button and indicator

SLEEP indicator

TUNED indicator

STEREO indicator

MUTE indicator

MEMORY indicator

PROGRAM indicator

Repeat playback mode indicators

Sound mode indicator

Chapter/Track number indicator

Title number indicator

PLAY/PAUSE indicator

Angle icon indicator

Disc indicator

Total playing time/Elapsed time/ Frequency/Delay time/Volume etc. indicators

Remote Control

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.



Distance: About 23 ft (7 m) from the front of the remote sensor



Angle: About 30° in each direction of the front of the remote sensor

Remote control battery installation

Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with and aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

MUTE button

FM/AM button

ARROW buttons

For use in highlighting a selection on a GUI menu screen, TITLE and MENU screen.

SET UP button

SLOW SCAN(+/-) buttons

SEARCH button

REPEAT button

NUMBER buttons

MARKER button

OPEN/CLOSE button

TEST TONE button

CD/DVD button

ENTER button

DIMMER button

PRESET -/+ (

QQ / RR

) buttons

SUBTITLE(S-TITLE) button •

STOP button •

RETURN button

TITLE button

Use the TITLE button to

display the title screen includ-

ed on DVD video discs.

POWER button

• PROGRAM button

• SLEEP button

• CLEAR button

• REPEAT A-B button

SOUND MODE button

BY-PASS button

• LEVEL button

• DELAY button

VIDEO 1/2 buttons

PAUSE button PLAY button

DISPLAY button

AUDIO button ZOOM button

MENU button

Use the MENU button to display the menu screen included on DVD video discs.

VOLUME (+/-) buttons

SKIP (

) buttons

Press and hold button for about two seconds for search function.

ANGLE button

AAA

INTRODUCTION

Rear Panel

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

Caution

When you select the function mode to VIDEO1 using the VIDEO1 button on the remote control, the signal is output from the front L/R speakers, but not from the VIDEO1 VIDEO OUT and AUDIO OUT L/R connectors.

* VIDEO SELECTOR switch

You can enjoy NTSC or PAL discs by setting the VIDEO SELECTOR switch to choose the appropriate system. PAL: Select when DVD receiver is connected with

PAL-TV.

NTSC: Select when DVD receiver is connected with

NTSC-TV.

AUTO: Select when DVD receiver is connected with

Multi system TV.

• When the selected System Select switch does not coincide with the system of your TV, normal color picture may not be displayed.

• Set System Select switch when the power is turned off.

S-VIDEO OUT Connector

FM 300Ω Coaxial Antenna Connector

AM Antenna Connectors

WOOFER OUT Connector

VIDEO 2 (Input) Connectors

VIDEO 1 (Input/Output) Connectors

SPEAKER Connectors

POWER CORD

Connect to an AC 120V, 60Hz outlet only.

VIDEO SELECTOR Switch

Refer to explanation below*.

MONITOR OUT Connector

Connections

S-VIDEO

INPUT

AUDIO INPUT

VIDEO INPUT

Rear of TV



Make one of the following connections, depending on the capabilities of your existing equipment.

Tips



Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use one of the connections described below.



Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

Caution

–

Make sure the DVD Receiver is connected directly to the TV. Select the correct AV input on your TV.

– Do not connect your DVD Receiver to TV via your

VCR. The DVD image could be distorted by the copy protection system.

Video connection

Connect the MONITOR OUT jack on the DVD Receiver to the video in jack on the TV using the video cable supplied (V).

Connect the Left and Right AUDIO OUT jacks of the DVD Receiver to the audio left/right in jacks on the TV (A) using the supplied audio cables.

S-Video connection

Connect the S-VIDEO OUT jack on the DVD Receiver to the S-Video in jack on the TV using the optional S-Video cable (S).

Connect the Left and Right AUDIO OUT jacks of the DVD Receiver to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Notes



The signal of S-VIDEO OUT jack will output only when the function mode is selected to CD/DVD.



When you connect the DVD receiver to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

Connecting to a TV

PREPARATION

Connections (Cont’d)

Connecting to Optional Equipment



Connect a TV(Monitor) to the MONITOR OUT or S-VIDEO OUT connector.



Connect a VCR to the VIDEO 1 connectors.



Connect a additional VCR to the VIDEO 2 connectors.

Notes



When you select the function mode to VIDEO 1, a video signal is not output at the jack.



If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

Antenna Connections

Connect the supplied FM/AM antennas for listening to the radio.



Connect the AM loop antenna to the AM antenna connector.



Connector the FM wire antenna to the FM 300Ω coaxial connector.

Notes



To prevent noise pickup, keep the AM loop antenna away from the DVD Receiver and other component.



Be sure to fully extend the FM wire antenna.



After connecting the FM wire antenna, keep it as horizontal as possible.

OUTIN

VIDEO

AUDIO (L)

AUDIO (R)

AUDIO (L)

AUDIO (R)

VIDEO

VCRAdditional VCR

OUTIN

To AUDIO/ VIDEO OUT

To AUDIO/VIDEO OUT

To AUDIO/VIDEO IN

(VIDEO 2)

To AUDIO/

VIDEO IN

To AUDIO/

VIDEO OUT

(VIDEO 1)

To AUDIO/ VIDEO IN (VIDEO 1)

AM loop antenna (supplied)

FM wire antenna (supplied)

Connections (Cont’d)

Speaker System Connection

Speaker Positioning

• Center speaker

It is ideal that the center speakers and front speakers are same height. But normally place it above or below the television.

• Rear speakers

Place left and right behind the listening area. These speakers recreate sound motion and atmosphere required for surround playback. For best results, do not install the rear speakers too far behind the listening position and install them at or above the level of the listener’s ears. It is also effective to direct the rear speakers towards a wall or ceiling to further disperse the sound. In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the rear speakers above 60-90cm than the listener’s ears.

• Subwoofer

This can be placed in any front position.

Center Speaker

Front

Speaker

(Left)

Speaker Positioning Example

Rear Speaker (Left)

Rear Speaker (Right)

Front Speaker (Right)

Subwoofer

In the case of normal position use the 6 speakers (2 front speakers, center speaker, 2 rear speakers and subwoofer). If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a subwoofer.

• Front speakers

According to your listening position set up the speakers for equal distance. And by hearing position set up the interval between speakers to 45 degree.

Notes



Be sure to match the speaker cord to the appropriate terminal on the components: + to + and – to –. If the cords are reversed, the sound will be distorted and will lack base.



If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.



Do not disassemble the front cover of supplied speaker.

Connect the speakers using the supplied speaker cords by matching the colors of the terminals and those of the cords. To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.).

If you feel lack of bass frequency

Connect an active subwoofer to the WOOFER OUT connector using a monaural audio cord (not supplied). When you connect an active subwoofer, disconnect the woofer from the WOOFER speaker connector.

PREPARATION

Before Operation

Sound Mode

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to.

Press SOUND MODE repeatedly until the sound mode you want appears in the display window as below.

Allows you to enjoy 5.1(or 6) discrete channels of high quality digital audio from DTS program sources bearing the trademark such as discs, DVD and compact discs, etc. DTS Digital Surround delivers up to 6 channels of transparent audio(which means identical to the original masters) and results in exceptional clarity throughout a true 360 degree sound field. The term DTS is a trademark of DTS Technology, LLC. Manufactured under license from DTS Technology, LLC.

The Dolby Digital surround format lets you enjoy up to

5.1 channels of digital surround sound from a Dolby Digital program source. If you play DVDs with “” mark, you can enjoy even better sound quality, greater spatial accuracy, and improved dynamic range.

When playing recordings of live music and classic, this mode provides a feeling similar to actually being in a small concert hall.

When playing recordings of live music and classic, this mode provides a feeling similar to actually being in a large concert hall.

This mode provides a three dimensional effect similar to that of movie theater.

Use this mode when playing movie or Dolby Digital 2 channel which carries the “”mark. This mode provides the effect

of being in a movie theater or live concert house-an effect with an intensity which can only be obtained through DOLBY PRO LOGIC SURROUND. The effect of the front/back/left/right movement of the sound image, as well as the sense of fixed position in the sound image, is much clearer and more dynamic than before.

2CH STEREO

Outputs the sound from the front left and right speakers and subwoofer. Standard two channel (stereo) sources completely bypass the sound field processing. This allows you to play any source using only the front left and right speakers and subwoofer. You can select 2CH STEREO by pressing BY-PASS

on the remote control.

When PCM indicator is only displayed in the display window:

Each time you press SOUND MODE button, the sound mode is changed as the following order;

PRO LOGIC → HALL1 → HALL2 → THEATER

Tip

You can select SURROUND OFF (2CH STEREO) mode by pressing BY PASS button.

When DVD is inserted.

You can change the sound mode of DVD (Dolby Digital, DTS, PRO LOGIC, etc) by pressing the AUDIO button on the remote during playback. Although the DVD contents differ from disc to disc, the following explains the basic operation when this feature is used.

Each time you press AUDIO button, the sound mode of DVD is changed as the following order;

→→

and

Tip

You can set PRO LOGIC mode to Off (2CH STEREO) by pressing BY PASS button and the PRO LOGIC indicator disappears.

For your reference

•

The DVD Receiver memorizes the last mode settings for each source individually.

•

You can identify the encoding format of program software by looking at its packaging.

- Dolby Digital discs are labeled with the logo.

- Dolby Surround encoded programs are labeled with the logo.

- DTS Digital Surround discs are marked with DTS.

Note

When you play sound tracks with 96kHz sampling frequency, the output signals will be converted to 48kHz (sampling frequency).

Sound Level

You can

set the sound level of the desired channel.

Press LEVEL.

The level indicator will appear in the display window.

Press

to select a desired speaker to set.

Each time you press the /button, it is changed as the following order;

FL (Front Left) → C (Center) → FR (Front Right) → SR (Surround Right) → SL (Surround Left) → SW (Subwoofer) → FL (Front Left)

• On the 2 channel stereo mode, you can only select the

SW (Subwoofer).

Press

to adjust the sound level of the

selected channel. (-6dB ~ +6dB)

Repeat step 2-3 and adjust the sound level of the other channels.

If setting is complete, press LEVEL.

Before Operation (Cont’d)

Test Tone

This function allows you can easily adjust the sound balance of the speakers from the listener's position.

Select the test tone mode by pressing TEST TONE.

• A hiss noise comes out for 2 seconds from each speakers in the following order; FL (Front Left) → C (Center) → FR (Front Right) → SR (Surround Right) → SL (Surround Left) → SW (Subwoofer) → FL (Front Left)

You can adjust the sound level during operating the test tone, first press LEVEL then press

buttons, so that all speaker’s sound level is same from the listener’s position.

• During operating the test tone, if you adjust the sound level, it will be paused in the current speaker channel.

If setting is complete, press TEST TONE.

Delay Time Setting

In Dolby Digital or Dolby Pro Logic mode it is assumed that the distance from the listener to each of speakers is equal. If not setting the delay times of the center or rear speakers the sound will be heard simultaneously by the listener. The interval from the speakers to the listener. If the distance from the listener to each speakers is same, in the Dolby Digital and Dolby Pro Logic mode the delay time of each speakers is as following.

In Dolby Digital mode

Center delay time : 0ms Rear delay time: 5ms

In Dolby Pro Logic mode

Center delay time : cannot setting Rear delay time : 15-30ms If the rear delay time is set in Dolby Digital mode, in the Dolby Pro Logic mode the delay time will be automatically set. The delay time is 1 msec per 30 cm. If the center and rear speakers are further than the front speakers from the listener, the delay time will be at minimum.

Surround delay time setting

If the distance of DS is equal to or longer than the DF in the left figure, set the Surround Delay Time as 0ms. Otherwise, change the setting according to the below. Ex) If the distance from front speakers to the listener is 3 m and from rear speakers from the listener is 1.5 m, in the Dolby Digital mode the rear delay time is 5 msec. 3m (D

F) - 1.5m (DS) = 1.5m (B)

1.5m (B) = 150cm / 30cm = 5msec

Center delay time setting (Dolby Digital mode only)

If the distance of D

F is equal to the distance of D

in the left figure, set the Center Delay Time as 0ms. Otherwise, change the setting according to the table below. Ex) If the distance from the front speakers to the listener is 3m and from the center speaker to the listener is

2.4m, the center delay time is 2msec. 3m (D

) - 2.4m (DC) = 60cm (A)

60cm (A) / 30cm = 2msec

Setting the delay time in the Dolby Digital and Dolby Pro Logic mode

Press DELAY.

The current surround delay time appears in the display window. You can select center delay time by pressing

in the Dolby Digital mode only.

Press

to change the delay time.

If setting is complete, press DELAY.

Notes

You can adjust the center delay time only in the Dolby Digital mode and its delay time appears.

(A)

SL SR

(B)

PREPARATION

Before Operation (Cont’d)

Caution:

Before using the remote control, press the DVD or TV button to select the device to be operated.

General Explanation

This manual gives the basic instructions for operating the DVD Receiver. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol appears on the TV screen, indicating that the operation is not permitted by the DVD Receiver or is not available on the disc.

On-Screen Display

The general playback status can be displayed on the TV screen. Some items can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Press or to select an item.

The selected item will be highlighted.

Press or to change the setting of an item.

The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press ENTER to execute the setting.

Temporary Feedback Field Icons

Repeat Title

Repeat Chapter

Repeat Track (non-PBC Video CDs only)

Repeat All Tracks (non-PBC Video CDs only)

Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

Notes

 Some discs may not provide all of the features on the

on-screen display example shown below.

 If no button is pressed for 10 seconds, the on-screen

display disappears.

Items

Title Number

Chapter Number

Time search

Audio language and Digital Audio Output mode

Subtitle language

Angle

Function (Press

to select desired item)

Shows the current title number and total number of titles, and skip to the desired title number.

Shows the current chapter number and total number of chapters, and skips to the desired chapter number.

Shows the elapsed playing time, and

search the point by the elapsed time directly.

Shows the current audio soundtrack language, encoding method and channel number, and

changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current angle number and total number of angles, and changes the angle number.

Selection Method

/ , or

Numeric, ENTER

/ , or

Numeric, ENTER,SKIP

Numeric, ENTER

AUDIO

Items

Track Number

Time

Audio Channel

Function (Press

to select desired item)

Shows the current track number, total number of tracks and PBC On mode, and to the desired track number.

Shows the elapsed playing time (Display only)

Shows the audio channel, and

changes the audio channel.

Selection Method

/ , or

Numeric, ENTER, SKIP

–

VCD2.0

VCD1.1

DVD

S-TITLE

ANGLE

AUDIO

TITLE

CHAPT

TRACK

ALL

A B

OFF

1/3

1/12

0:16:57

1 ENG

6 CH

OFF

1/1

PBC

0:16:57

STER.

Before Operation (Cont’d)

Initial Settings

You can set your own Personal Preferences on the player.

Initial Settings General Operation

Press SETUP.

The setup menu appears.

Press

to select the desired item.

The screen will show the current setting for the selected item, as well as alternate setting(s).

While the desired item is selected, press , then

to select the desired setting.

Press ENTER to confirm your selection.

Some items require additional steps.

Press SETUP, RETURN or PLAY to exit the setup menu.

Language

Disc Language

Select a language for the disc’s Menu, Audio and Subtitle.

Original : The original language set for the disc is selected. Other : To select another language, press number buttons to

enter the corresponding 4-digit number according to the language code list on page 28. If you enter the wrong language code, press CLEAR.

Menu Language

Select a language for the setup menu. This is the menu you see when you press SETUP.


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is con-

nected. Displays theatrical images with masking bars above and below the picture. 4:3 Panscan: Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Either sides of the picture are cut off.

16:9 Wide: Select when a 16:9 wide TV is connected.

PBC

PBC On/Off

Set Playback Control (PBC) to On or Off. On: Video CDs with PBC are played back according to

the PBC.

Off: Video CDs with PBC are played back in the same

way Audio CDs.

VCD2.0

DVD

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Original

English

French

German

Spanish

Italian

Chinese

Polish

Hungarian

Russian

Other — — — —

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

English

Spanish

French

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

4:3 Letterbox

4:3 Panscan

16:9 Wide

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Original

English

French

German

Spanish

Italian

Chinese

Polish

Hungarian

Russian

Other — — — —

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Off

PREPARATION

Before Operation (Cont’d)

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

Select “Rating” on the Setup menu using the and buttons.

While “Rating” is selected, press .

When you have not entered a password yet;

Enter a 4-digit password using the numerical buttons to create a personal 4-digit security password, then press ENTER. And enter the 4-digit password again and press ENTER to verify.

When you have already entered a password;

Enter a 4-digit password using the numerical buttons to confirm the personal 4-digit security password, then press ENTER.

If you make a mistake before pressing ENTER, press CLEAR and enter 4-digit security password again.

Select a rating from 1 to 8 using the / buttons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions.

Unlock: If you select Unlock, Parental Control is not active. The disc will play in full. Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the player, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.

Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Country Code

Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list (See “Country Code List”, page 29.).

Select Country Code using the / buttons on the setup menu.

While Country Code is selected, press .

Follow step 3 of “Rating” on left.

Select the first character using the / buttons.

Shift the cursor using / buttons and select the second character using / buttons.

Press ENTER to confirm your country code selection, then press SETUP to exit the menu.

Note

Confirmation of the 4-digit password is necessary when the code is changed (see “Changing the 4-digit code” below ).

Changing the 4-digit code

1 Follow steps 1-2

as shown above to the left (Rating)

2 Enter the old code, then press ENTER.

3 Select Change using the / buttons then press

ENTER.

4 Enter the new 4-digit code, then press ENTER.

5 Enter exactly the same code a second time and veri-

fy by pressing ENTER.

6 Press SETUP to exit the menu.

If you forget your 4-digit code

If you forget your password, to clear the current password, follow the procedure below.

1 Press SETUP to display the setup menu.

2 Use the Number buttons to enter the 6-digit number

“210499.”

The 4-digit password is cleared.

Enter a new code as shown above to the left (Rating).

DVD

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Unlock

Change

Disc Audio

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Code Set

C A

Operation with Radio

Presetting the radio stations

You can preset 30 stations for FM and AM. Before tuning, make sure that you have tuned down the volume to the minimum.

Press FUNCTION on the front panel repeatedly or FM/AM on the remote control until the FM or AM appears in the display window.

And then every time you press FM/AM, FM and AM changes alternately.

Press and hold TUNING/SKIP or on the front panel for about two seconds until the frequency indication starts to change, then release.

Scanning stops when the DVD Receiver tunes in a station. “TUNED” and “STEREO” (for stereo program) appear in the display window.

Note

“TUNED” only appears when the signal is FM and

STEREO.

Press MEMORY.

A preset number will flash in the display window.

Press TUNING/SKIP or on the front panel to select the preset number you want.

Press MEMORY again.

The station is stored.

Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUNING/SKIP or repeatedly in step 3 to tune in the station manually.

To clear all the memorized stations

Press and hold MEMORY for about three seconds and “CLEAR ALL” is appeared in the display window and then press MEMORY again, the stations are cleared.

Note

If all stations have already been entered, FULL message will appear in the display window for a moment and then a preset number will flash. To change the preset number, follow the steps 5-6 as above.

Listening to the radio

Preset radio stations in the DVD receiver’s memory first (see “Presetting radio stations” on the left side).

Press FM/AM until AM or FM appears in the display window.

The last received station is tuned in.

Press PRESET

repeatedly to select the

preset station you want.

Each time you press the button, the DVD receiver tunes in one preset station at a time.

Adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME + or - on the remote control repeatedly.

To turn off the radio

Press POWER to turn the DVD receiver off or select another function mode (DVD/CD, VIDEO 1 or VIDEO 2).

To listen to non-preset radio stations



Use manual or automatic tuning in step 2.



For manual tuning, press TUNING/SKIP or

on the front panel repeatedly.



For automatic tuning, press and hold TUNING/SKIP

or for about two seconds on the front

panel.

For your reference



If an FM program is noisy

Press MONO/ST. on the front panel so that “STEREO” disappears in the display window. There will be no stereo effect, but the reception will improve. Press the button again to restore the stereo effect.



To improve reception

Reorient the supplied antennas.

OPERATION

Operation with Radio (Cont’d)

Sleep Timer Setting

You can set the DVD receiver to turn off automatically at a specified time.

Press SLEEP to set the desired sleep time.

The SLEEP indicator and sleep time appears in the display window.

Each time you press SLEEP, the setting changes in the following order.

SLEEP 120 → 90 → 60 → 50 → 40 → 30 → 20 → 10 →OFF

Notes

 You can check the time remaining before the DVD

receiver turns off.

Press SLEEP. The remaining time appears in the display window.

Dimmer

This function will be illuminated the display window in power-on status.

Press the DIMMER repeatedly.

Mute

Press MUTE to mute your unit.

You can mute your unit in order, for example, to answer the telephone, “MUTE” indicator flashes in the display window.

Using Headphone Jack

Connect a stereo headphone plug ( 3.5mm) into the PHONES connector. The speakers are automatically disconnected when you plug in the headphones (not supplied).

Selecting input source

You can use VCRs or other units connected to the VIDEO1 or VIDEO2 connectors . Refer to the owner’s manual supplied with the unit for farther information on the operation.

Press VIDEO1 or VIDEO2 repeatedly on the remote control to select the desired input source.

Each time you press this button, the mode of the function changes in the following sequence:



VIDEO1 : For selecting the signal from VIDEO1 AUDIO IN (L/R) & VIDEO IN Connectors.



VIDEO2 : For selecting the signal from VIDEO2 AUDIO IN (L/R) & VIDEO IN Connectors.

Operation with DVD and Video CD

Playing a DVD and Video CD

Getting to play

 Switch on the TV and select the AV input source con-

nected to the DVD receiver.

 When you want to enjoy the sound of discs or from

the audio system, turn on the audio system and select the input source connected to the DVD receiver.

Press OPEN/CLOSE to open the disc tray.

Load your chosen disc in the tray, with the label facing up.

When a double-sided DVD is inserted, make sure the side you want to play is facing up.

Press OPEN/CLOSE to close the tray.

READING appears on the TV screen, and playback starts automatically. If playback does not start, press PLAY. In some cases, the disc menu might appear instead.

When the menu screen is displayed

The menu screen may be displayed first after loading a DVD or Video CD which contains a menu.

Use the 11/22/33/44buttons to select the title/chapter you want to view, then press ENTER to start playback. Press TITLE or MENU to return to the menu screen.



Use the number buttons to select the track you want to view. Press RETURN to return to the menu screen.



Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 16.

Notes

– If Parental Control is set and the disc is not within the

Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see

“Parental Control”, on page 17). – DVDs may have a region code. – Your player will not play discs that have a region code

different from your player. The region code for this

player is 1 (one).

General Features

Note

Unless stated, all operations described are based on remote control use. Some operations can be carried out using the setup menu.

Moving to another TITLE

When a disc has more than one title, you can move to another title as follows:



Press DISPLAY when playback is stopped, then press the appropriate numerical button (0-9) to select a title number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

 Press SKIP . or > briefly during

playback to select the next chapter/track or to return to the beginning of the current chapter/track.



Press . twice briefly to step back to the previous chapter/track.



To go directly to any chapter during DVD playback, press DISPLAY. Then, press / to select C (chapter) (or for a Video CD, select T for track). Then, enter the chapter/track number using the numerical buttons (0-9).

Note

For two-digit numbers, press the buttons in rapid succession.

Slow Motion

1 Press SLOW SCAN + or - during playback.

The player will enter SLOW mode.

2 Use the SLOW SCAN + or - to select the required

speed: t 1/16, t 1/8, t 1/4 or t 1/2 (backward), or T 1/16, T 1/8, T 1/4 or T 1/2 (forward).

3 To exit slow motion mode, press PLAY.

Note

Slow motion playback in reverse is not applicable for Video CD.

VCD1.1VCD2.0

DVD

VCD1.1

DVD

VCD2.0

DVD

VCD1.1VCD2.0

DVD

1/3

1/12

1/3

OPERATION

Operation with DVD and Video CD (Cont’d)

General Features (cont’d)

Still Picture and Frame-by-frame playback

1 Press PAUSE during playback.

The player will now go into PAUSE mode.

2 You can advance the picture frame by frame by press-

ing PAUSE repeatedly on the remote control.

1 Press and hold SKIP . or > for about two sec-

onds during playback.

The player will now go into SEARCH mode.

2 Press and hold SKIP . or > repeatedly to select

the required speed: mX2, mX4, mX16, mX100 (backward) or MX2, MX4, MX16, MX100 (forward). With a Video CD, the Search speed changes: mX2, mX4, mX8 (backward) or MX2, MX4, MX8 (forward).

3 To exit SEARCH mode, press PLAY.

Repeat

DVD Video Discs - Repeat Chapter/Title/Off

1 To repeat the currently playing chapter, press

REPEAT.

The Repeat Chapter icon appears on the TV screen.

2 To repeat the title currently playing, press REPEAT a

second time.

The Repeat Title icon appears on the TV screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Video CDs - Repeat Track/All/Off 1 To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the TV screen.

2 To repeat the disc currently playing, press REPEAT a

second time.

The Repeat All icon appears on the TV screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 16.

Repeat A-B

To repeat a sequence in a title:

1 Press REPEAT A-B at your chosen starting point.

A- appears briefly on the TV screen.

2 Press REPEAT A-B again at your chosen end point.

A-B appears briefly on the TV screen, and the repeat sequence begins (a-b repeat appears on the player’s display).

3 To cancel the sequence, press REPEAT A-B.

Time Search

The Time Search function allows you to start playing at any chosen time on the disc.

1 Press DISPLAY during playback. The on-screen dis-

play appears on the screen.

The Time Search box shows the elapsed playing time of the current disc.

2 Within 10 seconds, press / to select the Time

Search icon in the on-screen display.

The “-:--:--” appears in the Time Search box.

3 Within 10 seconds, use the numerical buttons to enter

the required start time. Enter hours, minutes and seconds from left to right in the box.

If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.

4 Within 10 seconds, press ENTER to confirm the start

time.

Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

DVD

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

TITLE

TRACK

ALL

OFF

CHAPT

A *

A B

OFF

0:16:57

-:--:--

Operation with DVD and Video CD (Cont’d)

General Features (cont’d)

Zoom

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

1 Press ZOOM during playback or still playback to

activate the Zoom function.

If you press ZOOM repeatedly, the magnification level increases up to six times.

2 Use the 11/22/33/44buttons to move through the

zoomed picture.

3 Press CLEAR to resume normal playback or return to

the paused image.

Note

 The zoom function may not work for some DVDs.  The zoom function may not work on multi-angle

scenes.

Marker Search

You can start playback from a memorized point. Up to nine points can be memorized. To enter a mark, follow these steps.

1 During disc playback, press MARKER when

playback reaches the spot that you want to memorize.

The Marker icon will appear on the TV screen briefly.

2 Repeat step 1 to enter up to nine Marker points on a

disc.

To Recall a Marked Scene

1 During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2 Within 10 seconds, press / to select a Marker

number that you want to recall.

3 Press ENTER.

Playback will start from the Marked scene.

4 To remove the MARKER SEARCH menu, press

SEARCH.

To clear a Marked Scene

1 During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2 Press / to select the Marker number that you

want to erase.

3 Press CLEAR.

The Marker number will be erased from the list.

4 Repeat steps 2 and 3 to erase additional Marker

numbers.

5 To remove the MARKER SEARCH menu, press

SEARCH.

Special DVD Features

Checking the contents of DVD Video discs: Menus

DVDs may contain menus that allow you to access special features. To use the disc menu, press MENU. Then, press the appropriate numerical button to select an item. Or, use the 11/22/33/44buttons to highlight your selection, then press ENTER.

Title Menu

1 Press TITLE.

If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.

2 The menu can list camera angles, spoken language

and subtitle options, and chapters for the title.

3 To remove the title menu, press TITLE again.

Disc Menu

1 Press MENU.

The disc menu is displayed.

2 To remove the disc menu, press MENU again.

Camera Angle

If the disc contains sequences recorded from different camera angles, the angle icon blinks on the display. You can then change the camera angle if you wish.



Press ANGLE repeatedly during playback to select a desired angle.

The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

Subtitles

Press S-TITLE repeatedly during playback to see the different subtitle languages.

Note

If appears, the feature is not available on the disc.

DVD

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

1/9

MARKER SEARCH

1/1

1 ENG

6 CH

OPERATION

Operation with Audio CD and MP3 Disc

Playing an Audio CD and MP3 disc

The DVD Receiver can play MP3 format recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3 recordings, read the notes of MP3 Recordings on page 25.

Insert a disc and close the tray.

The menu appears on the TV screen.

Audio CD menu MP3 menu

Press / to select a track then press PLAY. Playback starts. During playback, the current track’s elapsed playing time will appear on the display. Playback will stop at the end of the disc.

To stop playback at any other time, press STOP.

Pause

1 Press PAUSE during playback.

2 To return to playback, press PLAY or press PAUSE

again.

Moving to another Track



Press SKIP . or > briefly during playback to go to the next track or to return to the beginning of the current track.



Press SKIP . twice briefly to step back to the previous track.



In case of audio CD, to go directly to any track, enter the track number using the numerical buttons (0-9) during playback.

Repeat TRACK/ALL/OFF

1 To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the menu screen.

2 To repeat all tracks of disc in the unit, press REPEAT

a second time.

The Repeat All icon appears on the menu screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the menu screen.

1 Press and hold SKIP . or > for about two sec-

onds during playback.

The player will now go into SEARCH mode.

2 Press and hold SKIP . or > repeatedly to select

the required speed: mX2, mX4, mX8 (backward) or MX2, MX4, MX8 (forward).

3 Search speed and direction are indicated on the

menu screen.

4 To exit SEARCH mode, press PLAY.

Note

 The sound is muted during SEARCH mode.

Repeat A-B

To repeat a sequence. 1 During disc playback, press REPEAT A-B at your

chosen starting point.

The Repeat icon and “A -” appears on the menu screen.

2 Press REPEAT A-B again at your chosen end point.

The Repeat icon and “A B” appears on the menu screen, and the sequence begins to play repeatedly.

3 To exit the sequence and return to normal play, press

REPEAT A-B again.

The Repeat icon and “OFF” appears on the menu screen.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STEREO, LEFT or RIGHT).

MP3CD

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

TRACK 8

0:56:35 STER.

ProgramCD

Clear All

TRACK 1.MP3

TRACK 2.MP3

TRACK 3.MP3

TRACK 4.MP3

TRACK 5.MP3

TRACK 6.MP3

TRACK 7.MP3

TRACK 8.MP3

00:00 1 OFF

ProgramMP3

Clear All

Programmed Playback

VCD1.1VCD2.0

MP3CD

Programmed Playback with Audio CD

and MP3 Disc

Program allows you to store your favorite tracks for a particular disc in the player memory.

Program can contain 32 tracks (Audio CD) or 60 tracks (MP3 disc).

Insert the disc and close the tray.

The menu is displayed on the TV screen.

Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.

The mark will appear to the right of the word Program on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode; the mark will disappear.

Press / to select a track then press ENTER to place the selected track on the Program list.

Repeat step 3 to place additional tracks on the Program list.

Audio CD menu MP3 menu

Press .

The programmed track you selected last is highlighted on the program list.

Press / to select the track you want to start playing.

Press TITLE to move to the next page. Press MENU to move to the previous page.

Press PLAY to start.

Playback begins in the order in which you programmed the tracks and “PROGRAM” appears on the menu screen. Playback stops after all of the tracks on the Program list have played once.

Programmed Playback with Video CD

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 16.

Insert Video CD and close the tray.

Press PROGRAM while playback is stopped.

The VCD Program menu will appear.

Note

Press RETURN or PROGRAM to exit the Program menu.

Follow steps 3-7 of “Programmed Playback with Audio CD and MP3 Disc” on left.

Repeat Programmed Tracks



To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the menu screen.



To repeat all tracks of program list, press REPEAT a second time.

The Repeat All icon appears on the menu screen.



To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the menu screen.

Erasing a Track from Program List

1 Press PROGRAM during playback or in the stop

mode to enter the Program Edit mode.

The mark will appear.

2 Press to move to the Program list. 3 Use / to select the track that you wish to erase

from the Program list.

4 Press CLEAR.

The track will be erased from the Program list.

Erasing the Complete Program List

1 Follow steps 1-2 of “Erasing a Track from Program

List” as above.

2 Use / to select “Clear All”, then press ENTER.

The complete Program for the disc will be erased. The programs are also cleared when the disc is removed.

To resume normal playback from programmed playback

Press and hold PROGRAM for 3 seconds until

“

PROGRAM” indicator disappears in the display window.

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

TRACK 8

0:56:35

STER.

ProgramCD

TRACK 12

TRACK 8

TRACK 10

TRACK 3

Clear All

TRACK 1.MP3

TRACK 2.MP3

TRACK 3.MP3

TRACK 4.MP3

TRACK 5.MP3

TRACK 6.MP3

TRACK 7.MP3

TRACK 8.MP3

00:00 1 OFF

ProgramMP3

TRACK 8.MP3

TRACK 2.MP3

TRACK 4.MP3

TRACK 3.MP3

Clear All

VCD

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

TRACK 8

Program

Clear All

OPERATION

Last Condition Memory

This player memorizes the last condition for the last disc you have watched. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.

Notes

– Settings are stored in memory for use any time. – This player does not memorize settings of a disc if

you switch off the player before commencing to play it.

Screen Saver

The screen saver picture appears when you leave the DVD Receiver in stop mode for about five minutes.

Video Mode Setting



With certain discs, the playback picture may be flickering or Dot Crawl is shown on straight lines. That means Vertical interpolation or De-interlace is not perfectly matched with the disc. In that case, the picture quality can be improved with changing video mode.



To change the video mode, press and hold DISPLAY for 3 seconds during playback of a disc. Changed video mode number is displayed on the TV screen. Check whether video quality is improved.You can repeat above procedure until desired picture quality appears.



Procedure of video mode is changed;

MODE1 → MODE2 → MODE3 → MODE4 → MODE5 → MODE1



If you turn off the the power, the video mode will be back to initial state (MODE1).

Notes on MP3 Discs

About MP3



An MP3 file is audio data compressed by using MPEG1, the audio layer-3 file-coding scheme. We call files that have the “.mp3” file extension “MP3 files”.



The player can not read an MP3 file that has a file extension other than “.mp3”.



The player can not read a fake MP3 file that has a file extension “.mp3”.

MP3 disc compatible with this player is limited as follows:

1. Sampling Frequency / only at 44.1kHz

2. Bit rate / within 96 - 192kbps

3. CD-R physical format should be “ISO 9660”

4. If you record MP3 files using the software which cannot create a FILE SYSTEM, for example “Direct- CD” etc., it is impossible to playback MP3 files. We therefore recommend that you use “Easy-CD Creator”, which creates an ISO9660 file system.

5. A single session disc requires MP3 files in the first track. If there is no MP3 file in the 1st track, it cannot playback MP3 files. If you wish to playback MP3 files, format all the data in the disc or use a new one.

6. We do not recommend using CD-RW discs. Please use finished CD-R discs only.

7. File names should be named using 8 letters or less and must incorporate “.mp3” extension e.g. “********.MP3”.

8. Do not use special letters such as “_?!><+*}{`[@ ]:;\/.,” etc.

9. Total number of files on the disc should be less than

200.

10. Use 74 minute CD-R discs (650M), Do not use 80 minute CD-R (700M) software

This DVD receiver requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 files).

Customers should also note that permission is required in order to download MP3 files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

VCD1.1VCD2.0

DVD

VCD1.1

CDDVD

Additional Information

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but the DVD receiver does not work.

No picture.

There is no sound or only a very low-level sound is heard.

The playback picture is poor.

The DVD receiver does not start playback.

Severe hum or noise is heard.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal

output.

• The video cable is not connected securely.

• The connected TV power is turned off.

• The equipment connected with the

audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• The audio connecting cord is damaged.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The Rating level is set.

• The plugs and jacks are dirty.

• The disc is dirty.

• The speakers and components are

connected poorly.

• The DVD receiver is located with too close to the TV.

Correction

• Plug the power cord into the wall outlet securely.

• Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)

• Select the appropriate video input mode on the TV so the picture from the DVD receiver appears on the TV screen.

• Connect the video cable into the jacks securely.

• Turn on the TV.

• Select the correct input mode of the

audio receiver so you can listen to the sound from the DVD receiver.

• Connect the audio cable into the jacks securely.

• Turn on the equipment connected with the audio cable.

• Replace it with new one.

• Clean the disc.

• Insert a disc. (Check that the DVD, or

audio CD indicator in the DVD display is lit.)

• Insert a playable disc. (Check the disc type, color system and Regional code.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Press the SET-UP button to turn off the

menu screen.

• Cancel the Rating function or change the rating level.

• Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

• Connect the speakers and components

securely.

• Move your TV away from the audio components.

REFERENCE

Troubleshooting (Cont’d)

Symptom

Recording is not possible.

Radio stations cannot be tuned in.

The remote control does not work properly.

Cause

• The components are connected incorrectly.

• The source is selected in correctly.

• The antennas is positioned or

connected poorly.

• The signal strength of the stations is too weak (when tuning in with automatic tuning).

• No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations).

• The remote control is not pointed at the remote sensor of the DVD receiver.

• The remote control is too far from the DVD receiver.

• There is an obstacle in the path of the remote control and the DVD receiver.

• The batteries in the remote control are exhausted.

Correction

• Connect the components correctly.

• Select the source with FUNCTION but-

ton (CD/DVD, VIDEO 1, VIDEO 2 or Tuner).

• Connect the antenna securely.

• Adjust the antennas and connect an

external antenna if necessary.

• Tune in the station manually.

• Preset the stations (page 18).

• Point the remote control at the remote

sensor of the DVD receiver.

• Operate the remote control within about 23 ft (7 m).

• Remove the obstacle.

• Replace the batteries with new ones.

Language Code List

Code Language

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fiji

Code Language

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

Code Language

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

8277 Rhaeto-Romance

8279 Rumanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

Code Language

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sudanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 16).

REFERENCE

Code Country

AD Andorra AE United Arab Emirates AF Afghanistan AG Antigua and Barbuda AI Anguilla AL Albania AM Armenia AN Netherlands Antilles AO Angola AQ Antarctica AR Argentina AS American Samoa AT Austria AU Australia AW Aruba AZ Azerbaidjan BA Bosnia-Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain BI Burundi BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island BW Botswana BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland CI Ivory Coast CK Cook Islands CL Chile CM Cameroon CN China CO Colombia CR Costa Rica CS Former Czechoslovakia CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark DM Dominica DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara

Code Country

ER Eritrea ES Spain ET Ethiopia FI Finland FJ Fiji FK Falkland Islands FM Micronesia FO Faroe Islands FR France FX France (European

Territory) GA Gabon GB Great Britain GD Grenada GE Georgia GF French Guyana GH Ghana GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe (French) GQ Equatorial Guinea GR Greece GS S. Georgia & S. Sandwich

Isls. GT Guatemala GU Guam (USA) GW Guinea Bissau GY Guyana HK Hong Kong HM Heard and McDonald

Islands HN Honduras HR Croatia HT Haiti HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Indian Ocean

Territory IQ Iraq IR Iran IS Iceland IT Italy JM Jamaica JO Jordan JP Japan KE Kenya KG Kyrgyzstan KH Cambodia6 KI Kiribati KM Comoros KN

Saint Kitts & Nevis Anguilla KP North Korea KR South Korea KW Kuwait KY Cayman Islands KZ Kazakhstan LA Laos LB Lebanon

Code Country

LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libya MA Morocco MC Monaco MD Moldavia MG Madagascar MH Marshall Islands MK Macedonia ML Mali MM Myanmar MN Mongolia MO Macau MP Northern Mariana Islands MQ Martinique (French) MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia (French) NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman PA Panama PE Peru PF Polynesia (French) PG Papua New Guinea PH Philippines PK Pakistan PL Poland PM Saint Pierre and Miquelon PN Pitcairn Island PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Reunion (French) RO Romania RU Russian Federation RW Rwanda SA Saudi Arabia SB Solomon Islands

Code Country

SC Seychelles SD Sudan SE Sweden SG Singapore SH Saint Helena SI Slovenia SJ Svalbard and Jan Mayen

Islands SK Slovak Republic SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname ST Saint Tome and Principe SU Former USSR SV El Salvador SY Syria SZ Swaziland TC Turks and Caicos Islands TD Chad TF French Southern

Territories TG Togo TH Thailand TJ Tadjikistan TK Tokelau TM Turkmenistan TN Tunisia TO Tonga TP East Timor TR Turkey TT Trinidad and Tobago TV Tuvalu TW Taiwan TZ Tanzania UA Ukraine UG Uganda UK United Kingdom UM USA Minor Outlying

Islands US United States UY Uruguay UZ Uzbekistan VA Vatican City State VC Saint Vincent &

Grenadines VE Venezuela VG Virgin Islands (British) VI Virgin Islands (USA) VN Vietnam VU Vanuatu WF Wallis and Futuna Islands WS Samoa YE Yemen YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire ZW Zimbabwe

Enter the appropriate code number for the initial setting “Country Code” (See page 17).

Country Code List

P/NO : 3828R-D022J

Specification

[General][CD/DVD][Video]

[Tuner]

(MW)

[Amplifier][Speakers]

[Supplied

Accessories]

Power supply AC 120V, 60Hz Power consumption 70 W Mass 4.6 kg External dimensions (W x H x D) 360 x 72 x 350 mm Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal Operating humidity 5% to 85% Laser Semiconductor laser, wavelength 650 nm Signal system PAL 625/50, NTSC 525/60 Frequency response (audio) 4 Hz to 20 kHz Signal-to-noise ratio (audio) More than 75 dB (1 kHz, NOP, 20 kHz LPF/A-Filter) Dynamic range (audio) More than 75 dB Harmonic distortion (audio) 0.5 % (1 kHz, at 12W position) (20 kHz LPF/A-Filter) Video input 1.0 V (p-p), 75 Ω, negative sync., RCA jack Video output 1.0 V (p-p), 75 Ω, negative sync., RCA jack

S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1

(C) 0.3 V (p-p), 75 Ω Tuning Range 87.5 - 108 MHz Intermediate Frequency 10.7 MHz Signal-to Noise Ratio 60 dB Frequency Response 150 - 12000 Hz Tuning Range 530 - 1720 kHz Intermediate Frequency 450 kHz Stereo mode 35W + 35W (8 Ω at 1 kHz, THD 10 %) Surround mode Front: 35W + 35W (THD 10 %)

Center*: 35W

Surround*: 35W + 35W (8Ω at 1 kHz, THD 10 %)

Subwoofer*: 35W (8Ω at 30 Hz, THD 10 %) Inputs VIDEO 1, VIDEO 2 Outputs VIDEO 1 (AUDIO OUT) : 2 V

WOOFER: 2 V

PHONES: (32 Ω)

Satellite Speaker (FE-3620TE) Passive Subwoofer (FE-3620WE) Type 1 Way 1 Speaker 1 Way 1 Speaker Impedance 8 Ω 8 Ω Frequency Response 120 - 20000 Hz 45 - 1500 Hz Sound Pressure Level 83 dB/W (1m) 82 dB/W (1m) Rated Input Power 35W 35 W Max. Input Power 70 W 70 W Net Dimensions (W x H x D) 90 x 70 x 106.5 mm 160 x 350 x 325 mm Net Weight 0.65 kg 4.5kg

• Audio cable . . . . . . . . . . . . . . . . . . . . . . . . .1 • Video cable . . . . . . . . . . . . . . . . . . . . . . . . . .1

• Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . .6 • Speaker cables . . . . . . . . . . . . . . . . . . . . . .5

• Remote control . . . . . . . . . . . . . . . . . . . . . .1 • Batteries (AAA) . . . . . . . . . . . . . . . . . . . . . . .2

• AM loop antenna . . . . . . . . . . . . . . . . . . . . .1 • FM antenna . . . . . . . . . . . . . . . . . . . . . . . . .1

❋ Designs and specifications are subject to change without notice.

Depending on the sound mode settings and the source, there may be no sound output.)

Zenith DA3630 OPERATING GUIDE

Specifications and Main Features

Frequently Asked Questions

User Manual
