Zenith D52WLCD OPERATING GUIDE

Download

Installation and Operating Guide | Warranty

Model Number | D52WLCD | LCD TV

PAGE 2

206-03816

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment, trade name Zenith, model number, D52WLCD, has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The responsible party for this device compliance is:

Zenith Electronics Corporation 2000 Millbrook Drive Lincolnshire, IL 60069

Digital TV Hotline: 1-847-941-8000

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

PAGE 3

206-03816

Important safeguards for you and your new product

Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this manual can help you get many years of enjoyment and safe operation that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.

(Continued on next page)

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Water and Moisture

Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

7. Accessories Carts and Stands

Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

8. Transporting Product

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Power-Cord Polarization

This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

IMPORTANT SAFETY INSTRUCTIONS

PORTABLE CART WARNING

PAGE 4

206-03816

(Continued from previous page)

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded to provide protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15. Lightning

For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

16. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry

Never push objects of any kind into this product through

openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into

the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f. If the product exhibits a distinct change in performance.

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

24. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Antenna Lead in Wire

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductor (NEC Section 810-21)

Ground Clamps Power Service Grounding

Electrode System (NEC Art 250, Part H)

Ground Clamp

Electric Service

Equipment

Example of Grounding According to National Electrical Code Instructions

Fig. 1

NEC - National Electrical Code

IMPORTANT SAFETY INSTRUCTIONS

PAGE 5

206-03816

Table of Contents

Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Important Safety Instructions . . . . . . . . . . . . . . . . . . .3

Function Status Indicators . . . . . . . . . . . . . . . . . . . . .6

Step 1. Hook Up TV

Rear Connections Panel . . . . . . . . . . . . . . . . . . . . . . .7

Front Connections Panel . . . . . . . . . . . . . . . . . . . . . .8

ANT/CABLE Hookup . . . . . . . . . . . . . . . . . . . . . . . . .9

CABLE BOX Connections . . . . . . . . . . . . . . . . . . . . . .10

VCR Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .11

DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

RGB-HD/STB Input . . . . . . . . . . . . . . . . . . . . . . . . .13

RGB-PC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

External Stereo Connections . . . . . . . . . . . . . . . . . . .15

Room Setups for Home Theater . . . . . . . . . . . . . . . . .16

Monitor Out Setup . . . . . . . . . . . . . . . . . . . . . . . . .17

Remote Control Functions In TV Mode . . . . . . . . . . .18-19

On-Screen Displays . . . . . . . . . . . . . . . . . . . . . . . . .20

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . .21

Step 2. Customize your TV’s Features

SETUP Menu

Main Picture Source Selection . . . . . . . . . . . . . . . . . 22

PIP Picture Source Selection . . . . . . . . . . . . . . . . . .23

PIP/POP/SPLIT Source . . . . . . . . . . . . . . . . . . . .24-25

EZ Scan (Channel Search) . . . . . . . . . . . . . . . . . . . .26

Channel Add/Del/Surf Setup . . . . . . . . . . . . . . . . . .27

Channel Labels Setup . . . . . . . . . . . . . . . . . . . . . . .28

VIDEO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .29-30

AUDIO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .31-32

SPECIAL Menu

Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

On-Screen Menus Language . . . . . . . . . . . . . . . . . . 34

Captions/Text . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

EZ Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

TIME Menu

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . .37

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . .38

TV Turn On Time Setup . . . . . . . . . . . . . . . . . . . . . .39

TV Turn Off Time Setup . . . . . . . . . . . . . . . . . . . . .40

Sleep Timer Setup . . . . . . . . . . . . . . . . . . . . . . . . .41

LOCK Menu

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .42-44

Step 3. Miscellaneous

Programming the Remote . . . . . . . . . . . . . . . . . . . . .45

Programming Codes . . . . . . . . . . . . . . . . . . . . . .46-49

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .50-51

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .52-53

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54-55

Product Specifications . . . . . . . . . . . . . . . . . . . . . .56

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .Back cover

Note: Design and specifications are subject to change without prior notice.

PAGE 6

206-03816

Function Status Indicators

Lamp indicator, operation indicator, and temperature indicator located below the front panel controls,

reveal the operating status of the LCD projection TV.

Operation Indicator

Lamp Indicator

Temperature Indicator

Off Power cord is not connected. Red Power Cord is connected, TV is in standby mode. Green On Orange (flashing) Preparing operation in standby mode. Orange Projection lamp is reaching the end of its life and needs to

be replaced with a new lamp.

Red (flashing) There is a problem with the lamp or around it. Contact an

authorized service center. Green (flashing) The lamp cover is not closed. Orange The projection TV is overheating. Red The projection TV shut down due to overheating. Red (flashing) The projection TV shut down, check the cooling fan.

Operation Indicator

Lamp Indicator

Temperature Indicator

PAGE 7

206-03816

Mini glossary

JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jack and the Audio/Video jacks that are color-

coded.

SIGNAL Picture and sound traveling through cable, or over the air, to your television screen.

Rear Connections Panel

C A L I B R A T I O N

V A R I A B L E

A U D I O

O U T

RGB

(XGA)

AUDIO CENTER MODE IN

(R)

(L)

AUDIO

PC/DTV INPUT

DTV/DVD INPUT

MONITOR

OUT

VIDEO 2

INPUT

VIDEO 1

INPUT

S-VIDEO

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

(R)

(L)

AUDIO

(R)

(L)

AUDIO

(R)

(L)

AUDIO

VIDEO

MONO

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

S-VIDEO In

A connection available with some high-end equipment that provides even better picture quality for Video 2.

Variable Audio Out

Used to connect either an

external amplifier, or add a

sub-woofer to your surround

sound system.

RF Connectors: Antenna/Cable 1, Antenna/Cable 2, and Loop Out

Used to connect analog cable or antenna signals to the television, either directly or through your cable box.

Video 1 or 2

Connects the video signals from various types of equipment.

Y, Pb, Pr

DVD Component Video and HD

Component Video

Some top-of-the-line DVD players use what

is called “component video,” for extremely

accurate picture reproduction. Refer to

your DVD manual for further information.

Connecting cables to your TV.

Monitor Out

Connects to a second TV or Monitor.

Left/Right Audio

Used for stereo sound from various types of equipment.

PC and HD-STB Input

Used to connect from a PC

source or HD-STB Satellite

system.

PC and HD-STB Audio

Input

Used for audio connections

from a PC source or HD-STB

Satellite system.

Center Mode IN

Connect to external Dolby

Digital Center “preamp out-

put.”

PAGE 8

206-03816

Front Connection Panel

Front A/V Panel

S-VIDEO

VIDEO

FRONT A/V

AUDIO

L/MONOR

There are four jacks on the left front side behind the screen on your projection TV that make connecting Audio/Video devices like video games and camcorders very simple.

The jacks are like those found on the back jack connection panel. This means that most equipment that connects to those types of jacks on the rear jackpack, may be connected to the front connection panel.

To use the front jacks as the signal source, select them using Main Source menu as described on page 22. They will be named “Front Video” in the Main Source menu.

Left/Right Audio

Used for stereo sound from various types of equipment.

Video

Connects the video signals from any piece of equipment.

S-Video

A connection available on some very high-end equipment that provides better picture quality than video input.

When you select Front Video or Front S-Video, the Front audio inputs are automatically selected as well.

If you’re connecting a video game device, make sure to change the picture settings with the EZ Video option in the Video menu (see page 29).

Mini glossary

A/V CABLES Audio/Video cables. Three cable connectors—Right audio (red), Left audio (white), and Video (yellow). A/V cables are used for stereo

playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box, or television).

PAGE 9

206-03816

ANT / Cable Service Hookup

Connect an antenna and/or cable service to your TV as shown.

Turn to page 26 to do a channel search with EZ Scan for ANT / CABLE connection(s).

For best signal reception, it is recommended to have your Antenna professionally adjusted.

If you receive your RF signal through an antenna that is several years old and connects with two small prongs, you will need to purchase a 300 to 75 ohm adapter. It should be available from your local electronics dealer.

Zenith recommends using a 75 ohm cable for your antenna connections in order to prevent interference.

RGB

(XGA)

PC/DTV INPUT

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

Antenna

Cable TV Wall jack

RF coaxial wire (75 ohm)

PAGE 10

206-03816

Cable Box Connections

Locate the Antenna/Cable 2 jack on the back of your TV. Connect the cable that runs from the wall directly to the jack. Now find the Loop Out jack.

Connect the cable from this jack to the Input jack on the back of your cable box.

Locate the Output jack on the back of your cable box. Connect this to the Antenna/Cable 1 jack on the back of your TV.

To view the premium stations, press the TV button on your remote and select the other Cable source (Ant/Cable 1). Then tune the channel number on your cable box for HBO, CINEMAX, SHOWTIME, etc.

To view non-premium channels press the TV button and select Ant/Cable 2. Then run EZ Scan to find all available channels and store them in memory.

This can be combined with any other equipment you may want to hook up, see following pages. Connect cable service wire directly to the TV, loop out from the TV, then to the cable box. From there, the cable box output connects to the next device in the connection series, until the last device, which connects back to the Antenna/Cable 1 jack on the TV.

Some cable services require the use of a cable box to decode premium channels and pay-per-view. Using the Loop Out to Decoder connection option, and programming your remote, you can connect your cable box so that you only need your MBR remote to tune to premium and non-premium channels. By connecting a cable box directly to your TV, as shown to the LOOP OUT, you make the cable box another available channel tuning source using your remote.

RGB

(XGA)

PC/DTV INPUT

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

Out

Antenna

Cable TV Wall jack

RF coaxial wire (75 ohm)

Cable box

PAGE 11

206-03816

VCR Connections

Locate the Antenna/Cable 2 jack on the back of your TV. Connect the cable that runs from the wall or antenna to the jack. Now find the Loop Out jack.

Connect the cable from this jack to the Input jack on the back of your cable box.

Locate the Output jack on the back of your cable box. Connect this to the RF or VHF/UHF/CATV In jack on the back of your VCR. If you want to connect VCR to the TV directly, connect the cable from the Loop Out jack to the RF or VHF/UHF/CATV In jack on the back of your VCR.

Find the composite video and audio jacks on the back of your VCR, and connect them following the instructions provided with your equipment.

You may connect either the composite video or the S-Video cables to your TV. (Do not connect BOTH the composite video and the SVideo cables. In the event that you connect both composite video and the S-Video cables, only the S-Video will work.)

To hear stereo sound from cable or your VCR, you will need to connect A/V cables as well as the wire that runs from the VCR to your TV.

If you want to receive your signals on Channel 3 or 4, locate the Out to TV jack on your VCR. Connect a cable from the Out to TV jack to the Antenna/Cable 1 jack on the back of your TV.

After connecting external equipment to the TV, don’t display a still picture for a long time on the screen. Doing so may damage the TV screen.

L I

I O N

V A R I A B L E

A U D I O

O U T

RGB

(XGA)

AUDIO CENTER MODE IN

(R)

(L)

AUDIO

PC/DTV INPUT

DTV/DVD INPUT

MONITOR

OUT

VIDEO 2

INPUT

VIDEO 1

INPUT

S-VIDEO

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

(R)

(L)

AUDIO

(R)

(L)

AUDIO

(R)

(L)

AUDIO

VIDEO

MONO

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

Out

Audio

Video

3 4

S-Video

Out

Antenna

RF coaxial wire

(75 ohm)

Round wire (75 ohm)

A/V cables not included with TV

Cable box

VCR

Back AV panel

Cable TV Wall jack

PAGE 12

206-03816

DVD Player

Mini glossary

COMPONENT VIDEO Some video equipment uses three separate lines (Y, P

B, PR) to more precisely reproduce images. Your manual will explain how

this relates to your equipment.

Connect DVD output jacks to TV’s COMPONENT INPUT 1/2 (Y, PB, PR) jacks. Connect DVD audio output jacks to right and left input jacks on TV.

Some high-end DVD players use a picture reproduction system called “component video.” If your DVD player has component output, use the connectors marked “COMPONENT INPUT 1/2” on the jack panel. Please refer to your DVD manual for proper installation.

Component 1 (or 2) Input

Y PB PR

1920X1080i

1280X720p

720X480p

720X480i

Component input jacks

on the Monitor

Video output jacks of DVD player

Y Y Y Y

B-Y

Cb PB

R-Y

Cr P

• Component Input ports

Connect DVD player jacks to Monitor Component input jacks as indicated below.

A/V cables not included with TV

DVD player

Back AV panel

Audio LR

Dolby Digital Out

Component Video

ANT/

CABLE1

INPUT

PC/DTV INPUT

C A L I B R A T I O N

RGB

(XGA)

AUDIO

AUDIO CENTER MODE IN

A B

(L)

(R)

AUDIO

COMPONENT

INPUT 1

480i 480p/ 720p/ 1080i

(L)

(R)

(L)

AUDIO

(R)

DTV/DVD INPUT

LOOP

OUT

ANT/

CABLE2

INPUT

VIDEO

(L)

AUDIO

(R)

S-VIDEO

VIDEO 1

INPUT

COMPONENT

INPUT 2

480i 480p/ 720p/ 1080i

MONO

VIDEO 2

INPUT

MONITOR

OUT

PAGE 13

206-03816

RGB-HD/STB Input

Find the audio and XGA/Y, PB, PR jacks on the back of your DBS receiver and connect them following the instructions provided with your equipment.

Connect these cables to your TV as shown.

The DTV shows the sharpest picture in 720p mode.

To watch the DTV, connect HD-SET TOP to COMPONENT INPUT1/2 or PC/DTV INPUT of your TV.

Select RGB-DTV Source and press ENTER. Use UP/DOWN arrows to select the desired options (V-position/H-position/PHASE) and then use LEFT/RIGHT arrows to make appropriate adjustments.

- Vertical position: Ajustment ranges are -20 ~ + 20.

Based on the input mode (resolution), the adjustment range may change and the position of the picture may not change even though you have adjusted the vertical position.

- Horizontal position: Ajustment ranges are -25 ~ + 25.

- PHASE: Use the info button to correct character trembling.

Ajustment ranges are -15 ~ + 15.

Audio L R

Dolby Digital

Out

Audio L R

Component Out

Y Pb Pr

Dolby Digital

Out

C A L

I B R A T

I O N

V A R I A B L E

A U D I O

O U T

RGB

(XGA)

AUDIO CENTER MODE IN

(R)

(L)

AUDIO

PC/DTV INPUT

DTV/DVD INPUT

MONITOR

OUT

VIDEO 2

INPUT

VIDEO 1

INPUT

S-VIDEO

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

(R)

(L)

AUDIO

(R)

(L)

AUDIO

(R)

(L)

AUDIO

VIDEO

MONO

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

HD-SET TOP 1920x1080i

1280x720P

720x480P

<RGB-HD/STB Input>

Signal

480i 480p 720p

1080i

Component1

Yes Yes Yes Yes

Component2

Yes Yes Yes Yes

RGB

No Yes Yes Yes

DBS Receiver

PAGE 14

206-03816

RGB-PC Input

Find the audio and XGA (Video output) jacks on the back of your PC and then connect them following the instructions provided with your equipment.

Connect these cables to your TV as shown.

Synchronization input form: Signals are separate.

C A L I B R A T I O N

V A R I A B L E

A U D I O

O U T

RGB

(XGA)

AUDIO CENTER MODE IN

(R)

(L)

AUDIO

PC/DTV INPUT

DTV/DVD INPUT

MONITOR

OUT

VIDEO 2

INPUT

VIDEO 1

INPUT

S-VIDEO

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

(R)

(L)

AUDIO

(R)

(L)

AUDIO

(R)

(L)

AUDIO

VIDEO

MONO

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

MODE Resolution Horizontal Vertical

640x350 31.5KHz 70Hz 640x480 31.5KHz 60Hz 640x480 37.9KHz 72Hz 640x480 37.5KHz 75Hz 800x600 35.2KHz 56Hz 800x600 37.9KHz 60Hz 800x600 48.1KHz 72Hz

800x600 46.9KHz 75Hz 1024x768 48.4KHz 60Hz 1024x768 56.5KHz 70Hz 1024x768

60.0KHz 75Hz

SVGA

VGA

Text

XGA

<RGB-PC Input>

Select RGB-PC Source and press ENTER. Use UP/DOWN arrows to select the desired options (V-position/H-position/V-size/H-size/PHASE) and then use LEFT/RIGHT arrows to make appropriate adjustments.

- Vertical position: Ajustment ranges are -20 ~ + 20.

Based on the input mode (resolution), the adjustment range may change and the position of the picture may not change even though you have adjusted the vertical position.

- Horizontal position: Ajustment ranges are -25 ~ + 25.

- Vertical size: Ajustment ranges are -10 ~ + 10.

- Horizontal size: Ajustment ranges are -15 ~ + 15.

- PHASE: Use the info button to correct character trembling.

Ajustment ranges are -15 ~ + 15.

Computer

PAGE 15

206-03816

External Stereo Connections

Locate both Variable Audio Out jacks on the back of your TV and the Left/Right audio input jacks on the back of your stereo's amplifier.

Connect these jacks, making sure that the right and left channels are connected correctly.

Adjust the sound on your stereo, according to directions provided with the amplifier.

Connect Left/Right Variable Audio Output to an external Audio Amplifier System.

L R

L I

I O N

V A R I A B L E

A U D I O

O U T

RGB

(XGA)

AUDIO CENTER MODE IN

(R)

(L)

AUDIO

PC/DTV INPUT

DTV/DVD INPUT

MONITOR

OUT

VIDEO 2

INPUT

VIDEO 1

INPUT

S-VIDEO

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

(R)

(L)

AUDIO

(R)

(L)

AUDIO

(R)

(L)

AUDIO

VIDEO

MONO

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

Analog stereo amplifier

A/V cables not included with TV

PAGE 16

206-03816

Room Setups for Home Theater

sub-woofer

right speaker

left

speaker

surround

sound

speaker

surround sound speaker

This is just a general room design. Any number of setups are possible, and some changes may be needed to maximize your sound. However, a Dolby Digital Receiver is required to hear 5.1 channel audio.

A left and right speaker on either side of the set enhances separation. The TV “center mode in,” makes the dialog sound as though it’s coming directly from the TV. The rear surround sound speakers provide the majority of other sounds, like those from special effects in movies. Your sub-woofer generates ultra-low frequency sound, for rumbling low-end audio.

Sound is affected by speaker placement, so make sure nothing is in front of the speakers, and that they are aimed in appropriate directions.

You have the option of turning the internal speakers on or off.

PAGE 17

206-03816

Monitor Out Setup

Your TV has a special signal output capability which allows you to hook up a second TV or monitor.

Just connect the second TV or monitor to the MONITOR OUT Audio/Video jacks located on the back of your TV. See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings.

Audio

Video

S-Video

C A L I B R A T I O N

V A R I A B L E

A U D I O

O U T

RGB

(XGA)

AUDIO CENTER MODE IN

(R)

(L)

AUDIO

PC/DTV INPUT

DTV/DVD INPUT

MONITOR

OUT

VIDEO 2

INPUT

VIDEO 1

INPUT

S-VIDEO

ANT/

CABLE2

INPUT

ANT/

CABLE1

INPUT

LOOP

OUT

COMPONENT

INPUT 1

480i

480p/ 720p/ 1080i

(R)

(L)

AUDIO

(R)

(L)

AUDIO

(R)

(L)

AUDIO

VIDEO

MONO

COMPONENT

INPUT 2

480i

480p/ 720p/ 1080i

Component 1 - 2, RGB-DTV/PC input sources for main picture cannot be used for Monitor Out.

A/V cables

not included

with TV

Second TV

PAGE 18

206-03816

Remote Control Functions in TV Mode

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

RATIO

Changes the screen format or aspect ratio.

Not functional

EXIT

Clears all on-screen displays and returns to TV viewing from any menu.

SURF

Scrolls the Surf channel list.

PIPCH+

Changes to next higher PIP channel.

PIP

Toggles between PIP, POP (Picture-out-of-Picture) and Split screen.

MUTE

Switch the sound on or off

THUMBSTICK

Allows you to navigate the on-screen

menus and to adjust the system set-

tings and preferences, by moving to

an option with

F G

and selecting the

highlighted option with . If is

pressed while you are in normal view-

ing, the information banner is dis-

played.

ANTENNA

Selects the analog TV signal.

MODE

Selects the remote operating mode:

TV, VCR, Cable, DVD and Satellite. Select other operating modes, for

the remote to control external

devices.

VIDEO

Toggles between Video 1 and

Video 2 input sources.

FRONT

Selects the front video signal if a device, such as a camcorder or game player, is connected to the front video input jack.

PIPCH-

Changes to next lower PIP

channel

SWAP

Swap the signal from

your PIP window to the

main screen.

LIGHT

Illuminates the remote control keys.

INDICATOR LIGHTS

Show active remote mode every time any button is pressed.

D E

PAGE 19

206-03816

Remote Control Functions in TV Mode

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

POWER

Turns your TV or any other programmed equipment on or off, depending on mode.

CHANNEL UP/DOWN

Scrolls through available channels in EZ Scan memory.

NUMBER KEYPAD

For direct channel selection and

programming functions.

ENTER

When in the menu system and other on-screen displays, selects high lighted options.

RECORD, PAUSE, REW, FFWD,

PLAY, STOP

Control the functions on your VCR.

VOLUME UP/DOWN

Increases/decreases the sound level.

Brings up the main menu to

the screen.

SKIP

Functions as a song selector in audio mode and a movie chapter selector in aux/DVD mode.

COMPONENT 1, 2

Selects component signal sources,

such as DVD or HD receiver.

“DASH” BUTTON

Use to enter a program number for multiple program channels such as

2—1,2—2,etc.

ENTER

When in the menu system and other on-screen displays, selects highlighted options.

FLASHBK

Tunes to the last channel viewed.

FREEZE

Captures and freezes the currently-viewed screen in PIP.

RGB

Selects PC or RGB input sources.

PAGE 20

206-03816

On-Screen Displays

This page describes your on-screen display and information banner options.

AM 03:00

Ch. 13

MONO

Ch.6

Main Channel Display

Displays current channel number.

Channel Label

If a channel label has been set, then it will appear here.

PIP Display

This display appears when PIP is active.

Volume

Volume level is displayed while adjusting the sound.

Mute

Appears when sound is muted.

Time

Appears when pressing the enter button on remote control.

ABC

PAGE 21

206-03816

Front Panel Controls

power menu enter vol ch

Power On / Off

Enter (Same as ENTER button on your remote control)

VOLUME UP / DOWN

CHANNEL UP / DOWN

Operation indicator. (See page 6).

Lamp indicator. (See page 6).

Temperature indicator. (See page 6).

1 2 3

See menu pages for instructions on using the on-screen menus.

The POWER, CHANNEL and VOLUME buttons work just as they do on your remote control.

5 6

PAGE 22

206-03816

Main Picture Source Selection

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press ENTER or the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrows to select Main Source.

Press ENTER or the RIGHT arrow to access the Main Source menu, then use the UP/DOWN arrow button to select the source. Your picture source options are : Ant/Cable 1 (Ant/Cable 2), Video 1, Video 2, Front Video, Component 1, Component 2, RGB-PC and RGB-HD/STB.

Press EXIT to save and return to TV viewing or press the LEFT arrow to save and return to the previous Menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3

Changes the picture source for the main screen so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

You can also change the picture source with the Source buttons on the remote control.

2/4

Main Source G

PIP Source EZ Scan CH. Add/Del/Surf CH. Label

F Prev.

Ant/Cable 1 Video 1 Video 2 Front Video Component 1 Component 2 RGB-HD/STB

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

PAGE 23

206-03816

PIP Picture Source Selection

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press ENTER or the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrows to select the PIP Source option.

Press ENTER or the RIGHT arrow to access the PIP source menu, then use the UP/DOWN arrow button to select the source. Your choices are: Ant/Cable 1, Ant/Cable 2, Video 1, Video 2, Front Video.

Press EXIT to save and return to TV viewing or press the LEFT arrow to save and return to the previous Menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

Changes the picture source for the Picture-In-Picture screen so you can watch your off-air TV, cable TV, VCR, or any other devices that are connected to your TV.

You can also change the PIP screen source using the PIP button on the remote control.

1/3

2/4

1/3

Not all sources are available for PIP.

Main Source

PIP Source

EZ Scan CH. Add/Del/Surf CH. Label

Prev.

Ant/Cable 1 Video 1 Video 2 Front Video

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

PAGE 24

206-03816

PIP/POP/SPLIT Sources

Press the PIP button on the remote control to activate PIP (Picture-in-Picture) mode.

Use the LEFT/RIGHT arrow to select CH+/-, Swap, Source or Move.

• CH+/- Use the UP/DOWN arrow to select a program for the sub picture. You can also use pipch-/+ button on the remote control to change channels for the sub picture. Changing programs on the sub picture is only possible if the PIP signal source is NTSC RF signal. If you want to change the program on the main picture, use ch +/- button.

• Swap Use the UP/DOWN arrow to swap main and sub picture. You can also use swap button on the remote control to exchange main and sub pictures.

• Source Use the UP/DOWN arrow to select a source for sub picture. Your choices are: TV, Video1-2, Front video.

RGB-HD/STB, RGB-PC, and Component 1 - 2 input sources cannot be used as PIP picture sources.

• Move Use the UP/DOWN arrow to move the sub picture on the screen.

Press the EXIT button to exit PIP mode or press the PIP button again to activate POP mode.

PIP (Picture-in-Picture) / POP (Picture-out-ofPicture) / SPLIT modes let you watch main and sub pictures at the same time.

PIP/POP/SPLIT modes turn off in instances indicated below.

• Changing Aspect Ratio.

• Activating Channel Add/Del/Surf, Channel Label, or Channel Block in Setup menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3

Move Source Swap CH+/-

PAGE 25

206-03816

PIP/POP/SPLIT Sources

Press the PIP button on the remote control in PIP mode to activate POP (Picture

-out-of-Picture) mode.

Press the EXIT button to exit POP mode or press the PIP button again to activate Split mode.

Use the LEFT/RIGHT arrow in Split mode to select CH+/-, Swap, or Source.

• CH+/- Use the UP/DOWN arrow to select a program for the sub picture. You can also use pipch-/+ button on the remote control to change channels for the sub picture. Changing programs in the sub picture is only possible if the sub picture source is a standard NTSC RF signal. To change the program for the main picture, use ch +/- button.

• Swap Use the UP/DOWN arrow button to swap main and sub pictures. You can also use swap button on the remote control to exchange main and sub pictures.

• Source Use the UP/DOWN arrow to select a source for sub picture. Your choices are: TV, Video1 - 2, Front video. RGB-HD/STB, RGB-PC and Component 1 - 2 input cannot used for the sub picture source.

Press the EXIT button to exit Split mode.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

2/4

1/2

Press the FREEZE button to capture and freeze the sub picture image in PIP or Split mode.

Do not display a fixed image on the screen for long periods of time.

Source Swap CH+/-

PAGE 26

206-03816

EZ Scan

Use pages 9-14 to connect external equipment to your TV. If you have not done so, plug in your TV to a standard 120V 60Hz power outlet.

If you have not done so, remove the back of the remote and put in two AA batteries. Make sure batteries are properly installed (check the +/– symbols).

With the remote control in hand, press the POWER button to turn on your TV.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press ENTER or the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrows to select EZ Scan.

Press ENTER or the RIGHT arrow to access the EZ Scan menu, then use the UP/DOWN arrows to select: ANT1 Air, ANT1 Cable, ANT2 Air, ANT2 Cable

Press ENTER or the Right arrow button to start the EZ Scan channel search.

Automatically finds analog channels available through antenna or cable inputs, and stores all active channels in memory on the channel list.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

4/6

5/7/8

back of

remote

Main Source PIP Source

EZ Scan

CH. Add/Del/Surf CH. Label

F Prev.

Ant 1 Air Ant 1 Cable Ant 2 Air Ant 2 Cable

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

4/6

PAGE 27

206-03816

Channel Add / Del / Surf Setup

Create two different types of channel lists in memory: “Custom list” and “Surf list” from the default channel list made in the EZ SCAN menu. A custom list can be created by toggling each channel on or off with (Enter). Once a channel is highlighted, you will be able to see whether the channel is currently added or deleted by referring to the small window at the top-left corner of the screen. You can create your own Surf list with up to 16 channels. It appears at the bottom-left corner of the screen. Press the Surf button on the remote control when a channel is highlighted to add or delete the channel in the Surf list.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Setup menu.

Press ENTER or the RIGHT arrow button to access the Setup menu.

Use the UP/DOWN arrows to select Channel Add/Del/Surf and then press ENTER or right arrow.

You will now see a screen filled with channel numbers and a preview picture. Use the UP/DOWN and LEFT/RIGHT arrows to select a channel, then use ENTER to add or delete it. Press SURF to add the channel to the Surf List.

Press EXIT to save and return to TV viewing or press MENU to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/5

1/3/4 2/3/4

2/3

Main Source PIP Source EZ Scan

CH. Add/Del/Surf

CH. Label

F Prev.

Following Screen will let you edit channels and Surf List.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

SURF

Surf MoveShow/Hide

ESPN

SurfList

Ch.11

Ch. 19 Ch. 27

Shown

2345

678910

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

)

( (

(

1/3/4

PAGE 28

206-03816

Channel Label Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the SETUP menu.

Press ENTER or the RIGHT arrow button to access the SETUP menu.

Use the UP/DOWN arrows to select the CH Label option.

Press ENTER or the RIGHT arrow to access the CH.Label menu.

You will now see a screen filled with Labels and a preview screen. Use channel UP/DOWN button on your remote to select the a channel to Label.

Use the UP/DOWN and LEFT/RIGHT arrows to select the appropriate label for the channel or to select blank section for making channel name.

• Use the UP/DOWN/LEFT/RIGHT arrows and press ENTER to set the Label to the selected channel.

• Use the UP/DOWN/ LEFT/RIGHT arrows and press SURF to edit channel name. Eight channels are maked. Use the LEFT/RIGHT arrows to select a word position and use the UP/DOWN arrows to change the letter. Press SURF to save.

Repeat 5 and 6 steps until all channels are Labeled.

Press EXIT to save and return to TV viewing.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/6

Choose preset labels for your channels.

Use Channel +/- on your remote control in the CH Label menu to select a channel for labeling, then choose a suitable label for the channel by pressing to set the label to the selected channel.

2/4/6

Main Source PIP Source EZ Scan CH. Add/Del/Surf

CH. Label

F Prev.

Following Screen will let you put the Logos in channels.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Previous Set Change ChannelCH

A&E CMTV ESPN HSE NOS TBN VC ABC CNBC ESP2 HSN PBS TELE VCR ACTS CNN ET IC PLAY TLC VH-1 ADC COM EWTN INSP

PTL TMC VISN AMC CSPN FAM JCN QVC TNN VJN BCC CSP2 FNN LIFE RDS

TNT WB BET CTN FOX

Move

)

( (

(

1/3/6

ESPN Ch.25

PAGE 29

206-03816

VIDEO Menu

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the VIDEO menu.

Press ENTER or the RIGHT arrow button to access the VIDEO menu.

Use the UP/DOWN arrows to select one of the following options. Your options are: Contrast, Brightness, Sharpness, Color, Tint, EZ Video (Custom, Normal, Movie, Video Game, Sports, Weak Signal and Daylight). Then press ENTER or the Right arrow button.

Use the LEFT/RIGHT arrows to adjust the option to your preference (Contrast, Brightness, Sharpness, Color, Tint). Use the UP/DOWN arrows to select the option to your preference (EZ Video).

Press ENTER to save your choices and return to the previous menu or use the UP/DOWN arrows to select another option.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

2/3/4

1/3/4/5

You can manually adjust the levels of picture quality settings, such as Contrast, Brightness, Sharpness, etc.

Adjust the picture appearance to suit your preference and viewing situations.

You can also select the preset value in the EZ Video menu based on the program category.

2/3/5

Contrast G

Brightness Sharpness Color Tint EZ Video

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1/3/4/5

PAGE 30

206-03816

VIDEO Menu

• Contrast Adjusts the difference between the light and dark levels of the picture. Press the right arrow button to activate adjusting.

• Brightness Adjusts the white or light level of the overall picture.

• Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture. The

lower the level, the softer the image.

• Color Adjusts the intensity of all colors.

• Tint Adjusts the balance between the red and green levels.

• EZ Video Lets you choose the preset value of the picture settings.

Custom: Lets you adjust the picture settings manually. Normal: Restores the levels to their original picture settings. Movie: Adjusts Video settings to enhance Movie viewing. Contrast and Sharpness levels are lowered so that

the picture looks warm and soft. Video Game: Sets the picture settings to the levels that are more suitable to enjoy games. Color, Contrast and Sharpness levels are lowered to reduce the amount of glare. Sports: Sets the picture settings to the levels that are more suitable to view sporting events. Contrast and Color levels are raised so that an action scene appears clear and brilliant. Weak Signal: Adjusts the picture settings to compensate for a weak signal reception. Contrast, Color and Sharpness levels are lowered to hide the picture imperfections. Daylight: Increases the levels of all picture settings to fit daylight conditions.

Contrast

F G

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

PAGE 31

206-03816

AUDIO Menu

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the AUDIO menu.

Press ENTER or the RIGHT arrow button to access the AUDIO menu.

Use the UP/DOWN arrows to select one of the following options. Your options are: Bass, Treble, Balance, EZ Sound, EZ Sound Rite, Audio Mode, Front Surround and Internal Speaker. Then press ENTER or the RIGHT arrow button.

Use the LEFT/RIGHT arrows to adjust your preference (Bass, Treble, Balance).

Use the UP/DOWN arrows to select the option to your preference (EZ Sound, EZ Sound Rite, Audio Mode, Front Surround and Internal Speaker)

Press ENTER to save your choices and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/4

2/3/4

Adjust the sound to suit your taste and room situations.

2/3/5

Bass

Treble Balance EZ Sound EZ SoundRite Audio Mode Front Surround Internal Speaker

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

PAGE 32

206-03816

AUDIO Menu

• Bass: Increases or decreases the lower frequency sounds of the TV speakers.

• Treble: Increases or decreases the higher frequency sounds of the TV speakers. Increases in treble, for

example, make voice or string sounds stand out.

• Balance: Lets you adjust the left to right balance of the TV speakers.

• EZ Sound: Lets you choose the sound settings manually.

Custom: Lets you adjust the Audio menu sound options manually. Normal: Restores the sound levels to their original settings. Stadium: Stresses high frequency sounds and front surround sound to create the sensation you would

experience in a stadium.

News: Increase high frequency sounds to emphasize the human voice. Music: Increase both high and low frequency sounds to stress the sounds of musical instruments. Theater: Stresses both high and low frequency sounds, in addition to the front surround sound, to create

the sensation you would experience in a theater.

• EZ SoundRite: Scans for changes in sound level during commercials, then adjusts the sound to match the current audio level of the TV program you are watching.

• Audio Mode: Lets you choose the default audio mode for conventional analog programs. When you hear a program broadcast in mono, you will hear only monaural sound, even though Stereo mode is set. When Second Audio Program (SAP) mode is set, the program's second audio program, usually the program's dialog in another language, (if provided), is broadcast in mono.

• Front Surround: Increases the front surround sound to create more open and expanded sound.

• Internal Speaker: Allows you to toggle the TV internal speakers Stereo, Center or off. If you want to use your external hi-fi stereo system, turn off the internal TV speakers. However, you may use the internal TV speakers as a center speaker to create a surround effect. (Center speaker is not available in Ant/Cable1 - 2 for main source)

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Bass

F G

PAGE 33

206-03816

Aspect Ratio

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the SPECIAL menu. Or press RATIO button to instantly access the Aspect Ratio menu.

Press ENTER or the RIGHT arrow button to activate the Special menu.

Use the UP/DOWN arrows to choose Aspect Ratio.

Press ENTER or the RIGHT arrow button to move into the Aspect Ratio selection menu. Use the UP/DOWN arrow buttons to select the right ratio for your viewing environment:

• 4:3 - Choose when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the left and right sides.

• Wide - Choose when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen. (Useful for viewing 4:3 formatted DVDs.)

• Panorama - Choose when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both sides, to create a spectacular view.

• Zoom1 - Choose when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

• Zoom2 - Choose when you want the picture to be altered, both horizontally extended and vertically cropped. The picture taking a halfway trade off between alteration and screen coverage.

Press EXIT to save and return to TV viewing or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/4

Lets you choose the way that an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed according to your preference.

2/4

2/4/5

Aspect Ratio G

Trilingual Menus Captions EZ Demo

F Prev.

4:3 Wide Panorama Zoom1 Zoom2

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1/3/4

PAGE 34

206-03816

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Special menu.

Press ENTER or the RIGHT arrow button to activate the Special menu.

Use the UP/DOWN arrows to choose Trilingual Menus.

Press ENTER or the RIGHT arrow button to move into the Language selection menu. Use the UP/DOWN arrow button to select the language you wish to view on your on-screen menus.

Press EXIT to save and return to TV viewing or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/4

Select your preferred language for the menus: English, Spanish, or French

On-Screen Menus Language

2/4

2/4/5

Aspect Ratio

Trilingual Menus

Captions EZ Demo

F Prev.

English French Spanish

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1/3/4

PAGE 35

206-03816

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the SPECIAL menu.

Press ENTER or the RIGHT arrow button to activate the SPECIAL menu.

Use the UP/DOWN arrows to choose Captions, then press ENTER or the Right arrow button.

Use the UP/DOWN arrow buttons to make your caption selection. Your choices are: Off, Caption 1, Caption 2, Caption 3, Caption 4, Text 1, Text 2, Text 3 and Text 4.

Press EXIT to save and return to TV viewing or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

2/3

1/3/4

Select a closed caption mode for displaying captioning information when provided on the program.

Closed Caption (CC) displays information at any position on the screen usually the program's dialog.

Text displays information, usually at the bottom position and is used for a data service, generally not program related.

Captions/Text

2/3/5

Aspect Ratio Trilingual Menus

Captions

EZ Demo

F Prev.

Off Caption 1 Caption 2 Caption 3 Caption 4 Text 1 Text 2 Text 3 Text 4

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1/3/4

PAGE 36

206-03816

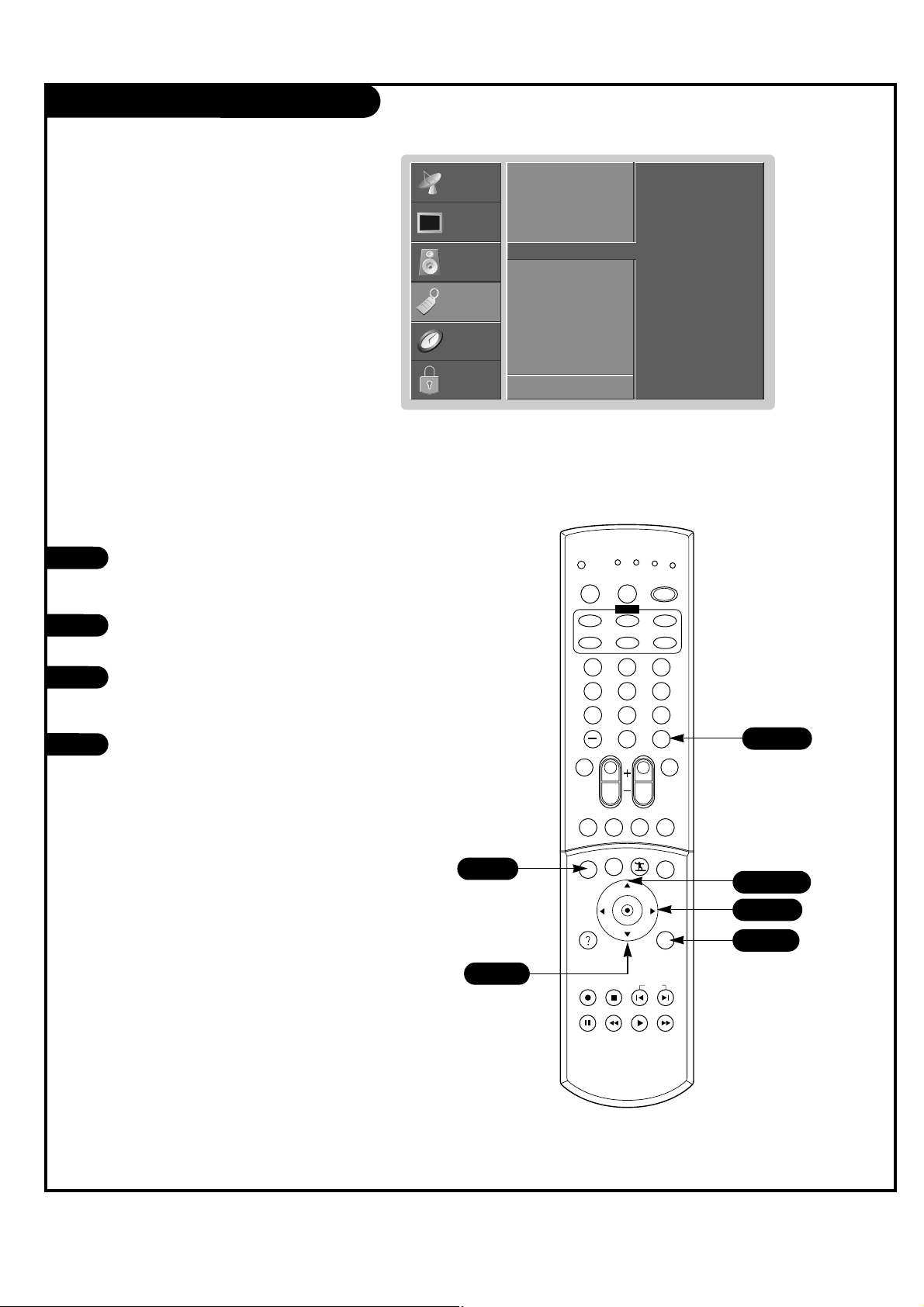

EZ Demo

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the SPECIAL menu.

Press ENTER or the RIGHT arrow button to activate the SPECIAL menu.

Use the UP/DOWN arrows to choose EZ Demo, then press ENTER or the RIGHT arrow button to activate EZ Demo.

Press EXIT button on the remote to stop EZ Demo.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3

2/3

Use EZ Demo to see the features and menu options available on your TV.

2/3

Aspect Ratio Trilingual Menus Captions

EZ Demo

F Prev.

Following Screen will show you EZ Demo.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

1/3

PAGE 37

206-03816

Auto Clock Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the TIME menu.

Press ENTER or the RIGHT arrow button to activate the TIME menu.

Use the UP/DOWN arrow button to choose Auto clock, then press ENTER or the RIGHT arrow button to activate the Auto Clock option then use the LEFT/RIGHT arrow button to make your auto clock selection.

• Use the UP/DOWN arrow button to set the PBS channel.

• Time Zone - Lets you select the time zone of your viewing area.

• Daylight Savings - Lets you set Daylight Savings On or Off, depending on whether or not your viewing area observes Daylight Savings.

• If you select Auto Clock, use the UP/DOWN arrow button to choose On or off.

Press EXIT to save and return to TV viewing or press the ENTER button to save and return to the previous menu.

Your choices are saved when Auto Clock is set.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

2/3

Sets the time automatically through the PBS broadcast signal.

The PBS channel signal includes information for the correct time.

2/4

1/3

Auto Clock G

Manual Clock On Time Off Time Sleep Timer

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

PBS Ch.

Time Zone

Eastern

Daylight Saving

Auto Clock

1/3

PAGE 38

206-03816

Manual Clock Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the TIME menu.

Press ENTER or the RIGHT arrow button to activate the TIME menu.

Use the UP/DOWN arrow button to choose Manual Clock, then press the RIGHT arrow to activate Manual Clock.

Use the LEFT/RIGHT arrows button to make your Manual Clock selection. Your choices are: Year, Date and Time.

Use the UP/DOWN arrows to set the Year, Date and Time.

Press EXIT to save and return to TV viewing or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/5

2/6

2/3

Auto Clock

Manual Clock

On Time Off Time Sleep Timer

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Year

2000

Date

12 / 4

Time

AM 10 : 44

1/3/5

PAGE 39

206-03816

TV Turn On Time Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press ENTER or the RIGHT arrow to activate the Time menu.

Use the UP/DOWN arrows to choose On Time then press the RIGHT arrow to activate On Time.

Use the UP/DOWN arrows to choose On or Off.

Use the LEFT/RIGHT arrows to make the On Time options. Your choices are: Time, Channel and Volume.

Use the UP/DOWN arrows to set the Time, Channel and Volume.

Press EXIT to save and return to TV viewing, or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/4/6

2/7

Lets you set an automatic turn on time for your TV.

Timer function operates only if current time has been already set.

Unless a button is pressed within two hours after the TV is turned on by the on timer function, the TV will automatically turn off.

2/3/5

You must set the current time before using on/off time function.

Auto Clock Manual Clock

On Time

Off Time Sleep Timer

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Tim

AM 04 : 00

Ch.

1 4 Ant1

Vol.

off on

1/3/4/6

PAGE 40

206-03816

TV Turn Off Time Setup

Lets you set an automatic daily turn off time for your TV.

Off timer function overrides on timer function if they are both set to the same time.

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the Time menu.

Press ENTER or the RIGHT arrow button to activate the Time menu.

Use the UP/DOWN arrows to choose Off Time then press the RIGHT arrow to activate Off Time.

Use the UP/DOWN arrows to choose On or Off.

Use the LEFT/RIGHT arrows to make the Off Time options.

Use the UP/DOWN arrows to set the hour or minute.

Press EXIT to save and return to TV viewing, or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/4/6

2/7

2/3/5

Auto Clock Manual Clock On Time

Off Time

Sleep Timer

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

AM 12 : 00

off on

1/3/4/6

PAGE 41

206-03816

Sleep Timer Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the TIME menu.

Press ENTER or the RIGHT arrow button to activate the TIME menu.

Use the UP/DOWN arrows to choose Sleep Timer then press the RIGHT arrow to activate Sleep Timer.

Use the UP/DOWN arrows to choose a preset turn off time.

Press EXIT to save and return to TV viewing, or press the ENTER button to save and return to the previous menu.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

1/3/4

2/5

Lets you select the amount of time before your TV automatically turns itself off.

Auto Clock Manual Clock On Time Off Time

Sleep Timer

F Prev.

Off 15 min 30 min 60 min 90 min 120 min 150 min 180 min 210 min 240 min

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

If you turn the TV off after setting sleep timer, the setting will be erased. Set it again.

1/3/4

PAGE 42

206-03816

Parental Lock Setup

Press the MENU button on the remote control, then use the UP/DOWN arrow button to select the LOCK Menu.

Press ENTER or the RIGHT arrow button to activate the LOCK Menu.

See the next page for more details on your blocking options.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

Lets you set up blocking schemes to block specific channels, ratings and other sources.

A password is required to gain access to this menu if the Lock System is activated.

Lock On/Off Set Password Movie(MPAA) TV-PG(Children) TV-PG(General) Block Channel Aux. Block

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

PAGE 43

206-03816

Parental Lock Setup Continued

Use the UP/DOWN arrows to choose from the following LOCK Menu options.

•

Lock On/Off: Activates or disables the blocking scheme you set up previously.

• Set Password: Changes the password by

inputting a new password twice.

• Movie (MPPA): Blocks movies according

to the movie ratings limit, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movie shown on TV, not TV programs, such as soap operas.

• TV-PG (Children): Keeps children from

watching certain TV programs among only the programs intended for children, according to the ratings limit. This rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - General menu, your children may view those programs.

• TV-PG (General): Blocks certain TV pro-

grams that you and your family do not want to view, based on the ratings.

• Block Channel: Blocks any channels that

you do not want to view or that you do not want your children to watch.

• Aux. Block: Enables you to select a

source for blocking among the source devices you have hooked up.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

Lock On/Off Set Password Movie(MPAA) TV-PG(Children) TV-PG(General) Block Channel Aux. Block

F Prev.

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

If you forget your password, enter the number, 7777 to release the lock mode.

PAGE 44

206-03816

Parental Lock Setup Continued

TV-Y7 (Directed to Older Children): Program is designed for children age 7 and above.

TV-G (General audience): Most parents would find this program suitable for all ages.

TV-PG (Parental guidance suggested): Program contains material that parents may find unsuitable for younger children.

TV-14 (Parents strongly cautioned): Program contains some material that many parents would find unsuitable for chil-

dren under 14 years of age.

TV-MA (Mature audience only): Program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17.

G - (General audiences): All ages admitted.

PG - Parental guidance suggested: Some program content may not be suitable for children.

PG-13 - Parents strongly cautioned: Some program content may not be appropriate for children under 13.

R- (Restricted): Children under 17 requires accompanying parent or adult guardian.

NC-17: No one 17 and under admitted.

TV-Y (All Children): Program is determined to be appropriate for all children.

X: Adult admitted only.

NR: Not rated movie.

Lock On/Off G Set Password Movie(MPAA) TV-PG(Children) TV-PG(General) Block Channel Aux. Block

F Prev.

Off On

SETUP

VIDEO

AUDIO

TIME

LOCK

SPECIAL

Unlocks for channel and rating

Parental Lock rating descriptions

PAGE 45

206-03816

Programming the Remote

Test your remote control. To find out whether your remote control can operate the component without programming, turn on the component such as the VCR and press the corresponding mode button (VCR) on the remote control while pointing at the component. Test the POWER and CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.

Turn on the component to be programmed. Then press the corresponding mode button on the remote control.

Press the POWER button and the MUTE button simultaneously. Then the remote control is ready to program the code for the corresponding component.

There are two ways to find the right code for the component.

A. If you press the CH +/- buttons repeatedly, the code will change one at a time. Press the POWER button after each code change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the remote. The right code numbers for the corresponding component can be found on the following pages. Again, if the code is correct, the device will turn off.

Press the EXIT button to store the program.

Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

1 2 3 4 5 6 7 8 9

mode

light

power

antenna

video

front

comp1 rgb

vcr

cable

dvd

sat

mute

swap pipch- pipch+

pip

record stop

pause

rew

play ff

exit

flashbk surf

freeze

vol

ratio

comp2

skip

source

enter

2 3

The remote control of your HD receiver is a multibrand or universal remote control that can be programmed to operate most remote-controllable devices of other manufacturers.

Note that the remote control may not control all models of other brands.

PAGE 46

206-03816

Programming Codes

TVs

Brand Codes

A MARK 112 143 ADMIRAL 072 081 161 AKAI 006 146 AMPRO 073 167 AMSTRAD 052 ANAM 043 054 056

080 104 108 112 115 118 121 131

AOC 004 006 058

112 BLAUPUNKT 088 CANDLE 002 003 004

006 CAPEHART 058 CETRONIC 043 CITIZEN 002 003 004

006 043 101

103 143 CLASSIC 043 CONCERTO 004 CONTEC 039 043 050

051 CORONADO 143 CRAIG 043 054 CROWN 043 143 CURTIS MATHES 004 006 101

116 143 CXC 043 DAEWOO 004 016 017

043 044 055

071 076 103

107 111 114

117 120 123

125 127 128

136 143 DAYTRON 004 116 143 DYNASTY 043 DYNATECH 062 ELECTROHOME 024 077 143 EMERSON 004 005 006

028 043 047

048 050 051

096 116 143

151 153 154

155 FISHER 007 057 FUNAI 028 043 FUTURETECH 043 GE 004 006 008

009 034 056

073 074 091

116 130 144

155 160 161

165

Brand Codes

GOLDSTAR 004 102 106

110 112 113 116 119 122

127 137 143 HALL MARK 004 116 HITACHI 004 006 009

010 011 012

023 041 075

143 158 163

166 INFINITY 164 INKEL 129 JBL 164 JCPENNY 004 006 008

009 024 030

065 101 143

156 160 JENSEN 013 JVC 034 038 070

083 145 KEC 043 KENWOOD 006 070 KLOSS 002 059 KMC 143 KTV 006 043 143

154 LG 255 LODGENET 072 LOGIK 072 LUXMAN 004 LXI 007 015 052

081 160 164

166 MAGNAVOX 003 004 006

022 059 060

061 063 064

127 143 160

164 MARANTZ 006 077 164 MATSUI 164 MEMOREX 004 007 072

116 METZ 088 MGA 004 006 024

028 042 049

077 116 MINERVA 088 MITSUBISHI 004 006 024

028 040 042

109 116 124

146 MTC 004 006 062

101 NAD 015 025 NEC 006 007 016

Brand Codes

019 024 040 056 130 132

134 NIKEI 043 ONKING 043 ONWA 043 OPTONICA 019 081 PANASONIC 034 056 080

092 164 PHILCO 003 004 006

024 043 056

059 060 063

064 127 143

164 PHILIPS 003 004 005

006 038 059

070 093 143

160 164 PIONEER 006 018 023

025 027 116

135 176 PORTLAND 004 143 PROSCAN 144 160 161

165 167 PROTON 004 058 116

131 143 171

173 QUASAR 034 056 092 RADIO SHACK 019 043 047

116 127 143 RCA 004 006 023

024 056 065

074 144 152

156 160 161

165 REALISTIC 007 019 043

047 ROCTEC 186 RUNCO 168 169 SAMPO 004 006 058

116 SAMSUNG 004 050 089

101 105 113

116 127 133

137 143 160 SANYO 007 020 021

033 039 053

057 082 166 SCOTT 004 028 043

048 116 143 SEARS 004 007 015

028 030 057

082 094 101

116 143 160

Brand Codes

Sharp 004 014 019

022 028 029 081 143 170

175 SIEMENS 088 SIGNATURE 072 SONY 041 070 079

085 126 139

147 185 SOUNDESIGN 003 004 028

043 116 SPECTRICON 112 SSS 004 043 SUPRE MACY 002 SYLVANIA 003 004 006

044 059 060

063 064 116

127 140 160

164 TANDY 081 TATUNG 056 062 TECHNICS 034 080 084 TECHWOOD 004 TEKNIKA 002 003 004

006 024 028

031 043 072

077 101 103

143 TELEFUNKEN 037 046 086

087 TELERENT 072 TERA 172 TMK 004 116 TOSHIBA 007 015 030

040 051 062

101 138 TOTEVISION 143 UNIVERSAL 008 009 VIDEO CONCEPTS 146 VIDIKRON 174 VIDTECH 004 116 WARDS 004 008 009

019 028 060

061 063 064

072 074 116

143 164 YAMAHA 004 006 YORK 004 116 YUPITERU 043 ZENITH 001 072 073

095 103 157 ZONDA 112

PAGE 47

206-03816

Programming Codes

VCRs

Brand Codes

AIWA 034 AKAI 016 043 046

124 125 146 AMPRO 072 ANAM 031 033 103 AUDIO DYNAMICS 012 023 039

043 BROKSONIC 035 037 129 CANON 028 031 033 CAPEHART 108 CRAIG 003 040 135 CURTIS MATHES 031 033 041 DAEWOO 005 007 010

064 065 108

110 111 112

116 117 119 DAYTRON 108 DBX 012 023 039

043 DYNATECH 034 053 ELECTROHOME 059 EMERSON 006 017 025

027 029 031

034 035 036

037 046 101

129 131 138

153 FISHER 003 008 009

010 FUNAI 034 GE 031 033 063

072 107 109

144 147 GO VIDEO 132 136 GOLDSTAR 012 013 020

101 106 114

123 HARMAN KARDON 012 045 HITACHI 004 018 026

034 043 063

137 150 INSTANTREPLAY 031 033 JCL 031 033 JCPENNY 012 013 015

033 040 066

101 JENSEN 043 JVC 012 031 033

043 048 050

Brand Codes

055 060 130 150 152

KENWOOD 014 034 039

043 047 048 LG 255 LLOYD 034 LXI 003 009 013

014 017 034

101 106 MAGIN 040 MAGNAVOX 031 033 034

041 067 068 MARANTZ 012 031 033

067 069 MARTA 101 MATSUI 027 030 MEI 031 033 MEMOREX 003 010 014

031 033 034

053 072 101

102 134 139 MGA 045 046 059 MINOLTA 013 020 MITSUBISHI 013 020 045

046 049 051

059 061 151 MTC 034 040 MULTITECH 024 034 NEC 012 023 039

043 048 NORDMENDE 043 OPTONICA 053 054 PANASONIC 066 070 074

083 133 140

145 PENTAX 013 020 031

033 063 PHILCO 031 034 067 PHILIPS 031 033 034

054 067 071

101 PILOT 101 PIONEER 013 021 048 PORTLAND 108 PULSAR 072 QUARTZ 011 014 QUASAR 033 066 075

145 RCA 013 020 033

Brand Codes

034 040 041 062 063 107 109 140 144 145 147

REALISTIC 003 008 010

014 031 033 034 040 053

054 101 RICO 058 RUNCO 148 SALORA 014 SAMSUNG 032 040 102

104 105 107

109 112 113

115 120 122

125 SANSUI 022 043 048

135 SANYO 003 007 010

014 102 134 SCOTT 017 037 112

129 131 SEARS 003 008 009

010 013 014

017 020 031

042 073 081

101 SHARP 031 054 149 SHINTOM 024 SONY 003 009 031

052 056 057

058 076 077

078 149 SOUNDESIGN 034 STS 013 SYLVANIA 031 033 034

059 067 SYMPHONIC 034 TANDY 010 034 TATUNG 039 043 TEAC 034 039 043 TECHNICS 031 033 070 TEKNIKA 019 031 033

034 101 THOMAS 034 TMK 006 TOSHIBA 008 013 042

047 059 082

112 131

Brands Codes

TOTEVISION 040 101 UNITECH 040 VECTOR RESEARCH 012 VICTOR 048 VIDEO CONCEPTS 012 034 046 VIDEOSONIC 040 WARDS 003 013 017

024 031 033 034 040 053 054 131

YAMAHA 012 034 039

043

ZENITH 001 034 048

056 058 072 080 101

PAGE 48

206-03816

Programming Codes

SAT

DVD

Brand Codes

ALPHASTAR DSR 123 AMPLICA 050 BIRDVIEW 051 126 129 BSR 053 CAPETRONICS 053 CHANNEL MASTER 013 014 015

018 036 055

CHAPARRAL 008 009 012

077 CITOH 054 CURTIS MATHES 050 145 DRAKE 005 006 007

010 011 052

112 116 141 DX ANTENNA 024 046 056

076 ECHOSTAR 038 040 057

058 093 094

095 096 097

098 099 100

122 ELECTRO HOME 089 EUROPLUS 114 FUJITSU 017 021 022

Brand Codes

027 133 134

GENERAL INSTRUMENT 003 004 016

029 031 059

101 HITACHI 139 140 HOUSTON TRACKER 033 037 039

051 057 104 HUGHES 068 HYTEK 053 JANIEL 060 147 JERROLD 061 KATHREIN 108 LEGEND 057 LG 255 LUTRON 132 LUXOR 062 144 MACOM 010 059 063

064 065 MEMOREX 057 NEXTWAVE 028 124 125 NORSAT 069 070 PACE SKY SATELLITE 143 PANASONIC 060 142 PANSAT 121

Brand Codes

PERSONAL CABLE 117 PHILIPS 071 PICO 105 PRESIDENT 019 102 PRIMESTAR 030 110 111 PROSAT 072 RCA 066 106 REALISTIC 043 074 SAMSUNG 123 SATELLITE SERVICE CO 028 035 047

057 085 SCIENTIFIC ATLANTA 032 138 SONY 103 STARCAST 041 SUPER GUIDE 020 124 125 TEECOM 023 026 075

087 088 090

107 130 137 TOSHIBA 002 127 UNIDEN 016 025 042

043 044 045

048 049 078

079 080 086

101 135 136

Brand Codes

VIEWSTAR 115 WINEGARD 128 146 ZENITH 001 081 082

083 084 091 120

Brand Codes

APEX DIGITAL 022 DENON 020 014 GE 005 006 GOLDSTAR 010 016 025 HARMAN KARDON 027 JVC 012 LG 001 010 016

Brand Codes

025 MAGNAVOX 013 MARANTZ 024 MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009

Brand Codes

PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006 RCA 005 006 SAMSUNG 011 015 SONY 007

Brand Codes

THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

PAGE 49

206-03816

Programming Codes

CATV

Brand Codes

ABC 003 004 039

042 046 052

053 ANTRONIK 014 ARCHER 005 007 014

024 CABLE STAR 026 CENTURION 092 CENTURY 007 CITIZEN 007 COLOUR VOICE 065 090 COMBANO 080 081 COMTRONICS 019 030 DIAMOND 023 EAGLE 020 030 040 EASTERN 057 062 066 ELECTRICORD 032 GE 072 GEMINI 008 022 025

054 GI 052 074 GOLDEN CHANNEL 030 HAMLIN 049 050 055 HITACHI 052 055 HOSPITALITY 070 077 JERROLD 002 003 004

Brand Codes

008 009 010

052 069 074 LG 255 M-NET 037 MACOM 033 MAGNAVOX 010 012 064

079 MEMOREX 001 MOVIE TIME 028 032 NSC 015 028 038

071 073 OAK 016 031 037

053 PANASONIC 044 047 PARAGON 001 PHILIPS 006 012 013

020 065 085

090 PIONEER 034 051 052

063 076 POST NEWS WEEK 016 PRUCER 059 PTS 011 048 071

072 073 074 PULSAR 001 RCA 047

Brand Codes

REGAL 049 050 REGENCY 057 REMBRANT 025 RK 091 SAMSUNG 030 068 SCIENTIFIC ATLANTA 003 011 041

042 043 045

046 SHERITECH 022 SIGNAL 030 SIGNATURE 052 SL MARX 030 SPRUCER 047 078 STARCOM 002 004 008

009 STARGATE 008 030 SYLVANIA 067 TADIRAN 030 TANDY 017 TEXSCAN 029 067 TOCOM 039 040 056 TOSHIBA 001 UNIKA 007 014 024 UNITED CABLE 004 053 UNIVERSAL 005 007 014

024 026 027

Brand Codes

032 035

VIEWSTAR 012 015 018

086 087 088 089

ZENITH 001 060 093

PAGE 50

206-03816

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

1. Use a soft cloth with a mild soap solution to wipe the cabinet.

2. Rinse the cloth and wipe the cabinet again.

3. Let the cabinet air-dry before turning the TV on.

Use a quality wood cleaner and polish. This will protect the TV from dirt and dust, as well as keep the cabinet looking new.

If you leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges. If you use an off-air antenna, you may also want to disconnect it from the back of your TV before leaving.

SCREEN CLEANING

EXTENDED ABSENCE

CABINET CLEANING

WOOD CABINETS

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and pull out the power cord before you begin any cleaning.

PAGE 51

206-03816

Maintenance continued

Even though you may be getting cable, the signal may be weak, which means the quality of your picture may suffer due to other factors. If there are problems with the image on your TV, consult the Troubleshooting guide on the following pages. You may also want to contact your cable service provider to determine if the problem is from the cable service.

If you use your TV to play video games or for other uses that have single, fixed images, such as a photo-CD player, you should avoid setting the Brightness level too high. If static images, like network identification patterns, are left on the screen for too long, they can leave a permanent impression on the TV screen. You can reduce the chance of this happening by limiting the amount of time you use the fixed-image display, and by reducing the contrast and brightness levels.

VIDEO GAMES AND OTHER FIXED-PATTERN DISPLAYS

PICTURE INTERFERENCE

If you unplug your TV, you may have to reset the clock using the Time menu described earlier.

PAGE 52

206-03816

Troubleshooting

SYMPTOMS

Snowy picture and unclear sound.

Multiple images or ‘ghost shadows.’

Interference: Sharp lines across the screen and unclear sound.

Normal picture but no sound.

No picture and unclear sound.

No picture and no sound.

No color, but the sound is O.K.

Picture has a big black box on it, but the sound is O.K.

Picture has two horizontal black bars, one on top and one on bottom.

Missing Secret code

Some quick and easy tips to fixing problems yourself.

SOLUTIONS

• Check your antenna connection or location.

• Check your cable input.

• Check to see if the TV/VCR button on your VCR has the TV selected.

• Check your antenna direction and/or location.

• Check your cable input.

• Make sure the cable from your antenna to your TV is

properly connected.

The following may cause image problems or distortion: Electrical appliances, powerful lights, cars, trucks; computers or portable phones; medical equipment

• If possible increase the distance between your TV and the offending appliance. Or shut one of them off.

• Check volume levels.

• Make sure the TV is not Muted.

• Try another channel. The problem may be the broadcast, not your TV.

• Are the Audio A/V cables properly installed?

• Are the wires for external speakers (if you have external speakers)

properly installed?

• Make sure your speakers turned on under the Audio menu.

• If your audio mode is set to SAP, that channel may not have a SAP program.

• Are you in TV or cable tuning mode, and should be in the other?

• Make sure output channels on all A/V equipment are on the same channel (3 or 4).

• Check that all connections are tight.

• Is the AC power plugged in?

• Check that your AC power outlet works. (Test it by plugging in something

else or try another plug.)

• Make sure your brightness and audio controls are set properly.

• Try another channel. The problem may be with the broadcast.

• Check the color control in the Video menu.

• Try another channel. The problem may be with the broadcast.

• The CC (closed caption) option may be in Text mode. Select Caption 1, or OFF

in the Captions/Text menu.

• Your program is in letterbox. This means that the shape of your TV is a square, but the program is a rectangle. Think of the bars as empty space the program doesn’t fill; not picture that’s blocked out. Because this format is a direct representation of film as you see it in the movies, you are actually seeing MORE of the program when you see those bars.

• If you forget the secret code, press the remote control Button ‘7’, ‘7’, ‘7’ and ‘7’ when the display asks you to enter the secret code.

PAGE 53

206-03816

Remote control doesn’t work.

Menu options can’t be changed or selected.

No picture or sound when any non-cable source is selected.

Weak or no Stereo Sound when using a stereo VCR.

The PIP inset is black or lacks contrast.

The PIP inset is “snow” when the source is Antenna 1.

Time is incorrect.

Troubleshooting, cont’d

• Make sure the batteries are fresh and installed properly.

• Try unplugging your TV for a few minutes,

then plug it back in.

• Check to see if the source equipment has been turned on.

• Make sure that the connections are secure on the back of your TV and on the

source equipment.

• Check to see if all the connections are secure.

• Look in the Audio mode menu to see if all the settings are correct.

• You are using channel 3 or 4 to view your VCR. No stereo sound is present

under that decision.

• Check to be sure that the PIP source is turned on.

• You might want to adjust the PIP picture settings under the PIP menu.

• Check that all the wires are connected properly.

• Check to see if your input source for PIP is set correctly.

• Look to see if the TV/VCR button on your VCR has the TV selected or change

the PIP to another source.

• Make sure the time was set initially. Probably power was lost.

PAGE 54

206-03816

Glossary

A list of definitions for some of the words found in this guide.

75 OHM RF CABLE The round cable that comes from an off-air antenna or cable service

provider. Each end looks like a hex shaped nut with a wire sticking through the middle, and it screws onto the threaded jack on the back of your TV.

A/V CABLES Audio/Video cables. Three cables - Right audio (red), Left audio (white),

and Video (yellow). A/V cables are used for stereo playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box,

or television).

ADD This function lets you add new channels to the channel list in memory

that you’ll scroll through when using your remote.

AMPLIFIER An external device that amplifies sound from a television, CD player, VCR,

DVD or other A/V device.

ANALOG TV Traditional method of representing a television signal as a replica (analog)

of the original picture and sound.

ANTENNA The physical receiver of television signals sent over the air. A large metal

piece of equipment does not always have to be visible for your home to be using an antenna.

ASPECT RATIO The ratio of the horizontal dimension to the vertical dimension of a pic-

ture. Standard television in the U.S. today is generally transmitted and displayed in a 4:3 aspect ratio. High-Definition television will normally be formatted in a wider aspect ratio, assumed to be 16:9.

CAPTIONS A form of subtitling that writes out the dialog for your program on the

screen.

CONVERGENCE This option lets you correct for color separation in your picture.

DELETE This function lets you remove channels that you don’t watch from the

channel list in memory.

DIGITAL TV A new method of representing television signal as a series of binary num-

bers (1s and 0s). This method allows for the signal to be manipulated to eliminate redundancy to dramatically increase picture and sound quality.

DOLBY DIGITAL Dolby Digital Cinema Sound is made possible by a new digital coding tech-

nique called Dolby AC-3. Dolby AC-3 produces high-quality, 5.1 channel surround sound which is six discrete separate channels for a full range of sound. Each channel can carry a different signal simultaneously (front center, front left, front right, surround left, surround right and subwoofer).

INPUT Refers to the jack that receives a signal into the TV, VCR or other

A/V device.

PAGE 55

206-03816

A list of definitions for some of the words found in this guide.

Glossary continued

JACK A connection on the back of a TV, VCR, or any other A/V

device. This includes the RF jacks and the Audio/Video jacks that are color-coded.

MODE The mode determines the type of device (TV, VCR, Cable, Aux)

that the remote is controlling; remote operating mode.

MONO SOUND Mono (monaural) sound is one channel of sound. On more

than one speaker all the speakers play the same audio.

OUTPUT Refers to the jack that sends a signal out of a VCR, DVD, or

other A/V device.

PIP This is the most common way to refer to the Picture-In-Picture

(PIP) option.

PIP SNAPSHOT Press FREEZE button to capture and freeze sub picture in PIP

or split mode. Press PIP button to enter PIP mode from another channel. Press EXIT button to remove PIP from the screen.

SECOND AUDIO Second Audio Programming (SAP) is another, separate, audio

channel available with some programming. Choosing SAP often refers to listening to audio in another language, such as Spanish or French.

SIGNAL Picture and sound traveling through cable, or on the air, to

your television screen.

SOURCE The term for the equipment that provides audio and video

information to your TV. Antenna, VCR, DVD players, or Cable Boxes are examples of sources.

STEREO SOUND Stereo (stereophonic) sound refers to audio that’s divided into

right and left sides.

SURF This function created a customized list of your favorite channels.

You can access this group of channels with the surf button on the remote by pressing Surf repeatedly.

TEXT Arbitrary text not related to the program.

TUNER Any device that picks up broadcast signals and turns them into

picture and sound.

PROGRAMMING/SAP

PAGE 56

206-03816

Product Specifications

Specifications

Power requirements 120V, 60 Hz Number of inputs/outputs

Video (In) 3 1 Vp-p, 75 ohms unbalanced, sync negative Video (Out) 1

S Video (In) 1 Y: 1 Vp-p, 75 ohms unbalanced, sync negative

C: 0.280 Vp-p (burst signal), 75 ohms

Audio (In) 6 500 mVrms (100% modulation), Impedance: 47 kilohms Center Mode (In) 1

Audio out 1 More than 408 mVrms at the maximum volume setting (variable)

1 More than 408 mVrms (fix)

Impedance (output): 2 kilohms

Component input 2 Y: 1.0 Vp-p, 75 ohms w/sync

2 PB: 0.7 Vp-p, 75 ohms 2 PR: 0.7 Vp-p, 75 ohms

PC/DTV Inputs 1 15 pin Sub “D” Female

Speaker output (W) 10W x2

Power consumption (W)

In use (max.) 230W

In standby 8W

Weight (lbs) 121.9

Television system American TV Standard, NTSC, ATSC with STB

Channel coverage VHF: 2 - 13

UHF: 14 - 69 CATV: 1 - 125

Antenna 75 ohm external terminal for VHF/UHF

Screen Size 52” Width

Supplied accessories Remote control, batteries 2 size AA (Alkaline battery)

Screen Aspect Ratio 16 x 9

LCD Panel Size 0.87 inch

Design and specifications are subject to change without prior notice.

PAGE 57

206-03816

Notes

PAGE 58

206-03816

Notes

PAGE 59

206-03816

Notes

206-03816

P/N : 3828VA0220L (NB02QB)

ZENITH ELECTRONICS CORPORATION LCD Projection TV Limited Warranty - USA

Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period ("Warranty Period") listed below, effective from the date ("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESSED WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the

exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that may vary from state to state.

1.Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration, maintenance or failure to maintain, or separate system components; and

2. Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident, lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer software, institutional or commercial use, or other causes not arising out of defect in material or workmanship.

3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the consumer.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

For nearest Authorized Service Center, Where to buy, Product Assistance, or Customer Assistance

Call 1-877-9Zenith (1-877-993-6484) (Monday~ Friday, 7 AM ~ 8 PM CT and Saturday, 8 AM ~ 5 PM CT) and select an appropriate option from the menu.

Or visit our website at http://www.zenithservice.com

WARRANTY PERIOD:

LABOR: One Year from the Date of Purchase.

Parts: One Year from the Date of Purchase.

Halogen Lamp: 90 Days from the Date of

Purchase.

Parts replaced are warranted for the remaining portion of the original warranty period.

HOW SERVICE IS HANDLED

In-Home Service: Please retain dealer’s dated bill of sale or

delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.

Please call 1-877-9Zenith (1-877-993-6484) to locate your nearest Zenith Authorized Service Center.

Replacement parts may be new or factory remanufactured.

Zenith D52WLCD OPERATING GUIDE

Specifications and Main Features

Frequently Asked Questions

User Manual
