Page 1

PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : AF-05FA

MODEL : 50PX4DR 50PX4DR-UA

CANADA : http//biz.lgservice.com USA : http//www.lgservice.com

: http//lgservice.com/techsup.html

POWER

TV GUIDE

Page 2

- 2 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitary that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the same specified type.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on positioin, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each esposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits sepcified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

CANADA: LG Electronics Canada, Inc. 550 Matheson

Boulevard East Mississauga, Ontario L4Z 4G3

USA : LG Customer Interactive Center

P.O.Box 240007, 201 James Record Road Huntsville, AL 35824 Digital TV Hotline 1-800-243-0000

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Page 3

- 3 -

DESCRIPTION OF CONTROLS...........................................4

SPECIFICATIONS.................................................................8

ADJUSTMENT INSTRUCTIONS ..........................................9

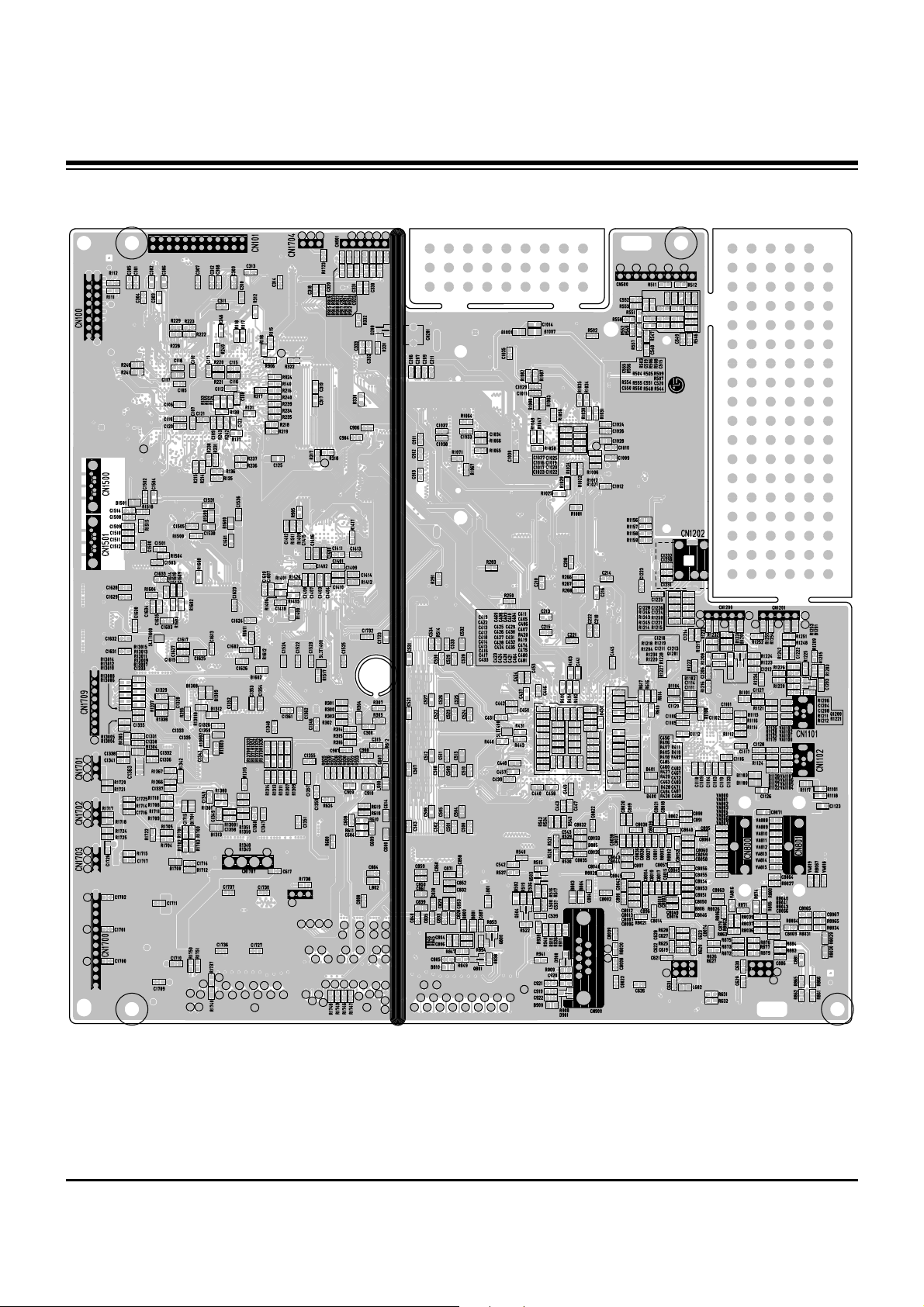

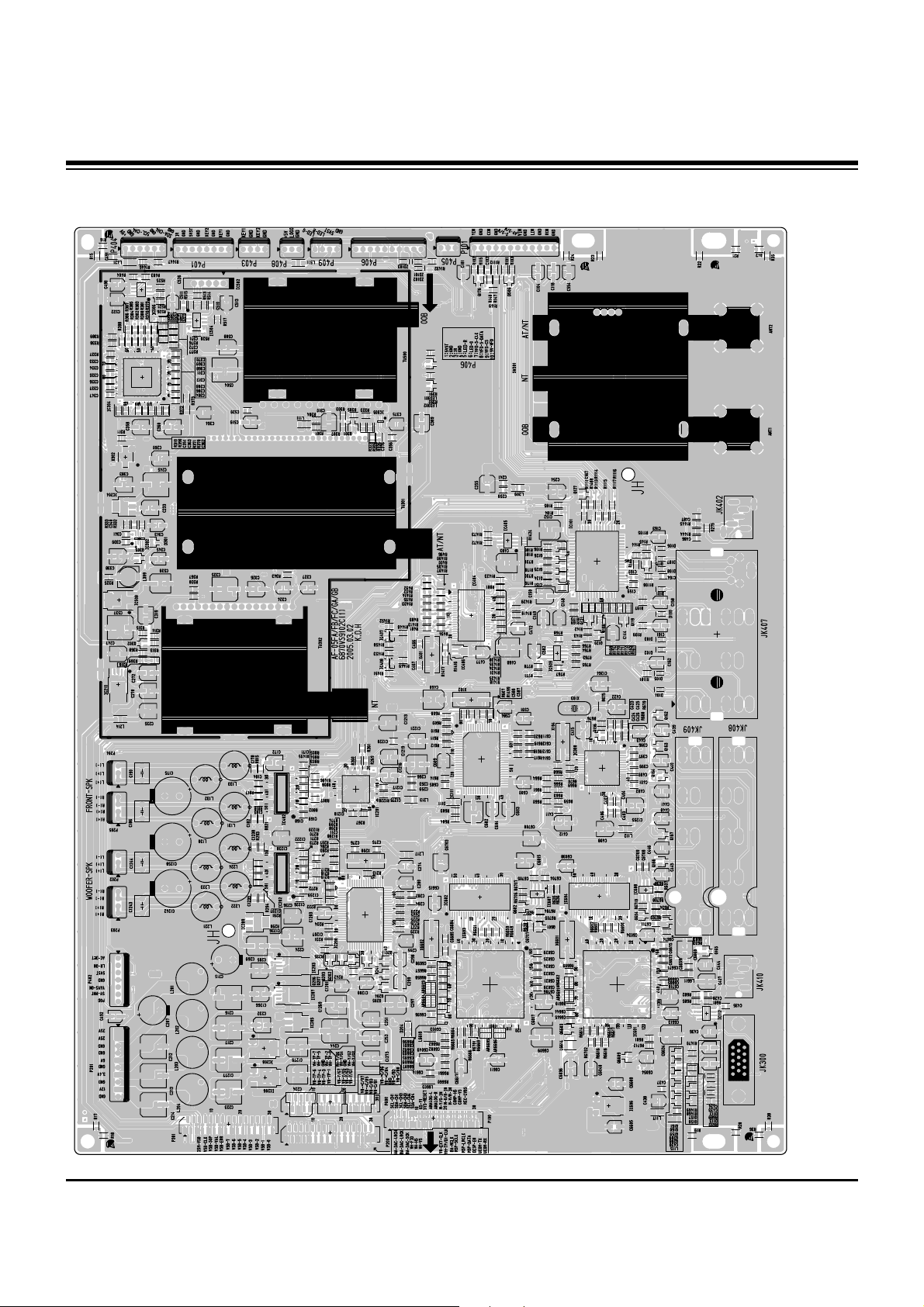

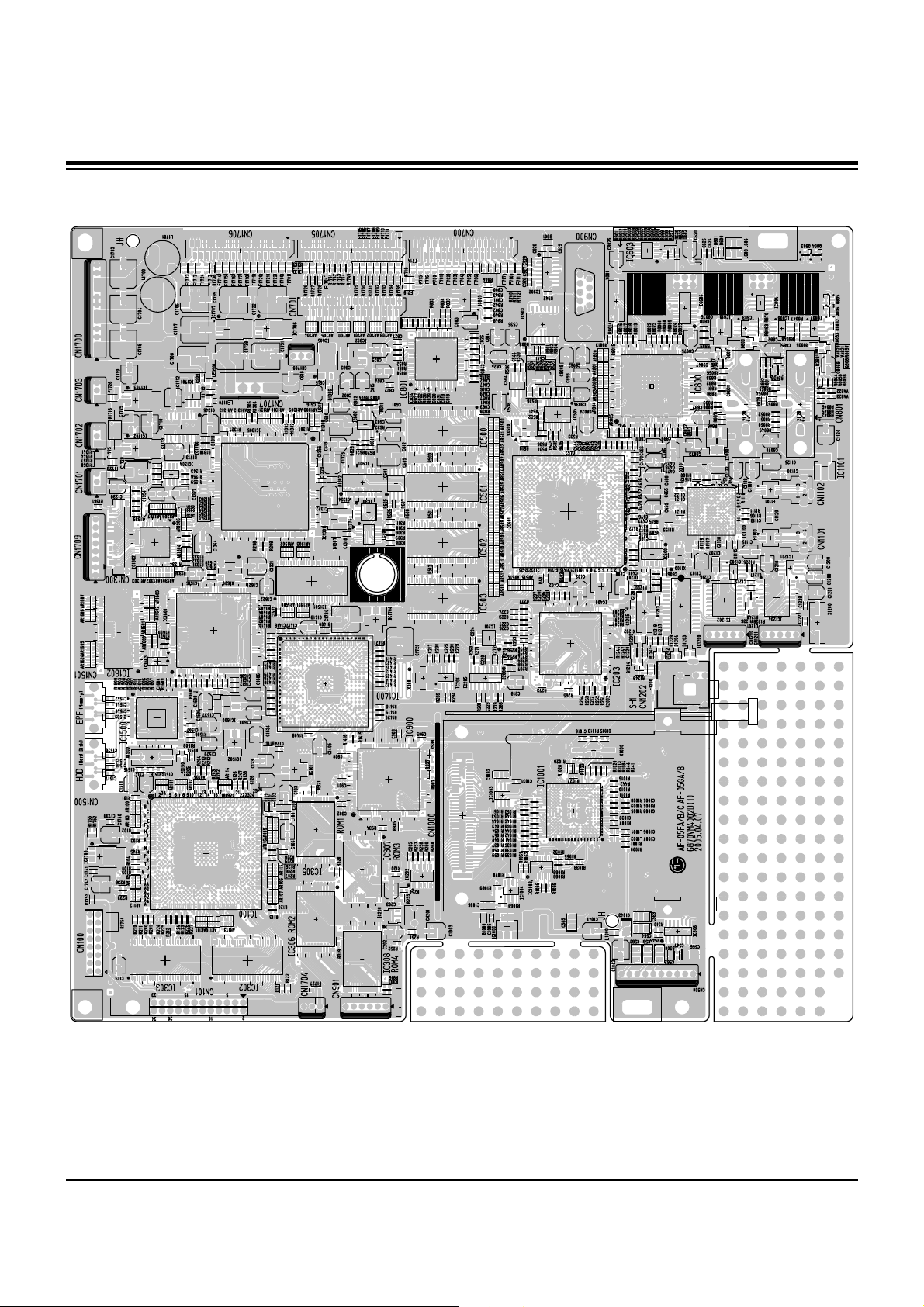

PRINTED CIRCUIT BOARDS.............................................18

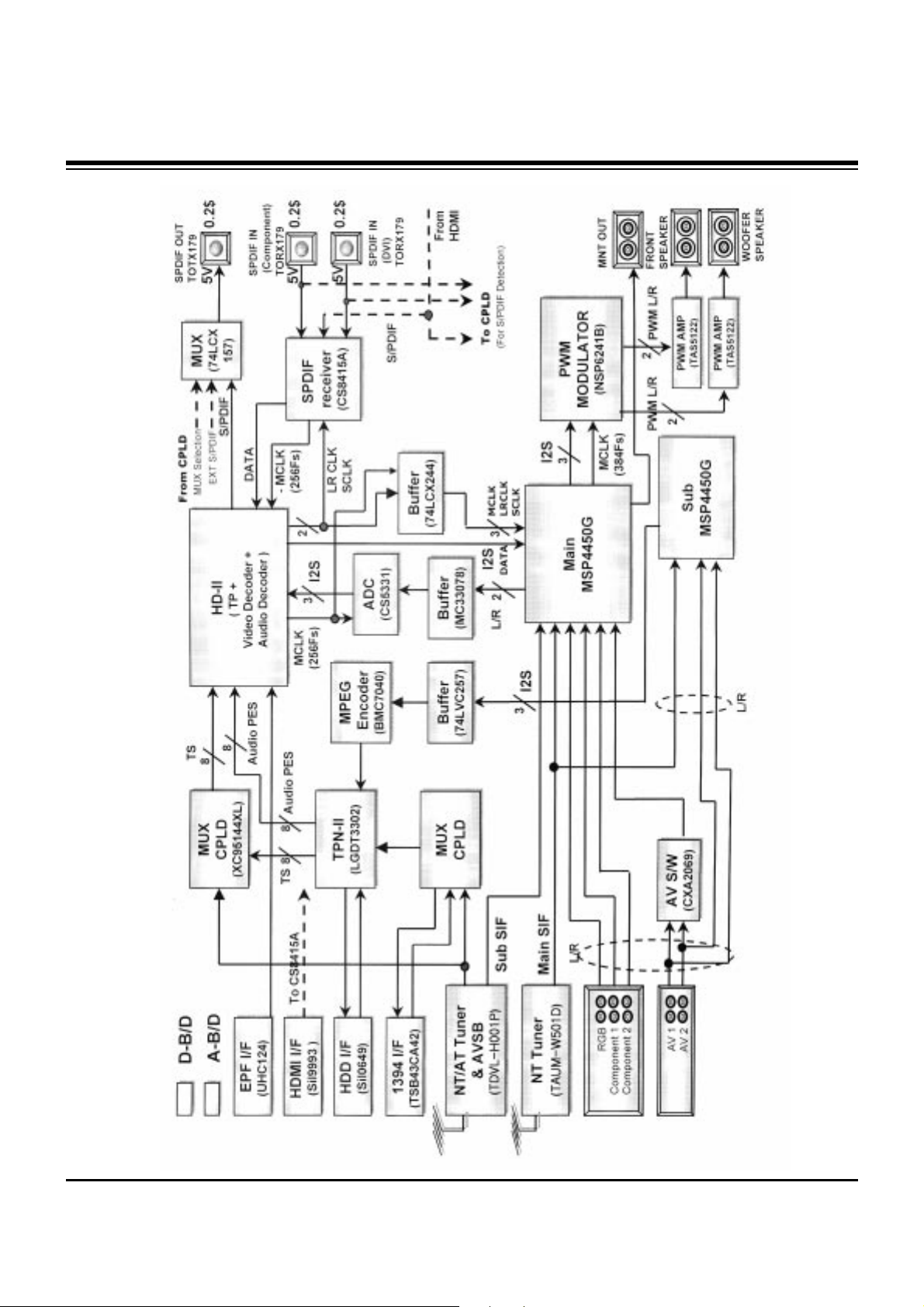

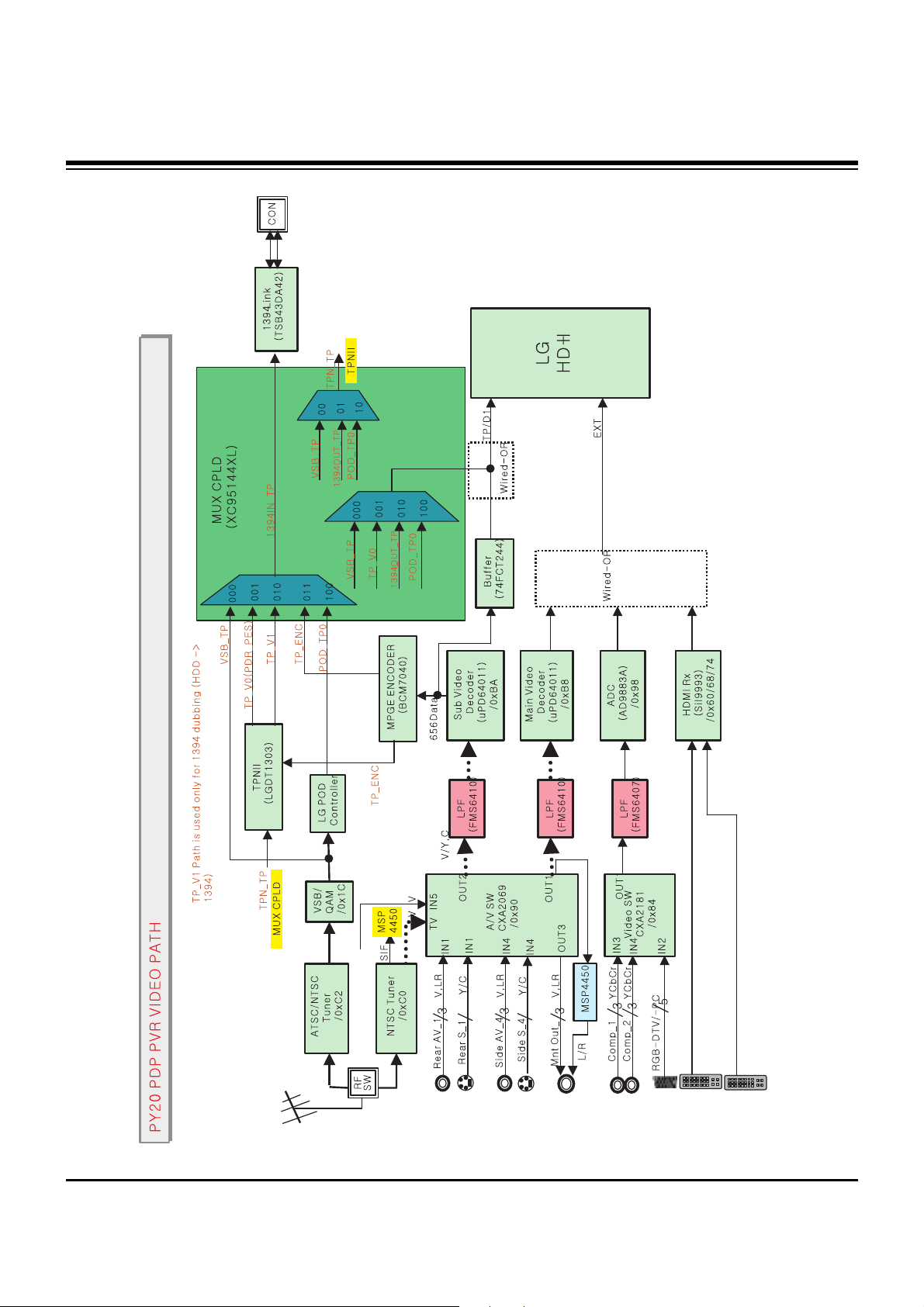

BLOCK DIAGRAM...............................................................23

EXPLODED VIEW...............................................................26

EXPLODED VIEW PARTS LIST.........................................27

REPLACEMENT PARTS LIST............................................28

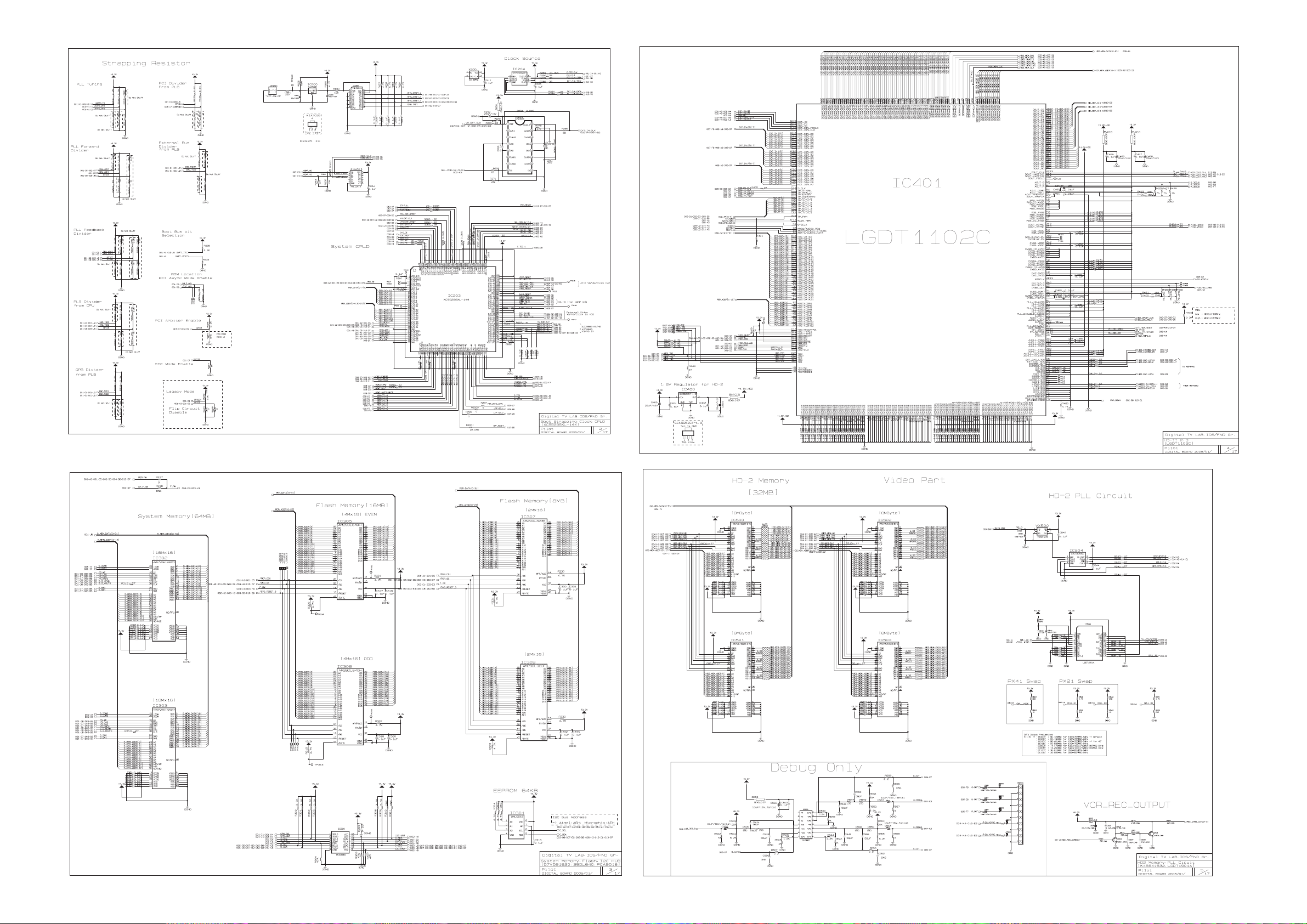

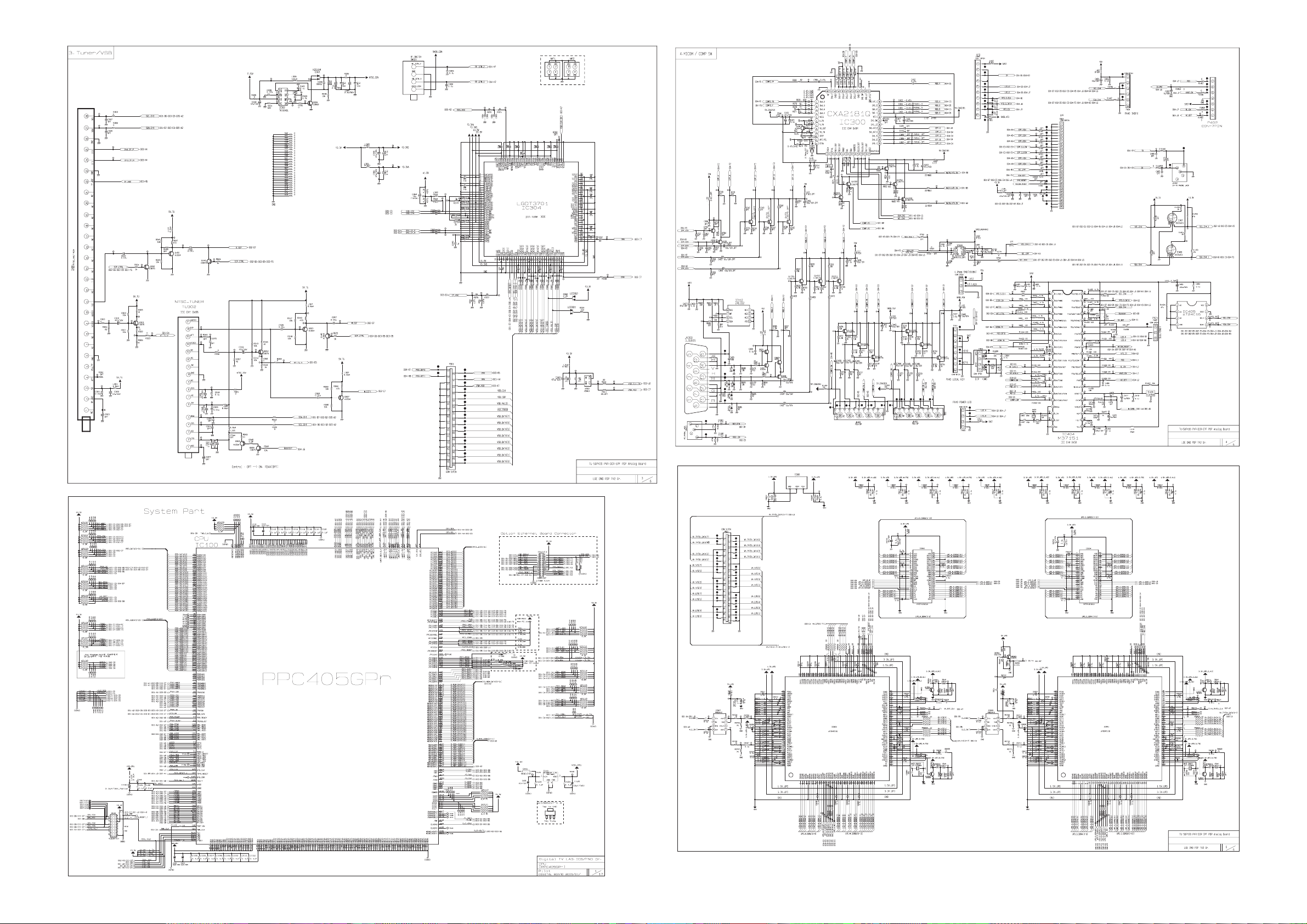

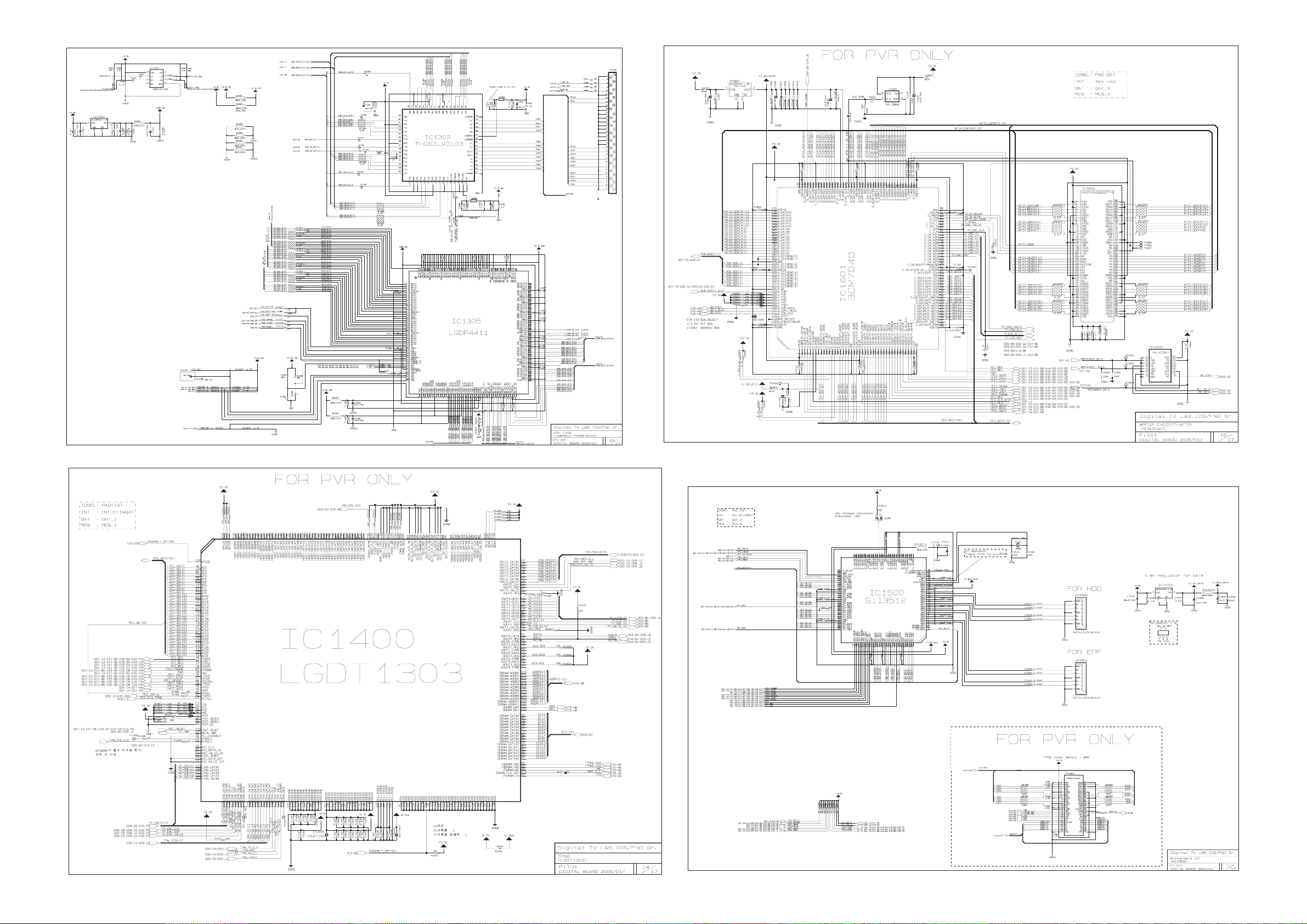

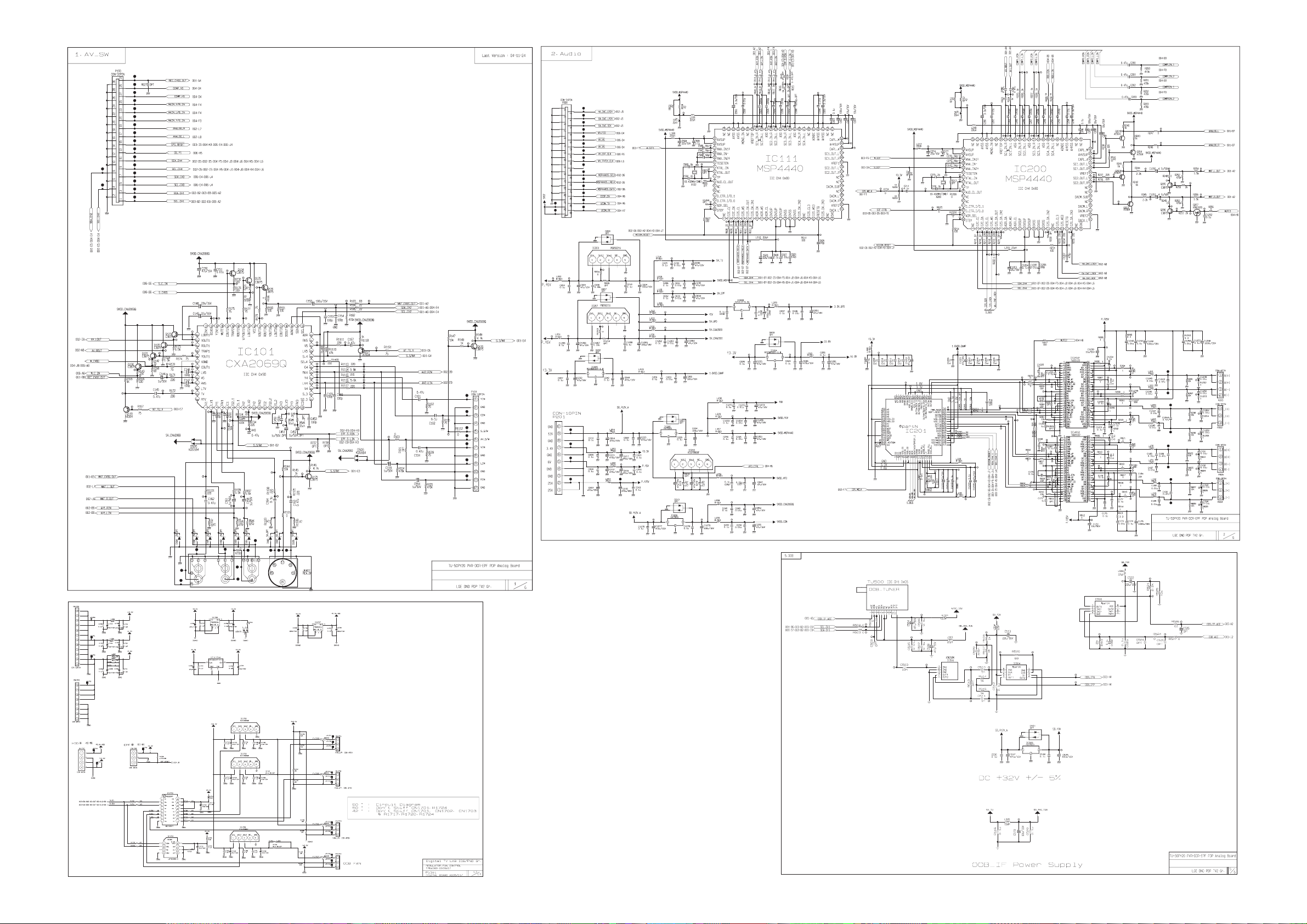

SCHEMATIC DIAGRAM..........................................................

TABLE OF CONTENTS

Page 4

- 4 -

TV GUIDE

MENU Button

TV/VIDEO Button

VOLUME (FF,GG) Buttons

CHANNEL (EE, DD) Buttons

INDEX

Switches LED Display on or off.

TV GUIDE Button

Remote Control

Sensor

Power Standby Indicator

Blinks orange in standby mode, blinks green when the TV is turned on.

POWER Button

Front Panel Controls

W This is a front panel of 50PX4DR series TVs.

- This is a simplified representation of front panel. Here shown may be somewhat different from your TV.

Controls

DESCRIPTION OF CONTROLS

Page 5

- 5 -

Connection Options

W This is a back panel of 50PX4DR series TVs.

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2 INPUT

OUTPUT

AUDIO INPUT

RGB INPUT

VIDEO

HDMI 2

HDMI1/DVI

COMPONENT INPUT 1

(MONO)

CABLE

ANTENNA

AC INPUT

DVD /DTV INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

S-VIDEO

REMOTE CONTROL

S-VIDEO

FRONT A/V INPUT

VIDEO

L / MONO

AUDIO

Cable

S-VIDEO Input

A connection is available to provide better picture quality than the video input.

Memory Card Slots

G-LINK

Connect an IR controller to this jack.

CableCARD™

Used for CableCARD™ received from Cable Service Provider.

VIDEO Input

Connects the video signal from a video device.

AUDIO Input

Connections are available for listening stereo sound from an external device.

Antenna Input

Connect over-theair signals to this jack.

RGB/AUDIO INPUT

Connect the monitor output connector from a PC to the appropriate input port.

Digital Audio (DVI: Digital Visual Interface/Component2) Input/ Digital Audio Output

Connect digital audio from various types of equipment.

Note: In standby mode, these ports will not work.

DVD/DTV Input (Component 1-2)

Connect a component

video/audio device to

these jacks.

Monitor Output

Connect a second TV or Monitor.

Remote Control Port

Connect your wired remote control here.

S-Video Input

Connect SVideo out from an S-VIDEO device to the SVIDEO input.

CABLE Input

Connect cable signals to this

jack, either directly or through

a cable box.

RS-232C INPUT (CON-

TROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

HDMI1/DVI, HDMI 2

Connect a HDMI signal to HDMI1/DVI or HDMI2. Or connect a DVI(Video) signal to HDMI1/DVI.

Audio/Video Input

Connect audio/video output from an external device to these jacks.

Power Cord Socket

This TV operates on an AC power. The voltage

is indicated on the Specifications page. Never

attempt to operate the TV on DC power.

IEEE1394

Connect DVHS or MicroMV to IEEE1394 Connector.

Back Connection Panel

Note:

- After removing the cover, you can insert the CableCARD™ or connect to the G-LINK jack.

DESCRIPTION OF CONTROLS

Page 6

- 6 -

- When using the remote control, aim it at the remote control sensor on the TV.

MODE

DAY -

DAY +

FLASHBK

APM

AUTO DEMO

M/C EJECT

TV INPUT

TV/VIDEO

LIGHT

Illuminates the remote control

buttons of selected

mode.

DAY+/DAY-

Moves forward or backward in 24 hour increments in the Listings Grid.

NUMBER buttons

VCR/DVD BUTTONS

• Control some video cassette recorders or DVD players. ("RECORD" button is not available for DVD players.) < Only TV mode >

•In Photo mode of Xstudio, the view state changes to the slide show state with “PLAY” button and the slide show state changes to the view state with “PAUSE” button.

• In Music mode of Xstudio, controls the music with “PAUSE”, “STOP”, ”PLAY”, ”(Left/Right) SKIP” buttons. Note that FF and REW do not work in the mode.

•Control the DVHS or Camcorder of IEEE 1394 mode.

RATIO

Changes the aspect ratio.

POWER

Turns your TV or any other programmed

equipment on or off, depending on mode.

Select a closed caption:

Off, CC1~4, Text1~4.

THUMBSTICK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus

and adjust the system settings to your pref-

erence.

CHANNEL UP/DOWN

Selects available channels found with EZ scan.

PAGE UP/PAGE DOWN

Moves from one full set of screen information to the next one.

SAP

Selects MTS sound: Mono, Stereo, and SAP in Analog mode. Change the audio language

in DTV mode.

EZ SOUND

Selects the sound appropriate for the program's character.

X STUDIO

Bring up the HOME menu to the screen.

APM (Adaptive Picture Mode)

Concurrently, compare with the Daylight, Normal, Night Time and Custom on the screen.

VOLUME UP/DOWN

Increases/decreases the sound level.

REC LIST

Appear the thumbnail recorded list.

M/C EJECT

When removing the Memory Card,

this button is used.

Remote Control Key Functions

DESCRIPTION OF CONTROLS

Page 7

- 7 -

MODE

DAY -

DAY +

FLASHBK

APM

AUTO DEMO

M/C EJECT

TV INPUT

TV/VIDEO

TV INPUT

• Rotates the input mode between Antenna and Cable.

• Video, Front Video, Component 1-2, RGB-DTV (or RGB-PC), HDMI1/DVI,

HDMI2

and IEEE1394 input sources, screen

returns to the last TV channel.

MUTE

Switches the sound on or off.

MODE

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB. Select

other operating modes, for the remote to

operate external devices.

FLASHBK

Tunes to the last channel viewed.

EXIT

Clears all on-screen displays and returns to

TV viewing from any menu.

TIMER

Lets you select the amount of time before

your TV turns itself off automatically.

Brings up the main menu to the screen.

Enters or exits a Panel Menu in the TV Guide

On Screen system.

PIP

Switches to PIP, POP (Picture-out-ofPicture) and Twin picture modes in regular sequence. Switches the video window locking or unlocking in the Listings Grid.

PIPCH-/PIPCH+

Changes to the next higher/lower PIP channel.

PIP INPUT

Selects the input source for the sub picture in PIP/Twin picture mode.

SWAP

Exchanges the main/sub images in PIP/Twin picture mode.

EZ PIC

Adjusts the factory preset picture

depending on the viewing environment.

ADJUST

Adjusts screen position, size, and phase in

PC mode.

AUTO DEMO

Starts the demonstration to explain the main

features of this TV.

TV/VIDEO

External input modes rotate in regular sequence: Antenna, Cable, Video, Front Video, Component 1-2, RGB-DTV (or RGB-PC), HDMI1/DVI and HDMI2 input sources. (Video, Front Video, Component 1-2 input sources are linked automatically, only if these are connected )

INFO

When you watch the TV, information displays on top of the screen. Not available in Component 1-2, RGB, HDMI1/DVI and HDMI2 mode.

FAV

Scrolls the Favorite channels.

TV GUIDE

Brings up the TV Guide On Screen system to the screen.

Mark

Selects the wanted functions.

DESCRIPTION OF CONTROLS

Page 8

- 8 -

• The specifications shown above may be changed without prior notice for quality improvement.

MODELS

AC100-240V ~ 60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, DTV 2 ~ 69, CADTV 1 ~ 135

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

55.9 / 1420 35 / 889

14 / 356.8

137.8 / 62.5

65.6 / 1666

40.2 / 1022 17 / 434

206.8 / 93.8

Width (inches / mm) Height (inches / mm) Depth (inches / mm) Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

50PY2DR-UA

60PY2DR-UA

1366 x 768 (Dot)

57.5 / 1461

32.9 / 835 13 / 331.3

123.5 / 56

50PX4DR-UA

SPECIFICATIONS

Page 9

1. Application Object

These instructions are applied to all of the PDP TV, AF-05FA.

2. Notes

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test equipment. (2) Adjustments must be done in the correct order. (3) The adjustments must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation. (4) The input voltage of the receiver be must kept 110V, 60Hz

when adjusting. (5) The receiver must be operational for about 15 minutes

prior to the adjustments.

1) After receiving 100% white pattern, the receiver must be operated prior to adjustment. (Or 7. White Pattern condition in EZ - Adjust)

2) Enter into White Pattern

- Pressing POWER ON Key on Service Remote Control

(S R/C)

- Enter the Ez - Adjust by pressing ADJ Key on Service

Remote Control (S R/C).

- Select the 7. White Pattern using CH +/- Key and

press the Enter(

Y) Key.

Display the 100% Full White Pattern.

[ Set is activated HEAT-RUN without signal generator in

this mode.

If you turn on a still screen more than 20 minutes (Especially Digital pattern(13 CH), Cross Hatch Pattern), an afterimage may occur in the black level part of the screen.

3. EPLD Download

(1) Test Equipment: PC, Jig for download (2) Connect the power of VSC B/D. (3) Execute download program(iMPACK) of PC. (4) After executing the hot key on the Programmer, click icon (5) End after confirming

4. Gemstar VBI Micom Download

4-1. Preparation for Adjustment

(1) As shown below, connect the MPLAB ICD2 equipment, PC

and Digital Connector. (2) Turn on the MPLAB ICD2 POWER Supply. (3) After turn on the PC and MONITOR, select the ‘MPLAB

IDE’ from the screen.

4-2. Adjustment Sequence

(1) When the program is executed, select the MPLAB ICD2

from Programmer -> Select Programmer .

(2) Select "Configure -> Select Device".

(3) When the "Select Device" window appears, select the

PIC18F1220 from "Device" and press OK.

- 9 -

ADJUSTMENT INSTRUCTIONS

VSC

B/D

<Fig 1> Connection Diagram of EPLD Download

+13V

Connect the MPLAB ICD2 and connector of Digital Board

Connect the RS-232 or USB Cable

GND Data

Page 10

- 10 -

ADJUSTMENT INSTRUCTIONS

(4) Select "Programmer -> Connect".

When connected with the Micom, the display message on the Output window appears as below.

(5) Select "File -> Import", select the Work HEX file and open.

(6) Select "Programmer -> Program".

(7) Download is executed and about 5 seconds later, the

"Programming succeeded" message is displayed on the Output window and the Download process is ended.

(8) The execution of process (6) is convenient when using the

short-cut icon.

5. Gemstar IR Micom Download

5-1. Preparation for Adjustment

(1) As shown below, connect the MPLAB ICD2 equipment, PC

and Digital Connector. (2) Turn on the MPLAB ICD2 POWER Supply. (3) After turn on the PC and MONITOR, select the ‘MPLAB

IDE’ from the screen.

5-2. Adjustment Sequence

(1) When the program is executed, select the MPLAB ICD2

from "Programmer -> Select Programmer" .

(2) Select "Configure -> Select Device".

+13V +5V GND Data Clock

Connect the MPLAB ICD2 and connector of Digital Board

Connect the RS-232 or USB Cable

Connecting to MPLAB ICD 2 ...Connected Setting Vdd source to MPLAB ICD 2 Target Device PIC18F1220 found, revision = 0x4 ...Reading ICD Product ID Running ICD Self Test ...Passed MPLAB ICD 2 Ready

Page 11

- 11 -

ADJUSTMENT INSTRUCTIONS

(3) When the "Select Device" window appears, select the

PIC18F242 from "Device" and press OK.

(4) Select "Programmer -> Connect".

When connect with the Micom, the display message on the Output window appears as below.

(5) Select "File -> Import", select the Work HEX file and open.

(6) Select "Programmer -> Program".

(7) Download is executed and about 3 seconds later, the

"Programming succeeded" message is displayed on the

Output window and the Download process is ended.

(8) The execution of process (6) is convenient when using the

short-cut icon.

6. POD Certificate Download & IEEE1394(DTCP) Download

6-1. Preparation for Adjustment

(1) Connect the MEMORY JIG and PC. (2) Turn on the JIG MAIN POWER SWITCH. (3) After turn on the PC and MONITOR, execute the

‘Certificate Downloader v1.4’ from the screen.

6-2. Adjustment Sequence

(1) After open the ‘Certificate Downloader v1.4’, enter

Connection set and set the as same below. The port settings are determined by each PC's setup.

Connecting to MPLAB ICD 2 ...Connected Setting Vdd source to MPLAB ICD 2 Target Device PIC18F242 found, revision = 0x7 ...Reading ICD Product ID Running ICD Self Test ...Passed MPLAB ICD 2 Ready

Page 12

- 12 -

ADJUSTMENT INSTRUCTIONS

(2) Select ‘Connection’ and SET connected to RS-232C. (3) After clicking "Enter", confirm that "Enter Password:"

appears.

(4) Click the "OpenFile - Download" button from CP Data

Download, ‘select the Private Key’ appears and click ENTER.

(5) After clicking ENTER, the ‘opens Private key' window

appears and select the Private key applied to the SET. The Private Key file name is on the Label of the Digital Board.

(6) When the Dialog window appears, click OK and the write

work will begin.

(7) When completed, click ‘CP Data Download: OK’

[ When ‘CP Data Download: OK’ does not appear, certificate

has not Download correctly. SET is rebooted and certificate Download work must be repeated.

(8) Now, you may begin IEEE1394 (DTCP) Download work.

Select the “DTCP.dat” file by pressing the ‘DTCP File Open’ button.

Page 13

- 13 -

ADJUSTMENT INSTRUCTIONS

(9) After opening the ‘DTCP.dat’ file, confirm the key list in the

DTCP Key List window.

(10) Select the desired item of DTCP key List.

When pressing ‘DTCP key writing’ button, the Progress window will appear.

(11) When completed, “DTCP key Download: OK" will display

in the Terminal window and the SET will reboot automatically.

[ When process (11) malfunctions, it is not Download.

DTCP Download process start again from (8).

7. Gemstar Operation Confirmation

7-1. Required Test Equipment

(1) PC with Factory Test Program (2) G-LINK-To-PC Card (Serial GLINK(CN1202)) (3) VBI Inserter (Norpak TES3) - Guide Data Discharge

Equipment

[ In case of without the VBI Inserter(TES3), a VCR may be

used.

7-2. Preparation for Adjustments

(1) In case of with VBI Inserter(TES3): Signal uses Cable

input and set as below.

(2) In case of without VBI Inserter(TES3): VCR uses Cable

input and set as below.

[ Factory Test S/W must be set to "GlinkTo PC Card" ON.

7-3. Adjustment Confirmation Work

(1) Turn on the TV and run Factory Test Program of PC.

[ Program only needs to run once, regardless of set quantity.

(2) Enter the EZ adjust menu by pressing Adjust on the

Service Remote Control (S R/C). (3) Go to number 1 Gemstar and press Enter. (4) TV set screen will appear as shown.

Input Signal

Page 14

- 14 -

ADJUSTMENT INSTRUCTIONS

(5) Confrim that VBI Test, Glink Test and IR Test PASS from

the screen.

8. Cable Operation Confirmation

(1) Confirm that the Cable Card is inserted in the slot. (2) Enter the EZ adjust menu by pressing the Adjust key on

the Service Remote Control (S R/C).

(3) Go to number 2 Cable Check and press the Right key (

G) .

(4) Confirm items below.

Name

Descrambler

Check

CableCARD

OOB Path

FDC_SNR

Video Signal

Normal

CableCARD

is inserted.

OK(Lock)

OK(20dB above)

Normal Screen

Defective

Not OK

CableCARD

is removed.

Not OK(Unlock)

Not OK(20dB under)

Black Screen

(No Picture)

Page 15

- 15 -

ADJUSTMENT INSTRUCTIONS

9. POWER PCB Assy Voltage Adjustment

(Va, Vs Voltage Adjustment)

9-1. Test Equipment :D.M.M 1EA 9-2. Connection Diagram for Measuring

Refer to Fig 1.

9-3. Adjustment (50”)

(1) Va Adjustment

1) Connect + terminal of D.M.M to Va pin of P805 and connect – terminal to GND pin of P805.

2) Adjust RV501 voltage to match that of the label on the Top/Right of the panel. (Deviation : ±0.5V)

(2) Vs Adjustment

1) Connect + terminal of D.M.M to Vs pin of P805 and connect – terminal to GND pin of P805.

2) Adjust RV401 voltage to match that of the label on the Top/Right of the panel. (Deviation : ±2.0V)

9-4. Adjustment (60”)

(1) Va Adjustment

1) Connect + terminal of D.M.M to Va pin of P805 and connect – terminal to GND pin of P805.

2) Adjust RV501 voltage to match that of the label on the Top/Right of the panel. (Deviation : ±0.5V)

(2) Vs Adjustment

1) Connect + terminal of D.M.M to Vs pin of P805 and connect – terminal to GND pin of P805.

2) Adjust RV401 voltage to match that of the label on the Top/Right of the panel. (Deviation : ±2.0V)

10. EDID(The Extended Display

Identification Data)/DDC (Display Data Channel) download

This is the function that enables “Plug and Play".

10-1. HDMI EDID Data Input

(1) Required Test Equipment

1) Jig for adjusting PC, DDC. (PC serial to D-sub. Connection equipment)

2) S/W for writing DDC(EDID data write & read)

3) D-Sub cable

4) Jig for HDMI Cable connection

(2) Preparation for Adjustments &

Setting of Device

1) Set devices as below and turn on the PC and JIG.

2) Open S/W for writing DDC (EDID data write & read). (operated in DOS mode)

Each PCB Assy must be checked by Check JIG Set before assembly. (Especially, be careful Power PCB Assy which can cause Damage to the PDP Module.)

<Fig. 1-1> Connection Diagram of Power Adjustment for

Measuring (Power Board): 50”

<Fig. 1-2> Connection Diagram of Power Adjustment for

Measuring (Power Board): 60”

PDP TV SET

(or Digital Board)

<Fig. 2>

Page 16

- 16 -

ADJUSTMENT INSTRUCTIONS

10-2. EDID DATA for AF-05FA

: EDID for HDMI (DDC (Display Data Channel) Data)

EDID table =

0 1 2 3 4 5 6 7 8 9 A B C D E F _______________________________________________________

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 00 0E 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23 20 | 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01 30 | 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28 40 | 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20 50 | 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 4C 60 | 47 20 54 56 20 20 20 20 20 20 20 0A 00 00 00 FD 70 | 00 3B 3C 1F 2D 08 00 0A 20 20 20 20 20 20 01 85

0 1 2 3 4 5 6 7 8 9 A B C D E F _______________________________________________________

0 | 02 03 13 F2 44 84 85 03 02 23 15 07 50 65 03 0C 10 | 00 10 00 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 C4 20 | 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10 10 3E 96 30 | 00 13 8E 21 00 00 18 00 00 00 00 00 00 00 00 00 40 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A

: EDID DATA for RGB

EDID table =

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F _______________________________________________________ 00 | 00 FF FF FF FF FF FF 00 1E 6D 01 01 01 01 01 01 10 | 03 0D 01 03 08 6E 3E 96 08 CF 72 A3 57 4C B0 23 20 | 09 45 5D EF CE 00 31 D9 31 59 45 59 01 01 01 01 30 | 01 01 01 01 01 40 C3 1E 00 20 41 00 20 30 10 60 40 | 13 00 4C 6C 42 00 00 18 00 00 00 FC 00 4C 47 20 50 | 54 56 0A 20 20 20 20 20 20 20 00 00 00 FD 00 30 60 | 4C 1E 64 0F 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 44 55 2D 35 30 50 59 31 30 0A 20 20 20 00 94

11. AD9883A-Set Adjustment

11-1. Synopsis

AD9883A-Set adjustment to set the black level and the Gain to optimum.

11-2. Test Equipment

Service R/C, 801GF(802B, 802F, 802R) or MSPG925FA Pattern Generator (720P The Horizontal 100% Color Bar Pattern output will be possible and the output level will accurately have to be revised with 0.7±0.1Vp-p)

11-3. Adjustment

(1) Select Component1 or Component2 as the input with

100% Horizontal Color Bar Pattern(HozTV30Bar) in 720p Mode and select ‘Normal’ in screen.

(2) After receiving signal for at least 1 second, press the ADJ

Key on the Service R/C to enter the ‘Ez - Adjust’ and select the ‘3. AD9883A-Set’. Pressing the + Key to adjust with automatic movement.

(3) When the adjustment is over, 'End Of AD9883A Adjust' is

displayed. If the adjustment has errors, 'AD9883A Configuration Error’ is displayed.

(4) Readjust after confirming the case Pattern or adjustment

condition where the adjustment errors.

(5) After adjustment is complete, exit the adjustment mode by

pressing the ADJ KEY.

12. Adjustment of White Balance

12-1. Required Equipment

(1) Color analyzer (CA-100 or similar product) (2) Automatic adjustor (with automatic adjustment hour

necessity and the RS-232C communication being possible)

(3) Pattern Generator(MSPG-925FA): DVI Output

12-2. Connection Diagram of Equipment

for Measuring (Automatic Adjustment)

<Fig. 3> Adjustment Pattern : 720P/60Hz HozTV31 Bar Pattern

High Light Adjustment

Digital RGB

PDP MONITOR

COLOR

ANALYZER

TYPE; CA-100

MSPG-925FA

Low Light Adjustment

<Fig. 4> Connection Diagram of Automatic Adjustment

Page 17

- 17 -

ADJUSTMENT INSTRUCTIONS

[[

RS-232C Command (Automatic Adjustment)

12-3. Adjustment of White Balance

Operate the Zero-calibration of the CA-100, then attach sensor to PDP module surface when you adjust.

Manual adjustment is also possible by the following sequence.

(1) Enter ‘Ez - Adjust’ by pressing ADJ KEY on the Service

Remote Control.

(2) Select "8. WHITE PATTERN" using CH +/- Key and HEAT

RUN at least 30 minutes by pressing the ENTER Key.

(3) Receive the Window pattern signal from Digital Pattern

Generator. (AV Input: connect the ‘HDMI’)

(4) After attaching sensor to center of screen, select ‘4. White-

Balance’ of ‘Ez - Adjust’ by pressing the ADJ KEY on the Service R/C. Then enter adjustment mode by pressing the Right KEY (

) .

(5) Adjust the Hight Light using R Gain/B Gain/B Gain and

adjust the Low Light using R Cut/G Cut/B Cut.

(6) Adjust using Volume +/- KEY.

[TU-50PY22]

(G-Gain: 127 R-Cut: 63 Fix.)

High Level: 150gray Low Level: 60gray

High X; 0.285±0.003 Y; 0.285±0.002 Low X; 0.285±0.004 Y; 0.285±0.004

Color temperature: 9,800°K±500°K

[TU-60PY22]

(G-Gain: 127 R-Cut: 63 Fix.)

High Level: 150gray Low Level: 60gray

High X; 0.285±0.003 Y; 0.285±0.002 Low X; 0.285±0.004 Y; 0.285±0.004

Color temperature: 9,800°K±500°K

R Gain G Gain

B Gain

R Cut

G Cut

B Cut

00 00 00 00 00 00

ff ff

ff 7f 7f 7f

ja 00 XX jb 00 XX jc 00 XX lj 00 XX lk 00 XX ll 00 XX

50” 60”

RS-232C Command

[CMD ID DATA]

MIN

CENTER

(DEFAULT)

MAX

Page 18

- 18 -

PRINTED CIRCUIT BOARD

MAIN DIGITAL(TOP)

Page 19

- 19 -

PRINTED CIRCUIT BOARD

MAIN DIGITAL(BOTTOM)

Page 20

- 20 -

PRINTED CIRCUIT BOARD

MAIN ANALOG(TOP)

Page 21

- 21 -

PRINTED CIRCUIT BOARD

MAIN ANALOG(BOTTOM)

Page 22

- 22 -

PRINTED CIRCUIT BOARD

SPDIF(TOP) SPDIF(BOTTOM)

SIDE A/V

POWER LED(TOP)

POWER LED(BOTTOM)

INDEX(TOP)

INDEX(BOTTOM)

CONTROL

Page 23

- 23 -

BLOCK DIAGRAM

Page 24

- 24 -

BLOCK DIAGRAM

Page 25

- 25 -

BLOCK DIAGRAM

Page 26

- 26 -

EXPLODED VIEW

303

200

580

306

304

307

121

120

601

600

305

540

560

570

310

212

205

207

206

211

209

203

201

208

210

202

590

501

502

302

301

300

400

101

102

250

240

103

101

520

530

551

550

105

104

430

610

Page 27

- 27 -

EXPLODED VIEW PARTS LIST

101 5900V12003B FAN,DC D12025S SDS 120MM*120MM*25MM 12V/0.2A 1300 5V-13.2V RPM 102 4980V01017A SUPPORTER,FAN EGI RIGHT PDP DN-50PY10 103 4980V01018A SUPPORTER,FAN EGI LEFT PDP DN-50PY10 104 5900V04010A FAN,DC EFB0412LD-W147 DELTA 40*40*20 12V/0.05A 5000RPM 7.0-13.8VDC L=100MM 105 4980V00327B SUPPORTER,FAN EGI 40*40*20,50PY20 PRESS 120 6401VD0024A SPEAKER ASSEMBLY,FULL RANGE(R) NON RZ-42PX40 R 121 6401VD0025A SPEAKER ASSEMBLY,FULL RANGE(L) NON RZ-42PX40 L 200 6348Q-C036H PDP,50 16:9 1365*768 PDP50X20562.AKLGG 201 6871QRH041C PCB ASSEMBLY,DISPLAY XRRT ASSY 50X2A COF RESISTOR 202 6871QCH045A PCB ASSEMBLY,DISPLAY CTRL ASSY 4023 50X2 FOR CI 203 6871QZH036B PCB ASSEMBLY,DISPLAY ZSUS ASSY 50X2A 4LAYER 205 6871QLH035C PCB ASSEMBLY,DISPLAY XRLT ASSY 50X2A COF RESISTOR 206 6871QXH025C PCB ASSEMBLY,DISPLAY XRCB ASSY 50X2A COF RESISTOR 207 6871QLH036C PCB ASSEMBLY,DISPLAY XRLB ASSY 50X2A COF RESISTOR 208 6871QDH081A PCB ASSEMBLY,DISPLAY YDRV ASSY 50X2A YDRV_BTM 209 6871QYH032B PCB ASSEMBLY,DISPLAY YSUS ASSY 50X2A YSUS 4LAYER 210 6871QDH080A PCB ASSEMBLY,DISPLAY YDRV ASSY 50X2A YDRV_TOP 211 6871QRH042C PCB ASSEMBLY,DISPLAY XRRB ASSY 50X2A COF RESISTOR 212 6871QXH024C PCB ASSEMBLY,DISPLAY XRCT ASSY 50X2A COF RESISTOR 240 4980V01195A SUPPORTER ASSY,AL 50PX40 VERTICAL L X3 250 4980V01194A SUPPORTER ASSY,AL 50PX40 VERTICAL R X3 300 3091V00740B CABINET ASSEMBLY,DU-50PX41S NON NON NON 301 3090V00635A CABINET,50PX40 PDP NON 302 3211V00186B FRAME ASSEMBLY,FRONT DU-50PX41S NON 303 4980V01138B SUPPORTER ASSY,AL FILTER TOP 50PX40 304 4980V01140B SUPPORTER ASSY,AL FILTER BOT. 50PX40 305 5230V00017A FILTER(MECH),LGM50-01 MITSUI 50 CLASS B GLASS FILTER 306 4980V01144B SUPPORTER ASSY,AL FILTER SIDE(L) 50PX40 307 4980V01142B SUPPORTER ASSY,AL FILTER SIDE(R) 50PX40 310 5020V01023B BUTTON,CONTROL 50PX40 ABS, AF-303S 7KEY WHITE(8ABS020389) 400 3809V00515C BACK COVER ASSEMBLY,TU-50PX42S NON NON 430 3501V00209A BOARD ASSEMBLY,AP-50DX40 NON WITHOUT PACKING 501 3301V00086M PLATE ASSEMBLY,AV 3300V00539 50PX4DR-UA TUNER BOTTOM 502 3301V00093A PLATE ASSEMBLY,3300V00563 A/V PLATE TU-50PX42S 520 6871VMMT71D PCB ASSEMBLY,MAIN AF-05FA 50PX4DR-UA DIGITAL B/D 530 6871VSMG76D PCB ASSEMBLY,SUB TUNER AF05FA 50PX4DR-UA ANALOG ASSY 540 6871VSMS31A PCB ASSEMBLY,SUB LED AF05GB DN-50PX40 POWER 550 6744B00040A HDD,3.5 ST3160023AS SEAGATE 160GB SATA INNER DT ALL 551 4814V00535B SHIELD ASSY,HDD, TN-50PY20 AF04HA EGI DVR 560 6871VSMS39A PCB ASSEMBLY,SUB CONT AF05GA TN-42PX40X LOCAL KEY 570 6871VSMS37A PCB ASSEMBLY,SUB LED AF05GB DN-50PX40 INDEX 580 6709V00002A POWER SUPPLY ASSEMBLY,AF05GA 580W 1H257W SANKEN 50INCH HIGH END PSU 590 3141VSN930C CHASSIS ASSEMBLY,SUB AF044B AC INLET 600 6871VSMT96A PCB ASSEMBLY,SUB A/V AF05FB DU-50PX41S SIDE A/V 601 4811V00168C BRACKET ASSEMBLY,SIDE AV 50PX40 NON DU-50PX41S 610 3141VSNJ22A CHASSIS ASSEMBLY,SUB AF05FB DU-50PX41S EPF

No.

Part No.

Description

Page 28

- 28 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

IC205 IC205 IC206 IC207 IC208 IC209 IC210 IC300 IC300 IC301 IC302 IC302 IC303 IC304 IC305 IC400 IC401 IC402 IC405 IC406 IC500 IC501 IC502 IC503 IC504 IC504 IC505 IC506 IC508 IC600 IC601 IC601 IC602 IC602 IC603 IC603 IC604 IC604 IC605 IC606 IC607 IC608 IC800 IC801 IC802 IC804 IC805 IC808

0IMCRCY002A

0IMCRSJ001A 0IMCRFA010A 0IMCRSH001A 0IMCRFA010A

0ISJ111733A 0IPMGKE032A 0IMCRPH026B 0IMCRSO025A 0IMCRAL021A

0IMMRHY038C

0ITK118100B

0IMMRHY038C

0ICTM00006A 0IPRP00538A 0IMCRSJ001A

0ICTMLG009C

0IMCRTI028C

0IMCRAL006A

0IKE704200J 0IMMRSS041F 0IMMRSS041F 0IMMRSS041F 0IMMRSS041F 0IMCRCY001A

0IMCRTI035A 0ICTMLG013A 0IMCRFA004A 0IMCRFA010A 0IMCRFA013A

0ICB533100A

0IPRPNE008A

0ISS416162D 0IMO330780B 0IPRPNE008A 0ITO741570C

0ICB841500B

0ISS416162D

0IPMGKE032A

0IPMGSG018C

0IPRPFA015A 0IPRPFA015A 0IPRPS5006A

0IMCRAD002A

0ISJ111733A

0IMMRAL014B

0IPRPFA016A

0IMMRAL014B

CY2309SXC-1HT 16P R/TP 3.3V SC1565IST-1.8 3P SOT223 KA7809R, FAIRCHILD 2P D-PAK PQ05DZ1U SHARP 5 KA7809R, FAIRCHILD 2P D-PAK EZ1117CST-3.3 3P,SOT-223 TP 3.3V KIA78R09F KEC 5PIN DPAK R/TP 1A,9V PA9516APW PHILIPS 16P CXA2181Q SONY 48P AT24C512W-10SI-2.7 8P HY57V561620CT-H 54PIN TK11840L 8P SOT23L HY57V561620CT-H 54PIN LGDT3701 128P/TQFP FSA1156P6X-NL 6P/MAA06A SC1565IST-1.8 3P SOT223 LGDT1102C HD2.3 SBGA-432P TAS5122DCARG4 56P/TSSOP AT24C16AN-10SI-2.7 ATMEL 8P KIA7042AF SOT-89 TP 4.2V K4S641632H-UC60 54P K4S641632H-UC60 54P K4S641632H-UC60 54P K4S641632H-UC60 54P CY2305SXC-1HT CYPRESS SOIC 8P TL592B-8DR 8P LGDT1901A LG IC 24P KA2904DTF FAIRCHILD 8SOP R/TP OP-AMP KA7809R, FAIRCHILD 2P D-PAK 74LCX244MTC FAIRCHILD 20P CS5331A-KSR 8SOIC TP ADC UPD64011BGM-8ED-A NEC 160 K4S161622H-UC80 50P MC33078D 8/SOIC TP LINEAR +-18V OP AMP UPD64011BGM-8ED-A 160 TC74LCX157FT 16P CS8415A-CZR 28P K4S161622H-UC80 50P KIA78R09F KEC 5PIN DPAK R/TP 1A,9V LD1086DT15TR SGS-THOMSON 2P FMS6410CSX-NL(PB-FREE) 8P FMS6410CSX-NL(PB-FREE) 8P SIL9021CTU(PB FREE) 144P AD9883AKST-110 80P EZ1117CST-3.3 3P,SOT-223 TP 3.3V AT24C02N-10SI-2.7 8P FMS6407MTC20X-NL(PB-FREE) 20P AT24C02N-10SI-2.7 ATMEL 8P

LOCA. NO PART NO DESCRIPTION

IC100 IC1000 IC1001 IC1002 IC1003 IC101 IC101 IC101 IC102 IC1100 IC1101 IC111 IC112 IC1200 IC1201 IC1202 IC1203 IC1204 IC1301 IC1302 IC1305 IC1400 IC1500 IC1501 IC1502 IC1600 IC1601 IC1602 IC1603 IC1700 IC1701 IC1702 IC1703 IC1704 IC1705 IC1706 IC1707 IC200 IC200 IC201 IC201 IC202 IC203 IC203 IC204 IC204

0IPRPBM001B

0IMCRSJ001B 0ICTMLG017A 0IMCRFA013A 0IMCRLT002A

0IMI623200B

0ISO206900A 0IMCRSJ001A 0IMCRFA015A 0IMCR02014A 0IPMG00028A

0IMCRMN027D

0IMMRAL014B 0IMCRMP007A 0IMCRMT003A

0IMO744053B

0IPMGNS026A 0IMCRMP006A

0IMCRSJ001A

0IMCRTH002A

0ICTMLG018B 0ICTMLG011A 0IMCR02015A

0IMMRSS041F

0IMCRSJ001A 0IMCRSJ001A 0ILNRBR001A

0IMMRHY025C

0ISTLPH051A

0IMI623200B

0IPRPNS054A

0IPMGKE032A 0IPMGKE032A

0IMCRSJ001B

0IPMGKE032A 0IMCRSH001A 0IMCRSH001A

0IKE702900G

0IMCRMN027D

0ILNR00015A

0ISTLPH026A 0IMCRFA013A 0IMCRXL004A

0IMCRSH001A 0IMCRCY001A

0IMCRSJ001A

PPC405GPR-3JB266C CPU SC1565IST-2.5TR 2.5V 1.5A 3P SOT-223 LGDT3502B LG IC 208P/PBGA 74LCX244MTC FAIRCHILD 20P LCT1470CS8 8P M62320FP 16P CXA2069Q QFP64 BK I2C BUS AV S/W SC1565IST-1.8 3P SOT223 KA7805R FAIRCHILD 2P TSB43DA42AZHCR 196P/BGA AZ1117H-1.5TRE1 BCD 3P/SOT-223 MSP4440K MICRONAS 80P AT24C02N-10SI-2.7 ATMEL 8P PIC18F242T-I/SO 18P MM1108XFFE 8P MC74HC4053DW 16SOP 3*2CH.MUX LM311MX 8P PIC18F1220T-I/SO 28P SC1565IST-1.8 3P SOT223 THC63LVD103 64P LGDP4411 IEP2 LG IC 176P LGDT1303 LG IC 324PIN SII3512ECTU128 128P/TQFP K4S641632H-UC60 54P SC1565IST-1.8 3P SOT223 SC1565IST-1.8 3P SOT223 BCM7040 176 HY57V643220DT-6 86P/TSOP 74LVC257APW 16P M62320FP 16P LM75CIMX-3 8P/SOP KIA78R09F KEC 5PIN KIA78R09F KEC 5PIN SC1565IST-2.5TR 2.5V 1.5A 3P SOT-223 KIA78R09F KEC 5PIN DPAK R/TP 1A,9V PQ05DZ1U SHARP 5 PQ05DZ1U SHARP 5 KIA7029AF SOT-89 TP 2.9V MSP4440K MICRONAS 80P NSP-2100A 64P 74LVC14APW 14PIN 74LCX244MTC 20P XC95288XL-10TQG144C 144P PQ05DZ1U SHARP 5 CY2305SXC-1HT 8P R/TP 3.3V SC1565IST-1.8 3P SOT223

RUN DATE : 2005.4.19

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

Page 29

- 29 -

LOCA. NO PART NO DESCRIPTION IC809

IC900 IC901 IC902 IC903

IC407 IC408 Q101 Q101 Q102 Q102 Q103 Q104 Q105 Q106 Q119 Q120 Q1200 Q1201 Q1204 Q1205 Q121 Q122 Q123 Q124 Q125 Q126 Q127 Q148 Q149 Q150 Q151 Q152 Q153 Q154 Q155 Q156 Q157 Q158 Q159 Q160 Q161 Q162 Q163 Q164 Q165 Q166 Q167 Q175

0IMCRSJ001A 0IMCRXL003B

0IID741632A

0IMCRSG010A

0IMO744053B

0TR830009BA 0TR830009BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR390609DC 0TR390609DC 0TRKE80046A 0TR150400BA 0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA

SC1565IST-1.8 SEMTECH 3P SOT223 XC95144XL-10TQG144C 144P 74FCT163244CPA 48P ST3232CDR 16 R/TP RS232 MC74HC4053DW 16SOP 3*2CH.MUX

BSS83 BSS83 CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC 2N3906S-RTK TP KEC SOT23 2N3906S-RTK TP KEC SOT23 2N3904S SOT23 60V 200MA CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC

LOCA. NO PART NO DESCRIPTION

Q176 Q177 Q201 Q202 Q203 Q204 Q205 Q206 Q207 Q208 Q209 Q301 Q302 Q303 Q305 Q306 Q307 Q601 Q602 Q603 Q604 Q6603 Q6604 Q6607 Q6608 Q6609 Q800 Q801 Q803 Q804 Q805 Q806 Q807 Q808

D111 D1200 D1201 D1202 D1203 D1204 D200 D204 D301 D505 D506 D800 D801 D900 D901

0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR102008AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA

0TRKE80038A

0TR387500AA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA

0TR387500AA 0TR102009AG 0TR102009AG

0TR830009BA

0DZRM00248A 0DD184009AA 0DD184009AA 0DRSE00038A 0DRSE00038A 0DRSE00038A 0DD184009AA 0DZRM00248A 0DD184009AA 0DD184009AA 0DD184009AA 0DD184009AA 0DD184009AA 0DRSE00038A 0DRSE00038A

CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC KRA102S R/TP KEC SOT23 CHIP TR CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC KTC3552T-RTK SOT-23F 50V 3A CHIP 2SC3875S(ALY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SA1504S(ASY) BK KEC CHIP 2SC3875S(ALY) BK KEC CHIP KRC102S KEC TP SOT-23 CHIP KRC102S KEC TP SOT-23 BSS83 BSS83 BSS83 BSS83 BSS83 BSS83

ZENERS,RLZ8.2B-TE11 KDS184 TP KEC - 85V - 300MA KDS184 TP KEC - 85V - 300MA SDC15 TVS SOT23 12.8V SDC15 TVS SOT23 12.8V SDC15 TVS SOT23 12.8V KDS184 TP KEC - 85V - 300MA ,ZENERS,RLZ8.2B-TE11 KDS184 TP KEC - 85V - 300MA KDS184 TP KEC - 85V - 300MA KDS184 TP KEC - 85V - 300MA KDS184 TP KEC - 85V - 300MA KDS184 TP KEC - 85V - 300MA SDC15 TVS SOT23 12.8V SDC15 TVS SOT23 12.8V

REPLACEMENT PARTS LIST

DIODE

TRANSISTOR

Page 30

- 30 -

LOCA. NO PART NO DESCRIPTION IC103

LD101 LED150 LED170 LED301 LED302 LED901

C100 C1003 C101 C1015 C1018 C102 C103 C103 C104 C104 C104 C1041 C1042 C106 C106 C108 C1100 C1107 C1115 C1118 C1121 C1122 C1124 C1125 C1127 C1128 C113 C114 C118 C1200 C1200 C1201 C1202 C1203 C1203 C1203 C1205 C1206 C1208 C1209 C1210 C1211

6301V00004A 0DL200000CA 0DL233309AC 0DL233309AC 0DL233309AC 0DL233309AC 0DL233309AC

0CS335EFKDC 0CE336SH6DC 0CE225WK6DC

0CC200CK41A 0CC200CK41A 0CK103CK56A

0CE4763F618

0CE106WFKDC

0CE225WK6DC

0CE106WFKDC

0CE106SF6DC 0CE336SH6DC 0CE336SH6DC

0CE106VF6DC

0CE106SF6DC

0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC

0CC180CKH1A 0CC180CKH1A

0CE476SF6DC

0CC221CK41A

0CE106WFKDC 0CE106WFKDC

0CE105WK6DC

0CE226SF6DC

0CE475SK6DC

0CC200CK41A

0CK392CK56A

0CE106WFKDC

0CE226SF6DC

0CC200CK41A

0CC561CK41A

0CE475SK6DC

0CC471CK41A

0CK271CK46A

LED ASSEMBLY LED,SAM5670(DL-2LRG) LED,SAM2333 LED,SAM2333 LED,SAM2333 LED,SAM2333 LED,SAM2333

3.3UF 3216 16V 20%,-20% 33UF MVG 25V 20%

2.2UF MVK,RC 50V 20% 20PF 1608 50V 5% 20PF 1608 50V 5%

0.01UF 1608 50V 10% 47UF SRE,SE 16V 20% 10UF MVK 16V 20%,-20%

2.2UF MVK,RC 50V 20% 10UF MVK 16V 20%,-20% 10UF MVG 16V 20% 33UF MVG 25V 20% 33UF MVG 25V 20% 10UF MV 16V 20% 10UF MVG 16V 20% 10UF MVG 16V 20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 18PF 1608 50V 5% 18PF 1608 50V 5% 47UF MVG 16V 20% 47UF MVG 16V 20% 220PF 1608 50V 5% 220PF 1608 50V 5% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 1UF MVK 50V 20% 22UF MVG 16V 20%

4.7UF MVG 50V 20%

4.7UF MVG 50V 20% 20PF 1608 50V 5% 3900PF 1608 50V 10% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 20PF 1608 50V 5% 560PF 1608 50V 5% 560PF 1608 50V 5%

4.7UF MVG 50V 20% 470PF 1608 50V 5% 270PF 1608 50V 5%

LOCA. NO PART NO DESCRIPTION

C1213 C1214 C1216 C1216 C1218 C1219 C1219 C1220 C1221 C1221 C1224 C1225 C1226 C1227 C1228 C1229 C123 C1230 C1231 C1232 C1242 C1255 C1258 C126 C1264 C1266 C1269 C1273 C1277 C1279 C1321 C1322 C1324 C1325 C1327 C1331 C1334 C1335 C1339 C1344 C1345 C1363 C1405 C1419 C144 C148 C149 C150 C1513 C1515 C1516

0CE476SF6DC 0CK105DF64A 0CK102CK56A 0CE476SF6DC

0CE335WK6D8

0CC101CK41A 0CE476SF6DC 0CC101CK41A 0CC101CK41A 0CE476SF6DC

0CC101CK41A 0CK220CK4DA 0CK220CK4DA 0CC180CKH1A 0CK220CK4DA 0CC180CKH1A 0CE106WFKDC

0CC330CK41A

0CE108EJK18

0CE476SF6DC

0CE108EJK18

0CE336SD6DC

0CE476SF6DC

0CE476SF6DC 0CE107WF6DC

0CE476SF6DC

0CE477SF6DC 0CE107WF6DC

0CE476SF6DC

0CK103CK56A

0CE476SF6DC 0CE106WFKDC

0CK102CK56A 0CE106WFKDC

0CE476SF6DC

0CK106EF56A 0CE106WFKDC 0CE106WFKDC 0CE105WK6DC

0CE226SF6DC

0CE476SF6DC 0CE106WFKDC

0CC270CK41A

47UF MVG 16V 20% 1UF 2012 16V 20% R/TP F(Y5V) 1000PF 1608 50V 0.1 47UF MVG 16V 20%

3.3UF MVK,RC 50V 20% 100PF 1608 50V 5% 47UF MVG 16V 20% 100PF 1608 50V 5% 100PF 1608 50V 5% 47UF MVG 16V 20% 100PF 1608 50V 5% 22PF 1608 50V 5% 22PF 1608 50V 5% 18PF 1608 50V 5% 22PF 1608 50V 5% 18PF 1608 50V 5% 10UF MVK 16V 20%,-20% 33PF 1608 50V 5% 33PF 1608 50V 5% 33PF 1608 50V 5% 1000UF KMG,RD 35V 20%,-20% 47UF MVG 16V 20% 1000UF KMG,RD 35V 20%,-20% 33UF MVG 10V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 100UF MVK 16V 20% 47UF MVG 16V 20% 470UF MVG 16V 20% 100UF MVK 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20%

0.01UF 1608 50V 10% 47UF MVG 16V 20% 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20% 47UF MVG 16V 20% 47UF MVG 16V 20% 10UF 3216 16V 10% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 1UF MVK 50V 20% 22UF MVG 16V 20% 22UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVK 16V 20%,-20% 27PF 1608 50V 5% 27PF 1608 50V 5%

REPLACEMENT PARTS LIST

CAPACITOR

Page 31

- 31 -

LOCA. NO PART NO DESCRIPTION C1517

C1518 C1519 C152 C1520 C1529 C1529 C1534 C1537 C1539 C1540 C1541 C1542 C158 C1600 C1606 C1607 C1608 C1609 C161 C1611 C1612 C1613 C1616 C162 C1620 C1622 C163 C1634 C1635 C168 C1703 C1704 C1705 C1706 C1707 C1708 C171 C1712 C1713 C1718 C1719 C172 C1720 C1722 C1728 C1729 C1731 C1734 C1735 C1738

0CK103CK56A 0CK103CK56A 0CK103CK56A

0CE107WF6DC

0CK103CK56A

0CE106WFKDC

0CE336SD6DC

0CE226SF6DC

0CE106WFKDC

0CK103CK56A 0CK103CK56A 0CK103CK56A 0CK103CK56A

0CE105WK6DC

0CE106WFKDC

0CE226SF6DC 0CK102CK56A

0CE106WFKDC

0CK102CK56A

0CE105WK6DC

0CK102CK56A 0CK102CK56A 0CK102CK56A

0CE106WFKDC

0CE225WK6DC

0CC100CK11A

0CE106WFKDC

0CE225WK6DC

0CC100CK11A 0CC100CK11A 0CK105DF64A 0CE477SF6DC 0CE477SF6DC 0CE477SF6DC 0CE477SF6DC 0CE477SF6DC 0CE477SF6DC 0CK105DF64A 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE106SK6DC 0CE477SF6DC 0CE477SF6DC

0CE476WH6DC

0CE476SF6DC 0CE477SF6DC

0CE477SF6DC 0CE227WF6DC 0CE227WF6DC

0.01UF 1608 50V 10%

0.01UF 1608 50V 10% 100UF MVK 16V 20%

0.01UF 1608 50V 10% 10UF MVK 16V 20%,-20% 33UF MVG 10V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20%

0.01UF 1608 50V 10%

0.01UF 1608 50V 10% 1UF MVK 50V 20% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 1UF MVK 50V 20% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20%

2.2UF MVK,RC 50V 20% 10PF 1608 50V 0.5 PF 10UF MVK 16V 20%,-20%

2.2UF MVK,RC 50V 20% 10PF 1608 50V 0.5 PF 10PF 1608 50V 0.5 PF 1UF 2012 16V 20% R/TP F(Y5V) 470UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 1UF 2012 16V 20% R/TP F(Y5V) 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVG 50V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 47UF MVK 25V 20% 47UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 220UF MVK 16V 20% 220UF MVK 16V 20%

LOCA. NO PART NO DESCRIPTION

C1740 C1742 C175 C186 C190 C202 C203 C205 C207 C212 C213 C214 C215 C216 C216 C217 C219 C223 C224 C226 C227 C232 C233 C234 C235 C236 C244 C245 C247 C251 C253 C254 C255 C260 C266 C269 C270 C272 C274 C280 C295 C297 C298 C299 C309 C310 C319 C324 C326 C338 C343

0CE476SF6DC 0CE476SF6DC

0CE108EJK18 0CF4741L438

0CF4741L438 0CE106WFKDC 0CE106WFKDC

0CE476SF6DC

0CE477EK630

0CE477SF6DC 0CE477SF6DC 0CE477SF6DC

0CE477EK630 0CE227WF6DC

0CE477SF6DC 0CE477SF6DC 0CE226SF6DC 0CE477SF6DC

0CE107WF6DC

0CC100CK11A 0CC100CK11A 0CE476SF6DC 0CE476SF6DC

0CE107WF6DC

0CE476SF6DC 0CE476SF6DC 0CE477SF6DC 0CE477SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC

0CE476SF6DC 0CE107WF6DC 0CE107WF6DC

0CE476SF6DC

0CE226SF6DC 0CE335WK6D8 0CE335WK6D8 0CE107WF6DC 0CE106WFKDC 0CE106WFKDC

0CE476SF6DC

0CE476SF6DC 0CE106WFKDC

0CE476SF6DC

0CE476SF6DC 0CE335WK6D8

47UF MVG 16V 20% 47UF MVG 16V 20% 1000UF KMG,RD 35V 20%,-20%

0.47UF D 63V 5%

0.47UF D 63V 5% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 47UF MVG 16V 20% 470UF KMG 50V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 470UF KMG 50V 20% 220UF MVK 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 22UF MVG 16V 20% 470UF MVG 16V 20% 100UF MVK 16V 20% 10PF 1608 50V 0.5 PF 10PF 1608 50V 0.5 PF 47UF MVG 16V 20% 47UF MVG 16V 20% 100UF MVK 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 470UF MVG 16V 20% 470UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 100UF MVK 16V 20% 100UF MVK 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 22UF MVG 16V 20%

3.3UF MVK,RC 50V 20%

3.3UF MVK,RC 50V 20% 100UF MVK 16V 20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVK 16V 20%,-20% 47UF MVG 16V 20% 47UF MVG 16V 20%

3.3UF MVK,RC 50V 20%

REPLACEMENT PARTS LIST

Page 32

- 32 -

LOCA. NO PART NO DESCRIPTION C345

C358 C360 C364 C370 C375 C383 C400 C403 C408 C412 C415 C419 C422 C427 C433 C434 C436 C438 C439 C440 C441 C443 C444 C445 C446 C448 C459 C460 C460 C461 C462 C463 C468 C472 C477 C483 C486 C488 C490 C492 C504 C508 C513 C519 C522 C537 C538 C539 C541 C554

0CE225WK6DC

0CE476SF6DC 0CE476SF6DC

0CE106WFKDC

0CK105DF64A

0CE106SH6DC

0CE476SF6DC 0CE226SF6DC

0CE336SD6DC

0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CK105DF64A 0CE476SF6DC

0CE476SF6DC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC

0CK103CK56A

0CE107WF6DC

0CK103CK56A

0CE107WF6DC 0CE105WK6DC 0CE105WK6DC 0CE107WF6DC

0CE226SF6DC

0CE226SF6DC 0CE106WFKDC

0CE105WK6DC 0CE476WK6DC

0CE476SF6DC

0CE226SF6DC 0CE106WFKDC

0CE226SF6DC

0CE477SF6DC 0CE106WFKDC

0CE107WF6DC

0CE226SF6DC

0CE105WK6DC

2.2UF MVK,RC 50V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVK 16V 20%,-20% 1UF 2012 16V 20% R/TP F(Y5V) 10UF MVG 25V 20% 47UF MVG 16V 20% 22UF MVG 16V 20% 33UF MVG 10V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 1UF 2012 16V 20% R/TP F(Y5V) 47UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20%

0.01UF 1608 50V 10% 100UF MVK 16V 20%

0.01UF 1608 50V 10%

0.01UF 1608 50V 10% 100UF MVK 16V 20% 1UF MVK 50V 20% 1UF MVK 50V 20% 100UF MVK 16V 20% 22UF MVG 16V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20% 1UF MVK 50V 20% 47UF MVK 50V 20% 47UF MVG 16V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 470UF MVG 16V 20% 10UF MVK 16V 20%,-20% 100UF MVK 16V 20% 22UF MVG 16V 20% 1UF MVK 50V 20%

LOCA. NO PART NO DESCRIPTION

C584 C591 C600 C600 C601 C6015 C6017 C602 C602 C603 C603 C6034 C6036 C6038 C604 C6040 C6049 C605 C6054 C609 C610 C611 C612 C613 C614 C616 C618 C619 C620 C621 C624 C625 C627 C6605 C6608 C6609 C6611 C6613 C6615 C6617 C6634 C6660 C6700 C6703 C6706 C6710 C8001 C8002 C8003 C8004 C8005

0CE226SF6DC

0CE335WK6D8

0CK103CK56A

0CE335WK6D8

0CE226SF6DC

0CE476SF6DC 0CE106WFKDC 0CE107WF6DC

0CE226SF6DC

0CC470CK41A 0CE106WFKDC

0CE226SF6DC

0CE226SF6DC 0CE106WFKDC

0CE226SF6DC

0CE226SF6DC 0CE107WF6DC 0CE106WFKDC

0CE226SF6DC 0CE107WF6DC

0CC470CK41A

0CE226SF6DC

0CK103CK56A

0CE476SF6DC

0CK472CK56A 0CE106WFKDC

0CK103CK56A

0CE226SF6DC

0CE226SF6DC 0CE107WF6DC

0CE226SF6DC 0CE106WFKDC

0CE226SF6DC

0CE226SF6DC 0CE107WF6DC

0CE476SF6DC

0CE476SF6DC 0CE106SK6DC 0CE106SK6DC

0CK102CK56A

0CK102CK56A 0CE106WFKDC

22UF MVG 16V 20%

3.3UF MVK,RC 50V 20%

0.01UF 1608 50V 10%

3.3UF MVK,RC 50V 20% 22UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVK 16V 20%,-20% 100UF MVK 16V 20% 22UF MVG 16V 20% 47PF 1608 50V 5% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 22UF MVG 16V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 22UF MVG 16V 20% 100UF MVK 16V 20% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 100UF MVK 16V 20% 47PF 1608 50V 5% 22UF MVG 16V 20% 22UF MVG 16V 20%

0.01UF 1608 50V 10% 47UF MVG 16V 20% 47UF MVG 16V 20% 4700PF 1608 50V 10% 10UF MVK 16V 20%,-20%

0.01UF 1608 50V 10%

0.01UF 1608 50V 10% 22UF MVG 16V 20% 22UF MVG 16V 20% 100UF MVK 16V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 22UF MVG 16V 20% 100UF MVK 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 47UF MVG 16V 20% 10UF MVG 50V 20% 10UF MVG 50V 20% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20%

REPLACEMENT PARTS LIST

Page 33

- 33 -

LOCA. NO PART NO DESCRIPTION C8007

C8008 C8009 C8010 C8013 C8014 C8015 C8016 C8017 C8018 C8019 C8024 C8025 C8026 C8028 C8029 C803 C8030 C8031 C8034 C8036 C8037 C8038 C8040 C8041 C8042 C8047 C8052 C8053 C8054 C8055 C8056 C8057 C8058 C8059 C806 C8060 C8061 C8062 C8063 C8064 C8068 C8070 C8073 C8075 C814 C815 C818 C819 C820 C822

0CK103CK56A 0CC180CKH1A 0CC180CKH1A

0CK102CK56A

0CK103CK56A

0CK102CK56A

0CE106WFKDC 0CE106WFKDC

0CK102CK56A

0CK103CK56A

0CE106WFKDC

0CK103CK56A

0CE106WFKDC 0CE106WFKDC

0CK102CK56A

0CE106WFKDC

0CK102CK56A

0CE106WFKDC

0CK103CK56A

0CE106WFKDC

0CE226SF6DC 0CE336SD6DC

0CE226SF6DC

0CE106WFKDC 0CE106WFKDC

0CK473CH56A

0CC221CK41A

0.01UF 1608 50V 10% 18PF 1608 50V 5% 18PF 1608 50V 5% 1000PF 1608 50V 0.1

0.01UF 1608 50V 10% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1

0.01UF 1608 50V 10% 10UF MVK 16V 20%,-20%

0.01UF 1608 50V 10% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 10UF MVK 16V 20%,-20%

0.01UF 1608 50V 10%

0.01UF 1608 50V 10% 10UF MVK 16V 20%,-20% 22UF MVG 16V 20% 33UF MVG 10V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20%

0.047UF 1608 25V 10%

0.047UF 1608 25V 10% 220PF 1608 50V 5%

LOCA. NO PART NO DESCRIPTION

C824 C825 C843 C849 C863 C874 C883 C885 C889 C892 C893 C898 C899 C920 C921 C923 C925 C926 C927 C928 C929

F1100 F1101 L130 L131 L132 L133 L1700 L1701 L201 L202 L203 L204

C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 C7

0CE226SF6DC 0CE226SF6DC 0CK823CF56A 0CK822CK46A 0CC470CK41A 0CE226SF6DC

0CE226SF6DC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC 0CE106WFKDC

0CK102CK56A

0CC221CK41A

0CC331CK41A

0CK334CF56A

0CK473CH56A

6140VB0021A 6140VB0021A 6140VB0032A 6140VB0032A 6140VB0032A 6140VB0032A 6140VB0004B 6140VB0004B 6140VB0004B 6140VB0004B 6140VB0004B 6140VB0004B

387-J12N 6631V00045B 6631V10004A 6631V10004Z 6631V25032C 6631V25032G 6631V25051B 6631V25083C 6631V25084B 6630CE00168

387-G03P 6631V39015E 6631V39016E

387-G04R

22UF MVG 16V 20% 22UF MVG 16V 20% 82NF 1608 16V 10%

8.2NF 1608 50V 5% 47PF 1608 50V 5% 22UF MVG 16V 20% 22UF MVG 16V 20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 10UF MVK 16V 20%,-20% 1000PF 1608 50V 0.1 1000PF 1608 50V 0.1 220PF 1608 50V 5% 220PF 1608 50V 5% 330PF 1608 50V 5%

0.33UF 1608 16V 10%

0.047UF 1608 25V 10%

COIL,CHOKE 944CM-0004=P3 COIL,CHOKE 944CM-0004=P3 COIL,CHOKE DBF-1015A 15.5UH COIL,CHOKE DBF-1015A 15.5UH COIL,CHOKE DBF-1015A 15.5UH COIL,CHOKE DBF-1015A 15.5UH COIL,CHOKE 26UH COIL,CHOKE 26UH COIL,CHOKE 26UH COIL,CHOKE 26UH COIL,CHOKE 26UH COIL,CHOKE 26UH

CONNECTOR ASSEMBLY,12P 2.5MM 900MM CONNECTOR ASSEMBLY,10P SPECIAL 150MM CONNECTOR ASSEMBLY,31P 1.0MM 80MM CONNECTOR ASSEMBLY,31P 1.0MM 50MM CONNECTOR ASSEMBLY,3P 2.5MM 200MM CONNECTOR ASSEMBLY,3P 2.5MM 400MM CONNECTOR ASSEMBLY,4P 2.5MM 150MM CONNECTOR ASSEMBLY,7P 2.5MM 200MM CONNECTOR ASSEMBLY,12P 2.5MM 150MM CONNECTOR,CARD BUS 10003526-150CALF CONNECTOR ASSEMBLY,3P 2.5MM 1000MM CONNECTOR ASSEMBLY,4P 3.96MM 300MM CONNECTOR ASSEMBLY,10P 3.96MM 300MM CONNECTOR ASSEMBLY,4P 2.5MM 1400MM

REPLACEMENT PARTS LIST

CONNECTOR

COIL

Page 34

- 34 -

LOCA. NO PART NO DESCRIPTION C8

C9 CN1101 CN1102 CN1500 CN1501 CN900 JK300

ANT1 ANT2 CN1202 CN800 CN801 JK101 JK402 JK407 JK408 JK409 JK410 JOPT101 JOPT102 JOPT103

AR110 AR111 AR1301 AR1302 AR1303 AR1304 AR1305 AR1306 AR1307 AR1308 AR1309 AR1310 AR1311 AR1312 AR1313 AR6601 AR6602 AR6603 AR6604 AR6605 AR6606 AR800 AR801 AR802 AR803

387-J06R

387-J08R 6630SD01709 6630SD01709 6630U60039A 6630U60039A

6630G70017A 6630G70016A

6612J00042G 6612J00042G 6612F00055B 6612B00015B 6612B00015B 6613V00026A 6612F00087A 6612J00040B 6612J10012A 6612J10012A 6612F00087A

6612BBBHN4A 6612BBBHN4B 6612BBBHN4B

0RRZVTA001C 0RRZVTA001C 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D

CONNECTOR ASSEMBLY,6P 2.5MM 1400MM CONNECTOR ASSEMBLY,8P 2.5MM 1400MM CONNECTOR,USB YKF45-5006N CONNECTOR,USB YKF45-5006N CONNECTOR,TERMINAL 184-0207100-71 CONNECTOR,TERMINAL 184-0207100-71 CONNECTOR,D-SUB 9P 2.54MM RS232 CONNECTOR,D-SUB 15P 2.29MM RGB

JACK,RCAUCT-EX-063 JACK,RCAUCT-EX-063 JACK,PHONE UEJ-CV-031 JACK,DIN DC1R019WDH JAE 0.5MM JACK,DIN DC1R019WDH JAE 0.5MM JACK ASSEMBLY,UJB-03-28A JACK,PHONE UEJ-CV-032 JACK,RCAUJB-06-23B JACK,RCAUJB-05-02C JACK,RCAUJB-05-02C JACK,PHONE UEJ-CV-032 JACK,DIN TOTX179 JACK,DIN TORX179 JACK,DIN TORX179

4.7K OHM 1 / 16 W 1608 5%

4.7K OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5%

LOCA. NO PART NO DESCRIPTION

AR804 AR805 R1716 R1754 R675

CN201 SW101 SW102 SW103 SW104 SW105 SW106 SW107 SW108

B1000 B1007 B1100 B1101 B1102 B1103 B1104 B116 B1200 B1201 B1302 B1305 B1306 B1308 B1309 B1310 B1311 B1312 B1313 B1400 B1500 B1501 B1600 B1601 B1602 B1700 B1701 B200 B400 B401 B403 B500 B503

0RRZVTA001D 0RRZVTA001D

0RD0272H609 0RD0332H609 0RN1002F409

140-313A 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A

0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B

22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 27 OHM 1/2 W 5.00% TA52 33 OHM 1/2 W 5.00% TA52 10K OHM 1/6 W 1.00% TA52

SWITCH,TACT 2LEAD 100G(TA) SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B SWITCH,TACT SKHV17910B

FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2

REPLACEMENT PARTS LIST

FILTER & CRYSTAL

SWITCH

RESISTOR

JACK

Page 35

- 35 -

LOCA. NO PART NO DESCRIPTION B800

B801 B802 B803 B804 B805 B806 B807 B808 B810 B901 F1200 F1700 F1701 F1702 F1703 F1704 F1705 F1706 F1707 F1708 F1709 F1710 F1711 F1712 F1713 F1714 F1715 F1716 F1717 F1718 F1719 F1720 F1721 F1722 F1725 F1726 F1727 F1728 F700 F701 F702 F703 F704 F705 F706 F710 F711 F714 F715 F716

0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B 0LCML00003B

6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QJ3001A

FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC MLB-201209-0120P-N2 FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA

LOCA. NO PART NO DESCRIPTION

F717 F718 F719 IC502 L101 L102 L112 L115 L116 L117 L118 L119 L200 L205 L206 L207 L208 L209 L210 L211 L212 L213 L214 L215 L216 L220 L227 L228 L229 L230 L231 L232 L234 L235 L312 L320 L321 L412 L420 L421 L510 L511 L6602 L6603 L6604 L6605 L6607 L6608 L6609 L6610 L6611

6200QJ3001A 6200QJ3001A 6200QJ3001A 6200QL3002E 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0005A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A

FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,EMC BMS400 25V 200MA FILTER,SAW X9650M 44MHZ 5PIN FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC BK2125 HS 750 FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT FILTER,EMC FBMH3216 HM501NT

REPLACEMENT PARTS LIST

Page 36

- 36 -

LOCA. NO PART NO DESCRIPTION L6615

X1000 X102 X103 X104 X1101 X1200 X1202 X1500 X200 X401 X6601 X6602 X801

C1 C2 C3 C4 C5 C6 IC305 IC306 IC307 IC308 IC404 J1 PA101 SW301 TU301 TU302 TU500 VA1100 VA1101 VA1102 VA1103 VA1104 VA1105 VA1106 VA1107 VX500 X1100 X1600 X200 X302

A1 A2 A3

6210VC0006A 6212AC2001D 6202VDT002H 6212BA2002C 6212AB2015A 6212AB2806A 6212AB2015E 6212AB2015A 6212AB2015C 6202VDT002H 6202VDT002D 6212AB2806A 6212AB2806A 6212AB2845A

6850U00002C

6851V00080A 6850J00005B 6851V00022B 6851V00022C

6850U00002D 6927V1276AC 6927V1277AC 6927V1278AC 6927V1279AC 6927V1211AQ

6871VSMQ67A

6712000010A 6634D00010B

6700AN0002C 6700NF0019B

6700NC0001B 6102W5V016A 6102W5V016A 6102W5V016A 6102W5V016A 6102W5V016A 6102W5V016A 6102W5V016A 6102W5V016A

6204B60001B

6204B47985M

6204B47985N 6204B47985L 6204B47985K

3828VA0528A 6710V00141T

6410VUH005C

FILTER,EMC FBMH3216 HM501NT RESONATOR,CRYSTAL HC-49/SM 14MHZ RESONATOR,CRYSTAL SX-1 18.432000MHZ RESONATOR,CERAMIC CSALA2M69G4ZF01-B0 RESONATOR,CRYSTAL HC-49/SM4H 4MHZ RESONATOR,CRYSTAL SX-1 24.576MHZ RESONATOR,CRYSTAL HC-49/SM 10.0MHZ RESONATOR,CRYSTAL HC-49/SM4H 4MHZ RESONATOR,CRYSTAL HC-49/SM4H 25MHZ RESONATOR,CRYSTAL SX-1 18.432000MHZ RESONATOR,CRYSTAL SX-1SMD 8.0MHZ RESONATOR,CRYSTAL SX-1 24.576MHZ RESONATOR,CRYSTAL SX-1 24.576MHZ RESONATOR,CRYSTAL ABLS-27.000MHZ

CABLE,USB SERIAL ATA UL2725 AWG26 200MM CABLE ASSEMBLY,1537740-1(AMP) H CABLE,DVI LVDS UL20276 AWG30 500MM CABLE,COAXIAL(100MM),UL1365#26 VW-1 CABLE,COAXIAL(150MM),UL1365#26 VW-1 CABLE,USB SERIAL ATA UL2725 AWG26 800MM SOFT WARE,3.01.1V 7861 PDP AF05FA SOFT WARE,3.01.1V CB38 PDP AF05FA SOFT WARE,3.01.1V 0F19 PDP AF05FA SOFT WARE,3.01.1V 3821 PDP AF05FA SOFT WARE,3.02V 602D PDP AF05FA PCB ASSEMBLY,SUB AUDIO AF05FA REMOTE CONTROLLER RECEIVER,38KHZ ADAPTER,RF TASA-H301P TUNER,TDVS-H702P TUNER,TAFM-H103P TUNER,TAEU-H018P VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT VARISTOR,AVRL161A1R1NT OSCILLATOR,27MHZ +/- 100 PPM 3.3V OSCILLATOR,SCO-103 13.5MHZ OSCILLATOR,SCO-103 83.33MHZ OSCILLATOR,SCO-103 33.33HZ OSCILLATOR,BMS-873R 25MHZ

MANUAL,OWNERS AF05FA REMOTE CONTROLLER POWER CORD,BP-301 2800MM

LOCA. NO PART NO DESCRIPTION

A4 A5 A6 A7

6850TD9007E 6851V00019A 6851V00023B 4972V00178A

CABLE,D-SUB UL20276-9C(5.8MM) DT L1800, CABLE ASSEMBLY,RF 4AC208A0 3M CORE CABLE ASSEMBLY,BIZLINK XX15563-88A 3000MM FIXER,WALL NON ASSY PDP SET

REPLACEMENT PARTS LIST

MISCELLANEOUS

ACCESSORIES

Page 37
