Installation and Operating Instructions
®
Zenith HydroTap
Filtered boiling and chilled drinking water for kitchens and tea rooms.
Commercial Models
37671 Zenith HydroTap BC60/85
30271 Zenith HydroTap BC100/125
30281 Zenith HydroTap BC150/175
37201 Zenith HydroTap B10OF
38201 Zenith HydroTap B150F
37691 Zenith HydroTap B60
37291 Zenith HydroTap B100
38291 Zenith HydroTap B150
Disabled Models
37676 Zenith HydroTap BCD60/85
37276 Zenith HydroTap BCD100/125
38286 Zenith HydroTap BCD150/175
37206 Zenith HydroTap BD10OF
38206 Zenith HydroTap BD150F
37696 Zenith HydroTap BD60
37296 Zenith HydroTap BD100
38296 Zenith HydroTap BD150
81467 - February 2005
Domestic models
30009 Zenith HydroTap HT60
30609 Zenith HydroTap HTD60
36051 Zenith HydroTap HT60/85
36651 Zenith HydroTap HTD60/85
37606 Zenith HydroTap BFD60 (Ambient)
37601 Zenith HydroTap BF60 (Ambient)
Contents
Read These Warnings First . . . . . . . . . . . . . . . . . . . . . . . . . .3
Models covered by these instructions . . . . . . . . . . . . . . . . . .4
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Special tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Step A - Installing the tap (all models) . . . . . . . . . . . .5
Step B - Installing the undersink unit (all models) . . .6
Step C - Connecting the tap, BC & B models . . . . . . .6
Step D - Connecting the Water Supply (all models) . .7
Step E - Testing and commissioning . . . . . . . . . . . . .7
Font Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operating the Tap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Replacing the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Pull-out Font Template pages . . . . . . . . . . . . . . . . . . . . . .a, b, c, d.
Setting the Energy Saver Timer . . . . . . . . . . . . . . . . . . . . . . .15
AuxillIiary Fan Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Hot Safety Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

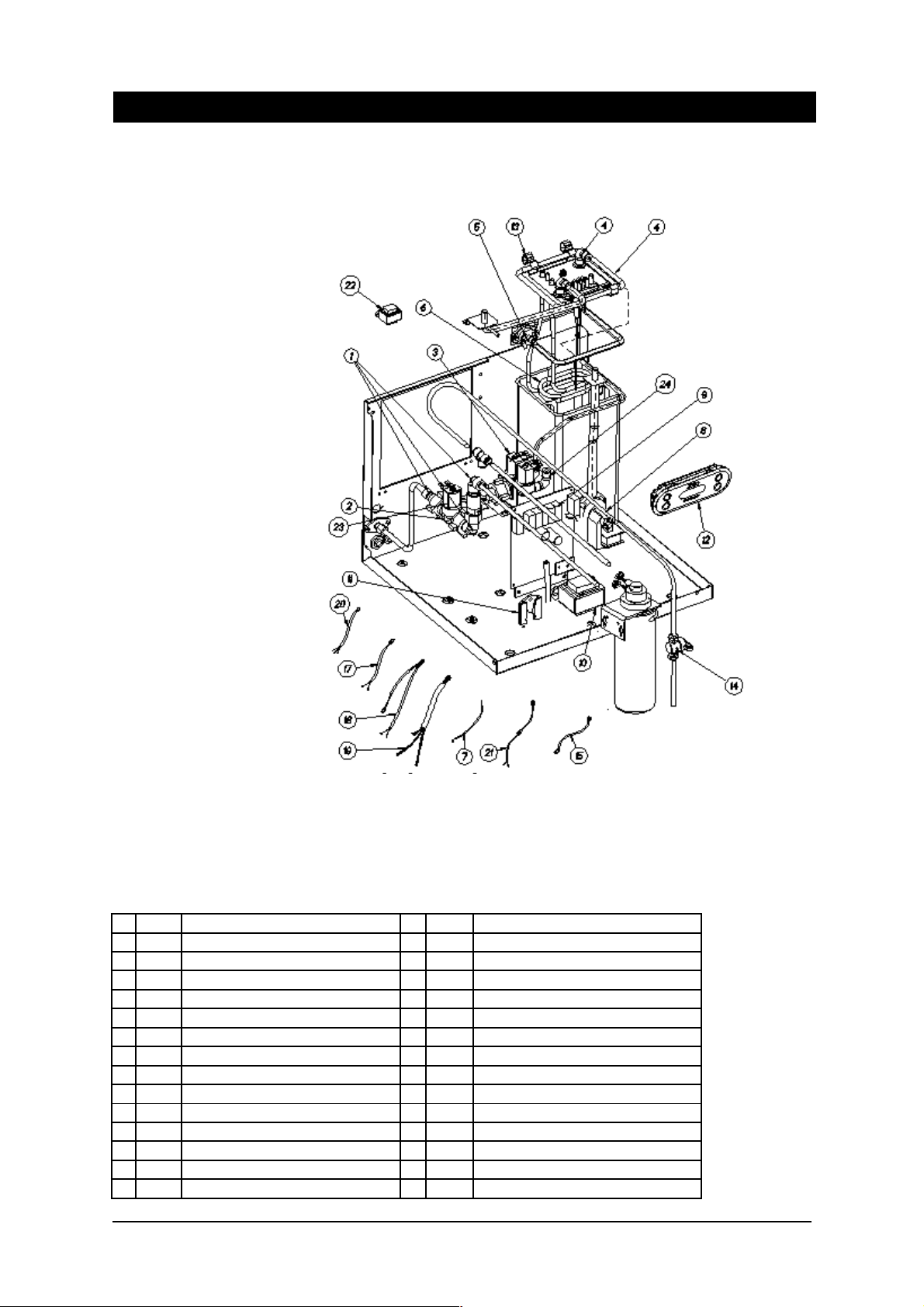

Exploded view Chiller Module and Spares . . . . . . . . . . . . . . .18
Exploded view Boiler Module and Spares . . . . . . . . . . . . . . .19
Exploded view HT series boiler only . . . . . . . . . . . . . . . . . . .20
Intentionally blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Intentionally blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Intentionally blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
NOTE:
All plumbing must comply with AS3500.4.1 & AS3500.4.2
All electrical must comply with AS3350.1,AS3350.2.15
Page 2 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
The power point must be located within
reach of it’s cable.The appliance must be
positioned so that the plug is accessable.
Read These Warnings First
Safety
Do not allow young children, handica pped or infirm persons, to use the Zenith
HydroTap without supervision.
Refrigerant
The Zenith HydroTap Chilling unit contains 134A refrigerant under pressure. No
part of the unit should be exposed to a naked flame. Maintenance of the
refrigeration unit must be carried out by an accredited service provider or
qualified refrigeration mechanic.
Qualifications
If any power cord or plug is damaged it must be repaired only by a qualified
technician.To avoid hazards,all installation procedures must be carried out by
a suitably qualified tradesperson.The power cord and general power outlet
must be in a safe visible position for connection.
Venting
Sometimes steam and / or boiling water may discharge through a vent outlet at
the mouth of the tap. If the ta p is not installed using the Font pedestal, ensure
the tap body is located so the tap outlet safely drains into the sink bowl area.
NOTE: On startup, the controls take the system through a calibration process
which causes the unit to over-boil for a period of 90 secs.This is normal
operation, once this mode is completed the system reverts back to normal
operation.
Zip Hydrotap undersink assembly.
The appliance must be placed in a
horizontal position, as shown above.
Lifting
Take care when lifting the Zenith HydroTap undersink unit.Some units may exceed
safe lifting limits. Do not lift without assistance. The weights of the units are
given in the table under the heading “Installation Requirements”.Do not lift the
unit by the doors.
Airflow
The ambient temperatures this unit should operate within are 5ºC - 35ºC. Proper
air circulation must be provided.The system will operate satisfactorily only if
the recommended air gaps are provided, these are 65mm min rear clearance
and 50mm side clearance.An air vent is provided with each unit for high usage
applications, this must be installed in the top half of the cupboard door as a
matter of course.An optional fan kit is available and should be used to ensure
adequate ventilation. Make sure that the ventilation grilles of the undersink unit
are not obstructed.
Altitude (not HT boiling only series)
The Zenith HydroTap is equipped with a self-calibrating program which caters for
altitude adjustment.
Filter For models : BC, BD, BF
The Zenith HydroTap filter control is preset to 6000 Litres to provide trouble-free
flow and operation in most installations. Local water quality conditions may
require an alteration to this capacity.In areas where the water has a high
concentration of sediment, the preset litre ca pacity may be shortened to avoid
poor flow,taste or odour situations. In areas where the water quality is above
average, lengthening the preset capacity may be desirable, but not essential. If
any of these changes is needed, follo w the instructions on page 11 or contact
your Zenith Service Provider.
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 3 of 20
# Section Heading# Section Heading
Read These Warnings First continued
Frost Protection
If this appliance is located where the ambient air temperature could fall below 5ºC
when the heater is not in use, do not turn off the a ppliance electrically.This
safeguard does not offer the same protection to the connecting pipework and
fittings.
Installation Environment Considerations
This unit is intended for indoor use only and should never be installed outdoors
or exposed to the elements of nature.This unit must not be positioned in an
area that may be cleaned by a water jet.This unit must not be cleaned by a
water jet.
Models covered by these instructions
These Installation Instructions cover the entire Zenith HydroTap range.Use the
chart on the left to identify the model you are using:
Commercial and Domestic Models:
BC = Boiling and Chilled, Filtered, Timer
BC
Model
100
Cups of
Boiling Water
per Hour
125
Glasses of
Chilled Water
per Hour
BF = Boiling, Filtered
BD = Boiling and Ambient Filtered
B = Boiling only (unfiltered)
D = Disabled Lever controls, (Optional order only)
HT = Domestic Models (boiling only are unfiltered, boiling/chilled are filtered)
Boiling Water Capacity:
100 = 100 cups in one hour 150 = 150 cups in one hour
Chilled Water Capacity: (BC only)
125 = 125 glasses in one hour 175 = 175 glasses in one hour
Filtration: (BC, BD and BF only)
Note: The Cup measurement = 167mls, the Glass measurement = 200mls.
Model
BC & HT 60/85
BC 100/125
BC 150/175
BD 60
B 150
B 100
B 60
Installation Requirements
Before installing ensure that the following have been provided at the
installation site:
• Sufficient space in the cupboard to install the undersink unit in accordance
with these Installation Instructions.A table of dimensions is given below.
Height
mm (inch)
337 (13.2) 430 (16.9) 440 (17.3) 28 (61.7) 34.5 (76)
337 (13.2) 430 (16.9) 28 (61.7) 35 (77.1)
395 (15.5) 465 (18.3) 500 (19.6) 29.5 (65) 38 (83.7)
353 (13.8) 320 (12.5) 9 (19.8)
409 (16.1) 340 (13.3) 321 (12.6) 10 (22) 14 (30.8)
353 (13.8) 320 (12.5) 9.5 (20.9) 12 (26.4)
353 (13.8) 320 (12.5) 290 (11.4) 9 (19.8) 11.5 (25.3)
NOTE: Add 65mm to the Depth to the under-sink unit to allow for Water and Electrical connections
• A water supply connection with isolating valve inside the cupboard within
Depth
mm (inch)
reach of the 750 mm flexible connection and positioned so that the
connection point and the stop cock will not be obstructed when the
undersink unit is installed.
Width
mm (inch)
440 (17.3)
290 (11.4)
290 (11.4)
Weight empty
kg’s lbs
Weight full
kg’s lbs
11.5 (25.3)
• Power supply 220-240 Volt AC,for connection to the heater via a 10 amp
G.P.O.
Page 4 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Installation Requirements continued
• This switch must provide all-pole disconnection and a contact separation
of at least 3mm installed in accordance with wiring rules.
• Cold water supply with a minimum working pressure of 175 kPa and a
maximum working pressure of 700 kPa connected via an isolation valve.If
pressure is likely to exceed 700 kPa,install a 500 kPa Pressure Limiting
Valve.
• The fitting of an air flow vent cut into the top half of the cupboard door
concealing the HydroTap requiring a cut size of approximately 100mm
circular, to provide adequate warm air displacement. In installations where
high volume draw-off will occur,the fitting of the accessory exhaust fan is
essential.
Important: Do not proceed with the installation if these requirements are
not met.
Special tools required
In addition to normal tools, the following will be required:
• 38mm diameter sheet metal hole punch for sink tops.(not supplied)
• 38mm diameter hole saw for timber bench tops.(not supplied)
• Nut runner tube spanner (supplied) for fixing tap assembly.
Note: A stainless steel washer is
supplied to go in between the
Spider Clamp and the underside
of the sink top. Position it here.
Fixing nut Black spacer
Spider clamp Smear silicon
on underside
flat surface
When installing a Font unit:
• 108mm diameter sheet metal or hole saw to suit surface being cut.
Installation procedure
Step A - Installing the tap (all models)
1. Make sure that the ta p location will allo w the nozzle to drain into the sink.
2. Install the 38mm hole in the bench / sink top.
3. Remove the “Spider Clamp” and S/S washer by undoing the 6mm nut
located on the “All Thread” at the base of the Tap Head Assembly.
A tube spanner is supplied in your installation kit for this job.
4. Ensure the black plastic spacer remains in place as this is the moisture
seal against the bench / sink top.A light smearing of silicon sealant on the
underside of the spacer will ensure a watertight fit.
5. Pass all three hoses through the 38mm hole and carefully locate the Head
Assembly and black spacer on the bench / sink area.
6. From the underside of the bench / sink area re-locate the S/S washer and
“Spider Clamp” by feeding each of the three tubes and electrical cable
evenly in between the legs of the “Spider Clamp”. Slide it up to meet the
“All Thread”,and pass the “All Thread”through the center of the “Spider
Clamp”.
7. Hold the “All Thread”steady and re-fit the 6mm nut to the “All Thread”
using the tube spanner supplied in the kit. Check the Tap Head position
before securing it tightly against the bench / sink top.
NOTE 1: The tap assembly must not be positioned more than 1m above
the HydroTap unit. Failure to do this may result in poor water delivery.
NOTE 2: Under no circumstances should the Tap be twisted after the
installation is complete.
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 5 of 20
Installation procedure continued
Step B - Installing the undersink unit (all models)
SPECIAL NOTE: The HydroTap undersink units are heavy,take note of the
weights listed in the table on page 4. If you think you cannot lift the unit
safely,get help and avoid possible injury.

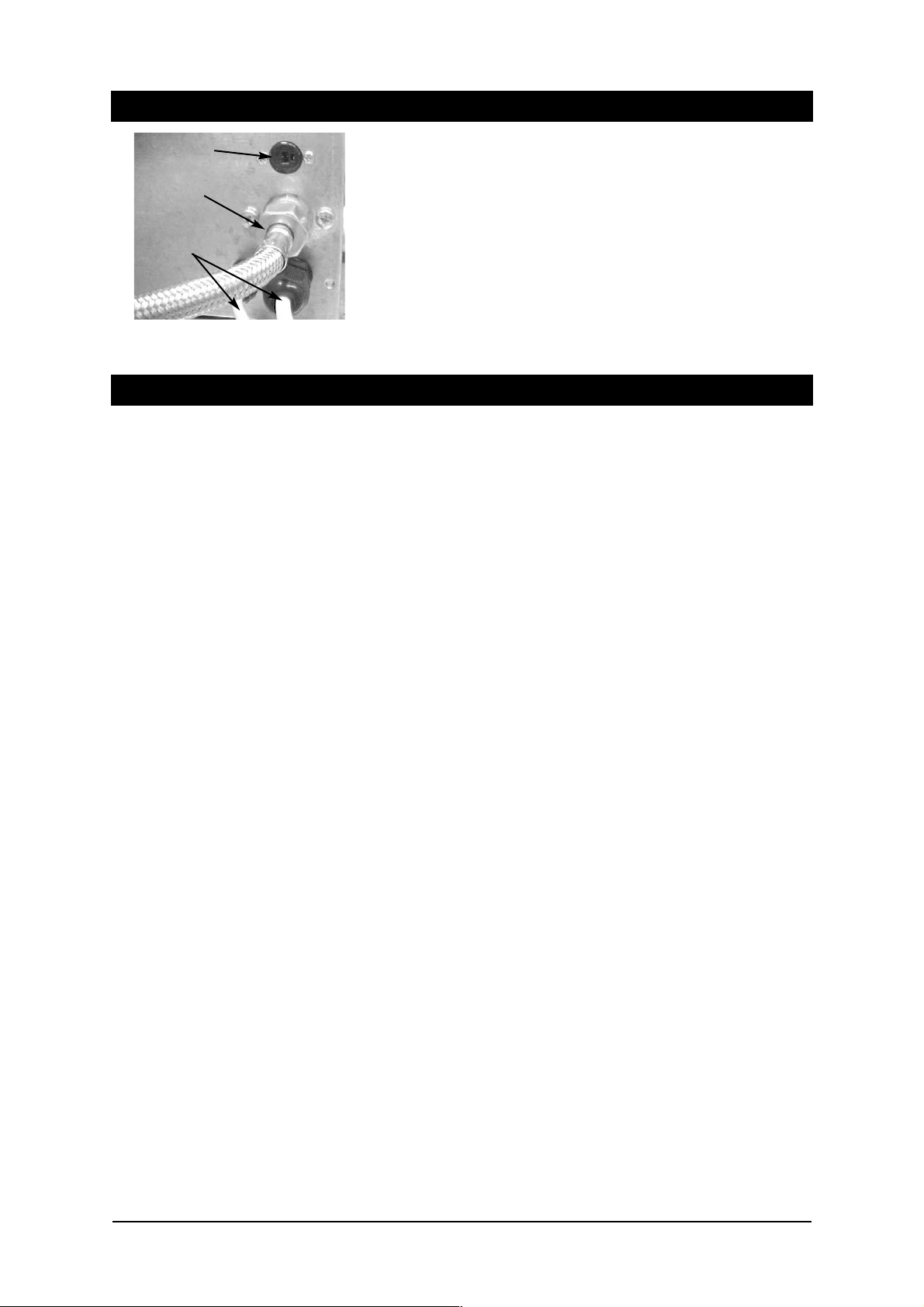

Before positioning the heater connect the braided water inlet hose (supplied) to the
cold water inlet on the unit.This is located at the rear of the unit.
Position the Zenith HydroTap undersink unit as close as possible to directly beneath
the Zenith HydroTap tap head.
The connection tubes supplied with the tap head assembly CANNOT be lengthened.
Leave at least a 50 mm air-gap without obstruction on each side of the unit.
Adjust both cupboard door hinges and attach the supplied rubber door buffers to
the doors to create a 4 mm air-gap between the doors and the cupboard.This is
the minimum ventilation requirement for low usage installations.
Important Note: Proper air circulation must be provided for all Boiling and Chilled
models.The system will operate correctly only if the recommended air gaps are
achieved during installation.A ventilation hole measuring 100mm must be cut into
the top half of the cupboard door to accommodate the air vent provided. Make
sure that the undersink unit ventilation grilles are not obstructed in any way.
This instruction is critical!
Cupboard ventilation for Boiling only and Boiling Ambient models is recommended
but not essential.
Step C - Connecting the tap
Model BC and HT (boiling/chilled models)
Measure and trim the blue tube and connect it to the chilled water outlet located on
the top front, right hand side of the nder-sink unit. Use spring clamps provided.
Measure and trim the red marked tube and connect it to the hot water outlet
located on the top center,right hand side of the undersink unit. Use spring clamps
provided.
Measure and trim the unmarked tube and connect it to the vent outlet located on
the top center, left hand side the top of the undersink unit.Use spring clamps
Vent line
Chilled line Hot line
provided.
NOTE: All tubes must have a continuous fall back to the undersink unit.
Connect the tap USB connector to the USB connector attached to the undersink
unit. Orient the USB plug carefully and connect, do not force the plug. Once
connected, fix the cable to the wall, ensure it is away from any possible water
splashes and is off the floor.
Note: When trimming any silicon tubes trim to minimum length, do not loop any
excess or allow kinking of the tubes.When connecting, slide the tube over the pipe
at least 25mm.
Model B, BD and HT (boiling only models)
Hot Outlet
Measure and trim the red marked tube and / or the blue marked tube and connect
it to the hot water outlet and amblient outlet if a BD model, on the top of the
undersink unit. Use spring clamps provided.
Measure and trim the unmarked tube and connect it to the vent outlet on the top of
the undersink unit. Use spring clamps provided.
Vent
Front
NOTE: All tubes must have a continuous fall back to the undersink unit.
Connect the tap USB connector to the USB connector attached to the undersink
unit. Orient the USB plug carefully and connect, do not force the plug. Once
connected, fix the cable to the wall, ensure it is away from any possible water
splashes and is off the floor.
Page 6 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Installation procedure continued
Step D - Connecting the water supply (all models)
To prevent sediment from entering the Zenith HydroTap at connection,flush water
through the supply line thoroughly before connection to the Zenith HydroTap.
Open the access door and check that the filter is in place and secure. Connect
the water supply to the undersink unit using the attached flexible hose.
Turn on water and check for leaks. If no leaks are evident turn the poer on.
Step E - Testing and commissioning (all models except boiling only HT models)
Use these buttons to
scroll through the menu
Use these buttons to
activate and de-activate
the program selected
Filter Flush Mode (filtered models only)
The display screen will show which model you have.
Have a bucket or similar container (not supplied) at the ready to
hold a quantity of water that is ejected while the Filter Flush Mode is in
operation. Open the filter access door on the front of the HydroTa p and the
filter cartridge will be exposed. Located to the rear RHS of the cartridge is a
fixed flush line, approx 600mm long and the flush line stop cock. Place the
free end of the flush line into the bucket or container (not supplied).
Turn “ON” both water and electricity supplies and open the flush line stop
cock.The display will show Filter Flush Mode. To activa te press adjust ∧. Run
at least 7.5 Ltrs of water through to activate the filter membrane. Press the
adjust ∧ button again to stop the Filter Flush Mode.Turn OFFthe Filter Flush
stop cock and re-locate the tube and stop cock in the filter compartment.
Turning OFF the Filter Flush Mode puts the HydroTap into calibration mode.
Press adjust ∧ to start calibration.The element will now cycle On and heat the
water to 95ºC maintaining it at that temperature for a short stabilization
period.
Once stabilized, the element will cycle On, bring the water to boiling point
and hold it there for a short period.
The unit now carries out a self calibration function to ensure correct
temperatures are maintained. During this period the Red LED on the Tap Head
assembly flashes slowly until the calibration function is complete.
Boiling Water Lever Chilled Water Lever
Red Light White Light Blue Light
Boiling Filter Status Chilled
Once this step is complete (approx 5 minutes) the unit will default to normal
operation.
When starting, both Boiling and Chilled cycles activate similtaneously after
calibration has taken place, the descriptions belo w indicate what ha ppens
during each cycle.
Boiling
The unit is now running in normal operating mode.The Red LED will flash until
usable temperature is reached.
Before using the HydroTap wait 5 minutes after this point to allow adequate fill
time.The unit is now ready for use. Testwater delivery from the tap and check
for appropriate temperatures. Use cable clips to tidy and secure wiring.
Chilled
When water and power is turned On, the Blue LED flashes slowly on the Tap
Head assembly.The compressor activa tes and water begins to fill the chiller
tank at the prescribed rate.When the water is chilled to 10ºC the Blue LED on
the Tap Head assembly stops flashing and stays illuminated. The compressor
continues to chill down to 5º after which it will cycle Off.
Ensure that the clock matches your local time. If not refer to page 15 “Set
time”. If Energy Sa ver Settings are required, the instructions for installing
these are described on on page 11 “Setting the Energ y Saver Timer”.
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 7 of 20
Cut a 10mm
slot for stud
Tap assy
hole 38mm
Font installation procedure
1. Position the Font template (provided) on the bench area. Ensure the
position you select is within the length of the supply tube and USB cable
fixed to the Tap Head Assembly.These cannot be extended.
2. Check a gain for correct positioning. The supply hoses must have
constant fall back to the tank assembly.Cut the holes as shown on
the template.
3. Once holes are cut, locate the Font base in position, from the underside,
lightly tighten the securing rod with the nut and washer provided.
4. Now take the Tap Head Assembly and remove the fixing nut, washer and
“Spider Clamp” from the “All Thread”.Apply a light smear of silicon
sealant to the underside of the black base ring, this will provide a water
tight seal against the Font base when clamped.
5. Feed the hoses and USB cable through the Font base, then through the
plastic spacer that sits under the font base but on the bench top, this
stops warping of the base plate. Ensure the Tap spout is directly centered
over the Font drain.Refit the “Spider Clamp”, nut and washer onto the “All
Thread”. Have all the supply tubes and USB cable located evenly between the
Spider Clamp legs.When satisfied with the positioning, tighten the fixing nut
with the Tube Spanner provided in the kit.
Fixing stud
Hole required for Font
recess 108mm
View from underside
Black ring
LARGE HOLE
Spider clamp
Drain elbow
All-thread
NOTE: The “All Thread” is a “floating” component, it locks into place once
tension is applied by the fixing nut and washer.
6. Tighten the securing pin so the Font base is flush with the bench top.
NOTE: The fixing nut above the drain elbow can be loosened to correctly
position the direction of the elbow.Ensure when the re-positioning is
complete the nut is re-tightened to ensure a water tight seal.
7. Connect a drain hose (22mm ID) from the Font base outlet elbow to the
closest drain trap spigot available. If a spigot is not available use the sna p
on spigot and worm drive clamps supplied in the kit.
8. Ensure the positioning of the snap-on spigot is on the “sink” side of the
trap and not the “waste”side. Once positioned, a hole (13mm ID) will
need to be drilled to provide waste access to the drain line.The snap-on
unit will require suitable sealant to keep it water tight against the waste
pipe. Finish by fitting the worm drive clamps tightly on either side of the
spigot and fitting worm drive clamps to either end of the drain hose.The
drain hose from the Font must have constant fall
9. Connect the Tap headAssembly supply hoses and vent as per the instructions
contained in the installation procedure section of this document.
Page 8 0f 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Note: On the Boiling only models
the Chilled LED is blank.
Operating the Tap
Blue Chilled Water Light
On all the time:
This indicates that the chilled water temperature is within the usable range.
Flashing slowly :
This indicates that the chilled water is not at the right temperature. Wait up to
20 minutes.When the chilled water is ready,the light will stop flashing.
Note: The Zenith HydroTap is designed to dispense chilled water in the temperature
range 5°C to 10°C. During heavy usage, the temperature can rise out of this range.
Red Boiling Water Light
On all the time:
This indicates that the boiling water is ready.
Flashing slowly :
This indicates that the boiling water is below usable temperature.
Filter Change Light Off:
This indicates the filter is operating within its normal specified lifespan.
Filter Change Light Flashing slowly :
The light will flash slowly when the filter is due for replacement and the LCD will
show “Filter Change”. Refer to "Replacing the filter" section of this document.
Boiling Water Lever
Depressing the “Red” lever allows dispensing of boiling water.Pulling up the
Red lever allows the tap to operate in a “no-touch” mode. Water will flow for a
maximum time of 15 seconds. To reset,return the handle to the “Off ” position
and repeat the step.The lever has to be manually returned to the “Off” position.
Chilled Water Lever
Depressing the “Blue” lever allows dispensing of chilled water. Pulling up the
Blue lever allows the tap to operate in a “no-touch” mode. Water will flow for a
maximum time of 15 seconds. To reset,return the handle to the “Off ” position and
repeat the step.The lever has to be manually returned to the "Off" position.
Child Proof Lock (boiling / chilled models)
The child proof lock can be activated to prevent boiling water flowing if the hot
lever is inadvertently activated. To activate,first press the safety button then
depress the Blue chilled water lever for a period of approximately ten seconds. The
safety lock indicator light will now be illuminated. To de-activate, first press the
safety button then depress the Blue chilled water lever for a period of
approximately ten seconds.The safety lock indicator light will now extinguish. To
operate when the lock is "ON", depress both the Red lever and the safety button
simultaneously.
Child Proof Lock (all boiling only models except HT models)
To activate the child safety lock, go to the LCD display,using menu ∧ or ∨ scroll to
the Child Safety Lock display.To turn ON adjust ∧ to turn OFF adjust ∨ button.
After about 10 secs the screen will default to the selected mode. When activated
Child safety Lock
the LED on the safety lock will be illuminated. When de-activated the LED will be off.
Child Proof Lock (HT boiling only models)
Pressing the safety button rapidly three times will either activate or de-activate the lock.
Indicator light ON means the lock is active, indica tor OFF means the lock is inactive.
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 9 of 20
Cleaning
Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft cloth
or brush and mild soap and water.
Do not spray water over the tap as it may damage the low-voltage electronics.
Undersink units must never be cleaned with water jets.
Replacing the Filter (filtered models only)
The Zenith HydroTap notifies the user when filter replacement is due. The default
seting is 6000L. When a filter change is due, the Change Filter light flashes once
a minute and remains so until reset.The filter status light is located between the
Red and Blue Lights on the tap head assembly.Depending on local water quality
conditions and usage, the filter change period can be set in increments of 1000L
from 1,000L to 10,000L.The filter may also need to be replaced if unpleasant
odours or tastes occur.
Some water may drip from the filter head during replacement. Keep a bucket and
towel handy to catch drips and mop up any spills. To change the filter:
1. Scroll through the screen menu to “Filter Flush Off” this isola tes supply.
2. Relieve system pressure via the filter flush stop cock, a quick open and
close will do.
3. Grasp filter cartridge and twist right to left one quarter turn until it stops.
4. Ease cartridge downwards to detach it from the filter head (socket).
5. Do not tilt the cartridge as dirty water may spill from it if tilted.
6. Unpack replacement cartridge and write today’s date where shown on the
label.
7. Avoid touching the filter “O” rings and filter opening as this may cause
bacterial contamination of the cartridge.
8. Align cartridge tabs with the slots on the under-side of the filter head.
9. Slide cartridge upward into head and rotate left to right until it stops.
10. Locate the filter flush hose situa ted behind the filter cartridge and run to a
container ready for flushing. Open the flush hose ta p lever.On the control
panel press adjust ∧, this will start the water flushing the cartridge. Allow
at least 7.5 Ltrs of water to run through to activate the filter and then
press adjust ∧ to stop the flow.
11. Isolate the filter flush stop cock and re-fit behind the filter cartridge.
12. Wipe up any spills and dispose of spent filter cartridge and packaging
thoughtfully.
13. Scroll through the menu to “Litres Filtered”, press adjust ∧ to reset litre
counter. Then it asks “are you sure” press adjust ∧ a gain to lock in the
command.After approx 10 secs it will default to the selected mode.
Warning: If the Zenith HydroTap is switched off for a long period of time, e.g. longer
than a weekend, run water through the chilled wa ter outlet for at least 5 minutes
before consumption.
Page 10 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Setting the Energy Saver Timer (products with this feature only)
Mode Plus Button
Mode Minus Button
Plus Adjust Button
Minus Adjust Button
Normal Operation (not available on HT boiling only series)
Set Time
To change time, press either Mode ∧ or Mode ∨ button until Set Time is on
the display screen. Press ∧ Adjust button to increase time or ∨ Adjust button
to decrease time.Time increases or decreases in increments of one minute.
Hold the Adjust buttons down for rapid increases or decreases.
Set Day
Press either Mode ∧ or Mode ∨ button until Set Day is displayed.
Press ∧ Adjust or ∨ Adjust to select day.
Filter Life ( factory set at 6000 litres )
Press either Mode ∧ or Mode ∨ button until Filter Life is displayed.
Press ∧ Adjust button to increase Filter Life or ∨ Adjust button to decrease
Filter Life.
Filter Life increases in 1000 Ltr increments to a maximum of 10000 Ltrs.
Reset Litres Filtered
This function is to reset the Filter Change display after a filter has reached the
end of its life (refer to “Replace Filter I
nstructions” section of this document).
Press either Mode ∧ or Mode ∨ button until Litres Filtered is displayed. Press
∧ Adjust once and “Reset Counter” will be displayed, press ∧ Adjust button
once and “Are You Sure”will be displayed.
Press ∧ Adjust once and Litres Filtered will be reset to 0.
Activating Sleep Mode
This mode allows the HydroTap to go into Energy Saving mode.In this mode
the unit will go to “sleep” after a pre-determined period of inactivity.Press either
Mode ∧ or Mode ∨ button until Sleep Mode is displayed. Press ∧ Adjust once
to select 2 Hours or twice to select 4 Hours.When the period of inactivity
passes, the display will show “Sleep Mode”. During sleep mode the Red LED on
top of the tap lever will flash slowly.
Activating On / Off Mode
Press either Mode ∧ or Mode ∨ button until "Monday On" is displayed.To set the
time for the unit to turn on press ∧ Adjust button until required time is reached.
To set the time for the unit to turn Off press Mode ∧ button once and Monday Off
will be displayed. Now press ∧ Adjust until required time is reached.
If each individual day is to have an “On / Off ” time, these steps need to be
repeated for each day and for each "On / Off" time.
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 11 of 20
Auxiliary Fan Attachment (excluding HT boiling only models)
Auxiliary fan
connection
Cold water
connection
Electrical
connections
The HydroTap is equipped with an auxiliary connection point for an exhaust fan
on the rear panel close to the cold water inlet / flex and plug area.The fan kit
is available as a spare part.The fan operates in parallel with the Condensor
fan helping to remove heat from the cupboard space.This fan should be
purchased and fitted to the HydroTap if the airfow characteristics of the
cupboard space are inadequate for the effective removal of hot air thereby
adversly affecting the operation of the HydroTap.
The fan can be installed so that it extracts air from, or forces air into the
cupboard space, whichever is the most effective for your installation.
Application of the fan is of paramount importance in situations where the
cupboard space reaches temperatures greater than 35ºC.
Boiling Water Safety Isolation (excluding HT boiling only models)
The HydroTap if equipped with a safety mode that allows protection against
accidental operation by Infirmed or disabled persons.
1. On the LCD scroll through the menu to Hot Isolation.
2. Press adjust ∧ to activate.
3. Press the safety button on the tap head (3) three times rapidly. The LEDs
will scroll from left to right (3) three times. This operation confirms the
activation.
4. This isolates the boiling tap only.The LCD shows isolation mode is active.
5. To de-activate, press the safety button (3) three times rapidy.
The LED’s will scroll from right to left (3) three times. This operation
confirms de-activation.
6. The LCD will show Normal Operation.
7. If de-activation mode is required, de-activate by scrolling through the
menu and selecting de-activate when Hot Isolation Mode is
displayed on the screen.
Page 12 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Trouble Shooting
Symptom Possible Cause Solution
No LED display,no tap head
lights or, no water when tap
levers are operated.
No water flow.
Slow water recovery after
use.
Water not hot.
No power.
Plug is not located in power
socket.
Tap loom is not connected to
HydroTap unit.
Possible internal fault.
Program in OFF cycle
Water supply isolated.
Water supply not connected.
Power supply not connected.
Tap loom is not connected to
HydroTap unit.
Possible internal fault.
Program in OFF cycle.
Filter may require replacement.
Unit in Sleep Mode.
Unit has just come out of OFF
cycle.
Check power supply.
Ensure power plug is correctly fitted and switch is
turned ON.
Check loom connection.
Contact local Zenith service provider.
Check LCD for information.
Check water supply is on.
Check to ensure plumbing connecting is made.
Check power plug is correctly fitted and switch is
turned on.
Check for loom connection
Contact local Zenith service provider.
Check LCD for information.
Check filter usage on LCD screen, if “filter
change” is displayed follow instructions
on page 13.
Touch Hot lever and wait for Red LED to stop
flashing.
Wait for Red LED to stop flashing.
Water not chilled.
Possible internal fault.
Excessive use, unit refilling or
chilling down to temperature.
Possible internal fault.
Contact local Zenith service provider.
Wait for Blue LED to stop flashing.
Contact local Zenith service provider.
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 13 of 20
Exploded View Chiller Module and Spare Parts
Item Kit No. Description Item Kit No. Description
1
plumbing fittings kit 14
braided hose
2
safety solenoid kit 15
level sensor kit cold tank BC100/125
3
double solenoid kit 15
level sensor it BC150/175
4
gasket and elbows kit cold tank 16
relay compressor kit BC100/125
5
dryer-filter kit nut and tube 16
relay compressor kit BC150/175
6
evaporator kit BC100/125 17
compressor kit BC100/125
6
evaporator kit BC150/175 17
compressor kit BC150/175
7
sensor probe kit 18
fan motor kit BC100/125
8
pump kit cold 18
fan motor kit BC150/175
9
PCB kit BC100/125 & BC150/175 19
capacitor kit BC100/125
9
PCB kit domestic BC60/85 19
capacitor kit BC150/175
9
PCB kit B100 & B150 20
loom level sensor kit
9
PCB kit domestic B60 21
transformer kit-auxillary fan
9
PCB kit boiling B100F & B150F 22
second solenoid boiling only model
9
PCB kit domestic B60F 23
38mm chassis punch
9
Pcb kit domestic ambient BF60 24
3ag-10amp fuse
10
transformer kit 25
2ag-2amp fuse
11
leak sensor kit 26
2ag-1amp fuse
12
control panel kit
13
stop valve and john guess fitting kit filter
Z90613
Z90614
Z90615
Z90631
Z90626
Z90632
Z90641
Z90633
Z90634
Z90622
Z90663
Z90664
Z90665
Z90666
Z90667
Z90668
Z90623
Z90624
Z90625
Z90628
Z90056
Z90635
Z90627
Z90636
Z90024
Z90637
Z90023
Z90639
Z90640
Z90437
Z90020
Z90185
Z90652
Z90657
Z90041
Z90671
Z90670
Z90669
Page 14 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Exploded View Boiler Module and Spare Parts
Item Kit No. Description Item Kit No. Description
1
plumbing and fittings kit 13
clips kit
2
safety solenoid kit 14
stop valve and john guess fittings kit for filter
3
double solenoid kit 15
braided hose inlet
4
gasket and elbow kit BC 100/125 16
level sensor kit hot tank BC100/125
4
gasket and elbow kit BC 150/175 16
level sensor kit hot tank BC150/175
5
overload kit 17
loom-overlad kit
6
element 1500W kit 18
loom-compressor to fan kit
6
element 1800W kit 19
loom-solenoid kit
7
sensor probe kit 20
loom-level sensor kit hot
8
pump kit hot 21
loom+gland main PCB to tap
9
PCB kit BC 100/125 & BC 150/175 22
transformer kit auxillary fan
10
transformrer kit 23
secondary solenoid boiling only models
11
leak sensor kit 24
elbow and gasket kit BC 150/175
12
control panel kit
Z90613
Z90614
Z90615
Z90616
Z90617
Z90579
Z90618
Z90619
Z90620
Z90621
Z90622
Z90623
Z90624
Z90625
Z90130
Z90628
Z90056
Z90629
Z90630
Z90186
Z90187
Z90188
Z90189
Z90190
Z90652
Z90657
Z90617
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 15 of 20
Exploded View HT Series Boiling Only and Spare Parts
ITEM KIT NO. DESCRIPTION
1
Plumbing and Fittings kit
2
Safety Solenoid Kit
3
Single Solenoid Kit
4
Gasket and Elbow Kit BC 100/125
5
Overload Kit
6
Element 1500 watt Kit
7
Sensor Probe Hot
8
Pump Kit Hot
9
PCB Kit Boiling Only
10
Leak Sensor Kit
11
Clips Kit
12
Flexible Inlet Hose Kit
13
Level Sensor Kit Hot Tank H/T 60/85
14
Loom-Overload Kit
15
Loom-Solenoids Kit
16
Loom-Level Sensor Kit Hot
17
Loom and Gland Main PCB to Tap
Page 16 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Z90656
Z90614
Z90657
Z90658
Z90579
Z90618
Z90620
Z90621
Z90689
Z90624
Z90130
Z90056
Z90690
Z90186
Z90661
Z90189
Z90190
Notes
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 17 of 20
Notes
Page 18 of 20 Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005
Notes
Zenith Hydro Tap Installation and Operating Instructions - 81467 - February 2005 Page 19 of 20
The Zenith appliance you have chosen is precision-built from the finest materials
available and should give many years of trouble free service.
Certain warranties may be implied by law into your contract with Zenith. The
warranty provided below is additional to these implied warranties and nothing
set out below shall limit your statutory rights or rights at law.
Parex Appliances warrants that, should any part fail within 12 calendar
months of installation, that part will be repaired or replaced free of charge by
Parex Appliances or its Distributor or Service Provider, except as set out below,
provided the appliance is installed and used strictly in accordance with the
instructions supplied, and that failure is not due to accident, misuse, abuse,
unsuitable water conditions, or to any alteration, modification or repair by any party
not expressly nominated by Parex Appliances.
No costs are payable by the customer other than any mileage or travelling-time
charges incurred by a Zenith Service Provider or the cost of removal, cartage and
re-installation of any component of the appliance if it needs to be returned for
repair its Distributor.
This warranty does not cover damage resulting from non-operation of the
appliance or consequential damage to any other goods, furnishings or property.
No warranty applies to the life of any filtration cartridge installed with the
appliance as cartridge life may vary according to water quality and the rate of
water consumption.
Parex Appliances does not exclude, restrict or modify any liability that cannot be
excluded, restricted or modified or which cannot, except to a limited extent, be
excluded, restricted or modified as between the owner or user and Parex Appliances
under the laws applicable.
Head Office
Parex Appliances
103 Central Park Dr
Henderson Auckland
Email: info@parex.co.nz
Website:www.parex.co.nz
Telephone (09) 836 6566
Facsimile (09) 836 6033
Furthermore, this warranty does not displace any statutory warranty, but, to the
extent to which Parex Appliances is entitled to do so, the liability of Parex Appliances
under any statutory warranty will be limited at Parex Appliances option to the
replacement of the appliance or supply of equivalent appliance, the payment of the
cost of replacing the appliance or acquiring an equivalent appliance, or the payment
of the cost of having the appliance repaired or the repair of the appliance.
Zenith Hydrotap - Installation & Operating Instructions - 81438 - June 2004 Page 20 of 20
Loading...
