This manual contains installation and operation information for the Zebra P100i Card Printer
manufactured by Zebra Technologies Corporation.
Description
The P100i provides full color dye sublimation or monochrome thermal tr ansfer single side
printing on standard 2.125 inch by 3.375 inch (54 mm by 86 mm), PVC or PVC Composite
plastic cards. Its single card feed is ideal for low volume applications and applications that use
a variety of plastic cards (for example, cards pre-printed with certain informati on). It ut ilizes a
Load-N-Go™ ribbon cartri dge with int egrated card cleaning roller for easy ribbon changing or
replacement.
A variety of options (some of which can be factory-installed or field-installed as upgrades) are
available, making the P100i configurable for varied application environments:
Its auto-switching 100 ~ 240 Volts AC, 50 ~ 60 Hz external power supply uses inte rchangeable
power cords for maximum flexibility.
The Part Number of a particular P100i Printer is shown on a label affixed to the bottom of the
printer; that Part Number identifies the specific config uration for that printe r. This chart shows
the configurations that are available.
PART NUMBERDESCRIPTION
Base Printer
P 1 0 0 i - _ _ _ _ _ - _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
0 _ _ _ _
B _ _ _ _
D _ _ _ _
H _ _ _ _
-
--_ 0 _ _ _
_ M _ _ _--
-
-
-
-
_ _ _
_ _ _
_ _ _
_ _ _
_ _ _
_ _ _
P100i Single Card Feed, Single-Sided Color Card Printer
Smart Card Options
None
Contact Encoder
Contact Encoder &
MIFARE contactless
Magnetic Encoder
None
Yes (select defaults below)
MIFARE contactless
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
_ _ _ _ _
--_ _ 0 _ _
_ _ 1 _ _--
--_ _ _ 0 _
_ _ _ U _--
--_ _ _ _ A
_ _ _ _ C--
--_ _ _ _ _
_ _ _ _ _--
- _ _ _ _ _ - _ D _
--_ _ _ _ _
_ _ _ _ _--
_ _ _
_ _ _
_ _ _
_ _ _
_ _ _
_ _ _
I _ _
U _ _
_ _ 0
_ _ S
Magnetic Encoder Defaults
None
Stripe Down, HiCo/LoCo
Miscellaneous
Magnetic Encoder only upgradeable board
Upgradeable board for Smart Card Options, Magnetic
Encoder, and Ethernet
Interface
USB Only
USB and Ethernet
Power Cords
U. S. and Europe
U. K. and Australia
Windows Drivers and User Documentation included on one CD
(Software & Documentation Package) which contains Multilanguage documentation - English, Spanish, French, German,
Chinese, Italian, and Portuguese
Starter Kit
No Starter Kit
Starter Kit (including 100 - 30 mil PVC cards and one Black
ribbon, part number 800015-901)
2P100i User’s Manual980590-001 Rev. A
EXAMPLE
P100i Printer, No Smart Card Options installed, Magnetic
P 1 0 0 i - 0 M 1 U C - I D 0
Encoder (Stripe Down, HiCo/LoCo), Board upgradeable for
Smart Card Options, USB and Ethernet interfaces, U.S. and
European Power Cords, Windows Driver and User
Documentation CD, No Starter Kit
ACCESSORIES
105912-9xxP100i Cleaning Kit, includes 4 sets of print engine cleaning cards
Features, Controls, and Indicators

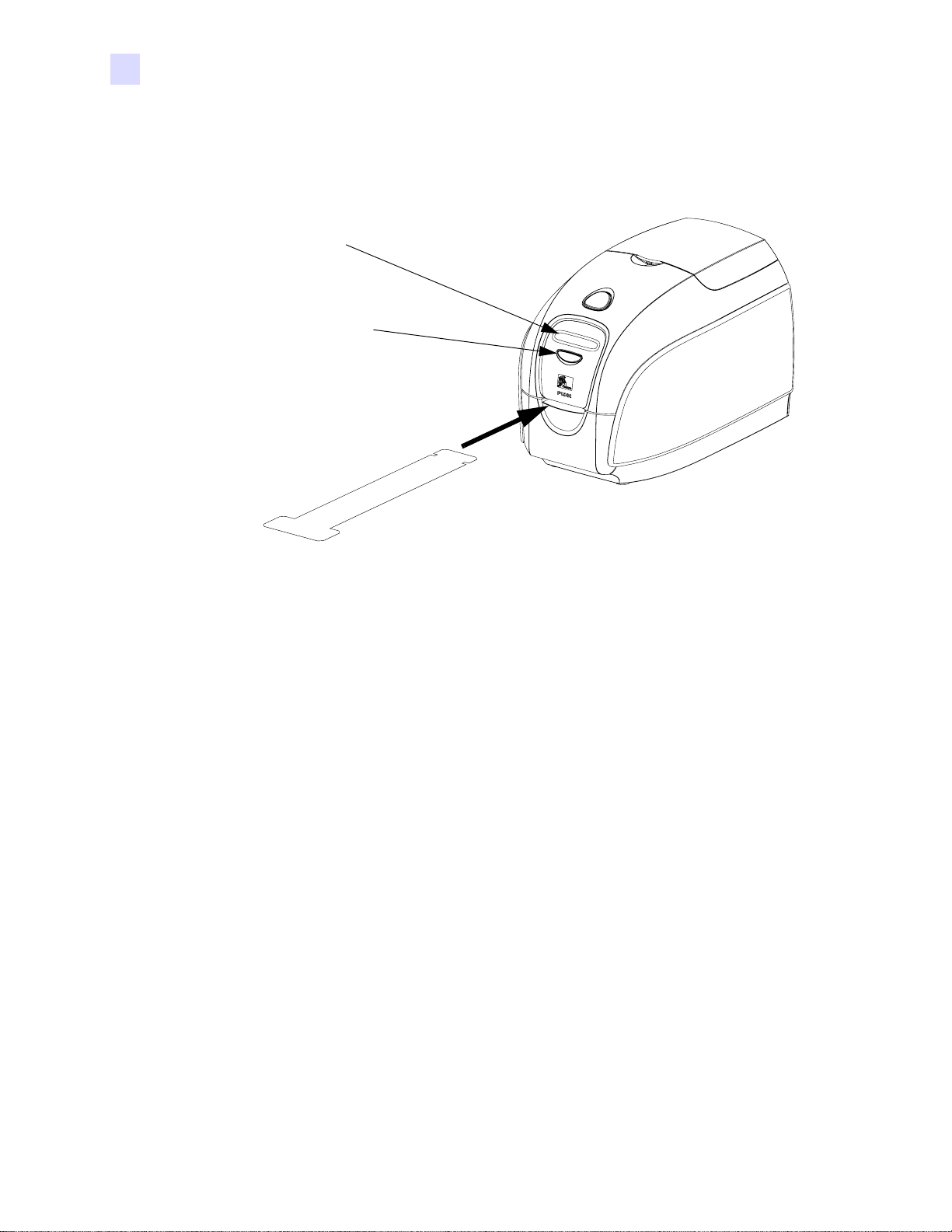

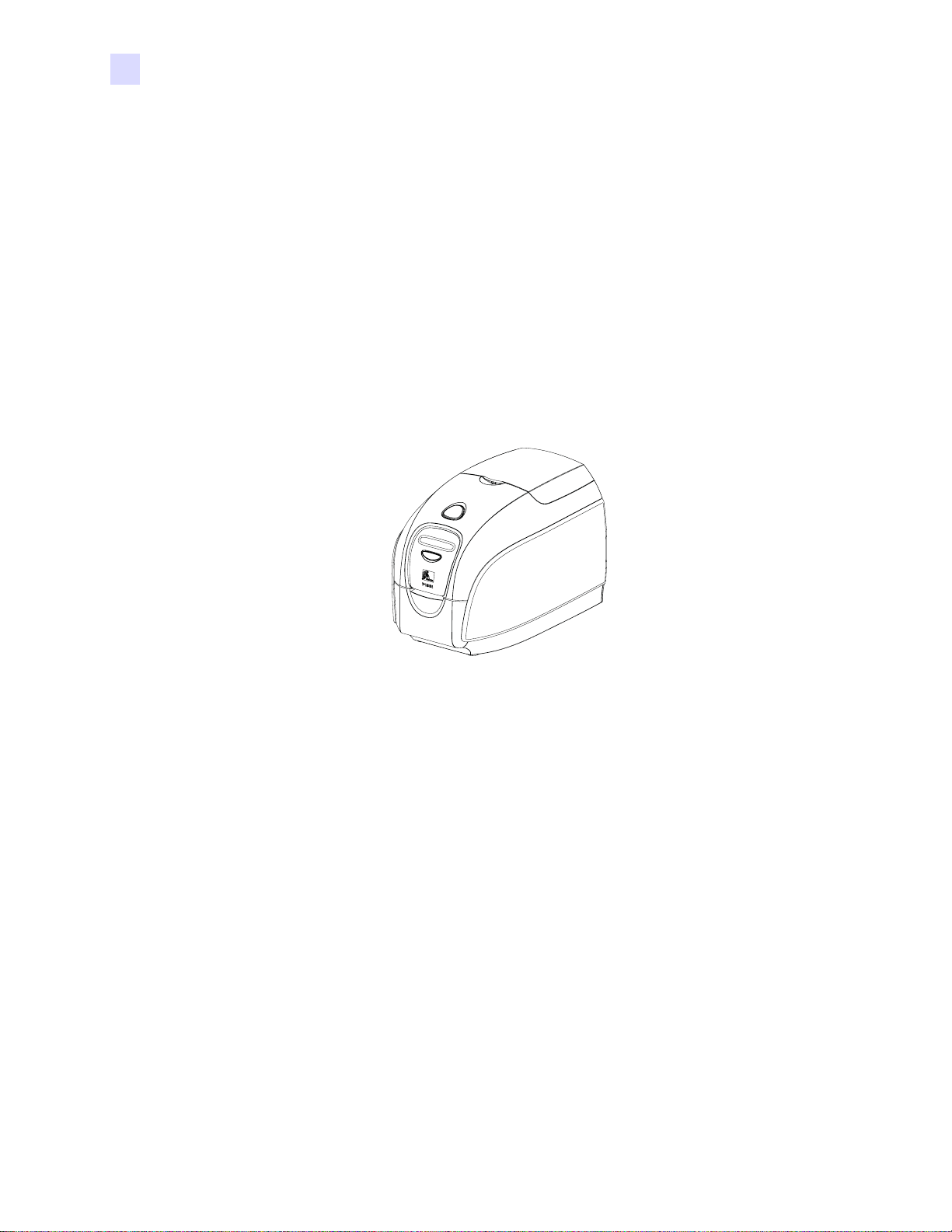

The picture below points out some of the printer’s external features. (See Chapter 3 for an
interior view.
Introduction
Features, Controls, and Indicators
Covered Card and
Cleaning Roller
Storage Area
Lid
Release
Button
Card Entry / Exit Slot
Covered Card and Cleaning Roller Storage Area
LCD
Display
Panel
MultiFunction
Control
Button
Opening the translucent cover gives access to a storage area where you can keep cards and
spare Cleaning Rollers. This can be useful for applications that require use of various cards.
Lid Release Button
Pressing the Lid Release Button allows the printer’s lid to swing open. This gives internal
access for changing the Ribbon Cartridge, changing Cleaning Rollers, and cleaning the printer.
980590-001 Rev. AP100i User’s Manual3
Introduction
Features, Controls, and Indicators
LCD Display Panel
The LCD Display Panel displays printer stat us information. Messages also a lert the user of the
need for action, and indicate certain fault conditions.
Multi-Function Control Button
The Multi-Function Control Button initiates several functions; these are described in the
appropriate sections of this document.
Card Entry / Exit Slot
A card is inserted part-way into the Ca rd Entry / Exit Slot. The card will be drawn into th e
printer, printed, encoded, or decoded as specified by the application program, and then be
ejected out through the Card Entry / Exit Slot.
Rear Panel Connectors, Controls, and Indicators

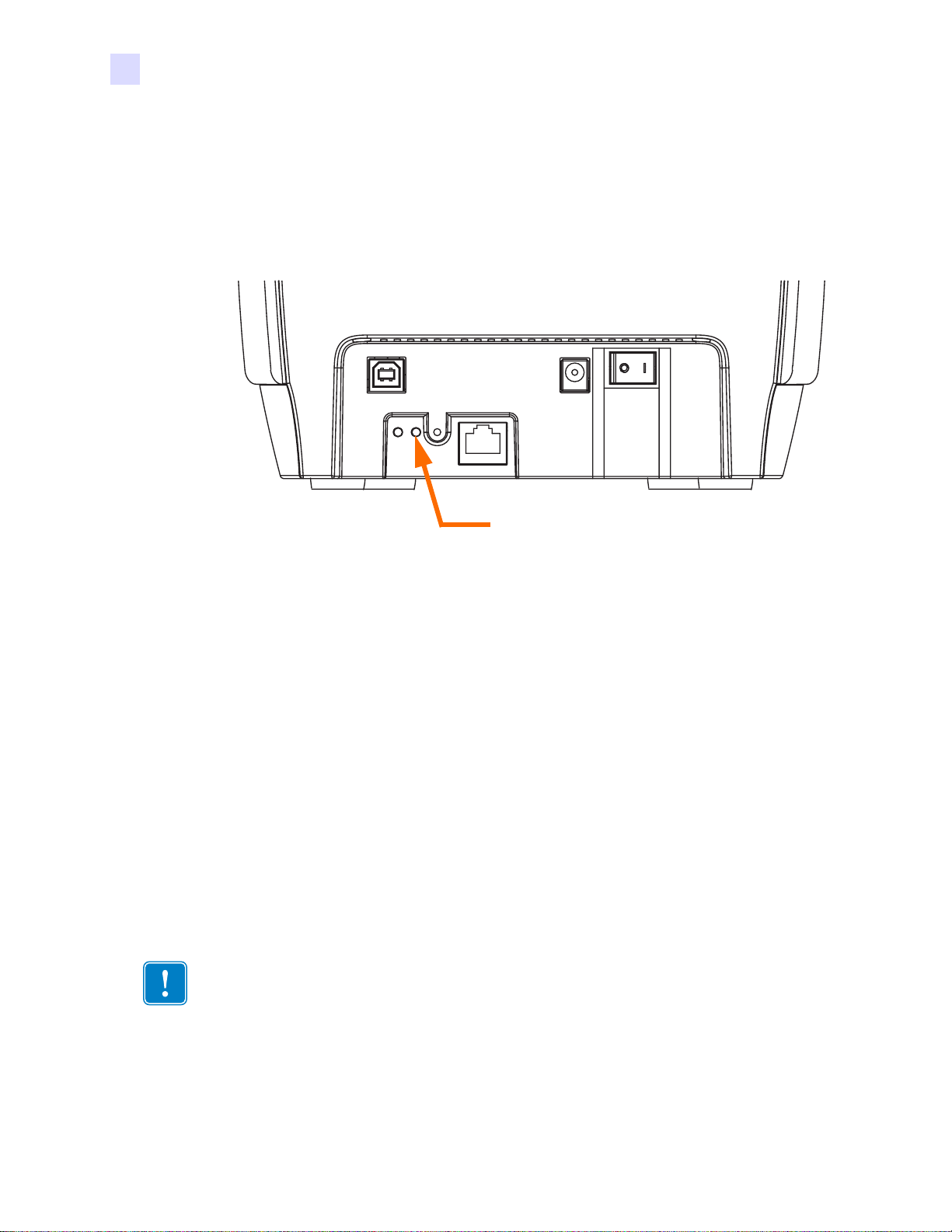

The figure below shows the rear of the P100i Printer with the standard USB interface.
Power
Socket
USB
Port
Power
Switch
4P100i User’s Manual980590-001 Rev. A
Introduction
Features, Controls, and Indicators

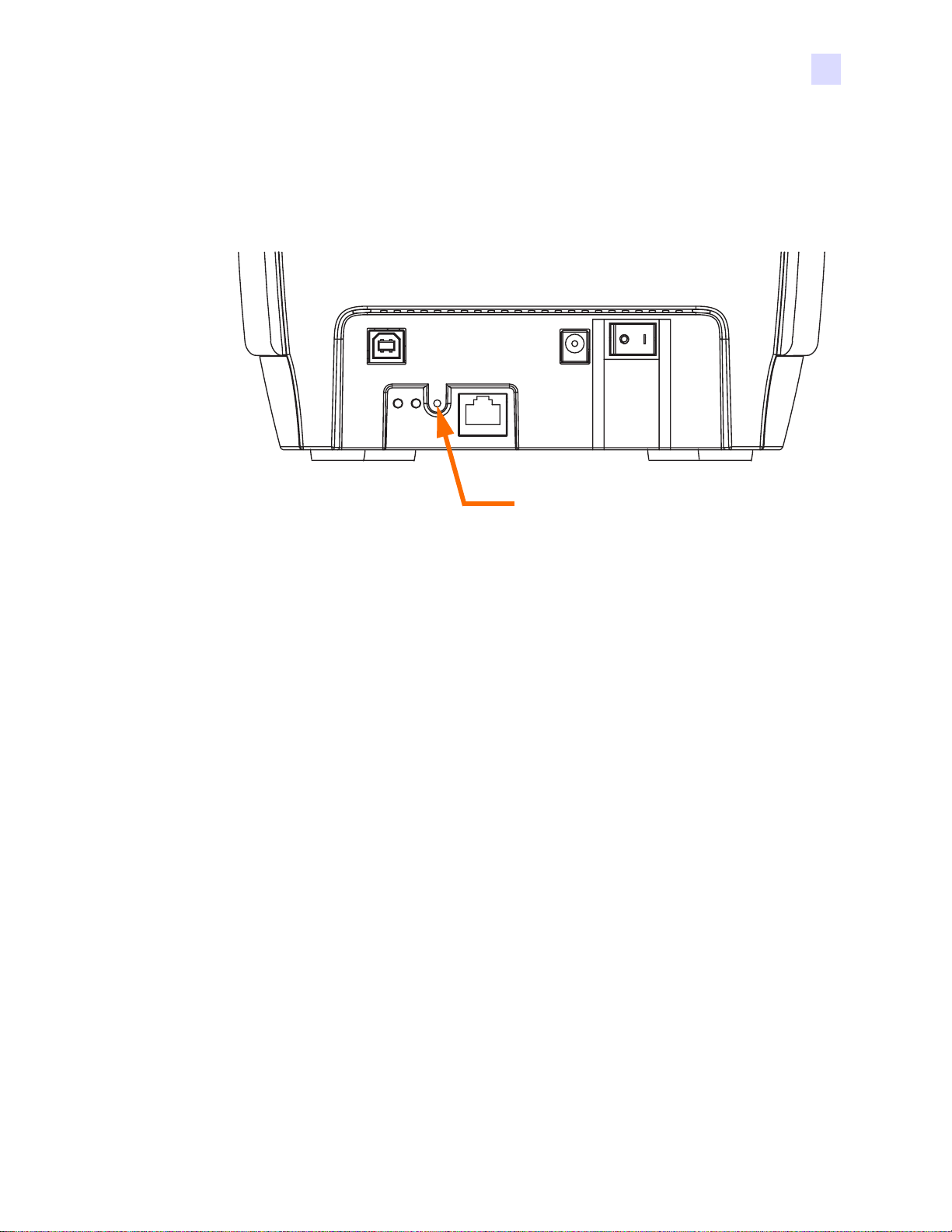

If your P100i Printer includes the Ethernet option, the rear of the printer will look like the
figure below .
Power
Socket
USB
Port
Network
Status /
Activity
Indicator
Ethernet
Adapter
Status
Indicator

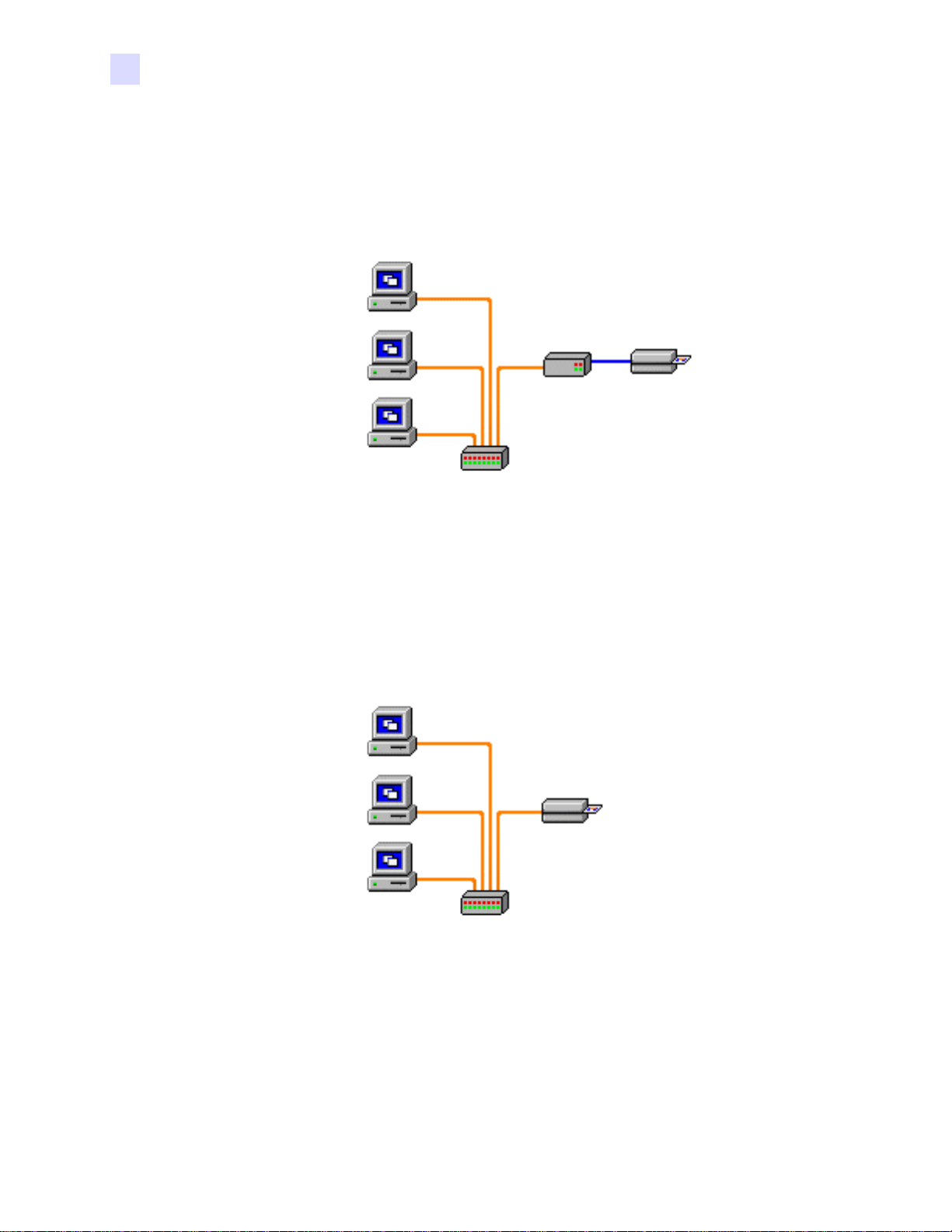

For Ethernet connection, refer to Appendix C, Connecting to a Network.
Ethernet Adapter Status Indicator
1. During normal operation, the LED is solid GREENfor more than 30 seconds. This
indicates all the hardware is functioning properly, and the Ethernet Adapter has detected
the presence of the network. It does not mean the Ethe rn et Adapter has an IP address or is
attached to a printer queue.
2. If the LED is slowly flashing GREEN(1 time/sec), the Ethernet Adapter is trying to print.
Network Status/Activity Indicator
1. If the LED is solid GREEN, a 100Base link is established.
Ethernet
Reset
Button
Power
Switch
Ethernet
Connector
2. If the LED is flashing GREEN, a 100Base link is established, and network activity has
been detected.
3. If the LED is solid ORANGE, a 10Base link is established.
4. If the LED is flashing ORANGE, a 10Base link was establishe d, and net work activi ty has
been detected.
980590-001 Rev. AP100i User’s Manual5
Introduction
Features, Controls, and Indicators
LCD Panel Messages
LCD Panel messages fall into three cate gories:
• OperationalOperational Messages are displayed during the Printer’s normal
• W arningsW arnings alert the operator to act ion that should be taken; the printer will
• ErrorsErrors are displayed when a situation causes the printer to stop operating.
operation.
generally continue operation.
Depending on the cause of the error message, restarting the printer or
curing the displayed Error may return the printer to operational status, or
the printer may require troubleshooting and repair.
MESSAGES
Operational
INITIALIZING
READY
DOWNLOADING DAT A
MAG ENCODING
PRINTING CYAN
PRINTING YELLOW
PRINTING MAGENTA
PRINTING BLACK
PRINTING OVERLAY
DOWNLOADING FIRMWARE
CONTACT ENCODING
CONTACTLESS ENCODING
REMOVE CARD AT EXIT
CLEANING
REMOVE RIBBON THEN CLOSE LID
FEED LONG CLEANING CARD IN EXIT
REMOVE LONG CLEANING CARD
SINGLE CARD READY-PRINT OR EJECT
INSERT CARD
REMOVE CARD
6P100i User’s Manual980590-001 Rev. A
Features, Controls, and Indicators
MESSAGES
Warnings (Printer will still operate)
CLEAN PRINTER
CHECKING RIBBON
CLEANING CYCLE
CLEANING HEAD
CLEANING ROLLERS
ENCODING ERROR
CLEAN MAG HEAD
INVALID MAGNETIC DATA
REMOVE RIBBON
Errors (Printer will not operate)
CHECK RIBBON
Introduction
OUT OF RIBBON
MECHANICAL ERROR
COVER OPEN
PARAMETER ERROR
COMMAND ERROR
CONTACT ERROR
CONTACTLESS ERROR
INVALID CONTACT DATA
INVALID CONTACTLESS DATA
Refer to Chapter 6 for Troubleshooting Procedures.
980590-001 Rev. AP100i User’s Manual7
Introduction
Icons
Icons
Throughout this manual, different icons highlight important information, as follows:
Note • Indicates information that emphasizes or supplements important poin ts of the main
text.
Advises you of information that is essential to complete a task, or points out the importance of
specific information in the text.
Electric Shock Caution • Warns you of a potential electric shock situation.
Electrostatic Discharge Caution • Warns you of a situation where electrostatic
discharge could cause damage to electronic components.
Caution • Advises you that failure to take or avoid a specific action could result in
physical harm to you, or could result in physical damage to the hardware.
8P100i User’s Manual980590-001 Rev. A
Printer Installation
Unpacking Your Card Printer
Y our P100i Printer ships in a card board carton, protected by styrofoam inserts and a protective
anti-static bag. Keep all packaging material in case you need to move or re-ship the print er.
2
1. Before opening and unpacking the printer, inspect the carton to ensure that no damage
occurred during shipment.
2. Ensure that you have a clean and nearly dust free environment for proper operation and
storage of the printer.
3. Unlatch and remove the handle, open the carton, and remove the box containing the
printer accessories from the shipping carton.
4. Remove the styrofoam packing material from the top of the printer.
5. Lift the printer out of the carton by holding it on both sides of the bottom and lifting the
printer gently from the carton.
6. Make sure the following accessories are included with your P100i Printer:
•Software CD-ROM
•Quick Start Guide
•Cleaning Kit
•1 set of Power Cords
•Power Transformer
•USB Printer Cable
If any items are missing, please contact your dealer. To reorder, please refer to Appendix D of
this manual.
980590-001 Rev. AP100i User’s Manual9
Printer Installation
Installing the P100i Printer
Installing the P100i Printer
Caution • Do not power the printer with USB attached to your computer until the driver
has been installed or until prompted by the driver.
Caution • Limit electrical power supplied to the P100i Printer to 24 VDC. Limit excess
current draw to 16 amps or less, using an associated circuit breaker or other such
device. Never operate the printer in a location where operator, computer, or printer can
get wet. Personal injury could result. The printer must be connected to an earthed
electrical power supply and properly protected against electrical surges and grounding
faults. The power supply pack can only be replaced by the same product from the
manufacturer.
1. Place the printer in a location that allows easy access to all sides. The printe r should never
be operated while resting on its side or upside down
2. Remove the yellow CAUTION label from the back of the printer.
10P100i User’s Manual980590-001 Rev. A
Printer Installation
Installing the P100i Printer
3. Ensure that the printer’s power switch is in the OFF (O) position.
4. Insert the power supply plug into the power socket, attach the power cord (120VAC or
230VAC) to the power supply, then plug the power cord in to a grounded electrical socket
of the proper voltage and type.
115 VAC
230 VAC
Caution • Intermittent or unpredictable operation may occur from unsecured connectors.
If damaged, the power cable must be replaced by an exact equivalent. The socket
should always be easily accessible to power off the printer.
980590-001 Rev. AP100i User’s Manual1 1
Printer Installation
Installing the P100i Printer
5. If your printer has only the USB interface, attach the included USB cable to your
computer and the printer.
12P100i User’s Manual980590-001 Rev. A
Printer Installation
Installing the P100i Printer
6. If your printer has the optional Ethernet interface (as well as the USB interface), connect
either the USB cable to printer and computer or the Ethernet cable to the printer and the
Ethernet network.
Ethernet
USB
Important • Do not connect both the USB and the Ethernet interfaces at the same time!
980590-001 Rev. AP100i User’s Manual13
Printer Installation
Installing the Printer Driver
Installing the Printer Driver
Important • Do not power the prin ter with USB a ttached to your computer at this time. The
driver will prompt you when it is time to plug in and power up your printer.
To install the P100i Printer on Windows 2000, Windows XP, Windows Server 2003, or
Windows Vista operating systems, insert the User Documentation and Drivers CD, included
with your printer, into your computer; and the InstallWizard will walk you through the
required installation steps.
The Install Wizard will:
•Automatically install the User Interface when the driver CD is inserted.
•Start the installation process when the Install Printer Driver menu item is selected from
the Main Menu.
•Allow you to install Ethernet drivers, if you plan on networking your card printer.
•Check to see which operating system you are using.
•Detect previous versions of the driver and clean up any unnecessary Windows registry
entries. You must select “Remove” from the install options to remove any previous
driver versions.
•Install the new driver files.
•Reboot your computer.
If your User Documentation and Drivers CD does not load automatically:
1. Click on Start, then click on Run.
2. Type d:\index.htm, where d: is your CD drive letter.
3. Click OK.
14P100i User’s Manual980590-001 Rev. A
Print Driver Installation
Install the P100i Printer driver as follows:
1. Insert the P100i User Documentation and Drivers CD into the CD drive of the host
computer. The Select Language window will open.
Printer Installation
Installing the Printer Driver
2. From the Select Language window, choose the appropriate lan guage for yo ur system. The
Main Menu will open in the selected language (English shown here, others comparable).
3. In the left column, select Install Printer Driver >> P100i.
980590-001 Rev. AP100i User’s Manual15
Printer Installation
Installing the Printer Driver
4. The InstallShield Wizard will launch, and a progress window will be displayed.
5. Once the InstallShield Wizard has been installed, the Welcome to InstallShield Wizard
window will open. Click the N
ext button.
6. On the Select Features window, you have the option to install USB printer drivers or
ethernet (internal) printer drivers.
16P100i User’s Manual980590-001 Rev. A
The next two sections detail USB Driver Installation and Ethernet Driver Installation
respectively.
USB Driver Installation
1. Select USB, and click the Next button.
2. Observe the License Agreement window. If you agree to the License Agreement, click
the Yes button.
Printer Installation
Installing the Printer Driver
3. Most users should select the Complete setup type; then click the Next button.
980590-001 Rev. AP100i User’s Manual17
Printer Installation
Installing the Printer Driver

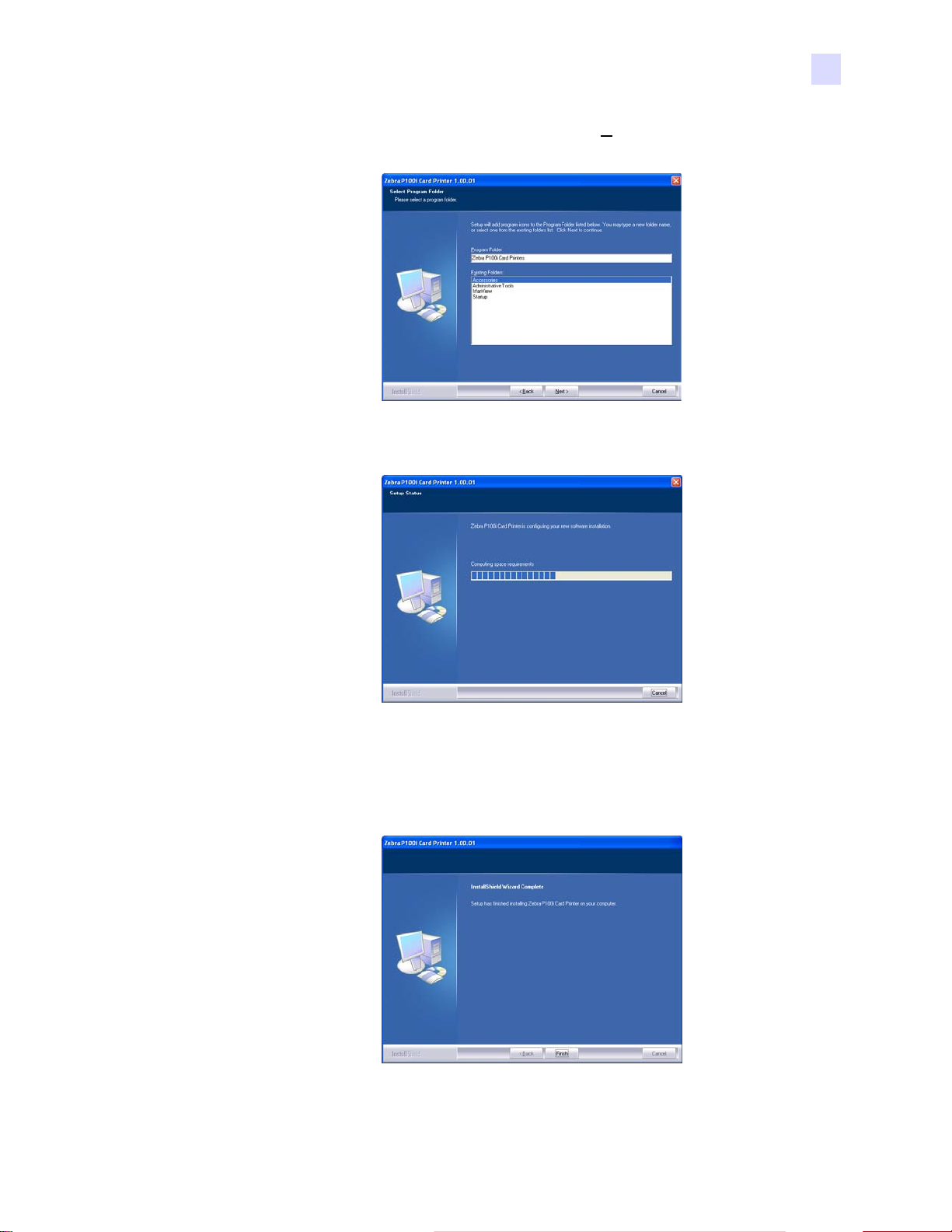

4. Select the appropriate Program Folder, then click the Next button.
5. The Install Wizard will show the progress of the installation.
6. Read the appropriate information.
7. If you wish, you can open the ReadMe file, which has information about the driver version
you have installed.
18P100i User’s Manual980590-001 Rev. A
8. Driver installation is now complete. Click the Finish button.
9. After installing the Driver, restart your computer. When you apply power to the printer,
the Windows New Hardw are Fo un d wizard will find the printer.
Ethernet Driver Installation
Printer Installation
Installing the Printer Driver
1. Select Ethernet, and click the Next button.
2. Observe the License Agreement window. If you agree to the License Agreement, click
the Yes button.
980590-001 Rev. AP100i User’s Manual19
Printer Installation
Installing the Printer Driver

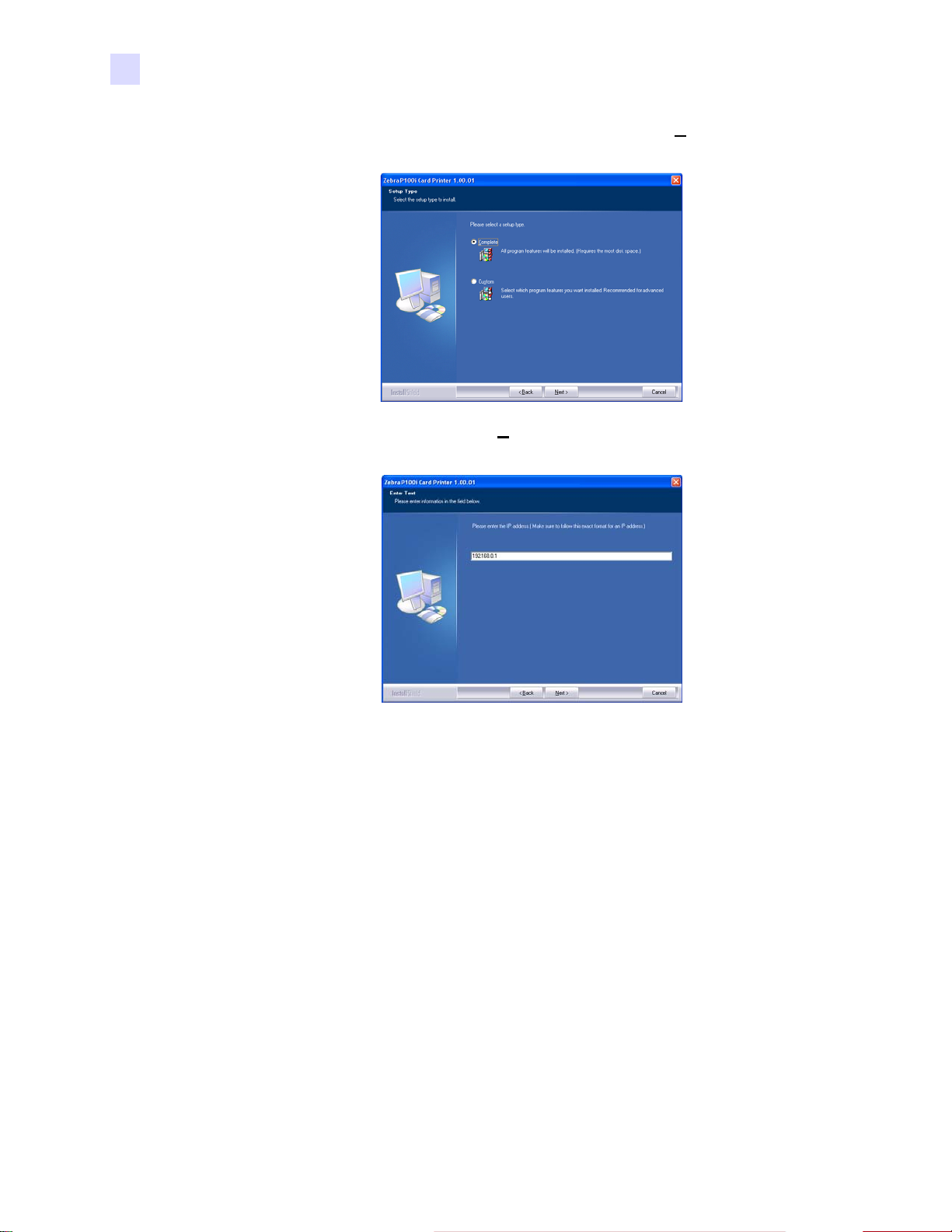

3. Most users should select the Complete setup type; then click the Next button.
4. Specify the IP address, then click the Next button.
20P100i User’s Manual980590-001 Rev. A
Printer Installation
Installing the Printer Driver
5. Select the appropriate Program Folder, then click the Next button.
6. The Install Wizard will show the progress of the installation.
7. If you wish, you can open the ReadMe file, which has information about the driver version
you have installed.
8. Driver installation is now complete. Click the Finish button.
9. After installing the Driver, restart your computer. When you apply power to the printer,
the Windows New Hardw are Fo un d wizard will find the printer.
980590-001 Rev. AP100i User’s Manual21
Printer Installation
Setting Printer Driver Options
Setting Printer Driver Options
You can change the default settings for the P100i printer driver. Change the options as
follows:
Note • The screen shots shown in this section are for the P100i Printer using the USB
interface. If you are using the Ethernet interface, the screens will refer to the “Zebra P100i
Network Printer.”
1. Select Start > Settings > Printers and Faxes to bring up a listing of connected printers.
2. From the Printers and Faxes list, right click the P100i USB Card Printer; and select
Properties from the pop-up menu. The Printer Properties window will open.
3. On the General tab, click on the Printing Preferences button to change the c ard orientation
settings, monochrome conversion settings, various ribbon settings, or to adjust the color
and head settings properties.
22P100i User’s Manual980590-001 Rev. A
Printer Installation
Setting Printer Driver Options

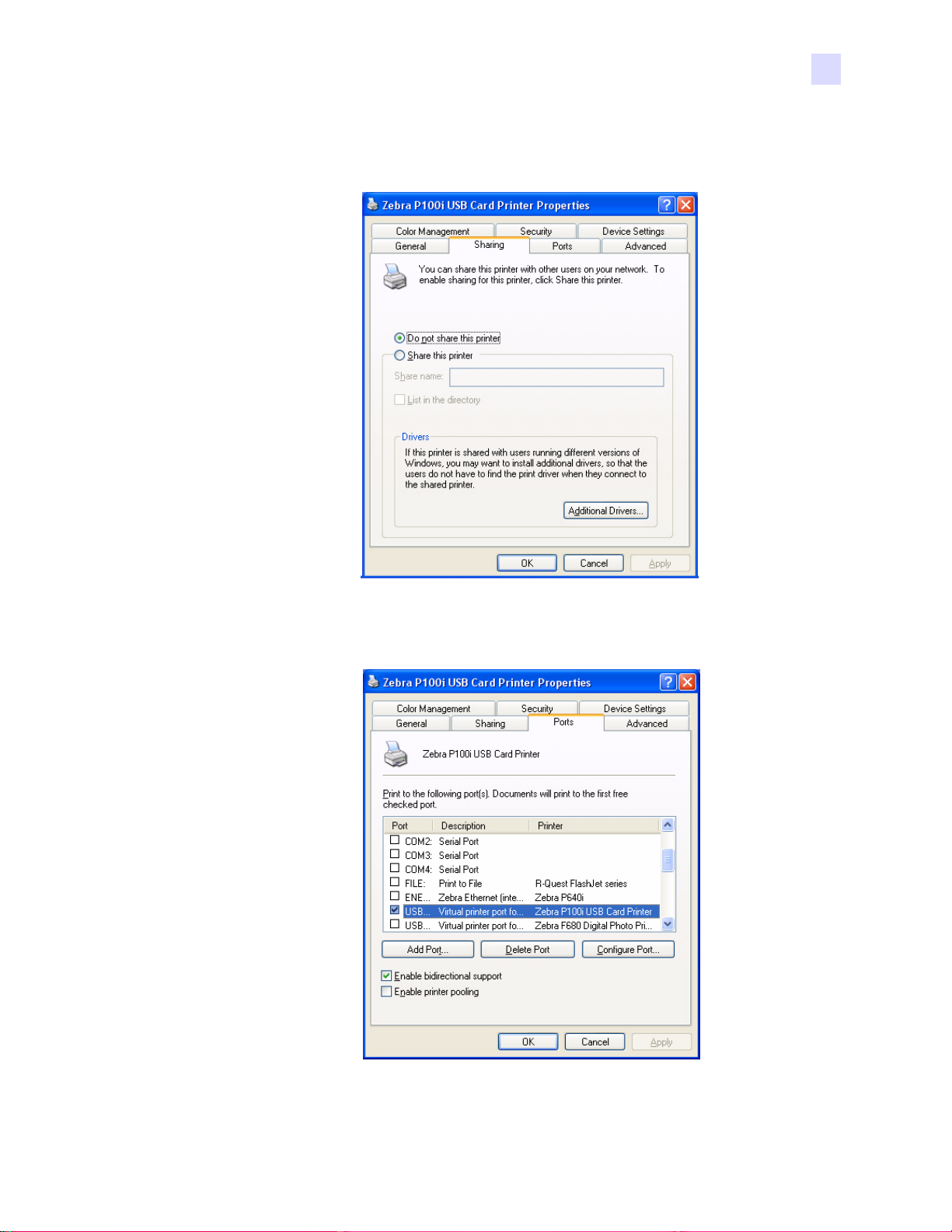

4. On the Sharing tab, you can choose to share the printer over the network, and install
additional drivers to accommodate different operating systems.
5. On the Ports tab, you can add, delete, and configure the printer ports, as well as choose
which port the P100i Printer is assigned.
980590-001 Rev. AP100i User’s Manual23
Printer Installation
Setting Printer Driver Options
6. On the Color Management tab, you can add, remove, or change printer color profiles.
7. Use the Security tab to change permissions for the P100i Printer.
24P100i User’s Manual980590-001 Rev. A
Printer Installation
Setting Printer Driver Options
8. On the Advanced tab, you can choose various printer properties, install different printer
drivers, and change default printer settings.
9. On the Device Settings tab, you can check the Firmware Version installed on the printer.
980590-001 Rev. AP100i User’s Manual25
Printer Installation
Setting Printer Driver Options

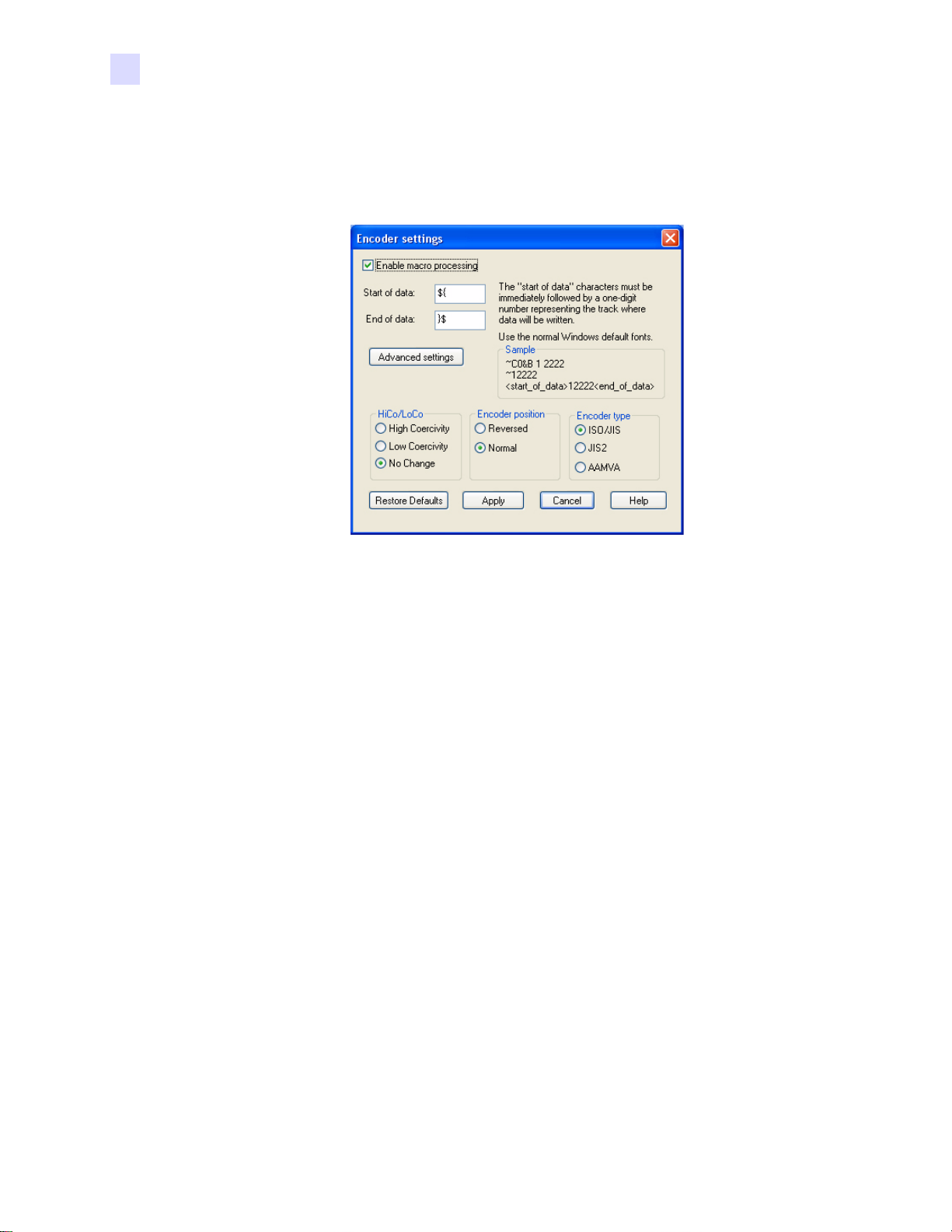

10. Under the Device Settings tab, if you select Encoder Settings, a button “Properties” will
open next to the Encoder Settings. Click that Properties button, and the following screen
will appear.
Typically, the only setting that a User might change is to switch between High Coercivity
and Low Coercivity Magnetic Stripe cards. A User should leave all other settings
unchanged.
11. Once the P100i printer driver options are set to your satisfaction, click the OK button to
save your new configuration and close the Properties window.
26P100i User’s Manual980590-001 Rev. A
Printer Features
The following shows an interior view of your P100i Printer.
3
P100i Printer Setup
Lid
Print
Head
Card and
Cleaning
Roller
Storage
Area
Ribbon
Cartridge
Card
Cleaning
Cartridge
Card
Entry / Exit
Slot
980590-001 Rev. AP100i User’s Manual27
P100i Printer Setup
Loading Ribbon Cartridge
Loading Ribbon Cartridge
The P100i Printer requires approved ribbon cartridges.The Resin Thermal Transfer and Dye
Sublimation ribbons are specifically designed for your P100i Printer.
Series Printers require the use of i Series ribbons for full color printing.
•i
•Each ribbon cartridge includes an integrated adhesive cleaning roller assembly that is
used to clean the cards entering the printer. Improper cleaning will reduce printer life
and degrade print quality
•When the ribbon is completely used, change the whole cartridge assembly.
Electrostatic Discharge Caution • DO NOT TOUCH the print head or the electronic
components on the print head. Discharge of electrostatic charge from the human body or other
surfaces can damage the print head or other electronic components

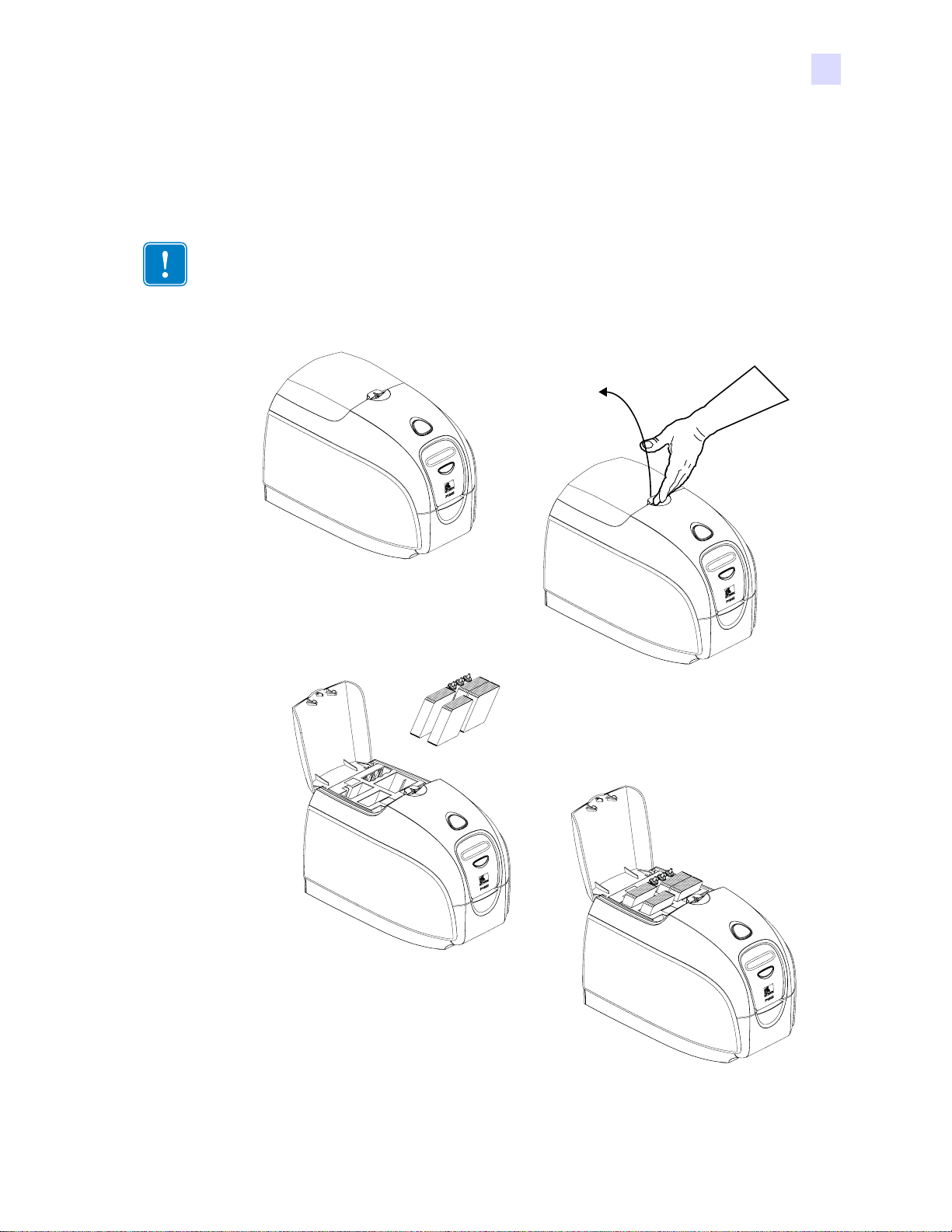

1. Open printer lid by pressing the Cover Release button on the top of your printer.
2. Peel protective wrapper from adhesive cleaning roller by gently pulling on the tape.
Discard the protective wrapper.
✓
28P100i User’s Manual980590-001 Rev. A
P100i Printer Setup
Loading Ribbon Cartridge

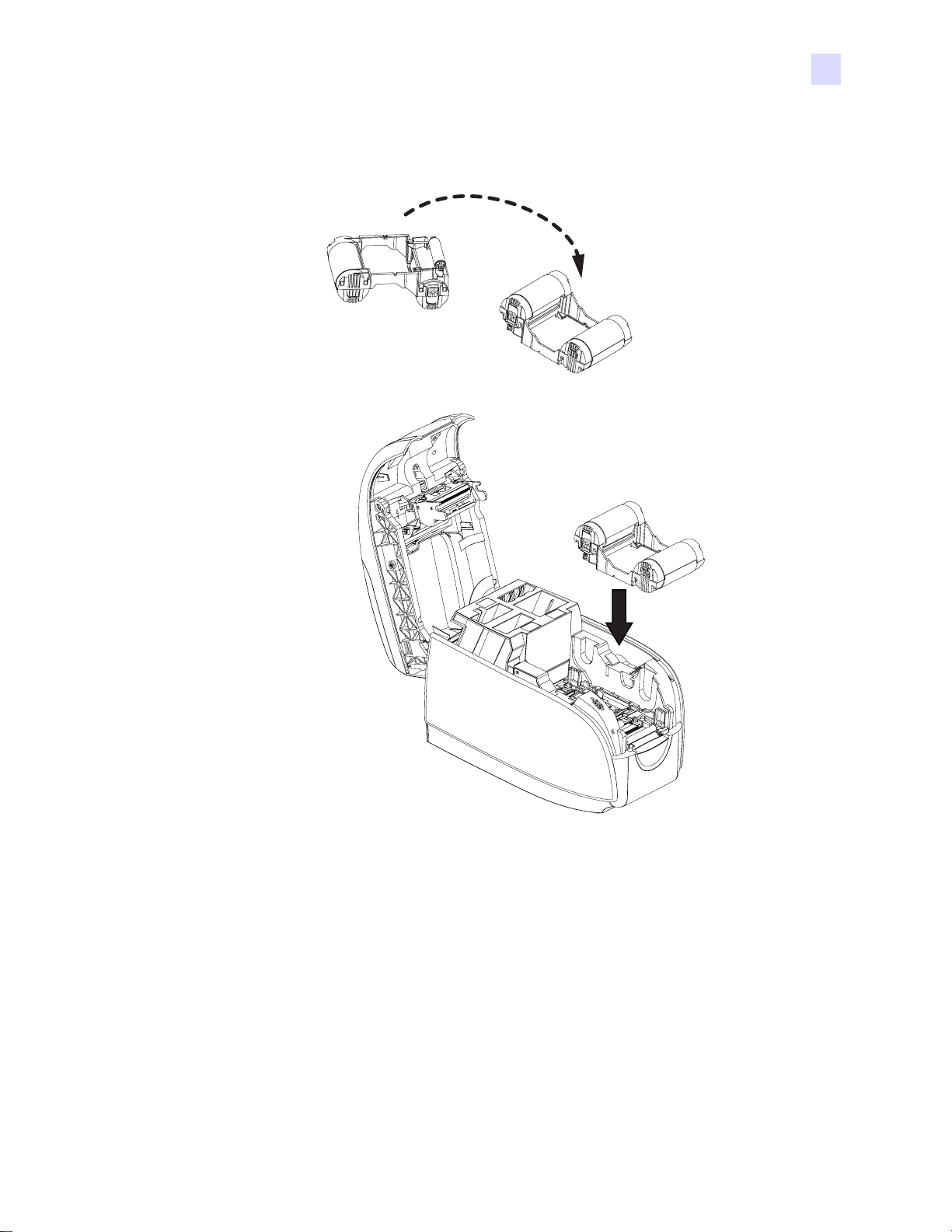

3. Insert the ribbon cartridge with the cleanin g roller facing down , so the gears on the ends of
the rollers fit into the appropriate slots.
980590-001 Rev. AP100i User’s Manual29
P100i Printer Setup
Installing the Cleaning Cartridge
Installing the Cleaning Cartridge

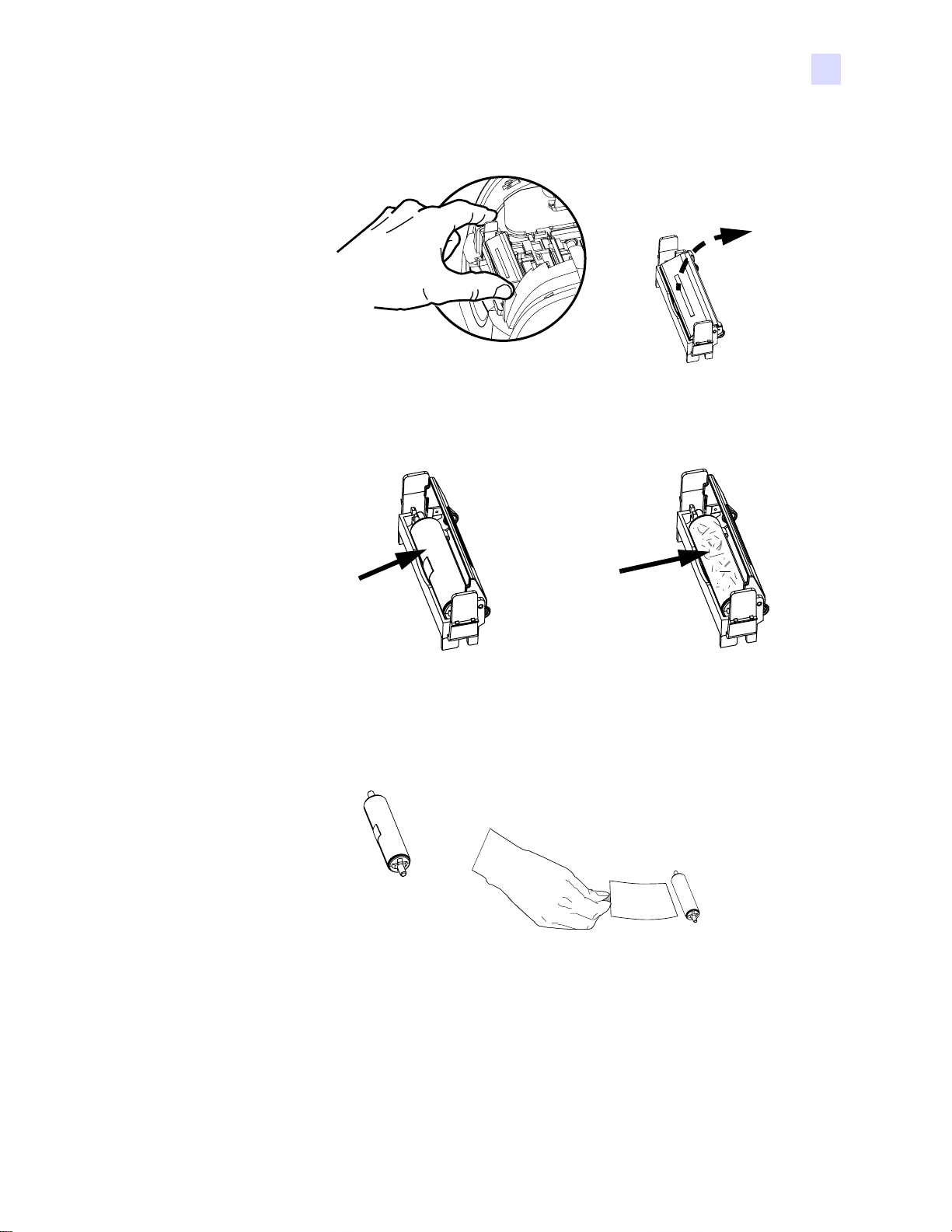

The Cleaning Cartridge removes surface dust particles and oil from the card surface , resu lti ng
in better printing.
A new printer will have a Cleaning Cartridge installed, but its Cleaning Roller will have a
protective wrapper that must be removed.
1. Locate the Cleaning Cartridge.
2. The Cleaning Cartridge is held in place by two clips.
30P100i User’s Manual980590-001 Rev. A
P100i Printer Setup
Installing the Cleaning Cartridge
3. Gently squeeze the clips and lift the Cleaning Cartridge free of the printer.

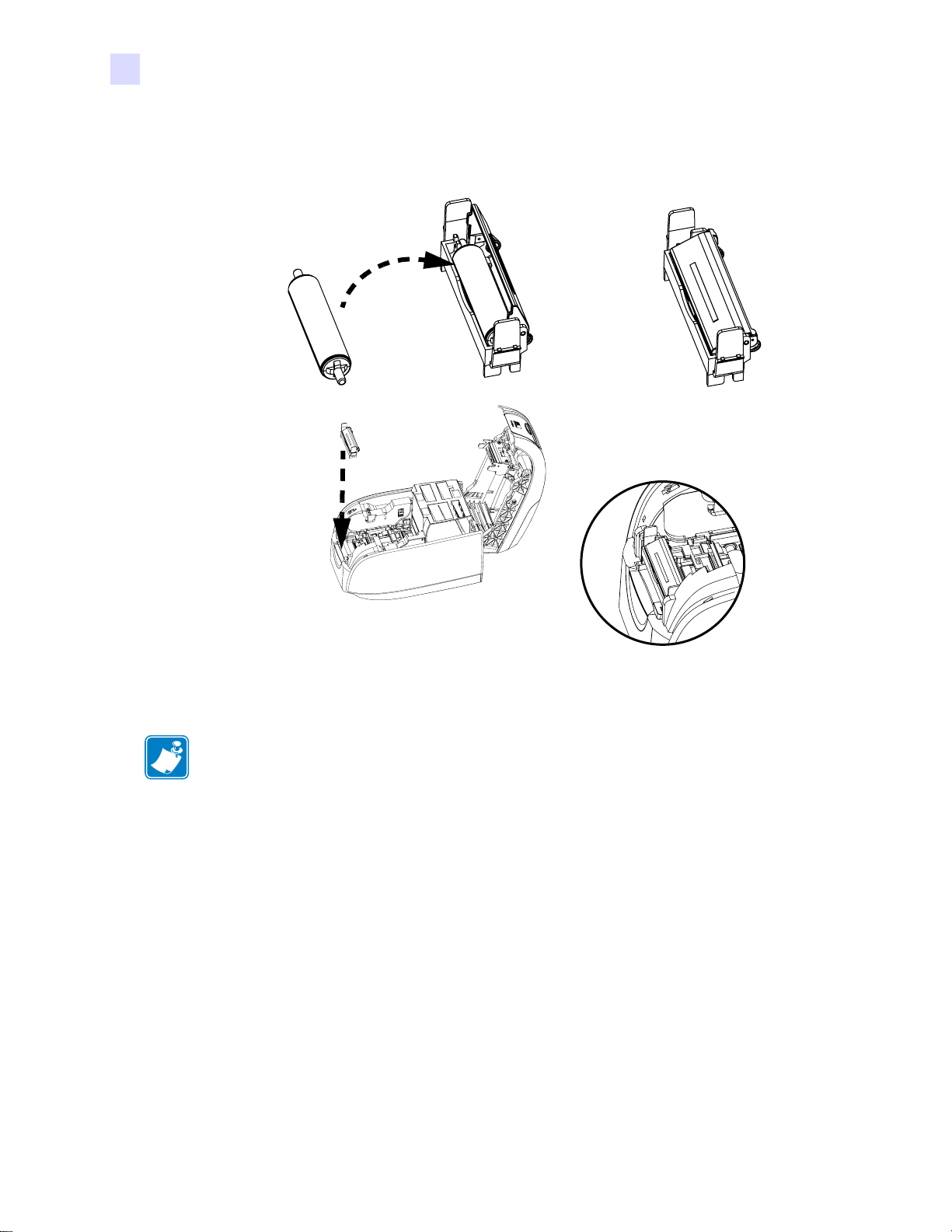

4. Lift the lid of the Cleaning Cartridge. A new printer will have a Cleaning Roller with its
protective wrapping. Replace the Cleaning Roller when it is dirty.
New
Cleaning
Roller with
Protective
Wrapping
Dirty
Cleaning
Roller, Must
be Replaced
5. Remove the Cleaning Roller from the Cleaning Cartridge. (Discard a dirty Cleaning
Roller, and replace it with a new one.)
6. Remove the protective wrapper from the Cleaning Cartridge.
980590-001 Rev. AP100i User’s Manual31
P100i Printer Setup
Installing the Cleaning Cartridge
7. Place the Cleaning Rolle r in the Cartridge, close the lid, and insert it in place so the
latches engage.
8. Close the printer lid, and push down until you hear an audible click
.
Note • After the lid is closed, the ribbon automatically sync hronize s when the p rinter po wer
is on.
32P100i User’s Manual980590-001 Rev. A

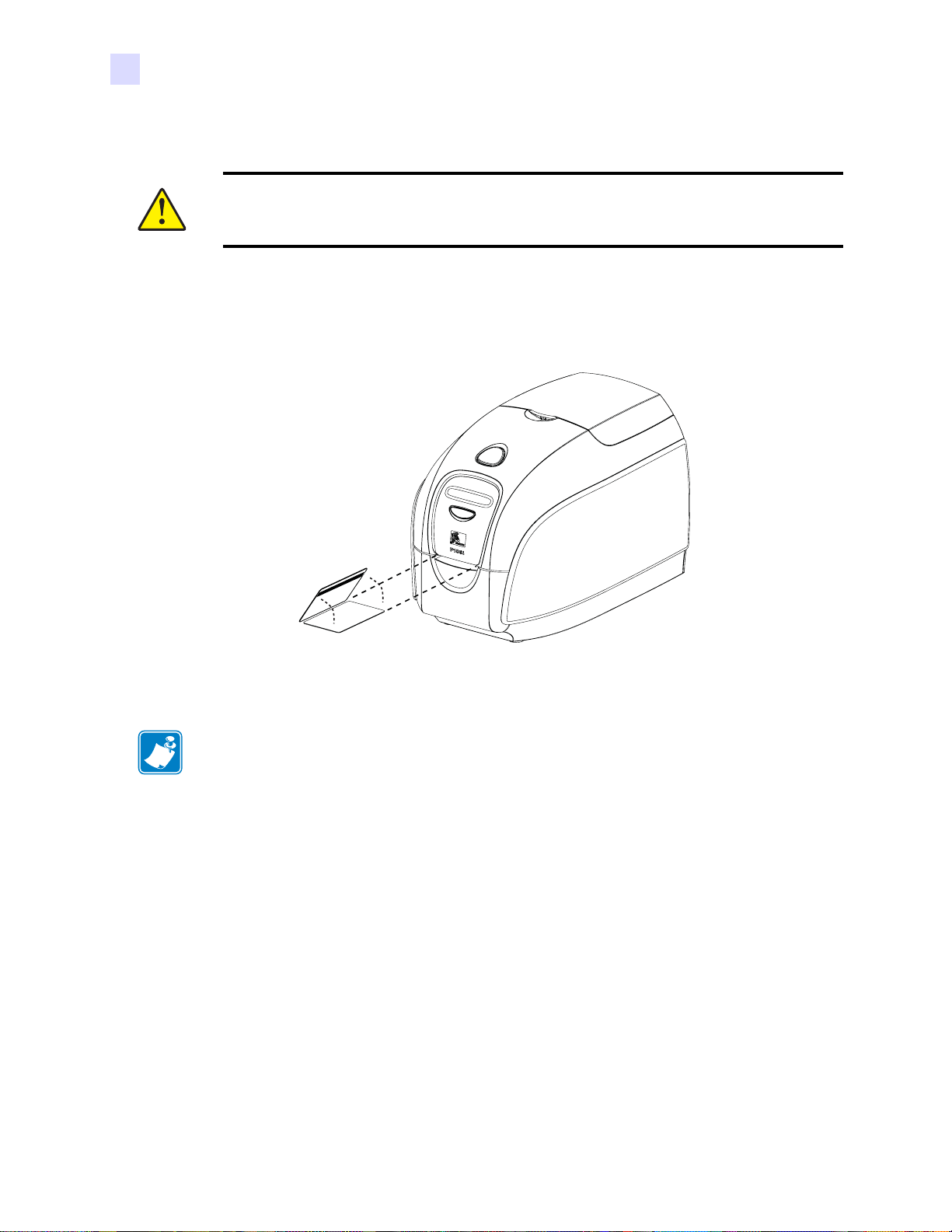

Inserting Cards

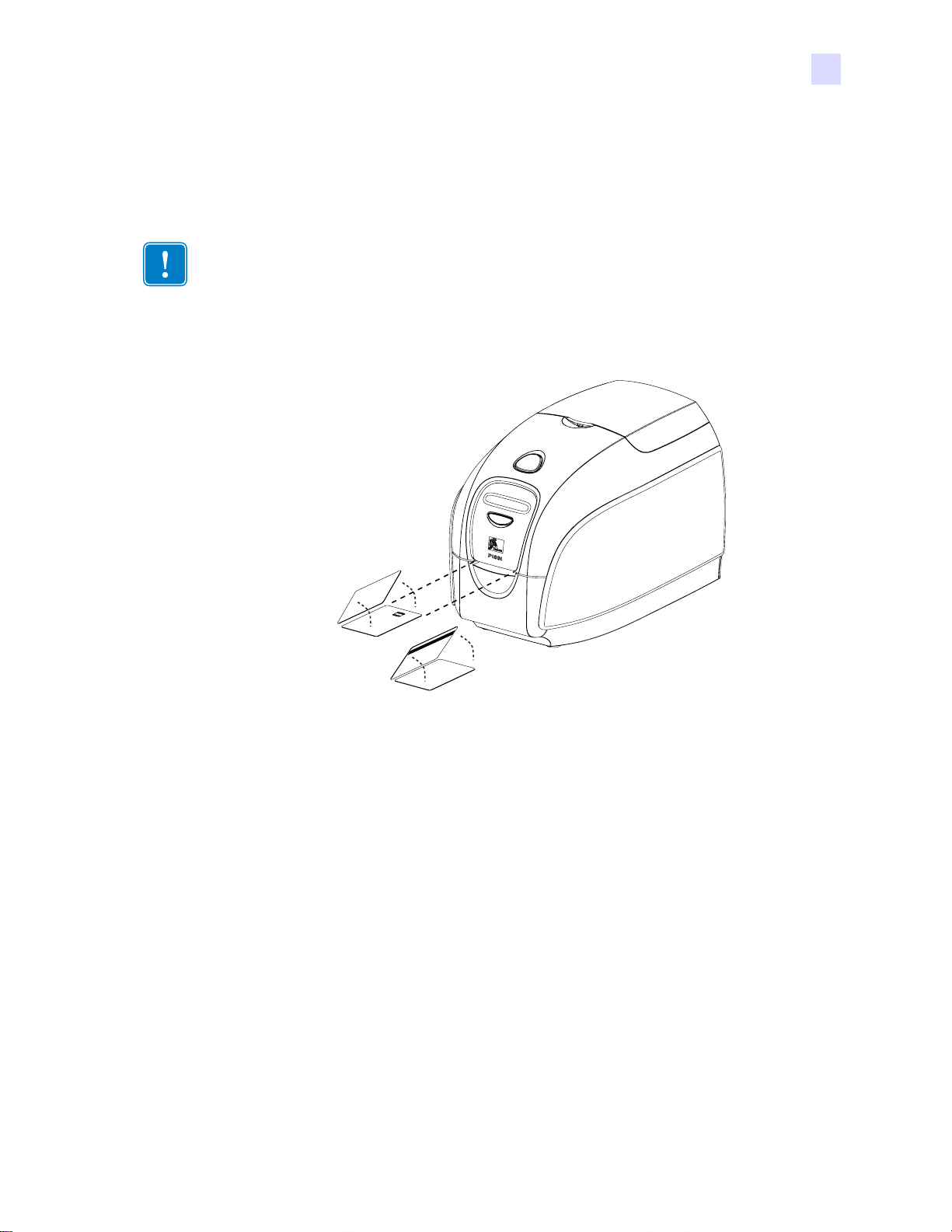

Cards are inserted one at a time into the slot on the front of the P100i . The card is printed on
the top surface and ejected out through the same slot.
Important • Handle the cards only by the edges.

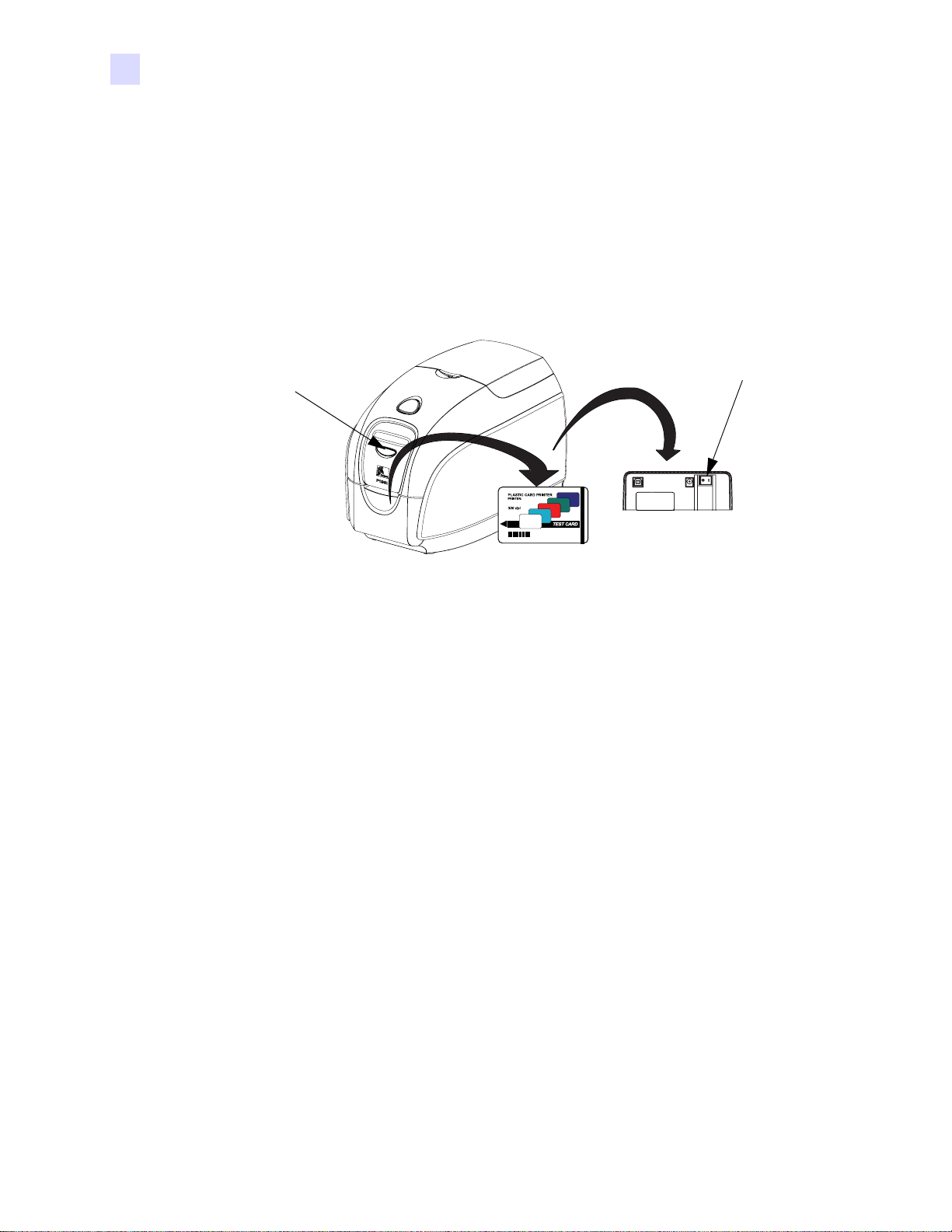

The following figure shows the encoding orientation for contact smart-cards and cards with a
magnetic stripe.
P100i Printer Setup
Inserting Cards
For magnetic-stripe cards, if printing is desired on the side with the magnetic stripe, the card
would be inserted stripe up, with the stripe toward the right side of the printer as viewed from
the front.
For contactless smart-cards, orientation is not a consideration.
980590-001 Rev. AP100i User’s Manual33
P100i Printer Setup
Printing a Test Card
Printing a Test Card
With Ribbon Cartridge and Card Cleaning Cartridge loaded, your P100i Printer is ready to
print. To check the operation of the printer, you should print a test card.
1. Place the printer power switch in the OFF (O) position.
2. While holding down the Multi-Functio n Control Button, place th e printer po wer switch in
the ON ( | ) position. The LCD status window will glow blue.
MultiFunction
Power
Switch
Control
Button
P100i
Serial Nr: 060376
Firmware: V1.50
Head resistance: 1568
Offset: X002 - Y015
EC: 0014
Printing Counter: 00002716
3. Keep pressing the Multi-Function Control Button until you are prompted to insert a card.
4. Insert a card into the card entry slot. At this point, you can release the Multi-Function
Control Button.
5. A test card will print after a few seconds and then exit the printer.
34P100i User’s Manual980590-001 Rev. A
Storing Extra Cards and Cleaning Rollers
The P100i Printer includes a storage area where you can keep up to 100 extra cards (four
groups of 25 cards) and up to three extra Cleaning Rollers.
Important • Handle the cards only by the edges.
P100i Printer Setup
Printing a Test Card
980590-001 Rev. AP100i User’s Manual35
36P100i User’s Manual980590-001 Rev. A
Printing
4
P100i Printer Operation

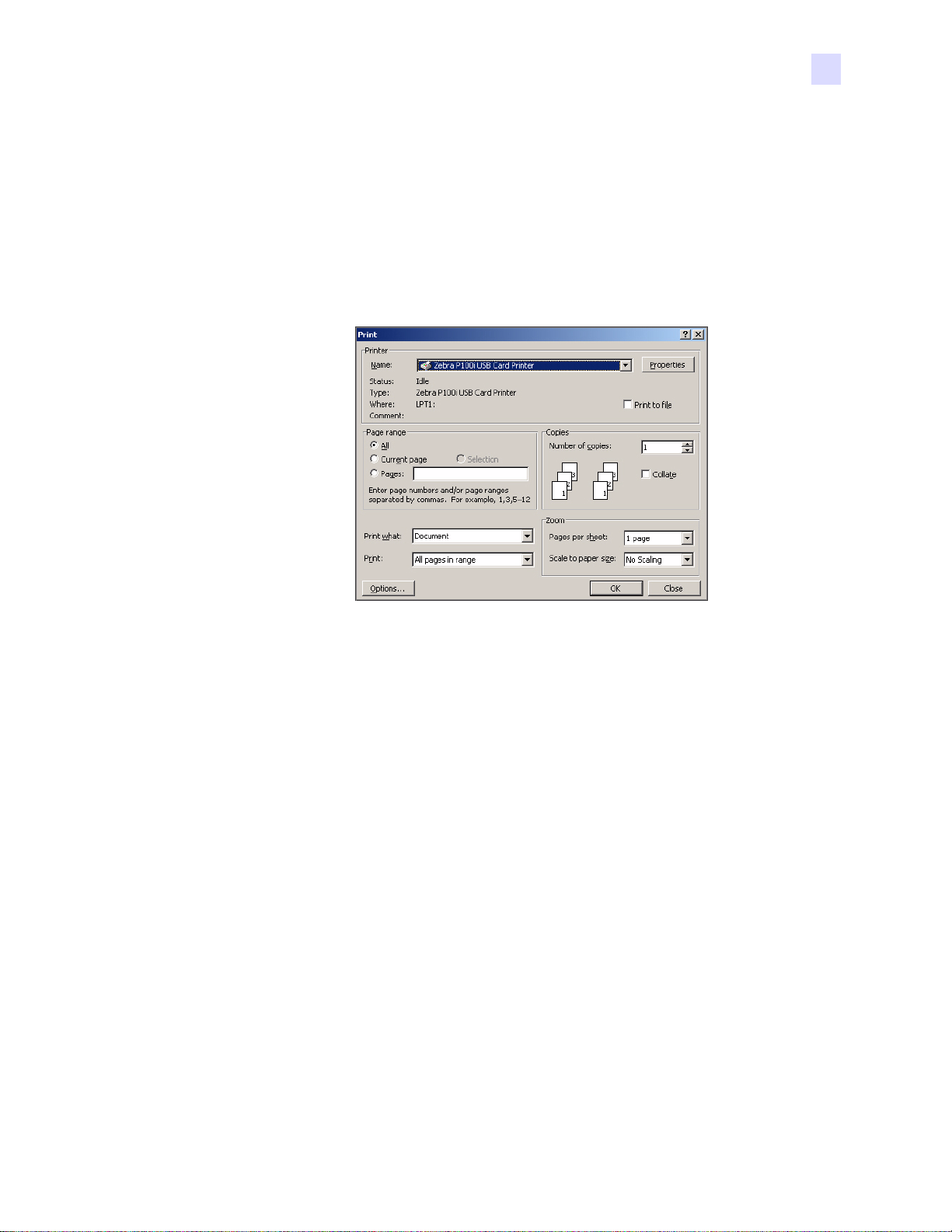

Printing with the P100i Printer requires the Windows Printer Driver , you r card desi gn/issu ing
software or printer command level programming through the printer interface.
The P100i Printer can be used with any Windows 2000, Windows XP, or Windows Vista
software application program, using the drivers provided on CD with the printer. Refer to
Chapter 2 for instructions on installing the P100i printer driver.
980590-001 Rev. AP100i User’s Manual37
P100i Printer Operation
Printing
Creating a Sample Card
Before you begin a new printing session, print a sample card to ensure that the cards will be
TM
printed correctly. Follow the steps below to print your first card using the True Colours
Card Printer Ribbon Cartridge and the Windows printer driver.
Note • To simplify creating a sample card, you can use one of the sample files that were
installed during the driver installation process. These samples (Word files) can be found in
Start > All Programs > Zebra Card Printers.
1. Go to the Microsoft Word Software.
2. If the P100i Printer was not selected as the default pri nter, go to File > Select Printe r; an d
choose Zebra P100i Card Printer from the printer names list. Close the Print dialo g box.
3. Go to File > Page Setup.
4. Select the Size tab; and under Paper Size, choose Card. Under orientation, select
Landscape or Portrait.
5. Select the Margins tab; and set the Top, Bottom, Left, and Right margins to 0 (zero).
6. Press OK to close Page Setup window.
7. The card appears on the window.
8. Design a card with both black and colored text and with colored pictures similar to the
sample card shown below.
http://www.zebracard.com
38P100i User’s Manual980590-001 Rev. A
Printing a Sample Card
Once you completed creating your samp le card, you are ready to prin t. Ensure y our printer has
a True Colours
on installing the ribbon and loading the cards.
Print your sample card as follows:
1. Select File > Print to open the Print dialogue box.
™Card Printer Ribbon Cartridge installed. Refer to Chapter 3 for instructions
P100i Printer Operation
Printing
2. Ensure the following settings in the Print dialogue box:
•Printer Name: Zebra P100i
•Print to File: Unchecked
•Page Range: All
•Number of Copies: 1
•Collate: Unchecked
•Print What?: Document
•Print: All pages in range
•Pages per sheet: 1 page
•Scale to paper size: No scaling
3. Click the OK button.
4. The user will feed in a card and start printing. The data download time will vary
depending on the complexity of the card desi gn and th e pr oc essin g sp eed of the computer.
5. Once the printing is completed, the card is ejected from the printer.
6. Check the card for any discrepancies. If the sample card is correct, your P100i Card
Printer is ready to produce more cards. For print quality issues, refer to Chapter 6.
Card Printer
980590-001 Rev. AP100i User’s Manual39
40P100i User’s Manual980590-001 Rev. A
Cleaning the System
5
Cleaning
Caution • PROTECT YOUR FACTORY WARRANTY!
The recommended maintenance procedures must be performed to maintain your
N
factory warranty. Other than the recommended cleaning pr ocedures described in th is
manual, allow only Zebra authorized technicians to service the P100i Printer.
NEVER loosen, tighten, adjust, or bend, etc., a part or cable inside the printer.
NEVER use a high-pressure air compressor to remove particles in the printer.
Your P100i Printer includes a simple cleaning system using Pre-Saturated Cleaning Cards
provided. The regular use of these cards will clean and maintain impo rtant parts of your printer
that cannot be reached: including Printhead, the Transport Rollers, and the Magnetic Encoder
Station (optional feature).
When to Clean
Clean the Printer when:
•Print quality has been degraded.
•The LCD panel displays the message
CLEAN PRINTER.
980590-001 Rev. AP100i User’s Manual41
Cleaning
Cleaning the System
How to Clean
1. Leave power on.
Multi-Function
LCD Panel
Multi-Function
Control Button
Printer Path
Cleaning Card
2. Press and hold the Multi-Function Control Button for 5 seconds.
3. When the cleaning cycle is initiated, the LCD message REMOVE RIBBON THEN
CLOSE LID
4. If the lid is opened and closed without removing the ribbon, the message REMOVE
RIBBON THEN CLOSE LID
5. After the ribbon is removed and the lid is closed, the messages CHECKING RIBBONand
will display.
will remain.
CLEANING CYCLE will display.
6. The message FEED LONG CLEANING CARD IN EXITwill display. When the card
sensor registers the presence of the cleaning card, the rollers should take the card into
the printer.
7. The message CLEANING HEADwill display.
8. The message CLEANING ROLLERSwill display.
9. When the cleaning process is done, the printer will eject the cleaning card. If the card
sensor still senses the cleaning card, the message
REMOVE LONG CLEANING CARD
will display.
10. After the card is removed, the LCD will display READY. You may now reload the ribbon
and continue printing.
42P100i User’s Manual980590-001 Rev. A
Cleaning the Printhead
Use of the cleaning cards will normally do an adequate job of cleaning the printer. However, a
separate Printhead cleaning, using swabs, can remove more stubborn deposits when print
anomalies persist. To avoid deposits, only use foam-tipped swabs.
Caution • Never use a sharp object to scrape deposits from the Printhead. Permanent
damage to the Printhead will result
1. Place the printer power switch in the OFF (O) position.
2. Open printer lid by pressing cover release button, and open cover fully to reveal the
Printhead mounted to inside of the cover.
3. Clean the Printhead by moving alcohol-moistened swab tip sid e-to-sid e across Prin th ead
elements. Only use moderate force.
Cleaning
Cleaning the Printhead
4. Allow two to three minutes for the Printhead to dry before placing the printer power
switch in the ON ( | ) position.
5. To reorder swabs, reference the P100i Printer Media List.
980590-001 Rev. AP100i User’s Manual43
44P100i User’s Manual980590-001 Rev. A
Troubleshooting
Troubleshooting Procedures
LCD Panel Warnings and Error Messages
6
WARNING MESSAGES (printer will still operate)
Problem / SymptomDescription or CausePossible Solution *
CLEAN PRINTERPrinter needs to be cleaned (this
message is displayed after 1000
cards have been printed).
CHECKING RIBBONPrinter is detrmining type of
ribbon installed.
CLEAN MAG HEADThe magnetic encoder head
needs cleaning.
INVALID MAGNETIC DATAThe magnetic data may be
invalid.
REMOVE RIBBONDisplayed during the printer
cleaning process described in
Chapter 5.
* If the problem persists, contact Technical Support; see Appendix D.
Clean the printer. Refer to
Chapter 5 for details on how to
clean the printer.
No action required -- status
message only.
Use the standard cleaning card
process described in Chapter 5.
Check data format.
Remove the ribbon.
980590-001 Rev. AP100i User’s Manual45
Troubleshooting
Troubleshooting Procedures
Problem / SymptomDescription or CausePossible Solution *
ERROR MESSAGES (printer will not operate)
CHECK RIBBONRibbon may be improperly
installed.
OUT OF RIBBONRibbon may be entirely used Load a new ribbon cartridge.
MECHANICAL ERRORA mechanical error occurred;
e.g., card jam.
COVER OPENThe cover is open.Make sure that the cover is
PARAMETER ERRORA parameter error occurred.Reset the Printer, and try
COMMAND ERRORA command error occurred.Reset the Printer, and try
CONTACT ERRORA contact error occurred.Reset the Printer, and try
CONTACTLESS ERRORA contactless error occurred.Reset the Printer, and try
INVALID CONTACT DATAThe contact data is invalid.Re se t the Printer, and try
INVALID CONTACTLESS DATAThe contactless data is invalid. Reset the Printer, and try
Reload ribbon cartridge. Refer
to Chapter 2 for details on
loading a ribbon cartridge.
Refer to Chapter 2 for details on
loading a ribbon cartridge.
Remove jammed card.
completely and securely closed.
printing the card again.
printing the card again.
printing the card again.
printing the card again.
printing the card again.
printing the card again.
* If the problem persists, contact Technical Support; see Appendix D.
46P100i User’s Manual980590-001 Rev. A
Print Quality Issues
This section will help you resolve print quality problems The print quality is dependent on
several factors. The two most important factors that will increase your print quality are
cleanliness and card stock. To diagnose and fix print quality problems, follow the
troubleshooting procedures below:

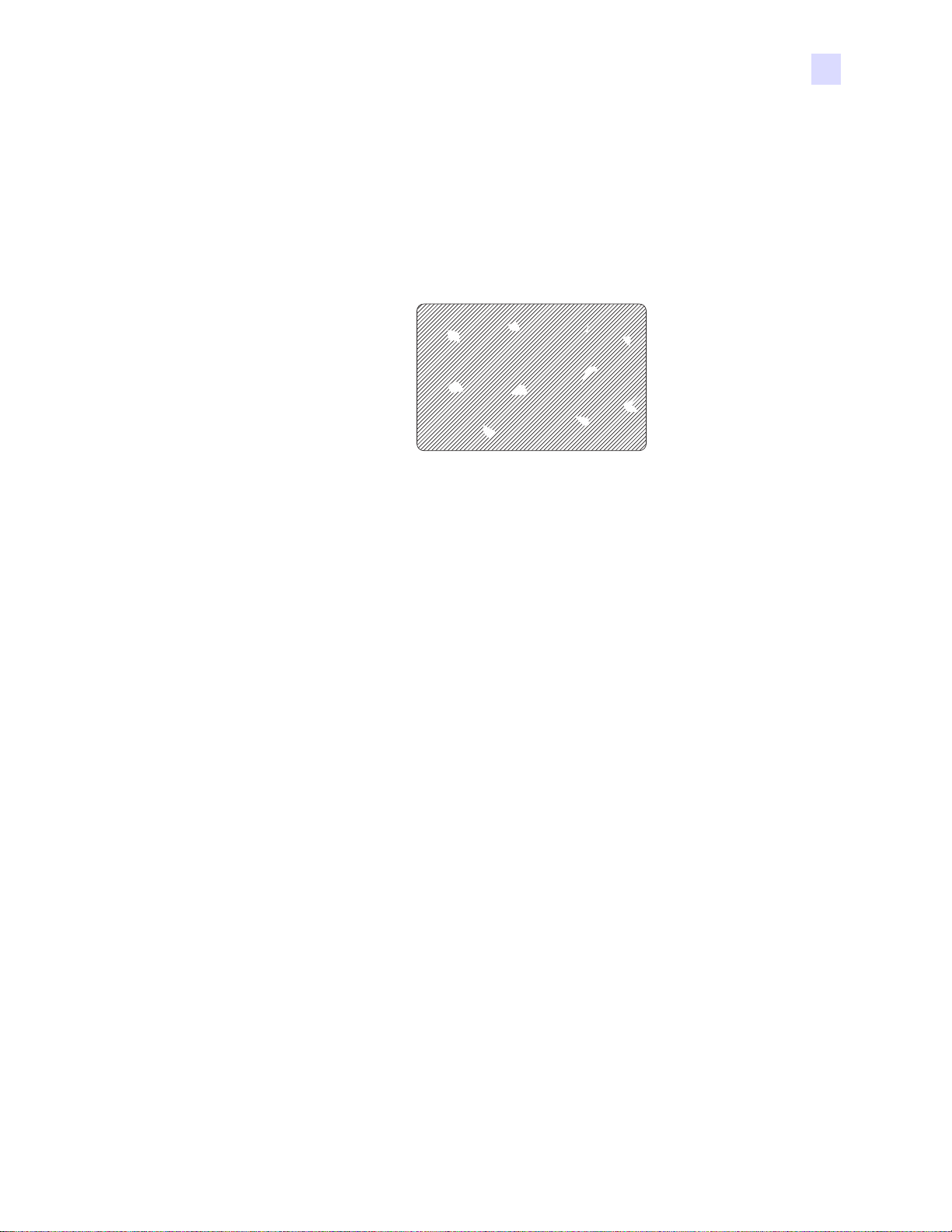

Example • Small spots appear on the printed card with a non-printed area or a different color.
Troubleshooting
Troubleshooting Procedures
Possible Cause:
•Contamination on the card surface.
Solutions:
•Check that cards are stored in a dust free environment.
•Use a different supply of cards.
Possible Cause:
•Cleaning roller not installed.
•Dust inside the Printer and/or dirty Cleaning Roller.
Solutions:
•Clean the printer (refer to Chapter 5)
•Check that the protective cover was removed from the ribbon cartridge cleaning roller
(refer to Chapter 3).
•Replace the Cleaning Roller (refer to Chapter 3).
980590-001 Rev. AP100i User’s Manual47
Troubleshooting
Troubleshooting Procedures
Example • There are non-printing horizontal lines (white) on the card surfaces.
Possible Cause:
•Ribbon cartridge is not correctly positioned.
Solutions:
•Ensure that the ribbon is properly rolled onto the ribbon cores of the cartridge and that
there are no wrinkles in the ribbon.
•Replace ribbon cassette.
Possible Cause:
•Printhead is dirty.
Solution:
•Clean the Printhead (refer to Chapter 5).
Possible Cause:
•Printhead elements are damaged (e.g., scratched or burnt).
Solution:
•Call Zebra Customer Service for Printhead replacement information.
48P100i User’s Manual980590-001 Rev. A
Example • Printing shows very pale or inconsistent results.
Possible Cause:
•Ribbon cartridge have been stored improperly or is damaged.
Solution:
•Change ribbon cartridge and print again.
Troubleshooting
Troubleshooting Procedures
Possible Cause:
•Cards may not meet specifications.
Solution:
•Use a different supply of cards.
Possible Cause:
•Contrast and/or Intensity may be set to values which are too high.
Solution:
•Adjust Contrast and/or Intensity values in software.
Possible Cause:
•Dust or embedded contamination on elements of the Printhead.
Solution:
•Clean the Printhead (refer to Chapter 5).
980590-001 Rev. AP100i User’s Manual49
Troubleshooting
Troubleshooting Procedures
Example • Printing shows blurry printed image.
Possible Cause:
•Ribbon cartridge may not be correctly positioned.
Solutions:
•Check that the ribbon is properly rolled onto the ribbon cores of the cartridge, with
no wrinkles.
•Replace ribbon cartridge, making sure it locks in place, and print again.
Possible Cause:
•Ribbon may not be synchronized on the correct color panel position.
Solution:
•Open lid, then close lid to synchronize the ribbon.
Possible Cause:
•Cards may not meet specifications.
Solution:
•Use a different supply of cards.
Possible Cause:
•Dust or embedded contamination inside the Printer and/or dirty Cleaning Roll er.
Solutions:
•Clean the Printhead (refer to Chapter 5).
•Replace the Cleaning Roller (refer to Chapter 3).
50P100i User’s Manual980590-001 Rev. A
Example • No printing on the card.
Possible Cause:
•Ribbon cartridge may not be installed in the printer.
Solution:
•Check for ribbon cartridge in the printer.
Troubleshooting
Troubleshooting Procedures
Possible Cause:
•Cards may not meet specifications.
Solution:
•Use a different supply of cards.
Possible Causes:
•Cable on Printhead may be disconnected.
•Printhead elements may be scratched or burnt.
Solution:
•Call Service for Printhead repair or replacement information.
980590-001 Rev. AP100i User’s Manual51
Troubleshooting
Troubleshooting the Ethernet Connection and Adapter
Troubleshooting the Ethernet Connection and Adapter
Ethernet Adapter Status Indicator
A bi-color Status Indicator displays the operational status of the Ethernet Adapter.
Ethernet Adapter Status Indicator
The following conditions might occur:
1. During normal operation, the LED is solid GREENfor more than 30 seconds. This
indicates all the hardware is functioning properly, and the Ethernet Adapter has detected
the presence of the network. It does not mean the Ethe rn et Adapter has an IP address or is
attached to a printer queue.
2. If the LED is rapidly flashing GREEN(9 times/sec), the Ethernet Adapter has not
detected the presence of a network cable. To solve the problem:
•Verify that the network cable is appropriate and has an RJ-45 connector.
•Turn the printer power
OFF (O). Remove the network cable from the Ethernet
Adapter. Plug the network cable back in until you hear a positive click. Check the
other end of the cable in the same manner. Turn the printer power on; if the Ethernet
Adapter still does not detect a cable, continue.
•Connect the Ethernet Adapter to a known good network connection. If t he Et hernet
Adapter is still unable to detect the network cable, contact Technical Support
.
Important • Cables with a rating higher than CAT-6 have not been tested.
52P100i User’s Manual980590-001 Rev. A
Troubleshooting
Troubleshooting the Ethernet Connection and Adapter
3. If the LED is slowly flashing GREEN(1 time/sec), the Ethernet Adapter is trying to print
a job. If the job does not print, check the following:
•Verify that the printer has media and ribbon. If the printer is showing any errors, it is
unlikely that the Ethernet Adapter can send data to the printer. The
blink until the printer malfunction is resolved or until the printer is turned
LED continues to
OFF (O).
•A flashing RED indicates the Power On Sel f Test (
4. If the LED is solid RED for more than 30 seconds, the Ethernet Adapter has failed the
POST. A failed POST can be caused by any of the following:
POST) is in progress.
•The printer attached to the Ethernet Adapter device is malfunctioning. Turn the
printer power off, wait 10 seconds, then turn the printer back
•If the Ethernet Adapter still fails the
POST, the Ethernet Adapter has a hardware
ON ( | ).
problem that can be fixed only by replacing or returning the unit. Contact Technical
Support for repair or replacement information.
5. If the LED is alternately flashing RED and GREENfor longer than 2 minutes, the
Ethernet Adapter is in firmware-download mode. This means it is waiting for new
firmware data to be sent before it continues normal functioning. Do the following:
•If the Ethernet Adapter was purposely put into firmware-download mode, finish
the download with the proper update utility.
•Contact the Zebra web site at http://www.zebracard.com, and click on the Drivers
& Downloads tab.
•Contact Technical Support for help recovering this unit.
980590-001 Rev. AP100i User’s Manual53
Troubleshooting
Troubleshooting the Ethernet Connection and Adapter
Network Status/Activity Indicator
A bi-color Network Status/Activity LED indicates network speed, established link, and
network activity.
Network Status / Activity Indicator
1. If the LED is off, no link was established.
2. If the LED is solid GREEN, a 100Base link is established.
3. If the LED is flashing GREEN, a 100Base link is established, and network activi ty has
been detected.
4. If the LED is solid ORANGE, a 10Base link is established.
5. If the LED is flashing ORANGE, a 10Base link was established, and network activity has
been detected.
Network activity detected by this
LED does not mean the activity is data for the print server.
The activity is all activity on the network seen on the Ethernet Adapter.
54P100i User’s Manual980590-001 Rev. A
Resetting to Factory Defaults
To reset the Ethernet Adapter configuration parameters to the factory defaults:
1. Press the Ethernet Reset Button, and hold it in while turning the printer power ON ( | ).
Troubleshooting
Troubleshooting the Ethernet Connection and Adapter
Ethernet Reset Button
2. Keep the Panel Button pressed until the Status Indicator light turns GREEN.
3. Then release the Ethernet Switch.
Printing a Configuration Card
To print a configuration card, press and hold the Ethernet Switch until a card starts to print.
980590-001 Rev. AP100i User’s Manual55
56P100i User’s Manual980590-001 Rev. A
Technical Specifications
Printer Specifications
General
•Load-N-GoTM drop-in ribbon cartridge
•16-digit LCD display
•Driver for Windows 2000, Windows XP, Windows Server 2003, and
Windows Vista
7
Color Printing
•Color dye sublimation or monochrome thermal transfer printing
•300 dpi (11.8 dots/mm) print resolution
Bar Code
•Code 39, Code 128 B & C with & without check digit
•2 of 5 & 2 of 5 Interleaved
•UPC-A, EAN 8, and EAN 13
•PDF-417 2D bar code and other symbologies can be printed via
Cards
•Types: PVC, PVC Composite
•Card width/length: ISO CR-80-ISO 7810, 2.12 in (54 mm) x 3.38 in (86 mm)
•Magnetic Stripe-ISO 7811
•Smart Card - Contact and Contactless: 30 mil (.76 mm) to 40 mil (1.02 mm)
•Card thickness: 10 mil (.254 mm) to 40 mil (1.02 mm) (
Windows drivers
±10%)
980590-001 Rev. AP100i User’s Manual57
Technical Specifications
Printer Specifications
Ribbon Cartridges
•Load-N-GoTM ribbon cartridge with integrated card-cleaning roller
•i Series technology featuring contact-chip-based ribbon detection
•YMCKO: 200 cards/cartridge
•Monochrome: 1000 cards/cartridge in black or blue; 850 cards/cartridge
Interfaces
•US B 1.1 (cable included)
•USB 1.1 and built-in Ethernet (optional)
Dimensions
•Width: 7.9 in (201 mm)
•Depth: 12.9 in (328 mm)
•Height: 9.25 in (235 mm)
•Weight: 10.0 lbs (4.5 kg)
in white
Electrical
•110 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
•8 MB image memory standard
•FCC Class A, CE, UL, and CUL approved
Environmental
•Operating Temperature: 60°F to 86°F (1 5°C to 30°C)
•Operating Humidity: 20% to 65% non-condensing
•Storage Temperature: 23°F to 158°F (-5°C to 70°C)
•Storage Humidity: 20% to 70% non-condensing
•Venti lation: Free air
Options
•Magneti c encoder (30 mil cards only), 3 track HiCo/LoCo
•Ethernet (10/100 MBps); available at time of order only
•P100i Starter Kit (100 - 30 mil PVC cards and one Black ribbon)
•Cleaning Kit (1 cleaning card and 1 cleaning swab)
58P100i User’s Manual980590-001 Rev. A

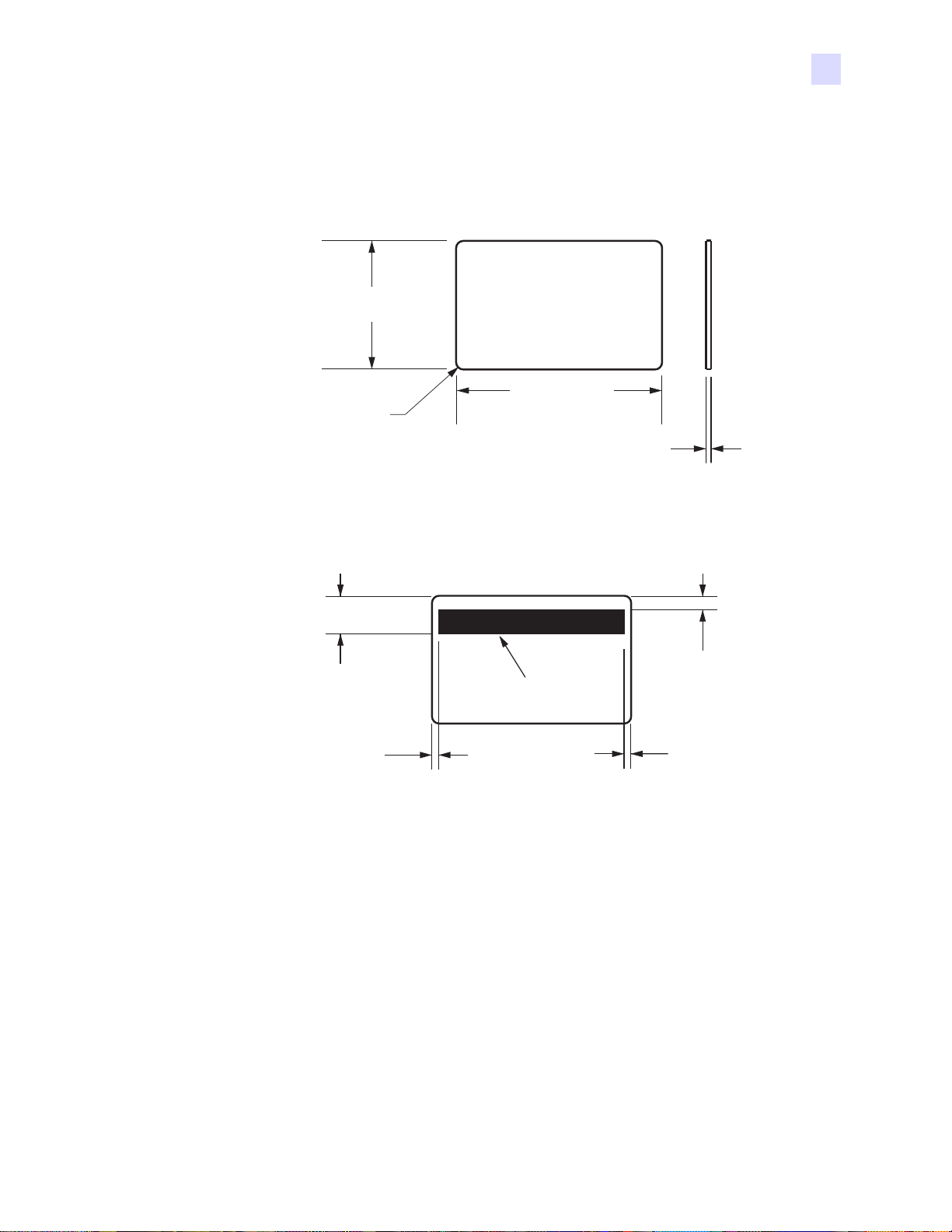

Card Dimensions
ISO standard dimensions for plain card
2.125 ± 0.002 in
(53.98 ± 0.050 mm)
Radius
0.125 in
(3.18 mm)
980504-07-01
3.375 ± 0.010 in
(85.72 ± 0.25 mm)
Technical Specifications
0.009 ~ 0.034 in
(0.23 ~ 0.84 mm)
Card Dimensions
ISO standard dimensions for magnetic stripe card
0.623 in (15.82 mm) min
MAGNETIC STRIPE
0~0.115 in (2.92 mm)0~0.115 in (2.92 mm)
0.218 in (5.54 mm) max
980590-001 Rev. AP100i User’s Manual59
Technical Specifications
Declarations of Conformity
Declarations of Conformity
89/336/EEC
modified by
92/31/EEC and
93/68/EEC
73/23/EEC modified
by 93/68/EEC
1999/5/CER&TTE DirectiveEN300330-2 V1.1.1Radio Frequency Interferences
For a formal certificate, please contact the Compliance Office at Zebra’s Camarillo facility.
EUROPE: Norway Only: This product is also designed for IT power system with phase-to-
phase voltage 230V. Earth gro unding is via the polarized, 3-wire power cord.
FI: “Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan”
SE: “Apparaten skall anslutas till jordat uttag”
NO: “Apparatet må tilkoples jordet stikkontakt”
FCC Regulations
Model P100i has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and operated in accordance with the P100i User’s Manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
EMC DirectiveEN 55022 (1998)RF Emissions control
EMC DirectiveEN 301489-3 V1.4.1
EMC DirectiveEN55024 (2001)
Low voltage
Directive
EN 60950-1 (2001)Product safety
RF Emissions and Immunity for radio
equipment
Immunity to Electro-Magnetic
Disturbances
Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not
expressly approved by Zebra may cause harmful interference and void the FCC authorization
to operate this equipment.
FCC Radiation Exposure Statement (applicable to 15.247 device only)
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum 20 cm between the radiator and your body. This transmitter must not be
collocated or operating in conjunction with any other antenna or transmitter unless
authorized to do so by the FCC.
Industry Canada Notice
This device complies with Industry Canada ICES-003 class A requirements.
Cet équipement est conforme à l 'ICES-003 classe A de la Norme Industrielle Canadienn e.
60P100i User’s Manual980590-001 Rev. A
Introduction
This section contains information on the additional operations of the P100i Printers with a
Magnetic Encoder.
Appendix A
Magnetic Encoder
The magnetic encoder can be set for either high coercivity (HiCo) or low coercivity (LoCo).
This setting can be made via a third-party application software or via the Printer Driver:
Device Settings > Encoder Settings.
980590-001 Rev. AP100i User’s Manual61
Magnetic Encoder
Media Loading Orientation
Media Loading Orientation
Caution • ONLY USE cards that comply with ISO 7810 & 7811 standards for magnetic
stripe cards. The magnetic stripe must be flush to the surface of the card to work proper ly.
Never use cards which have taped-on magnetic stripes.
When loading cards with magnetic stripes into the card feeder, ensure that the magnetic stripe
is toward the right side when facing the printer and down, as shown below.
Note • Zebra approved HiCo & LoCo PVC cards are available. (Reference P100
Media List.)
i
printer
Magnetic Encoder Cleaning
Use the standard cleaning card process as described in Chapter 5. This process cleans the
most important parts of the printer; including the Printhead, Transport Roller, and
Magnetic Encoder.
62P100i User’s Manual980590-001 Rev. A
ISO Standard Encoding
Tr ack #Field Separator Track Density Valid Characters # of Characters
1^210 BPI*
2=75 BPI*
ISO Standard Encoding
Alphanumeric
ASCII
20~95†
Numeric
ASCII
48~62
Magnetic Encoder
79‡
40‡
3=210 BPI*
*Bits per inch
†Except the “?” character
‡Including Start, Stop, and LRC characters. Note that these three characters are
automatically managed by the magnetic encoder according to the ISO
Standard Norms.
Numeric
ASCII
48~62
107‡
Note • Refer to the Card Printer Programmer’s Manual for complete programming
information.
980590-001 Rev. AP100i User’s Manual63
64P100i User’s Manual980590-001 Rev. A
Introduction
This section contains information on the additional operations of a P100i Printer equippe d
with optional contact and/or contactless smart card encoders.
Appendix B
Smart Card Encoder
Smart cards can have a built-in microprocessor and/or memory.
Contact smart card encoders physically make electrical connection via a contact pad on the
card. Contactless smart card encoders utilize a short-range radio signal.
Use of either type of smart card encoder is entirely under control of th e third-part y applica tion
program -- no operator action is required.
Media Loading Orientation
Contact Smart Cards
Orient the cards with the gold-plated Smart Card contacts at the top surface of the card and
nearer the card entry slot, as shown below.
Smart
Card
Contacts
980590-001 Rev. AP100i User’s Manual65
Smart Card Encoder
Printing on Smart Cards
Contactless Smart cards
For contactless smart-cards, orientation is not a consideration (unless the card will be printed
on; see below).
Printing on Smart Cards
Contact Smart Cards
When designing material to be printed on Contact Smart Cards, be sure the printing will not be
on the contact area.
Contactless Smart Cards
When designing material to be printed on Contactless Smart Cards, be sure the printing will
not be on the smart chip area (i.e., the printing on either side of the card must not be on top of
or underneath the smart chip area).
By looking at an unprinted card very carefully, it is possible to see the chip location (as in the
figure on the left below). If you print in that area, results will be unsatisfactory (in the figure on
the right, the “star” should have been a single solid color).
Smart Chip Location
66P100i User’s Manual980590-001 Rev. A
Appendix C
Connecting to a Network
Card printers can be connected to an Ethernet network in three ways.

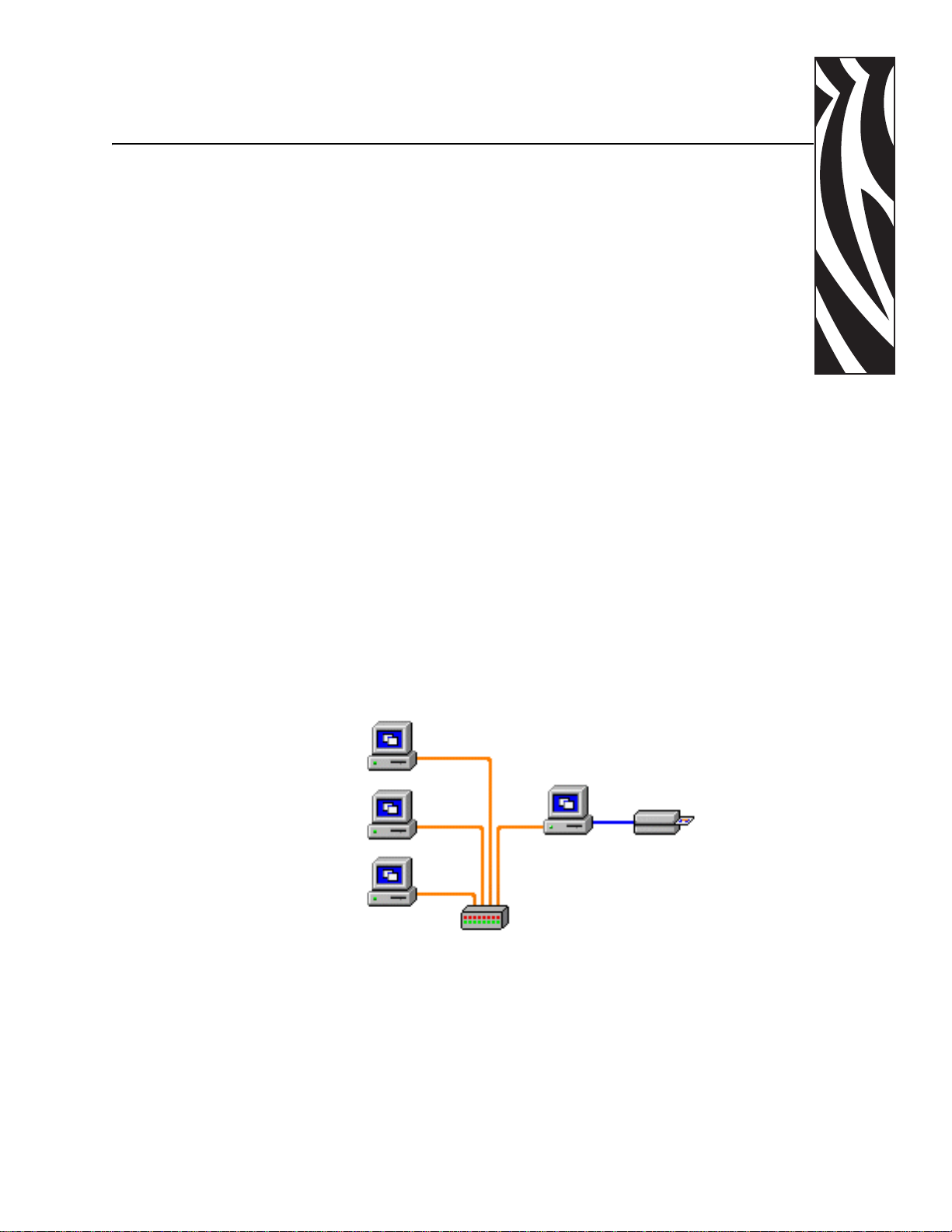

Printer Sharing
In printer sharing, the printer is connected locally to the host computer and configured to be
shared to other client computers. Client computers connect to the printer ov er the net wo r k
through the host computer.
980590-001 Rev. AP100i User’s Manual67
Connecting to a Network
External Print Server
External Print Server
A stand alone device that acts as a server on the network specifically for receiving print jobs
and passing them to the printer. Client computers connect to the print server over a network.
Internal Print Server
Similar to an external print server, except the print server is integrated into the printer. This
removes the need for a separate power supply and separate device drivers. This is the simplest
way to network a printer.
68P100i User’s Manual980590-001 Rev. A
Appendix D
Worldwide Support
For Technical Support or Repair Services, contact the appropriate facility listed below.
North America - Technical Support
Zebra Technologies
Card Printer Solutions
1001 Flynn Road
Camarillo, CA 93012-8706 USA
Before returning any equipment to Zebra Technologies Corporation for in-warranty or out-ofwarranty repair, cont act Repai r Se rvice s for a Ret urn Mat erial s Authori zat ion (
Repack the equipment in the original packing material, and mark the
the outside. Ship the equipment, freight prepaid, to the address listed below:
Zebra Technologies
Card Printer Solutions
1001 Flynn Road
Camarillo, CA 93012-8706 USA
RMA) number.
RMA number clearly on
Phone: 800-452-4034 or 1-805-578-1201
email: repair-ca@zebra.com
980590-001 Rev. AP100i User’s Manual69
Worldwide Support
Europe, Middle East, and Africa - Technical Support
Zebra Technologies Card Printer Solutions
The Valley Centre, Gordon Road
High Wycombe
Buckinghamshire HP13 6EQ
United Kingdom
Before returning any equipment to Zebra Technologies Corporation for in-warranty or out-ofwarranty repair, cont act Repai r Se rvice s for a Ret urn Mat erial s Authori zat ion (
Repack the equipment in the original packing material, and mark the
the outside. Ship the equipment, freight prepaid, to the address listed below:
RMA) number.
RMA number clearly on
Zebra Technologies Corporation
Zebra Card Printer Solutions
Pittman Way, Fulwood
Preston, PR2 9ZD
Lancashire, U. K.
Asia Pacific - Technical Support and Repair Services
Before returning any equipment to Zebra Technologies Corporation for in-warranty or out-ofwarranty repair, cont act Repai r Se rvice s for a Ret urn Mat erial s Authori zat ion (
Repack the equipment in the original packing material, and mark the
the outside. Ship the equipment, freight prepaid, to the address listed below:
Zebra Technologies Asia Pacific, LLC
16 New Industrial Road
#05-03 Hudson TechnoCentre
Singapore 536204
Phone: + 65 6885 0833
e-mail: esoh@zebra.com
RMA) number.
RMA number clearly on
Website
www.zebracard.com
980590-001 Rev. AP100i User’s Manual71
72P100i User’s Manual980590-001 Rev. A
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
