Zebra XC6 Instruction Manual

Contents

Welcome 13

1 Getting Started 19

About your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Contacting Xplore – service and questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Left side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Right side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Quick-start guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Application, Windows, and hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2 Using the Tablet 31

Turning on the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Turning off the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the Reset switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Suspending and resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Suspending operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

XC6 User’s Handbook 3

Contents

Using the pen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the digitizer to perform mouse functions. . . . . . . . . . . . . . . . . . . . . . . 39

Changing the pen double-click speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Positioning the pen and pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Using the fingerprint scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

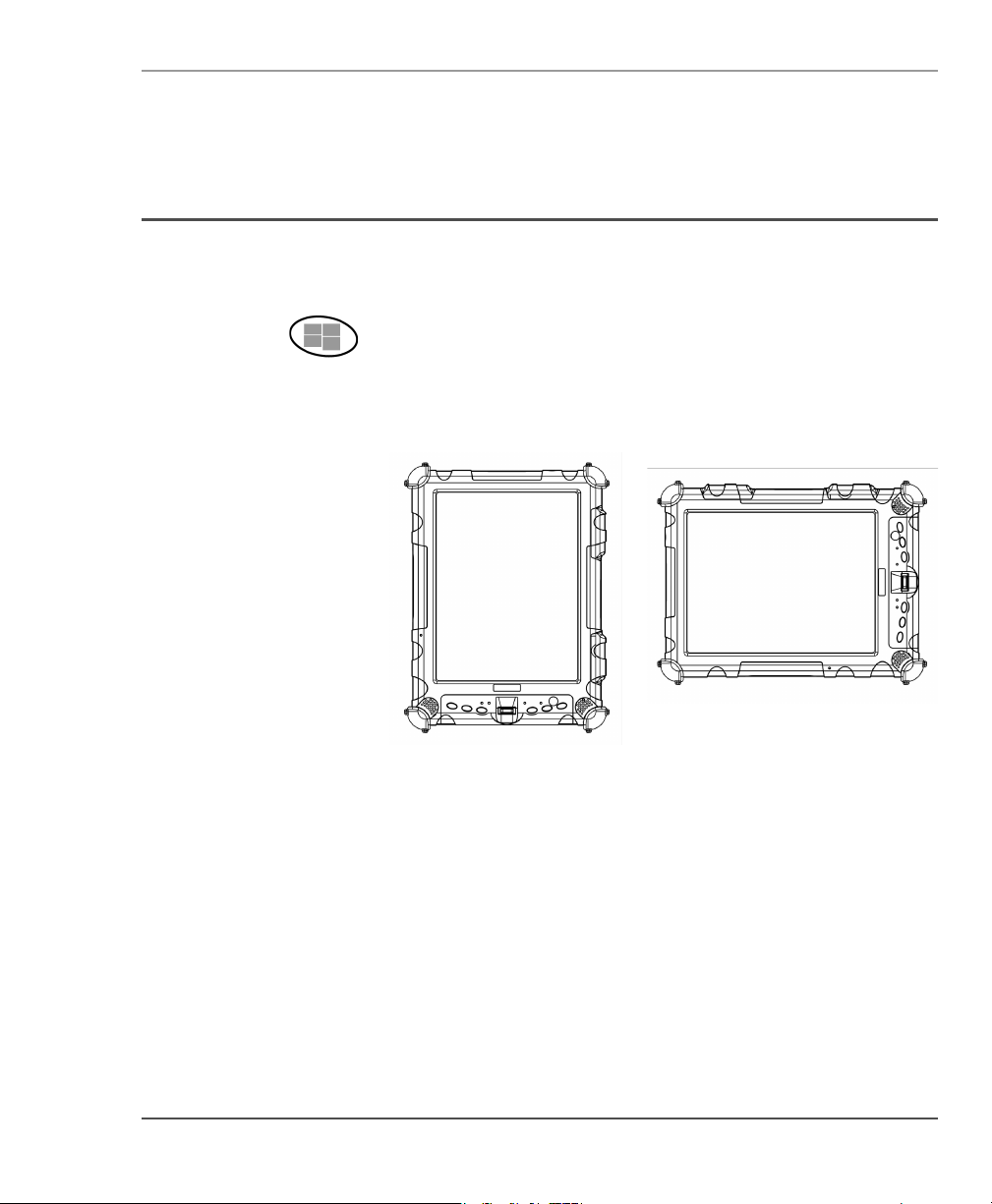

Changing the screen orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Adjusting the screen brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Enabling automatic backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Optimizing screen settings for outdoor use . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Docking the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Connecting devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Connecting to a local area network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Connecting USB-compatible devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Connecting an external microphone, headphone, or speakers . . . . . . . . . . . . 48

Adjusting microphone volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Adjusting headphone or speaker volume . . . . . . . . . . . . . . . . . . . . . . . . 48

Connecting a monitor or projection panel (optional). . . . . . . . . . . . . . . . . . . 49

Activating the monitor or projection panel. . . . . . . . . . . . . . . . . . . . . . . 49

Connecting a device to the serial port (standard). . . . . . . . . . . . . . . . . . . . . . 50

Connecting an XPL expansion module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Charging the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

If you do not have an external battery charger . . . . . . . . . . . . . . . . . . . . 51

If you have an external battery charger . . . . . . . . . . . . . . . . . . . . . . . . . 52

Removing and installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Discarding batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Using power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Displaying power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

4 XC6 User’s Handbook

Contents

Checking battery power status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Selecting a power plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Selecting power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Selecting Power (On/Off) / Backlight (On/Off) / Sleep/ Resume

button options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Tips for conserving battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Accessing the Solid State Drive (SSD) cartridge . . . . . . . . . . . . . . . . . . . . . . . . . 60

Re-installing the drive carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Accessing the MicroSD and SIM compartment . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Programming hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Programming hot keys to start applications,

open documents, or go to a website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Programming hot keys to perform predefined functions . . . . . . . . . . . . . . . . 68

Programming hot keys to perform other key functions . . . . . . . . . . . . . . . . . 70

3 Maintaining the Tablet 73

Caring for the tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Checking power cords and connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Protecting the computer from damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Preventing the computer from overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Storing the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Caring for the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Protecting the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

When to replace the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Calibrating the digitizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

A Troubleshooting 79

XC6 User’s Handbook 5

Contents

B Using BIOS and AOS Functions 81

Disabling the Auto Power feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Enabling automatic LCD backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

C Glossary 83

D Hardware Specifications 89

E Agency Notices 95

F Environmental Policy and Recycling Program 103

Environmental policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Risk reduction, prevention, and resource management . . . . . . . . . . . . 103

Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Continuous improvement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Take back and recycling program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Environmental and Sustainability Corporate Report . . . . . . . . . . . . . . . . . . . . . 105

Index 107

6 XC6 User’s Handbook

Disclaimer

Xplore Technologies® has made every effort to ensure the accuracy and
completeness of this document; however, because ongoing development
efforts are made to continually improve the capabilities of our products,
we cannot guarantee the accuracy of the contents of this document. We
disclaim liability for errors, omissions, or future changes herein.

Trademarks

Xplore and the Xplore logo are registered trademarks of Xplore
Technologies Corp.; iX104, XC6, XC6 Lite, and XC6 Dual Mode are
trademarks of Xplore Technologies Corp. Kensington and MicroSaver are
registered trademarks of the Kensington Technology Group. Microsoft is a
registered trademark of Microsoft Corporation. Windows 8.1, and
Windows 7 are trademarks of Microsoft Corporation. MicroSD is a
registered trademark of the Personal Computer Memory Card International
Association. Intel and Core, are registered trademarks of Intel
Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility
Alliance (WECA). ISODAMP is a registered trademark of Aearo
Company.

All other brands, product names, company names, trademarks and service
marks used herein are property of their respective companies.

Copyright

Copyright © 2003-2014 Xplore Technologies Corp. All rights reserved.
No part of this publication may be copied, reproduced, or translated,
without the prior written consent of Xplore Technologies. No part of this
publication may be stored or transmitted in any electronic form without
the prior consent of Xplore Technologies. Any unauthorized use is a
violation of copyright laws.

Publication information

PN: 95-01110, Rev. A
April 7 2014

XC6 User’s Handbook 7

Declaration of conformity



DECLARATION OF CONFORMITY according to FCC Part 15, IC ICES-003, and
RTT&E directives
Responsible Party Name: Xplore Technologies
Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728
Telephone: [phone]

Declares that product: Model Series: iX104C6 complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and, (2)
This device must accept any interference received, including interference that may
cause undesired operation.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for
compliance may void the user’s authority to operate this equipment.

For more information about FCC rules and their applicability to the XC6, see Appendix
E, “Agency Notices.”

Energy Star Partner

Warranty information

The XC6 is backed by a standard 36-month International Limited Warranty. An
extended International Limited Warranty is available. Check the service kit included
with your computer for warranty terms and conditions.

8 XC6 User’s Handbook

Important safety information



Before you use the XC6 (referred to as the tablet), read these safety instructions
and the operation instructions in this handbook.

Failure to observe all these instructions voids the Limited Warranty and may lead
to suspension or denial of services to the offender, or legal action, or both.

Follow any special regulations governing the use of the tablet and, if radio-enabled,
always switch it off in areas where radio devices are forbidden or when the radio device
can cause interference or danger.

Always follow any safety laws and regulations pertaining to the use of cell phones and
two-way radios, because these laws and regulations typically apply to the use of the
wireless-enabled tablet.

Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, and wherever blasting operations are in progress or
in any area in which restrictions on radio transmissions are imposed.

Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on
aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an
aircraft may affect aircraft instrumentation, communication, and performance; may
disrupt the network; and may be illegal.

Operating the wireless-enabled tablet may interfere with the functioning of
inadequately protected medical devices such as pacemakers. Consult a physician or the
manufacturer of the medical device if you have any questions.

Radio signals from your tablet will not affect the operation of most modern equipment,
but certain electronic equipment, including automotive systems, may not be shielded
against radio signals from your tablet. Check with the manufacturer of your motor
vehicle or the manufacturer’s representative to determine whether using the tablet will
present any safety issues.

Avoid using the tablet in any environment that requires your full attention, such as
when driving a vehicle. If you need to use your tablet while driving, have a passenger
use it for you or find a safe location to halt your vehicle.

WARNING – BATTERIES

Use only battery types specified in this handbook. Using any other type of battery can be
dangerous and can disable the tablet. Do not drop or mishandle the batteries, immerse
them in water, or subject them to high heat. Doing so could increase the risk of explosion
or leakage, and possibly cause injury. The lithium-ion batteries used in this equipment
contain material that is hazardous to your health. If battery contents come in contact with
the eyes, IMMEDIATELY flush the affected area with clean water for 15 minutes and have
someone else summon medical attention for you. Unaffected persons should assist the
affected individual in the vital first flushing of the eyes. RECHARGING THE BATTERY
MUST ONLY BE CARRIED OUT IN ANON-HAZERDOUS AREA USING THE SUPPLIED
AC ADAPTOR. The definition of hazardous areas can be found in Standard EN 60079-10.

XC6 User’s Handbook 9

WARNING



When operating the tablet in a known explosive environment do not remove or replace the
battery while the circuit is live. Before removing the battery verify that the area is known to
be free of ignitable concentrations of flammable substances.

EXPLOSION HAZARD – DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS
AREA IS KNOWN TO BE NON-HAZARDOUS.

AVERISSEMENT – RISQUE D’EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE
CIRCUIT EST SOUS TENSION, À MOINS QU’IL NE S’AGISSE D’UN EMPLACEMENT
NON DANGEREUX.

WARNING
EXPLOSION HAZARD – DO NOT REPLACE THE BATTERY UNLESS POWER HAS
BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

AVERTISSEMENT – RISQUE D'EXPLOSION – COUPER LE COURANT OU
S'ASSURER QUEL'EMPLACEMENT EST DESIGNE NON DANGEREUX AVANT DE
REPLACER LE BATTERY.

WARNING
EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR
SUITABILITY FOR CLASS I, DIViSION 2.

AVERTISSEMENT – RISQUE D'EXPLOSION – LA SUBSTITUTIOND E
COMPOSANTSP EUTR ENDRE CE MATERIEL INACCEPTABLE POUR LES
EMPLACEMENTS DE CLASSE I, DIVISION 2.

WARNING
EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS
BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

AVERTISSEMENT – RISQUE D'EXPLOSION – AVANT DE DECONNECTER
L'EQUIPEMENT, COUPER LE COURANT OU S'ASSURER QUE L'EMPLACEMENT
EST DESIGNE NON DANGEREUX.

WARNING

Do not use any dock or any other accessory or attachment that is not manufactured or
supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or
attachment that is not supplied or approved for use with the tablet by Xplore is not
permitted because it may cause hazards.

Operate the tablet only from the type of power source indicated on the marking label.
(See page 51 for more information about the battery and power supply.) Route power
supply cords so that they are not likely to be walked on or pinched by items placed
upon or against them. Pay particular attention to cords at plugs and convenience
receptacles, and at the point where cords exit from the tablet or its dock. Do not
overload wall outlets, extension cords, or integral convenience receptacles because this
can cause fire or electric shock.

10 XC6 User’s Handbook

Unplug the tablet and refer the tablet and dock for service to qualified
service personnel if any of the following conditions occur:

■ The power supply cord or plug is damaged.

■ The tablet or dock does not operate normally when you follow the

instructions in this book.

■ The tablet or dock exhibits a distinct change in performance.

Adjust only controls for which there are instructions in this book. An
improper adjustment of other controls can result in damage and may
require extensive work by a qualified technician to restore the tablet or
dock to normal operation.

CAUTION
Avoid prolonged physical contact with the exposed metal surfaces on
the front and back of the tablet. While the tablet may not feel hot to the
touch, if you maintain physical contact with the tablet for a long time
(for example, if you rest the tablet on your lap for a long time), your skin
may suffer low-heat injury. In addition, be careful when you remove a
PC card that has been used for a long time, because the card may be
hot.

XC6 User’s Handbook 11

12 XC6 User’s Handbook

Welcome

Tablet with enhanced performance antennae

Welcome to the Xplore Technologies® XC6™tablet PC, the rugged
tablet designed, tested, and manufactured to meet the environmental
and physical real-world challenges faced by today’s mobile workers.
Based on years of experience in rugged mobile applications, the XC6
is designed to withstand the abuses of everyday wear and tear.

Advanced technology, innovative design, and a rugged case are just a
few highlights of your

XC6 system.

Note: This handbook assumes that you have basic experience

using computers and Microsoft® Windows®.

XC6 User’s Handbook 13

Welcome

About your computer

The XC6 is a high-performance tablet PC that runs on Microsoft
Windows 7 32-bit, Windows 7 64-bit, and Windows 8.1 64-bit
operating systems.

You can use any of the following methods to control the tablet:

■ Special, enhanced pen (included with the tablet)

■ Your finger

■ Any suitable pointing device

Note: In this handbook, all information applies to all models
unless otherwise noted.

All XC6 tablets have been engineered and tested to meet Military
Standards for Environmental Extremes (MIL STD 810G). Your tablet
includes the following features that make it exceptionally rugged and
durable:

■ Durable, long-lasting, rigid magnesium enclosure

■ Interior and exterior multi-layer magnesium structure

■ Bumper system and gasket protection mechanisms

■ Specialized drive technology

■ Removable, dual, Solid State Drive (SSD) cartridge

■ Integrated, protected wireless LAN and WAN antennas for dual

mode operation

■ Locked-in-place memory, cables, and connectors

■ Proprietary thermal management system

14 XC6 User’s Handbook

Package contents

Welcome

Check to make sure your package includes the following items:

■ Quick Start Guide

■ Battery pack

■ Power cord

■ AC adapter

■ Stylus pen (attached to tablet)

■ Stylus pen tether (attached to tablet)

■ XC6 tablet PC

■ Warranty information kit

■ Operating System Recovery Guide

Optional accessories

Your package also includes any optional accessories you ordered.

Docking options

■ xStand Desktop Docking Station

■ xDock Vehicle Docking Station

Carrying cases

■ Shoulder cases

■ Portfolio case

■ Dockable case

Memory

■ 4, 8 or 16 GB DDR III RAM

XC6 User’s Handbook 15

Welcome

Storage

■ 60, 120, or 240 GB Solid State Drive (SSD) single drive

configuration

Note: Drive bay carrier can be configured to use 2 SSDs,

Power options

■ AC adapter with U.S. cord

■ Extended life battery pack (80.75 watt hours)

■ Auto adapter (cigarette lighter adapter)

Additional accessories

■ Top-mounted Fast-Lock GPS II Pro (submeter accuracy)

■ Non-rugged USB optical disk drive

■ USB rugged, backlit keyboard (83-key)

■ Replaceable drive cartridges

■ Active stylus

16 XC6 User’s Handbook

Contacting Xplore – service and questions

Note: To troubleshoot problems (including wireless and GPS

problems), before you call, read the FAQ page of the Xplore
Technologies website. Go to http://www.xploretech.com; then
select Customer Support; then FAQ.

If you purchased your tablet from an authorized Xplore dealer,
contact the dealer for service and support.

If you purchased your tablet directly from Xplore, use any of the
following methods to contact Xplore for service and support:

Website http://www.xploretech.com

E-mail [e-mail]

Toll free 1-866-296-8541, extension 222

Welcome

Fax [phone]

Before you contact Xplore, have the following information ready so
that the customer support representative can quickly provide a
solution:

Product name: XC6

Product serial number

Purchase date

Conditions under which the problem occurred

Any error messages that were displayed

Type of device connected, if any

XC6 User’s Handbook 17

18 XC6 User’s Handbook

1 Getting Started

Built-in

microphone

Speaker

Speaker

Auto Light sensor

Reset switch

Status indicator

SSD indicator

Fingerprint scanner

Digital camera

This chapter gives you an overview of your tablet and includes a
quick-start guide to tablet keys.

Front view

Reset switch Enables you to turn off the computer when using the Power (On/Off)/Backlight

(On/Off)/Resume key is not effective. (See page 33.)

Built-in microphone Enables you to input mono audio with noise cancellation. (See page 48.)

Status indicator Indicates the computer status (on, off, etc.). (See page 26.)

Speakers Enable you to listen to stereo audio files. Sealed to provide protection from the

environment.

XC6 User’s Handbook 19

Chapter 1. Getting Started

Front view

Auto Light sensor Detects ambient light conditions.

SSD indicator Indicates hard drive activity. (See page 26.)

Digital camera 1-megapixel, auto-focus camera for taking color or black-and-white images

or videos.

Fingerprint scanner Enables you to use fingerprint verification features. (See page 42.)

20 XC6 User’s Handbook

Back view

Fan cover

Pen

Removable
battery pack

Pen holder

Antenna

cover

Digital camera

Battery
lock
button

SSD carrier

Chapter 1. Getting Started

Back view

Fan cover Plastic cover over the thermal transfer bay that manages heat movement out of the

computer.

Antenna cover For optional wireless LAN and WAN models, protect and secure the radio antennas

(accessible by authorized service personnel only).

Digital camera 5-megapixel, auto-focus camera for taking color or black-and-white images or videos.

SSD carrier User-accessible drive carrier for SSD storage (can accommodate 2 SSDs).

Removable battery pack Powers the computer when AC power is unavailable.

Battery lock button Secures the battery inside the tablet.

Pen The main device you use to enter data and control applications (instead of a mouse or

a keyboard). Also called the stylus. See “Using the pen” on page 38.

Pen holder Provides a place to secure the pen when you are not using it.

XC6 User’s Handbook 21

Chapter 1. Getting Started

Power On/Off,
Backlight On/Off,
Sleep/Resume button

Heat exchange

XPL side port

Kensington
lock slot

Left side view

Left side view

Power On/Off,
Backlight On/Off,
Sleep/Resume button

Heat exchange Helps prevent the computer from overheating by forcing heat away from the

XPL side port Permits connection of special devices made expressly for the XC6.

Kensington™ lock slot Connector for the optional Kensington MicroSaver™ or equivalent compatible

Press to power on the computer.
Press and hold for more than 4 seconds to force power off.
Momentarily press to toggle the backlight on or off.

computer. (Do not block the vents.)

security cable.
Note: Contact your reseller for information about the Kensington security cable.

22 XC6 User’s Handbook

Chapter 1. Getting Started

Power

connector

9-pin serial connector or
optional connector for
external monitor

LAN connector

USB ports

Headphones/speaker

mini-jack connector

Right side view

The connectors on the right side of the computer are located behind the outer doors.

Right side view

Power connector For the AC adapter or optional auto adapter. (See “Optional accessories” on

USB 3.0 ports For Universal Serial Bus devices (compliant with USB Standard Revision 3.0).

Headphone/speaker
mini-jack connector

LAN connector For connecting a standard RJ-45 connector to the tablet’s internal local area

9-pin serial connector
or
optional external monitor
connector

XC6 User’s Handbook 23

page 15.)

Note: The optional Office and Vehicle Docks include additional USB ports. See
“Optional accessories” on page 15.

For smartphone compatible headphones or speakers.

network (LAN) card

Serial connector for connecting terminals or other devices that use the RS-232,
RS-422, or RS-485 data transfer standard, or an optional connector for an external
monitor or projection panel.

Chapter 1. Getting Started

Docking connector for the
optional Xplore Tablet Dock

Guide pin receptacles

Bottom view

Bottom view

Docking connector Enables you to connect the optional xStand Desktop Docking Station or xDock

Vehicle Docking Stations.

Guide pin receptacles Help assure a secure connection of the optional xStand or xDock.

Note: See “Optional accessories” on page 15.

24 XC6 User’s Handbook

Chapter 1. Getting Started

XPL expansion port

Bumpers

Top view

Top view

XPL expansion port A port that permits connection of special devices made expressly for the XC6.

Bumpers Fabricated from rugged material. Raised to help protect the computer from damage.

XC6 User’s Handbook 25

Chapter 1. Getting Started

Status LED

SSD indicator

Solid or flashing green
indicates drive activity.

See Table 1 for

descriptions of LED states.

LED indicators

LED indicators

The LED indicator lights show the status of system functions.

Table 1 Status LED indicator states

LED state AC adapter Battery Tablet mode Action required (if any)

geen,
blinking
slowly

green/cyan,
blinking
slowly

green,
breathing

green,
continuous

plugged in charging On, Off, or Hibernating

fully charged

plugged in charging

Sleep mode

not
plugged in

plugged in removed

plugged in fully charged

plugged in

discharging

removed

discharging

Onnot

26 XC6 User’s Handbook

Chapter 1. Getting Started

Table 1 Status LED indicator states (continued)

LED state AC adapter Battery Tablet mode Action required (if any)

LED indicators

off (no light) all

conditions

blue,
continuous

red, blinking
quickly

red,
continuous

amber,
continuous

amber/green,
blinking
quickly

all
conditions

not
plugged in

not
plugged in

all
conditions

all
conditions

all conditions Off or Hibernating (or

any Night Vision mode)

all conditions On. Front or rear

camera is active.

discharging
< 10%

discharging
< 3%

installed Off Battery is critically low.Plug the tablet

installed High temperature

installed Critical temperature

On Plug the tablet into an AC/DC power

source or install a charged battery.

On Plug the tablet into an AC/DC power

source or install a charged battery.

into an AC/DC power source or install
a charged battery.

or

The tablet has encountered a fault and
is not operating normally. Contact your
computer support personnel, such as
your help desk.

threshold has been
exceeded.

threshold has been
exceeded.

XC6 User’s Handbook 27

Chapter 1. Getting Started

Secure Attention

Sequence key

Windows Start key

Function

key

Hot key 1

Hot key 2

Hot key 3

Fingerprint scanner

Quick-start guide

Quick-start guide

This section is a quick guide to using the main features of your tablet.
(See Chapter 2 for detailed information.)

Application, Windows, and hot keys

28 XC6 User’s Handbook

Chapter 1. Getting Started

Quick-start guide

Note: Xplore pre-programs the P2, P2, and P3 hot keys and

Function mode hot key combinations to perform the functions
shown in Table 2, Table 3, and Table 4. However, you can
program them to perform different functions (see “Programming
hot keys” on page 63).

Table 2 Main keys

Press this key... To perform this function

Log on after resuming operation from power
management, powering on, or locking.
After logging on, launch Windows Task Manager.

Display the Windows Start menu.

Use in combination with another key to perform
various functions.

Fingerprint scanner.

XC6 User’s Handbook 29

Chapter 1. Getting Started

To define a function, see
“Programming hot keys” on
page 63.

Quick-start guide

Table 3 Key functions – Windows 7

Press these keys... To perform this function

Take picture.

Change video ouput.

Rotate screen.

Take video.

Toggle GPS.

Put computer in Sleep mode.

Table 4 Key functions – Windows 8.1

Press these keys... To perform this function

Open Charm bar.

Transition between open apps.

Change video output.

[No pre-programmed function.]

[No pre-programmed function.]

Put computer in Sleep mode.

30 XC6 User’s Handbook

2 Using the Tablet

When the computer is off,
the Status LED is off.

Power On/Off,

Backlight On/Off,

Sleep/Resume

button

This chapter contains detailed instructions for using the tablet.

Turning on the computer

1. Make sure the computer is off.

2. Make sure the battery is charged or that the computer is plugged

in to an external power source.

3. Press the Power On/Off, Backlight On/Off, Sleep/Resume button.

XC6 User’s Handbook 31

Chapter 2. Using the Tablet

When the computer is in
Sleep mode, the Status LED
is breathing green.

Power On/Off,

Backlight On/Off and

Sleep/Resume

button

Turning off the computer

Turning off the computer

1. If the computer is in Sleep mode, press the Power On/Off,

Backlight On/Off, Sleep/Resume

button to resume operation. (See

page 35 for information about Sleep mode.)

2. Make sure the battery is charged or that the computer is plugged

in to an external power source.

3. Save your work and close all programs.

4. From the Windows Start menu, click Turn Off Computer.

5. The Turn off computer dialog box opens.

6. Click Turn Off or press the Power button continuously for more

than 4 seconds.

32 XC6 User’s Handbook

Chapter 2. Using the Tablet

Use the Reset switch only if
you cannot turn off the
computer by any other
means, because you may
lose unsaved data.

Reset switch

Turning off the computer

Using the Reset switch

If the computer does not seem to be accepting input and you cannot
turn it off by using the method described in “Turning off the
computer,” press the
instrument to press the switch).

Note: If the computer does not reset after you press the Reset

switch, try pressing it again.

Reset switch. (Use the stylus or a similar

XC6 User’s Handbook 33

Chapter 2. Using the Tablet

For more information, see
“Checking battery power
status” on page 55.

Suspending and resuming operation

Suspending and resuming operation

To conserve battery power when you do not want to turn off the
computer or when you need to install a charged battery pack, put the
computer into Sleep mode. (You can suspend operation without
closing any programs or Windows.)

When you suspend operation:

■ Programs that are running stop (but do not close).

■ Active data is saved.

■ The system enters one of the following low-power modes:

• Sleep (Suspend-to-RAM) mode – The Status LED light is
breathing green. Active data is saved in RAM and most other
components are turned off.

Although the computer uses very little power when in Sleep

mode, eventually the battery’s power does run out. If you do
not plan to use the computer for an extended period of time,
turn the computer off or put it in Hibernation mode instead of
Sleep mode.

• Hibernation mode – Active data is saved on the SSD and
power usage is reduced to the same level as when the
computer is turned off. In Hibernation mode, there is no
danger of losing data if battery power is lost.

Notes:

If you have set your computer to turn power off (in the Power Options
utility in Windows Control Panel), you cannot suspend operation. To
change power settings, see “Selecting Power (On/Off) / Backlight (On/
Off) / Sleep/ Resume button options” on page 58.

In the default configuration, the P3 key puts the computer in Sleep
mode and the Power button shuts down the computer. To change
these settings, see “Programming hot keys to perform predefined
functions” on page 68.

34 XC6 User’s Handbook

Chapter 2. Using the Tablet

In order to suspend
operation, the Sleep
option must be enabled in
Windows Power Options.
See “Selecting Power
(On/Off) / Backlight (On/
Off) / Sleep/ Resume
button options” on
page 58.

P3 key

Suspending and resuming operation

If your computer is connected to a network, the network may
automatically log you off after a period of inactivity while system
operation is suspended. Contact your help desk or system
administrator to learn your log-off time limit.

Suspending operation

Use one of the following methods to suspend operation:

Method 1

Press the P3 key.

XC6 User’s Handbook 35

Method 2

1. Press the Windows Start button; then press the right arrow next to

the

Shutdown button.

2. Press Sleep.

Chapter 2. Using the Tablet

Status LED

Suspending and resuming operation

When operation is suspended, the Status LED displays a breathing
green light.

36 XC6 User’s Handbook

Chapter 2. Using the Tablet

Power On/Off,
Backlight On/Off,
Sleep/Resume
button

Suspending and resuming operation

Resuming operation

To resume operation when the computer is in Sleep mode, press the

Power On/Off, Backlight On/Off, Suspend/Resume button.

Note: Press the button only once.

Approximately 20 seconds later, the computer resumes normal
operation. When the Status LED displays a continuous green light,
you can begin using the computer.

XC6 User’s Handbook 37

Chapter 2. Using the Tablet

Using the pen

Using the pen

You can use any of the following methods to select items and to
navigate through programs.

■ Auto-Sense mode: Use either the multifunction pen or your

finger interchangeably. The computer distinguishes between the
two input modes and automatically adjusts accordingly. This is

the tablet’s default state.

■ Digitizer mode: Use only the special multifunction pen provided

with the computer.

For more information, see “Programming hot keys to perform
predefined functions” on page 68.

WARNING

Do not use items such as a ball point pen or a screwdriver that can
damage the tablet. Damage caused by using an item not provided with
the tablet is not covered by the tablet warranty.

Note: During the first use of the tablet, or if the action you are
trying to perform does not occur when you use the pen or your
finger to touch the screen, calibrate the digitizer as described in
“Calibrating the digitizer” on page 77.

38 XC6 User’s Handbook

Chapter 2. Using the Tablet

Using the pen

Using the digitizer to perform mouse functions

To perform this function... Do this

Select an object
(left button click).

Perform a double-click. Quickly tap the pen tip twice on the object.

Perform a right-click. Hold the pen or your finger directly on the

Move or drag an object. Place the pen tip or your finger on the

Tap the pen tip once on the object.

object for 1 second.

object; then continue to hold the pen tip or
your finger against the screen as you move
the pen or your finger.

Changing the pen double-click speed

The pen double-click speed is in sync with the mouse double-click
speed. To change the speed, follow the instructions below.

1. Click the Windows Start button.

2. Click the Control Panel option.

3. In the Control Panel window, select Hardware and Sound >

Set up your Pen and Tablet.

4. Drag the slider to a faster or slower speed.

XC6 User’s Handbook 39

Chapter 2. Using the Tablet

pen tether

pen

Using the pen

Positioning the pen and pen tether

The pen tether helps prevent the loss of your pen. The following
illustrations show how to position the pen and pen tether.

Tether anchored at the bottom

40 XC6 User’s Handbook

Tether anchored on the side

pen tether

pen

Chapter 2. Using the Tablet

Using the pen

XC6 User’s Handbook 41

Chapter 2. Using the Tablet

Fingerprint scanner

Using the fingerprint scanner

Using the fingerprint scanner

The fingerprint scanner enables you to use fingerprint verification to
protect the security of your data.

The first step for using fingerprint verification is to enroll your
fingerprint to create an association between your username, password,
and fingerprint.

After fingerprint enrollment you will be able to:

■ Use your fingerprint as part of computer login security.

■ Register Web pages and Windows applications to use your

■ Launch applications by swiping your finger the sensor.

■ Store confidential information in an encrypted form in a

fingerprint instead of passwords.

protected folder.

To launch the Fingerprint application:

Tap the icon located on the Windows Desktop.

or

Follow the instructions that appear the first time you turn on the
computer.

42 XC6 User’s Handbook

Changing the screen orientation

portrait mode

landscape mode

To rotate the screen orientation from portrait (vertical) to landscape
(horizontal) mode or from landscape to portrait mode:

If your tablet is using Windows 7

Press the Windows Start button.

If your tablet is using Windows 8.1

Rotate the tablet.

Chapter 2. Using the Tablet

Changing the screen orientation

XC6 User’s Handbook 43

Chapter 2. Using the Tablet

Display brightness slider

Adjusting the screen brightness

Adjusting the screen brightness

Use either of the following methods to adjust the screen brightness:

Method 1

1. Click Start.

2. Open the Control Panel.

3. In the Hardware and Sound area, select Adjust commonly used

mobility settings

brightness.

. Use the Brightness slider to adjust the

Method 2

In the Windows taskbar, click the power management icon; then

1.

select

Adjust screen brightness.

2. Move the slider bar (located at the bottom of the window) to

change the screen brightness.

44 XC6 User’s Handbook

Chapter 2. Using the Tablet

Auto Light sensor

Adjusting the screen brightness

Enabling automatic backlight control

When the Auto Light sensor is enabled, the computer automatically
controls the amount of backlight sent to the screen to provide
optimum brightness for the lighting conditions in which you are
working.

To enable automatic backlight control, see page 82.

Optimizing screen settings for outdoor use

1. Click Start > Control Panel > Appearance and Personalization >

Personalization > Change desktop background

2. In the My Themes area, select High Contrast White.

3. Click the Back button.

4. Click Display.

5. Click Medium - 125% to enlarge the icon size; then click Apply.

6. Click Adjust Resolution. Make sure the screen resolution setting is

1024 by 768 pixels; then click OK.

XC6 User’s Handbook 45

.

Chapter 2. Using the Tablet

Docking port

Guide pin receptacles

Docking the tablet

Docking the tablet

If you have the optional xStand office dock or xDock vehicle dock,
connect it to the tablet at the docking port. (See the iX104 Docking
Stations Handbook.)

46 XC6 User’s Handbook

Connecting devices

LAN connector

USB ports

Chapter 2. Using the Tablet

Connecting devices

Refer to the following subsections for information about connecting
external devices to your computer.

Note: If the device you want to use does not appear to be
working with your computer, the device may need to be enabled
in the computer’s configuration program. Contact your local help
desk or Xplore reseller.

Connecting to a local area network

Connect a local area network (LAN) cable’s RJ-45 connector to the
internal LAN interface card. (See your network system administrator
for more information.)

Connecting USB-compatible devices

Connect any USB-compatible devices to the computer’s USB ports.

XC6 User’s Handbook 47

Chapter 2. Using the Tablet

Note: The connector is
compatible with
smartphones.

Microphone/headphones
mini-jack connector

Connecting devices

Connecting an external microphone, headphone, or speakers

Adjusting microphone volume

If necessary, adjust the volume of the microphone as follows:

1. Press the Windows Start key; then open the Control Panel.

2. Select Hardware and Sound; then select Sound.

3. Select the Recording tab.

4. Select Microphone; then select Properties.

5. Select the Levels tab.

6. Adjust the microphone volume or boost.

7. Click OK.

Adjusting headphone or speaker volume

1. Click the audio icon in the Status area of the Windows

taskbar.

The volume control area opens.

2. If the Mute button indicates that sound is muted, click the button

to turn on the sound.

3. Move the slider bar up or down to increase or decrease the

volume.

48 XC6 User’s Handbook

Chapter 2. Using the Tablet

Monitor/projection
panel connector

Connecting devices

Connecting a monitor or projection panel (optional)

Activating the monitor or projection panel

If your tablet includes the optional monitor/projection panel
connector, you can change the video output as follows:

To change the video output to the monitor or projection
panel:

Press the Fn-P1 key combination.

To change the video output back to the computer:

Press the Fn-P1 key combination again.

XC6 User’s Handbook 49

Chapter 2. Using the Tablet

9-pin serial port

XPL expansion port

Tablet with optional GPS II

Connecting devices

Connecting a device to the serial port (standard)

If your tablet includes the standard serial port, you can connect a
terminal or other device that uses the RS-232, RS-422, or RS-485
data transfer standard.

Connecting an XPL expansion module

50 XC6 User’s Handbook

Using the battery

Power connector

Chapter 2. Using the Tablet

Using the battery

You can recharge, remove, and replace the battery pack.

Charging the battery pack

If you do not have an external battery charger

Follow these steps to charge the battery while it is installed in the
computer:

1. Connect a power source, such as an AC adapter or cigarette

lighter adapter, to the power connector on the computer.

If the battery charge is below 95%, the battery begins charging
and the Status LED flashes green. (If the battery charge is higher
than 95%, the battery will not charge, preventing battery
overcharge.)

2. Check the level of charge. (See “Checking battery power status”

on page 55.)

The charging process continues until the battery charge
reaches 100%.

XC6 User’s Handbook 51

Chapter 2. Using the Tablet

Using the battery

Table 5 shows the approximate time required to charge the battery
level to 100%.

Table 5 Approximate battery charge time

Battery pack capacity Charge time Battery pack P/N

55 watt hours (7600 mAh) 1.5 hours 11-01018

68.5 watt hours (9250 mAh) 2.5 hours 11-01019

80.75 watt hours (10625 mAh) 2.5 hours 11-01022

If you have an external battery charger

Remove the battery pack (see page 52).

1.

2. Use the external battery charger to charge the battery.

3. Install the battery (see page 54).

Removing and installing the battery

You can remove the battery and use an (optional) external charger to
charge it.

Removing the battery

1. To swap with a charged battery:

Use one of the methods described in “Suspending operation”

on page 35 to suspend operation.

If a charged battery is not available:

Save your work and close all running programs; then shut

down the computer or put the computer in Hibernation mode
(see “Suspending operation” on page 35).

52 XC6 User’s Handbook

Chapter 2. Using the Tablet

Removable
battery

Battery release
latch

Battery lock
button

Using the battery

Note: To avoid losing unsaved data, wait until the computer

has completed switching to Hibernation mode before
removing the battery.

Use the stylus or a pen to depress the battery lock button.

2.

The battery release latch returns to its original position.

3. Pull the battery away from the computer and remove it.

Note: After removing the battery, you must replace the battery
or connect the computer to an external power supply within

3 to 5 minutes or the computer completely loses power.

XC6 User’s Handbook 53

Chapter 2. Using the Tablet

Using the battery

Installing the battery

1. Orient the battery with the slides in the empty battery tray.

2. Slide the battery into the tray and press it firmly until it is seated.

3. Slide the battery release latch to its original position.

The lock button pops back into the locked position, securing the
battery in place.

Discarding batteries

Dispose of batteries in accordance with your local government
regulations. Under federal, state, or local law, it may be illegal to put
batteries in the trash. Contact your system administrator, municipal
waste disposal department/provider for information.

54 XC6 User’s Handbook

Using power options

Chapter 2. Using the Tablet

Using power options

Displaying power options

On the Windows taskbar, click the battery icon; then select More

power options

. The Power Options window opens.

Checking battery power status

On the Windows taskbar, click the battery icon.

The following window opens, displaying the percentage of power
remaining in the battery:

XC6 User’s Handbook 55

Chapter 2. Using the Tablet

Using power options

Selecting a power plan

1. On the Windows taskbar, click the battery icon.

The following window opens:

2. Select one of the following power plans: (select More power

options

in necessary)

Balanced – Balance between computer performance and battery

life.

Power Saver – Longer battery life and lower performance.

High performance – Higher performance and shorter battery life.

56 XC6 User’s Handbook

Chapter 2. Using the Tablet

Using power options

Selecting power options

1. On the Windows taskbar, right-click the battery icon.

2. Select Power Options.

The following window opens.

3. Under the selected power plan, press Change plan settings.

4. Select the power options you want to use.

XC6 User’s Handbook 57

Chapter 2. Using the Tablet

Power (On/Off)/
Backlight (On/Off)/
Sleep/Resume

button

Using power options

Selecting Power (On/Off) / Backlight (On/Off) / Sleep/ Resume button options

To change what happens when you press the button:

1. On the Windows taskbar, right-click the battery icon.

2. Select Power Options.

The following window opens.

3. Press Choose what the power buttons do.

4. Select the options you want to use.

58 XC6 User’s Handbook

Chapter 2. Using the Tablet

Using power options

Tips for conserving battery power

The following tips help you extend the life of your battery by
conserving battery power:

■ Use an external power source such as the AC or auto adapter

whenever available.

■ Suspend operation if you know that you will not be using the

system for a while. (See page 35.)

■ If you do not plan to use the computer for an extended period of

time, turn it off.

■ Adjust power options to automatically conserve power. (See

page 57.)

■ Adjust the display brightness to no brighter than necessary for

comfortable viewing. The display can consume a large portion of
the computer’s power. (See page 44.)

■ Set the LCD Brightness range to “Power Saving” in the BIOS

Setup Utility. (See page 81.)

XC6 User’s Handbook 59

Chapter 2. Using the Tablet

Accessing the Solid State Drive (SSD) cartridge

Accessing the Solid State Drive (SSD) cartridge

When you install a new storage drive, follow the instructions in this
section to access the hard drive carrier.

WARNING Failure to follow this procedure can result in

damage to the case and the cover, which is not
covered under the Xplore Technologies warranty.
Xplore recommends that you use an
approved Xplore Technologies service center
for this procedure.

Turn off the computer.

1.

2. Remove all power from the unit, including batteries and other

power sources such as power supplies, cigarette lighter adapters,
and mobile power sources.

3. Pinch the two center pins with one hand while pushing down on

the lever with the other. The drive carrier will pop up (like the
battery) and permit removal.

Note: Your drive carrier may have two screws installed. If so,

remove them before you exchange the drive carrier.

60 XC6 User’s Handbook

Chapter 2. Using the Tablet

Accessing the Solid State Drive (SSD) cartridge

Re-installing the drive carrier

1. Insert the drive with smooth edge into the bay at a slight angle.

2. Press down until the carrier clicks into place, while pinching the

two center pins.

3. If your unit had the screws in place, re-attach them.

Note: Do not use power tools.

XC6 User’s Handbook 61

Chapter 2. Using the Tablet

Note: This compartment can
handle most MicroSD and
SIM cards.

Installing a SIM card

Accessing the MicroSD and SIM compartment

Accessing the MicroSD and SIM compartment

When you install a MicroSD or SIM card, follow the instructions in
this section to access the compartment.

WARNING Failure to follow this procedure can result in damage

to the case and the cover, which is not covered under
the Xplore Technologies warranty. Xplore
recommends that you use an approved Xplore
Technologies service center for this procedure.

1. Turn off the computer.

2. Remove all power from the unit, including batteries and other

power sources such as power supplies, cigarette lighter adapters,
and mobile power sources.

3. Remove the battery. (See “Removing and installing the battery”

on page 52.)

4. Lift up on the D-ring and turn it clockwise ¼ of a rotation. Once

the lock is disengaged lift the door to open the compartment.

62 XC6 User’s Handbook

Programming hot keys

Chapter 2. Using the Tablet

Programming hot keys

Xplore pre-programs the P1, P2, and P3 hot keys and Function mode
hot key combinations to perform certain functions by default (see
“Application, Windows, and hot keys” on page 28). However, you
can program them to perform different functions, as described in this
section

Programming hot keys to start applications, open documents, or go to a website

1. In the Status area of the Windows taskbar, click the

XC6 Configuration icon.

The Launch Button QuickShow dialog box opens.

2. Click the Configure button.

XC6 User’s Handbook 63

Chapter 2. Using the Tablet

Programming hot keys

The Panel Control Center window opens.

3. Click the Change button next to the key or key combination you

want to program.

The following options appear:

64 XC6 User’s Handbook

Chapter 2. Using the Tablet

Programming hot keys

4. Click Launch an Application, Document or Web site.

The following options appear:

XC6 User’s Handbook 65

Chapter 2. Using the Tablet

Programming hot keys

5. To start an application:

a.

Click Launch an Application.

b. Press Browse to find the application you want the hot key or

Function mode hot key combination to start (for example:

word.exe, notepad.exe, excel.exe).

c. Click Change.

6. To open a document:

a.

In the Click Open a Document.

b. Press Browse to find the document you want the hot key or

Function mode hot key combination to open. (For example:

spreadsheet.xls, airports.doc, wiringdiagram.jpg)

c. Click Change.

66 XC6 User’s Handbook

Chapter 2. Using the Tablet

Programming hot keys

7. To open a multimedia file:

a.

Click Open a Multimedia file.

b. Press Browse to find the name of the multimedia file you

want the hot key or Function mode hot key combination to
open. (For example:

c. Click Change.

8. To open a Web page:

a.

Click Open a Web page.

b. Press Browse to find the URL of the Web page you want the

911training.dir, demo.ppt)

hot key or Function mode hot key combination to open. (For
example:

c. Click Change.

9. Program more hot keys, or click Close to close the Panel Control

http://www.xploretech.com)

Center window.

XC6 User’s Handbook 67

Chapter 2. Using the Tablet

Programming hot keys

Programming hot keys to perform predefined functions

1. In the Status area of the Windows taskbar, click the

XC6 Configuration icon.

The Launch Button QuickShow dialog box opens.

2. Click the Configure button.

The Panel Control Center window opens.

3. Next to the key or key combination you want to program, click

the

Change button.

68 XC6 User’s Handbook

Chapter 2. Using the Tablet

Programming hot keys

The following options appear:

4. Click Start a predefined function.

5. In the Function selection drop-down list, select an option.

6. Program more hot keys, or click Close to close the Panel Control

Center window.

XC6 User’s Handbook 69

Chapter 2. Using the Tablet

Programming hot keys

Programming hot keys to perform other key functions

1. In the Status area of the Windows taskbar, click the

XC6 Configuration icon.

The Launch Button QuickShow dialog box opens.

2. Click the Configure button.

The Panel Control Center window opens.

3. Next to the key or key combination you want to program, click

the

Change button.

70 XC6 User’s Handbook

The following options appear:

4. Click Press a key or key combination.

The following options appear:

Chapter 2. Using the Tablet

Programming hot keys

XC6 User’s Handbook 71

Chapter 2. Using the Tablet

Programming hot keys

5. If you want the hot key or hot key combination to perform the
function of a single key:

a.

If the Ctrl, Alt, or Shift boxes are checked, uncheck them.

b. Click the key you want the hot key or hot key combination to

perform. (For example:

If you want the hot key or hot key combination to perform the
function of a key combination:

a.

Check the Ctrl, Alt, or Shift box.

b. From the drop-down list, select the additional key, or click

F6, G, or Caps Lock)

the key on the keyboard.

Examples

To cause the hot key to perform the print screen function
(

Alt-Print Scrn): Check the Alt check box; then select PrtScr

from the drop-down list.

To cause the hot key to perform the paste
Check the

6. Program more hot keys, or click Close to close the Panel Control

Ctrl check box; then click the V key.

function (Ctrl-V):

Center window.

72 XC6 User’s Handbook

3 Maintaining the Tablet

This chapter provides instructions for maintaining your tablet.

Caring for the tablet

This section provides information about how to keep your tablet in
top working condition.

Checking power cords and connectors

Check AC and DC power cords and power connectors periodically for
damage. Replace the power cord immediately if you find any damage.

Protecting the computer from damage

■ Your computer is designed to sustain a multiple-axis drop to a

non-yielding surface. Do not intentionally drop the computer,
because the cumulative effects of multiple drops may damage the
computer.

■ Do not place heavy objects on the computer.

■ Do not disassemble the computer.

■ Keep the computer at least 5 inches (13 centimeters) away from

any electrical appliance that generates a strong magnetic field,
such as a motor, magnet, TV, refrigerator, or large audio speakers.

XC6 User’s Handbook 73

Chapter 3. Maintaining the Tablet

air vent area

air vents

Caring for the tablet

Preventing the computer from overheating

The computer monitors its internal temperature. As the internal
temperature approaches the tolerable limits of heat-sensitive
components, system functions are automatically limited or turned off
to prevent damage.

To prevent the computer from overheating, do not obstruct the
computer’s air vents.

74 XC6 User’s Handbook

Chapter 3. Maintaining the Tablet

Caring for the tablet

Storing the computer

You can store the computer in the Off state for about 30 days with a
fully charged battery installed. After this period, recharge the battery
or replace it with a charged battery.

If you intend to store the computer for more than 30 days, remove the
battery pack and keep it in a cool place.

Caring for the display screen

To clean the display screen, dampen a soft cotton cloth with water
and gently wipe the screen surface.

Note: Do not use isopropyl alcohol to clean the screen. Alcohol
may damage the surface of the screen.

Protecting the display screen

The screen protector is a durable, replaceable writing surface that
protects the display screen from abrasion.

To obtain additional screen protectors, check with your reseller, or go
to the Xplore Web site at www.xploretech.com for ordering
information. Additional information about installation is included
with the screen protectors.

XC6 User’s Handbook 75

Chapter 3. Maintaining the Tablet

edge

When to replace the pen

Removing the screen protector

Slide your fingernail under the edge of the screen protector and pull
the protector away from the screen.

Installing a new screen protector

Follow the instructions included with your screen protector
replacement kit.

Note: If a screen protector is already installed on the display
screen, remove it before installing the new screen protector.

When to replace the pen

With use, the pen tip may become worn and can scratch the screen.
If your pen exhibits one of the following problems, replace the pen:

■ The pen does not move freely across the screen.

■ The pen does not perform as expected.

76 XC6 User’s Handbook

Calibrating the digitizer

Chapter 3. Maintaining the Tablet

Calibrating the digitizer

Calibrating the digitizer adjusts the cursor position on the screen
relative to the position of the pen tip or finger. Calibrate the digitizer
to adjust the distance error between where the pen or finger is actually
touching the screen and where the computer is registering the pen or
finger touch.

You may need to calibrate the digitizer in the following situations:

■ You are using the computer for the first time.

■ The previous user of the computer writes with the opposite hand or

at a different pen angle.

■ The computer has not been used for some time.

■ The computer has been serviced.

1. From the Start menu, select Control Panel.

The Control Panel opens.

XC6 User’s Handbook 77

Chapter 3. Maintaining the Tablet

Hardware and Sound

Calibrate the
screen for pen
or touch input

Calibrating the digitizer

2.

3. In the Tablet PC Settings area, select Calibrate the screen for pen

Select Hardware and Sound.

or touch input

; then follow the instructions that appear on the

screen..

78 XC6 User’s Handbook

A Troubleshooting

Table 6 contains solutions to some problems. If you cannot solve the
problem by taking the actions described, contact your local help desk
or your reseller for further assistance.

Table 6 Troubleshooting

Problem Possible cause and solution

Computer will not start. • The battery may be defective or discharged to a critically low level.

Connect an external power supply (such as the AC adapter) or
install a charged battery. See “Using the battery” on page 51.

• Internal components may be above or below the acceptable
operating range (below -20° C or above 60° C). After the
temperature returns to safe operating range the computer will start.

The computer will not resume operation
after being suspended.

The Status LED is red, continuous. • The computer is on, running under battery power, and the charge

The Status LED is red, blinking. The computer is powered on, running under battery power, and the

• The battery may be defective or discharged to a critically low level.
When the battery reaches a critically low level, the computer is
forced into Sleep mode to avoid a total system power failure.
Connect an external power supply (such as the AC adapter) or
install a charged battery. See “Using the battery” on page 51.

• The computer may be at the critical thermal limit. To avoid damage
to heat-sensitive components, the computer enters Sleep mode
when the computer operates above 60° C. Operation automatically
resumes when the computer cools to below 60° C. Move the
computer to a cooler location.

level in the battery has reached a critical level. Plug the computer
into an AC/DC power source or install a charged battery.

• The system has encountered a fault and is preventing normal
operation. Contact your local help desk.

charge level in the battery is at a minimum warning level. Plug the
computer into an AC/DC power source or install a charged battery.

XC6 User’s Handbook 79

Appendix A. Troubleshooting

Table 6 Troubleshooting (continued)

Problem Possible cause and solution

Display screen is blank or difficult to
read.

Cursor is not tracking the pen. Calibrate the pen. See “Calibrating the digitizer” on page 77.

Computer is not responding to the pen. Connect an external USB keyboard to the computer. If the computer

Headphone or speaker volume is too
low.

• Confirm that the computer is on (the Power icon is displayed
continuously in the Status area).

• The brightness may be set too low, causing the screen to appear too
dark. To change system brightness, press the Fn and Start keys to
open the Xplore menu and adjust the brightness. (See page 28.)

• An external monitor may be selected. Press the Fn and P1 keys to
select the computer display screen. (See page 28.)

• The video time-out may have expired. Tap the display screen to
reactivate the display.
Note: This is a normal, power-saving feature.

• If the Status light is blinking red, the computer is in Sleep mode
because the temperature is below -20° C or above 60° C. When the
temperature returns to a safe operating range, the display screen
automatically comes back on. If possible, move the computer to a
warmer or cooler location.

• If the Status light is continually yellow, the computer is in Sleep or
Hibernate mode. Press the Power On/Off key to resume.

does not respond to the external keyboard, the application or
operating system may have been corrupted. Press the Reset key.
(See page 33.) If the system responds to a keyboard but not to the
pen, contact your local help desk or reseller for further assistance.

• The volume may be in Mute mode or set too low. Follow the
instructions in “Adjusting headphone or speaker volume” on
page 48.

• Make sure the volume control in your audio software is set to an
audible level.

An external device is not working with
the computer.

The device may need to be enabled in the computer’s configuration
program (BIOS Setup). Contact your local help desk or reseller.

80 XC6 User’s Handbook

B Using BIOS and AOS Functions

Note: Each button has its
own blue-light LED. No
matter which button you
press, every blue-light LED is
on for about 3 seconds, then
off. When in Shifted mode, all
blue-light LEDs flicker.

This appendix explains how to use the application and navigation
buttons with the Basic Input-Output System (BIOS) program and the
Advanced Operating System (AOS) Options menu.

Note: These functions are typically for use only by your system
administrator or by authorized service technicians.

Table 7 Using BIOS and AOS functions

In Shifted Mode

Button BIOS Key Function BIOS Key Function

F1 F1 continues message. Up Arrow Navigate up through Multi Boot

options and BIOS menus.

F2 Start the BIOS program: When the

computer is booting, press the P2
button and follow the instructions
that appear on the screen.

F8 Prompt Windows to select Safe

mode.

F11
(Lock Fn)

Start Display Windows Start menu. None None

• Press for less than one second for
F11 function.

• Press longer to enable Shifted
mode.

Down Arrow Navigate down through Multi

Boot options and BIOS menus.

Right Arrow Navigate to the right.

Release
Function

Press once to exit Shifted mode.

XC6 User’s Handbook 81

Ctrl+Alt+Del Reboot. Enter Enter.

Appendix B. Using BIOS and AOS Functions

Note: When the tablet is in
the docking station, it will shut
down or go into Hibernation
or Sleep mode the same as it
does when not in the docking
station.

Disabling the Auto Power feature

Disabling the Auto Power feature

When Auto Power is enabled, the tablet automatically turns on if you
dock it and the following conditions exist:

■ The tablet is off or in Hibernation or Sleep mode.

■ The dock or the tablet is connected to an external power source

(including power applied when a vehicle’s ignition is started).

If you dock the tablet and the tablet is off and no power is present, the
tablet turns on as soon as power is applied.

To disable the Auto Power feature:

1. When the computer is booting, press the P2 button to access the

BIOS Setup Utility.

2. Select the Advanced tab.

3. Disable the Dock with Auto Power On option.

Enabling automatic LCD backlight control

When the LCD backlight control is in manual mode, the ambient light
sensor is disabled and the computer does not automatically control the
screen brightness.

Follow these steps to enable automatic LCD backlight control:

1. When the computer is booting, press the P2 button to start the

BIOS Setup Utility.

2. Select the Main tab.

3. In the LCD Backlight Control drop-down list, select Automatic.

4. Click OK.

82 XC6 User’s Handbook

C Glossary

Adapter. A device that provides an interface between two dissimilar
electronic devices. For example, the AC adapter modifies the power
from a wall outlet for use by the computer.

Advanced Power Management (APM). A facility consisting of one
or more layers of software that support power management. The APM
software interface enables applications, operating systems, device
drivers, and the APM BIOS to work together to reduce power
consumption.

Alternating Current (AC). Electric current that reverses its direction
of flow at regular intervals.

Analog signal. A signal with characteristics such as amplitude and
frequency that vary in proportion to (are an analog of) the value to be
transmitted. Voice communications are analog signals.

Application. A program that performs specific tasks on your
computer, such as word processing or creating spreadsheets.

BIOS. Programs that contain such basic hardware operations as an
interaction with diskette drives, hard disk drives, and the memory.

Board. A circuit board. An internal card containing electronic
components called chips, which perform a specific function or
increase the capabilities of the system.

Boot. To load a program or operating system into system memory.

Bits Per Second (BPS). In serial transmission, the instantaneous bit

speed with which a device or channel transmits a character.

Card. Synonym for board; see board.

Compact Disk-Read Only Memory (CD-ROM). Stores data on

metal-plated plastic discs.

XC6 User’s Handbook 83

Appendix C. Glossary

Compatibility. 1.The ability of one computer to accept and process
data in the same method as another computer without modifying the
data or the media upon which it is being transferred. 2.The ability of
one device to connect or communicate with another system or
component.

Configuration. The specific combination of hardware components of
the computer, and their operating status. The configuration of your
computer includes predefined memory, type and speed of
microprocessor, type of and size of hard disk drive, etc.

Default. The preset parameter value automatically selected by the
computer when you or a program do not provide instructions.

Device driver. A program that controls communication between a
specific peripheral device (such as a printer or the pen/stylus) and the
computer.

Disk drive. The physical device that enables the computer to read
from, and write to, a disk.

Display. An image-producing device used to view computer output.

Double-click. To press and release the pen/stylus twice within a time

frame you define, without moving the pointer off the choice.

Hardware. The physical electronic and mechanical components of a
computer system. typically, the computer itself, CPU, memory, etc.

Hertz. A unit of wave frequency that equals one cycle per second.

Interface. 1. Hardware and/or software components used specifically

to connect one computer or device to another. 2. To physically
connect one system or device to another to exchange information. 3.
The point of contact between user, the computer, and the program (for
example, the pen/stylus or a menu).

JBOD. Two drives that appear in Window as two drives, Drive C and
Drive D.

84 XC6 User’s Handbook

Appendix C. Glossary

Kilobyte (KB). A unit of 1024 bytes measuring storage space,
typically in memory or on storage media such as a diskette or hard
disk drive.

Local area network (LAN). Assembly of separate computers into an
integrated network that connects the various computers together and
to common devices such as printers and fax machines.

Light Emitting Diode (LED). A semiconductor device that emits
light when a current is applied.

Liquid Crystal Display (LCD). liquid crystal sealed between two
sheets of glass coated with transparent conducting material. Applying
a voltage between the glass sheets darkens the liquid crystal to
provide contrast to lighted portions of the display.

Megabyte (MB). A unit of data storage equal to 1024 kilobytes.

Megahertz (MHz). a unit of wave frequency that equals 1 million

cycles per second.

Modem. A device that connects your computer to a telephone line,
allowing it to communicate with another computer at another
location.

Pen. See stylus.

Peripheral device. An input/output device that is external to the

central processor and/or main memory such as a printer or scanner.

Pixel. Picture elements (tiny dots) that compose a screen image.

Port. The electrical connection through which the computer sends

and receives data to and from devices or other computers.

Program. A set of instructions a computer can execute to tell the
system what to do and how to do it.

RAID 0. Two drives appear in Windows as one larger drive (two
80GB drives appear as one 160GB drive).

XC6 User’s Handbook 85

Appendix C. Glossary

RAID 1. One drive has information mirrored to a duplicate drive. For
example, information from one 80GB drive is mirrored to another
80GB drive. The two drives appear in Windows as a single drive.

Random Access Memory (RAM). A hardware component of your
computer that temporarily stores active program code and data.

Reset. The act of hard stopping/shutting down the operating system.

Resolution. The number of pixels displayed on the screen. A higher

resolution provides greater clarity and allows more information to be
displayed on the screen at once.

Restart. Resetting a computer without turning it off (also called
warm boot or soft reset).

Resume. The act of returning the computer to an active, operational
state.

Read Only Memory (ROM). The portion of your computer’s
memory that contains permanent instructions, and which cannot be
modified.

Sleep mode. A power conservation mode in which electrical current
is removed from most components of the computer.

Solid State Drive (SSD). A sealed mass storage device used for
storage and fast retrieval of programs and data. The SSD is contained
in a drive cartridge for easy removal.

Status Indicator (LED). a light above the LCD screen which
indicates the current status of a particular device or hardware
component.

Stylus. A writing instrument. For pen computers, the stylus is used to
interface with the LCD and digitizer.

86 XC6 User’s Handbook

Appendix C. Glossary

Subscriber Identity Module (SIM). A smart card inside a GSM
(Global System for Mobile communications) cellular device that
encrypts voice and data transmissions and stores data about the
specific user so that the user can be identified and authenticated by
the network supplying the phone service. A SIM can be moved from
one device to another and/or different SIMS can be inserted into any
GSM radio.

Universal Serial Bus (USB). A serial interface that enables
communication between devices and the computer.

XC6 User’s Handbook 87

88 XC6 User’s Handbook

D Hardware Specifications

Physical

Dimensions 11.20” x 8.25” x 1.6” (WxHxD)

283.9mm x 209.3mm x 40.8mm

Weight 5.40 lbs. (2.45 kgs)*

Processing

®

®

CPU / chipset * Intel

Cores / threads 2 / 4 2 / 4 2 / 2

Clock / turbo speed 1.7 / 3.3 GHz 1.9 / 2.9 GHz 1.6 GHz

L2 cache 4 MB 3 MB 2 MB

Graphics Intel HD Graphics 5000 Intel HD Graphics 4400 Intel HD Graphics

Graphics frequency 200 MHz - 1.1 GHz 200 MHz - 1.1 GHz 200 MHz - 1.0 GHz

Number of displays supported 3 3 3

Intel vPro technology Yes Yes No

Core

i7-4650IU Intel Core i5-4300U Intel Celeron

®

2980U

Intel Hyper-Threading
technology

Trusted Execution technology Yes Yes Yes

* Varies according to your computer’s configuration.

Yes Yes No

XC6 User’s Handbook 89

Appendix D. Hardware Specifications

Memory/storage

Main RAM • 4 GB, 8 GB, or 16 GB DDR III RAM (4GB standard)

• 144-pin SODIMM modules

BIOS ROM 16 Mb

Storage 60 GB SSD, 120 GB SSD or 240 GB SSD, single or dual; RAID 0/1 and AHCI support

* Varies according to your computer’s configuration.

Display

Display • 10.4” TFT XGA (1024x768), 16M colors, 32-bit True-color LCD

• Active digitizer / pen

• Advanced matrix resistive touch panel with ten-finger multi-touch

• Dual mode operation of digitizer and touch panel

• Brightness: 100 levels

• 1300 nits max before touch (sunlight-readable)

• 340 nits max before touch (indoor-readable)

• Viewing angle:

- Horizontal: 80 degrees
(typical, contrast ratio > 10)

- Vertical: 80 degrees
(typical, contrast ratio > 10)

• Contrast Ratio: Typ. 600:1, Min 400:1

90 XC6 User’s Handbook

Appendix D. Hardware Specifications

User Interface

Wireless Radio Bays • One M.2 PCI Express slot for WWAN (4G / LTE)

• One half mini-PCI Express slot for WiFi

Integrated Interfaces • DC-in

• USB 3.0 (2)

• Microphone / headset combination jack

• LAN (RJ-45)

• 9-pin serial port (standard)
or
15-pin D-SUB VGA connector (optional)
or
HDMI connector (optional)

KeyPad / User Controls • Application buttons with primary and secondary functions

• Power On/Off/Suspend/Resume button

• Emergency Shutoff/Reset button

Audio • Realtec ALC283

• On-board microphone with noise cancellation

• On-board integrated stereo speakers (1W each)

Status Indicators Power, Charge, DC-in, Warning, Camera Active

XC6 User’s Handbook 91

Appendix D. Hardware Specifications

Power

Main Battery • 10 cell, Xplore part number 11-01022

• Removable Lithium Ion

• 7.4V @ 10.625 Ah (80.75 Whr)

• Warm-swappable

• Recharge time: 2.5 hours (100%)

• Life: Up to 8 hours. (Battery life is dependent on operating system, power
management, and applications in use.)

• Suspend life: Min. 67 days

• Off state: Approximately 90 days

Bridge Battery • 6-cell Li Ion, 45mAh

• Life: (with Suspend-to-RAM on bridge battery only): 3 to 5 minutes from full
charge

AC Adapter • Xplore part number 11-50048

• FSP part number FSP065-REB

• Power adapter, 100-240V AC input (auto-sensing), 19V DC @ 3.42A output,

ROHS, Energy Star, CE, UL, TUV

92 XC6 User’s Handbook

Environmental

Appendix D. Hardware Specifications

Temperature • Operating:

Humidity 0% to 95% non-condensing

Shock/Drop Four-foot drop to concrete, all surfaces, edges and corners

Vibration 0.04g^2/Hz, 20 Hz - 1000 Hz

Enclosure Class Blowing rain:

o

-7

to 140o F (-20o to 60o C) (XC6 minimum is -49o F,-45o C)

• Storage:

o

to 167o F (-40o to 75o C)

-40

-6dB/octave 1000 Hz - 2000 Hz

4”/hr, 40 mph wind and
MIL-STD-810G Method 506.5 Procedure 1

Ingress protection:
IEC (60529) ingress tested to an IP67 standard

Sand and dust:
Particle size < 149 µm, 10 +
MIL-STD-810G Method 506.5 Procedure 1

Salt Fog:
5% saline for 48 hr (12 hr wet, 12 hr dry, 2 cycles)
MIL-STD-810G Method 506.5

Contamination by fluids:
Detergents, brake fluid, aromatic hydrocarbons
MIL-STD-810G Method 506.5

7 g/m3 particle density 1.5 m/s to 8.9 m/s wind speed

Solar radiation:
1120 W/m2 (355 Btu/ft2/hr) UVB @ 50° C, 7x24 hr cycles
MIL-STD-810G Method 506.5

XC6 User’s Handbook 93

Appendix D. Hardware Specifications

Agency approvals

EMC • CFR 47, FCC part 15B, IC ICES-003

• European Union Directive 2004/108/EC RTT&E

Safety • TUV Bauart, RoHS, 2002/95/EC, WEEE

• IEC600950-1 2nd Ed., EN60950-1 2nd Ed., UL60950-1 2nd Ed.

• ETL Listed: ANSIISA-12.12.01-2007, C22.2 No. 213

• UL1604

Operating system

Operating Systems • Microsoft Windows 7 Professional, 32-bit, English

• Microsoft Windows 7 Professional, 64-bit, English

• Microsoft Windows 8 Professional, 64-bit, English

94 XC6 User’s Handbook

E Agency Notices

FCC notices

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

Modifications not expressly approved by Xplore Technologies could void this
user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

XC6 User’s Handbook 95

Appendix E. Agency Notices

IC regulations

This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may
cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."

The device could automatically discontinue transmission in case of absence
of information to transmit, or operational failure. Note that this is not intended
to prohibit transmission of control or signaling information or the use of
repetitive codes where required by the technology.

The device for the band 5150-5250 MHz is only for indoor usage to reduce
potential for harmful interference to co-channel mobile satellite systems; the
maximum antenna gain permitted (for devices in the bands 5250-5350 MHz
and 5470-5725 MHz) to comply with the e.i.r.p. limit; and The maximum
antenna gain permitted (for devices in the band 5725-5850 MHz) to comply
with the e.i.r.p. limits specified for point-to-point and non point-to-point
operation as appropriate, as stated in section A9.2(3). In addition, High-power
radars are allocated as primary users (meaning they have priority) of the band
5250-5350 MHz and this radar could cause interference and/or damage to LE­LAN devices.

The County Code Selection feature is disabled for products marketed in the
US/Canada. For product available in the USA/ Canada markets, only channel
1~11 can be operated. Selection of other channels is not possible.

IC radiation exposure statement

This EUT is compliance with SAR for general population/uncontrolled
exposure limits in IC RSS-102 and had been tested in accordance with the
measurement methods and procedures specified in IEEE 1528.

96 XC6 User’s Handbook

Appendix E. Agency Notices

Antennas

Bluetooth
antenna

RF exposure

Tests for SAR are conducted using standard operating positions specified by
the FCC with the tablet PC transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the tablet PC while operating
can be well below the maximum value. This is because the tablet PC is
designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.

Before a tablet PC model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests are performed
in positions and locations (e.g., on the body) as required by the FCC for each
model. (Body-worn measurements may differ among tablet PC models,
depending upon available accessories and FCC requirements). While there
may be differences between the SAR levels of various tablet PCs and at
various positions, they all meet the government requirement for safe
exposure.

This device was evaluated and shown to comply with FCC SAR guidelines.
Avoid covering or holding antennas when transmitting. Antenna locations are
shown in the following figure.

XC6 User’s Handbook 97

Appendix E. Agency Notices

Health and Safety Information

Exposure to Radio Frequency (RF) Signals

Your wireless tablet PC is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government as well as the RTT&E directive. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on the safety standards
previously set by both U.S. and international standards bodies:

■ American National Standards Institute (ANSI) IEEE. C95.1-1992

■ National Council on Radiation Protection and Measurement (NCRP).

■ International Commission on Non-Ionizing Radiation Protection

■ Ministry of Health (Canada), Safety Code 6. The standards include a

■ European Union RTT&E Directive for SAR

The exposure standard for wireless mobile tablet PCs employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6W/kg. The SAR limit set by the RTT&E is 2.0W/kg.

Report 86. 1986

(ICNIRP) 1996

substantial safety margin designed to assure the safety of all persons,
regardless of age and health.

Note: In the U.S. and Canada, the SAR limit for mobile tablet PCs used by
the public is 1.6 watts/kg (W/kg) averaged over 1 gram of tissue. In Europe the
SAR limit for mobile table PCs used by the public is 2.0 watts/kg (W/kg)
averaged over 10 grams of tissue.The standard incorporates a substantial
margin of safety to give additional protection for the public and to account for
any variations.

DOC (Industry Canada Notices)

Notice to Users of Radio and Television

This Class B digital apparatus meets all requirements of Canadian
Interference-Causing Equipment Regulations per the ICES-003

CET appareil numérique de la class B respecte toutes les exigence du
Réglement sur le matérial brouilleur du Canada.

98 XC6 User’s Handbook

Appendix E. Agency Notices



Notice to Users of the Canadian Telephone Network

Notice: This equipment meets the applicable Industry Canada Terminal
Equipment Technical Specifications. This is confirmed by the registration
number. The abbreviation, IC, before the registration number signifies that
registration was performed based on a Declaration of Conformity indicating that
Industry Canada technical specifications were met. It does not imply that
Industry Canada approved the equipment.

Before connecting this equipment to a telephone line the user should ensure
that it is permissible to connect this equipment to the local telecommunication
facilities. The user should be aware that compliance with the certification
standards does not prevent service degradation in some situations.

Repairs to telecommunication equipment should be made by a Canadian
authorized maintenance facility. Any repairs or alterations not expressly
approved by Xplore or any equipment failures may give the
telecommunication company cause to request the user to disconnect the
equipment from the telephone line.

Notice: The Ringer Equivalence Number (REN) for this terminal equipment is

0.0. The REN assigned to each terminal equipment provides an indication of
the maximum number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed five.

UL Notice

This unit requires an AC adapter to operate. Use only UL Listed
Class 2 Adapters with an output rating of 19 VDC, with a current of 3.75 A.
AC Adapter output polarity:

For authorized repair technicians only

WARNING

For continued protection against risk of fire, replace only with the same
type and rating fuse.

XC6 User’s Handbook 99

Appendix E. Agency Notices





WARNING

Danger of explosion if Lithium (clock) battery is incorrectly replaced.
Replace only with the same equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.

System disposal

In the event of system disposal, observe the following information regarding
proper procedures in the State of Vermont.

The liquid crystal display (LCD) lamps used in this system contain mercury.
In the event of system disposal, be sure to follow local guidelines.

Intel Dual Band Wireless-AC 7260 country-specific-compliance
statements

Hereby, Xplore Technologies, declares that the Intel Dual Band Wireless-AC
7260complies with the essential requirements and other relevant provisions of
Directive 1999/5/EC. This equipment is marked with the CE symbol and can
be used throughout the European community.

Sierra EM7305 country-specific compliance statements

Hereby, Xplore Technologies, declares that the Sierra EM7305 complies with
the essential requirements and other relevant provisions of Directive
1999/5/EC. This equipment is marked with the CE symbol and can be used
throughout the European community.

Intel Dual Band Wireless-AC 7260 - Regulatory USA

100 XC6 User’s Handbook
