Installation Instructions for Workabout Pro S Handstrap
1. Installation

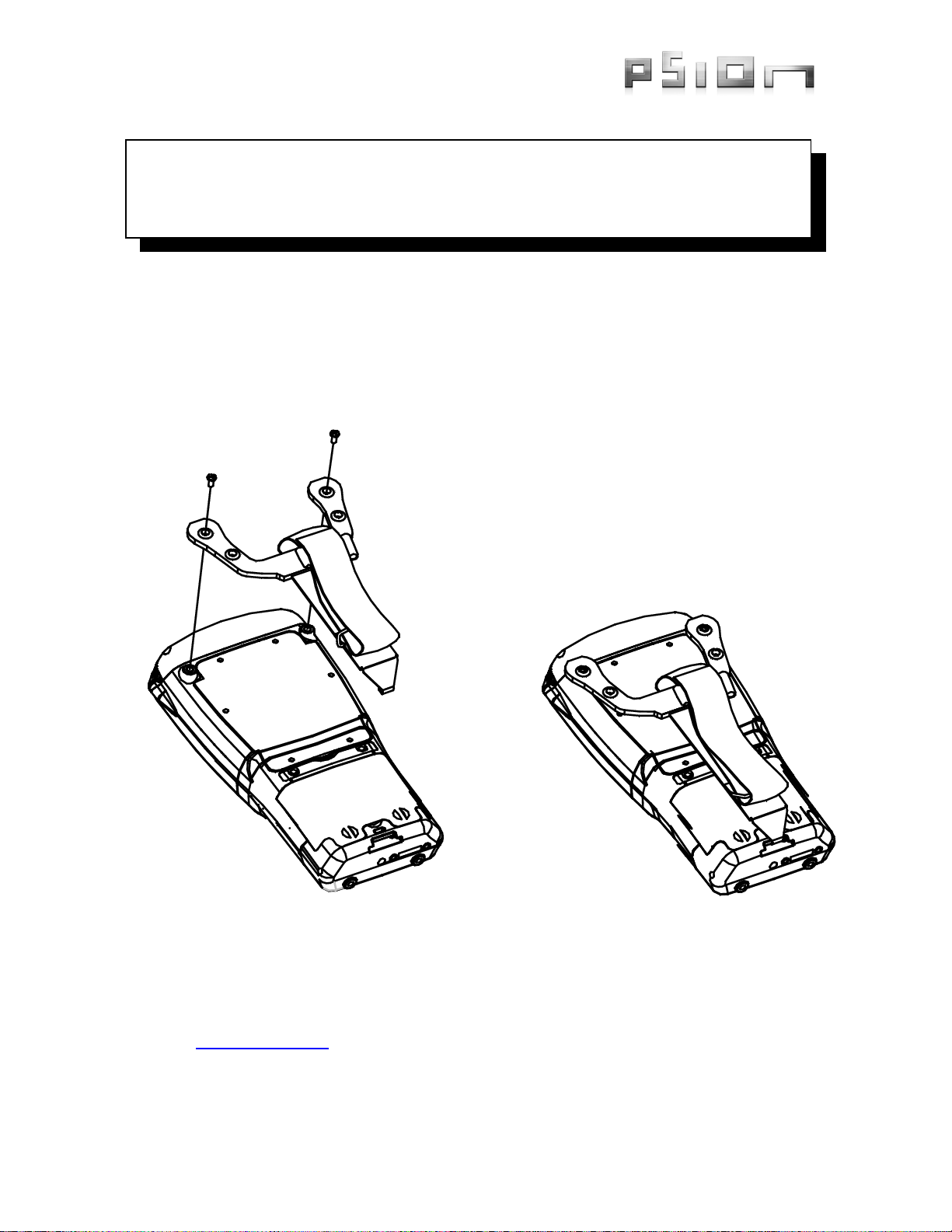

Assemble Handstrap to inserts shown on Workabout Pro S h an dheld.
Screws are M2.6 x 5mm Philips Driver, Fixed Flat Washer, with Black Oxide finish.
The screws should be tightened one-quarter turn beyond finger tight. (Or torque 2.5±0.25 in-lbs).
Do not use any thread locking compounds or adhesives.
Do not over tighten.
Pull down on strap and hook metal clip into lip on bottom of terminal as shown.
