TC20
Mobile Computer
Integrator Guide
for Android ™ 8.1.0 Oreo
MN-003241-01 Rev. A
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC; Oreo is
a trademark of Mondelez International, Inc. group. All other trademarks are the property of their respective
owners. ©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.
COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to
www.zebra.com/copyright
.
WARRANTY: For complete warranty information, go to www.zebra.com/warranty
END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula
Terms of Use
• Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries
(“Zebra Technologies”). It is intended solely for the information and use of parties operating and
maintaining the equipment described herein. Such proprietary information may not be used,
reproduced, or disclosed to any other parties for any other purpose without the express, written
permission of Zebra Technologies.
• Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs
are subject to change without notice.
• Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals
are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors
and disclaims liability resulting therefrom.
• Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of
the accompanying product (including hardware and software) be liable for any damages whatsoever
(including, without limitation, consequential damages including loss of business profits, business
interruption, or loss of business information) arising out of the use of, the results of use of, or inability to
use such product, even if Zebra Technologies has been advised of the possibility of such damages.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
.
.
Revision History
Changes to the original guide are listed below:
Change Date Description
-01 Rev A 12/2018 Initial release.
-02 Rev A 8/2019 Remove Imager as Camera section from DataWedge chapter.
2
Table of Contents
Copyright ......................................................................................................................... 2
Terms of Use .................................................................................................................. 2
Revision History .............................................................................................................. 2
Table of Contents.......................................................................................................... 3
About This Guide........................................................................................................ 11
Introduction ................................................................................................................... 11
Configurations ............................................................................................................... 11
Software Versions ......................................................................................................... 11
Chapter Descriptions .................................................................................................... 12
Notational Conventions ................................................................................................. 12
Notational Conventions ................................................................................................. 12
Related Documents ...................................................................................................... 13
Service Information ....................................................................................................... 13
Product Feedback ......................................................................................................... 14
Getting Started............................................................................................................ 15
Introduction ................................................................................................................... 15
Setup ............................................................................................................................. 15
Installing a microSD Card ...................................................................................... 15
Charging the Battery ............................................................................................. 17
Charging Indicators ............................................................................................... 19
Replacing the microSD Card ........................................................................................ 19
Resetting the TC20 ....................................................................................................... 21
Performing a Soft Reset ........................................................................................ 21
Performing a Hard Reset ....................................................................................... 22
3
Table of Contents
Accessories................................................................................................................. 23
Introduction ................................................................................................................... 23
Accessories ................................................................................................................... 23
1-Slot Base Charge Only Cradle .................................................................................. 25
Setup ..................................................................................................................... 26
Cable Routing ........................................................................................................ 26
Connecting Cradles Together ............................................................................... 27
Charging the Device .............................................................................................. 27
Battery Charging ................................................................................................... 28
Charging Temperature .................................................................................... 28
1-Slot Ethernet Charge Cradle ..................................................................................... 29
Ethernet Bracket Installation ................................................................................. 29
USB/Ethernet Communication .............................................................................. 33

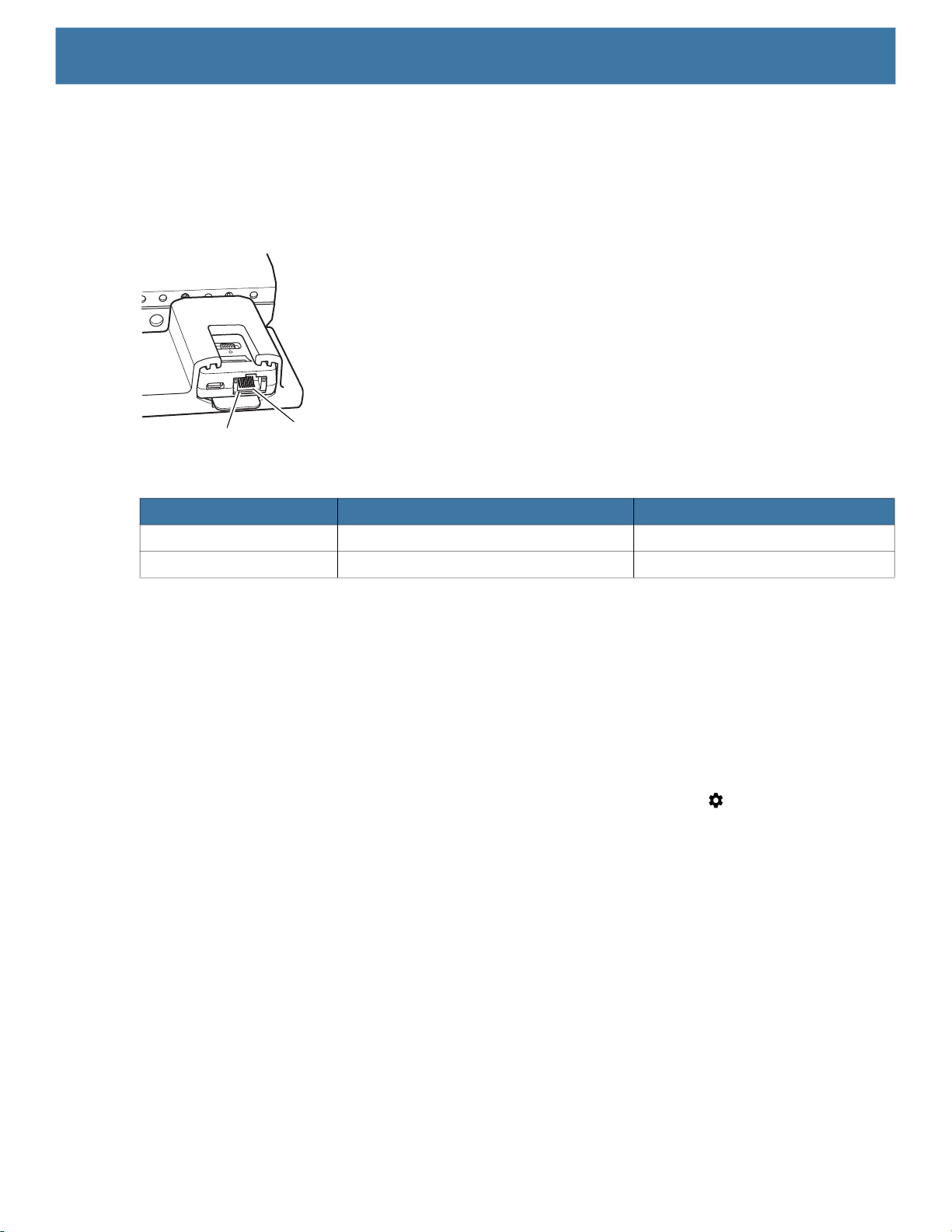

Ethernet LED Indicators .................................................................................. 34
Ethernet Settings ............................................................................................ 34
Configuring Ethernet Proxy Settings ............................................................... 34
Configuring Ethernet Static IP Address .......................................................... 35
Charging the Device ....................................................................................... 36
Battery Charging ................................................................................................... 37
Charging Temperature .................................................................................... 37
5-Slot Charge Only Cradle ........................................................................................... 38
Charging the TC20 ................................................................................................ 38
Battery Charging ................................................................................................... 39
Charging Temperature .................................................................................... 39

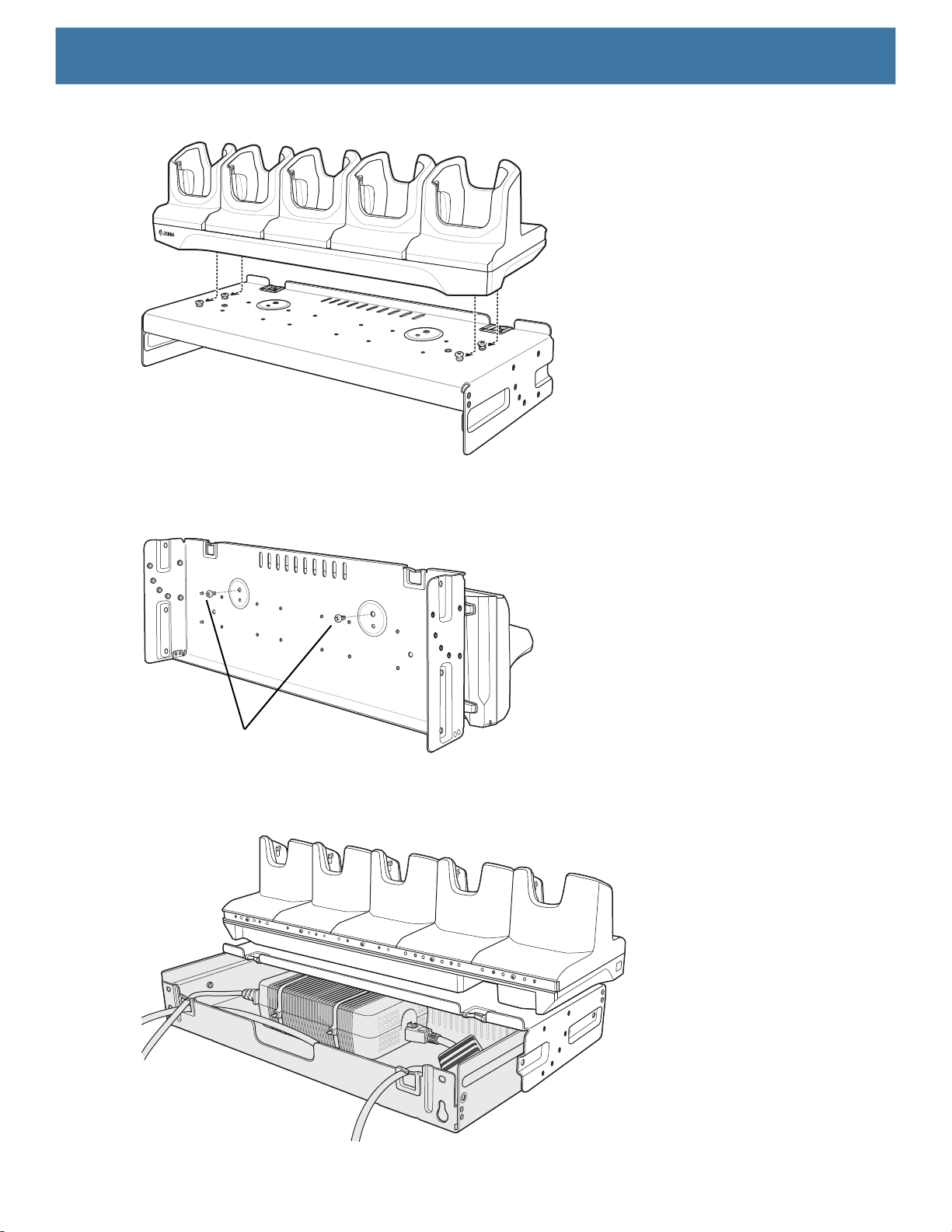

5-Slot Cradle Rack Installation ..................................................................................... 40

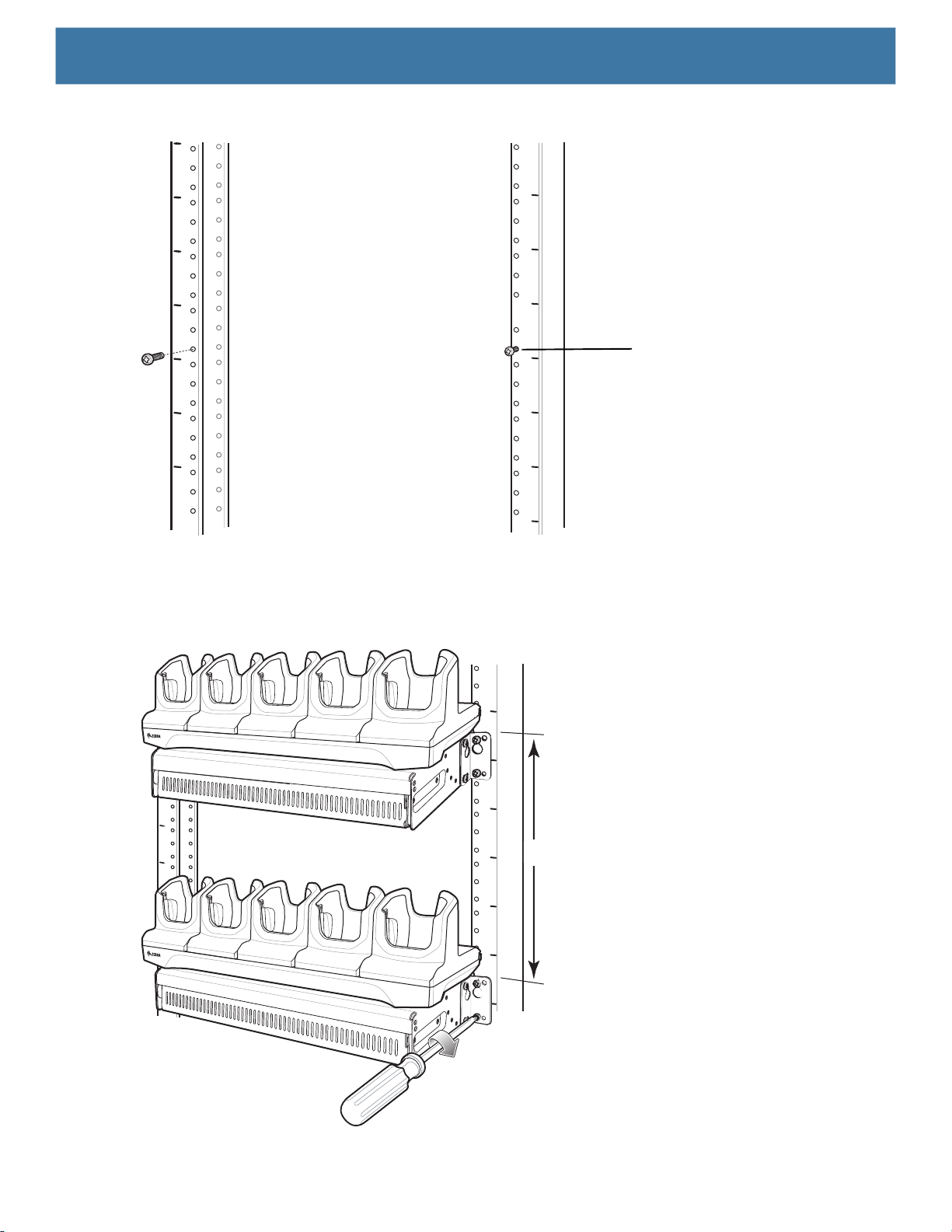

Rack Mount Installation ................................................................................................. 42
Wall Installation ............................................................................................................. 45
Bottom Tray Assembly .......................................................................................... 45
Bracket Wall Mounting .......................................................................................... 45
USB Communication .................................................................................................. 48
Introduction ................................................................................................................... 48
Transferring Files .................................................................................................. 48
Transferring Photos ............................................................................................... 49
Disconnect from the Host Computer ..................................................................... 49
DataWedge ................................................................................................................. 50
Introduction ................................................................................................................... 50
Basic Scanning ............................................................................................................. 50
Profiles .......................................................................................................................... 50
Profile0 .................................................................................................................. 51
4
Table of Contents
Plug-ins ......................................................................................................................... 51
Input Plug-ins ........................................................................................................ 51
Process Plug-ins ................................................................................................... 52
Output Plug-ins ...................................................................................................... 52
Profiles Screen .............................................................................................................. 52
Profile Context Menu ............................................................................................. 53
Options Menu ........................................................................................................ 53
Disabling DataWedge ............................................................................................ 54
Creating a New Profile .................................................................................................. 54
Profile Configuration .............................................................................................. 54
Associating Applications ........................................................................................ 55
Data Capture Plus ................................................................................................. 57
Barcode Input ........................................................................................................ 59
Enabled ......................................................................................................................... 59
Scanner Selection ........................................................................................... 59
Auto Switch to Default on Event ..................................................................... 59
Decoders ......................................................................................................... 60
Decoder Params ............................................................................................. 62
Codabar .......................................................................................................... 62
UPC EAN Params ........................................................................................... 67
Reader Params ............................................................................................... 69
Scan Params .................................................................................................. 72
UDI Params .................................................................................................... 73
Multibarcode params ...................................................................................... 73
Voice Input ............................................................................................................ 73
Keystroke Output ............................................................................................ 74
Intent Output .......................................................................................................... 76
Intent Overview ............................................................................................... 77
IP Output ............................................................................................................... 78
Usage .............................................................................................................. 79
Using IP Output with IPWedge ....................................................................... 79
Using IP Output without IPWedge .................................................................. 80
Generating Advanced Data Formatting Rules .............................................................. 82
Configuring ADF Plug-in ........................................................................................ 82
Creating a Rule ............................................................................................... 82
Defining a Rule ............................................................................................... 83
Defining an Action ........................................................................................... 83
Deleting a Rule ............................................................................................... 83
Order Rules List .............................................................................................. 84
Deleting an Action ........................................................................................... 85
ADF Example .................................................................................................. 85
DataWedge Settings ..................................................................................................... 88
Importing a Configuration File ............................................................................... 89
Exporting a Configuration File ............................................................................... 89
5
Table of Contents
Importing a Profile File .......................................................................................... 89
Exporting a Profile ................................................................................................. 90
Restoring DataWedge ........................................................................................... 90
Configuration and Profile File Management .................................................................. 90
Enterprise Folder ................................................................................................... 90
Auto Import ............................................................................................................ 90
Programming Notes ...................................................................................................... 91
Overriding Trigger Key in an Application ............................................................... 91
Capture Data and Taking a Photo in the Same Application .................................. 91
Disabling DataWedge ............................................................................................ 91
Soft Scan Trigger .................................................................................................. 91
Function Prototype .......................................................................................... 92
Scanner Input Plugin ............................................................................................. 92
Function Prototype .......................................................................................... 92
Parameters ..................................................................................................... 92
Return Values ................................................................................................. 92
Example .......................................................................................................... 93
Comments ....................................................................................................... 93
Enumerate Scanners ............................................................................................. 93
Function Prototype .......................................................................................... 93
Parameters ..................................................................................................... 94
Return Values ................................................................................................. 94
Example .......................................................................................................... 95
Comments ....................................................................................................... 95
Set Default Profile ................................................................................................. 96
Default Profile Recap ...................................................................................... 96
Usage Scenario .............................................................................................. 96
Function Prototype .......................................................................................... 96
Parameters ..................................................................................................... 96
Return Values ................................................................................................. 96
Example .......................................................................................................... 97
Comments ....................................................................................................... 97
Reset Default Profile ............................................................................................. 97
Function Prototype .......................................................................................... 98
Parameters ..................................................................................................... 98
Return Values ................................................................................................. 98
Example .......................................................................................................... 98
Comments ....................................................................................................... 98
Switch To Profile ................................................................................................... 99
Profiles Recap ................................................................................................. 99
Usage Scenario .............................................................................................. 99
Function Prototype .......................................................................................... 99
Parameters ..................................................................................................... 99
Return Values ............................................................................................... 100
Example ........................................................................................................ 100
6
Table of Contents
Comments ..................................................................................................... 100
Notes ............................................................................................................. 101
Settings...................................................................................................................... 102
Introduction ................................................................................................................. 102
WLAN Configuration ................................................................................................... 102
Configuring a Secure Wi-Fi Network ................................................................... 102
Manually Adding a Wi-Fi Network ....................................................................... 103
Configuring for a Proxy Server ............................................................................ 104
Configuring the Device to Use a Static IP Address ............................................. 106
Wi-Fi Preferences ................................................................................................ 107
Additional Wi-Fi Settings ..................................................................................... 108
Setting Screen Lock ............................................................................................ 108
Setting Screen Lock Using PIN ........................................................................... 109
Setting Screen Unlock Using Password .............................................................. 110
Setting Screen Unlock Using Pattern .................................................................. 112
Passwords ........................................................................................................... 113
Accounts ..................................................................................................................... 113
Language Usage ......................................................................................................... 113
Changing the Language Setting .......................................................................... 113
Adding Words to the Dictionary ........................................................................... 113
Keyboard Settings ....................................................................................................... 114
Button Remapping ............................................................................................... 114
Remapping a Button ................................................................................................... 114
PTT Express Configuration ......................................................................................... 116
RxLogger .................................................................................................................... 116
RxLogger Configuration ...................................................................................... 117
RxLogger Settings ........................................................................................ 118
ANR Module .................................................................................................. 118
Kernel Module ..................................................................................................... 118
Logcat Module .............................................................................................. 119
LTS Module ................................................................................................... 120
Qxdm Module ................................................................................................ 120
Ramoops Module .......................................................................................... 121
Resource Module .......................................................................................... 121
Snapshot Module .......................................................................................... 121
TCPDump Module ........................................................................................ 122
Tombstone Module ....................................................................................... 122
Configuration File ................................................................................................ 122
Enabling Logging ................................................................................................. 122
Disabling Logging ................................................................................................ 123
Extracting Log Files ............................................................................................. 123
7
Table of Contents
RxLogger Utility ........................................................................................................... 123
App View ....................................................................................................... 124
Viewing Logs ................................................................................................. 124
RxLogger Utility ........................................................................................................... 126
Archive Data ............................................................................................................... 126
Overlay View ....................................................................................................... 126
Initiating the Main Chat Head ........................................................................ 126
Removing the Main Chat Head ................................................................................... 126
Viewing Logs ................................................................................................. 127
Removing a Sub Chat Head Icon ................................................................. 128
Backup .......................................................................................................... 128
About Phone ............................................................................................................... 128
Application Deployment........................................................................................... 130
Introduction ................................................................................................................. 130
Security ....................................................................................................................... 130
Secure Certificates ...................................................................................................... 130
Installing a Secure Certificate ..................................................................................... 130
Configuring Credential Storage Settings ............................................................. 131
Development Tools ..................................................................................................... 131
Android Application Development ....................................................................... 131
Development Workstation ............................................................................. 131
Target Device ................................................................................................ 132
EMDK for Android ............................................................................................... 132
StageNow ............................................................................................................ 132
ADB USB Setup .......................................................................................................... 132
Enabling USB Debugging ........................................................................................... 133
Application Installation ................................................................................................ 133
Installing Applications Using the USB Connection .............................................. 133
Installing Applications Using the Android Debug Bridge ..................................... 135
Installing Applications Using a microSD Card ..................................................... 136
Uninstalling an Application .................................................................................. 137
Performing a System Update ...................................................................................... 138
Downloading the System Update Package ......................................................... 138
Using microSD Card ............................................................................................ 138
Using ADB ........................................................................................................... 139
Verify System Update Installation ....................................................................... 140
Performing an Enterprise Reset .................................................................................. 140
Downloading the Enterprise Reset Package ....................................................... 140
Using microSD Card ............................................................................................ 140
Using ADB ........................................................................................................... 141
Performing a Factory Reset ........................................................................................ 142
8
Table of Contents
Downloading the Factory Reset Package ........................................................... 142
Using microSD Card ............................................................................................ 142
Using ADB ........................................................................................................... 142
Storage ....................................................................................................................... 143
Random Access Memory .................................................................................... 143
Internal Storage ................................................................................................... 144
External Storage .................................................................................................. 145
Formatting a microSD Card or USB Drive as Portable Storage ................... 146
Formatting a microSD Card as Internal Memory .......................................... 148
Enterprise Folder ................................................................................................. 149
App Management ........................................................................................................ 149
Viewing App Details ............................................................................................ 150
Managing Downloads ................................................................................................. 151
Maintenance and Troubleshooting ......................................................................... 152
Maintaining the TC20 .................................................................................................. 152
Display Best Practices ................................................................................................ 152
Image Retention .................................................................................................. 152
Long-Term Storage ..................................................................................................... 152
Cleaning Instructions .................................................................................................. 153
Approved Cleanser Active Ingredients ................................................................ 153
Harmful Ingredients ............................................................................................. 153
Cleaning Instructions ........................................................................................... 153
Special Cleaning Notes ....................................................................................... 153
Cleaning Materials Required ............................................................................... 153
Cleaning Frequency ............................................................................................ 154
Cleaning the TC20 ...................................................................................................... 154
Housing ............................................................................................................... 154
Display ................................................................................................................. 154
Camera and Exit Window .................................................................................... 154
Connector Cleaning .................................................................................................... 154
Cleaning Cradle Connectors ....................................................................................... 154
Troubleshooting .......................................................................................................... 155
TC20 .................................................................................................................... 155
1-Slot Base Charge Only Cradle ......................................................................... 157
1-Slot Ethernet Cradle ......................................................................................... 158
5-Slot Charge Only Cradle Troubleshooting ....................................................... 159
Technical Specifications.......................................................................................... 160
TC20 ........................................................................................................................... 160
9
Table of Contents
Decode Distances ............................................................................................... 163
2-Pin I/O Connector Pin-Outs .............................................................................. 164
1-Slot Base Charge Only Cradle Technical Specifications ................................. 164
1-Slot Ethernet Cradle Technical Specifications ................................................. 165
5-Slot Charge Only Cradle Technical Specifications ........................................... 165
Trigger Handle Technical Specifications ............................................................. 166
Extended Power Pack Technical Specifications ................................................. 166
Index........................................................................................................................... 168
10
About This Guide
Introduction
This guide provides information about using the device and accessories.
NOTE:
Screens and windows pictured in this guide are samples and can differ from actual screens.
Configurations
This guide covers the following configurations:
Table 1 Configurations
Configuration
Radios
Android 8.0
Operating System
TC200J-10A111XX LAN GMS No SE2100 No 2 GB/16 GB 3.5 mm Blank
TC200J-10C112XX LAN GMS No SE4710 Yes 2 GB/16 GB 3.5 mm 2-Pin Connector
TC200J-1KC111XX LAN GMS Yes SE4710 Yes 2 GB/16 GB 3.5 mm Blank
TC200J-20A111CN LAN AOSP No SE2100 No 2 GB/16 GB 3.5 mm Blank
TC200J-20C112CN LAN AOSP No SE4710 Yes 2 GB/16 GB 3.5 mm 2-Pin Connector
TC200J-2KC111CN LAN AOSP Yes SE4710 Yes 2 GB/16 GB 3.5 mm Blank
Keypad
Data Capture
8 MP Camera
Memory
RAM/Flash
Audio Jack
Access Door
Software Versions
To determine the current software versions:
1. Swipe down from the Status bar to open the Quick Settings bar.
2. Touch > System.
3. Touch About phone.
11
4. Scroll to view the following information:
• Model
• Android version
• Android security patch version
• Kernel version
• Build number.
To determine the device serial number, touch About phone > Status.
• Serial number
Chapter Descriptions
Topics covered in this guide are as follows:
• Getting Started provides information on getting the TC20 up and running for the first time.
• Accessories describes the available accessories and how to use them with the TC20.
• USB Communication describes how to connect the TC20 to a host computer.
• DataWedge describes how to use and configure the DataWedge application.
• Settings provides the settings for configuring the TC20.
• Application Deployment provides information for developing and managing applications.
• Maintenance and Troubleshooting includes instructions on cleaning and storing the TC20, and
provides troubleshooting solutions for potential problems during TC20 operation.
• Technical Specifications provides the technical specifications for the TC20.
Notational Conventions
The following conventions are used in this document:
• Bold text is used to highlight the following:
• Dialog box, window and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen
• Key names on a keypad
• Button names on a screen.
• Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential.
• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.
Notational Conventions
The following conventions are used in this document:
12
• Bold text is used to highlight the following:
• Dialog box, window, and screen names
• Drop-down list and list box names
• Check box and radio button names
• Button names on a screen.
• Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (for example, lists that describe step-by-step procedures) appear as numbered
lists.
Related Documents
• TC20 Mobile Computer Quick Start Guide, p/n MN-003018-xx.
• TC20 Mobile Computer Regulatory Guide, p/n MN-003019-xx.
• TC20 Mobile Computer User Guide for Android 8.0 Oreo, p/n MN-003240-xx.
For the latest version of this guide and all guides, go to: www.zebra.com/support
Service Information
If you have a problem with your equipment, contact Customer Support for your region. Contact information
is available at: www.zebra.com/support
When contacting support, please have the following information available:
• Serial number of the unit (found on manufacturing label)
• Model number or product name (found on manufacturing label)
• Software type and version number
Customer Support responds to calls by email or telephone within the time limits set forth in support
agreements.
If the problem cannot be solved by Customer Support, you may need to return the equipment for servicing
and will be given specific directions. We are not responsible for any damages incurred during shipment if
the approved shipping container is not used. Shipping the units improperly can possibly void the warranty.
Remove the microSD card from the device before shipping for service.
.
.
13
If the device was purchased from a business partner, contact that business partner for support.
Figure 1 Manufacturer Label
Product Feedback
If you have comments, questions, or suggestions about this guide, send an email to
EVM-Techdocs@zebra.com
Manufacturer Label
.
14
Getting Started
Introduction
This chapter provides information for getting the device up and running for the first time.
Setup
Perform this procedure to start using the TC20 for the first time.
1. Install a micro secure digital (SD) card (optional).
2. Charge the TC20.
3. Power on the TC20.
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the access door.
Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
caution:
cautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.
1. Using a Phillips #0 screwdriver, remove two screws securing the access door.
Figure 2 Remove Access Door
Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD pre-
15
2. Remove access door.
Figure 3 Remove Access Door
3. Align the microSD card with the SD card slot.
Figure 4 Align microSD Card
4. Push the microSD card into the SD card slot.
Figure 5 Push microSD Card into the SD Card Slot
5. Replace the access Door.
6. Secure the access door using the two screws.
16
Figure 6 Secure Access Door
Charging the Battery
Before using the device for the first time, charge the internal battery until the green Charging/Notification light
emitting diode (LED) remains lit. To charge the device, use a cradle with the appropriate power supply or USB
cable and power supply. For information about the accessories available for the device see Accessories on
page 23 for more information.
The internal battery charges from fully depleted to 90% in approximately four hours and from fully depleted to
100% in approximately five hours.
NOTE:
10 hours of use.
Use only Zebra charging accessories and batteries. Charge batteries at room temperature with the device in sleep mode.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or accessory always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F))
the device or accessory may for small periods of time alternately enable and disable battery charging to keep
the battery at acceptable temperatures. The device or accessory indicates when charging is disabled due to
abnormal temperatures via its LED and a notification appears on the display.
To charge the internal battery:
1. Connect the charging accessory to the appropriate power source.
2. Insert the device into a cradle or attach to a USB cable. The device turns on and begins charging. The
In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately
Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.
17
Figure 7 Charging with Cradle
important:
Figure 8 Charging with USB Cable
Use only the Zebra USB-C Cable for charging.
18
Charging Indicators
Table 2 Charging/Notification LED Charging Indicators
State LED Indication
Off Device is not charging. Device is not inserted correctly in the
Slow Blinking Amber (1 blink every
4 seconds)
cradle or connected to a power source. Charger/cradle is not
powered.
Device is charging.
Slow Blinking Red (1 blink every 4
seconds)
Solid Green Charging complete.
Solid Red Charging complete but the battery is at end of useful life. See
Fast Blinking Amber (2
blinks/second)
Fast Blinking Red (2 blinks/second) Charging error but the battery is at end of useful life., e.g.:
Replacing the microSD Card
To replace the microSD card:
Device is charging but the battery is at end of useful life. See
system administrator for battery replacement services.
system administrator for battery replacement services.
Charging error, e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
See system administrator for battery replacement services.
1. Press the Power button until the menu appears.
2. Touch Power off.
3. Touch OK.
4. If hand strap is attached, remove the hand strap.
5. Using a #0 Phillips screwdriver, remove two screws securing the access door.
6. Remove access door.
19
Figure 9 Remove Access Door
7. Slide the microSD card out of the SD card slot.
Figure 10 Align microSD Card
8. Lift the microSD card.
9. Align the replacement microSD card with the SD card slot.
Figure 11 Align microSD Card
10.Push the microSD card into the SD card slot.
20
Figure 12 Push microSD Card into the SD Card Slot
11.Replace the access Door.
12.Secure the access door using the two screws.
Figure 13 Secure Access Door
13.Replace the hand strap, if required.
14.Press and hold the Power button to turn on the device.
Resetting the TC20
There are four reset functions:
• Soft reset
• Hard reset
• Enterprise reset. See Performing an Enterprise Reset on page 140.
• Factory reset See Performing a Factory Reset on page 142.
Performing a Soft Reset
Perform a soft reset if applications stop responding.
1. Press and hold the Power button until the menu appears.
2. Touch Reset.
3. The device reboots.
21
Performing a Hard Reset
CAUTION: Performing a hard reset with a SD card installed in the TC20 may cause damage or data corruption to the SD
card.
Perform a hard reset if the TC20 stops responding.
1. Simultaneously press the Power and Volume Up buttons for at least five seconds.
2. When the screen turns off, release the buttons.
3. The TC20 reboots.
22
Accessories
Introduction
This chapter provides information for using the accessories for the device.
Accessories
This table lists the accessories available for the TC20.
Table 3 TC20 Accessories
Accessory Part Number Description
Cradles
1-Slot Base Charge Only
Cradle
1-Slot Ethernet Cradle CRD-TC2X-SE1ET-01 Provides device charging and communication,
5-Slot Charge Only Cradle CRD-TC2X-SE5CO-01 Charges up to five devices. Requires power
Cradle Mount BRKT-SCRD-SMRK-01 Mounts the 5-Slot Charge Only Cradle to a
Mounting Bracket KIT-TC2X-BS1FT-05 Interconnects two 1-Slot Charge Only cradles
Batteries and Chargers
Extended Power Pack BTRY-TC2X-PRPK1-01 Charges the TC20 internal battery to provide
Vehicle Solutions
Cigarette Lighter Adapter
Auto Charge Cable
CRD-TC2X-BS1CO-01 Provides charging for device and Extended
CHG-AUTO-USB1-01 Provides power to the device from a cigarette
power pack. Requires power supply
(PWR-WUA5V12W0xx), and USB-C cable.
and charging for Extended Power Pack.
Requires power supply
(PWR-BGA12V50W0WW), DC line cord
(CBL-DC-388A1-01), and country-specific AC
line cord.
supply (PWR-BGA12V108W0WW), DC line
cord (CBL-DC-382A1-01), and
country-specific AC line cord.
wall or rack.
(5-pack).
additional power and extend the shift time.
lighter socket.
23
Accessories
Table 3 TC20 Accessories (Continued)
Accessory Part Number Description
Audio Accessories
3.5 mm Audio Adapter CBL-TC51-HDST35-01 Plugs into the device and provides audio to a
wired headset with collared 3.5 mm plug.
3.5 mm Headset HDST-35MM-PTVP-01 Use for PTT calls.
Miscellaneous
Trigger Handle TRG-TC2X-SNP1-01 Adds gun-style handle with a scanner trigger
for comfortable and productive scanning.
Screen Protector KT-TC20-SCRNP1-01 Add additional screen protection.
SmartDEX Solution DX30 Provides wireless DEX communications to the
TC20.
Ethernet Bracket BRKT-TC51-ENET1-01 Use to connect the USB/Ethernet Adapter to
the 1-Slot Ethernet Cradle.
USB/Ethernet Module MOD-MT2-EU1-01 Use with 1-Slot Ethernet Cradle to provide
Ethernet connectivity.
Cradle Mating Adapter KIT-TC2X-BS1FT-05 Use the optional mating adapter to connect
two or more cradles together. Each cradle still
requires a power supply (5-pack).
Carrying Solutions
TC2X Soft Holster SG-TC2X-HLSTR1-01 Use to hold the device on hip. Accepts TC20
device with Trigger Handle.
TC20K Soft Holster SG-TC20K-HLST1-01 Use to hold the device on hip. Accepts TC20K
device with Trigger Handle.
TC2X Hand Strap SG-TC2X-HSTRP1-01 Replacement hand strap (3–pack).
TC20K Hand Strap SG-TC20K-HSTP1-01 Replacement hand strap for TC20K (3–pack).
Wrist/Arm Mount SG-TC2X-ARMNT-01 Use to mount the TC20 to the forearm.
Small Wrist Mount Strap SG-WT4023221-03R Replacement small wrist mount strap.
Large Wrist Mount Strap SG-WT4023221-04R Replacement long wrist mount strap.
Power Supplies
Power Supply PWR-BGA12V50W0WW Provides power to the 1-Slot Ethernet Cradle.
Requires DC Line Cord, p/n
CBL-DC-388A1-01 and country specific three
wire grounded AC line cord sold separately.
Power Supply PWR-BGA12V108W0WW Provides power to the 5-Slot Charge Only
cradle. Requires DC Line Cord, p/n
CBL-DC-382A1-01 and country specific three
wire grounded AC line cord sold separately.
Power Supply PWR-WUA5V12W0US Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in the
United States.
Power Supply PWR-WUA5V12W0GB Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in the
European Union.
24
Accessories
Table 3 TC20 Accessories (Continued)
Accessory Part Number Description
Power Supply PWR-WUA5V12W0EU Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in the
United Kingdom.
Power Supply PWR-WUA5V12W0AU Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in
Australia.
Power Supply PWR-WUA5V12W0CN Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in China.
Power Supply PWR-WUA5V12W0BR Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in Brazil.
Power Supply PWR-WUA5V12W0KR Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in Korea.
Power Supply PWR-WUA5V12W0IN Provides 5 VDC, 2.5 A power to the USB-C
cable. Includes plug adapter for use in India.
DC Line Cord CBL-DC-382A1-01 Provides power from the power supply
(PWR-BGA12V108W0WW) to the 5-Slot
Charge Only Cradle.
DC Line Cord CBL-DC-388A1-01 Provides power from the power supply
(PWR-BGA12V50W0WW) to the 1-Slot
Ethernet Cradle.
2-Way DC Line Cord CBL-DC-377A1-01 Use to charge two 5-Slot Charge Only cradles
with one power supply.
2-Way DC Line Cord CBL-DC-379A1-01 Use to charge one 1-Slot Ethernet Cradle and
one 5-Slot Charge Only Cradle with one power
supply.
4-Way DC Line Cord CBL-DC-380A1-01 Use to charge four 1-Slot Ethernet cradles with
one power supply.
US AC Line Cord 23844-00-00R 7.5 feet long, grounded, three wire for power
supply.
USB-C Cable CBL-TC2X-USBC-01 The USB cable used to connect PC to single
slot USB cradle.
1-Slot Base Charge Only Cradle
The 1-Slot Base Charge Only Cradle provide 5 VDC for charging:
• TC20 battery
• Extended Power Pack
• TC20 and Extended Power Pack
• TC20 with Trigger Handle.
25
Setup
Accessories
Figure 14 1-Slot Base Charge Only Cradle Setup
Power Supply
USB-C Cable
Cable Routing
To cradle provides three ways to route the USB cable:
• Rear
• Left side
• Right side.
Figure 15 USB Cable Routing
Cable Holder
USB C Port
Cable Holder
Insert the USB-C cable connector into the USB port. Routing the cable to the rear, left, or right and use cable
holders to secure cable.
26
Connecting Cradles Together
The 1-Slot Base Charge Only Cradle can be connected together to form a row of cradles using the optional
mounting brackets.
1. Align a mounting bracket on either side of cradle.
Figure 16 Align Mounting Bracket
Accessories
2. Press the mounting bracket into the cradle.
3. Place cradle on flat surface.
4. Align second cradle.
Figure 17 Align Cradles
5. Press the cradle down ensuring that the bracket studs snap into the receiving holes in the cradle.
Charging the Device
To charge a device:
1. Insert the device into the slot to begin charging.
27
Figure 18 Battery Charging
Accessories
Charge/Notification
LED
2. Ensure the device is seated properly.
Battery Charging
The device’s Charging/Notification LED indicates the status of the battery charging in the device. See Table
on page 19 for device charging status. The battery charges from fully depleted to 90% in approximately four
hours and from fully depleted to 100% in approximately five hours.
NOTE:
10 hours of use.
Use only Zebra charging accessories and batteries. Charge batteries at room temperature with the TC20 in sleep mode.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F))
the device or cradle may for small periods of time alternately enable and disable battery charging to keep the
battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to
abnormal temperatures via its LED.
In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately
28
1-Slot Ethernet Charge Cradle
The 1-Slot USB Charge Cradle:
• Provides 5 VDC power for operating the device.
• Charges the device’s battery.
• Provides USB communication with host computer.
• Provides USB and Ethernet communication using the Ethernet Bracket and Module adapter.
Figure 19 1–Slot USB Charge Cradle Setup
DC Line Cord
Accessories
AC Line Cord
Power Supply
USB A Connector
Ethernet Bracket Installation
To install the Ethernet Bracket:
1. Turn over the Ethernet Bracket.
2. Remove the thumbscrew securing the plate to the bracket.
USB micro-AB Port
USB micro-B Connector
29
Accessories
Figure 20 Remove Thumbscrew
3. Turn over the bracket and remove plate.
Figure 21 Remove Plate
4. Align the 1-Slot Ethernet Cradle with the plate.
Figure 22 Align Cradle with Plate
5. Slide the plate and cradle into the bracket.
30
Figure 23 Align Cradle/Plate with Bracket
6. Push the plate into the bracket.
Figure 24 Push Plate into Bracket
Accessories
7. Turn over the bracket and cradle.
8. Secure the thumbscrew.
31
Accessories

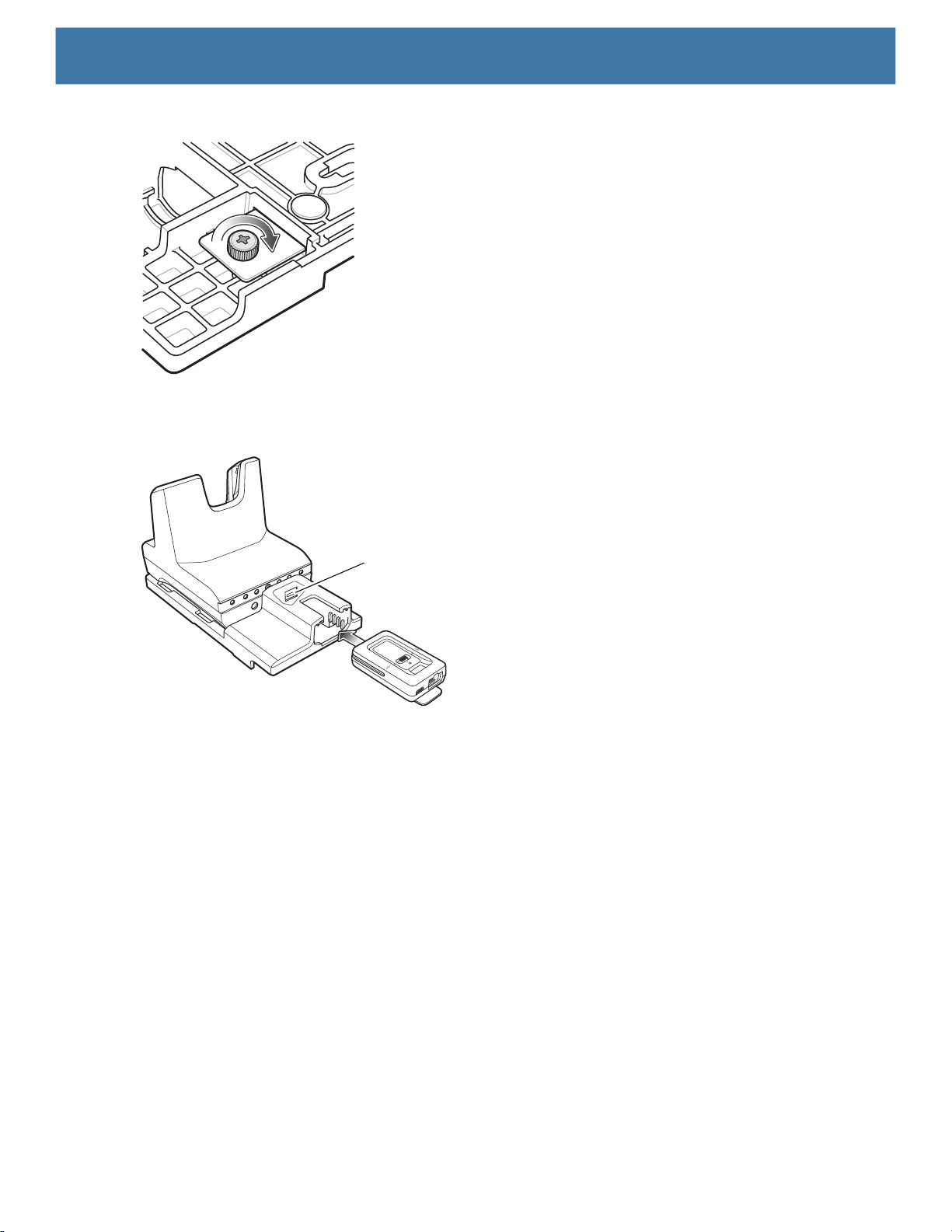

Figure 25 Secure Screw
9. Insert the Ethernet Module into the bracket.
Figure 26 Insert Module
USB micro-AB Port
10.Push module in until it is seated properly. The USB micro-B connector on the Ethernet module plugs into
the USB micro-AB port on the cradle.
32
Figure 27 Ethernet Bracket Setup
Accessories
USB micro-AB Port
RJ-45 Port
Ethernet Cable
USB micro B Connector
USB A Connector
USB/Ethernet Communication
The 1-Slot Ethernet Cradle provides both Ethernet communication with a network and USB communication
with a host computer. Prior to using the cradle for Ethernet or USB communication. Ensure that the switch on
the USB/Ethernet module is set properly.
Figure 28 Ethernet Cradle Module Switch
For Ethernet communication, slide the switch to the position.
For USB communication, slide the switch to the position.
Place the switch in the center position to disable communications.
33
Accessories
Ethernet LED Indicators
There are two LEDs on the USB/Ethernet Module RJ-45 port. The green LED lights to indicate that the transfer
rate is 100 Mbps. When the LED is not lit the transfer rate is 10 Mbps. The yellow LED blinks to indicate
activity, or stays lit to indicate that a link is established. When it is not lit it indicates that there is no link.
Figure 29 LED Indicators
1
Table 4 USB/Ethernet Module LED Data Rate Indicators
Data Rate (1) Amber LED (2) Green LED
100 Mbps On/Blink On
10 Mbps On/Blink Off
2
Ethernet Settings
The following settings can be configured when using Ethernet communication:
• Proxy Settings
• Static IP.
Configuring Ethernet Proxy Settings
The device includes Ethernet cradle drivers. After inserting the device, configure the Ethernet connection:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Ethernet.
3. Slide the switch to the ON position.
4. Place the device into the Ethernet cradle slot.
5. Touch and hold eth0 until the menu appears.
6. Touch Modify Proxy.
7. Touch the Proxy drop-down list and select Manual.
34
Accessories
Figure 30 Ethernet Proxy Settings
8. In the Proxy hostname field, enter the proxy server address.
9. In the Proxy port field, enter the proxy server port number.
NOTE: When entering proxy addresses in the Bypass proxy for field, do not use spaces or carriage returns between ad-
dresses.
10. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy
server. Use the separator “|” between addresses.
11. Touch MODIFY.
12. Touch .
Configuring Ethernet Static IP Address
The device includes Ethernet cradle drivers. After inserting the device, configure the Ethernet connection:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Ethernet.
3. Slide the switch to the ON position.
4. Place the device into the Ethernet cradle slot.
5. Touch eth0.
6. Touch Disconnect.
7. Touch eth0.
8. Touch the IP settings drop-down list and select Static.
35
Figure 31 Static IP Settings
Accessories
9. In the IP address field, enter the proxy server address.
10.If required, in the Gateway field, enter a gateway address for the device.
11.If required, in the Netmask field, enter the network mask address
12.If required, in the DNS address fields, enter a Domain Name System (DNS) addresses.
13.Touch CONNECT.
14.Touch .
Charging the Device
To charge a device:
1. Insert the device into the slot to begin charging.
36
Figure 32 Battery Charging
Charge/Notification
Accessories
LED
2. Ensure the device is seated properly.
Battery Charging
The device’s Charging/Notification LED indicates the status of the battery charging in the device. See Table 2
on page 19 for device charging status. The internal battery charges from fully depleted to 90% in approximately
four hours and from fully depleted to 100% in approximately five hours.
NOTE: In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately
10 hours of use.
Use only Zebra charging accessories and batteries. Charge batteries at room temperature with the TC20 in sleep mode.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F))
the device or cradle may for small periods of time alternately enable and disable battery charging to keep the
battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to
abnormal temperatures via its LED.
37
5-Slot Charge Only Cradle
The 5-Slot Charge Only Cradle:
• Provides 5 VDC power for operating the TC20.
• Simultaneously charges up to five TC20s.
Figure 33 5-Slot Charge Only Cradle Setup
Power Supply
Accessories
AC Line Cord
Charging the TC20
To charge a device:
1. Insert the TC20 into a slot to begin charging.
DC Line Cord
38
Figure 34 TC20 Battery Charging
Charge/Notification
LED
Accessories
2. Ensure the TC20 is seated properly.
Battery Charging
The device’s Charging/Notification LED indicates the status of the battery charging in the device. See Table
on page 19 for device charging status. The internal battery charges from fully depleted to 90% in approximately
four hours and from fully depleted to 100% in approximately five hours.
NOTE:
10 hours of use.
Use only Zebra charging accessories and batteries. Charge batteries at room temperature with the TC20 in sleep mode.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F))
the device or cradle may for small periods of time alternately enable and disable battery charging to keep the
battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to
abnormal temperatures via its LED.
In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately
39
5-Slot Cradle Rack Installation
Use the Rack/Wall Mount Bracket to mount a 5-slot cradle on a rack. When installing on a rack, first assemble
the bracket and cradles/chargers and then install the assembly on the rack.
1. Place the power supply in bottom tray.
2. Connect AC line cord to power supply.
3. Connect DC line cord to power supply.
4. Secure power supply and cables to bottom tray with tie wraps.
Accessories
NOTE:
5. Route cables through cable slots.
Figure 35 Power Supply in Bottom Tray
6. Secure four M2.5 studs to top tray as shown.
Figure 36 Install Studs
Ensure tie wrap buckle is on side of power supply. Tie wrap buckle on top of power supply interferes with top tray.
DC line Cord AC line CordPower Supply
7. Align and install 5-Slot cradle onto studs of top tray.
40
Studs (4)
Accessories
Figure 37 Align Cradle on Studs
8. Secure cradle to top tray with two M2.5 safety screws.
Figure 38 Secure Cradle
Safety Screws(2)
9. Slide top tray onto bottom tray.
Figure 39 Slide Top Tray onto Bottom Tray
41
Accessories
10.Connect cables to cradle.
Figure 40 Connect Cables
11.Secure top tray to bottom tray with 4 M5 screws (two on each side).
Figure 41 Secure Top and Bottom Tray
See Rack Mount Installation on page 42 for installing the bracket assembly onto a rack.
Rack Mount Installation
NOTE: Use screws provided with rack system. Refer to rack user documentation for instructions.
1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side).
42
Figure 42 Flange Horizontal Position
Figure 43 Flange 25° Position
Accessories
Flange
Fifth Screw Hole
Top Screw Hole
Flange
CAUTION:
Install mounting bracket with 5-Slot cradle at a maximum height of four feet from ground.
NOTE: Distance between two horizontal mounted brackets should be at least 14.5” apart (from top of one flange to the top
of the next flange).
Distance between two 25° mounted brackets should be at least 12” apart (from top of one flange to the top of the next flange).
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way
from the rail.
43
Figure 44 Install Rack System Screws
14 “
Accessories
Rack Screws
3. Align the mounting bracket’s top mounting key holes with the screws.
4. Place the brackets on the screws.
Figure 45 Secure Bracket to Rack (Horizontal Position Shown)
14.5”
44
Accessories
5. Secure the top screws.
6. Install bottom screws and tighten screws.
7. Route cables and connect to power source.
CAUTION:
source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
• Route inter-cradle cables to the side rails and then from the rails to the bracket.
Installer should ensure that all building codes are followed when connecting the power supplies to an AC power
Wall Installation
Use the Rack/Wall Mount Bracket to mount a 5-Slot Charge Only cradle on a wall. When installing on a wall,
first assemble the bottom tray, install the bottom tray on the wall and then assemble the top tray.
Use mounting hardware (screws and/or anchors) appropriate for the type of wall mounting the bracket onto.
The Mount Bracket mounting slots dimensions are 5 mm (0.2 in.). Fasteners must be able to hold a minimum
of 20 Kg (44 lbs.)
For proper installation consult a professional installer. Failure to install the bracket properly can possibly result
in damage to the hardware.
CAUTION:
Install mounting bracket with 5-Slot Charge Only cradle at a maximum height of four feet from ground.
Bottom Tray Assembly
See steps 1 through 5 on page 40 for instructions.
Bracket Wall Mounting
1. Drill holes and install anchors according to the template supplied with the bracket.
2. Install two screws for bottom of bracket. The screw heads should protrude 2.5 mm (0.01”) from the wall.
45
Accessories

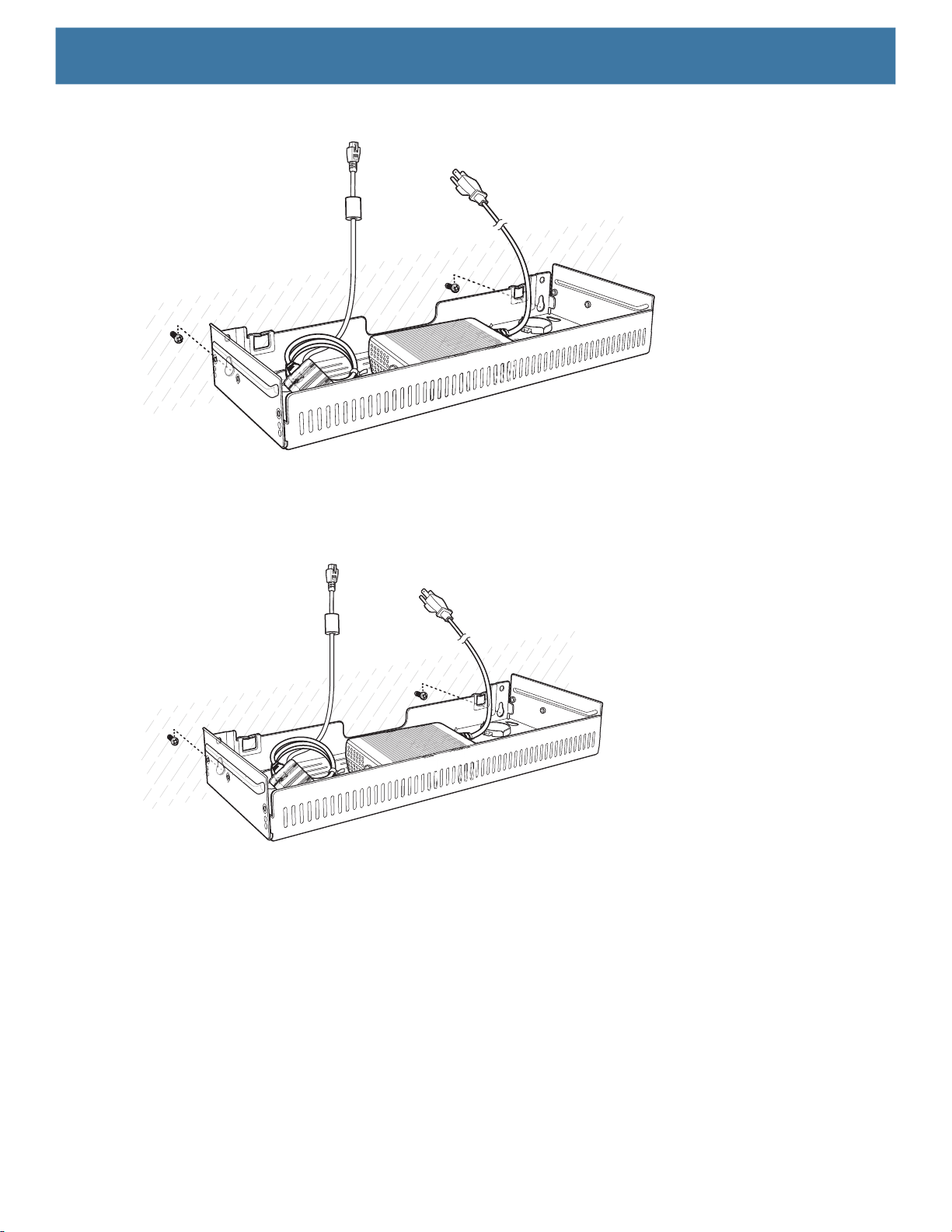

Figure 46 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
Figure 47 Horizontal Installation
5. Install two top screws.
6. Tighten all screws.
46
Accessories
Figure 48 Horizontal Installation - Tighten Screws
7. Assembly the 5-Slot Charge Only cradle onto the bracket. See steps 7 through 11 on page 40.
8. Route cables and connect to power source.
CAUTION: Installer should ensure that all building codes are followed when connecting the power supplies to an AC power
source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
• Route inter-cradle cables to the side rails and then from the rails to the bracket.
47
USB Communication
Introduction
Connect the TC20 to a host computer using the USB-C Cable, or the 1-Slot Ethernet Cradle with a standard
USB B cable to transfer files between the TC20 and the host computer. See Accessories for more information.
When connecting the TC20 to a host computer, follow the host computer’s instructions for connecting and
disconnecting USB devices, to avoid damaging or corrupting files.
Transferring Files
note Use Transfer files to copy files between the device (internal memory or microSD card) and the host computer.
1. Connect a USB cable to the device or place the device into a USB cradle.
2. Pull down the Notification panel and touch USB charging this device.
By default, Charge this device is selected.
Figure 49 Use USB to Dialog Box
3. Touch Transfer files.
4. On the host computer, open a file explorer application.
5. Locate the device as a portable device.
6. Open the SD card or the Internal storage folder.
7. Copy files to and from the device or delete files as required.
48
Transferring Photos
To transfer photos using Photo Transfer Protocol:
note
Use Photo Transfer Protocol (PTP) to copy photos from either the microSD card or internal memory to the host
computer.
1. Connect USB cable to the device or place the device into a USB cradle. See Accessories on page 23 for
setup information.
2. Pull down the Notification panel and touch USB charging this device.
3. Touch Transfer photos (PTP).
4. On the host computer, open a file explorer application.
5. Open the SD card or the Internal storage folder.
6. Copy or delete photos as required.
Disconnect from the Host Computer
To disconnect the device from the host computer:
caution
1. On the host computer, unmount the device.
2. Remove the USB from the device or remove the device from the cradle.
Carefully follow the host computer’s instructions to unmount the microSD card and disconnect USB devices
correctly to avoid losing information.
49
DataWedge
Introduction
This chapter applies to DataWedge on Android devices. DataWedge is an application that reads data,
processes the data and sends the data to an application.
Basic Scanning
To capture bar code data:
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Aim the exit window at a bar code.
3. Press and hold the a Scan button. The red aiming pattern turns on to assist in aiming. Ensure that the bar
code is within the area formed by the aiming pattern.

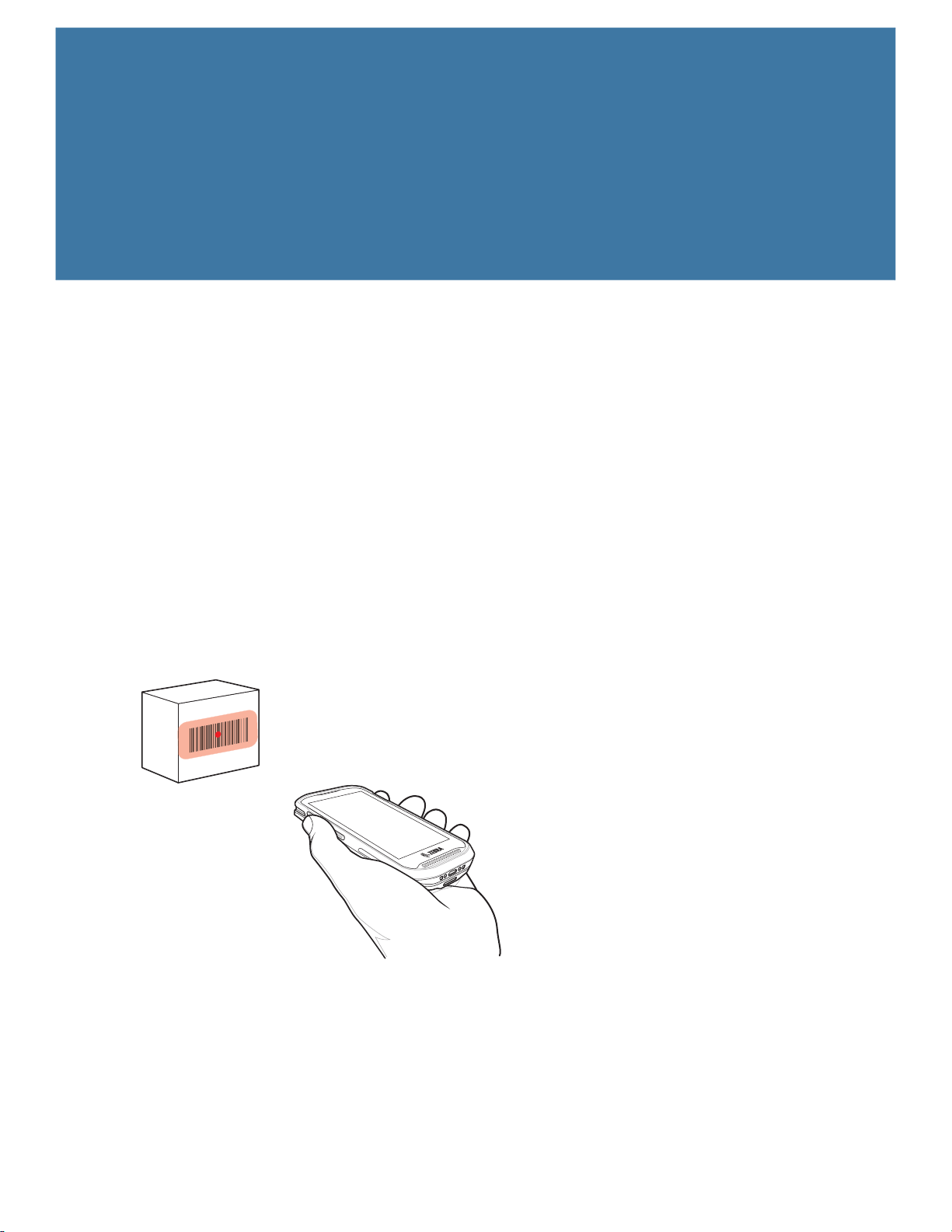

Figure 50 TC20 Data Capture
Profiles
4. The Data Capture LED lights green, a beep sounds and the device vibrates, by default, to indicate the bar
code was decoded successfully. The captured data appears in the text field.
DataWedge is based on profiles and plug-ins. A profile contains information on how DataWedge should
behave with different applications.
Profile information consists of:
50
DataWedge
• Associated application
• Input plug-in configurations
• Output plug-in configurations
• Process plug-in configurations.
Using profiles, each application can have a specific DataWedge configuration. For example, each user
application can have a profile which outputs scanned data in the required format when that application comes
to the foreground. DataWedge can be configured to process the same set of captured data differently based on
the requirements of each application.
DataWedge includes the following pre-configured profiles which support specific built-in applications:
• Visible profiles:
• Profile0 - created automatically the first time DataWedge runs. Generic profile used when there are no
user created profiles associated with an application.
• Launcher - enables scanning when the Launcher is in foreground.
• DWDemo - provides support for the DWDemo application.
Some Zebra applications are capable of capturing data by scanning. DataWedge is pre-loaded with private
and hidden profiles for this purpose. There is no option to modify the private profiles.
Profile0
Profile0 can be edited but cannot be associated with an application. That is, DataWedge allows manipulation
of plug-in settings for Profile0 but it does not allow assignment of a foreground application. This configuration
allows DataWedge to send output data to any foreground application other than applications associated with
user-defined profiles when Profile0 is enabled.
Profile0 can be disabled to allow DataWedge to only send output data to those applications which are
associated in user-defined profiles. For example, create a profile associating a specific application, disable
Profile0 and then scan. DataWedge only sends data to the application specified in the user-created profile.
This adds additional security to DataWedge enabling the sending of data only to specified applications.
Plug-ins
A plug-in is a software module utilized in DataWedge to extend its functionality to encompass technologies
such as barcode scanning. The plug-ins can be categorized into three types based on their operations:
• Input Plug-ins
• Output Plug-ins
• Process Plug-ins.
Input Plug-ins
An Input Plug-in supports an input device, such as a barcode scanner contained in, or attached to the device.
DataWedge contains base plug-ins for these input devices.
Barcode Scanner Input Plug-in – The Barcode Scanner Input Plug-in is responsible for reading data from the
integrated barcode scanner and supports different types of barcode readers including laser, imager and
internal camera. Raw data read from the barcode scanner can be processed or formatted using Process
Plug-ins as required. DataWedge has built-in feedback functionality for the barcode scanner to issue user
alerts. The feedback settings can be configured according to user requirement.
51
Process Plug-ins
Process Plug-ins are used in DataWedge to manipulate the received data according to the requirement,
before sending to the foreground application via the Output Plug-in.
• Basic Data Formatting Process Plug-in – The Basic Data Formatting Plug-in allows DataWedge to add a
prefix and/or a suffix to the captured data before passing it to an Output Plug-in.
• Advanced Data Formatting Process Plug-in – The Advanced Data Formatting Plug-in allows
DataWedge to apply rules (actions to be performed based on defined criteria) to the data received via an
input plug-in before passing it to an Output Plug-in.
Output Plug-ins
Output Plug-ins are responsible for sending the data from Input Plug-ins to a foreground application on the
device.
• Keystroke Output Plug-in – The Keystroke Output Plug-in collects and sends data received from the Input
Plug-in to the foreground applications by emulating keystrokes.
• Intent Output Plug-in – The Intent Output Plug-in collects and sends data received from the Input Plug-ins
to foreground applications using the Android Intent mechanism.
• IP Output Plug-in – The IP Output Plug-in collects and sends data received from the Input Plug-ins to a
host computer via a network connection. Captured data can be sent over an IP network to a specified IP
address and port using either TCP or UDP transport protocols.
DataWedge
Profiles Screen
To launch DataWedge, swipe up from the bottom of the screen and touch . By default, the following profiles
appear:
• Profile0
• Launcher
• DWDemo
Profile0 is the default profile and is used when no other profile can be applied.
52
Figure 51 DataWedge Profiles Screen
DataWedge
Profile names are color coded. Enabled profiles are white and disabled profiles are gray.
To configure a profile touch the profile name.
Profile Context Menu
Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected
profile.
Figure 52 Profile Context Menu
The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.
Options Menu
Touch to open the options menu.
53
Figure 53 DataWedge Options Menu
The menu provides options to create a new profile, access to general DataWedge settings and DataWedge
version information.
Disabling DataWedge
1. Swipe up from the bottom of the screen and touch .
2. Touch .
3. Touch Settings.
4. Touch DataWedge enabled.
DataWedge
The blue check disappears from the checkbox indicating that DataWedge is disabled.
Creating a New Profile
To create a new profile:
1. Swipe up from the bottom of the screen and touch .
2. Touch .
3. Touch New profile.
4. In the New profile dialog box, enter a name for the new profile. It is recommended that profile names be
unique and made up of only alpha-numeric characters (A-Z, a-z, 0-9).
Figure 54 New Profile Name Dialog Box
5. Touch OK.
The new profile name appears in the DataWedge profile screen.
Profile Configuration
To configure the Profile0 or a user-created profile, touch the profile name.
54
DataWedge
Figure 55 Profile Configuration Screen
The configuration screen lists the following sections:
• Profile enabled
• Applications
• Data Capture Plus (DCP)
• Barcode Input
• SimulScan Input
• Keystroke output
• Intent Output
• IP Output.
Associating Applications
Use Applications option to associate applications with this profile. User created profiles should be associated
with one or more applications and its activities.
1. Touch Associated apps. A list of applications/activities associated with the profile displays. Initially the list
does not contain any applications/activities.
55
Figure 56 Associated Apps Screen
DataWedge
2. Touch .
3. Touch New app/activity.
Figure 57 Select Application Menu
4. In the Select application screen, select the desired application from the list.
5. In the Select activity menu, selecting the activity adds that application/activity combination to the
associated application list for that profile. Selecting * as the activity results in all activities within that
application being associated to the profile. During operation, DataWedge tries to match the specific
application/activity combinations with the foreground application/activity before trying to match the general
application/* combinations.
6. Touch .
56
Figure 58 Selected Application/Activity
DataWedge
Data Capture Plus
Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a
designated part of the screen. A variable screen overlay acts like a scan button.
Figure 59 Minimized Data Capture Panel
DCP Button
The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen
once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven
additional configuration parameters.
57
Figure 60 Data Capture Panel Settings
DataWedge
• Enable - Select to enable Data Capture Plus (default - disabled).
• Dock button on - Select position of the button.
• Left or right - Allows user to place the button on either the right or left edge of the screen.
• Left only - Places the button on left edge of the screen.
• Right only - Places the button on the right edge of the screen.
• Start in - Select the initial DCP state.
• Fullscreen mode - DCP covers the whole screen.
• Button mode - DCP displays as a circular button on the screen and can be switched to fullscreen mode.
• Button only mode - DCP displays as a circular button on the screen and cannot be switched to
fullscreen mode.
• Button highest position - Select the top of the range the user is allowed to move the DCP, given as a
percent of the screen height (default - 0).
• Button lowest position - Select the bottom of the range the user is allowed to move the DCP, given as a
percent of the screen height (default - 100).
• Drag detect time - Select the time in milliseconds that the scanner waits before activating scanner. This
allows the user to drag the button without initiating scanner (default - 100 ms, maximum 1000 ms).
NOTE: The DCP does not appear if the scanner is disabled in the profile even though the Enabled option is set.
In Button mode, the user can place DCP in full screen mode by dragging the button over Fullscreen mode.
The overlay covers the screen.
58
Figure 61 Maximized DCP
DataWedge
Swipe down to return to button mode.
Barcode Input
Use the Barcode Input options to configure the Barcode Scanner Input Plug-in for the profile.
Enabled
Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled.
Scanner Selection
Configures which scanning device to use for barcode data capture when the profile is active. For Bluetooth
scanners, if the device was not previously paired, a pairing barcode displays prior to automatic connection.
•
Auto Switch to Default on Event
This feature configures DataWedge to select an external scanner as the default scanning device immediately
upon connection and revert to a built-in scanner when the external scanner is disconnected. External scanners
include those connecting by Bluetooth, serial cable or snap-on module. Disabled by default. This is only
available when Scanner Selection is set to Auto.
This helps reduce scanning workflow interruptions when a Bluetooth scanner is introduced and/or it becomes
disconnected due to losing power or moving out of range.
• Disabled - No scanner switching occurs when an external scanner is connected or disconnected (default).
• On connect - Selects the external scanner as the default scanning device immediately upon connection.
• On disconnect - Reverts to a built-in scanner based on its position in an internally managed scanner list
(which varies by host device). This is usually the scanner most recently used prior to the external
connection (see notes below).
59
DataWedge
• On connect/disconnect - Selects an external scanner as the default scanning device immediately upon
connection. Upon disconnection, reverts to the scanner set as the default prior to the external connection.
NOTE: The system selects the default scanner based on the connection state and the scanner's position in an internally
managed scanner list. If the newly connected scanner is lower in the scanner list than the one currently selected as the default scanner, the newly connected scanner becomes the default scanner.
On devices with only one built-in scanner or imager, On disconnect reverts to that built-in scanner or imager.
Decoders
Configures which barcode decoders are enabled or disabled. For best performance disable all unnecessary
decoders.
Touch Decoders. The Barcode input screen appears. A check in the checkbox indicates that the decoder is
enabled. By default the most commonly used decoders are enabled (shown below with an asterisk). The
supported decoders are:
NOTE: DataWedge supports the decoders listed below but not all are validated on this device.
Table 5 Supported Decoders
Decoders
Australian
Camera
SE2100
Internal Imager
SE4710
Internal Imager
RS507/RS507X
RS6000
O O O O O O O --
DS2278
DS3678
Postal
Aztec X X X X X X X --
Canadian
O O O -- O -- -- --
Postal
Chinese 2 of 5 O O O O O O O O
Codabar X X X X X X X X
Code 11 O O O O O O O O
Code 128 X X X X X X X X
Code 39 X X X X X X X X
Code 93 O O O O O O O O
Composite AB O O O O O O O --
Composite C O O O O O O O --
Discrete 2 of 5 O O O O O O O O
Datamatrix X X X X X X X --
Dutch Postal O O O O O O O --
LI3678
60
DataWedge
Table 5 Supported Decoders (Continued)
Decoders
Camera
DotCode X O O O O O O O
EAN13 X X X X X X X X
EAN8 X X X X X X X X
Grid Matrix O O O O O O O O
GS1 DataBar X X X X X X X X
GS1 DataBar
Expanded
GS1 DataBar
Limited
GS1
Datamatrix
GS1 QRCode O O O -- O O O --
HAN XIN O O O -- O O O --
Interleaved 2
of 5
X X X X X X X X
O O O O O O O O
O O O -- O O O --
O O O O O O O O
SE2100
Internal Imager
SE4710
Internal Imager
RS507/RS507X
RS6000
DS2278
DS3678
LI3678
Japanese
Postal
Korean 3 of 5 O O O O O O O O
MAIL MARK X X X -- X X X --
Matrix 2 of 5 O O O O O O O O
Maxicode X X X X X X X --
MicroPDF O O O O O O O --
MicroQR O O O O O O O --
MSI O O O O O O O O
PDF417 X X X X X X X --
QR Code X X X X X X X --
Decoder
Signature
TLC 39 O O O O O O O O
Trioptic 39 O O O O O O O O
UK Postal O O O O O O O --
UPCA X X X X X X X X
O O O O O O O --
O O O O O O -- --
61
DataWedge
Table 5 Supported Decoders (Continued)
Decoders
Camera
UPCE0 X X X X X X X X
UPCE1 O O O O O O O O
US4state O O O O O O O --
US4state FICS O O O O O O O --
US Planet O O O O O O O --
US Postnet O O O O O O O --
SE2100
Internal Imager
SE4710
Internal Imager
RS507/RS507X
RS6000
DS2278
DS3678
LI3678
Touch to return to the previous screen.
Decoder Params
Use Decode Params to configure individual decoder parameters.
NOTE: Not all parameter options are available with all scanners. See the DataWedge app on each device for the available
scanners and parameter options.
NOTE:
Codabar
• CLSI Editing - Enable this parameter to strip the start and stop characters and insert a space after the first,
fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires
this data format (default - disabled).
• Length1 - Use to set decode lengths (default - 6). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.
• NOTIS Editing - Enable this parameter to strip the start and stop characters from a decoded Codabar
symbol. Enable this feature if the host system requires this data format (default - disabled).
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
Code 11
• Length1 - Use to set decode lengths (default - 4). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• Report Check Digit - Transmit Code 11 data with or without the check digit. A check in the checkbox
indicates to send Code 11 data with check digit (default - disabled).
62
DataWedge
• Verify Check Digit - Check the integrity of all Code 11 symbols to verify that the data complies with the
specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 barcode.
• No Check Digit - Do not verify check digit.
• 1 Check Digit - Barcode contains one check digit (default).
• 2 Check Digits - Barcode contains two check digits.
Code128
• Code128 Reduced Quiet Zone - Enables decoding of margin-less Code 128 barcodes (default - disabled).
• Ignore Code128 FCN4 - When enabled, and a Code 128 barcode has an embedded FNC4 character, it will
be removed from the data and the following characters will not be changed. When the feature is disabled,
the FNC4 character will not be transmitted but the following character will have 128 added to it (default disabled).
• Check ISBT Table - The ISBT specification includes a table that lists several types of ISBT barcodes that
are commonly used in pairs. If ISBT128 Concat Mode is set, enable Check ISBT Table to concatenate only
those pairs found in this table. Other types of ISBT codes are not concatenated. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
• Enable GS1-128 - Set the GS1 128 subtype. A check in the checkbox indicates that the option is enabled
(default - enabled).
• Enable ISBT128 - Set the ISBT128 subtype. A check in the checkbox indicates that the option is enabled
(default - enabled).
• Enable Plain Code128 - Set the Plain Code128 subtype. Enables other (non-EAN or ISBT) Code 128
subtypes. A check in the checkbox indicates that the option is enabled (default - enabled).
• ISBT128 Concatenation Mode - Select an option for concatenating pairs of ISBT code types:
• Concat Mode Never - Do not concatenate pairs of ISBT codes encountered (default).
• Concat Mode Always - There must be two ISBT codes in order to decode and perform concatenation.
Does not decode single ISBT symbols.
• Concat Mode Auto - Decodes and concatenates pairs of ISBT codes immediately. If only a single ISBT
symbol is present, the device must decode the symbol the number of times set via DataWedge
Configuration 4 - 11 Redundancy - Code128 before transmitting its data to confirm that there is no
additional ISBT symbol.
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
• Security Level - The scanner offers four levels of decode security for Code 128 barcodes. Select
increasing levels of security for decreasing levels of barcode quality. There is an inverse relationship
between security and scanner aggressiveness, so choose only that level of security necessary for any
given application.
• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while
providing sufficient security in decoding most “in-spec” barcodes.
• Security Level 1 - This setting eliminates most misdecodes (default).
• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.
• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level.
Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec
barcodes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this
level of security is needed, try to improve the quality of the barcodes.
63
DataWedge
Code39
• Code39 Reduced Quiet Zone - Enables decoding of margin-less Code 39 barcodes (default - disabled).
• Convert Code39 To Code32 - Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry.
Scan the appropriate barcode below to enable or disable converting Code 39 to Code 32 (default disabled).
• Full ASCII- Code 39 Full ASCII is a variant of Code 39 that pairs characters to encode the full ASCII
character set. To enable or disable Code 39 Full ASCII (default - disabled),
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.
• Length2 - Use to set decode lengths 4 (default - 55). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
• Report Check Digit - Transmit Code 39 data with or without the check digit. A check in the checkbox
indicates to send Code 39 data with check digit (default - disabled).
• Report Code32 Prefix - Scan the appropriate barcode to enable or disable adding the prefix character “A”
to all Code 32 barcodes (default - disabled).
• Security Level - Options: Security level 0, Security Level 1, Security Level 2 and Security Level 3
(default - Security level 1).
• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while
providing sufficient security in decoding most “in-spec” barcodes.
• Security Level 1 - This setting eliminates most misdecodes (default).
• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.
• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level.
Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec
barcodes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this
level of security is needed, try to improve the quality of the barcodes.
• Verify Check Digit - Enable this feature to check the integrity of all Code 39 symbols to verify that the data
complies with a specified check digit algorithm. The digital scanner decodes only those Code 39 symbols
that include a modulo 43 check digit. Enable this feature only if the Code 39 symbols contain a modulo 43
check digit (default - disabled).
Code93
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
Composite AB
• UCC Link Mode
• Link Flag ignored - 1D component is transmitted regardless of whether a 2D component is detected.
• Always Linked - 1D and the 2D components are transmitted. If 2D is not present, the 1D component is
not transmitted.
• Auto Discriminate - the digital scanner determines if there is a 2D portion, then transmits the 1D
component, as well as the 2D portion if present. (default).
Discrete 2 of 5
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 14). See Decode Lengths for more information.
64
DataWedge
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
GS1 DataBar Limited
• GS1 Limited Security Level
• GS1 Security Level 1 - This setting allows the scanner to operate in its most aggressive state, while
providing sufficient security in decoding most “in-spec” barcodes.
• GS1 Security Level 2 - This setting eliminates most misdecodes (default).
• GS1 Security Level 3 - Select this option if Security level 2 fails to eliminate misdecodes.
• GS1 Security Level 4 - If Security Level 3 is selected and misdecodes still occur, select this security
level. Be advised, selecting this option is an extreme measure against mis-decoding severely out of
spec barcodes. Selecting this level of security significantly impairs the decoding ability of the scanner. If
this level of security is needed, try to improve the quality of the barcodes.
HAN XIN
• HAN XIN Inverse
• Disable - Disables decoding of HAN XIN inverse barcodes (default).
• Enable - Enables decoding of HAN XIN inverse barcodes.
• Auto - Decodes both HAN XIN regular and inverse barcodes.
Interleaved 2 of 5
• Check Digit
• No Check Digit - A check digit is not used. (default)
• USS Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data
complies with either the Uniform Symbology Specification (USS) check digit algorithm.
• OPCC Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data
complies with either the Optical Product Code Council (OPCC) check digit algorithm.
• Length1 - Use to set decode lengths (default - 14). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 10). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• Report Check Digit - Transmit Interleaved 2 of 5 data with or without the check digit. A check in the
checkbox indicates to send Interleaved 2 of 5 data with check digit (default - disabled).
• I2of5 Security Level - Options: I2of5 Security level 0, I2of5 Security Level 1, I2of5 Security Level 2
and I2of5 Security Level 3 (default - I2of5 Security level 1).
• Convert ITF-14 To EAN13 - Convert 14-character Interleaved 2 of 5 barcodes to EAN-13, and transmit as
EAN-13. The Interleaved 2 of 5 barcode must be enabled and must have a leading zero and a valid EAN-13
check digit. A check in the checkbox indicates that the option is enabled (default - disabled).
• I2of5 Reduced Quiet Zone - Enables decoding of margin-less I2of5 barcodes (default - disabled).
Matrix 2 of 5
• Length1 - Use to set decode lengths (default - 10). See Decode Lengths for more information.
• Length2 - Use to set decode lengths (default - 0). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
• Report Check Digit - Transmit Matrix 2 of 5 data with or without the check digit. A check in the checkbox
indicates to send Matrix 2 of 5 data with check digit (default - enabled).
65
DataWedge
• Verify Check Digit - Enable this feature to check the integrity of all Matrix 2 of 5 symbols to verify that the
data complies with a specified check digit algorithm (default - enabled).
MSI
• Check Digit - With MSI symbols, one check digit is mandatory and always verified by the reader. The
second check digit is optional.
• One Check Digit - Verify one check digit (default).
• Two Check Digits - Verify two check digits.
• Check Digit Scheme - Two algorithms are possible for the verification of the second MSI check digit.
Select the algorithm used to encode the check digit.
• Mod-11-10 - First check digit is MOD 11 and second check digit is MOD 10 (default).
• Mod-10-10 - Both check digits are MOD 10.
• Length 1 - Use to set decode lengths (default - 4). See Decode Lengths for more information.
• Length 2 - Use to set decode lengths (default - 55). See Decode Lengths for more information.
• Redundancy - Sets the reader to read the barcode twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• Report Check Digit - Transmit MSI data with or without the check digit. A check in the checkbox indicates
to send MSI data with check digit (default - disabled).
UK Postal
• Report Check Digit - Transmit UK Postal data with or without the check digit. A check in the checkbox
indicates to send UK Postal data with check digit (default - disabled).
UPCA
• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System
Character. Select the appropriate option to match the host system.
There are three options for transmitting a UPCA preamble:
• Preamble None - Transmit no preamble.
• Preamble Sys Char - Transmit System Character only (default).
• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA). Select
the appropriate option to match the host system.
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the
data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default enabled).
UPCE0
• Convert UPCE0 To UPCA - Enable to convert UPCE0 (zero suppressed) decoded data to UPC-A format
before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A
programming selections. Disable to transmit UPCE0 decoded data as UPCE0 data, without conversion
(default - disabled).
• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System
Character. Select the appropriate option to match the host system.
There are three options for transmitting a UPCE0 preamble:
• Preamble None - Transmit no preamble (default).
• Preamble Sys Char - Transmit System Character only.
• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).
66
DataWedge
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the
data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default disabled).
UPCE1
• Convert UPCE1 To UPCA - Enable this to convert UPCE1 decoded data to UPC-A format before
transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming
selections. Disable this to transmit UPCE1 decoded data as UPCE1 data, without conversion (default disabled).
• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System
Character. Select the appropriate option to match the host system.
There are three options for transmitting a UPCE1 preamble:
• Preamble None - Transmit no preamble (default).
• Preamble Sys Char - Transmit System Character only.
• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the
data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default disabled).
US Planet
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the
data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default disabled).
Decode Lengths
The allowable decode lengths are specified by options Length1 and Length2 as follows:
• Variable length: Decode symbols containing any number of characters.
• Set both Length1 and Length2 to 0.
• Range: Decode a symbol with a specific length range (from
• Set Length1 to
• Two Discrete Lengths: Decode only symbols containing either of two selected lengths.
• Set both Length1 or Length2 to the specific lengths. Length1 must be greater than Length2.
• One Discrete Length: Decode only symbols containing a specific length.
• Set both Length1 and Length2 to the specific length.
a
and set Length2 to b.
a
to b, including a and b).
UPC EAN Params
Allows the configuration of the parameters that apply to more than one UPC or EAN decoder.
NOTE: Not all parameter options are available with all scanners. See the DataWedge app on each device for the available
scanners and parameter options.
• Convert DataBar To UPC EAN - If this is set it converts DataBar barcodes to UPC/EAN format. For this
setting to work UPC/EAN symbologies must be enabled. A check in the checkbox indicates that the option
is enabled. (default - disabled).
• UPC Reduced Quiet Zone - Enables decoding of margin-less UPC barcodes. (default - disabled)
• Bookland - Enable Bookland decoding. A check in the checkbox indicates that the option is enabled.
(default - disabled).
67
DataWedge
• Bookland Format - If Bookland EAN is enabled, select one of the following formats for Bookland data:
• Format ISBN-10 - The decoder reports Bookland data starting with 978 in traditional 10-digit format with
the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered
Bookland in this mode. (default)
• Format ISBN-13 - The decoder reports Bookland data (starting with either 978 or 979) as EAN-13 in
13-digit format to meet the 2007 ISBN-13 protocol.
• Coupon - Enables Coupon code decoding. Note that in order to successfully decode Coupon codes, all of
the correct decoders must be enabled. A check in the checkbox indicates that the option is enabled.
(default - disabled).
• Coupon Report Mode - Traditional coupon symbols are composed of two barcode: UPC/EAN and Code
128. A new coupon symbol is composed of a single Data Expanded barcode. The new format offers more
options for purchase values (up to $999.999) and supports complex discount offers as a second purchase
requirement. An interim coupon symbol also exists that contain both types of barcodes: UPC/EAN and
Databar Expanded. This format accommodates both retailers that do not recognize or use the additional
information included in the new coupon symbol, as well as those who can process new coupon symbols.
• Old Coupon Report Mode - Scanning an old coupon symbol reports both UPC and Code 128,
scanning is interim coupon symbol reports UPC, and scanning a new coupon symbol reports nothing
(no decode).
• New Coupon Report Mode - Scanning an old coupon symbol reports either UPC or Code 128, and
scanning an interim coupon symbol or a new coupon symbol reports Databar Expanded.
• Both Coupon Report Modes - Scanning an old coupon symbol reports both UPC and Code 128, and
scanning an interim coupon symbol or a new coupon symbol reports Databar Expanded. (default)
• Ean Zero Extend – Enable this parameter to add five leading zeros to decoded EAN-8 symbols to make
them compatible in format to EAN-13 symbols. Disable this to transmit EAN-8 symbols as is. Default –
disabled.
• Linear Decode - This option applies to code types containing two adjacent blocks, for example, UPC-A,
EAN-8, EAN-13. Enable this parameter to transmit a bar code only when both the left and right blocks are
successfully decoded within one laser scan. Enable this option when bar codes are in proximity to each
other (default - enabled).
• Retry Count - Retry count for auto-discriminating for supplementals. Possible values are 2 to 20 inclusive.
Note that this flag is only considered if Supplemental Mode - UPC EAN is set to one of the following values:
Supplementals Auto, Supplementals Smart, Supplementals 378-379, Supplementals 978-979,
Supplementals 977 or Supplementals 414-419-434-439 (2 to 20, default 10).
• Security Level - The scanner offers four levels of decode security for UPC/EAN barcodes. Select higher
security levels for lower quality barcodes. There is an inverse relationship between security and decode
speed, so be sure to choose only that level of security necessary for the application.
• Level 0 - This default setting allows the scanner to operate fastest, while providing sufficient security in
decoding “in-spec” UPC/EAN barcodes.
• Level 1 - As barcode quality levels diminish, certain characters become prone to misdecodes before
others (i.e., 1, 2, 7, 8). If the scanner is misdecoding poorly printed barcodes, and the misdecodes are
limited to these characters, select this security level. (default).
• Level 2 - If the scanner is misdecoding poorly printed barcodes, and the misdecodes are not limited to
characters 1, 2, 7, and 8, select this security level.
• Level 3 - If the scanner is still misdecoding, select this security level. Be advised, selecting this option is
an extreme measure against misdecoding severely out of spec barcodes. Selecting this level of security
can significantly impair the decoding ability of the scanner. If this level of security is necessary, try to
improve the quality of the barcodes.
• Supplemental2 - Enables or disables this option. A check in the checkbox indicates that the option is
enabled.
68
DataWedge
• Supplemental5 - Enables or disables this option. A check in the checkbox indicates that the option is
enabled.
• Supplemental Mode
• No Supplementals - the scanner is presented with a UPC/EAN plus supplemental symbol, the scanner
decodes UPC/EAN and ignores the supplemental characters (default).
• Supplemental Always - the scanner only decodes UPC/EAN symbols with supplemental characters,
and ignores symbols without supplementals.
• Supplements Auto - the scanner decodes UPC/EAN symbols with supplemental characters
immediately. If the symbol does not have a supplemental, the scanner must decode the barcode the
number of times set via UPC/EAN Supplemental Redundancy before transmitting its data to confirm that
there is no supplemental.
• Supplemental Smart - Enables smart supplementals. In this mode the decoder returns the decoded
value of the main block right away if it does not belong to one of the following supplemental types: 378,
379, 977, 978, 979, 414, 419, 434 or 439. If the barcode starts with one of the prefixes it searches the
image more aggressively for a supplemental. Tries to scan the supplemental if it is present. If the
supplemental scanning failed, then the main barcode is returned.
• Supplemental 378-379 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting with
378 or 379. Disables reading of supplementals for any other UPC/EAN barcode not starting with 378 or
379. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main
barcode is returned.
• Supplemental 978-979 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting with
978 or 979. Disables reading of supplementals for another UPC/EAN barcode not starting with 978 or
979. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main
barcode is returned.
• Supplemental 414-419-434-439 - Enables (auto-discriminate) supplemental for UPC/EAN codes
starting with 414, 419, 434 or 439. Disables reading of supplementals for another UPC/EAN barcode 4 16 not starting with 414, 419, 434 or 439. Tries to scan the supplemental if it is present. If the
supplemental scanning failed, then the main barcode is returned.
• Supplemental 977 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting with 977.
Disables reading of supplementals for another UPC/EAN barcode not starting with 977. Tries to scan
the supplemental if it is present. If the supplemental scanning failed, then the main barcode is returned.
Reader Params
Allows the configuration of parameters specific to the selected barcode reader.
NOTE: Not all parameter options are available with all scanners. See the DataWedge app on each device for the available
scanners and parameter options.
• Character Set Configuration - Used to support the GB2312 Chinese characters encoding.
• Character Set Selection - Allows the user to convert the barcode data if different from default encoding
type.
• Auto Character Set Selection (Best Effort) - Automatic character convert option. Tries to decode
data from the Preferred selection. The first correct decodable character set is used to convert the
data and is sent.
• ISO-8859-1 - Part of the ISO/IEC 8859 series of ASCII-based standard character encodings. It is
generally intended for Western European languages.
• Shift_JIS - Shift Japanese Industrial Standards (JIS) is a character encoding for the Japanese
language.
• GB18030 - Chinese coded character set that defines the required language and character support
necessary for software in China.
69
DataWedge
• UTF-8 - A character encoding capable of encoding all possible characters, or code points, defined by
Unicode (default).
• Auto Character Set Preferred Order - In Auto Character Set Selection mode, the system will try to
decode the data in a preference order of character sets. The algorithm used is a best effort one. That is,
there could be cases where the data can be decoded from more than one character set. The first
character set from the preferred list which can decode the data successfully will be chosen to decode
the data and sent to the user. Any other character set that is in the list but lower in the preferred order,
would not be considered, even if the data could be successfully decoded using such character set.
The preferred character set and its preference order is configurable to the user through the Auto
Character Set Preferred Order menu. Users can change the order by dragging the icon for that menu
item. To delete an item, long press on an item and the Delete option will appear. To add a new item, tap
the menu icon at top right corner and options to add UTF-8 and GB2312 will appear.
• UTF-8 - A character encoding capable of encoding all possible characters, or code points, defined by
Unicode (default).
• GB2312 - Character set of the People's Republic of China, used for simplified Chinese characters.
• Auto Character Set Failure Option - If the system cannot find a character set from the preferred list
that can be used to successfully decode the data, the character set selected in Auto Character Set
Failure Option is used to decode the data and send to the user. If NONE is used, Null data is returned
as string data.
• NONE
• UTF-8 - A character encoding capable of encoding all possible characters, or code points, defined by
Unicode (default).
• ISO-8859-1 - Part of the ISO/IEC 8859 series of ASCII-based standard character encodings. It is
generally intended for Western European languages.
• Shift_JIS - Shift Japanese Industrial Standards (JIS) is a character encoding for the Japanese
language.
• GB18030 - Chinese coded character set that defines the required language and character support
necessary for software in China.
• 1D Quiet Zone Level - Sets the level of aggressiveness in decoding barcodes with a reduced quiet zone
(the area in front of and at the end of a barcode), and applies to symbologies enabled by a Reduced Quiet
Zone parameter. Because higher levels increase the decoding time and risk of misdecodes, Zebra strongly
recommends enabling only the symbologies which require higher quiet zone levels, and leaving Reduced
Quiet Zone disabled for all other symbologies.
Options are:
• 0 - The scanner performs normally in terms of quiet zone.
• 1 - The scanner performs more aggressively in terms of quiet zone (default).
• 2 - The scanner only requires one side EB (end of barcode) for decoding.
• 3 - The scanner decodes anything in terms of quiet zone or end of barcode.
• Adaptive Scanning - When adaptive scanning is enabled, the scan engine toggles between wide and
narrow, allowing the scan engine to decode barcodes based on the distance.
• Disable
• Enable (default).
• Beam Width - Beam Width is applicable only with linear scanners.
• Narrow
• Normal (default)
• Wide
70
DataWedge
• Aim mode - Turns the scanner cross-hairs on or off.
• On - Cross-hair is on (default).
• Off - Cross-hair is off.
• Aim Timer - Sets the maximum amount of time that aiming remains on (0 - 60,000 ms in increments of 100
ms). A value of 0 sets the aim to stay on indefinitely (default - 500).
• Aim Type - Set the aiming usage.
• Trigger - A trigger event activates decode processing, which continues until the trigger event ends or a
valid decode occurs (default).
• Timed Hold - A trigger pull and hold activates the laser for aiming, which continues until the trigger is
released, a valid decode, or the decode session time-out is expired.
• Timed Release - A trigger pull activates the laser for aiming, which continues until a valid decode or the
remaining decode session time has expired.
• Press and Release - A trigger pull and release activates the laser for aiming, which continues until a
trigger is pressed again, a valid decode, or the decode session time-out is expired.
• Continuous Read - A trigger pull activates a decode session which continues until the Beam Timer
expires or the trigger is released. Barcodes are continuously decoded while the session is active.
• Press and Sustain - A trigger pull activates decode processing which continues until the Beam Timer
expires or a barcode is decoded.
• Beam Timer - Sets the maximum amount of time that the reader remains on (0 - 60,000 ms in increments
of 100 ms). A value of 0 sets the reader to stay on indefinitely (default -5000).
• Time Delay to Low Power - Sets the time the decoder remains active after decoding. After a scan session,
the decoder waits this amount of time before entering Low Power Mode. Options: 1 Second (default), 30
Seconds, 1 Minute or 5 Minutes.
• Different Symbol Timeout - Controls the time the scanner is inactive between decoding different symbols.
Programmable in 500 msec increments from 0 to 5 seconds. The default is 500 msec.
• Digimarc Decoding - Enables/disables support for Digimarc, which encodes and invisibly integrates
traditional barcode data onto product packaging. Supported with internal imager only. (default - Enabled).
• Illumination Brightness - Sets the brightness of the illumination by altering LED power. The default is 10,
which is maximum LED brightness. For values from 1 to 10, LED brightness varies from lowest to highest
level of brightness.
• Illumination mode - Turns imager illumination on and off. This option is only available when Bluetooth
Scanner is selected in the Barcode input, Scanner selection option.
• Off - Illumination is off.
• On - Illumination is on (default).
• Inverse 1D Mode - This parameter allows the user to select decoding on inverse 1D barcodes.
• Disable - Disables decoding of inverse 1D barcodes (default).
• Enable - Enables decoding of only inverse 1D barcodes.
• Auto - Allows decoding of both twice positive and inverse 1D barcodes.
• Keep Pairing Info After Reboot
• Disable - Disables the ability to keep pairing info after reboot.
• Enable - Enables the ability to keep pairing info after reboot. (default).
• LCD Mode - Enables or disables LCD mode. LCD mode enhances the ability of the imager to read
barcodes from LCD displays such as cellphones.
• Disable - Disables the LCD mode (default).
• Enable - Enables LCD mode.
71
DataWedge
• Linear Security Level - Sets the number of times a barcode is read to confirm an accurate decode.
• Security Short or Codabar - Two times read redundancy if short barcode or Codabar (default).
• Security All Twice - Two times read redundancy for all barcodes.
• Security Long and Short - Two times read redundancy for long barcodes, three times for short
barcodes.
• Security All Thrice - Three times read redundancy for all barcodes.
• HW Engine Low Power Timeout - Time (0 - 1,000 ms in increments of 50 ms) of inactivity before scanner
enters low-power mode from (default - 250).
• Picklist - Allows the imager to decode only the barcode that is directly under the cross-hair/reticle (+) part
of the pattern. This feature is useful in applications where multiple barcodes may appear in the field of view
during a decode session and only one of them is targeted for decode.
• Disabled – Disables Picklist mode. Any barcode within the field of view can be decoded (default).
• Enabled – Enables Picklist mode so that only the barcode under the projected reticle can be decoded.
• Poor Quality Decode Effort - Enable poor quality barcode decoding enhancement feature.
• Same Symbol Timeout - Controls the time the scanner is inactive between decoding same symbols.
Programmable in 500 msec increments from 0 to 5 seconds. The default is 500 msec.
• Scanning Modes - Scanning options available on the device.
• Single - Set to scan general barcodes (default).
• UDI - Set to scan healthcare specific barcodes.
• MultiBarcode - Set to scan multiple barcodes. When this option is selected, the Multibarcode params
can be set to read from 2 to 10 barcodes on a single scan.
Scan Params
Allows the configuration of Code ID and decode feedback options.
NOTE: Not all parameter options are available with all scanners. See the DataWedge app on each device for the available
scanners and parameter options.
• Code ID Type - A Code ID character identifies the code type of a scanned barcode. This is useful when the
reader is decoding more than one code type. Select a code ID character to insert between the prefix and
the decoded symbol.
• Code ID Type None - No prefix (default)
• Code ID Type AIM - Insert AIM Character prefix.
• Code ID Type Symbol - Insert Symbol character prefix.
• Engine Decode LED - Use to turn on scanner red LED when the scan beam is emitting either by scanner
trigger or using soft scan button.
• BT Disconnect On Exit - Bluetooth connection is disconnected when data capture application is closed .
• Connection Idle Time - Set connection idle time. The Bluetooth connection disconnects after being idle for
set time.
• Display BT Address Barcode - Enable or disable displaying Bluetooth Address bar code if there is no
Bluetooth scanner being paired when application tries to enable the Bluetooth scanner.
• Establish Connection Time - The timeout which the device will try to enable or reconnect to the Bluetooth
scanner when the Bluetooth scanner is not in the vicinity or not paired.
72
DataWedge
• Audio Feedback Mode - Select good decode audio indication.
• Local Audio Feedback - Good decode audio indication on device only.
• Remote Audio Feedback - Good decode audio indication.
• Both - Good decode audio indication on device and scanner (default).
• Disable - No good decode audio indication on either device or scanner.
• LED Feedback Mode - Select good decode LED indication.
• Local LED Feedback - Good decode LED indication on device only.
• Remote LED Feedback - Good decode LED indication on scanner.
• Both - Good decode LED indication on device and scanner (default).
• Disable - No good decode LED indication on either device or scanner.
• Decode Audio Feedback - Select an audio tone to sound upon a good decode (default optimized-beep).
• Decoding LED Notification - Enable the device to light the red Data Capture LED when data capture is in
progress. (default - disabled).
• Decode Feedback LED Timer - Set the amount of time (in milliseconds) that the green Data Capture LED
stays lit after a good decode. (default - 75 msec.)
• Beep Volume Control - Set the good decode beep to a system or other sound. This allows for independent
control of the good beep volume.
NOTE: Not all ringtones are fully supported as decode tones and those of longer length may be truncated when used as a
decode tone. The recommendation is to test the selected tone for operation before deployment to a customer site.
• Ringer - Uses Ringer audio stream to play the decode beep.
• Music and Media - Uses Media audio stream to play the decode beep.
• Alarms - Uses Alarms audio stream to play the decode beep.
• Notifications - Uses Notifications audio stream to play the decode beep. (default)
UDI Params
Allows the configuration of parameters specific to healthcare barcodes.
• Enable UDI-GSI - Enable UDI using GS1 standards (default - enabled).
• Enable UDI-HIBCC - Enable UDI using HIBCC standards (default - enabled).
• Enable UDI-ICCBBA - Enable UDI using ICCBBA standards (default - enabled).
Multibarcode params
Set the number of barcodes that the device can read on a single scan from 2 to 10. Must also enable Reader
Params > Scanning Modes > MultiBarcode option.
Keep enabled on suspend
Keep Bluetooth scanner enabled after suspend (default-disabled).
Voice Input
Zebra GMS devices have a built in Google speech recognition engine. By making use of the speech engine
capabilities, DataWedge has extended automated data capturing to user applications through voice. Currently,
DataWedge does not capture data for Voice Input.
73
DataWedge
Voice data capturing starts after you speak the predefined start phrase and it stops after you speak the data or
speak the end phrase, if one was defined.
IMPORTANT:
• Simultaneous use of Voice Input in DataWedge and Google Voice is not supported.
• Voice Input is not supported if the Enterprise Home Screen (EHS) is in restricted mode. However, enabling all of the
privilege settings in EHS reinstates Voice Input.
• Voice Input is not supported if the device language is changed to another language, for example Chinese.
Use Voice Input to configure the Voice Input Plug-in.
• Enabled - Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled.
• Data capture start phrase - Starts data capture with the phrase entered in this field.This field is
mandatory. (Default - start).
Providing numbers and other special characters as the data capture start phrase is not supported.
• Data capture end phrase - Ends data capture with the phrase entered in this field or keep it blank if not
required. This field is not mandatory. (Default - Blank).
• Tab command - Enables the Tab command, which sends a tab key when the user speaks the command
send tab. The commands are supported only when the device is at the Waiting for start phrase state.
• Enter command - Enables the Enter command, which sends an enter key when the user speaks the
command
phrase
send enter. The commands are supported only when the device is at the Waiting for start
state.
• Data type - Allows the user to configure the data type. Set the data type to limit the data capture according
to the preferences specified. Available options:
• Any - Scanning a barcode of ABC123, returns ABC123.
• Alpha - Scanning a barcode of ABC123, returns ABC only.
• Numeric - Scanning a barcode of ABC, returns 123 only.
• Start phrase waiting tone - Enables or disables this option. Enables audio feedback for
start
. This option notifies the user that the device is waiting to start the speech engine if you miss the toast
message and the
Waiting for start state changes.
• Data capture waiting tone - Enables or disables this option. Enables audio feedback for
data
. This option notifies the user that the device is waiting to capture data if you miss the toast message.
Waiting for
Waiting for
• Validation window - Enables or disables the Validate captured data window. Enable this option to
validate the result that you speak. The window displays the data spoken and the data can be edited on the
same screen if any modification is needed. This is very useful when used with the offline mode, since the
results receive at this moment might not be accurate.
• Offline speech recognition - Enables or disables speech recognition. Enable this option to use Voice
Input when you do not have access to the Internet. This option uses an offline recognition speech engine to
detect the data you speak.
Keystroke Output
DataWedge supports Keystroke Output.
Use to configure the Keystroke Output Plug-in for the profile.
• Enabled — Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled
(default - enabled).
74
DataWedge
• Action key character - Enables decoding of a special character embedded within a barcode data for use in
native Android applications. This feature is helpful when populating or executing a form.
• None - Action key character feature is disabled (default).
• Tab - Tab character code in a barcode is processed. When DataWedge detects this character code in a
barcode, move the focus to the next field.
• Line feed - Line feed character code in a barcode is processed. When DataWedge detects this
character code in a barcode, move the focus to the next field.
• Carriage return - Carriage return character code in a barcode is processed. When DataWedge detects
this character code in a barcode, move the focus to the next field.
• Inter character delay - Set the delay between keystrokes (in milliseconds).
• Delay Multibyte characters only - If Inter character delay is set, enable Delay Multbyte characters only to
delay only the multibyte characters.
• Multi byte character display - Set the amount of time (in milliseconds) of the inter character delay for multi
byte characters. (default - 0.)
• Key event delay - Set the amount of time (in milliseconds) of the wait time for control characters. (default -
0.)
• Data formatting and ordering - Allows formatting and ordering of UDI and Multibarcode data.
• UDI specific - Allows the output order of acquired UDI data to be adjusted and the optional insertion of
a tab, line feed, or carriage return character between tokens.
• Send tokens - Set to select the output format for UDI data. (default - disabled)
• Token separator - Set to select a separator character. If no separator character is selected when
Send tokens is set to Barcodes and tokens, two instances of the same data are sent. (default - none)
• Token order - Set to include or exclude Tokens from the output and adjust their output order.
• Multibarcode specific - Allows the optional insertion of a tab, line feed, or carriage return between each
barcode.
• Barcode separator - Set to select a separator character. If no separator character is selected, the
data set is sent as a single string.
• Advanced data formatting - is a way to customizing data before transmission. Use advanced data
formatting (ADF) to edit scan data to suit requirements.
• Enable - Enables or disables ADF. A check in the checkbox indicates that ADF is enabled (default -
disabled).
• Rules - ADF uses rules to customize data. These rules perform detailed actions when the data meets
certain criteria. One rule may consist of single or multiple criteria applied to single or multiple actions.
See Generating Advanced Data Formatting Rules for more information.
75
• Basic data formatting - Allows the configuration of any data formatting for the related Output Plug-in.
When the plug-in is disabled, any data is passed on without modification.
• Enabled - Enables or disables Basic Data Formatting. A check in the checkbox indicates that it is
enabled (default - enabled).
• Prefix to data - Add characters to the beginning of the data when sent.
• Suffix to data - Add characters to the end of the data when sent.
• Send data - Set to transfer the captured data to the foreground application. Disabling this option
prevents the actual data from being transmitted. However, the prefix and suffix strings, if present, are
still transmitted even when this option is disabled (default - enabled).
• Send as hex - Set to send the data in hexadecimal format. A check in the checkbox indicates that the
plug-in is enabled (default - disabled).
• Send TAB key - Set to append a tab character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
• Send ENTER key - Set to append an Enter character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
Intent Output
DataWedge
Allows configuration of the Intent Output Plug-in for the profile. The Intent Output Plug-in allows the captured
data to be sent to an application in the form of an implicit Intent. Refer to the Android Developer web site for
more information, developer.android.com
• Enabled - Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled
(default - disabled).
• Intent action - Enter the Intent Action name (required).
• Intent category - Enter the Intent Category name (required).
• Intent delivery - Select the method by which the intent is delivered:
• Send via StartActivity
• Send via startService (default)
• Broadcast intent
• Receiver foreground flag - Set Broadcast intent flag in Intent delivery. (DS3678).
• Advanced data formatting - is a way to customizing data before transmission. Use advanced data
formatting (ADF) to edit scan data to suit requirements.
• Enable - Enables or disables ADF. A check in the checkbox indicates that ADF is enabled (default -
disabled).
• Rules - ADF uses rules to customize data. These rules perform detailed actions when the data meets
certain criteria. One rule may consist of single or multiple criteria applied to single or multiple actions.
See Generating Advanced Data Formatting Rules for more information.
.
76
DataWedge
• Basic data formatting - Allows configuration of any data formatting for the related Output Plug-in. When
the plug-in is disabled any data is passed on without modification.
• Enabled - Enables or disables Basic Data Formatting. A check in the checkbox indicates that it is
enabled (default - enabled).
• Prefix to data - Add characters to the beginning of the data when sent.
• Suffix to data - Add characters to the end of the data when sent.
• Send data - Set to transfer the captured data to the foreground application. Disabling this option
prevents the actual data from being transmitted. However, the prefix and suffix strings, if present, are
still transmitted even when this option is disabled (default - enabled).
• Send as hex - Set to send the data in hexadecimal format. A check in the checkbox indicates that the
plug-in is enabled (default - disabled).
• Send TAB key - Set to append a tab character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
• Send ENTER key - Set to append an Enter character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
Intent Overview
The core components of an Android application (its activities, services, and broadcast receivers) are activated
by intents. An intent is a bundle of information (an Intent object) describing a desired action - including the data
to be acted upon, the category of component that should perform the action, and other pertinent instructions.
Android locates an appropriate component to respond to the intent, launches a new instance of the component
if one is needed, and passes it the Intent object.
Components advertise their capabilities, the kinds of intents they can respond to, through intent filters. Since
the system must learn which intents a component can handle before it launches the component, intent filters
are specified in the manifest as <intent-filter>elements. A component may have any number of filters, each one
describing a different capability. For example, if the manifest contains the following:
<intent-filter . . . >
<action android:name=”android.intent.action.DEFAULT” />
<category android:name=”android.intent.category.MAIN” />
</intent-filter>
In the Intent output plug-in configuration, the
android.intent.action.DEFAULT
and the Intent category would be:
android.intent.category.MAIN.
The Intent delivery option allows the method by which the intent is delivered to be specified. The delivery
mechanisms are Send via startActivity, Send via startService or Broadcast intent.
The decode related data added to the Intent’s bundle can be retrieved using the
and
Intent.getSerializableExtra() calls, using the following String tags:
Intent action would be:
Intent.getStringExtra()
• String LABEL_TYPE_TAG = “com.symbol.emdk.datawedge.label_type”;
• String contains the label type of the barcode.
77
• String DATA_STRING_TAG = “com.symbol.datawedge.data_string”;
• String contains the output data as a String. In the case of concatenated barcodes, the decode data is
• String DECODE_DATA_TAG = “com.symbol.datawedge.decode_data”;
• Decode data is returned as a list of byte arrays. In most cases there will be one byte array per decode.
Most scanning applications might want the user to be able to decode data and for that decode data to be sent
to the *current* activity but not necessarily displayed. If this is the case, then the activity needs to be marked
as ‘singleTop’ in its AndroidManifest.xml file. If your activity is not defined as singleTop, then on every decode,
the system will create another copy of your Activity and send the decode data to this second copy.
Finally there will be a configuration option for each process plug-in so that the process plug-in can be
configured specifically for the intent output, which in this case is the basic data formatting process plug-in.
IP Output
DataWedge
concatenated and sent out as a single string.
For barcode symbologies that support concatenation, for example, Codabar, Code128, MicroPDF, etc.,
the decoded data is stored in multiple byte arrays (one byte array per barcode). Clients can get data in
each byte array by passing an index.
NOTE: IPWedge application is required on a host computer. Download the IPWedge application from the Support Central
web site:
IP Output allows DataWedge to send captured data to a host computer via a network connection. Captured
data can be sent over an IP network to a specified IP address and port using either TCP or UDP transport
protocols.
• Enabled - Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled
• Remote Wedge - Enable or disable the Remote Wedge option (default - enabled). Remote Wedge is used
• Protocol - Select the protocol used by the remote application. Options: TCP (default) or UDP.
• IP address - Enter the IP address used by the remote application (default - 0.0.0.0).
• Port - Enter the port number used by the remote application (default - 58627).
• Data formatting and ordering - Allows formatting and ordering of UDI and Multibarcode data.
• Advanced data formatting - is a way of customizing data before transmission. Use advanced data
www.zebra.com/support.
(default - disabled).
with the IPWedge application.
• UDI specific - Allows the output order of acquired UDI data to be adjusted and the optional insertion of
a tab, line feed, or carriage return character between tokens.
• Send tokens - Set to select the output format for UDI data. (default - disabled)
• Token separator - Set to select a separator character. If no separator character is selected when
Send tokens is set to Barcodes and tokens, two instances of the same data are sent. (default - none)
• Token order - Set to include or exclude Tokens from the output and adjust their output order.
formatting (ADF) to edit scan data to suit requirements.
• Enable - Enables or disables ADF. A check in the checkbox indicates that ADF is enabled (default disabled).
• Rules - ADF uses rules to customize data. These rules perform detailed actions when the data meets
certain criteria. One rule may consist of single or multiple criteria applied to single or multiple actions.
See Generating Advanced Data Formatting Rules for more information.
78
DataWedge
• Basic data formatting - Allows configuration of any data formatting for the related Output Plug-in. When
the plug-in is disabled any data is passed on without modification.
• Enabled - Enables or disables Basic Data Formatting. A check in the checkbox indicates that it is
enabled (default - enabled).
• Prefix to data - Add characters to the beginning of the data when sent.
• Suffix to data - Add characters to the end of the data when sent.
• Send data - Set to transfer the captured data to the foreground application. Disabling this option
prevents the actual data from being transmitted. However, the prefix and suffix strings, if present, are
still transmitted even when this option is disabled (default - enabled).
• Send as hex - Set to send the data in hexadecimal format. A check in the checkbox indicates that the
plug-in is enabled (default - disabled).
• Send TAB key - Set to append a tab character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
• Send ENTER key - Set to append an Enter character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
Usage
This section provides information on how to configure IP Output using the DataWedge configuration user
interface. To use IP Output in a particular DataWedge profile (for example: Profile0), scroll downward on IP
Output.
Figure 62 IP Output Screen
Using IP Output with IPWedge
IPWedge is a computer application that can be easily configured to retrieve data sent over network by
DataWedge IP Output. Refer to the IPWedge User Manual on how to install and configure in a host computer.
To enable IP Output to send captured data to a remote computer that is installed with IPWedge:
1. In IP Output, touch Enabled.
A check appears in the checkbox.
79
DataWedge
2. Ensure Remote Wedge option is enabled.
3. Touch Protocol.
4. In the Choose protocol dialog box, touch the same protocol selected for the IPWedge computer
application. (TCP is the default).
Figure 63 Protocol Selection
5. Touch IP Address.
6. In the Enter IP Address dialog box, enter the IP address of host computer to send data to.
Figure 64 IP Address Entry
7. Touch Port.
8. In the Enter port number dialog box, enter same port number selected for IPWedge computer application.
Figure 65 Port Number Entry
9. Configure Advanced data formatting and Basic data formatting Plug-in if any required modification to be
done to captured data before sending to remote computer.
Using IP Output without IPWedge
IP Output Plug-in can be used to send captured data from DataWedge to a remote device or host computer
without using IPWedge. At the data receiving end, the host computer or mobile device should have an
application, that listens to TCP or UDP data coming from a configured port and IP address in the IP Output
plug-in. To enable IP Output to send captured data to a remote computer:
80
DataWedge
1. In IP Output, touch Enabled.
A check appears in the checkbox.
2. Ensure Remote Wedge option is disabled.
3. Touch Protocol.
4. In the Choose protocol dialog box, touch the same protocol selected in the client application. (TCP is the
default).
Figure 66 Protocol Selection
5. Touch IP Address.
6. In the Enter IP address dialog box, enter the IP address of host computer to send data to.
Figure 67 IP Address Entry
7. Touch Port.
8. In the Enter port number dialog box, enter the port number that the host computer application is listening
on.
Figure 68 Port Number Entry
9. Configure Advanced Data Formatting and Basic Data Formatting Plug-in if any required modification to
be done to captured data before sending to remote computer.
81
DataWedge
Generating Advanced Data Formatting Rules
The ADF plug-in applies rules (actions to be performed based on defined criteria) to the data received via an
input plug-in before sending it to the output plug-in.
• Rules - The ADF process plug-in consists of one or more rules. DataWedge formats the output data
according to the first matching rule. A rule is a combination of criteria and a set of actions to be performed,
upon fulfillment of the criteria set in the rule.
• Criteria - Criteria can be set according to Input plug-in, symbology, matching string within the data (at the
specified position) and/or data length. Received data must match the defined criteria in order for the data to
be processed.
• Actions - A set of procedures defined to format data. There are four types of actions which are for formatting
cursor movement, data modification, data sending and delay specifications. An action can be defined to
send the first number of characters to the Output plug-in, pad the output data with spaces or zeros, remove
spaces in data, etc.
Configuring ADF Plug-in
Configuring the ADF plug-in consists of creating a rule, defining the criteria and defining the actions.
1. Swipe up from the bottom of the screen and touch .
2. Touch a DataWedge profile.
3. In Keystroke Output, touch Advanced data formatting.
Figure 69 Advanced Data Formatting Screen
4. Touch the Enable checkbox to enable ADF.
Creating a Rule
NOTE: By default, Rule0, is the only rule in the Rules list.
1. Touch .
82
2. Touch New rule.
3. Touch the Enter rule name text box.
4. In the text box, enter a name for the new rule.
5. Touch OK.
Defining a Rule
1. Touch the newly created rule in the Rules list.
Figure 70 Rule List Screen
DataWedge
2. Touch the Rule enabled check box to enable the current rule.
Defining an Action
NOTE: By default the Send remaining action is in the Actions list.
1. Touch .
2. Touch New action.
3. In the New action menu, select an action to add to the Actions list. See the ADF Supported Actions table
for a list of supported ADF actions.
4. Some Actions require additional information. Touch the Action to display additional information fields.
5. Repeat steps to create more actions.
6. Touch .
7. Touch .
Deleting a Rule
1. Touch and hold on a rule until the context menu appears.
2. Touch Delete rule to delete the rule from the Rules list.
83
DataWedge
NOTE: When there is no rule available for ADF plug-in or all rules are disabled, DataWedge passes decoded data to the
output plug-in without processing the data.
Order Rules List
NOTE: When there are no rules defined, ADF passes the captured data through as is. In contrast, when rules are defined
but all are disabled, ADF does not pass any captured data through.
Rules are processed in top-down order. The rules that are on top of the list are processed first. Use the icon
next to the rule to move it to another position in the list.
Table 6 ADF Supported Actions
Type Actions Description
Cursor
Movement
Data
Modification
Skip ahead Moves the cursor forward by a specified number of characters.
Enter the number of characters to move the cursor ahead.
Skip back Moves the cursor back by a specified number of characters. Enter
the number of characters to move the cursor back.
Skip to start Moves the cursor to the beginning of the data.
Move to Moves the cursor forward until the specified string is found. Enter
the string in the data field.
Move past a Moves the cursor forward past the specified string. Enter the string
in the data field.
Crunch spaces Remove spaces between words to one and remove all spaces at
the beginning and end of the data.
Stop space crunch Stops space crunching. This disables the last Crunch spaces
action.
Remove all spaces Remove all spaces in the data.
Stop space removal Stop removing spaces. This disables the last Remove all spaces
action.
Remove leading zeros Remove all zeros at the beginning of data.
Stop zero removal Stop removing zeros at the beginning of data. This disables the
previous Remove leading zeros action.
Pad with zeros Left pad data with zeros to meet the specified length. Enter the
number zeros to pad.
Stop pad zeros Stop padding with zeros. This disables the previous Pad with zeros
action.
Pad with spaces Left pad data with spaces to meet the specified length. Enter the
number spaces to pad.
Stop pad spaces Stop padding with spaces. This disables the previous Pad with
spaces action.
Replace string Replaces a specified string with a new string. Enter the string to
replace and the string to replace it with.
Stop all replace string Stop all Replace string actions.
84
Table 6 ADF Supported Actions (Continued)
Type Actions Description
Data
Sending
Send next Sends the specified number of characters from the current cursor
Send remaining Sends all data that remains from the current cursor position.
Send up to Sends all data up to a specified string. Enter the string.
Send pause Pauses the specified number of milliseconds before continuing the
Send string Sends a specified string. Enter the string to send.
Send char Sends a specified ASCII/ Unicode character. Enter a character
Deleting an Action
1. Touch and hold the action name.
2. Select Delete action from the context menu.
DataWedge
position. Enter the number of characters to send.
next action. Enter the amount of time in milliseconds.
value. The maximum Unicode character value can be entered is
U-10FFFF (= 1114111 in decimal).
ADF Example
The following illustrates an example of creating Advanced Data Formatting:
When a user scans a barcode with the following criteria:
• Code 39 barcode.
• length of 12 characters.
• contains 129 at the start position.
Modify the data as follows:
• Pad all sends with zeros to length 8.
• send all data up to character X.
• send a space character.
To create an ADF rule for the above example:
1. Swipe up from the bottom of the screen and touch .
2. Touch Profile0.
3. Under Keystroke Output, touch Advanced data formatting.
4. Touch Enable.
5. Touch Rule0.
6. Touch Criteria.
7. Touch String to check for.
8. In the Enter the string to check for text box, enter 129 and then touch OK.
9. Touch String position.
85
DataWedge
10.Change the value to 0.
11.Touch OK.
12.Touch String length.
13.Change value to 12.
14.Touch OK.
15.Touch Source criteria.
16.Touch Barcode input.
17.Touch All decoders enabled to disable all decoders.
18.Touch Code 39.
19.Press three times.
20.Touch Actions.
21.Touch and hold on the Send remaining rule until a menu appears.
22.Touch Delete action.
23.Touch .
24.Touch New action.
25.Select Pad with zeros.
26.Touch the Pad with zeros rule.
27.Touch How many.
28.Change value to 8 and then touch OK.
29.Press .
30.Touch .
31.Touch New action.
32.Select Send up to.
33.Touch Send up to rule.
34.Touch String.
35.In the Enter a string text box, enter X.
36.Touch OK.
37.Touch .
38.Touch .
39.Touch New action.
40.Select Send char.
41.Touch Send char rule.
42.Touch Character code.
86
DataWedge
1299X1559828
43.In the Enter character code text box, enter 32.
44.Touch OK.
45.Touch .
Figure 71 ADF Sample Screen
46.Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
47.Aim the exit window at the barcode.
Figure 72 Sample Barcode
48.Press and hold the scan button.
The red laser aiming pattern turns on to assist in aiming. Ensure that the barcode is within the area formed
by the aiming pattern. The LED light red to indicate that data capture is in process.
49.The LED lights green, a beep sounds and the device vibrates, by default, to indicate the barcode was
decoded successfully.The LED lights green and a beep sounds, by default, to indicate the barcode was
decoded successfully. The formatted data 000129X<space>appears in the text field.
Scanning a Code 39 barcode of 1299X15598 does not transmit data (rule is ignored) because the barcode
data did not meet the length criteria.
87
Figure 73 Formatted Data
DataWedge
DataWedge Settings
The DataWedge Settings screen provides access to general, non-profile related options. Touch > Settings.
Figure 74 DataWedge Settings Window
• DataWedge enabled - Enables or disables DataWedge. To disable DataWedge uncheck this option
(default - enabled).
• Enable logging - Enables or disables debug output file to logcat. To enable logging check this option
(default - disabled).
88
• Ignore disabled profiles - Prevents DataWedge from switching to a Profile that is not enabled. In such
instances, the Profile switch is ignored and the current Profile remains active Profile0 must be disabled to
use this feature (default - disabled).
• Disable app list - Disables scanning functions for selected applications or activities.
• Import - Allows import of a DataWedge configuration file. The imported configuration replaces the current
configuration.
• Export - Allows export of the current DataWedge configuration.
• Import Profile - Allows import of a DataWedge profile file.
• Export Profile - Allows export of a DataWedge profile.
• Restore - Return the current configuration back to factory defaults.
• Reporting - Configures reporting options.
Importing a Configuration File
1. Copy the configuration file to the microSD card /Android/data/com.symbol.datawedge/files folder.
2. Touch .
DataWedge
3. Touch Settings.
4. Touch Import.
5. Touch filename to import.
The configuration file (datawedge.db) is imported and replaces the current configuration.
Exporting a Configuration File
1. Touch .
2. Touch Settings.
3. Touch Export.
4. In the Export to dialog box, select the location to save the file.
5. Touch Export. The configuration file (datawedge.db) is saved to the selected location.
Importing a Profile File
NOTE: Do not change the filename of the of the profile file. If the filename is changed, the file will not be imported.
1. Copy the profile file to the On Device Storage /Android/data/com.symbol.datawedge/files folder.
2. Touch .
3. Touch Settings.
4. Touch Import Profile.
5. Touch the profile file to import.
6. Touch Import. The profile file (dwprofile_x.db, where x = the name of the profile) is imported and appears
in the profile list.
89
Exporting a Profile
1. Touch .
2. Touch Settings.
3. Touch Export Profile.
4. Touch the profile to export.
5. Touch Export.
The profile file (dwprofile_x.db, where x = name of the profile) is saved to the root of the On-device Storage.
Restoring DataWedge
To restore DataWedge to the factory default configuration:
1. Touch .
2. Touch Settings.
DataWedge
3. Touch Restore.
4. Touch Yes.
Configuration and Profile File Management
The configuration or profile settings for DataWedge can be saved to a file for distribution to other devices.
After making configuration or profile changes, export the new configuration or profile to the root of the
On-device Storage. The configuration file created is automatically named datawedge.db. The profile file
created is automatically named dwprofile_x.db, where x is the profile name. The files can then the copied to the
On-device Storage of other devices and imported into DataWedge on those devices. Importing a configuration
or profile replaces the existing settings.
Enterprise Folder
Internal storage contains the Enterprise folder (/enterprise). The Enterprise folder is persistent and maintains
data after an Enterprise reset. After an Enterprise Reset, DataWedge checks folder
/enterprise/device/settings/datawedge/enterprisereset/ for a configuration file, datawedge.db or a
profile file, dwprofile_x.db. If the file is found, it imports the file to replace any existing configuration or profile.
NOTE: A Factory Reset deletes all files in the Enterprise folder.
Auto Import
DataWedge supports remote deployment of a configuration to a device, using tools such as commercially
available third-party Mobile Device Management (MDM) systems. DataWedge monitors the
/enterprise/device/settings/datawedge/autoimport folder for the DataWedge configuration file
(datawedge.db) or a profile file (dwprofile_x.db). If a configuration or profile file is found, it imports the file to
replace any existing configuration or profile. Once the file has been imported it is deleted from the folder.
DataWedge begins using the imported configuration immediately.
90
DataWedge
NOTE: A Factory Reset deletes all files in the /enterprise folder.
It is strongly recommended that the user exits DataWedge before remotely deploying any configuration or profile. It is
required that the file permissions are set to 666.
The
/enterprise folder cannot be seen with Files app or other user-level tools. Moving configuration files to and from the
/autoimport or /enterprisereset folders must be done programmatically, or with a staging client app or MDM.
Programming Notes
The following paragraphs provide specific programming information when using DataWedge.
Overriding Trigger Key in an Application
To override the trigger key in an application, create a profile for the application that disables the Barcode input.
In the application, use standard APIs, such as onKeyDown() to listen for the KEYCODE_BUTTON_L1 and
KEYCODE_BUTTON_R1 presses.
Capture Data and Taking a Photo in the Same Application
To be able to capture bar code data and take a photo in the same application:
• Create a Datawedge profile pertaining to the picture taking Activity in your application that disables
scanning and use standard Android SDK APIs to control the Camera.
• The default Datawedge profile takes care of the scanning in the application. You might want to create
another DataWedge profile that caters to any specific scanning needs, associated to your Application's
Activity pertaining to scanning.
Disabling DataWedge
1. Swipe up from the bottom of the screen and touch .
2. Touch .
3. Touch Settings.
4. Touch DataWedge enabled.
The blue check disappears from the checkbox indicating that DataWedge is disabled.
Soft Scan Trigger
DataWedge allows a native Android application to programmatically start, stop, or toggle the scan trigger state.
The application can issue an Android Broadcast Intent, to control the scanner, without requiring the scan key to
be pressed. The active DataWedge profile is required to control all the parameters during a scan operation.
91
Function Prototype
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.SOFT_SCAN_TRIGGER", "<parameter>");
Scanner Input Plugin
The ScannerInputPlugin API command can be used to enable/disable the scanner plug-in being used by the
currently active Profile. Disabling the scanner plug-in effectively disables scanning in that Profile, regardless of
whether the Profile is associated or unassociated. Valid only when Barcode Input is enabled in the active
Profile.
NOTE: Use of this API changes only the runtime status of the scanner; it does not make persistent changes to the Profile.
DataWedge
Function Prototype
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.SCANNER_INPUT_PLUGIN", "<parameter>");
Parameters
action: String "com.symbol.datawedge.api.ACTION"
extra_data: String "com.symbol.datawedge.api.SCANNER_INPUT_PLUGIN"
<parameter>: The parameter as a string, using either of the following:
• SUSPEND_PLUGIN - suspends the scanner so it is temporarily inactive when switching from the WAITING
or SCANNING state. SCANNER_STATUS notification broadcasts IDLE state.
• RESUME_PLUGIN - resumes the scanner when changing from the SUSPEND_PLUGIN suspended state.
SCANNER_STATUS notification broadcasts WAITING and SCANNING states, rotating between each
depending on whether scanning is taking place. In the WAITING state it is expecting an action from the
user such as a trigger press. In the SCANNING state it is actively performing a scan resulting from an
action such as a trigger press.
• "ENABLE_PLUGIN" - enables the plug-in the scanner becomes active.
• "DISABLE_PLUGIN" - disables the plug-in the scanner becomes inactive.
Return Values
None.
Error and debug messages will be logged to the Android logging system which then can be viewed and filtered
by the logcat command. You can use logcat from an ADB shell to view the log messages, for example:
92
DataWedge
$ adb logcat -s DWAPI
Error messages will be logged for invalid actions and parameters.
Example
// define action and data strings
String scannerInputPlugin = "com.symbol.datawedge.api.ACTION_SCANNERINPUTPLUGIN";
String extraData = "com.symbol.datawedge.api.EXTRA_PARAMETER";
public void onResume() {
// create the intent
Intent i = new Intent();
// set the action to perform
i.setAction(scannerInputPlugin);
// add additional info
i.putExtra(extraData, "DISABLE_PLUGIN");
// send the intent to DataWedge
context.sendBroadcast(i);
}
Comments
This intent API allows the scanner plug-in for the current Profile to be enabled or disabled. For example,
activity A launches and uses the intent API to switch to ProfileA in which the scanner plug-in is enabled, then at
some point it uses the Data Capture API to disable the scanner plug-in. Activity B is launched. In DataWedge,
ProfileB is associated with activity B. DataWedge switches to ProfileB. When activity A comes back to the
foreground, in the
the intent API again to disable the scanner plug-in, to return back to the state it was in.
NOTE: Use of this API changes only the runtime status of the scanner; it does not make persistent changes to the Profile.
The above assumes that ProfileA is not associated with any applications/activities, therefore when focus switches back to
activity A, DataWedge will not automatically switch to ProfileA therefore activity A must switch back to ProfileA in its
onResume method. Because DataWedge will automatically switch Profile when an activity is paused, it is recommended
that thi
s API function be called from the onResume method of the activity.
onResume method, activity A needs to use the intent API to switch back to ProfileA, then use
Enumerate Scanners
Use the enumerateScanners API command to get a list of scanners available on the device.
Function Prototype
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.ENUMERATE_SCANNERS", "");
93
DataWedge
Parameters
ACTION [String]: "com.symbol.datawedge.api.ENUMERATE_SCANNERS"
Return Values
The enumerated list of scanners will be returned via the broadcast Intent
"com.symbol.datawedge.api.ACTION_ENUMERATEDSCANNERLIST". The list of scanners is returned as a
string array (see the example below).
Error and debug messages are logged to the Android logging system which then can be viewed and filtered by
the logcat command. You can use logcat from an ADB shell to view the log messages. For example:
$ adb logcat -s DWAPI
Error messages are logged for invalid actions and parameters.
94
DataWedge
Example
//
// Call before sending the enumeration query
//
public void registerReciever(){
IntentFilter filter = new IntentFilter();
filter.addAction("com.symbol.datawedge.api.RESULT_ACTION");//RESULT_ACTION
filter.addCategory(Intent.CATEGORY_DEFAULT);
registerReceiver(enumeratingBroadcastReceiver, filter);
}
//
// Send the enumeration command to DataWedge
//
public void enumerateScanners(){
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.ENUMERATE_SCANNERS", "");
this.sendBroadcast(i);
}
public void unRegisterReciever(){
unregisterReceiver(enumeratingBroadcastReceiver);
}
//
// Create broadcast receiver to receive the enumeration result
//
private BroadcastReceiver enumeratingBroadcastReceiver = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
Log.d(TAG, "Action: " + action);
if(action.equals("com.symbol.datawedge.api.RESULT_ACTION")){
//
// enumerate scanners
//
if(intent.hasExtra("com.symbol.datawedge.api.RESULT_ENUMERATE_SCANNERS")) {
ArrayList<Bundle> scannerList = (ArrayList<Bundle>)
intent.getSerializableExtra("com.symbol.datawedge.api.RESULT_ENUMERATE_SCANNERS");
if((scannerList != null) && (scannerList.size() > 0)) {
for (Bundle bunb : scannerList){
String[] entry = new String[4];
entry[0] = bunb.getString("SCANNER_NAME");
entry[1] = bunb.getBoolean("SCANNER_CONNECTION_STATE")+"";
entry[2] = bunb.getInt("SCANNER_INDEX")+"";
entry[3] = bunb.getString("SCANNER_IDENTIFIER");
Log.d(TAG, "Scanner:" + entry[0] + " Connection:" + entry[1] + " Index:" + entry[2] + " ID:" + entry[3]);
}
}
}
}
}
};
Comments
The scanner and its parameters are set based on the currently active Profile.
95
Set Default Profile
Use the setDefaultProfile API function to set the specified Profile as the default Profile.
Default Profile Recap
Profile0 is the generic Profile used when there are no user created Profiles associated with an application.
Profile0 can be edited but cannot be associated with an application. That is, DataWedge allows manipulation
of plug-in settings for Profile0 but it does not allow assignment of a foreground application. This configuration
allows DataWedge to send output data to any foreground application other than applications associated with
user-defined Profiles when Profile0 is enabled.
Profile0 can be disabled to allow DataWedge to only send output data to those applications which are
associated in user-defined Profiles. For example, create a Profile associating a specific application, disable
Profile0 and then scan. DataWedge only sends data to the application specified in the user-created Profile.
This adds additional security to DataWedge enabling the sending of data only to specified applications.
Usage Scenario
A launcher application has a list of apps that a user can launch and that none of the listed apps has an
associated DataWedge Profile. Once the user has selected an app, the launcher needs to set the appropriate
DataWedge Profile for the selected app. This could be done by using
Profile to the required Profile. Then when the user launches the selected app, DataWedge auto Profile
switching switches to the default Profile (which is now the required Profile for that app).
DataWedge
setDefaultProfile to set the default
If, for some reason, the launched app has an associated DataWedge Profile then that will override the set
default Profile.
When control is returned to the launcher application,
Profile.
resetDefaultProfile can be used to reset the default
Function Prototype
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.SET_DEFAULT_PROFILE", "<profile name>");
Parameters
ACTION [String]: "com.symbol.datawedge.api.ACTION"
EXTRA_DATA [String]: "com.symbol.datawedge.api.SET_DEFAULT_PROFILE"
<profile name>: The Profile name (a case-sensitive string) to set as the default Profile.
Return Values
None.
Error and debug messages are logged to the Android logging system which then can be viewed and filtered by
the logcat command. You can use logcat from an ADB shell to view the log messages. For example:
96
DataWedge
$ adb logcat -s DWAPI
Error messages are logged for invalid actions, parameters and failures, for example, Profile not found or
associated with an application.
Example
// define action and data strings
String setDefaultProfile = "com.symbol.datawedge.api.ACTION";
String extraData = "com.symbol.datawedge.api.SET_DEFAULT_PROFILE";
public void onResume() {
// create the intent
Intent i = new Intent();
// set the action to perform
i.setAction(setDefaultProfile);
// add additional info (a name)
i.putExtra(extraData, "myProfile");
// send the intent to DataWedge
this.sendBroadcast(i);
}
Comments
The API command has no effect if the specified Profile does not exist or if the specified Profile is already
associated with an application. DataWedge automatically switches Profiles when the activity is paused, so it is
recommended that this API function is called from the onResume method of the activity.
Zebra recommends that this Profile is created to cater to all applications/activities that would otherwise default
to using Profile0. This ensures that these applications/activities continue to work with a consistent
configuration.
Reset Default Profile
Use the resetDefaultProfile API function to reset the default Profile back to Profile0.
97
DataWedge
Function Prototype
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.RESET_DEFAULT_PROFILE", "");
Parameters
ACTION [String]: "com.symbol.datawedge.api.ACTION"
EXTRA_DATA [String]: "com.symbol.datawedge.api.RESET_DEFAULT_PROFILE".
Return Values
None.
Error and debug messages are logged to the Android logging system which then can be viewed and filtered by
the logcat command. You can use logcat from an ADB shell to view the log messages. For example:
$ adb logcat -s DWAPI
Error messages are logged for invalid actions, parameters and failures, for example, Profile not found or
associated with an application.
Example
// define action string
String action = "com.symbol.datawedge.api.ACTION";
String extraData = "com.symbol.datawedge.api.RESET_DEFAULT_PROFILE";
public void onResume() {
// create the intent
Intent i = new Intent();
// set the action to perform
i.setAction(action);
i.putExtra(extraData, ""); // empty since a name is not required
this.sendBroadcast;
}
Comments
None.
98
Switch To Profile
Use the SwitchToProfile API action to switch to the specified Profile.
Profiles Recap
DataWedge is based on Profiles and plug-ins. A Profile contains information on how DataWedge should
behave with different applications.
Profile information consists of:
• Associated application
• Input plug-in configurations
• Output plug-in configurations
• Process plug-in configurations
DataWedge includes a default Profile, Profile0, that is created automatically the first time DataWedge runs.
Using Profiles, each application can have a specific DataWedge configuration. For example, each user
application can have a Profile which outputs scanned data in the required format when that application comes
to the foreground. DataWedge can be configured to process the same set of captured data differently based on
the requirements of each application.
DataWedge
NOTE: Use of this API changes only the runtime status of the scanner; it does not make persistent changes to the Profile.
A single Profile may be associated with one or many activities/apps, however, given an activity, only one Profile may be
associated with it.
Usage Scenario
An application has two activities. Activity A only requires EAN13 bar codes to be scanned. Activity B only
requires Code 128 bar codes to be scanned. Profile EAN13 is configured to only scan EAN13 bar codes and is
left unassociated. Profile Code128 is configured to scan Code 128 and is left unassociated. When Activity A
launches it uses SwitchToProfile to activate Profile EAN13. Similarly, when Activity B launches it uses
switchToProfile to activate Profile Code128.
If another activity/app comes to the foreground, DataWedge auto Profile switching sets the DataWedge Profile
accordingly either to the default Profile or to an associated Profile.
When Activity A (or Activity B) comes back to the foreground it uses switchToProfile to reset the Profile back to
Profile B (or Profile M).
Function Prototype
Intent i = new Intent();
i.setAction("com.symbol.datawedge.api.ACTION");
i.putExtra("com.symbol.datawedge.api.SWITCH_TO_PROFILE", "<profile name>");
Parameters
ACTION [String]: "com.symbol.datawedge.api.ACTION"
EXTRA_DATA [String]: "com.symbol.datawedge.api.SWITCH_TO_PROFILE"
99
DataWedge
<profile name>: The Profile name (a case-sensitive string) to set as the active Profile.
Return Values
None.
Error and debug messages are logged to the Android logging system which then can be viewed and filtered by
the logcat command. You can use logcat from an ADB shell to view the log messages. For example:
$ adb logcat -s DWAPI
Error messages are logged for invalid actions, parameters and failures, for example, Profile not found or
associated with an application.
Example
// define action and data strings
String switchToProfile = "com.symbol.datawedge.api.ACTION";
String extraData = "com.symbol.datawedge.api.SWITCH_TO_PROFILE";
public void onResume() {
super.onResume();
// create the intent
Intent i = new Intent();
// set the action to perform
i.setAction(switchToProfile);
// add additional info
i.putExtra(extraData, "myProfile");
// send the intent to DataWedge
this.sendBroadcast(i);
}
Comments
This API function has no effect if the specified Profile does not exist or is already associated with an
application.
DataWedge has a one-to-one relationship between Profiles and activities; a Profile can be associated only with
a single activity. When a Profile is first created, it's not associated with any application, and is not activated
until associated. This makes it possible to create multiple unassociated Profiles.
This API function activates such Profiles.
100
