Installation Instruction for ST6026 Standard Handstrap
1. Installation of the Standard Handstrap

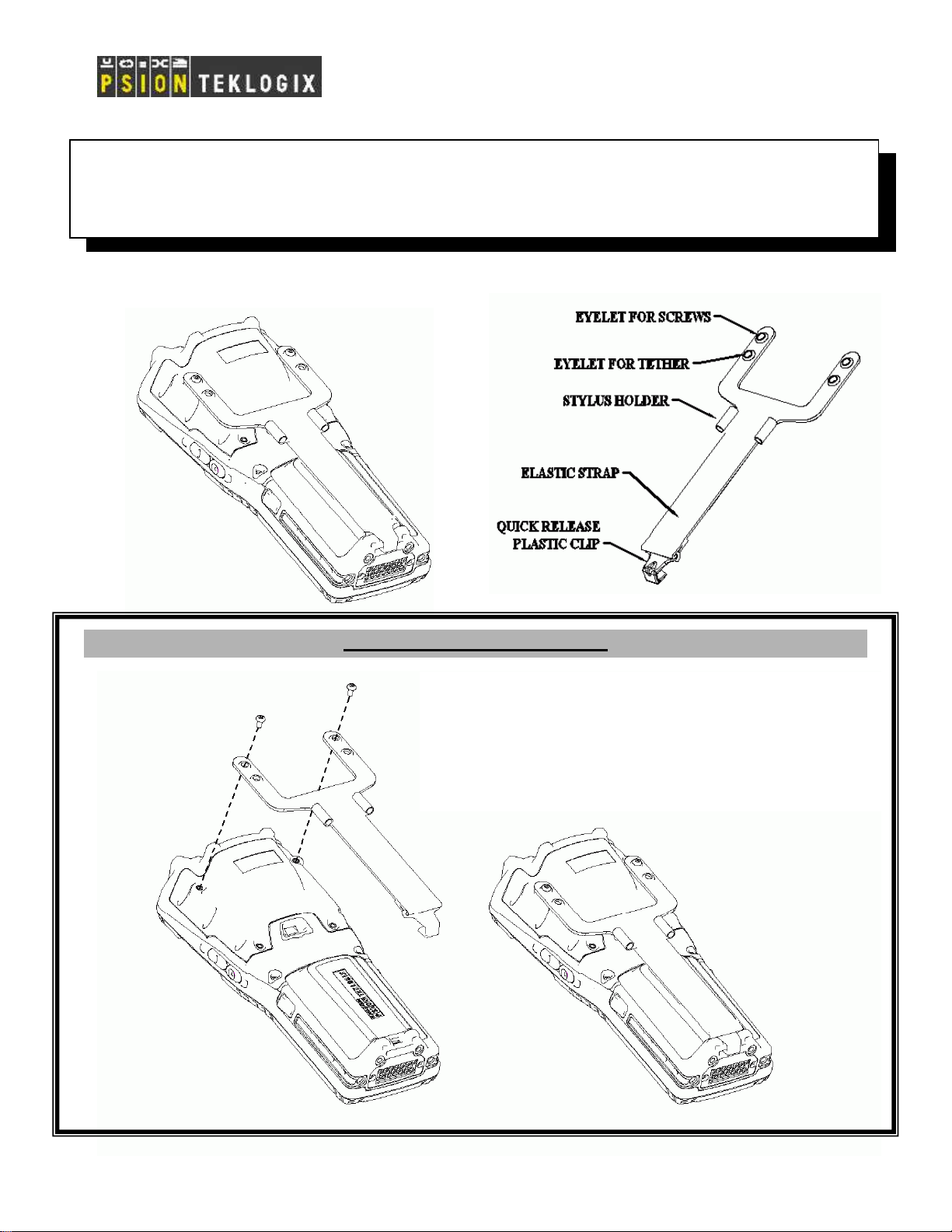

HANDSTRAP INSTALLATION
ASSEMBLE THE SCREWS M3X6MM TO OMNII
HANDHELD. TIGHTEN TO 5.0 ±0.5 IN-LBS OR ONEQUARTER TURN BEYOND FINGER TIGHT. DO NOT
OVERTIGHTEN. PULL DOWN STRAP AND HOOK
PLASTIC CLIP INTO SLOT AT BOTTOM AS
SHOWN.
September 27, 2010
Page 1 of 2 Part No. 1005719 Revision A

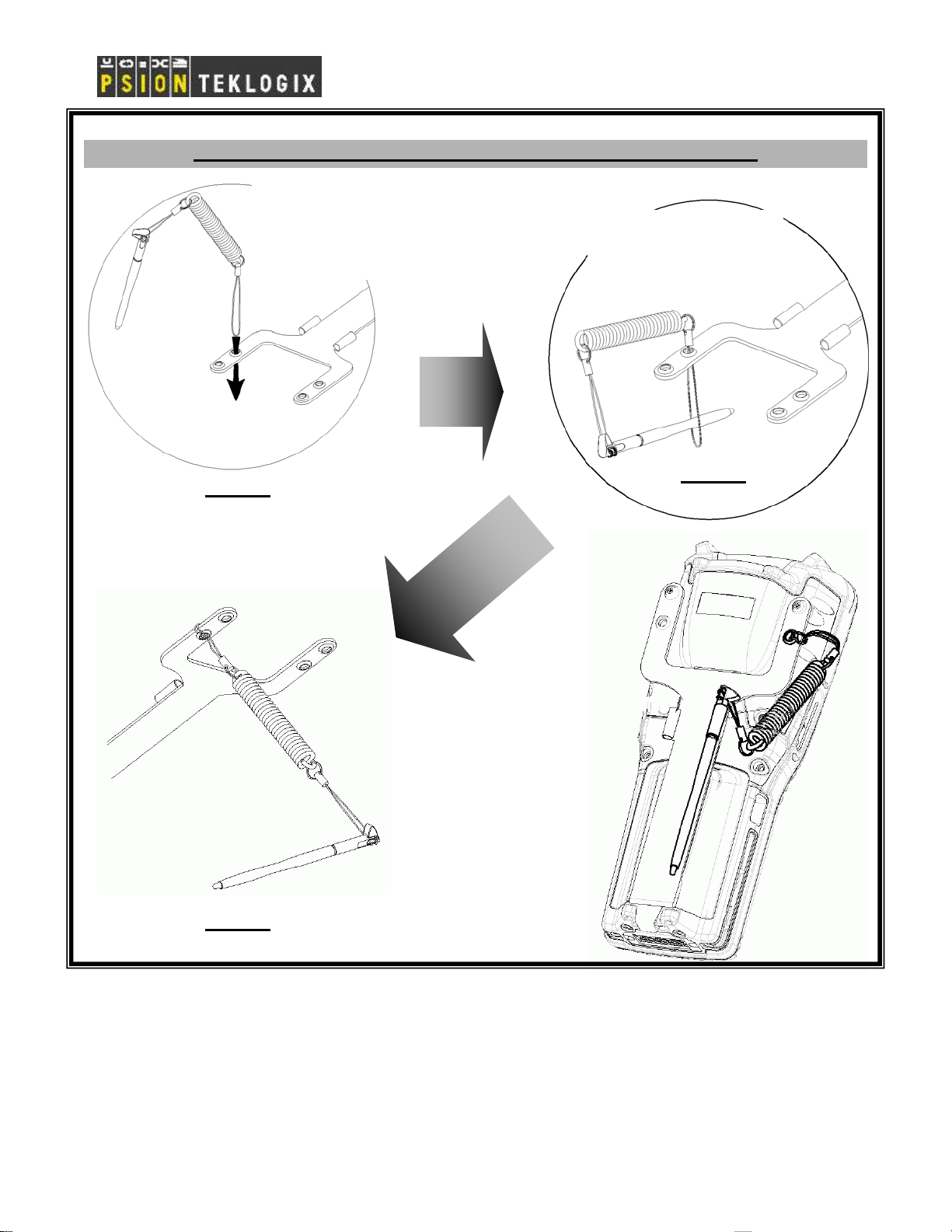

STYLUS TETHER INSTALLATION ON STANDARD HANDSTRAP
THREAD TETHER
LOOP THROUGH 2
EYELET DOWN ON
HANDSTRAP
ND
STEP 1.
PULL REST OF
TETHER THROUGH
THE LOOP UNTIL
THE KNOT IS SNUG
STEP 3.
