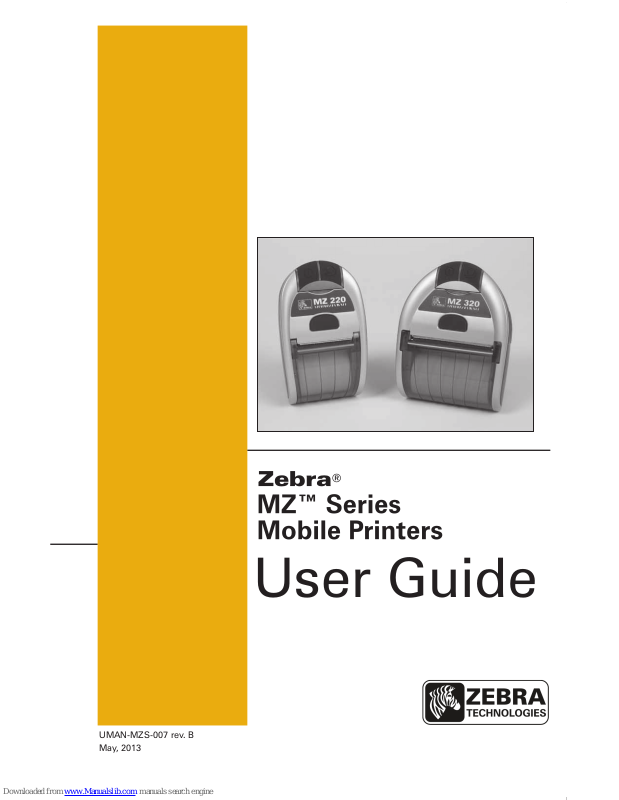

Page 1
UMAN-MZS-007 rev. B
May, 2013
Page 2
Page 3
3
MZ Series User Guide
continued
Table of Contents
Proprietary Statements ............................................................................................5
Document Conventions ...........................................................................................7
Introduction to the MZ Series ................................................................................8
Unpacking and Inspection ............................................................... 8
Reporting Damage ........................................................................... 8
Getting Ready to Print ........................................................................................... 10
Battery ............................................................................................. 10
Installing and Removing the Battery ..........................................................10
MZ Series Quad Power Station ..................................................................14
Battery Safety ..............................................................................................15
Charger Safety .............................................................................................15
Loading the Media (All models) .................................................... 16
Using Pre-Printed Receipt Media .................................................. 17
Operator Controls .......................................................................... 19
Verify the Printer Is Working ......................................................... 21
Printing a Configuration Label ....................................................................21
Connecting the Printer ................................................................... 21
Cable Communication .................................................................................22
IR Communications .....................................................................................23
Wireless Communications with Bluetooth™ ..............................................24
Bluetooth Networking Overview ................................................................24
WLAN Overview ............................................................................. 25
Setting Up the Software ................................................................ 25
Wearing the Printer ................................................................................................. 26
Belt Clip ........................................................................................................26
Adjustable Shoulder Strap ..........................................................................27
Preventive Maintenance .......................................................................................28
Extending Battery Life ...................................................................28
General Cleaning Instructions ....................................................... 29
Troubleshooting ...................................................................................................... 31
Interpreting Indicators ................................................................... 31
Troubleshooting Topics ................................................................. 31
Resetting an MZ Series Printer .....................................................33
Determining Your Printer Version ...............................................................33
Troubleshooting Tests ...................................................................34
Printing a Configuration Label ....................................................................34
Communications Diagnostics .....................................................................34
Calling Technical Support ...........................................................................35
Specications ............................................................................................................39
Printing Specifications ...............................................................................39
Memory and Communications Specifications, MZ series.........................39
Media Specifications ...................................................................................39
Font and Bar Code Specifications for MZ Series .......................................40
USB Communications Port .........................................................................41
Physical, Environmental and Electrical Specifications ..............................41
MZ Series Accessories ...............................................................................43
Appendix A ................................................................................................................48
Interface Cables ...........................................................................................48
USB Cable ....................................................................................................48
Page 4
4
MZ Series User Guide
More Interface Cables ................................................................................48
Appendix B................................................................................................................. 49
Media Supplies ............................................................................................49
MZ Series Media .........................................................................................49
Appendix C ................................................................................................................49
Maintenance Supplies .................................................................................49
Appendix D ................................................................................................................ 50
Battery Disposal ..........................................................................................50
Product Disposal .........................................................................................50
Appendix E ................................................................................................................. 51
Product Support ..........................................................................................51
Product Support Contacts ..........................................................................52
Appendix F ................................................................................................................. 53
Using zebra.com..........................................................................................53
Index ............................................................................................................................. 55
Patent Numbers .......................................................................................................56
Page 5
5
MZ Series User Guide
Proprietary Statements
This manual contains proprietary information of Zebra Technologies Corporation. It is
intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the expressed written permission
of Zebra Technologies Corporation.
Product Improvements
Since continuous product improvement is a policy of Zebra Technologies Corporation, all
specifications and signs are subject to change without notice.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with the limits or a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful inter ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the inter ference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet or circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Exposure to Radio Frequency radiation. To conform to FCC RF exposure requirements this device shall be used in accordance with the operating conditions and instructions listed in this manual. Note that there are several radio options available with this
printer. Additional regulatory information is contained in later sections devoted to each
radio individually.
NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to insure compliance.
Changes or modifications to this unit not expressly approved by Zebra Technologies Corporation could void the user’s authority to operate this equipment.
Canadian Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
“IC:” before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to
the user’s satisfaction.
Agency Approvals and Regulatory Information
• Design cer tified by TUV • FCC part 15
• Canadian STD RSS-210 • EN55024:1998 European Immunity Standard
• EN60950: 2000 Safety Standard • NOM/NYCE (Mexico)
• C-Tick (Australia) • EN55022:1998 Class B European
Electromagnetic Radiation Standard
Liability Disclaimer
Inasmuch as every ef fort has been made to supply accurate information in this manual,
Zebra Technologies Corporation is not liable for any erroneous information or omissions.
Zebra Technologies Corporation reserves the right to correct any such errors and disclaims
liabilit y resulting therefrom.
No Liability for Consequential Damage
In no event shall Zebra Technologies Corporation or anyone else involved in the creation,
production, or delivery of the accompanying product (including hardware and software)
be liable for any damages whatsoever (including, without limitation, damages for loss of
business profits, business interruption, loss of business information, or other pecuniary
loss) arising out of the use of or the results of use of or inability to use such product, even
if Zebra Technologies Corporation has been advised of the possibility of such damages.
Because some states do not allow the exclusion of liability for consequential or incidental
damages, the above limitation may not apply to you.
continued
Page 6
6
MZ Series User Guide
Copyrights
The copyrights in this manual and the label print engine described therein are owned by
Zebra Technologies Corporation. Unauthorized reproduction of this manual or the software
in the label print engine may result in imprisonment of up to one year and fines of up to
$10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.
This product may contain ZPL
®
, ZPL II®, and ZebraLinktm programs; Element Energy Equalizer® Circuit; E3®; and AGFA fonts. Sof tware © ZIH Corp. All rights reserved worldwide.
ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo,
ZPL, ZPL II, Element Energy Equalizer Circuit, and E3 Circuit are registered trademarks of
ZIH Corp. All rights reserved worldwide.
Monotype
®
, Intellifont® and UFST® are trademarks of Monotype Imaging, Inc. registered in
the United States Patent and Trademark Office and may be registered in certain jurisdictions.
Andy
TM
, CG PalacioTM, CG Century SchoolbookTM, CG TriumvirateTM, CG TimesTM, Monotype
Kai
TM
, Monotype MinchoTM and Monotype SungTM are trademarks of Monotype Imaging,
Inc. and may be registered in some jurisdictions.
HY Gothic Hangul
TM
is a trademark of Hanyang Systems, Inc.
Angsana
TM
is a trademark of Unity Progress Company (UPC) Limited.
Andale
®
, Arial®, Book Antiqua®, Corsiva®, Gill Sans®, Sorts® and Times New Roman® are
trademarks of The Monotype Corporation registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.
Century Gothic™, Bookman Old Style
TM
and Century SchoolbookTM are trademarks of The
Monotype Corporation and may be registered in certain jurisdictions.
HGPGothicB is a trademark of the Ricoh company, Ltd. and may be registered in some jurisdictions.
Univers
TM
is a trademark of Heidelberger Druckmaschinen AG, which may be registered in
certain jurisdictions, exclusively licensed through Linotype Library GmbH, a wholly owned
subsidiary of Heidelberger Druckmaschinen AG.
Futura
®
is a trademark of Bauer Types SA registered in the United States Patent and Trademark Office and may be registered in some jurisdictions.
TrueType
®
is a trademark of Apple Computer, Inc. registered in the United States Patent and
Trademark Office and may be registered in certain jurisdictions.
All other product names are the property of their respective owners.
All other brand names, product names, or trademarks belong to their respective holders.
©
2013 ZIH Corp.
Page 7
7
MZ Series User Guide
Document Conventions
The following conventions are used throughout this docu-
ment to convey certain information:
If you are viewing this guide online, click the underlined text
to jump to a related Web site. Click on italic text (not underlined) to jump to that location in this manual.
Cautions, Important, and Note
Caution • Warns you of the potential for electrostatic discharge.
Caution • Warns you of a potential electric shock situation.
Caution • Warns you of a situation where excessive heat could cause
a burn
Caution • Advises you that failure to take or avoid a specic action
could result in physical harm to you.
Caution • Advises you that failure to take or avoid a specic action
could result in physical harm to the hardware.
Important • Advises you of information that is essential to complete a
task.
Note • Indicates neutral or positive information that emphasizes or
supplements important points of the main text.
Page 8
8
MZ Series User Guide
Introduction to the MZ Series
Thank you for choosing one of our Zebra® MZ™ series
Mobile Printers. These rugged printers are sure to become
productive and efficient additions to your workplace thanks
to their innovative design. Because they are made by Zebra
Technologies, you’re assured of world-class support for all of
your bar code printers, software, and supplies.
• This user’s guide gives you the information you will need
to operate any MZ series printer.
• The MZ series uses the CPCL programming language. To
create and print labels using the CPCL language, refer to
the Mobile Printing Systems CPCL Programming Guide
and our Label Vista™ label creation program which are
both available on either the MZ series product CD or
at
www.zebra.com.
Unpacking and Inspection
Inspect the printer for possible shipping damage:
• Check all exterior surfaces for damage.
• Open the media cover (refer to “Loading the Media” in
the Getting Ready to Print section) and inspect the media
compartment for damage.
In case shipping is required, save the carton and all packing
material.
Reporting Damage
If you discover shipping damage:
• Immediately notify and file a damage report with the shipping company. Zebra Technologies Corporation is not responsible for any damage incurred during shipment of
the printer and will not cover the repair of this damage
under its warranty policy.
• Keep the carton and all packing material for inspection.
• Notify your authorized Zebra re-seller.
Page 9
9
MZ Series User Guide
1
2
3
4
5
6
7
8
9
10
1. Feed Switch
2. Media Status Light
3. USB Port
4. Battery Charging Receptacle
5. Media/Black Bar Sensor
6. Media Cover
7. Platen
8. Printhead
9. Latch Release Button
10. Communications Status
Indicator
11. IR window
12. Charge Status Indicator
13. Power Switch
14. Power Indicator
15. Belt Clip
16. Battery Door Latch
17. Battery Compartment Cover
18. Battery Pack
19. External Charge Contacts
Figure 1: MZ Series Overview (MZ 220 Illustrated)
15
18
19
17
11
12
13
14
16
Page 10
10
MZ Series User Guide
Getting Ready to Print
Battery
Installing and Removing the Battery
Important • Batteries are shipped partially charged. Remove any
protective packaging from new battery packs prior to use.
Figure 2.1: Installing the Battery
1. Use a coin to rotate the
Battery Compartment
lock 1/4 turn as shown.
2. Remove the Battery
Compartment Cover
3. Plug the Battery
Pack connector into the
Printer.
Battery Pack
Note location of label
4. Re-install the Battery Compartment Cover and
rotate the lock back 1/4 turn to lock it in place .
Ensure the battery leads are not pinched prior to replacing the
battery cover.
Page 11
11
MZ Series User Guide
Figure 2.2: Removing the Battery
1. Use a coin to rotate the
Battery Compartment
lock 1/4 turn as shown.
2. Remove the Battery
Compartment Cover
Battery Pack
Connector
Squeeze lock to release
before unplugging connector.
Lift Battery
pack free from
the printer.
4. Install a replacement battery by following the procedure described in Figure 2.1
Always release the locking barb before unplugging the battery
connector. Do not attempt to remove the connector by force, or by
using pliers, etc. as this could cause damage to the printer’s CPU
assembly.
Page 12
12
MZ Series User Guide
When the battery is first installed, the printer power and
charge indicators should indicate the battery is not fully
charged (see “Charging the Battery” below and “Operator
Controls”).
You must charge the battery fully before using the printer for the rst
time.
Charging the Battery
Preparing the Charger Power Supply
Before charging the battery for the first time, you must prepare the Charger Power Supply. Refer to Figure 3 below:
Figure 3: Preparing the Charger Power Supply
continued
1. Remove the power supply from its box. Remove
and discard the shipping
ring from the mains receptacle cavity.
Shipping Ring
Remove and discard
2. Verify that the mains adapter
shipped with your Printer is the correct
one for your region.
Mains Adapter
3. Install the mains adapter into
the Power Supply by hooking
the top edge into the mains
receptacle cavity, and rotating
it until it snaps into place.
US/Japan-100-110 VAC
China-220 VAC
UK -230 VAC
Euro -230 VAC
Aust-240 VAC
Page 13
13
MZ Series User Guide
Charging the battery
Refer to Figure 4.
1. Plug the Charger Power Supply into the appropriate A.C.
wall receptacle. Then insert the charge cable into the
printer’s charger jack.
2. The printer’s charger indicator will indicate the status of
the charger as follows:
• An amber light indicates the battery is charging, and that
the battery is less than 90% charged.
• A green light indicates the battery is fully charged. The
battery is ready for use.
Approximate Charge Times :
Batteries are fully charged after 2.5 hours from the low-battery shut-off state. Partially discharged batteries will take less
time to charge.
NOTES: Use of the printer while charging will increase charge times.
Charge times are for completely discharged batteries.
As a safety feature the battery will stop charging after 4.5
hours regardless of the battery’s charge state.
Charger Jack
12 VDC
Figure 4: Charging the Battery
MZ Series Charger Power Supply p/n AT17947-1
110-240 VAC 50-60 Hz 0.6A Input; 12 VDC 1.25 A output
Plug into AC receptacle
Page 14
14
MZ Series User Guide
MZ Series Quad Power Station
The MZ series Quad Power Station is designed to dock and
charge up to four MZ series printers of either type simultaneously.
1. Ensure that the Power Station has been installed properly
per its instruction manual. Ensure that the power supply
is properly connected and its power indicator light is on.
2. Slide a printer into any one of the four docking bays as
shown in Figure 5.
NOTES: If you are using a shoulder strap, ensure it is pulled away
from the printer when installing in the Power Station.
Do not use the printer when it is installled in the Power
Station
The printer’s charge status indicator will turn amber if the
printer is properly inserted and the battery is less than
90% charged.
The printer’s charge indicators will allow you to monitor the
Figure 5: MZ Series Quad Power Station
Green (Power)
Indicator
Slide Printer into docking bay
MZ 220 Printer
MZ 320 Printer
Amber/Green (Charge)
Indicator
Page 15
15
MZ Series User Guide
charging process. Refer to the Controls section of this manual
for more information.
Battery Safety
Caution • Avoid accidental short circuiting of any battery. Allowing
battery terminals to contact conductive material will create a short
circuit which could cause burns and other injuries or could start a
re.
Important • Always dispose of used batteries properly. Refer to
Appendix D for more battery recycling information.
Caution • Use of any charger not approved specically by Zebra for
use with its batteries could cause damage to the battery pack or the
printer and will void the warranty.
Read carefully and always observe the safety guidelines for Li-Ion
batteries provided with each Battery Pack.
Charger Safety
Do not place the Power Station in locations where liquids or metallic
objects may be dropped into the charging bays.
Use care when installing either the Charger Power Supply shipped
with the printer or the power supply supplied with the MZ series
Power Station. Do not block the ventilating slots on the top and
bottom covers of either power supply.
Ensure that the Charger Power Supply is plugged into a power
source which will not accidently be turned o if you will be charging
batteries overnight.
Page 16
16
MZ Series User Guide
Loading the Media (All models)
1. Open the printer: Refer to Figure 6.
• Press the latch release button on the top of the printer as
shown at “1” below. The media cover will flip open automatically revealing the media compartment.
2. Load the media: Refer to Figure 7
• Insert the roll of media into the media compartment.
Ensure that the media pulls off the core in the direction
shown in Figure 6.
3. Close the Media Cover: Refer to Figure 8.
• Pull a short length of media out of the printer
• Close the Media Cover firmly and ensure it is securely
latched on both sides..
• Turn on the printer and press the Feed button.
The printer will advance media until the Feed button is re-
leased. Verify the media is feeding properly and without
binding or skewing sideways.
Figure 6: Opening the MZ Printer (MZ 220 shown)
continued
Media Compartment
Latch Release
Button
Page 17
17
MZ Series User Guide
Using Pre-Printed Receipt Media
MZ series printers built after 6/16/2008 support alignment of
pre-printed receipts by using a sensor in the printhead. (Refer
to “Determining Your Printer’s Version” in the Troubleshooting
section of this manual for more information) Please be aware
of the following factors:
1) Note the black bar location and dimensions as detailed
in the Specifications section of this manual.
2) Complete information on using pre-printed media
can be found in the FORM command topic in the CPCL
Programming Manual. The CPCL manual is available
on the MZ Product CD or on the Zebra Web site at
http://www.zebra.com/manuals
.
Page 18
18
MZ Series User Guide
Figure 7: Installing Media
Media Roll
Note direction media
pulls o the roll.
Media Cover
Pull a short length of media
out of the Printer
Figure 8: Closing the Media Cover
Ensure both sides of the media
cover are securely latched
when closed.
Page 19
19
MZ Series User Guide
Operator Controls
MZ series printer controls are detailed below and in Figure 9.
The printer has two control buttons and four multipurpose
indicators.
The Power Button turns the printer on and off.
The Feed Button advances a length of media until it is re-
leased.
The Green/Amber indicator to the left of the Power Button
indicates the status of the printer’s built-in charger:
• The indicator is off indicates the battery is not being
charged.
• If the indicator is amber the battery is being charged.
• If the indicator is green, the battery is fully charged.
The Green Indicator between the Power and Feed buttons
has two states:
• A rapidly blinking light indicates a low battery condition.
• A steadily lit indicator means that power is on and the
battery charge level is sufficient for use
The Amber Indicator to the right of the Feed button is an er-
ror indicator.
• An un-lit indicator means there is no error condition and
the printer can be used.
• A blinking indicator could mean one of two conditions exist, which will inhibit printer operation:
1. There is no media loaded.
2. The media cover is open.
3. If both the above conditions are met and the error
light is still flashing, there could be no application loaded in the printer, or the application could have become
corrupted.
The Blue Indicator just above the product I.D. label is a communications indicator. Its functions vary depending on the
wireless communications option installed in the printer.
• If the printer uses only standard IrDA
®
wireless commu-
nication:
A blinking light indicates data is being received from a
linked IrDA device.
• If the printer has a Bluetooth™ radio option:
1. A steady light indicates the printer has paired with an-
Page 20
20
MZ Series User Guide
other Bluetooth device.
2. A blinking light indicates that the printer is receiving
data via Bluetooth communications.
• If the printer has an 802.11b/g radio installed:
1. A steady light indicates the printer has associated with
a wireless Local Area Network (WLAN).
2. A blinking light indicates that the printer is attempting
to associate with a WLAN.
Figure 9: Printer Controls
Power Button
Press until Power Light turns on, then
release. Press again to turn unit o.
Feed Button
Press to advance the media. Release to stop.
Communication Light (Blue)
When lit steadily indicates a wireless
communications link is established, when
blinking indicates data transmission.
Charge Light
(Green/Amber)
Green indicates a fully charged
battery. Amber indicates
the battery is less than 90%
charged.
IrDA Window
IrDA enabled devices must be located
within the printer’s IR zone for IR
communications to occur.
Refer to the IR Communications section.
Media Status Light
(Amber)
When o Indicates normal operation.Blinking indicates either no
media or that the media compartment is open.
Power Light (Green)
Indicates power status and battery condition.
A steadily lit indicator means the battery has
more than a 30% charge remaining. A blinking
indicator means the battery has less than a
30% charge remaining.
Page 21
21
MZ Series User Guide
Verify the Printer Is Working
Before you connect the printer to your computer, portable
data terminal or wireless LAN, make sure that the printer is in
proper working order. You can do this by printing a configuration label using the “two key reset” method. If you can’t get
this label to print, refer to “Troubleshooting”.
Printing a Conguration Label
1. Turn the printer off. Load the media compartment with
journal media (media with no black bars printed on the
back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed
button pressed. When printing starts, release the Feed
button.
The unit will print a line of interlocking “x” characters to
ensure all elements of the print head are working, print out the
version of software loaded in the printer and then print two reports.
The first report indicates model, ROM version, serial number, etc. The second report prints out more detailed information on the printer’s configuration and parameter settings. If
no second report appears, there is no application loaded. (See
the Troubleshooting Section for sample printouts and a further discussion on how to use the configuration label as a diagnostic tool.)
Connecting the Printer
The printer must establish communications with a host terminal which sends the data to be printed. Communications
occur in four basic ways:
• Via a cable using the USB 2.0 protocol. USB drivers are
included in the Zebra Universal Driver which can be
downloaded from www.zebra.com.
• Via the industry standard IrDA protocol. IR capability is
standard with MZ series printers.
• By means of an optional Bluetooth short range radio link.
• By means of a wireless LAN (Local Area Network) using
an optional radio per 802.11b/g specifications.
Page 22
22
MZ Series User Guide
Cable Communication
Caution • The printer should be turned o before connecting or
disconnecting the communications cable.
The small connector on the USB cable plugs into the printer.
The connectors are keyed to assure correct alignment; do not
try to force the cable if it does not plug in. The other end of
the cable must be plugged into the host terminal as shown in
Figure 10, or the USB port on a computer as shown in Figure
11. The MZ series utilizes the USB Open HCI interface driver
allowing it to communicate with Windows® based devices.
USB drivers are included in the Zebra Universal Driver which
can be downloaded from the Zebra Web site. Other terminals
or communications devices may require the installation of
special drivers to use the USB connection. Consult the factory
for further details.
USB Communications
Cable to Terminal
Refer to Appendix A for details.
Figure 10: Cable Communications
Figure 11: Communications with a P.C.
Communications
Port
USB Communications
Cable to Computer
Refer to Appendix A for details.
Communications
Port
Page 23
23
MZ Series User Guide
IR Communications
Ensure that the terminal sending and receiving data is within
the shaded zone depicted in Figure 12. The IR window on the
front of the printer must face the corresponding window on
the terminal to properly send and receive signals. The maximum distance IrDA signals can be transmitted reliably is 1M
(39”).
Figure 14: IR Communications
30.110°
4.258"
3.111"3.111"
30.61°
87.0°
103.000°
30.110°
4.258"
3.111"3.111"
Figure 12: IR Communication Zone
1M (39”)
63.5 cm (25”)
30°
30°
87°
102°
Page 24
24
MZ Series User Guide
Wireless Communications with Bluetooth™
Bluetooth is a worldwide standard for the exchange of data
between two devices via radio frequencies. Bluetooth radios
are relatively low powered to help prevent interference with
other devices running at similar radio frequencies. This limits
the range of a Bluetooth device to about 10 meters (32 feet).
Both the printer and the device it communicates with must follow the Bluetooth standard. Only one of the radio options can
be installed in the printer at one time and the antenna used for
these transmitters must not be co-located or must not operate
in conjunction with any other antenna.
Bluetooth Networking Overview
Each Bluetooth enabled MZ series printer is identified by
a unique Bluetooth Device Address (BDA) loaded into the
printer when manufactured. In order to exchange data, two
Bluetooth enabled devices must establish a connection.
Bluetooth software is always running in the background,
ready to respond to connection requests. One device (known
as the master) must request a connection with another. The
second device (the slave) then accepts or rejects the connection. A Bluetooth enabled MZ series printer will normally
act as a slave creating a miniature network with the terminal
sometimes referred to as a “piconet.”.
For the most part, communications using the Bluetooth protocol are initiated and processed without any operator intervention.
Page 25
25
MZ Series User Guide
WLAN Overview
All MZ series printers can be equipped with radios using the
industry standard 802.11b/g protocol. MZ series printers will
have the FCC I.D. number of the radio on the serial number label on the back of the unit.
MZ series printers with the Zebra 802.11b/g WLAN radio option can be identified by the FCC ID: I28MD-CXLAN11G on the
serial number label on the back of the printer.
Methods of establishing communications to MZ series
printers will vary with each LAN application. General information on establishing WLAN communications can be
found in either the ”CPCL Programmers Manual” or the
“Zebra Mobile Printer Wireless Configuration Guide” both
available on-line at www.zebra.com.
More information and LAN configuration utilities are included in Zebra’s Label Vista™ program (version 2.8 and later).
Label Vista may be downloaded from the Zebra Web site.
Setting Up the Software
MZ series printers use Zebra’s CPCL Programming language
which was designed for mobile printing applications. CPCL is
fully described in the ”CPCL Programmers Manual”, available
on-line from the Zebra Web site.
You can also use Label Vista™, Zebra’s Windows
®
based label creation program which uses a graphical interface to create and edit labels in the CPCL language.
Refer to Appendix F for tips on downloading the Label Vista
application from Zebra’s Web site.
Page 26
26
MZ Series User Guide
Wearing the Printer
Belt Clip
Refer to Figure 13. All MZ series printers are have a belt clip
installed as a standard feature. To use: hook the clip over
your belt, and ensure that the clip is securely attached to the
belt. The belt clip will pivot slightly to allow you to move freely while wearing the printer.
continued
Figure 13: Using the Belt Clip
Clip printer to belt
Page 27
27
MZ Series User Guide
Adjustable Shoulder Strap
Refer to Figure 14 if you have ordered the shoulder strap option for your printer. Secure each end of the shoulder strap as
shown below. Use the main buckle on the shoulder strap to
adjust to the desired length.
NOTE: If you are using a shoulder strap, ensure it is pulled away from
the printer when installing in the Power Station. See page 13.
Hold Buckle
Pull Strap here to
lengthen
Pull Strap here to
shorten
Figure 14: Using the Optional Shoulder Strap
Once the shoulder strap is secured,
slide the buckle as shown until
you achieve the desired
length.
Thread the free end of the shoulder strap
through one of the slots on the belt clip
Thread the free end of the shoulder strap through the
buckle and pull tight to adjust.
Secure the other end of the strap in the remaining slot on the belt clip.
Page 28
28
MZ Series User Guide
Preventive Maintenance
Extending Battery Life
• Always observe the safety precautions in the LithiumIon Battery Technical Bulletin included with each Battery
Pack.
• Never expose the battery to direct sunlight or temperatures over 104° F (40° C).
• Do not charge the battery when the temperature exceeds
113° F (45° C).
• Always use a Zebra power supply designed specifically
for the MZ series printers. Use of any other kind of power
supply may damage the battery.
• Use the correct media for your printing requirements. An
authorized Zebra re-seller can help you determine the optimum media for your application.
• If you print the same text or graphic on every label, consider using a pre-printed label.
• Choose the correct print darkness, and print speed for
your media.
NOTE: Use of label media in an MZ series printer requires a “Tone”
setting of 50 for best results. The Tone setting can be modied by
connecting the printer to a PC and using the Label Vista application.
Refer to the Cable Communications section of “Connecting the
Printer” in this manual.
• Use software handshaking (XON/XOFF) whenever possible.
• Remember that any rechargeable battery will lose its
ability to maintain a charge over time. It can only be recharged a finite number of times before it must be replaced. Always dispose of batteries properly. Refer to
Appendix D for more information on battery disposal.
• If you print while charging the battery, charge times will
be prolonged. Extensive printing while charging could
deplete the battery enough to cause the low battery
warning indicator to turn on. You should suspend printing at that time and allow the battery to re-charge completely.
continued
Page 29
29
MZ Series User Guide
General Cleaning Instructions
Caution • To avoid possible personal injury or damage to the printer,
never insert any pointed or sharp objects into the printer.
Always turn the printer o before performing any cleaning
procedures.
Use care when working near the tear bar. The edges are very sharp.
Caution • The printhead can be very hot after prolonged printing.
Allow it to cool o before attempting any cleaning procedures.
Only use a Zebra cleaning pen or a cotton swab saturated with
alcohol for cleaning the printhead.
Caution • Use only cleaning agents specied in the following tables.
Zebra Technologies Corporation will not be responsible for damage
caused by any other cleaning materials used on this printer.
Area Method Interval
Printhead
Use a Zebra cleaning pen or a
70% isopropyl alcohol solution
on a cotton swab to clean the
print elements from end to end
(the print elements are located
in the thin gray line on the
printhead).
After every five rolls of media
(or more often, if needed)
Platen
Rotate the platen roller and
clean it thoroughly with a
Zebra cleaning pen or a 70%
isopropyl alcohol solution and
a cotton swab.
Tear bar
Clean thoroughly with a
Zebra cleaning pen or a 70%
isopropyl alcohol solution and
a cotton swab.
Exterior Water dampened cloth As needed
Media
Compartment
Interior
Brush/air blow.
After every five rolls of media
(or more often, if needed)
Media/Black Bar
Sensor
MZ Series Cleaning Instructions
Page 30
30
MZ Series User Guide
continued
Figure 15: MZ Series Cleaning
Note • Twelve packs of approved cleaning pens are available from Zebra
as p/n 105950-035.
Caution • To avoid possible personal injury or damage to the Printer,
never insert any pointed or sharp objects into the Printer.
Media
Compartment
Printhead
Elements
Tear Bar
Platen Surface
Media/Black
Bar Sensor
Page 31
31
MZ Series User Guide
Troubleshooting
Interpreting Indicators
The printer’s indicators display various printer functions
and their status. Check the indicator status, then refer to the
Troubleshooting topic referenced in the chart.
Function
Indicator
Color
Indicator Status:
Steady
Indicator Status:
Blinking
Troubleshooting
Topic
Power Green
Indicates printer is on
and battery condition
is OK to use.
Blinking signifies Low
Battery
3
Charger
Amber/
Green
Of f indicates battery
is not charging. Amber indicates battery
is charging. Green
in dica tes batter y is
charged.
N/A 1,6,10
Error Amber
Off indicates no error
condition
No media or media
door is open.
Application may be
missing or corrupted
2,4,7,9
Communications
Blue
Cable/IrDA: N/A
D a t a is be in g re ceived
5,8
Bluetooth: Printer
has paired with
another Bluetooth
device.
D a t a is be in g re ceived
5,8
802.11b/g: Radio is
associated with a
WLAN
Radio is trying to associate with a WLAN.
5,8
Troubleshooting Topics
1. No power:
• Ensure you press and hold the Power switch until the
Power light comes on.
• Check that battery is installed properly.
• Recharge or replace battery as necessary.
2. Media does not feed:
• Be sure Media Cover is closed and latched.
• Check media compartment. Ensure media is not binding
on the sides of the compartment.
3. Poor or faded print
• Clean printhead.
• Check battery for possible damage. Recharge or replace as
necessary.
Page 32
32
MZ Series User Guide
• Check quality of media.
• If using label media, ensure the “Tone” setting is set to 50.
4. Partial or missing print:
• Check media alignment.
• Clean printhead.
• Ensure Media Cover is properly closed and latched.
5. No print:
• Replace battery.
• Check cable to terminal.
• (Wireless units only) Restore wireless connection.
6. Reduced battery life:
• Check battery date code — if battery is one to two years
old, short life may be due to normal aging.
• Recharge or replace battery.
7. Flashing Amber indicator:
• Check that media is loaded and that printhead is closed and
securely latched.
• If media is present and latch is closed, indicates that no
application is present or application is corrupted. Program
must be re-loaded.
8. Communication Error:
• (Wireless units only) Check that media is loaded, head is
closed and blue communication link light is on.
•(USB) Replace cable to terminal.
9. Label Jam:
• Open media cover.
• Generously apply alcohol to Printer in area of jammed
label.
10. Battery Pack Is Hard to Install
• Do not force the battery into place. Verify you have not
pinched any wires between the battery and the printer.
• Verify you are plugging the battery connector into the
printer correctly.
Page 33
33
MZ Series User Guide
Resetting an MZ Series Printer
If the printer has locked up and is not responding to any operator inputs
or external commands, either from a connected terminal or from a linked
LAN, you can perform a forced reset as follows:
Units built before June 18, 2008 ( see Figure 16- Determining Your
Printer Version, below ):
Units with a S/N having a Year Built and Week Built code earlier than
“08-25” are reset using the following procedure:
1. Open the media compartment and remove any media.
2. Press the Feed button and hold it approximately ten seconds until the
Power, Communications and Error indicators turn o and stay o.
3. After the three indicators turn o, reload the media and close the media
compartment cover.
4. Wait at least ten more seconds and press the Power button. The
Printer will restart and normal operation can resume.
Units built after June 18, 2008 ( see Figure 16- Determining Your
Printer Version, below ):
Units with a S/N having a Year Built and Week Built code of “08-25” or
later are reset using the following procedure:
1. Press and hold the power button for 5 seconds and then release.
The printer will power down.
2. Re-start the Printer as usual. Any pending data in the printer will
have been deleted and must be re-sent.
Determining Your Printer Version
The printer build date is identied by the Year and Week codes of the printer serial number label located
on the bottom of the unit. (See Figure 16 below).
Figure 16: Determining Your Printer Version (MZ 320 illustrated)
N14361
ME01
D43692
MZ 320
12V 1,25A
中
Made In China
This product is covered by one or more Zebra US patents,
This Class B digital apparatus complies with Candian ICES-003
UID#
PLACE BAR CODE HERE
XXXXSYYWWNNNNNS/N:
PLACE BAR CODE HERE
XXX-XXXXXXXX-XXPCC:
Serial Number
encoded in
128 symbology
Product Configuration
Code (PCC)
encoded in
128 symbology
Customer Code
2 Digit
Product Code
2 Digit
UID Number
encoded in
Datamatrix
ECC 200
symbology
Contain s FCC ID: I28MD-Z BR4WA; I C ID:3798 B-ZBR4WA
ZBR4
Date Code
YYWWNNNNN
Sequential number
(00001-99999),resets
each week
Week (01-52)
Last two digits
of year (00-99)
Site
1 Digit
Page 34
34
MZ Series User Guide
Troubleshooting Tests
Printing a Conguration Label
To print out a listing of the printer’s current configuration fol-
low these steps:
1. Turn the printer off. Load the media compartment with
journal media (media with no black bars printed on the
back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed
button pressed. When printing starts, release the Feed
button.
Refer to Figures 16 and 16a for a sample configuration print-
out.
Communications Diagnostics
If there is a problem transferring data between the computer
and the printer, try putting the printer in the Communications
Diagnostics Mode (also referred to as the “DUMP” mode). The
printer will print the ASCII characters and their text representation (or the period ‘.’, if not a printable character) for any data
received from the host computer
To enter Communications Diagnostics Mode:
1. Print a configuration label as described above.
2. At the end of 2nd diagnostics report, the printer will print:
“Press FEED key to enter DUMP mode”.
3. Press the FEED key. The printer will print: “Entering
DUMP mode”.
Note • If the FEED key is not pressed within 3 seconds, the printer
will print “DUMP mode not entered” and will resume normal
operation.
4. At this point, the printer is in DUMP mode and will print
the ASCII hex codes of any data sent to it, and their text
representation (or “.” if not a printable character).
Additionally, a file with a “.dmp” extension containing the
ASCII information will be created and stored in the printer’s
memory. It can be viewed, “cloned” or deleted using the Label
Vista application. (Refer the Label Vista documentation for
more information.)
Page 35
35
MZ Series User Guide
To terminate the Communications Diagnostics Mode and re-
turn the printer to normal operations:
1. Turn the printer OFF.
2. Wait 5 seconds.
3. Turn the printer ON.
Calling Technical Support
If the printer fails to print the configuration label, or you encounter problems not covered in the Troubleshooting Guide,
contact Zebra Technical Support. Technical Support addresses and phone numbers for your area can be found in
Appendix D of this manual. You will need to supply the following information:
• Model number and type (e.g. MZ 220)
• Unit serial number (Found on the large label on the back
of the printer, also found in the configuration label printout. Refer to Figure17.)
• Product Configuration Code (PCC) (15 digit number found
on the label on the back of the unit)
Page 36
36
MZ Series User Guide
Unit Serial
Number
Application
Number
Print Head Test
This example
has a
Bluetooth™
radio installed.
Figure 17: Conguration Label Example (MZ 220 illustrated)
End of First
Report
Report appears only
on units with
wireless options installed.
Units with no
wireless options will print
an empty line
and resume
Page 37
37
MZ Series User Guide
continued
Flash
Memory
Size
Maximum
Label Size
Figure17a: Conguration Label Example (continued)
Bluetooth
radio
parameters
Page 38
38
MZ Series User Guide
Figure 17c: Conguration Label Example (continued)
Amount of
Memory
Available
Resident Fonts
CCL (CPCL)
programming
language is
supported
Page 39
39
MZ Series User Guide
Specifications
Note.- Printer specications are subject to change without notice.
Printing Specications
Parameter MZ 220 MZ 320
Print Width Up to 1.89 in. (48,0 mm) Up to 2.9 in. (71,2 mm)
Print Speed (max) 3” per second (76,2 mm/second)
Print Speed (normal) 2” per second (5,0 mm/second)
Print Head Life,
calculated
1 x 10
6
in. (25,4 Km) nominal
Print Density 203 dots/inch (8 dots/mm)
Printhead Burn
Line to Tear Edge
0.2 in. (5,08 mm)
Memory and Communications Specications, MZ series
Flash Memory
8 MB
SRAM
16 MB
Standard
Communications
USB 2.0 Full Speed Interface (12 Mbps)
& Infrared wireless link (meets IrDA 1.1
communications specifications )
Optional Wireless
Communications
Optional Bluetooth compatible module
Optional 802.11b/g SRRF module
Only one wireless option may be installed in a printer.
Media Specications
Parameter MZ 220 MZ 320
Width
2.0 ± .03 in.
(50,8 ±0,8 mm)
3.0 ± .03 in.
(76,2 mm ±0,8 mm)
Max.
Printable
Area
Width
Length
1.9” (48,3 mm) 2.9” (73,7 mm)
Maximum length will vary with the size of loaded applications.
Refer to the configuration label for actual maximum label size.
Label Thickness .002 in to .004 in (0,050 mm to 0,102 mm)
Max. Media Roll
dia.
1.88 in. (47,8 mm) O.D.
Label Inner Core
Diameter
0.40 to 0.75 in.. (10,2 to 19,0 mm)
Black Mark
Dimensions
The reflective media black marks should extend past the
centerline of the roll on the front side of the media.
Minimum mark width: 0.59 in. (15 mm) perpendicular
to edge of media, centered within the width of the roll.
Mark length: 0.19 - 0.24 in. (3,0-6,0 mm) parallel to
edge of media
Use Zebra brand direct thermal or UV resistant coated media that is outside wound. Refer to Appendix
“B” for more details.
Page 40
40
MZ Series User Guide
Font and Bar Code Specications for MZ Series
Linear &
2-D Bar
Bar Codes
Available
Codabar (NW-7)
UCC/EAN 128
Code 39
Code 93
EAN 8/JAN 8, 2 and 5 digit extensions
EAN 13/JAN 13, 2 and 5 digit extensions
EAN 14/JAN 14, 2 and 5 digit extensions
lnterleaved 2 of 5
MSI/Plessey
FIM/POSTNET
UPC-A, 2 and 5 digit extensions
UPC-E, 2 and 5 digit extensions
QR Code
MaxiCode
PDF 417
RSS (Reduced Space Symbology
®
)
Composite Symbology
®
Rotation
Angles
0°, 90°, 180°, and 270°
Fonts
Available
Standard Fonts: 25 bit-mapped fonts; 1
scalable (CG Trimvirate Bold Condensed*)
Downloadable optional bit-mapped &
scalable fonts via Label Vista software
International character sets:
Chinese 16 x 16 (trad.), 16 x 16 (simplified),
24 x 24 (simplified);
Japanese 16 x 16, 24 x 24
Korean Myang 16 x 16
Greek
Hebrew/Arabic
*Contains UFST from Agfa Monotype Corporation
Page 41
41
MZ Series User Guide
continued
USB Communications Port
Figure 17: USB Communications Port
5 1
Pin# Signal Name Type Description
1 VBUS - USB Bus Power
2 USB - bi-directional I/O signals
3 USB + bi-directional I/O signals
4 USB_ID - Identifies A/B connector
5 Return - Ground
Physical, Environmental and Electrical Specications
Parameter
MZ 220 MZ 320
Weight w/
battery,
excluding media
.70 lbs.
(317,5 g. )
.75 lbs.
(340,2 kg.)
Temperature
Operating : 14° to 122° F (-10° to
50° C)
Charging: 32° to 104° F (-0° to 40° C)
Storage w/o battery: -4° to 140° F
(-25° to 60° C)
Storage w/ battery: -4° to 113° F
(-25° to 45°C)
Relative
Humidity
Operating: 10% to 90% (non-
condensing)
Storage: 10% to 90% (non-
condensing)
Battery
Lithium-Ion, 7.4 VDC (nominal);
1500 mAHr.
Printer Input
Power
12.0 VDC; 1.25A
Ingression
Protection (IP)
Rating
42
Page 42
42
MZ Series User Guide
Figure 18: MZ 220 Overall Dimensions
Figure 19: MZ 320 Overall Dimensions
5.34” (135,6 mm)
3.18” (80,7 mm)
2.26”
(57,4 mm)
2.47”
(62,7 mm)
5.34” (135.6 mm)
2.26”
(57,4 mm)
2.47”
(62,7 mm)
4.11” (104,4 mm)
Page 43
43
MZ Series User Guide
MZ Series Accessories
Description
MZ 220 MZ 320
Adjustable shoulder strap
• •
Protective soft case
• •
Vehicle Adapter Cable
• •
Extra battery packs
• •
MZ Series Quad Power
Station
100-240 VAC
• •
Refer to Appendix A for information on Data I/O Cables
For more details on available accessories, contact your authorized
Zebra re-seller.
Page 44
48
MZ Series User Guide Appendices
Appendix A
Interface Cables
USB Cable
Part Number AT17010-1; USB A to USB Mini B Cable
MORE INTERFACE CABLES
Contact the Factory or your Zebra Sales Representative for more
information on interface cables to most major manufacturer’s data
terminals.
You may also visit the Zebra Web site at
http://www.zebra.com for a
listing of interface cables for all series of Zebra mobile printers
Page 45
49
MZ Series User Guide Appendices
Appendix B
Media Supplies
To insure maximum printer life and consistent print quality and performance for your individual application, it is recommended that only media produced by Zebra be used.
Advantages include:
• Consistent quality and reliability of media products.
• Large range of stocked and standard formats.
• In-house custom format design service.
• Large production capacity which services the needs of
many large and small media consumers including major
retail chains world wide.
• Media products that meet or exceed industry standards.
MZ Series Media
Z-Select 4000D 3.2 mil Receipt
Width x Length Part # Length Rolls/Carton Wt/Carton
2.00” (50,8 mm) x Cont.
10011043 55’ (16,76 M)
36 9 lbs.
3.00” (76,2 mm) x Cont.
10011044 55’ (16,76 M)
36 13 lbs.
Z-Select 1000D 2.4 mil Receipt
Width x Length Part # Length Rolls/Carton Wt/Carton
2.00” (50,8 mm) x Cont.
10011041 80’ (24,39 M)
36 9 lbs.
3.00” (76,2 mm) x Cont.
10011042 80’ (24,39 M
36 13 lbs.
For more information call Zebra Technologies Corporation at
+1.866.230.9495 (U.S., Canada and Mexico) and ask to speak
to a Media Sales Representative.
Appendix C
Maintenance Supplies
In addition to using quality media provided by Zebra, it is
recommended that the printer be cleaned as prescribed in the
maintenance section. The following items are available for
this purpose:
• Cleaning Pen (12 pack), Reorder No. 105950-035
Page 46
50
MZ Series User Guide Appendices
Appendix D
Battery Disposal
The EPA certified RBRC® Battery Recycling
Seal on the Lithium-Ion (Li-ion) battery supplied
with your printer indicates Zebra Technologies
Corporation is voluntarily participating in an industry program to collect and recycle these
batteries at the end of their useful life, when
taken out of service in the United States or Canada. The RBRC
program provides a convenient alternative to placing used
Li-ion batteries into the trash or the municipal waste stream,
which may be illegal in your area.
Important • When the battery is worn out, insulate the terminals with
tape before disposal
Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/restrictions in your area.
Zebra Technologies Corporation’s involvement in this program
is part of our commitment to preserving our environment and
conserving our natural resources.
Outside North America, please follow local battery recycling
guidelines.
Product Disposal
Do not dispose of this product in unsorted
municipal waste. This product is recyclable.
Please recycle according to your local standards. For more information, please see our
web site at: http://www.zebra.com/recycle.
Page 47
51
MZ Series User Guide Appendices
Appendix E
Product Support
When calling with a specific problem regarding your
printer, please have the following information on hand:
• Model number/type (e.g. MZ 220)
• Unit serial number
• Product Configuration Code (PCC)
For Product Support Contacts, see the table on the next
page or contact your local re-seller.
MZ Series Serial Number Label
MZ 220 illustrated
Serial
Number
Bar Code
PCC
Bar Code
Page 48
52
MZ Series User Guide Appendices
In the Americas contact
Regional Headquarters Technical Support Customer Service Dept.
Zebra Technologies Corporation
475 Half Day Road, Suite 500
Lincolnshire, Illinois 60069 U.S.A
T: +1 847 634 6700
Toll-free +1 800 423 0422
T: +1 847 913 2259
F: +1 847 913 2578
Hardware:
hwtsamerica@zebra.com
Software:
swtsamerica@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +1 866 230 9494
F: +1 847 913 8766
E: VHCustServ@zebra.com
In Europe, Africa, the Middle East, and India contact
Regional Headquarters Technical Support Internal Sales Dept.
Zebra Technologies Europe Limited
Dukes Meadow
Millboard Road
Bourne End
Buckinghamshire SL8 5XF, UK
T: +44 (0) 1628 556000
F: +44 (0) 1628 556001
Self Service Knowledgebase:
www.zebra.com/knowledgebase
Email Back Technical Library:
Send email to: emb@zebra.com
Subject: Emaillist
On-Line case registration:
www.zebra.com/techrequest
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +44 (0) 1494 768316
F: +44 (0) 1494 768244
E: mseurope@zebra.com
In the Asia Pacic region contact
Regional Headquarters Technical Support Customer Service
Zebra Technologies Asia Pacic, LLC
71 Robinson Road #05-02/03
Singapore 068895
T: +65 6858 0722
F: +65 6885 0838
T: +65 6858 0722
F: +65 6885 0838
E: tsasiapacic@zebra.
com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0837
Product Support Contacts
Page 49
53
MZ Series User Guide Appendices
Appendix F
Using zebra.com
The following details using the search functions on Zebra’s
Web site www.zebra.com for finding specific documents .
Go to http://www.zebra.com/us/en/support-downloads.html
Select the appropriate printer in the Printer Support dropdown menu.
Click on the Manuals tab and select the desired language from the dropdown menu.
At the resulting screen, select “MZ Series User Guide (en)” or Download to view.
Select
language
Select printer
model (e.g.
MZ 320)
Page 50
54
MZ Series User Guide Appendices
Go to http://www.zebra.com/us/en/support-downloads/mobile/mz-320.html
Click on Software & Utilities tab to download Label Vista.
Click on
“Download” to
download Label
Vista to your local
drive
Page 51
55
MZ Series User Guide
Index
A
Accessories
Belt clip 26
list of 43
Shoulder Strap 27
B
Battery, charging 12
MZ Series Charger Power Supply 13
using Quad Power Station 14
Battery, installing 10
Battery life, tips for extending 28
Battery, removing 11
Bluetooth Device Address (BDA) 24
Bluetooth™ Networking Overview 24
C
Cleaning
general instructions 29
Communications
infrared (IR) 23
USB
Connector signals 41
with a cable 22
Communications diagnostics 34
Configuration Label
printing 34
to determine maximum label size 37,?39
D
Damage, shipping 8
L
Label Vista 25
use in troubleshooting 34
M
Manual
CPCL Programming 8,?25
Media
loading 16
pre-printed 17
O
Operator Controls 19
P
Programming language
CPCL 8
R
Radio options.?See Wireless communications
S
Safety Precautions
placement of charger 15
while charging batterys 15
Software 25
Specifications
Font/bar Code 40
Memory/communications 39
Physical 41
printing 39
T
Technical Support, contacting 35
Troubleshooting
Communications Diagnostics Mode 34
control panel indicators 31
Troubleshooting tests 34
printing a configuration label 21,?34
QL configuration label example 33,?36
Troubleshooting Topics 31
W
Wireless communications
Bluetooth™ radio 24
Infrared (IrDA) 23
WLAN Overview 25
Page 52
