UMAN-MZS-004 rev. A
January, 2007
Table of Contents
Proprietary Statements ..............................................................5
Document Conventions ..............................................................
Introduction to the MZ Series ....................................................
Unpacking and Inspection ............................................................... 8
Reporting Damage ...........................................................................
Getting Ready to Print .............................................................. 10
Battery .............................................................................................10
Installing the Battery .................................................................................. 10
MZ Series Quad Power Station ................................................................. 13
Battery Safety ............................................................................................. 14
Charger Safety ............................................................................................ 14
Loading the Media ......................................................................... 15
Operator Controls .......................................................................... 17
Verify the Printer Is Working .........................................................

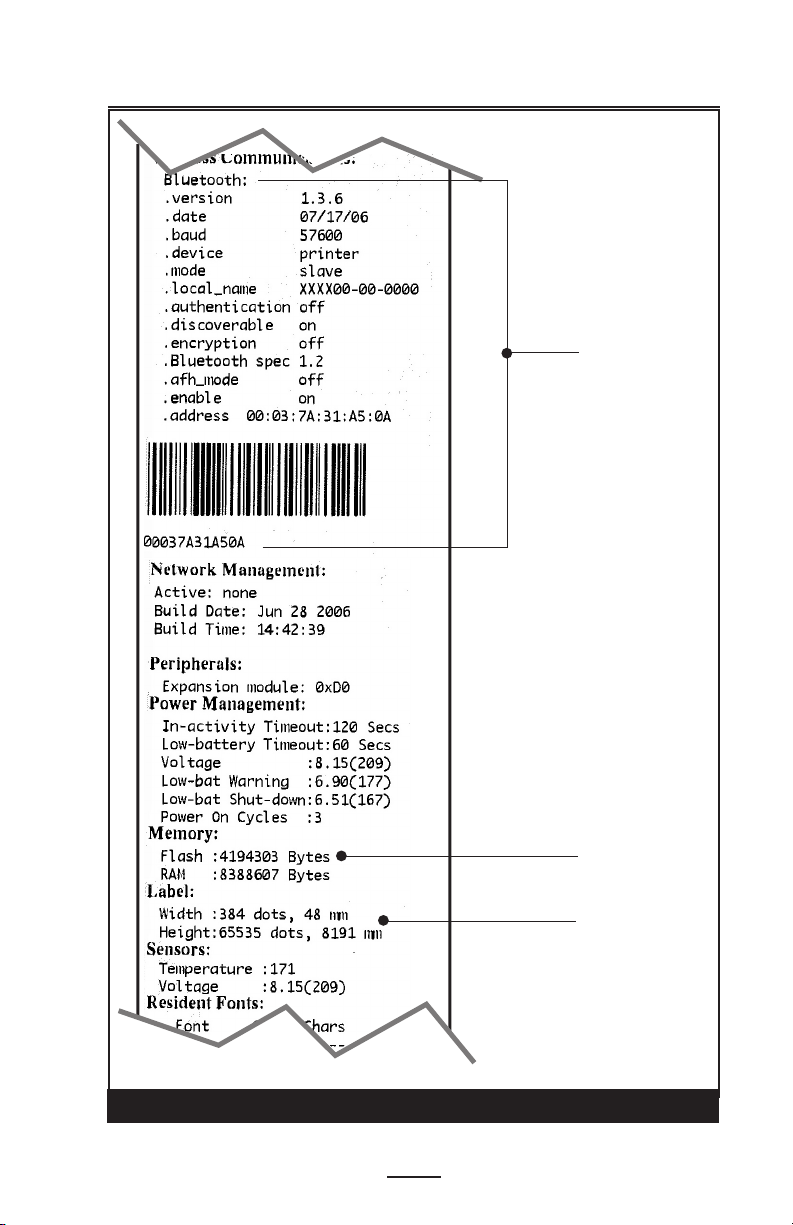

Printing a Configuration Label ................................................................... 19
Connecting the Printer ................................................................... 19

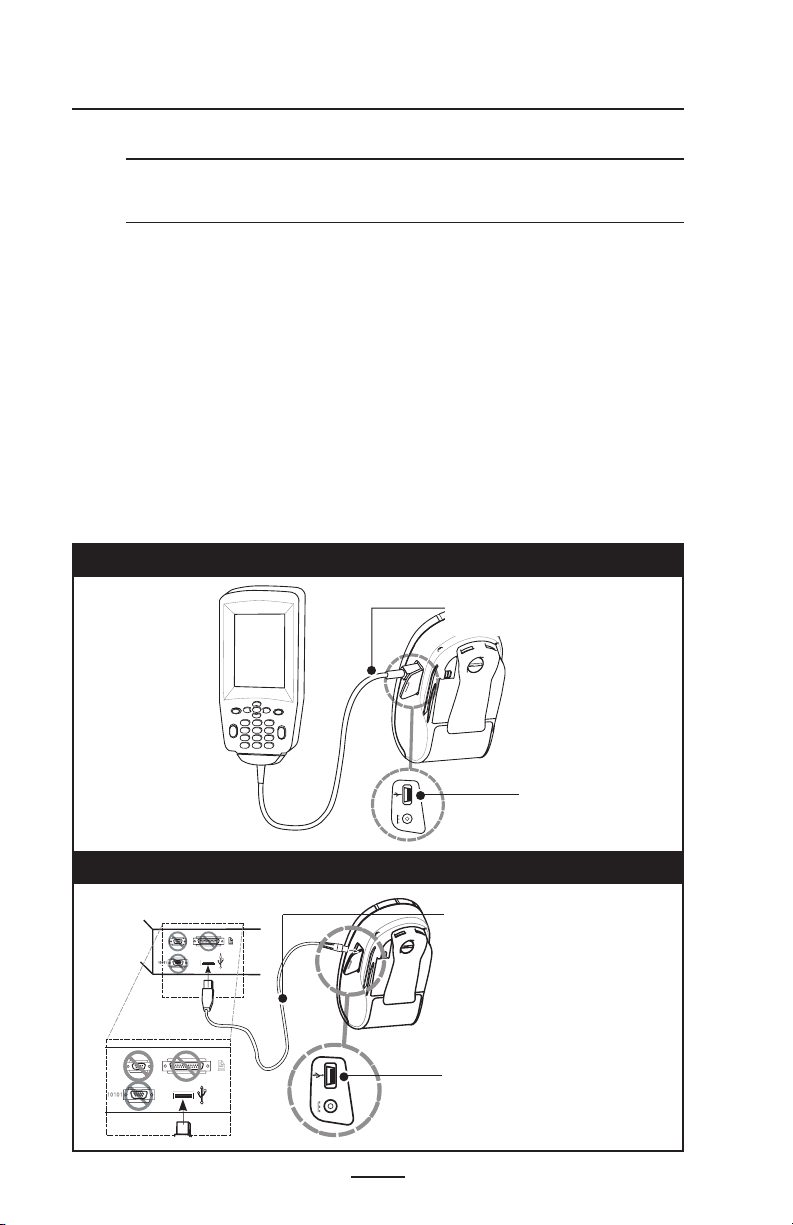

Cable Communication ................................................................................ 20

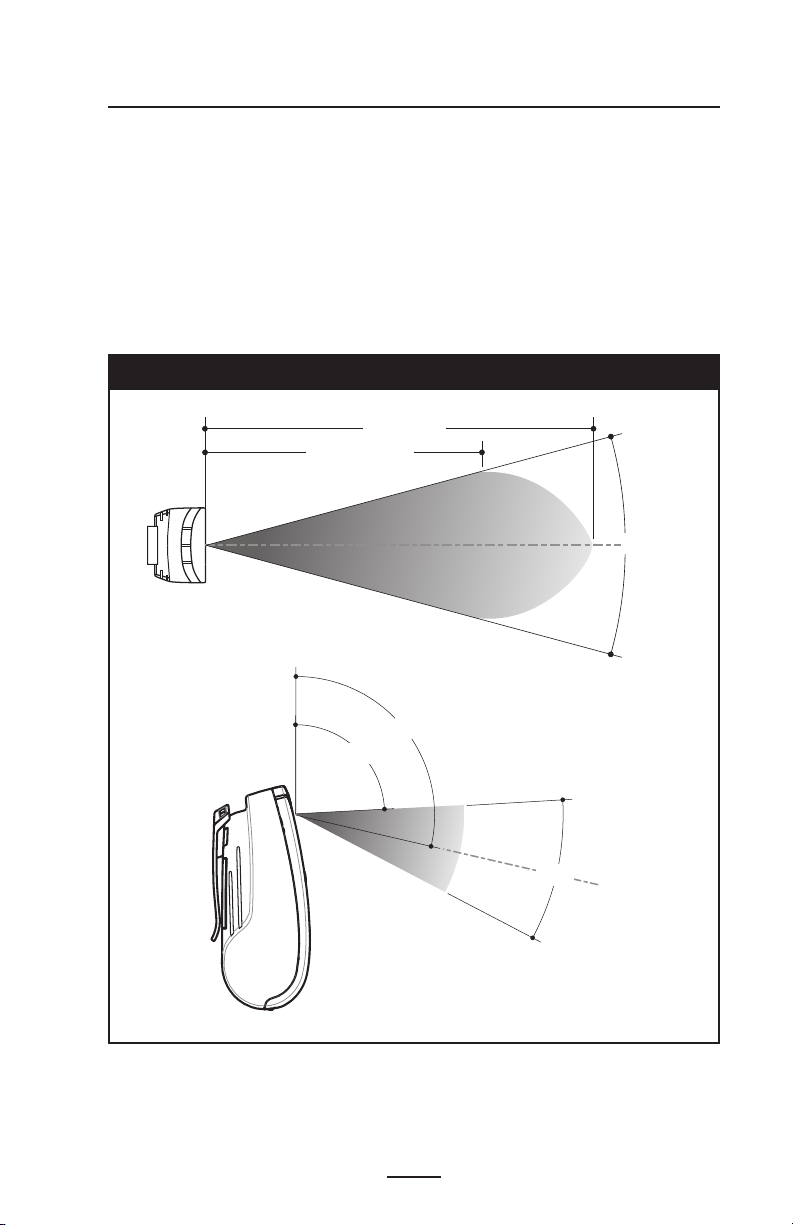

IR Communications .................................................................................... 21
Wireless Communications with Bluetooth™ ............................................. 22
Bluetooth Networking Overview ............................................................... 22
WLAN Overview ............................................................................. 23
Setting Up the Software ................................................................ 23
Radio Regulatory Information ..................................................24
Zebra Bluetooth Radios MZ-ZBR3 ............................................................. 24
WLAN Module Using 802.11b/g Radio ..................................................... 25
Wearing the Printer ................................................................... 27
Belt Clip ....................................................................................................... 27
Adjustable Shoulder Strap ......................................................................... 28
Preventive Maintenance ...........................................................29
Extending Battery Life ...................................................................29
General Cleaning Instructions .......................................................
Troubleshooting ......................................................................... 32
Interpreting Indicators ................................................................... 32
Troubleshooting Topics .................................................................
Resetting an MZ Series Printer .....................................................33
Troubleshooting Tests ...................................................................34
Printing a Configuration Label ................................................................... 34
Communications Diagnostics .................................................................... 34
Calling Technical Support ..........................................................................
Specifications .............................................................................39
Printing Specifications .............................................................................. 39
Memory and Communications Specifications,
Media Specifications .................................................................................. 39
Font and Bar Code Specifications for MZ Series ......................................
USB Communications Port ........................................................................ 41
Physical, Environmental and Electrical Specifications .............................
MZ Series Accessories .............................................................................. 43
Appendix A - Interface Cables .......................................................44
MZ series ....................... 39
7
8
8
19
30
32
35
40
41
3
MZ Series User Guide
continued
Appendix B ................................................................................. 45
Media Supplies ........................................................................................... 45
MZ Series Media ........................................................................................ 45
Appendix C - Maintenance Supplies ............................................... 45
Appendix D .................................................................................46
Battery Disposal ......................................................................................... 46
Product Disposal ........................................................................................
46
Appendix E .................................................................................47
Product Support ......................................................................................... 47
Product Support Contacts .........................................................................
48

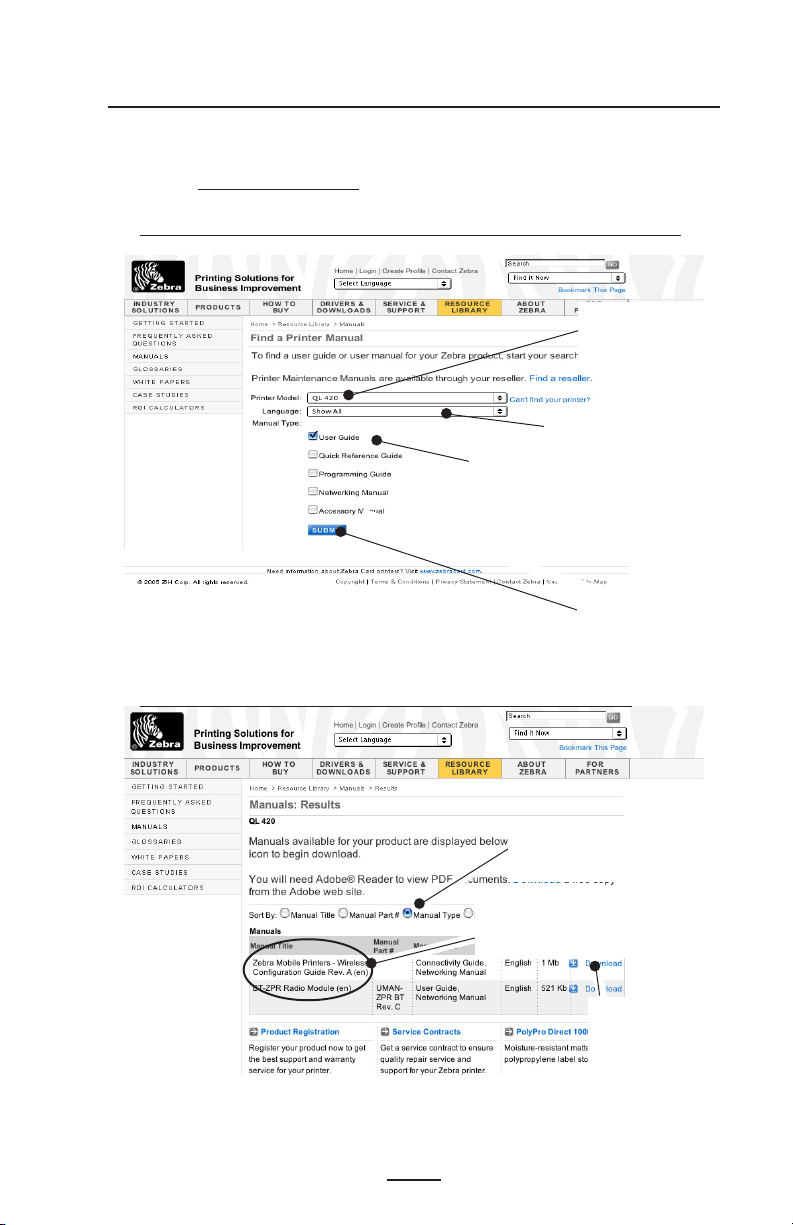

Appendix F - Using zebra.com ....................................................... 49
Index ............................................................................................
52
Patent Numbers ......................................................................... 53
4
MZ Series User Guide
Proprietary Statements
This manual contains proprietar y information of Zebra Technologies Corporation. It is
intended solely for the information and use of par ties operating and maintaining the equip
ment described herein. Such proprietary information may not be used, reproduced, or dis
closed to any other parties for any other purpose without the expressed written permission
of Zebra Technologies Corporation.
Product Improvements
Since continuous product improvement is a policy of Zebra Technologies Corporation, all
specifications and signs are subject to change without notice.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with the limits or a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equip
ment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communica
tions. However, there is no guarantee that inter ference will not occur in a particular ins tal
lation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment of f and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet or circuit different from that to which the re
ceiver is connected.
• Consult the dealer or an experienced radio/T V technician for help.
WARNING: Exposure to Radio Frequency radiation. To conform to FCC RF exposure re
quirements this device shall be used in accordance with the operating conditions and in
structions lis ted in this manual. Note that there are several radio options available with this
printer. Additional regulatory information is contained in later sections devoted to each
radio individually.
NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to insure compliance.
Changes or modifications to this unit not expressly approved by Zebra Technologies Cor
poration could void the user’s authority to operate this equipment.
-
-
-
-
-
-
Canadian Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
“IC:” before the equipment certification number signifies that the Industry Canada techni
cal specifications were met. It does not guarantee that the certified product will operate to
the user’s satisfaction.
-
Agency Approvals and Regulatory Information
• Design certified by TUV • FCC part 15
• Canadian STD RSS-210 • EN55024:1998 European Immunity Standard
• EN60950: 2000 Safety Standard • NOM/NYCE (Mexico)
• C-Tick (Australia) • EN55022:1998 Class B European
Electromagnetic Radiation Standard
Liability Disclaimer
Inasmuch as every e ffort has been made to supply accurate information in this manual,
Zebra Technologies Corporation is not liable for any erroneous information or omissions.
Zebra Technologies Corporation reserves the right to correct any such errors and disclaims
liability resulting therefrom.
No Liability for Consequential Damage
In no event shall Zebra Technologies Corporation or anyone else involved in the creation,
production, or deliver y of the accompanying product (including hardware and software)
be liable for any damages whatsoever (including, without limitation, damages for loss of
business profit s, business interruption, loss of business information, or other pecuniary
loss) arising out of the use of or the results of use of or inabilit y to use such produc t, even
if Zebra Technologies Corporation has been advised of the possibility of such damages.
Because some states do not allow the exclusion of liability for consequential or incidental
damages, the above limitation may not apply to you.
-
-
-
5
MZ Series User Guide
continued
Copyrights
The copyrights in this manual and the label print engine described therein are owned by
Zebra Technologies Corporation. Unauthorized reproduction of this manual or the sof tware
in the label print engine may result in imprisonment of up to one year and fines of up to
$10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.
This produc t may contain ZPL
®
, ZPL II®, and ZebraLinktm programs; Element Energy Equalizer® Circuit; E3®; and AGFA fonts. Software © ZIH Corp. All right s reserved worldwide.
ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo,
ZPL, ZPL II, Element Energy Equalizer Circuit, and E3 Circuit are registered trademarks of
ZIH Corp. All rights reserved worldwide.
Monot ype
the United St ates Patent and Trademark O ffice and may be registered in certain jurisdic
tions.
Andy
Kai
Inc. and may be registered in some jurisdictions.
HY Gothic Hangul
Angsana
Andale
®
, Intellifont® and UFST® are trademarks of Monot ype Imaging, Inc. registered in
TM
, CG PalacioTM, CG Century SchoolbookTM, CG TriumvirateTM, CG TimesTM, Monot ype
TM
, Monot ype MinchoTM and Monotype SungTM are trademarks of Monot ype Imaging,
TM
TM
®
, Arial®, Book Antiqua®, Corsiva®, Gill Sans®, Sorts® and Times New Roman® are
is a trademark of Hanyang Systems, Inc.
is a trademark of Unity Progress Company (UPC) Limited.
-
trademarks of The Monot ype Corporation registered in the United States Patent and Trade
mark Office and may be registered in cert ain jurisdictions.
Century Gothic™, Bookman Old Style
TM
and Century SchoolbookTM are trademarks of The
Monot ype Corporation and may be registered in certain jurisdictions.
HGPGothicB is a trademark of the Ricoh company, Ltd. and may be registered in some ju
risdictions.
TM
Univers
is a trademark of Heidelberger Druckmaschinen AG, which may be registered in
-
certain jurisdictions, exclusively licensed through Linot ype Library GmbH, a wholly owned
subsidiar y of Heidelberger Druckmaschinen AG.
®
is a trademark of Bauer Types SA registered in the United States Patent and Trade-
Futura
mark Office and may be registered in some jurisdictions.
TrueType
®
is a trademark of Apple Computer, Inc. registered in the United St ates Patent and
Trademark Of fice and may be registered in cer tain jurisdictions.
All other product names are the property of their respective owners.
All other brand names, product names, or trademarks belong to their respective holders.
©
2006 ZIH Corp.
-
6
MZ Series User Guide
Document Conventions
The following conventions are used throughout this docu-
ment to convey certain information:
If you are viewing this guide online, click the underlined text
to jump to a related Web site. Click on italic text (not underlined) to jump to that location in this manual.
Cautions, Important, and Note
Caution • Warns you of the potential for electrostatic discharge.
Caution • Warns you of a potential electric shock situation.
Caution • Warns you of a situation where excessive heat could cause
a burn
Caution • Advises you that failure to take or avoid a specific action
could result in physical harm to you.
Caution • Advises you that failure to take or avoid a specific action
could result in physical harm to the hardware.
Important • Advises you of information that is essential to complete a
task.
Note • Indicates neutral or positive information that emphasizes or
supplements important points of the main text.
7
MZ Series User Guide
Introduction to the MZ Series
Thank you for choosing one of our Zebra® MZ™ series
Mobile Printers. These rugged printers are sure to become
productive and efficient additions to your workplace thanks
to their innovative design. Because they are made by Zebra
Technologies, you’re assured of world-class support for all of
your bar code printers, software, and supplies.
• This user’s guide gives you the information you will need
to operate any MZ series printer.
• The MZ series uses the CPCL programming language.
To create and print labels using the CPCL language, re
fer to the Mobile Printer Programming Guide and our
Label Vista™ label creation program which are both available on our Web site at www.zebra.com.
Unpacking and Inspection
Inspect the printer for possible shipping damage:
• Check all exterior surfaces for damage.
• Open the media cover (refer to “Loading the Media” in
the Getting Ready to Print section) and inspect the media
compartment for damage.
In case shipping is required, save the carton and all packing
material.
Reporting Damage
If you discover shipping damage:
• Immediately notify and file a damage report with the shipping company. Zebra Technologies Corporation is not responsible for any damage incurred during shipment of
the printer and will not cover the repair of this damage
under its warranty policy.
• Keep the carton and all packing material for inspection.
• Notify your authorized Zebra re-seller.
8
MZ Series User Guide
Figure 1: MZ Series Overview (MZ 220 Illustrated)
13
14
12
11
10
9
8
7
1. Feed Switch
2. Media Status Light
3. USB Port
4. Battery Charging Receptacle
5. Media Sensor
6. Media Cover
7. Platen
8. Printhead
9. Latch Release Button
10. Communications Status
Indicator
11. IR window
12. Charge Status Indicator
13. Power Switch
14. Power Indicator
15. Belt Clip
16. Battery Door Latch
17. Bat tery Compartment Cover
18. Battery Pack
19. External Charge Contacts
1
2
3
4
5
6
15
16
19
9
MZ Series User Guide
18
17
Getting Ready to Print
Battery
Installing the Battery
Important • Batteries are shipped partially charged. Remove any
protective packaging from new battery packs prior to use.
Figure 2: Installing the Battery
1. Use a coin to rotate the
Battery Compartment
lock 1/4 turn as shown.
2. Remove the Battery
Compartment Cover
Battery Pack
Note location of label
3. Plug the Battery
Pack connector into the
Printer.
4. Re-install the Bat tery Compar tment Cover and
rotate the lock back 1/4 turn to lock it in place .
Ensure the battery leads are not pinched prior to replacing the
battery cover.
10
MZ Series User Guide
When the battery is first installed, the printer power and
charge indicators should indicate the battery is not fully
charged (see “Charging the Battery” below and “Operator
Controls”).
You must charge the battery fully before using the printer for the first
time.
Charging the Battery
Preparing the Charger Power Supply
Before charging the battery for the first time, you must prepare the Charger Power Supply. Refer to Figure 3
Figure 3: Preparing the Charger Power Supply
Shipping Ring
Remove and discard
Mains Adapter
3. Install the mains adapter into
the Power Supply by hooking
the top edge into the mains
receptacle cavity, and rotating
it until it snaps into place.
1. Remove the power supply from its box. Remove
and discard the shipping
ring from the mains receptacle cavity.
2. Verify that the mains adapter
shipped with your Printer is the correct
one for your region.
UK -230 VAC
Euro -230 VAC
US/Japan-100-110 VAC
China-220 VAC
Aust-240
11
MZ Series User Guide
continued
Figure 4: Charging the Battery
MZ Series Charger Power Supply p/n AT17947-1
110-240 VAC 50-60 Hz 0.6A Input; 12 VDC 1.25 A output
Plug into AC receptacle
Charger Jack
12 VDC
Charging the battery
Refer to Figure 4.
1. Plug the Charger Power Supply into the appropriate A.C.
wall receptacle. Then insert the charge cable into the
printer’s charger jack.
2. The printer’s charger indicator will indicate the status of
the charger as follows:
• An amber light indicates the battery is charging, and that
the battery is less than 90% charged.
• A green light indicates the battery is fully charged. The
battery is ready for use.
Approximate Charge Times :
Batteries are fully charged after 2.5 hours from the low-battery shut-off state. Partially discharged batteries will take less
time to charge.
NOTES: Use of the printer while charging will increase charge times.
Charge times are for completely discharged batteries.
As a safety feature the battery will stop charging after 4.5
hours regardless of the battery’s charge state.
12
MZ Series User Guide
MZ Series Quad Power Station
The MZ series Quad Power Station is designed to dock and
charge up to four MZ series printers of either type simultaneously.
1. Ensure that the Power Station has been installed properly
per its instruction manual. Ensure that the power supply
is properly connected and its power indicator light is on.
2. Slide a printer into any one of the four docking bays as
shown in Figure 5.
NOTES: If you are using a shoulder strap, ensure it is pulled away
from the printer when installing in the Power Station.
Do not use the printer when it is installled in the Power
Station
The printer’s charge status indicator will turn amber if the
printer is properly inserted and the battery is less than
90% charged.
The printer’s charge indicators will allow you to monitor the
Figure 5: MZ Series Quad Power Station
MZ 220 Printer
MZ 320 Printer
Green (Power)
Indicator
Slide Printer into docking bay
Amber/Green (Charge)
Indicator
13
MZ Series User Guide
charging process. Refer to the Controls section of this manual
for more information.
Battery Safety
Caution • Avoid accidental short circuiting of any battery. Allowing
battery terminals to contact conductive material will create a short
circuit which could cause burns and other injuries or could start a
fire.
Important • Always dispose of used batteries properly. Refer to
Appendix D for more battery recycling information.
Caution • Use of any charger not approved specifically by Zebra for
use with its batteries could cause damage to the battery pack or the
printer and will void the warranty.
Read carefully and always observe the safety guidelines for Li-Ion
batteries provided with each Battery Pack.
Charger Safety
Do not place the Power Station in locations where liquids or metallic
objects may be dropped into the charging bays.
Use care when installing either the Charger Power Supply shipped
with the printer or the power supply supplied with the MZ series
Power Station. Do not block the ventilating slots on the top and
bottom covers of either power supply.
Ensure that the Charger Power Supply is plugged into a power
source which will not accidently be turned off if you will be charging
batteries overnight.
14
MZ Series User Guide
Loading the Media (All models)
1. Open the printer: Refer to Figure 6.
• Press the latch release button on the top of the printer as
shown at “1” below. The media cover will flip open auto
matically revealing the media compartment.
2. Load the media: Refer to Figure 7
• Insert the roll of media into the media compartment.
Ensure that the media pulls off the core in the direction
shown in Figure 6.
3. Close the Media Cover:
• Pull a short length of media out of the printer
• Close the Media Cover firmly and ensure it is securely
latched on both sides..
• Turn on the printer and press the Feed button.
The printer will advance media until the Feed button is re-
leased. Verify the media is feeding properly and without
binding or skewing sideways
Figure 6: Opening the MZ Printer (MZ 220 shown)
Refer to Figure 8.
-
Latch Release
Button
Media Compartment
continued
15
MZ Series User Guide
Figure 7: Installing Media
Figure 8: Closing the Media Cover
Media Roll
Note direction media
pulls off the roll.
Pull a short length of media
out of the Printer
Media Cover
Ensure both sides of the media
cover are securely latched
when closed.
16
MZ Series User Guide
Operator Controls
MZ series printer controls are detailed below and in Figure 9.
The printer has two control buttons and four multipurpose
indicators.
The Power Button turns the printer on and off.
The Feed Button advances a length of media until it is re
leased.
The Green/Amber indicator to the left of the Power Button
indicates the status of the printer’s built-in charger:
• The indicator is off indicates the battery is not being
charged.
• If the indicator is amber the battery is being charged.
• If the indicator is green, the battery is fully charged.
The Green Indicator between the Power and Feed buttons
has two states:
• A rapidly blinking light indicates a low battery condition.
• A steadily lit indicator means that power is on and the
battery charge level is sufficient for use
The Amber Indicator to the right of the Feed button is an er
ror indicator.
• An un-lit indicator means there is no error condition and
the printer can be used.
• A blinking indicator could mean one of two conditions ex
ist, which will inhibit printer operation:
1. There is no media loaded.
2. The media cover is open.
3. If both the above conditions are met and the error
light is still flashing, there could be no application loaded in the printer, or the application could have become
corrupted.
The Blue Indicator just above the product I.D. label is a communications indicator. Its functions vary depending on the
wireless communications option installed in the printer.
• If the printer uses only standard IrDA
nication:
A blinking light indicates data is being received from a
linked IrDA device.
• If the printer has a Bluetooth™ radio option:
1. A steady light indicates the printer has paired with an-
®
wireless commu-
-
-
-
17
MZ Series User Guide
other Bluetooth device.
2. A blinking light indicates that the printer is receiving
data via Bluetooth communications.
• If the printer has an 802.11b/g radio installed:
1. A steady light indicates the printer has associated with
a wireless Local Area Network (WLAN).
2. A blinking light indicates that the printer is attempting
to associate with a WLAN.
Figure 9: Printer Controls
Power Light (Green)
Indicates power status and bat tery condition.
A steadily lit indicator means the bat tery has
more than a 30% charge remaining. A blinking
indicator means the batter y has less than a
Power Button
Press and hold to turn unit on.
Press again to turn unit of f.
Charge Light
(Green/Amber)
Green indicates the battery
fully charged. Amber indicates
the bat tery is less than 90%
charged.
30% charge remaining.
Feed Button
Press to advance the media. Release to stop.
Media Status Light
(Amber)
When off Indicates normal operation.Blinking indicates either no
media or that the media compartment is open.
IrDA Window
IrDA enabled devices must be located
within the printer’s IR zone for IR
communications to occur.
Refer to the IR Communications section.
MZ Series User Guide
Communication Light (Blue)
When lit steadily indicates a wireless
communications link is established, when
blinking indicates data transmission.
18
Verify the Printer Is Working
Before you connect the printer to your computer, portable
data terminal or wireless LAN, make sure that the printer is in
proper working order. You can do this by printing a configuration label using the “two key reset” method. If you can’t get
this label to print, refer to “Troubleshooting”.
Printing a Configuration Label
1. Turn the printer off. Load the media compartment with
journal media (media with no black bars printed on the
back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed
button pressed. When printing starts, release the Feed
button.
The unit will print a line of interlocking “x” characters to
ensure all elements of the print head are working, print out the

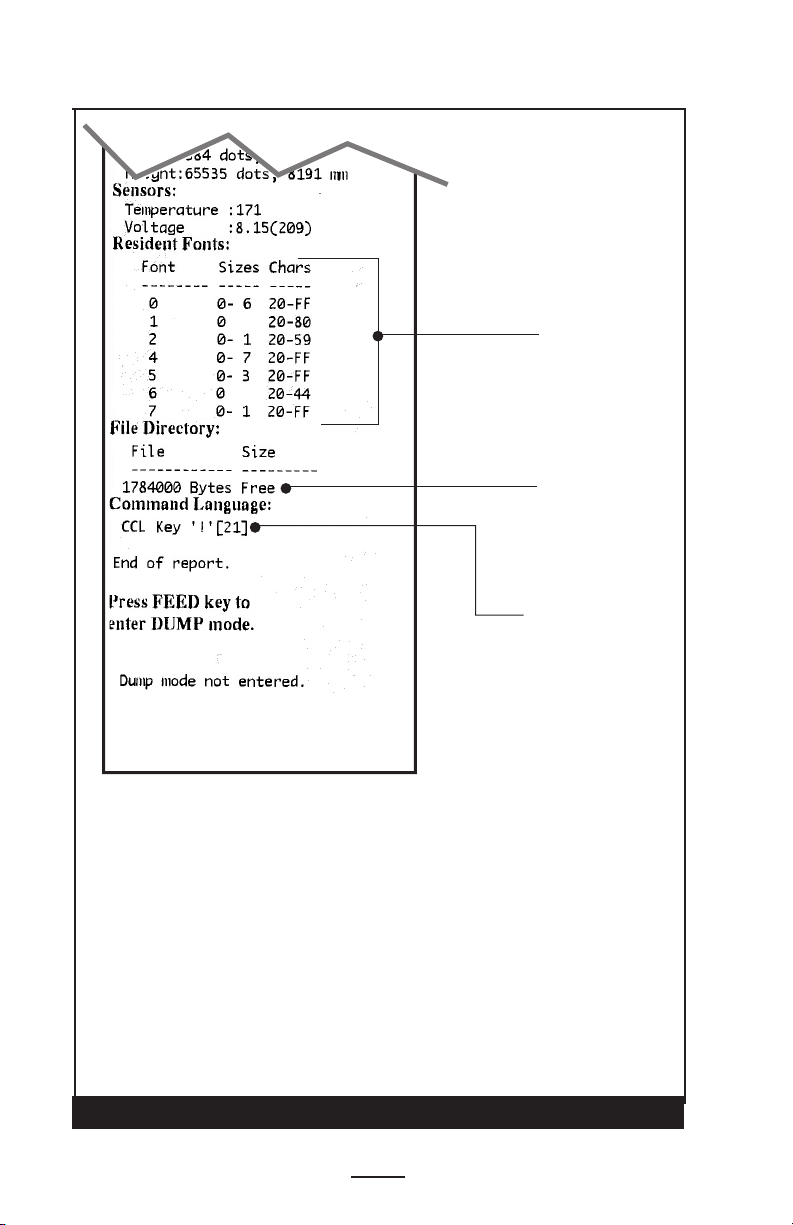

version of software loaded in the printer and then print two reports.
The first report indicates model, ROM version, serial num
ber, etc. The second report prints out more detailed information on the printer’s configuration and parameter settings. If
no second report appears, there is no application loaded. (See
the Troubleshooting Section for sample printouts and a further discussion on how to use the configuration label as a diagnostic tool.)
Connecting the Printer
The printer must establish communications with a host terminal which sends the data to be printed. Communications
occur in four basic ways:
• Via a cable using the USB 2.0 protocol. USB drivers are
included in the Zebra Universal Driver which can be
downloaded from www.zebra.com
• Via the industry standard IrDA protocol. IR capability is
standard with MZ series printers.
• By means of an optional Bluetooth short range radio link.
• By means of a wireless LAN (Local Area Network) using
an optional radio per 802.11b/g specifications.
.
19
MZ Series User Guide
Cable Communication
Caution • The printer should be turned off before connecting
disconnecting the communications cable.
or
The small connector on the USB cable plugs into the printer.
The connectors are keyed to assure correct alignment; do not
try to force the cable if it does not plug in. The other end of
the cable must be plugged into the host terminal as shown in
Figure 10, or the USB port on a computer as shown in Figure
11. The MZ series utilizes the USB Open HCI interface driver
allowing it to communicate with Windows
®
based devices.
USB drivers are included in the Zebra Universal Driver which
can be downloaded from the Zebra Web site. Other terminals
or communications devices may require the installation of
special drivers to use the USB connection. Consult the factory
for further details.
Figure 10: Cable Communications
USB Communications
Cable to Terminal
Refer to Appendix A for details.
Figure 11: Communications with a P.C.
20
MZ Series User Guide
Communications
Port
USB Communications
Cable to Computer
Refer to Appendix A for details.
Communications
Port
IR Communications
30.110°
4.258"
3.111"
3.111"
30.61°
87.0°
103.000°
30.110°
4.258"
3.111"
3.111"
Ensure that the terminal sending and receiving data is within
the shaded zone depicted in Figure 12. The IR window on the
front of the printer must face the corresponding window on
the terminal to properly send and receive signals. The maximum distance IrDA signals can be transmitted reliably is 1M
(39”).
Figure 12: IR Communication Zone
Figure 14: IR Communications
1M (39”)
63.5 cm (25”)
30°
102°
87°
MZ Series User Guide
21
30°
Wireless Communications with Bluetooth™
Bluetooth is a worldwide standard for the exchange of data
between two devices via radio frequencies. Bluetooth radios
are relatively low powered to help prevent interference with
other devices running at similar radio frequencies. This limits
the range of a Bluetooth device to about 10 meters (32 feet).
Both the printer and the device it communicates with must follow the Bluetooth standard. Only one of the radio options can
be installed in the printer at one time and the antenna used for
these transmitters must not be co-located or must not operate
in conjunction with any other antenna.
Bluetooth Networking Overview
Each Bluetooth enabled MZ series printer is identified by
a unique Bluetooth Device Address (BDA) loaded into the
printer when manufactured. In order to exchange data, two
Bluetooth enabled devices must establish a connection.
Bluetooth software is always running in the background,
ready to respond to connection requests. One device (known
as the master) must request a connection with another. The
second device (the slave) then accepts or rejects the connection. A Bluetooth enabled MZ series printer will normally
act as a slave creating a miniature network with the terminal
sometimes referred to as a “piconet.”.
For the most part, communications using the Bluetooth pro
tocol are initiated and processed without any operator intervention.
22
MZ Series User Guide
WLAN Overview
All MZ series printers can be equipped with radios using the
industry standard 802.11b/g protocol. MZ series printers will
have the FCC I.D. number of the radio on the serial number label on the back of the unit.
MZ series printers with the Zebra 802.11b/g WLAN radio op
tion can be identified by the FCC ID: I28MD-ZLAN11G on the
serial number label on the back of the printer.
Methods of establishing communications to MZ series
printers will vary with each LAN application. General in
formation on establishing WLAN communications can be
found in either the ”CPCL Programmers Manual” or the
“Zebra Mobile Printer Wireless Configuration Guide” both
available on-line at www.zebra.com.
More information and LAN configuration utilities are includ
ed in Zebra’s Label Vista™ program (version 2.8 and later).
Label Vista may be downloaded from the Zebra Web site.
Setting Up the Software
MZ series printers use Zebra’s CPCL Programming language
which was designed for mobile printing applications. CPCL is
fully described in the ”CPCL Programmers Manual”, available
on-line from the Zebra Web site.
You can also use Label Vista™, Zebra’s Windows
bel creation program which uses a graphical interface to create and edit labels in the CPCL language.

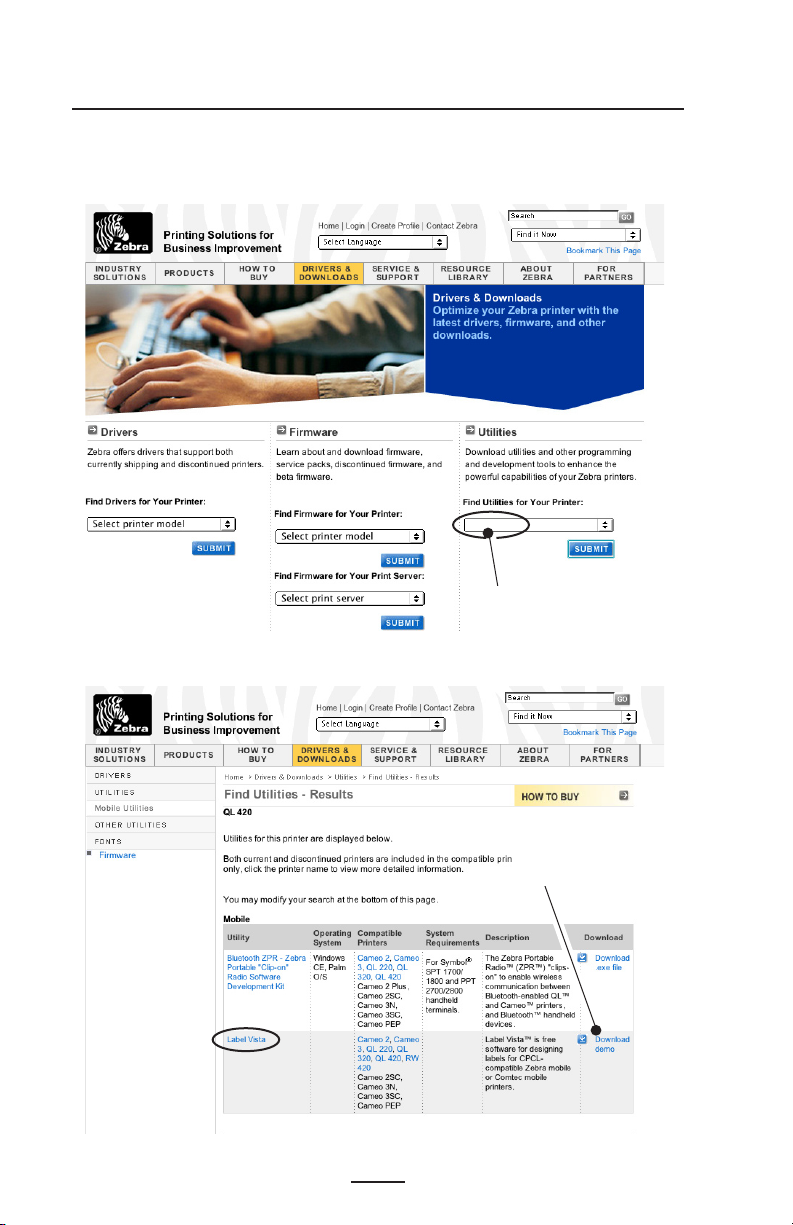

Refer to Appendix F for tips on downloading the Label Vista
application from Zebra’s Web site
.
®
based la-
-
-
23
MZ Series User Guide
Radio Regulatory Information
Zebra Bluetooth Radios MZ-ZBR3
Caution • Exposure to Radio Frequency Radiation. The radiated output
power of this internal Bluetooth radio is far below the FCC radio
frequency exposure limits. The internal Bluetooth radio operates
within guidelines found in radio frequency safety standards and
recommendations. Do not use the printer in an unauthorized manner.
Note • The following section only applies when the MZ-ZBR3
(FCC ID: I28MD-BTC2TY6) Bluetooth Radio is installed in a MZ series
printer. The antenna used for this transmitter must not be co-located
or must not operate in conjunction with any other antenna.
European Regulatory Information for this Radio
This device is intended for use in all EU and EFTA member states.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/ EC. The following test methods have been applied in order to prove
presumption of compliance with the R &TTE Directive 1999/5/ EC:
• EN55022:1998
European Immunit y Standard
• EN 60950: 2000
Safety of Information Technology Equipment
• EN 300 328-2 V1.4.1 (2003 -04)
Technical requirements for spread-spectrum radio equipment
• EN 301 48 9-1/-17 V1.5.1/1.2.1 (2003-12) -17 v1.2.1 (2002-08)
EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless L AN transceiver, intended for indoor home and
office use in all EU and EFTA member states.
Importan t Noti ce:
This device is a portable RF printer intended for commercial and
industrial use in all EU and EFTA member states.
24
MZ Series User Guide
WLAN Module Using 802.11b/g Radio
The following section only applies when the 802.11b/g
WLAN module (With FCC ID: I28MD-ZLAN11G) is installed
in a MZ series printer. Only one of the radio options can be
installed in the printer at one time and the antenna used for
these transmitters must not be co-located or must not operate
in conjunction with any other antenna.
MZ series printers have the FCC ID number on a label on the
back of the unit.
Caution • Use of a MZ series printer with the radio module marked
with FCC ID: I28MD-ZLAN11G meets the FCC requirements for
radio frequency (RF) radiation exposure in the standard body worn
configuration with no minimum separation. In this configuration,
which applies whether the belt clip or shoulder strap is used, the face
of the printer from which paper is transported is facing away from the
user’s body. The standard configuration must always be used when
the printer is body worn.
The MZ 220 and MZ 320 printers with this radio option have
been SAR tested. The maximum SAR value measured for
each model is listed below:
Model
SAR value W/Kg 1g average)
MZ 220 .049
MZ 320 .038
European Regulatory Information for this Radio
AT BE CY CZ DK
EE FI FR DE GR
HU IE IT LV LT
LU MT NL PL PT
Note: - Member st ates in the EU with restrictive use for this device are
crossed out!
This device is also authorized for use in all EFTA member states (CH, IS, LI, NO
SK SI ES SE GB
Impor tant Notic e:
This de vice is a port able RF print er intended
for comm ercial and in dustr ial use in all EU an d
EFTA memb er states exc ept in France w here
rest rictive use a pplies.
25
MZ Series User Guide
)
)
continued
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/ EC. The following test methods have been applied in order to prove
presumption of compliance with the R &TTE Directive 1999/5/ EC:
• EN55022:1998
European Immunit y Standard
• EN 60950: 2000
Safety of Information Technology Equipment
• EN 300 328-2 V1.2.1 (2001-12)
Technical requirements for spread-spectrum radio equipment
• EN 301 48 9-17 V1.2.1 (2002- 08 )
EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless L AN transceiver, intended for indoor home and
office use in all EU and EFTA member states, except in France where restrictive
use applies.
The use of this frequency band in France is subject to restrictions. You may only
use channels 10 and 11 (2457 and 2462 MHz) on French territory, except in those
French departments as listed in the table below where channels 1-13 (2412-2472
MHz) may be used. For more information see http://www.anfr.fr/ and/or http://
www.art-telecom.fr
01 Ain 36 Indre 69 Rhone
02 Aisne 37 Indre et Loire 70 Haute Saone
03 Allier 39 Jura 71 Saone et Loire
05 Hautes Alpes 41 Loir et Cher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariege 45 Loiret 77 Seine et Marne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurthe et Moselle 79 Deux Sievres
12 Aveyron 55 Meuse 82 Tarn et Garonne
16 Charente 57 Moselle 84 Vaucluse
19 Correze 58 Nievre 86 Vienne
2A Corse Sud 59 Nord 88 Vosges
2B Haute Corse 60 Oise 89 Yonne
21 Cote d ’Or 61 Orne 90 Territoire de Belfort
24 Dordogne 63 Puy de Dome 91 Es sonne
25 Doubs 64 Pyrenees Atlantique 92 Haut s de Seine
26 Drome 65 Hautes P yrenees 93 Seine St Denis
27 Eure 66 Pyrenees Orientales 94 Val de Marne
32 Gers 67 Bas Rhin
35 Ille et Vilaine 68 Haute Rhin
26
MZ Series User Guide
Wearing the Printer
Belt Clip
Refer to Figure 13. All MZ series printers are have a belt clip
installed as a standard feature. To use: hook the clip over
your belt, and ensure that the clip is securely attached to the
belt. The belt clip will pivot slightly to allow you to move freely while wearing the printer.
Clip printer to belt
Figure 13: Using the Belt Clip
MZ Series User Guide
27
continued
Adjustable Shoulder Strap
Refer to Figure 14 if you have ordered the shoulder strap option for your printer. Secure each end of the shoulder strap as
shown below. Use the main buckle on the shoulder strap to
adjust to the desired length.
NOTE: If you are using a shoulder strap, ensure it is pulled away from
the printer when installing in the Power Station. See page 13.
Thread the free end of the shoulder strap
through one of the slots on the belt clip
Thread the free end of the shoulder strap through the
buckle and pull tight to adjust.
Secure the other end of the strap in the remaining slot on the belt
Pull Strap here to
lengthen
Hold Buckle
Pull Strap here to
shorten
Once the shoulder strap is secured,
slide the buckle as shown until
you ac hi eve the desired
length.
Figure 14: Using the Optional Shoulder Strap
28
MZ Series User Guide
Preventive Maintenance
Extending Battery Life
• Always observe the safety precautions in the LithiumIon Battery Technical Bulletin included with each Battery
Pack.
• Never expose the battery to direct sunlight or tempera
tures over 104° F (40° C).
• Do not charge the battery when the temperature exceeds
113° F (45° C).
• Always use a Zebra power supply designed specifically
for the MZ series printers. Use of any other kind of power
supply may damage the battery.
• Use the correct media for your printing requirements. An
authorized Zebra re-seller can help you determine the optimum media for your application.
• If you print the same text or graphic on every label, consider using a pre-printed label.
• Choose the correct print darkness, and print speed for
your media.
NOTE: Use of label media in an MZ series printer requires a “Tone”
setting of 50 for best results. The Tone setting can be modified by
connecting the printer to a PC and using the Label Vista application.
Refer to the Cable Communications section of “Connecting the
Printer” in this manual.
-
• Use software handshaking (XON/XOFF) whenever possible.
• Remember that any rechargeable battery will lose its
ability to maintain a charge over time. It can only be re
charged a finite number of times before it must be replaced. Always dispose of batteries properly. Refer to
Appendix D for more information on battery disposal.
• If you print while charging the battery, charge times will
be prolonged. Extensive printing while charging could
deplete the battery enough to cause the low battery
warning indicator to turn on. You should suspend printing at that time and allow the battery to re-charge completely.
continued
29
MZ Series User Guide
-
General Cleaning Instructions
Caution • To avoid possible personal injury or damage to the printer,
never insert any pointed or sharp objects into the printer.
Always turn the printer off before performing any cleaning
procedures.
Use care when working near the tear bar. The edges are very sharp.
Caution • The printhead can be very hot after prolonged printing.
Allow it to cool off before attempting any cleaning procedures.
Only use the cleaning pen supplied with the printer or a cotton swab
saturated with alcohol for cleaning the printhead.
Caution • Use only cleaning agents specified in the following tables.
Zebra Technologies Corporation will not be responsible for damage
caused by any other cleaning materials used on this printer.
MZ Series Cleaning Instructions
Area Method Interval
Use a Zebra cleaning pen or a
70% isopropyl alcohol solution
Printhead
Platen
Tear bar
Exterior Water dampened cloth As needed
Media
Compartment
Interior
on a cotton swab to clean the
print elements from end to end
(the print elements are located
in the thin gray line on the
printhead).
Rotate the platen roller and
clean it thoroughly with a
Zebra cleaning pen or a 70%
isopropyl alcohol solution and
a cotton swab.
Clean thoroughly with a
Zebra cleaning pen or a 70%
isopropyl alcohol solution and
a cotton swab.
Brush/air blow.
After every five rolls of media
(or more often, if needed)
After every five rolls of media
(or more often, if needed)
30
MZ Series User Guide
Printhead
Elements
Media
Compartment
Tear Bar
Platen Surface
Figure 15: MZ Series Cleaning
Note • Twelve packs of approved cleaning pens are available from Zebra
as p/n AN11209-1.
Caution • To avoid possible personal injury or damage to the Printer,
never insert any pointed or sharp objects into the Printer.
31
MZ Series User Guide
continued
Troubleshooting
Interpreting Indicators
The printer’s indicators display various printer functions
and their status. Check the indicator status, then refer to the
Troubleshooting topic referenced in the chart.
Troubleshooting
-
-
Indicator
Color
Amber/
Green
Function
Power Green
Charger
Error Amber
Commu
nications
Blue
Indicator Status:
Steady
Indicates printer is on
and bat tery condition
is OK to use.
Of f indicates battery
is not charging. Amber indicates battery
is ch arg ing . Gre en
in di cat es bat ter y is
charged.
Off indicates no error
condition
Cable/IrDA: N/A
Bluetooth: Printer
has paired with
another Bluetooth
device.
802.11b/g: Radio is
associated with a
WLAN
Indicator Status:
Blinking
Blinking signifies Low
Battery
N/A 1,6,10
No media or media
door is open.
Application may be
missing or corrupted
D a t a i s b ei ng r eceived
D a t a i s b ei ng r e
ceived
Radio is trying to associate with a WLAN.
Troubleshooting Topics
1. No power:
• Ensure you press and hold the Power switch until the
Power light comes on.
• Check that battery is installed properly.
• Recharge or replace battery as necessary.
2. Media does not feed:
• Be sure Media Cover is closed and latched.
• Check media compartment. Ensure media is not binding
on the sides of the compartment.
3. Poor or faded print
• Clean printhead.
• Check battery for possible damage. Recharge or replace as
necessary.
• Check quality of media.
• If using label media, ensure the “Tone” setting is set to 50.
Topic
3
2,4,7,9
5,8
5,8
5,8
32
MZ Series User Guide
4. Partial or missing print:
• Check media alignment.
• Clean printhead.
• Ensure Media Cover is properly closed and latched.
5. No print:
• Replace battery.
• Check cable to terminal.
• (Wireless units only) Restore wireless connection.
6. Reduced battery life:
• Check battery date code — if battery is one to two years
old, short life may be due to normal aging.
• Recharge or replace battery.
7. Flashing Amber indicator:
• Check that media is loaded and that printhead is closed and
securely latched.
• If media is present and latch is closed, indicates that no
application is present or application is corrupted. Program
must be re-loaded.
8. Communication Error:
• (Wireless units only) Check that media is loaded, head is
closed and blue communication link light is on.
•(USB) Replace cable to terminal.
9. Label Jam:
• Open media cover.
• Generously apply alcohol to Printer in area of jammed
label.
10. Battery Pack Is Hard to Install
• Do not force the battery into place. Verify you have not
pinched any wires between the battery and the printer.
• Verify you are plugging the battery connector into the
printer correctly.
Resetting an MZ Series Printer
If the printer has locked up and is not responding to any operator inputs or
external commands, either from a connected terminal or from a linked LAN,
you can perform a forced reset as follows:
1. Open the media compartment and remove any media.
2. Press the Feed button and hold it approximately ten seconds until the
Power, Communications and Error indicators turn off and stay off.
3. After the three indicators turn off, reload the media and close the media
compartment cover.
4. Wait at least ten more seconds and press the Power button. The Printer
will restart and normal operation can resume.
33
MZ Series User Guide
Troubleshooting Tests
Printing a Configuration Label
To print out a listing of the printer’s current configuration fol-
low these steps:
1. Turn the printer off. Load the media compartment with
journal media (media with no black bars printed on the
back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed
button pressed. When printing starts, release the Feed
button.
Refer to Figures 16 and 16a for a sample configuration print
out.
Communications Diagnostics
If there is a problem transferring data between the computer
and the printer, try putting the printer in the Communications
Diagnostics Mode (also referred to as the “DUMP” mode). The
printer will print the ASCII characters and their text representation (or the period ‘.’, if not a printable character) for any data
received from the host computer
To enter Communications Diagnostics Mode:
1. Print a configuration label as described above.
2. At the end of 2nd diagnostics report, the printer will print:
“Press FEED key to enter DUMP mode”.
3. Press the FEED key. The printer will print: “Entering
DUMP mode”.
-
Note • If the FEED key is not pressed within 3 seconds, the printer
will print “DUMP mode not entered” and will resume normal
operation.
4. At this point, the printer is in DUMP mode and will print
the ASCII hex codes of any data sent to it, and their text
representation (or “.” if not a printable character).
Additionally, a file with a “.dmp” extension containing the
ASCII information will be created and stored in the printer’s
memory. It can be viewed, “cloned” or deleted using the Label
Vista application. (Refer the Label Vista documentation for
more information.)
34
MZ Series User Guide
To terminate the Communications Diagnostics Mode and re-
turn the printer to normal operations:
1. Turn the printer OFF.
2. Wait 5 seconds.
3. Turn the printer ON.
Calling Technical Support
If the printer fails to print the configuration label, or you encounter problems not covered in the Troubleshooting Guide,
contact Zebra Technical Support. Technical Support addresses and phone numbers for your area can be found in
Appendix D of this manual. You will need to supply the following information:
• Model number and type (e.g. MZ 220)
• Unit serial number (Found on the large label on the back
of the printer, also found in the configuration label print
out. Refer to Figures 23 and 24)
• Product Configuration Code (PCC) (15 digit number found
on the label on the back of the unit)
-
35
MZ Series User Guide
Print Head Test
End of First
Repor t
Unit Serial
Number
Application
Number
Repor t appears only
on units with
wireless options installed.
Units with no
wireless op
tions will print
an empt y line
and resume
-
This example
has a
Bluetooth™
radio installed.
Figure 16: Configuration Label Example (MZ 220 illustrated)
36
MZ Series User Guide
Bluetooth
radio
parameters
Flash
Memor y
Size
Maximum
Label Size
Figure16a: Configuration Label Example (continued)
37
MZ Series User Guide
continued
Resident Fonts
Amount of
Memor y
Available
CCL (CPCL)
programming
language is
supported
Figure 16c: Configuration Label Example (continued)
38
MZ Series User Guide
Specifications
Note.- Printer specifications are subject to change without notice.
Printing Specifications
MZ 220 MZ 320
Print Width Up to 1.89 in. (48,0 mm) Up to 2.9 in. (71,2 mm)
Print Speed (max)
Print Speed (normal)
Print Head Life,
calculated
Print Density
Printhead Burn
Line to Tear Edge
Memory and Communications Specifications, MZ series
Flash Memory 4 MB
SRAM 8 MB
Standard
Communications
Optional Wireless
Communications
3” per second (76,2 mm/second)
2” per second (5.0 mm/second)
1 x 106 in. (25.4 Km) nominal
203 dots/inch (8 dots/mm)
0.2 in. (5,08 mm)
USB 2.0 Full Speed Interface (12 Mbps)
& Infrared wireless link (meets IrDA 1.1
communications specifications )
Optional Bluetooth compatible module
Optional 802.11b/g SRRF module
Only one wireless option may be installed in a printer.
Media Specifications
MZ 220 MZ 320
Width
Max.
Printable
Area
Label Thickness
Max. Media Roll
Label Inner Core
Use Zebra brand direct thermal or UV resistant coated media that is outside wound. Refer to Appendix
“B” for more details.
Width
Length
dia.
Diameter
2.0 ± .03 in.
(50,8 ±0.8 mm)
1.9” (48,3 mm) 2.9” (73,7 mm)
Maximum length will vary with the size of loaded applications.
Refer to the configuration label for actual maximum label size.
.002 in to .004 in (0,050 mm to 0,102 mm)
1.88 in. (47,8 mm) O.D.
0.40 to 0.75 in.. (10,2 to 19 mm)
39
MZ Series User Guide
3.0 ± .03 in.
(76,2 mm ±0.8 mm)
Font and Bar Code Specifications for MZ Series
Codabar (NW-7)
UCC/EAN 128
Code 39
Code 93
EAN 8/JAN 8, 2 and 5 digit extensions
EAN 13/JAN 13, 2 and 5 digit extensions
Linear &
2-D Bar
Bar Codes
Available
Rotation
Angles
Fonts
Available
EAN 14/JAN 14, 2 and 5 digit extensions
lnterleaved 2 of 5
MSI/Plessey
FIM/POSTNET
UPC-A, 2 and 5 digit extensions
UPC-E, 2 and 5 digit extensions
QR Code
MaxiCode
PDF 417
RSS (Reduced Space Symbology®)
Composite Symbology
®
0°, 90°, 180°, and 270°
Standard Fonts: 25 bit-mapped fonts; 1
scalable (CG Trimvirate Bold Condensed*)
Downloadable optional bit-mapped &
scalable fonts via Label Vista software
International character sets:
Chinese 16 x 16 (trad.), 16 x 16 (simplified),
24 x 24 (simplified);
Japanese 16 x 16, 24 x 24
Korean Myang 16 x 16
Greek
Hebrew/Arabic
*Conta ins UFST fr om Agfa Monot ype Corpora tion
MZ Series User Guide
40

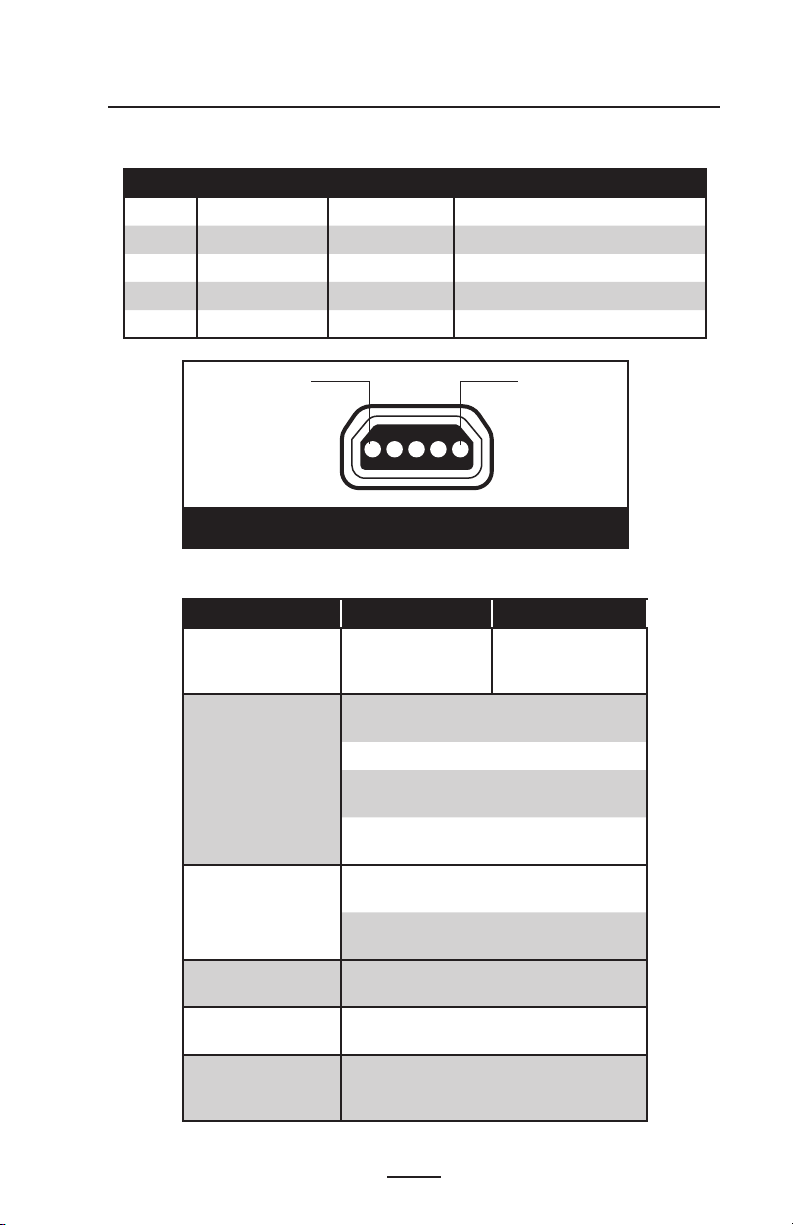

USB Communications Port
Pin# Signal Name Type Description
1 VBUS - USB Bus Power
2 USB - bi-directional I/O signals
3 USB + bi-directional I/O signals
4 USB_ID - Identifies A/B connector
5 Return - Ground
5 1
Figure 17: USB Communications Port
Physical, Environmental and Electrical Specifications
MZ 220 MZ 320
Weight w/
battery,
excluding media
Temperature
Relative
Humidity
Battery
Printer Input
Power
Ingression
Protection (IP)
Rating
.70 lbs.
(317,5 g. )
Operating : 14° to 122° F (-10° to
50° C)
Charging: 32° to 104° F (-0° to 40° C)
Storage w/o battery: -4° to 140° F
(-25° to 60° C)
Storage w/ battery: -4° to 113° F
(-25° to 45°C)
Operating: 10% to 90% (non-
condensing)
Storage: 10% to 90% (non-
condensing)
Lithium-Ion, 7.4 VDC (nominal);
1500 mAHr.
12.0 VDC; 1.25A
41
MZ Series User Guide
.75 lbs.
(340,2 kg.)
42
continued
2.47”
(62,7 mm)
5.34” (135,6 mm)
3.18” (80,7 mm)
Figure 18: MZ 220 Overall Dimensions
4.11” (104,4 mm)
2.26”
(57,4 mm)
2.47”
(62,7 mm)
5.34” (135.6 mm)
2.26”
(57,4 mm)
Figure 19: MZ 320 Overall Dimensions
42
MZ Series User Guide
MZ Series Accessories
Description
Adjustable shoulder strap
Protective soft case
Vehicle Adapter Cable
Extra battery packs
MZ Series Quad Power
Station
100-240 VAC
Refer to Appendix A for information on Data I/O Cables
For more details on available accessories, contact your authorized
Zebra re-seller.
MZ 220 MZ 320
• •
• •
• •
• •
• •
43
MZ Series User Guide
Appendix A
Interface Cables
USB Cable
Part Number AT17010-1; USB A to USB Mini B Cable
MORE INTERFACE CABLES
Contact the Factory or your Zebra Sales Representative for more
information on interface cables to most major manufacturer’s data
terminals.
You may also visit the Zebra Web site at
listing of interface cables for all series of Zebra mobile printers
http://www.zebra.com for a
44
MZ Series User Guide Appendices
Appendix B
Media Supplies
To insure maximum printer life and consistent print quality and performance for your individual application, it is recommended that only media produced by Zebra be used.
Advantages include:
• Consistent quality and reliability of media products.
• Large range of stocked and standard formats.
• In-house custom format design service.
• Large production capacity which services the needs of
many large and small media consumers including major
retail chains world wide.
• Media products that meet or exceed industry standards.
MZ Series Media
Z-Sel ect 4000D 3 .2 mil Re ceipt
Width x Length P art # Length Rolls/ Car ton Wt/Cart on
2.00 ” (50,8 mm) x Cont. LD-D2KV5E 48’ (14,63 M) 36 9 lbs.
3.00 ” (76,2 mm) x Cont. LD-D3K V5B 4 8’ (14,63 M) 36 13 lbs.
Z-S elec t 1000D 2.4 mil R ecei pt
Width x Length Part # Length Ro lls/Car ton Wt /Carton
2.00 ” (50,8 mm) x Cont. LD-D2PX5E 66.7’ (20,3 M ) 36 9 lbs.
3.00 ” (76,2 mm) x Cont. LD -D3PX5B 66.7’ (20,3 M 36 13 lbs.
For more information call Zebra Technologies Corporation at
+1.866.230.9495 (U.S., Canada and Mexico) and ask to speak
to a Media Sales Representative.
Appendix C
Maintenance Supplies
In addition to using quality media provided by Zebra, it is
recommended that the printer be cleaned as prescribed in the
maintenance section. The following items are available for
this purpose:
• Cleaning Pen (10 pack), Reorder No. AN11209-1
• Cleaning Kit with Cleaning Pen, and Cotton Swabs,
Reorder No. AT702-1
45
MZ Series User Guide Appendices
Appendix D
Battery Disposal
The EPA certified RBRC® Battery Recycling
Seal on the Lithium-Ion (Li-ion) battery supplied with your printer indicates Zebra
Technologies Corporation is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful
life, when taken out of service in the United States or Canada.
The RBRC program provides a convenient alternative to plac
ing used Li-ion batteries into the trash or the municipal waste
stream, which may be illegal in your area.
Important • When the battery is worn out, insulate the terminals with
tape before disposal
Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/restrictions in your area.
Zebra Technologies Corporation’s involvement in this program
is part of our commitment to preserving our environment and
conserving our natural resources.
Outside North America, please follow local battery recycling
guidelines.
-
Product Disposal
municipal waste. This product is recyclable.
Please recycle according to your local stan
dards. For more information, please see our
web site at: http://www.zebra.com/recycle.
Do not dispose of this product in unsorted
-
46
MZ Series User Guide Appendices
Appendix E
Product Support
When calling with a specific problem regarding your
printer, please have the following information on hand:
• Model number/type (e.g. MZ 220)
• Unit serial number
• Product Configuration Code (PCC)
For Product Support Contacts, see the table at right or con-
tact your local re-seller.
MZ Series Serial Number Label
MZ 220 illustrated
47
MZ Series User Guide Appendices
Serial
Number
Bar Code
PCC
Bar Code
Product Support Contacts
In the Americas contact
Regional Headqua rte rs Technical Suppo rt Custo mer Service Dept .
Zebra Tec hnologies Inter national, LLC
333 Corpor ate Woo ds Par kway
Verno n Hills, Illi nois 60061.3109 U.S.A
T: +1 847 793 2600
Toll-f ree +1 800 42 3 0422
T: +1 847 913 2259
F: +1 847 913 2578
Hard ware :
hwtsamerica @zebra.com
Softwar e:
swts america@zebra.com
In Europe, Africa, the Middle East, and India contact
Regional Headqua rte rs Technic al Support Inte rnal S ales D ept.
Zebra Tec hnologies Europ e Limi ted
Zebr a Hous e
The Valley Ce ntre, Gord on Road
High Wycomb e
Buckingha mshire HP13 6EQ , UK
T: +44 (0)149 4 472872
F: +44 (0 ) 1494 450103
Self Serv ice Kn owle dgebase:
www.zebra.c om/knowledgebase
Email B ack Technical Library:
Send email to : emb@zebra.c om
Subje ct: Em aillist
On-Line case reg istr ation:
www.zebra.c om/te chreq uest
In the Asia Pacific region contact
Regional Headqua rte rs Technica l Suppo rt Customer Se rvi ce
Zebra Tec hnologies Asia Pa cific, LLC
16 New Industr ial Roa d
#05-03 Hudson TechnoCe ntre
Singa pore 5 3620 4
T: +65 6858 0722
F: +65 688 5 0838
T: +65 6858 0722
F: +65 688 5 0838
E:
tsasiapac ific @zeb ra.com
For printers, parts, media ,
and ribbon, p leas e call your
dist ribu tor, or contac t us.
T: +1 866 230 9494
F: +1 847 913 8766
E: VHCustServ@ze bra.com
For printers, parts, media ,
and ribbon, p leas e call your
dist ribu tor, or contac t us.
T: +44 (0) 149 4 768316
F: +44 (0 ) 1494 768244
E: mseurope @zebra.com
For printers, parts, media ,
and ribbon, p leas e call your
dist ribu tor, or contac t us.
T: +65 6858 0722
F: +65 688 5 0837
48
MZ Series User Guide Appendices
Appendix F
Using zebra.com
The following details using the search functions on Zebra’s
Web site www.zebra.com for finding specific documents .
Findi ng Manuals:
http://www.zebra.com/id/zebra/na/en/index/resource_library/manuals.html
Select printer
model (e.g.
MZ 220)
Select
language
Select manual
type
Click
Exam ple: F Ind th e Mobile Printer W Irel ess Co nfiguration Gui de.
Perform t he abov e step a nd select as a manual type “ Net work ing Ma nual ”
Findi ng the L abel V ista Download pa ge:
http://www.zebra.com/id/zebra/na/en/index/drivers_downloads.html
on“SUBMIT”
Sort by
“Manual Type”
(optional step)
Select the Wireless
Configuration Guide
49
MZ Series User Guide Appendices
Click on
“Download”
to save a .pdf
file to your
local drive
continued
At the resulting wi ndow select your pr inte r model from t he pul l-down menu in the “ Utilitie s” sec tion.
MZ 220
Enter your printer
model number and
click on “SUBMIT”
50
MZ Series User Guide Appendices
Click on
“Download” to save
a demo application
to your local drive
Index
A
Accessories
Belt clip 27
list of 43
Shoulder Strap 28
B
Battery, charging 11
MZ Series Charger Power Supply 12
using Quad Power Station 13
Battery, installing 10
Battery life, tips for extending 29
Bluetooth™ Networking Overview 22
Bluetooth Device Address (BDA)
22
C
Cleaning
general instructions 30
Communications
infrared (IR) 21
USB
Connector signals 41
with a cable 20
Communications diagnostics 34
Configuration Label
printing 34
to determine maximum label size 37,39
D
Damage, shipping 8
Declaration of Conformity
EU countries
Bluetooth radio 24
Zebra 802.11g WLAN 25
L
Label Vista 23
use in troubleshooting 34
M
Manual
CPCL Programming 8,23
Media, loading 15
O
Operator Controls 17
P
Programming language
CPCL 8
R
Radio options.See Wireless communications
Regulatory Information
Bluetooth radio ( MZ-ZBR3) 24
Zebra 802.11b/g Radio 25
S
Safety Precautions
placement of charger 14
while charging batterys 14
Software 23
Specifications
Font/bar Code 40
Memory/communications 39
Physical 41
printing 39
T
Technical Support, contacting 35
Troubleshooting
Communications Diagnostics Mode 34
control panel indicators 32
Standard control panel indicators
Troubleshooting tests 34
printing a configuration label 19,34
QL configuration label example 36
Troubleshooting Topics ,32
W
Wireless communications
Bluetooth™ radio 22
Infrared (IrDA) 21
Local Area Network
Zebra 802.11b/g WLAN Radio 25
WLAN Overview 23
52
MZ Series User Guide
D275,286
D347,021
D389,178
D430,199
D433,702
3,964,673
4,019,676
4,044,946
4,360,798
4,369,361
4,387,297
4,460,120
4,496,831
4,593,186
4,607,156
4,673,805
4,736,095
4,758,717
4,816,660
4,845,350
4,896,026
4,897,532
4,923,281
4,933,538
4,992,717
5,015,833
5,017,765
5,021,641
5,029,183
5,047,617
5,103,461
5,113,445
5,140,144
5,132,709
5,142,550
5,149,950
5,157,687
5,168,148
5,168,149
5,180,904
5,229,591
5,230,088
5,235,167
5,243,655
5,247,162
5,250,791
5,250,792
5,262,627
5,267,800
5,280,163
5,280,164
5,280,498
5,304,786
5,304,788
5,321,246
5,335,170
5,364,133
5,367,151
5,372,439
5,373,148
5,378,882
5,396,053
5,396,055
5,399,846
5,408,081
5,410,139
5,410,140
5,412,198
5,415,482
5,418,812
5,420,411
5,436,440
5,444,231
5,449,891
5,449,893
5,468,949
5,479,000
5,479,002
5,479,441
5,486,057
5,503,483
5,504,322
5,528,621
5,532,469
5,543,610
5,545,889
5,552,592
5,570,123
5,578,810
5,589,680
5,612,531
5,642,666
5,657,066
5,768,991
5,790,162
5,791,796
5,806,993
5,813,343
5,816,718
5,820,279
5,848,848
5,860,753
5,872,585
5,874,980
5,909,233
5,976,720
5,978,004
5,995,128
5,997,193
6,004,053
6,010,257
6,020,906
6,034,708
6,036,383
6,057,870
6,068,415
6,068,415
6,095,704
6,109,801
6,123,471
6,147,767
6,151,037
6,201,255 B1
6,231,253 B1
6,261,009
6,261,013
6,267,521
6,270,072 B1
6,285,845 B1
6,292,595
6,296,032
6,364,550
6,379,058 B1
6,409,401 B1
6,411,397 B1
6,428,227 B2
6,530,705
6,540,122
6,607,316
6,609,844
6,874,958
6,899,477
This product and/or its use may be covered by one or more of the
following US patents and corresponding international patents
worldwide
Patent Numbers
53
