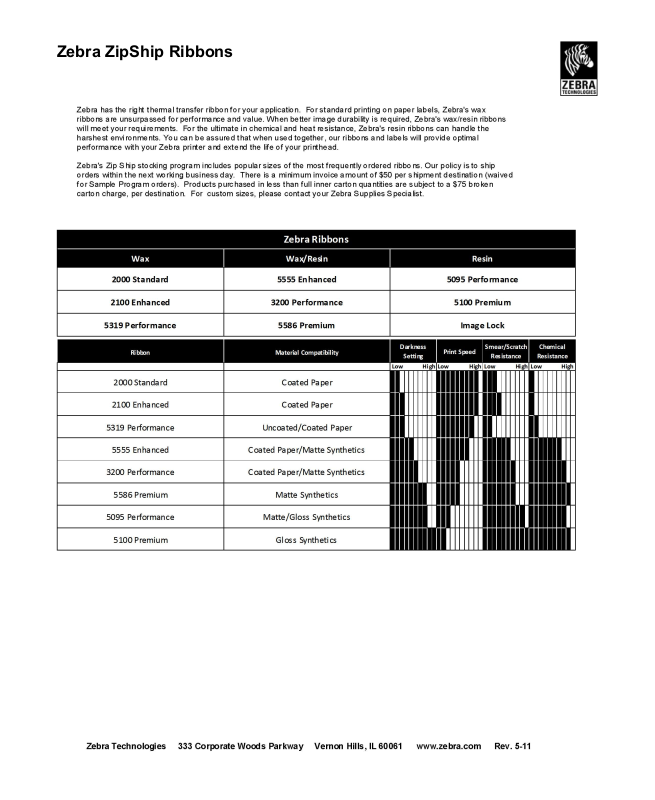

Zebra ZipShip Ribbons
Zebra ZipShip Ribbons
Printer Ribbon Specifications
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
1.57" 40mm 24 24 02000BK04045
12 lbs.
2.36" 60mm 24 24 02000BK06045
23 lbs.
3.27" 83mm 24 24 02000BK08345
24 lbs.
3.50" 89mm 24 24 02000BK08945
25 lbs.
4.02" 102mm 24 24 02000BK10245
26 lbs.
4.16" 106mm 24 24 02000BK10645
30 lbs.
4.33" 110mm 24 24 02000BK11045
32 lbs.
5.16" 131mm 24 24 02000BK13145
36 lbs.
6.16" 156mm 12 12 02000BK15645
24 lbs.
6.85" 174mm 12 12 02000BK17445
25 lbs.
8.66" 220mm 12 12 02000BK22045
30 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.57" 40mm 24 24 02100BK04045
14 lbs.
2.36" 60mm 24 24 02100BK06045
23 lbs.
3.15" 80mm 24 24 02100BK08045
24 lbs.
3.50" 89mm 24 24 02100BK08945
25 lbs.
4.02" 102mm 24 24 02100BK10245
29 lbs.
4.16" 106mm 24 24 02100BK10645
30 lbs.
4.33" 110mm 24 24 02100BK11045
31 lbs.
5.16" 131mm 12 12 02100BK13145
34 lbs.
6.16" 156mm 12 12 02100BK15645
23 lbs.
6.85" 174mm 12 12 02100BK17445
25 lbs.
8.66" 220mm 12 12 02100BK22045
30 lbs.
For use with Zebra Tabletop Printers*
2000 Standard Wax Ribbon
2100 Enhanced Wax Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
0.94" 24mm 6 24 05319BK02445
14 lbs.
1.57" 40mm 6 24 05319BK04045
23 lbs.
2.36" 60mm 6 24 05319BK06045
24 lbs.
3.27" 83mm 6 24 05319BK08345
24 lbs.
3.50" 89mm 6 24 05319BK08945
28 lbs.
4.02" 102mm 6 24 05319BK10245
29 lbs.
4.33" 110mm 6 24 05319BK11045
30 lbs.
5.16" 131mm 6 24 05319BK13145
38 lbs.
6.06" 154mm 6 12 05319BK15445
25 lbs.
6.85" 174mm 6 12 05319BK17445
27 lbs.
8.66" 220mm 6 12 05319BK22045
30 lbs.
For use with Zebra Tabletop Printers*
5319 Performance Wax Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.57" 40mm 6 24 05555BK04045
16 lbs.
2.36" 60mm 6 24 05555BK06045
23 lbs.
3.27" 83mm 6 24 05555BK08345
22 lbs.
3.50" 89mm 6 24 05555BK08945
25 lbs.
4.33" 110mm 6 24 05555BK11045
27 lbs.
5.16" 131mm 6 24 05555BK13145
34 lbs.
6.06" 154mm 6 12 05555BK15445
25 lbs.
6.85" 174mm 6 12 05555BK17445
25 lbs.
8.66" 220mm 6 12 05555BK22045
27 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
1.57" 40mm 6 24 03200BK04045
12 lbs.
2.36" 60mm 6 24 03200BK06045
23 lbs.
3.15" 80mm 6 24 03200BK08045
24 lbs.
3.50" 89mm 6 24 03200BK08945
25 lbs.
4.02" 102mm 6 24 03200BK10245
29 lbs.
4.33" 110mm 6 24 03200BK11045
32 lbs.
5.16" 131mm 6 24 03200BK13145
36 lbs.
6.16" 156mm 6 12 03200BK15645
23 lbs.
6.85" 174mm 6 12 03200BK17445
25lbs.
8.66" 220mm 6 12 03200BK22045
30 lbs.
For use with Zebra Tabletop Printers*
5555 Enhanced Wax/Resin Ribbon
3200 Performance Wax/Resin Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.57" 40mm 6 24 05586BK04045
16 lbs.
2.36" 60mm 6 24 05586BK06045
23 lbs.
3.27" 83mm 6 24 05586BK08345
24 lbs.
3.50" 89mm 6 24 05586BK08945
25 lbs.
4.02" 102mm 6 24 05586BK10245
29 lbs.
4.33" 110mm 6 24 05586BK11045
27 lbs.
5.16" 131mm 6 24 05586BK13145
34 lbs.
6.06" 154mm 6 12 05586BK15445
25 lbs.
6.85" 174mm 6 12 05586BK17445
25 lbs.
8.66" 220mm 6 12 05586BK22045
27 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.57" 40mm 6 24 05095BK04045
16 lbs.
2.36" 60mm 6 24 05095BK06045
23 lbs.
3.27" 83mm 6 24 05095BK08345
22 lbs.
3.50" 89mm 6 24 05095BK08945
25 lbs.
4.33" 110mm 6 24 05095BK11045
27 lbs.
5.16" 131mm 6 24 05095BK13145
34 lbs.
6.06" 154mm 6 12 05095BK15445
25 lbs.
6.85" 174mm 6 12 05095BK17445
25 lbs.
8.66" 220mm 6 12 05095BK22045
27 lbs.
For use with Zebra Tabletop Printers*
5586 Premium Wax/Resin Ribbon
For use with Zebra Tabletop Printers*
5095 Performance Resin Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.57" 40mm 6 24 05100BK04045
16 lbs.
2.36" 60mm 6 24 05100BK06045
23 lbs.
3.27" 83mm 6 24 05100BK08345
22 lbs.
3.50" 89mm 6 24 05100BK08945
25 lbs.
4.33" 110mm 6 24 05100BK11045
27 lbs.
5.16" 131mm 6 24 05100BK13145
34 lbs.
6.06" 154mm 6 12 05100BK15445
25 lbs.
6.85" 174mm 6 12 05100BK17445
25 lbs.
8.66" 220mm 6 12 05100BK22045
27 lbs.
Width Quantity Per Outer Box
(Inches) (mm) Carton Outer Box Part # Weight
1.57" 40mm 6 6 74775*
10 lbs.
2.36" 60mm 6 6 74776*
19 lbs.
3.15" 80mm 6 6 74777*
20 lbs.
3.94" 100mm 6 6 74778*
26 lbs.
Width Quantity Per Outer Box
(Inches) (mm) Carton Outer Box Part # Weight
1.57" 40mm 6 24 74935*
23 lbs.
2.36" 60mm 6 24 74936*
24 lbs.
3.15" 80mm 6 24 74937*
24 lbs.
For use with Zebra Tabletop Printers*
5100 Premium Resin Ribbon
Image Lock Resin Ribbon
Nylon Resin Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
2.50" 64mm 6 24 800010-002
4.5 lbs.
3.30" 84mm 6 24 800010-003
5.5 lbs.
4.33" 110mm 6 24 800010-004
6.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
2.50" 64mm 6 36 800011-002
4.5 lbs.
3.30" 84mm 6 36 800011-003
5.5 lbs.
4.33" 110mm 6 36 800011-004
6.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
4.33" 110mm 6 24 800005-004
6.5 lbs.
For use with TLP 2746e printer
5319 Wax Ribbons
3200 Performance Wax/Resin Ribbon
5095 Performance Resin Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Color/ Outer Box
(Inches) (mm)
Carton Outer Box
Part # PMS Weight
2.36" 60mm 6 24 05319BL06045*
Blue
286C
23 lbs.
2.36" 60mm 6 24 05319RD06045*
Red
186C
23 lbs.
2.36" 60mm 6 24 05319MN06045*
Maroon
194C
23 lbs.
2.36" 60mm 6 24 05319GN06045*
Green
340C
23 lbs.
4.33" 110mm 6 24 05319BL11045*
Blue
286C
23 lbs.
4.33" 110mm 6 24 05319RD11045*
Red
186C
23 lbs.
4.33" 110mm 6 24 05319MN11045*
Maroon
194C
23 lbs.
4.33" 110mm 6 24 05319GN11045*
Green
340C
23 lbs.
For use with Zebra Tabletop Printers*
5319 Performance Wax Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
2.50" 64mm 12 48 05319GS06407
3.5 lbs.
3.30" 84mm 12 48 05319GS08407
4.5 lbs.
4.33" 110mm 12 48 05319GS11007
5.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
2.50" 64mm 12 12 03200GS06407
3.5 lbs.
3.30" 84mm 12 12 03200GS08407
4.5 lbs.
4.33" 110mm 12 12 03200GS11007
5.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
2.50" 64mm 12 48 05555GS06407
3.5 lbs.
3.30" 84mm 12 48 05555GS08407
4.5 lbs.
4.33" 110mm 12 48 05555GS11007
5.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
2.50" 64mm 12 48 05586GS06407
3.5 lbs.
3.30" 84mm 12 48 05586GS08407
4.5 lbs.
4.33" 110mm 12 48 05586GS11007
5.5 lbs.
For use with Zebra Desktop Printers*
5319 Wax Ribbons
3200 Wax/Resin Ribbons
5555 Wax/Resin Ribbons
5586 Wax/Resin Ribbons
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
2.50" 64mm 12 48 05095GS06407
3.5 lbs.
3.30" 84mm 12 48 05095GS08407
4.5 lbs.
4.33" 110mm 12 48 05095GS11007
5.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
2.50" 64mm 12 48 05100GS06407*
3.5 lbs.
3.30" 84mm 12 48 05100GS08407*
4.5 lbs.
4.33" 110mm 12 48 05100GS11007*
5.5 lbs.
Width Quantity Per Outer Carton
(Inches) (mm) Carton Outer Box Part # Weight
2.50" 64mm 12 48 74941*
3 lbs.
3.30" 84mm 12 48 74942*
3.5 lbs.
4.33" 110mm 12 48 74943*
4.5 lbs.
Width Quantity Per Outer Box
(Inches) (mm) Carton Outer Box Part # Weight
1.57" 40mm 48 48 74938*
3 lbs.
2.36" 60mm 48 48 74939*
3.5 lbs.
3.15" 80mm 48 48 74940*
4.5 lbs.
For use with Zebra Desktop Printers*
5095 Resin Ribbons
5100 Resin Ribbons
Image Lock Resin Ribbon
Nylon Resin Ribbon
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.30" 33mm 12 48 800132-001
2.5 lbs.
2.25" 56.9mm 12 48 800132-002
3 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.30" 33mm 12 12 800132-101
2.5 lbs.
2.25" 56.9mm 12 12 800132-102
3 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.30" 33mm 12 48 800132-201
2.5 lbs.
2.25" 56.9mm 12 48 800132-202
3 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
1.30" 33mm 12 48 05100NT03307
2.5 lbs.
2.25" 56.9mm 12 48 05100NT05707
3 lbs.
5319 Wax Ribbons
3200 Wax/Resin Ribbons
For use with TLP 2824
5095 Resin Ribbons
5100 Resin Ribbons
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
4.33" 110mm 10 10 05555BK110D
2 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
4.33" 110mm 10 10 05095BK110D
2 lbs.
Width Quantity Per Outer Box
(Inches) (mm)
Carton
Outer Box Part # Weight
4.33" 110mm 10 10 05555BK110C
1lb.
Width Quantity Per Outer Box
(Inches) (mm)
Carton Outer Box
Part # Weight
4.33" 110mm 10 10 05100BK110C
1lb.
For use with P4T and RP4T printers
5555 Wax/Resin Ribbon
5095 Resin Ribbon
5555 Wax/Resin Ribbon
5100 Resin Ribbon
For use with PT 400 and PT 403 printers
Zebra ZipShip Ribbons
Width Quantity Per Outer Box
(inches) (mm) Carton Outer Box Part # Weight
2.36" 60mm 6 12 02100BK06090*
15 lbs.
3.15" 80mm 6 12 02100BK08090*
20 lbs.
4.33" 110mm 6 12 02100BK11090*
30 lbs.
5.16" 131mm 6 12 02100BK13190*
33 lbs.
6.16" 156mm 6 12 02100BK15690*
39 lbs.
6.85" 174mm 6 12 02100BK17490*
44 lbs.
2100 Enhanced Wax Ribbon
For use with PAX4 printers
