Page 1
User
Manual
Washing
machine
ZWH 6100
ZWH 6100 A
ZWH 6120
Page 2
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our
brand again when purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference
document. The user manual should be passed on to any future owner of the appliance.
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid
damaging the appliance.
General information and tips
Environmental information
Content
Safety information - - - - - - - - - - - - - - - - - - -3
Description of the appliance - - - - - - - - - - - -5
Detergent dispenser drawer - - - - - - - - - - - -5
Control panel and functions - - - - - - - - - -6-7
Programme table - - - - - - - - - - - - - - - - -9-10
Programme information - - - - - - - - - - - - - -11
Washing Hints - - - - - - - - - - - - - - - - - - - - -12
Before the first use - - - - - - - - - - - - - - - - -14
Operating Sequence - - - - - - - - - - - - - - - -15
2
Care and cleaning - - - - - - - - - - - - - - - - - -18
Something not working - - - - - - - - - - - - - - 20
Technical data- - - - - - - - - - - - - - - - - - - - - 23
Consumption values - - - - - - - - - - - - - - - - 24
Installation instruction - - - - - - - - - - - - - - - 25
Environmental concerns - - - - - - - - - - - - - 28
Guarantee - - - - - - - - - - - - - - - - - - - - 29-30
Page 3
Safety information
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and
accidents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions and make
sure that they remain with the appliance if it
is moved or sold, so that everyone using it
through its life will be properly informed on
appliance use and safety.
General safety
● It is dangerous to alter the specifications or
attempt to modify this product in any way.
● During high temperature wash programmes
the door glass may get hot. Do not touch it!
● Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
● Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp
material can cause extensive damage and
must not be placed into the machine.
● Only use the advised quantities of fabric
softener and detergent. Damage to the fabric
can ensue if you over-fill. Refer to the
manufacturer’s recommendations of
quantities.
● Wash small items such as socks, laces,
washable belts etc in a washing bag or
pillow case as it is possible for such items to
slip down between the tub and the inner
drum.
● Do not use your washing machine to wash
articles with whalebones, material without
hems or torn material.
● Always unplug the appliance and turn off the
water supply after use, clean and
maintenance.
● Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre. Always
insist on genuine spare parts.
Installation
● This appliance is heavy. Care should be
taken when moving it.
● When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
● All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this is
not adhered to. See relevant section in the
user manual.
● After having installed the appliance, check
that it is not standing on the inlet and drain
hose and the worktop is not pressing the
electrical supply cable.
● If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely
● Always be sure, that there is no water
leakage from hoses and their connections
after the installation.
● If the appliance is installed in a location
subject to frost, please read the «dangers of
freezing» chapter.
● Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
● Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
3
Page 4
Use
● This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
● Only wash fabrics which are designed to be
machine washed. Follow the instructions on
each garment label.
● Do not overload the appliance. See the
relevant section in the user manual.
● Before washing, ensure that all pockets are
empty and buttons and zips are fastened.
Avoid washing frayed or torn articles and
treat stains such as paint, ink, rust, and
grass before washing. Underwired bras must
NOT be machine washed.
● Garments which have been in contact with
volatile petroleum products should not be
machine washed. If volatile cleaning fluids
are used, care should be taken to ensure
that the fluid is removed from the garment
before placing in the machine.
● Never pull the power supply cable to remove
the plug from the socket; always take hold of
the plug itself.
● Never use the washing machine if the power
supply cable, the control panel, the working
surface or the base are damaged so that the
inside of the washing machine is accessible.
● Make sure that children or pets do not climb
into the drum. To avoid this the machine
incorporates special feature.
To activate this
device, rotate the
button (without
pressing it) inside the
door clockwise until
the groove is
horizontal. If
To disable this
device and restore
the possibility of
closing the door,
rotate the button anticlockwise until the
groove is vertical.
necessary use a coin.
Child safety
● This appliance is not intended for use by
person (including children) with reduced
physical sensory or mental capabilities or
lack of experience and knowledge unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
● The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children danger of suffocation! Keep them out of
children’s reach
● Keep all detergents in a safe place out of
children’s reach.
4
Page 5
Description of the appliance
1
2
3
4
5
OfOfff
AclaradosAclarados
FríoFrío
SintéticosSintéticos
AlgodónAlgodón
30°30°
90°90°
60°60°
40°40°
60°60°
40°40°
DescargDescargaa
Delicados
30°
30°
FríoFrío
40°40°
FríoFrío
30°30°
30°30°
Lana 40°Lana 40°
FríoFrío
CentrCentrifugifugadoado
MantasMantas
Jeans
SM001
1
Detergent dispenser drawer
2
Control panel
3
Door opening handle
4
Drain pump
5
Adjustable feet
Detergent dispenser drawer
Prewash
Wash
Fabric Softener
5
Page 6
Control panel
Centrifugado
Descarga
Aclarados
Mantas
Jeans
Lana 40°
Frío
30°
Frío
Delicados
30°
Tiempo
Off
Algodón
90°
60°
40°
30°
Frío
60°
40°
30°
Frío
40°
Sintéticos
en Cuba
Centrifugado
Agua
1000
900
700
Eco
Diario
Rápido
Prelavado
Antiarrugas
AquaCare
Inicio Diferido
Puerta
Start/Pausa
1
Infos
Henceforth, the programme selector dial, the
different buttons and the programme progress
display will be indicated in all the book with the
relevant numbers given in this table:
● The programme selector dial allows to select a programme
Programme selector dial and
1
On/Off switch
Spin reduction button
(Centrifugado)
2
No spin option
Rinse Hold (Agua en Cuba)
Option button
3
Eco / Daily / Quick
(Eco / Diario / R
á
pido)
and/or to switch the machine on/off «Off». It can be turned
either clockwise or anticlockwise. After having selected the
programme, the green light of the button 8 starts to flash.
● Press this button repeatedly to change the spin speed, if you
want your laundry to be spun at a speed different from the
one proposed by the washing machine or to select «No
Spin» or «Rinse Hold» option.
● The relevant light will light up.
● By means of this button, you can select only one of the
options.
● The relevant light will light up.
2 4 5
3
Symbols:
= Handwash
Frío = Cold wash
8
6
9 10
7
Prewash button (Prelavado)
4
6
● By means of this button, the machine performs a prewash
phase.
Page 7
Easy iron button (Antiarrugas)
5
● Selecting this option the laundry is gently washed and spun
to avoid any creasing. In this way ironing is easier.
Furthermore the machine will perform additional rinses.
Extra rinse button (Aquacare)
6
Display
7
● By means of this button, the machine performs some
additional rinses.
● The display shows the following information: duration of the
selected programme, delayed start, incorrect option
selection, alarm codes and end of programme.
● This button allows to start the selected programme; the
Start/Pause button
8
Light Door (Puerta)
9
corresponding green pilot light stops flashing.
● This button interrupts also a programme which is running, the
corresponding green pilot light starts to flash.
● This light illuminates when the appliance is working (after
having pressed button
locked.
10
Delay Start button (Inicio Diferido)
● By means of this buttons, the wash programme can be
delayed for a more convenient t time.
Functions
No spin (Button 2)
By selecting this option, the machine will
eliminate all spinning phases to prevent the
fabrics from creasing. In some programmes will
be performed additional rinses.
Rinse hold (Button 2)
By selecting this option the water of the last
rinse is not emptied out to prevent the fabrics
from creasing. When the programme has
finished, the pilot light of button 8 is off (while
the door light
to indicate that the water must be emptied out.
9 is on) and the door is blocked
8) and indicates that the door is
Options (Button 3)
Economy (Eco)
Only for cottons and synthetics items lightly or
normally soiled at a temperature of 40°C or
higher. The washing time will be prolonged and
the washing temperature will be reduced.
Daily (Diario)
This option can be used for lightly soiled
Cotton, Synthetic or Delicate items in order to
obtain a good washing performance in a short
time.
Quick (Rápido)
Short cycle for lightly soiled items or for laundry
which needs only freshening up.
We recommend you to reduce the fabrics
loading.
7
Page 8
Prewash (Button 4)
Puerta
Select this option if you wish your laundry to be
prewashed at 30°C before the main wash.
The prewash ends with a short spin in
programmes for Cotton and Synthetic fabrics,
whereas in the programmes for Delicate fabrics
the water is only drained.
Easy Iron (Button 5)
Selecting this option the laundry is gently
washed and spun to avoid any creasing. In this
way ironing is easier. In cotton programmes the
spin speed will be automatically reduced.
Furthermore the machine will perform some
additional rinses depending on the fabrics.
Extra Rinse (Button 6)
The machine performs some additional rinses
during the washing cycle. This option is
recommended for people who are allergic to
detergents, and in areas where the water is
very soft.
Door light (9)
After having depressed
the button 8, this light
illuminates and stays
on.
The light DOOR (Puerta) indicates when the
door can be opened:
● light on: the door is locked and cannot be
opened. The appliance is working.
● light off: the door can be opened.
The washing programme has finished.
Delay start (Button 10)
The wash programme can be delayed from 30
min - 60 min - 90 min, 2 hours and then by 1
hour up to a maximum of 20 hours.
8
Page 9
Programme table
Programme/
Temperature
COTTON
90°
COTTON
60° - 40° 30° - Cold
SYNTHETICS
60° - 40° - 30° Cold
DELICATES
40° - 30°- Cold
HANDWASH
30° - Cold
Type of laundry Options
Spin Red.,/No Spin/,
White cotton (heavily
soiled items).
Economy/Daily/Quick,
Prewash, Easy Iron,
Spin Red.,/No Spin/,
White and coloured
cotton (normally soiled
cotton items).
Economy**/Daily/Quick
Prewash, Easy Iron,
Spin Red., No Spin/
Synthetic or mixed
fabrics
Economy**/Daily/ Quick
Prewash, Easy Iron,
No Spin/Rinse Hold,
Delicate items
Prewash, Extra Rinse
Special programme for
Spin Red.,/No Spin/
hand washed fabrics.
Rinse Hold,
Extra Rinse
Rinse Hold,
Extra Rinse
Rinse Hold,
Extra Rinse
Daily/Quick,
Rinse Hold,
Description of
programme
Main wash
rinses
Long spin at the max
speed
Main wash
rinses
Long spin at the max
speed
Main wash
rinses
Short spin at 900 rpm
Main wash
rinses
Short spin at 700 rpm
Main wash
rinses
Short spin at 1000(***)
rpm
WOOL
40°
«Pure new wool, nonshrink, machine
Spin Red.,/No Spin/
Rinse Hold
washable» label.
Programme for wool
JEANS
40°
Special programme for
jeans or dark colours
cotton items
Spin Red.,/No
Spin/Rinse Hold
Prewash, Easy Iron
** This option is not active at a temperature lower than 40°C.
*** 900 rpm for the Model ZWH 6120
Main wash
rinses
Short spin at 1000(***)
rpm
Main wash
rinses
Long spin at 1200 rpm
or 1000 rpm in Models
ZWH 6100/ ZWH 6100A
9
Page 10
Programme table - Special programmes
Programme/
Temperature
BLANKET
40°
RINSES
DRAIN
SPIN
Off
Cancelling /
Switching off
of the machine
Type of laundry Options
Cycle suitable for
washing a single
washable synthetic
blanket or duvet.
Separate rinses cycle with
softener, if needed, for
hand washed cotton items
Spin Red./No Spin/
Rinse Hold,
Easy Iron, Extra Rinse
For emptying out the
water in programmes
which stop with water in
the tub.
Long spin at max speed for handwashed cotton
items or for emptying out the water in the tub
To interrupt a running programme, to cancel an
incorrect option selection or to switch the machine
off,
Description of
programme
Main wash
rinses
Short spin at 700 rpm
3 rinses
Long spin at the max
speed
Draining of water
Drain and long spin
MAX LOADS:
Max load for Cottons .................................7 kg
Max load for Synthetics ..........................3.5 kg
Max load for Delicates . . . . . . . . . . . . . .3.5 kg
Max load for Wool/Handwash . . . . . . . . . .2 kg
Max load for Jeans . . . . . . . . . . . . . . . . 3.5 Kg
Max load for Blanket . . . . . . . . . . . . . . 2.5 Kg
10
Max loads (with option):
Cottons + Super Quick . . . . . . . . . . . . . .3.5 kg
Synthetics + Super Quick . . . . . . . . . . .1.5 kg
Delicates + Super Quick . . . . . . . . . . . .1.5 kg
Cottons + Easy Iron . . . . . . . . . . . . . . . .1.0 kg
Synthetics + Easy Iron . . . . . . . . . . . . . .1.0 kg
Page 11
Programme information
With this programme it is possible to wash free time items as pants,
JEANS
RINSES
DRAIN
SPIN
BLANKET
shirts or jackets in Jeans and also jersey made of hi-tech materials.
Some extra rinses will be carried out by the machine.
With this separate programme it is possible to rinse and spin cotton
garments which have been washed by hand.
The machine performs 3 rinses, followed by a final spin at maximum
speed. The spin speed can be reduced by depressing button 2.
For emptying out the water of the last rinse in programmes with the
«Rinse hold» option. Turn first the programme selector dial to «Off»,
then select programme «Drain» and depress the button 8.
Separate spin for cotton items washed by hand or at the end of a
programme which stops with water left in the tub («Rinse hold»
option).
According to the type of fabric, it is possible to choose a different
speed by means of the relevant button from one proposed by the
machine.
Special cycle for washing for washing a single washable synthetic
blanket or duvet. The laundry is gentle washed and shortely spun at
max. spin speed of 700 rpm.
11
Page 12
Washing hints
Sorting the laundry
Follow the wash code symbols on each
garment label and the manufacturer’s washing
instructions. Sort the laundry as follows: whites,
coloureds, synthetics, delicates, woollens.
Temperatures
for normally soiled white cottons
90° or 95°
50°/60°
30°-40°
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
for normally soiled, colour fast
garments (e.g. shirts, night
dresses, pyjamas....) in linen,
cotton or synthetic fibres and for
lightly soiled white cotton (e.g.
underwear).
for delicate items (e.g. net
curtains), mixed laundry including
synthetic fibres and woollens
bearing the label «pure new wool,
machine washable, non-shrink».
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their «whiteness» in the
wash.
New coloured items may run in the first wash;
they should therefore be washed separately
the first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins,
pins). Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any belts
or long tapes.
Remove persistent stains before washing.
Rub particularly soiled areas with a special
detergent or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load
size.
Laundry weights
The following weights are indicative:
1200 gbathrobe
100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
12
Page 13
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and
dab the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since the
cellulose structure will already have been
damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft cloth and
dab the stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Remove
any residual marks from white fabrics with
bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic
acid; treat any residual marks on white fabrics
with bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment. Although biodegradable,
detergents contain substances which, in large
quantities, can upset the delicate balance of
nature.
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
etc.), the colour, washing temperature and
degree of soiling.
All commonly available washing machine
detergents may be used in this appliance:
● powder detergents for all types of fabric,
● powder detergents for delicate fabrics (60°C
max) and woollens,
● liquid detergents, preferably for low
temperature wash programmes (60°C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be
placed in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash
must be selected.
The washing machine incorporates a
recirculation system which allows an optimal
use of the concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do
not exceed the «MAX» mark in the
detergent dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of
soiling and hardness of the water used.
Water hardness is classified in so-called
«degrees» of hardness. Information on
hardness of the water in your area can be
obtained from the relevant water supply
company, or from your local authority.
Follow the product manufacturers’ instructions
on quantities to use.
13
Page 14
Degrees of water hardness
Follow the product manufacturers’ instructions
on quantities to use.
Use less detergent if:
● you are washing a small load,
● the laundry is lightly soiled,
● large amounts of foam form during washing.
Before the first use
Level
Characteristic
1 0-7 0-15soft
2 8-14 16-25medium
3 15-21 26-37hard
4 > 21 > 37very hard
German
°dH
Degrees
French
°T.H.
WARNING!
Ensure that the electrical and water
connections comply with the installation
instructions.
IMPORTANT!
Remove the polystyrene block and any
material from the drum.
IMPORTANT!
We recommend you to pour 2 litres of water
into the main wash compartment of the
detergent drawer in order to activate the ECO
valve. Than run a cotton cycle at 90°C, without
any laundry in the machine, to remove any
manufacturing residue from the drum and tub.
Pour 1/2 a measure of detergent into the
dispenser drawer and start the machine.
Acoustic signals
The machine is provided of an acoustic device,
which sounds in the following cases:
● at the end of the cycle
● in the event of operating problems
By pressing the buttons
4 and 5
simultaneously for about 6 seconds, the
acoustic signal is deactivated (except for the
events of operating problems).
By pressing these 2 buttons again, the the
acoustic signal is reactivated.
Child safety lock
This device permits you to leave the appliance
unattended during its functionning, so avoiding
that children might accidentally start the
machine or modify a running programme.
This function remains able also when the
washing machine is not working.
To enable (disable) this option press
simoultaneously for about 6 seconds buttons
and 3 buttons until the icon appears
(disappears) on (from) the display.
There are two different ways to set this option:
● before pressing the button 8:
it will be impossible to start the machine.
● after pressing the button 8:
it will be impossible to change any other
programme or option.
2
14
Page 15
Operating sequence
1. Load the laundry
Open the door by
carefully pulling the
door handle outwards.
Place the laundry in
the drum, one item at
a time, shaking them
out as much as
possible. Close the door.
2. Measure out the detergent and the fabric
softener
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required,
pour it into the main wash compartment
and, if you wish to carry out a programme with
the prewash phase, pour it into the
compartment marked .
If required, pour fabric softener into the
compartment marked (the amount used
must not exceed the «MAX» mark in the
drawer). Close the drawer gently.
Select the required programme by means of
the programme selector dial
Turn the programme selector dial to the
required programme.
The green light of button 8 starts to flash.
It can be turned either clockwise or
anticlockwise.
On position «Off» the programme is reset and
the machine is switched OFF.
At the end of the programme the selector
dial must be turned to position «Off» , to
switch the machine off.
(1)
ATTENTION!
If you turn the programme selector dial to another programme when the machine is working,
tthe red pilot light of button
and the message Err is displayed on the display to indicate a wrong selection. The machine will not perform the new selected programme.
Select the spin speed, No Spin or the Rinse
Hold option by pressing button
The relevant light will light up.
When selecting a programme, the light
corresponding to the maximum speed allowed
for that programme will illuminate. (refer to the
section «Programme table» for the maximum
allowed spin speed).
Select the desired option by means of
buttons
Depending on the programme, different
functions can be combined. These must be
selected after choosing the desired programme
and before depressing the button 8.
For the compatibility of the options with the
washing programmes, refer to the section
«Programmes table».
Start the programme by pressing button
To start the selected programme, press this
button; the corresponding green pilot light
stops flashing.
The pilot light «Door» (Puerta) illuminates to
indicate that the appliance starts operating and
the door is locked.
IMPORTANT!
If an option which is not compatible with the set
wash programme is selected, the message Err
is displayed for few seconds and the red light
of this button flashes for 3 times.
3, 4, 5 and 6
8 will flash 3 times
2
8
15
Page 16
Select the delayed start by pressing the
0
E20
2.00
button 10
Depress button this button to select the
required delay.
The selected delay time value will appear on
the display for few seconds, then the duration
of the programme will appear again.
You must select this option after you have set
the programme and before you press the
8.
button
You can cancel the delay time at any moment,
before you press button
pressed it, and you wish to cancel the delay
time, proceed as follows:
• set the washing machine to PAUSE by
pressing button
• press the button
appear the symbol «0’».
• press button
IMPORTANT!
• The selected delay can be modified only after
you have turned the programme selector dial
to the «Off» position and after you have
selected the programme again.
• The door will be locked throughout the delay
time. If you need to open the door, you must
first set the washing machine to PAUSE by
pressing button
door, press the same again.
Note!
The Delay Start cannot be selected with
«Drain» programme.
8 again to start the programme.
8. If you have already
8;
10 once. On the display will
8. After you have closed the
After selecting a programme the duration of
the selected programme appears on the dis-
play.
During the programme, the time remaining is updated every
minute.
The Delayed start appears on the display for
about 3 seconds, then the duration of the
previously selected programme is displayed.
The delay time value
decreases by one unit
every hour and then,
when 1 hour remain,
every minute.
The incorrect option selection is indicated by
the message Err displayed for few seconds
and by flashing of the red light button
In the event of operating problems, some
alarm codes can be displayed, (see paragraph
“Something not working”).
The End of programme is indicated by a
flashing zero «
0».
8.
Display
The display shows the following information:
16
Page 17
Altering an option or a running programme
It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause
the washing machine by pressing button
Changing a running programme is possible
only by resetting it. Turn the programme
selector dial to«Off» and then to the new
programme position. Start the new programme
by depressing button
The washing water in the tub will not empty
out.
Interrupting a programme
Depress tbutton
which is running, the corresponding light starts
to flash. Depress the button again to restart the
programme.
Cancelling a programme
Turn the selector dial to «Off» to cancel a
programme which is running. Now you can
select a new programme.
Opening the door after the programme has
started
First set the machine to pause by pressing the
8.
button
If the light «Door» goes off, the door can be
opened. If it does not switch off, this means
that the machine is already heating, that the
water level is above the bottom edge of the
door. In this cases the door cannot be opened.
If you cannot open the door but you need to
open it you have to switch the machine off by
turning the selector dial to «Off». After few
minutes the door can be opened
(Pay attention to the water level and
temperature!).
8 again.
8 to interrupt a programme
8.
After this procedure, it will be necessary to set
the programme and the options again and then
to depress button 8.
At the end of the programme
The machine stops automatically. Some
acustic signals sound and on the display will
appear a flashing «
the light «Door» go off. The door can be
opened.
If at the end of a programme there is water in
the tub (the Door light is on), to empty out the
water follow the following instructions:
To empty out the water:
1. turn the programme selector dial to «Off»
2. select the Drain»or «Spin» programme
3. reduce the spin speed, if needed, by means
of the button
4. depress button 8
5. at the end of programme, the display shows
a flashing zero «0», the light «Door» goes
off and it will be possible to open the door.
At the end of the cycle, turn the programme
selector dial to «Off» to switch the machine off.
Remove the laundry from the drum and
carefully check that the drum is empty.
If you do not intend to carry out another wash,
close the water tap.
Leave the door open to prevent the formation
of mildew and unpleasant smells.
0 ». The button 8 light and
2
17
Page 18
Care and cleaning
IMPORTANT!
You must DISCONNECT the appliance from
the electricity supply, before you can carry out
any cleaning or maintenance work.
Descaling
The water we use normally contains lime. It is
a good idea to periodically use a water
softening powder in the machine. Do this
separately from any laundry washing, and
according to the softening powder
manufacturer's instructions. This will help to
prevent the formation of lime deposits.
Maintenance Wash
With the use of low temperature washes it is
possible to get a build up of residues inside the
drum.
We recommend that a maintenance wash be
performed on a regular basis.
To run a maintenance wash:
● The drum should be empty of laundry.
● Select the hottest cotton wash programme.
● Use a normal measure of detergent, must be
a powder with biological properties.
External cleaning
Clean the exterior cabinet of the appliance with
soap and water only, and then dry thoroughly.
Cleaning the dispenser drawer
The washing powder and additive dispenser
drawer should be cleaned regularly.
To aid cleaning, the top part of the additive
compartment should be removed.
Remove the drawer by pressing the catch
downwards and by pulling it out. Flush it out
under a tap, to remove any traces of
accumulated powder.
Cleaning the drawer recess
Having removed the
drawer, use a small
brush to clean the
recess, ensuring that
all washing powder
residue is removed
from the upper and
lower
part of the recess.
Replace the drawer and run the rinse
programme without any clothes in the drum.

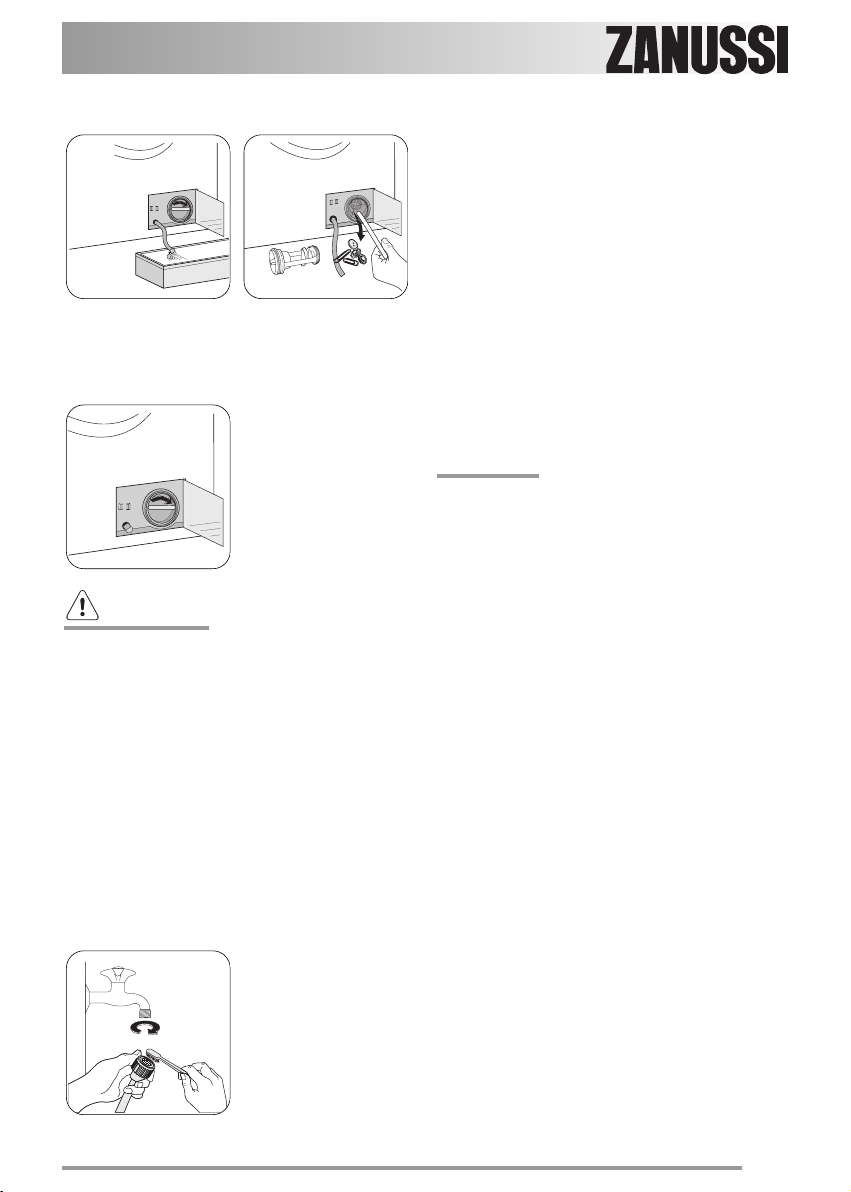

Cleaning the pump
The pump should be inspected if
● the machine does not empty and/or spin
● the machine makes an unusual noise during
draining due to objects such as safety pins,
coins etc. blocking the pump.
Proceed as follows:
● Disconnect the appliance.
● If necessary wait until the water has cooled
down.
● Open the pump
door.
● Place a container
close to the pump to
collect any spillage.
● Pull out the
emergency emptying
hose, place it in the
container and remove its cap.
● When no more water comes out, unscrew the
pump cover and remove it. Always keep a
rag nearby to dry up spillage of water when
removing the cover.
18
Page 19
● Remove any objects from the pump impeller
by rotating it.
● Put the cap back on the emergency emptying
hose and place the latter back in its seat.
● Screw the pump
cover fully in.
● Close the pump
door.
IMPORTANT!
When the appliance is in use and depending
on the programme selected there can be hot
water in the pump.
Never remove the pump cover during a wash
cycle, always wait until the appliance has
finished the cycle, and is empty. When
replacing the cover, ensure it is securely
retightened so as to stop leaks and young
children being able to remove it.
Cleaning the water inlet filter
If your water is very hard or contains traces of
lime deposit, the water inlet filter may become
clogged. It is therefore a good idea to clean it
from time to time.
Turn off the water tap.
Unscrew the water
inlet hose. Clean the
filter using a hard
bristle brush.
Tighten up the inlet
hose.
The dangers of freezing
If the machine is exposed to temperatures
below 0°C, certain precautions should be taken.
● Turn off the water tap.
● Unscrew the inlet hose.
● Place the end of the emergency emptying
hose and that of the inlet hose in a bowl
placed on the floor and let water drain out.
● Screw the water inlet hose back on and
reposition the emergency emptying hose
after having put the cap on again.
● When you intend to start the machine up
again, make sure that the room temperature
is above 0°C.
IMPORTANT!
Every time you drain the water through the
emergency emptying hose you must pour 2
litres of water into the main wash compartment
of the detergent drawer and then run the drain
programme. This will activate the ECO VALVE
device avoiding that part of the detergent
remains unused at next washing.
Emergency emptying out
If the water is not discharged, proceed as
follows to empty out the machine:
● pull out the plug from the power socket;
● close the water tap;
● if necessary, wait until the water has cooled
down;
● open the pump door;
● place a bowl on the floor and place the end
of the emergency emptying hose into the
bowl. Remove its cap. The water should
drain by gravity into the bowl. When the bowl
is full, put the cap back on the hose. Empty
the bowl. Repeat the procedure until water
stops flowing out;
● clean the pump if necessary as previously
described;
● replace the emergency emptying hose in its
seat after having plugged it;
● screw the pump cover again and close the
door.
19
Page 20
Something not working
IMPORTANT!
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily
without calling out an engineer. Before contacting your local Service Centre, please carry out the
checks listed below.
During machine operation it is possible that the red pilot light of button
signals sound and one of the following alarm codes appears on the display to indicate that the
machine is not working:
● E10: problem with the water supply
● E20: problem with water draining
● E40: door open.
Once the problem has been eliminated, press the button 8 to restart the programme. If after all
checks, the problem persists, contact your local Service Centre.
Malfunction Possible Cause / Solution
The door has not been closed. E40
• Close firmly the door.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The washing machine does not start:
The main fuse has blown.
• Replace the fuse.
The selector dial is not correctly positioned and the
8 has not been depressed.
button
• Please turn the selector dial and press the button 8
again.
The button
• If the laundry are to be washed immediately, cancel
the delay start
10 has been selected.
8 flashes, few acoustic
The machine does not fill:
20
The water tap is closed. E10
• Open the water tap.
The inlet hose is squashed or kinked.
• Check the inlet hose connection.
The filter in the inlet hose is blocked. E10
• Clean the water inlet hose filter.
The door is not properly closed.
• Close firmly the door.
E10
E40
Page 21
Malfunction Possible Cause / Solution
The machine fills then empties
immediately:
The machine does not empty and/or
does not spin:
There is water on the floor:
The end of the drain hose is too low.
• Refer to relevant paragraph in «water drainage»
section.
The drain hose is squashed or kinked. E20)
• Check the drain hose connection.
The drain pump is clogged. E20
• Clean the drain pump.
The option «No spin» or «Rinse hold» has been
selected.
• Select the Drain or Spin programme
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
Too much detergent or unsuitable detergent (creates
too much foam) has been used.
• Reduce the detergent quantity or use another one.
Check whether there are any leaks from one of the
inlet hose fittings. It is not always easy to see this as
the water runs down the hose; check to see if it is
damp.
• Check the water inlet hose connection.
The inlet hose is damaged.
• Change it with a new one.
The cap on the emergency emptying hose has not
been replaced after cleaning the pump.
• Put the cap back on the emergency emptying and
place the latter back in its seat.
Unsatisfactory washing results:
Too little detergent or unsuitable detergent has been
used.
• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to
washing.
• Use commercial products to treat the stubborn
stains.
The correct temperature was not selected.
• Check if you have selected the correct
temperature.
Excessive laundry load.
• Introduce into the drum less laundry.
21
Page 22
Malfunction Possible Cause / Solution
The door will not open:
The machine vibrates or is noisy:
Spinning starts late or the machine
does not spin:
The machine makes an unusual noise
No water is visible in the drum
The programme is still running.
• Wait the end of washing cycle.
The door lock has not been released.
• Wait until the pilot light
9 has gone out.
There is water in the drum.
• Select drain or spin programme to empty out the water.
The transit bolts and packing have not been
removed.
• Check the correct installation of the appliance.
The support feet have not been adjusted.
• Check the correct levelling of the appliance.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
Maybe there is very little laundry in the drum.
• Load more laundry.
The electronic unbalance detection device has cut in
because the laundry is not evenly distributed in the
drum. The laundry is redistributed by reverse rotation
of the drum. This may happen several times before
the unbalance disappears and normal spinning can
resume. If, after 10 minutes, the laundry is still not
evenly distributed in the drum, the machine will not
spin. In this case, redistribute the load manually and
select the spin programme.
● Redistribute the laundry.
The machine is fitted with a type of motor which
makes an unusual noise compared with other
traditional motors. This new motor ensures a softer
start and more even distribution of the laundry in the
drum when spinning, as well as increased stability of
the machine.
Machines based on modern technology operate very
economically using very little water without affecting
performance.
22
Page 23
If you are unable to identify or solve the
Mod. ... ... ...
Prod. No. ... ... ...
Ser. No. ... ... ...
M
o
d
.
.
.
.
.
.
.
.
.
.
P
r
o
d
.
N
o
.
.
..
.
.
.
.
.
S
e
r
.
N
o
.
.
.
.
.
.
.
.
.
.
problem, contact our service centre.
Before telephoning, make a note of the model,
serial number and purchase date of your
machine: the Service Centre will require this
information.
Technical data
Dimensions Width 60 cm
Height
Depth (inclunding the porthole)
85 cm
63 cm
Electrical connection Voltage Overall power - Fuse
Information on the electrical connection is given on the rating
plate on the inner edge of the appliance door
Water supply pressure Minimum 0,05 MPa
Maximum
Maximum Load 7 kg
Spin Speed 0 1200 rpm ZWH 6120
Cotton
Maximum
0,8 MPa
1000 rpm ZWH 6100
1000 rpm ZWH 6100A
23
Page 24
Consumption values
Programme
Energy
consumption
(in kWh)
Cotton 90°C
Cotton 60°C 1.4
Cotton 60°+ Economy selected
Cotton 40°C
Synthetics 60°C
Delicates 40°C
Handwash 30°
Wool 40°
Jeans 40°
Blanket 40°
Rinses
Drain
Spin
on the control panel
For the duration of the programmes, please refer to the display
1.19
0.77
1.05 57
0.25 55
0.55 58
0.55
Water
consumption (in
litres)
2.1 65
60
59
0.6 63
0.4
0.1
-
- -
46
60
55
78
-
Infos
The consumption data shown on this chart is to
be considered purely indicative, as it may vary
depending on the quantity and type of laundry,
on the inlet water temperature and on the
ambient temperature. It refers to the highest
temperature for each wash programme.
24
(*) The «Cotton» 60° + the option Eco
selected with a load of 7 kg is the
reference programme for the data entered
in the energy label, in compliance with EEC
92/75 standards.
Page 25
Installation instruction
C
C
E
D
C
C
B
B
A
Unpacking
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all transit devices so
that they can be refitted if the machine ever
has to be transported again.
1. After removing all the packaging, carefully
lay machine on it’s back to remove the
polystyrene base from the bottom.
2. Remove the power supply cable and the
draining hose from the hose holders on the
rear of the appliance.
3. With a suitable spanner unscrew and
remove the central rear bolt A.
4. Unscrew and remove the two large rear
bolts B and the six smaller bolts C.
5. Remove the bracket D, refit the six smaller
bolts C and slide out the relevant plastic
spacer E.
6. Open the porthole, take out the inlet hose
from the drum and remove the polystyrene
block fitted with the adhesive tape on the
door seal.Open the porthole, take out the
inlet hose from the drum and remove the
polystyrene block fitted with the adhesive
tape on the door seal.
7. Fill the smaller upper hole and the two large
ones with the corresponding plastic plug
caps supplied in the bag containing the
instruction booklet.
Positioning
Install the machine on a flat hard floor. Make
sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that
the machine does not touch the wall or other
kitchen units. Level the washing machine by
raising or lowering the feet. The feet may be
tight to adjust as they incorporate a self locking
nut, but the machine MUST be level and
stable.
Any necessary adjustment can be made with a
spanner.
Accurate levelling prevents vibration, noise and
displacement of the machine during
operation.Never place cardboard, wood or
similar materials under the machine to
compensate for any unevenness in the floor.
25
Page 26
If necessary, check the
45°
35°
setting with a spirit
level.
Water inlet
An inlet hose is supplied and can been found
inside the machine drum.
Do not use the hose from your previous
machine to connect to the water supply.
1. Open the porthole and extract the inlet
hose.
2.Connect the hose
with the angled
connection to the
machine.
Attenzione!
Do not place the inlet hose downwards.
Angle the hose to the left or right depending
on the position of your water tap.
3. Set the hose correctly by loosening the ring
nut. After positioning the inlet hose, be sure to
tighten the ring nut again to prevent leaks.
4. Connect the hose to
a tap with a 3/4”
thread. Always use the
hose supplied with the
appliance.
The inlet hose must not be lengthened. If it is
too short and you do not wish to move the tap,
you will have to purchase a new, longer hose
specially designed for this type of use.
Water drainage
The end of the drain hose can be positioned in
three ways:
Hooked over the
edge of a sink using
the plastic hose
guide supplied with
the machine. In this
case, make sure the
end cannot come
unhooked when the
machine is emptying. This could be done by
tying it to the tap with a piece of string or
attaching it to the wall.
In a sink drain pipe branch. This branch
must be above the trap so that the bend is at
least 60 cm above the ground.
Directly into a drain pipe at a height of not
less than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain
pipe must be larger than the outside diameter
of the drain hose.
The drain hose must not be kinked.
26
Page 27
Electrical connection
This machine is designed to operate on a 220230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (2.2 kW),
also taking into account any other appliances
in use.
Attention!
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Attention!
Should the appliance power supply cable need
to be replaced, this MUST be carried out by
our Service Centre.
NOTE
Please ensure that when the appliance is
installed it is easily accessible for the engineer
in the event of a breakdown.
27
Page 28
Environmental concerns
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by
disposing of them properly in appropriate
collection containers.
Old machine
Use authorised disposal sites for your old
appliance. Help to keep your country tidy!
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
Ecological hints
To save water, energy and to help protect the
environment, we recommend that you follow
these tips:
● Normally soiled laundry may be washed
without prewashing in order to save
detergent, water and time (the environment
is protected too!).
● The machine works more economically if it is
fully loaded.
● With adequate pre-treatment, stains and
limited soiling can be removed; the laundry
can then be washed at a lower temperature.
● Measure out detergent according to the
water hardness, the degree of soiling and
the quantity of laundry being washed.
28
Page 29
Guarantee
European guarantee
This appliance is guaranteed by Electrolux, in
each of the countries listed in the following
page, for the period specified in the appliance
guarantee or otherwise by law. If you move
from one of these countries to another of these
countries the appliance guarantee will move
with you subject to the following qualifications:
● The appliance guarantee starts from the
date you first purchased the appliance
which will be evidenced by production of a
valid purchase document issued by seller
of the appliance.
● The appliance guarantee is for the same
period and to the same extent for labour
and parts as exists in your country of
residence for this particular model or range
of appliances.
● The appliance guarantee is personal to the
original purchaser of the appliance and
cannot be transferred to another user.
● The appliance is installed and used in
accordance with instructions issued by
Electrolux and is only used within the
home, i.e. is not used for commercial
purposes.
● The appliance is installed in accordance
with all relevant regulations in force within
your new country of residence.
The provisions of this European Guarantee do
not affect any of the rights granted to you by
law.
29
Page 30
www.electrolux.com
à
Albania
Belgique/België/Belgien
Česká republika
Danmark
Deutschland
Eesti
España
France
Great Britain
Hellas
Hrvatska
Ireland
Italia
Latvija
Lituania
Luxembourg
Magyarország
Nederland
Norge
Österreich
Polska
Portugal
Romania
Schweiz-Suisse-Svizzera
Slovenija
Slovensko
Suomi
Sverige
Türkiye
Россия
+35 5 4 261 450
+32 2 363 04 44
+420 2 61 12 61 12
+45 70 11 74 00
+49 180 32 26 622
+37 2 66 50 030
+34 902 11 63 88
www.electrolux.fr
+44 8705 929 929
+30 23 10 56 19 70
+38 51 63 23 338
+353 1 40 90 753
+39 (0) 434 558500
+37 17 84 59 34
+370 5 27 80 609
+35 2 42 43 13 01
+36 1 252 1773
+31 17 24 68 300
+47 81 5 30 222
+43 18 66 400
+48 22 43 47 300
+35 12 14 40 39 39
+40 21 451 20 30
+41 62 88 99 111
+38 61 24 25 731
+421 2 43 33 43 22
www.electrolux.fi
+46 (0)771 76 76 76
+90 21 22 93 10 25
+7 095 937 7837
Rr. Pjeter Bogdani Nr. 7 Tirane
Bergensesteenweg 719, 1502 Lembeek
Budějovická 3, Praha 4, 140 21
Sjællandsgade 2, 7000 Fredericia
Muggenhofer Str. 135, 90429 Nürnberg
Mustamäe tee 24, 10621 Tallinn
Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
Addington Way, Luton, Bedfordshire LU4 9QQ
4, Limnou Str., 54627 Thessaloniki
Slavonska avenija 3, 10000 Zagreb
Longmile Road Dublin 12
C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Kr. Barona iela 130/2, LV-1012, Riga
Verkiu, 2 9, 09108 Vilnius, Lithuania
Rue de Bitbourg, 7, L-1273 Hamm
H-1142 Budapest XIV, Erzsébet királyné útja 87
Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Risløkkvn. 2 , 0508 Oslo
Herziggasse 9, 1230 Wien
ul. Kolejowa 5/7, Warsaw
Quinta da Fonte - Edificio Gonçalves Zarco - Q35 -2774-518 Paço de Arcos
Str. Garii Progresului 2, S4, 040671 RO
Industriestrasse 10, CH-5506 Mägenwil
Traška 132, 1000 Ljubljana
Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava
Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Tarlabași caddesi no : 35 Taksim Istanbul
129090 Москва, Олимпийский проспект, 16, БЦ “Олимпик”
30
Page 31
31
Page 32
www.electrolux.com
www.zanussi.esp
132969430
Subject to change without notice
Loading...
