Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 727 727.
Installation
zThis appliance must be installed and serviced by a competent person as stated in the Gas Safety (Installation and Use) Regulations Current Editions and the IEE Wiring Regulations.
zFor appliances installed in the Republic of Ireland please refer to NSAIDomestic Gas Installations I.S.813 Current Editions and the ETCI Rules for Electrical Installations.
zRemove all packaging before using the hob.
zEnsure that the gas and electrical supply complies with the type stated on the rating plate, located near the gas supply pipe.
zDo not attempt to modify the hob in any way.
People Safety
zThis hob is designed to be operated by adults. Do not allow children to play near or with the hob.
zThis appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
zThe hob gets hot when it is in use. Children should be kept away until it has cooled.
zChildren can also injure themselves by pulling pans or pots off the hob.
During Use
zThis hob is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
zThis appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.
zWhen in use a gas cooking hob will produce heat and moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition or installing a cooker hood with a venting hose.
zEnsure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.
4
zWhen using the hob for a long period time, the ventilation should be improved, by opening a window or increasing the extractor speed.
zDo not use this hob if it is in contact with water. Do not operate the hob with wet hands.
zEnsure the control knobs are in the ‘OFF’ position when not in use.
zWhen using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooking appliance.
zUnstable or misshapen pans should not be used on the hob as unstable pans can cause an accident by tipping or spillage.
zNever leave the hob unattended when cooking with oil and fats.
zNever use plastic or aluminium foil dishes on the hob.
zPerishable food, plastic items and areosols may be affected by heat and should not be stored above or below the hob unit.
zThis appliance cannot be cleaned with steam or with a steam cleaning machine.
Service
z This hob should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.
U Environmental Information
zAfter installation, please dispose of the packaging with due regard to safety and the environment.
zWhen disposing of an old appliance, make it unusable, by cutting off the cable.
zThe symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
These instructions are only valid for countries whose identification symbols are shown on the cover of this instruction booklet and on the appliance itself.
Keep this instruction book for future reference and ensure it is passed on to any new owner.
5
Description of the Hob
3
5
3 2
4 1
6
1.Hob Top
2.Auxiliary Burner
3.Semi-rapid Burner
4.Rapid Burner
5.Triple Crown
6.Control knobs
6
Instructions for the User
INSTALLATION
Any gas installation must be carried out by a registered competent person, and in accordance with existing rules and regulations.
The relevant instructions are to be found in the second section of this manual.
Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the event of a breakdown.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory.
The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this book be ignored.
7
Operation
Hob burners control knobs
The symbols on the knobs mean that :
there is no gas supply
there is maximum gas supply
|
there is minimum gas supply |
|
||||
Lighting |
the |
burners |
|
|||
|
For easier |
lighting, |
proceed before putting |
|
||
|
a pan on the pan support. |
|
||||
)z |
To light a burner: |
|
|
|
||
turn the relevant knob anti-clockwise to maximum |
|
|||||
|
position ( |
), then push it down to ignite the |
|
|||
|
burner. |
|
|
|
Triple crown burner |
|
z |
Upon ignition, keep the knob pushed down |
|||||
|
about 5 seconds. This will allow the |
|
||||
|
"thermocouple" (see diagram - letter D) to be |
A |
||||
|
heated and the safety device to be switched |
|||||
|
off, otherwise |
the |
gas supply would be |
B |
||
|
interrupted. |
|
|
|
||
z |
Then adjust the flame as required. |
D |
||||
|
If the burner does not ignite, turn the control knob |
|||||
|
to zero, and try again. |
|
C |
|||
|
If you cannot light the flame even after |
A - Burner cap |
||||
|
severalattempts, check the "cap" (see diagram |
B - Burner crown |
||||
|
- letter A) and the"crown" (see diagram - letter |
C - Ignition electrode |
||||
|
B) are in the correct position. |
D - Thermocouple |
8
Do not keep the control knob pressed for more than 15 seconds.
If the burner does not light even after 15 seconds, release the control knob, turn it the "off" position and wait for at least one minute before trying to light the burner again.
When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.
In the absence of electricity, ignition can occur without the electrical device; in this case, approach the burner with a flame, push the relevant knob down and turn it anti-clockwise until it reaches the maximum position.
If the control knobs become difficult to turn, please contact your local Service Force Centre.
Using the hob correctly
To ensure maximum burner efficiency, it is strongly recommended that you use only pots and pans with a flat bottom fitting the size of the burner used, so that flame will not spread beyond the bottom of the vessel (see the table below).
Burner |
minimum |
maximum |
|
diameter |
diameter |
Triple crown |
180 mm |
260 mm |
Large (rapid) |
180 mm |
260 mm |
Medium (semi-rapid) |
120 mm |
220 mm |
Small (auxiliary) |
80 mm |
160 mm |
|
|
|
9
As soon as a liquid starts boiling, turn down
the flame so that it will barely keep the liquid simmering.
Use only pans or pots with flat bottom.
If you use a saucepan which is smaller
than the recommended size, the flame will spread beyond the bottom of the vessel, causing the handle to
overheat.
Carefully supervise cooking with fat or oil, since these types of foodstuff can result in a fire, if over-heated.
The stainless steel can become tarnished if excessively heated. Therefore prolonged cooking with potstones, earthenware pans or cast-iron plates is inadvisable. Also, do not use aluminium foil to protect the top during use.
Make sure pots do not protrude over the edges of the cooktop and that they are centrally positioned on the rings in order to obtain lower gas consumption.
Do not place unstable or deformed pots on the rings: they could tip over or spill their contents, causing accidents.

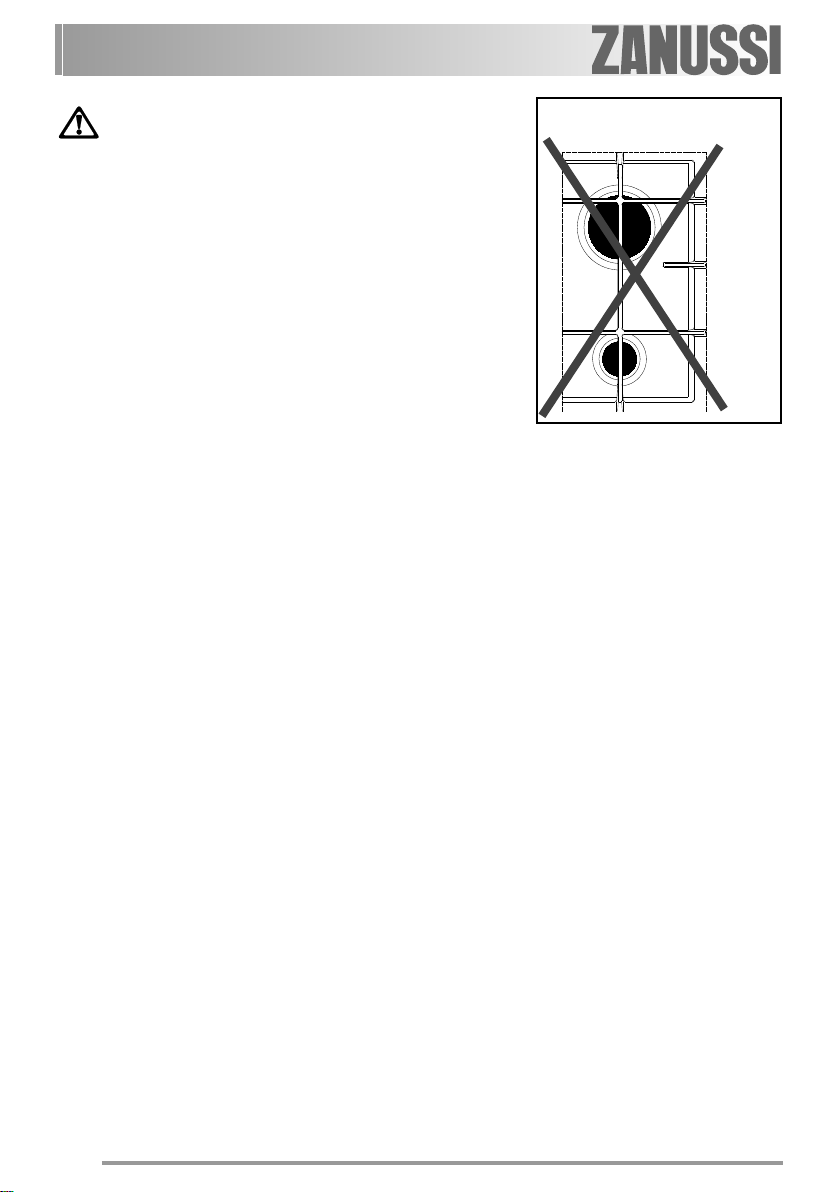

Pots must not enter the control zone.
Using the Wok Stand
A wok stand is provided to enable you to use a round bottomed wok on the hob. The wok
stand must only be used on the triple crown
burner, and should not be used with any
other type of wok or pan. When fitting the
wok stand, ensure the recesses in the fra-
me fit securely onto the bars of the pan
supports, as shown in the picture.
