SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very

extensive and complex disabilities shall be kept away unless
continuously supervised.

• Children of less than 3 years of age should be kept away

unless continuously supervised.

• Do not let children play with the appliance.

• Keep all packaging away from children and dispose of it

appropriately.

• Keep children and pets away from the appliance when it

operates or when it cools down. Accessible parts are hot.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of

the appliance without supervision.

GENERAL SAFETY

• WARNING: The appliance and its accessible parts become hot

during use. Care should be taken to avoid touching heating
elements.

• Do not operate the appliance by means of an external timer or

separate remote-control system.

• WARNING: Unattended cooking on a hob with fat or oil can be

dangerous and may result in fire.

2

• NEVER try to extinguish a fire with water, but switch off the

appliance and then cover flame e.g. with a lid or a fire blanket.

• CAUTION: The cooking process has to be supervised. A short

term cooking process has to be supervised continuously.

• WARNING: Danger of fire: Do not store items on the cooking

surfaces.

• Metallic objects such as knives, forks, spoons and lids should

not be placed on the hob surface since they can get hot.

• Do not use a steam cleaner to clean the appliance.

• If the supply cord is damaged, it must be replaced by the

manufacturer, an authorized Service or similarly qualified
persons in order to avoid a hazard.

• Where the appliance is directly connected to the power supply,

an all-pole isolating switch with a contact gap is required.
Complete disconnection in compliance with the conditions
specified in overvoltage category III must be guaranteed. The
earth cable is excluded from this.

• When you route the mains cable, make sure that the cable

doesn't come into direct contact (for example using insulating
sleeving) with parts that can reach temperatures of more than
50°C above room temperature.

• WARNING: Use only hob guards designed by the manufacturer

of the cooking appliance or indicated by the manufacturer of
the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappropriate
guards can cause accidents.

SAFETY INSTRUCTIONS

This appliance is suitable for the following markets:

GB IE

INSTALLATION

WARNING! Only a qualified person

must install this appliance.

WARNING! Risk of injury or damage
to the appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with
the appliance.

• Keep the minimum distance from other
appliances and units.

• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.

• Seal the cut surfaces with a sealant to prevent
moisture to cause swelling.

• Protect the bottom of the appliance from steam
and moisture.

3

• Do not install the appliance adjacent to a door
or under a window. This prevents hot cookware
falling from the appliance when the door or the
window is opened.

• If the appliance is installed above drawers make
sure that the space, between the bottom of the
appliance and the upper drawer, is sufficient for
air circulation.

• The bottom of the appliance can get hot. Make
sure to install a non-combustible separation
panel under the appliance to prevent access to
the bottom.

ELECTRICAL CONNECTION

WARNING! Risk of fire and electric

shock.

• All electrical connections should be made by a
qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make sure
that the appliance is disconnected from the
power supply.

• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.

• Make sure the appliance is installed correctly.
Loose and incorrect electricity mains cable or
plug (if applicable) can make the terminal
become too hot.

• Use the correct electricity mains cable.

• Do not let the electricity mains cable tangle.

• Make sure that a shock protection is installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if
applicable) does not touch the hot appliance or
hot cookware, when you connect the appliance
to the near sockets.

• Do not use multi-plug adapters and extension
cables.

• Make sure not to cause damage to the mains
plug (if applicable) or to the mains cable.
Contact our Authorised Service Centre or an
electrician to change a damaged mains cable.

• The shock protection of live and insulated parts
must be fastened in such a way that it cannot be
removed without tools.

• Connect the mains plug to the mains socket
only at the end of the installation. Make sure that
there is access to the mains plug after the
installation.

• If the mains socket is loose, do not connect the
mains plug.

• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.

• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses

removed from the holder), earth leakage trips
and contactors.

• The electrical installation must have an isolation
device which lets you disconnect the appliance
from the mains at all poles. The isolation device
must have a contact opening width of minimum
3 mm.

GAS CONNECTION

• All gas connections should be made by a
qualified person.

• Before installation, make sure that the local
distribution conditions (nature of the gas and
gas pressure) and the adjustment of the
appliance are compatible.

• Make sure that there is air circulation around the
appliance.

• The information about the gas supply is on the
rating plate.

• This appliance is not connected to a device,
which evacuates the products of combustion.
Make sure to connect the appliance according
to current installation regulations. Pay attention
to requirements regarding adequate ventilation.

USE

WARNING! Risk of injury, burns and

electric shock.

• Remove all the packaging, labelling and
protective film (if applicable) before first use.

• Use this appliance in a household environment.

• Do not change the specification of this
appliance.

• Make sure that the ventilation openings are not
blocked.

• Do not let the appliance stay unattended during
operation.

• Set the cooking zone to “off” after each use.

• Do not put cutlery or saucepan lids on the
cooking zones. They can become hot.

• Do not operate the appliance with wet hands or
when it has contact with water.

• Do not use the appliance as a work surface or
as a storage surface.

• When you place food into hot oil, it may splash.

WARNING! Risk of fire and explosion

• Fats and oil when heated can release flammable
vapours. Keep flames or heated objects away
from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause
spontaneous combustion.

4

• Used oil, that can contain food remnants, can
cause fire at a lower temperature than oil used
for the first time.

• Do not put flammable products or items that are
wet with flammable products in, near or on the
appliance.

WARNING! Risk of damage to the
appliance.

• Do not keep hot cookware on the control panel.

• Do not let cookware to boil dry.

• Be careful not to let objects or cookware fall on
the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty
cookware or without cookware.

• Do not put aluminium foil on the appliance.

• Use only stable cookware with the correct
shape and diameter larger than the dimensions
of the burners.

• Make sure cookware is centrally positioned on
the burners.

• Make sure the flame does not go out when you
quickly turn the knob from the maximum to the
minimum position.

• Use only the accessories supplied with the
appliance.

• Do not install a flame diffuser on the burner.

• The use of a gas cooking appliance results in
the production of heat and moisture. Provide
good ventilation in the room where the
appliance is installed.

• Prolonged intensive use of the appliance may
call for additional ventilation, for example
opening of a window, or more effective
ventilation, for example increasing the level of
mechanical ventilation where present.

• This appliance is for cooking purposes only. It
must not be used for other purposes, for
example room heating.

• Do not let acid liquids, for example vinegar,
lemon juice or limescale remover, touch the hob.
This can cause matt patches.

• Discoloration of the enamel or stainless steel
has no effect on the performance of the
appliance.

CARE AND CLEANING

WARNING! Do not remove the

buttons, knobs or gaskets from the
control panel. Water may get inside
the appliance and cause damage.

• Clean the appliance regularly to prevent the
deterioration of the surface material.

• Deactivate the appliance and let it cool down
before you clean it.

• Disconnect the appliance from the electrical
supply before maintenance.

• Do not use water spray and steam to clean the
appliance.

• Clean the appliance with a moist soft cloth. Only
use neutral detergents. Do not use any abrasive
products, abrasive cleaning pads, solvents or
metal objects.

• Do not clean the burners in the dishwasher.

SERVICE

• To repair the appliance contact an Authorised
Service Centre.

• Use original spare parts only.

DISPOSAL

WARNING! Risk of injury or

suffocation.

• Contact your municipal authority for information
on how to discard the appliance correctly.

• Disconnect the appliance from the mains
supply.

• Cut off the mains electrical cable close to the
appliance and dispose of it.

• Flat the external gas pipes.

5

PRODUCT DESCRIPTION

3

4

2

1

A

B

D

C

C

D

A

B

COOKING SURFACE LAYOUT

CONTROL KNOB

Symbol Description

no gas supply / off position

ignition position / maximum
gas supply

DAILY USE

Semi-rapid burner

1

Multi Crown burner

2

Auxiliary burner

3

Control knobs

4

Symbol Description

minimum gas supply

WARNING! Refer to Safety chapters.

BURNER OVERVIEW

6

A. Burner cap
B. Burner crown
C. Ignition candle
D. Thermocouple

IGNITION OF THE BURNER

Always light the burner before you put
on the cookware.

WARNING! Be very careful when you
use open fire in the kitchen
environment. The manufacturer
declines any responsibility in case of
the flame misuse.

1. Push the control knob down and turn it
counterclockwise to the maximum gas supply

position ( ).

2. Keep the control knob pushed for equal or less
than 10 seconds. This lets the thermocouple
warm up. If not, the gas supply is interrupted.

3. Adjust the flame after it is regular.

If after some tries the burner does not
light, check if the crown and its cap
are in correct positions.

WARNING! Do not keep the control
knob pushed for more than 15
seconds. If the burner does not light
after 15 seconds, release the control
knob, turn it into off position and try to
light the burner again after minimum 1
minute.

CAUTION! In the absence of
electricity you can ignite the burner
without electrical device; in this case
approach the burner with a flame, turn
the control knob counter-clockwise to
maximum gas supply position and
push it down. Keep the control knob
pushed for equal or less than 10
seconds to let the thermocouple warm
up.

If the burner accidentally goes out,
turn the control knob to the off position
and try to light the burner again after
minimum 1 minute.

The spark generator can start
automatically when you switch on the
mains, after installation or a power cut.
It is normal.

The hob is supplied with the
progressive valves. They make the
flame regulation more precise.

TURNING THE BURNER OFF

To put the flame out, turn the knob to the off
position .

WARNING! Always turn the flame
down or switch it off before you
remove the pans from the burner.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

COOKWARE

CAUTION! Do not use cast iron pans,

clay or earthenware pots, grill or
toaster plates. The stainless steel can
become tarnished if it is too much
heated.

WARNING! Do not put the same pan
on two burners.

WARNING! Do not put unstable or
damaged pots on the burner to
prevent spills and injuries.

CAUTION! Make sure that the
bottoms of pots do not stand too
close to the control knob, otherwise
the flame heats the control knob up.

7

CAUTION! Make sure that pot
handles are not above the front edge
of the cooktop.

Burner

Diameter of cook-

ware (mm)

CAUTION! Make sure that the pots

are placed centrally on the burner in
order to get the maximum stability and
a lower gas consumption.

DIAMETERS OF COOKWARE

Use cookware with diameters
applicable to the size of burners.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

GENERAL INFORMATION

• Clean the hob after each use.

• Always use cookware with a clean base.

• Scratches or dark stains on the surface have no
effect on how the hob operates.

• Use a special cleaner suitable for the surface of
the hob.

Stainless steel

• Wash stainless steel parts with water, and then
dry them with a soft cloth.

• To remove burnt food, fat and stubborn stains
let them soak in a small amount of mild
detergent for a few minutes before cleaning.

• Use cleaning products designed specifically for
cleaning stainless steel in order to protect the
steel surfaces.

• Do not use cleaning products containing
corrosive chemicals such as chlorides, do not
clean the surface with disinfectants, stain or rust
removers and immersion cleaners.

Multi Crown 180 - 260
Semi-rapid 120 - 220
Auxiliary 80 - 180

pan supports by hand and dry them. If
necessary, remove stubborn stains with a paste
cleaner.

3. After you clean the pan supports, make sure
that they are in correct positions.

4. For the burner to operate correctly, make sure
that the arms of the pan supports are aligned
with the centre of the burner.

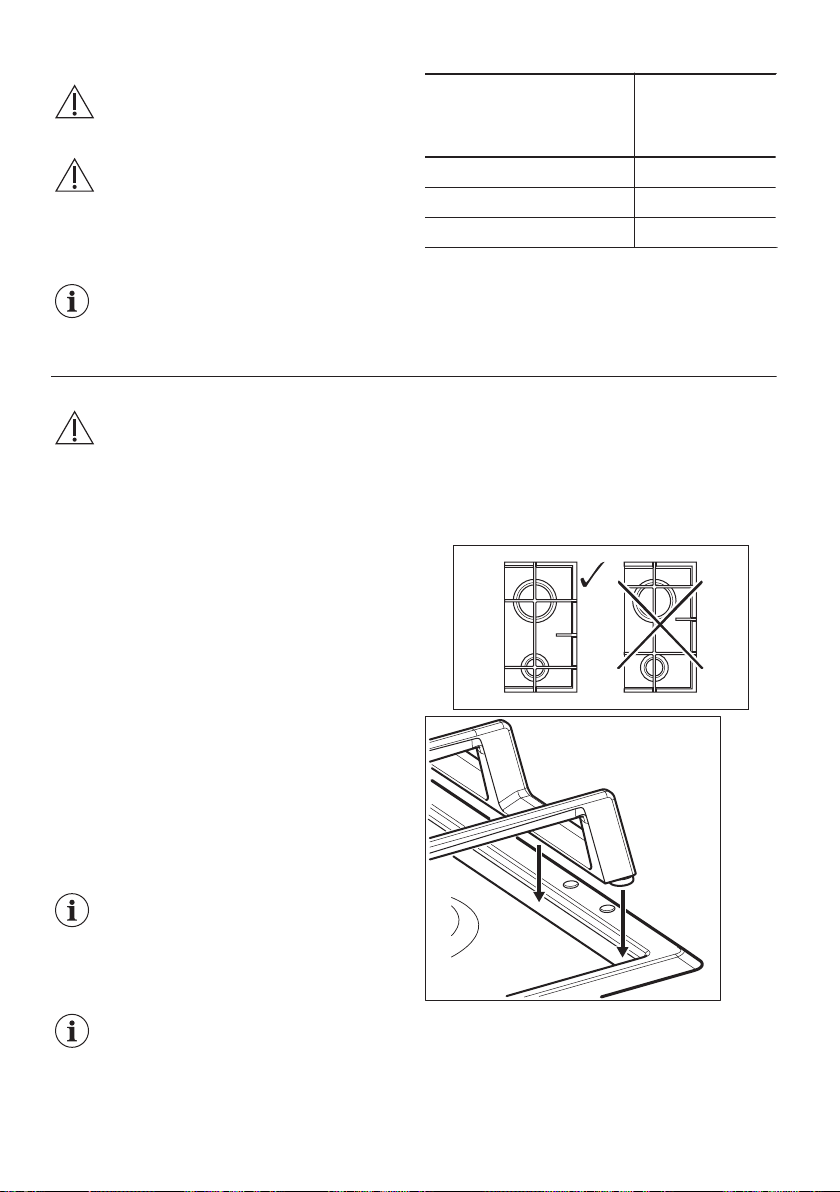

PAN SUPPORTS

The pan supports are not resistant to
washing in a dishwasher. They must
be washed by hand.

1. Remove the pan supports to easily clean the
hob.

Be very careful when you replace
the pan supports to prevent the
hob top from damage.

2. The enamel coating occasionally can have
rough edges, so be careful when you wash the

8

CLEANING THE HOB

• Remove immediately: melted plastic, plastic
foil, sugar and food with sugar, otherwise, the

dirt can cause damage to the hob. Take care to
avoid burns.

• Remove when the hob is sufficiently cool:
limescale rings, water rings, fat stains, shiny
metallic discoloration. Clean the hob with a
moist cloth and a non-abrasive detergent. After
cleaning, wipe the hob dry with a soft cloth.

• To clean the enamelled parts, caps and crowns,
wash them with warm soapy water and dry them
carefully before you put them back on.

CLEANING THE SPARK PLUG

This feature is obtained through a ceramic ignition
candle with a metal electrode. Keep these

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

WHAT TO DO IF...

Problem Possible cause Remedy

components well clean to prevent difficult lighting
and check that the burner crown holes are not
obstructed.

PERIODIC MAINTENANCE

Speak to your local Authorised Service Centre
periodically to check the conditions of the gas
supply pipe and the pressure adjuster, if fitted.

There is no spark when you try
to activate the spark generator.

The fuse is blown. Make sure that the fuse is the

Burner cap and crown are

The flame extinguishes immedi­ately after ignition.

The flame ring is uneven. Burner crown is blocked with

IF YOU CANNOT FIND A SOLUTION...

If you cannot find a solution to the problem yourself,
contact your dealer or an Authorised Service
Centre. Give the data from the rating plate. Make
sure, you operated the hob correctly. If not the
servicing by a service technician or dealer will not

The hob is not connected to an
electrical supply or it is con­nected incorrectly.

placed incorrectly.
Thermocouple is not heated up

sufficiently.

food residues.

be free of charge, also during the warranty period.
The instructions about the Service Centre and
conditions of guarantee are in the guarantee
booklet.

Check if the hob is correctly
connected to the electrical
supply.

cause of the malfunction. If the
fuse is blown again and again,
contact a qualified electrician.

Place the burner cap and
crown correctly.

After lightning the flame, keep
the knob pushed for equal or
less than 10 seconds.

Make sure that the injector is
not blocked and the burner
crown is clean.

9

LABELS SUPPLIED WITH THE ACCESSORIES

MOD.

PROD. NO.

SER.N O

DATA

MOD.

PROD. NO.

SER.N O

DATA

MOD.
PROD.NO.
SER.NO.

03 IT

MADE IN ITALY

TYPE
IP20

0049

A B C

BAG

Stick the adhesive labels as indicated below:

A. Stick it on Guarantee Card and send this part

(if applicable).

B. Stick it on Guarantee Card and keep this part

(if applicable).

INSTALLATION

WARNING! Refer to Safety chapters.

BEFORE THE INSTALLATION

Before you install the hob, write down the
information bellow from the rating plate. The rating
plate is on the bottom of the hob.

Model .......................................

PNC .........................................

Serial number ...........................

IMPORTANT SAFETY REQUIREMENTS

This hob must be installed in accordance with the
Gas Safety (Installation and Use) Regulations
(Current Edition) and the IEE Wiring Regulations
(Current Edition).

For appliances installed in the Republic of Ireland
please refer to NSAI- Domestic Gas Installation I.S.

C. Stick it on instruction booklet.

813 Current Editions and the ETCI Rules for
Electrical Installations.

Provision for ventilation

Detailed recommendations are contained in the
following British Standards Codes Of Practice:
B.S. 6172/B.S. 5440, Par. 2 and B.S. 6891
Current Editions.

The hob should not be installed in a bed sitting
room with a volume of less than 20 m³. If it is
installed in a room of volume less than 5 m³ an air
vent of effective area of 100 cm² is required. If it is
installed in a room of volume between 5 m³ and 10
m³ an air vent of effective area of 50 cm² is
required, while if the volume exceeds 11 m³ no air
vent is required.

However, if the room has a door which opens
directly to the outside no air vent is required even if
the volume is between 5 m³ and 11 m³.

If there are other fuel burning appliances in the
same room, B.S. 5440 Part 2 Current Edition,

10

should be consulted to determine the requisite air

A B C

vent requirements.
For appliances installed in the Republic of Ireland

please refer to the NSAI- Domestic Gas Installation
I.S. 813 Current Editions Table Four.

Location

The hob may be located in a kitchen, a kitchen/
diner or bed sitting room (with a volume greater
than 20 m³), but not in a bathroom or shower room.

The minimum distance combustible material can be
fitted above the hob in line with the edges of the
hob is 400 mm. If it is fitted below 400 mm a space
of 50 mm must be allowed from the edges of the
hob.

For appliances installed in the Republic of Ireland
please refer to NSAI- Domestic Gas Installation I.S
813 Current Edition Section 7- Permitted
Locations of Appliance.

GAS CONNECTION

WARNING! Any gas installation must

be carried out by a GAS SAFE
REGISTER installer.

Make sure that, once the hob is installed, it is easily
accessible for the engineer in the event of a
breakdown.

The manufacturer will not accept liability, should the
above instructions or any of the other safety
instructions incorporated in this instruction booklet
be ignored.

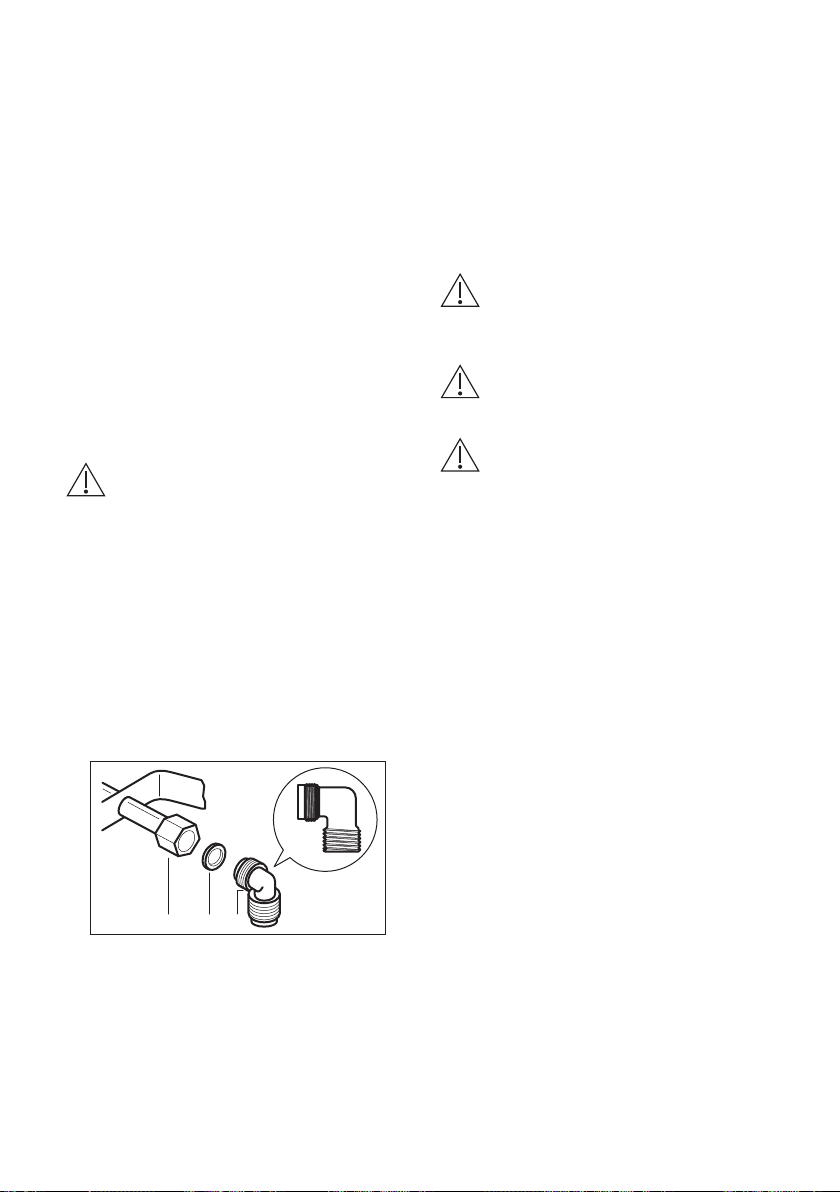

On the end of the shaft, which includes the R 1/2"
threaded elbow, adjustment is fixed so that the
washer is fitted between the components as shown
in the diagram. Screw the parts together without
using excessive force.

When the final connection has been made, it is
essential that a thorough leak test is carried out on
the hob and installation.

Make sure that the main connection pipe does not
exert any strain on the hob.

If you use flexible metal pipes make sure that they
agree to ISO 10380 and ISO 10807 standards. Be
careful they do not come in touch with mobile parts
or they are not squeezed. Also be careful when the
hob is put together with an oven.

CAUTION! It is important to install the
elbow correctly, with the shoulder on
the end of the thread, fitted to the hob
connecting pipe.

CAUTION! Failure to ensure the
correct assembly will cause leakage of
gas.

CAUTION! Make sure that the gas
supply pressure of the appliance
obeys the recommended values.

Rigid connection:

Carry out connection by using metal rigid pipes
(copper with mechanical end).

INJECTORS REPLACEMENT

1. Remove the pan supports.

2. Remove the caps and crowns of the burner.

3. With a socket spanner 7 remove the injectors

and replace them with the ones which are
necessary for the type of gas you use (see
table in "Technical Data" chapter).

4. Assemble the parts, follow the same procedure
backwards.

5. Replace the rating plate (it is near the gas
supply pipe) with the one for the new type of
gas supply. You can find this plate in the
package supplied with the appliance.

If the supply gas pressure is changeable or
different from the necessary pressure, you must fit
an applicable pressure adjuster on the gas supply
pipe.

A. End of shaft with nut
B. Washer supplied with the appliance
C. Elbow supplied with the appliance

Connection to the gas supply should be with either
rigid or semi-rigid pipe, i.e. steel or copper.

The connection should be suitable for connecting
to R 1/2 (1/2 BSP male thread).

ADJUSTMENT OF MINIMUM LEVEL

To adjust the minimum level of the burners:

1. Light the burner.

2. Turn the knob on the minimum position.

3. Remove the knob and the gasket.

11

4. With a thin screwdriver, adjust the bypass

A

screw position (A).

5. If you change:

• from natural gas G20 20 mbar to liquid gas,
fully tighten the bypass screw in.

• from liquid gas to natural gas G20 20 mbar,
undo the bypass screw approximately 1/4
of a turn (1/2 of a turn for Multi Crown
burner).

6. Reassemble the gasket and the knob.

WARNING! Make sure the flame does

not go out when you quickly turn the
knob from the maximum position to the
minimum position.

ELECTRICAL CONNECTION

• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug (if
applicable).

• The appliance must not be connected with an
extension cable, an adapter or a multiple socket.
There is a risk of fire.

• Do not let the power cable to heat up to a
temperature of more than 90° C. The cable
should be guided by means of clamps fixed to
the side of the cabinet, in order to avoid any
contact with the equipment beneath the
cooktop.

• Make sure that there is access to the mains plug
after the installation.

Electrical Requirements

Permanent electrical installation must agree with
the latest I.E.E. Regulations and local Electricity
Board regulations. For your own safety the
installation must be done by a qualified electrician
(e.g. your local Electricity Board, or a contractor
who is on the roll of the National Inspection Council
for Electrical Installation Contracting [NICEIC]).

The manufacturer refuses to be
held responsible, if these safety
measures are not abided by.

Supply connections

This hob has to be connected to 220-240 V (~
50/60 Hz ) electricity supply.

The hob has a terminal block which is
marked as follows:

• L — Live terminal

• N — Neutral terminal

• or E — Earth terminal

Before carrying out the connection, make sure:

1. The limiter valve and the electrical system can

take the appliance load (see the rating plate)

2. The supply system is equipped with an efficient

earth connection in compliance with the current
standards and regulations

3. The outlet or omnipolar switch used for

connection is easily accessible with the
appliance installed.

The appliance is supplied with a 3 core flexible
power cable with a 3 amp plug. If it is necessary to
change the fuse, use a 3 amp ASTA-approved (BS

1362) fuse.

12

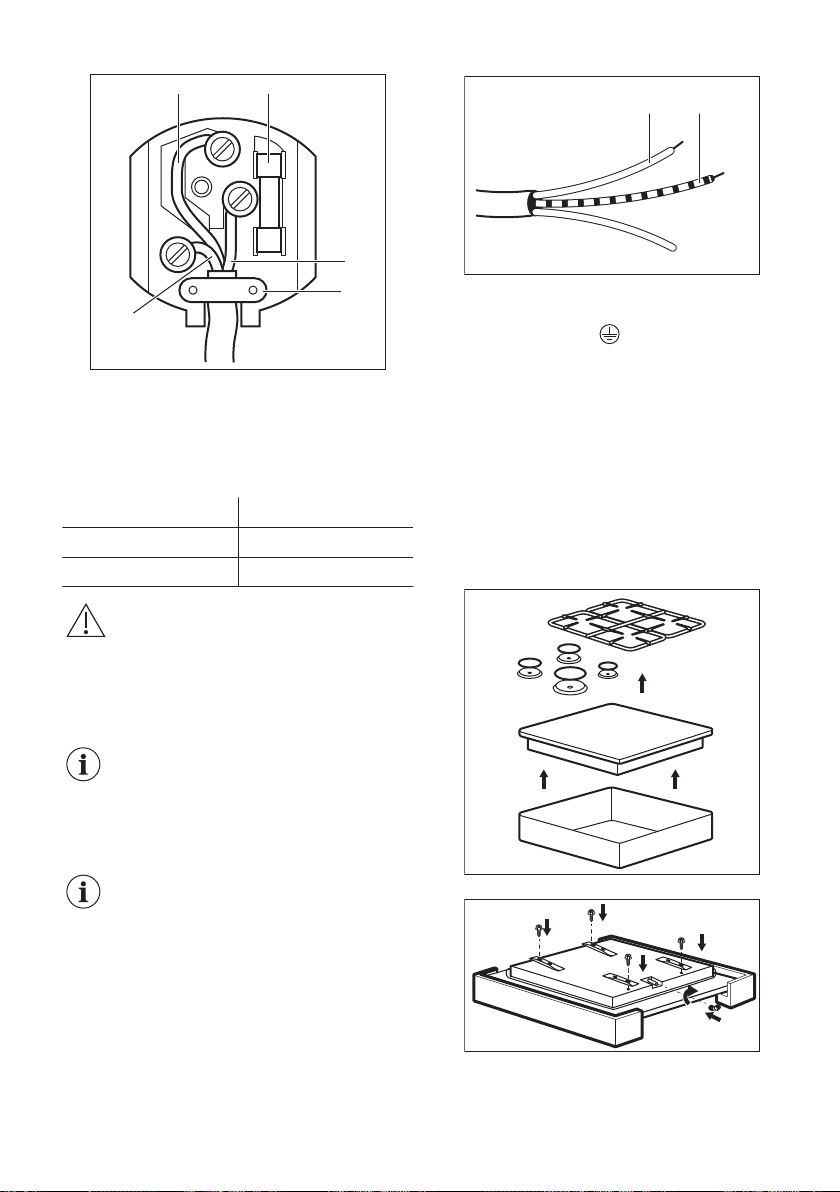

A B

C

D

E

A. Green and Yellow

A B

B. 3 amp fuse
C. Brown
D. Cord clamp
E. Blue

The wires in the cord are coloured as follows:

Green and yellow - Earth
Blue - Neutral
Brown - Live

WARNING! A cut off plug inserted
into a 13 amp socket is a serious
shock hazard. Ensure that the cut off
plug is disposed of safely.

REPLACEMENT OF THE CONNECTION CABLE

The replacement of electric cable must
be carried out exclusively by the
service force centre or by personnel
with similar competencies, in
accordance with the current
regulations.

1. Connect the green and yellow (earth) wire to
the terminal which is marked with the letter 'E',

or the earth symbol , or coloured green and
yellow.

2. Connect the blue (neutral) wire to the terminal
which is marked with the letter 'N' or coloured
blue.

3. Connect the brown (live) wire to the terminal
which is marked with the letter 'L'. It must
always be connected to the network phase.
There must be no cut or stray strands of wire
present. The cord clamp must be correctly
attached to the outer sheath.

ASSEMBLY

1.

To replace the connection cable use
only H03V2V2-F T90 or equivalent
type. Make sure that the cable section
is applicable to the voltage load and
the working temperature. The yellow/
green earth wire (B) must be
approximately 2 cm longer than the
live and neutral wire (A).

2.

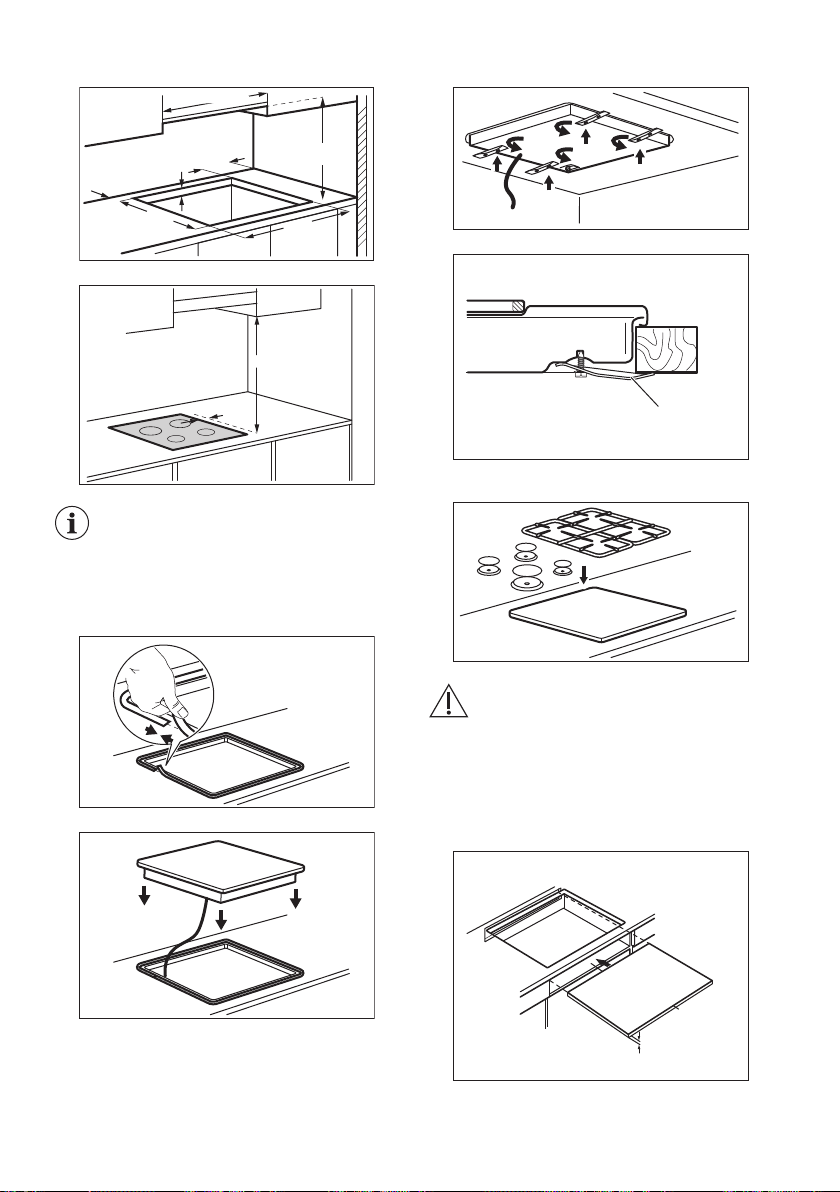

13

3.

min. 55 mm

min. 650 mm

560 mm

2
0

+

min. 100 mm

30 mm

4

80

mm

2
0

+

min. 600 mm

50 mm

400 mm

A

min 6 mm

7.

8.

4.

A) supplied bracket

9.

If a furniture unit is installed at a
distance of 400 mm above the
hob, there must be a minimum
safety distance of 50 mm to the
left or right from the edge of the
hob.

5.

6.

14

CAUTION! Install the appliance only
on a worktop with flat surface.

POSSIBILITIES FOR INSERTION

The panel installed below the hob must be easy to
remove and let an easy access in case a technical
assistance intervention is necessary.

Kitchen unit with door or drawer

min 30 mm

60 mm

min 5 mm

(max 150 mm)

A

B

A. Removable panel
B. Space for connections

Kitchen unit with oven

The electrical connection of the hob and the oven
must be installed separately for safety reasons and
to let easy remove oven from the unit.

TECHNICAL DATA

HOB DIMENSIONS

Width 595 mm
Depth 510 mm

BYPASS DIAMETERS

BURNER Ø BYPASS 1/100 mm

Multi Crown 57
Semi-rapid 32
Auxiliary 28

OTHER TECHNICAL DATA

Gas original: G20 (2H) 20 mbar 9 kW

TOTAL POW­ER:

Electric supply: 220-240 V ~ 50/60 Hz

Appliance cate­gory:

Gas connec­tion:

Appliance
class:

Gas replace­ment:

3 core flexible cable with non rewireable plug fitted with a 3 amp cartridge fuse
II2H3+

R 1/2"

3

G30 (3+) 28-30 mbar 629 g/h
G31 (3+) 37 mbar 618 g/h

GAS BURNERS FOR NATURAL GAS G20 20 MBAR

BURNER NORMAL POWER kW MINIMUM POWER kW INJECTOR MARK

Multi Crown 4,0 1,4 146
Semi-rapid 2,0 0,45 96
Auxiliary 1,0 0,33 70

15

GAS BURNERS FOR LPG G30/G31 28-30/37 MBAR

NOMINAL GAS FLOW g/h

BURNER

Multi Crown 3,65 1,4 095 265 261
Semi-rapid 2,0 0,45 71 145 143
Auxiliary 1,0 0,33 50 73 71

NORMAL

POWER kW

MINIMUM

POWER kW

INJECTOR

MARK

G30 28-30 mbar G31 37 mbar

ENERGY EFFICIENCY

PRODUCT INFORMATION ACCORDING TO EU 66/2014

Model identification ZGH66424BB,

Type of hob Built-in hob
Number of gas burners 4

Left rear - Semi-rapid 54.5%

Energy efficiency per gas burner
(EE gas burner)

Energy efficiency for the gas hob
(EE gas hob)

Right rear - Semi-rapid 58.1%
Left front - Multi crown 59.7%
Right front - Auxiliary not applicable

57.4%

ZGH66424XX

EN 30-2-1: Domestic cooking appliances burning gas - Part 2-1 : Rational use of energy - General

ENERGY SAVING

• Before use, make sure that the burners and pan supports are assembled correctly.

• Use cookware with diameters applicable to the size of burners.

• Center the pot on the burner.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• When the liquid starts to boil, turn down the flame to barely simmer the liquid.

• If it is possible, use a pressure cooker. Refer to its user manual.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it. Help
protect the environment and human health by
recycling waste of electrical and electronic
appliances. Do not dispose of appliances marked

16

with the symbol with the household waste.
Return the product to your local recycling facility or
contact your municipal office.

*

171819

WWW.ZANUSSI.COM/SHOP

867345144-C-502017
