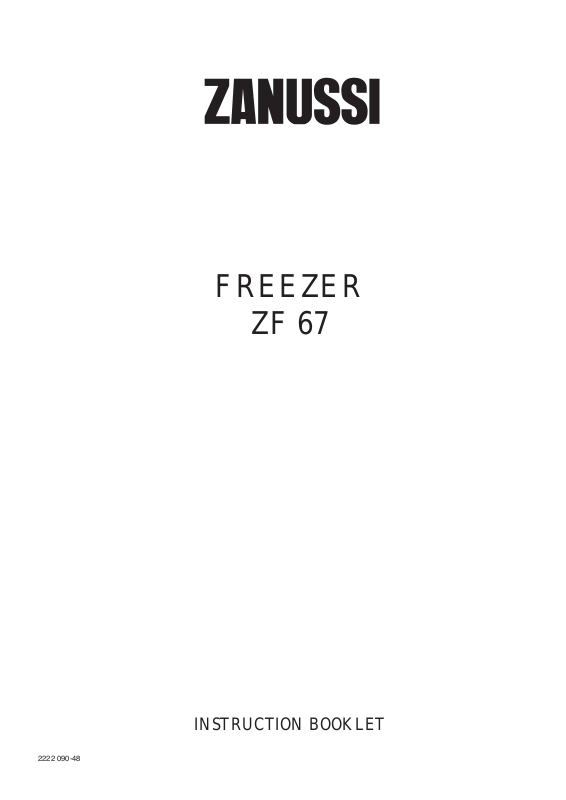

FREEZER
ZF 67
INS TRUCTION BOOKLET
2222 090-48
2
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
¥ This appliance is heavy. Care should be taken
when moving it.
¥ It is dangerous to alter the specifications or
attempt to modify this product in any way.
¥ Care must be taken to ensure that the appliance
does not stand on the electrical supply cable. If
the supply cable is damaged, it must be replaced
by a special cord available from your local
Service Force Centre.
¥ Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
¥ Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
¥ The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
¥ Do not allow children to tamper with the controls
or play with the product.
¥ Keep all packaging well away from children.
During Use
¥ This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs
only.
¥ Frozen food must NOT be re-frozen once it has
thawed out.
¥ Do not place carbonated or fizzy drinks in the
freezer.
¥ Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
¥ Ice lollies can cause Ôfrost/freezer burnsÕ if
consumed straight from the freezer.
¥ ManufacturersÕ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
¥ The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Maintenance and Cleaning
¥ Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
Servicing
¥ This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
¥ Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Zanussi Service Force Centre and always insist
on genuine spare parts.
At the end of the Appliance
Life
¥ When disposing of your appliance, use an
authorised disposal site.
¥ Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
3
CONTENTS
2222 090-48
Instructions for the user
Important Safety Information
2
Description of the appliance
4
Operation
5
Before use 5
Control panel 5
Start your appliance 5
Temperature control 5
Freezing fresh food 5
Frozen food storage 6
Thawing 6
Making ice cubes 6
Normal operating sounds 6
Hints and tips
7
Maintenance and Cleaning
8
Internal cleaning 8
External cleaning 8
When the appliance is not in use 8
Defrosting 8
Something not working
9
Service and Spare Parts
10
Customer Care Department
10
Guarantee Conditions
11
Instructions for the
installer
Technical specification
12
Installation
13
Positioning 13
Rear Spacers 13
Electrical Connection
14
Door Reversal
15
4
DESCRIPTION OF THE APPLIANCE
D
C
3
6
9
12
A
B
S
1
2
3
4
5
6
NS
A - Freezer controls
B - Freezer calender (recommended storage times for frozen foods)
C - Frozen food storage
D - Freezing fresh foods
5
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Control Panel
ABC
S
DE
1
2
3
4
5
6
NS
A - Thermostat control
B - Fast freeze knob
C - Pilot light
D - Fast freeze light
E - Alarm light
Start your appliance
Insert the plug into the wall socket. The pilot light (C)
will light up to show that the appliance is on.
Temperature control
The temperature within the freezer is controlled by
the thermostat situated at the top of the cabinet.
To operate the freezer proceed as follows:
Turn the thermostat control beyond the ÇOÈ position.
When you first start the freezer, we suggest that you
turn the thermostat control to a medium setting,
between 3 and 4. For easier turning of this control,
use a small coin.The internal temperature of the
freezer is automatically adjusted by the thermostat to
ensure safe food storage.
However, if the appliance is working in unfavourable
room conditions such as
- poor ventilation,
- high temperature,
- frequent door openings,
it may be necessary to select a more suitable
setting.
To obtain a colder temperature, turn the thermostat
control to the higher number; to obtain a warmer
temperature turn the control to the lower number.
Control Panel
A. Thermostat control
Turn the thermostat control clockwise to required
setting, which is normally between 3-4.
B. Fast freeze knob
When you place fresh food in the appliance, turn the
fast freeze knob to ÒSÓ.
C. Pilot light
The operation light is illuminated continuously, to
show that the appliance is on.
D. Fast freeze light
The fast freeze light is illuminated, to show that the
fast freeze function is working.
E. Alarm light
If the alarm light (E) lights up, it indicates that the
temperature within the freezer has reached a level
where the safe food storage is no longer ensured.
When the freezer is first switched on, the alarm light
will stay on until the temperature has dropped to a
safe level for the storage of frozen food.
Freezing fresh food
In any 24 hour period you can freeze up to 20 kg of
fresh food.
When you first start the freezer or after a period of
non-use, turn the fast freeze knob to ÇSÈ 24 hours
before you want to freeze your food (the yellow light
(D) lights up).
If the freezer is already in operation, the fast-freeze
knob should be activated about 2-3 hours before
freezing fresh food.
This time can be shortened, depending on the
quantity of food to be frozen. After the time has
elapsed place the food to be frozen in the two top
compartments of the freezer as these are the coldest
parts.
6
Normal Operating Sounds
¥ You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
¥ When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
¥ A thermostat controls the compressor, and you
will hear a faint ÕclickÕ when the thermostat cuts in
and out.
Thawing
Deep frozen or frozen food, prior to being used, can
be thawed in the fridge or at room temperature
depending on the time available. Small food items
may even be cooked from frozen; in this case
cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
Defrosted cooked food must never be refrozen.
Once the food is completely frozen (which could take
up to 24 hours) return the fast freeze switch to the
ÇNÈ position; the yellow light (D) goes off.
Distribute the frozen food packages in the other
compartments, so that the top compartments can be
used for a further freezing operation.
- The food to be frozen must be fresh and of the
best quality.
- Do not allow fresh food to touch food which is
already frozen.
- During the freezing process, ensure that the
freezer door remains closed.
Frozen food storage
When you first start the freezer or if the freezer has
been out of use for some time, we advise you to run
your appliance for at least two hours in the Çfast
freezeÈ mode before storing frozen food.
Do not exceed the storage period indicated by the
manufacturer.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Important
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can possibly result in a low
temperature skin burn.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
Òfrost/freezer burnsÓ.
Important
In the event of a power cut do not open the door.
The food in the freezer will not be affected if the
power cut is short and if the freezer is full. Should
the food begin to thaw, it must be consumed quickly
and must not be re-frozen.
Making ice cubes
The appliance is provided with one or more trays for
the production of ice-cubes.
Fill the trays 3/4 full to allow the ice to expand and
place them in one of the freezer compartment.
Do not use sharp instruments to remove the trays
from the freezer.
To remove the cubes twist the tray slightly or hold it
under running water for a few seconds.
7
Food Storage
To obtain the best performance from your freezer
¥ Do not store warm food or evaporating liquids.
¥ Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container
is advisable. When you arrive home place the
frozen food in the frezeer immediately.
¥ Do not push food together too much, try to allow
air to circulate around each item.
¥ Do not store food uncovered.
¥ Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
¥ Lean food keeps better and longer than fatty
food, salt reduces the storage time.
¥ Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and
provide an airlight seal .
¥ Packaging which is swollen or has traces of
refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated by the
manufacturer.
Energy Saving Advice
¥ Do not install the appliance close to sources of
heat, such as a boiler or radiator.
¥ Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
appliance are not obstructed.
¥ Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight pakages before
placing them in the freezer.
¥ Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to
the freezer.
¥ Try to avoid keeping the door open for long
periods or opening the door too frequently as
warm air will enter the cabinet and cause the
compressor to switch on unnecessarily often.
¥ Ensure there are no obstructions preventing the
door from closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature
within your freezer should rise, do not refreeze the
food without checking its condition. The following
guidelines should assist you:
Ice-cream: Once thawed should be discarded.
Fruits & Vegetables: If soft should be cooked and
used up.
Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up
quickly.
Cooked Dishes: i. e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: Can be refrozen providing
there are still ice crystals remaining within them.
Small Joints: Should be cooked and can then be
refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a
fresh dish.
HINTS AND TIPS
8
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
External cleaning
Wash the outer cabinet with warm soapy water. Do
NOT use abrasive products.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure, as an
accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
D273/1
CONDENSER
COMPRESSOR
Defrosting
When the frost has reached a thickness of up to
4mm it can be removed using the ice scraper
provided with the appliance. During this operation it
is not necessary to disconnect the appliance from
the mains and remove the food. Never use metal
tools for this operation.
For complete defrosting (once or twice a year)
proceed as follows:
- turn the thermostat dial to the ÇOFFÈ position
(O) or disconnect the appliance from the mains.
- Remove any food from inside the freezer , wrap it
in several sheets of newspaper and store in a
cool,dry place.
- Leave the door open and insert the ice scraper
under the channel in the centre of the lower part
of the appliance; place a low-sided container
beneath the scraper to collect the water (see fig.).
- Clean and dry thoroughly.
- Replace the scraper in one of the drawers .
- Reconnect the appliance to the mains or reset
the thermostat to the normal operating position.
- After letting the appliance run for at least two
hours in fast freeze mode, replace the previously
removed food into the compartment.
Important
A temperature rise of the frozen food packs, during
defrosting, may shorten their safe storage life.
D068
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work is
carried out, DISCONNECT the appliance from the
ELECTRICITY supply.
Internal cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED CLEANING
PRODUCTS OR WAX POLISHES, TO CLEAN THE
INTERIOR AS THESE WILL DAMAGE THE
SURFACE AND LEAVE A STRONG ODOUR.
9
SOMETHING NOT WORKING
Symptom
No power to the appliance
The temperature in the freezer is too high
The freezer door will not open
The compressor runs continously
Excessive frost and ice has built up
Noise
Solution
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
Check the temperature in the freezer is turned to the
correct setting relative to ambient conditions.
Check the ambient temperature is within the
applianceÕs operating limits of 10¡C to 32¡C.
Relocate the appliance if necessary.
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
Adjust the thermostat to give correct temperature
control. See ÒSetting the temperatureÓ.
Check that the door is closed.
Large quantities of food have recently been placed in
the cabinet/and or door is frequently opened.
Check that air ventilation is not obstructed.
Ensure the door is not left open.
Check that nothing is preventing the door from
closing.
Is the door gasket intact and clean.
Has advised periodic defrosting been carried out.
Refer to normal operating sounds.
If the appliance is not working correctly, please carry out the following checks before contacting your local
Zanussi Service Force Centre
If after the above checks your appliance still does
not operate correctly, contact your local Zanussi
Service Force Centre.
Please note that it will be necessary to provide proof
of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the engineer
will make a charge if the fault is not a mechanical
or electrical breakdown.
10
SERVICE AND SPARE PARTS
CUSTOMER CARE DEPARTMENT
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Zanussi Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area. The
addresses are listed on the following pages.
Before calling out an engineer, please ensure you have read the details under the heading ÔSomething Not
Working.Õ
When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date
For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please
contact our Customer Care Department by letter or telephone as follows:-
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 08705 727 727
11
Standard guarantee conditions
We, Zanussi, undertake that if within 12 months of the date of the purchase this Zanussi appliance or any part
thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair
or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by a Zanussi Service Force Centre. Any appliance or
defective part replaced shall become the CompanyÕs property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Zanussi manufacture which are not marketed by Zanussi.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0)3 44 62 29 99
Germany NŸrnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)8 738 79 50
UK Slough +44 (0)1753 219 897
GUARANTEE CONDITIONS
12
TECHNICAL SPECIFICATIONS
DIMENSIONS
Height 124 cm
Width 54 cm
Depth 57 cm
POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz
TOTAL POWER ABSORBED 150 W
AVERAGE DAILY UNITS ELECTRICITY * 1.05 kWh
GROSS CAPACITY
Freezer 186 l
NET CAPACITY
Freezer 150 l
STAR RATING
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
13
INSTALLATION
Positioning
This appliance is designed to operate in ambient
temperatures between 10¡C (50¡F) and 32¡C (90¡F).
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse, where the temperatures may
fall below 10¡C (50¡F). If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4Ó) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space
underneath. The back of the cabinet may be placed
close to the wall but must not touch it. DO NOT
install in places with restricted ventilation.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers (see figure).
D200
PR60
A
45°
100 mm10 mm
10 mm
A
B
NP006
Important
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on ÒDoor reversal directionsÓ paragraph.
Rear spacers
The plastic bag containing all relevant
documentation also contains two spacers to be fitted
into special holes in the back of the appliance. Fit the
spacers into the holes, taking care to ensure that the
arrow (A) is positioned as shown in Fig. Then turn
them through 45¡ (arrow (A) vertical) until they lock
into place.
14
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
ÇEÈ or the earth symbol or coloured green and
yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ÇNÈ or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter ÇLÈ or coloured
red.
The plug moulded onto the lead incorporates a fuse.
D207
GREEN & YELLOW
13 AMP. FUSE
BROWN
CORD CLAMP
BLUE
13 AMP
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Zanussi Service Force Centre whose
address is listed in the Customer Care Booklet which
accompanies your instruction manual.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
This appliance complies with the following
E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Door reversal directions
1. Disconnect from the electricity supply.
2. Remove all loose items, including food, store food
in a cool place.
3. dismantle the lower hinge (3), pin (1) and the
screw (2);
4. Slide out the door from pin (D), unscrew the pin
and reposition on the opposite side.
5. unscrew the left front foot and reposition on the
opposite side;
6. unscrew the two screws which mask the holes for
fixing the hinge from the left front side;
7. reassemble the door;
8. reassemble the lower hinge (turning it 180¡), the
pin and the screw on the opposite side, as shown
in the figure;
9. dismantle the handle (6) and reassemble it on the
opposite side.
Important
After completion of the door reversiing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdrier on a low setting.
D
D590
180°
1
3
2
D299
2
D336
15
Loading...
