Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
• Children aged 3 years and under must be kept away from this
appliance when it is in operation at all times.
General Safety
• WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
2 www.zanussi.com
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
• Do not operate the appliance by means of an external timer or
separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking
surfaces.
• Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean the appliance.
• If the glass ceramic surface / glass surface is cracked, switch
off the appliance to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorized Service or similarly qualified
persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The use
of inappropriate guards can cause accidents.
Safety instructions
Installation
WARNING!
Only a qualified person must install
this appliance.
WARNING!
Risk of injury or damage to the
appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied
with the appliance.
• Keep the minimum distance from the other
appliances and units.
www.zanussi.com 3
• Always take care when moving the appliance
as it is heavy. Always use safety gloves and
enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• If the appliance is installed above drawers
make sure that the space, between the
bottom of the appliance and the upper
drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot.
Make sure to install a non-combustible
separation panel under the appliance to
prevent access to the bottom.
Electrical Connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure
that the appliance is disconnected from the
power supply.
• Make sure that the electrical information on
the rating plate agrees with the power
supply. If not, contact an electrician.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can make
the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot appliance
or hot cookware, when you connect the
appliance to the near sockets
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use
WARNING!
Risk of injury, burns and electrical
shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first use.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each use.
• Do not put cutlery or saucepan lids on the
cooking zones. They can become hot.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not use the appliance as a work surface
or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance from
the power supply. This to prevent an
electrical shock.
• When you place food into hot oil, it may
splash.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or heated
objects away from fats and oils when you
cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the control
panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware to boil dry.
4 www.zanussi.com
• Be careful not to let objects or cookware fall
120/210mm120/210
mm
145 mm
145 mm
170 mm
265 mm
170 mm
265 mm
1 1
1 1
2
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you have
to move them on the cooking surface.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
Care and cleaning
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Deactivate the appliance and let it cool
down before you clean it.
• Disconnect the appliance from the electrical
supply before maintenance.
• Do not use water spray and steam to clean
the appliance.
Product description
Cooking surface layout
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use any
abrasive products, abrasive cleaning pads,
solvents or metal objects.
Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the appliance
correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Cooking zone
1
Control panel
2
www.zanussi.com 5
Control panel layout
2 3 4 5 6 7
9 810
1
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sen-
sor
field
1
2
3
- Heat setting display To show the heat setting.
4
- Timer indicators of cooking
5
- Timer display To show the time in minutes.
6
7
8
9
10
ON / OFF To activate and deactivate the hob.
Lock / The Child Safety Device To lock / unlock the control panel.
- To activate and deactivate the outer ring.
zones
- To activate and deactivate the outer ring.
- To select the cooking zone.
- To increase or decrease the time.
/
- To set a heat setting.
/
Function Comment
To show for which zone you set the time.
Heat setting displays
Display Description
The cooking zone is deactivated.
-
+ digit
The cooking zone operates.
Automatic Heat Up function operates.
There is a malfunction.
6 www.zanussi.com
Display Description
A cooking zone is still hot (residual heat).
Lock / The Child Safety Device function operates.
Automatic Switch Off function operates.
Residual heat indicator
WARNING!
There is a risk of burns from
residual heat.
Daily use
WARNING!
Refer to Safety chapters.
Activating and deactivating
Touch for 1 second to activate or deactivate
the hob.
Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on the
control panel for more than 10 seconds (a
pan, a cloth, etc.). An acoustic signal sounds
and the hob deactivates. Remove the object
or clean the control panel.
• you do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the hob deactivates.
The relation between the heat setting and
the time after which the hob deactivates:
Heat setting The hob deacti-
vates after
6 - 9 1.5 hour
The heat setting
Touch to increase the heat setting. Touch
to decrease the heat setting. Touch and
at the same time to deactivate the cooking
zone.
Activating and deactivating the outer rings
You can adjust the surface you cook to the
dimension of the cookware.
Use sensor field:
To activate the outer ring: touch the sensor
field. The indicator comes on.
To deactivate the outer ring: touch the
sensor field until the indicator goes out.
Heat setting The hob deacti-
vates after
, 1 - 2
3 - 4 5 hours
5 4 hours
6 hours
Automatic Heat Up
If you activate this function you can get a
necessary heat setting in a shorter time. The
function sets the highest heat setting for some
time and then decreases to the correct heat
setting.
To activate the function the cooking
zone must be cold.
www.zanussi.com 7
To activate the function for a cooking
zone: touch until comes on. Immediately
touch until the correct heat setting comes
on. After 3 seconds comes on.
To deactivate the function: touch .
Timer
Count Down Timer
You can use this function to set how long the
cooking zone should operate for a single
cooking session.
First set the heat setting for the cooking zone
then set the function.
To set the cooking zone: touch
again until the indicator of a necessary cooking
zone comes on.
To activate the function or change the
time: touch or of the timer to set the
time (00 - 99 minutes). When the indicator of
the cooking zone starts to flash slowly the time
counts down.
To see the remaining time: set the cooking
zone with . The indicator of the cooking zone
starts to flash quickly. The display shows the
remaining time.
To deactivate the function: set the cooking
zone with
counts back to 00. The indicator of the cooking
zone goes out.
To stop the sound: touch .
Minute Minder
You can use this function as a Minute Minder
when the hob is activated and the cooking
zones do not operate. The heat setting display
shows .
and touch . The remaining time
When the time comes to an end, the
sound operates and 00 flashes. The
cooking zone deactivates.
again and
time comes to an end, the sound operates and
00 flashes.
To stop the sound: touch .
The function has no effect on the
operation of the cooking zones.
Lock
You can lock the control panel while cooking
zones operate. It prevents an accidental change
of the heat setting.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays on.
To deactivate the function: touch . The
previous heat setting comes on.
When you deactivate the hob, you
also deactivate this function.
The Child Safety Device
This function prevents an accidental operation
of the hob.
To activate the function: activate the hob
with
. Do not set the heat setting. Touch
for 4 seconds. comes on. Deactivate the
hob with .
To deactivate the function: activate the hob
with . Do not set the heat setting. Touch
for 4 seconds. comes on. Deactivate the
hob with .
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds. Set the
heat setting in 10 seconds. You can operate
the hob. When you deactivate the hob with
the function operates again.
To activate the function: touch . Touch
or of the timer to set the time. When the
Hints and tips
WARNING!
Refer to Safety chapters.
8 www.zanussi.com
Cookware
The bottom of the cookware must be
as thick and flat as possible.
Cookware made of enamelled steel
and with aluminium or copper
bottoms can cause the colour
change on the glass-ceramic
surface.
Examples of cooking applications
The data in the table is for guidance
only.
Heat setting Use to: Time
(min)
- 1
1 - 2 Hollandaise sauce, melt: butter,
1 - 2 Solidify: fluffy omelettes, baked
2 - 3 Simmer rice and milkbased dishes,
3 - 4 Steam vegetables, fish, meat. 20 - 45 Add some tablespoons of liquid.
4 - 5 Steam potatoes. 20 - 60 Use max. ¼ l water for 750 g of
4 - 5 Cook larger quantities of food,
6 - 7 Gentle fry: escalope, veal cordon
7 - 8 Heavy fry, hash browns, loin steaks,
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
Keep cooked food warm. as neces-
sary
5 - 25 Mix from time to time.
chocolate, gelatine.
10 - 40 Cook with a lid on.
eggs.
25 - 50 Add the minimum twice as much
heating up ready-cooked meals.
60 - 150 Up to 3 l liquid plus ingredients.
stews and soups.
as necesbleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.
steaks.
sary
5 - 15 Turn halfway through.
Put a lid on the cookware.
liquid as rice, mix milk dishes part
procedure through.
potatoes.
Turn halfway through.
Hints
Care and cleaning
WARNING!
Refer to Safety chapters.
General information
• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have
no effect on how the hob operates.
www.zanussi.com 9
• Use a special cleaner applicable for the
surface of the hob.
• Use a special scraper for the glass.
Cleaning the hob
• Remove immediately: melted plastic,
plastic foil, sugar and food with sugar. If not,
the dirt can cause damage to the hob. Take
care to avoid burns. Put the special scraper
on the glass surface at an acute angle and
move the blade on the surface.
• Remove when the hob is sufficiently
cool: limescale rings, water rings, fat stains,
shiny metallic discoloration. Clean the hob
with a moist cloth and non-abrasive
Troubleshooting
WARNING!
Refer to Safety chapters.
What to do if...
Problem Possible cause Remedy
detergent. After cleaning, wipe the hob dry
with a soft cloth.
• Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a moist cloth.
You cannot activate or operate
the hob.
The fuse is blown. Make sure that the fuse is the
Activate the hob again and set
You touched 2 or more sensor
There is water or fat stains on the
An acoustic signal sounds and
the hob deactivates.
An acoustic signal sounds when
the hob is deactivated.
The hob deactivates. You put something on the sensor
Residual heat indicator does not
come on.
Automatic Heat Up function does
not operate.
The highest heat setting is set. The highest heat setting has the
The hob is not connected to an
electrical supply or it is connected incorrectly.
fields at the same time.
control panel.
You put something on one or
more sensor fields.
field .
The zone is not hot because it
operated only for a short time.
The zone is hot. Let the zone become sufficiently
Check if the hob is correctly connected to the electrical supply.
Refer to the connection diagram.
cause of the malfunction. If the
fuse is blown again and again,
contact a qualified electrician.
the heat setting in less than 10
seconds.
Touch only one sensor field.
Clean the control panel.
Remove the object from the sensor fields.
Remove the object from the sensor field.
If the zone operated sufficiently
long to be hot, speak to an Authorised Service Centre.
cool.
same power as the function.
10 www.zanussi.com
Problem Possible cause Remedy
You decreased the heat setting
to .
You cannot activate the outer
ring.
There is a dark area on the
multiple zone.
The sensor fields become hot. The cookware is too large or you
comes on.
comes on.
and a number come on.
E6 comes on. The second phase of the power
Activate the inner ring first.
It is normal that there is a dark
area on the multiple zone.
put it too near to the controls.
Automatic Switch Off operates. Deactivate the hob and activate it
The Child Safety Device or the
Lock function operates.
There is an error in the hob. Disconnect the hob from the
supply is missing.
Start from and only increase
the heat setting.
Put large cookware on the rear
zones if possible.
again.
Refer to "Daily use" chapter.
electrical supply for some time.
Disconnect the fuse from the
electrical system of the house.
Connect it again. If comes on
again, speak to an Authorised
Service Centre.
Check if the hob is correctly connected to the electrical supply.
Remove the fuse, wait one minute, and insert the fuse again.
If you cannot find a solution...
If you cannot find a solution to the problem
yourself, contact your dealer or an Authorised
Service Centre. Give the data from the rating
plate. Give also three digit letter code for the
glass ceramic (it is in the corner of the glass
Make sure, you operated the hob correctly. If
not the servicing by a service technician or
dealer will not be free of charge, also during the
warranty period. The instructions about the
Service Centre and conditions of guarantee are
in the guarantee booklet.
surface) and an error message that comes on.
Installation
WARNING!
Refer to Safety chapters.
Before the installation
Before you install the hob, write down the
information bellow from the rating plate. The
rating plate is on the bottom of the hob.
Serial number ...........................
www.zanussi.com 11
Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.
Connection cable
• The hob is supplied with a connection cable.
• To replace the damaged mains cable use
min.
50mm
min.
500mm
R 5mm
min.
55mm
490+1mm
750+1mm
min.
28 mm
min.
12 mm
min.
20 mm
the following (or higher) mains cable type:
Assembly
H05V2V2-F T min 90°C. Speak to your local
Service Centre.

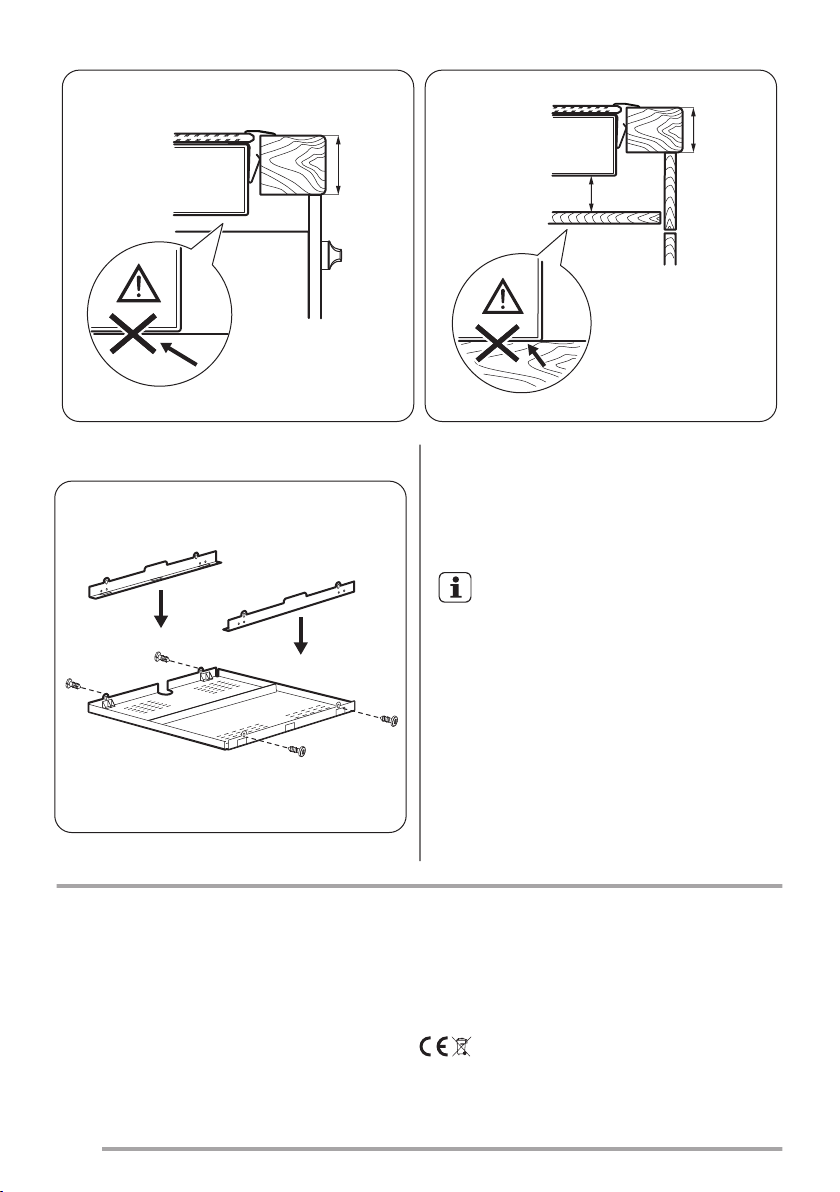

12 www.zanussi.com
Protection box
If you use a protection box (an additional
accessory), the protective floor directly below
the hob is not necessary. The protection box
accessory may not be available in some
countries. Please contact your local supplier.
You can not use the protection box if
you install the hob above an oven.
Technical data
Rating plate
Model ZEV8646XBA PNC 949 595 525 02
Typ 60 HBD 47 AO 220 - 240 V 50 - 60 Hz
Made in Germany
Ser.Nr. ................. 7.0 kW
ZANUSSI
Cooking zones specification
Cooking zone
Left front 750 / 2200 120 / 210
Left rear 1200 145
Right front 1200 145
Right rear 1500 / 2400 170 / 265
Nominal Power (Max heat setting)
[W]
Cooking zone diameter [mm]
For optimal cooking results use cookware not
larger than the diameter of the cooking zone.
www.zanussi.com 13
Energy efficiency
Product information according to EU 66/2014
Model identification ZEV8646XBA
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Radiant Heater
Diameter of circular cooking
zones (Ø)
Lenght (L) and width (W) of
non circular cooking zone
Energy consumption per cooking zone (EC electric cooking)
Energy consumption of the hob
(EC electric hob)
Left front
Left rear
Right front
Right rear L 26.5 cm
Left front
Left rear
Right front
Right rear
191.1 Wh / kg
21.0 cm
14.5 cm
14.5 cm
W 17.0 cm
174.5 Wh / kg
202.3 Wh / kg
202.3 Wh / kg
185.4 Wh / kg
EN 60350-2 - Household electric cooking
appliances - Part 2: Hobs - Methods for
measuring performance
Energy saving
You can save energy during everyday cooking if
you follow below hints.
• When you heat up water, use only the
amount you need.
• If it is possible, always put the lids on the
cookware.
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol . Put
the packaging in applicable containers to
recycle it. Help protect the environment and
human health and to recycle waste of electrical
and electronic appliances. Do not dispose
• Before you activate the cooking zone put the
cookware on it.
• The cookware bottom should have the same
diameter as the cooking zone.
• Put the smaller cookware on the smaller
cooking zones.
• Put the cookware directly in the centre of the
cooking zone.
• Use the residual heat to keep the food warm
or to melt it.
appliances marked with the symbol with the
household waste. Return the product to your
local recycling facility or contact your municipal
office.
14 www.zanussi.com
Table des matières
Informations de sécurité 15
Consignes de sécurité 17
Description de l'appareil 19
Utilisation quotidienne 21
Conseils 22
Entretien et nettoyage 23
En cas d'anomalie de fonctionnement 24
Installation 26
Caractéristiques techniques 27
Rendement énergétique 28
Sous réserve de modifications.
Informations de sécurité
Avant d'installer et d'utiliser cet appareil, lisez soigneusement les
instructions fournies. Le fabricant ne pourra être tenu pour
responsable des blessures et dégâts résultant d'une mauvaise
installation ou utilisation. Conservez toujours les instructions dans
un lieu sûr et accessible pour vous y référer ultérieurement.
Sécurité des enfants et des personnes vulnérables
• Cet appareil peut être utilisé par des enfants de plus de 8 ans,
ainsi que des personnes dont les capacités physiques,
sensorielles et mentales sont réduites ou dont les
connaissances et l'expérience sont insuffisantes, à condition
d'être surveillés ou d'avoir reçu des instructions concernant
l'utilisation sécurisée de l'appareil et de comprendre les risques
encourus.
• Ne laissez pas les enfants jouer avec l'appareil.
• Ne laissez pas les emballages à la portée des enfants et jetez-
les convenablement.
• Tenez les enfants et les animaux éloignés de l'appareil lorsqu'il
est en cours de fonctionnement ou lorsqu'il refroidit. Les parties
accessibles sont chaudes.
• Si l'appareil est équipé d'un dispositif de sécurité enfants, nous
vous recommandons de l'activer.
• Les enfants ne doivent pas nettoyer ni entreprendre une
opération de maintenance sur l'appareil sans surveillance.
• Les enfants de moins de 3 ans doivent être tenus éloignés de
l'appareil en permanence lorsqu'il est en fonctionnement.
www.zanussi.com 15
Loading...
