User manual
Dishwasher
ZDF 511
Thank you for selecting our
appliance
We wish you lots of enjoyment with your new
appliance and we hope that you will consider
our brand again when purchasing household
appliances.
Please read this user manual carefully and
keep it throughout the product life cycle as a
reference document. The user manual should
be passed on to any future owner of the
appliance.
Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Washing programmes _ _ _ _ _ _ _ _ _ _ _ 9
First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10
Set the water softener _ _ _ _ _ _ _ _ _ _ 10
Filling with dishwasher salt _ _ _ _ _ _ _ 12
Filling with rinse aid _ _ _ _ _ _ _ _ _ _ _ 13
Adjusting the dosage of rinse aid _ _ _ _ 13
Loading cutlery and dishes _ _ _ _ _ _ _ 14
Use of detergent _ _ _ _ _ _ _ _ _ _ _ _ _ 17
"3 in 1 function" _ _ _ _ _ _ _ _ _ _ _ _ _ 18
Unloading the dishwasher _ _ _ _ _ _ _ _ 19
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ 19
Environmental concerns _ _ _ _ _ _ _ _ _ 21
Something not working _ _ _ _ _ _ _ _ _ 22
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ 24
Consumption values _ _ _ _ _ _ _ _ _ _ _ 25
Hints for test institutes _ _ _ _ _ _ _ _ _ _ 25
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 26
Guarantee conditions _ _ _ _ _ _ _ _ _ _ 28
2
Safety information
In the interest of your safety and to ensure the
correct use, before installing and first using the
appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important
to ensure that all people using the appliance
are thoroughly familiar with its operation and
safety features. Save these instructions and
make sure that they remain with the appliance
if it is moved or sold, so that everyone using it
through its life will be properly informed on appliance use and safety.
Correct use
• This dishwasher is only intended for washing
household utensils suitable for machine
washing.
• Do not put any solvents in the dishwasher.
This could cause an explosion.
• Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a horizontal
position in the upper basket.
• Only use products (detergent, salt and rinse
aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance
is in operation, hot steam may escape.
• Do not take any dishes out of the dishwasher
before the end of the dishwashing cycle.
• After use, isolate the appliance from the
power supply and turn off the water supply.
• This product should be serviced only by an
authorised service engineer, and only genuine spare parts should be used.
• Under no circumstances should you attempt
to repair the machine yourself. Repairs carried out by inexperienced persons will cause
injury or serious malfunctioning. Contact
your local Service Force Centre. Always insist on genuine spare parts.
General safety
• Dishwasher detergents can cause chemical
burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.
• The water in your dishwasher is not for drinking. Detergent residues may still be present
in your machine.
• Ensure that the door of the dishwasher is
always closed when it is not being loaded or
unloaded. In this way you will avoid anybody
tripping over the open door and hurting
themselves.
• Do not sit or stand on the open door.
Child safety
• This appliance is designed to be operated
by adults. Don’t allow children to use the
dishwasher unsupervised.
• Keep all packaging well away from children.
There is risk of suffocation.
• Keep all detergents in a safe place out of
children’s reach.
• Keep children well away from the dishwasher when the door is open.
3
Installation
• Check your dishwasher for any transport
damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to
install this appliance must be carried out by
a qualified and competent person.
• For safety reasons it is dangerous to alter
the specifications or attempt to modify this
product in any way.
• Never use the dishwasher if the electrical
supply cable and water hoses are damaged;
or if the control panel, work top or plinth area
are damaged such that the inside of the appliance is freely accessible. Contact your
local Service Force centre, in order to avoid
hazard.
• All sides of the dishwasher must never be
drilled to prevent damage to hydraulic and
electric components.
CAUTION!
For electrical and water connection carefully
follow the instructions given in specific paragraphs.
4

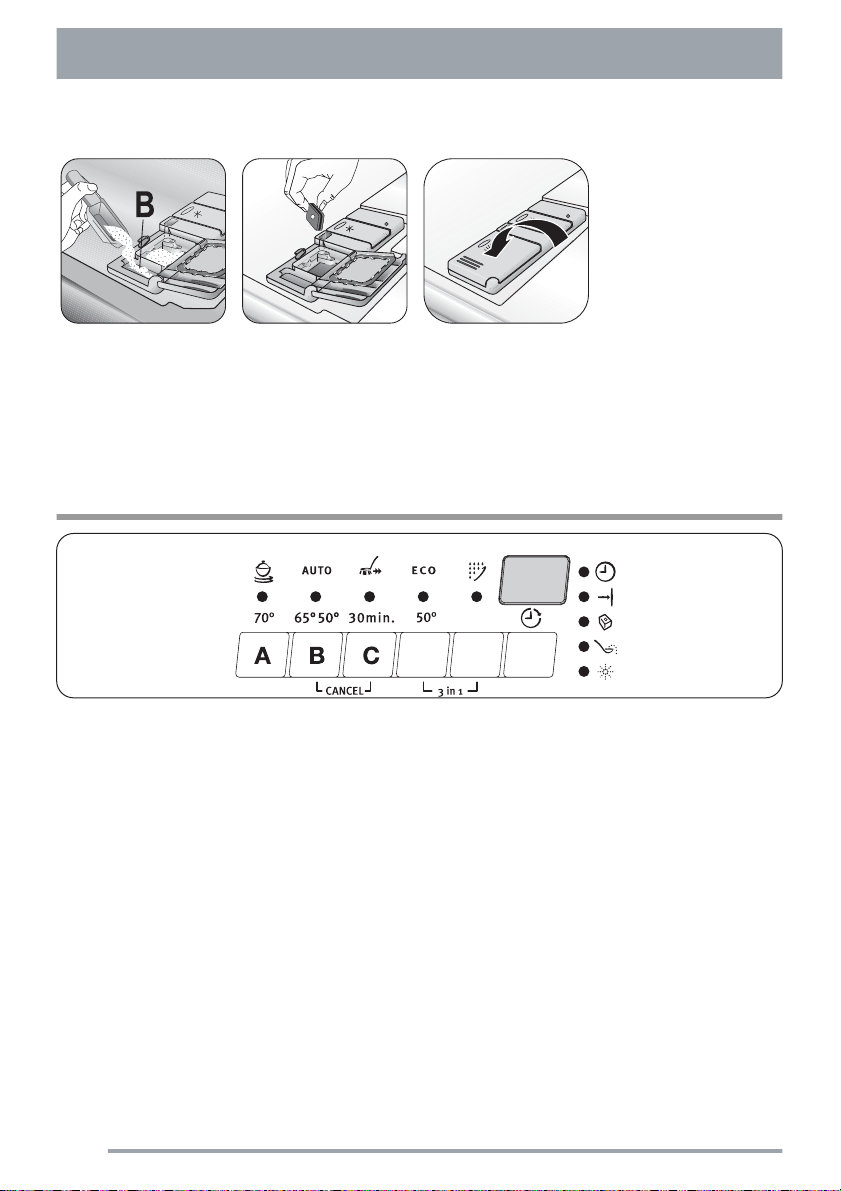

Control panel
1
On/Off button
2 Programme selection buttons
3
Delay start button
4 Indicator lights
5
Digital display
6
Function buttons
Setting mode
IMPORTANT!
Always remember that when performing operations as:
– selecting a washing programme,
– setting the water softener,
– activating/deactivating the rinse aid dispens-
er
the appliance MUST be in setting mode:
• Press On/Off button, ALL programme selection button lights are illuminated = appliance
in setting mode.
•
Press On/Off button, ONLY a programme
button light is illuminated = last performed
programme still set.
5
In this case the programme has to be cancelled
(see instructions “Cancel a washing programme in progress”).
Function buttons
Digital display
IMPORTANT!
Select the washing programme and the delay
start with the door slightly opened. The start of
the programme or the countdown of the delay
In addition to the dishwashing programme selection,
the following functions can also be set with the help of
these buttons.
– the setting of the water softener,
– the cancelling of a programme in progress.
– the activation/deactivation of the rinse aid dispenser
In the digital display is indicated:
– the level of hardness to which the water softener is
set,
– the approximate remaining time of the running pro-
gramme,
– activation/deactivation of the rinse aid dispenser,
– the end of the programme (a zero is visible),
– the countdown of the delay start,
– fault codes concerning malfunction of the appliance.
start will occur only after the closure of the door.
Until that moment it is possible to modify the set
made.
6
Programme selection buttons
•
Starting the washing programme:
1. Press the On/Off button.
2. Press the button corresponding to the required
programme, the corresponding light remains illuminated while the other programme lights turn off.
In the digital display will appear, flashing, the running time of the programme (in minutes).
3.
The programme in progress light illuminates.
4. Close the dishwasher’s door, the programme will
start automatically. In the digital display the running time of the programme is no longer flashing
and the programme in progress light remains illuminated.
IMPORTANT!
Once the programme has started, if you want to
change the selection made you must cancel the washing programme in progress.
•
Cancel the washing programme in progress:
1. Press and hold simultaneously function buttons
B and C until ALL programme button lights will
illuminate.
2.
Release function buttons B and C.
3. Switch off the machine by pressing the On/Off
button or select a new washing programme (check
that there is detergent in the detergent dispenser.
7
Delay start button
This option allows the start of the programme to be
delayed from 1 to 19 hours. After having selected the
washing programme press the delay start button until
the flashing number of the hours for the delay start will
appear in the digital display.
Close the dishwasher’s door, the countdown starts automatically. Once the countdown has elapsed the
washing programme will start automatically.
•
Cancel the delay start in progress:
To cancel a delay start in progress you have to reset
the dishwasher; follow the same instructions given in
"Cancel the washing programme in progress".
IMPORTANT!
Cancelling a delay start involves also the cancelling of
the washing programme set. In this case you have to
select the washing programme again.
IMPORTANT!
The selection of the washing programme and
delay start can occur also with the door closed.
Keep in mind that in this way, once a washing
programame button is pressed you have ONLY
Indicator lights
Programme in progress light
End of programme light
3 in 1 light
Salt refilling light
Rinse aid refilling light
3 seconds in which you can choose another
programme or select a delay start, after which
the selected programme will start automatically.
Illuminates when the washing programme has been
set.
When the delay start has been set, this light turns off
and will come on again once the countdown has
elapsed and the washing programme has started.
Illuminates when the washing programme has ended.
Indicates the activation/deactivation of the "3 in 1
function" (see "3 in 1 function" ).
Illuminates when special salt needs to be filled.
It can remain illuminated several hours after the salt
has been filled.
Illuminates when rinse aid needs to be filled.
8
Washing programmes
Programme Degree of soil Type of load Programme description
Intensive 70° Heavy soil Crockery, cutlery, pots
and pans
AUTO 65° 50°
Eat-Load-Run
1)
30 min.
50°
2)
Rinse and Hold Any.
1) Ideal for washing a partially loaded dishwasher. This is perfect daily programme, made to meet the needs of a family of 4
persons who only wish to load breakfast and dinner crockery and cutlery.
2) Test programme for test institutes.
Normal / Light soil. Crockery and cutlery Prewash
Light soil Crockery and cutlery Main wash
Normal soil Crockery and cutlery Prewash
Partial load (to be completed later in the day).
Prewash
Main wash
2 intermediate rinses
Final rinse
Drying
Main wash
1 or 2 intermediate rinses
Final rinse
Drying
Final rinse
Main wash
1 intermediate rinse
Final rinse
Drying
1 cold rinse (to avoid food
scraps from sticking together).
This programme does not
require the use of detergent.
"Auto" washing programme
During the "Auto" washing programme the
amount of soil on the dishes is determined by
how cloudy the water is.
If the appliance is partially loaded and the
dishes lightly soiled, the "prewash", "main
wash", and "rinse" phases of the programme
are shorter and the water consumption level is
lower.
If the appliance is fully loaded and the dishes
heavily soiled, the "prewash", "main wash", and
"rinse" phases of the programme are longer
and the water consumption level is higher.
9
For this reason the programme duration, water
and energy consumption levels can vary within
the stated range for "Auto" programme (see
"Washing programmes chart").
First use
During the "Auto" programme the temperature
of the main wash water is also automatically
adjusted between 50°C and 65°C depending
on the amount of soil on the dishes.
Before using your dishwasher for the first time:
• Ensure that the electrical and water connec-
tions comply with the installation instructions
• Remove all packaging from inside the appli-
ance
• Set the water softener
• Pour 1 litre of water inside the salt container
and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent tablets such
as: "3 in 1", "4 in 1", "5 in 1" etc... set the 3 in 1
function (see "3 in 1 function").
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and salts
from the water supply, which would have a detrimental or adverse effect on the operation of
the appliance.
The higher the content of these minerals and
salts, the harder your water is.
Water hardness is measured in equivalent
scales, Clarke degrees, French degrees (°TH)
Water hardness Adjusting the water hardness
Clarke °TH mmol/l manually electronically
64 - 88 91 - 125 9,0- 12,5 2 level 10 yes
53 - 63 76 - 90 7,6 - 8,9 2 level 9 yes
46 - 52 65 - 75 6,51 - 7,5 2 level 8 yes
36 - 45 51 - 64 5,1 - 6,4 2 level 7 yes
28 - 35 40 - 50 4,0 - 5,0 2 level 6 yes
and mmol/l (millimol per litre - international unit
for the hardness of water).
The softener should be adjusted according to
the hardness of the water in your area. Your
local Water Authority can advise you on the
hardness of the water in your area.
setting
Use of salt
10
Water hardness Adjusting the water hardness
setting
Clarke °TH mmol/l manually electronically
23 - 27 33 - 39 3,3 - 3,9 2 level 5 yes
18 - 22 26 - 32 2,61 - 3,2 1 level 4 yes
13 - 17 19 - 25 1,9 - 2,5 1 level 3 yes
5 - 12 7 - 18 0,71 - 1,8 1 level 2 yes
< 5 < 7 < 0,7 1 level 1 no
The water softener must be set in both ways:
manually, using the water hardness dial and
electronically.
Setting the water softener manually (see table)
The water softener is factory set at position 2.
Set switch to position 1 or
2
Use of salt
Setting the water softener
electronically (see table)
The water softener is factory set at position 5.
11
1. Press the On/Off button. The dishwasher
must be in setting mode.
2. Simultaneously press and hold function
buttons B and C, until the lights of function
buttons A, B and C start flashing.
3.
Press function button A, the lights of func-
tion buttons B and C turn off while the light
of function button A goes on flashing. In the
digital display is visible the current level.
Examples:
displayed = level 5
displayed = level 10
Filling with dishwasher salt
CAUTION!
Use only special salt suitable for dishwashers.
4. To change the level, press function button
A. Each time the button is pressed the level
changes. (For the selection of the new level
see the chart).
Examples:
if the current level is 5, by pressing function
button A once, level 6 is selected.
if the current level is 10, by pressing function button A once, level 1 is selected.
5. To memorise the operation, switch off the
dishwasher by pressing the On/Off button.
12
Unscrew the cap. On ly before filling with
salt for the first time, fill
the salt container with water.
Using the funnel provided,
pour in the salt until the
container is filled with salt.
Remove any trace of salt. Replace the cap tightly
turning it clockwise until it
stops with a click.
IMPORTANT!
Top up the special salt when the light on the
control panel illuminates.
Filling with rinse aid
IMPORTANT!
Immediately start a complete programme.
IMPORTANT!
Water will overflow from the container as salt i s added.
Open the lid.
CAUTION!
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Fill up with rinse aid. The
maximum level for filling is
indicated by "max"
IMPORTANT!
Top up the rinse aid when the light on the control panel
illuminates.
Clean up any rinse aid
which overflows. Close
the lid and press until it
locks.
13
Adjusting the dosage of rinse aid
Increase the dose if there are drops of water or
lime spots on the dishes after washing.
Open the lid. Set the dosage level. (The
Loading cutlery and dishes
Sponges, household cloths and any object that
can absorb water may not be washed in the
dishwasher.
• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
• When loading the dishes and cutlery, please
note:
– Dishes and cutlery must not impede the
rotation of the spray arms.
– Load hollow items such as cups, glasses,
pans, etc. with the opening downwards so
that water cannot collect in the container
or a deep base.
Reduce the dose if there are whitish streaks on
the dishes or a bluish film on glassware or knife
blades.
Close the lid and press undose is factory set in position 4).
– Dishes and items of cutlery must not lie
inside one another, or cover each other.
– To avoid damage to glasses, they must
not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water drops;
these items will not dry as well as porcelain
and steel items.
• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so
they do not move.
til it locks.
14
For washing in the dishwasher the following cutlery and dishes
are not suitable: are of limited suitability:
• Cutlery with wooden, horn, china or mother-ofpearls handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are not temperature resistant.
• Bonded cutlery items or dishes.
• Pewter or copper items.
• Lead crystal glass.
• Steel items prone to rusting.
• Wooden platters.
• Items made from synthetics fibres.
• Only wash stoneware in the dishwasher if it is specially marked as being dishwasher-safe by the manufacturer.
• Glazed patterns may fade if machine washed frequently.
• Silver and aluminium parts have a tendency to discolour during washing: Residues, e.g. egg white,
egg yolk and mustard often cause discolouring and
staining on silver. Therefore always clean left-overs
from silver immediately, if it is not to be washed
straight after use.
Load cutlery. For best results we recommend you
to use the cutlery grid provided (if the size and dimensions of the cutlery
allow it)
Place knives and other
items of cutlery with sharp
points or edges with their
handles facing upwards.
Risk of injury!
Load the lower basket. Arrange serving dishes and
large lids around the edge of the basket.
15
The two rows of prongs on
the lower basket can be
easily lowered to allow
you to load pots, pans and
bowls.
Load upper basket. Light
items (plastic bowls etc.)
must be loaded in the upper basket and arranged
so they do not move.
For taller items, the cup
racks can be folded upwards.
If plates are to be loaded in the upper basket: load
them starting from the rear positions; tilting them
slightly forwards and avoiding the front positions near
the door.
Adjusting the height of the
upper basket
If washing very large plates you can load them
in the lower basket after moving the upper basket to the higher position.
Maximum height of the dishes in :
upper basket lower basket
With upper basket raised 20 cm 31 cm
With upper basket lowered 24 cm 27 cm
16
To move to the higher position proceed as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards until the mechanism is engaged and the basket is stable.
To lower the basket to the original position proceed
as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards and then allow the
mechanism to drop back down slowly, keeping
hold of it.
IMPORTANT!
Never lift or lower the basket on one side only
Use of detergent
IMPORTANT!
Only use detergents suitable for dishwashers.
Open the lid.
IMPORTANT!
When the basket is in the higher position you
will not be able to use the cup racks.
Observe the manufacturer’s dosing and storage recommendations.
Fill in the detergent in
compartment A.
Observe the dosing levels.
17
For programmes with prewash add an additional
detergent dose in compartmentB.
When using detergent
tablets: place detergent
tablets in compartment A.
"3 in 1 function"
This appliance is equipped with the "3 in 1 function", that allows the use of the "3 in 1" combi
detergent tablets.
These products are detergents with a combined
cleaning, rinsing and salt functions. They can
also contain other different agents depending
on which kind of tablets you choose ("3 in 1",
"4 in 1", "5 in 1" etc...)
Check whether these detergents are suitable
for your water hardness. See the manufacturers instructions.
Once this function is selected it will remain active also for the following washing programmes.
With the selection of this function the inflow of
rinse aid and salt from each respective supply
container is automatically deactivated and also
Close the lid.
the indicator lights for salt and rinse aid are deactivated.
Select the "3 in 1 function" before the start of a
washing programme.
With the use of the "3 in 1 function", the cycle
durations may change.
Once the programme is running, the "3 in 1
function" can NO longer be changed.
If you want to exclude the "3 in 1 function" you
have to cancel the programme setting and then
deactivate the "3 in 1 function". In this case you
have to set a washing programme (and desired
options) again.
Activation/deactivation of the 3 in 1 function
Press simultaneously the two buttons positioned over the writing 3 in 1, until the "3 in 1
18
function "indicator light illuminates. This means
that the function is active.
To deactivate the function press the same buttons again until the indicator light corresponding to the "3 in 1" symbol turns off.
If the drying results are not satisfactory we
suggest that you:
1. Fill up the rinse aid dispenser with rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position 2.
• The activation/deactivation of the rinse aid
dispenser can only be possible with the "3 in
1" function active.
Activation/deactivation of the rinse aid dispenser
1. Press the On/Off button. The dishwasher
must be in setting mode.
2.
Press simultaneously buttons B and C, until the lights of buttons A , B, and C start
flashing.
3.
Press button B, the lights of buttons A and
C turn off while the light of button B goes
on flashing. The digital display indicates the
current setting:
deactivated.
4.
To change the setting, press button B
again, the digital display indicates the new
setting:
ted.
5. To memorise the operation, switch off the
dishwasher by pressing the On/Off button.
If you decide to turn back to the use of standard
detergent system we advise that you:
1. Deactivate the "3 in 1" function.
2. Fill up the salt container and the rinse aid
dispenser again.
3. Adjust the water hardness setting to the
highest setting and perform 1 normal washing programme without loading any dishes.
4. Adjust the water hardness setting according to the hardness of the water in your
area.
5. Adjust the rinse aid dosage.
= Rinse aid dispenser
= Rinse aid dispenser activa-
Unloading the dishwasher
• Hot dishes are sensitive to knocks.
The dishes should therefore be allowed to
cool down before removing from the appliance.
• Empty the lower basket first and then the
upper one; this will avoid water dripping from
the upper basket onto the dishes in the lower
one.
• Water may appear on the sides and the door
of the dishwasher as the stainless steel will
eventually become cooler than the dishes.
CAUTION!
When the washing programme has finished, it
is recommended that the dishwasher is unplugged and the water tap turned off.
19
Care and cleaning
Cleaning the filters
IMPORTANT!
NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters will
produce poor washing results.
Clean filters A, B and C
thoroughly under running
water.
Put the flat filter A back in
the base of the washing
compartment and ensure
that it fits perfectly under
the two guidesD.
Replace the filters and
lock by turning the handle
clockwise to the stop.
Cleaning the spray arms
NEVER try to remove the spray arms.
If residues of soil have clogged the holes in the
spray arms, remove them with a cocktail stick.
Turn the handle about 1/4
turn anticlockwise and remove filters B and C.
Remove filter A from the
base of the washing compartment.
External cleaning
Clean the external surfaces of the machine and
control panel with a damp soft cloth. If necessary use only neutral detergents. Never use
abrasive products, scouring pads or solvent
(acetone, trichloroethylene etc....).
20
Internal cleaning
Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned
regularly with a damp cloth.
We recommend every 3 months to run the wash
programme for heavy soiled dishes using detergent but without dishes.
Prolonged periods of nonoperation
If you are not using the machine for any prolonged period of time you are advised to:
1. Unplug the appliance and then turn off the
water.
2. Leave the door ajar to prevent the formation of any unpleasant smells.
3. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where
the temperature is below 0°C. If this is unavoid-
able, empty the machine, close the appliance
door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house
etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Environmental concerns
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
CAUTION!
When a unit is no longer being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and dispose of
them.
• Dispose of the door catch. This prevents
children from trapping themselves inside
and endangering their lives.
The symbol
aging indicates that this product may not be
treated as household waste. Instead it should
be taken to the appropriate collection point for
the recycling of electrical and electronic equipment. By ensuring this product is disposed of
on the product or on its pack-
21
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of this
product. For more detailed information about
Something not working
recycling of this product, please contact your
local council, your household waste disposal
service or the shop where you purchased the
product.
The dishwasher will not start or stops during
operation. Certain problems are due to the lack
of simple maintenance or oversights, which can
be solved with the help of the indications described in the chart, without calling out an
engineer.
Fault code and malfunction Possible cause and solution
appears in the digital display.
The dishwasher does not fill with water.
appears in the digital display.
The dishwasher will not drain.
appears in the digital display.
Anti-flood device is activated.
Switch off the dishwasher, open the door and
carry out the following suggested corrective actions.
• The water tap is blocked or furred with limescale.
Clean the water tap.
• The water tap is turned off. Turn the water tap on.
• The filter (where present) in the threaded hose fitting
at the water inlet valve is blocked.
Clean the filter in the threaded hose.
• The water inlet hose has not been correctly laid or
it is bent or squashed.
Check the water drain hose connection.
• The sink spigot is blocked.
Clean out the sink spigot.
• The water drain hose has not been correctly laid or
it is bent or squashed.
Check the water drain hose connection.
• Close the water tap and contact your local Service
Force Centre.
22
Fault code and malfunction Possible cause and solution
The programme does not start. • The dishwasher’s door has not been properly
closed. Close the door.
• The main plug is not plugged in. Insert the main plug.
• The fuse has blown out in the household fuse box.
Replace the fuse.
• Delay start has been set.
If dishes are to be washed immediately, cancel the
delay start.
Once these checks have been carried out;
close the dishwasher’s door and switch on the
appliance. Press the button of the programme
that was running before the intervention of the
alarm. The programme will continue from the
point at which it was interrupted.
If the malfunction or fault code reappears contact the Service Force Centre.
For other fault codes not described in the above
chart, please contact your Service Force Centre.
Contact your local Service Force Centre, quoting the model (Mod.), product number (PNC)
and serial number (S.N.).
This information can be found on the rating
plate located on the side of the dishwasher
door.
So that you always have these numbers at
hand, we recommend you to make a note of
them here:
Mod. : . . . . . . . . . . . . . . . . . . . . . . .
PNC :. . . . . . . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . . . . . . .
23
The wash results are not satisfactory
The dishes are not clean • The wrong washing programme has been selected.
• The dishes are arranged in such a way as to stop
water reaching all parts of the surface. The baskets
must not be overloaded.
• The spray arms do not rotate freely due to incorrect
arrangement of the load.
• The filters in the base of the washing compartment
are dirty or incorrectly positioned.
• Too little or no detergent has been used.
• Where there are limescales deposits on the dishes;
the salt container is empty or the incorrect level of
the water softener has been set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed.
The dishes are wet and dull • Rinse aid was not used.
• The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating on
glasses and dishes
Water drops have dries onto glasses and dishes • Increase rinse aid dosing.
• Decrease rinse aid dosing.
• The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.
If after all these checks, the problem persists,
contact your local Service Force Centre.
Technical data
Dimensions Width x Height x Depth (cm) 60,0 x 85,0 x 61,0
Electrical connection
Voltage - Overall power - Fuse
Water supply pressure Minimum - Maximum
Capacity place settings 12
Max. weight kg 40,5
24
Information on the electrical connection is given on the rating plate on the
inner edge of the dishwasher’s door.
0,05 - 0,8
(MPa)
Noise level dB(A) 47
Consumption values
The consumption values are intended as a
guide and depends on the pressure and the
temperature of the water and also by the var-
Consumption values
Programme Programme duration (in
minutes)
Intensive 70°
AUTO 50° 65°
Eat-Load-Run 30 min.
ECO 50° (Test pro-
gramme for Test Institutes)
Rinse and Hold
* 1,6-1,8 22-24
* 1,1-1,6 12-23
* 0,9 9
* 1,05 15
* 0,1 4
* The programme duration is visible in the digital
display when the washing programme is selected.
Hints for test institutes
Testing in accordance with EN 60704 must be
carried out with appliance fully loaded and using the test programme (see "Consumption
values").
Test in accordance with EN 50242 must be
carried out when the salt container and rinse
iations of the power supply and the amount of
dishes.
Energy consumption (in
kWh)
Water (litres)
aid dispenser have been filled with salt and
rinse aid respectively and using the test programme (see "Consumption values").
Full load: 12 standard place settings
Amount of detergent required 5 g + 25 g (Type B)
25
Full load: 12 standard place settings
Rinse aid setting position 4 (Type III)
Upper basket
cup racks: position A
Cutlery basket Lower basket
Installation
WARNING!
Any electrical and/or plumbing work required to
install this appliance should be carried out by a
qualified electrician and/or plumber or competent person.
Water connection
WARNING!
The dishwasher must not be connected to open
water appliances or instantaneous water heaters. This dishwasher may be fed with either hot
(max. 60°) or cold water. Nevertheless we advise you a cold water supply.
WARNING!
Only use, for connection to the water mains,
new hose-set; old hose-set must not be reused.
CAUTION!
If the machine is connected to new pipes or
pipes which have not been used for a long time,
you should run the water for a few minutes before connecting the inlet hose.
26

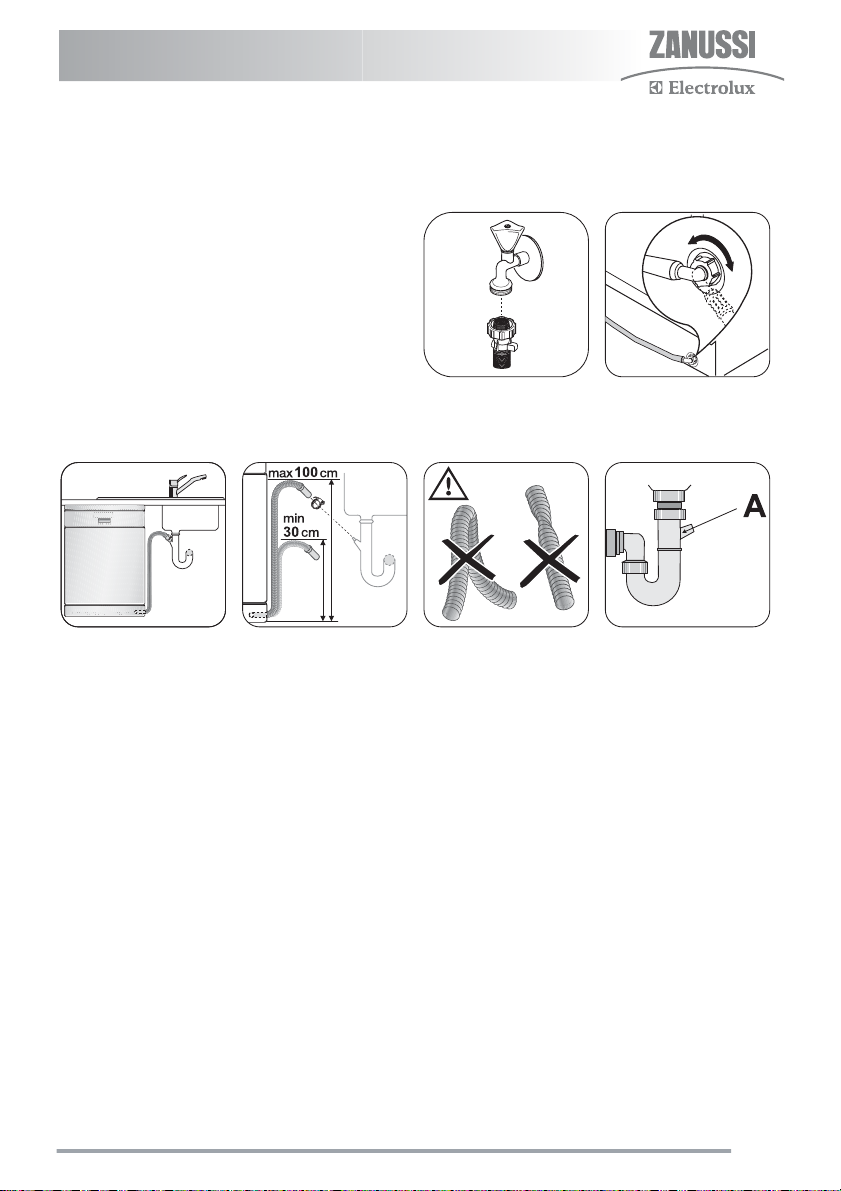

Inlet hose
Connect the inlet hose to a water tap with an external
thread of 3/4”.
The inlet hose can be turned either to the left or the
right to suit the installation by means of the locknut.
The locknut must be correctly fitted to avoid water
leaks.
Drain hose
Connect drain hose to the
sink. Secure it with the
supplied hose clamp.
Required height: 30 to 100
cm above bottom of the
dishwasher.
If you use a drain hose extension the total
length should not be longer than 4 metres.
Likewise the internal diameter of the couplings
used for connections to the waste outlet must
be no smaller than the diameter of the hose
provided.
Ensure that the hoses are
not kinked, crushed or entangled.
When connecting the
drain hose to an under
sink trap spigot, the entire
plastic membrane (A)
must be removed. Fail-
ure to remove all the membrane will result in food
particles building up over
time eventually blocking
the dishwasher drain hose
spigot.
27
Electrical connection
CAUTION!
Safety standards require the appliance to be
earthed.
Prior to using the appliance for the first time,
ensure that the rated voltage and type of supply
on the rating plate match that of the supply
where the appliance is to be installed.
The fuse rating is also to be found on the rating
plate.
Always plug the mains plug into a correctly installed shockproof socket. Multi-way plugs,
connectors and extension cables must not be
used.
This could constitute a fire hazard through overheating.
If necessary, have the domestic wiring system
socket replaced. In case that the electrical ca-
ble has to be replaced, contact your local Service Force centre.
The plug must be accessible after the appliance
has been installed.
Never unplug the appliance by pulling on the
cable. Always pull the plug.
The manufacturer accepts no liability for failure
to observe the above safety precautions.
Fitting under a counter
By removing the dishwasher’s worktop, you can
install it under a close fitting sink unit or a preexisting top.
Be sure that once the appliance has been installed, it is easily accessible for the service
engineer in the event that a repair is required.
Levelling
Good levelling is essential for correct closure and
sealing of the door.
When the appliance is correctly levelled, the door will
not catch on either side of the cabinet.
28
Guarantee conditions
Guarantee/Customer Service
Standard guarantee conditions
We, Zanussi-Electrolux , undertake that if within
12 months of the date of the purchase this Zanussi-Electrolux appliance or any part thereof
is proved to be defective by reason only of faulty
workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE
for labour, materials or carriage on condition
that:
• The appliance has been correctly installed
and used only on the electricity supply stated
on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance
with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered
with by any person not authorised by us.
• Electrolux Service Force Centre must undertake all service work under this guarantee
• Any appliance or defective part replaced
shall become the Company's property.
• This guarantee is in addition to your statutory
and other legal rights.
Exclusions
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts
of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to
appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are
subject to rental agreements.
• Products of Electrolux manufacturer that are
not marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring service,
or if you wish to purchase spare parts, please
contact your local Service Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically routed
to the Service Force Centre covering your postcode area.
For the address of your local Service Force
Centre and further information about Service
Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure
you have read the details under the heading
"Something not working"
When you contact the Service Force Centre
you will need to give the following details:
1. Your name, address and postcode.
2. Your telephone number.
3. Clear concise details of the fault.
4. The model and Serial number of the appli-
ance (found on the rating plate).
5. The purchase date.
Please note a valid purchase receipt or guarantee documentation is required for in guarantee service calls.
Customer Care
For general enquiries concerning your Electrolux appliance, or for further information on Electrolux products please contact our Customer
Care Department by letter or telephone at the
29
address below or visit our website at
www.electrolux.co.uk
Customer Care Department Electrolux Major
Appliances Addington Way Luton
Bedfordshire, LU4 9QQ Tel: 08705 727 727 (*)
(*) Calls may be recorded for training purposes
European Guarantee
This appliance is guaranteed by Electrolux in
each of the countries listed at the back of this
user manual, for the period specified in the appliance guarantee or otherwise by law. If you
move from one of these countries to another of
the countries listed, the appliance guarantee
will move with you subject to the following qualifications:-
• The appliance guarantee starts from the
date you first purchased the appliance which
will be evidenced by production of a valid
purchase document issued by the seller of
the appliance.
www.electrolux.com
• The appliance guarantee is for the same period and to the same extent for labour and
parts as exists in your new country of residence for this particular model or range of
appliances.
• The appliance guarantee is personal to the
original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e.
is not used for commercial purposes.
• The appliance is installed in accordance with
all relevant regulations in force within your
new country of residence.
The provisions of this European Guarantee do
not affect any of the rights granted to you by
law.
Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien +32 2 363 04 44 Bergensesteenweg 719, 1502
Lembeek
Česká republika +420 2 61 12 61 12 Budějovická 3, Praha 4, 140 21
Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia
Deutschland +49 180 32 26 622 Muggenhofer Str. 135, 90429 Nürn-
berg
Eesti +37 2 66 50 030 Pärnu mnt. 153, 11624 Tallinn
España +34 902 11 63 88 Carretera M-300, Km. 29,900 Alca-
lá de Henares Madrid
France www.electrolux.fr
30
Great Britain +44 8705 929 929 Addington Way, Luton, Bedford-
shire LU4 9QQ
Hellas +30 23 10 56 19 70 4, Limnou Str., 54627 Thessaloniki
Hrvatska +385 1 63 23 338 Slavonska avenija 3, 10000 Zagreb
Ireland +353 1 40 90 753 Long Mile Road Dublin 12
Italia +39 (0) 434 558500 C.so Lino Zanussi, 26 - 33080 Por-
cia (PN)
Latvija +37 17 84 59 34 Kr. Barona iela 130/2, LV-1012, Ri-
ga
Lietuva +370 5 2780609 Ozo 10A, LT 08200 Vilnius
Luxembourg +352 42 431 301 Rue de Bitbourg, 7, L-1273 Hamm
Magyarország +36 1 252 1773 H-1142 Budapest XIV, Erzsébet
királyné útja 87
Nederland +31 17 24 68 300 Vennootsweg 1, 2404 CG - Alphen
aan den Rijn
Norge +47 81 5 30 222 Risløkkvn. 2 , 0508 Oslo
Österreich +43 18 66 400 Herziggasse 9, 1230 Wien
Polska +48 22 43 47 300 ul. Kolejowa 5/7, Warszawa
Portugal +35 12 14 40 39 39 Quinta da Fonte - Edificio Gon-
çalves Zarco - Q 35 -2774-518 Pa-
ço de Arcos
Romania +40 21 451 20 30 Str. Garii Progresului 2, S 4, 040671
RO
Schweiz - Suisse - Svizzera +41 62 88 99 111 Industriestrasse 10, CH-5506 Mä-
genwil
Slovenija +38 61 24 25 731 Gerbičeva ulica 98, 1000 Ljubljana
Slovensko +421 2 43 33 43 22 Electrolux Slovakia s.r.o., Electro-
lux Domáce spotrebiče SK, Seber-
íniho 1, 821 03 Bratislava
Suomi www.electrolux.fi
Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransga-
tan 143, S-105 45 Stockholm
Türkiye +90 21 22 93 10 25 Tarlabaşı caddesi no : 35 Taksim
İstanbul
31
Россия +7 495 937 7837 129090 Москва, Олимпийский
проспект, 16, БЦ "Олимпик"
32
33
34
35
www.electrolux.com
www.zanussi-electrolux.co.uk
156996220-00-20032007
Subject to change without notice
Loading...
