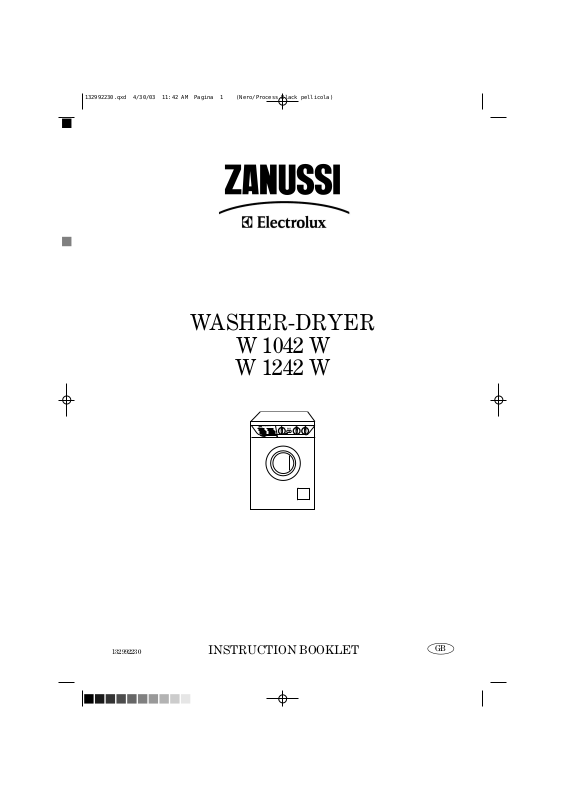

Zanussi W 1042 W, W 1242 W User Manual

WASHER-DRYER

WDA 1055 W

ON-OFF

HALF LOAD

TURBOBRY 1000

ZANUSSIQUALITY

W 1042 W W 1242 W

132992230

INSTRUCTION BOOKLET

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

Installation

●

This appliance is heavy. Care should be taken when moving it.

●

It is dangerous to alter the specifications or attempt to modify this product in any way.

●

All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in instructions.

●

Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

●

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

●

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

●

If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.

Child Safety

●

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

●

Pets and children have been known to climb into washer-dryers. Please check your drum before use.

●

The glass door becomes very hot during the washing and drying cycle. Keep children away from the vicinity of the appliance whilst it is in operation.

Keep all packaging well away from children.

●

Keep all detergents in a safe place out of children’s

●

reach.

Use

●

Always unplug the appliance and turn off the water supply after use.

●

Do not overload the appliance. See relevant section in the instruction book.

●

Only wash and dry fabrics which are designed to be machine washed and dried. If in doubt, consult the care label on the clothes.

●

Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing

frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.

●

Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

●

Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

●

Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.

●

Only use the advised quantities of fabric softener. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer’s recommendations of quantities.

●

As some duvets and eiderdowns should be washed/dried in large commercial machines because of their bulk, please check with the manufacturer of the item before washing in a domestic machine.

●

The users should always check that they have not left their gas lighters (disposable or otherwise) in their clothing.

●

Never tumble dry items that have had contact with chemicals such as dry cleaning fluid.These are of a volatile nature and could cause an explosion. Only tumble dry items which have been washed in water or require airing.

●

Plastic detergent dispensers should not remain in the drum during the drying cycle, as the plastic used is not designed to withstand the heat. If you wish to wash-through-to-dry you should use the conventional detergent dispenser drawer.

●

Leave the porthole door slightly ajar between washes to preserve the door seal.

●

Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine Zanussi spare parts.

Contents

For the User

Your New Washer-Dryer Important Safety Information Description of the Appliance

Detergent dispenser drawer 5

The Control Panel Operating sequence

Washing 4.5 kg of white cotton at 95°C 7

Load the laundry 7 Measure out the detergent 7 Measure out the fabric softener 7 Select the spin speed or option or 7 Select the required programme 7 Start the machine 8 At the end of the programme 8

Washing 2 kg of mixed fabrics at 50°C 8

Load the laundry 8 Measure out the detergent 8 Measure out the fabric softener 8 Select the spin speed or option or 9 Select the programme 9 Start the machine 9 At the end of the programme 9

Drying 2.25 kg of cotton 10

Load the laundry 10 Select the programme 10 Select the required time 10 Start the machine 10 At the end of the programme 10

Autodrying 1 kg of mixed fabrics 11

Load the laundry 11 Add the washing powder and additive 11 Select the programme 11 Select the required time 11 Start the machine 11 At the end of the programme 11

7-11

Washing and Drying Hints

Which detergent to use?.... 13

And in which form? 13

Fabric Conditioners 13

Wash Care Symbols Washing Programmes

Drying Programmes Maintenance and Cleaning

Descaling 18 After each wash 18 Maintenance wash 18 External cleaning 18 Cleaning the dispenser drawer 18 Cleaning the drawer recess 18 Cleaning the filter 18 The dangers of freezing 19

Something Not Working Service and Spare Parts Guarantee Conditions

For the Installer

Installation Instructions Technical Specifications

Unpacking 24 Positioning 24 Water inlet 25 Water drainage 25-26 Levelling 26 Special conditions 26 In the interest of the environment 26 Electrical connection 27

15-16

18-19

20-21

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions Hints and tips Environmental information

Your New Washer-Dryer

Your new washer-dryer meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

It is gentle with your laundry, simple to use and easy to care for.

●

The special wool programme with its new delicate wash system treats your woollens with extreme care.

●

The anti-unbalance device ensures that the machine remains stable when spinning.

●

Automatic cooling of the wash water to 60°C

before draining, with the 95°C programme. This reduces thermal shock to fabrics, helping to prevent creasing.

●

The two drying programmes will give your wash that soft, relaxed feel whatever the weather.

Ecological hints

To save water and energy and help protect the environment, we recommend that you follow these hints:

●

Adjust the quantity of detergent according to the hardness of your water supply, the amount of laundry and the degree of soiling.

●

A programme without prewash is sufficient for normally soiled laundry.

●

Try to load the maximum drying capacity of the machine as small loads are uneconomical.

●

Always load well spun laundry. The higher the spin speed, the lower the electricity consumption and the shorter the drying times.

In the interest of the environment

●

Materials marked with the symbol are recyclable.

●

Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.

●

When the appliance is to be scrapped, cut off the power supply cable and make the door lock device unusable to prevent young children from being trapped inside.

●

Help to keep your country tidy - use authorised disposal sites for your old appliance.

How do we help to protect the environment? We use recycled paper!

Important

Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.

If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the wash load manually and select a spin programme. For more detailed information see the section headed "Something Not Working".

Description of the Appliance

943

267

ZANUSSIQUALITY

TURBODRY 1000

SPIN

WHITES + PREVASH WHITES

FRESHEN UP

B F

MIXED FABRICS

DELICATES

WOOL

RINSES

WORN ONCE

P L

DRAIN

RINSES

FAST COLOUREDS

NON FAST COLOUREDS

SPIN

STORE DRY

IRON DRY

STORE DRY SYNTHETICS

Kg 2.5

90' 60'

70' 50'

100' 60'

Kg 1

Kg 2

Kg 1

Kg 2.5 Kg 1

W 1042 W

ON-OFF

HALF LOAD

DRY

VARIABLE

SPIN

C0063

1 Detergent dispenser drawer

2 Programme guide

3 Drying time selector dial

4 Drying indicator light

5 “Mains-on” light

6 ON/OFF button

7 Half load button

8 Spin Speed selector dial

9 Programme selector dial

10 Door opening handle

11 Filter

12 Adjustable feet

Detergent dispenser drawer

Prewash

Main wash

Fabric softener

The Control Panel

12345678

DRYING

TIME

DRY ON-OFF

HALF LOAD

VARIABLE

SPIN

TURBODRY 1000

ZANUSSIQUALITY

SHORT SPIN

WHITES + PREWASH WHITES

FRESHEN UP

B F

MIXED FABRICS

DELICATES

WOOL

RINSES

WORN ONCE

DRAIN

RINSES

FAST COLOUREDS

NON FAST COLOUREDS

SPIN

STORE DRY

IRON DRY COTTONS

STORE DRY SYNTHETICS

kg 2.25

80' 60'

70' 50'

100'

70'

kg 1

kg 1.5

kg 1

W 1042 W

PROGRAMME

1 Programme guide

2 Drying time selector dial

Graduated up to 120 mins for cottons (black section) and synthetics (grey section), this dial allows you to select the desired drying time according to the type and quantity of laundry and the required degree of dryness. Turn the dial clockwise only.

Cooling phase

To allow the laundry to cool down, a cooling phase starts automatically 10 minutes before the end of drying and this phase must in no circumstances be reduced or interrupted.

3 Drying indicator light

This light illuminates when the machine is drying.

4 Mains-on light

This light illuminates when the machine starts working and goes out when the ON/OFF button is released.

5 On/Off button

By depressing this button the machine starts operating. When depressed again, the machine stops.

6 HALF LOAD button

Select this button to reduce water consumption on the rinse cycle when washing a smaller load of cottons or linens (maximum load size = 2.25 kg).

7 Spin speed selector dial

This dial allows you to select the desired spin speed or the following options:

●

= no spin. All the spinning phases are excluded.

To be used for items that tend to wrinkle. If position

is selected for cotton items (programmes 95°, 60° and 40°), the machine will perform an extra rinse (4 instead of 3).

●

= Rinse Hold. The water of the last rinse is not emptied out to prevent any creasing in the clothes if they are left damp in the drum.

If you select the Rinse Hold option in an automatic washing & drying programme the machine will not dry. We recommend you not to select a lower spin speed so as to avoid a too long drying time when carrying out the automatic washing & drying programme. The spin speeds on the dial refer to cotton programmes.

For mixed fabrics and wool, position 1000 or 1200 corresponds to 850, for delicates 650 rpm. Position 450 corresponds to 350 rpm for delicates.

8 Programme selector dial

Turn the dial clockwise to select the required wash and drying programme.

Before setting the dial to any position ensure that the machine is switched off.

Operating Sequence

C0064

P0004

P1006S

450

550

650

700

800

1000

C0065

Before the first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the main wash compartment of the dispenser drawer and start the machine.

WASHING 4.5 KG OF WHITE COTTON AT 95°C

Suppose you have 4.5 kg of normally soiled laundry to wash. It is white cotton and is suitable for high temperature washing.

1. Load the laundry

Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

3. Measure out the fabric softener

If required, pour fabric softener into the compartment marked (the amount used must not exceed the “MAX” mark in the drawer). Close the drawer gently.

4. Select the spin speed or option

Turn the dial to the required position.

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required and pour it into the main wash compartment . If you wish to carry out the prewash, pour detergent into the compartment marked .

5. Select the required programme

Turn the programme selector dial clockwise to the programme B or A (if you wish to perform a prewash).

6. Start the machine

T0001S

OFF

C0065

C0064

P0004

Before starting up the machine check that:

●

the appliance is plugged in

●

the water supply taps are turned on

●

the drain hose is correctly and securely positioned

●

the door and the detergent dispenser drawer are

closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.

WASHING 2 KG OF MIXED FABRICS AT 50°C

Suppose you have 2 kg of Mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature.

1. Load the laundry

Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

7. At the end of the programme

The machine stops automatically.

If you have selected the RINSE HOLD option , the machine will stop with the water of the last rinse left in the tub, to prevent the fabric from creasing. To drain only, select position or the drain programme “S”.

To drain and spin, select programme “H” or turn the spin speed selector dial to the desired speed position: the machine will spin at the selected speed .

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again. The mains-on light goes out.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required and pour it into the main wash compartment .

3. Measure out the fabric softener

If required, pour fabric softener into the compartment marked (the amount used must not exceed the “MAX” mark in the drawer). Close the drawer gently.

4. Select the spin speed or option

T0001S

OFF

M0017a

450

550

650

800

900

1000

Turn the dial to the required position.

7. At the end of the programme

The machine stops automatically.

To drain and spin, select programme “M” or turn the spin speed selector dial to the desired speed position: the machine will spin at the selected speed.

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF

5. Select the programme

Turn the programme selector dial clockwise to the programme K.

button again. The mains-on light goes out.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

6. Start the machine

Before starting up the machine check that:

●

the appliance is plugged in

●

the water supply taps are turned on

●

the drain hose is correctly and securely positioned

●

the door and the detergent dispenser drawer are

closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.
