ZANUSSI
Washing Machine
TJS1397W
INSTRUCTION BOOKLET
Page 2
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure
that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using
the appliance.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this appliance in any way.
All packaging and transit bolts must be removed
before use. Serious damage can occur to the product
and to property if this is not adhered to. See relevant
section in instructions.
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.
If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
Child Safety
This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
Pets and children have been known to climb into
washing machines. Please check your drum before
use.
Keep all packaging well away from children.
Keep all detergents in a safe place out of children's
reach.
Use
Always unplug the appliance and turn off the water
supply after use.
Do not overload the appliance. See relevant section
in the instruction book.
Only wash fabrics which are designed to be machine
washed. If in doubt, consult the care label on the
clothes.
Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing . Underwired bras
must NOT be machine washed.
Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.
Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is
possible for such items so slip down between the tub
and the inner drum.
Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill.
Refer to the manufacturer's recommendations of
quantities.
As some duvets and eiderdowns should be washed
in large commercial machines because of their bulk,
please check with the manufacturer of the item
before washing in a domestic machine.
Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Force Centre. Always insist on genuine Zanussi
spare parts.
3
Page 3
Contents
For the User
Important Safety Information 3
Your New Washing Machine 5
Description of the Appliance 6
Detergent Dispenser 6
The Control Panel 7
Operating Sequence 8-9
Before use 8
Load the laundry 8
Measure out the detergent 8
Measure out the fabric softener 8
Select the required option 8
Select the required spin speed 9
Select the required programme 9
Start the machine 9
At the end of the programme 9
Washing Hints 10-11
Which detergent ? ... 11
And in which form ? 11
For the Installer
Installation Instructions 20
Technical Specifications 20
Unpacking 21
Positioning 21
Levelling 22
Moving the appliance 22
Special conditions 22
Water inlet 23
Water drainage 23
In the interest of the environment ??
Electrical connection 24
Wash Care Symbols 12
Washing programmes 13-14
Maintenance and Cleaning 15-16
Descaling 15
After each wash 15
External cleaning 15
Cleaning the detergent dispenser 15
Cleaning the drain filter 15-16
The dangers of freezing 16
Something Not Working 17
Service and Spare Parts 18
Peace of Mind for Twelve Months 19
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
4
Page 4
Your New Washing Machine
Your new washing machine meets all modern requirements for effective treatment of laundry
with low water, energy and detergent consumption.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
Adjust the quantity of detergent according to
the hardness of your water supply, the amount
of laundry and the degree of soiling.
A programme without prewash is sufficient for
normally soiled laundry.
In the interest of the environment
Materials marked with the symbol are
recyclable.
Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
When the appliance is to be scrapped, cut off
the power supply cable and make the door lock
device unusable to prevent young children from
being trapped inside.
Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the environment?
We use recycled paper!
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the
spin. If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because,
it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be
necessary to redistribute the wash load manually and select a spin programme. For more detailed information see the section headed "Something Not Working".
5
Page 5
Description of the Appliance
Programme selector dial
Spin speed selector dial
Pushbuttons
Pilot light
Control panel
Lid
Handle for
opening lid
Detergent Dispenser
1 Detergent compartment for pre-wash .
2 Detergent compartment for main wash
3 Fabric softener
.
Lever for castors
Trap door for lint
filter
2
.
1
3
6
Page 6
The Control Panel
Never turn the programme selector when the appliance is working.
2
1
3
64
1 ON/OFF Button
To start the machine, press the ON/OFF button.
The pilot light will come on.
To switch off the machine, release the button by
pressing it again.
2 Pilot Light
This light will come on when the machine starts
operating and goes out when the ON/OFF
button is released.
3 Quick Wash Button
This push button reduces the time of the
washing and rinsing cycles of the cotton and
synthetics programmes by approximately
60 minutes and 30 minutes respectively.
4 Rinse Hold Button
Press this button to leave the water in the drum
when the wash cycle has finished.
This option is available on cotton and synthetics
wash programmes. The garments are left
suspended in water after the final rinse which
helps to prevent creasing.
Do not use rinse and hold with the wool programme. Wool should be gently spin.
When it is convenient to empty the machine,
press this button again or select a drain or short
spin programme.
Ensure the ON/OFF button is in the off position
before turning the dial.
7
5
9
8
6 Heavy Soil Button
By pressing the heavy soil button, the machine
will take in cold water only on programmes
with a water temperature of 50°-60°-95°
(programmes B - C and J).
These would normally be hot or hot and cold.
The water is then gradually heated to the
required temperature. The effect is to improve
the overall wash performance, particularly on
biological stains such as egg, blood and grass
stains, and heavily soiled fabrics, since the
longer "cool-soak" phase as the water heats up
provides the right conditions for the powder and
the water temperature to interact, and achieve
the best possible results.
7 Programme Selector Dial
To select the required programme, turn the dial
in a clockwise direction until the programme
required is shown in the display window.
Do not turn the programme selector anticlockwise (to the left). Ensure the ON/OFF
button is in the OFF position when selecting
a programme.
8 Spin Speed Selector Dial
The spin speed can be varied as follows:
Cotton & linen : from 1250 to 500 rpm.
Mixed fabrics and delicates : from 650 to 300 rpm
Wool : from 1000 to 300 rpm.
5 Display Windows
9 Programme guide
7
Page 7
Operating Sequence
Before use
Before using your appliance for the first time, we
recommend you run a 95°C cotton cycle without
any laundry, to remove any manufacture residue
from the drum and tub.
Pour 1/2 a measure of detergent into the detergent
dispenser and start the machine.
1 Load the laundry
Lift the lid
Open the drum with both hands by pressing
the release button (A). The 2 flap doors will
open outwards on a spring giving access to
the drum
Shake the laundry out loosely and place into
the drum. Close the drum and shut the lid.
Before closing the lid ensure :
The flap doors are fastened
Button A is released (in the raised position).
A
2 Measure out the Detergent
Measure out the amount of detergent recommended by the manufacturer in the main
wash compartment
If you are carrying out a pre-wash, pour the
detergent into the pre-wash compartment
.
DO NOT exceed the maximum level.
.
3 Add Fabric softener
If required pour fabric softener into the
compartment marked
DO NOT exceed the maximum level.
.
4 Select Options Required
If required select options for example:
Quick Wash
Rinse Hold
Heavy Soil
Liquid detergent
Only compartment
Powder detergent
Compartment
(prewash)
Compartment
(wash)
8
Page 8
6 Select the spin speed
Turn the selector dial to the required position
according to the type of the laundry :
cotton 500 600 700 800 900 1000 1100 1250
synth/del. 300 - - 400 - 500 - 650
Wool 300 400 500 600 700 800 900 1000
7 Select the required programme
Ensure the ON/OFF button is in the OFF position, and select the programme required by
turning the selector dial clockwise.
8 Start the machine
Before starting up the machine check that :
the appliance is plugged in
the water supply taps are turned on
the drain hose is correctly and securely
positioned
the lid and the detergent dispenser are
closed.
Press the ON/OFF button. The pilot light will
come on to show that the programme has
started.
9 At the end of the Programme
When the programme has finished the machine
will stop. Switch off the appliance.
If you have pressed the Rinse Hold Plus Button,
the machine will stop with the water left in the
tub, to prevent the fabric from creasing. To
drain the water and spin, release the same
button. To drain only select programme "R".
The lid is controlled by a safety device which
releases 2 minutes after the end of the programme.
We recommend you unplug the appliance and
turn off the water taps after use.
9
Page 9
Washing Hints
Do NOT overload the machine. Weigh the laundry
the first few times you use the appliance.
The average weights of the most common items
are listed below as a guide:
1000g=1kg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000g
Bath robe 1000-1500 g
Always:
Empty pockets
Ensure buttons and zips are fastened
Consult the care label on the garment.
Only wash fabrics are designed to be machine
washed.
Place small items such as socks, laces,
handkerchiefs etc in a washing bag or pillow
case, as it is possible for such items to slip
down between the tub and the inner drum.
Items that should not be put in the
machine:
Underwired bras.
Garments which have been in contact with
volatile or petroleum based products.
Man's shirt 200-300 g
Apron 150-200 g
For Best Washing Results:
Load the laundry loosely alternating large items
with small ones.
Sort the laundry according to the type of fabric,
colour fastness and degree of soilage.
White items should not be washed with
coloured items.
Wash new coloured items separately when
washing for the first time.
Treat stains such as paint, ink, rust and grass
before washing.
Some duvets and eiderdowns should be washed
in large commercial machines. Check with the
manufacturer of the item.
Help the Environment:
To save water, energy and help protect the
environment.
Do not use a pre-wash for normally soiled
washing.
Wash full loads
Pre-treat stains and then wash at a lower
temperature.
Only use the advised quantities of detergent
and fabric softener.
Avoid washing frayed or torn articles.
When washing fabrics requiring different wash
temperatures, always select the lowest
temperature.
10
Page 10
Which detergent? ...
And in which form?
To ensure you obtain the best wash results from
your appliance, it is important to use the right
detergent in your everyday wash, and only
detergents recommended for use in automatic
machines.
To maintain the appearance of your clothes and
household textiles and to make them last longer
you should use different types of detergent for
different washes, whether for whites, colours or
delicates.
Whites
We recommend the Ariel product
range which is biological and
designed to provide excellent
cleaning and stain removal even
at low temperatures.
Non Biological
If you prefer to use a non biological
detergent, which does not contain
enzymes we recommend Fairy.
Fairy provides good cleaning and
stain removal.
Coloureds
For coloured items you should use a
detergent which is designed to clean
while maintaining the original colour.
Ariel Color does not contain bleach
and therefore helps to preserve
colours.
Delicate items
When washing delicates such as
woollens, you should use a product which
is specially designed to care for fine
fabrics. Dreft Automatic is suitable for
woollens and other delicates.
Laundry Bleach
For additional stain removal you may wish
to use a product such as Ace Gentle Bleach
which is used in addition to your chosen
detergent. Ace is suitable for all washable
fabrics including silks, woollens and
coloureds.
Not only are there different types of detergent, but
they are also available in different forms. Whether
you choose a powder or liquid in traditional or
compact form is down to personal choice.
Traditional Powders
Pour the powder directly into the dispenser drawer.
Do not sprinkle powder onto clothes in the machine drum.
Traditional Liquids
Liquid can be placed in the main wash compartment
of the detergent drawer marked with the symbol
start the machine immediately upon placing the
detergent in the dispenser drawer. Alternatively
the detergent is measured into the specially
designed dosing device* which should be placed
on top of the laundry, and at the back of the
machine drum.
Compact Powders and Liquids
Compact detergents (or concentrates as they are
also known) are available in liquid or powder form,
and generally require a smaller dosage. Follow the
manufacturer's instructions to ensure the most
economical usage. Pour the detergent directly into
the dispenser drawer, or alternatively measure the
detergent into the specially designed dosing device*
which should be placed on top of the laundry, and
at the back of the machine drum.
* if you use a dosing device in a washer dryer,
please ensure the dosing device/ball is
removed before carrying out a drying
programme.
Fabric Conditioners
These are ideal for improving "softness", and also
reduce static cling on synthetics and make ironing
easier. They are available in two types.
For example Lenor liquid fabric softener,
for use in the washing machine/
washer dryer. The liquid fabric softener
should be poured into the compartment
marked with the symbol
manufacturer's dosage instructions and never
exceed the MAX level.
Bounce conditioning sheets for use in a
tumble dryer. We recommend the
conditioning sheets are pinned (using a
safety pin) to an article of laundry and
placed in the tumble dryer.
. Follow the
,
11
Page 11
Wash Care Symbols
Wash care labels inside garments recommend how to launder your clothes with the best results. The care
labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to
select the correct programme on your washing machine
WASHING SYMBOL WASH ACTION FABRIC
BLEACHING
IRONING
Normal (Maximum)
Normal (Maximum)
Reduced (Medium)
Normal (Maximum)
Reduced (Medium)
Much Reduced (Minimum) Wool, wool mixtures, Silks
Hand wash only Do not machine wash
Chlorine bleach may be used
White Cotton or Linen
without Special Finishes
Cotton, Linen or Viscose
without Special Finishes,
Colourfast at 60°C
Nylon, Polyester/Cotton,
Viscose with Special Finishes,
Cotton/Acrylic Mix
Cotton, Linen or Viscose,
Colourfast at 40°C but not 60°C
Acrylics, Acetate, Triacetate,
Wool mixes, Polyester/wool
DRY CLEANING
TUMBLE DRYING
X
Hot Iron Cotton, Linen, Viscose
Warm Iron Polyester mixtures, Wool
Cool Iron Acrylic, Nylon, Polyester
May be dry cleaned. Other letters and/or a bar beneath the circle
will indicate the required process to the dry cleaner.
May be tumble dried
With high heat setting
With low heat setting
A cross through any symbol means
"DO NOT"
12
Page 12
Washing Programmes
Programmes for cotton and linen
Wash programme
EXTRA
PREWASH
WHITES
FAST
COLOUREDS
NON-FAST
COLOUREDS
Degree of soil
and type of
laundry
For heavy soiled
cotton items
(whites and
coloureds)
White cotton, for
example normally
soiled work
garments, sheets,
household linen,
underwear, towels.
Fast coloured
cotton or linen
fabrics, shirts,
underwear, towels.
Non fast coloured
cotton or linen
fabrics, shirts,
blouses,
underwear.
Programme
dial posi-
tion
A
B
C(*)
D
Description
Prewash at 40°C
Short spin
at 650 rpm
Wash at 95°C
3 rinses
Long spin
Wash at 60°C
3 rinses
Long spin
Wash at 40°C
3 rinses
Long spin
Possible
options
Max.
load
4,5 kg
4,5 kg
4,5 kg
4,5 kg
Prog.
time
mins (1)
40
135
130
90
RINSES
FRESHEN UP
SPIN
(*) This programme at 60°C is the reference programme for the Energy label according to EEC Directive 92/75
At the end of the programme the selector dial will stop in the off position (full or half white line).
Water filing : 30°-40° programmes: cold water filing
50°-60° programmes: hot and cold water filing
95° programmes: hot and cold water filing
(1) The programme times are intended as a guide only. The actual time will vary depending on
incoming water temperature and pressure.
IMPORTANT
This machine is fitted with a safety lock which prevents the lid being opened for 2 minutes after the
programme has finished.
Separate rinse
cycle for hand
washed garments
This programme
can be used for
softening hand
washed garments.
Separate spin for
cotton and linen
items.
F
G
H
3 rinses
Long spin
1 rinse, with fabric
softener, if
required
Long spin
Long spin
4,5 kg
4,5 kg
4,5 kg
45
20
12
13
Page 13
Washing Programmes
Programmes for synthetics, delicates and wool
Wash programme
MIXED
FABRICS
WORN ONCE
EXTRA CARE
WOOL
DELICATES
Degree of soil
and type of
laundry
Synthetic or mixed
fabrics, underwear,
coloured garments
non-shrink shirts,
blouses
Lightly soiled
synthetic or
delicate items
Specially tested
programme for
wool garments
bearing the "Pure
new wool, nonshrink, machine
washable" label
Delicate fabrics,
for example
curtains
Programme
dial posi-
tion
J
K
L
M
Description
Wash at 50°C
3 rinses
Short spin
Wash at 30°C
3 rinses
Short spin
Wash at 40°C
3 rinses
Short spin
Wash at 40°C
3 rinses
Short spin
Possible
options
Max.
load
2 kg
2 kg
1 kg
2 kg
Prog.
time
mins (1)
95
40
60
55
HAND RINSES
FRESHEN UP
SHORT SPIN
DRAIN
At the end of the programme the selector dial will stop in the off position (full or half white line).
If the Rinse Hold option has been selected the programme will end with water remaining in the drum.
Release the Rinse Hold Button to end the programme with a short spin, or turn the selector dial to "R" to
drain the water.
Separate rinse
cycle for hand
washed garments
This programme
can be used for
softening hand
washed garments.
Separate spin for
synthetics and
delicates
For emptying out
the last rinse
water in programmes with the
Rinse Hold Plus
option.
N
P
Q
R
3 rinses
Short spin
1 rinse, with fabric
softener, if
required
Short spin
Draining of water
and short spin
Draining of water
2 kg
2 kg
2 kg
_
28
15
10
2
(1) The programme times are intended as a guide only. The actual time will vary depending on incoming
water temperature and pressure.
14
Page 14
Maintenance and Cleaning
Before carrying out any maintenance or cleaning
you must DISCONNECT the appliance from the
electricity supply.
Descaling
The water we normally use contains lime. To help
prevent the formation of lime deposits we
recommend you periodically, particularly in hard
water areas, use a water softening powder in the
machine. Do this separately from any laundry and
according to the manufacturer's instructions.
After each wash
Leave the lid and the drum open for a while. This
helps to prevent mould and stagnant smells forming
inside the appliance.
External Cleaning
Wipe the exterior cabinet of the appliance with a
soft cloth and warm soapy water.
Do not use abrasive cleaning products.
Cleaning the detergent dispenser
The detergent dispenser is very easy to remove.
Press the pressure tabs located on each side of
the detergent dispenser inwards and pull it up
(fig.1 and fig.2).
Clean the detergent dispenser under running water
with a brush or cloth (fig.3). Check that the siphons located at the back of the detergent dispenser are not obstructed (fig.4).
Replace the detergent dispenser in the notches
until the hanging (fig.5).
Cleaning the drain filter
A clean filter is important for correct functioning of
the machine, and should therefore be cleaned
after every wash.
Open the flapdoor (fig.6)
To drain the residual water :
Place a shallow container beneath the flapdoor.
Turn the filter handle anticlockwise until the
filter cap handle is vertical, any residual water
will be released (fig.7).
fig.1
fig.3
fig.5
fig.6
fig.2
fig.4
fig.7
15
Page 15
To clean the filter :
Unscrew the filter anticlockwise and remove.
Clean the filter carefully under a fast running
tap.
Replace the filter and refit by screwing in a
clockwise direction. Close the flapdoor.
Never remove the water drain filter during
a wash cycle.
The dangers of freezing
If the machine is exposed to temperatures below
0°C, certain precautions should be taken.
Turn off both water taps.
Select a wash programme and run for a few
seconds to relieve the pressure in the hoses.
Unscrew the hoses and drain them into a bowl
at ground level.
Unhook the drain hose from the rear support
and position the end in a bowl at ground level to
drain.
fig.8
When intending to use the machine again, reconnect the hoses and make sure that the room
temperature is above 0°C.
16
Page 16
Something Not Working
If your appliance is not working correctly, please carry out the following checks before calling out an engineer.
SYMPTOM
The machine does not start
up
The machine does not fill
The machine empties as it
fills
The machine does not drain
or spin
POSSIBLE CAUSE
The ON/OFF button has not been
depressed.
The lid is not properly closed
The appliance is not plugged in
There is no electricity supply from
the wall socket
The programme selector dial is not
correctly positioned
The water is not turned on
The water supply has been cut off
The inlet hose is kinked
The water pressure is too low
The water inlet filter is clogged
The end of the drain hose is too low
The end of the drain hose is sub-
merged in water
The Rinse Hold Plus button has
been pressed
The drain filter is clogged
The drain hose is bent
The drainage system pipes are
blocked
The drain hose extension is
incorrect
The wash load is unbalanced
SOLUTION
Press the ON/OFF button
Close the lid
Plug in the appliance
Check the fuse
Turn the selector dial to the
required programme
Turn on the water
Wait until the water supply is
restored
Straighten the inlet hose
Consult a qualified plumber
Clean the filter
Position the drain hose at the
correct height (between 70 and 100 cm)
Re-position the drain hose so it
is not submerged
Release the Rinse Hold Plus
button
Clean the filter
Straighten the hose
Consult a plumber
Consult a plumber
Reload the washing and select
a spin programme
The machine leaks or
overfills
The machine vibrates or is
noisy
The lid does not open
Too much detergent
Unsuitable detergent
The detergent dispenser is blocked
The end of the drain hose is not
correctly positioned
The internal packing and/or transit
bolts have not been removed
The wash load is unevenly distributed
The machine is overloaded
The safety device has locked it
17
Reduce the quantity of detergent
Use only detergent for
automatic washing machines
Clean the dispenser
Re-position the drain hose
Remove internal packing/
transit bolts
See hints and tips section
Observe the maximum loads
quoted for the programme
Wait 2 minutes after pro-
gramme end before opening
the lid
Page 17
If after the above checks, there is still a fault, call
your local Zanussi Service Force Centre.
Customer Care
Service & Spare Parts
If you require an engineer or wish to purchase
spare parts contact your local Zanussi Service
Force Centre by telephoning:
0870 5 929929
Your telephone call will be routed to the Service
Centre covering your post code area.
Further information can be found in the
accompanying customer care booklet and also in
your telephone directory under "Z".
When you call the Service Force Centre please
make sure you give the model and serial number
of the appliance.
This information can be found on the rating plate
(see picture) or on the guarantee card.
In-guarantee customers should ensure that
the above checks have been made as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown. Please
note that proof of purchase is required for any
in-guarantee service calls.
For general enquiries concerning your Zanussi
appliance or for further information on Zanussi
products, please contact our Customer Care
Department by letter or telephone as follows:
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel 08705 727727
18
Page 18
Peace of Mind for Twelve Months
Standard guarantee conditions
We, Zanussi Limited, undertake that if within 12
months of the date of the purchase this Zanussi
appliance or any part thereof is proved to be
defective by reason only of faulty workmanship
or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed
and used only on the electricity supply stated
on the rating plate
The appliance has been used for normal
domestic purposes only, and in accordance
with the manufacturer's instructions
The appliance has not been serviced,
maintained repaired, taken apart or tampered
with by any person not authorised by us
All service work under this guarantee must be
undertaken by a Zanussi Service Force Centre.
Any appliance or defective part replaced shall
come the Company's property.
This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30 am and
5.30 pm Monday to Friday. Visits may be available
outside these hours in which case a premium will
be charged.
European Guarantee
If you should move to another country within
Europe then your guarantee moves with you to
your new home subject to the following qualifications:
The guarantee starts from the date you first
purchased your product
The guarantee is for the same period and to
the same extent for labour and parts as exists
in the new country of use for this brand or
range of products
This guarantee relates to you and cannot be
transferred to another user
Your new home is within the European
Community (EC) or European Free Trade
Area
The product is installed and used in
accordance with our instructions and is only
used domestically, i.e. a normal household
The product is installed taking into account
regulations in your new country
Before you move please contact your nearest
Customer Care centre, listed below, to give them
details or your new home. They will then ensure
that the local Service Organisation is aware of
your move and able to look after you and your
appliances.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation,
improper use or neglect, the replacement of
any light bulbs or removable parts of glass or
plastic.
Costs incurred for calls to put right an
appliance which is improperly installed or
calls to appliances outside the United
Kingdom.
Appliances found to be in use within a commercial environment, plus those which are
subject to rental agreements.
Products of Zanussi manufacture which are
not marketed by Zanussi Limited.
France Senlis +33 (0)3 44 62 29 99
Germany Nurnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)8 738 79 50
UK Slough +44 (0) 1753 219897
19
Page 19
Installation Instructions
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
Technical Specifications
Dimensions Height with panel 895 mm
Height without panel 850 mm
Width 397 mm
Depth 600 mm
Power supply voltage / frequency 230 V - 240 V / 50 Hz
Total power absorbed 2300 W - 2400 W / (10 A)
Heater rating 1950 W
Water pressure minimum 5 N/cm² (0,5 kg/cm
maximum 80 N/cm² (8 kg/cm
Maximum load Cotton 4,5 kg
Synthetics/delicates 2 kg
Wool 1 kg
Maximum spinning speed 1250 rpm
Electrical consumption
(washing at 60°C) 0,85 kWh
2
)
2
)
This appliance complies with the following EC Directive :
- 72/23/EEC of 19.02.1973 - Low-Voltage Directive
- 89/336/EEC of 03.05.1989 (including Amentment Directive 92/31/EEC) - EMV Directive.
20
Page 20
Unpacking
Before installing the machine the packing and
transit bolts must be removed. The transit
packaging is red for ease of identification.
Please retain the packing and transit bolts for
re-use in case the machine is to be transported
again.
Unpack the appliance. Tilt the appliance
backwards. Remove the polystyrene base, by
turning the appliance one quarter turn.
Remove the base (fig. 1).
Open the lid and remove the polystyrene block
and wedges securing the drum.
Close the lid (fig. 2).
Using a spanner, remove the two transit bolts
(A) (fig. 3).
The holes which are now visible must be filled
with the plugs (B) provided (fig. 4).
Fig. 1
Fig. 2
Retain the polystyrene block and transit bolts
for future use (fig. 5).
To enable the appliance to be pushed further
into the recess, the plastic crossbar holding the
hoses at the back of the appliance can be cut
off (fig. 6).
Positioning
The installation surface must be clean dry and
level
Do not install on deep pile carpet.
Do not install the appliance in locations where
the temperature may fall below freezing
Please ensure that when the appliance is
installed it is easily accessible for the
engineer in the event of a breakdown
Fig 3
Fig 5
A
B
Fig 4
Fig 6
21
Page 21

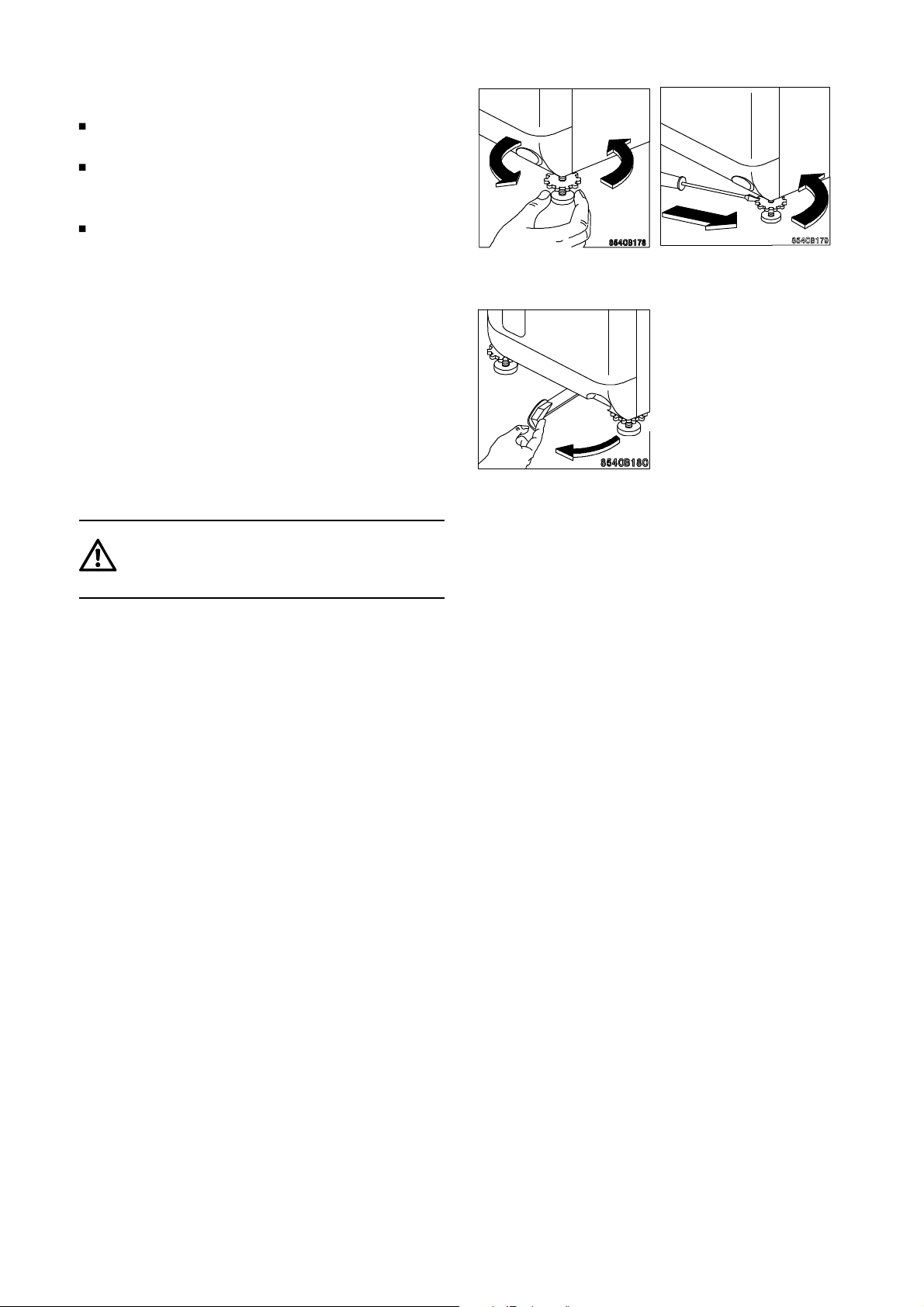

Levelling the Appliance
The appliance must be levelled using the
adjustable feet.
Adjust the feet so that the appliance is level.
The appliance must not rock when weight is
applied.
Check the appliance is level using a spirit
level.
Moving the appliance
To move the washing machine, release the wheels
by pulling the lever at the bottom of the machine.
Pull the lever to the right and move the machine to
the required position. When the machine has been
correctly positioned, push the lever back to its
original position.
Do not operate the machine with the wheels
released.
Warning
The machine should NOT be placed on
deep pile carpeting.
Note
Please ensure that when the appliance is installed
it is easily accessible for the engineer in the event
of a breakdown.
22
Page 22
Water connection
Min 30 cm (12)
This appliance is designed to be permanently
plumbed into your home's water supply and drainage system.
Water inlet
The appliance has two inlet hoses, hot and cold
with female 3/4" BSP thread connectors. If this
connection is not compatible with the plumbing of
the existing installation, a variety of connectors
are available from good hardware stores and
plumbers merchants to suit most domestic
plumbing.
Any alterations to your existing plumbing must be
carried out by a competent person, or qualified
plumber.
The inlet hoses on the back of the appliance are
colour coded. Connect the hose with blue printed
text to the cold water supply and the hose with red
printed text to the hot water supply.
Before connecting the hoses be sure to fit the
washers supplied.
If only a cold water supply is availalbe connect the
two hoses to a cold water outlet by means of a "Y"
connection piece. (Available from your local D.I.Y.
Store).
Water Drainage
The appliance drain hose should hook into a
standpipe, with an internal diameter of
approximately 38mm (see diagram) thus ensuring
there is an air break between the drain hose and
standpipe. The hook in the drain hose is formed
using the plastic "U-piece" supplied. The "U-piece"
also has a retaining eye to secure the outlet hose
and prevent if from slipping off its location.
When discharging into a standpipe ensure that the
top of the curve in the hose end is no more than
100cm and no less than 70cm above floor level.
The upright standpipe should have a minimum,
length of 30cm (12") from the bottom of the elbow
to the top of the pipe (see diagram). Make sure that
it is designed in such a way that the end of the drain
hose cannot be covered with water.
If you intend the drain hose from the washing
machine to empty into a sink, make sure that the
sink is empty and that the plug hole is not blocked.
Use the plastic "U-piece" supplied. The "U-piece"
also has a retaining eye to secure the outlet hose
and prevent it from slipping off its location. The
force of draining water may force the hose out of
the sink.
hot inlet
REARVIEW
cold inlet
38 mm (1 1/2") diameter
standpipe
outlet hose
23
Page 23
Electrical Connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should these safety measures not be
observed.
Before switching on, make sure the electricity
supply voltage is the same as that indicated on the
appliance rating plate. The rating plate is located at
the back of the appliance.The appliance is supplied
with a 13amp plug supplied, a 13amp ASTA
approved (BS1362) fuse must be used.
Should the plug need to be replaced for any reason.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow : Earth
Blue : Neutral
Brown : Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter
"E" or by the earth symbol or coloured green and
yellow.
Green and yellow
Blue
13A
E
N
Brown
Cord clamp
The wire coloured blue must be connected to the
terminal "N" or coloured black.
The wire coloured brown must be connected to the
terminal marked "L" or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must
be secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp
socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed
of safety.
Permanent connection
In the case of a permanent connection it is
necessary that you install a double pole switch
between the appliance and the electricity supply
(mains), with a minimum gap of 3mm between the
switch contacts and of a type suitable for the
required load in compliance with the current
electrical regulations. The switch must not break
the yellow and green earth cable at any point.
146 1250 00
24
Loading...
