Page 1
TUMBLE DRYER
TDS 333 E
DRYING
COOL TUMBLING
END OF PROGRAMME
CLEAN FILTER NOW
FLASHING-DOOR AJAR
START
BUZZER
OFF
COTTON LINEN
BC D
A
STORE DRY
IRON DRY
STORE DRYEXTRA DRY
SYNTHETICS
LOW
TEMP
TDS
333E
AUTOREVERSE
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
INSTRUCTION BOOKLET
125995330
Page 2
CONTENTS
2
Warnings................................................Page 3
Description of the appliance........Page 4
Installation.............................................Page 5
■ Positioning.................................................Page 5
■ Fitting the vent hose..................................Page 5-6
■ Door reversal.............................................Page 7
■ Stacking kit................................................Page 7
■ Electrical connection .................................Page 8
Use.............................................................Page 9
■ Control panel.............................................Page 9
■ Use of controls ..........................................Page 9
■ Electronic and Timed Programmes...........Page 10
■ Programme chart ......................................Page 11
■ Drying sequence .......................................Page 12-13
■ Useful hints ...............................................Page 14
Maintenance.........................................Page 15
■ External cleaning.......................................Page 15
■ Cleaning the door......................................Page 15
■ Cleaning the filter ......................................Page 15
Servicing ................................................Page 16
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 57 cm
ELECTRICAL CONNECTION Voltage/Frequency 220-230 V/50 Hz
Max. power absorbed 2200 W (10A)
DRYING CAPACITY Cotton, linen 5 kg
Synthetics 2 kg
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Page 3
WARNINGS
3
It is most important that this instruction book
should be retained with the appliance for
future reference. Should the appliance be
sold or transferred to another owner, or
should you move house and leave the
appliance, always ensure that the book is
supplied with the appliance in order that the
new owner can get to know the functioning of
the appliance and the relevant warnings.
■ These warnings have been provided in the
interest of safety. You MUST read them
carefully before installing or using the
appliance.
INSTALLATION
■ Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
■ Make sure that the appliance does not stand
on its electrical supply cable.
■ If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
■ This tumble dryer is designed to be vented
through to the open air. It should have its own
ventilation system which should not be joined
with any other ventilation system connected to
any other appliance.
USE
■ Always unplug the appliance after use.
■ Clothes which are dripping wet should not be
placed in the dryer.
Always load well spun laundry. The higher the
spin speed, the lower the electricity
consumption and the shorter the drying times.
■ Never tumble dry items that have been in
contact with chemicals such as dry
cleaning fluid. These are of a volatile
nature and could cause an explosion.
■ As some bulky items such as duvets and
eiderdowns should be dried in large
commercial machines because of their bulk,
check with the manufacturer of the item if it is
suitable for drying in a domestic machine,
even if the dry weight of the item is within the
limit advised.
■ Always check that no cigarette lighters have
been left in pockets.
■ Leave the porthole door slightly ajar when not
in use to preserve the door seal.
■ The fluff filter must be cleaned after every use.
■ Do not operate the appliance with a damaged
filter as this may cause a fire.
■ Do not overload the appliance.
■ Do not allow fluff to accumulate around the
dryer.
SERVICE/REPAIR
■ Under no circumstances should you attempt to
repair the machine yourself. Repairs carried
out by inexperienced persons may cause
injury or serious malfunctioning. Refer to your
local Zanussi Service Centre. Always insist on
genuine Zanussi spare parts.
GENERAL SAFETY
■ It is dangerous to modify or try to modify the
specifications of this appliance in any way.
■ This appliance is designed to be used by
adults. Children should not be allowed to
touch the controls or play with the product.
■ Pets and small children may climb into tumble
dryers. Check your appliance each time before
use.
ENVIRONMENT PROTECTION
■ The materials used on this appliance marked
with the symbol are recyclable.
This means that they can be recycled by
disposing of them properly in appropriate
collection containers.
■ If you take your appliance to a refuse disposal
site, cut off the power cable flush with the
appliance to avoid the danger of the appliance
being re-used, and disable the door catch to
prevent children becoming trapped inside.
ENGLISH
Page 4
DESCRIPTION OF THE APPLIANCE
4
01 Top cover
02 Programme chart
03 Low Temperature Button
04 Buzzer Off Button
05 Start Button
06 Control Lights
07 Mains-On Light
08 Programme Selector Dial
09 Rating Plate
10 Fluff filter
11 Door Handle
12 Adjustable feet
13 Side vent outlets
14 Ring nut
15 Rear vent outlet
11
10
9
1 7 8
2
345
6
12
DRYING
COOL TUMBLING
END OF PROGRAMME
CLEAN FILTER NOW
FLASHING-DOOR AJAR
START
BUZZER
OFF
COTTON LINEN
B C D
A
STORE DRY
IRON DRY
STORE DRYEXTRA DRY
SYNTHETICS
LOW
TEMP
TDS
333E
AUTOREVERSE
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
13
14
15
Page 5
INSTALLATION
5
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
Whilst drying, the tumble dryer will expel a certain
amount of warm, very moist air, and this should
be removed from the room as quickly as possible
to prevent condensation. In an extremely well
ventilated room or close to an open window, this
may occur naturally.
However, in general, it is better to carry the
dryer's exhaust outside via the 100 mm diameter
flexible hose supplied with the appliance; ending
either temporarily at an open window, or
permanently at a fixed ventilation grille, fitted to
an exterior wall or window.
The tumble dryer must be installed in a clean
place, where dirt does not build up.
Make sure there are no obstructing items or
material near the air-intake louvres provided at
the back (e.g. paper, rags etc.).
To keep vibration and noise to a minimum when
the dryer is in use, it should be placed on a firm,
level surface.
Once in its permanent operating position, check
that the dryer is absolutely level with the aid of a
spirit level. If it is not, raise or lower the two
adjustable feet at the front of the machine until it
is.
The feet must never be removed.
Do not restrict the floor clearance through
deep-pile carpets, strips of wood or similar.
This might cause heat build-up which would
interfere with the operation of the appliance.
Important
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may
affect the performance of the appliance.
Fitting the vent hose
To simplify the installation, there is a choice of
vent outlets: one at the back, the others in the left
and right-hand side.
Connect the hose to whichever is the more
convenient by pulling the ring nut (A) from the
vent outlet at the back, screwing it on to the hose
and pushing it firmly back into place.
The unused vents should now be sealed with the
special snap covers provided.
P0046
A
P1028
P1027
A
ENGLISH
Page 6
6
Advice: If the hose is long and the room
temperature low, the moisture might condense to
water inside the hose. This is an unavoidable
natural phenomenon. To prevent this water from
Iying in the hose or flowing back into the tumble
dryer, it is advisable to drill a small hole (dia.
3 mm) in the lowest point of the hose and to
place a small container below it.(See picture,
point A).
Once connected to the dryer, run the vent hose to
the desired outlet point, ensuring that the run’s
overall length is less than 2 m, and that it
contains no more than two bends. As to the outlet
itself, if you have decided on a fixed wall/window
grille, a good local builder’s merchant should be
able to supply you with the necessary fittings and
installation advice.
It is important not to connect the
vent hose to, for example, a cooker
hood, or a chimney or flue pipe
designed to carry the exhaust from
a fuel burning appliance.
Note that to avoid condensation problems, it is
essential that the dryer be fitted with the flexible
hose to carry its “exhaust” at least beyond the
kitchen units; preferable outside the kitchen.
In order to prevent the appliance from
overheating, it is important that the steam
exhaust is unobstructed.
Therefore, in case of a permanent hose fitted to
an exterior wall or ceiling, it must be ensured an
exhaust capacity of at least 150 m
3
/h.
If the dryer is fitted next to kitchen units,
make sure that the vent hose is not squashed.
If the hose is partially squashed, drying
efficiency will be reduced, resulting in longer
drying times and higher energy consumption.
If the hose is completely squashed, the safety
cut-outs with which the machine is fitted may
operate.
P0279
A
P0055
Page 7
Door reversal
To make it easier to load or unload the laundry
the door can be reversed.
This operation must be carried out by
qualified personnel.
Operate as follows:
- Remove the door by unscrewing the two screws
(1) fastening the hinge to the cabinet (Fig. A).
- Remove the safety catch (2) and the plug (3) by
bending the two fastening tags (Fig. A).
- Refit the safety catch (2) and plug (3) on the
door by reversing their positions (Fig. B).
- Remove the plastic plate (4) by unscrewing the
two fastening screws (Fig. A).
- Refit the plastic plate (4) on the opposite side
(Fig. B).
- Refit the door by screwing in the two screws (1)
which fasten the door to the cabinet (Fig. B).
Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on
top of your washing machine.
7
P0283
A
2
3
4
1
P0748
B
1
4
2
3
P0280
ENGLISH
Page 8
8
Electrical connection
This machine is designed to operate on a
220-230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (2.2 kW),
also taking into account any other appliances in
use.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
The appliance is supplied with a 13amp plug
fitted.
In the event of having to change the fuse in the
plug supplied, a 13amp ASTA approved
(BS1363A) fuse must be used.
Should the plug need to be replaced for any
reason, proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter
«E» or by the earth symbol or coloured
green and yellow.
The wire coloured blue must be connected to
the terminal «N» or coloured black.
The wire coloured brown must be connected to
the terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must
be secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp
socket is a serious safety (shock)
hazard.
Ensure that the cut off plug is disposed
of safely.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13A
P1041
E
N
L
Page 9
USE
9
ENGLISH
1 Programme Chart
This will help you to select the correct
programme for drying.
2 Low Temperature Button
Press this button to reduce the temperature when
drying particularly delicate items.
To be used when drying synthetics with timed
programme.
3 Buzzer Off Button
During the anti-crease phase, the buzzer will
sound intermittently. Depress this button to switch
off this function.
4 Start Button
Press this button to start the selected drying
programme.
If the door is opened during drying programme,
this button has to be depressed after closing the
door to
re-start the programme.
5 Drying Light
This light indicates that the machine is
performing the drying phase.
6 Cool Tumbling Light
This light will illuminate when the cooling phase
is in operation. This starts 9 minutes before the
end of drying to prevent any creasing or
crumpling of fabrics.
7 End of programme & Clean Filter
Now Light
This light comes on at the end of the drying
programme and remains alight until the door is
opened or the selector dial is turned to “0”.
The filter must be cleaned at the end of each
drying cycle.
8 Door Ajar Light
This light flashes when the door is open, or not
closed properly.
9 Mains-On Light
This lights up by selecting the drying programme
and goes out when the programme selector dial
is turned to “0”.
10 Programme Selector Dial
To set the machine to the selected programme or
time, turn the dial until the letter or the time you
want coincides exactly with the pointer.
Control panel
DRYING
COOL TUMBLING
END OF PROGRAMME
CLEAN FILTER NOW
FLASHING-DOOR AJAR
START
BUZZER
OFF
COTTON LINEN
B C D
A
STORE DRY
IRON DRY
STORE DRYEXTRA DRY
SYNTHETICS
LOW
TEMP
TDS
333E
AUTOREVERSE
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
1 2 3 4 5678 9 10
Page 10
10
Electronic Controlled Programmes
These operate by means of dampness sensors.
All you have to do is to set the selector dial for
the programme required A, B, C or D and the
laundry will be dried to the selected degree of
dryness.
The following are the degrees of final drying
which can be obtained with electronic control:
■
“A” Extra Dry (Cotton & Linen)
Ideal for bathrobes, bath towels etc.
■
“B” Store Dry (Cotton & Linen)
Suitable for items which you want to put away
without ironing, for example towels and non-iron
fabrics.
■
“C” Iron Dry (Cotton & Linen)
Suitable for items which need ironing.
■
“D” Store Dry (Synthetics)
Suitable for delicate articles which do not need
ironing.
Timed Programmes
For a personalized drying or additional drying of
single items.
The selector dial incorporates a drying cycle up
to 90 minutes.
The selected time can be extended when the
original programme is completed, by resetting the
dial for a further period of drying.
See chart on page 11.
Remember that during the last 9 minutes of
programme, the heat is cut off in order to carry
out a fabric cooling phase, which prevents any
creasing or crumpling of the fabrics.
When drying synthetics, select low
temperature by pressing the LOW TEMP.
button.
Page 11
11
ENGLISH
Timed Programmes
Cotton and linen
Type of laundry:
Cotton
Towelling
Shirts
Sheets
Hand towels
Tablecloths
Table napkins
Degree of drying
required
Store dry
(wardrobe dry)
5
2
90
75
60
45
5
2
75
60
45
30
Iron dry
(not completely
dry; suitable for
ironing)
Amount
of laundry
in kg
Drying time in minutes for
laundry spun at
800 rpm 1200 rpm
Synthetics
Type of laundry:
Synthetics or mixed fabrics
which do not require
ironing.
Degree of drying
required
Store dry
2.0 45
30
20
1,5
0.5
Amount of
laundry in kg
Drying time in minutes for
laundry spun at a minimum
speed of 650 rpm
Electronic Controlled Programmes
Type of laundry:
Cotton & linen
Degree of drying
required
Extra dry
Store dry
Iron dry
5 A(*)
B(*)
C(*)
5
5
Store dry
Synthetics
D(*)2
Amount of
laundry in kg
Selector dial setting
1000 rpm
75
60
60
45
(*) According to CEI 1121 standards.
PROGRAMME CHART
Page 12
12
Before using your tumble dryer for the first time,
we recommend to place a few damp cloths inside
the appliance and dry for approximately 20
minutes.
There may be dust inside a brand new tumble
dryer.

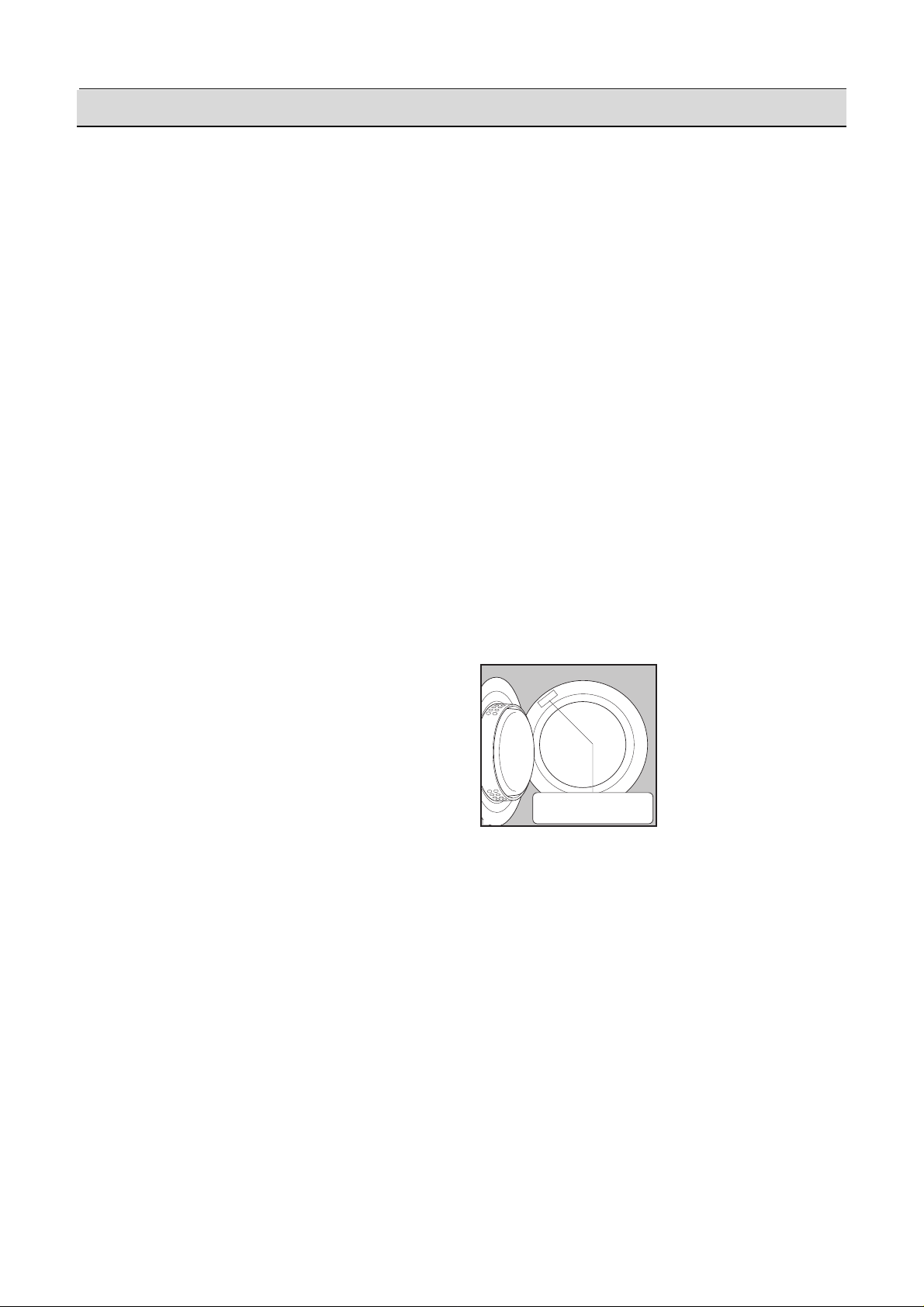

1. Load the laundry
Open the door by pulling the door handle
forwards.
Load the items one at a time, shaking them out
loosely and close the door.
Please check the laundry does not get caught
between the door and filter.
2. Select the drying time or the
drying programme
Turn the selector dial to the desired programme
or time, the mains-on light illuminates.
3. Select the required options
Depress Buzzer Off and/or Low Temp. Button, if
you have to dry synthetics with a time controlled
programme.
4. Start the machine
Depress START button, the machine starts
operating.
To change a programme already in progress,
turn the selector dial to “0”, select the new
programme and then depress START button.
P0305
M0027
60
BUZZER
OFF
LOW
TEMP
P0918S
START
OPERATING SEQUENCE
Page 13
13
ENGLISH
5. When drying is completed
The machine stops automatically.
Release the button(s).
Turn the selector dial to “0”, the mains-on light
goes out.
Anticrease phase
If you do not remove the laundry at the end of
the programme, the machine will automatically
carry out an “anticrease” phase for approx 30
mins. During this period the drum will rotate at
regular intervals to avoid creasing and the
buzzer will sound for 1 second every 10
seconds, unless you have depressed the
BUZZER OFF button.
Clean the filter after every drying
programme.
A clean filter ensures correct functioning of
the appliance.
Page 14
14
Useful hints
■ Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet 700 - 1000 g
Tablecloth 400 - 500 g
Kitchen towel 70 - 120 g
Table napkin 50 - 100 g
Towelling hand towel 150 - 250 g
Bathrobe 1000 - 1500 g
Man’s shirt 200 - 300 g
Pillowcase 100 - 200 g
Man’s pyjamas 400 - 500 g
Ladies’ nightdress 200 - 250 g
■ Never tumble dry the following:
Particularly delicate items such as net
curtains, woollen, silk, fabrics with metal trim,
nylon tights, bulky materials such as anoraks,
blankets, eiderdowns, sleeping bags, feather
quilts and any items containing rubber foam or
materials similar to rubber foam.
■ Always follow the instructions on garment
labels.
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
■ Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled
inside them. Close press studs, zips and
hooks and tie belts and apron strings.
■ Sort laundry according to type and degree of
drying required.
■ Do not over-dry laundry, this avoids creasing
and saves energy.
■ Avoid drying dark clothes with light coloured
fluffy items such as towels as they could
attract the fluff.
■ The laundry must be thoroughly spun before
tumble drying.
■ Easy-care items, too, e.g. shirts, should be
briefly pre-spun before drying (depending on
crease resistance approx. 30 seconds or
using the special brief spin programme of your
washing machine).
■ Knitted textiles (knitted underwear) may shrink
a little during drying. Please do not overdry
items of this type. It is advisable to allow for
shrinkage when choosing the size of new
purchases.
■ You can also put starched items into your
dryer. However, to achieve the desired
starched effect, choose the programme “iron
dry”. To remove any starch residues, wipe out
the internal drum after drying with a moist
cloth and then rub it dry.
■ To avoid a static charge when drying is
completed, use either a fabric softener when
you are washing the laundry or a fabric
conditioner specifically for tumble dryers.
■ Remove the laundry when the dryer has
finished drying.
■ If individual items are still damp after drying,
set a brief post-drying time, but at least 20
minutes. This will be necessary particularly
for multilayered items (e.g. collars, pockets,
etc.).
i
Page 15
15
ENGLISH
MAINTENANCE
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry
thoroughly.
From time to time, apply a little wax furniture
cream with a soft cloth.
Important: do not use methylated spirit, diluents
or similar products.
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff.
Accurate cleaning ensures correct drying.
Cleaning the filter
Your dryer will only function well if the filter is
clean.
The filter collects all the «fluff» which
accumulates during drying and it must therefore
be cleaned at the end of each programme with a
damp cloth.
The filter cannot be removed.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All
fabric loses fluff when drying but it goes unnoticed in the air. In a tumble dryer it simply
collects in the filter.
P0328
P0767
Page 16
16
SERVICING
Before contacting your local Zanussi
Service Centre, please make the following
checks:
The dryer does not start up
■
The door is open.
■
The plug is not fitted into the wall socket.
■
There is no electricity supply from the wall
socket.
■
The programme selector dial is not set
correctly.
■
The START button has not been depressed.
The dryer does not dry properly
■
The filter is clogged.
■
Insufficient drying time.
■
The selected cycle is not suitable for the
laundry.
■
Excessive laundry load.
■
The dryer is not correctly installed.
If, after the above checks, there is still a fault, call
your local Zanussi Service Centre.
Please make sure you give the model and serial
number of the appliance.
This information can be found on the rating plate
(see picture) or on the guarantee card.
P0307
Mod. ...
Prod. No. ........
Ser. No. ............
Page 17
Made in Italy Z
Loading...
