Zanussi NUC3DD, 400041 Specifications

ZANUSSI

P R O F E S S I O N A L

UNDERCOUNTER DISHWASHERS

STANDARD VERSION

400140

YELLOW CUTLERY CONTAINER 1 1 1 1 1 1

BASKET FOR 18 DINNER PLATES 240MM-YELLOW 1 1 1 1 1 1

INCLUDED ACCESSORIES

Convertible to 230 V / 3 /

50 Hz; 230

V / 1+N / 50

Hz

230 V / 3 /
50 Hz; 230

V / 1+N / 50

Hz

230 V / 3 /
50 Hz; 230

V / 1+N / 50

Hz

Supply voltage 230 V, 1N,50230 V, 1N,50230 V, 1N,60400 V, 3N,50400 V, 3N,50400 V, 3N,

50

Net weight - kg. 60 60 60 57 57 60

Noise level - dBA <70 <70 <70 <70 <70 <70

total power 3.65 3.65 3.65 5.35 5.35 5.35

drain pump 0.034 0.034 0.034 0.034

Power - kW

Boiler elements - kW 2.8 2.8 2.8 4.5 4.5 4.5

Boiler capacity - lt. 5.8 5.8 5.8 5.8 5.8 5.8

water consumption - lt./cycle 3.3 3.3 3.3 3.3 3.3 3.3

temperature during rinse - °C 80-90 80-90 80-90 80-90 80-90 80-90

duration - sec. 16 16 16 16 16 16

Hot rinse cycle

electrical elements - kW 2 2 2 2 2 2

power pump - kW 0.736 0.736 0.736 0.736 0.736 0.736

tank capacity - lt. 33 33 33 33 33 33

temperature -°C 55-65 55-65 55-65 55-65 55-65 55-65

Washing cycle

height 330 330 330 330 330 330

depth 500 500 500 500 500 500

width 500 500 500 500 500 500

Cell dimensions - mm

height 820 820 820 820 820 820

depth 610 610 610 610 610 610

width 600 600 600 600 600 600

External dimensions - mm

Basket capacity/h 30 30 30 30 30 30

Dishes capacity/h 540 540 540 540 540 540

Duration cycles - sec. 120/180 120/180 120/180 120/180 120/180 120/180

N° of cycles 2 2 2 2 2 2

Rinse aid dispenser l l l l l l

Detergent dispenser l

Drain pump l l l l

Thermometer l l l l l l

pressure min- bar 2 2 2 2 2 2

hardness - °f 7-14 7-14 7-14 7-14 7-14 7-14

temperature - °C 50 50 50 50 50 50

Water supply

NUC1

400140

NUC1DP

400141

NUC1DP60

400149

NUC3

400144

NUC3DP

400146

NUC3DD

400041

CHARACTERISTICS MODELS

TECHNICAL DATA

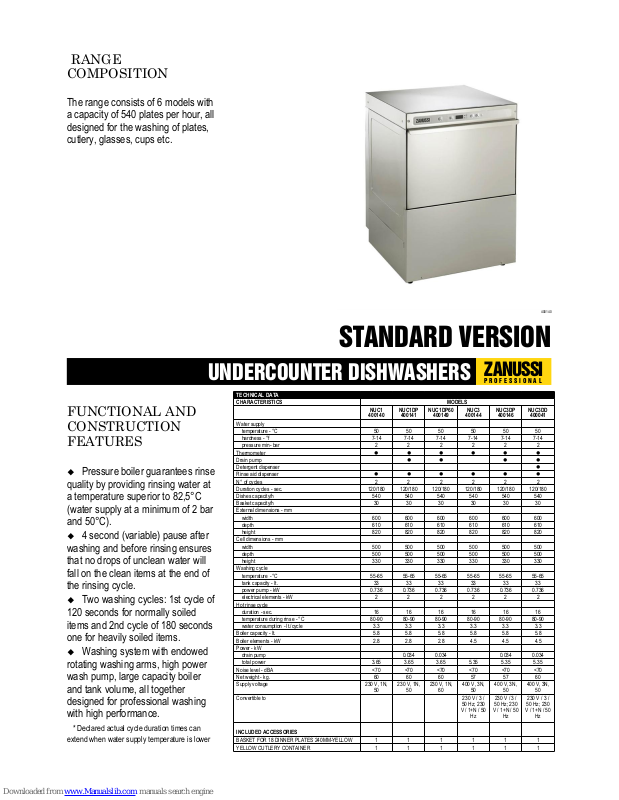

RANGE

COMPOSITION

The range consists of 6 models with
a capacity of 540 plates per hour, all
designed for the washing of plates,
cutlery, glasses, cups etc.

FUNCTIONAL AND
CONSTRUCTION
FEATURES

� Pressure boiler guarantees rinse

quality by providing rinsing water at
a temperature superior to 82,5°C
(water supply at a minimum of 2 bar
and 50°C).

� 4 second (variable) pause after

washing and before rinsing ensures
that no drops of unclean water will
fall on the clean items at the end of
the rinsing cycle.

� Two washing cycles: 1st cycle of

120 seconds for normally soiled
items and 2nd cycle of 180 seconds
one for heavily soiled items.

� Washing system with endowed

rotating washing arms, high power
wash pump, large capacity boiler
and tank volume, all together
designed for professional washing
with high performance.

* Declared actual cycle duration times can

extend when water supply temperature is lower

UNDERCOUNTER DISHWASHERS

STANDARD VERSION

EABA2 2010-06-03 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

YELLOW CUTLERY CONTAINER 864242 864242 864242 864242 864242 864242

STAND FOR UNDERCOUNTER DISHWASHER 860418 860418 860418 860418 860418 860418

STAINLESS STEEL INLET HOSE KIT 864016 864016 864016 864016 864016 864016

S/S WASH TANK FILTER KIT-UNDERC.ENTRY DW 864222 864222 864222 864222 864222 864222

RINSE BOOSTER PUMP-SING.TANK PRESSURE DW 864051 864051 864051 864051 864051

RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005 864005 864005 864005 864005 864005

KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050 864050 864050 864050 864050 864050

KIT HACCP EKIS 922166 922166 922166 922166 922166 922166

KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574 865574 865574 865574 865574

INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001 864001 864001 864001 864001 864001

HACCP PRINTER KIT FOR UC, HT AND POTW 864002 864002 864002 864002 864002 864002

FILTER FOR TOTAL DEMINERALIZATION 864015 864015 864015 864015 864015 864015

FILTER FOR PARTIAL DEMINERALIZATION 864017 864017 864017 864017 864017 864017

EXT.REVERSE OSMOSIS FILT-PRESSURE BOILER 864027 864027 864027 864027 864027 864027

DRAIN PUMP KIT FOR 50HZ DISHWASHERS 864012 864012

DETERGENT PUMP KIT 864218 864218 864218 864218 864218

DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004 864004 864004 864004 864004 864004

COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016 867016 867016

BASKET FOR 5 TRAYS 530X325MM-RED 867006 867006 867006 867006 867006 867006

BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 867007 867007 867007 867007 867007 867007

BASKET FOR 18 DINNER PLATES 240MM-YELLOW 867002 867002 867002 867002 867002 867002

8 L EXTERNAL AUTOMATIC WATER SOFTENER 860413 860413 860413 860413 860413 860413

304 AISI BACK PANEL FOR UC ENTRY LEVEL 864246 864246 864246 864246 864246 864246

12 L EXTERNAL MANUAL WATER SOFTENER 860412 860412 860412 860412 860412 860412

NUC1

400140

NUC1DP

400141

NUC1DP60

400149

NUC3

400144

NUC3DP

400146

NUC3DD

400041

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

� All the machines have smooth

surfaces and a wash tank with
rounded corners to facilitate cleaning.

� Front and side panels, door and

wash tank made in heavy duty
anti-corrosive AISI 304 stainless
steel to guarantee appliance
durability.

� 304 stainless steel boiler with high

welding protection increases the
resistance against corrosion with
chlorinated water.

� The fully automatic self-cleaning

cycle avoids the risk of bacteria
proliferation.

� Wash/rinse arms easy to remove.

� PVC water supply hose with metal

connections resistant to high water
pressure.

� Completely closed on the reverse

by a cover plate while IPX4 water
protection prevents external
infiltrations.

� Simple control panel with digital

display allows on-site
personalization of washing and
rinsing cycle times and temperatures
as well as precise rinse aid and
detergent quantities depending on
the customers needs.

� The incorporated Soft Start

feature offers additional protection to
delicate items such as glassware
and crockery and increases wash
pump reliability.

� Three phase or single phase

electrical connection.

� All machines are pre-arranged to

accept external dispensers.

� Pre-arrangement for HACCP

system implementation and Energy
Management device.

� 98% recyclable by weight.
� CFC free packaging.
� In compliance with H

requirements.

� Low noise level.
� Developed and produced in ISO

9001 and ISO 14001 certified
factory.
