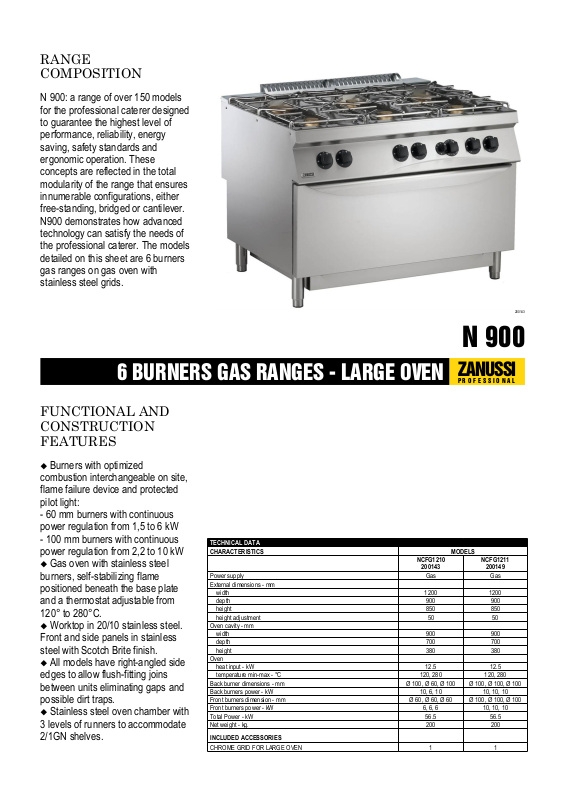

RANGE
COMPOSITION

N 900: a range of over 150 models
for the professional caterer designed
to guarantee the highest level of
performance, reliability, energy
saving, safety standards and
ergonomic operation. These
concepts are reflected in the total
modularity of the range that ensures
innumerable configurations, either
free-standing, bridged or cantilever.
N900 demonstrates how advanced
technology can satisfy the needs of
the professional caterer. The models
detailed on this sheet are 6 burners
gas ranges on gas oven with
stainless steel grids.

200143

6 BURNERS GAS RANGES - LARGE OVEN

FUNCTIONAL AND
CONSTRUCTION
FEATURES

� Burners with optimized

combustion interchangeable on site,
flame failure device and protected
pilot light:

- 60 mm burners with continuous
power regulation from 1,5 to 6 kW

- 100 mm burners with continuous
power regulation from 2,2 to 10 kW

� Gas oven with stainless steel

burners, self-stabilizing flame
positioned beneath the base plate
and a thermostat adjustable from
120° to 280°C.

� Worktop in 20/10 stainless steel.

Front and side panels in stainless
steel with Scotch Brite finish.

� All models have right-angled side

edges to allow flush-fitting joins
between units eliminating gaps and
possible dirt traps.

� Stainless steel oven chamber with

3 levels of runners to accommodate
2/1GN shelves.

N 900

ZANUSSI

P R O F E S S I O N A L

TECHNICAL DATA

CHARACTERISTICS MODELS

Power supply Gas Gas
External dimensions - mm
width 1200 1200
depth 900 900
height 850 850
height adjustment 50 50
Oven cavity - mm
width 900 900
depth 700 700
height 380 380
Oven
heat input - kW 12.5 12.5
temperature min-max - °C 120, 280 120, 280
Back burner dimensions - mm Ø 100, Ø 60, Ø 100 Ø 100, Ø 100, Ø 100
Back burners power - kW 10, 6, 10 10, 10, 10
Front burners dimension - mm Ø 60, Ø 60, Ø 60 Ø 100, Ø 100, Ø 100
Front burners power - kW 6, 6, 6 10, 10, 10
Total Power - kW 56.5 56.5
Net weight - kg. 200 200

INCLUDED ACCESSORIES

CHROME GRID FOR LARGE OVEN 1 1

NCFG1210

200143

NCFG1211

200149

6 BURNERS GAS RANGES - LARGE OVEN

N 900

� Ribbed, cast-iron oven base plate.
� Inside door panel in stainless steel.
� Stainless steel feet adjustables up

to a height of 50 mm.

� Handles on the base cupboard

and oven in stainless steel.

� Grids in stainless steel are

washable in a dishwasher.

� Main connections can be via the

base of the unit.

� All models provided with service

duct to facilitate installation.

� All gas appliances are supplied for

use with natural gas, with LPG
conversion jets supplied as standard.

� The special design of the control

knob system guarantees against
water infiltration.

� All models can be installed on

cantilever system.

� IPX5 water protection.

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

2 PANELS FOR SERVICE DUCT (BACK TO BACK) 206202 206202
2 PANELS FOR SERVICE DUCT (SINGLE INST.) 206181 206181
2 SIDE COVERING PANELS FOR TOP-D=900MM 206278 206278
2 SIDE COVERING PANELS H=700 D=900 206134 206134
2 SIDE KICKING STRIPS 206180 206180
2 SIDE KICKING STRIPS F.CONCRETE INSTAL. 206157 206157
4 FEET FOR CONCRETE INSTALLATION 206210 206210
4 WHEELS (2 WITH BRAKE) 206188 206188
CHIMNEY UPSTAND 1200MM 206306 206306
CHROME GRID FOR LARGE OVEN 206204 206204
DRAUGHT DIVERTER WITH 120 MM DIAMETER 206126 206126
FLANGED FEET KIT 206136 206136
FLUE CONDENSER FOR 1/2 MOD. DIAM.120MM 206155 206155
FRONT.KICK.STRIP F.CONCRETE INST.1000 MM 206150 206150
FRONT.KICK.STRIP F.CONCRETE INST.1200 MM 206151 206151
FRONT.KICK.STRIP F.CONCRETE INST.1600 MM 206152 206152
FRONT.KICK.STRIP F.CONCRETE INST.200 MM 206146 206146
FRONT.KICK.STRIP F.CONCRETE INST.400 MM 206147 206147
FRONT.KICK.STRIP F.CONCRETE INST.800 MM 206148 206148
FRONTAL HANDRAIL 1200 MM 206191 206191
FRONTAL HANDRAIL 1600 MM 206192 206192
FRONTAL HANDRAIL 400 MM 206166 206166
FRONTAL HANDRAIL 800 MM 206167 206167
FRONTAL KICKING STRIP 1000 MM 206177 206177
FRONTAL KICKING STRIP 1200 MM 206178 206178
FRONTAL KICKING STRIP 1600 MM 206179 206179
FRONTAL KICKING STRIP 200 MM 206174 206174
FRONTAL KICKING STRIP 400 MM 206175 206175
FRONTAL KICKING STRIP 800 MM 206176 206176
JUNCTION SEALING KIT 206086 206086
LARGE HANDRAIL(PORTIONING SHELF)400 MM 206185 206185
LARGE HANDRAIL(PORTIONING SHELF)800 MM 206186 206186
PAIR OF CAST IRON GRIDS 206208 206208
PAIR OF COVERING STRIPS FOR END ELEMENTS 206234 206234
PRESSURE REGULATOR FOR GAS UNITS 927225 927225
REAR FLUE UPSTAND FOR SMALL CHIMNEY 206159 206159
S/S GRID FOR DOUBLE BURNER-900 LINE 206298 206298
SIDE HANDRAIL-RIGHT/LEFT HAND 206165 206165
SINGLE BURNER RIBBED PLATE 206172 206172
SINGLE BURNER SMOOTH PLATE 206171 206171
SINGLE BURNER(6KW)RADIANT PLATE-900 LINE 206170 206170
SUPPORT FOR "BRIDGE" SYSTEM 1000 MM 206138 206138
SUPPORT FOR "BRIDGE" SYSTEM 1200 MM 206139 206139
SUPPORT FOR "BRIDGE" SYSTEM 1400 MM 206140 206140
SUPPORT FOR "BRIDGE" SYSTEM 1600 MM 206141 206141
SUPPORT FOR "BRIDGE" SYSTEM 400 MM 206154 206154
SUPPORT FOR "BRIDGE" SYSTEM 800 MM 206137 206137
WATER COLUMN EXTENSION FOR 900 LINE 206290 206290
WATER COLUMN WITH SWIVEL ARM 206288 206288

BACA6 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.

NCFG1210

200143

NCFG1211

200149
