Page 1

WASHING MACHINE

FL 708

INICIO/ PAUSA

750

PRELAVADO

FUNCION EXPRESS

LAVADO

600

FIN

WET ANTIARRUGAS

500

ZANUSSIQUALITY

12 H

4 H

ACLARADOS

DESCARGA

CENTRIFUGADO PARADA

AQUACYCLE 750

COLORES RESISTENTES

BLANCOS AHORRO ENERGÍA

CUIDA LOS COLORES ALGODÓN EN FRÍO

90° 60°E 40° 30°

SINTETICO EN FRÍO

PLANCHADO FACIL CARGA MIXTA

LAVADO A MANO DELICADOS EN FRÍO

40° 30°

30°

LANA

30°-

LAVADORA

MÁQUINA DE LAVAR ROUPA

FL 708 - FL 708ALU

FL 908 - FL 1108

132993390

INSTRUCTION BOOKLET

MANUAL DE USO

MANUAL DE UTILIZAÇÃO

E P

Page 2

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

Page 3

Contents

Warnings 4-5

Disposal 5

Tips for environmental protection 5

Technical specifications 6

Installation 7

Unpacking 7

Positioning and levelling 7

Water inlet 7-8

Water drainage 8

Electrical connection 8

Your new washing machine 9

Description of the appliance 9

Detergent dispenser drawer 9

Maintenance 19

Bodywork 19

Door seal 19

Detergent dispenser drawer 19

Drain pump 19-20

Water inlet filter 20

Emergency emptying out 20

Frost precautions 20

Something not working? 21-22

ENGLISH

Use 10-11

Control panel 10

Controls 10-11

Washing hints 12

Sorting the laundry 12

Temperatures 12

Before loading the laundry 12

Maximum loads 12

Laundry weights 12

Removing stains 12-13

Detergents and additives 13

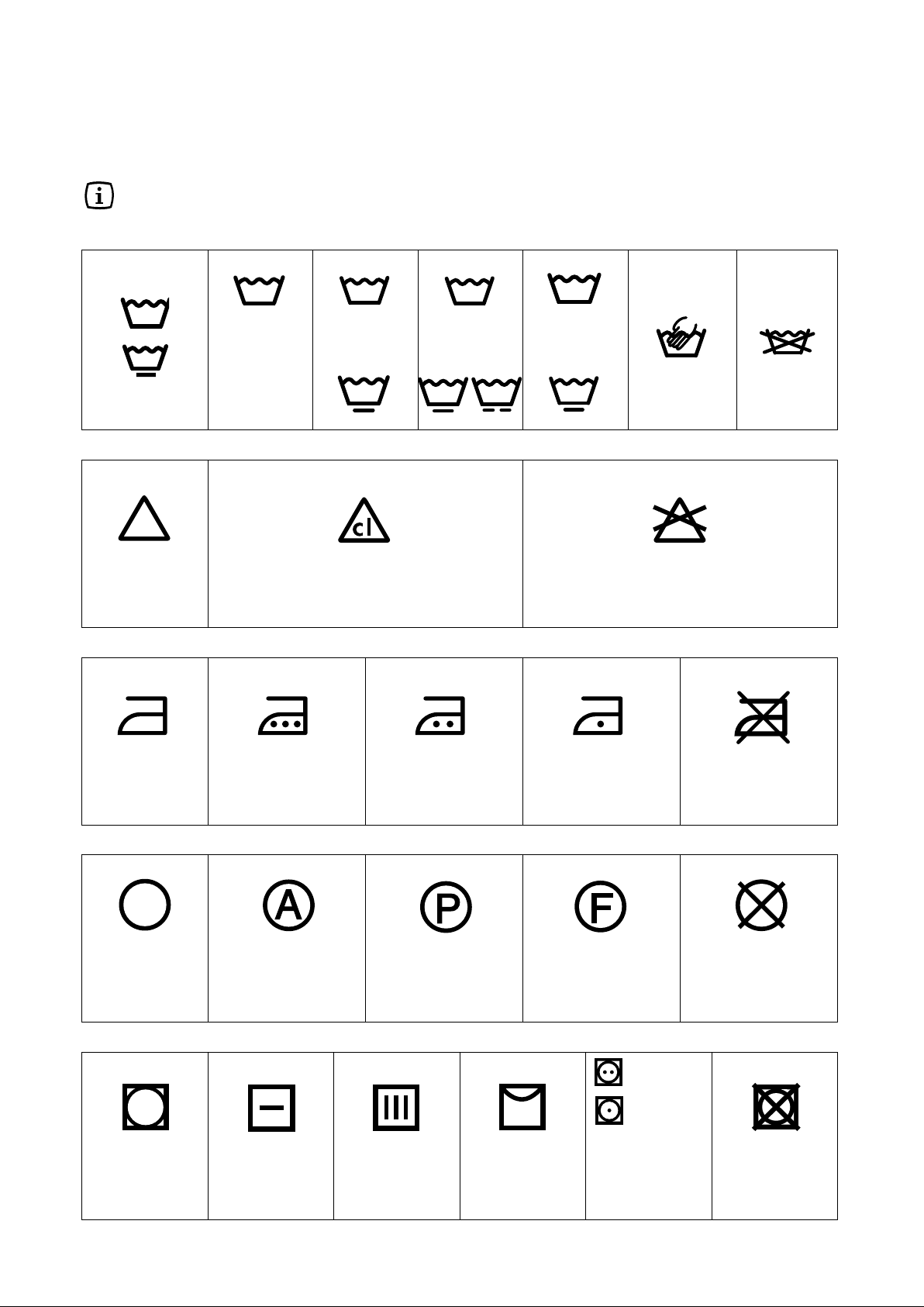

International wash code symbols 14

Operating sequence 15-16

Programme tables 17-18

Page 4

Warnings

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.

• Any electrical work required to install this appliance must be carried out by a qualified electrician.

• Any plumbing work required to install this appliance must be carried out by a qualified plumber.

• After having installed the machine, check that it is not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

• Do not overload the appliance. Follow the instructions in the instruction book.

• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.

• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.

• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• During high temperature wash programmes the door glass may get hot. Do not touch it!

Page 5

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

Disposal

Packaging materials

The materials marked with the symbol are recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

ENGLISH

Tips for environmental protection

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded. Do not overload!

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Page 6

Technical specifications

DIMENSIONS Height 85 cm

Width 60 cm Depth 57 cm

WASH LOAD Cotton 5 kg

Synthetics 2.5 kg Delicates 2.5 kg Woollens and Hand wash 2 kg

SPIN SPEED 750 rpm max. (FL 708- FL 708ALU)

900 rpm max. (FL 908) 1100 rpm max. (FL 1108)

POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 50 kPa

Maximum 800 kPa

This appliance complies with the following EEC Directives: 73/23/EEC of 19/02/73 relating to low voltage 89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Page 7

P1127

P1126

P1124

P0001

P1129

P0021

P1088

P1051

P0002

P1128

Installation

Unpacking

All transit bolts and packing must be

removed before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

1. Using a spanner, unscrew and remove the two rear bottom screws. Slide out the two plastic pins. Lay the machine on its back, taking care not to squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

6. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet.

ENGLISH

Positioning and levelling

Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

2. Remove the polystyrene block from the bottom of the machine and release the two plastic bags.

3. Very carefully slide out the left polythene bag, removing it towards the right and then downwards.

4. Very carefully slide out the right polythene bag, removing it towards the left and then upwards.

Water inlet

Connect the water inlet hose supplied with the machine to a tap with a 3/4" thread.

Do not use already employed hoses for water connection.

The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

5. Set the machine upright and remove the remaining rear screw. Slide out the relevant pin.

Page 8

The inlet hose must not be lengthened. If it is too

P1118

P0022

short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

Important!

Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes.

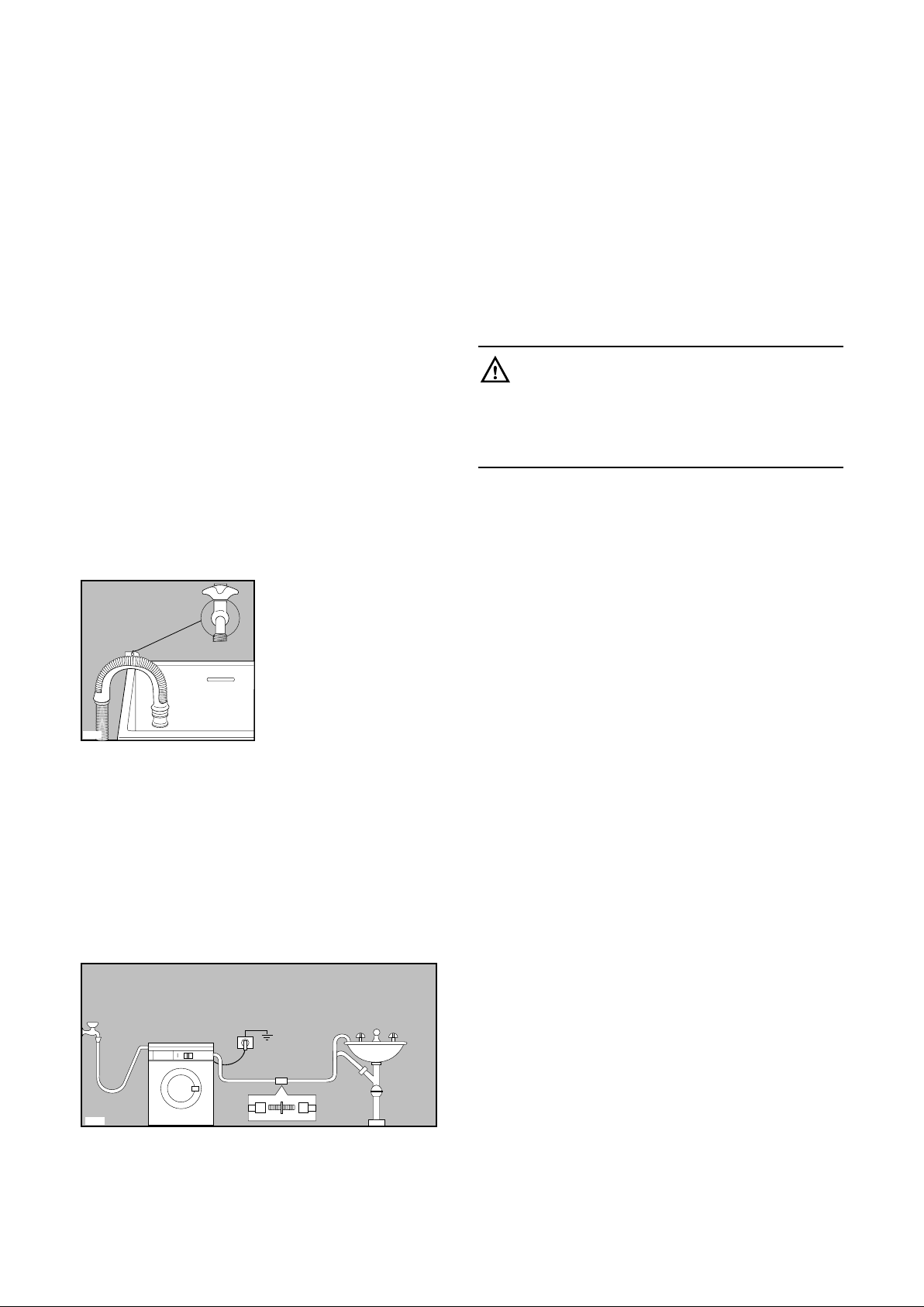

Water drainage

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked when the machine is emptying. This could be done by tying it to the tap with a piece of string or attaching it to the wall.

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution. Should the appliance power supply cable need to be replaced, this should be carried out by our Service Centre.

Please ensure that when the appliance is installed the power supply cable is easily accessible.

In a sink drain pipe branch. This branch must be

above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be kinked.

For a correct functioning of the machine the drain hose must remain hooked on the proper support piece situated on the top part of the back side of the appliance.

Page 9

Your new washing machine

FL 708

INICIO/ PAUSA

750

PRELAVADO

FUNCION EXPRESS

LAVADO

600

FIN

WET ANTIARRUGAS

500

ZANUSSIQUALITY

12 H

4 H

ACLARADOS

DESCARGA

CENTRIFUGADO PARADA

AQUACYCLE 750

COLORES RESISTENTES

BLANCOS AHORRO ENERGÍA

CUIDA LOS COLORES

ALGODÓN EN FRÍO

90° 60°E

40° 30°

SINTETICO EN FRÍO

PLANCHADO FACIL CARGA MIXTA

LAVADO A MANO

DELICADOS EN FRÍO

40° 30°

30°

LANA

30°-

C0063

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

• The programme selector dial combines the function of programme and temperature selection, making it

easier to set the programme.

• The programme progress display shows the spin speed selected and the washing phase which is running.

• The special wool programme with its new delicate wash system treats your woollens with extreme care.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes

from being deformed and will reduce thermal shock to fabrics, helping to prevent creasing.

• The unbalance detection device prevents vibration during spinning.

• The ECO valve allows total use of detergent and reduces water consumption so saving energy.

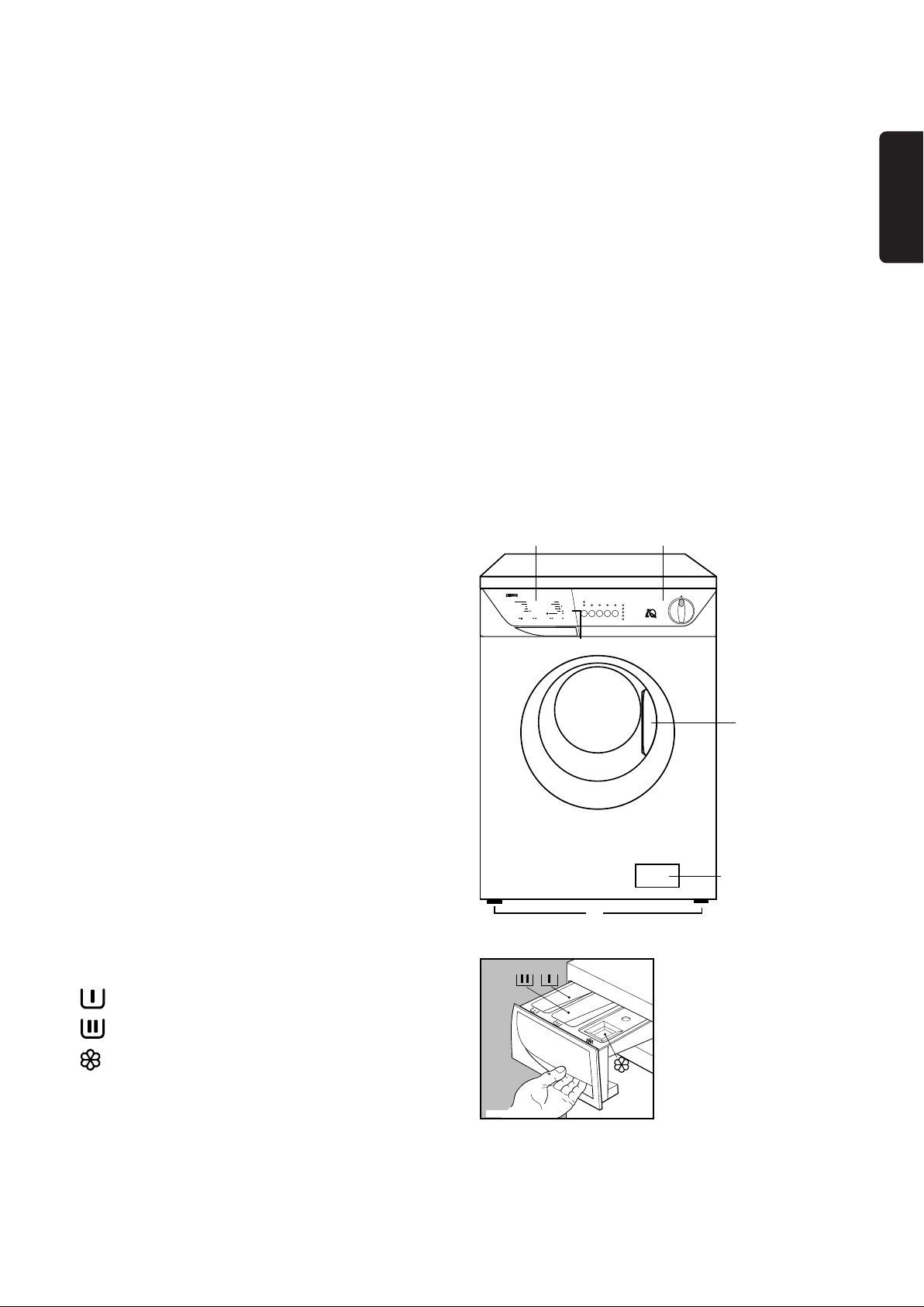

Description of the appliance

1 Detergent dispenser drawer

2 Programme chart

3 Control panel

4 Door handle

5 Drain pump

6 Adjustable feet

ENGLISH

Prewash

Main wash

Detergent dispenser drawer

Fabric softener, starch

Page 10

Use

124567

ACLARADOS

DESCARGA

CENTRIFUGADO PARADA

LAVADO

FL 708

PRELAVADO

600

FIN

FUNCION EXPRESS

INICIO/ PAUSA

WET ANTIARRUGAS

500

750

12 H

4 H

ZANUSSIQUALITY

AQUACYCLE 750

COLORES RESISTENTES

BLANCOS

AHORRO ENERGÍA

CUIDA LOS COLORES ALGODÓN EN FRÍO

90°

60°E

40°

30°

SINTETICO EN FRÍO

PLANCHADO FACIL

CARGA MIXTA

LAVADO A MANO

DELICADOS EN FRÍO

40°

30°

LANA

30°-

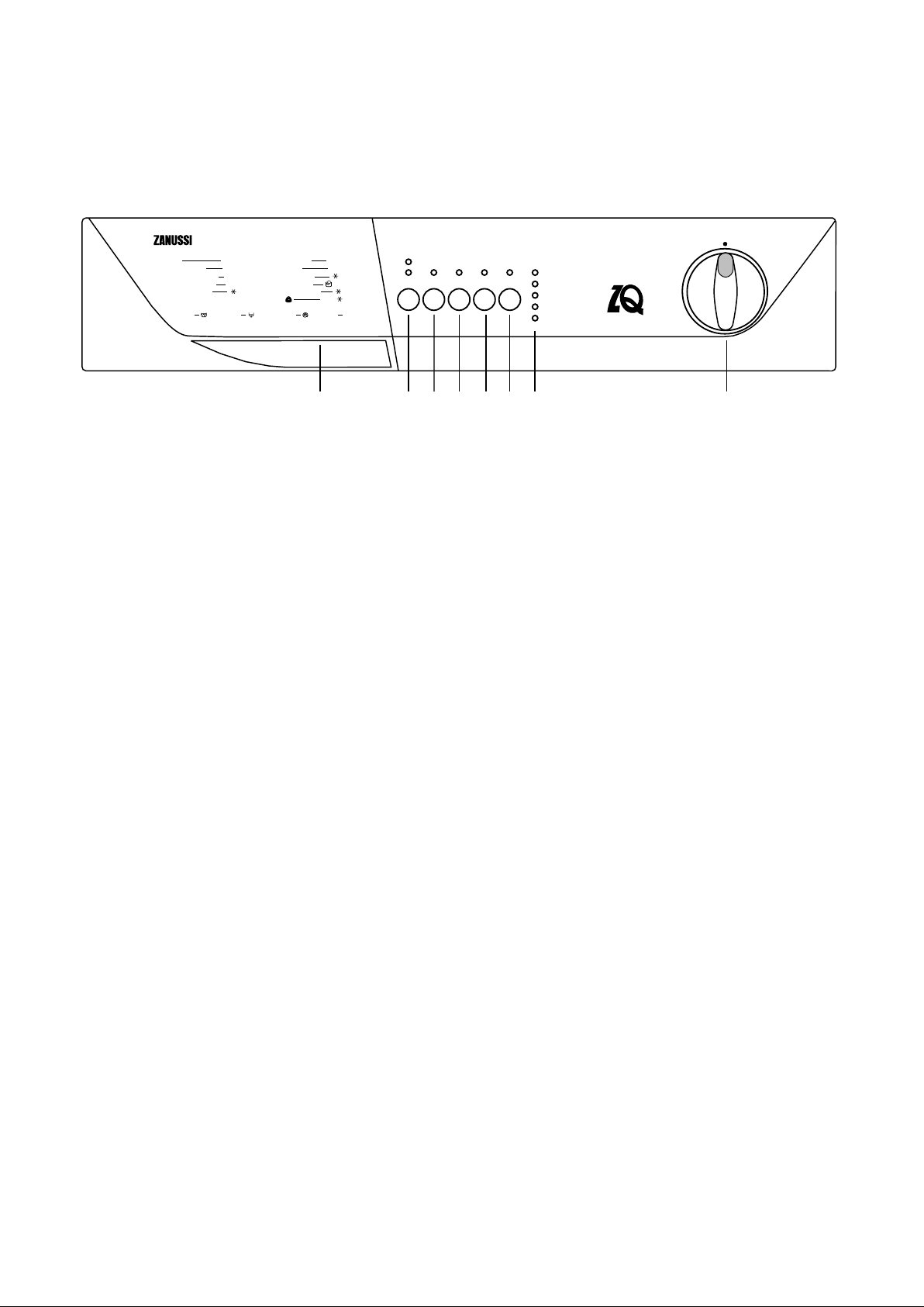

Control panel

1 Detergent dispenser Drawer

Programme Option buttons

Depending on the programme, different functions can be combined. These must be selected after

choosing the desired programme and before depressing the START/PAUSE button.

When these buttons are pressed, the corresponding pilot lights come on. When they are pressed again, the pilot lights go out. If an incorrect option is selected, the pilot lights flash for about 2 seconds.

2 “12H / 4H” button (DELAY)

This button makes it possible to delay the starting of the washing programme by 12 or 4 hours. The delay you have selected is indicated by the coming on of the corresponding light. The machine begins the countdown after depressing START/PAUSE button.

You must select this option after you have set the programme and before you press the START PAUSE button. You can cancel the delay time at any moment,

before you press the START/PAUSE button.

If you have already pressed the START/PAUSE button, and you wish to cancel the delay time, proceed as follows:

Important!

●

The selected delay can be changed only after selecting the washing programme again.

●

The door will be locked throughout the delay time. If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again.

The delay start can not be selected with SPIN and DRAIN programmes.

3 “PRELAVADO” button (PREWASH)

Select this option if you wish your laundry to be prewashed before the main wash (not available for wool and hand wash). The prewash ends with a short spin in programmes for cotton and synthetic fabrics, whereas in the programme for delicate fabrics the water is only drained.

4 “FUNCION EXPRESS” button (QUICK)

This button allows you to select the QUICK WASH function, for laundry that is only slightly soiled (not

for wool, hand wash and economy programme 60E).

The washing time will be reduced according to the type of fabric and the selected temperature. Max. load for cotton 3 kg.

• set the washing machine to PAUSE by pressing the

START/PAUSE button;

• press the DELAY button once, the light relevant to

the selected delay goes off;

• press the START/PAUSE button again to start the

programme.

5 “INICIO / PAUSA” button (START/PAUSE)

After having selected the programme and the required options press this button to start the machine. The corresponding pilot light stops flashing and remains lit. To interrupt a programme which is running, depress the Start/Pause button: the corresponding pilot light starts to flash.

Page 11

To restart the programme from the point at which it

LAVADO

600

FIN

WET ANTIARRUGAS

500

was interrupted, press the START/PAUSE button again.

6 “SPIN REDUCTION” button

By depressing this button you can reduce the final spin speed proposed by the machine or select the “WET ANTI-ARRUGAS” (Rinse Hold) option. The relevant light illuminates.

The maximum speeds are:

Models FL 708 - FL 708ALU

● for cotton, synthetics, hand wash and wool: 750

r.p.m.

● for delicate fabrics: 600 r.p.m.

Model FL 908

● for cotton, synthetics, hand wash and wool: 900

r.p.m.

● for delicate fabrics: 500 r.p.m.

Model FL 1108

● for cotton: 1100 r.p.m.

● for synthetics, hand wash, wool and delicate

fabrics: 700 r.p.m.

When selecting WET ANTI-ARRUGAS (Rinse Hold) option, the water of the last rinse is not emptied out, to prevent the fabrics from creasing. At the end of the programme the pilot light “FIN” (END) illuminates and the “WET ANTI-ARRUGAS” light stays on. To drain water, proceed as follows:

● turn the programme selector dial to position “O” to

switch the machine off;

● select programme (drain) or (short spin);

● press START/PAUSE button.

The light “LAVADO” comes on during the drain or the spin programme. At the end of the programme the light “FIN” illuminates again.

WET ANTI-ARRUGAS: If you have chosen this option, the light WET ANTI-ARRUGAS will stay on during washing together with LAVADO light and at the end of the programme it will remain lit.

LAVADO: when this light comes on this means that the machine is performing the washing programme. If you have selected the PREWASH function, this light will be on during the prewash phase too.

FIN: when the programme has finished, the “FIN” (END) pilot light comes on.

The “FIN” (END) light flashes in the event of operating problems :

●

4 flashes: door open

●

2 flashes: problem with water draining

●

1 flash: problem with water supply

For more information see paragraph “Something not working”?

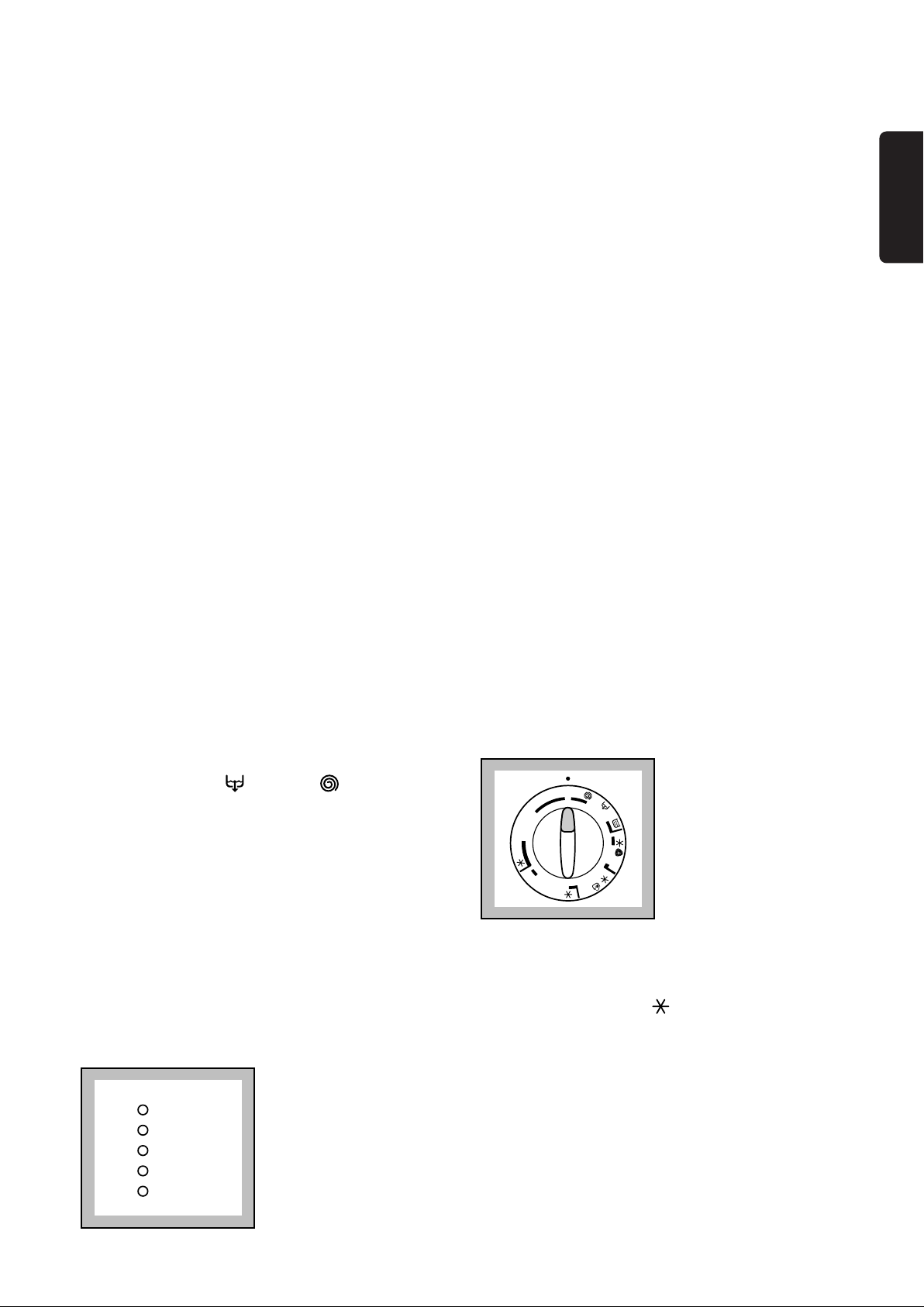

7 Programme selector dial

The selector is divided into 5 sections:

• Cotton

• Synthetic

• Hand wash / Delicate

• Wool

• Special programmes

O Reset programme/OFF

ENGLISH

7 Programme display

When you select the programme, the light corresponding to the selected speed or the WET ANTI-ARRUGAS option lights up.

SPIN SPEED LIGHTS: are on during the washing programme and remain alight at the end of the cycle.

FL 708

The selector dial can be turned either clockwise or anticlockwise.

Position 60E corresponds to the ENERGY SAVING programme and position to “cold wash”.

At the end of the programme the selector dial must be turned to position “O” to switch the machine off.

Attention!

If during a washing programme the selector dial is turned to another programme, the pilot lights of the programme progress display start to flash. The machine will not perform the new selected programme.

Page 12

Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

Temperatures

90°

for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments

(e.g. shirts, night dresses, pyjamas....) in

linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

(cold)for delicate items (e.g. net curtains), mixed

30°-40° laundry including synthetic fibres and

woollens bearing the label «pure new wool, machine washable, non-shrink». The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M9604.

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than

one third full.

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies’ briefs 100 g

man’s work shirt 600 g

man’s shirt 200 g

man’s pyjamas 500 g

blouse 100 g

men’s underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Page 13

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers’ instructions on quantities to use.

Use less detergent if:

– you are washing a small load,

– the laundry is lightly soiled,

– large amounts of foam form during washing.

ENGLISH

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric,

– powder detergents for delicate fabrics (60°C max)

and woollens,

– liquid detergents, preferably for low temperature

wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener must be poured into the compartment marked before starting the wash programme.

Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX»

mark in the detergent dispenser drawer.

Degrees of water hardness

Level Characteristic

soft

medium

hard

very hard

German

more than

°dH

0- 7

8-14

15-21

Degrees

French

°T.H.

0-15

16-25

26-37

more than

Page 14

International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

Delicate wash

Max. wash

temperature

95°C

Max. wash

temperature

60°C

Max. wash

temperature

40°C

Max. wash

temperature

30°C

Hand wash Do not

wash

at all

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron

max 200°C

Warm iron

max 150°C

Lukewarm iron

max 110°C

Do not iron

Dry cleaning Dry cleaning

in all solvents

Dry cleaning in

perchlorethylene,

petrol, pure alcohol,

R 111 & R 113

Dry cleaning

in petrol,

pure alcohol

and R 113

Do not

dry clean

Drying Flat On the line On clothes

hanger

Tumble dry

high temperature

low temperature

Do not

tumble dry

Page 15

PRELAVADO

FUNCION

EXPRESS

LAVADO

600

FIN

WET ANTIARRUGAS

500

750

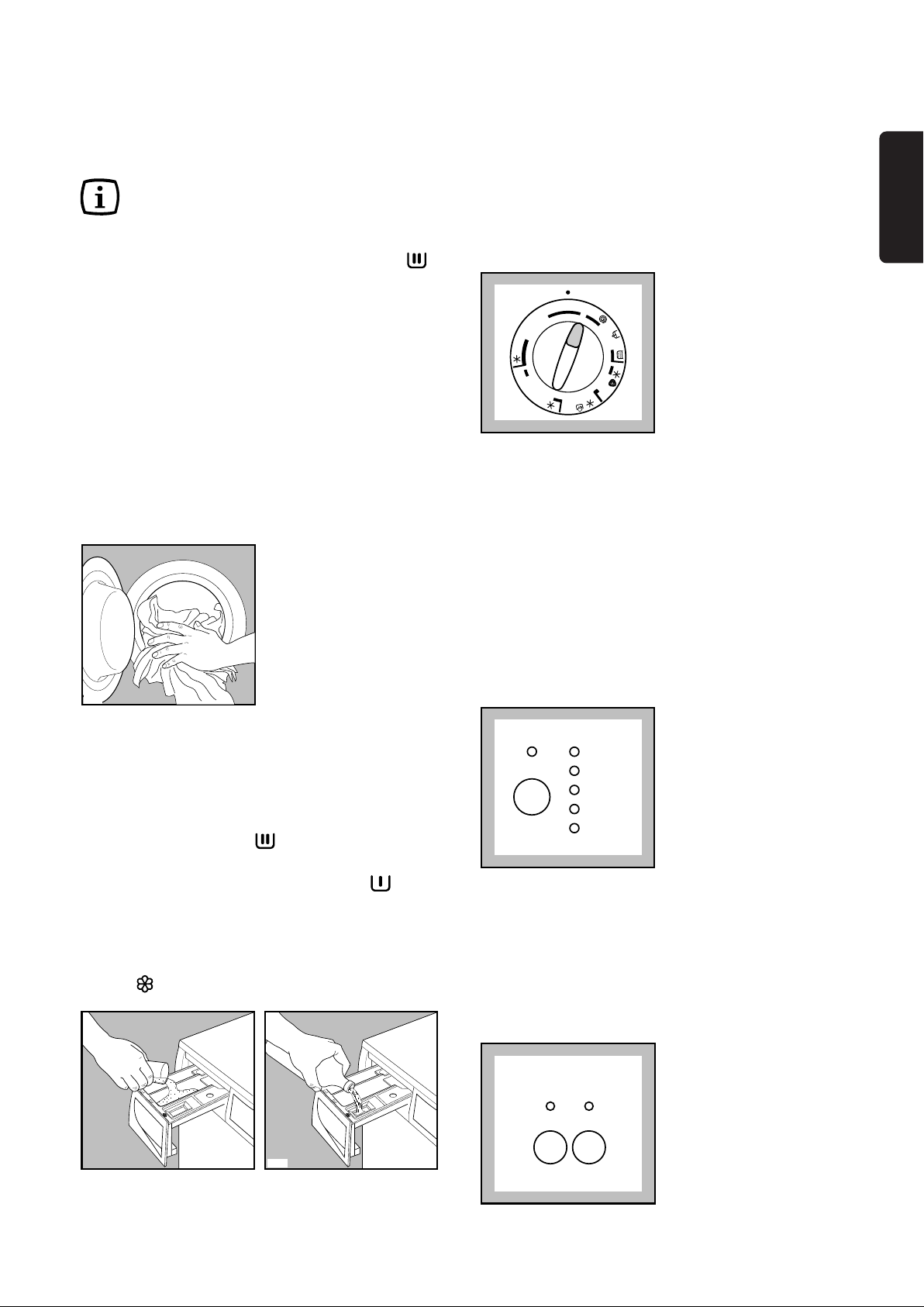

Operating sequence

C0065

C0064

P0004

Before the first wash we recommend that you pour 2 litres of water into the main wash compartment of the detergent drawer in order to activate the ECO valve. Then run the cotton cycle 60°E, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

1. Place the laundry in the drum

4. Select the desired programme

Turn the programme selector dial to the desired position.

ENGLISH

Open the door.

Place the laundry in the drum, one item at a time, shaking them out as much as possible.

Close the door.

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment .

If you wish to carry out the prewash, pour detergent into the appropriate compartment marked .

3. Measure out the additive

The light corresponding to the max spin speed for the selected programme illuminates and the light of the START/PAUSE button starts to flash.

5. Reduce eventually the spin speed or select WET ANTI-ARRUGAS (Rinse Hold) option

Press the button repeatedly to reduce the spin speed or select the RINSE HOLD option. The relevant light illuminates.

FL 708

When selecting RINSE HOLD option the water of the last rinse is not emptied out, to prevent the fabrics from creasing.

If required, pour fabric softener into the compartment marked , without exceeding the «MAX» mark.

6. Select the required option(s)

The light corresponding to the depressed button illuminates.

Page 16

7. Select the DELAY START

INICIO/

PAUSA

12 H

4 H

Before you start the programme, if you wish the starting to be delayed, press the DELAY START button repeatedly, to select the desired delay. The relevant light illuminates.

8. Start the programme

To start the selected programme, press the START/PAUSE button; the corresponding light stops flashing.

The LAVADO (WASHING) light illuminates.

The machine starts operating.

If you have chosen a delayed start, the machine will begin the countdown.

9. Altering a programme

You can alter the programme before it starts. When the programme has started, you can only reset it by turning the programme selector dial to O and then you can select the new programme. The washing water remains in the tub. Start the new programme by depressing the START/PAUSE button.

11. Cancelling a programme

Turn the selector dial to O to cancel a programme which is running. Now you can select a new programme.

12. Opening the door after the

programme has started

First set the machine to PAUSE by pressing the START/PAUSE button. If the door does not open, this means that the machine is already heating, that the water level is above the bottom edge of the door or that the drum is turning. If you cannot open the door but you need to open it you have to switch the machine off by turning the selector dial to “O”. After about 3 minutes the door can be opened (pay attention to the water level and temperature!).

13. At the end of the programme

The machine stops automatically.

If the WET ANTI-ARRUGAS (RINSE HOLD) option has been selected, the phase lights “WET ANTIARRUGAS” and “FIN” (END) are on to indicate that the water must be emptied out before opening the door. To do this first turn the programme selector dial to “O” and then to drain programme or spin programme

. The spin programme is performed at the maximum speed. In order to avoid any creasing or damage in synthetic, delicate and wool items, the spin speed must be reduced by means of the relevant button.

At the end of the programme turn the programme selector dial to “O” to switch the machine off. Remove the laundry from the drum and carefully check that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells.

10. Interrupting a programme

Depress the START/PAUSE button to interrupt a programme which is running, the corresponding light starts to flash. Depress the button again to restart the programme.

Page 17

Programme table

WASHING PROGRAMMES

Fabrics

White cotton

White cotton economy

Coloured cotton

Synthetics

Temperature/

Programme

90°

COTTON

(ALGODON)

60E

COTTON

(ALGODON)

40°

30°-

COLD

COTTON

(ALGODON)

40°

SYNTHETICS

(SINTETICOS)

Sheets, household linen, towels, tablecloths

Hand towels, sheets, underwear, tablecloths

Fast coloured cottons e.g. hand towels,

sheets

Non-fast coloured items, for example underwear, shirts, blouses

Shirts, blouses, easy to iron

Type of laundry

Additional

functions

PREWASH

QUICK

SPIN REDUCTION

RINSE HOLD

PREWASH

SPIN REDUCTION

RINSE HOLD

PREWASH

QUICK

SPIN REDUCTION

RINSE HOLD

PREWASH

QUICK

SPIN REDUCTION

RINSE HOLD

Wash load

5 kg

2.5 kg

Consumptions*

Energy

kWh

2.0

0.95

0.55 55 115

0.45 54

WaterltDuration

ENGLISH

min.

145

130

30°-

Synthetics

COLD

SYNTHETICS

(SINTETICOS)

30°

Hand wash

DELICATES

(DELICADOS)

COLD

Delicates

DELICATES

(DELICADOS)

30° -

Wool

COLD

WOOL

(LANA)

ECONOMY PROGRAMME

For slightly/normally soiled cottons you can use the relevant Economy programme: you will obtain good washing results by saving energy.

In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the 60E wash programme for cotton.

* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to the highest temperature for each wash programme.

Shirts, blouses, underwear, mixed fabrics

Special programme for articles of cloths with hand wash label

Acrylic, viscose, polyester items, curtains

Special programme for garments bearing the “ Pure new wool, non-shrink, machine washable” label

PREWASH

QUICK

SPIN REDUCTION

RINSE HOLD

SPIN REDUCTION

RINSE HOLD

PREWASH

QUICK

SPIN REDUCTION

RINSE HOLD

SPIN REDUCTION

RINSE HOLD

2.5 kg

2 kg

2.5 kg

2 kg

0.25

0.25 55 50

0.28 55 55

0.25 55 50

Page 18

Programme table

SPECIAL PROGRAMMES

Programme

selector dial

position

Rinses

Drain

Spin

Programme

For rinsing hand washed items

For emptying out the water of the last rinse of programmes with WET ANTIARRUGAS option

Separate spin for all fabrics

Programme

description

3 rinses with liquid additive, if required Short spin at max. speed

Water draining

Short spin at max. speed

Additional

functions

SPIN REDUCTION

RINSE HOLD

SPIN REDUCTION

Consumptions*

Wash load

5 kg 0.05 55 30

5 kg

Energy

kWh

WaterltDuration

--4

min.

1.5

For cancelling the

Reset/Off

programme which is running or to switch the machine off.

---

Page 19

C0067

C0066

P1050

P1115

P1114

P0038

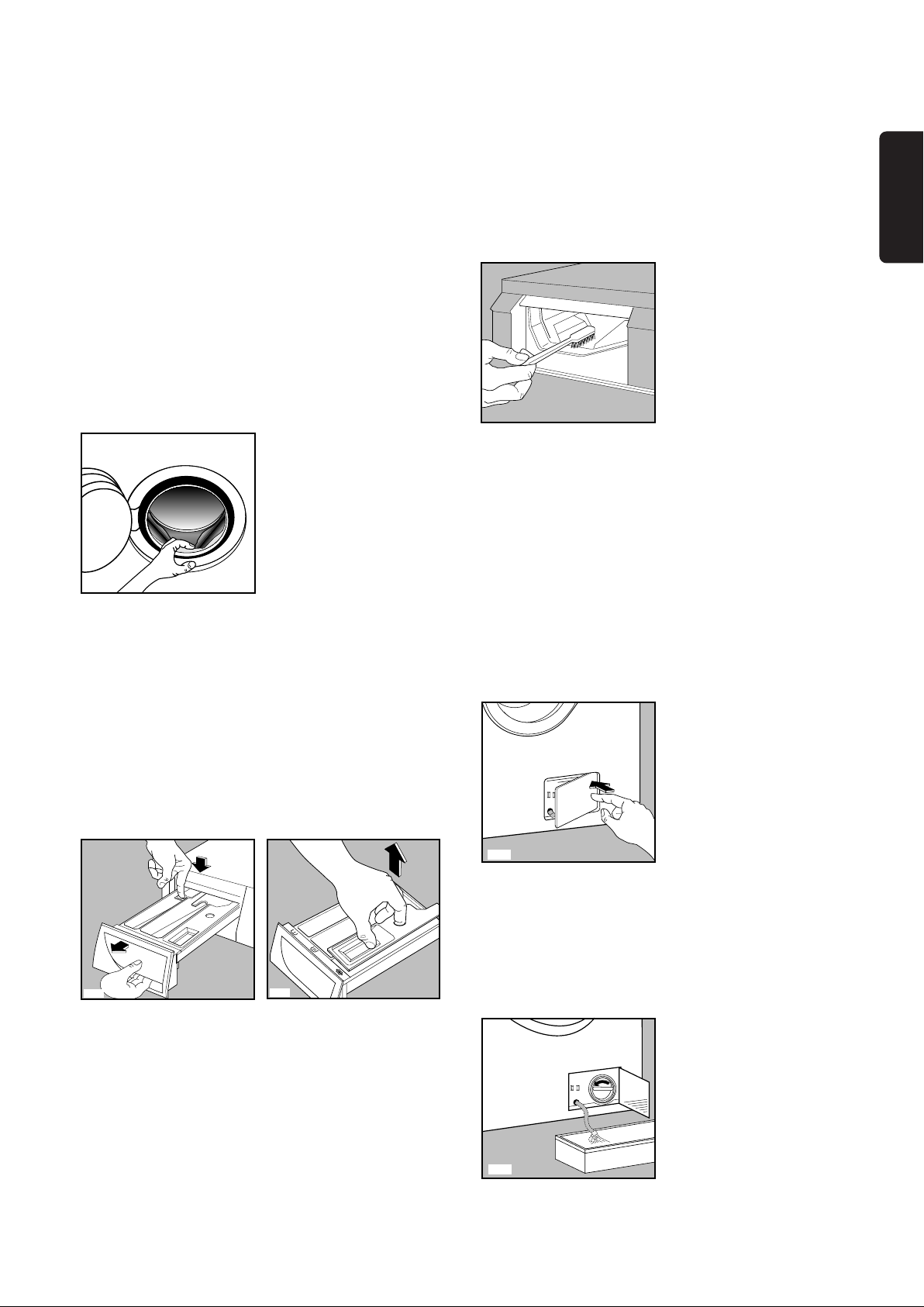

Maintenance

Bodywork

Clean the outside of the machine with soap and water only. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

Door seal

Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold.

Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartments can be removed.

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

Drain pump

The pump should be inspected regularly and particularly if

• the machine does not empty and/or spin

• the machine makes an unusual noise during

draining due to objects such as safety pins, coins etc. blocking the pump.

Proceed as follows:

• Disconnect the appliance.

• If necessary wait until the water has cooled down.

• Open the pump door.

ENGLISH

• Place a container close to the pump to collect any

spillage.

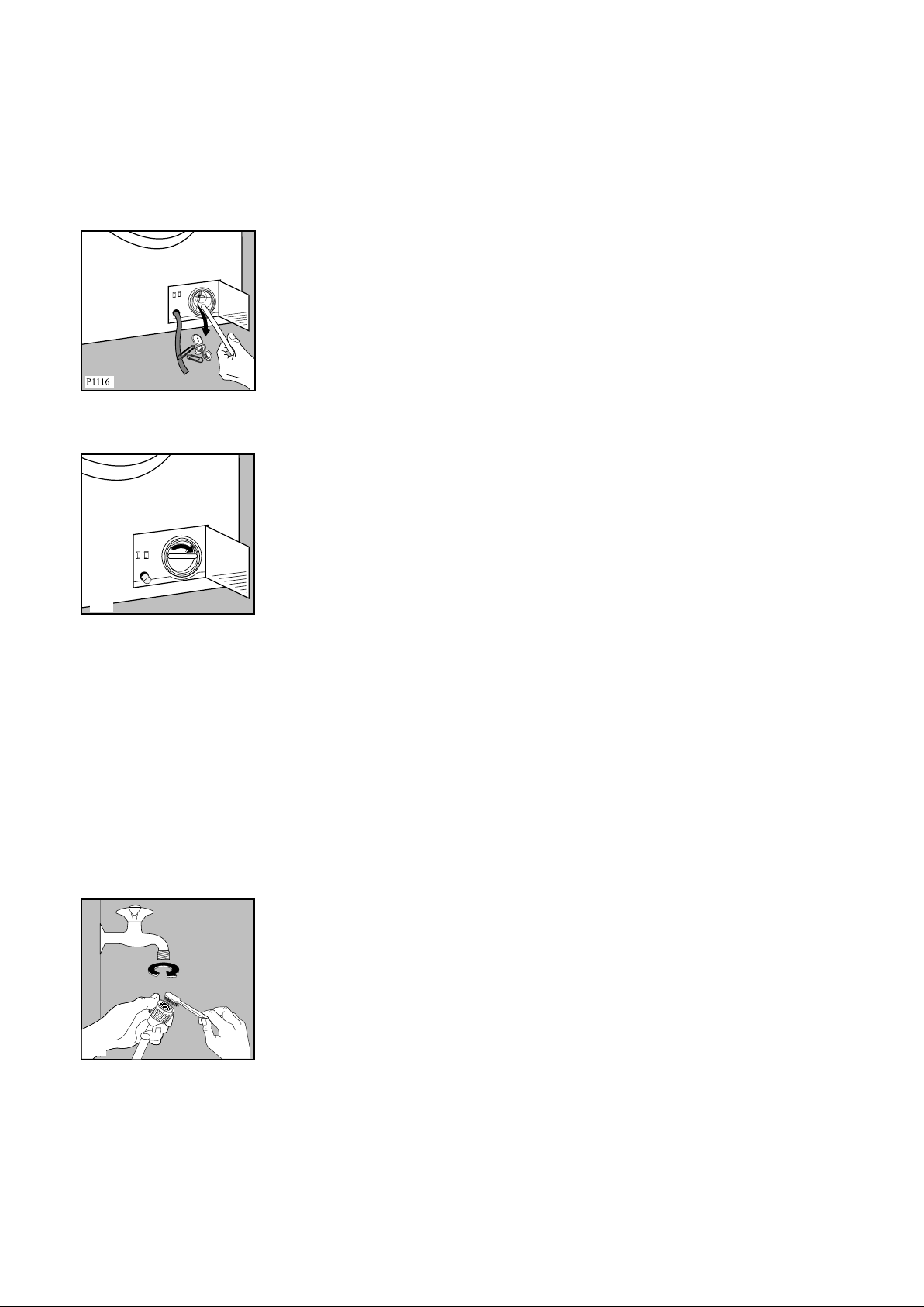

• Release the emergency emptying hose, place it in

the container and remove its cap.

• When no more water comes out, unscrew the

pump and remove it. Always keep a rag nearby to dry up spillage of water when removing the pump.

Page 20

• Remove any objects from the pump impeller by

P1090

P1117

rotating it.

• Put the cap back on the emergency emptying hose and place the latter back in its seat.

• Screw the pump fully in.

• Close the pump door.

Water inlet filter

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked.

Turn off the water tap.

Unscrew the hose from the tap.

Clean the filter with a stiff brush.

Screw the hose back onto the tap.

Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

• pull out the plug from the power socket;

• close the water tap;

• if necessary, wait until the water has cooled down;

• open the the pump door;

• place a bowl on the floor and place the end of the emergency emptying hose into the bowl. Remove its cap. The water should drain by gravity into the bowl. Whe the bowl is full, put the cap back on the hose. Empty the bowl. Repeat the procedure until water stops flowing out;

• clean the pump if necessary as previously described;

• replace the emergency emptying hose in its seat after having plugged it;

• screw the pump again and close the door.

Frost precautions

If the machine is installed in a place where the temperature could drop below 0°C, proceed as follows:

• Remove the plug from the socket.

• Close the water tap and unscrew the water inlet hose from the tap.

• Place the end of the emergency emptying hose and that of the inlet hose in a bowl placed on the floor and let water drain out.

• Screw the water inlet hose back on and reposition the emergency emptying hose after having put the cap on again.

By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts.

When you use the machine again, make sure that the ambient temperature is above 0°C.

Important!

Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the drain programme. This will activate the ECO valve avoiding that part of the detergent remains unused at next washing.

Page 21

Something not working?

Problems which you can resolve yourself, before calling the After Sales Service.

During machine operation it is possible that the END (FIN) light starts to flash: 4 flashes= the door has not been closed 2 flashes= the machine does not empty 1 flash= the machine does not fill. Once the problem has been eliminated, press the START/PAUSE button to restart the programme. If after all checks, the problem persists, contact your local Service Centre.

Problem Possible cause

• The door is not firmly closed.

• The machine does not start up:

• The machine is not plugged in or there is no power at the socket.

• The main fuse has blown.

• The programme selector dial is not positioned correctly and the START/PAUSE button has not been depressed.

• The DELAY START option has been selected.

ENGLISH

• The machine does not fill:

• The machine fills then empties immediately:

• The machine does not empty and/or does not spin:

• There is water on the floor:

• Unsatisfactory washing results:

• The water tap is closed.

• The inlet hose is squashed or kinked.

• The filter in the inlet hose is blocked.

• The door is not properly closed.

• The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.

• The drain hose is squashed or kinked.

• The RINSE HOLD option has been selected.

• The drain pump is clogged.

• The laundry is not evenly distributed in the drum.

• Too much detergent or unsuitable detergent (creates too much foam) has been used.

• Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.

• The drain hose is damaged.

• The cap on the emergency emptying hose has not been replaced after cleaning the filter.

• The pump has not been fully screwed in after cleaning.

• Too little or too much detergent has been used.

• An unsuitable detergent has been used.

• Stubborn stains have not been treated prior to washing.

• The correct programme/temperature was not selected.

• Excessive laundry load.

Page 22

Mod. ..........

Prod. No. ...........

Ser. No. .........

M o

d . . . . . . . . . . .

P r o d . N o

. . . . .

. .

e r .

N o . . . . .

. . . . .

P0042 BD

Problem Possible cause

• Water is not visible in the machine:

• Spinning starts late or the machine does not spin:

• The machine vibrates or is noisy:

• The door will not open:

• The machine, which is the result of modern technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent.

• The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme.

• The transit bolts and packing have not been removed.

• The support feet have not been adjusted.

• The laundry is not evenly distributed in the drum.

• Maybe there is very little laundry in the drum.

• The programme is still running.

• The door lock has not been released.

• There is water in the drum.

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Page 23

From the Electrolux Group.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

The world’s No. 1 choice
