Zanussi 240229, FCF-20 1-1, 240208, FCF201GMS, FCF201ENS User Manual

RANGE
COMPOSITION

A range which combines experience and
innovation; is new in performance, excellent
in quality and economical in use. The ideal
solution for establishments requiring ovens
with high output, compact dimensions,
flexibility of use, high levels of automation,
reduced energy and condiments
consumption, up-to-date design and
maximum reliability.
The range consists of four 20 grid 1/1 GN
models, two electric and two gas, ideal for all
types of traditional oven cooking, roast meat,
cakes, pizzas, fish, vegetables, grilled food,
"au gratin" cooking and the reconditioning of
chilled and frozen food.

240208

FORCED AIR CONVECTION OVENS

FUNCTIONAL AND
CONSTRUCTION
FEATURES

� The Flow Channel ventilation system

guarantees uniform cooking of food by
optimizing the flow of air and diffusion of heat
throughout the oven chamber, it also means
that it is possible to cook different foods at
the same time without transfer of smell or
flavour.

� External panelling, door, sides and upper

part in 304 AISI stainless steel; the cooking
chamber, grid supports, diffusers, and the fan
walls are in 430 AISI stainless steel; the
double glazed door is made from tempered
glass and gives an excellent view of the
cooking load and a door opening safety
device. The oven chamber has rounded
corners and no joins for ease of cleaning.

� A series of automatic and manual

controls, are supplied as standard, which
allows a lot of oven operations to be
automated without hindering the creativity of
the chef.

� The optimised relationship between

installed power, output and speed of cooking
means that excellent results can be achieved
in terms of economy of use as well as the
production in a short amount of time of a high
quantity of food and all this with an oven heat
up time of about 4 minutes.

FCF-20 1/1

ZANUSSI

P R O F E S S I O N A L

� The heating system in the gas models

consist of atmospheric burners; safety is
guaranteed by flame failure device; main
burner ignition by pilot light; piezoelectric
ignition of the pilot light. The heating system
in electric models consists of "Incoloy"
armoured elements positioned on the

TECHNICAL DATA

CHARACTERISTICS MODELS

FCF201G

240203

Power supply Gas Gas Electric Electric
Functional level Base; Manual Base; Manual Base; Manual Base; Manual
Type of grids 1/1 Gastronorm 1/1 Gastronorm 1/1 Gastronorm 1/1 Gastronorm
Shelf capacity 20 20 20 20
Convection l l l l

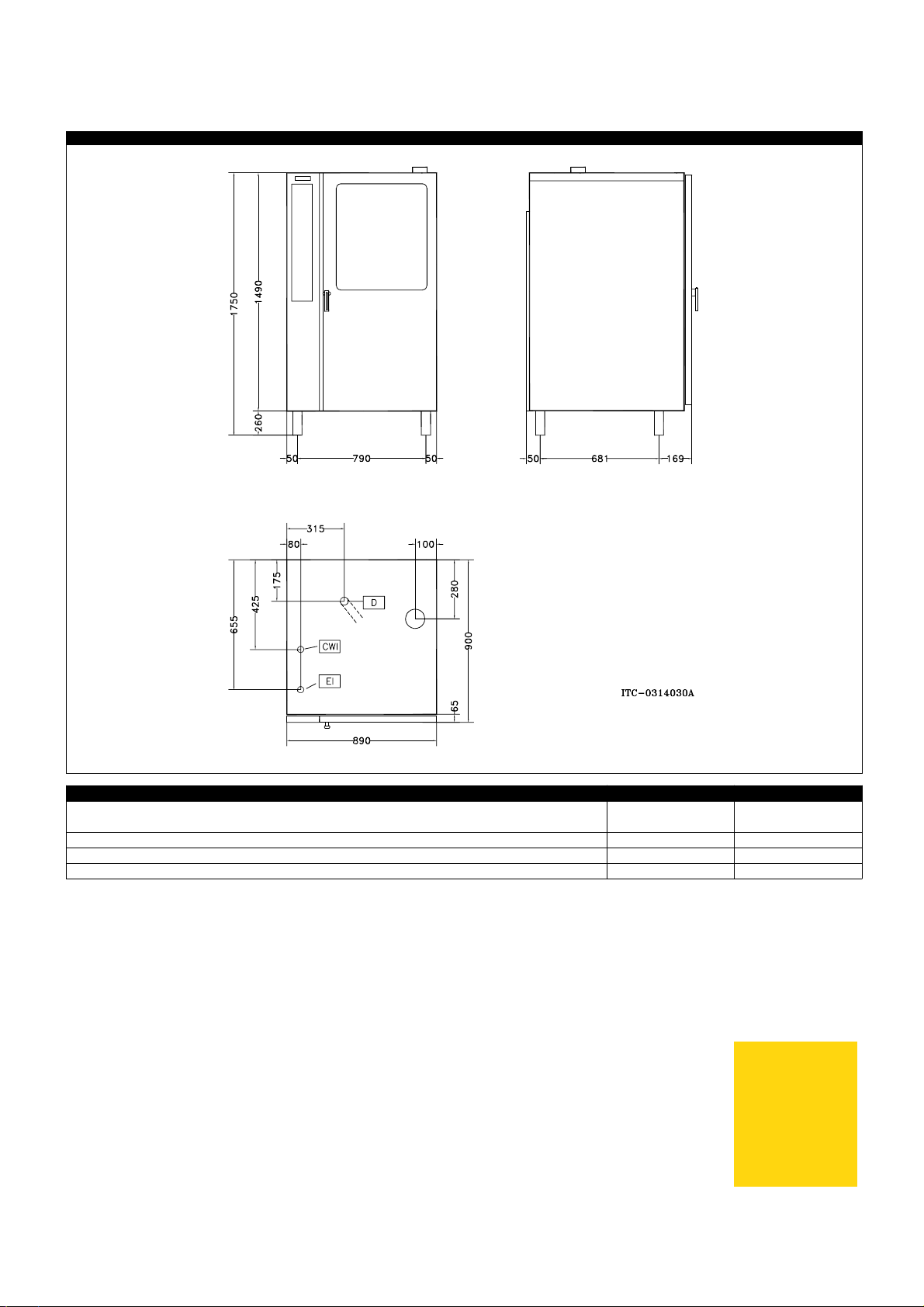

External dimensions - mm
width 890 890 890 890
depth 900 900 900 900
height 1700 1700 1700 1700
height adjustment 80 80 80 80
Internal dimensions - mm
width 590 590 590 590
depth 503 503 503 503
height 1350 1350 1350 1350
Power - kW
gas 35 35
installed-electric 0.5 1 34.5 34.5
Net weight - kg. 246.2 246.2 215.5 215.5
Supply voltage 220/230 V, 1N,50220/230 V, 1N,60400 V, 3N, 50 400 V, 3N, 60

INCLUDED ACCESSORIES

60-MM PITCH ROLL-IN RACK FOR
20X1/1

convector unit

FCF201GMS

240225

1 1 1 1

FCF201E

240208

FCF201ENS

240229

FORCED AIR CONVECTION OVENS

FCF-20 1/1

� Main switch/Cooking mode selector which

can be used to set: ON/OFF, convection
without humidification and convection with
humidification (choice of 5 different humidity
levels). Rapid cooling of the oven by air with
the door open. The oven is designed to be
fitted with a probe which is available as an
accessory

� A series of automatic and manual

controls, are supplied as standard, which
allows a lot of oven operations to be
automated without hindering the creativity of
the chef

� Main switch/Cooking mode selector which

can be used to set: ON/OFF, convection
without humidification and convection with
humidification (choice of 5 different humidity
levels). Rapid cooling of the oven by air with
the door open. The oven is designed to be
fitted with a probe which is available as an
accessory

� Presence of a thermometer for a quick

check of the temperature inside the cooking
chamber

� Gas models are supplied for use with

natural gas, with LPG conversion jets
supplied as standard

� Side lighting system using normal bulbs;

turn handle door opening and closing system

� Electromechanical thermostat with an

operating temperature adjustable from 30°C
to 300°C with a visual display to show the
oven is working and the temperature in the
chamber. Timer to set the cooking time,
adjustable up to 120 minutes or for
continuous operation with an acoustic alarm
to show the cycle has finished. At the end of
the set cooking time the heat and the fan are
automatically switched off

� The humidity level can be set by selecting

one of the 5 levels shown on the control
panel; it functions by injecting water into the
cooking chamber for a few seconds every
minute. Thermometer for controlling the
temperature in the cooking chamber

� The 60-mm pitch roll-in rack is included.

The accessory on request, fat filter for gas
oven mod. FCFGFG10, must be ordered in 2
pieces

� All models comply with the standards

required by the main international approval
bodies and are H marked

* In accordance with H regulations for gas
models belonging to Class B11 (power over 14
kW), it is necessary to install a chimney (if
installed under a hood) or chimney and draft
diverter if the waste gases are vented directly
outside.

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

FCF201G

240203

2 FAT FILTERS FOR 20X1/1 & 2/1 OVEN 922179 922179
60-MM PITCH ROLL-IN RACK FOR 20X1/1 922203 922203 922203 922203
80MM PITCH ROLL-IN RACK 14X1/1GN 922205 922205 922205 922205
AUTOMATIC WATER SOFTENER FOR OVENS 921305 921305 921305 921305
BASE FOR 20X1/1 ROLL-IN RACK 922141 922141 922141 922141
EXTERNAL SIDE SPRAY UNIT 922171 922171 922171 922171
FAT FILTER FOR GAS OVENS 10&20X1/1-2/1 921700 921700
FLUE CONDENSER FOR GAS OVEN 20X1/1 921710 921710
FRYING GRIDDLE GN 1/1 FOR OVENS 922215 922215 922215 922215
PAIR OF 1/1 GN AISI 304 S/S GRIDS 921101 921101 921101 921101
PAIR OF 1/2 GN PAN SUPPORT SHELVES 921106 921106 921106 921106
PROBE FOR OVENS 20X1/1-2/1 921704 921704 921704 921704
RESIN SANITIZER FOR WATER SOFTENER 921306 921306 921306 921306
THERMAL BLANKET F.HOLDING STATION 201/1 922149 922149 922149 922149
THERMAL JACKET FOR SLIDE-IN RACK 20X1/1 922158 922158 922158 922158
TROLLEY FOR 20X1/1 ROLL-IN RACK 922132 922132 922132 922132
WATER FILTER FOR OVENS 0.8 L/MIN. 922186 922186 922186 922186

BCAE1 2009-06-25 The Company reserves the right to alter technical specifications without prior notice.

FCF201GMS

240225

FCF201E

240208

FCF201ENS

240229

ZANUSSI

P R O F E S S I O N A L

www.zanussiprofessional.com
