ZM850-GVM
User Manual
6 pgs1.12 Mb0

ZALMAN ZM850-GVM, ZM1000-GVM User Manual

Download
User's Manual
ZM850/1000-GVM
Two Forward Switching
Power Supply
※ To ensure safe and easy installation, Please read the following precautions.
www.ZALMAN.com
Ver.131231
1. Warnings and Safety Precautions
Warning
Caution
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
Neglecting the following may cause serious injury or death.
▶ Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
▶ Handling the power cord with wet hands may cause electrocution. ▶ Inserting 󰘰ngers or metallic objects into the cooling fan may cause injury or
electrocution.
Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.
▶ Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
▶ Exposure to liquids may cause malfunction.
▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
▶ Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
▶ Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
▶ Please use gloves to prevent injuries during installation.
▶ Product designs and speci󰘰cations may be revised without prior noti󰘰cation to improve quality and performance.
2. Components
AC Power Cord
Four Screw
User's Manual
Five Cable Tie
11
3. Speci󰘰cations
1) ZM850-GVM Electrical & Physical Speci󰘰cations
AC Input Range
AC Input Current
PFC Type Active PFC +12V 0.1A 70.5A 846W
Power Factor Correction Max 99% -12V 0.0A 0.5A 6W
Inrush Current Limit
(@ Cold Start at 25℃)
E󰘲ciency Max 88% @ 230VAC, Typical load Operation 0 ~ +45℃
DC Output Voltage
Regulation
DC Output Ripple
& Noise
Voltage 100~240VAC
Frequency 50Hz ~ 60㎐
100VAC
240VAC +5V 0.2A 22A
100VAC
240VAC Ambient Temperature
Vout Regulation Range
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 160(L) * 150(W) * 86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.8Kg
Vout Standard Range
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Under-Voltage Protection (UVP)
-12VDC 120mV Short-Cicuit Protection (SCP)
+5VSB 50mV Over-Power Protection (OPP)
±10%
±3 I
15A
Max 150A
At
Full
Load
At
Full
Load

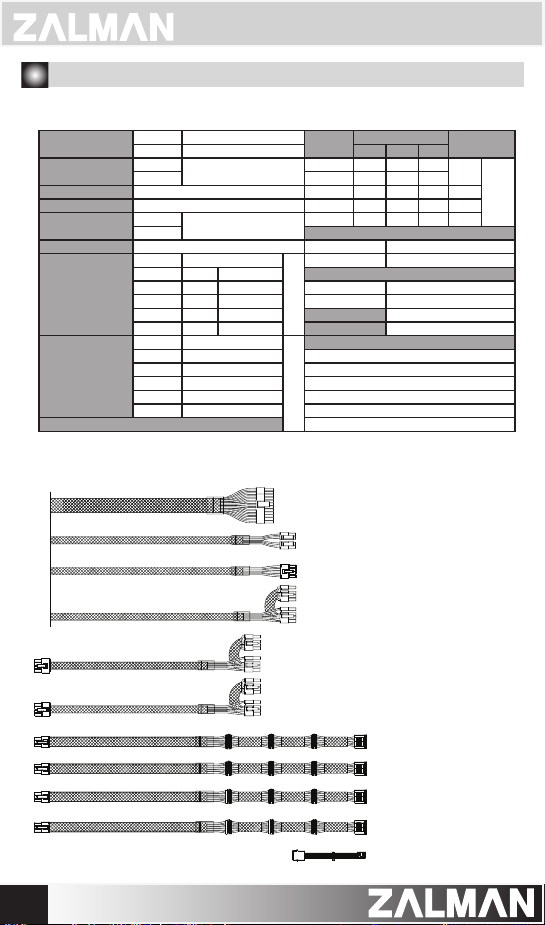

2) ZM850-GVM Cable Speci󰘰cations
PCI Express2 Power Connector
PCI Express1 Power Connector
PCI Express4 Power Connector
PCI Express3 Power Connector
Output Load Rating
Vout
minImaxIpeak
+3.3V 0.1A 22A
+5VSB 0.0A 3A 15W
Storage -20 ~ +70℃
Protection Funtions
Over-Temperature Protection (OTP)
Mainboard Power Connector
CPU Power 1 Connector
CPU Power 2 Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
FDD Power Connector
Combined
140W
Power
850W
22
3. Speci󰘰cations
3) ZM1000-GVM Electrical & Physical Speci󰘰cations
AC Input Range
AC Input Current
PFC Type Active PFC +12V 0.1A 83A 996W
Power Factor Correction Max 99% -12V 0.0A 0.5A 6W
Inrush Current Limit
(@ Cold Start at 25℃)
E󰘲ciency Max 88% @ 230VAC, Typical load Operation 0 ~ +45℃
DC Output Voltage
Regulation
DC Output Ripple
& Noise
Voltage 100~240VAC
Frequency 50Hz ~ 60㎐
100VAC
240VAC +5V 0.2A 23A
100VAC
240VAC Ambient Temperature
Vout Regulation Range
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 160(L) * 150(W) * 86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.9Kg
Vout Standard Range
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Under-Voltage Protection (UVP)
-12VDC 120mV Short-Cicuit Protection (SCP)
+5VSB 50mV Over-Power Protection (OPP)
±10%
±3 I
15A
Max 150A
At
Full
Load
At
Full
Load
Output Load Rating
Vout
minImaxIpeak
+3.3V 0.1A 23A
+5VSB 0.0A 3A 15W
Storage -20 ~ +70℃
Protection Funtions
Over-Temperature Protection (OTP)
4) ZM1000-GVM Cable Speci󰘰cations
Mainboard Power Connector
CPU Power 1 Connector
CPU Power 2 Connector
PCI Express 2 Power Connector
PCI Express 1 Power Connector
PCI Express4 Power Connector
PCI Express3 Power Connector
PCI Express6 Power Connector
PCI Express5 Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
FDD Power Connector
Combined
140W
Power
1000W
333
4. Certi󰘰cations
4444
