INTRODUCTION

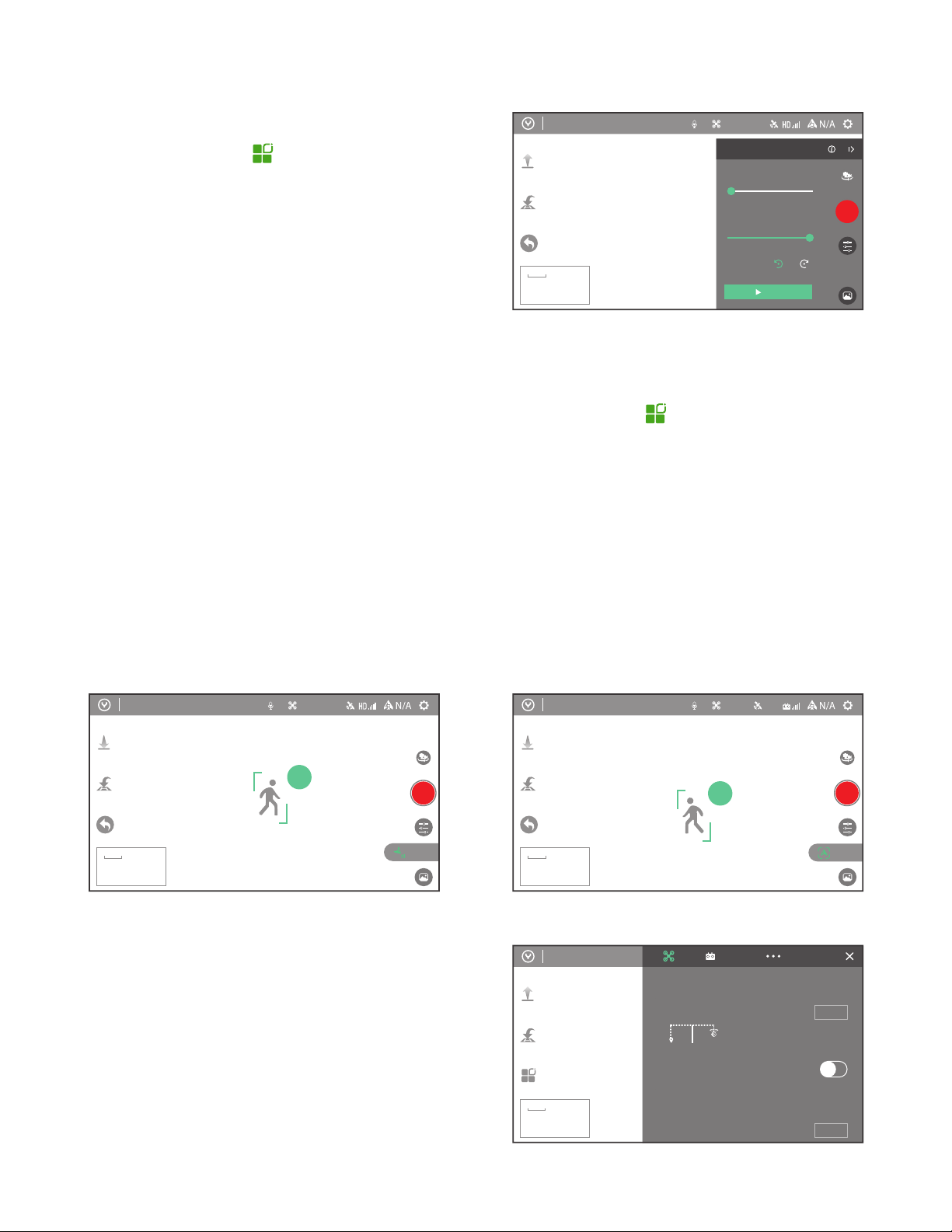

Mantis G – the foldable and convenient travel drone for small and big adventures alike. It listens to you thanks to voice control, and the visual tracking will let it follow you wherever you go. Whether you’re backpacking in Thailand, on a road trip through the South or with your family at the beach, Mantis G’s energy-efficient design keeps in the air for up to 33 minutes.The Mantis takes pictures with a resolution of 13MP and saves them on the included MicroSD card; the same goes for the 4K recorded videos.The integrated camera can be tilted up to 20° upwards and 90° downwards during flight. For cinematic camera flights, we also equipped the Mantis with automatic advanced functions such as Journey or POI.
SPECIFICATIONS |
|
|
|
AIRCRAFT |
|
Product Name |
Mantis G |
Model |
YUNMGA |
MaxTakeoff Weight |
16.9oz (480g) |
Max FlightTime |
33mins (in no wind environment with speed of 15.5mph) |
|
folded 6.6x3.8x2.2in (168x96x58mm) (LxWxH) |
Dimensions |
unfolded 9.8x7.4x2.2in (250x187x58mm) (LxWxH) |
|
|
Diagonal Size (Propellers Excluded) |
10.7in (270mm) |
Propeller Size |
6.1in (155mm) |
|
Angle/Manual Mode: 6.7mph (3m/s) |
|
Sport: 8.9mph (4m/s) |
Max Ascent Speed |
IPS Mode: 2.2mph (1m/s) |
|
|
|
Phone Mode: 4.5 mph (2m/s) |
|
Angle/Manual Mode: 4.5 mph (2m/s) |
Max Descent Speed |
Sport Mode: 6.7mph (3m/s) |
|
IPS/ Phone Mode: 2.2mph (1m/s) |
|
Angle Mode: 13.4mph (6m/s) |
Max Speed |
Manual Mode/Sport Mode: 44.7mph (20m/s) |
|
|
|
IPS Mode: 8.9mph (4m/s) |
|
Phone Mode: 11.2mph(5m/s) |
|
|
04
|
Angle Mode: 30° |
Manual Mode: 20° |
||
MaxTilt Angle |
Sport mode: 30° |
IPS Mode: 10° |
||
|
Phone Mode: 30° |
|
|
|
Max Angular Speed |
Angle/Manual Mode: 120°/S |
IPS Mode: 60°/S |
||
Phone Mode: 120°/S |
|
Sport mode: 200°/S |
||
|
|
|||
Max Service Ceiling Above Sea Level |
16404ft (5000m) |
|
|
|
OperatingTemperature Range |
0°C-40°C |
|
|
|
Satellite Positioning Systems |
GPS |
|
|
|
|
Vertical: |
|
|
|
Hovering Accuracy Range |
±0.3m (Angle/Sport/Phone Mode) |
±0.1m (IPS Mode) |
||
Horizontal: |
|
|
|
|
|
|
|
|
|
|
±0.5m (Angle/Sport/Phone Mode) |
±0.2m (IPS Mode) |
||
Operating Environment |
Regular Flight Condition, NoTransparent Obstacles |
|||
Sensor |
Ultrasonic Sensor, IPS sensor |
|
|
|
CONTROLLER |
|
|
|
|
Product Name |
Mantis Q Remote Controller |
|
|
|
Model |
YUNMQRCP |
|
|
|
VideoTransmission Distance/Range |
up to 0.9 mile (1.5km) |
|
|
|
(Optimum condition) |
|
|
|
|
|
|
|
|
|
Buit-In Li-Po Battery |
3.7V |
|
|
|
Max Charge Current |
1.5A |
|
|
|
MOBILE DEVICE CONTROL |
|
|
|
|
MaxTransmission Distance |
262.5ft (80m) |
|
|
|
APP |
|
|
|
|
Required Operating System |
iOS v9.0 or above (iOS 9.0 does not support voice control) |
|||
Android V5.0 or above |
|
|
|
|
|
|
|
|
|
CAMERA |
|
|
|
|
Equivalent Focal Length |
21.5mm |
|
|
|
FOV |
117° |
|
|
|
|
|
|
|
|
|
05 |
|
|
|
Controllable Range (Pitch) |
between -90°and +20° |
|
Image Sensor |
1/3.06 inch CMOS |
|
Effective Pixels |
13M Pixels |
|
Video Stabilization |
EIS 2-axis stabilized |
|
SD Card Capacity |
CLASS 10 U1/U3 16G |
|
Operation Modes |
Photo, Video |
|
Auto/Manual |
AE; Auto by default |
|
ISO |
100-3200 (100 by default) |
|
Electronic Shutter |
8s-1/8000s (1/60 by default) (for photo mode) |
|
|
|
|
|
1/30s-1/8000s (1/30 by default) (for video mode) |
|
Exposure Values |
0, ±0.5, ±1.0, ±1.5, ±2.0, ±2.5, ±3.0 (0 by default) |
|
Photo Size |
4:3 (4160x3120), |
16 9 (4160x2340) |
Photo Resolution |
Medium, High, Ultrahigh (Ultrahigh by default) |
|
Photo Format |
JPEG, DNG |
|
White Balance |
Auto, Lock, Sunny, Cloudy, Fluorescent, Incandescent |
|
Style |
Nature, Saturation, Soft |
|
Photography Mode |
Normal, Gesture, Face Detection |
|
Metering Mode |
Spot Metering, Center Metering, Average Metering |
|
Anti-flicker |
Auto/50Hz/60Hz |
|
|
4K: 3840x2160 30fps, |
1080P:1920x1080 30fps |
Video Resolution |
720P: 1280x720 60fps |
|
|
|
|
Video Format |
MP4/MOV |
|
OTA Upgrade |
Support |
|
Document Download |
Support |
|
Format SD Card |
Support |
|
Reset Camera Settings |
Support |
|
Downloading Speed of Photos |
More than 2Mb/s |
|
WiFi ActivatedTime |
15s ( FCC ), 75s( CE ) |
|
Latency (depending on environmental |
Less than 200ms |
|
conditions and mobile device) |
|
|
|
|
06
OVERVIEW
01
02
03
04
Aircraft
01 Propellers
02 Power Button
03 Battery
04 Battery Lock
01
02 |
03 |
04
05 06 07

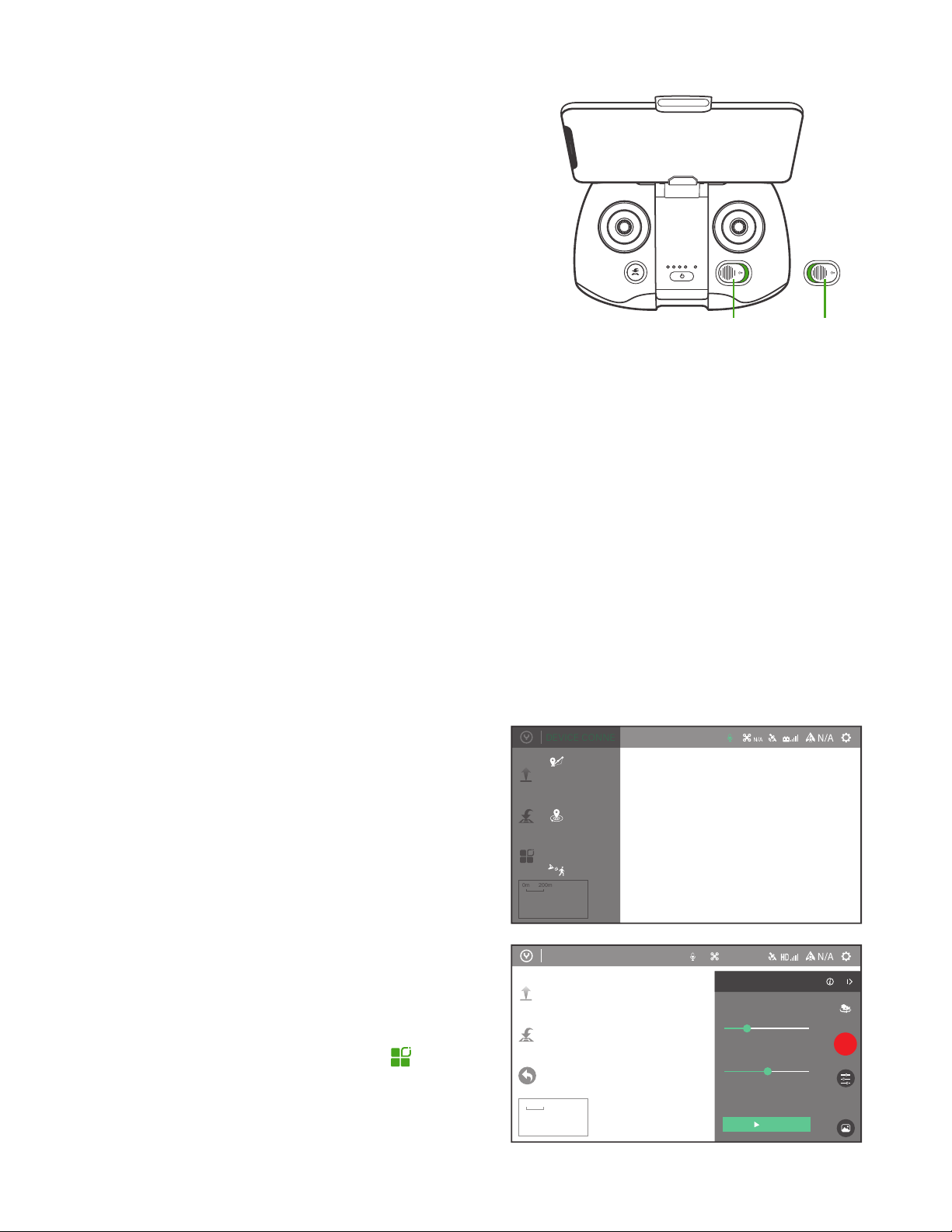

Remote Controller
01 Phone Holder
02 Short press the left joystick: Customizable Joystick
03 Short press the right joystick: Brake
04 Control Sticks
05 RTH Button
06 Power Button
07 Mode Switch
05 06 |
07 |
05 USBType-C
06 Micro SD Card Slot
07 Camera
08 |
09 |
10 |
11 |
12 |
13 |
08 Camera Custom Settings Slider
09 Photo Button
10 Standard USB Port
11USBType-C
12Video Recording Button
13CameraTilt Control Slider
07
CHARGINGTHE REMOTE CONTROLLER
Use USBType-C to charge, approx. 2.5 hours.
PREPARINGTHE AIRCRAFT
STEP 1: Unfold the Rear Arms |
STEP 2: Unfold the Front Arms |
NOTICE: All arms and propellers must be unfolded before powering on.
NOTICE: To fold the Mantis G reverse the unfolding instructions.
CHARGINGTHE FLIGHT BATTERY
2
STEP 1: Press the battery locking button and remove the battery.
STEP 2: Plug the flight battery to the supplied charger as shown below.
1
Solid Green:
Power Standby
Green Flickering:
Charging
Green Flashing:
Error
Solid Green:
Charge Completed
The LED indicator is solid green when the charger is powered on and ready to charge. The LED indicator flickers green while the battery is charging ( charging time is approximately 1 hour ), and turns solid green once charging is complete.
08
STEP 3: Push the flight battery into the aircraft until hearing a 'click'.
SD CARD INSTALLATION
NOTICE: Before using the Mantis G, a Micro SD card should be inserted into the camera.
NOTICE: Do not move the Micro SD card from the Mantis G when it is shooting.
STEP 1: Slide the memory card into the card slot according to the direction of the arrow.
STEP 2: When fully inserted, the card clicks into place.To remove the card, place your fingernail against the edge of the memory card and lightly press it further into the Micro SD card slot.The card springs out far enough to be removed.
CAUTION: Keep the memory card out of the reach of children to prevent swallowing.
WARNING: After inserting the Micro SD card in the computer, be sure to safely eject the SD card properly so it does not corrupt the card. If you directly pull out the Micro SD card from the computer and plug it into the aircraft, the aircraft with this Micro SD card won’t support the digital video downlink, and the photo taking and video recording function can not be performed.
INSTALLINGTHE SMART DEVICE
STEP 1: |
STEP 2: |
Pull out the smart |
Put your smart phone |
phone holder from |
on the holder. |
the remote controller. |
|
STEP 3:
Connect the smart phone with the remote controller through the iPhone or Android cable.
POWRING ON/OFF
Press the power button and hold for two seconds to power on/off the remote controller and the Mantis G in turn. When the main LED flashes blue slowly and emits a rising tone, the aircraft completes its initialization and boots up successfully.

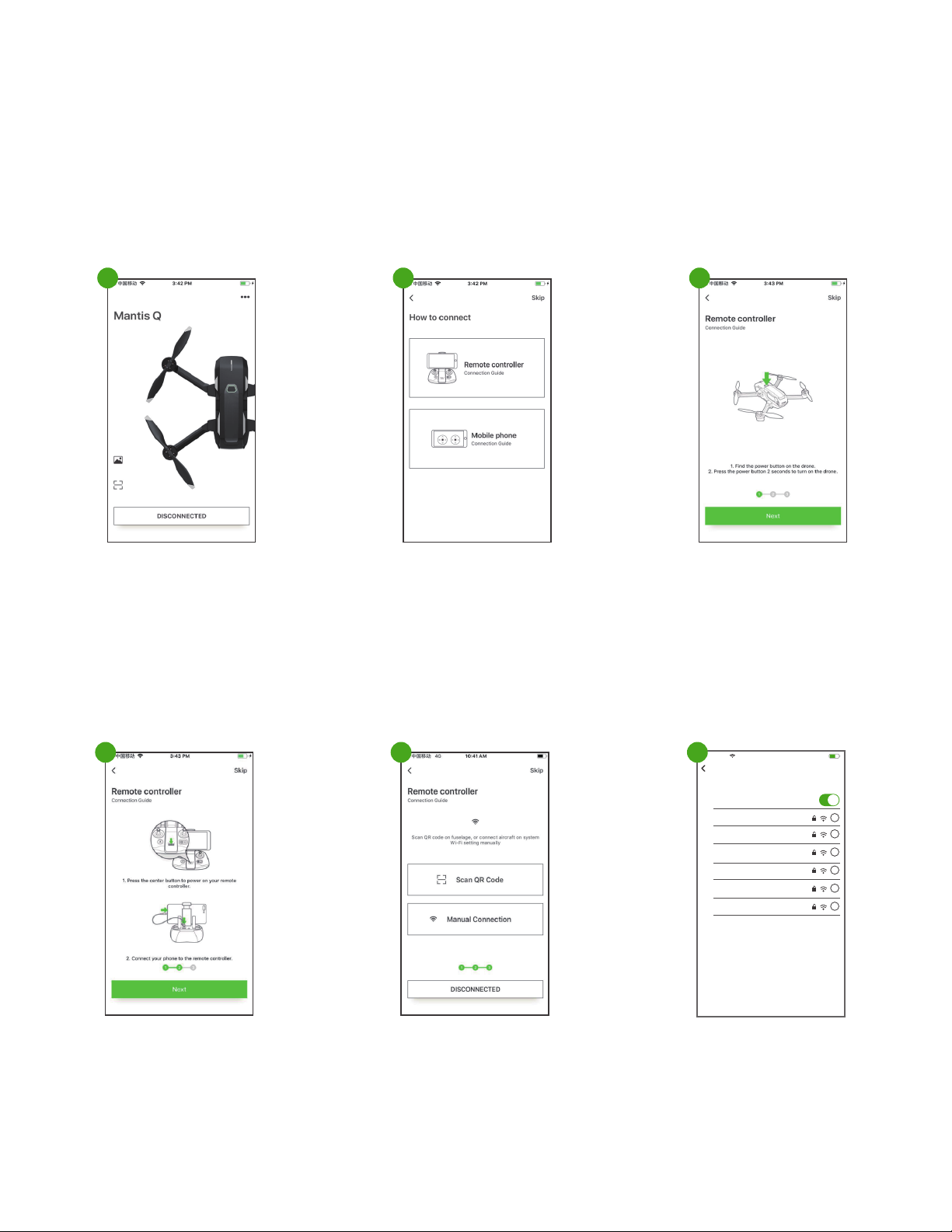

Power on your smart phone, scan the QR code and download theYuneec Pilot APP on your smart phone.
09
